Programacion cnc material de disco

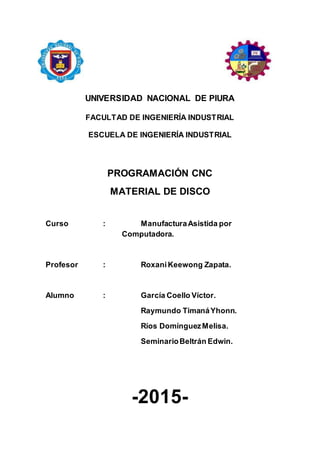

- 1. UNIVERSIDAD NACIONAL DEPIURA FACULTAD DE INGENIERÍA INDUSTRIAL ESCUELA DE INGENIERÍA INDUSTRIAL PROGRAMACIÓN CNC MATERIAL DE DISCO Curso : ManufacturaAsistida por Computadora. Profesor : RoxaniKeewong Zapata. Alumno : García Coello Víctor. Raymundo TimanáYhonn. Ríos DomínguezMelisa. SeminarioBeltrán Edwin. -2015-
- 2. MATERIAL DE DISCO Dibujoen AutoCAD: ISOMETRICO:
- 3. PLANOS DEL MATERIALDISCO: COORDENADAS CIRCULO INTERNO: PARTE1(ARRIBA): Punto COORDINADAS X Y 1(Inicio) 3.19 2.01 2 2.57 2.01 Punto COORDINADAS X Y A 3.91 2.22 B 4.00 2.34
- 4. PARTE1(ABAJO): PUNTO COORDENADAS X Y A12.88 0.70 A2 3.13 0.64 A3 3.11 0.72 A4 3.36 0.70 A5 3.33 0.78 A6 3.58 0.81 A7 3.54 0.87 A8 3.78 0.95 A9 3.73 1.00 A10 3.95 1.12 A11 3.89 1.17 A12 4.09 1.32 A13 4.02 1.35 A14 4.19 1.54 A15 4.12 1.56 A16 4.26 1.77 A17 4.18 1.78 A18 4.28 2.01 A19 4.20 2.01 A20 4.26 2.26 A21 4.18 2.24 A22 4.19 2.49 A23 4.12 2.46 A24 4.09 2.71 A25 4.02 2.67 A26 3.95 2.91 A27 3.89 2.86 A28 3.78 3.08 C 3.21 3.13 D 3.09 3.04 E 3.14 2.43 F 3.30 2.27 Punto COORDINADAS X Y H 3.91 1.81 I 4.0 1.69 J 3.21 0.9 K 3.09 0.98 L 3.14 1.60 M 3.30 1.75

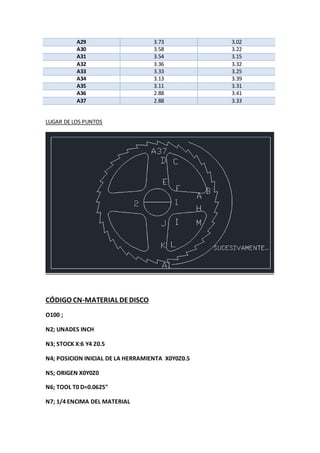

- 5. A29 3.73 3.02 A303.58 3.22 A31 3.54 3.15 A32 3.36 3.32 A33 3.33 3.25 A34 3.13 3.39 A35 3.11 3.31 A36 2.88 3.41 A37 2.88 3.33 LUGAR DE LOS PUNTOS CÓDIGO CN-MATERIAL DEDISCO O100 ; N2; UNADES INCH N3; STOCK X:6 Y4 Z0.5 N4; POSICION INICIAL DE LA HERRAMIENTA X0Y0Z0.5 N5; ORIGEN X0Y0Z0 N6; TOOL T0 D=0.0625" N7; 1/4 ENCIMA DEL MATERIAL

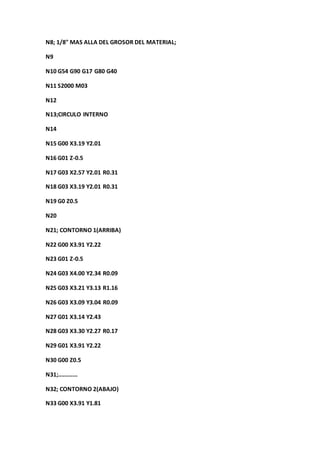

- 6. N8; 1/8" MASALLA DEL GROSOR DEL MATERIAL; N9 N10 G54 G90 G17 G80 G40 N11 S2000 M03 N12 N13;CIRCULO INTERNO N14 N15 G00 X3.19 Y2.01 N16 G01 Z-0.5 N17 G03 X2.57 Y2.01 R0.31 N18 G03 X3.19 Y2.01 R0.31 N19 G0 Z0.5 N20 N21; CONTORNO 1(ARRIBA) N22 G00 X3.91 Y2.22 N23 G01 Z-0.5 N24 G03 X4.00 Y2.34 R0.09 N25 G03 X3.21 Y3.13 R1.16 N26 G03 X3.09 Y3.04 R0.09 N27 G01 X3.14 Y2.43 N28 G03 X3.30 Y2.27 R0.17 N29 G01 X3.91 Y2.22 N30 G00 Z0.5 N31;............ N32; CONTORNO 2(ABAJO) N33 G00 X3.91 Y1.81

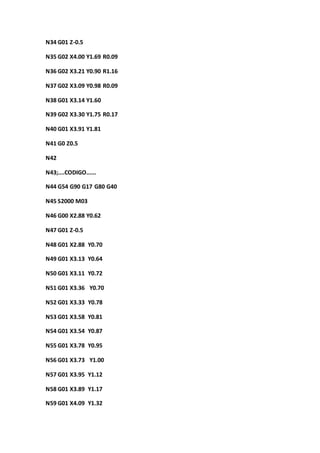

- 7. N34 G01 Z-0.5 N35G02 X4.00 Y1.69 R0.09 N36 G02 X3.21 Y0.90 R1.16 N37 G02 X3.09 Y0.98 R0.09 N38 G01 X3.14 Y1.60 N39 G02 X3.30 Y1.75 R0.17 N40 G01 X3.91 Y1.81 N41 G0 Z0.5 N42 N43;....CODIGO...... N44 G54 G90 G17 G80 G40 N45 S2000 M03 N46 G00 X2.88 Y0.62 N47 G01 Z-0.5 N48 G01 X2.88 Y0.70 N49 G01 X3.13 Y0.64 N50 G01 X3.11 Y0.72 N51 G01 X3.36 Y0.70 N52 G01 X3.33 Y0.78 N53 G01 X3.58 Y0.81 N54 G01 X3.54 Y0.87 N55 G01 X3.78 Y0.95 N56 G01 X3.73 Y1.00 N57 G01 X3.95 Y1.12 N58 G01 X3.89 Y1.17 N59 G01 X4.09 Y1.32

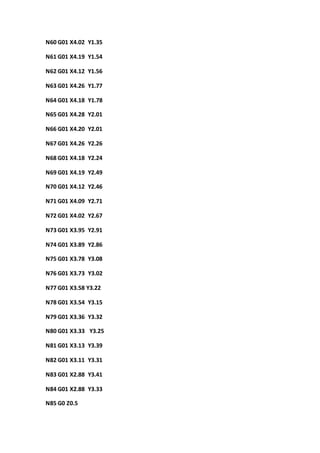

- 8. N60 G01 X4.02Y1.35 N61 G01 X4.19 Y1.54 N62 G01 X4.12 Y1.56 N63 G01 X4.26 Y1.77 N64 G01 X4.18 Y1.78 N65 G01 X4.28 Y2.01 N66 G01 X4.20 Y2.01 N67 G01 X4.26 Y2.26 N68 G01 X4.18 Y2.24 N69 G01 X4.19 Y2.49 N70 G01 X4.12 Y2.46 N71 G01 X4.09 Y2.71 N72 G01 X4.02 Y2.67 N73 G01 X3.95 Y2.91 N74 G01 X3.89 Y2.86 N75 G01 X3.78 Y3.08 N76 G01 X3.73 Y3.02 N77 G01 X3.58 Y3.22 N78 G01 X3.54 Y3.15 N79 G01 X3.36 Y3.32 N80 G01 X3.33 Y3.25 N81 G01 X3.13 Y3.39 N82 G01 X3.11 Y3.31 N83 G01 X2.88 Y3.41 N84 G01 X2.88 Y3.33 N85 G0 Z0.5

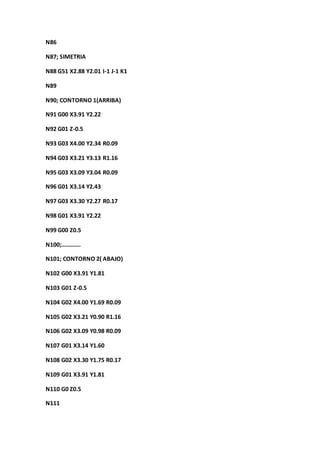

- 9. N86 N87; SIMETRIA N88 G51X2.88 Y2.01 I-1 J-1 K1 N89 N90; CONTORNO 1(ARRIBA) N91 G00 X3.91 Y2.22 N92 G01 Z-0.5 N93 G03 X4.00 Y2.34 R0.09 N94 G03 X3.21 Y3.13 R1.16 N95 G03 X3.09 Y3.04 R0.09 N96 G01 X3.14 Y2.43 N97 G03 X3.30 Y2.27 R0.17 N98 G01 X3.91 Y2.22 N99 G00 Z0.5 N100;............ N101; CONTORNO 2( ABAJO) N102 G00 X3.91 Y1.81 N103 G01 Z-0.5 N104 G02 X4.00 Y1.69 R0.09 N105 G02 X3.21 Y0.90 R1.16 N106 G02 X3.09 Y0.98 R0.09 N107 G01 X3.14 Y1.60 N108 G02 X3.30 Y1.75 R0.17 N109 G01 X3.91 Y1.81 N110 G0 Z0.5 N111

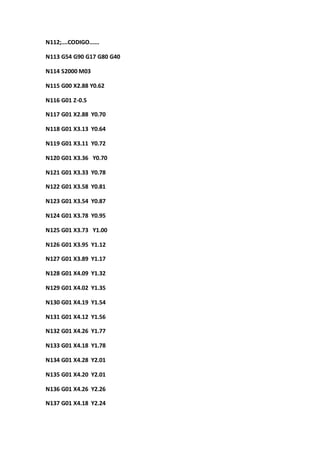

- 10. N112;....CODIGO...... N113 G54 G90G17 G80 G40 N114 S2000 M03 N115 G00 X2.88 Y0.62 N116 G01 Z-0.5 N117 G01 X2.88 Y0.70 N118 G01 X3.13 Y0.64 N119 G01 X3.11 Y0.72 N120 G01 X3.36 Y0.70 N121 G01 X3.33 Y0.78 N122 G01 X3.58 Y0.81 N123 G01 X3.54 Y0.87 N124 G01 X3.78 Y0.95 N125 G01 X3.73 Y1.00 N126 G01 X3.95 Y1.12 N127 G01 X3.89 Y1.17 N128 G01 X4.09 Y1.32 N129 G01 X4.02 Y1.35 N130 G01 X4.19 Y1.54 N131 G01 X4.12 Y1.56 N132 G01 X4.26 Y1.77 N133 G01 X4.18 Y1.78 N134 G01 X4.28 Y2.01 N135 G01 X4.20 Y2.01 N136 G01 X4.26 Y2.26 N137 G01 X4.18 Y2.24

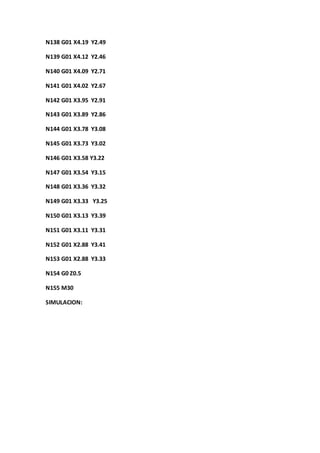

- 11. N138 G01 X4.19Y2.49 N139 G01 X4.12 Y2.46 N140 G01 X4.09 Y2.71 N141 G01 X4.02 Y2.67 N142 G01 X3.95 Y2.91 N143 G01 X3.89 Y2.86 N144 G01 X3.78 Y3.08 N145 G01 X3.73 Y3.02 N146 G01 X3.58 Y3.22 N147 G01 X3.54 Y3.15 N148 G01 X3.36 Y3.32 N149 G01 X3.33 Y3.25 N150 G01 X3.13 Y3.39 N151 G01 X3.11 Y3.31 N152 G01 X2.88 Y3.41 N153 G01 X2.88 Y3.33 N154 G0 Z0.5 N155 M30 SIMULACION:
