Munich Datageeks Meetup, 16.12.2025,: Harald Störrle. Abstract: Procedures in hospitals require complex logistics involving dozens of stakeholders and multiple IT systems. Despite best efforts by experienced experts, deviations from the operation schedule occur time and again resulting in delays. If push comes to shove, surgeries have to be postponed which impacts both patients and medical staff, and may result in significant costs for the hospital, stress for medical staff, and worse medical outcomes. Using a case study from the University Hospital Munich (Klinikum der LMU), we demonstrate how such complex processes can be analyzed through a smart combination of quantitative and qualitative methods. In particular, we apply business process modeling, process mining, data analysis, and interactive visualizations to achieve sustainable process improvements.
Process Transparency Through Data Mining
- 1. QAware The Futureware Company Weare there when success is non-negotiable. We deliver. Guaranteed.
- 2. Process Transparency Through DataMining A Hospital Case Study Harald Störrle, QAware DataGeeks Meetup 2025-12-16

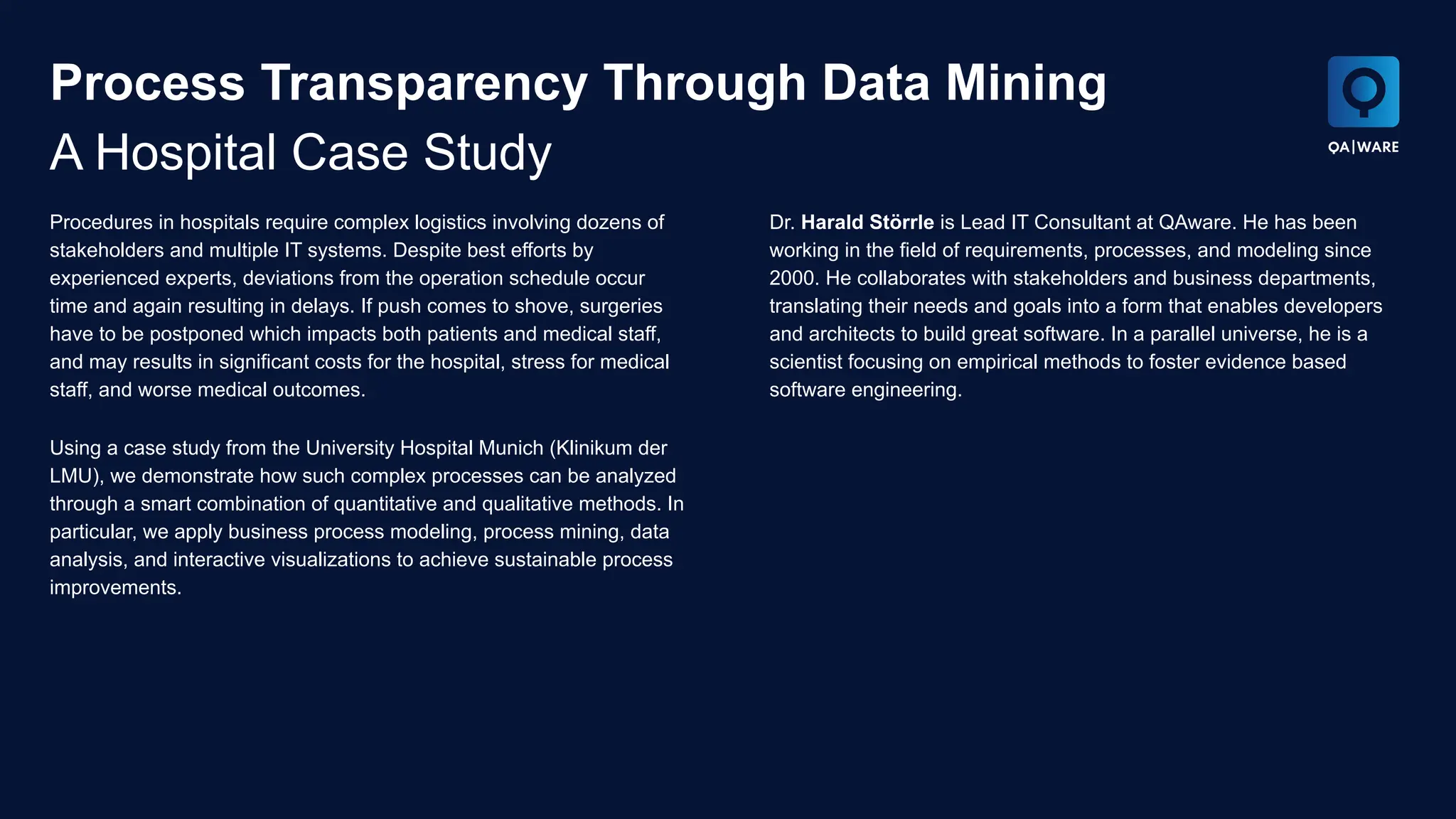

- 3. Process Transparency ThroughData Mining A Hospital Case Study Procedures in hospitals require complex logistics involving dozens of stakeholders and multiple IT systems. Despite best efforts by experienced experts, deviations from the operation schedule occur time and again resulting in delays. If push comes to shove, surgeries have to be postponed which impacts both patients and medical staff, and may results in significant costs for the hospital, stress for medical staff, and worse medical outcomes. Using a case study from the University Hospital Munich (Klinikum der LMU), we demonstrate how such complex processes can be analyzed through a smart combination of quantitative and qualitative methods. In particular, we apply business process modeling, process mining, data analysis, and interactive visualizations to achieve sustainable process improvements. Dr. Harald Störrle is Lead IT Consultant at QAware. He has been working in the field of requirements, processes, and modeling since 2000. He collaborates with stakeholders and business departments, translating their needs and goals into a form that enables developers and architects to build great software. In a parallel universe, he is a scientist focusing on empirical methods to foster evidence based software engineering.

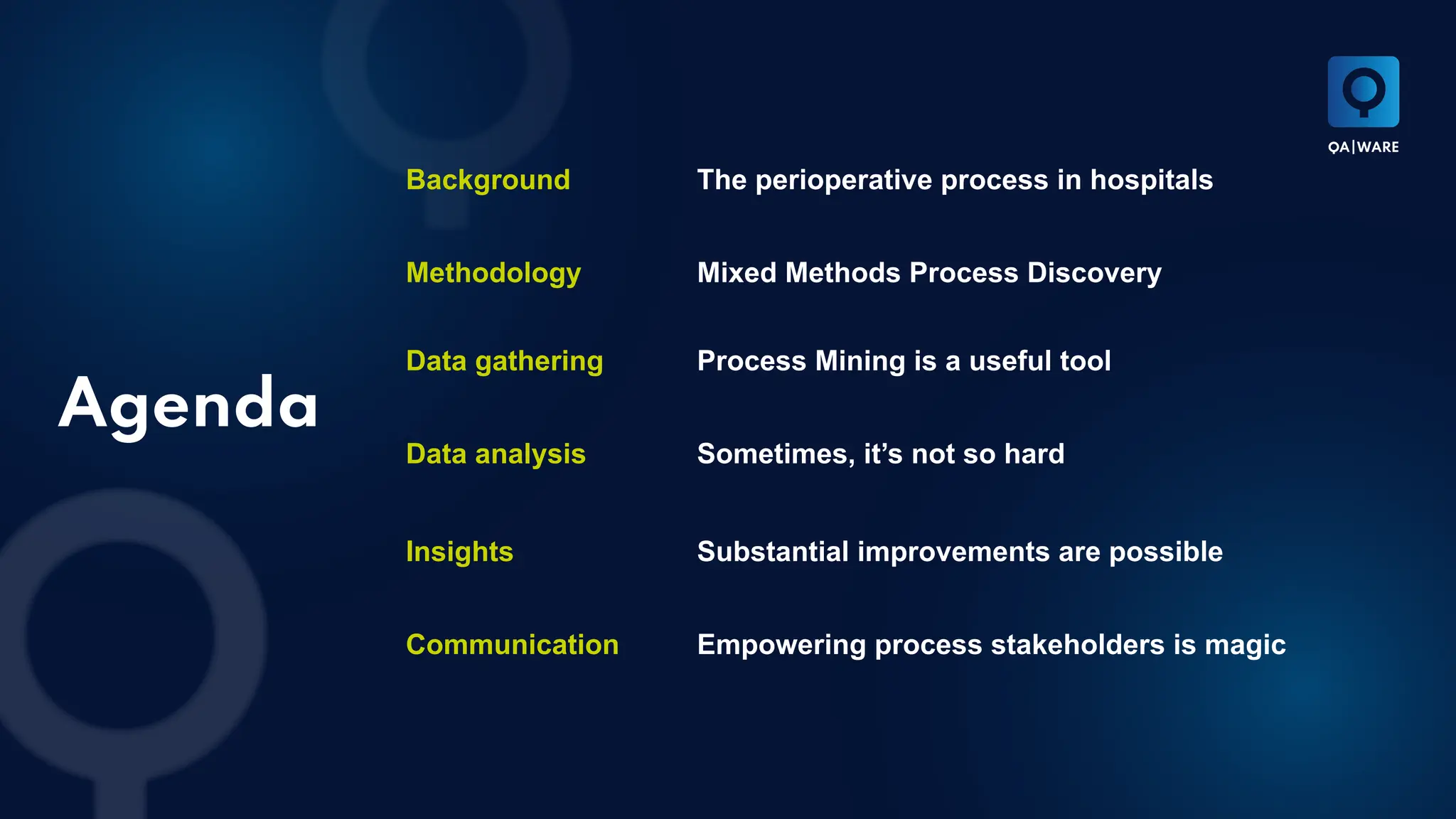

- 4. Agenda Background The perioperativeprocess in hospitals Methodology Mixed Methods Process Discovery Data gathering Process Mining is a useful tool Insights Substantial improvements are possible Communication Empowering process stakeholders is magic Data analysis Sometimes, it’s not so hard
- 6. We are therewhere success is a must. We deliver. Guaranteed. Key data 250 employees 35 M€ Turnover Munich, Germany Mainz Darmstadt Rosenheim Successful in the most demanding projects for 20 years Top provider: NPS 100 Top employer: 97% say: "QAware is a a very good place to work" VC subsidiary company Who we are We are an independent consulting and project house for customized software solutions and transformative technologies We develop and revitalize futureware: software that moves. 1. We take responsibility and offer a contractually fixed guarantee of success 2. We reduce complexity by acting comprehensively: We advise, manage and develop 3. We don't just develop software, we transform companies with software Business critical software Differentiating solutions Transformative Technology 6
- 7. Process Transparency Through DataMining A Hospital Case Study Harald Störrle, QAware DataGeeks Meetup 2025-12-16

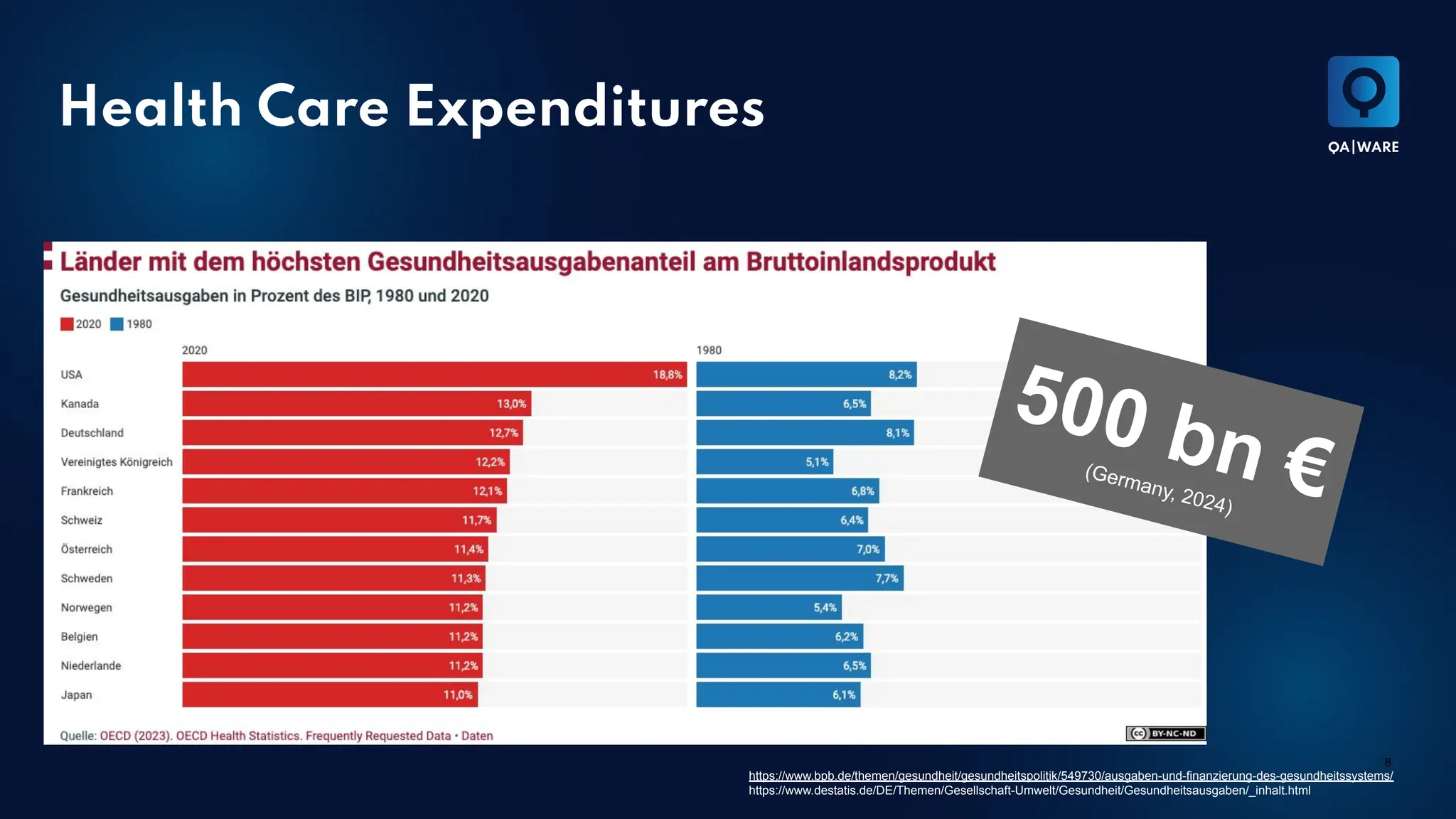

- 8.

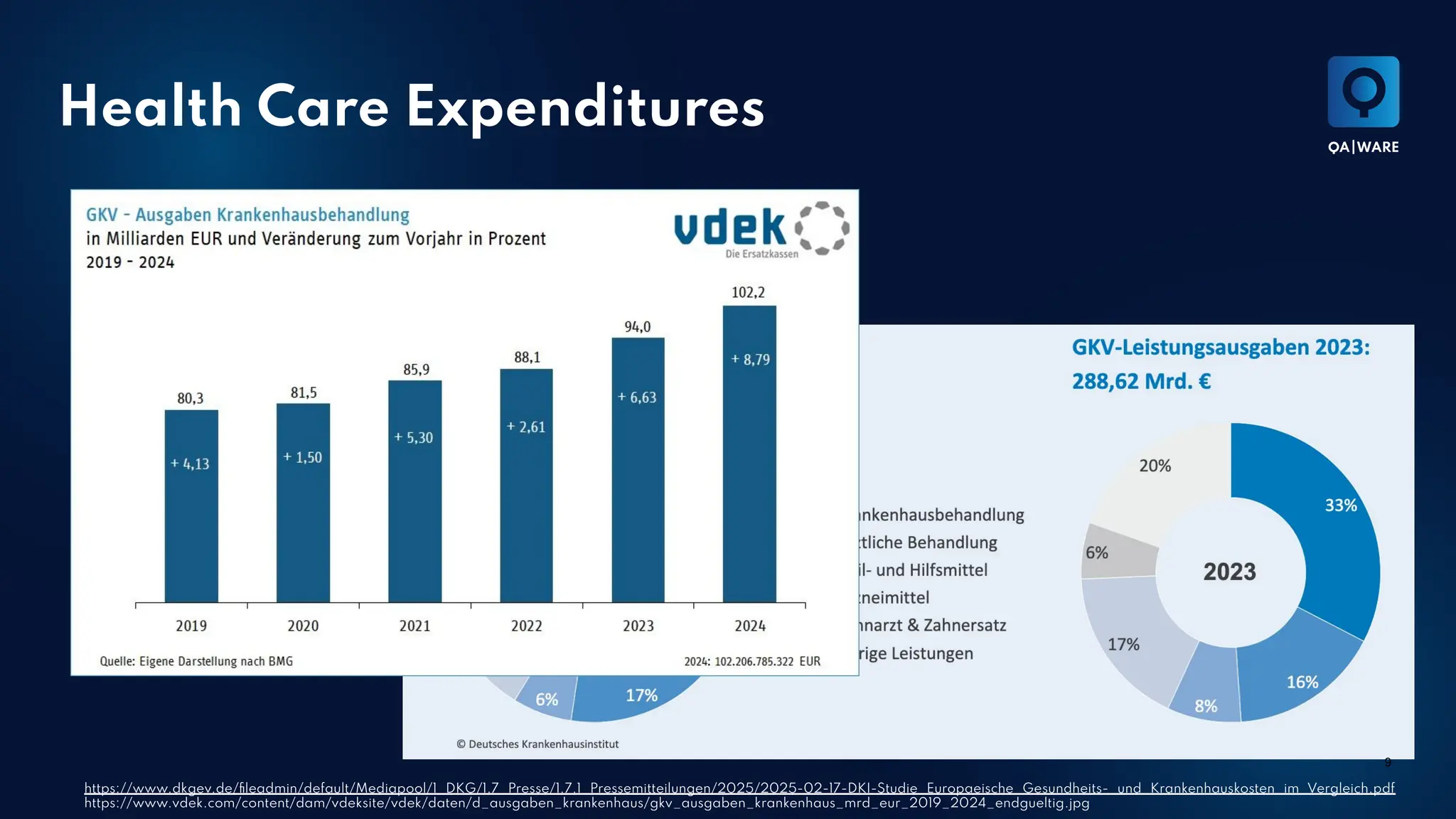

- 9.

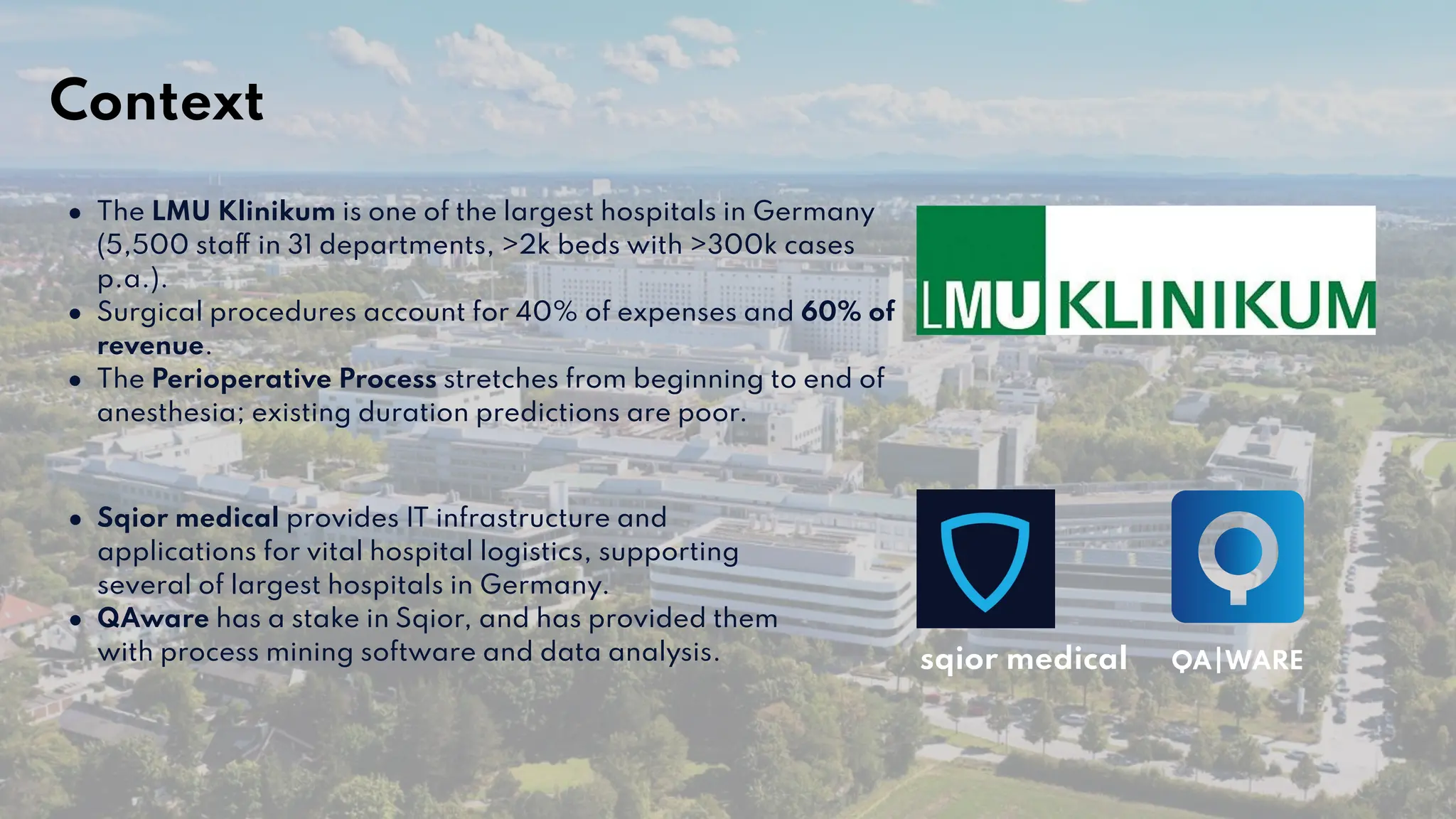

- 10. ● The LMUKlinikum is one of the largest hospitals in Germany (5,500 staff in 31 departments, >2k beds with >300k cases p.a.). ● Surgical procedures account for 40% of expenses and 60% of revenue. ● The Perioperative Process stretches from beginning to end of anesthesia; existing duration predictions are poor. ● Sqior medical provides IT infrastructure and applications for vital hospital logistics, supporting several of largest hospitals in Germany. ● QAware has a stake in Sqior, and has provided them with process mining software and data analysis. sqior medical Context

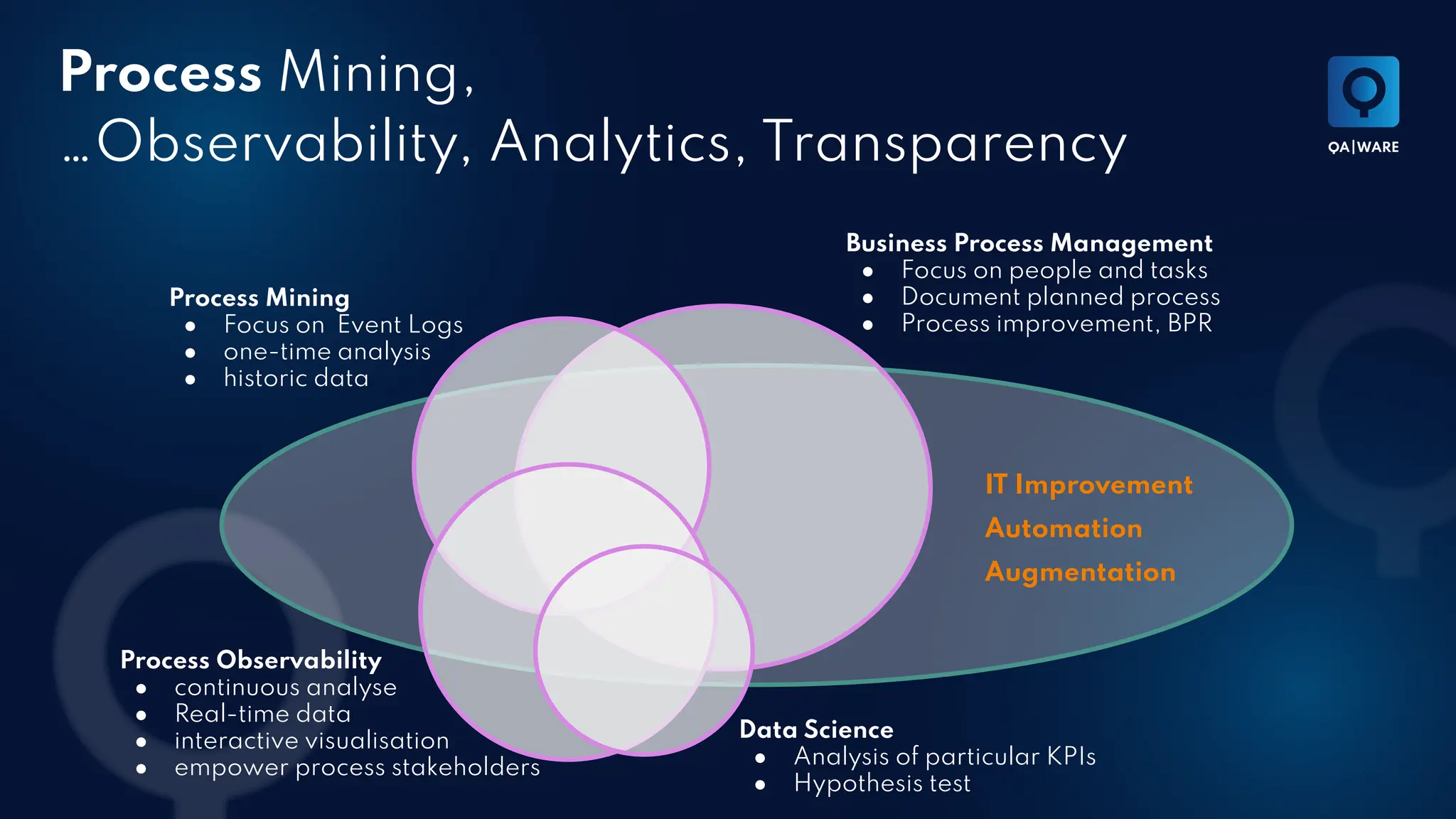

- 11. IT Improvement Automation Augmentation Business ProcessManagement ● Focus on people and tasks ● Document planned process ● Process improvement, BPR Process Mining, …Observability, Analytics, Transparency Process Mining ● Focus on Event Logs ● one-time analysis ● historic data Process Observability ● continuous analyse ● Real-time data ● interactive visualisation ● empower process stakeholders Data Science ● Analysis of particular KPIs ● Hypothesis test

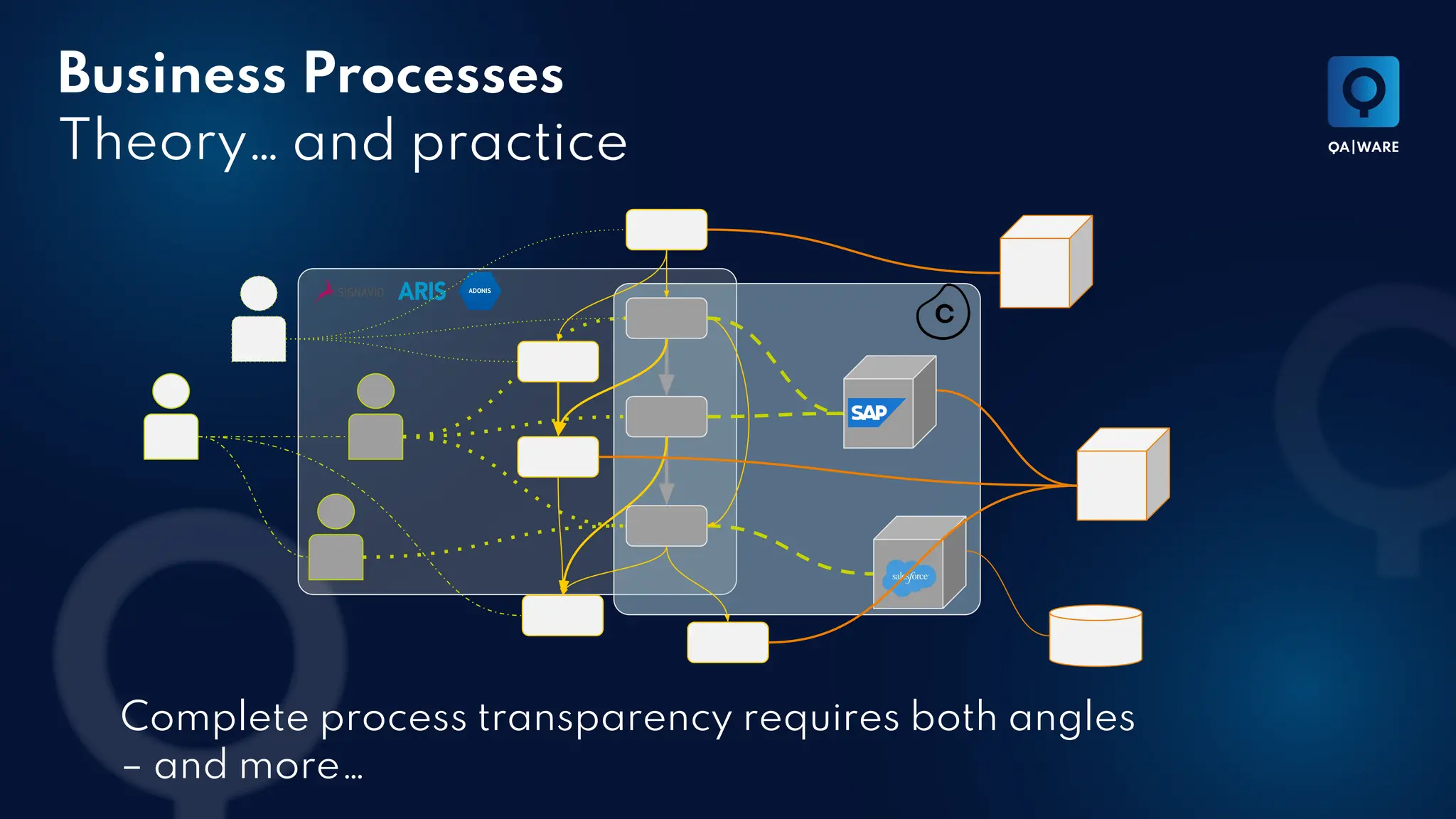

- 12. Business Processes Theory… andpractice Complete process transparency requires both angles – and more…

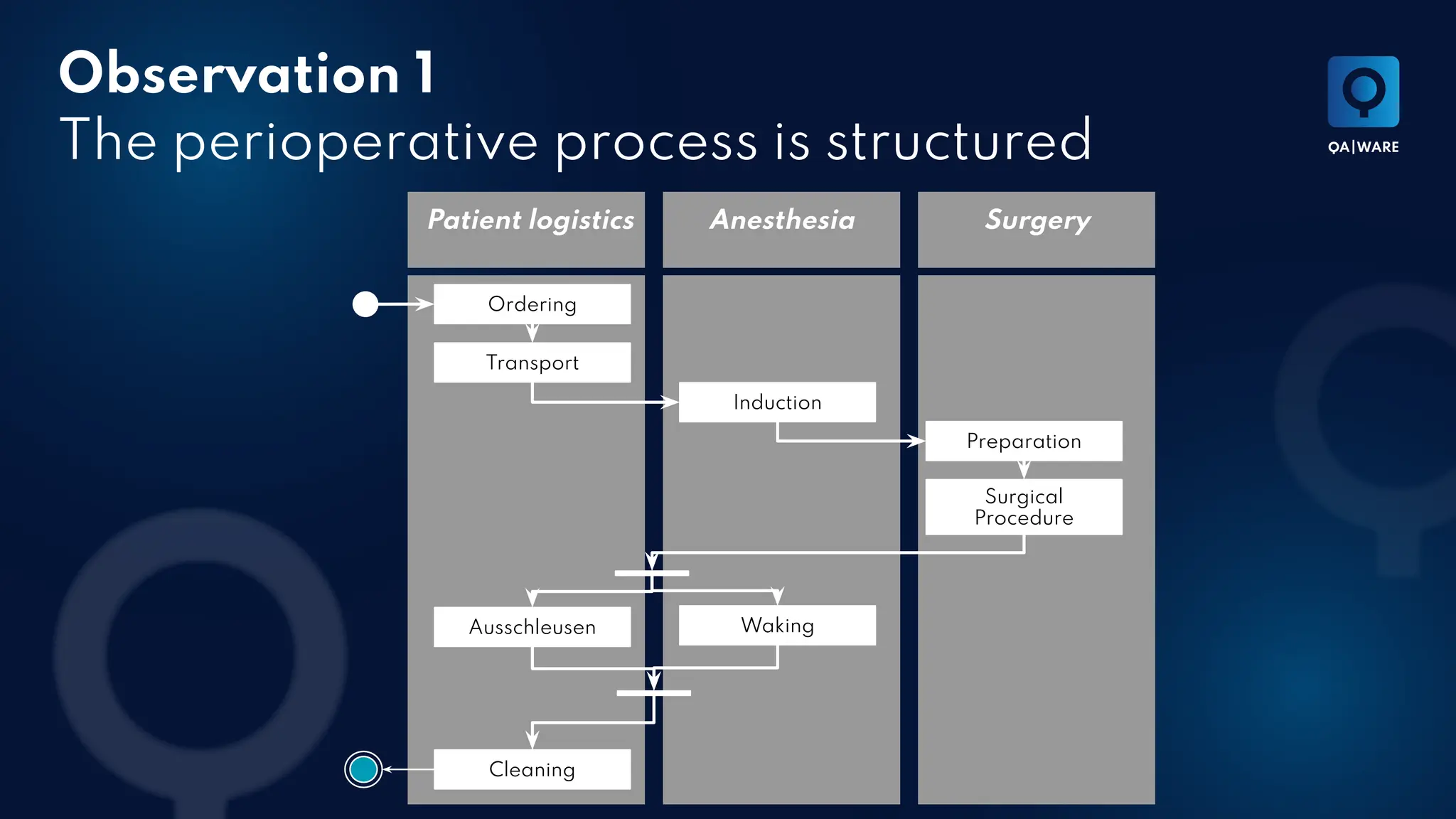

- 13. Anesthesia Patient logistics Surgery Observation1 The perioperative process is structured Ordering Transport Induction Preparation Surgical Procedure Waking Cleaning Ausschleusen

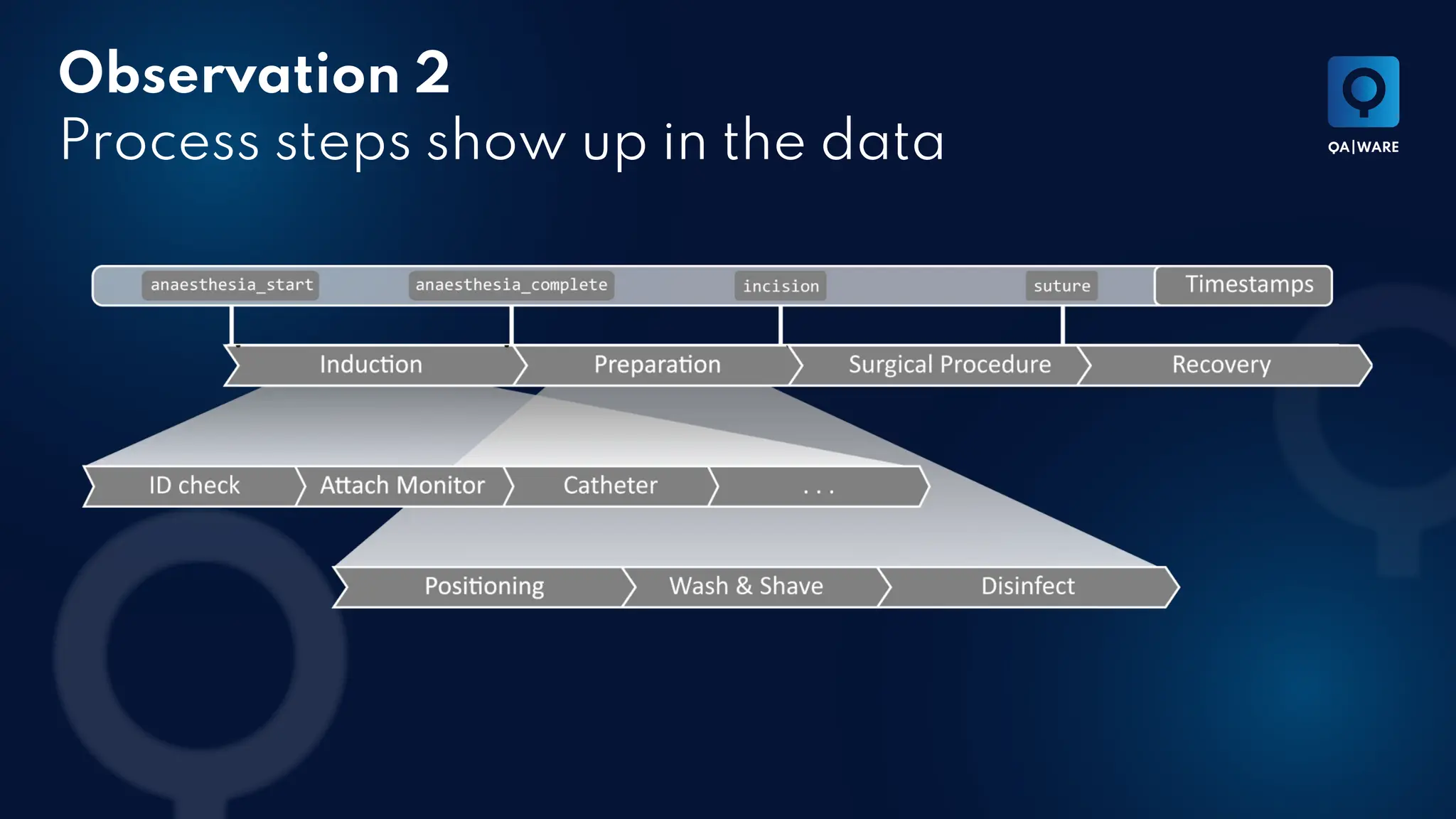

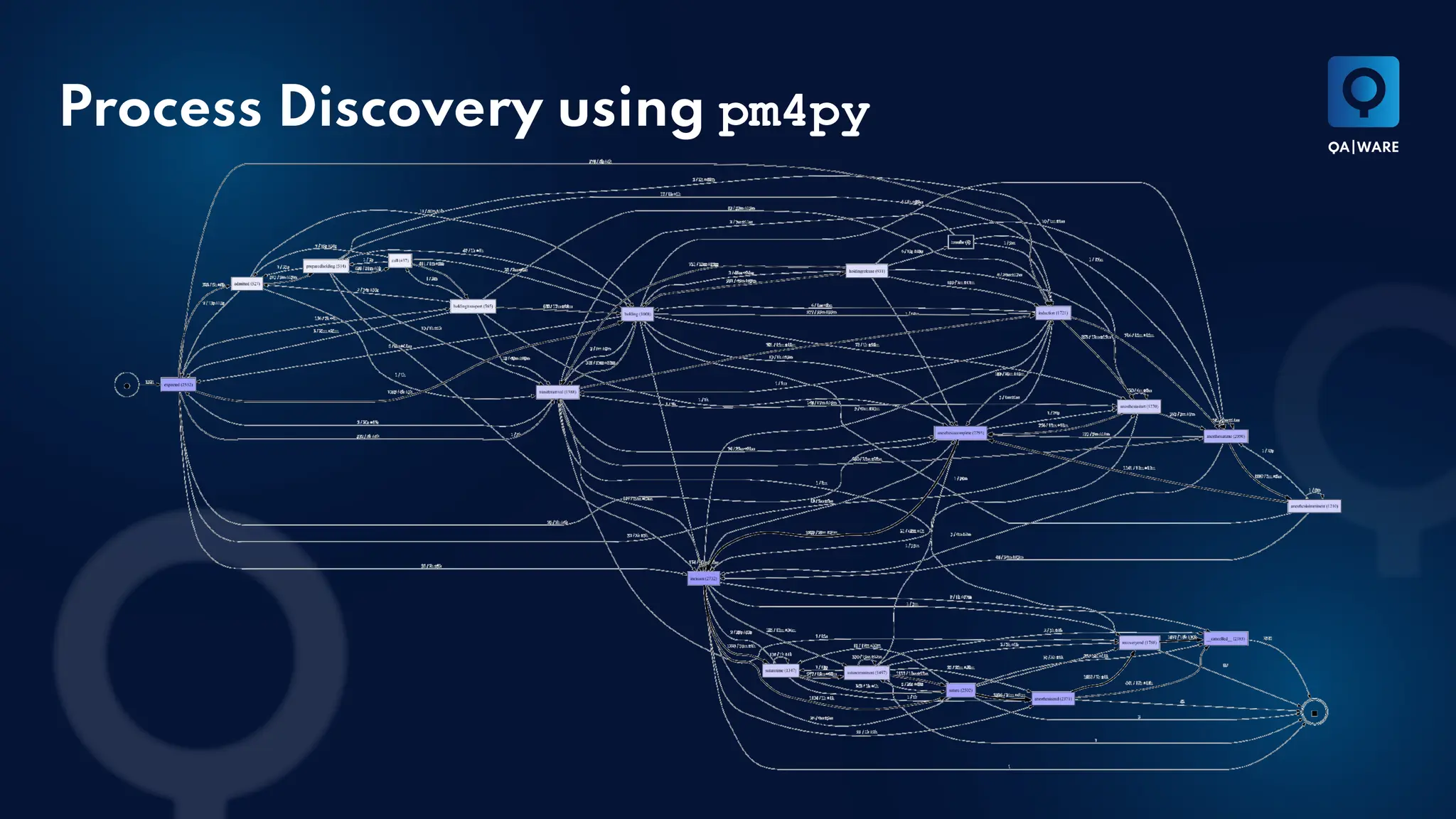

- 14. Observation 2 Process stepsshow up in the data

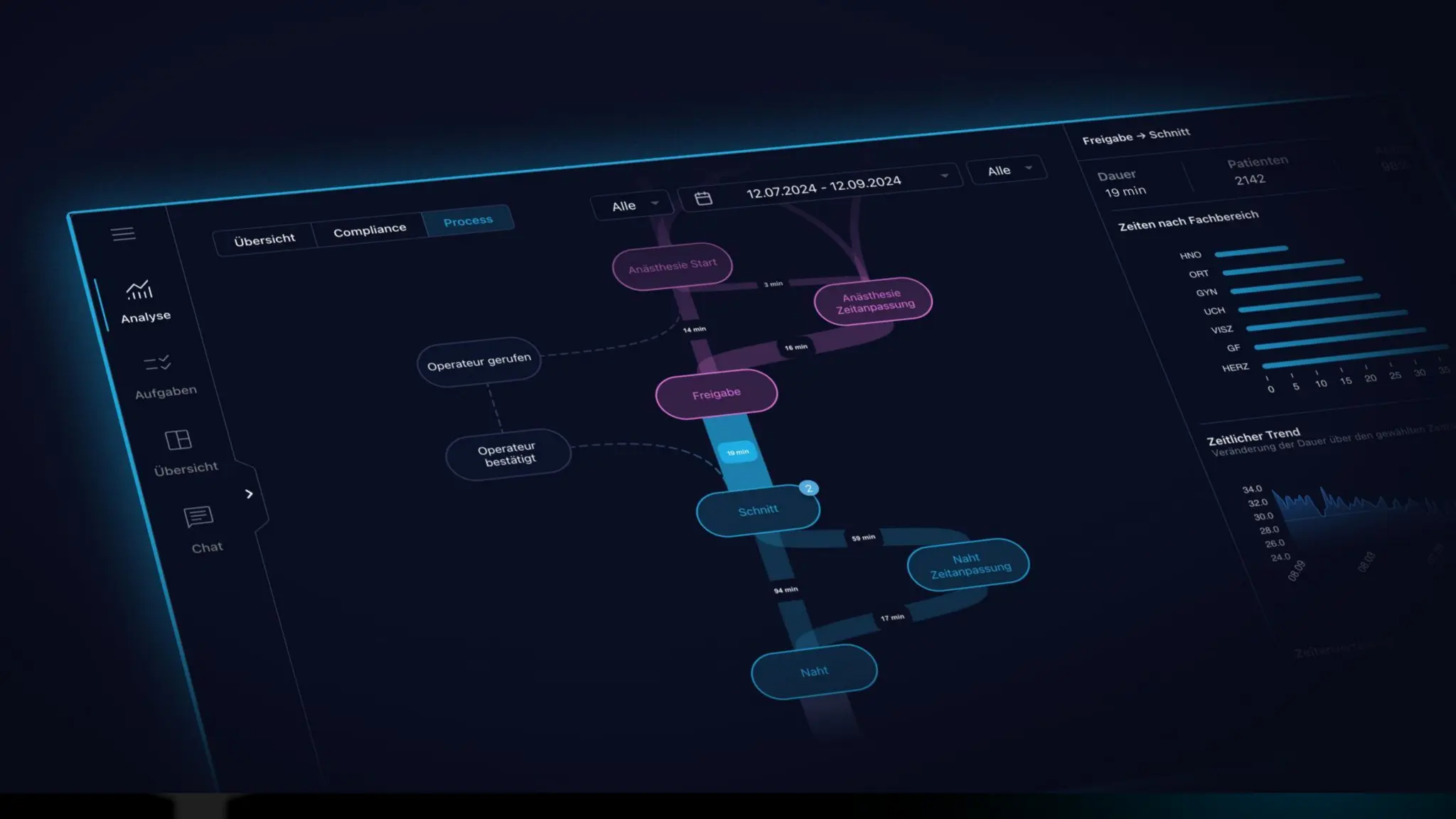

- 15.

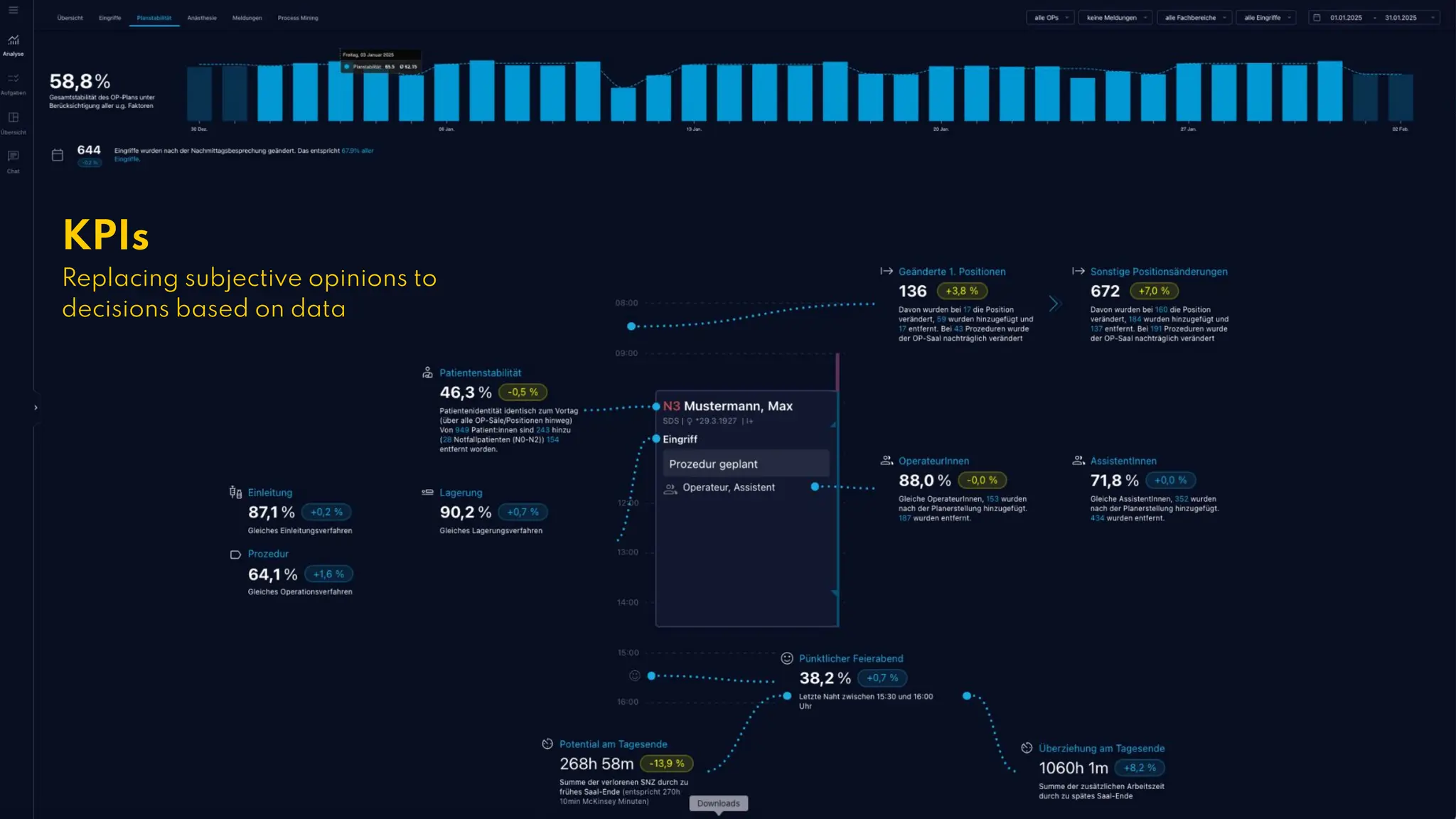

- 17. Folienvarianten KPIs Replacing subjective opinionsto decisions based on data

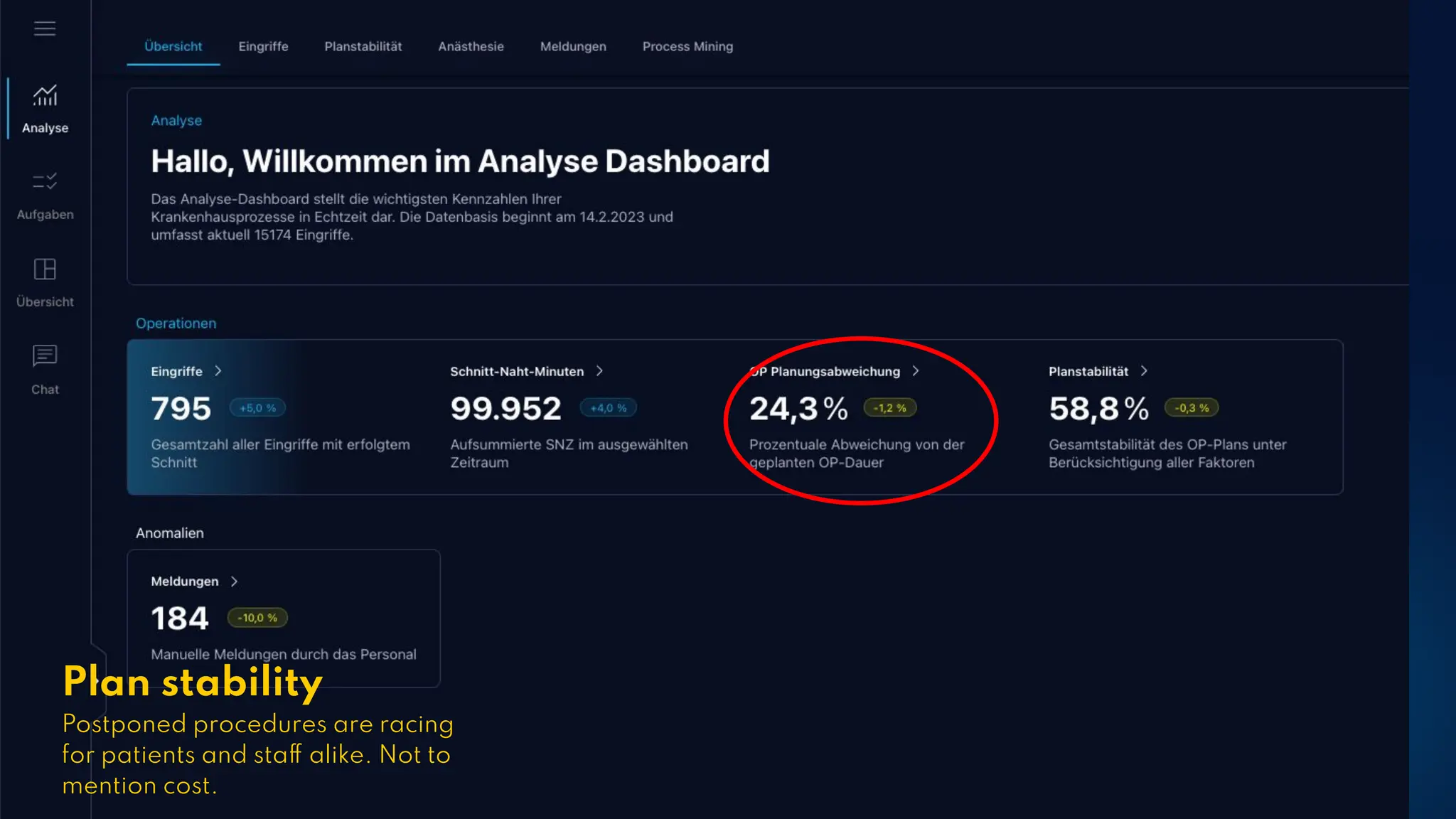

- 18. Folienvarianten Plan stability Postponed proceduresare racing for patients and staff alike. Not to mention cost.

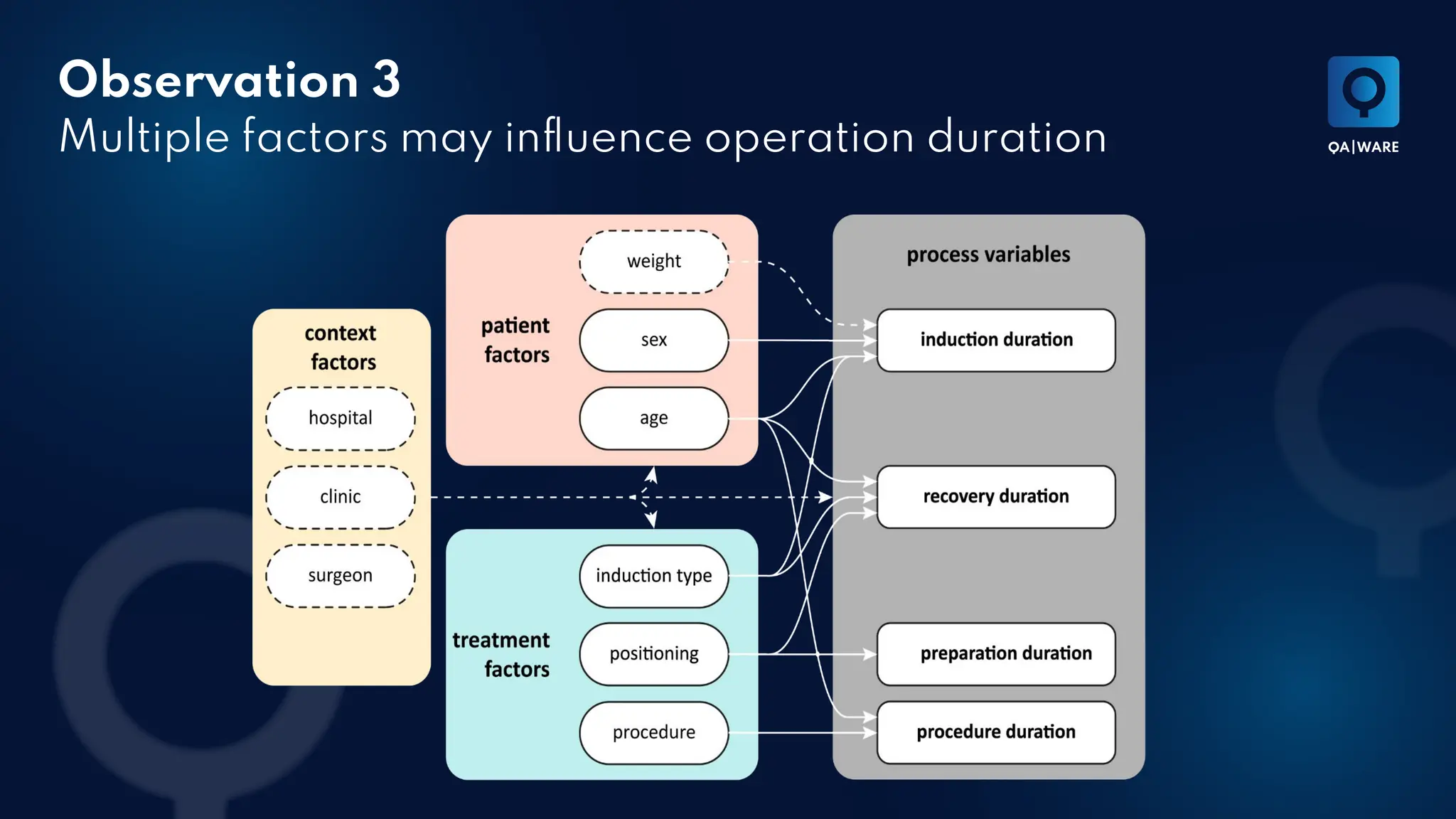

- 19. Observation 3 Multiple factorsmay influence operation duration

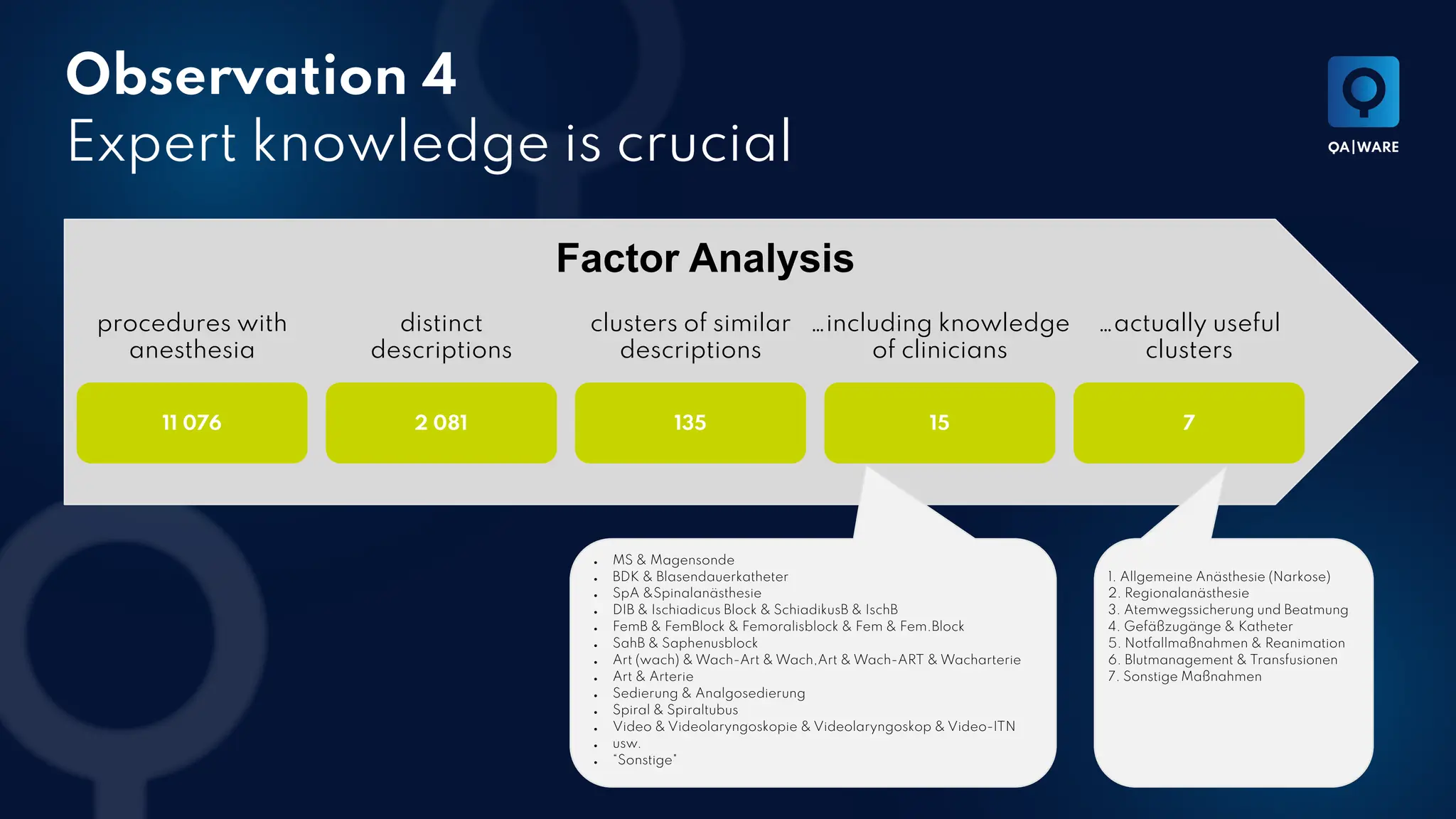

- 20. Folienvarianten Observation 4 Expert knowledgeis crucial Factor Analysis 11 076 2 081 135 procedures with anesthesia distinct descriptions clusters of similar descriptions 15 …including knowledge of clinicians ● MS & Magensonde ● BDK & Blasendauerkatheter ● SpA &Spinalanästhesie ● DIB & Ischiadicus Block & SchiadikusB & IschB ● FemB & FemBlock & Femoralisblock & Fem & Fem.Block ● SahB & Saphenusblock ● Art (wach) & Wach-Art & Wach,Art & Wach-ART & Wacharterie ● Art & Arterie ● Sedierung & Analgosedierung ● Spiral & Spiraltubus ● Video & Videolaryngoskopie & Videolaryngoskop & Video-ITN ● usw. ● “Sonstige" 7 1. Allgemeine Anästhesie (Narkose) 2. Regionalanästhesie 3. Atemwegssicherung und Beatmung 4. Gefäßzugänge & Katheter 5. Notfallmaßnahmen & Reanimation 6. Blutmanagement & Transfusionen 7. Sonstige Maßnahmen …actually useful clusters

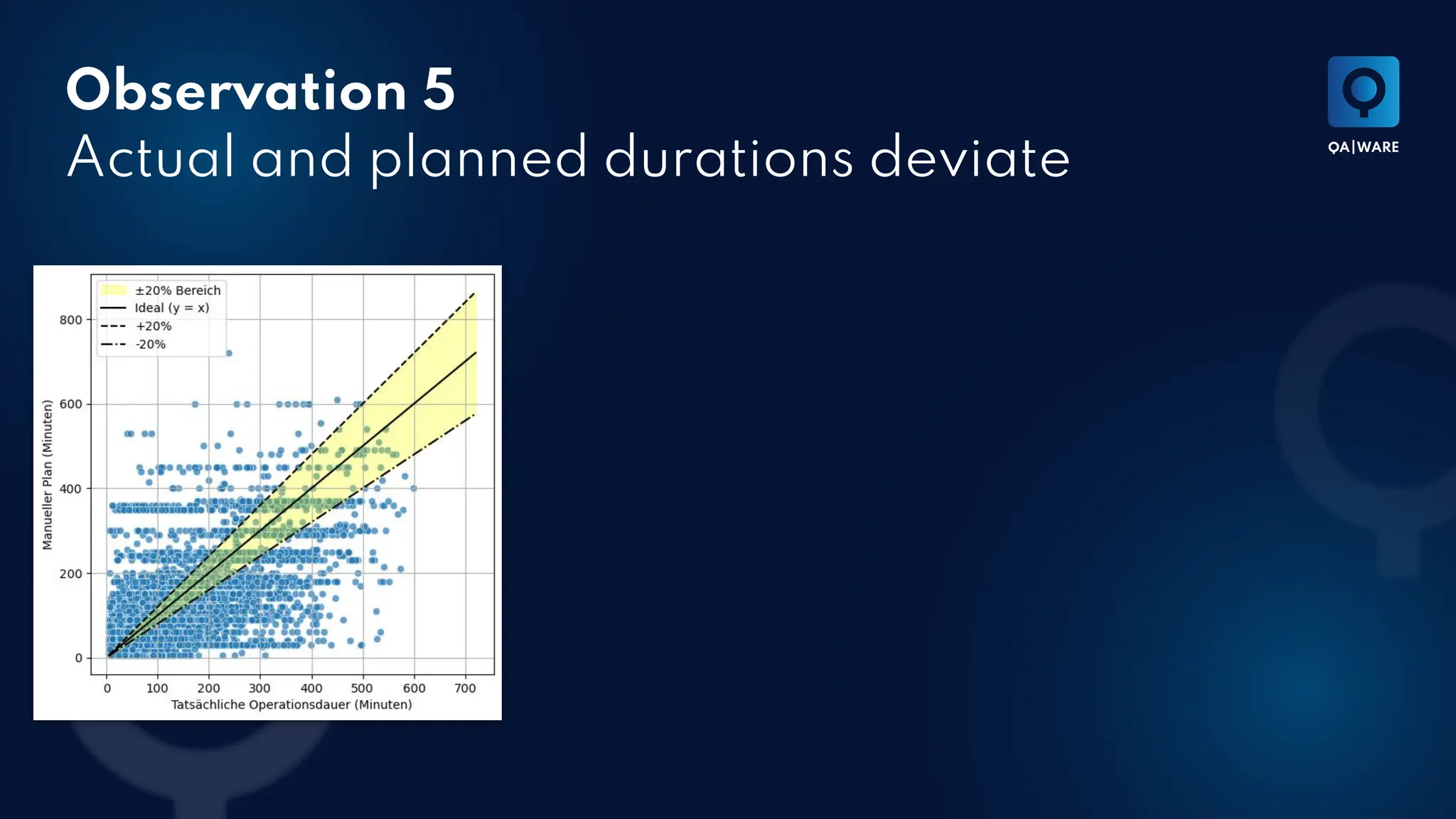

- 21. Observation 5 Actual andplanned durations deviate

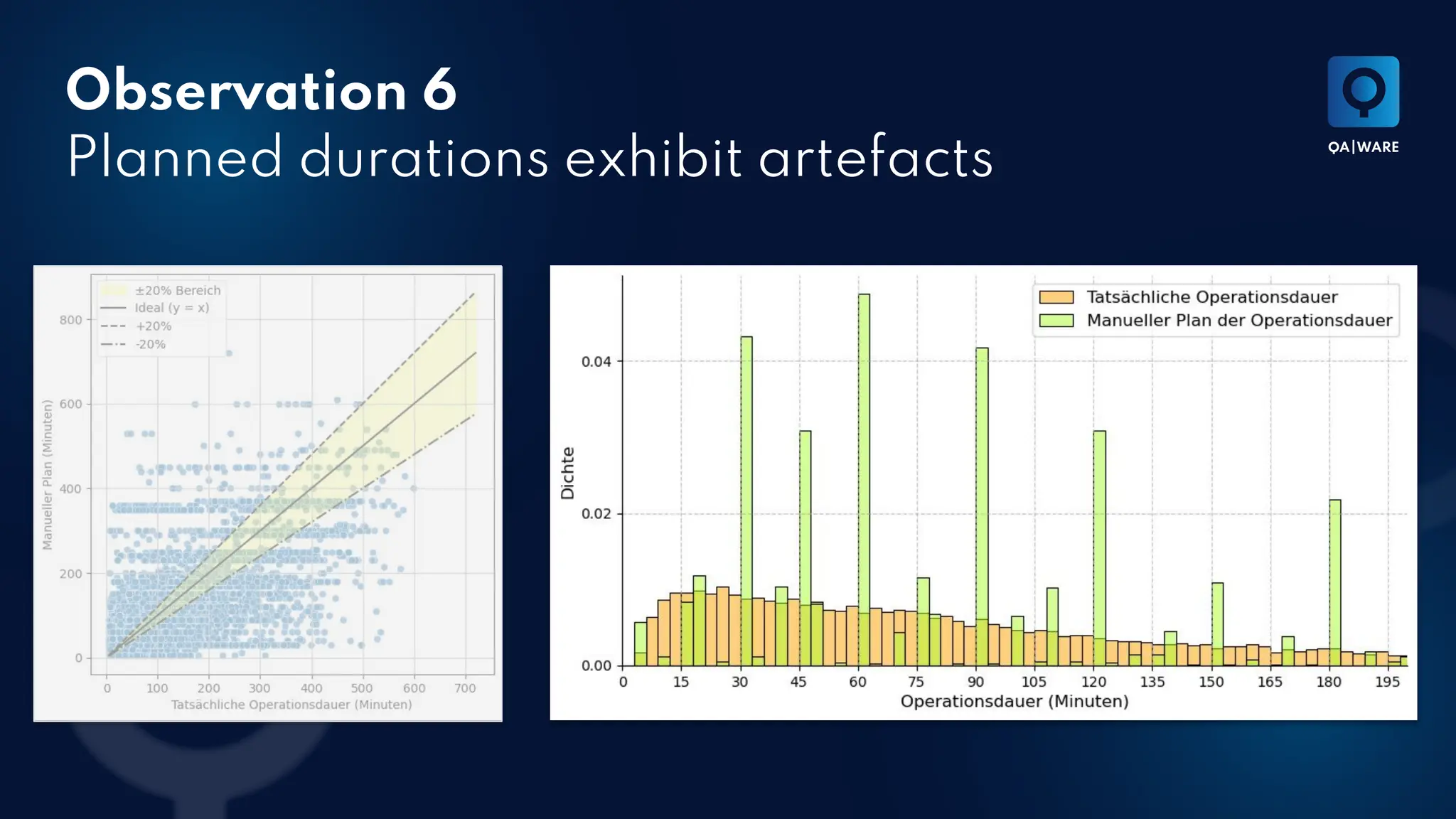

- 22. Observation 6 Planned durationsexhibit artefacts

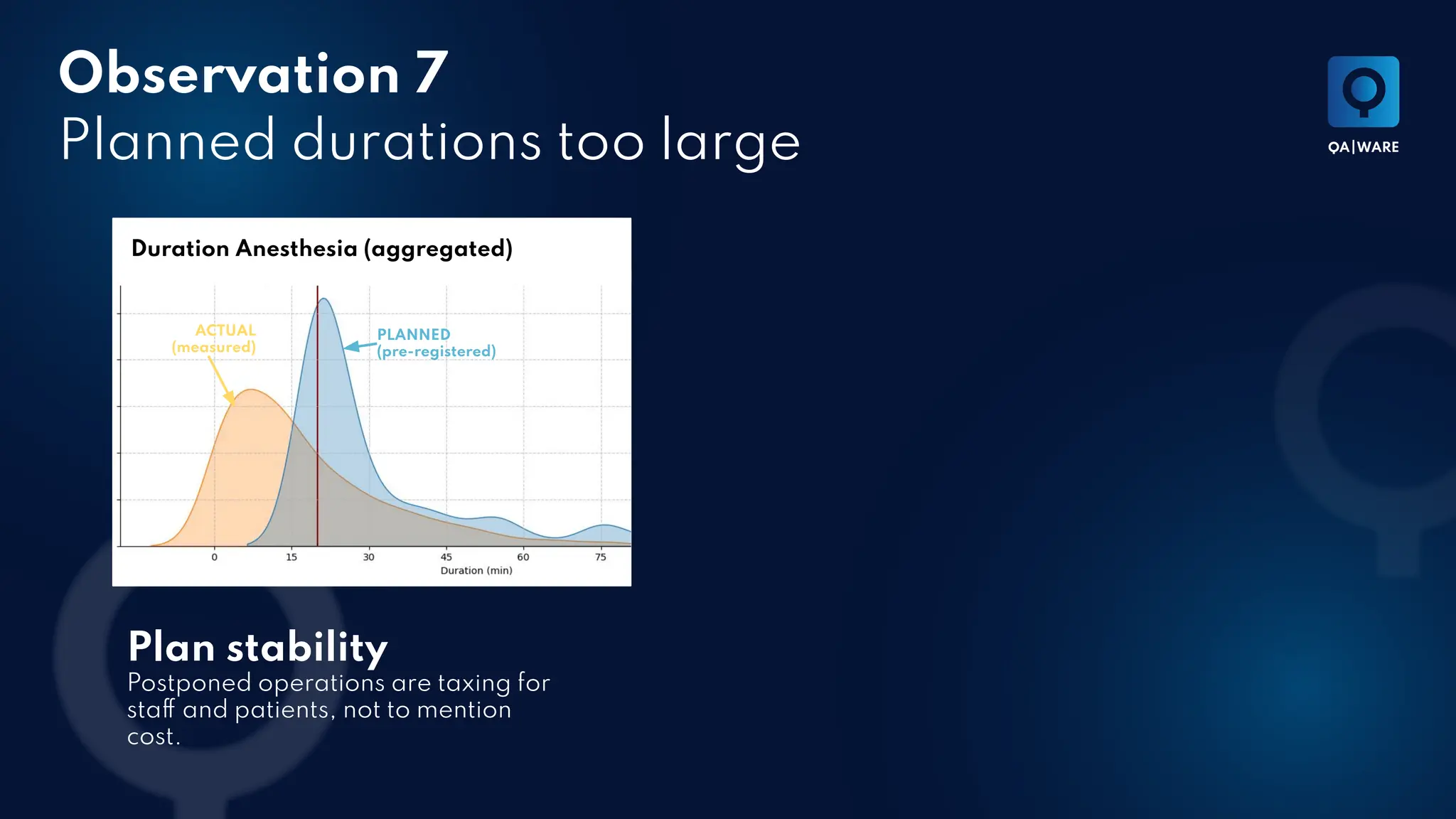

- 23. Observation 7 Planned durationstoo large PLANNED (pre-registered) ACTUAL (measured) Duration Anesthesia (aggregated) Plan stability Postponed operations are taxing for staff and patients, not to mention cost.

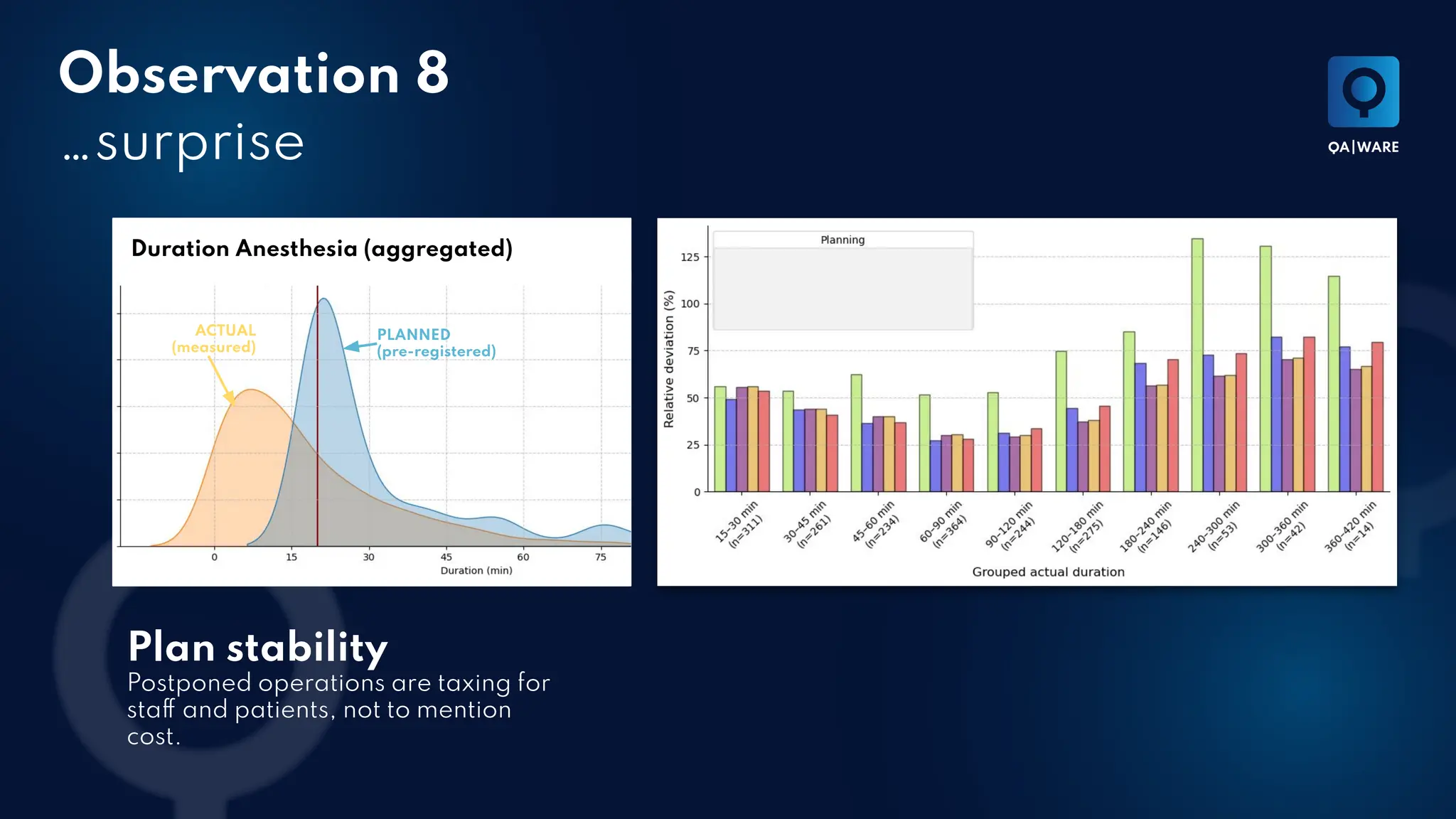

- 24. Observation 8 …surprise PLANNED (pre-registered) ACTUAL (measured) Duration Anesthesia(aggregated) Plan stability Postponed operations are taxing for staff and patients, not to mention cost.

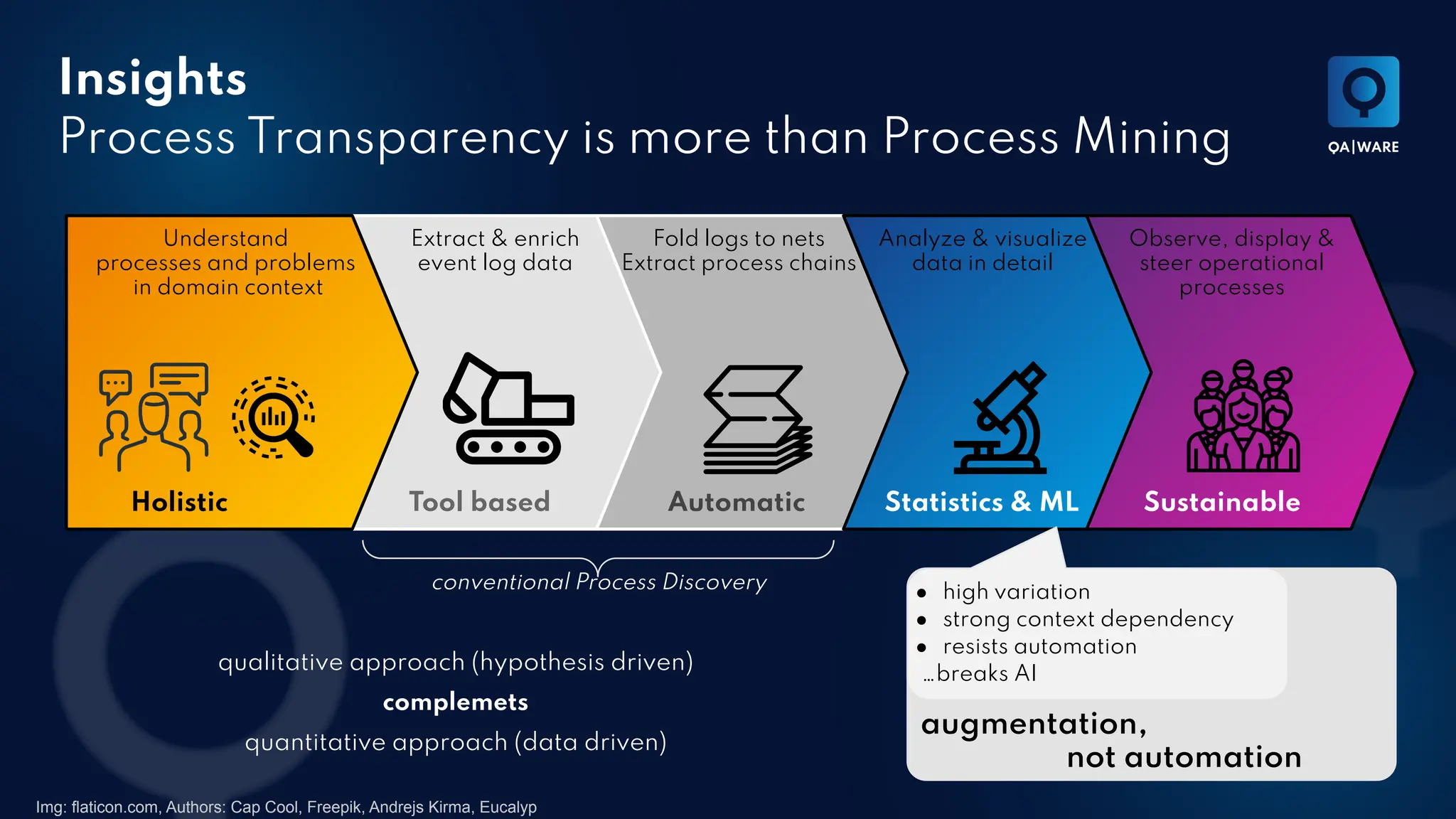

- 25. Insights Process Transparency ismore than Process Mining Img: flaticon.com, Authors: Cap Cool, Freepik, Andrejs Kirma, Eucalyp Extract & enrich event log data Fold logs to nets Extract process chains Understand processes and problems in domain context Holistic Prozessketten extrahieren Analyze & visualize data in detail Statistics & ML Observe, display & steer operational processes Sustainable Tool based Automatic conventional Process Discovery augmentation, not automation ● high variation ● strong context dependency ● resists automation …breaks AI qualitative approach (hypothesis driven) complemets quantitative approach (data driven)
- 26. Take Aways ● ProcessMining is a great stepping stone for data analysis. ● Low hanging fruit are to be had, still. ● AI is not the answer to every question. ● Simpler is better. Always. WTF?! Gaaah! Hang on… I see!
