A compiler translates source code from a high-level programming language to lower-level machine code, enabling the creation of executable programs. It consists of several parts, including a lexical analyzer, syntax analyzer, and code optimizer, each responsible for different transformations and error-checking of the source program. Techniques from compiler design are also applicable to various problems in computer science, such as natural language processing and database querying.

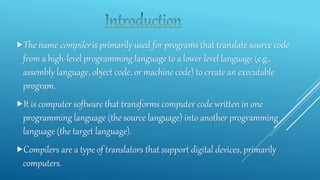

2. The name compiler is primarily used for programs that translate source code
from a high-level programming language to a lower level language (e.g.,
assembly language, object code, or machine code) to create an executable
program.
It is computer software that transforms computer code written in one
programming language (the source language) into another programming
language (the target language).
Compilers are a type of translators that support digital devices, primarily
computers.

4. high-level languages is usually
r transpiler.
ogram that translates the form of
guage.
to tools used to create parsers that
un on a computer whose CPU or
om the one on which the compiler
mpiler.
n in the language that it intends to
m a low-level language to a higher

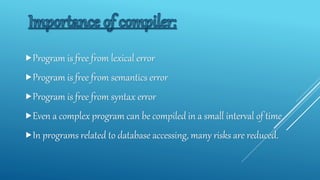

5. Program is free from lexical error
Program is free from semantics error
Program is free from syntax error
Even a complex program can be compiled in a small interval of time
In programs related to database accessing, many risks are reduced.

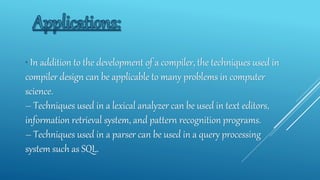

6. • In addition to the development of a compiler, the techniques used in
compiler design can be applicable to many problems in computer
science.
– Techniques used in a lexical analyzer can be used in text editors,
information retrieval system, and pattern recognition programs.
– Techniques used in a parser can be used in a query processing
system such as SQL.

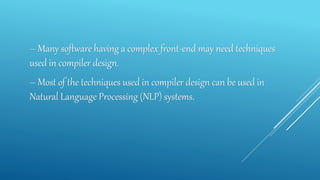

7. – Many software having a complex front-end may need techniques
used in compiler design.
– Most of the techniques used in compiler design can be used in
Natural Language Processing (NLP) systems.

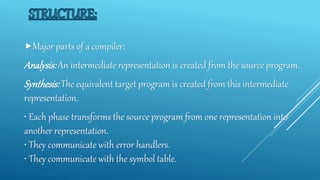

8. Major parts of a compiler:
Analysis:An intermediate representation is created from the source program.
Synthesis:The equivalent target program is created from this intermediate
representation.
• Each phase transforms the source program from one representation into
another representation.
• They communicate with error handlers.
• They communicate with the symbol table.

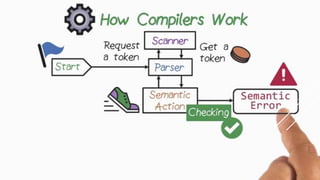

10. • Lexical Analyzer reads the source program character by character and
returns the tokens of the source program.
• A token describes a pattern of characters having same meaning in the
source program. (such as identifiers, operators, keywords, numbers and so
on)
• Puts information about identifiers into the symbol table.

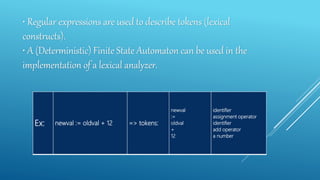

11. Ex: newval := oldval + 12 => tokens:
newval
:=
oldval
+
12
identifier
assignment operator
identifier
add operator
a number
• Regular expressions are used to describe tokens (lexical
constructs).
• A (Deterministic) Finite State Automaton can be used in the
implementation of a lexical analyzer.

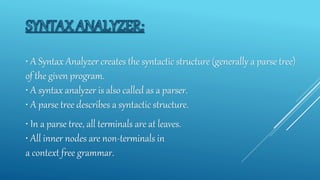

12. • A Syntax Analyzer creates the syntactic structure (generally a parse tree)
of the given program.
• A syntax analyzer is also called as a parser.
• A parse tree describes a syntactic structure.
• In a parse tree, all terminals are at leaves.
• All inner nodes are non-terminals in
a context free grammar.

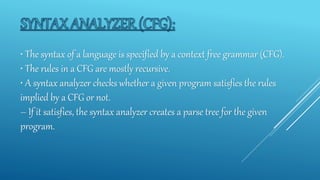

13. • The syntax of a language is specified by a context free grammar (CFG).
• The rules in a CFG are mostly recursive.
• A syntax analyzer checks whether a given program satisfies the rules
implied by a CFG or not.
– If it satisfies, the syntax analyzer creates a parse tree for the given
program.

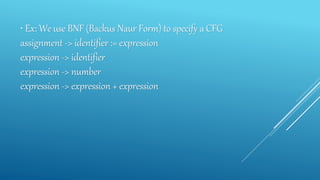

14. • Ex: We use BNF (Backus Naur Form) to specify a CFG
assignment -> identifier := expression
expression -> identifier
expression -> number
expression -> expression + expression

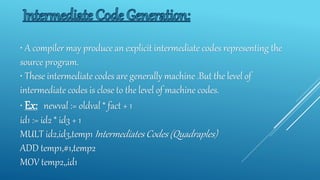

16. • A compiler may produce an explicit intermediate codes representing the
source program.
• These intermediate codes are generally machine .But the level of
intermediate codes is close to the level of machine codes.
• Ex: newval := oldval * fact + 1
id1 := id2 * id3 + 1
MULT id2,id3,temp1 Intermediates Codes (Quadraples)
ADD temp1,#1,temp2
MOV temp2,,id1

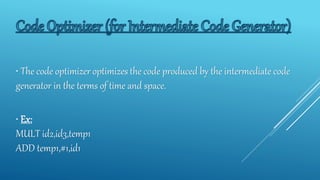

17. • The code optimizer optimizes the code produced by the intermediate code
generator in the terms of time and space.
• Ex:
MULT id2,id3,temp1
ADD temp1,#1,id1

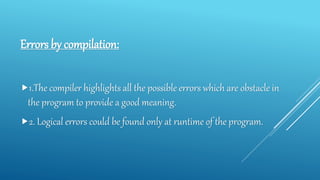

20. Errors by compilation:
1.The compiler highlights all the possible errors which are obstacle in
the program to provide a good meaning.
2. Logical errors could be found only at runtime of the program.

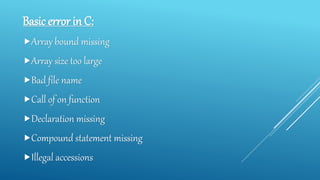

21. Basic error in C:
Array bound missing
Array size too large
Bad file name
Call of on function
Declaration missing
Compound statement missing
Illegal accessions

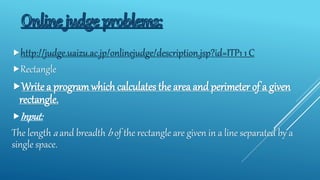

22. http://judge.uaizu.ac.jp/onlinejudge/description.jsp?id=ITP1_1_C
Rectangle
Write a programwhich calculates the area and perimeter of a given
rectangle.
Input:
The length a and breadth b of the rectangle are given in a line separated by a
single space.

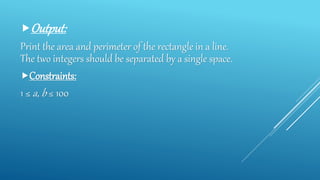

23. Output:
Print the area and perimeter of the rectangle in a line.
The two integers should be separated by a single space.
Constraints:
1 ≤ a, b ≤ 100

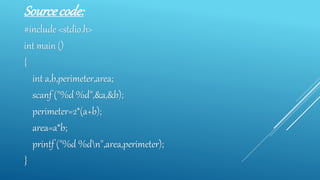

24. Source code:
#include <stdio.h>
int main ()
{
int a,b,perimeter,area;
scanf ("%d %d",&a,&b);
perimeter=2*(a+b);
area=a*b;
printf ("%d %dn",area,perimeter);
}

25. Discussion:
The source code is correct, therefore there is no error after
we compile.

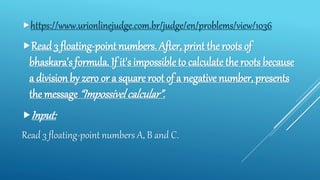

26. https://www.urionlinejudge.com.br/judge/en/problems/view/1036
Read 3 floating-point numbers. After, print the roots of
bhaskara’s formula. If it's impossible to calculate the roots because
a division by zero or a square root of a negative number, presents
the message “Impossivel calcular”.
Input:
Read 3 floating-point numbers A, B and C.

27. Output:
Print the result with 5 digits after the decimal point or the
message if it is impossible to calculate.

28. Sourcecode:
#include <stdio.h>
#include <math.h>
int main() {
float B,C,p,q,r;
scanf ("%f %f %f",&A,&B,&C);
p=(B*B)-(4*A*C);
if (p<0)
printf ("Impossivel calcularn");
else if (A == 0)
printf ("Impossivel calcularn");
else {
q=(-B+sqrt(p))/(A+A);
r=(-B-sqrt(p))/(A+A);
printf ("R1 = %.5fn",q);
printf ("R2 = %.5fn",r);
}
return 0;
}

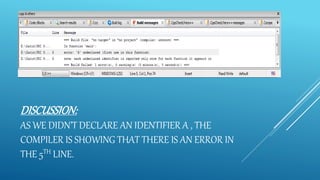

29. DISCUSSION:
AS WE DIDN’T DECLARE AN IDENTIFIER A , THE
COMPILER IS SHOWING THAT THERE IS AN ERROR IN
THE 5TH LINE.
