This document provides product details and purchasing information for the Powerwave P65-15-XL-R low broadband antenna. It describes the key specifications of the antenna such as its frequency band of 698-894 MHz, dual linear polarization, gain of 14.9/12.8 dBi, and horizontal beam width of 65 degrees. The document also provides contact information for purchasing the antenna from the supplier Launch 3 Telecom and describes their product offerings and services.

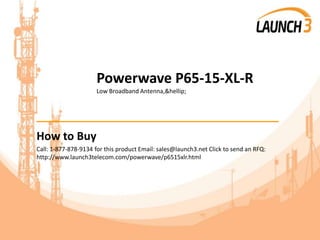

2. Powerwave P65-15-XL-R
Low Broadband Antenna,…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/powerwave/p6515xlr.html

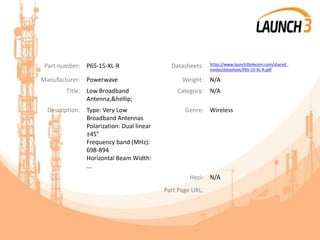

3. Part number: P65-15-XL-R Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/P65-15-XL-R.pdf
Manufacturer: Powerwave Weight: N/A
Title: Low Broadband
Antenna,…
Category: N/A
Description: Type: Very Low
Broadband Antennas
Polarization: Dual linear
±45°
Frequency band (MHz):
698-894
Horizontal Beam Width:
...
Genre: Wireless
Heci: N/A
Part Page URL:

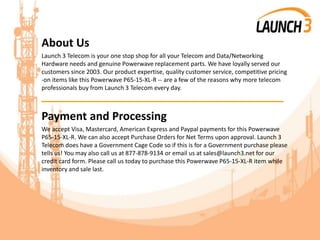

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Powerwave replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Powerwave P65-15-XL-R -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Powerwave
P65-15-XL-R. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Powerwave P65-15-XL-R item while
inventory and sale last.

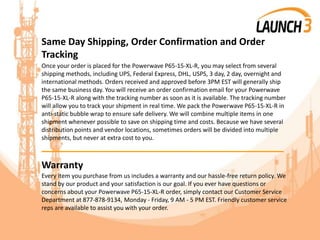

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Powerwave P65-15-XL-R, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Powerwave
P65-15-XL-R along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Powerwave P65-15-XL-R in
anti-static bubble wrap to ensure safe delivery. We will combine multiple items in one
shipment whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Powerwave P65-15-XL-R order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

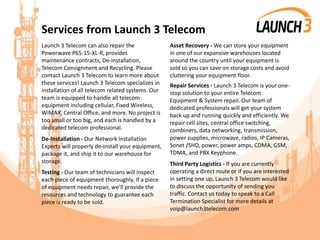

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the
Powerwave P65-15-XL-R, provides
maintenance contracts, De-installation,
Telecom Consignment and Recycling. Please
contact Launch 3 Telecom to learn more about
these services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

7. POWERWAVE P65-15-XL-R Very Low Broadband Antennas POLARIZATION: Dual linear ±45° FREQUENCY (MHz): 698-894 HORIZONTAL BEAM
WIDTH (°): 65 GAIN (dBi dBd): 14.9/12.8 TILT: 0-13 LENGTH: 51” (1295mm) Very Low Broadband Antennas ELECTRICAL SPECIFICATIONS*
Frequency range (MHz) Frequency band (MHz) 698-806 698-894 806-894 Gain (dBi/dBd) Polarization Nominal Impedance (Ω) 14.0/11.9 Dual
Linear +/- 45 50 14.9/12.8 Dual Linear +/- 45 50 VSWR Horizontal beam width, -3 dB (°) < 1.5:1 69 < 1.5:1 63 Vertical beam width, -3 dB (°)
Electrical down tilt (°) 17.5 0 - 13 15.5 0 - 13 Side lobe suppression, vertical 1st upper (dB) Isolation between inputs (dB) Tracking, horizontal
plane ±60° (dB) > 18 > 30 <2 > 18 > 30 <2 Vertical beam squint (°) Front to back ratio (dB) 180° ±30° copolar Front to back ratio (dB) 180° ±30°
total power < 0.5 > 24 > 19 < 0.5 > 24 > 18 Cross polar discrimination (XPD) 0° (dB) Cross polar discrimination (XPD) ±60° (dB) IM3,
2xTx&43dBm (dBc) Power handling, average per input (W) Power handling, average total (W) > 18 > 10 <-153 500 1000 > 18 >8 <-153 500 1000
MECHANICAL SPECIFICATIONS* Connector Connector position Dimensions, HxWxD, mm(ft) Mounting Weight, with brackets, kg (lbs) Weight,
without brackets, kg (lbs) Wind load, frontal/lateral/rear side 42 m/s Cd=1.6 (N) Maximum operational wind speed, m/s (mph) Survival wind
speed, m/s (mph) Lightning protection Operating Temperature Radome Material 2 X 7/16 DIN Female,2xAISG [1x i-RET 8510.40] Bottom 1295
x 305 x 152 (51” x 12” x 6”) Pole Mounting Bracket 15.3 (34) 11 (25) Radome colour Packing size, HxWxD, mm (ft) Shipping weight, kg (lbs)
Light Grey 1475 x 400 x 255 (58” x 16” x 10”) 18.7 (41) RET Brackets iRET AISGv1.1, MET and AISGv2.0 Available 7253.00 Available as option
920 45 (100) 67 (150) DC Ground -40°C to +60°C PVC *All specifications subject to change without notice. Please contact your Powerwave
representative for complete performance data. ANTENNA PATTERNS* For detailed patterns visit http://www.powerwave.com/rpa/.
Updated: Aug 30 2011 4:49AM © Copyright 2011 Powerwave Technologies, Inc. All rights reserved. All specifications are subject to change
without notice. Please contact your Powerwave representative for complete performance data. _x000C_
