PL/SQL Fundamentals I

PL/SQL Fundamentals I
Kontich, Belgium
14/10 – 15/10

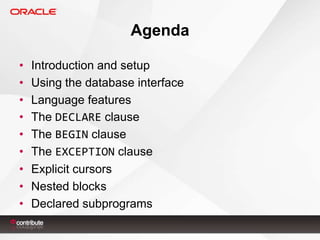

Agenda
•
•
•
•
•
•
•
•
•

Introduction and setup
Using the database interface
Language features
The DECLARE clause
The BEGIN clause
The EXCEPTION clause
Explicit cursors
Nested blocks
Declared subprograms

About this course
• Introduction to the PL/SQL database
programming language
• Course prerequisites
– SQL Fundamentals

• Next course
– PL/SQL Fundamentals II – Develop Program Units
– Advanced PL/SQL Programming & Tuning

• Certification
– 1Z0-144 - Oracle Database 11g: Program with
PL/SQL (OCA – OCP)

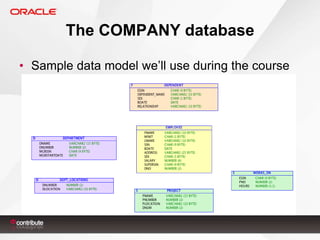

The COMPANY database
• Sample data model we’ll use during the course

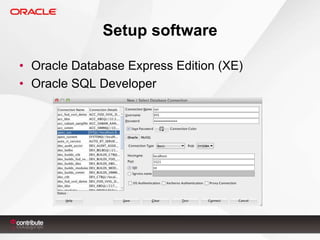

Setup software
• Oracle Database Express Edition (XE)
• Oracle SQL Developer

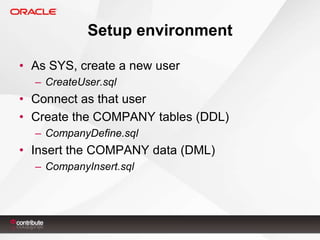

Setup environment
• As SYS, create a new user
– CreateUser.sql

• Connect as that user
• Create the COMPANY tables (DDL)
– CompanyDefine.sql

• Insert the COMPANY data (DML)
– CompanyInsert.sql

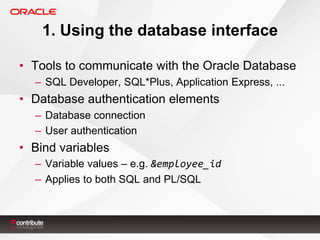

1. Using the database interface
• Tools to communicate with the Oracle Database
– SQL Developer, SQL*Plus, Application Express, ...

• Database authentication elements
– Database connection
– User authentication

• Bind variables
– Variable values – e.g. &employee_id
– Applies to both SQL and PL/SQL

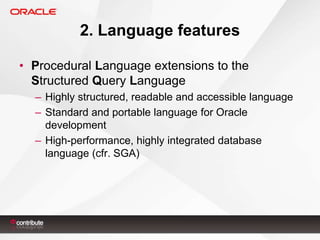

2. Language features
• Procedural Language extensions to the
Structured Query Language
– Highly structured, readable and accessible language
– Standard and portable language for Oracle
development
– High-performance, highly integrated database
language (cfr. SGA)

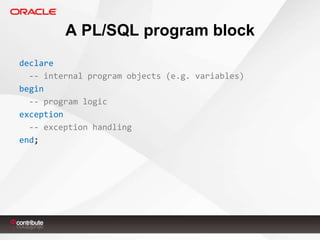

A PL/SQL program block
declare
-- internal program objects (e.g. variables)
begin
-- program logic
exception
-- exception handling
end;

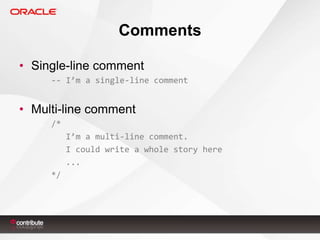

Comments
• Single-line comment
-- I’m a single-line comment

• Multi-line comment
/*

I’m a multi-line comment.
I could write a whole story here
...
*/

Additional syntax rules
• One statement per line – isn’t mandatory
• End all execution statements with a semi-colon
begin
null;
end;

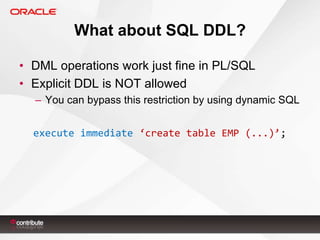

What about SQL DDL?
• DML operations work just fine in PL/SQL
• Explicit DDL is NOT allowed
– You can bypass this restriction by using dynamic SQL
execute immediate ‘create table EMP (...)’;

Generating output
• Write to the output buffer using dbms_output()
• set serveroutput on
• GUI option in SQL Developer

3. The DECLARE clause
• Define or declare internal program objects
Name [constant] datatype [not null] [ := | default value];
l_first_name varchar2(10) := ‘Nick’;

• Object name rules
–
–
–
–

Maximum 30 characters
Start with a letter
Legal characters: $ # _
Case-insensitive

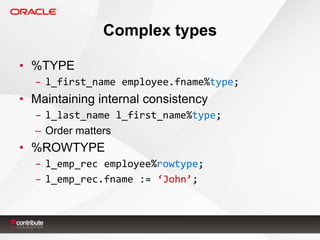

Complex types
• %TYPE
– l_first_name employee.fname%type;

• Maintaining internal consistency
– l_last_name l_first_name%type;
– Order matters

• %ROWTYPE
– l_emp_rec employee%rowtype;
– l_emp_rec.fname := ‘John’;

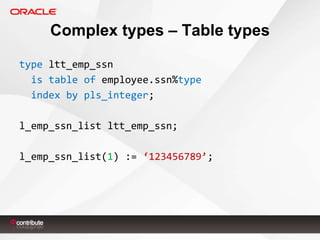

Complex types – Table types
type ltt_emp_ssn
is table of employee.ssn%type
index by pls_integer;
l_emp_ssn_list ltt_emp_ssn;
l_emp_ssn_list(1) := ‘123456789’;

Complex types – Record types
type lrt_emp
is record(
fname employee.fname%type,
lname employee.lname%type
);
l_emp_list lrt_emp;
l_emp_list.fname := ‘John’;
l_emp_list.lname := ‘Doe’;

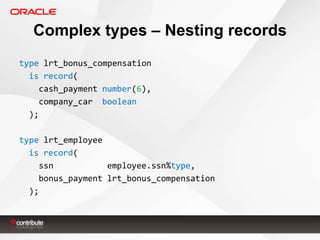

Complex types – Nesting records
type lrt_bonus_compensation
is record(
cash_payment number(6),
company_car boolean
);

type lrt_employee
is record(
ssn
employee.ssn%type,
bonus_payment lrt_bonus_compensation
);

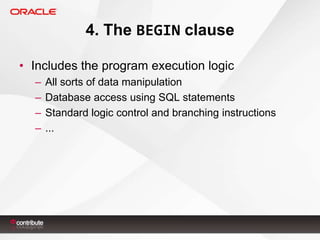

4. The BEGIN clause
• Includes the program execution logic
–
–
–
–

All sorts of data manipulation
Database access using SQL statements
Standard logic control and branching instructions
...

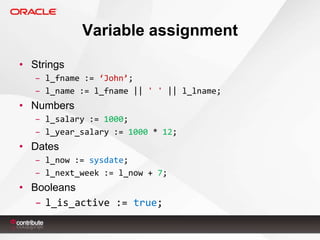

Variable assignment
• Strings
– l_fname := ‘John’;
– l_name := l_fname || ' ' || l_lname;

• Numbers
– l_salary := 1000;
– l_year_salary := 1000 * 12;

• Dates
– l_now := sysdate;
– l_next_week := l_now + 7;

• Booleans
– l_is_active := true;

Comparison operators
Operator Description
=

equality

!= <>

inequality

is null

checks for a null value

is not null checks for a not null value
like

pattern matching (% and _)

in

equality with multiple values

between

checks if a value lies in a range

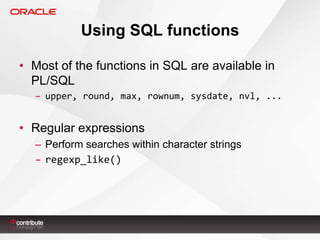

Using SQL functions
• Most of the functions in SQL are available in
PL/SQL
– upper, round, max, rownum, sysdate, nvl, ...

• Regular expressions
– Perform searches within character strings
– regexp_like()

Handling string literals
l_text := ‘I don’t like single quotes’; 
l_text := ‘I don’’t like single quotes’; 
l_text := q‘!I don’t like single quotes!’; 

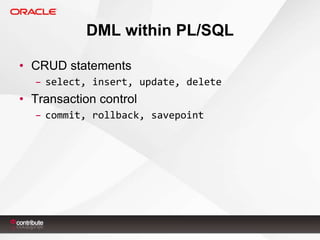

DML within PL/SQL
• CRUD statements
– select, insert, update, delete

• Transaction control
– commit, rollback, savepoint

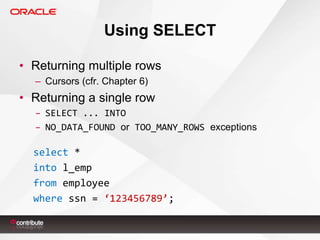

Using SELECT
• Returning multiple rows
– Cursors (cfr. Chapter 6)

• Returning a single row
– SELECT ... INTO
– NO_DATA_FOUND or TOO_MANY_ROWS exceptions

select *
into l_emp
from employee
where ssn = ‘123456789’;

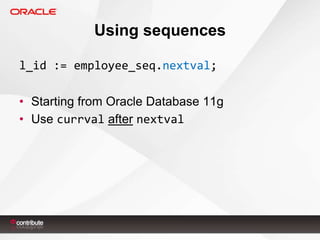

Using sequences
l_id := employee_seq.nextval;
• Starting from Oracle Database 11g
• Use currval after nextval

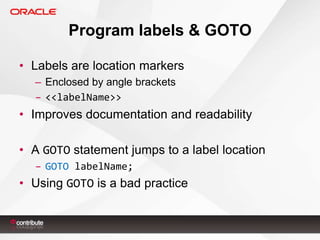

Program labels & GOTO
• Labels are location markers
– Enclosed by angle brackets
– <<labelName>>

• Improves documentation and readability
• A GOTO statement jumps to a label location
– GOTO labelName;

• Using GOTO is a bad practice

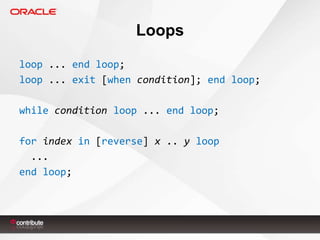

Loops
loop ... end loop;
loop ... exit [when condition]; end loop;
while condition loop ... end loop;

for index in [reverse] x .. y loop
...
end loop;

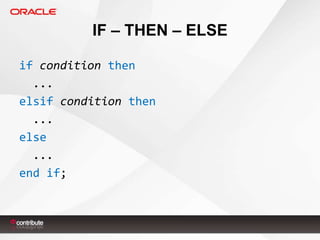

IF – THEN – ELSE
if condition then
...
elsif condition then
...
else
...
end if;

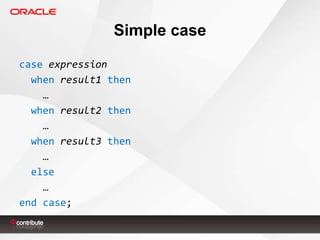

Simple case
case expression
when result1 then
…
when result2 then
…
when result3 then
…
else
…
end case;

Searched case
case
when expression1 then
…
…
…
else
…
end case;

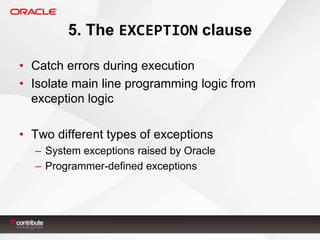

5. The EXCEPTION clause
• Catch errors during execution
• Isolate main line programming logic from
exception logic
• Two different types of exceptions
– System exceptions raised by Oracle
– Programmer-defined exceptions

Exception processing
• Anything that can be done in the BEGIN clause
can be done in the EXCEPTION clause
• Impossible to jump back to the BEGIN clause
• An untrapped exception aborts the program with
an error condition
• An error in the EXCEPTION clause also aborts the
program

Trapping exceptions
exception
when zero_divide then
-- handler for one exception
when no_data_found or too_many_rows then
-- handler for multiple exceptions
when others then
-- global exception handler
-- must be the last exception handler
end;

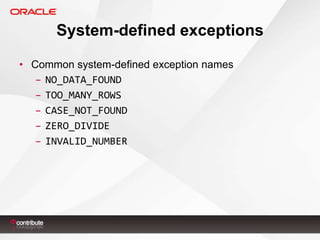

System-defined exceptions
• Common system-defined exception names
– NO_DATA_FOUND
– TOO_MANY_ROWS
– CASE_NOT_FOUND
– ZERO_DIVIDE
– INVALID_NUMBER

PRAGMA EXCEPTION_INIT
• A limited number of errors have system-defined
exception names
– Unnamed exceptions can only be handled by the
WHEN OTHERS clause

• PRAGMA is a compile-time command
• EXCEPTION_INIT associates a name with an
internal error code

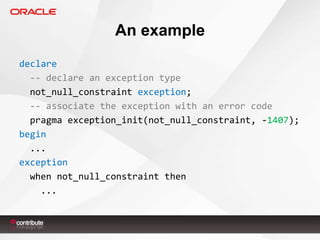

An example
declare
-- declare an exception type
not_null_constraint exception;
-- associate the exception with an error code
pragma exception_init(not_null_constraint, -1407);
begin
...
exception
when not_null_constraint then
...

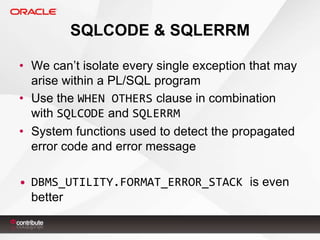

SQLCODE & SQLERRM
• We can’t isolate every single exception that may
arise within a PL/SQL program
• Use the WHEN OTHERS clause in combination
with SQLCODE and SQLERRM
• System functions used to detect the propagated
error code and error message
• DBMS_UTILITY.FORMAT_ERROR_STACK is even
better

Implicit cursor attributes
• An implicit cursor is created each time a SQL
DML statement is executed
• We can reference the SQL% attributes from the
most recently executed SQL statement
–
–
–
–

SQL%FOUND
SQL%NOTFOUND
SQL%ROWCOUNT
SQL%ISOPEN

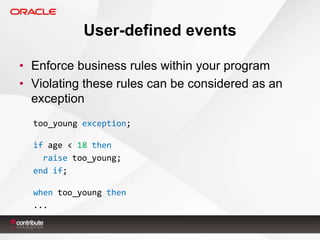

User-defined events
• Enforce business rules within your program
• Violating these rules can be considered as an
exception
too_young exception;
if age < 18 then
raise too_young;
end if;

when too_young then
...

6. Explicit cursors
• An explicit cursor is a named pointer to the result
set of a SQL statement
• Used for sequential processing
• Avoids common exceptions such as
TOO_MANY_ROWS or NO_DATA_FOUND
• Explicit cursors have the same attributes as
implicit cursors
– cursor_name%attribute

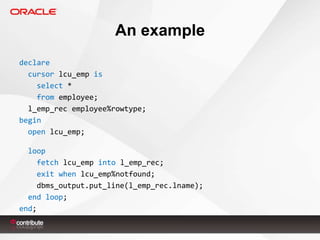

An example
declare
cursor lcu_emp is
select *
from employee;
l_emp_rec employee%rowtype;
begin
open lcu_emp;
loop
fetch lcu_emp into l_emp_rec;
exit when lcu_emp%notfound;
dbms_output.put_line(l_emp_rec.lname);
end loop;
end;

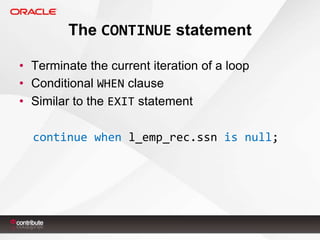

The CONTINUE statement
• Terminate the current iteration of a loop
• Conditional WHEN clause
• Similar to the EXIT statement

continue when l_emp_rec.ssn is null;

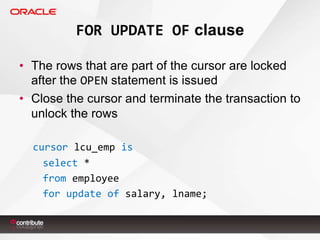

FOR UPDATE OF clause
• The rows that are part of the cursor are locked
after the OPEN statement is issued
• Close the cursor and terminate the transaction to
unlock the rows
cursor lcu_emp is
select *
from employee
for update of salary, lname;

WHERE CURRENT OF clause
• Can only be used in combination with the FOR
UPDATE OF clause
• Uniquely identifies the most recently fetched row
from a cursor
update employee
set salary = salary – l_pay_cut
where current of lcu_emp;

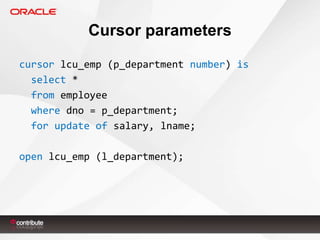

Cursor parameters
cursor lcu_emp (p_department number) is
select *
from employee
where dno = p_department;
for update of salary, lname;
open lcu_emp (l_department);

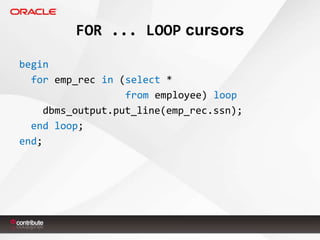

FOR ... LOOP cursors
begin
for emp_rec in (select *
from employee) loop
dbms_output.put_line(emp_rec.ssn);
end loop;
end;

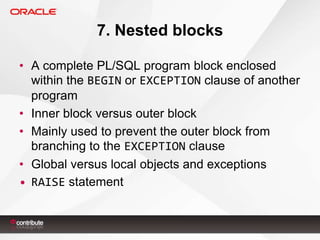

7. Nested blocks
• A complete PL/SQL program block enclosed
within the BEGIN or EXCEPTION clause of another
program
• Inner block versus outer block
• Mainly used to prevent the outer block from
branching to the EXCEPTION clause
• Global versus local objects and exceptions
• RAISE statement

8. Declared subprograms
• Enclose commonly used logic within callable
subprograms
• Procedure versus function
• Parameterizable
