1. #mongodbdays
Aggregation Framework
Emily Stolfo
Ruby Engineer/Evangelist, 10gen
@EmStolfo
Tuesday, January 29, 13

2. Agenda
• State of Aggregation
• Pipeline
• Usage and Limitations
• Optimization
• Sharding
• (Expressions)
• Looking Ahead
Tuesday, January 29, 13

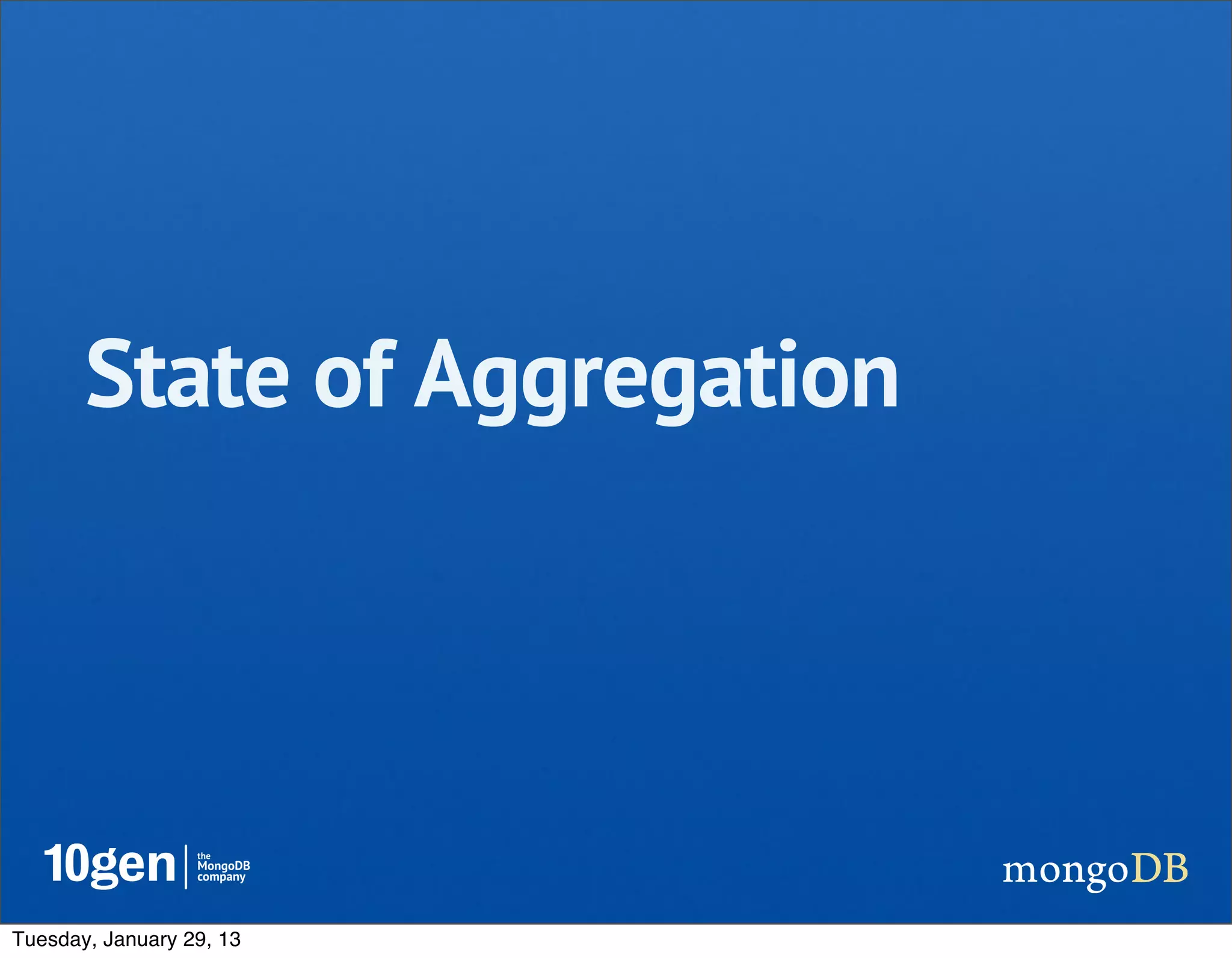

3. State of Aggregation
Tuesday, January 29, 13

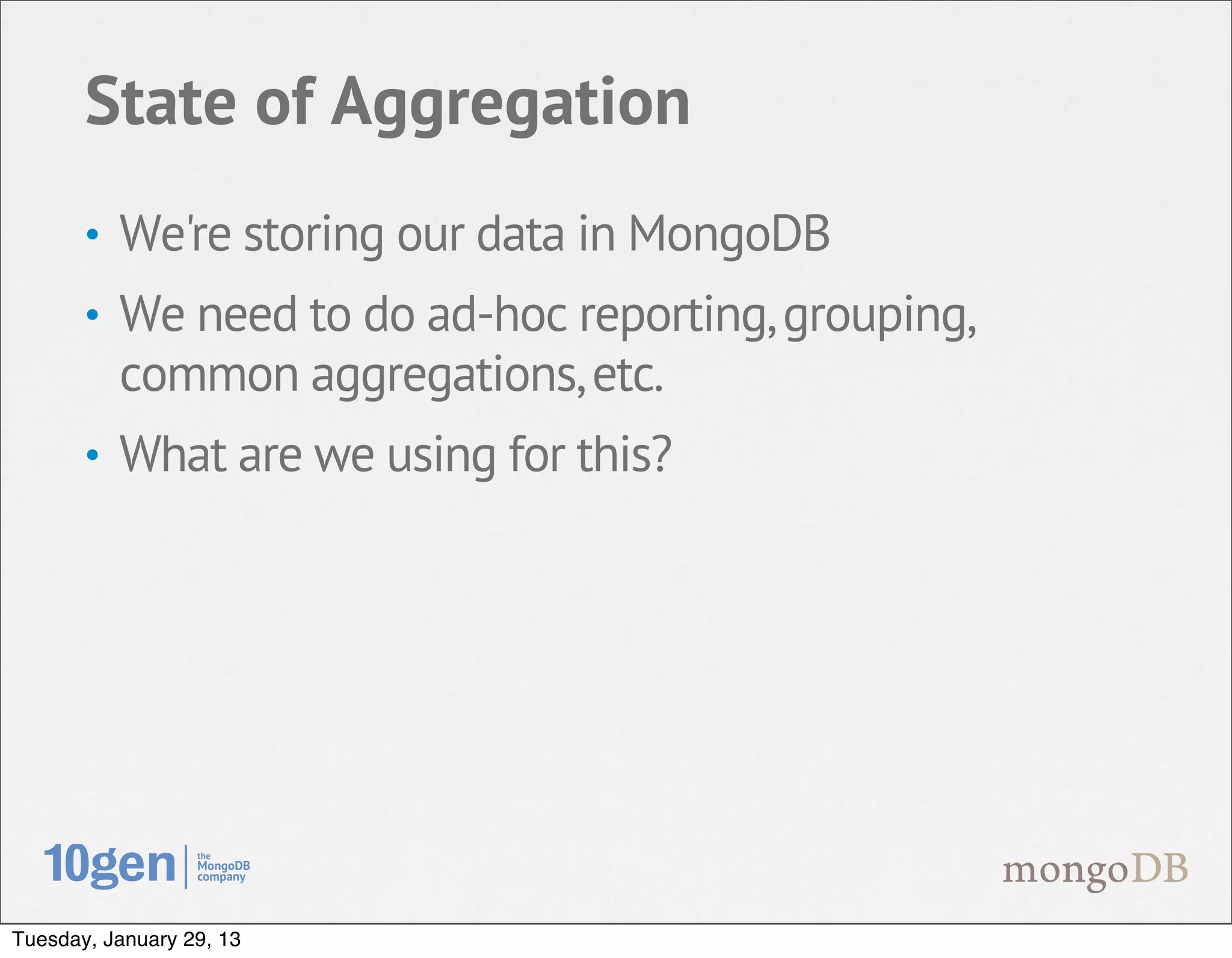

4. State of Aggregation
• We're storing our data in MongoDB
• We need to do ad-hoc reporting, grouping,
common aggregations, etc.
• What are we using for this?
Tuesday, January 29, 13

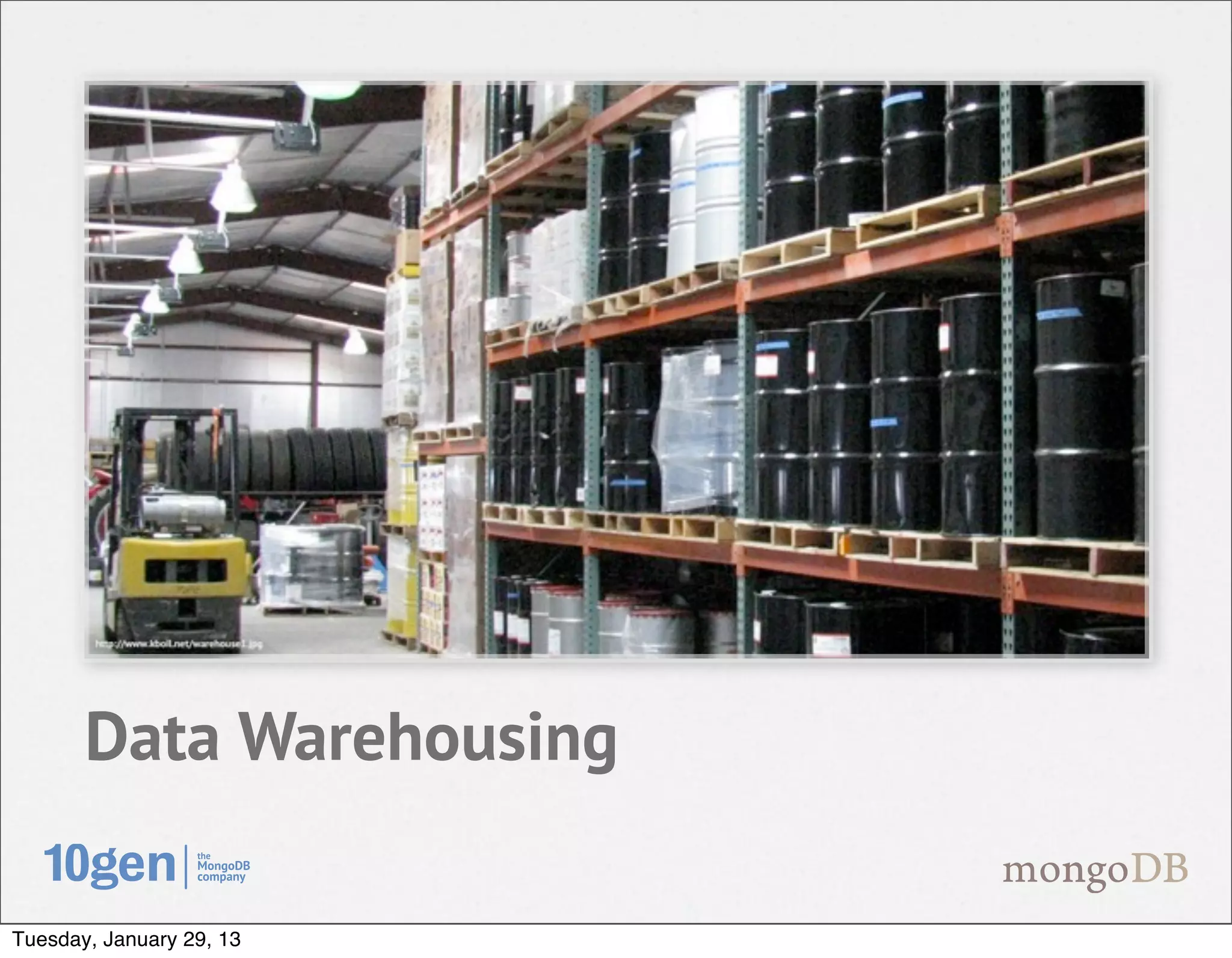

5. Data Warehousing
Tuesday, January 29, 13

6. Data Warehousing
• SQL for reporting and analytics
• Infrastructure complications
– Additional maintenance
– Data duplication
– ETL processes
– Real time?
Tuesday, January 29, 13

7. MapReduce
Tuesday, January 29, 13

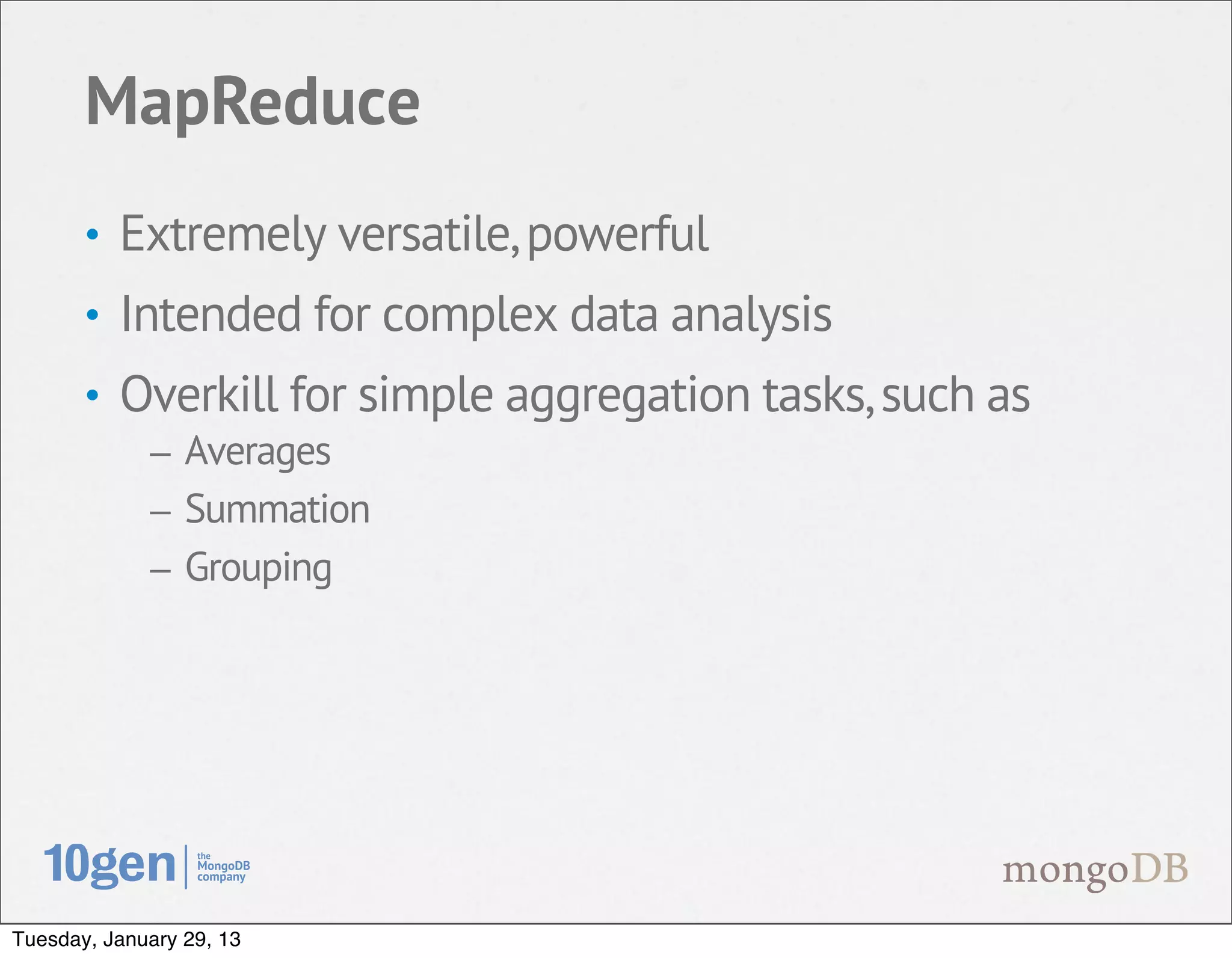

8. MapReduce
• Extremely versatile, powerful
• Intended for complex data analysis
• Overkill for simple aggregation tasks, such as
– Averages
– Summation
– Grouping
Tuesday, January 29, 13

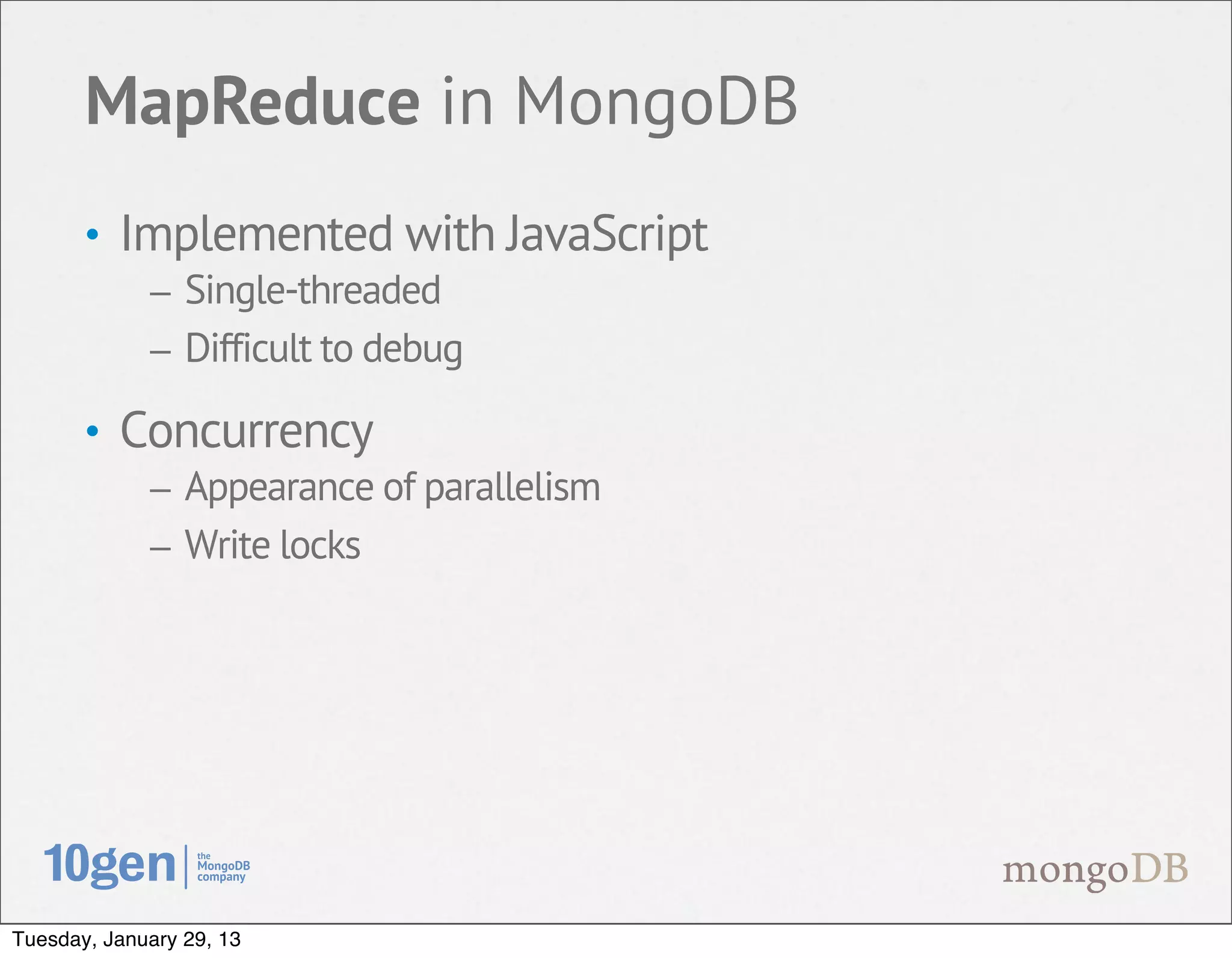

9. MapReduce in MongoDB
• Implemented with JavaScript
– Single-threaded
– Difficult to debug
• Concurrency
– Appearance of parallelism
– Write locks
Tuesday, January 29, 13

10. Aggregation Framework
Tuesday, January 29, 13

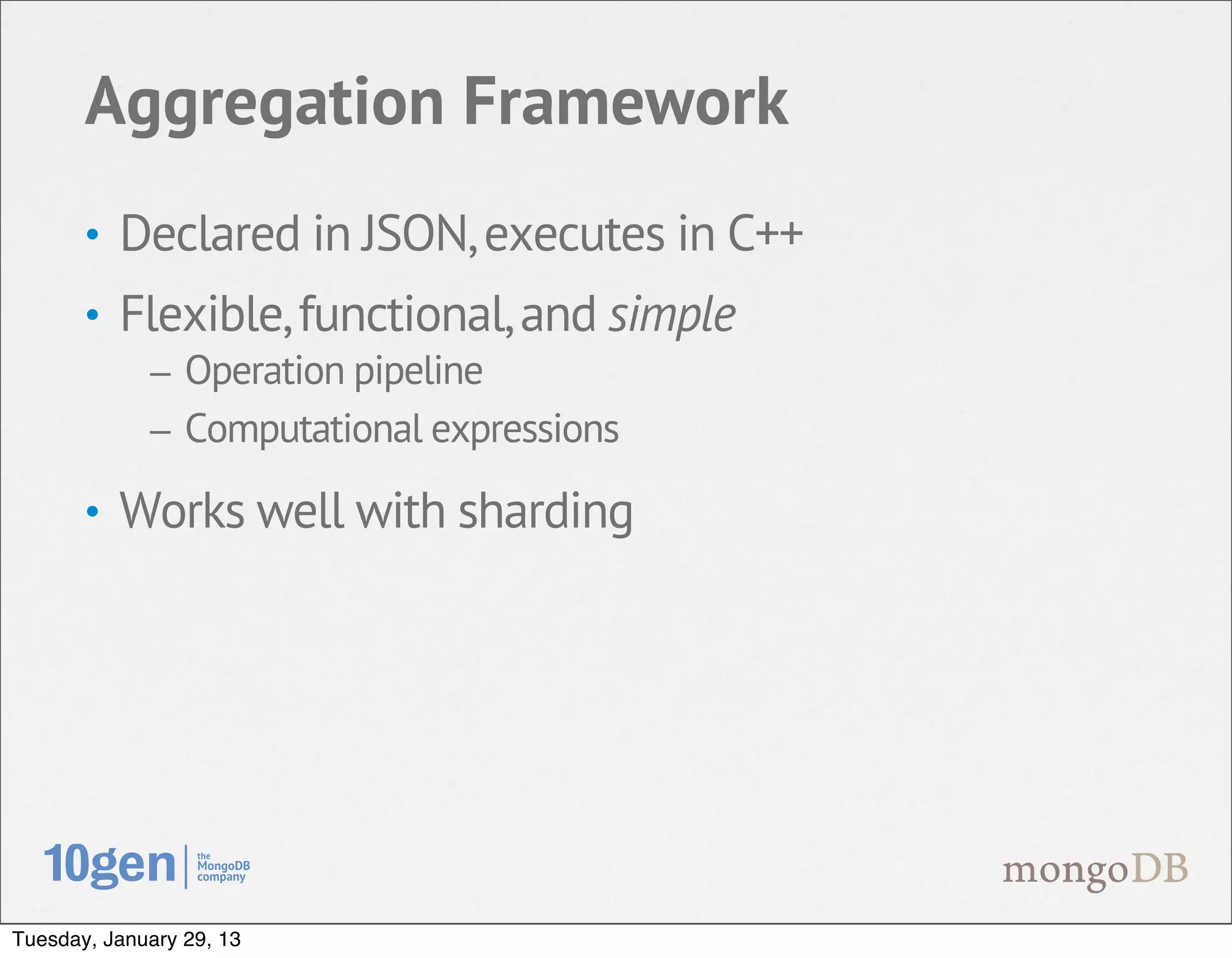

11. Aggregation Framework
• Declared in JSON, executes in C++
• Flexible, functional, and simple
– Operation pipeline
– Computational expressions
• Works well with sharding
Tuesday, January 29, 13

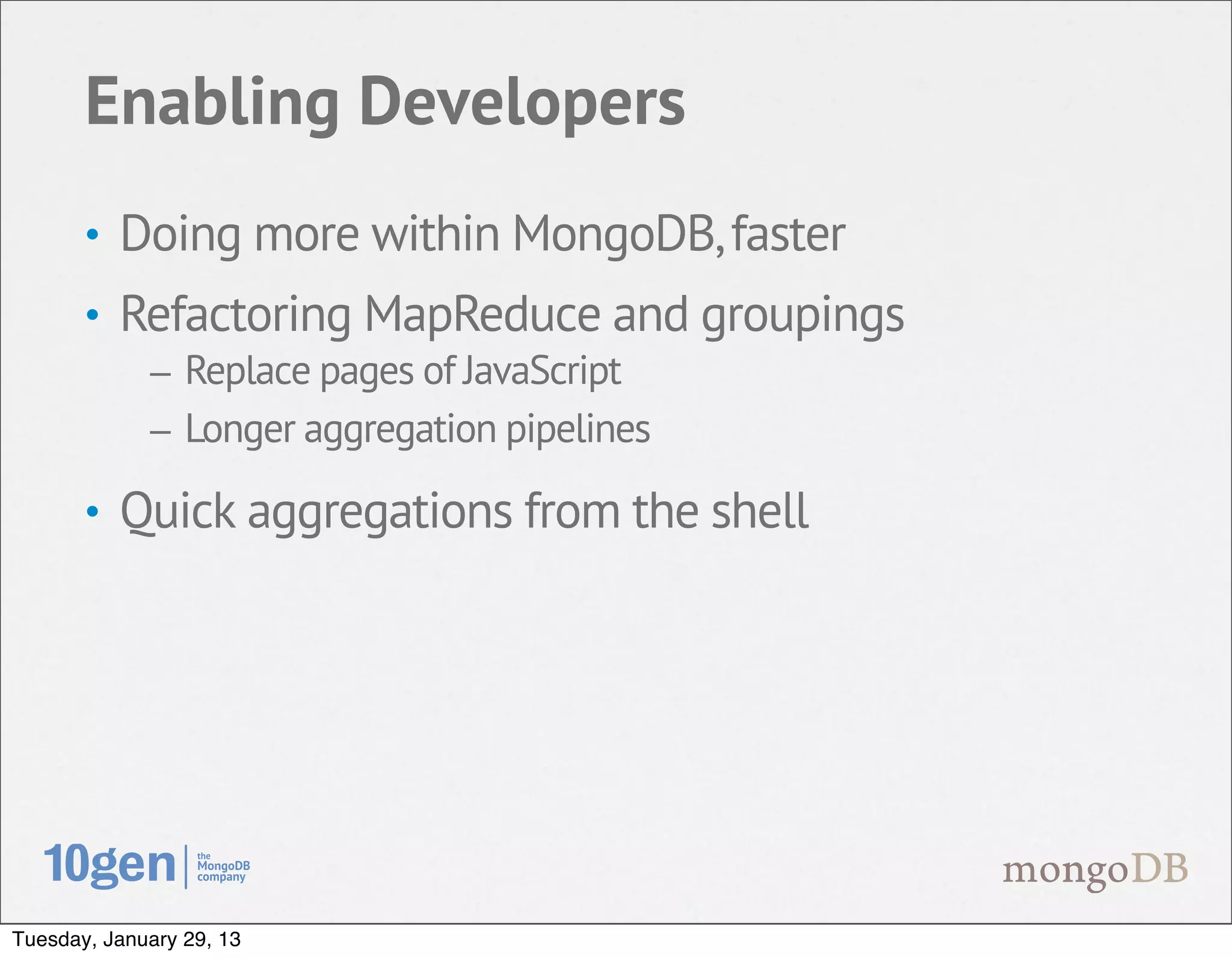

12. Enabling Developers
• Doing more within MongoDB, faster
• Refactoring MapReduce and groupings
– Replace pages of JavaScript
– Longer aggregation pipelines
• Quick aggregations from the shell
Tuesday, January 29, 13

13. Pipeline
Tuesday, January 29, 13

14. Pipeline
• Process a stream of documents
– Original input is a collection
– Final output is a result document
• Series of operators
– Filter or transform data
– Input/output chain
ps ax | grep mongod | head -n 1
Tuesday, January 29, 13

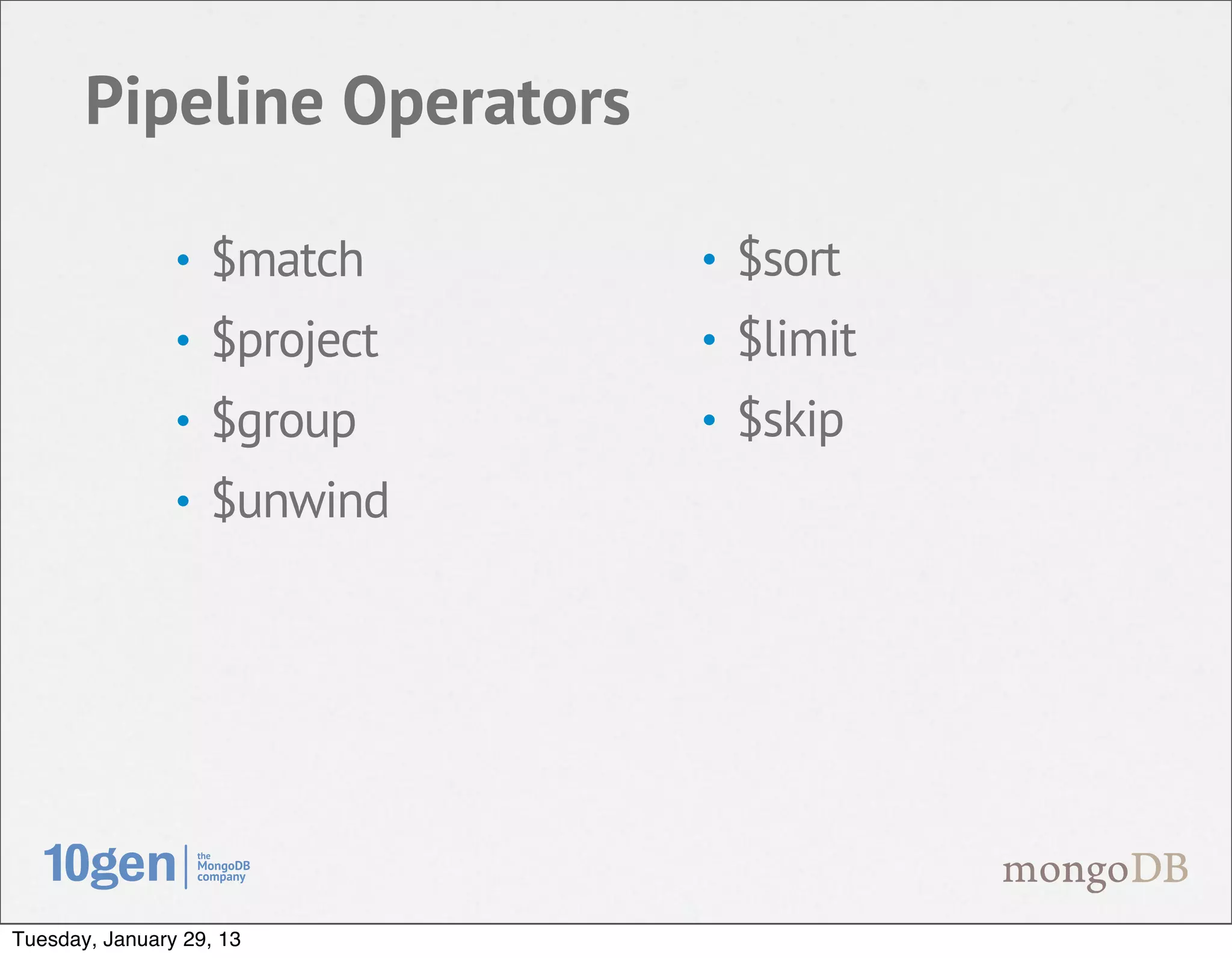

15. Pipeline Operators
• $match • $sort
• $project • $limit
• $group • $skip
• $unwind
Tuesday, January 29, 13

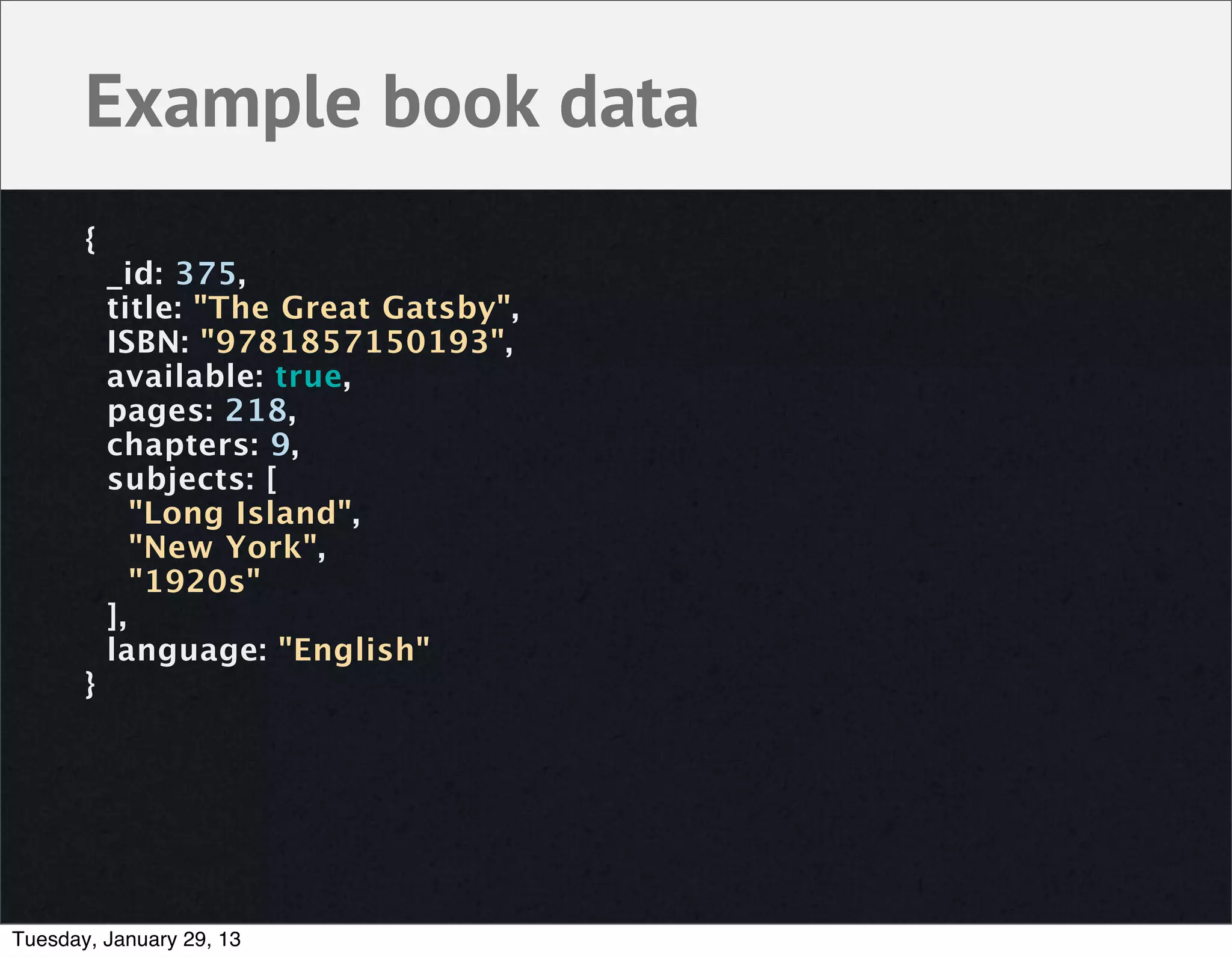

16. Example book data
{
_id: 375,
title: "The Great Gatsby",
ISBN: "9781857150193",
available: true,
pages: 218,
chapters: 9,
subjects: [
"Long Island",
"New York",
"1920s"
],
language: "English"
}
Tuesday, January 29, 13

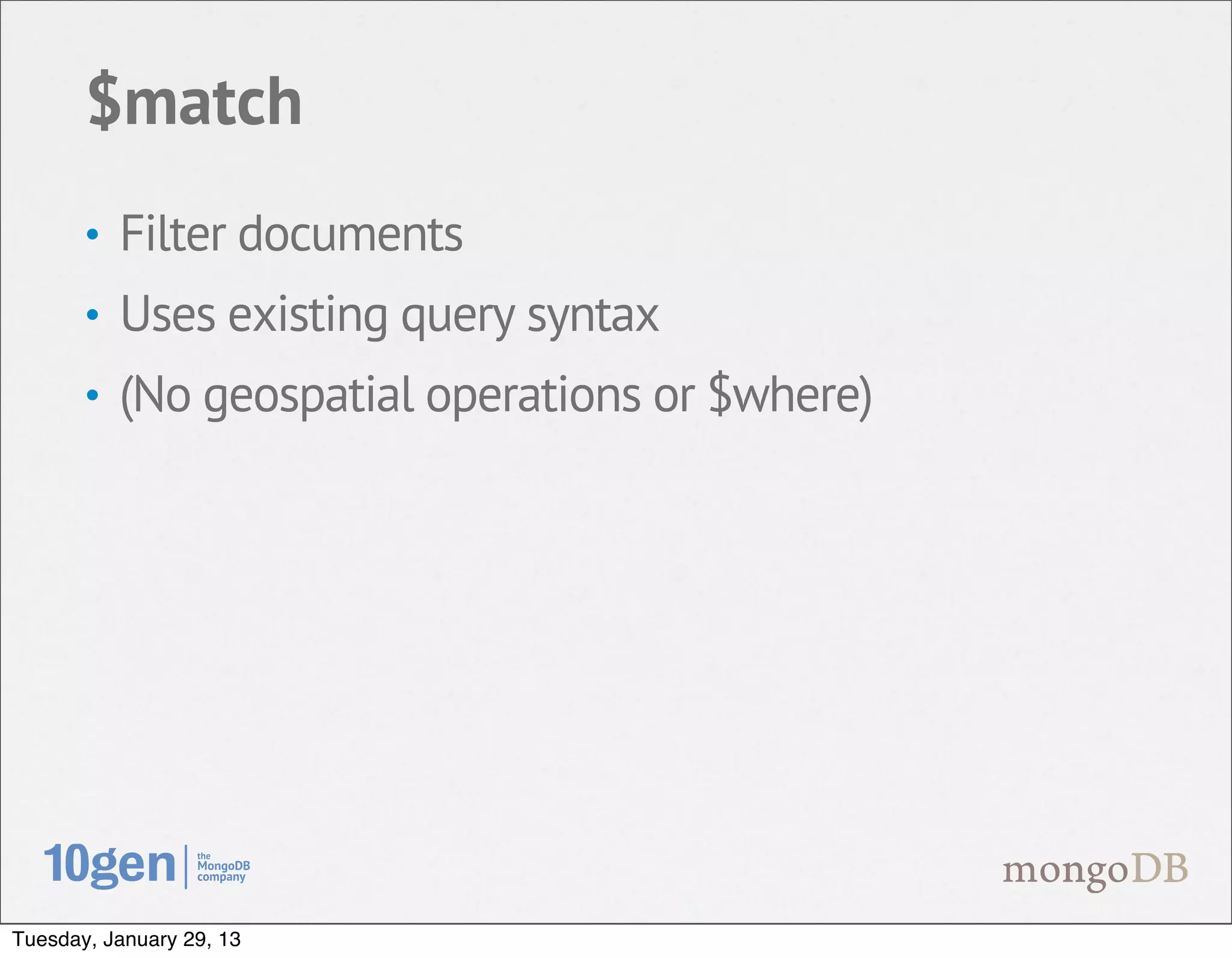

17. $match
• Filter documents
• Uses existing query syntax
• (No geospatial operations or $where)
Tuesday, January 29, 13

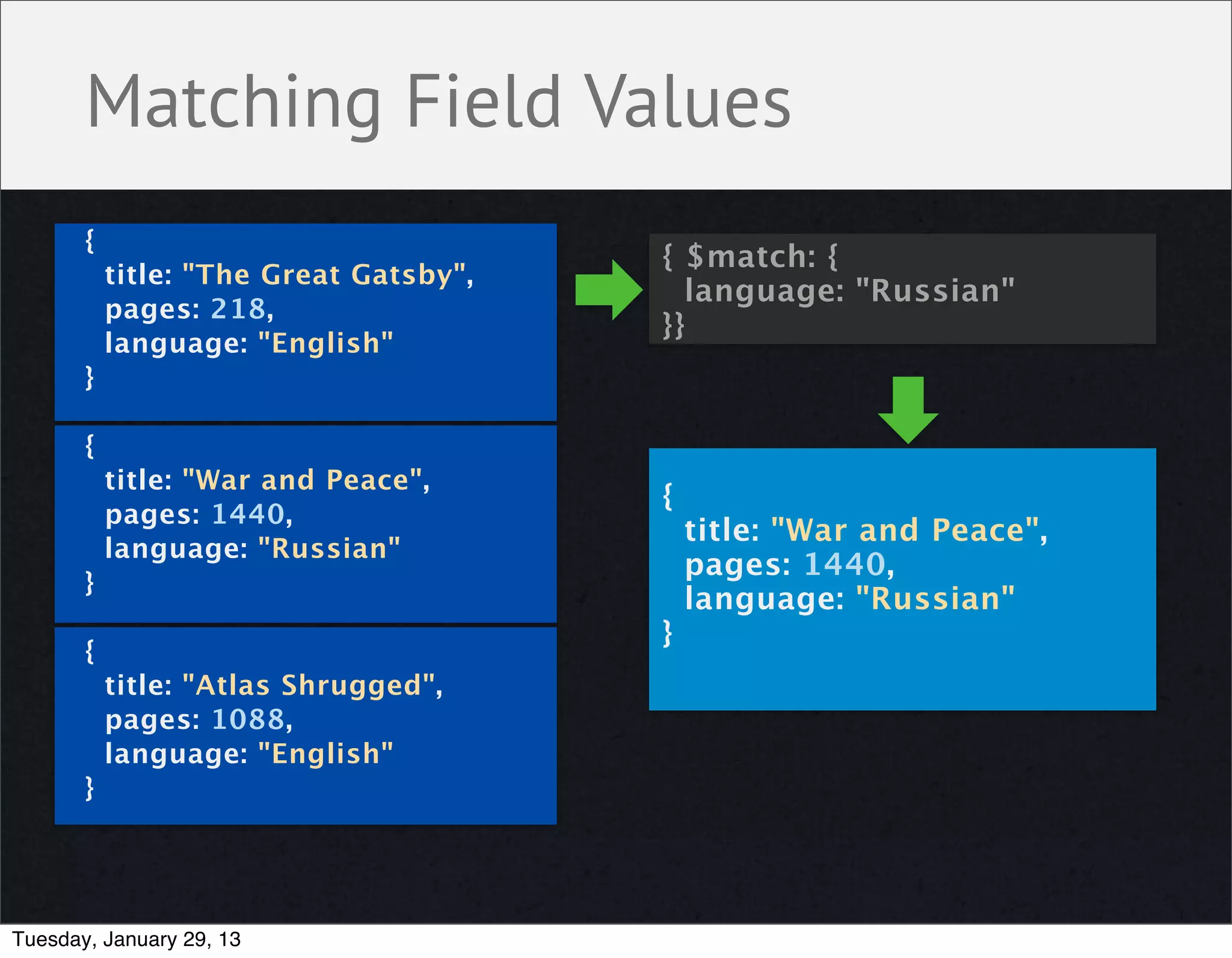

18. Matching Field Values
{
{ $match: {
title: "The Great Gatsby",
language: "Russian"
pages: 218,
}}
language: "English"
}
{
title: "War and Peace",
{
pages: 1440,
title: "War and Peace",
language: "Russian"
pages: 1440,
}
language: "Russian"
}
{
title: "Atlas Shrugged",
pages: 1088,
language: "English"
}
Tuesday, January 29, 13

19. Matching with Query Operators
{ { $match: {
title: "The Great Gatsby", pages: { $gt: 1000 }
pages: 218, }}
language: "English"
}
{ {
title: "War and Peace", title: "War and Peace",
pages: 1440, pages: 1440,
language: "Russian" language: "Russian"
} }
{ {
title: "Atlas Shrugged", title: "Atlas Shrugged",
pages: 1088, pages: 1088,
language: "English" language: "English"
} }
Tuesday, January 29, 13

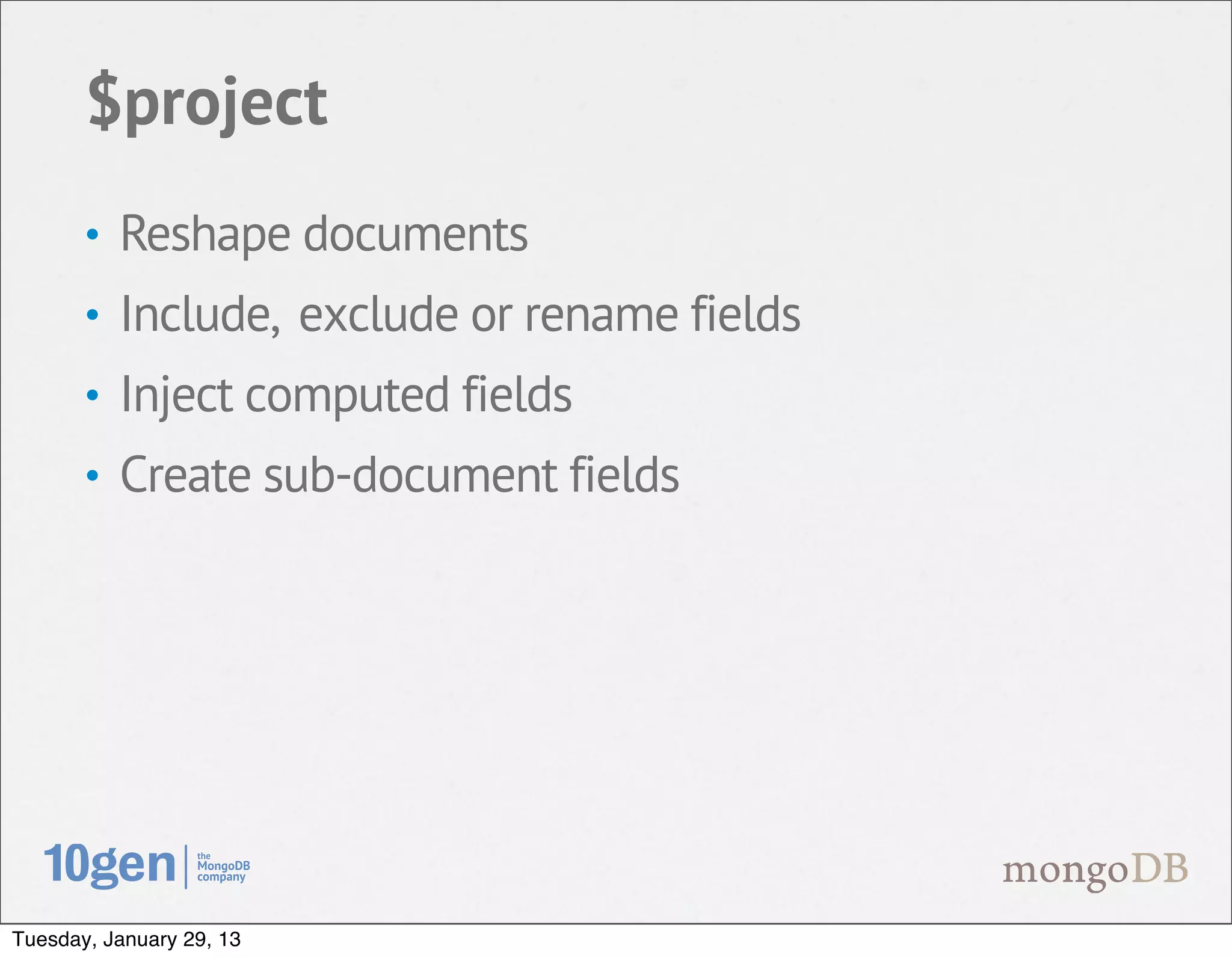

20. $project
• Reshape documents
• Include, exclude or rename fields
• Inject computed fields
• Create sub-document fields
Tuesday, January 29, 13

21. Including and Excluding Fields
{ { $project: {
_id: 375, _id: 0,
title: "Great Gatsby", title: 1,
ISBN: "9781857150193", language: 1
available: true, }}
pages: 218,
subjects: [
"Long Island",
"New York",
"1920s" {
], title: " Great Gatsby",
language: "English" language: "English"
} }
Tuesday, January 29, 13

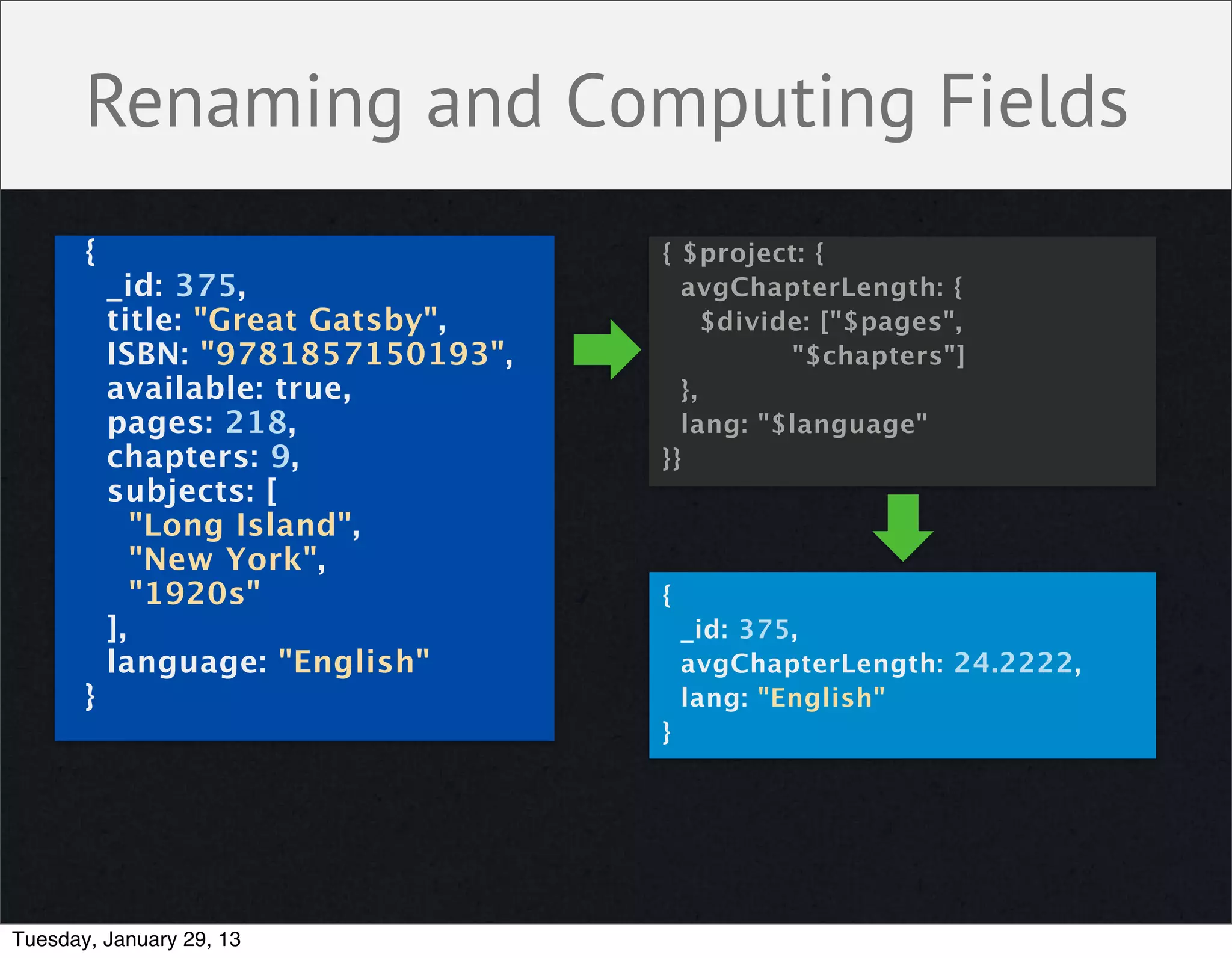

22. Renaming and Computing Fields
{ { $project: {
_id: 375, avgChapterLength: {
title: "Great Gatsby", $divide: ["$pages",
ISBN: "9781857150193", "$chapters"]
available: true, },
pages: 218, lang: "$language"
chapters: 9, }}
subjects: [
"Long Island",
"New York",
"1920s" {
], _id: 375,
language: "English" avgChapterLength: 24.2222 ,
} lang: "English"
}
Tuesday, January 29, 13

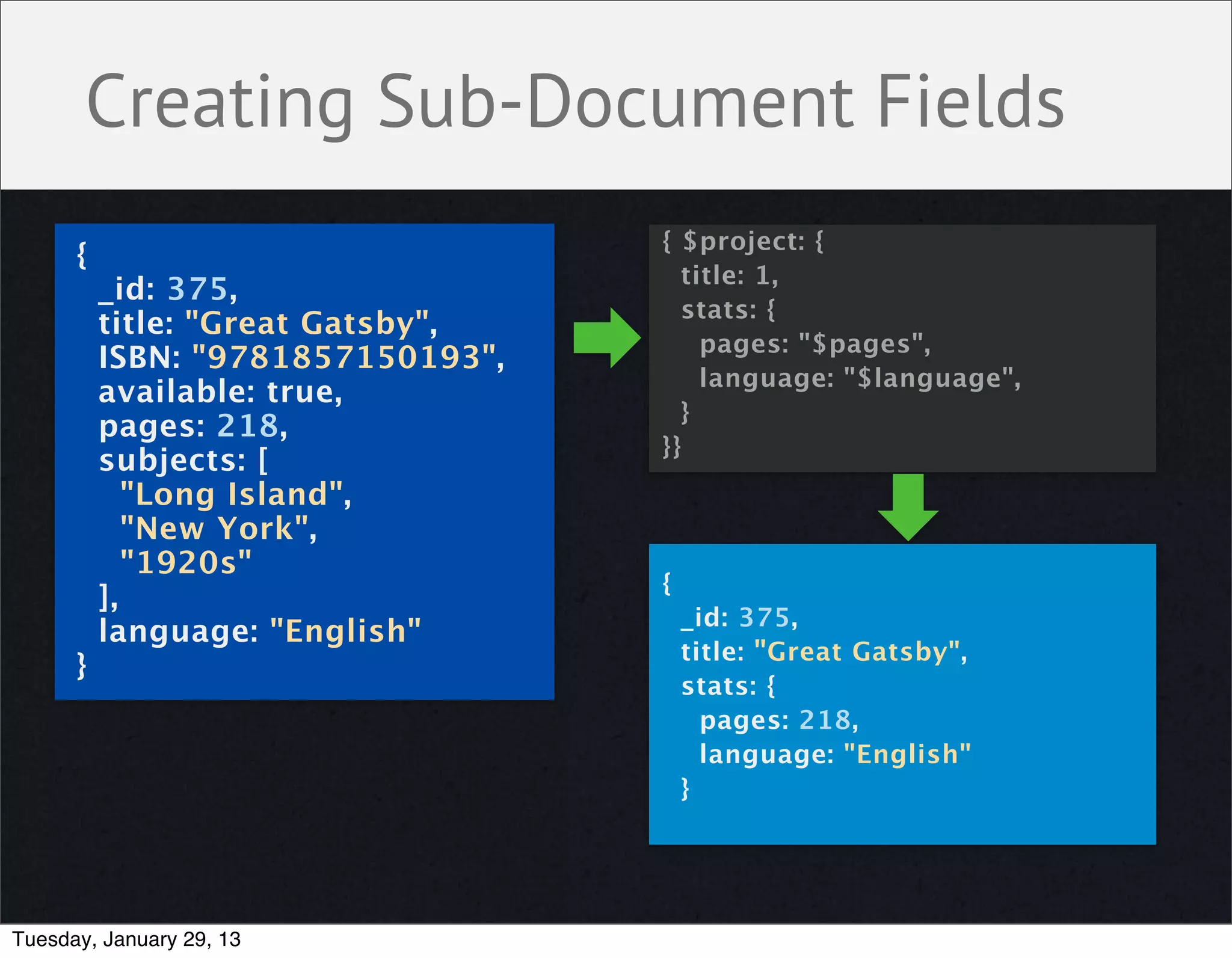

23. Creating Sub-Document Fields
{ $project: {
{
title: 1,
_id: 375,
stats: {
title: "Great Gatsby",
pages: "$pages",
ISBN: "9781857150193",
language: "$language",
available: true,
}
pages: 218,
}}
subjects: [
"Long Island",
"New York",
"1920s"
{
],
_id: 375,
language: "English"
title: " Great Gatsby",
}
stats: {
pages: 218,
language: "English"
}
Tuesday, January 29, 13

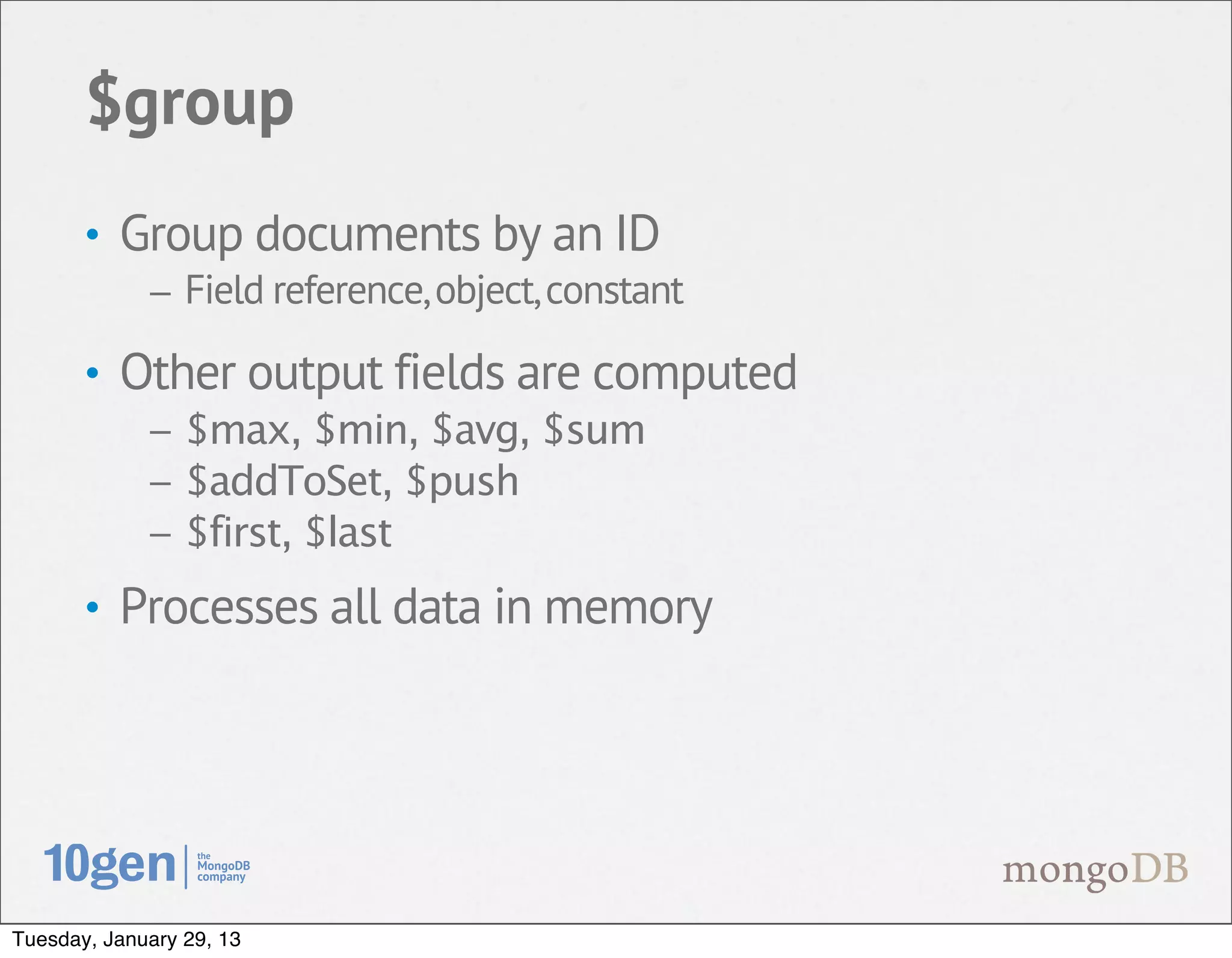

24. $group
• Group documents by an ID
– Field reference, object, constant
• Other output fields are computed
– $max, $min, $avg, $sum
– $addToSet, $push
– $first, $last
• Processes all data in memory
Tuesday, January 29, 13

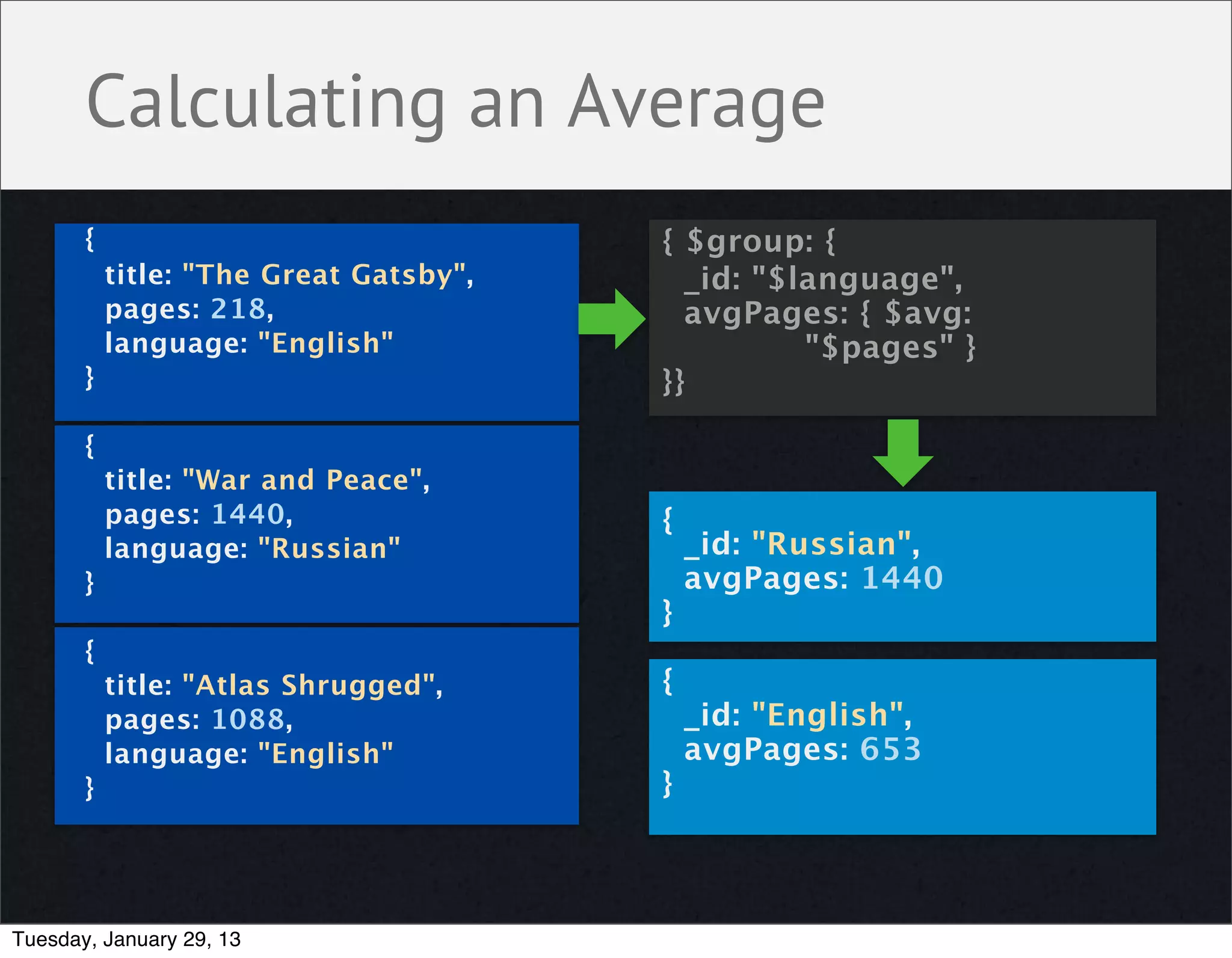

25. Calculating an Average
{ { $group: {
title: "The Great Gatsby", _id: "$language",
pages: 218, avgPages: { $avg:
language: "English" "$pages" }
} }}
{
title: "War and Peace",
pages: 1440, {
language: "Russian" _id: "Russian",
} avgPages: 1440
}
{
title: "Atlas Shrugged", {
pages: 1088, _id: "English",
language: "English" avgPages: 653
} }
Tuesday, January 29, 13

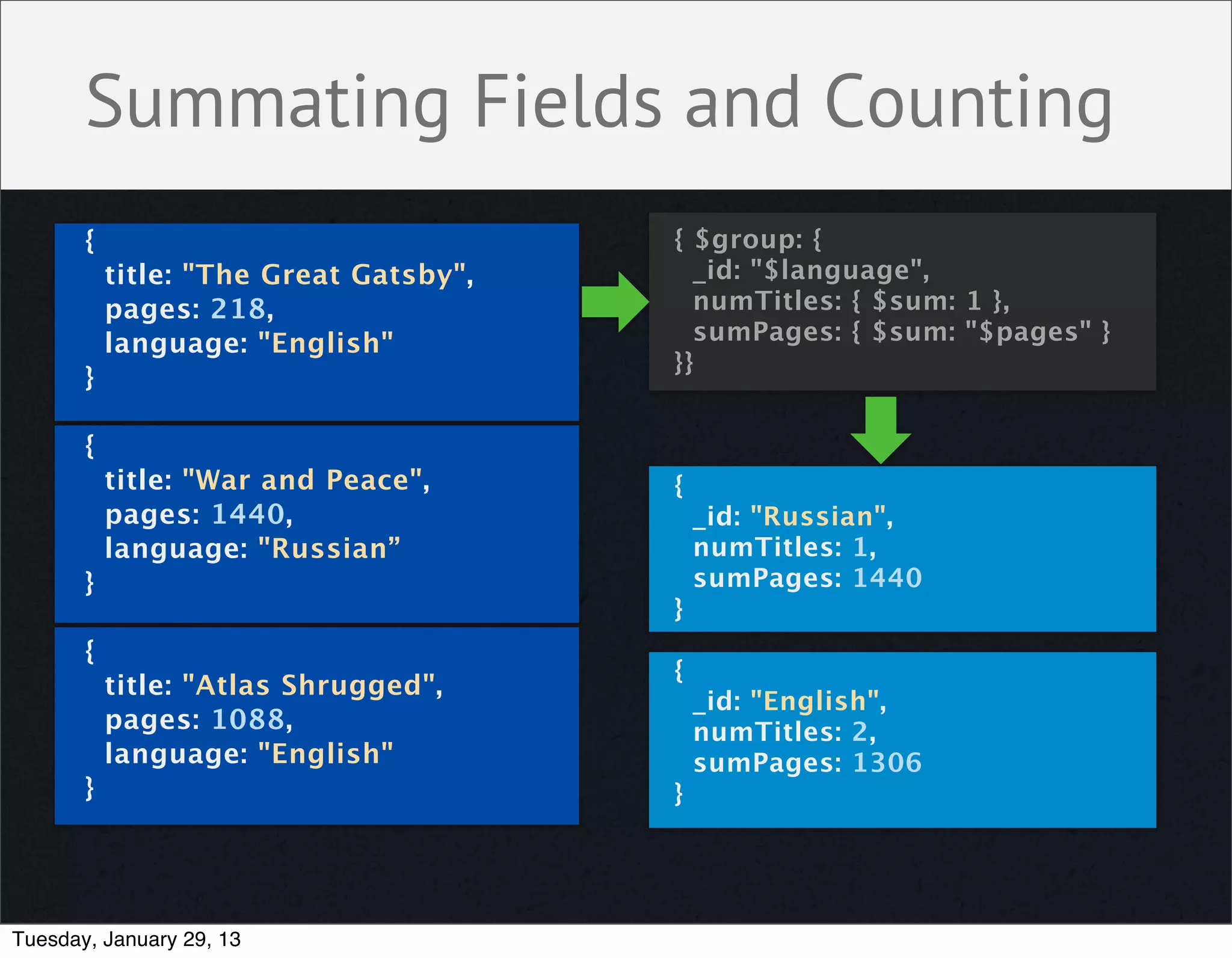

26. Summating Fields and Counting
{ { $group: {
title: "The Great Gatsby", _id: "$language",
pages: 218, numTitles: { $sum: 1 },
language: "English" sumPages: { $sum: "$pages" }
}}
}
{
title: "War and Peace", {
pages: 1440, _id: "Russian",
language: "Russian” numTitles: 1,
} sumPages: 1440
}
{
{
title: "Atlas Shrugged",
_id: "English",
pages: 1088, numTitles: 2,
language: "English" sumPages: 1306
} }
Tuesday, January 29, 13

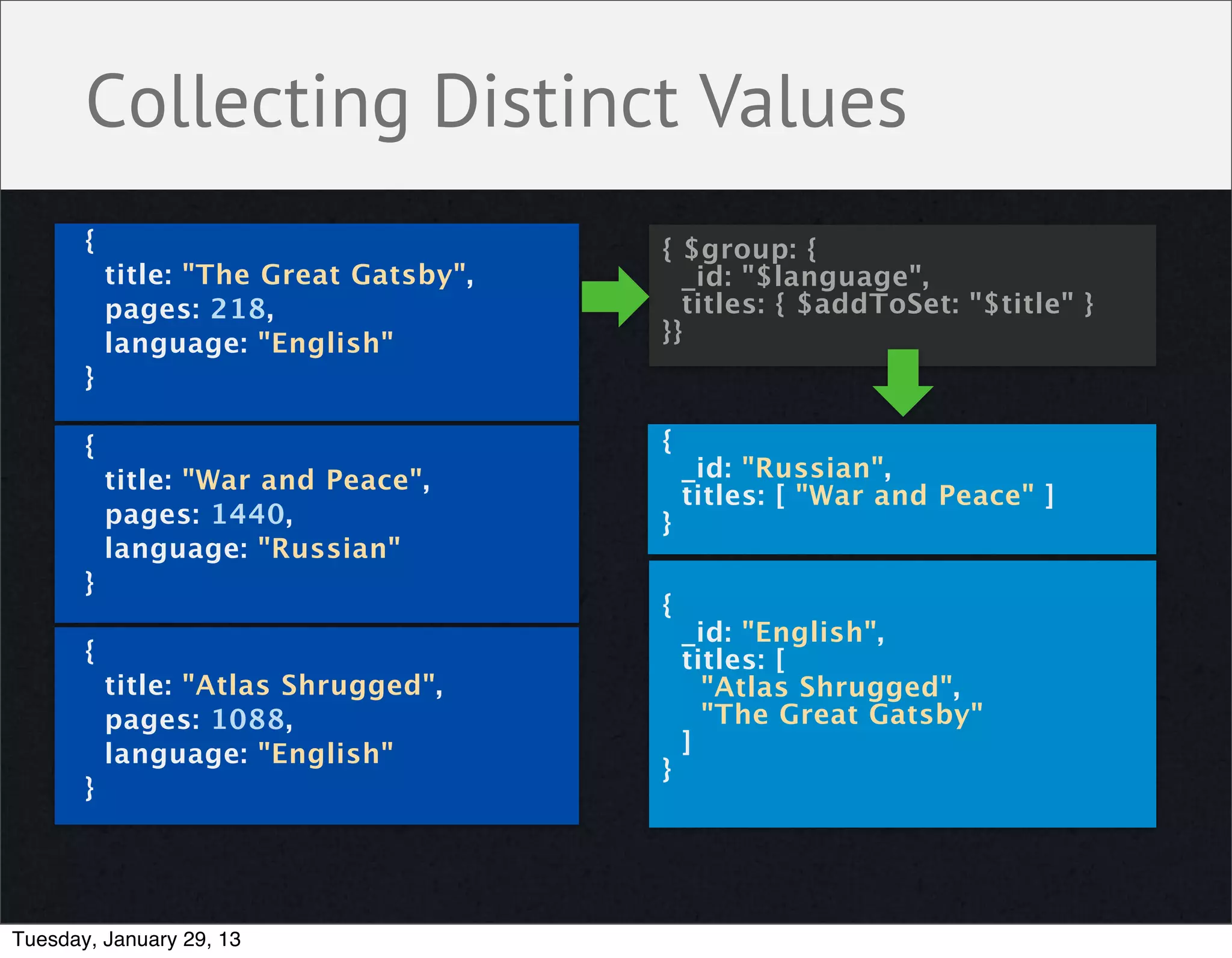

27. Collecting Distinct Values
{ { $group: {
title: "The Great Gatsby", _id: "$language",
pages: 218, titles: { $addToSet: "$title" }
language: "English" }}
}
{ {
title: "War and Peace", _id: "Russian",
titles: [ "War and Peace" ]
pages: 1440, }
language: "Russian"
}
{
_id: "English",
{ titles: [
title: "Atlas Shrugged", "Atlas Shrugged",
pages: 1088, "The Great Gatsby"
language: "English" ]
}
}
Tuesday, January 29, 13

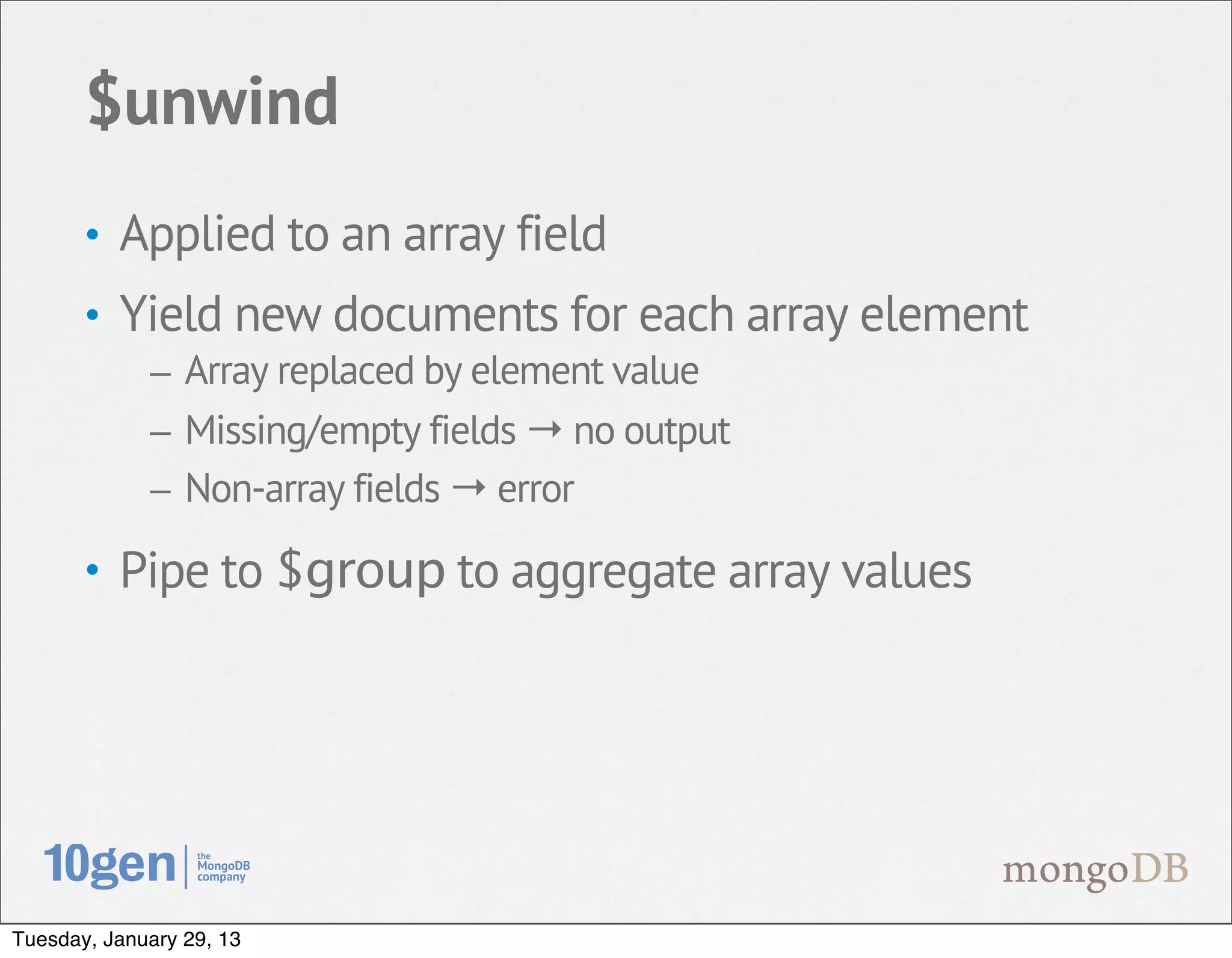

28. $unwind
• Applied to an array field
• Yield new documents for each array element
– Array replaced by element value
– Missing/empty fields → no output
– Non-array fields → error
• Pipe to $group to aggregate array values
Tuesday, January 29, 13

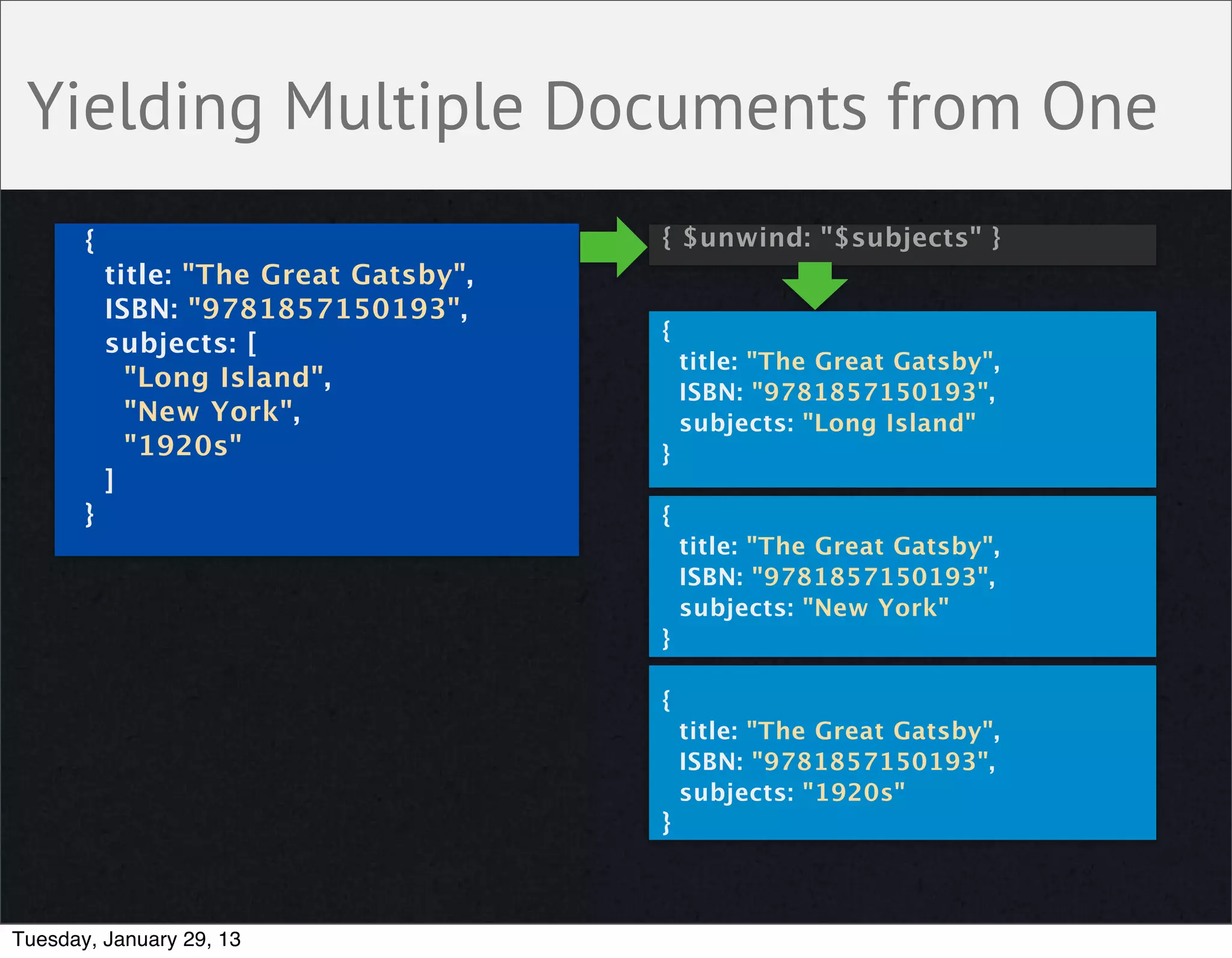

29. Yielding Multiple Documents from One
{ { $unwind: "$subjects" }
title: "The Great Gatsby",
ISBN: "9781857150193",
{
subjects: [
title: "The Great Gatsby",
"Long Island", ISBN: "9781857150193",
"New York", subjects: "Long Island"
"1920s" }
]
} {
title: "The Great Gatsby",
ISBN: "9781857150193",
subjects: "New York"
}
{
title: "The Great Gatsby",
ISBN: "9781857150193",
subjects: "1920s"
}
Tuesday, January 29, 13

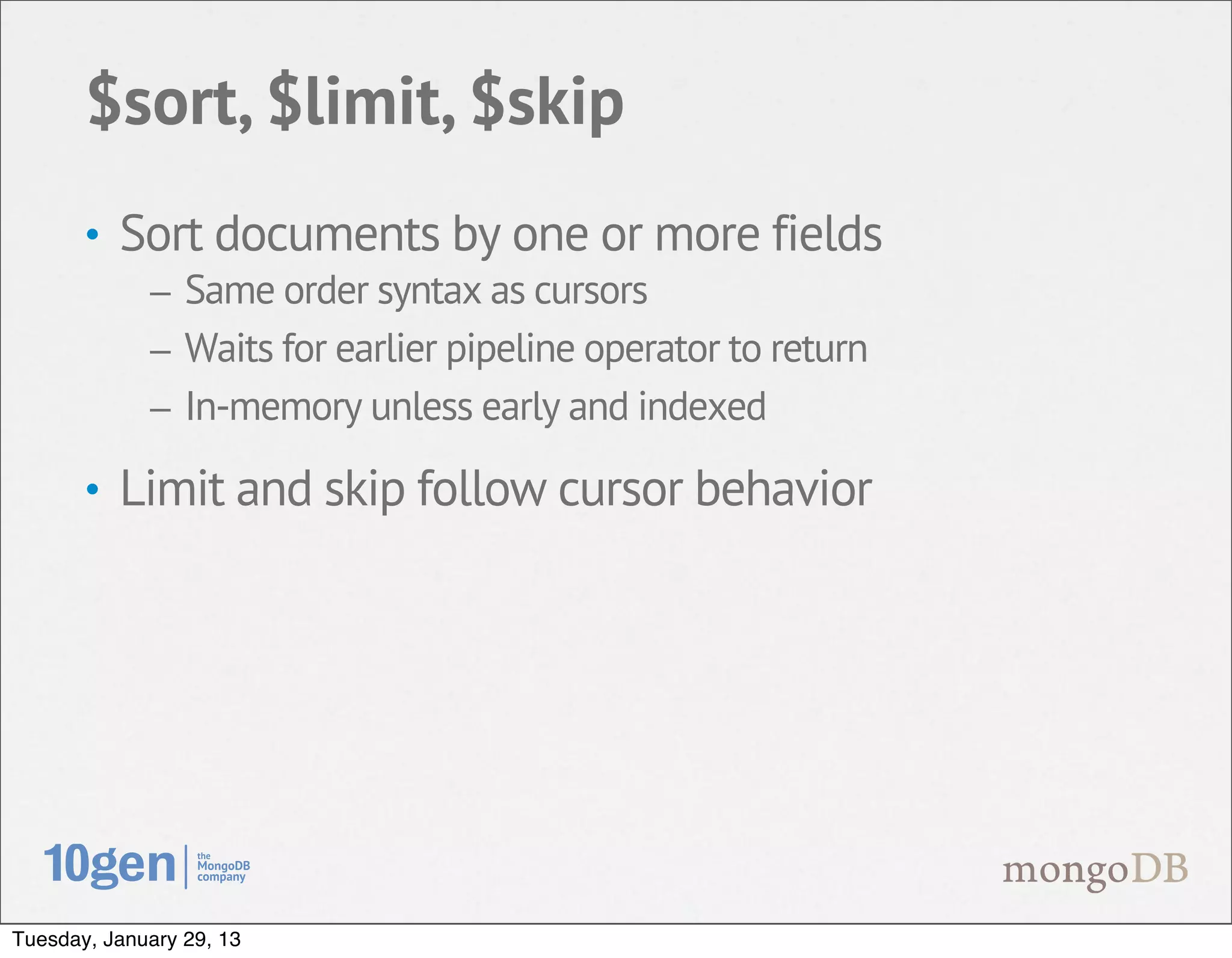

30. $sort, $limit, $skip
• Sort documents by one or more fields
– Same order syntax as cursors
– Waits for earlier pipeline operator to return
– In-memory unless early and indexed
• Limit and skip follow cursor behavior
Tuesday, January 29, 13

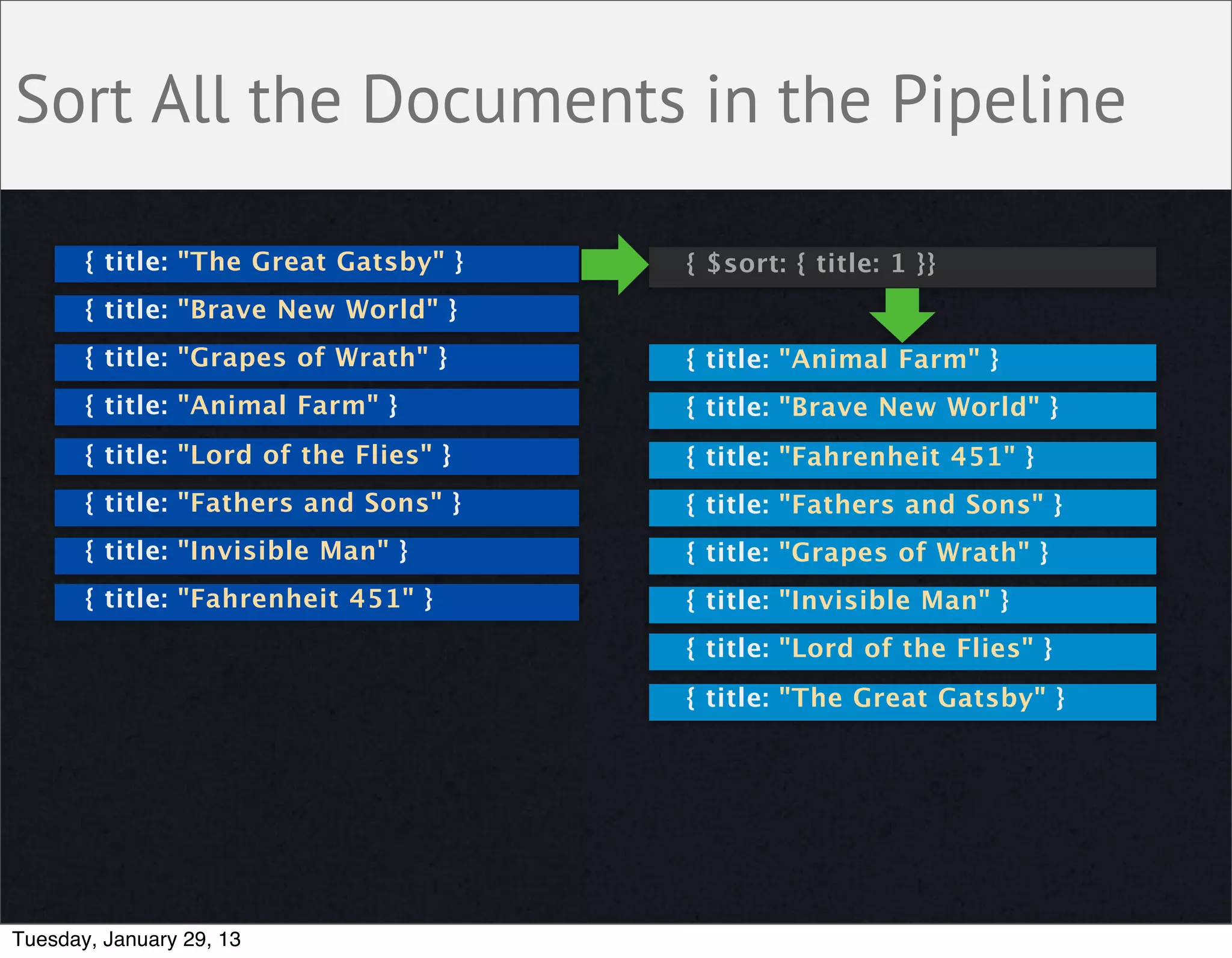

31. Sort All the Documents in the Pipeline
{ title: "The Great Gatsby" } { $sort: { title: 1 }}
{ title: "Brave New World" }
{ title: "Grapes of Wrath" } { title: "Animal Farm" }
{ title: "Animal Farm" } { title: "Brave New World" }
{ title: "Lord of the Flies" } { title: "Fahrenheit 451" }
{ title: "Fathers and Sons" } { title: "Fathers and Sons" }
{ title: "Invisible Man" } { title: "Grapes of Wrath" }
{ title: "Fahrenheit 451" } { title: "Invisible Man" }
{ title: "Lord of the Flies" }
{ title: "The Great Gatsby" }
Tuesday, January 29, 13

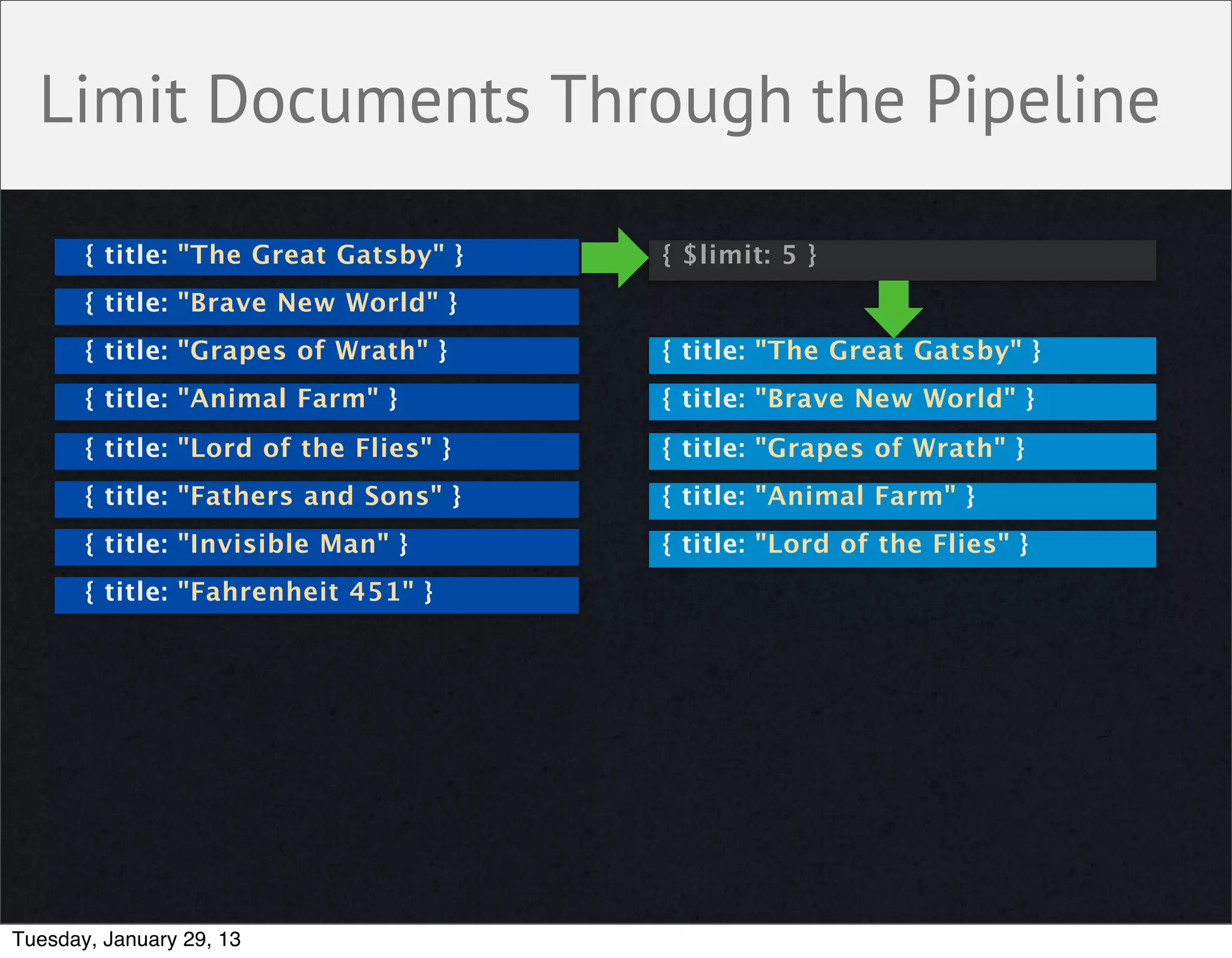

32. Limit Documents Through the Pipeline
{ title: "The Great Gatsby" } { $limit: 5 }
{ title: "Brave New World" }
{ title: "Grapes of Wrath" } { title: "The Great Gatsby" }
{ title: "Animal Farm" } { title: "Brave New World" }
{ title: "Lord of the Flies" } { title: "Grapes of Wrath" }
{ title: "Fathers and Sons" } { title: "Animal Farm" }
{ title: "Invisible Man" } { title: "Lord of the Flies" }
{ title: "Fahrenheit 451" }
Tuesday, January 29, 13

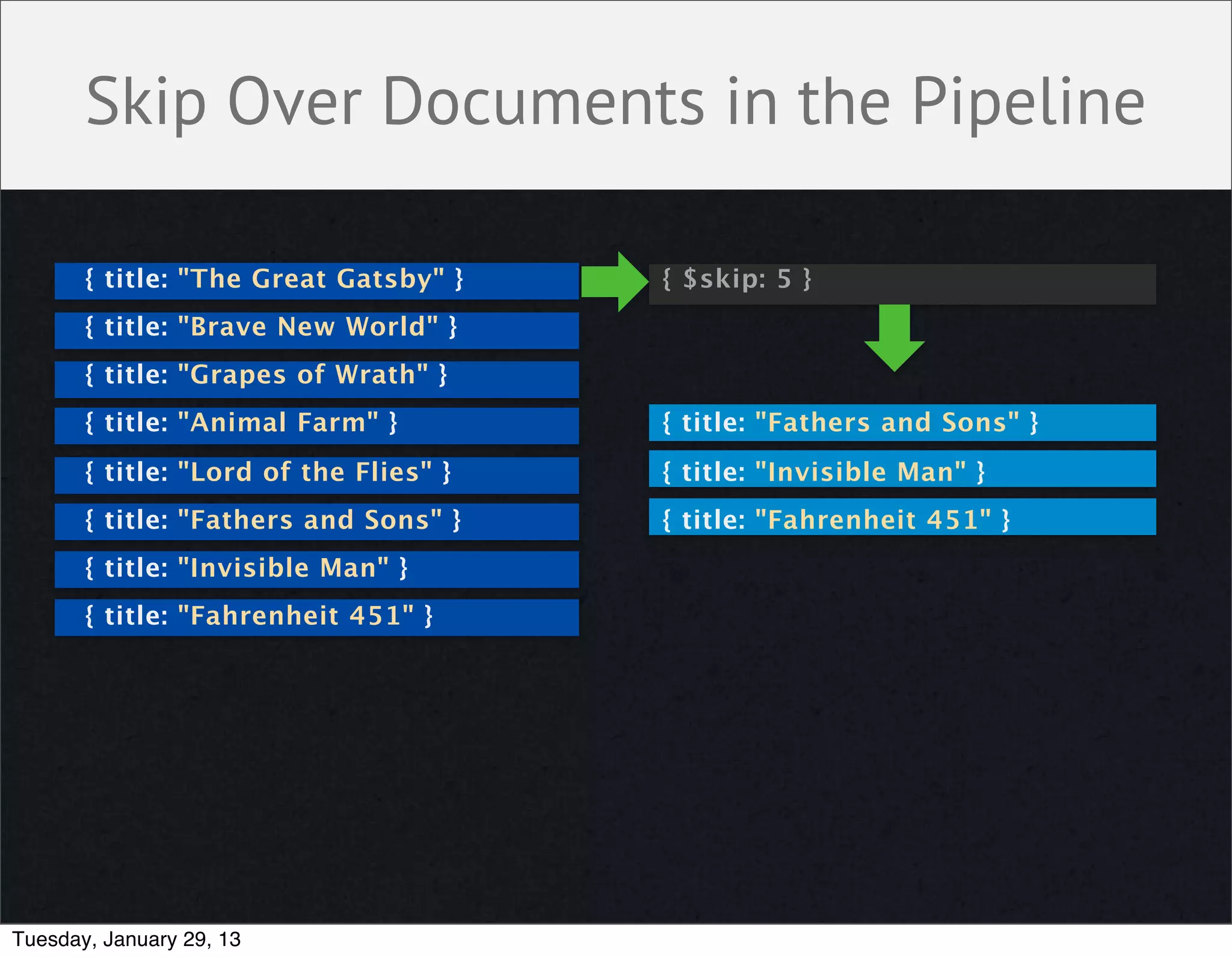

33. Skip Over Documents in the Pipeline
{ title: "The Great Gatsby" } { $skip: 5 }
{ title: "Brave New World" }
{ title: "Grapes of Wrath" }
{ title: "Animal Farm" } { title: "Fathers and Sons" }
{ title: "Lord of the Flies" } { title: "Invisible Man" }
{ title: "Fathers and Sons" } { title: "Fahrenheit 451" }
{ title: "Invisible Man" }
{ title: "Fahrenheit 451" }
Tuesday, January 29, 13

34. Usage and Limitations
Tuesday, January 29, 13

35. Usage
• collection.aggregate() method
– Mongo shell
– Most drivers
• aggregate database command
Tuesday, January 29, 13

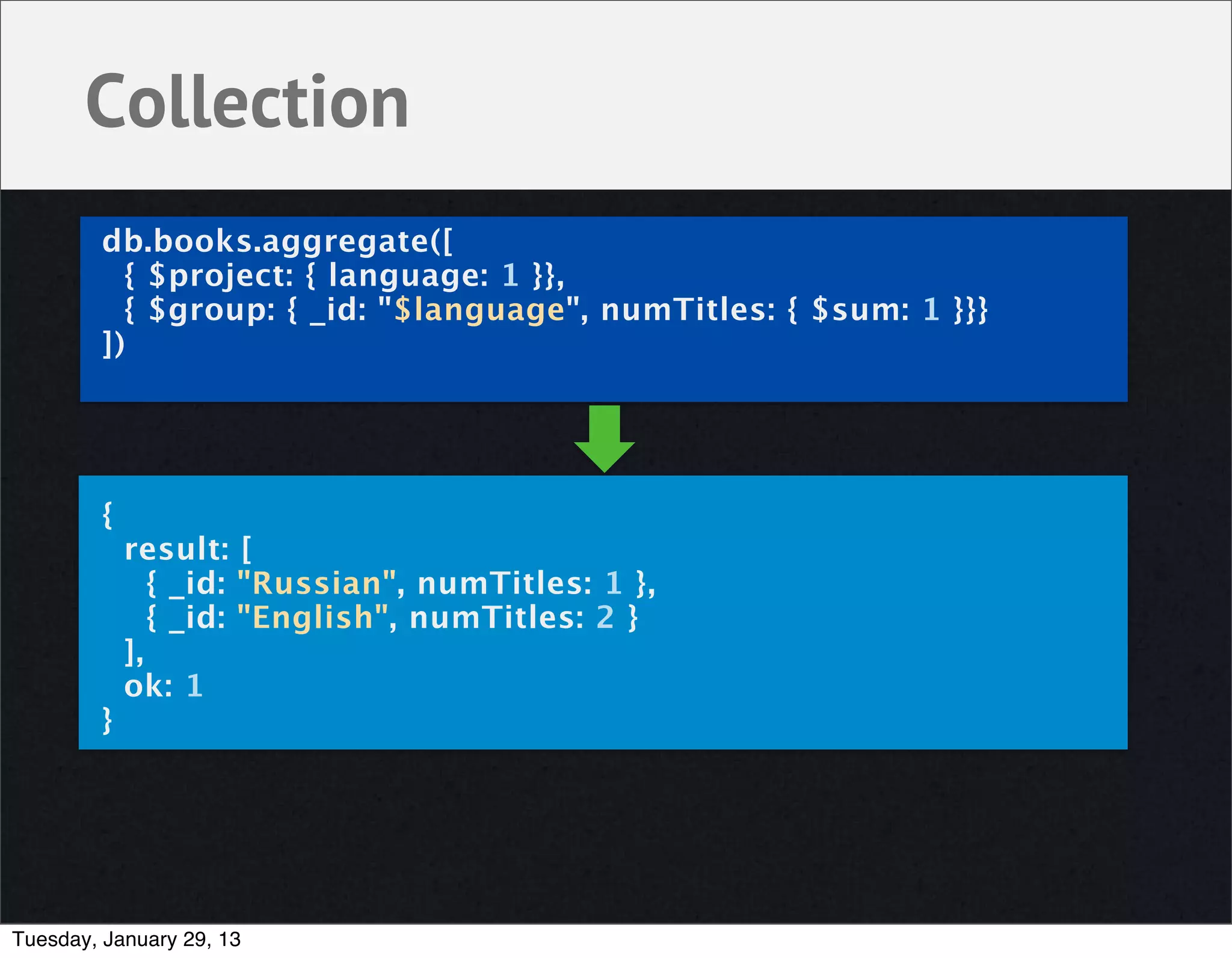

36. Collection
db.books.aggregate([
{ $project: { language: 1 }},
{ $group: { _id: "$language", numTitles: { $sum: 1 }}}
])
{
result: [
{ _id: "Russian", numTitles: 1 },
{ _id: "English", numTitles: 2 }
],
ok: 1
}
Tuesday, January 29, 13

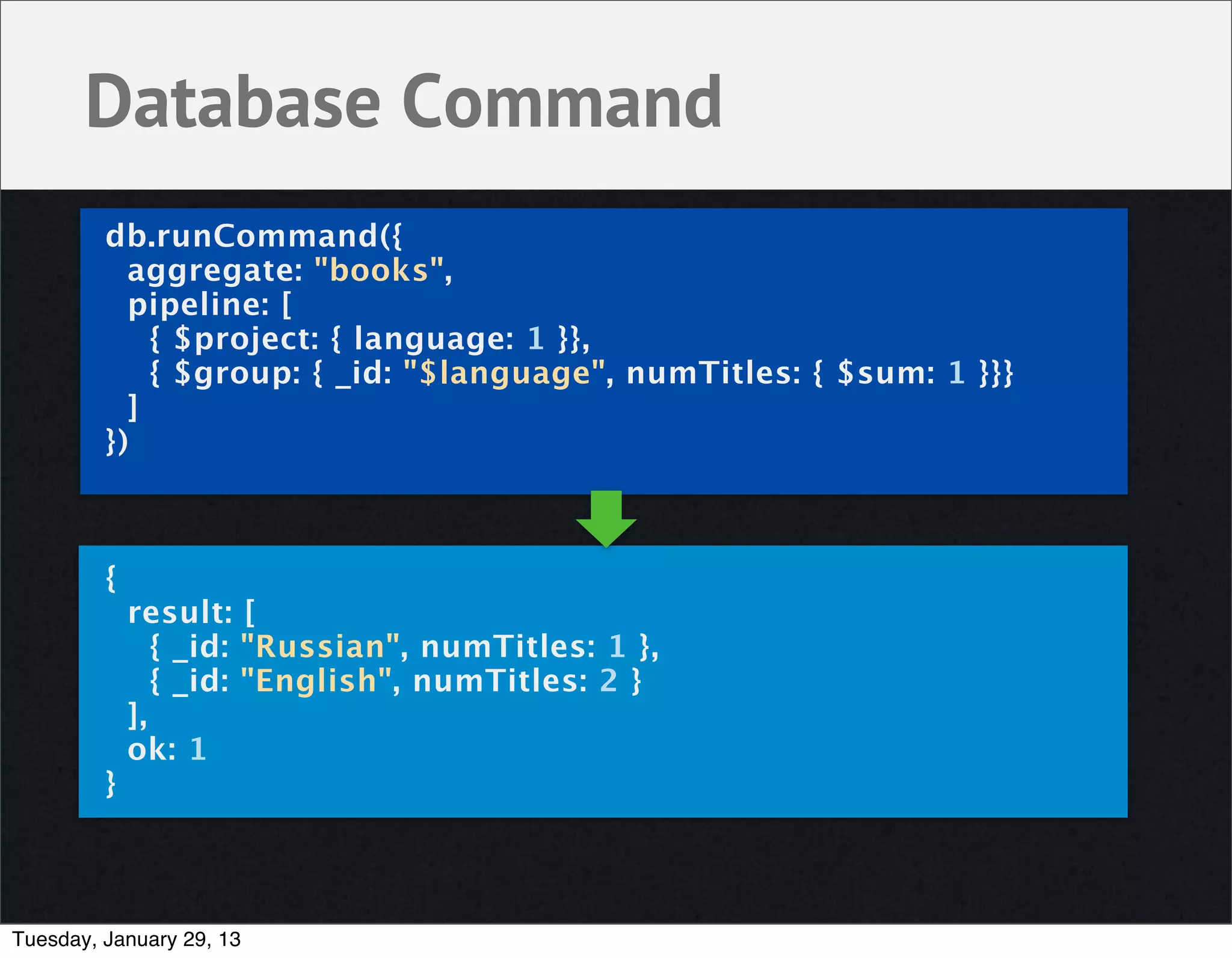

37. Database Command
db.runCommand({
aggregate: "books",
pipeline: [
{ $project: { language: 1 }},
{ $group: { _id: "$language", numTitles: { $sum: 1 }}}
]
})
{
result: [
{ _id: "Russian", numTitles: 1 },
{ _id: "English", numTitles: 2 }
],
ok: 1
}
Tuesday, January 29, 13

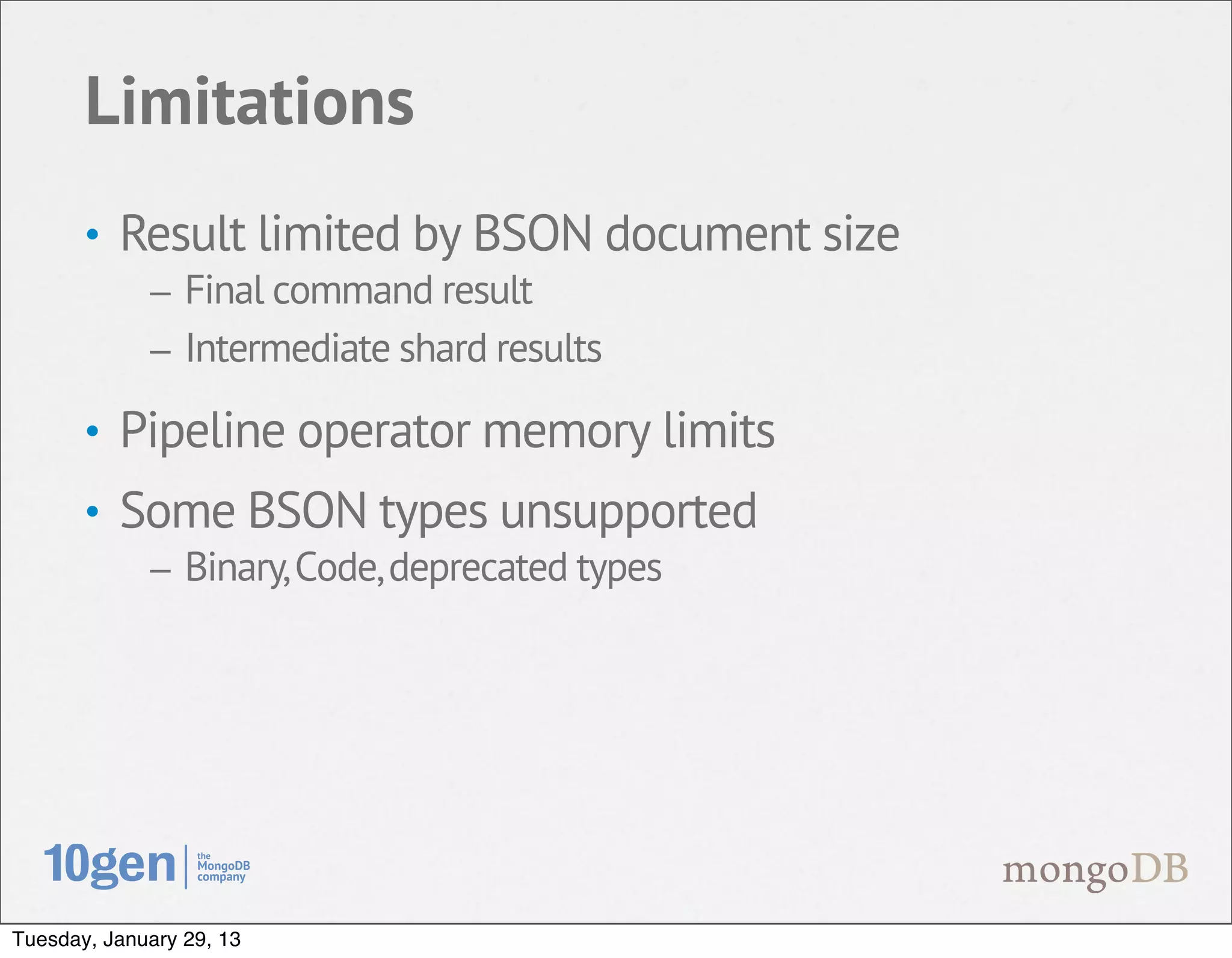

38. Limitations
• Result limited by BSON document size
– Final command result
– Intermediate shard results
• Pipeline operator memory limits
• Some BSON types unsupported
– Binary, Code, deprecated types
Tuesday, January 29, 13

39. Sharding
Tuesday, January 29, 13

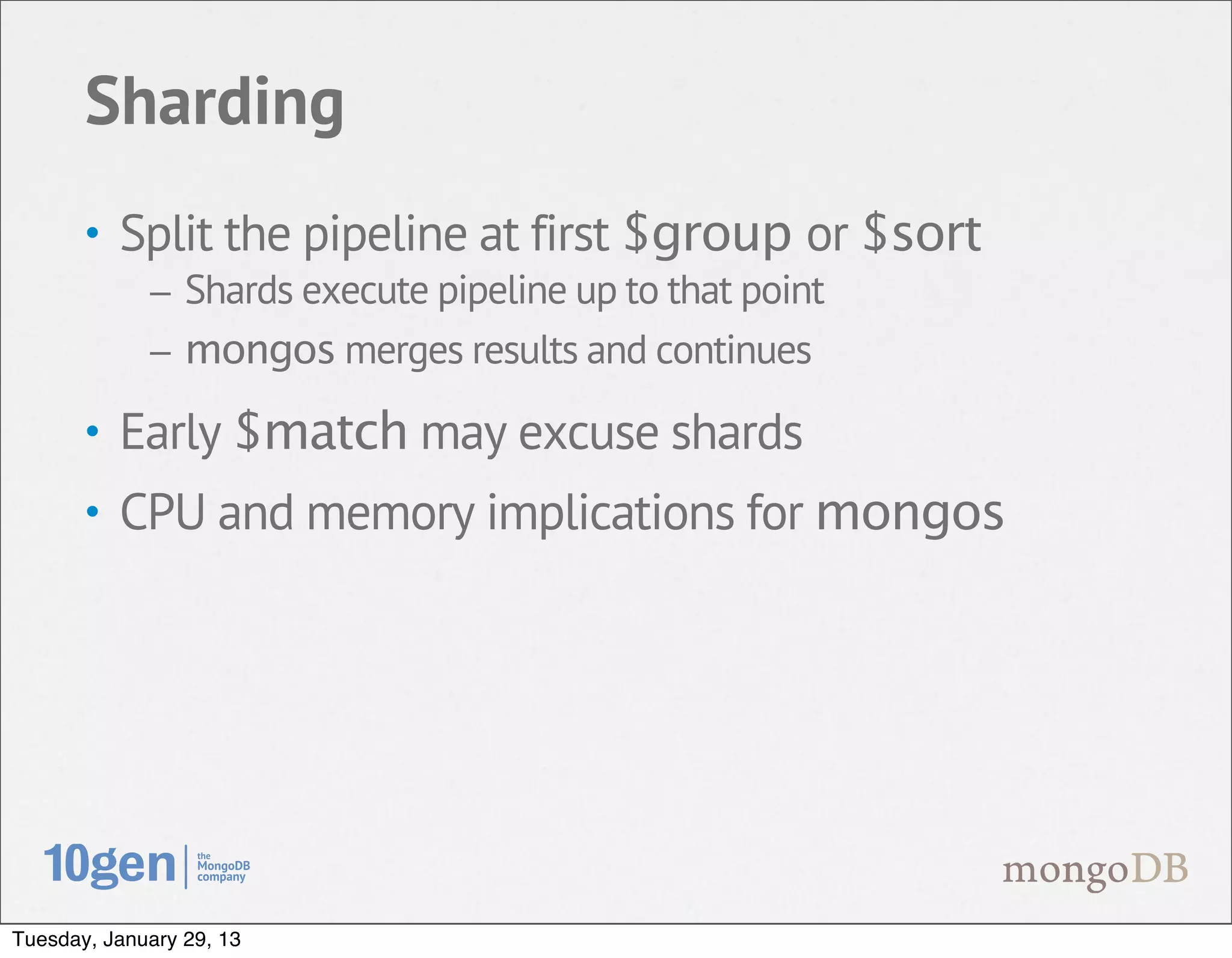

40. Sharding
• Split the pipeline at first $group or $sort
– Shards execute pipeline up to that point
– mongos merges results and continues
• Early $match may excuse shards
• CPU and memory implications for mongos
Tuesday, January 29, 13

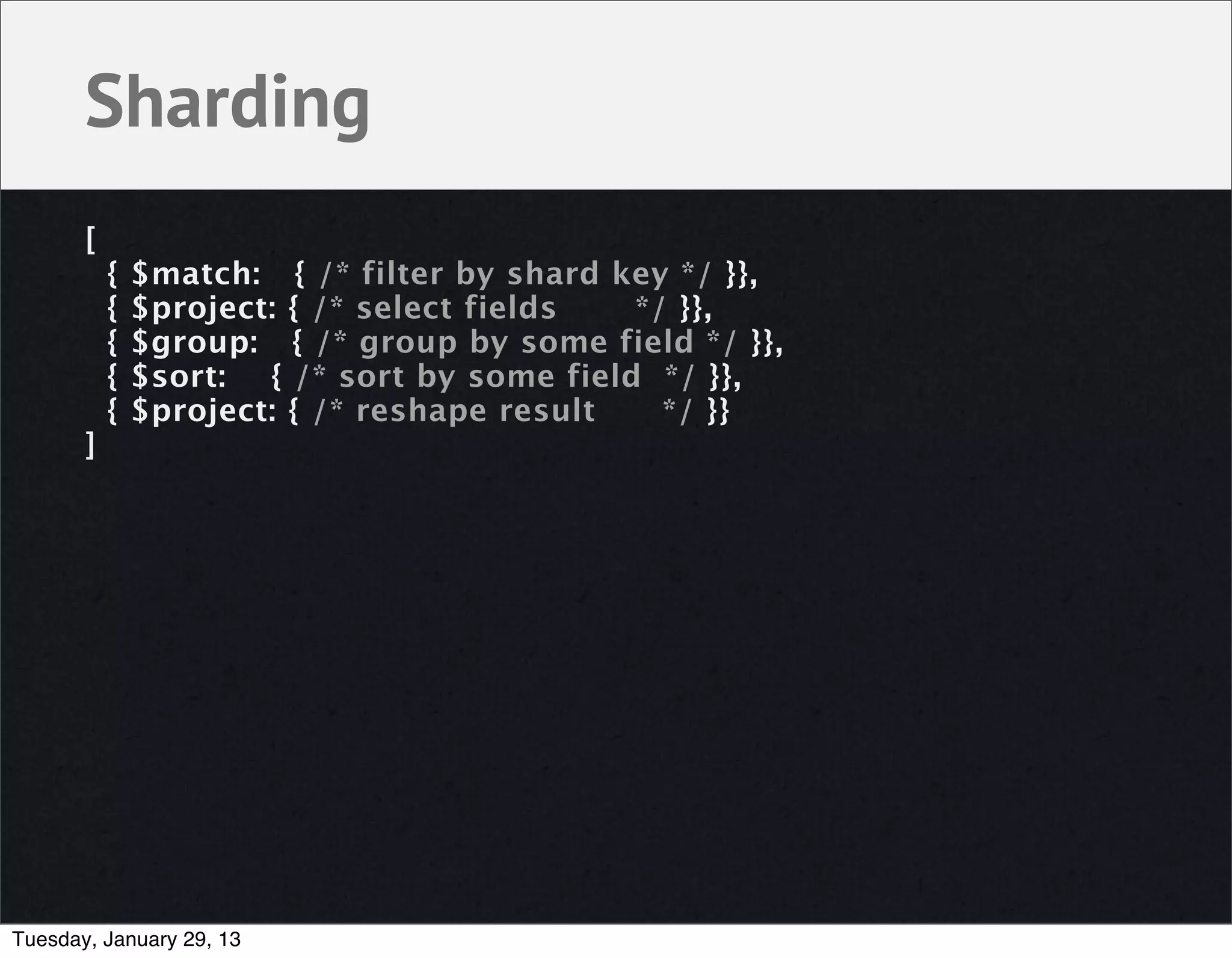

41. Sharding
[
{ $match: { /* filter by shard key */ }},
{ $project: { /* select fields */ }},
{ $group: { /* group by some field */ }},
{ $sort: { /* sort by some field */ }},
{ $project: { /* reshape result */ }}
]
Tuesday, January 29, 13

42. Aggregation in a sharded cluster
Tuesday, January 29, 13

43. Expressions
Tuesday, January 29, 13

44. Expressions
• Return computed values
• Used with $project and $group
• Reference fields using $ (e.g. "$x")
• Expressions may be nested
Tuesday, January 29, 13

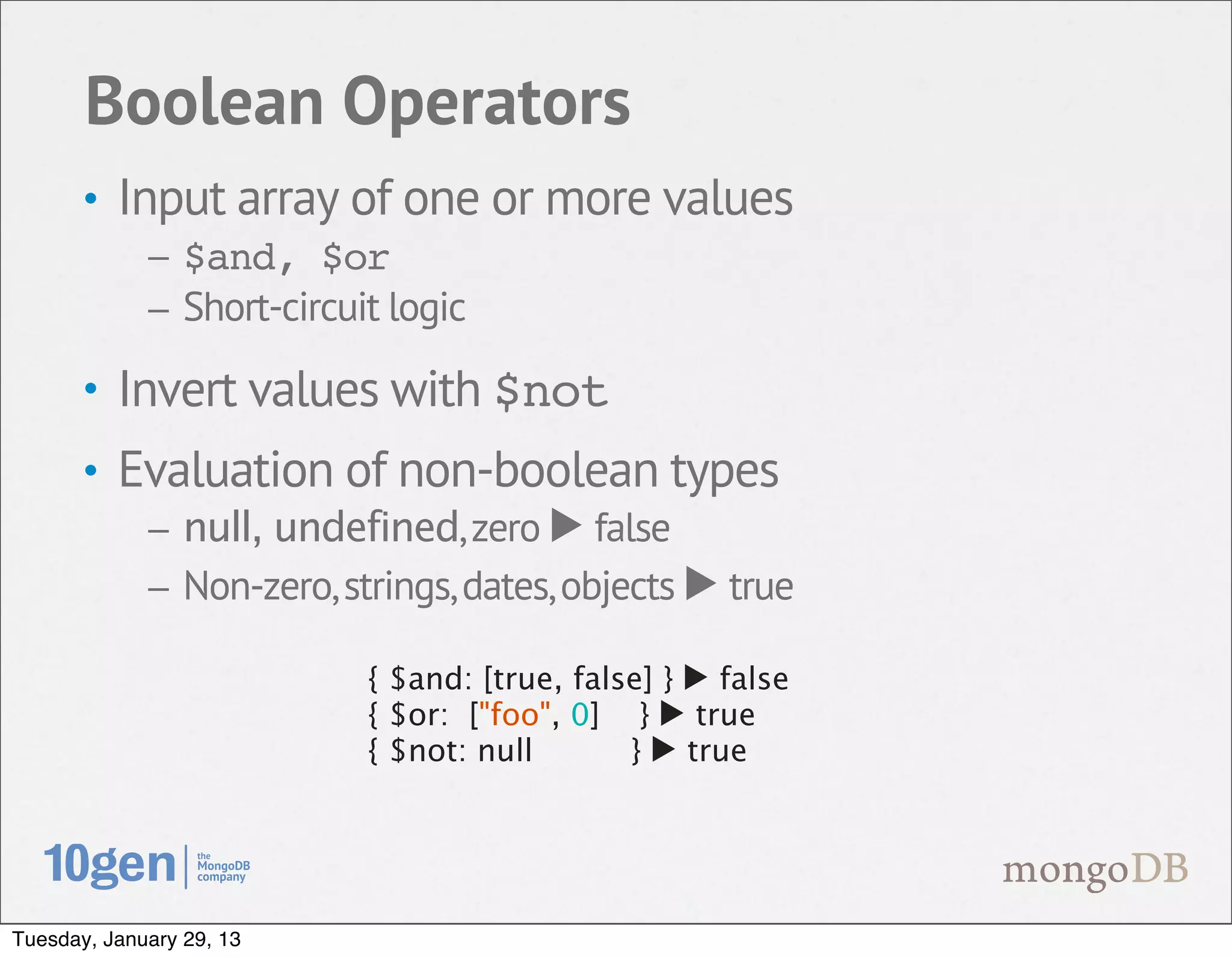

45. Boolean Operators
• Input array of one or more values
– $and, $or
– Short-circuit logic
• Invert values with $not
• Evaluation of non-boolean types
– null, undefined, zero ▶ false
– Non-zero, strings, dates, objects ▶ true
{ $and: [true, false] } ▶ false
{ $or: ["foo", 0] } ▶ true
{ $not: null } ▶ true
Tuesday, January 29, 13

46. Comparison Operators
• Compare numbers, strings, and dates
• Input array with two operands
– $cmp, $eq, $ne
– $gt, $gte, $lt, $lte
{ $cmp: [3, 4] } ▶ -1
{ $eq: ["foo", "bar"] } ▶ false
{ $ne: ["foo", "bar"] } ▶ true
{ $gt: [9, 7] } ▶ true
Tuesday, January 29, 13

47. Arithmetic Operators
• Input array of one or more numbers
– $add, $multiply
• Input array of two operands
– $subtract, $divide, $mod
{ $add: [1, 2, 3] } ▶ 6
{ $multiply: [2, 2, 2] } ▶ 8
{ $subtract: [10, 7] } ▶ 3
{ $divide: [10, 2] } ▶ 5
{ $mod: [8, 3] } ▶ 2
Tuesday, January 29, 13

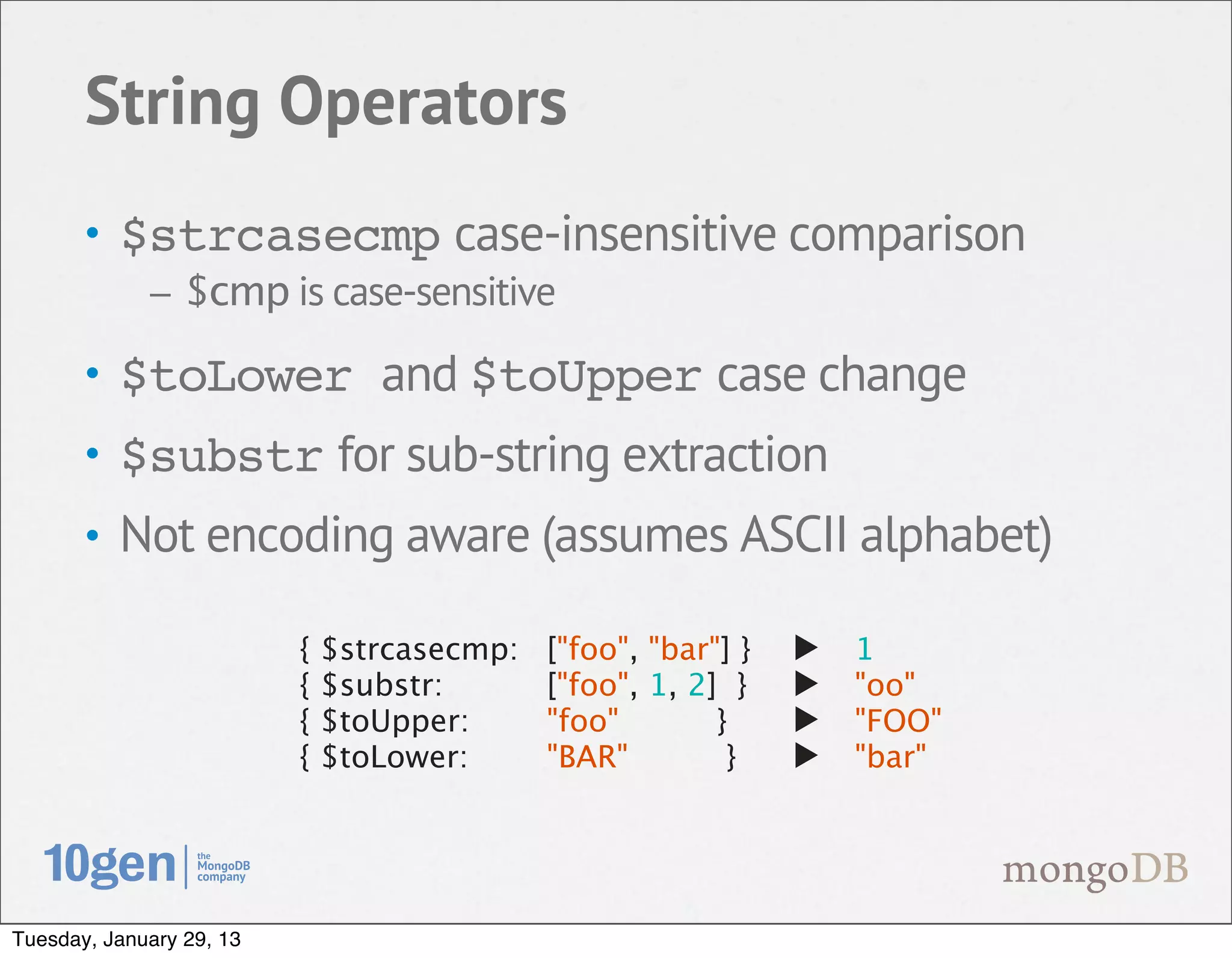

48. String Operators
• $strcasecmp case-insensitive comparison
– $cmp is case-sensitive
• $toLower and $toUpper case change
• $substr for sub-string extraction
• Not encoding aware (assumes ASCII alphabet)
{ $strcasecmp:
["foo", "bar"] }
▶
1
{ $substr:
["foo", 1, 2] }
▶
"oo"
{ $toUpper:
"foo" }
▶
"FOO"
{ $toLower:
"BAR" }
▶
"bar"
Tuesday, January 29, 13

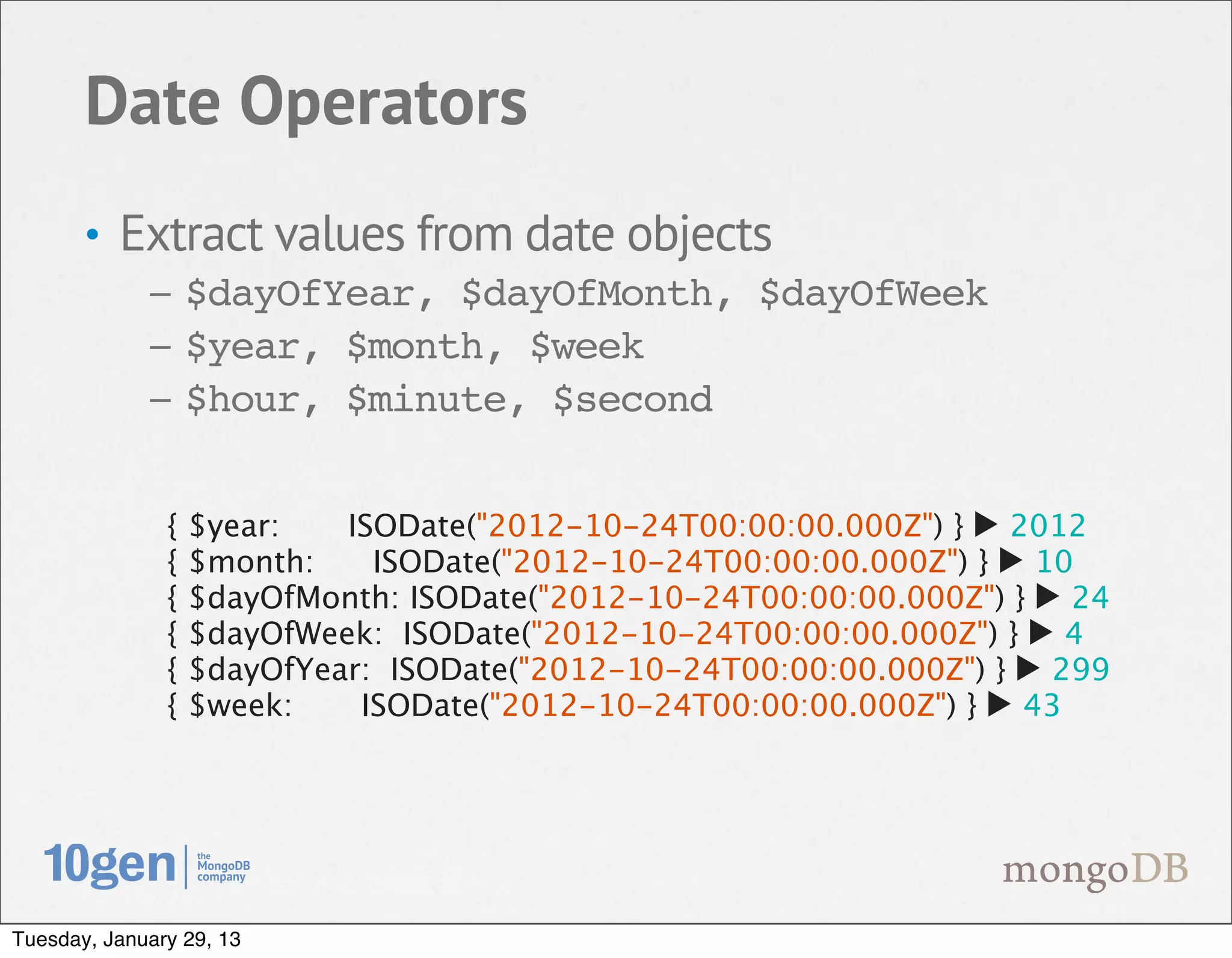

49. Date Operators
• Extract values from date objects
– $dayOfYear, $dayOfMonth, $dayOfWeek
– $year, $month, $week
– $hour, $minute, $second
{ $year: ISODate("2012-10-24T00:00:00.000Z") } ▶ 2012
{ $month: ISODate("2012-10-24T00:00:00.000Z") } ▶ 10
{ $dayOfMonth: ISODate("2012-10-24T00:00:00.000Z") } ▶ 24
{ $dayOfWeek: ISODate("2012-10-24T00:00:00.000Z") } ▶ 4
{ $dayOfYear: ISODate("2012-10-24T00:00:00.000Z") } ▶ 299
{ $week: ISODate("2012-10-24T00:00:00.000Z") } ▶ 43
Tuesday, January 29, 13

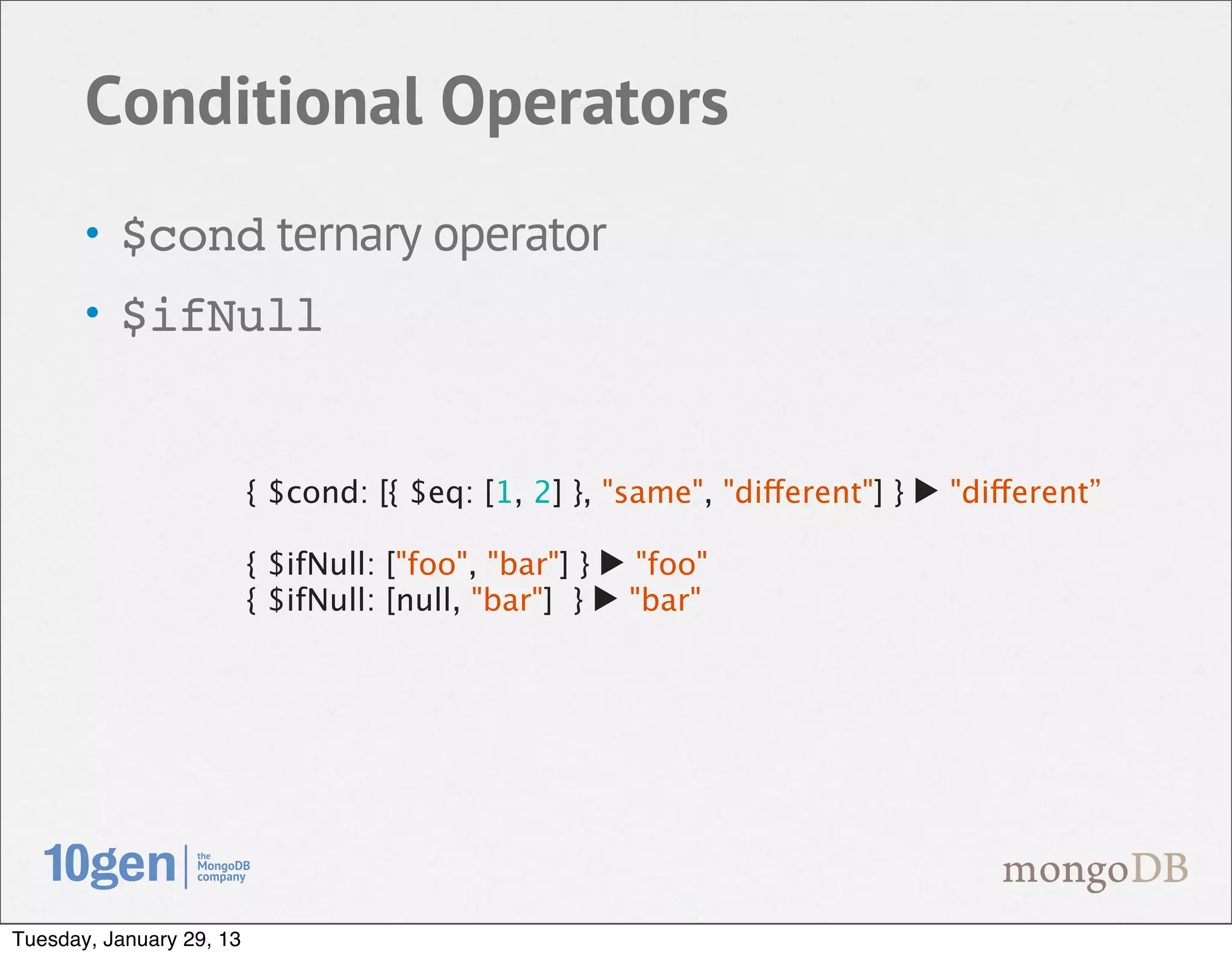

50. Conditional Operators
• $cond ternary operator
• $ifNull
{ $cond: [{ $eq: [1, 2] }, "same", "different"] } ▶ "different”
{ $ifNull: ["foo", "bar"] } ▶ "foo"
{ $ifNull: [null, "bar"] } ▶ "bar"
Tuesday, January 29, 13

51. Looking Ahead
Tuesday, January 29, 13

52. Framework Use Cases
• Basic aggregation queries
• Ad-hoc reporting
• Real-time analytics
• Visualizing time series data
Tuesday, January 29, 13

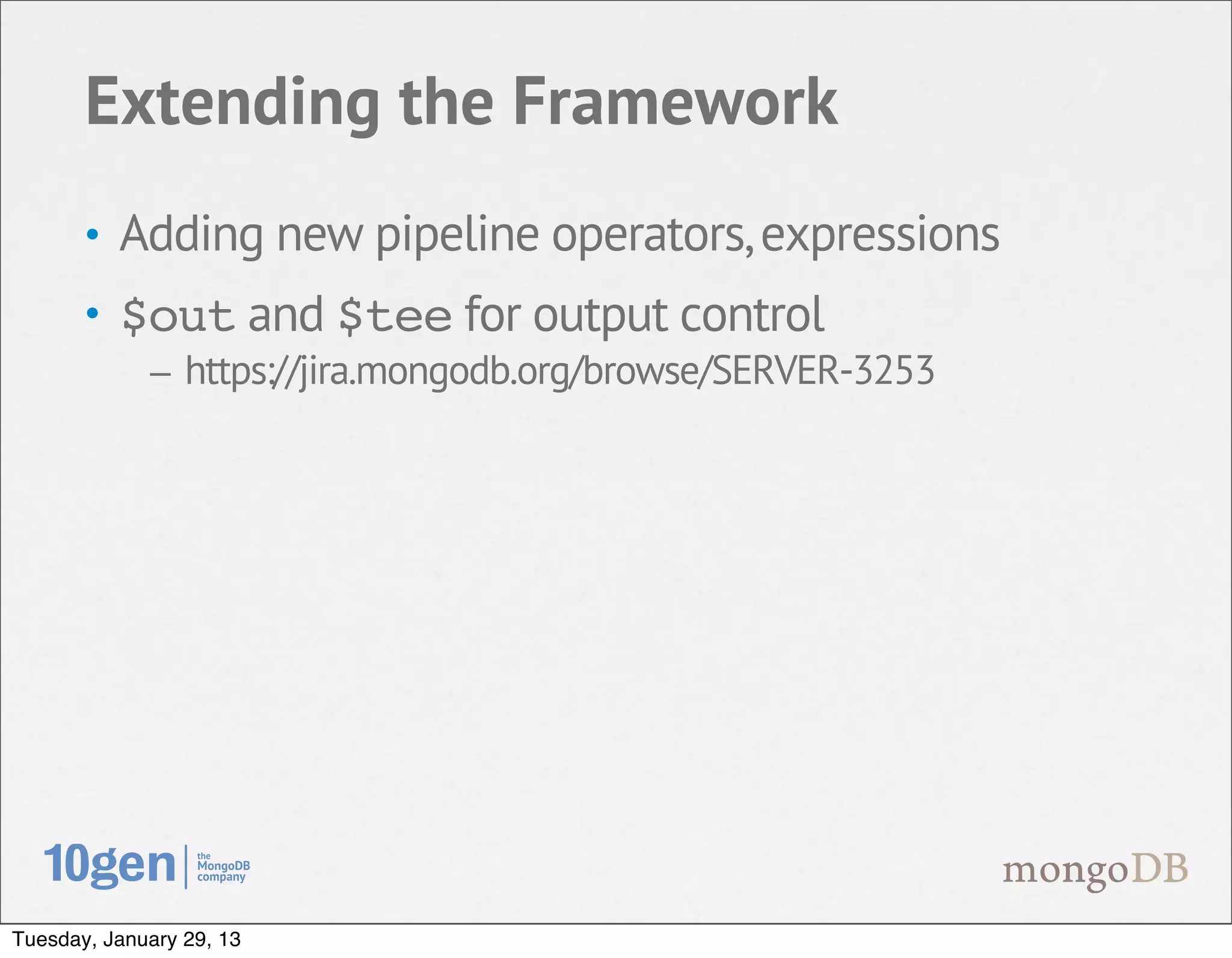

53. Extending the Framework
• Adding new pipeline operators, expressions
• $out and $tee for output control
– https://jira.mongodb.org/browse/SERVER-3253
Tuesday, January 29, 13

54. Future Enhancements
• Automatically move $match earlier if possible
• Pipeline explain facility
• Memory usage improvements
– Grouping input sorted by _id
– Sorting with limited output
Tuesday, January 29, 13

55. #mongodbdays
Thank You
Emily Stolfo
Ruby Engineer/Evangelist, 10gen
@EmStolfo
Tuesday, January 29, 13
