The document provides details on demonstrations of various welding techniques using different types of electrodes, gases, and parameters. Ten demonstrations are described that showcase short arc, spray arc, high deposition CO2 welding, gas metal arc welding with mixed gases, manual metal arc welding in various positions with multiple electrode sizes, and electrode gauging. Key details provided for each demonstration include the electrode type, material, welding position, parameters such as wire feed speed and voltage, and gas if used.

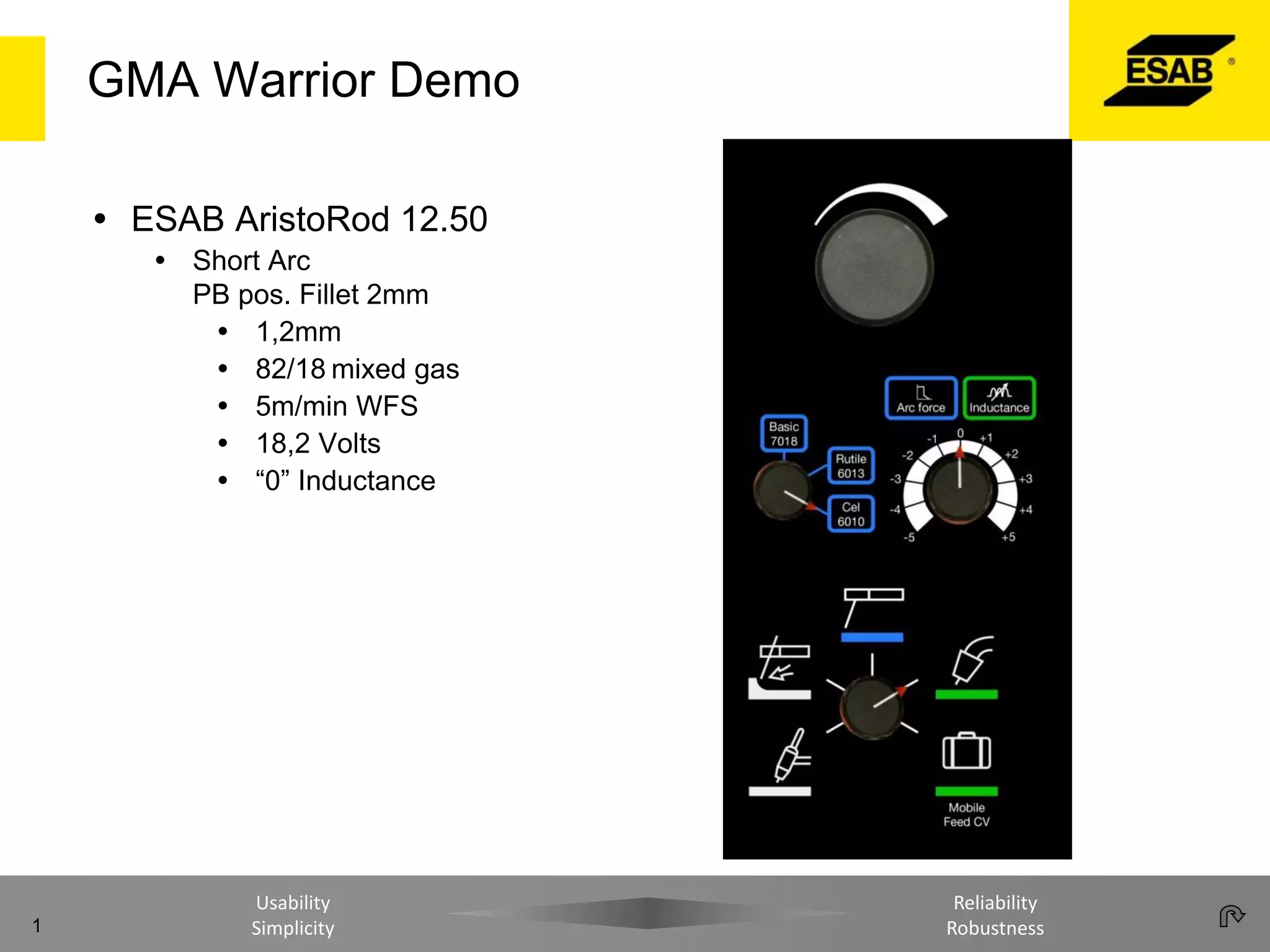

1. GMA Warrior Demo
 ESAB AristoRod 12.50
 Short Arc
PB pos. Fillet 2mm
 1,2mm
 82/18 mixed gas
 5m/min WFS
 18,2 Volts
 “0” Inductance
1
Usability
Simplicity
Reliability
Robustness

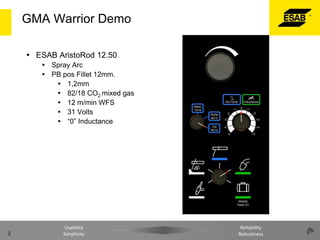

2. GMA Warrior Demo
 ESAB AristoRod 12.50
 Spray Arc
 PB pos Fillet 12mm.
 1,2mm
 82/18 CO2 mixed gas
 12 m/min WFS
 31 Volts
 “0” Inductance
2
Usability
Simplicity
Reliability
Robustness

3. GMA Warrior Demo
 ESAB AristoRod 12.50
 High deposition CO2 welding
 PA pos. Fillet 12mm
 1,2mm
 Pure CO2 gas
 12 m/min WFS
 31 Volts
 “0” Inductance
3
Usability
Simplicity
Reliability
Robustness

4. GMA Warrior Demo
 ESAB AristoRod 12.50
 Short Arc
PB pos. Fillet 3mm





4
1,2mm
Pure CO2
4 m/min WFS
21 Volts
“0” Inductance
Usability
Simplicity
Reliability
Robustness

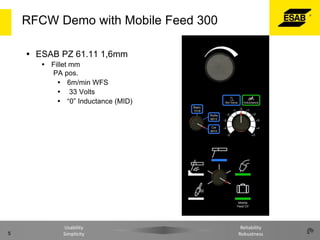

5. RFCW Demo with Mobile Feed 300
 ESAB PZ 61.11 1,6mm
 Fillet mm
PA pos.
 6m/min WFS
 33 Volts
 “0” Inductance (MID)
5
Usability
Simplicity
Reliability
Robustness

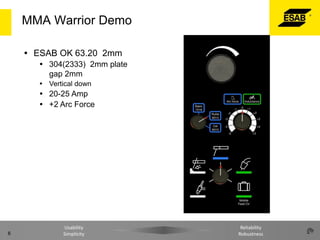

6. MMA Warrior Demo
 ESAB OK 63.20 2mm
 304(2333) 2mm plate
gap 2mm
 Vertical down
 20-25 Amp
 +2 Arc Force
6
Usability
Simplicity
Reliability
Robustness

7. MMA Warrior Demo
 ESAB OK 73.68 3,2mm
 Mild steel V-joint 15mm plate
gap 3,5-4mm, rootface 2mm
 Vertical up
 95-105 Amp
 +3 Arc Force
7
Usability
Simplicity
Reliability
Robustness

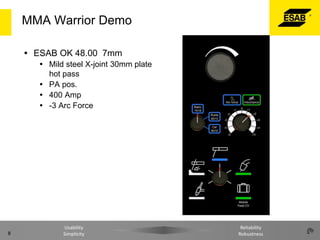

8. MMA Warrior Demo
 ESAB OK 48.00 7mm
 Mild steel X-joint 30mm plate
hot pass
 PA pos.
 400 Amp
 -3 Arc Force
8
Usability
Simplicity
Reliability
Robustness

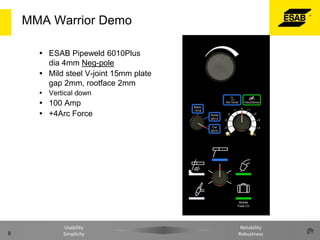

9. MMA Warrior Demo
 ESAB Pipeweld 6010Plus
dia 4mm Neg-pole
 Mild steel V-joint 15mm plate
gap 2mm, rootface 2mm
 Vertical down
 100 Amp
 +4Arc Force
9
Usability
Simplicity
Reliability
Robustness

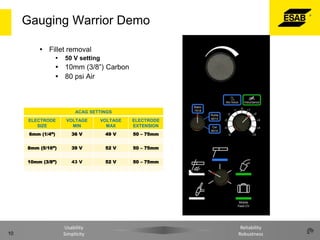

10. Gauging Warrior Demo
 Fillet removal

50 V setting
 10mm (3/8”) Carbon
 80 psi Air
ACAG SETTINGS
ELECTRODE
SIZE
VOLTAGE
MAX
ELECTRODE
EXTENSION
6mm (1/4”)
36 V
49 V
50 – 75mm
8mm (5/16”)
39 V
52 V
50 – 75mm
10mm (3/8”)
10
VOLTAGE
MIN
43 V
52 V
50 – 75mm
Usability
Simplicity
Reliability
Robustness
