Packages,interfaces and exceptions

JAVA concepts
Packages and interfaces
Exception handling

Accessing
classes from
package
Naming
conventions
API
packages
Creating
packages
Packages
Packages are java’s way of grouping a variety of classes and
interfaces together.
Packages acts as “containers ” for classes.
Benefits of using packages:
Reused
Hiding
separating “design” from “coding”.
Two classes in two different packages can have same name.
packages

Java
API
Packages
Java API provides a large number of classes grouped into
different packages according to functionality.

Package name Contents
java.lang Language support classes that java compiler itself uses and
automatically imported . They include classes for primitive types ,
strings , math functions , threads and exceptions.
java.util Language utility classes such as vectors , hash tables , random
numbers , date , etc.
java.io Input/output support classes that provide facilities for input and
output of data.
java.awt Set of classes for implementing GUI like windows , buttons , lists ,
menus , colors , etc.
java.net Classes for networking for communication with local computer as
well as with internet servers
java.applet Classes for creating and implementing applets

Using
system
Packages
jav
a
Package
Containing
awt package
Package
Containing
classes
Classes
Containing
methods

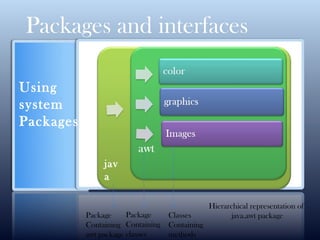

Hierarchical representation of
java.awt package

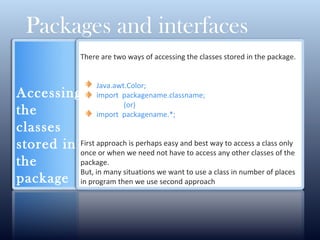

There are two ways of accessing the classes stored in the package.
Java.awt.Color;
import packagename.classname;
(or)
import packagename.*;
First approach is perhaps easy and best way to access a class only
once or when we need not have to access any other classes of the
package.
But, in many situations we want to use a class in number of places
in program then we use second approach
Accessing
the
classes
stored in
the
package

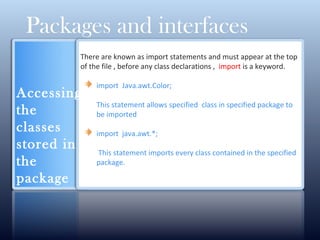

There are known as import statements and must appear at the top
of the file , before any class declarations , import is a keyword.
import Java.awt.Color;
This statement allows specified class in specified package to
be imported
import java.awt.*;
This statement imports every class contained in the specified
package.
Accessing
the
classes
stored in
the
package

Naming
conventio
ns
Packages begin with lowercase .
java.lang.Math.sqrt(x);
Package
name
Class
name
Method
name

CLICK HERE FOR MORE INFO

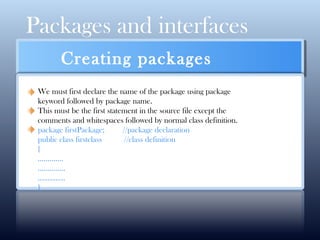

Creating packages
We must first declare the name of the package using package
keyword followed by package name.
This must be the first statement in the source file except the
comments and whitespaces followed by normal class definition.
package firstPackage; //package declaration
public class firstclass //class definition
{
………….
…………..
…………..
}

CLICK HERE FOR MORE INFO

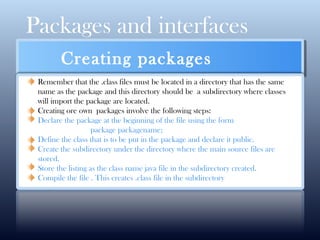

Creating packages
Remember that the .class files must be located in a directory that has the same
name as the package and this directory should be a subdirectory where classes
will import the package are located.
Creating ore own packages involve the following steps:
Declare the package at the beginning of the file using the form
package packagename;
Define the class that is to be put in the package and declare it public.
Create the subdirectory under the directory where the main source files are
stored.
Store the listing as the class name java file in the subdirectory created.
Compile the file . This creates .class file in the subdirectory

Accessing a package
import package1 [.package2] [.package3].classname;

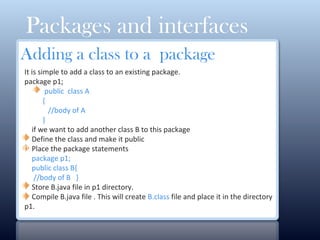

Adding a class to a package
It is simple to add a class to an existing package.
package p1;
public class A
{
//body of A
}
if we want to add another class B to this package
Define the class and make it public
Place the package statements
package p1;
public class B{
//body of B }
Store B.java file in p1 directory.
Compile B.java file . This will create B.class file and place it in the directory
p1.
0

Implementing
interface
Naming
conventions
Extending
interface
Creating
packages

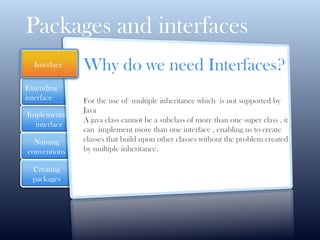

Why do we need Interfaces?
For the use of multiple inheritance which is not supported by
Java
A java class cannot be a subclass of more than one super class , it
can implement more than one interface , enabling us to create
classes that build upon other classes without the problem created
by multiple inheritance.

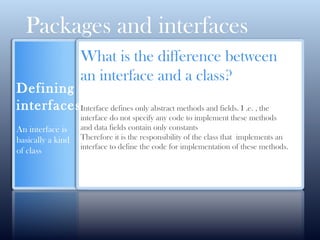

Interface

Defining
interfaces
An interface is
basically a kind
of class
What is the difference between
an interface and a class?
Interface defines only abstract methods and fields. I .e. , the
interface do not specify any code to implement these methods
and data fields contain only constants
Therefore it is the responsibility of the class that implements an
interface to define the code for implementation of these methods.

Syntax
for
interface
interface interfacename
{
variables declaration;
methods declaration;
}
Here interface is the keyword .
Example :
interface area
{
final static float pi=3.14f;
Float compute(float x , float y)
void show();
}

Like classes , interfaces can also be extended by the key word
extends
Syntax :
interface name2 extends name1{
//Body of name2}
Example :
interface ItemConstants
{
int code = 1001;
String name=“fan”;
}
Interafce Item extends Item Constans
{
void display();
}
Extending
interfaces

Impleme
nting
interfaces

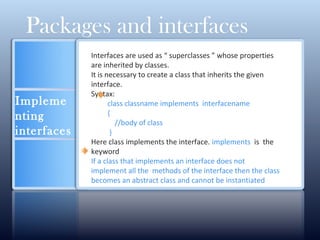

Interfaces are used as “ superclasses ” whose properties
are inherited by classes.
It is necessary to create a class that inherits the given
interface.
Syntax:
class classname implements interfacename
{
//body of class
}
Here class implements the interface. implements is the
keyword
If a class that implements an interface does not
implement all the methods of the interface then the class
becomes an abstract class and cannot be instantiated

Impleme
nting
interface
with an
example

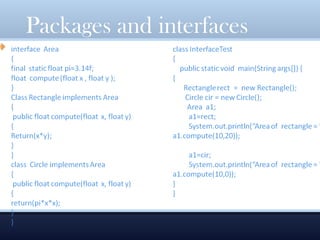

interface Area
{
final static float pi=3.14f;
float compute (float x , float y );
}
Class Rectangle implements Area
{
public float compute(float x, float y)
{
Return(x*y);
}
}
class Circle implements Area
{
public float compute(float x, float y)
{
return(pi*x*x);
}
}
class InterfaceTest

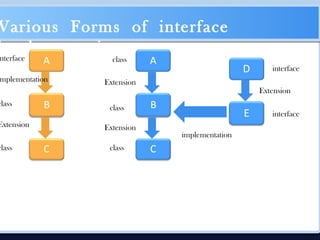

Various Forms of interface
implementation
nterface
mplementation
class
Extension
class
class
class
class
Extension
Extension
interface
interface
implementation
Extension

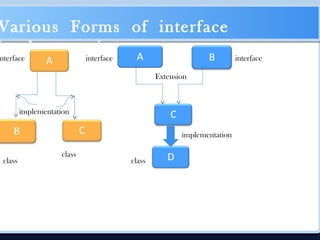

Various Forms of interface
implementation
nterface
implementation
class
class class
Extension
interface interface
implementation

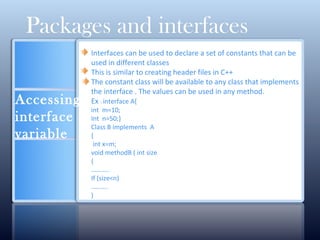

Accessing
interface
variable
Interfaces can be used to declare a set of constants that can be
used in different classes
This is similar to creating header files in C++
The constant class will be available to any class that implements
the interface . The values can be used in any method.
Ex : interface A{
int m=10;
Int n=50;}
Class B implements A
{
int x=m;
void methodB ( int size
{
………..
If (size<n)
……….
)
