Overview of AWS Building Blocks

https://in.linkedin.com/in/satishraghavan Page 1

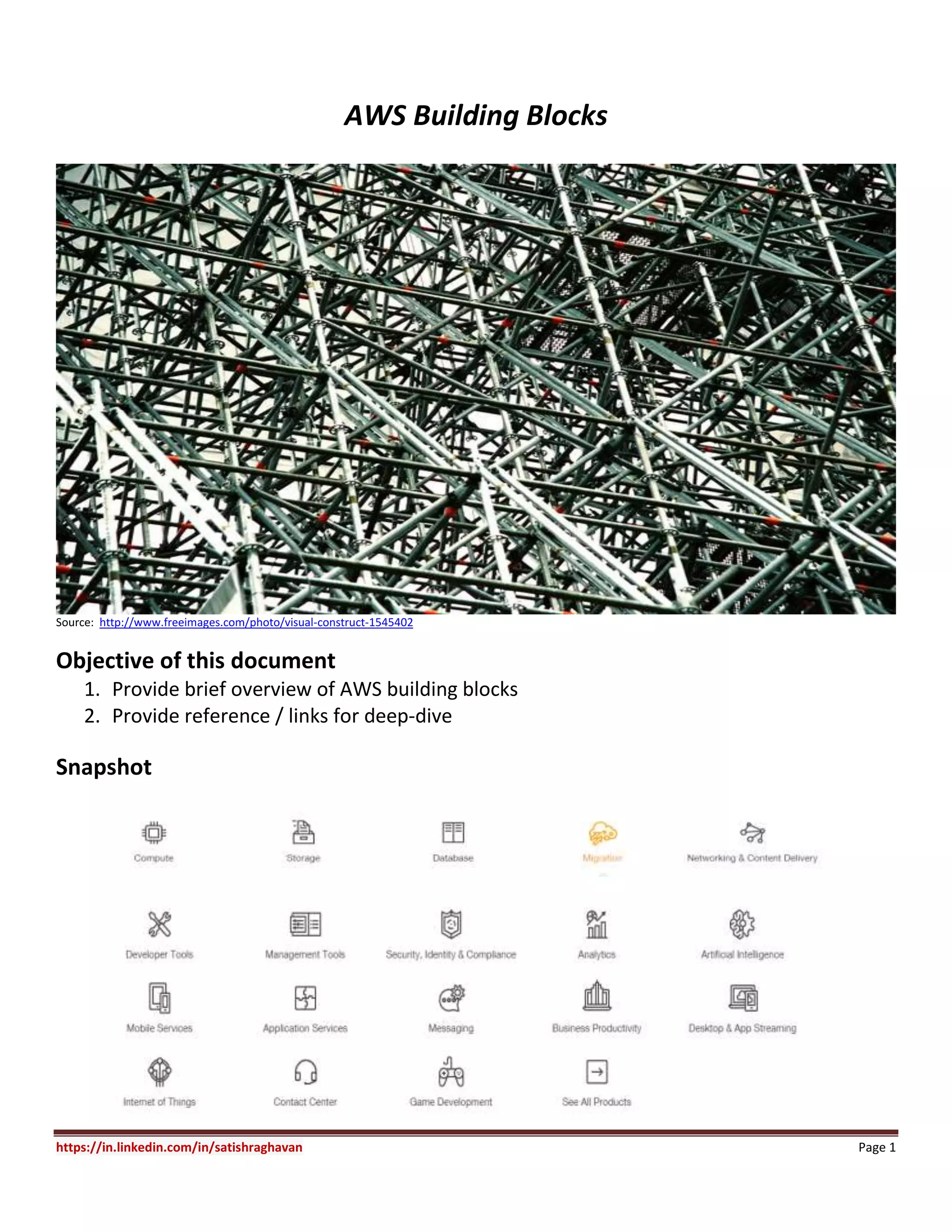

AWS Building Blocks
Source: http://www.freeimages.com/photo/visual-construct-1545402
Objective of this document
1. Provide brief overview of AWS building blocks
2. Provide reference / links for deep-dive
Snapshot

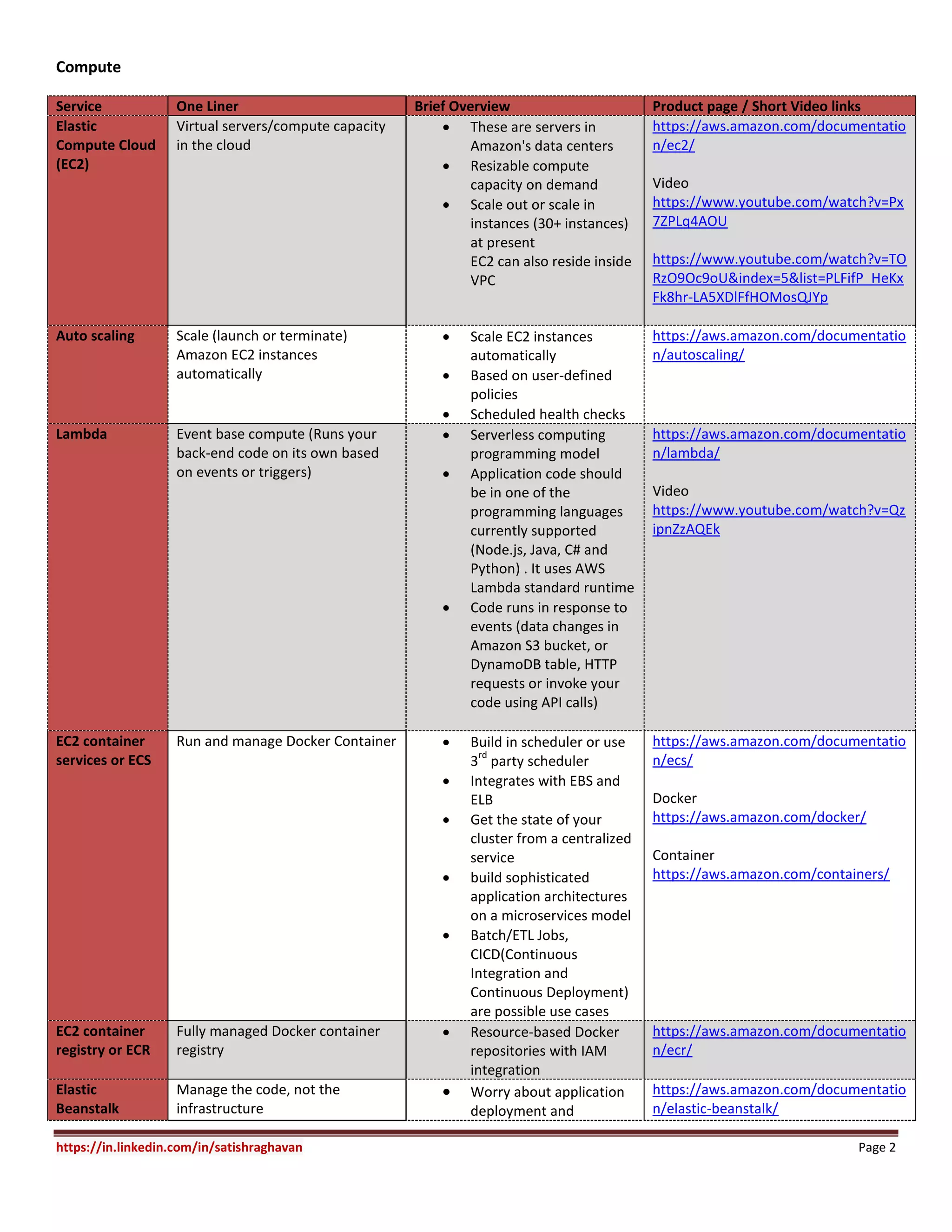

Compute
Service One Liner Brief Overview Product page / Short Video links
Elastic
Compute Cloud
(EC2)
Virtual servers/compute capacity
in the cloud
 These are servers in
Amazon's data centers
 Resizable compute
capacity on demand
 Scale out or scale in
instances (30+ instances)
at present
EC2 can also reside inside
VPC
https://aws.amazon.com/documentatio
n/ec2/
Video
https://www.youtube.com/watch?v=Px
7ZPLq4AOU
https://www.youtube.com/watch?v=TO
RzO9Oc9oU&index=5&list=PLFifP_HeKx
Fk8hr-LA5XDlFfHOMosQJYp
Auto scaling Scale (launch or terminate)
Amazon EC2 instances
automatically
 Scale EC2 instances
automatically
 Based on user-defined
policies
 Scheduled health checks
n/autoscaling/
Lambda Event base compute (Runs your
back-end code on its own based
on events or triggers)
 Serverless computing
programming model
 Application code should
be in one of the
programming languages
currently supported
(Node.js, Java, C# and
Python) . It uses AWS
Lambda standard runtime
 Code runs in response to
events (data changes in
Amazon S3 bucket, or
DynamoDB table, HTTP
requests or invoke your
code using API calls)
n/lambda/
Video
https://www.youtube.com/watch?v=Qz
ipnZzAQEk
EC2 container
services or ECS
Run and manage Docker Container  Build in scheduler or use
3
rd
party scheduler
 Integrates with EBS and
ELB
 Get the state of your
cluster from a centralized
service
 build sophisticated
application architectures
on a microservices model
 Batch/ETL Jobs,
CICD(Continuous
Integration and
Continuous Deployment)
are possible use cases
n/ecs/
Docker
https://aws.amazon.com/docker/
Container
https://aws.amazon.com/containers/
EC2 container
registry or ECR
Fully managed Docker container
registry
 Resource-based Docker
repositories with IAM
integration
n/ecr/
Elastic
Beanstalk
Manage the code, not the
infrastructure
 Worry about application
deployment and
n/elastic-beanstalk/

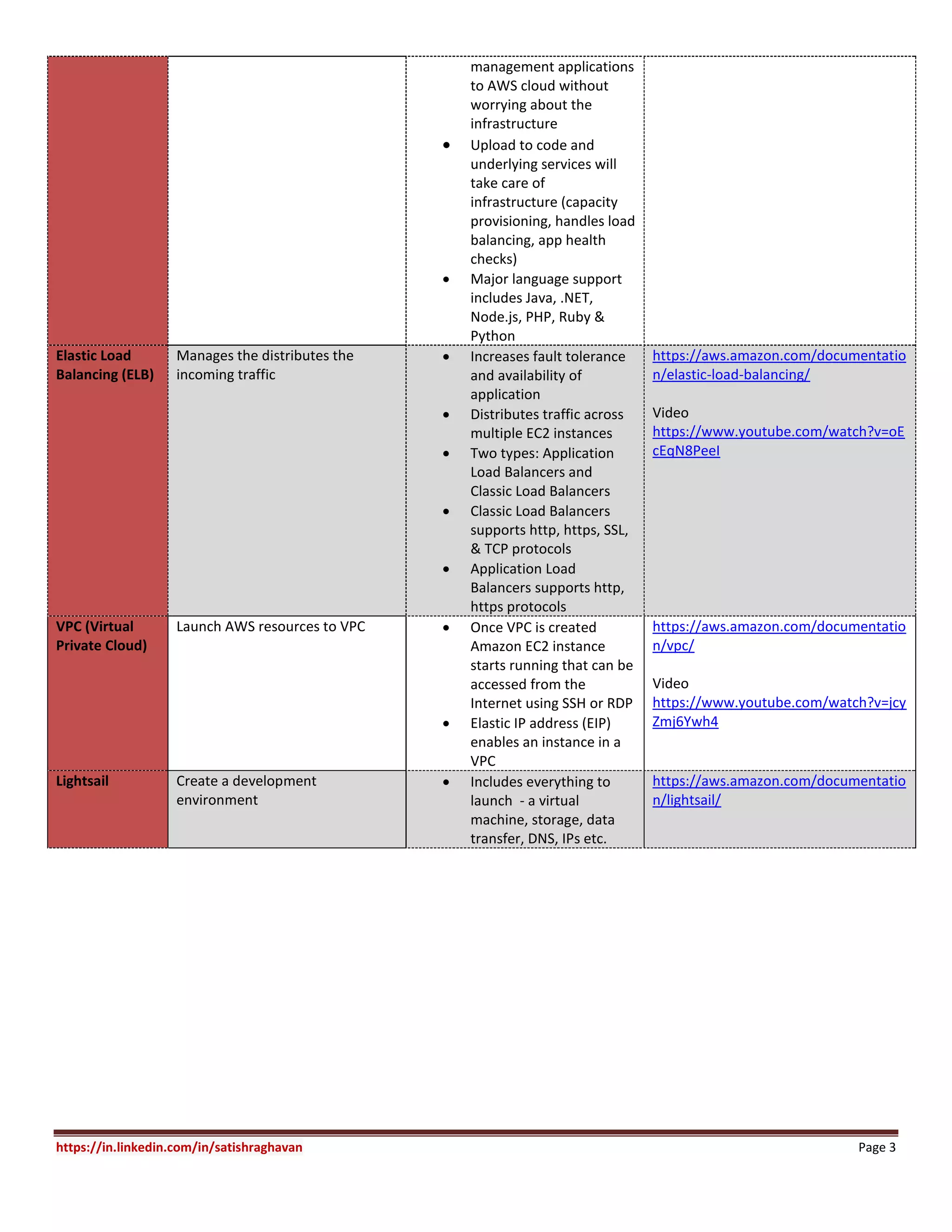

management applications
to AWS cloud without
worrying about the
infrastructure
 Upload to code and
underlying services will
take care of
infrastructure (capacity
provisioning, handles load
balancing, app health
checks)
 Major language support
includes Java, .NET,
Node.js, PHP, Ruby &
Python
Elastic Load
Balancing (ELB)
Manages the distributes the
incoming traffic
 Increases fault tolerance
and availability of
application
 Distributes traffic across
multiple EC2 instances
 Two types: Application
Load Balancers and
Classic Load Balancers
 Classic Load Balancers
supports http, https, SSL,
& TCP protocols
 Application Load
Balancers supports http,
https protocols
n/elastic-load-balancing/
Video
https://www.youtube.com/watch?v=oE
cEqN8PeeI
VPC (Virtual
Private Cloud)
Launch AWS resources to VPC  Once VPC is created
Amazon EC2 instance
starts running that can be
accessed from the
Internet using SSH or RDP
 Elastic IP address (EIP)
enables an instance in a
VPC
n/vpc/
Video
https://www.youtube.com/watch?v=jcy
Zmj6Ywh4
Lightsail Create a development
environment
 Includes everything to
launch - a virtual
machine, storage, data
transfer, DNS, IPs etc.
n/lightsail/

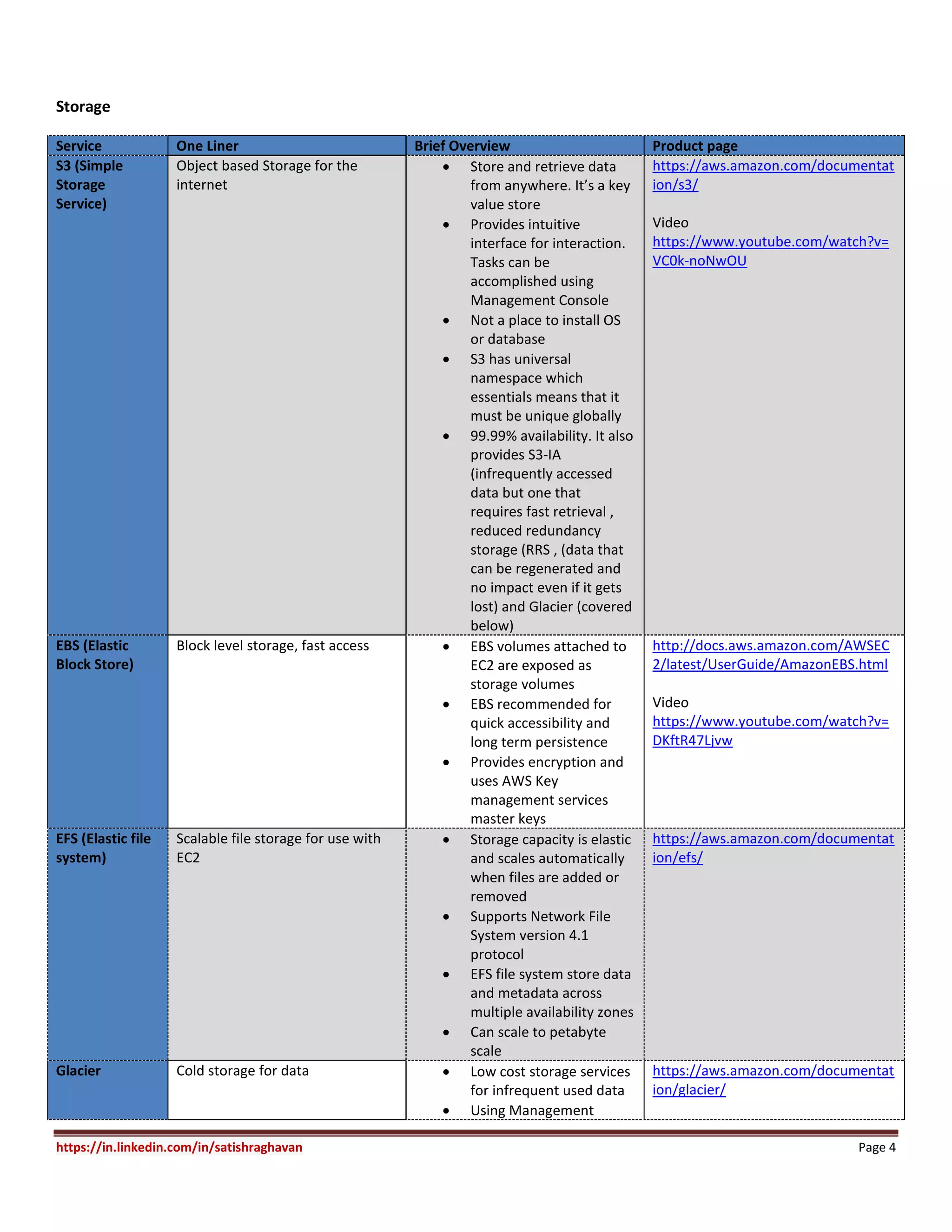

Storage
Service One Liner Brief Overview Product page
S3 (Simple
Storage
Service)
Object based Storage for the
internet
 Store and retrieve data
from anywhere. It’s a key
value store
 Provides intuitive
interface for interaction.
Tasks can be
accomplished using
Management Console
 Not a place to install OS
or database
 S3 has universal
namespace which
essentials means that it
must be unique globally
 99.99% availability. It also
provides S3-IA
(infrequently accessed
data but one that
requires fast retrieval ,
reduced redundancy
storage (RRS , (data that
can be regenerated and
no impact even if it gets
lost) and Glacier (covered
below)
https://aws.amazon.com/documentat
ion/s3/
Video
https://www.youtube.com/watch?v=
VC0k-noNwOU
EBS (Elastic
Block Store)
Block level storage, fast access  EBS volumes attached to
EC2 are exposed as
storage volumes
 EBS recommended for
quick accessibility and
long term persistence
 Provides encryption and
uses AWS Key
management services
master keys
http://docs.aws.amazon.com/AWSEC
2/latest/UserGuide/AmazonEBS.html
Video
DKftR47Ljvw
EFS (Elastic file
system)
Scalable file storage for use with
EC2
 Storage capacity is elastic
and scales automatically
when files are added or
removed
 Supports Network File
System version 4.1
protocol
 EFS file system store data
and metadata across
multiple availability zones
 Can scale to petabyte
scale
ion/efs/
Glacier Cold storage for data  Low cost storage services
for infrequent used data
 Using Management
ion/glacier/

Console you can create or
delete vaults
 Supports REST APIs
Snowball Large data transfer (> 10 TB )
bypassing internet
 Uses AWS Snowball
appliances
 Import and export data
between on premise data
storage and S3
 No need for buying
hardware devices
ion/snowball/
Storage
Gateway
Connect on-premises software
appliance with cloud-based
storage
 Use the service to store
data in the AWS Cloud
 Storage Gateway offered
are file-based, volume-
based and tape-based
solutions
 Scalable and cost-
effective storage
ion/storage-gateway/
Database
RDS
(Relational
Database
Service)
Relational database in the cloud  Set up, scale and operate
a RDBMS in the cloud
 Supports MySQL,
MariaDB, PostgreSQL,
Oracle, Microsoft SQL
Server, Amazon Aurora
DB engine
ion/rds/
Video
Kz1zmyHw9G0
Dynamo DB It’s a NoSQL database  DynamoDB automatically
spreads the data and
traffic for the table over a
sufficient number of
servers to handle the
request
 NoSQL database that
provides fast and
predictable performance
ion/dynamodb/
ElastiCache Distributed in-memory cache
environments
 High-performance,
scalable, and cost-
effective caching solution
 Automatic detection and
recovery from cache
node failures
 Memcached or Redis can
use ElastiCache
ion/elasticache/
Video
8eD2eNljURE
Redshift Petabyte scale data warehouse
solution
 Fully managed, petabyte-
scale data warehouse
service in the cloud
 Collection of computing
resources called nodes &
clusters
ion/redshift/
Video
UhQjSzdlO_g

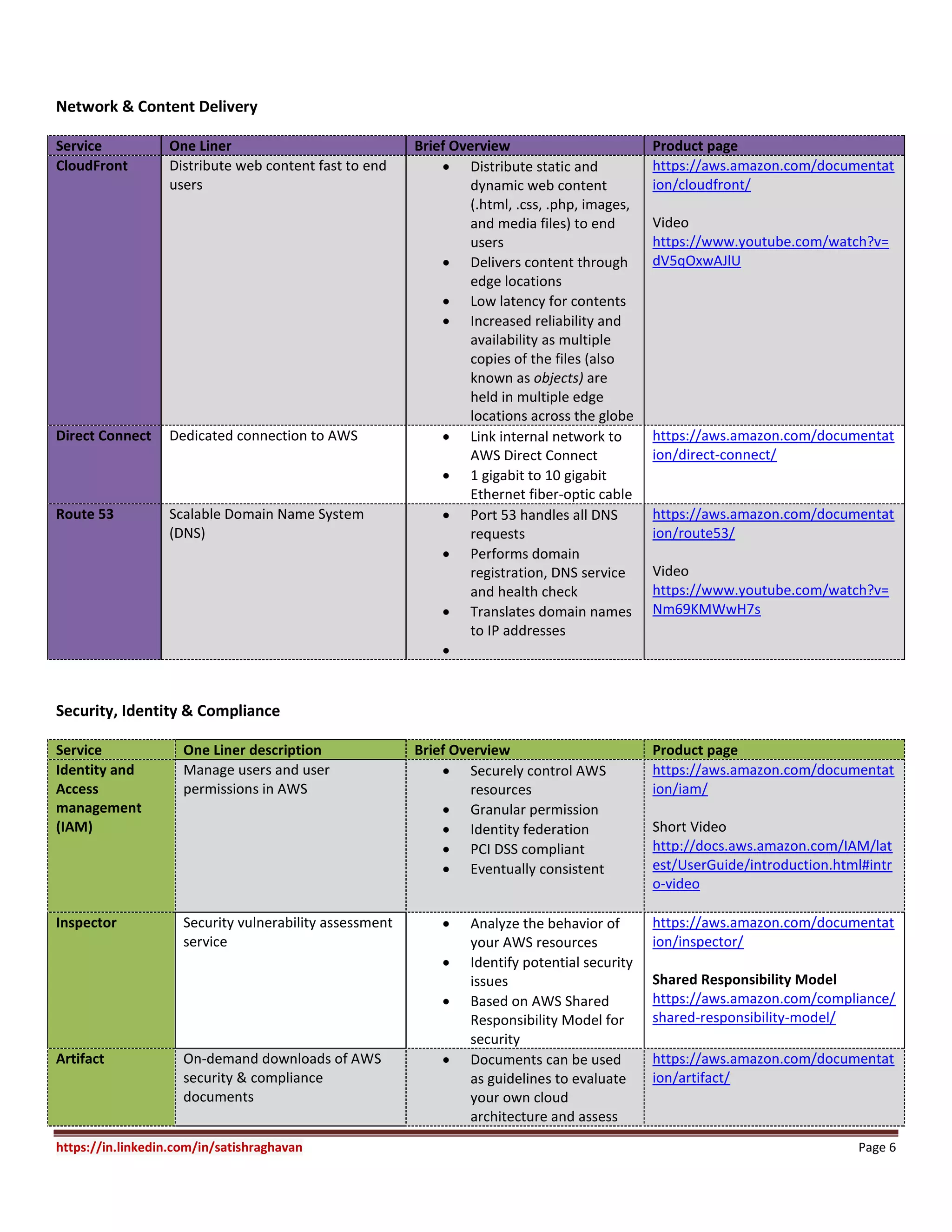

Network & Content Delivery
CloudFront Distribute web content fast to end
users
 Distribute static and
dynamic web content
(.html, .css, .php, images,
and media files) to end
users
 Delivers content through
edge locations
 Low latency for contents
 Increased reliability and
availability as multiple
copies of the files (also
known as objects) are
held in multiple edge
locations across the globe
ion/cloudfront/
Video
dV5qOxwAJlU
Direct Connect Dedicated connection to AWS  Link internal network to
AWS Direct Connect
 1 gigabit to 10 gigabit
Ethernet fiber-optic cable
ion/direct-connect/
Route 53 Scalable Domain Name System
(DNS)
 Port 53 handles all DNS
requests
 Performs domain
registration, DNS service
and health check
 Translates domain names
to IP addresses

ion/route53/
Video
Nm69KMWwH7s
Security, Identity & Compliance
Service One Liner description Brief Overview Product page
Identity and
Access
management
(IAM)
Manage users and user
permissions in AWS
 Securely control AWS
resources
 Granular permission
 Identity federation
 PCI DSS compliant
 Eventually consistent
ion/iam/
Short Video
http://docs.aws.amazon.com/IAM/lat
est/UserGuide/introduction.html#intr
o-video
Inspector Security vulnerability assessment
service
 Analyze the behavior of
your AWS resources
 Identify potential security
issues
 Based on AWS Shared
Responsibility Model for
security
ion/inspector/
Shared Responsibility Model
https://aws.amazon.com/compliance/
shared-responsibility-model/
Artifact On-demand downloads of AWS
security & compliance
documents
 Documents can be used
as guidelines to evaluate
your own cloud
architecture and assess
ion/artifact/

the effectiveness of your
company's internal
controls.

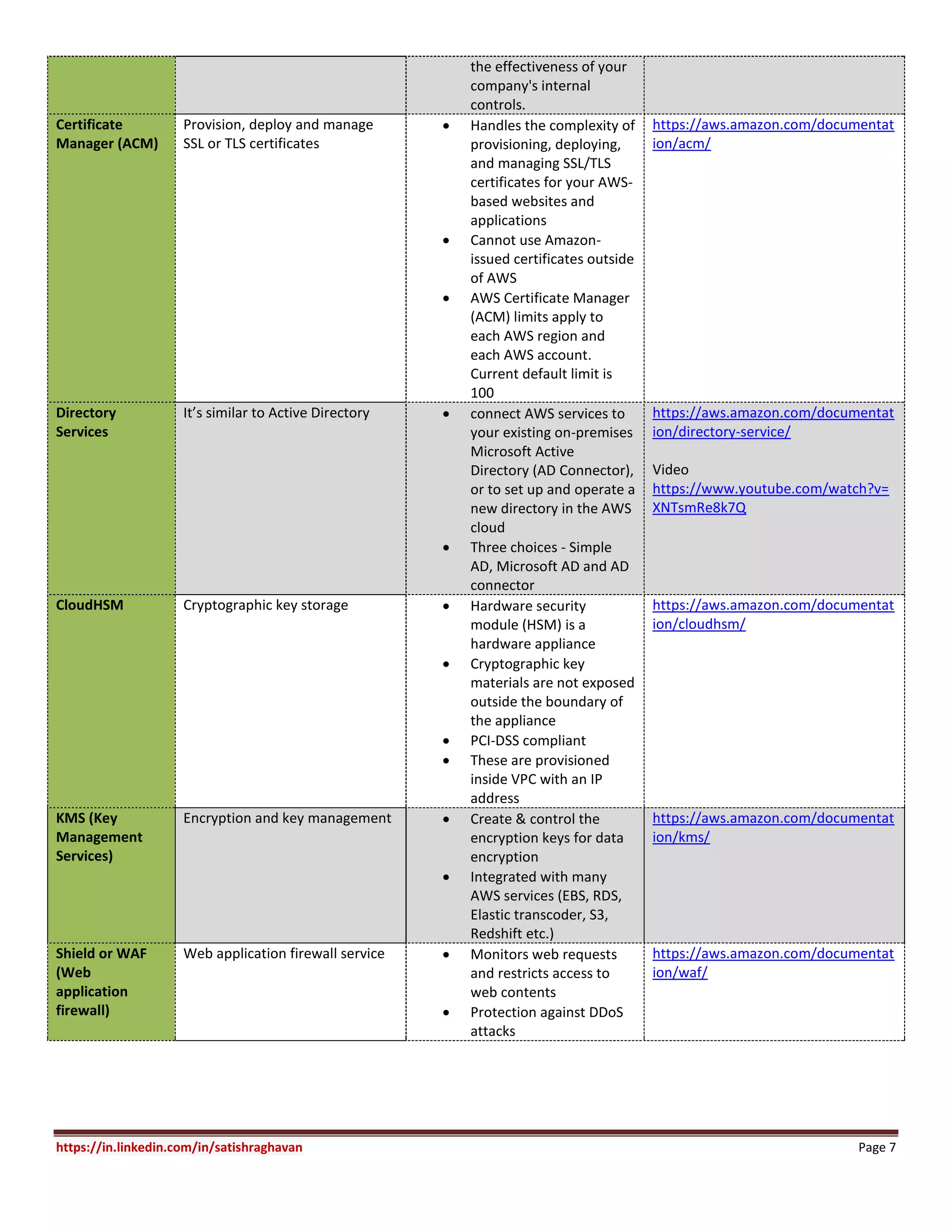

Certificate
Manager (ACM)
Provision, deploy and manage
SSL or TLS certificates
 Handles the complexity of
provisioning, deploying,
and managing SSL/TLS
certificates for your AWS-
based websites and
applications
 Cannot use Amazon-
issued certificates outside
of AWS
 AWS Certificate Manager
(ACM) limits apply to
each AWS region and
each AWS account.
Current default limit is
100
ion/acm/
Directory
Services
It’s similar to Active Directory  connect AWS services to
your existing on-premises
Microsoft Active
Directory (AD Connector),
or to set up and operate a
new directory in the AWS
cloud
 Three choices - Simple
AD, Microsoft AD and AD
connector
ion/directory-service/
Video
XNTsmRe8k7Q
CloudHSM Cryptographic key storage  Hardware security
module (HSM) is a
hardware appliance
 Cryptographic key
materials are not exposed
outside the boundary of
the appliance
 PCI-DSS compliant
 These are provisioned
inside VPC with an IP
address
ion/cloudhsm/
KMS (Key
Management
Services)
Encryption and key management  Create & control the
encryption keys for data
encryption
 Integrated with many
AWS services (EBS, RDS,
Elastic transcoder, S3,
Redshift etc.)
ion/kms/
Shield or WAF
(Web
application
firewall)
Web application firewall service  Monitors web requests
and restricts access to
web contents
 Protection against DDoS
attacks
ion/waf/

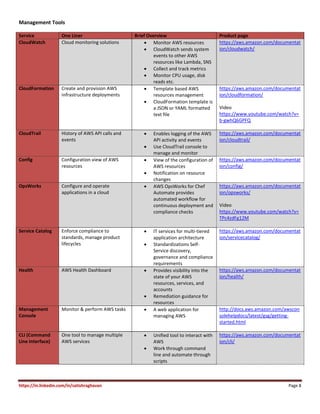

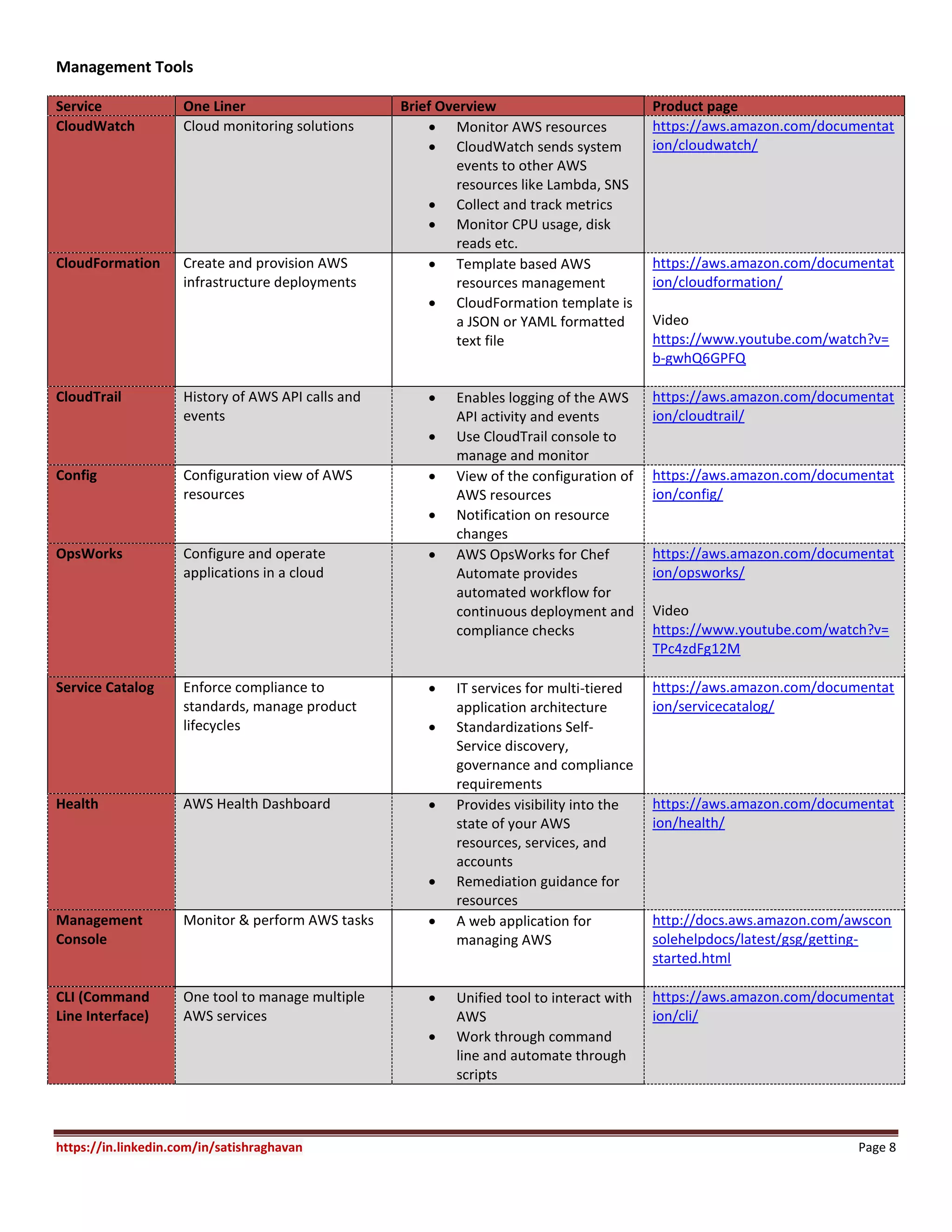

Management Tools
CloudWatch Cloud monitoring solutions  Monitor AWS resources
 CloudWatch sends system
events to other AWS
resources like Lambda, SNS
 Collect and track metrics
 Monitor CPU usage, disk
reads etc.
ion/cloudwatch/
CloudFormation Create and provision AWS
infrastructure deployments
 Template based AWS
resources management
 CloudFormation template is
a JSON or YAML formatted
text file
ion/cloudformation/
Video
b-gwhQ6GPFQ
CloudTrail History of AWS API calls and
events
 Enables logging of the AWS
API activity and events
 Use CloudTrail console to
manage and monitor
ion/cloudtrail/
Config Configuration view of AWS
resources
 View of the configuration of
AWS resources
 Notification on resource
changes
ion/config/
OpsWorks Configure and operate
applications in a cloud
 AWS OpsWorks for Chef
Automate provides
automated workflow for
continuous deployment and
compliance checks
ion/opsworks/
Video
TPc4zdFg12M
Service Catalog Enforce compliance to
standards, manage product
lifecycles
 IT services for multi-tiered
application architecture
 Standardizations Self-
Service discovery,
governance and compliance
requirements
ion/servicecatalog/
Health AWS Health Dashboard  Provides visibility into the
state of your AWS
resources, services, and
accounts
 Remediation guidance for
resources
ion/health/
Management
Console
Monitor & perform AWS tasks  A web application for
managing AWS
http://docs.aws.amazon.com/awscon
solehelpdocs/latest/gsg/getting-
started.html
CLI (Command
Line Interface)
One tool to manage multiple
AWS services
 Unified tool to interact with
AWS
 Work through command
line and automate through
scripts
ion/cli/

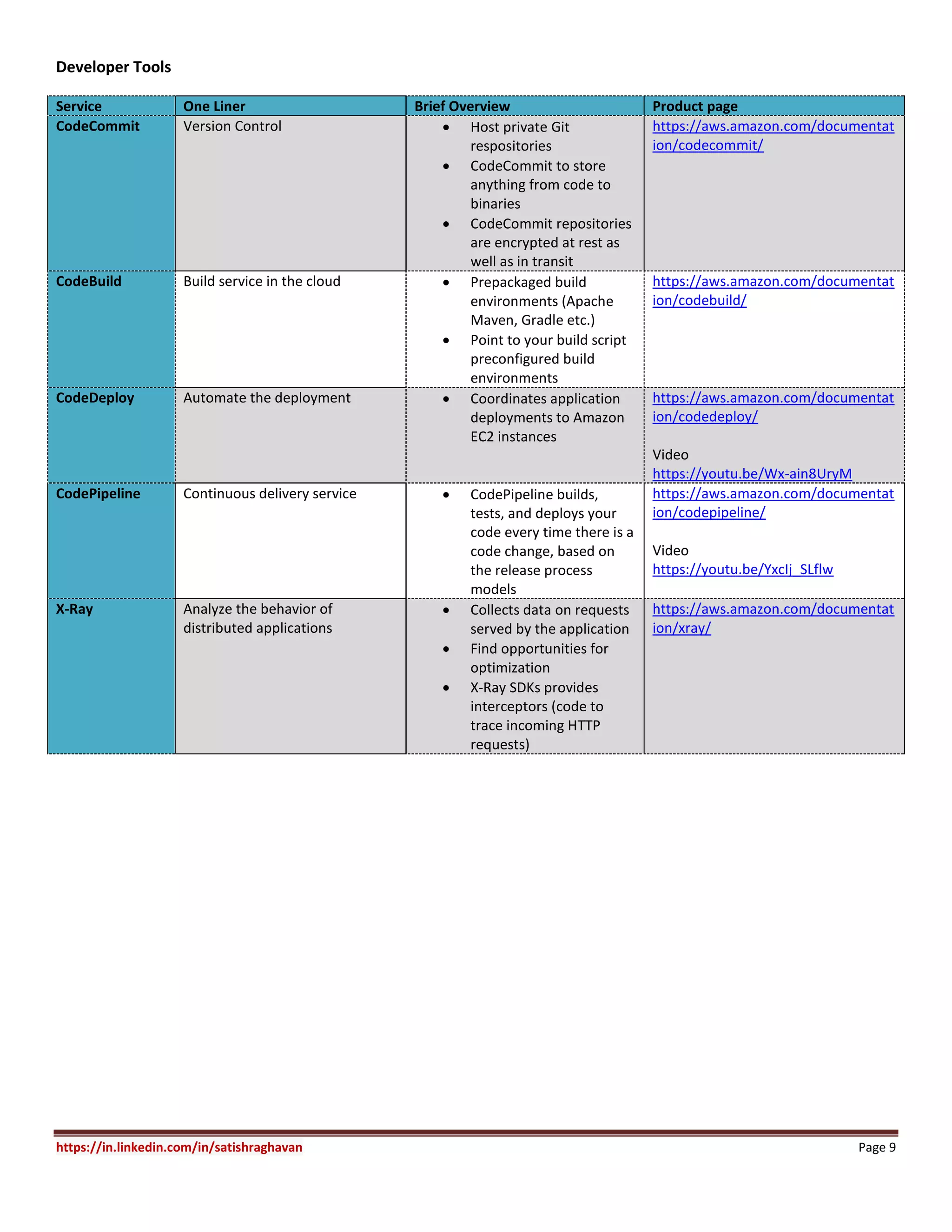

Developer Tools
CodeCommit Version Control  Host private Git
respositories
 CodeCommit to store
anything from code to
binaries
 CodeCommit repositories
are encrypted at rest as
well as in transit
ion/codecommit/
CodeBuild Build service in the cloud  Prepackaged build
environments (Apache
Maven, Gradle etc.)
 Point to your build script
preconfigured build
environments
ion/codebuild/
CodeDeploy Automate the deployment  Coordinates application
deployments to Amazon
EC2 instances
ion/codedeploy/
Video
https://youtu.be/Wx-ain8UryM
CodePipeline Continuous delivery service  CodePipeline builds,
tests, and deploys your
code every time there is a
code change, based on
the release process
models
ion/codepipeline/
Video
https://youtu.be/YxcIj_SLflw
X-Ray Analyze the behavior of
distributed applications
 Collects data on requests
served by the application
 Find opportunities for
optimization
 X-Ray SDKs provides
interceptors (code to
trace incoming HTTP
requests)
ion/xray/

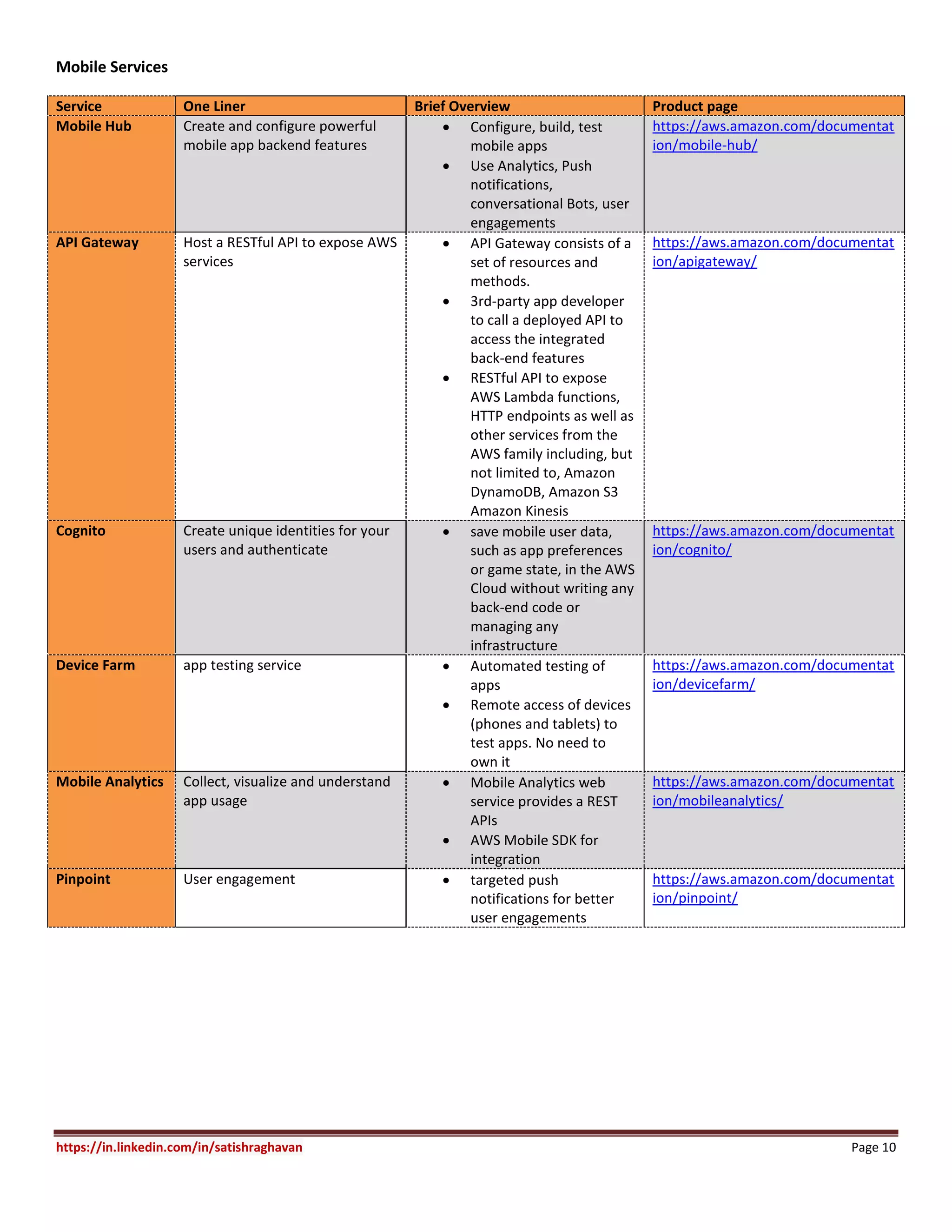

Mobile Services
Mobile Hub Create and configure powerful
mobile app backend features
 Configure, build, test
mobile apps
 Use Analytics, Push
notifications,
conversational Bots, user
engagements
ion/mobile-hub/
API Gateway Host a RESTful API to expose AWS
services
 API Gateway consists of a
set of resources and
methods.
 3rd-party app developer
to call a deployed API to
access the integrated
back-end features
 RESTful API to expose
AWS Lambda functions,
HTTP endpoints as well as
other services from the
AWS family including, but
not limited to, Amazon
DynamoDB, Amazon S3
Amazon Kinesis
ion/apigateway/
Cognito Create unique identities for your
users and authenticate
 save mobile user data,
such as app preferences
or game state, in the AWS
Cloud without writing any
back-end code or
managing any
infrastructure
ion/cognito/
Device Farm app testing service  Automated testing of
apps
 Remote access of devices
(phones and tablets) to
test apps. No need to
own it
ion/devicefarm/
Mobile Analytics Collect, visualize and understand
app usage
 Mobile Analytics web
service provides a REST
APIs
 AWS Mobile SDK for
integration
ion/mobileanalytics/
Pinpoint User engagement  targeted push
notifications for better
user engagements
ion/pinpoint/

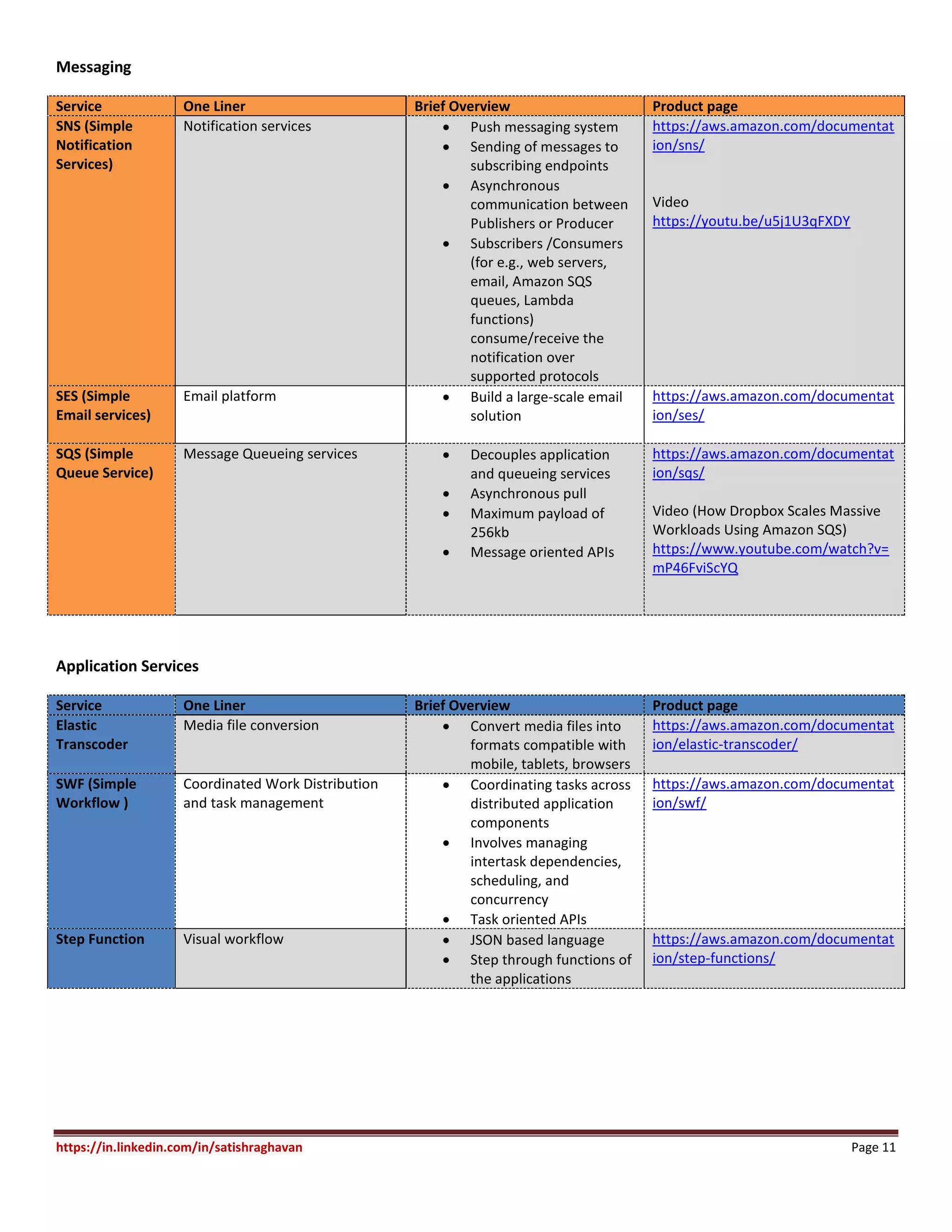

Messaging
SNS (Simple
Notification
Services)
Notification services  Push messaging system
 Sending of messages to
subscribing endpoints
 Asynchronous
communication between
Publishers or Producer
 Subscribers /Consumers
(for e.g., web servers,
email, Amazon SQS
queues, Lambda
functions)
consume/receive the
notification over
supported protocols
ion/sns/
Video
https://youtu.be/u5j1U3qFXDY
SES (Simple
Email services)
Email platform  Build a large-scale email
solution
ion/ses/
SQS (Simple
Queue Service)
Message Queueing services  Decouples application
and queueing services
 Asynchronous pull
 Maximum payload of
256kb
 Message oriented APIs
ion/sqs/
Video (How Dropbox Scales Massive
Workloads Using Amazon SQS)
mP46FviScYQ
Application Services
Elastic
Transcoder
Media file conversion  Convert media files into
formats compatible with
mobile, tablets, browsers
ion/elastic-transcoder/
SWF (Simple
Workflow )
Coordinated Work Distribution
and task management
 Coordinating tasks across
distributed application
components
 Involves managing
intertask dependencies,
scheduling, and
concurrency
 Task oriented APIs
ion/swf/
Step Function Visual workflow  JSON based language
 Step through functions of
the applications
ion/step-functions/

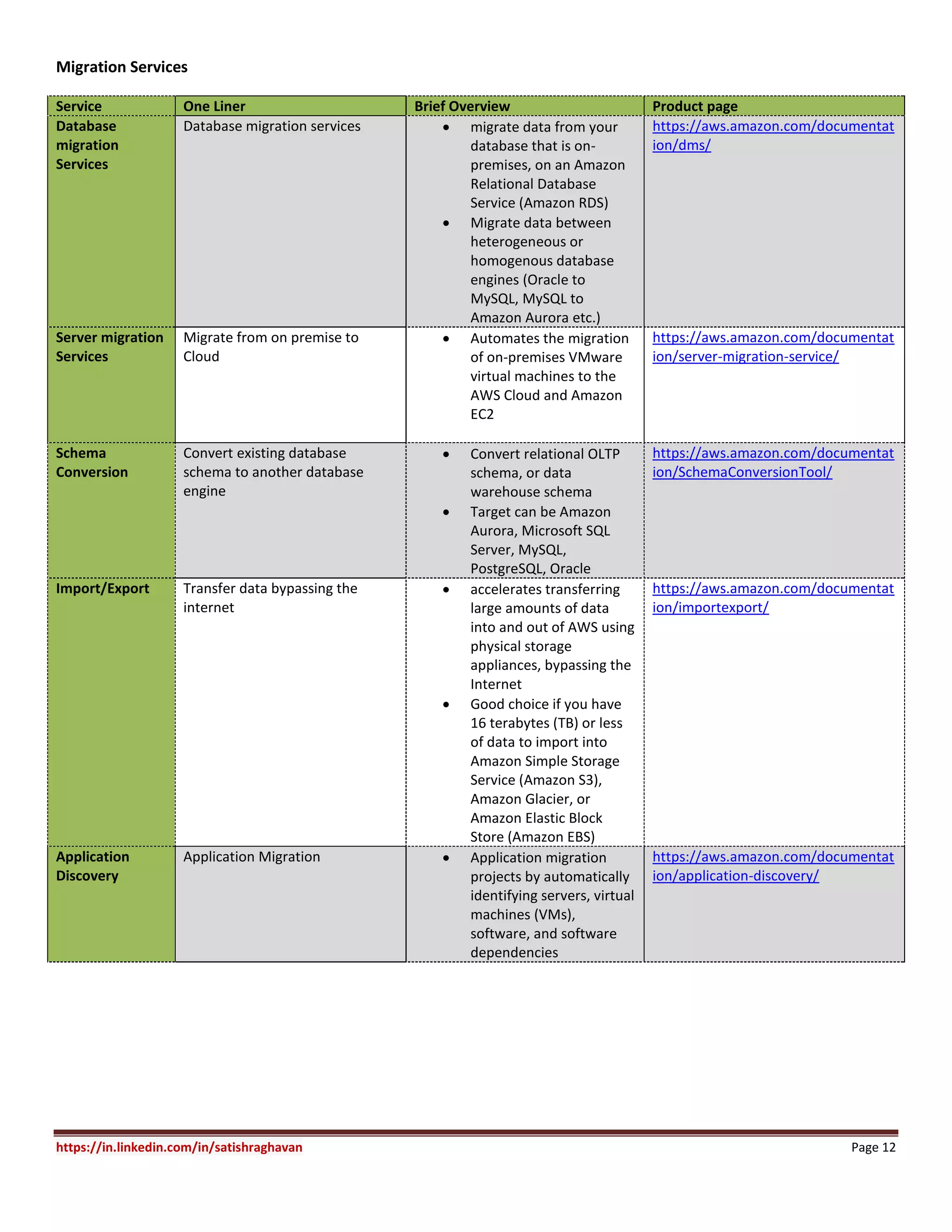

Migration Services
Database
migration
Services
Database migration services  migrate data from your
database that is on-
premises, on an Amazon
Relational Database
Service (Amazon RDS)
 Migrate data between
heterogeneous or
homogenous database
engines (Oracle to
MySQL, MySQL to
Amazon Aurora etc.)
ion/dms/
Server migration
Services
Migrate from on premise to
Cloud
 Automates the migration
of on-premises VMware
virtual machines to the
AWS Cloud and Amazon
EC2
ion/server-migration-service/
Schema
Conversion
Convert existing database
schema to another database
engine
 Convert relational OLTP
schema, or data
warehouse schema
 Target can be Amazon
Aurora, Microsoft SQL
Server, MySQL,
PostgreSQL, Oracle
ion/SchemaConversionTool/
Import/Export Transfer data bypassing the
internet
 accelerates transferring
large amounts of data
into and out of AWS using
physical storage
appliances, bypassing the
Internet
 Good choice if you have
16 terabytes (TB) or less
of data to import into
Amazon Simple Storage
Service (Amazon S3),
Amazon Glacier, or
Amazon Elastic Block
Store (Amazon EBS)
ion/importexport/
Application
Discovery
Application Migration  Application migration
projects by automatically
identifying servers, virtual
machines (VMs),
software, and software
dependencies
ion/application-discovery/

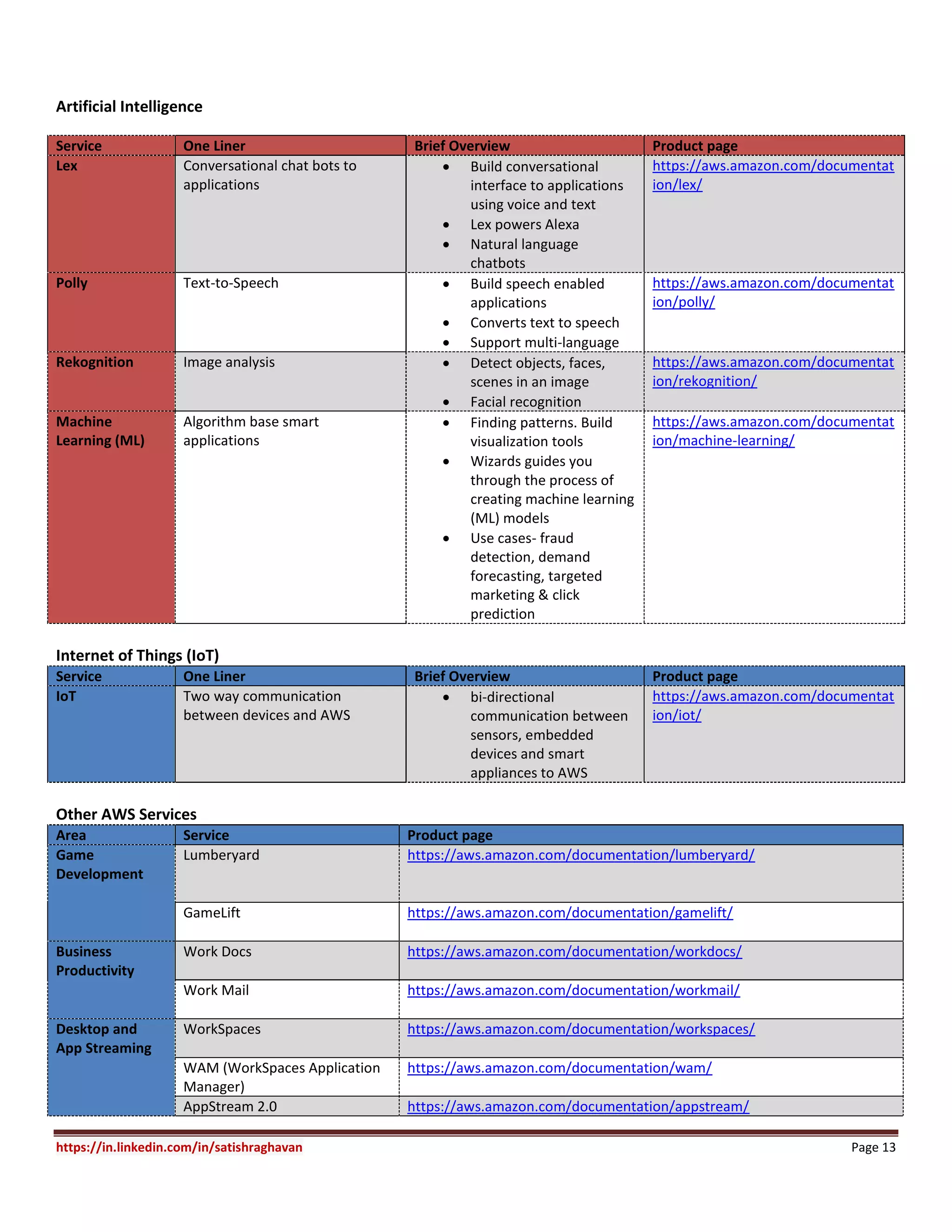

Artificial Intelligence
Lex Conversational chat bots to
applications
 Build conversational
interface to applications
using voice and text
 Lex powers Alexa
 Natural language
chatbots
ion/lex/
Polly Text-to-Speech  Build speech enabled
applications
 Converts text to speech
 Support multi-language
ion/polly/
Rekognition Image analysis  Detect objects, faces,
scenes in an image
 Facial recognition
ion/rekognition/
Machine
Learning (ML)
Algorithm base smart
applications
 Finding patterns. Build
visualization tools
 Wizards guides you
through the process of
creating machine learning
(ML) models
 Use cases- fraud
detection, demand
forecasting, targeted
marketing & click
prediction
ion/machine-learning/
Internet of Things (IoT)
IoT Two way communication
between devices and AWS
 bi-directional
communication between
sensors, embedded
devices and smart
appliances to AWS
ion/iot/
Other AWS Services
Area Service Product page
Game
Development
Lumberyard https://aws.amazon.com/documentation/lumberyard/
GameLift https://aws.amazon.com/documentation/gamelift/
Business
Productivity
Work Docs https://aws.amazon.com/documentation/workdocs/
Work Mail https://aws.amazon.com/documentation/workmail/
Desktop and
App Streaming
WorkSpaces https://aws.amazon.com/documentation/workspaces/
WAM (WorkSpaces Application
Manager)
https://aws.amazon.com/documentation/wam/
AppStream 2.0 https://aws.amazon.com/documentation/appstream/

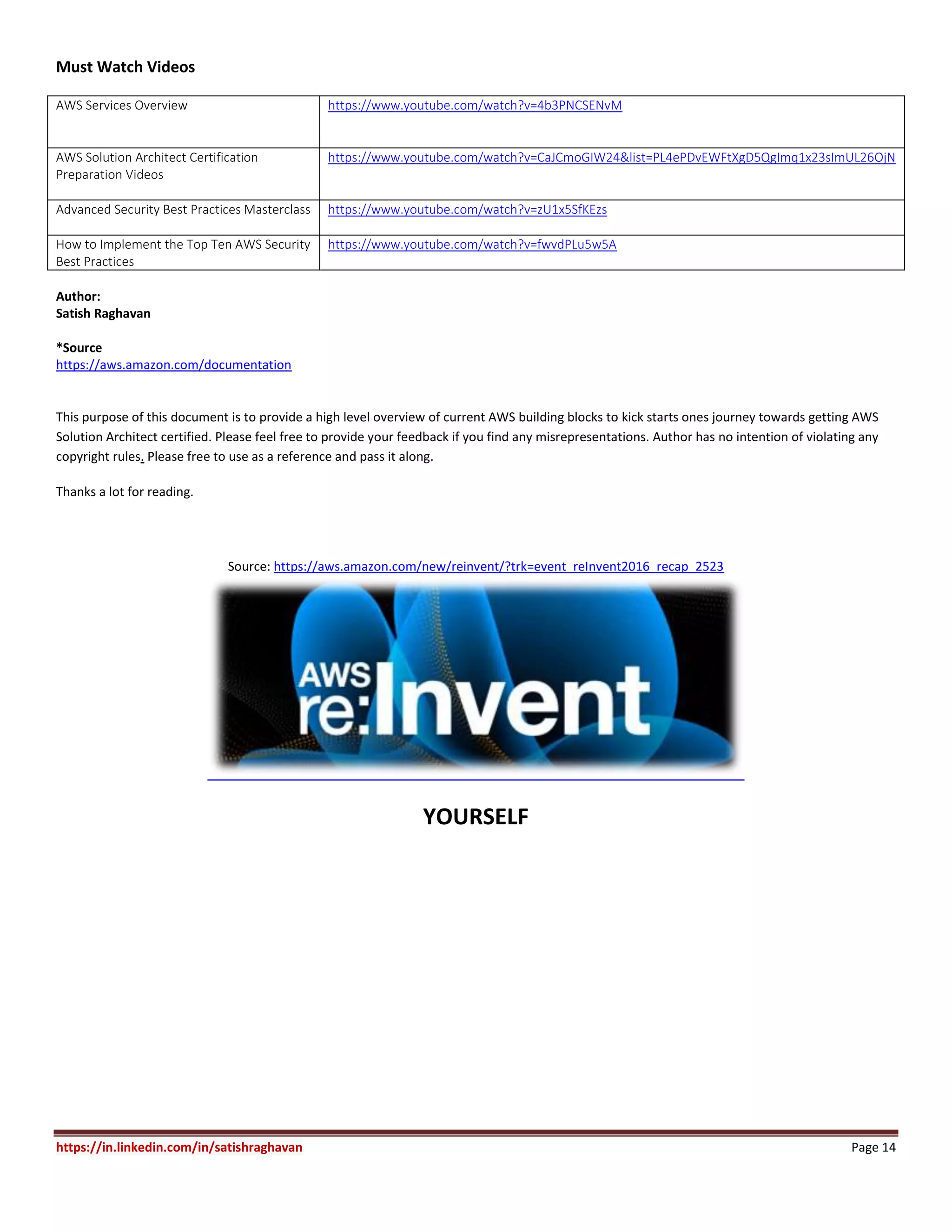

Must Watch Videos
AWS Services Overview https://www.youtube.com/watch?v=4b3PNCSENvM
AWS Solution Architect Certification
Preparation Videos
https://www.youtube.com/watch?v=CaJCmoGIW24&list=PL4ePDvEWFtXgD5QgImq1x23sImUL26OjN
Advanced Security Best Practices Masterclass https://www.youtube.com/watch?v=zU1x5SfKEzs
How to Implement the Top Ten AWS Security
Best Practices
https://www.youtube.com/watch?v=fwvdPLu5w5A
Author:
Satish Raghavan
*Source
https://aws.amazon.com/documentation
This purpose of this document is to provide a high level overview of current AWS building blocks to kick starts ones journey towards getting AWS
Solution Architect certified. Please feel free to provide your feedback if you find any misrepresentations. Author has no intention of violating any
copyright rules. Please free to use as a reference and pass it along.
Thanks a lot for reading.
Source: https://aws.amazon.com/new/reinvent/?trk=event_reInvent2016_recap_2523
YOURSELF

Overview of AWS Building Blocks

More Related Content

What's hot

Similar to Overview of AWS Building Blocks

Recently uploaded

Overview of AWS Building Blocks
