Ornithopter project
This document provides details on a student project to design a human-carrying ornithopter (mechanical flying machine) that is controlled via radio frequency and has surveillance capabilities. The ornithopter's wings are designed based on bats, beetles, and dragonflies. It uses various small mechanical and electrical components like gears, springs, motors, a wireless camera, microcontroller, and battery. The microcontroller helps process input from sensors to control the ornithopter. The document provides specifications of the components and concludes that ornithopter design remains an obscure area of research compared to fixed-wing aircraft.
More Related Content
Similar to Ornithopter project
Ornithopter project
- 2. Project Guide Prof. U.Haribabu P.hd K.Kishore Kumar (11491A0386) Surveillance of Human-Carrying Ornithopter by using Radio Frequency control.

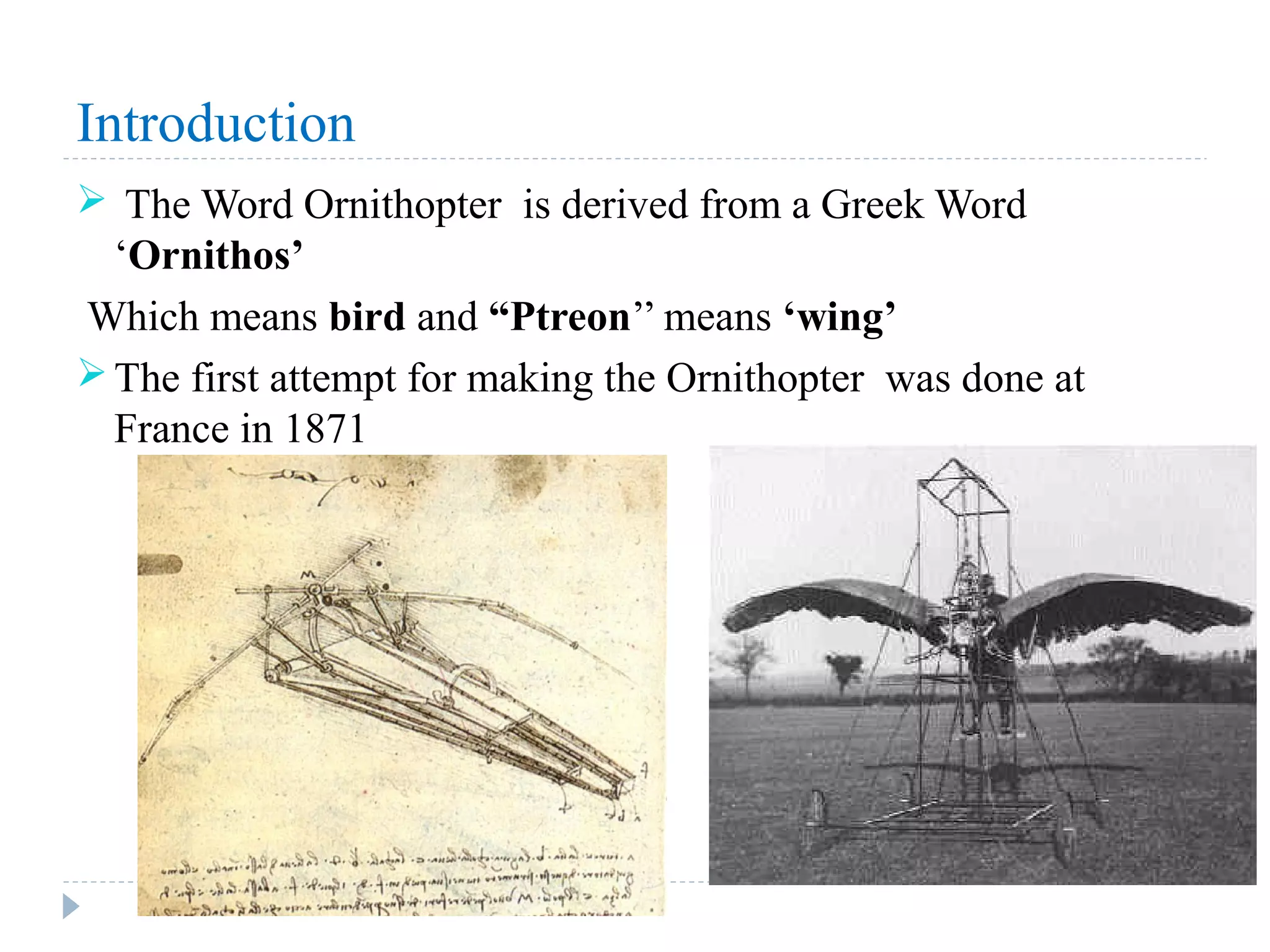

- 3. Introduction The WordOrnithopter is derived from a Greek Word ‘Ornithos’ Which means bird and “Ptreon’’ means ‘wing’ The first attempt for making the Ornithopter was done at France in 1871

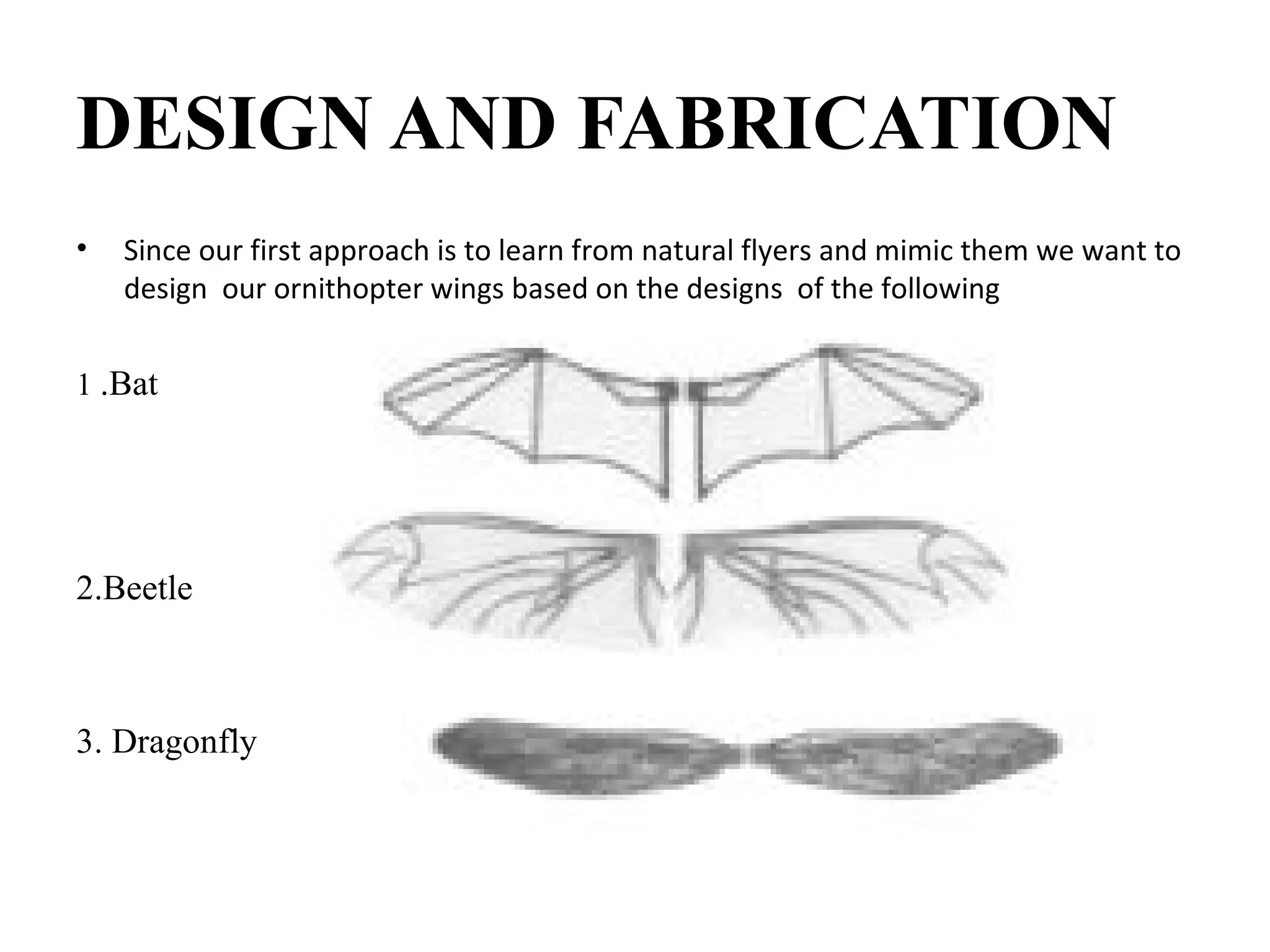

- 4. DESIGN AND FABRICATION •Since our first approach is to learn from natural flyers and mimic them we want to design our ornithopter wings based on the designs of the following 1 .Bat 2.Beetle 3. Dragonfly
- 5.
- 6.

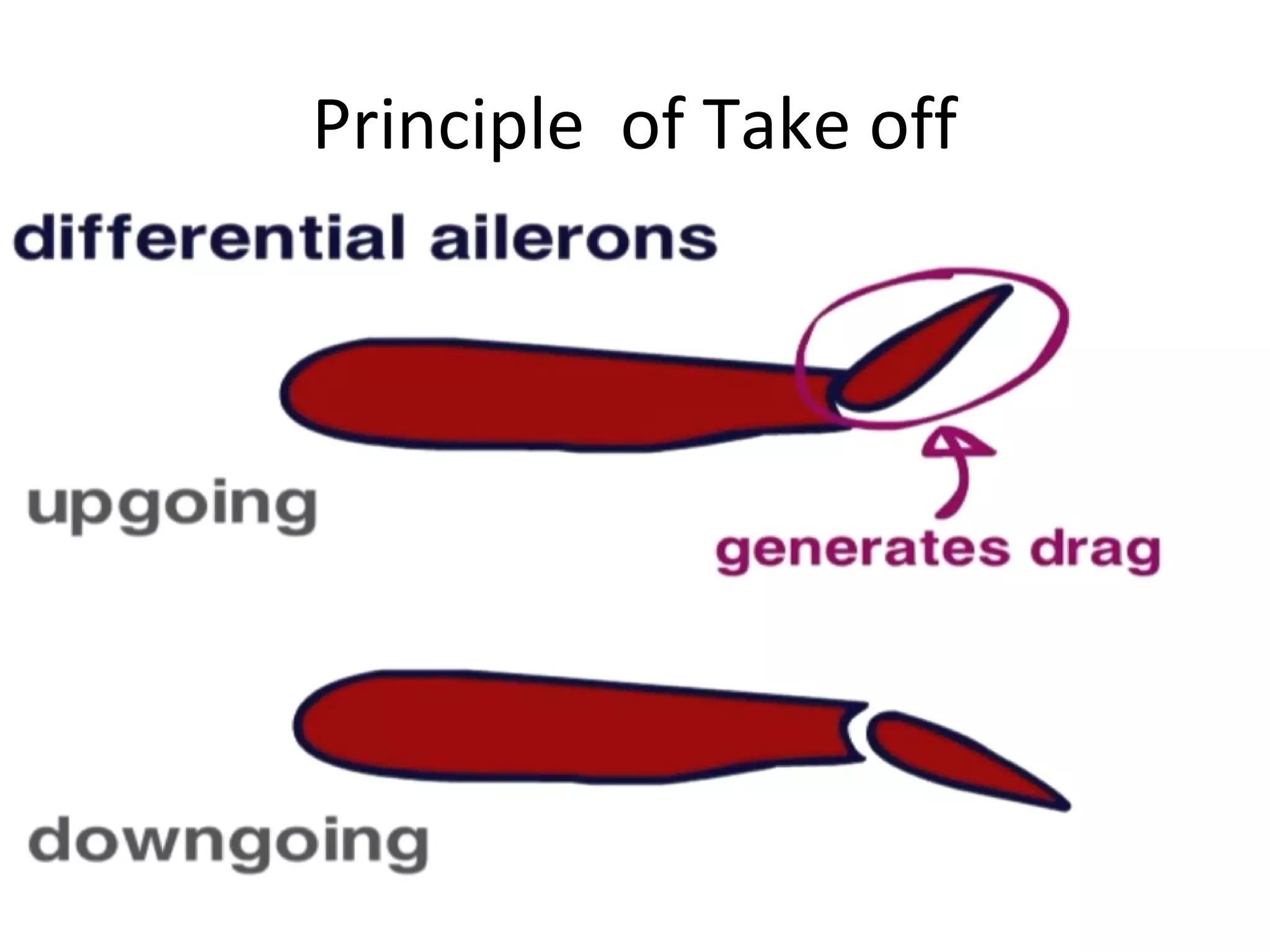

- 7.

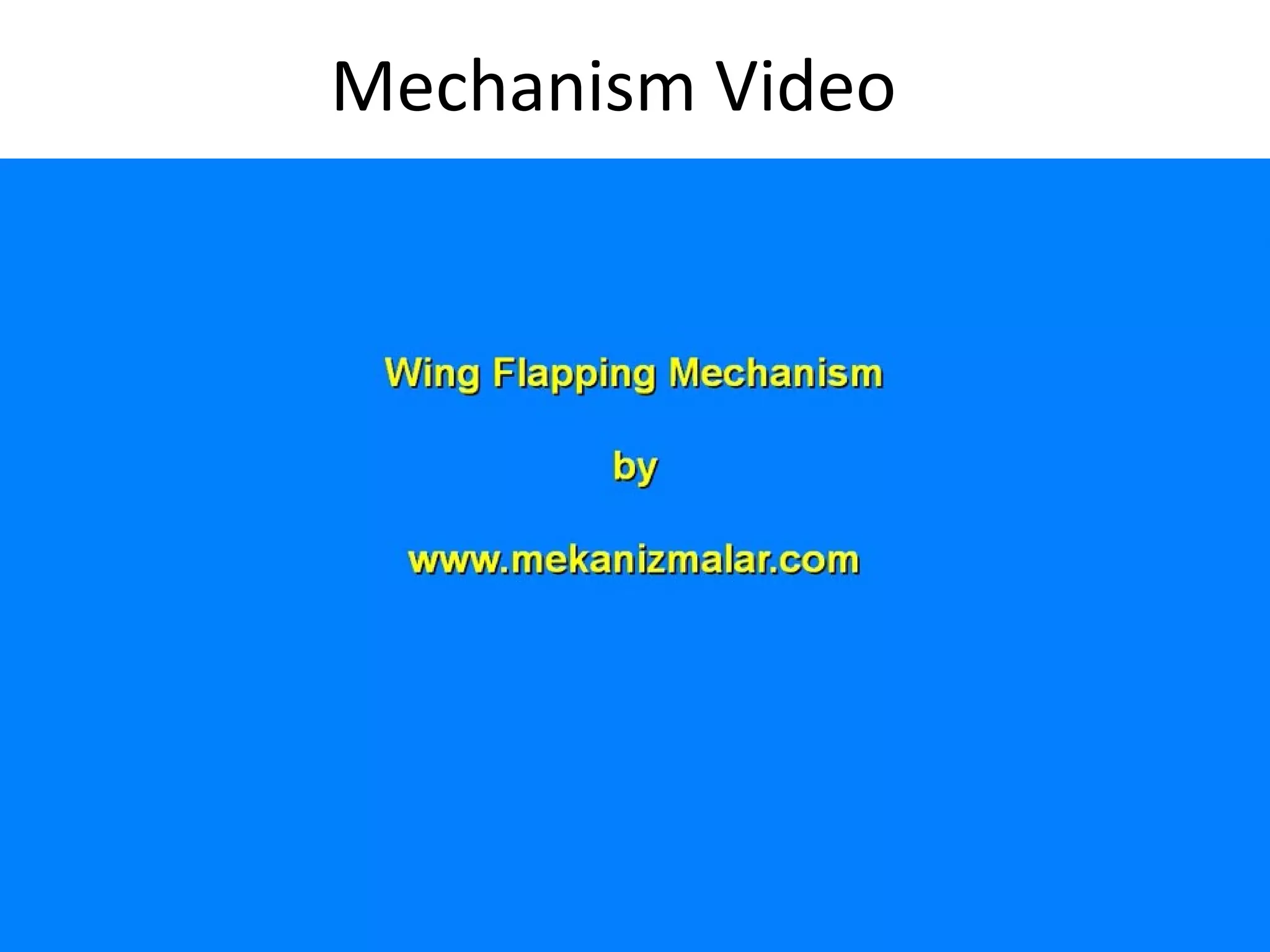

- 8.

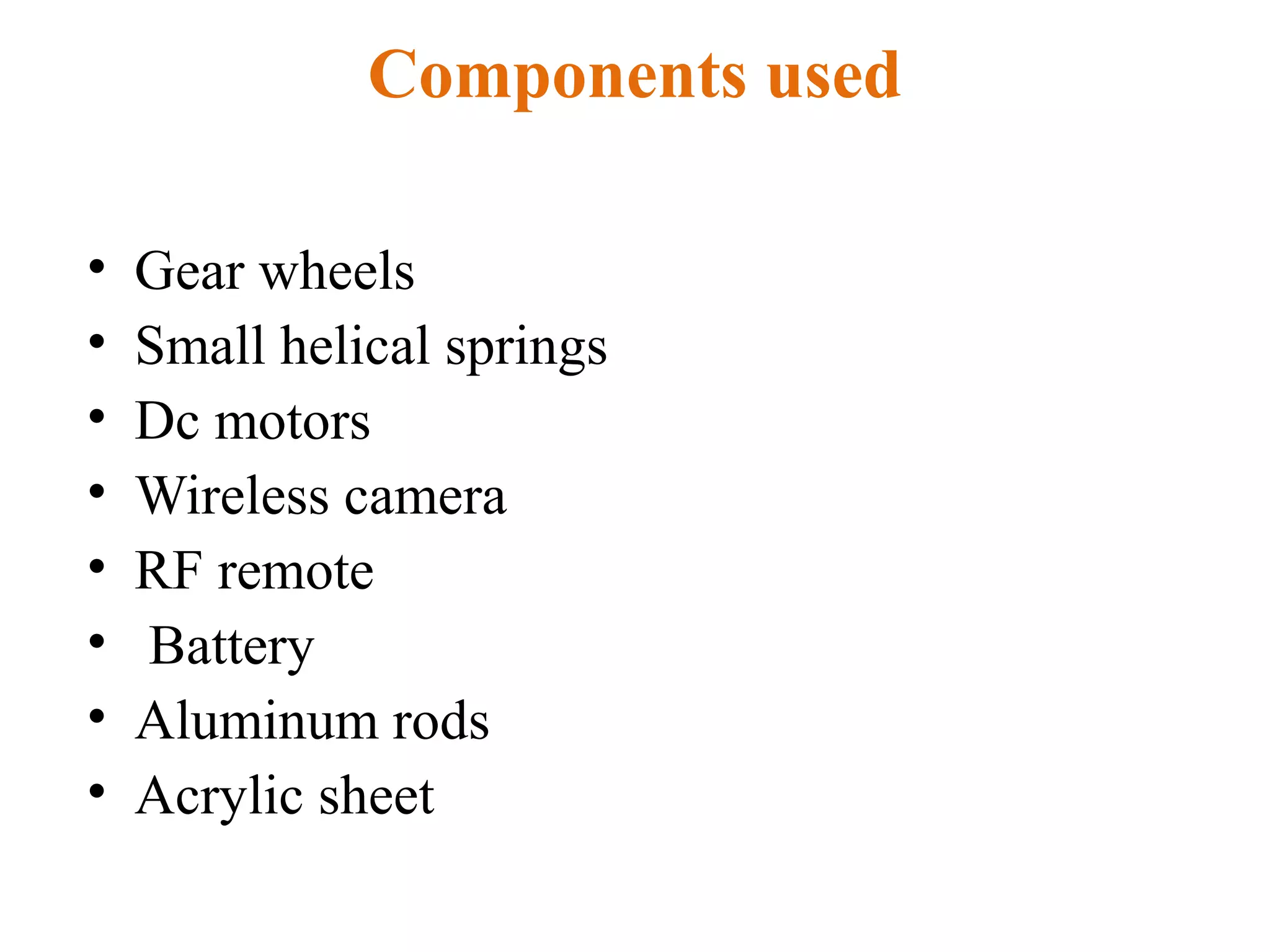

- 9. Components used • Gearwheels • Small helical springs • Dc motors • Wireless camera • RF remote • Battery • Aluminum rods • Acrylic sheet

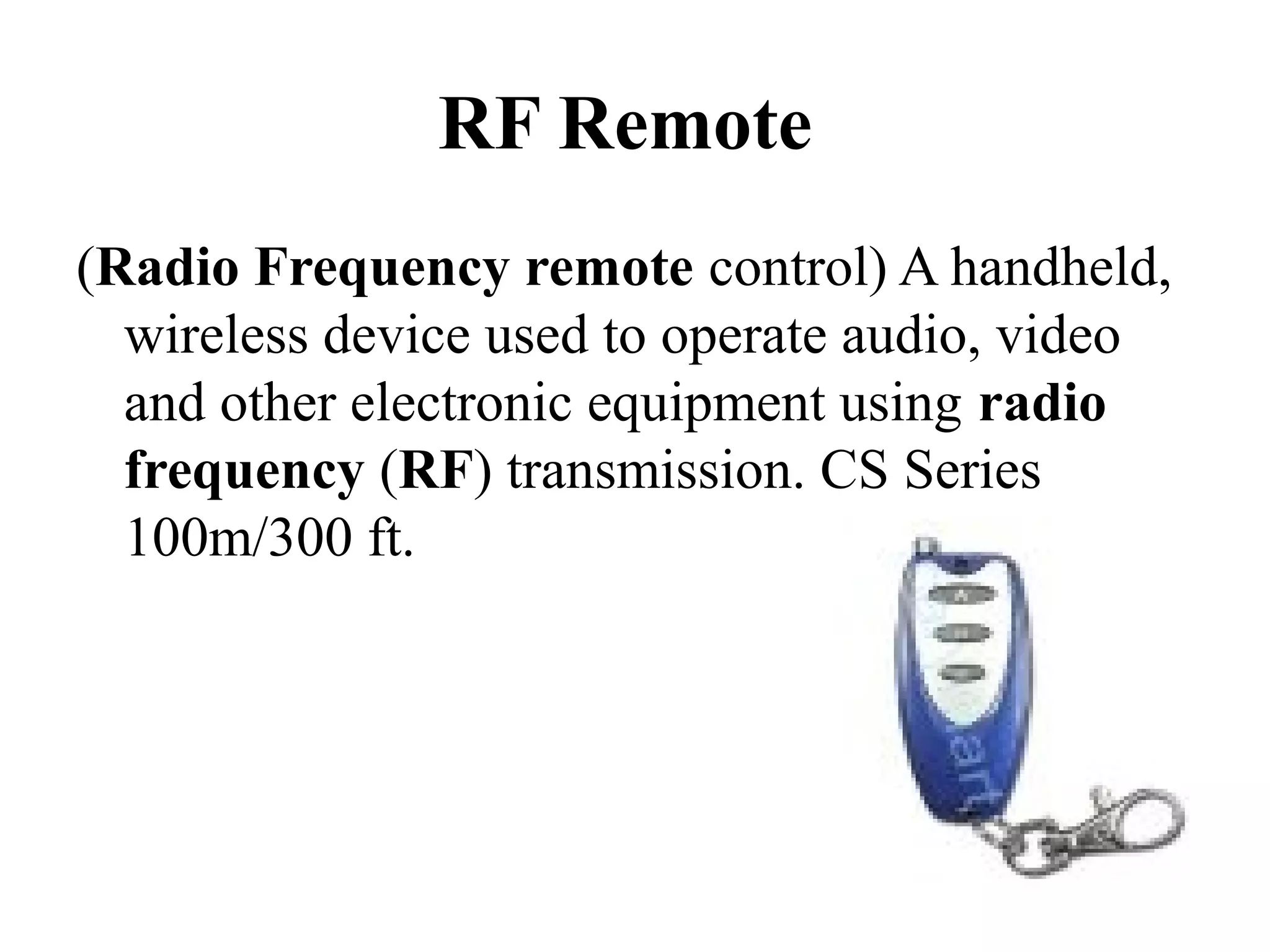

- 10. RF Remote (Radio Frequencyremote control) A handheld, wireless device used to operate audio, video and other electronic equipment using radio frequency (RF) transmission. CS Series 100m/300 ft.

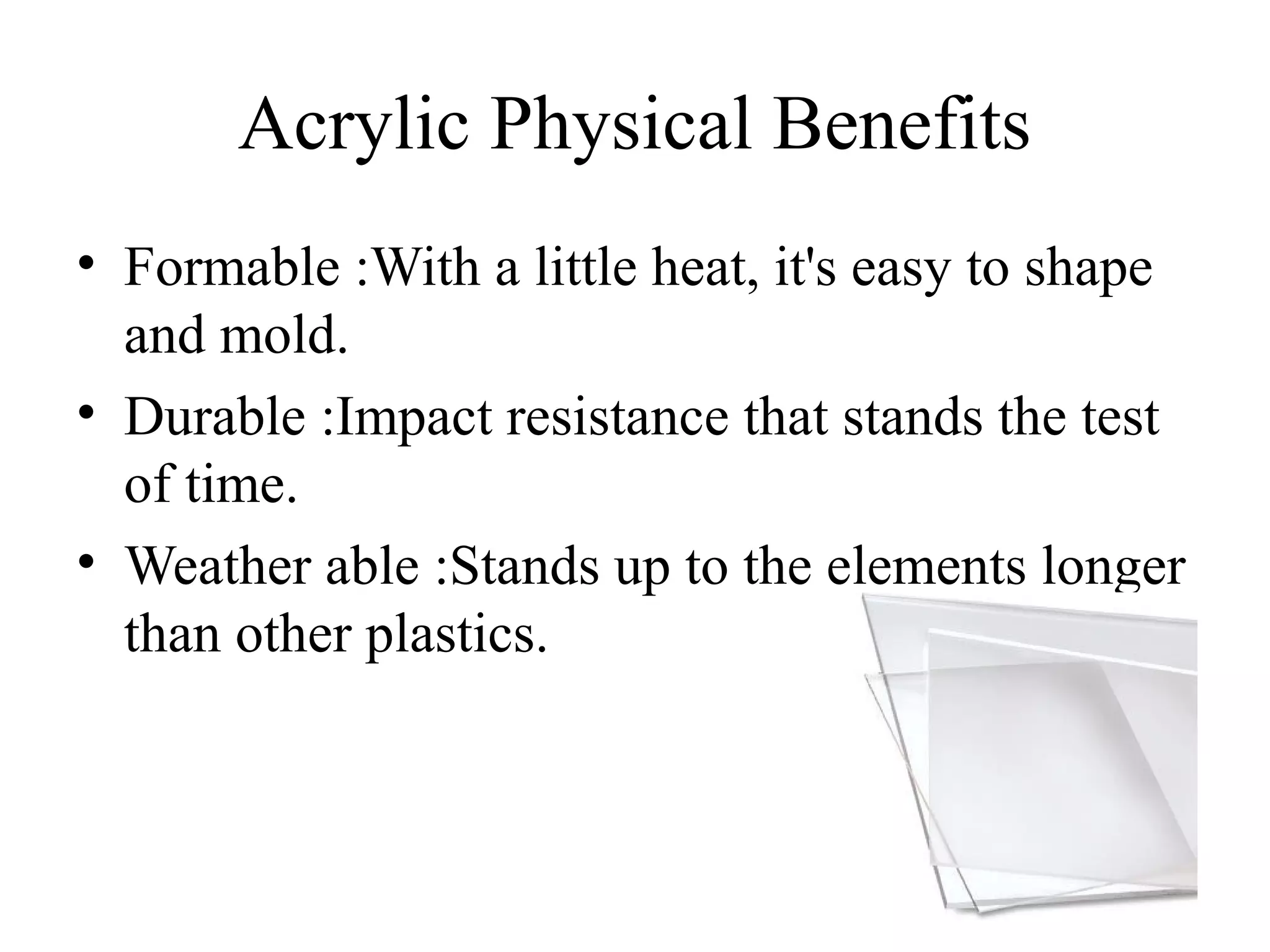

- 11. Acrylic Physical Benefits •Formable :With a little heat, it's easy to shape and mold. • Durable :Impact resistance that stands the test of time. • Weather able :Stands up to the elements longer than other plastics.

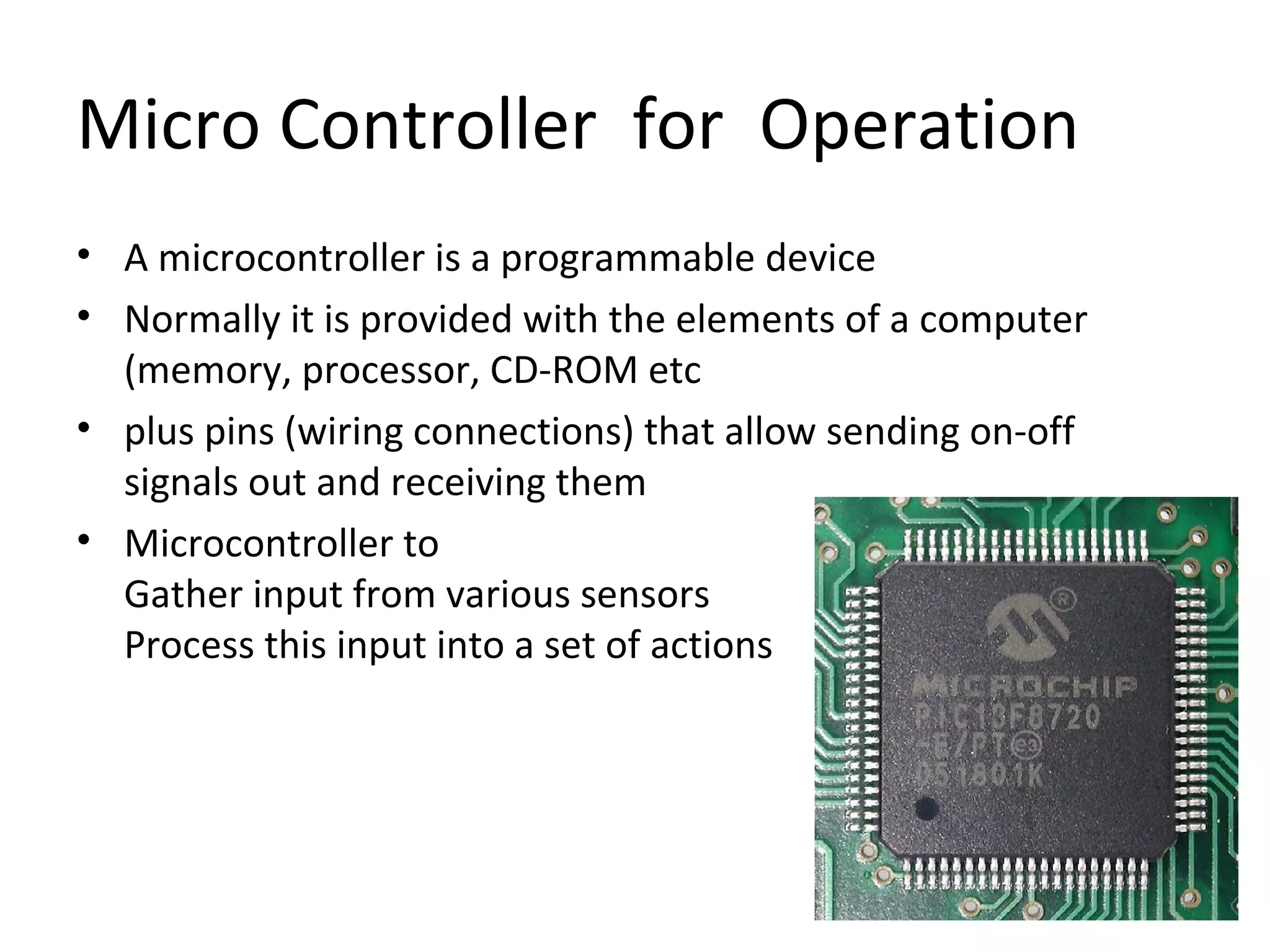

- 12. Micro Controller forOperation • A microcontroller is a programmable device • Normally it is provided with the elements of a computer (memory, processor, CD-ROM etc • plus pins (wiring connections) that allow sending on-off signals out and receiving them • Microcontroller to Gather input from various sensors Process this input into a set of actions

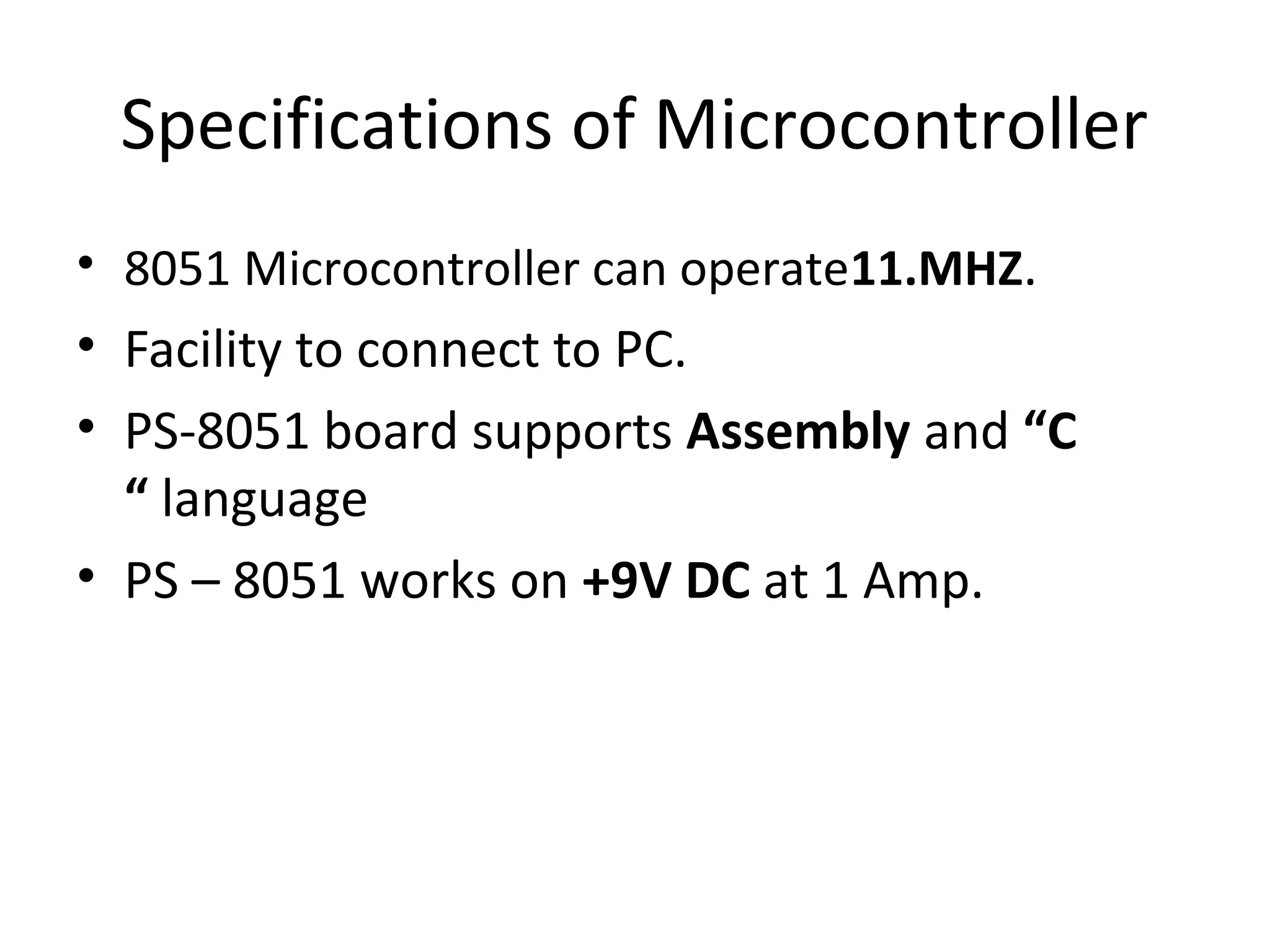

- 13. Specifications of Microcontroller •8051 Microcontroller can operate11.MHZ. • Facility to connect to PC. • PS-8051 board supports Assembly and “C “ language • PS – 8051 works on +9V DC at 1 Amp.

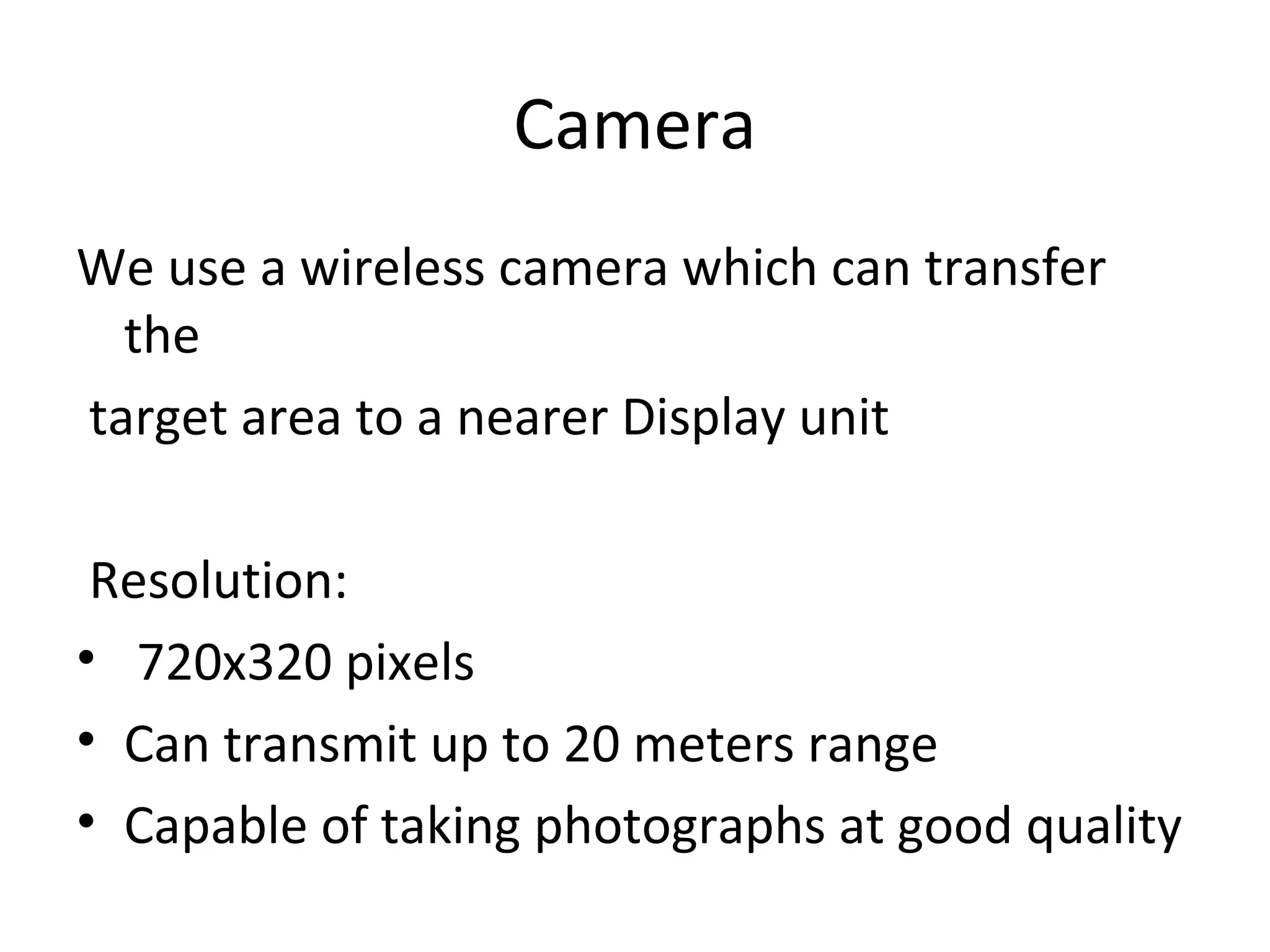

- 14. Camera We use awireless camera which can transfer the target area to a nearer Display unit Resolution: • 720x320 pixels • Can transmit up to 20 meters range • Capable of taking photographs at good quality

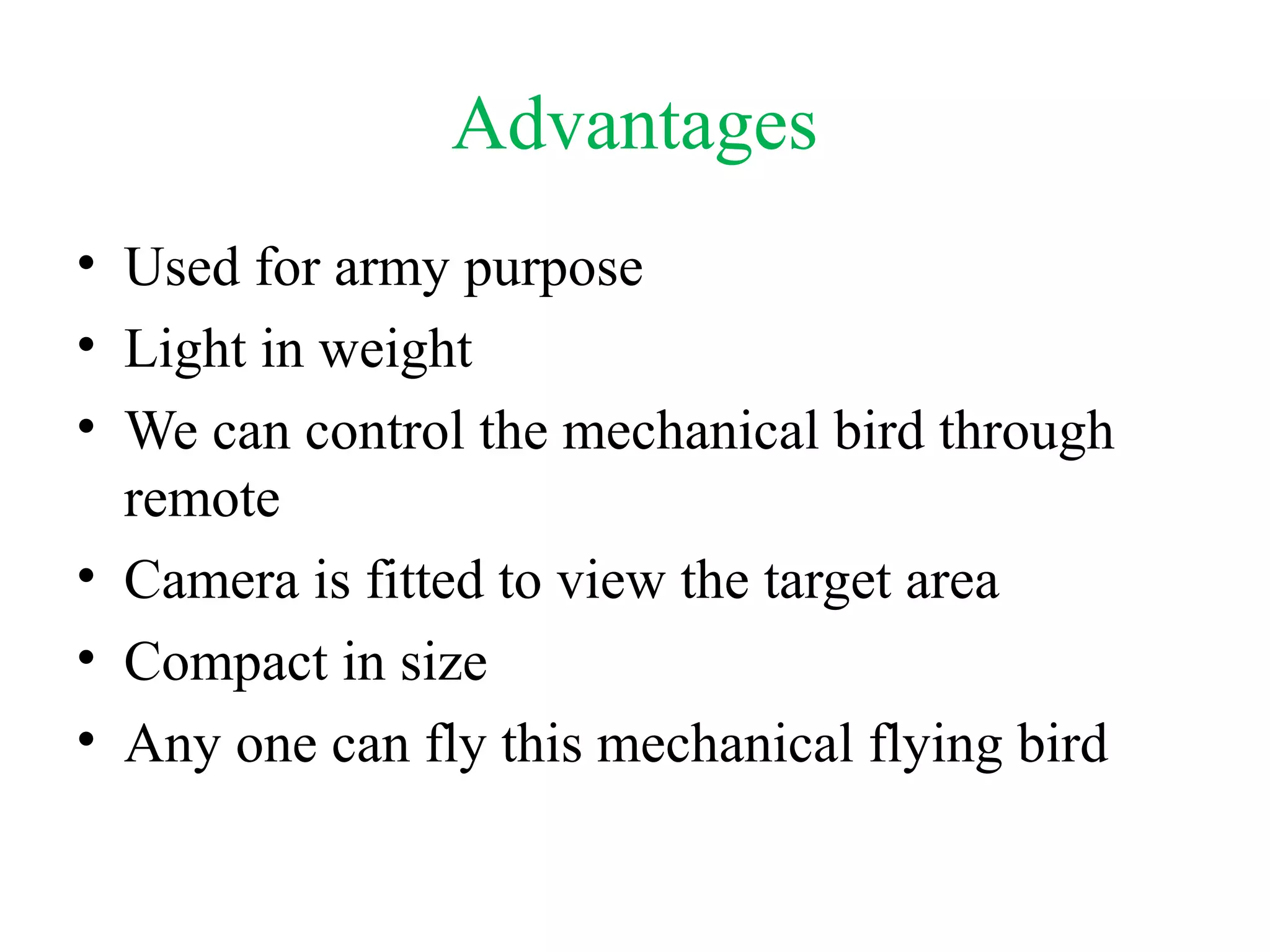

- 15. Advantages • Used forarmy purpose • Light in weight • We can control the mechanical bird through remote • Camera is fitted to view the target area • Compact in size • Any one can fly this mechanical flying bird

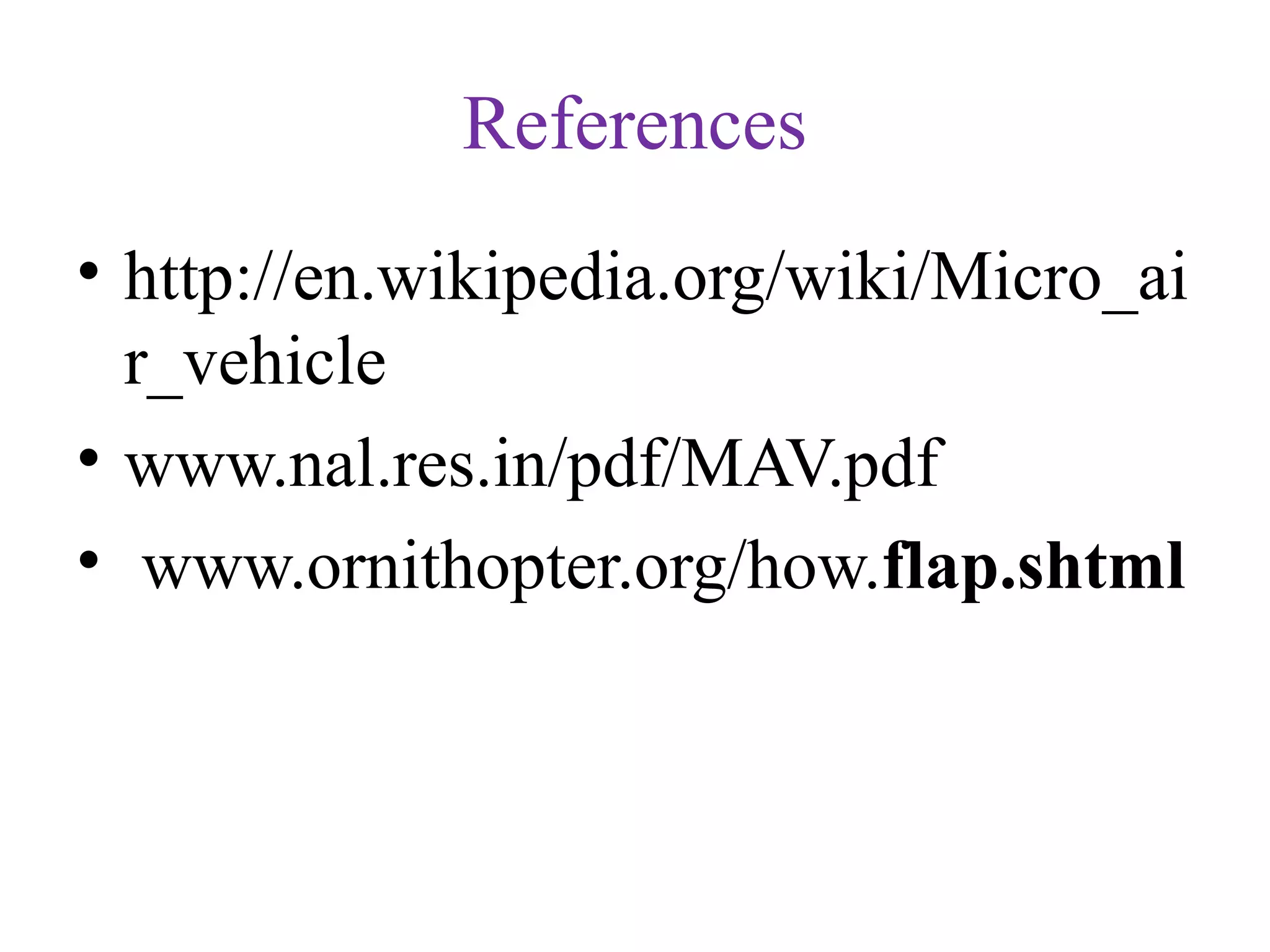

- 16. References • http://en.wikipedia.org/wiki/Micro_ai r_vehicle • www.nal.res.in/pdf/MAV.pdf •www.ornithopter.org/how.flap.shtml

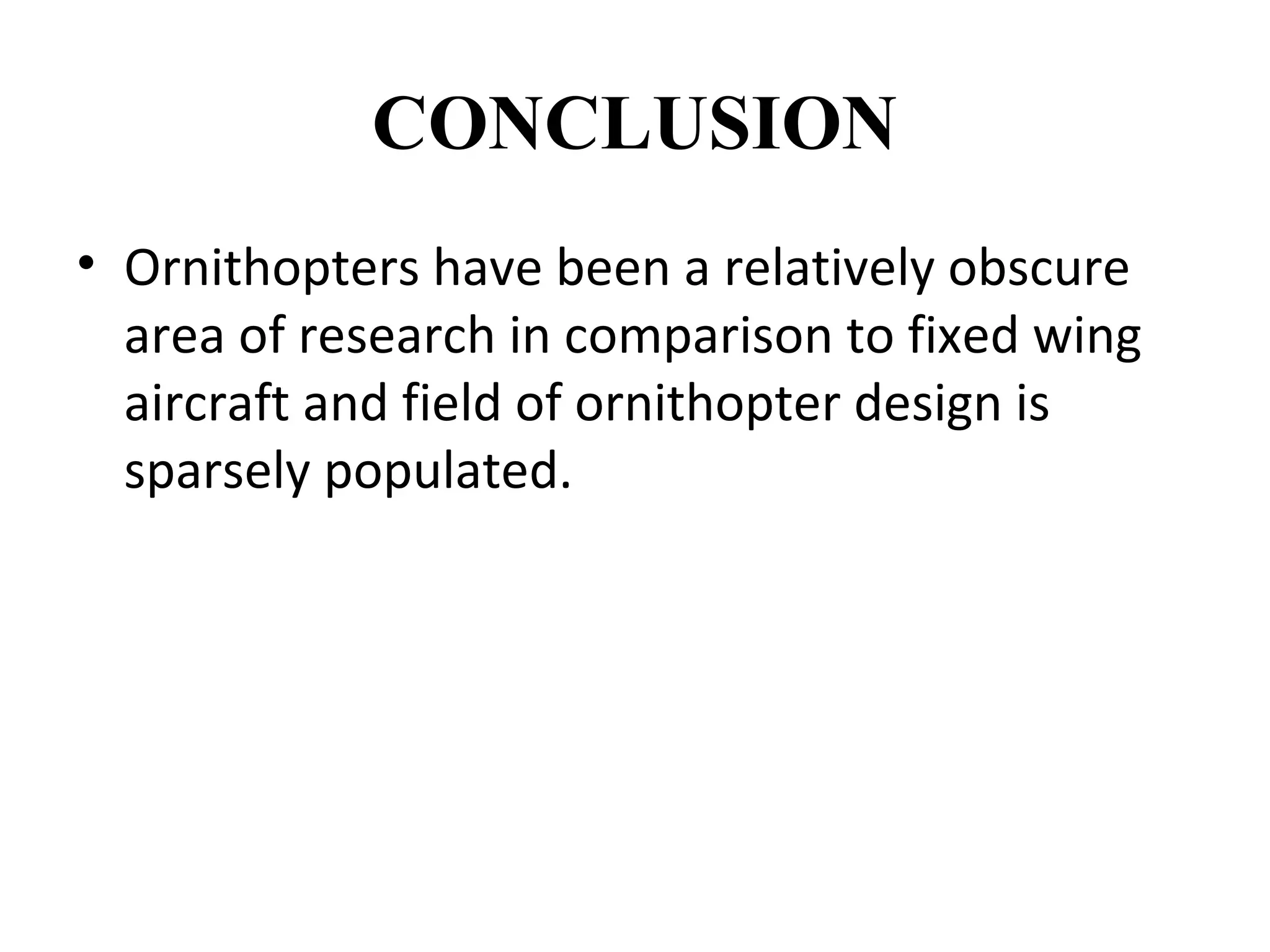

- 17. CONCLUSION • Ornithopters havebeen a relatively obscure area of research in comparison to fixed wing aircraft and field of ornithopter design is sparsely populated.
- 18.
