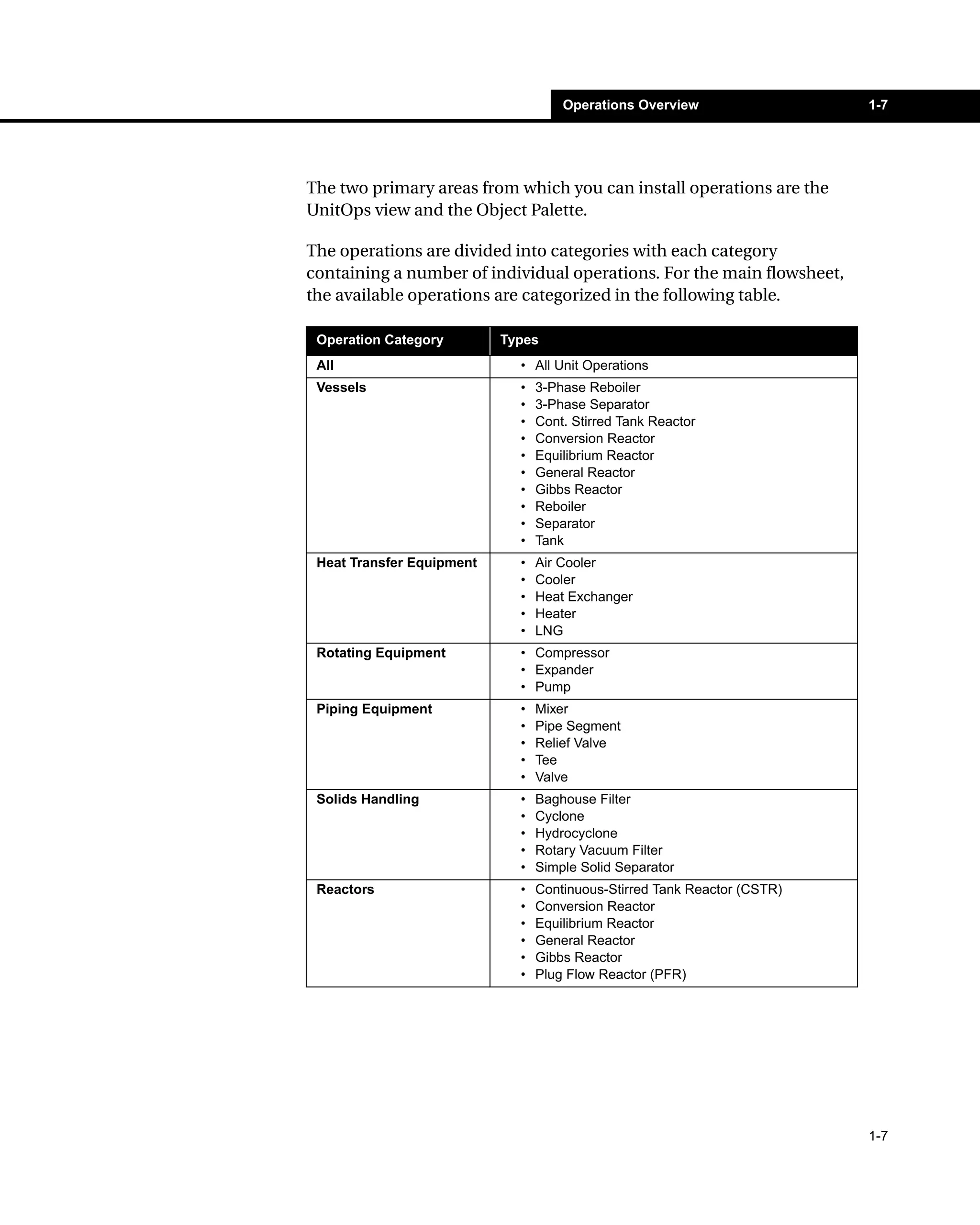

- 1. Operations Overview 1-7 1-7 The two primary areas from which you can install operations are the UnitOps view and the Object Palette. The operations are divided into categories with each category containing a number of individual operations. For the main flowsheet, the available operations are categorized in the following table. Operation Category Types All • All Unit Operations Vessels • 3-Phase Reboiler • 3-Phase Separator • Cont. Stirred Tank Reactor • Conversion Reactor • Equilibrium Reactor • General Reactor • Gibbs Reactor • Reboiler • Separator • Tank Heat Transfer Equipment • Air Cooler • Cooler • Heat Exchanger • Heater • LNG Rotating Equipment • Compressor • Expander • Pump Piping Equipment • Mixer • Pipe Segment • Relief Valve • Tee • Valve Solids Handling • Baghouse Filter • Cyclone • Hydrocyclone • Rotary Vacuum Filter • Simple Solid Separator Reactors • Continuous-Stirred Tank Reactor (CSTR) • Conversion Reactor • Equilibrium Reactor • General Reactor • Gibbs Reactor • Plug Flow Reactor (PFR)
