The document discusses several open source network monitoring systems (NMS), including Cacti, Nagios, OpManager, EtherApe, and MultiPing. Cacti creates graphs using RRDtool and a MySQL backend. Nagios offers monitoring, alerting, and remote plugin execution for servers and services. OpManager monitors network infrastructure via SNMP, WMI, and CLI across multiple sites. EtherApe graphically displays network activity at the link, IP, and TCP layers. MultiPing monitors uptime and performance of TCP/IP hosts. All of these tools integrate SNMP to collect device information.

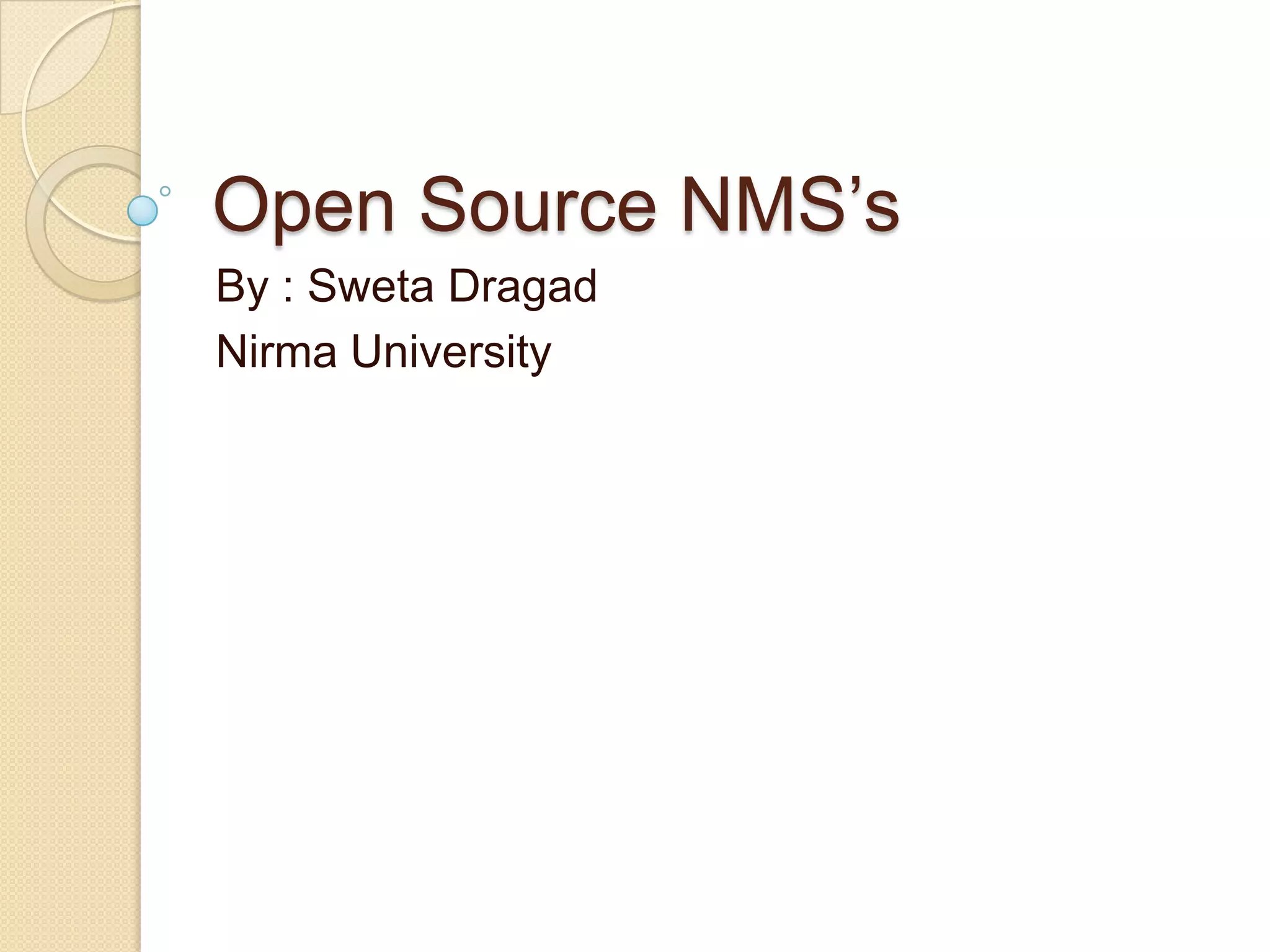

1. Open Source NMS’s
By : Sweta Dragad
Nirma University

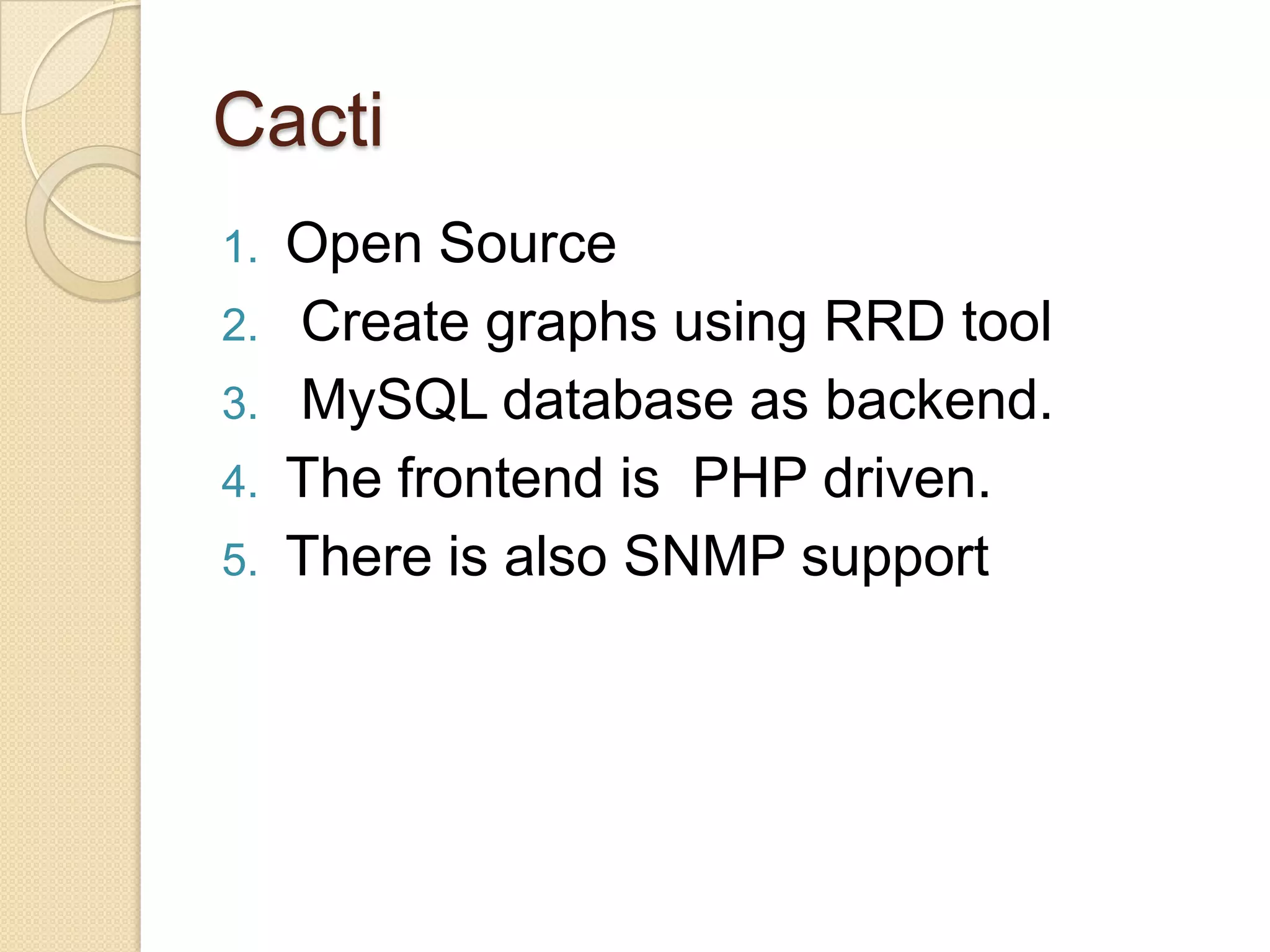

2. Cacti
1. Open Source
2. Create graphs using RRD tool
3. MySQL database as backend.
4. The frontend is PHP driven.
5. There is also SNMP support

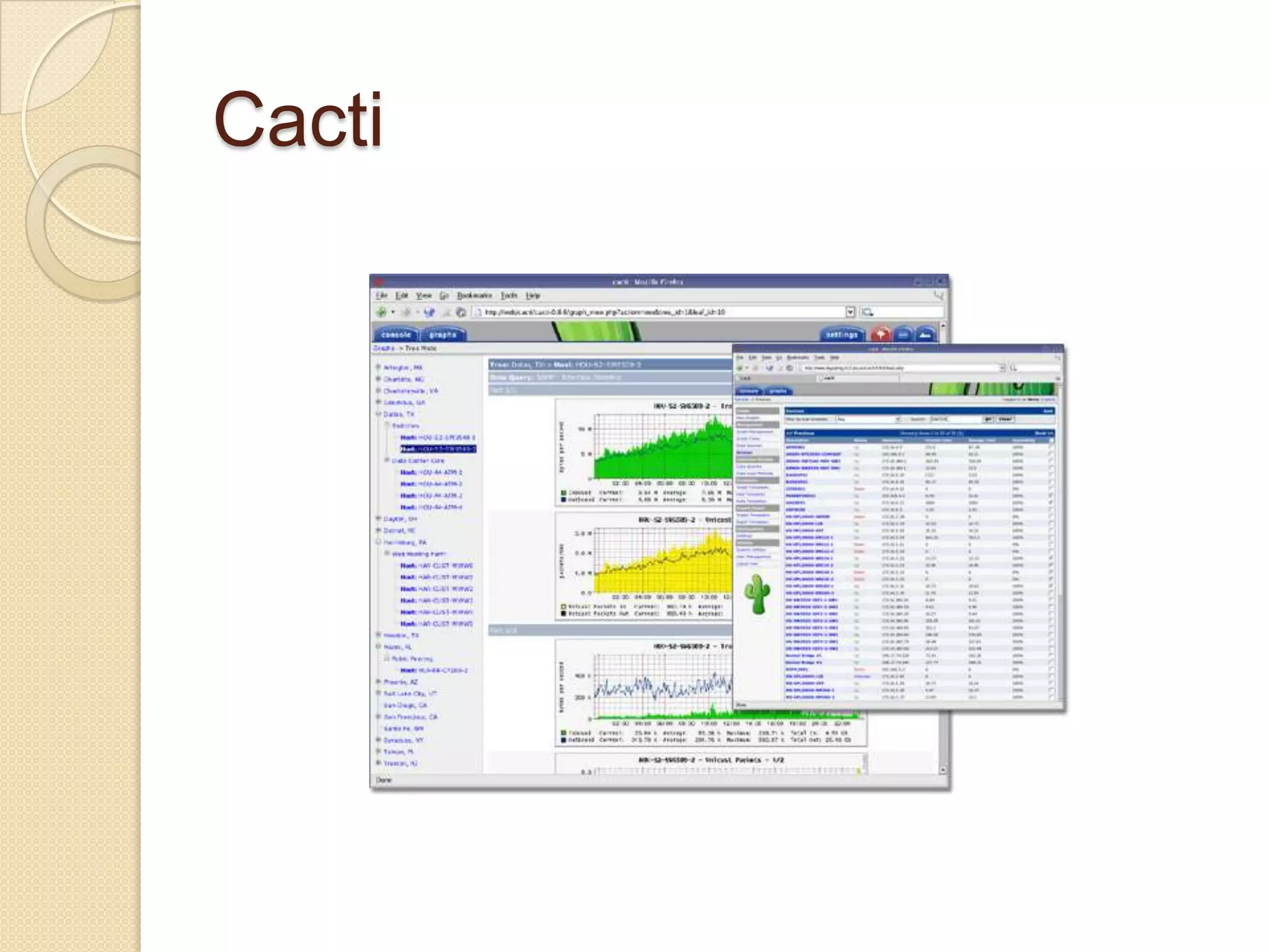

3. Cacti

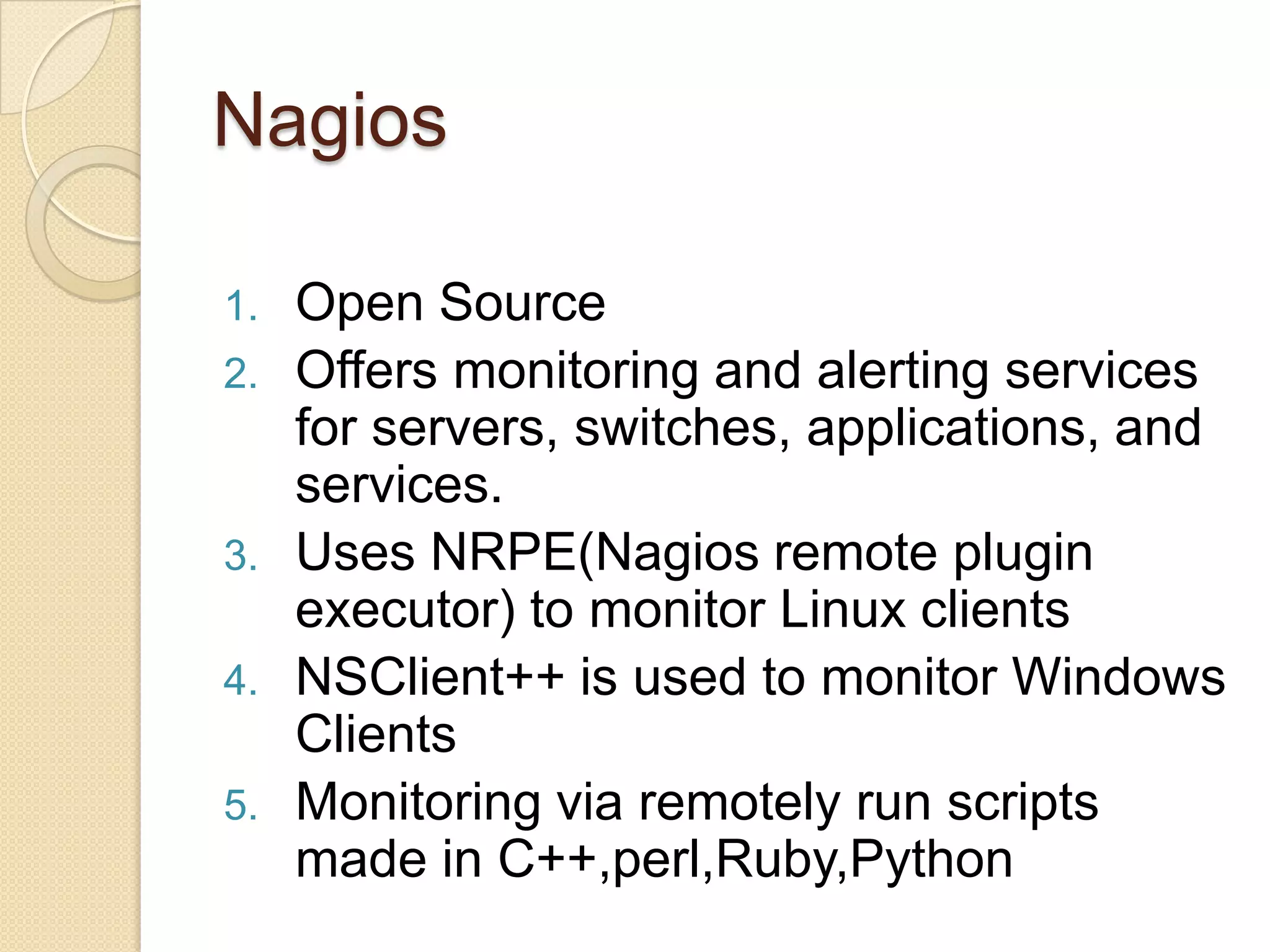

4. Nagios
1. Open Source
2. Offers monitoring and alerting services
for servers, switches, applications, and
services.
3. Uses NRPE(Nagios remote plugin
executor) to monitor Linux clients
4. NSClient++ is used to monitor Windows
Clients
5. Monitoring via remotely run scripts
made in C++,perl,Ruby,Python

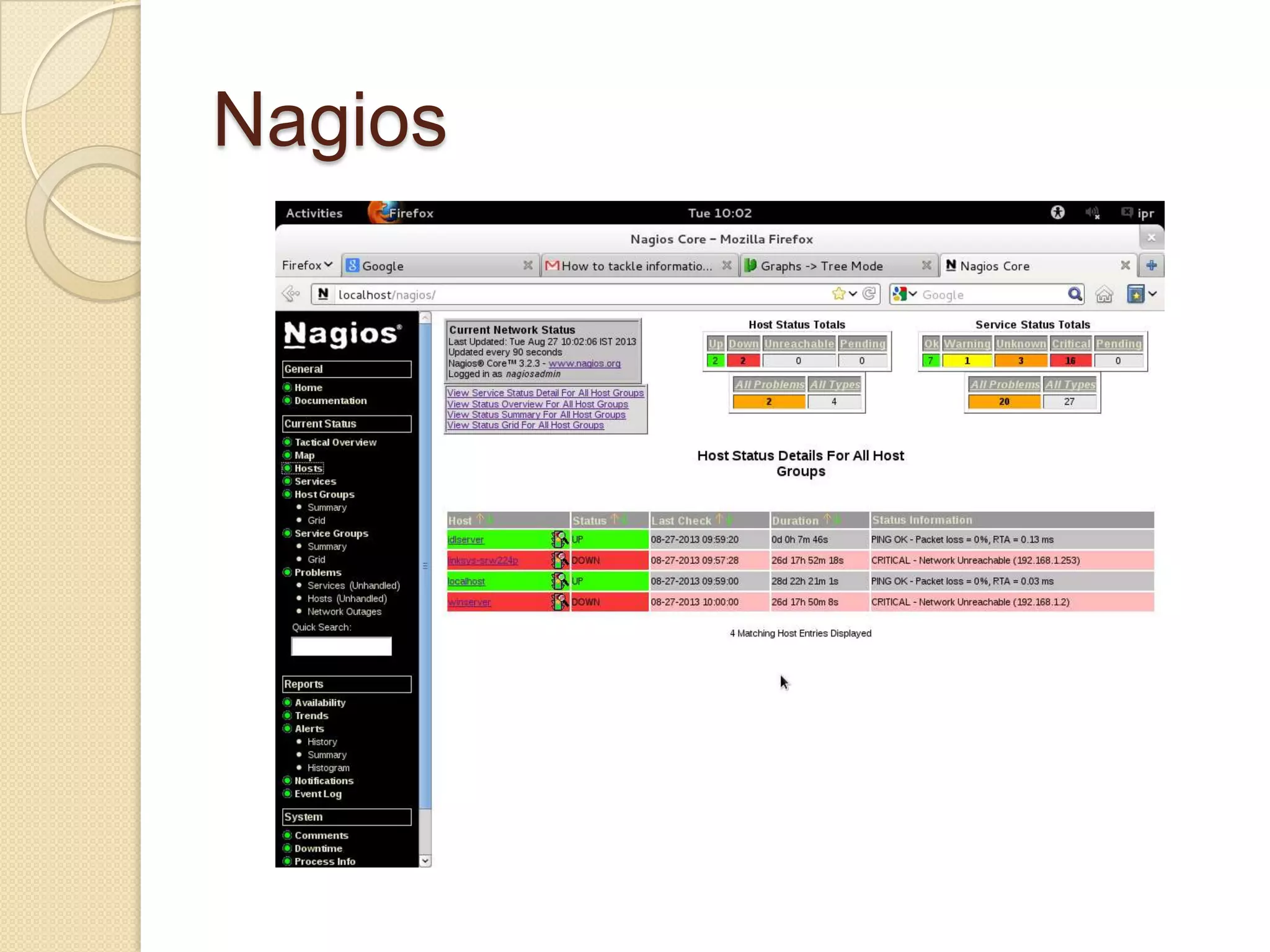

5. Nagios

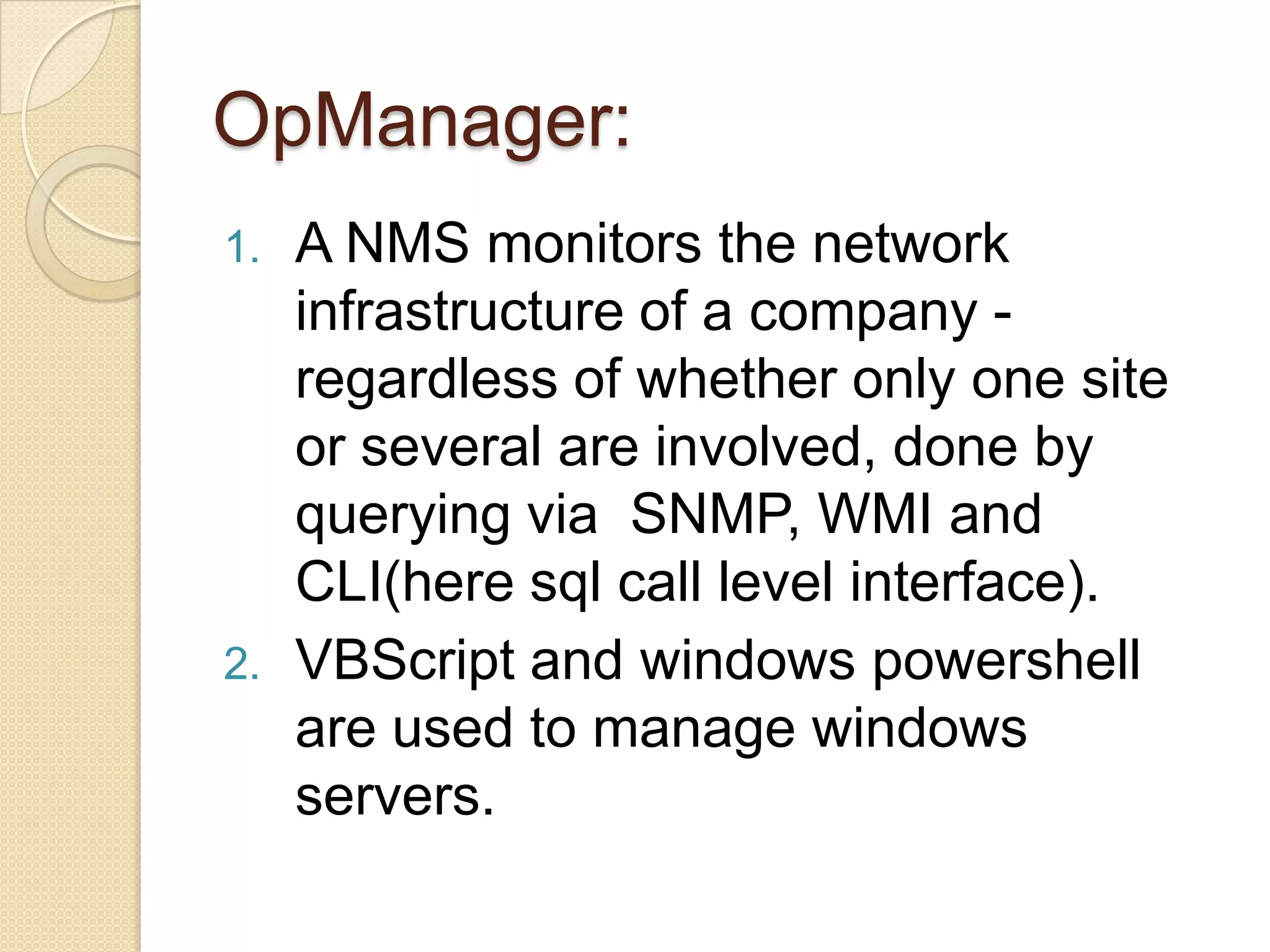

6. OpManager:
1. A NMS monitors the network
infrastructure of a company -
regardless of whether only one site
or several are involved, done by
querying via SNMP, WMI and
CLI(here sql call level interface).
2. VBScript and windows powershell
are used to manage windows
servers.

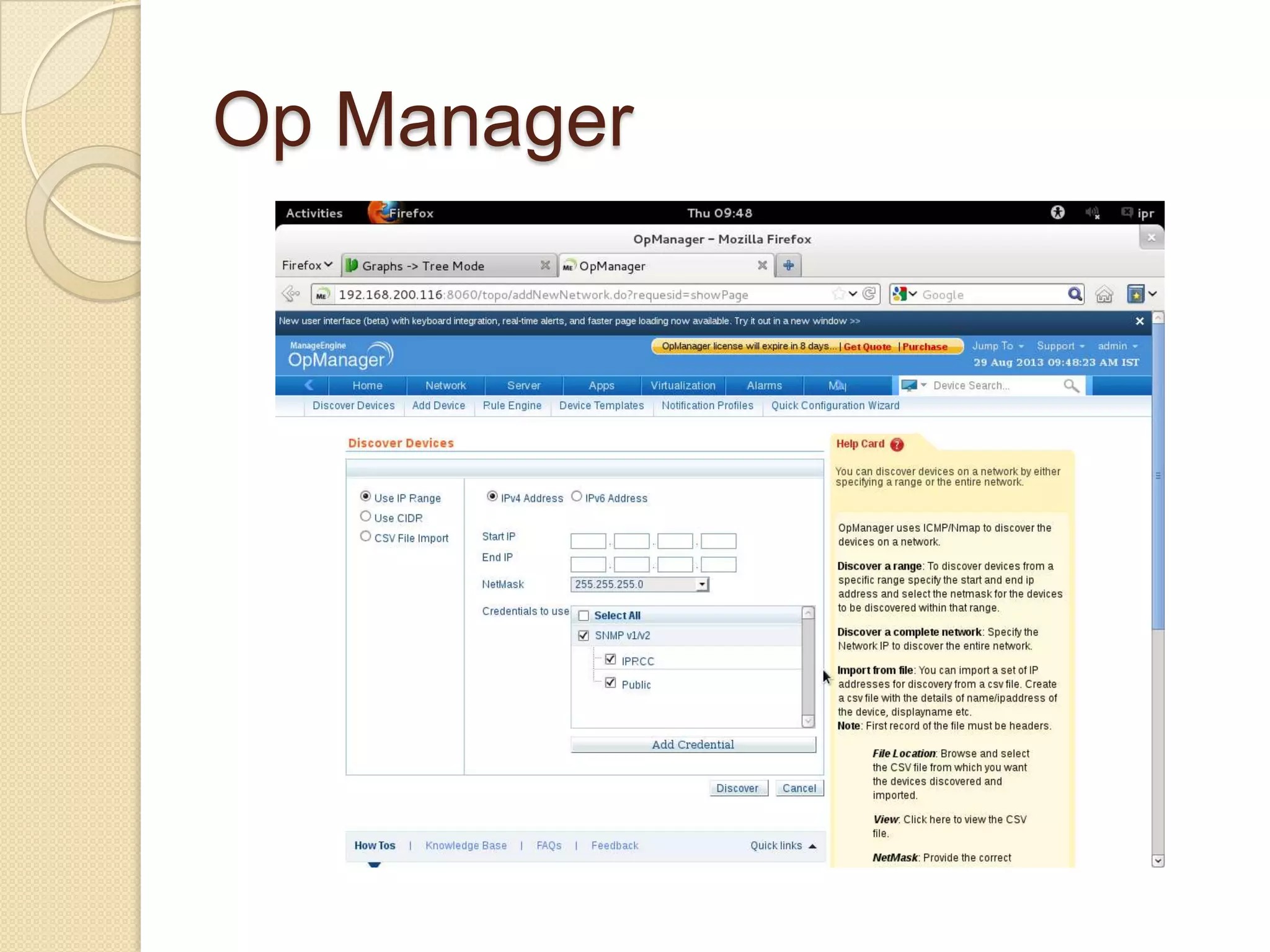

7. Op Manager

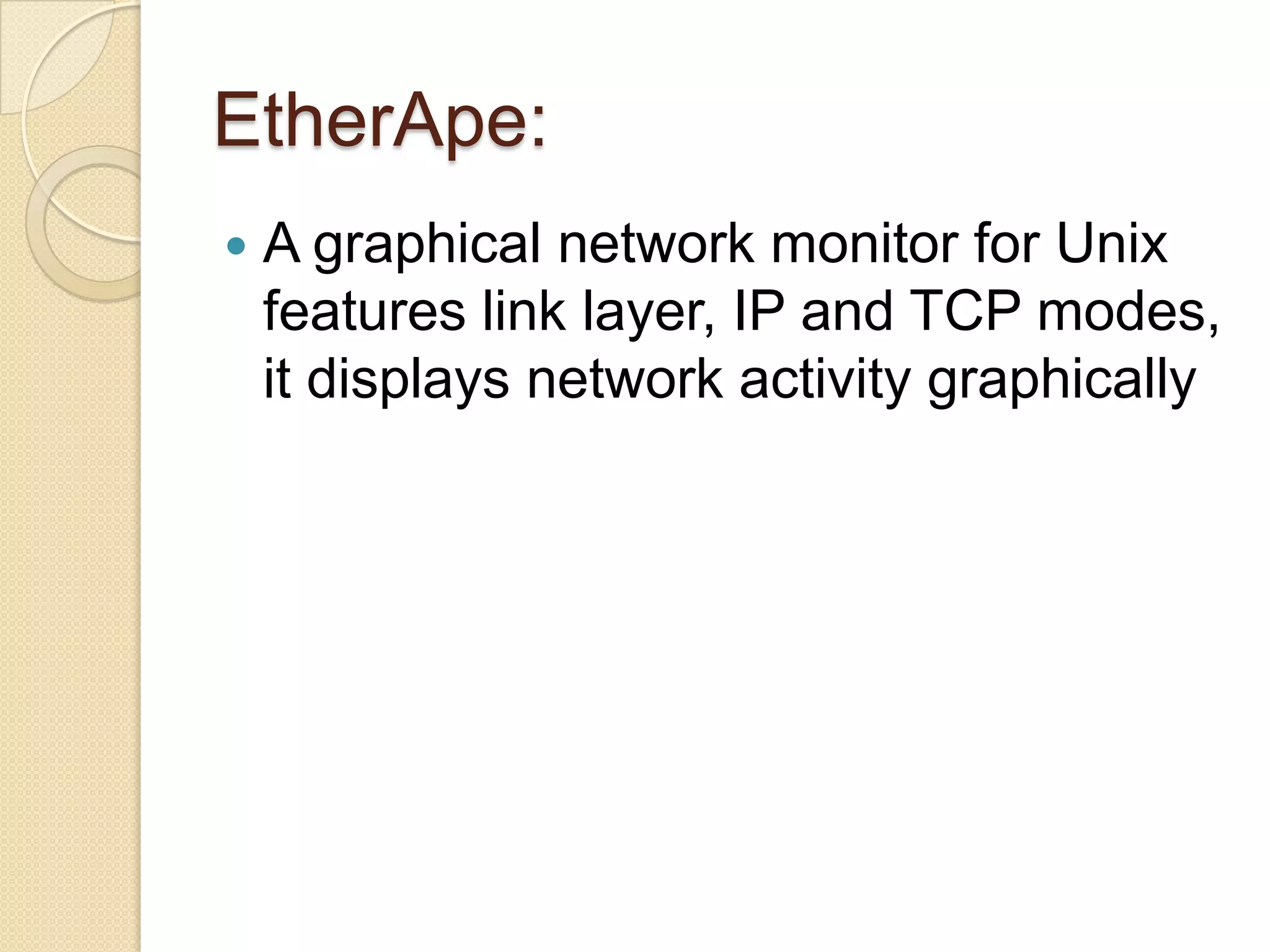

8. EtherApe:
 A graphical network monitor for Unix
features link layer, IP and TCP modes,
it displays network activity graphically

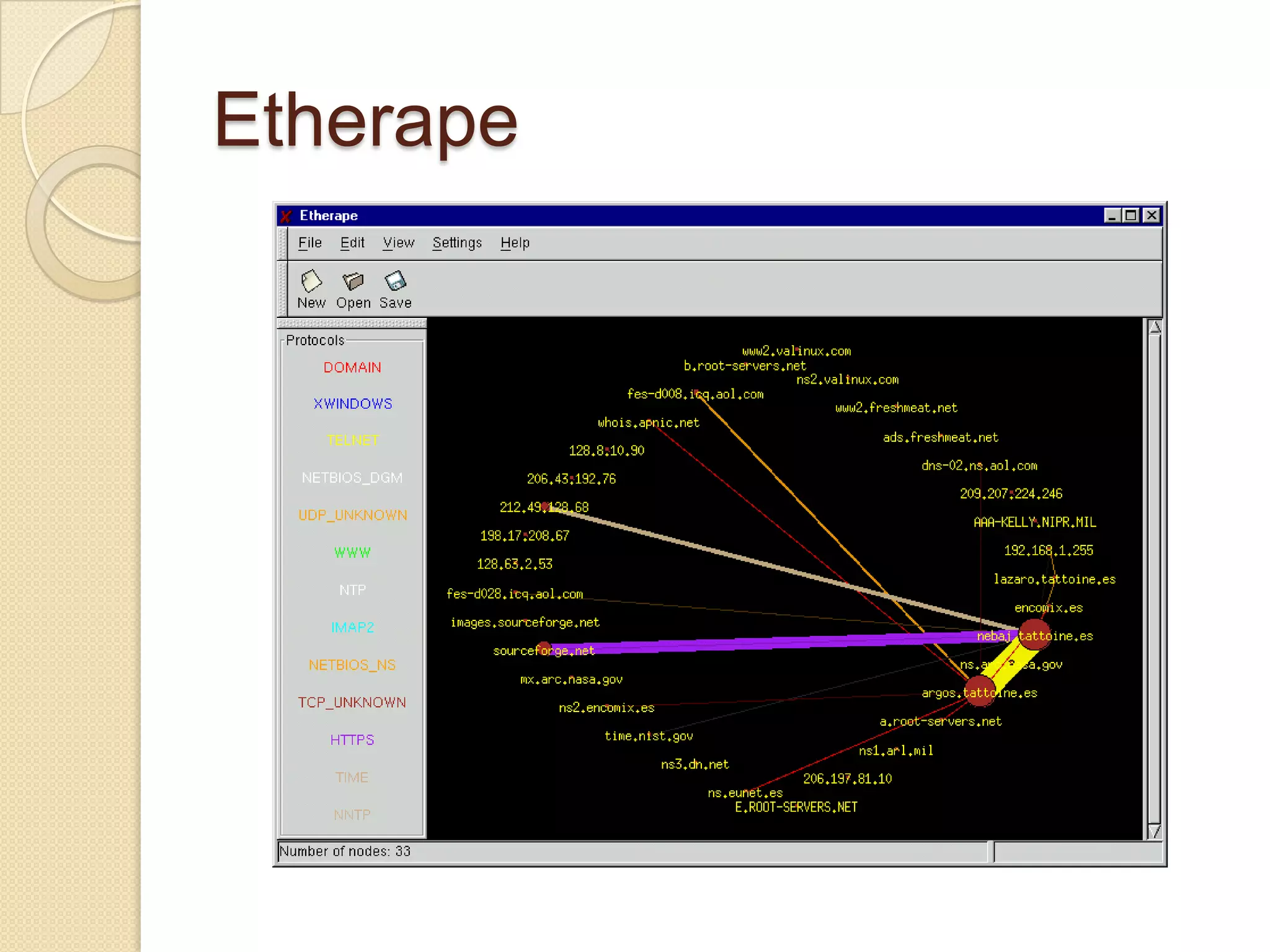

9. Etherape

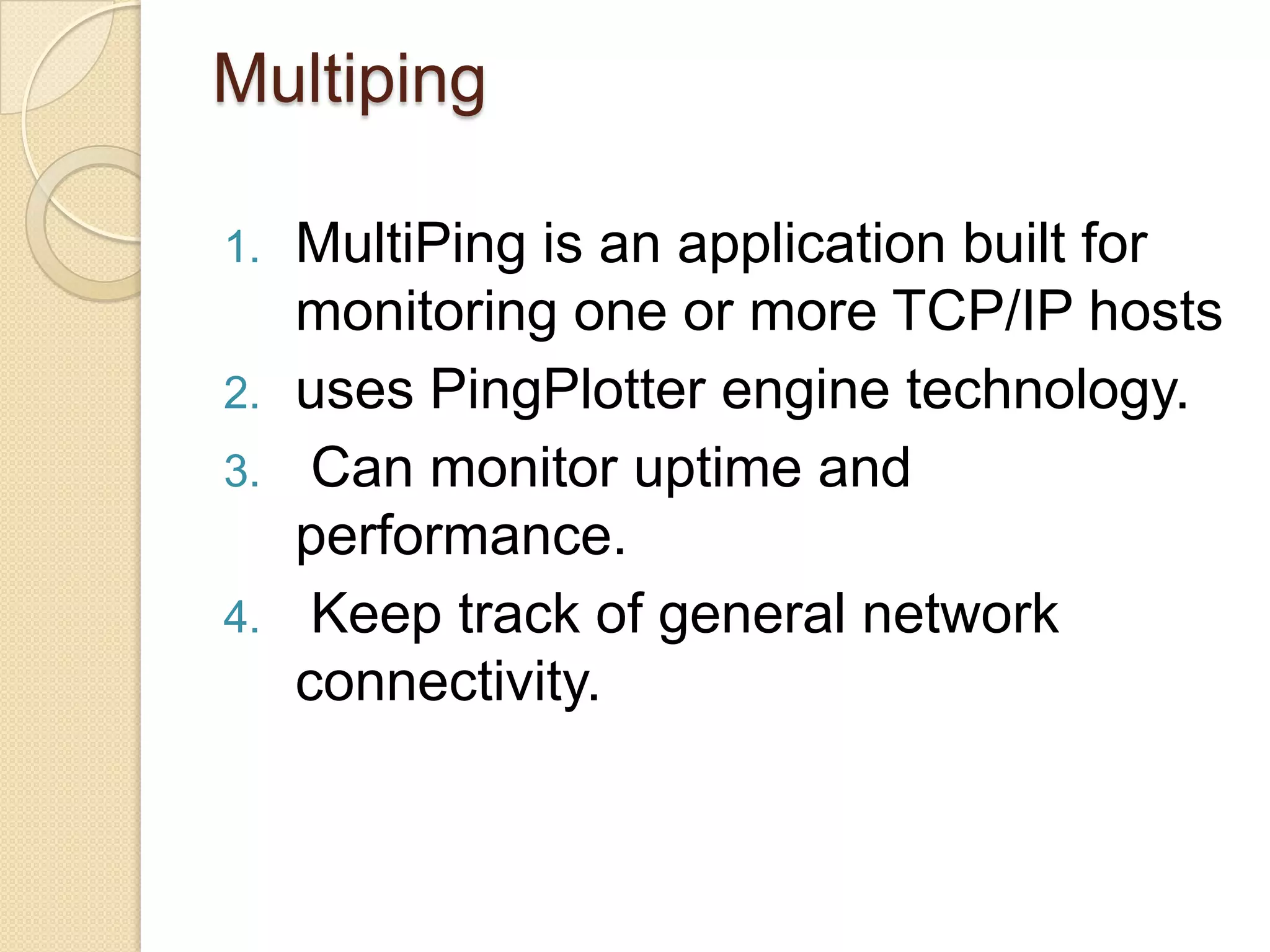

10. Multiping
1. MultiPing is an application built for
monitoring one or more TCP/IP hosts
2. uses PingPlotter engine technology.
3. Can monitor uptime and
performance.
4. Keep track of general network
connectivity.

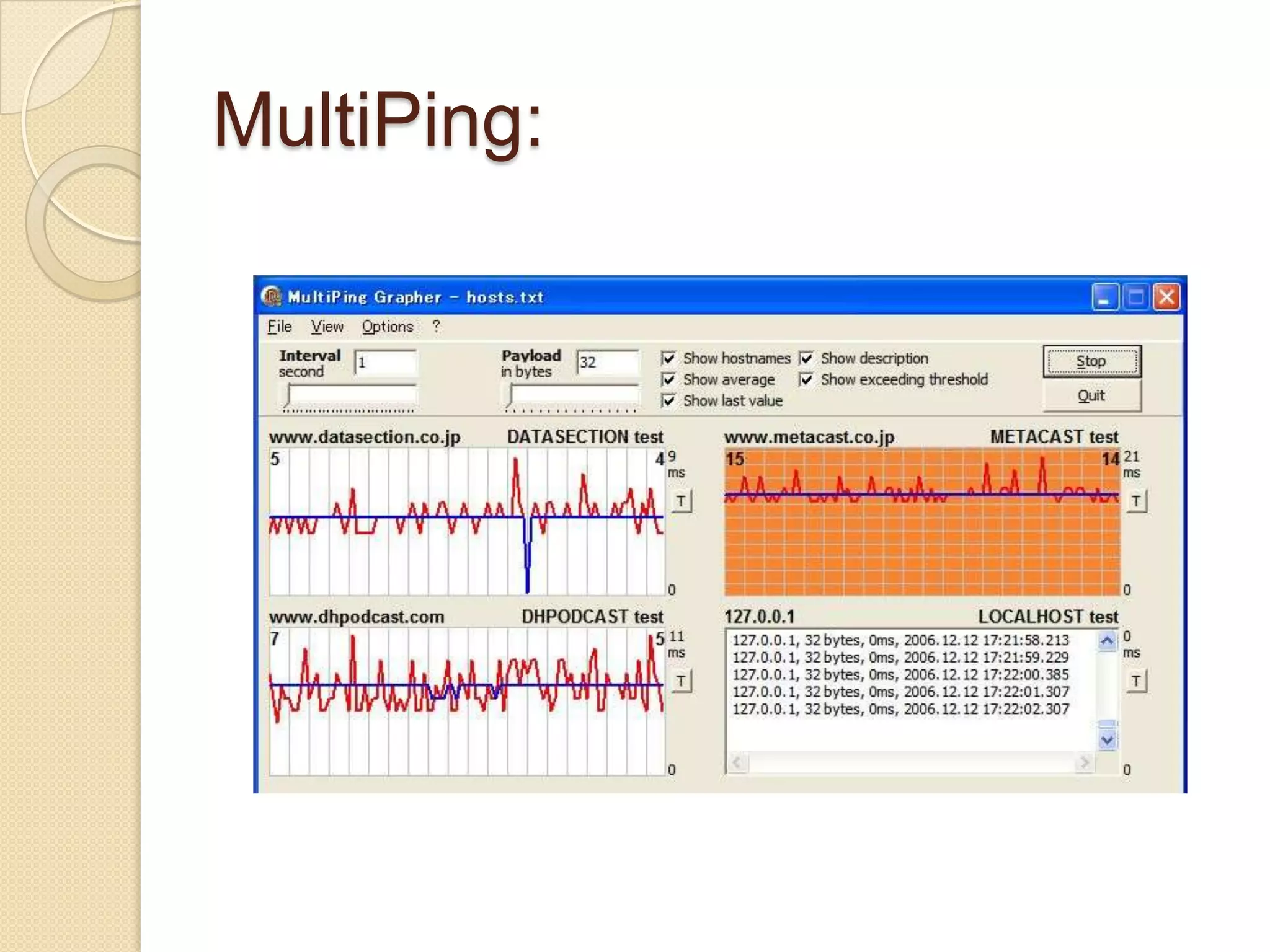

11. MultiPing:

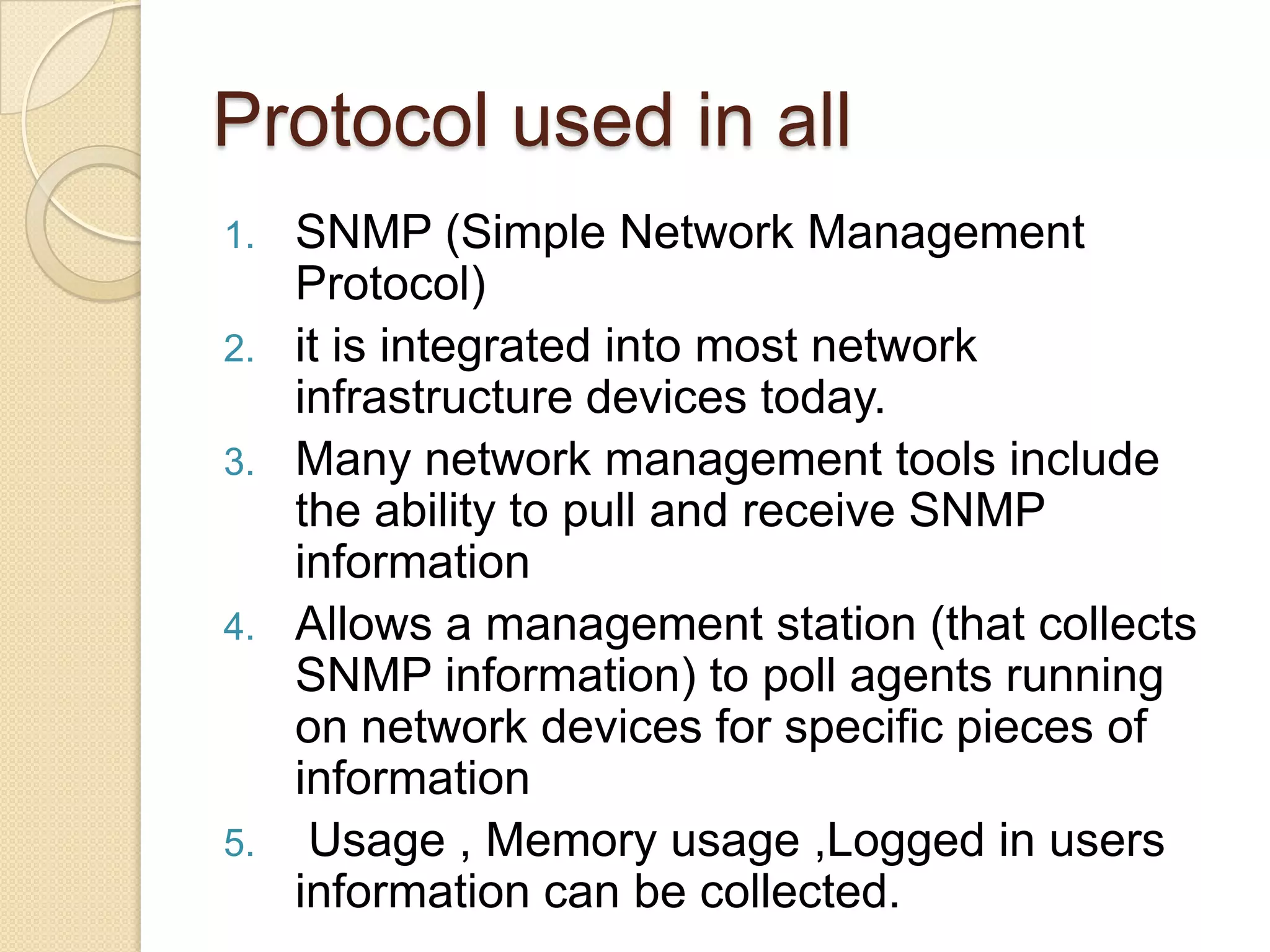

12. Protocol used in all
1. SNMP (Simple Network Management
Protocol)
2. it is integrated into most network
infrastructure devices today.
3. Many network management tools include
the ability to pull and receive SNMP
information
4. Allows a management station (that collects
SNMP information) to poll agents running
on network devices for specific pieces of
information
5. Usage , Memory usage ,Logged in users
information can be collected.
