This document contains refrigerant and oil specifications for various Opel vehicle models and years, including the amount of R134a refrigerant (in grams) and type of oil recommended. It lists specifications for many Opel models produced from 1991 to 2008.

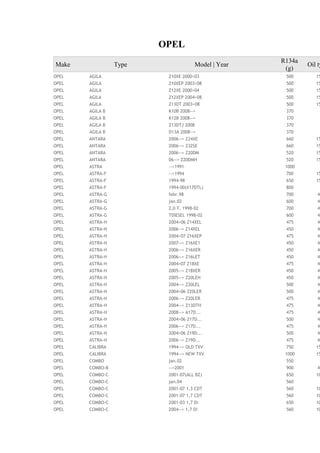

1. OPEL
Make Type Model | Year
R134a
(g)
Oil ty
OPEL AGILA Z10XE 2000>03 500 15
OPEL AGILA Z10XEP 2003>08 500 15
OPEL AGILA Z12XE 2000>04 500 15
OPEL AGILA Z12XEP 2004>08 500 15
OPEL AGILA Z13DT 2003>08 500 15
OPEL AGILA B K10B 2008--> 370
OPEL AGILA B K12B 2008--> 370
OPEL AGILA B Z13DTJ 2008 370
OPEL AGILA B D13A 2008--> 370
OPEL ANTARA 2006--> Z24XE 660 15
OPEL ANTARA 2006--> Z32SE 660 15
OPEL ANTARA 2006--> Z20DM 520 15
OPEL ANTARA 06--> Z20DMH 520 15
OPEL ASTRA -->1991 1000
OPEL ASTRA-F -->1994 700 15
OPEL ASTRA-F 1994-98 650 15
OPEL ASTRA-F 1994-00(X17DTL) 800
OPEL ASTRA-G febr.98 700 46
OPEL ASTRA-G jan.02 600 46
OPEL ASTRA-G 2,0 T. 1998-02 700 46
OPEL ASTRA-G TDIESEL 1998-02 600 46
OPEL ASTRA-H 2004>06 Z14XEL 475 46
OPEL ASTRA-H 2006--> Z14XEL 450 46
OPEL ASTRA-H 2004>07 Z16XEP 475 46
OPEL ASTRA-H 2007--> Z16XE1 450 46
OPEL ASTRA-H 2006--> Z16XER 450 46
OPEL ASTRA-H 2006--> Z16LET 450 46
OPEL ASTRA-H 2004>07 Z18XE 475 46
OPEL ASTRA-H 2005--> Z18XER 450 46
OPEL ASTRA-H 2005--> Z20LEH 450 46
OPEL ASTRA-H 2004--> Z20LEL 500 46
OPEL ASTRA-H 2004>06 Z20LER 500 46
OPEL ASTRA-H 2006--> Z20LER 475 46
OPEL ASTRA-H 2004--> Z13DTH 475 46
OPEL ASTRA-H 2008--> A17D... 475 46
OPEL ASTRA-H 2004>06 Z17D... 500 46
OPEL ASTRA-H 2006--> Z17D... 475 46
OPEL ASTRA-H 2004>06 Z19D... 500 46
OPEL ASTRA-H 2006--> Z19D... 475 46
OPEL CALIBRA 1994--> OLD TXV 750 15
OPEL CALIBRA 1994--> NEW TXV 1000 15
OPEL COMBO jan.02 550
OPEL COMBO-B -->2001 900 46
OPEL COMBO-C 2001-07(ALL BZ) 650 10
OPEL COMBO-C jan.04 560
OPEL COMBO-C 2001-07 1,3 CDT 560 10
OPEL COMBO-C 2001-07 1,7 CDT 560 10
OPEL COMBO-C 2001-03 1,7 Di 650 10
OPEL COMBO-C 2004--> 1,7 Di 560 10

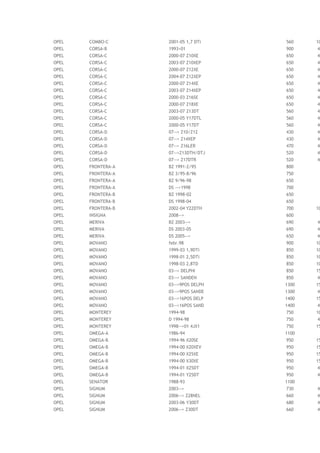

2. OPEL COMBO-C 2001-05 1,7 DTi 560 10
OPEL CORSA-B 1993>01 900 46
OPEL CORSA-C 2000-07 Z10XE 650 46
OPEL CORSA-C 2003-07 Z10XEP 650 46
OPEL CORSA-C 2000-07 Z12XE 650 46
OPEL CORSA-C 2004-07 Z12XEP 650 46
OPEL CORSA-C 2000-07 Z14XE 650 46
OPEL CORSA-C 2003-07 Z14XEP 650 46
OPEL CORSA-C 2000-03 Z16SE 650 46
OPEL CORSA-C 2000-07 Z18XE 650 46
OPEL CORSA-C 2003-07 Z13DT 560 46
OPEL CORSA-C 2000-05 Y17DTL 560 46
OPEL CORSA-C 2000-05 Y17DT 560 46
OPEL CORSA-D 07--> Z10/Z12 430 46
OPEL CORSA-D 07--> Z14XEP 430 46
OPEL CORSA-D 07--> Z16LER 470 46
OPEL CORSA-D 07-->Z13DTH/DTJ 520 46
OPEL CORSA-D 07--> Z17DTR 520 46
OPEL FRONTERA-A BZ 1991-2/95 800
OPEL FRONTERA-A BZ 3/95-8/96 750
OPEL FRONTERA-A BZ 9/96-98 650
OPEL FRONTERA-A DS -->1998 700
OPEL FRONTERA-B BZ 1998-02 650
OPEL FRONTERA-B DS 1998-04 650
OPEL FRONTERA-B 2002-04 Y22DTH 700 10
OPEL INSIGNA 2008--> 600
OPEL MERIVA BZ 2003--> 690 46
OPEL MERIVA DS 2003-05 690 46
OPEL MERIVA DS 2005--> 650 46
OPEL MOVANO febr.98 900 10
OPEL MOVANO 1999-03 1,9DTi 850 10
OPEL MOVANO 1998-01 2,5DTi 850 10
OPEL MOVANO 1998-03 2,8TD 850 10
OPEL MOVANO 03--> DELPHI 850 15
OPEL MOVANO 03--> SANDEN 850 46
OPEL MOVANO 03-->9POS DELPH 1300 15
OPEL MOVANO 03-->9POS SANDE 1300 46
OPEL MOVANO 03-->16POS DELP 1400 15
OPEL MOVANO 03-->16POS SAND 1400 46
OPEL MONTEREY 1994-98 750 10
OPEL MONTEREY D 1994-98 750 46
OPEL MONTEREY 1998-->01 4JX1 750 15
OPEL OMEGA-A 1986-94 1100
OPEL OMEGA-B 1994-96 X20SE 950 15
OPEL OMEGA-B 1994-00 X20XEV 950 15
OPEL OMEGA-B 1994-00 X25XE 950 15
OPEL OMEGA-B 1994-00 X30XE 950 15
OPEL OMEGA-B 1994-01 X25DT 950 46
OPEL OMEGA-B 1994-01 Y25DT 950 46
OPEL SENATOR 1988-93 1100
OPEL SIGNUM 2003--> 730 46
OPEL SIGNUM 2006--> Z28NEL 660 46
OPEL SIGNUM 2003-06 Y30DT 680 46
OPEL SIGNUM 2006--> Z30DT 660 46

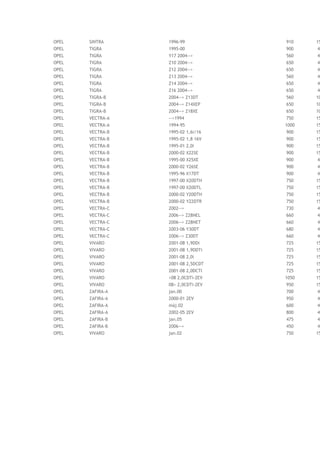

3. OPEL SINTRA 1996-99 910 15
OPEL TIGRA 1995-00 900 46
OPEL TIGRA Y17 2004--> 560 46
OPEL TIGRA Z10 2004--> 650 46
OPEL TIGRA Z12 2004--> 650 46
OPEL TIGRA Z13 2004--> 560 46
OPEL TIGRA Z14 2004--> 650 46
OPEL TIGRA Z16 2004--> 650 46
OPEL TIGRA-B 2004--> Z13DT 560 10
OPEL TIGRA-B 2004--> Z14XEP 650 10
OPEL TIGRA-B 2004--> Z18XE 650 10
OPEL VECTRA-A -->1994 750 15
OPEL VECTRA-A 1994-95 1000 15
OPEL VECTRA-B 1995-02 1,6i/16 900 15
OPEL VECTRA-B 1995-02 1,8 16V 900 15
OPEL VECTRA-B 1995-01 2,0i 900 15
OPEL VECTRA-B 2000-02 X22SE 900 15
OPEL VECTRA-B 1995-00 X25XE 900 46
OPEL VECTRA-B 2000-02 Y26SE 900 46
OPEL VECTRA-B 1995-96 X17DT 900 46
OPEL VECTRA-B 1997-00 X20DTH 750 15
OPEL VECTRA-B 1997-00 X20DTL 750 15
OPEL VECTRA-B 2000-02 Y20DTH 750 15
OPEL VECTRA-B 2000-02 Y22DTR 750 15
OPEL VECTRA-C 2002--> 730 46
OPEL VECTRA-C 2006--> Z28NEL 660 46
OPEL VECTRA-C 2006--> Z28NET 660 46
OPEL VECTRA-C 2003-06 Y30DT 680 46
OPEL VECTRA-C 2006--> Z30DT 660 46
OPEL VIVARO 2001-08 1,9DDi 725 15
OPEL VIVARO 2001-08 1,9DDTi 725 15
OPEL VIVARO 2001-08 2,0i 725 15
OPEL VIVARO 2001-08 2,5DCDT 725 15
OPEL VIVARO 2001-08 2,0DCTI 725 15
OPEL VIVARO >08 2,0CDTi-2EV 1050 15
OPEL VIVARO 08> 2,0CDTi-2EV 950 15
OPEL ZAFIRA-A jan.00 700 46
OPEL ZAFIRA-A 2000-01 2EV 950 46
OPEL ZAFIRA-A máj.02 600 46
OPEL ZAFIRA-A 2002-05 2EV 800 46
OPEL ZAFIRA-B jan.05 475 46
OPEL ZAFIRA-B 2006--> 450 46
OPEL VIVARO jan.02 750 15
