This document summarizes an on-street parking system including: 1. A dispenser model with a 7-inch LCD, keypad, thermal printer, and RFID reader that can read e-money and costs around $6000. 2. A parking sensor that is 115mm x 115mm, has a detection range of 40cm, uses magnetic proximity detection, operates from 10-32V DC, and costs $200. 3. Recommended accessories including a power adapter, LoRa radio modules, antennas, and integrated 3G/4G router that can be used with the parking sensor and costs $3000.

1. On Street Parking System

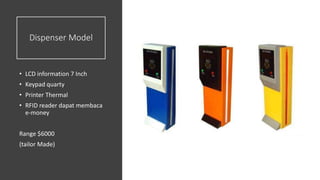

2. Dispenser Model
• LCD information 7 Inch
• Keypad quarty
• Printer Thermal
• RFID reader dapat membaca
e-money
Range $6000
(tailor Made)

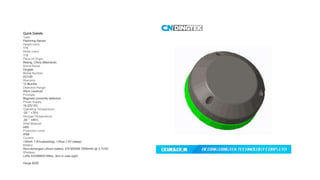

3. Quick Details
Type:
Parkinmg Sensor
Height (mm):
115
Width (mm):
115
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Dingtek
Model Number:
DO100
Warranty:
12 Months
Detection Range:
40cm (vertical)
Principle:
Magnetic proximity detection
Power Supply:
10-32V DC
Operating Temperature:
-20 ~ +70℃
Storage Temperature:
-40 ~ +85℃
Shell Material:
ABS
Protection Level:
IP68
Current:
<30mA 7.4V(uploading), <20ua 7.4V (sleep)
Battery:
Non-recharged Lithium battery, ER18505M 7000mAh @ 3.7VDC
Wireless:
LoRa 433/868/915Mhz, 3km in view sight
Harga $200

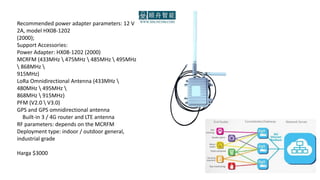

4. Recommended power adapter parameters: 12 V
2A, model HX08-1202
(2000);
Support Accessories:
Power Adapter: HX08-1202 (2000)
MCRFM (433MHz 475MHz 485MHz 495MHz
868MHz
915MHz)
LoRa Omnidirectional Antenna (433MHz
480MHz 495MHz
868MHz 915MHz)
PFM (V2.0 V3.0)
GPS and GPS omnidirectional antenna
Built-in 3 / 4G router and LTE antenna
RF parameters: depends on the MCRFM
Deployment type: indoor / outdoor general,
industrial grade
Harga $3000

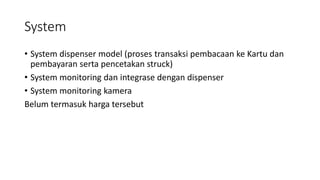

6. System
• System dispenser model (proses transaksi pembacaan ke Kartu dan
pembayaran serta pencetakan struck)
• System monitoring dan integrase dengan dispenser

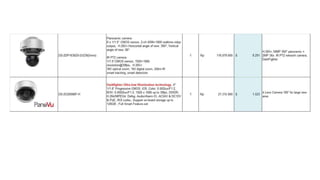

• System monitoring kamera
Belum termasuk harga tersebut
