Detailed specifications for the Nokia
Lumia 520
Tweet
Share in Facebook
More More product information
o

2. 
64mm

119.9mm
9.9mm
 Main camera sensor: 5 MP
 Display size: 4''
 Processor name: Qualcomm Snapdragon™ S4
 Maximum 3G talk time: 9.6h
 Maximum 3G standby time: 360h
 Music playback time: 61h



3. 


Design1
o Dimensions
 Height: 119.9 mm
 Width: 64 mm
 Thickness2
: 9.9 mm
 Weight: 124 g
 Volume: 75.7 cm³
o Display and User Interface
 Display size: 4 ''
 Display resolution: WVGA (800 x 480)
 Display features: Brightness control, Orientation sensor, Ambient light sensor
 Display colors: TrueColor (24-bit/16M)
 Aspect ratio: 15:9
 Pixel density: 235 ppi
 Display technology: IPS LCD
 Display height: 86 mm
 Display width: 52 mm
 Touch screen technology: Super sensitive touch
 Sensors: Ambient light sensor, Accelerometer, Proximity sensor
o Keys and Input Methods
 User Input: Touch
 Operating keys: Volume keys, Camera key, Power/Lock key
o Form factor
 Form factor: Monoblock touch
Hardware
o Connectivity
 SIM card type: Micro SIM
 Dual SIM: No
 Charging connectors: Micro-USB
 AV connectors: 3.5 mm audio connector
 System connectors: Micro-USB-B
 USB: USB 2.0
 Bluetooth: Bluetooth 3.0
 Bluetooth profiles: Object Push profile (OPP) 1.1, Hands-free profile (HFP) 1.5,
Advanced Audio Distribution Profile (A2DP) 1.2, Audio/Video Remote Control Profile
(AVRCP) 1.4, Phone Book Access Profile (PBAP) 1.1
 Wi-Fi: WLAN IEEE 802.11 b/g/n
 Wi-Fi security modes: WPA2 (AES/TKIP), WPA, WPA-Personal, WEP, WPA2-Personal,
WPA-Enterprise, WPA2-Enterprise, PEAP-MSCHAPv2, EAP-SIM, EAP-AKA

4.  NFC: No NFC
o Data Network
 WCDMA network: 900 MHz, 2100 MHz
 WCDMA max data speed DL: HSDPA - 21.1 Mbps
 WCDMA max data speed UL: HSUPA - 5.76 Mbps
 GSM network: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz
 GSM max data speed DL: EGPRS 236.8 kbps
 GSM max data speed UL: EGPRS 236.8 kbps
o Power Management3
 Battery model: BL-5J
 Battery capacity: 1430 mAh
 Battery voltage: 3.7 V
 Removable battery: Yes
 Maximum standby time: 15 days
 Maximum 2G talk time: 14.8 h
 Maximum 3G standby time: 360 h
 Maximum 3G talk time: 9.6 h
 Maximum cellular network browsing time: 6.7 h
 Music playback time: 61 h
 Video playback time: 4.8 h
 Maximum Wi-Fi network browsing time: 6.2 h
 Wireless charging: No
o Processor
 Processor name: Qualcomm Snapdragon™ S4
 Processor type: Dual-core 1 GHz
o Memory
 User data storage: In device, Memory card, SkyDrive cloud storage
 RAM: 512 MB
 Mass memory: 8 GB
 Expandable memory card type: MicroSD
 Maximum memory card size: 64 GB
 Free cloud storage: 7 GB
Qualcomm Snapdragon™ S4 Processor
o Performance
 Do more. Wait less: Tap into faster performance. The Qualcomm Snapdragon™
processor CPU cores enable extra performance when you need it and puts you in
charge of running the most demanding applications, including gaming, photography,
as well as business and personal productivity.
o Power consumption

5.  Less charging. More doing: The Qualcomm Snapdragon™ processor unique
asynchronous technology enables each core to power up and power down
independently, resulting in maximizing core performance level without wasting
battery power.
o Technology
 Beyond mobile. And beyond all expectations: Qualcomm Snapdragon™ S4 processor
is a highly integrated, mobile-optimized system on a chip that delivers dynamic,
immersive experiences and powerful, battery-friendly performance that can put new
possibilities in your hands.
Software and applications
o Productivity features
 Personal information management features: Calculator, Clock, Calendar, Phonebook,
Alarm clock, Social networks in Phonebook, OneNote, Wallet, Family Room, Kid's
Corner
 Business apps: Adobe acrobat reader free download, Lync (Corporate IM) free
download, SkyDrive storage for documents and notes, Company Hub for enterprise
applications, Office apps: Excel, Word, Powerpoint, OneNote
 Document formats supported: Excel, PDF, Word, OneNote, Powerpoint
 Sync type: Exchange ActiveSync, Mac companion app, Windows 8 companion app
 Sync content: Calendar, Video, Pictures, Music, Contacts
o Other Applications
 Game features: DirectX 11, Touch UI, XBox-Live Hub
 Graphics format: JPEG
o Software platform & User Interface
 SW Platform: Windows Phone
 Software release: Windows Phone 8
Communications
o Email and Messaging4
 Email clients: Hotmail, Yahoo! Mail, Outlook Mobile, Gmail, Office 365, Nokia Mail,
Windows Live / Hotmail / Outlook.com, MS Exchange Active Sync
 Email protocols: SMTP, IMAP4, POP3
 Email features: Viewing and editing of email attachments, Always up to date, Multiple
simultaneous email accounts, Text-to-speech message reader, Email attachments,
Conversational view on email, Linking multiple inboxes to one, Inbox filtering, HTML
viewer
 Supported instant messaging services: Google Talk, Twitter, LinkedIn, Windows Live
Messenger, WhatsApp, Yahoo! Messenger, Skype IM, Facebook
 Messaging features: Integrated text messaging and chat, Instant messaging,
Concatenated SMS for long messages, List of recently used numbers, Audio
messaging, Text-to-speech message reader, Text messaging, Unified MMS/SMS
editor, Automatic resizing of images for MMS, Distribution lists for messaging,
Multimedia messaging, Conversational chat style SMS

6. o Call management
 Call management features: Voice commands, Call waiting, Voice mail, Integrated
hands-free speakers, Call forwarding, Call logs: dialled, received and missed, HD
audio, Call history, Voice dial, Conference call, Skype voice call
 Supported amount of phonebooks: One integrated phonebook
 Supports amount of contacts: Unlimited
 Ringtones: Downloadable ringtones, MP3 ringtones
 Noise cancellation: Two microphone uplink noise cancellation
 Speech codecs: AMR-WB, GSM FR, AMR-NB, GSM HR, EFR, GSM EFR
Device security
o Security
 Enterprise security features: Remote security policy enforcement
 General Security features: Remote device locking via Internet, Track and Protect via
internet, Firmware update, Remote wipe of user data via Internet, Device lock, Device
passcode, PIN code, Firmware and OS integrity check, Secure device start-up, Online
back-up and restore, Application sandboxing and integrity check
 Advance security features: Lost device tracking, Browser integrated anti-phishing
 Data encryption: User data encryption for device
Sharing and Internet
o Browsing and Internet
 Internet browser capabilities: Internet Explorer 10
 Social apps: Facebook, LinkedIn, Twitter
 Photo sharing: Share over Bluetooth, Facebook, Flickr, Send as email attachment,
SkyDrive
 Video sharing: YouTube, Flickr, Picasa, Video sharing to social network and internet,
Facebook, SkyDrive
 Location sharing: WP location sharing, Foursquare
 Wi-Fi hotspot: Up to 8 Wi-Fi-enabled devices
Navigation
o GPS and navigation5
 Location and navigation apps: HERE Drive, HERE Maps, HERE Transit
 Navigation features: Pin places to Start screen, Public transportation routing
guidance, Reveal the surrounding places, Reviews, info and photos for places,
Routing options, Save favourite destinations, Call, share and get directions to places,
Free maps, Find upcoming departure times, See places through the camera
viewfinder, Live traffic information, Automatic day/night view switching, Venue maps
- shopping and transport centers, Free voice guided turn-by-turn drive navigation,
Offline maps, Online and offline favourites, Speed limit warnings, Save and sync favs
with HERE.com
 Location technologies: A-GPS, A-GLONASS

7. Photography
o Main camera
 Main camera sensor: 5 MP
 Camera resolution: 2592 x 1936 pixels
 Main camera focus type: Auto focus with two-stage capture key
 Camera digital zoom: 4 x
 Carl Zeiss Tessar lens: No
 Sensor size: 1/4 inch
 Main camera f-number/aperture: f/2.4
 Camera focal length: 28 mm
 Camera minimum focus range: 10 cm
 Camera image formats: JPEG/Exif
 Flash type: No Flash
o Main camera features
 Main camera - other features: Touch focus, Landscape orientation, Auto and manual
exposure, Auto and manual white balance, Active toolbar, Full screen viewfinder,
Geotagging, Automatic photo upload to web services, Full resolution photo and
video upload
 Digital camera add-ons: Cinemagraph lens, Smart Shoot lens, Panorama lens, Bing
vision
o Image capturing
 Capture modes: Video, Still
 Scene modes: Automatic, Night Portrait, Sports, Night, Close-up, Backlight
 White balance modes: Cloudy, Incandescent, Fluorescent, Daylight, Automatic
 Light sensitivity: Automatic, ISO 100, ISO 200, ISO 400, ISO 800
 Photos viewed by: Camera Roll, Month, Favorites, Album, Photos from social
networks
Music and Audio
o Music
 Music apps: Nokia Music, Mix Radio
 DRM support: PlayReady
 Audio features: Album graphics display in Music player, Audio Streaming, Music
Player, Cloud music offline playback, Media Player, Podcasts, Cloud music playback
o Music format
 Codecs: MP3, AMR-NB, WMA 10 Pro, GSM FR, WMA 9, AAC LC, AAC+/HEAAC,
eAAC+/HEAACv2
 Audio playback file formats: ASF, MP4, AAC, AMR, MP3, M4A, WMA, 3GP, 3G2
o Radio
 Radio features: Internet Radio
o Voice and audio recording
 Audio recording file formats: AMR
 Audio recording codecs: AMR-NB, GSM FR
 Audio recording features: Mono

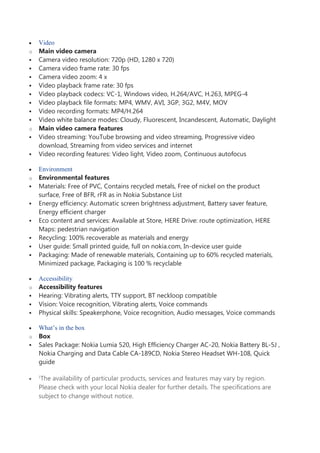

8. Video
o Main video camera
 Camera video resolution: 720p (HD, 1280 x 720)
 Camera video frame rate: 30 fps
 Camera video zoom: 4 x
 Video playback frame rate: 30 fps
 Video playback codecs: VC-1, Windows video, H.264/AVC, H.263, MPEG-4
 Video playback file formats: MP4, WMV, AVI, 3GP, 3G2, M4V, MOV
 Video recording formats: MP4/H.264
 Video white balance modes: Cloudy, Fluorescent, Incandescent, Automatic, Daylight
o Main video camera features
 Video streaming: YouTube browsing and video streaming, Progressive video
download, Streaming from video services and internet
 Video recording features: Video light, Video zoom, Continuous autofocus
Environment
o Environmental features
 Materials: Free of PVC, Contains recycled metals, Free of nickel on the product
surface, Free of BFR, rFR as in Nokia Substance List
 Energy efficiency: Automatic screen brightness adjustment, Battery saver feature,
Energy efficient charger
 Eco content and services: Available at Store, HERE Drive: route optimization, HERE
Maps: pedestrian navigation
 Recycling: 100% recoverable as materials and energy
 User guide: Small printed guide, full on nokia.com, In-device user guide
 Packaging: Made of renewable materials, Containing up to 60% recycled materials,
Minimized package, Packaging is 100 % recyclable
Accessibility
o Accessibility features
 Hearing: Vibrating alerts, TTY support, BT neckloop compatible
 Vision: Voice recognition, Vibrating alerts, Voice commands
 Physical skills: Speakerphone, Voice recognition, Audio messages, Voice commands
What’s in the box
o Box
 Sales Package: Nokia Lumia 520, High Efficiency Charger AC-20, Nokia Battery BL-5J ,
Nokia Charging and Data Cable CA-189CD, Nokia Stereo Headset WH-108, Quick
guide
1
The availability of particular products, services and features may vary by region.
Please check with your local Nokia dealer for further details. The specifications are
subject to change without notice.

9. 2
Volume thickness
3
Operation times may vary depending on radio access technology used, operator
network configuration and usage.
4
Some services may be available only via downloading or dependent on the market.
Only devices that offer compatible multimedia message or email features can receive
and display multimedia messages. Content appearance may vary. Some images and
ring tones can not be forwarded.
5
Downloading of maps over-the-air may involve transferring large amounts of data.
Your service provider may charge for the data transmission.
Products
Innovations
About us
Support
Press
Privacy
Cookies
Invent with Nokia
Terms
Contact
Global Change country
© 2013 Nokia
Back to top
