![而無須重新編譯
使用該組件的原應用程式
• 在需要尋找該型別的來源組件加入 TypeForwardAttribute：
• [assembly: TypeForwardToAttribute(typeof(ExampleClass))]
• 原本參照的程式碼中原本的 using 與使用部分都不需要修改
• 因為應用程式只需要與 netstandard.dll 耦合
• 其實就是 Proxy Pattern 樣式
• TypeForwardToAttribute 定義在：System.Runtime.CompilerService
• 使用命令列編譯 C# 時，使用 /reference 編譯器選項](https://image.slidesharecdn.com/use-180929080624/85/NET-Standard-39-320.jpg)
Uploaded byGelis Wu
使用 .NET Standard 開發跨平台應用程式
文档讨论了.NET Standard的演变及其与其他.NET平台（如.NET Framework和Xamarin）的兼容性，强调了代码重用的重要性。它指出.NET Standard 2.0+提供更多API，并兼容现有的.NET框架库。同时，文档介绍了类型转发的概念及其实现方式。
![[DDD] 快快樂樂學DDD](https://cdn.slidesharecdn.com/ss_thumbnails/btmfifsqpshlpcyd8r3g-signature-f4d23915d3a22e7fe85643ccc699744d201f66715bc84701eae4c004d262c444-poli-201208065507-thumbnail.jpg?width=640&height=640&fit=bounds)
使用 .NET Standard 開發跨平台應用程式

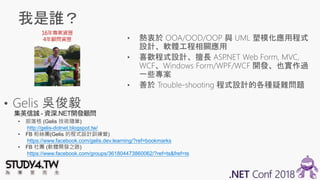

- 2. 16年專案資歷 4年顧問資歷 • 部落格 (Gelis技術隨筆) http://gelis-dotnet.blogspot.tw/ • FB 粉絲團(Gelis 的程式設計訓練營) https://www.facebook.com/gelis.dev.learning/?ref=bookmarks • FB 社團 (軟體開發之路) https://www.facebook.com/groups/361804473860062/?ref=ts&fref=ts 集英信誠 - 資深.NET開發顧問
- 3.
- 4.

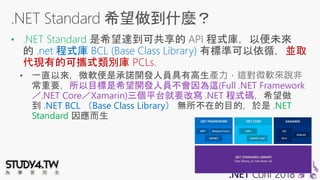

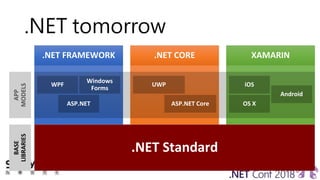

- 8. • .NET Standard .net程式庫 BCL (Base Class Library) 並取 代現有的可攜式類別庫 PCLs. 所以目標是希望開發人員不會因為這(Full .NET Framework ／.NET Core／Xamarin)三個平台就要改寫 .NET 程式碼 .NET BCL （Base Class Library） .NET Standard
- 9. • 因此沒有良好系統(APIs)版本控制方法 • 不容易計算出各Platform 交叉之處 • 若再有新平台出現，便不相容 • 不容易維護其 PlatForm 間相容的關係 Platform 3Platform 1 Platform 2 Platform 4 ?
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.

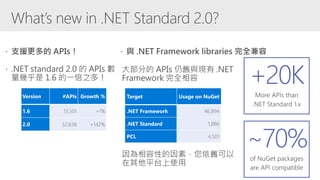

- 18. 支援更多的 APIs！ 與 .NET Framework libraries 完全兼容 .NET standard 2.0 的 APIs 數 量幾乎是 1.6 的一倍之多！ 大部分的 APIs 仍舊與現有 .NET Framework 完全相容 因為相容性的因素，您依舊可以 在其他平台上使用 Version #APIs Growth % 1.6 13,501 +1% 2.0 32,638 +142% Target Usage on NuGet .NET Framework 46,894 .NET Standard 1,886 PCL 4,501 ~70% +20K

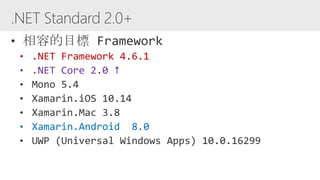

- 19. • .NET Framework4.6.1 • .NET Core 2.0 ↑ • Xamarin.Android 8.0
- 20. Primitives • Collections• Reflection • Interop • LinqCORE Threads • Thread Pool • TasksTHREADING Files • Compression • MMFIO Sockets • Http • Mail • WebSocketsNETWORKING BinaryFormatter • Data Contract • XMLSERIALIZATION XLinq • XML Document • XPath • Schema • XSLXML Abstractions • Provider Model • DataSetDATA
- 21. • 外圍的可以包含內圈所有項目 各自實現了一 部份的 .NETStandard 標準 • 也就是說，在目前的 .NET Standard 2.0+ 中，您可以參考 1.6/1.3/1.0 的 DLLs 2.0+ 1.6 1.3 1.0

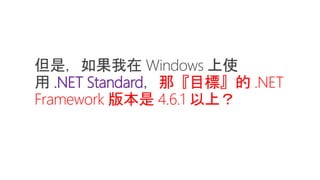

- 22. .NET Standard 那『目標』的.NET Framework 版本是 4.6.1 以上？

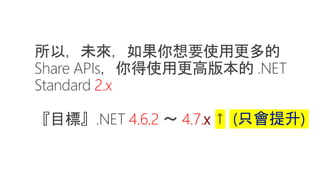

- 25.

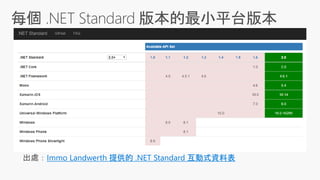

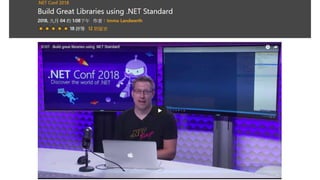

- 27. Immo Landwerth 提供的.NET Standard 互動式資料表
- 29. How does .NETStandard work?
- 30.
- 32. My Standard Library2.x .NET Standard Library .NET Framework LibraryPortable Class Library .NET FRAMEWORK .NET CORE XAMARIN Via Portability Via Compatibility Shim Legend Application Type Is able to reference

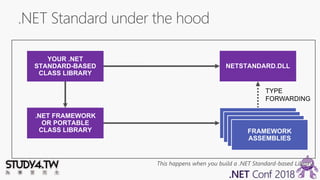

- 33. TYPE FORWARDING This happens whenyou build a .NET Standard-based Library

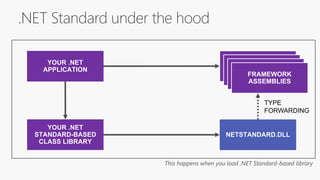

- 34. TYPE FORWARDING This happens whenyou load .NET Standard-based library

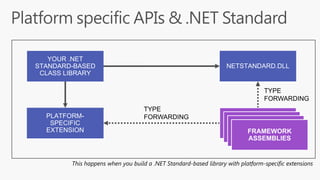

- 36. TYPE FORWARDING This happens whenyou build a .NET Standard-based library with platform-specific extensions TYPE FORWARDING

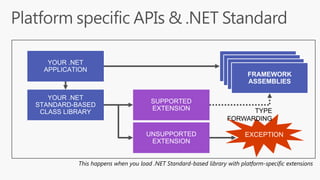

- 37. This happens whenyou load .NET Standard-based library with platform-specific extensions EXCEPTION TYPE FORWARDING

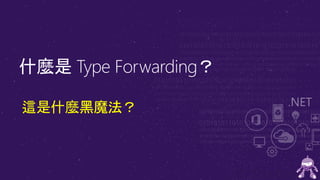

- 38.
- 39. 而無須重新編譯 使用該組件的原應用程式 • 在需要尋找該型別的來源組件加入 TypeForwardAttribute： •[assembly: TypeForwardToAttribute(typeof(ExampleClass))] • 原本參照的程式碼中原本的 using 與使用部分都不需要修改 • 因為應用程式只需要與 netstandard.dll 耦合 • 其實就是 Proxy Pattern 樣式 • TypeForwardToAttribute 定義在：System.Runtime.CompilerService • 使用命令列編譯 C# 時，使用 /reference 編譯器選項
- 40.
- 42.
- 43.

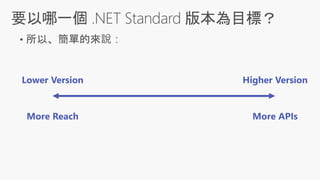

- 46. Lower Version More Reach HigherVersion More APIs
- 52. HTTP/HTTPS Business Object Business Object WebHost JSON Over (Web API/SignalR) ApiHostBase ApiCore ServerComponent
- 55.
- 57.
Editor's Notes

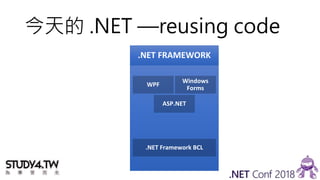

- #12 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
- #13 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
- #14 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
- #15 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
- #16 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
- #17 Notes: Even if we are reusing a lot across components (especially with the open sourcing last year), the reality is that each platform has its own implementation of the base libraries. Note: .NET Framework BCL and Mono BCL are the same APIs, different implementation. .NET Core “Core Library” is a similar set of APIs, but different.
