Neonist is an LED alternative to neon signs that provides vibrant, evenly illuminated signs and displays without the drawbacks of neon such as fragility and high energy consumption. It uses laser-etched acrylic letters with embedded LEDs that allow for precise shaping and customizable colors. Neonist signs are robust, energy efficient, and can be customized in terms of size, shape, colors, and illumination to meet a client's specific branding or retail needs.

1. Neonist
A modern, practical alternative to neon,
with none of the drawbacks
LED alternative to Neon
powered by

2. 2

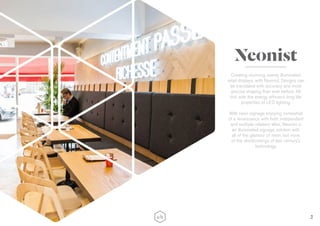

Creating stunning, evenly illuminated
retail displays, with Neonist. Designs can
be translated with accuracy and more
precise shaping than ever before. All
this with the energy efficient, long life
properties of LED lighting.
With neon signage enjoying somewhat
of a renaissance with both independent
and multiple retailers alike, Neonist is
an illuminated signage solution with
all of the glamour of neon, but none
of the shortcomings of last century’s
technology.
Neonist

3. 3

4. 4

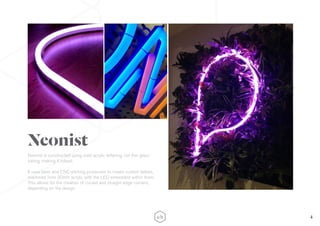

Neonist is constructed using solid acrylic lettering, not thin glass
tubing, making it robust.
It uses laser and CNC-etching processes to create custom letters,
machined from 30mm acrylic with the LED embedded within them.
This allows for the creation of curved and straight edge corners,
depending on the design.
Neonist

5. 5

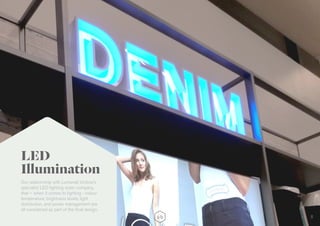

Our relationship with Lumenal; Unibox’s
specialist LED lighting sister company,
that – when it comes to lighting - colour
temperature, brightness levels, light
distribution, and power management are
all considered as part of the final design.
LED
Illumination

6. 6

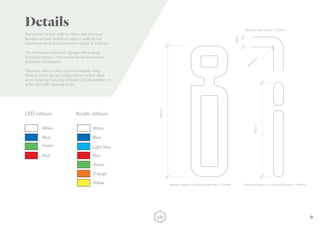

The optimal ‘stroke’ width is 19mm and this must
be kept constant. A 6.5mm cutter is used for the
machining which gives a minimum radius of 3.25mm.
The end result is bespoke signage with a range
of casing options – from acrylic boxes to mounted
aluminium frameworks.
There are various colour options available using
Neonist, which can be configured with either white
acrylic lettering featuring coloured LED illumination, or
white LED with coloured acrylic.
Details
250mm
180mm
19mm
R
3.25m
m
Minimum height of a double stroke letter is 250mm Minimum height of a single stroke letter is 180mm
Minimum internal radii is 3.25mm
Acrylic coloursLED colours
White White
Blue Blue
Light blueGreen
Green
Orange
Yellow
Red Red

7. 7

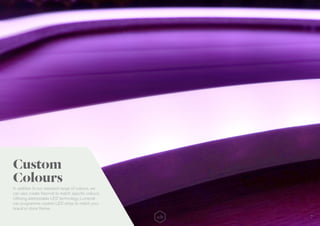

In addition to our standard range of colours, we
can also create Neonist to match specific colours.
Utilising addressable LED technology, Lumenal
can programme custom LED strips to match your
brand or store theme.
Custom
Colours

8. HQ:
Greenside Way, Middleton, Manchester, M24 1SW
LDN:
Finsbury Business Centre, Bowling Green Lane,
Clerkenwell, London, EC1R 0NE
0161 655 2121
info@unibox.co.uk
www.unibox.co.uk
Get In Touch
