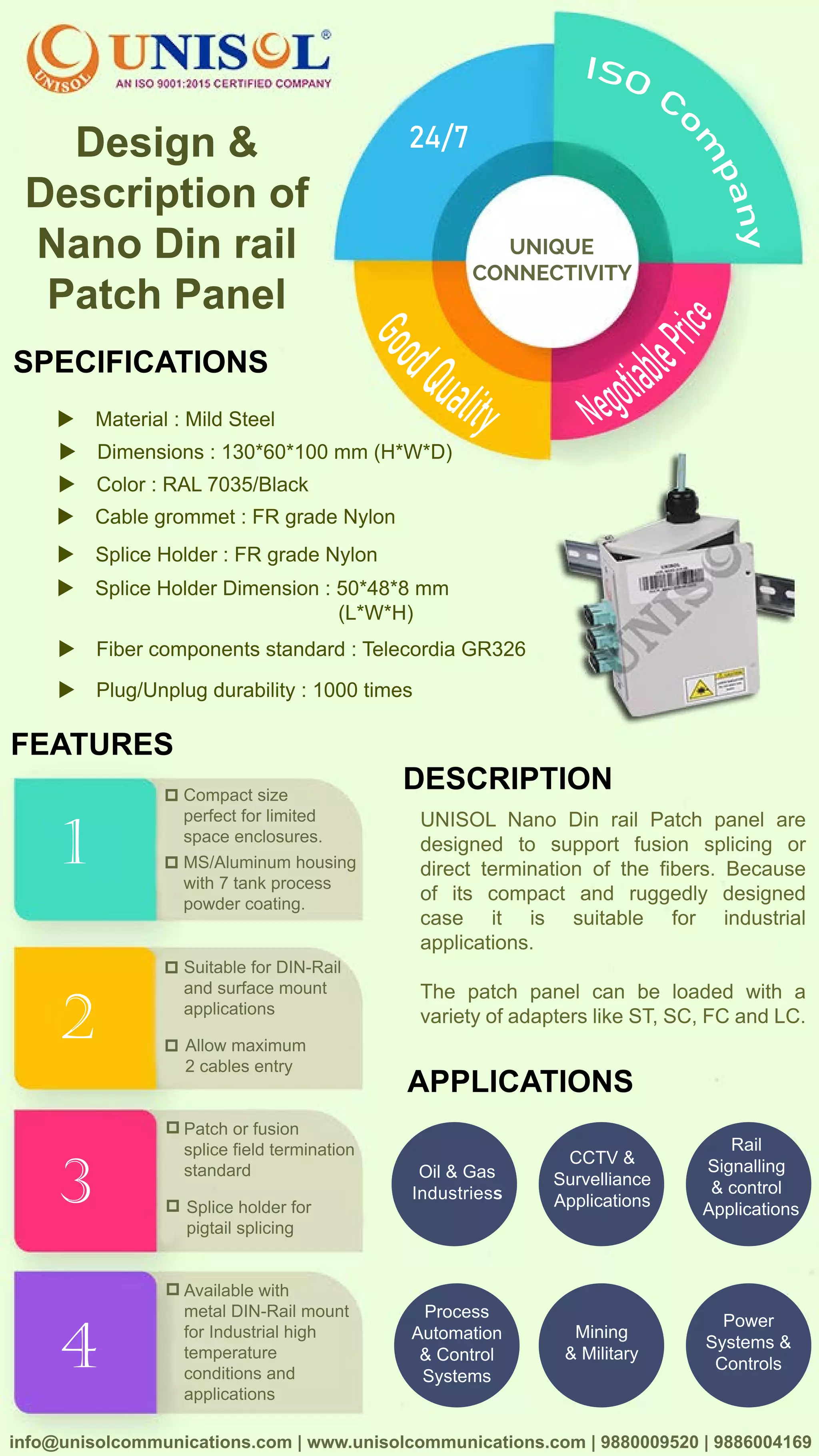

UNISOLNanoDinrailPatchpanelare
designed to supportfusion splicing or
directterminationofthefibers.Because
ofits compactand ruggedly designed
case it is suitable for industrial
applications.
TheThe patch panelcan be loaded with a
varietyofadapterslikeST,SC,FCandLC.
DESCRIPTION
4
3
1
2
FEATURES

 Compactsize
perfectforlimited
spaceenclosures.
MS/Aluminumhousing
with7tankprocess
powdercoating.


SuitableforDIN-Rail
andsurfacemount
applications
Allowmaximum
2cablesentry
Patchorfusion
splicefieldtermination
standard
Spliceholderfor
pigtailsplicing


Availablewith
metalDIN-Railmount
forIndustrialhigh
temperature
conditionsand
applications

APPLICATIONS
Oil&Gas
Industriess
CCTV&
Survelliance
Applications
Rail
Signalling
&control
Applications
Process
Automation
&Control
Systems
Mining
&Military
Power
Systems&
Controls
SPECIFICATIONS
 Fibercomponentsstandard:TelecordiaGR326
 Plug/Unplugdurability:1000times
 SpliceHolderDimension:50*48*8mm
(L*W*H)
 SpliceHolder:FRgradeNylon
 Cablegrommet:FRgradeNylon
 Color:RAL7035/Black
 Dimensions:130*60*100mm(H*W*D)
 Material:MildSteel
Design&
Descriptionof
NanoDinrail
PatchPanel
UNIQUE
CONNECTIVITY
24/7
