2. WATER TREATMENT SOLUTIONS
1
MV Engineering Gmbh & Co.KG - Germany
Contact person : Slobodan Pacariz
Phone : +49 (0) 21 51 / 5 16 24-40
Mobile : +49 (0) 172 / 36 851 13
Mail : s.pacariz@mv-kr.de
www.mv-engineering.de
3. WATER TREATMENT SOLUTIONS
2
MV Engineering GmbH & Co.KG
Over the past thirteen years, MV Engineering GmbH & Co.KG has developed and extended its core
business. Today, MV Engineering GmbH & Co.KG is engaged in a broad span of the activities,
including: project analysis and feasibility study, research and development, consulting and
engineering, design, production, purchase, delivery, installation and commissioning, project
management as well as realization of the turnkey projects.
MV Engineering GmbH & Co.KG successfully combine technical-technological knowledge with the
local market specifics and its wide international experience. All this creates a solid base for wide
and extensive range of the project design and consulting services, production and engineering
services that MV Engineering GmbH & Co.KG provide to its clientss.
Following in-depth needs assessment, we create a custom made design for you containing new
technologies, and consequently produce the most accurate installation. Moreover, we are able to
conduct monitoring of the installation functionality and installation maintenance, leaving the end
user an ability to stay focus on its core business. Through analyzing the treatment results, we are
capable of implementing installation optimization in aiming at creating more efficient and cost
effective water treatment process. These strengths make MV Engineering GmbH & Co.KG
particularly appropriate partner.
24/7 customer support:
Design of the technological solutions
Plant installation
Equipment Maintenance
Equipment service
Equipment and chemicals supply
Education
TURNKEY WATER TREATMENT PLANTS
Coagulation, flocculation and sedimentation (decantation)
Filtration (gravity or pressure) at different fractions of the quartz sand or activated carbon
Iron and manganese removal
Softening and demineralization (water softeners)
Ultra filtration
RO Systems (reverse osmosis)
Ozone plants (ozone dosage)
UV Sterilization
Dosing systems
Required chemical metering systems in the treatment process (control of pH, coagulants,
oxidants, disinfection, chlorination, etc.)
4. WATER TREATMENT SOLUTIONS
3

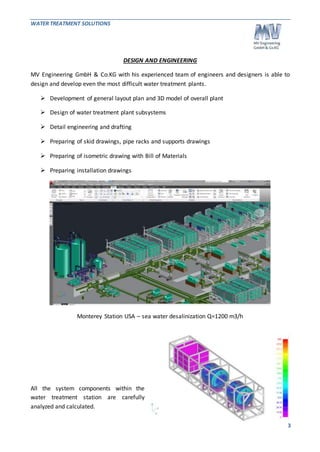

DESIGN AND ENGINEERING
MV Engineering GmbH & Co.KG with his experienced team of engineers and designers is able to
design and develop even the most difficult water treatment plants.
Development of general layout plan and 3D model of overall plant
Design of water treatment plant subsystems
Detail engineering and drafting
Preparing of skid drawings, pipe racks and supports drawings
Preparing of isometric drawing with Bill of Materials
Preparing installation drawings
Monterey Station USA – sea water desalinization Q=1200 m3/h
All the system components within the
water treatment station are carefully
analyzed and calculated.
5. WATER TREATMENT SOLUTIONS
4
PRE-ENGINEERED PLANTS - PRO SYSTEMS
Compact, pre-engineered systems PRO-30, PRO-80 and PRO-100 are designed for the purification
of the well water, whereas the main task is iron and manganese removal. Additional units for the
water purification such as UV sterilization and activated carbon filters can be added to the system
if the analysis proves it necessary. The capacity of PRO-30 is 30 m3/h and is sufficient for the 4,800
inhabitants settlement, the capacity of PRO-80 is 80 m3/h and is sufficient for the 12,800
inhabitants settlement. Whereas, the capacity of PRO-100 is 100 m3/h. It is sufficient for the
16,000 inhabitants settlement (according to European standard, consumption is 150 L per
inhabitant).
PRO-30, PRO-80 and PRO-100 systems design is compact and fits inner dimensions of ISO
container of 12 m (40 ft.), which makes those systems easier for transport. During transporting,
units for chemical dosing, potassium permanganate and calcium-hypochlorite are mounted on an
operational platform.
Intake water requirements:
Ph value: 7 – 8
Turbidity: maximum 5 NTU
Total hardness: < 200 mg/l calculated in CaCO3
Organic material: maximum 2 mg/l
Iron: maximum 1.50 mg/l
Manganese: maximum 0.30 mg/l
PRO SYSTEM can be built in two basic versions: manual and full automatic operation. In systems
with manual operation, all process valves are hand operated by operator, which is necessary to
perform periodical filter backwashing. Full automatic operation for PRO-30, PRO-80 and PRO-100
relay on pneumatic operated valves and system can be operator free, just periodical check for
consumption chemicals on alarm calls.
6. WATER TREATMENT SOLUTIONS
5

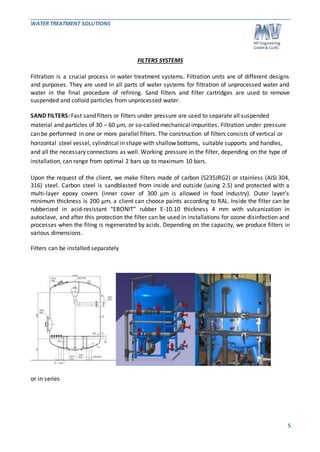

FILTERS SYSTEMS
Filtration is a crucial process in water treatment systems. Filtration units are of different designs
and purposes. They are used in all parts of water systems for filtration of unprocessed water and
water in the final procedure of refining. Sand filters and filter cartridges are used to remove
suspended and colloid particles from unprocessed water.
SAND FILTERS: Fast sand filters or filters under pressure are used to separate all suspended
material and particles of 30 – 60 μm, or so-called mechanical impurities. Filtration under pressure
can be performed in one or more parallel filters. The construction of filters consists of vertical or
horizontal steel vessel, cylindrical in shape with shallow bottoms, suitable supports and handles,
and all the necessary connections as well. Working pressure in the filter, depending on the type of
installation, can range from optimal 2 bars up to maximum 10 bars.
Upon the request of the client, we make filters made of carbon (S235JRG2) or stainless (AISI 304,
316) steel. Carbon steel is sandblasted from inside and outside (using 2.5) and protected with a
multi-layer epoxy covers (inner cover of 300 μm is allowed in food industry). Outer layer’s
minimum thickness is 200 μm, a client can choose paints according to RAL. Inside the filter can be
rubberized in acid-resistant “EBONIT” rubber E-10.10 thickness 4 mm with vulcanization in
autoclave, and after this protection the filter can be used in installations for ozone disinfection and
processes when the filing is regenerated by acids. Depending on the capacity, we produce filters in
various dimensions.
Filters can be installed separately
or in series
7. WATER TREATMENT SOLUTIONS

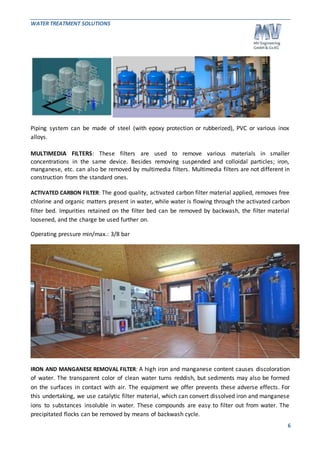

Piping system can be made of steel (with epoxy protection or rubberized), PVC or various inox
alloys.
MULTIMEDIA FILTERS: These filters are used to remove various materials in smaller
concentrations in the same device. Besides removing suspended and colloidal particles; iron,
manganese, etc. can also be removed by multimedia filters. Multimedia filters are not different in
construction from the standard ones.
ACTIVATED CARBON FILTER: The good quality, activated carbon filter material applied, removes free
chlorine and organic matters present in water, while water is flowing through the activated carbon
filter bed. Impurities retained on the filter bed can be removed by backwash, the filter material
loosened, and the charge be used further on.
6
Operating pressure min/max.: 3/8 bar
IRON AND MANGANESE REMOVAL FILTER: A high iron and manganese content causes discoloration
of water. The transparent color of clean water turns reddish, but sediments may also be formed
on the surfaces in contact with air. The equipment we offer prevents these adverse effects. For
this undertaking, we use catalytic filter material, which can convert dissolved iron and manganese
ions to substances insoluble in water. These compounds are easy to filter out from water. The
precipitated flocks can be removed by means of backwash cycle.
8. WATER TREATMENT SOLUTIONS

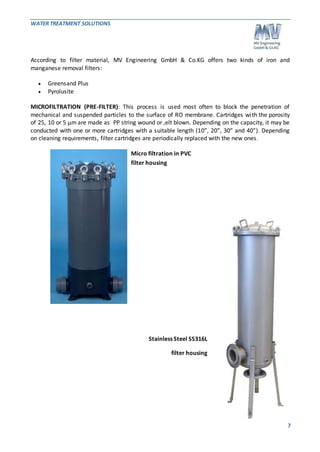

According to filter material, MV Engineering GmbH & Co.KG offers two kinds of iron and
manganese removal filters:
7
Greensand Plus
Pyrolusite
MICROFILTRATION (PRE-FILTER): This process is used most often to block the penetration of
mechanical and suspended particles to the surface of RO membrane. Cartridges wi th the porosity
of 25, 10 or 5 μm are made as PP string wound or ,elt blown. Depending on the capacity, it may be
conducted with one or more cartridges with a suitable length (10”, 20”, 30” and 40”). Depending
on cleaning requirements, filter cartridges are periodically replaced with the new ones.
Micro filtration in PVC
filter housing
Stainless Steel SS316L
filter housing
9. WATER TREATMENT SOLUTIONS

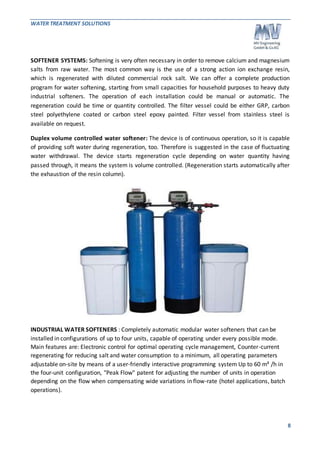

SOFTENER SYSTEMS: Softening is very often necessary in order to remove calcium and magnesium
salts from raw water. The most common way is the use of a strong action ion exchange resin,
which is regenerated with diluted commercial rock salt. We can offer a complete production
program for water softening, starting from small capacities for household purposes to heavy duty
industrial softeners. The operation of each installation could be manual or automatic. The
regeneration could be time or quantity controlled. The filter vessel could be either GRP, carbon
steel polyethylene coated or carbon steel epoxy painted. Filter vessel from stainless steel is
available on request.
Duplex volume controlled water softener: The device is of continuous operation, so it is capable
of providing soft water during regeneration, too. Therefore is suggested in the case of fluctuating
water withdrawal. The device starts regeneration cycle depending on water quantity having
passed through, it means the system is volume controlled. (Regeneration starts automatically after
the exhaustion of the resin column).
8
INDUSTRIAL WATER SOFTENERS : Completely automatic modular water softeners that can be
installed in configurations of up to four units, capable of operating under every possible mode.
Main features are: Electronic control for optimal operating cycle management, Counter-current
regenerating for reducing salt and water consumption to a minimum, all operating parameters
adjustable on-site by means of a user-friendly interactive programming system Up to 60 m³ /h in
the four-unit configuration, "Peak Flow" patent for adjusting the number of units in operation
depending on the flow when compensating wide variations in flow-rate (hotel applications, batch
operations).
10. WATER TREATMENT SOLUTIONS
9

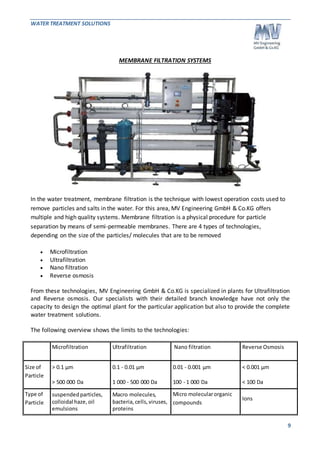

MEMBRANE FILTRATION SYSTEMS
In the water treatment, membrane filtration is the technique with lowest operation costs used to
remove particles and salts in the water. For this area, MV Engineering GmbH & Co.KG offers
multiple and high quality systems. Membrane filtration is a physical procedure for particle
separation by means of semi-permeable membranes. There are 4 types of technologies,
depending on the size of the particles/ molecules that are to be removed
Microfiltration
Ultrafiltration
Nano filtration
Reverse osmosis
From these technologies, MV Engineering GmbH & Co.KG is specialized in plants for Ultrafiltration
and Reverse osmosis. Our specialists with their detailed branch knowledge have not only the
capacity to design the optimal plant for the particular application but also to provide the complete
water treatment solutions.
The following overview shows the limits to the technologies:
Microfiltration Ultrafiltration Nano filtration Reverse Osmosis
Size of
Particle
> 0.1 μm
> 500 000 Da
0.1 - 0.01 μm
1 000 - 500 000 Da
0.01 - 0.001 μm
100 - 1 000 Da
< 0.001 μm
< 100 Da
Type of
Particle
suspended particles,
colloidal haze, oil
emulsions
Macro molecules,
bacteria, cells, viruses,
proteins
Micro molecular organic
compounds
Ions
11. WATER TREATMENT SOLUTIONS
10

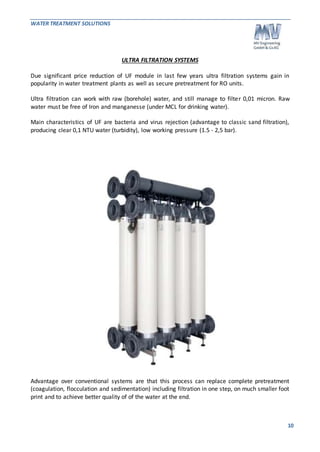

ULTRA FILTRATION SYSTEMS
Due significant price reduction of UF module in last few years ultra filtration systems gain in
popularity in water treatment plants as well as secure pretreatment for RO units.
Ultra filtration can work with raw (borehole) water, and still manage to filter 0,01 micron. Raw
water must be free of Iron and manganesse (under MCL for drinking water).
Main characteristics of UF are bacteria and virus rejection (advantage to classic sand filtration),
producing clear 0,1 NTU water (turbidity), low working pressure (1.5 - 2,5 bar).
Advantage over conventional systems are that this process can replace complete pretreatment
(coagulation, flocculation and sedimentation) including filtration in one step, on much smaller foot
print and to achieve better quality of of the water at the end.
12. WATER TREATMENT SOLUTIONS
11

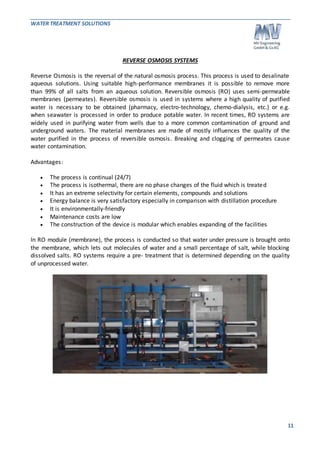

REVERSE OSMOSIS SYSTEMS
Reverse Osmosis is the reversal of the natural osmosis process. This process is used to desalinate
aqueous solutions. Using suitable high-performance membranes it is possible to remove more
than 99% of all salts from an aqueous solution. Reversible osmosis (RO) uses semi-permeable
membranes (permeates). Reversible osmosis is used in systems where a high quality of purified
water is necessary to be obtained (pharmacy, electro-technology, chemo-dialysis, etc.) or e.g.
when seawater is processed in order to produce potable water. In recent times, RO systems are
widely used in purifying water from wells due to a more common contamination of ground and
underground waters. The material membranes are made of mostly influences the quality of the
water purified in the process of reversible osmosis . Breaking and clogging of permeates cause
water contamination.
Advantages:
The process is continual (24/7)
The process is isothermal, there are no phase changes of the fluid which is treated
It has an extreme selectivity for certain elements, compounds and solutions
Energy balance is very satisfactory especially in comparison with distillation procedure
It is environmentally-friendly
Maintenance costs are low
The construction of the device is modular which enables expanding of the facilities
In RO module (membrane), the process is conducted so that water under pressure is brought onto
the membrane, which lets out molecules of water and a small percentage of salt, while blocking
dissolved salts. RO systems require a pre- treatment that is determined depending on the quality
of unprocessed water.
13. WATER TREATMENT SOLUTIONS
12

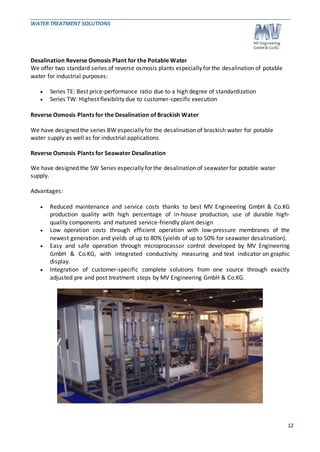

Desalination Reverse Osmosis Plant for the Potable Water
We offer two standard series of reverse osmosis plants especially for the desalination of potable
water for industrial purposes:
Series TE: Best price-performance ratio due to a high degree of standardization
Series TW: Highest flexibility due to customer-specific execution
Reverse Osmosis Plants for the Desalination of Brackish Water
We have designed the series BW especially for the desalination of brackish water for potable
water supply as well as for industrial applications.
Reverse Osmosis Plants for Seawater Desalination
We have designed the SW Series especially for the desalination of seawater for potable water
supply.
Advantages:
Reduced maintenance and service costs thanks to best MV Engineering GmbH & Co.KG
production quality with high percentage of in-house production, use of durable high-quality
components and matured service-friendly plant design
Low operation costs through efficient operation with low-pressure membranes of the
newest generation and yields of up to 80% (yields of up to 50% for seawater desalination).
Easy and safe operation through microprocessor control developed by MV Engineering
GmbH & Co.KG, with integrated conductivity measuring and text indicator on graphic
display.
Integration of customer-specific complete solutions from one source through exactly
adjusted pre and post treatment steps by MV Engineering GmbH & Co.KG.
14. WATER TREATMENT SOLUTIONS
13

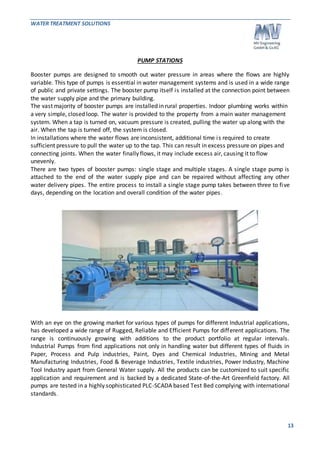

PUMP STATIONS
Booster pumps are designed to smooth out water pressure in areas where the flows are highly
variable. This type of pumps is essential in water management systems and is used in a wide range
of public and private settings. The booster pump itself is installed at the connection point between
the water supply pipe and the primary building.
The vast majority of booster pumps are installed in rural properties. Indoor plumbing works within
a very simple, closed loop. The water is provided to the property from a main water management
system. When a tap is turned on, vacuum pressure is created, pulling the water up along with the
air. When the tap is turned off, the system is closed.
In installations where the water flows are inconsistent, additional time is required to create
sufficient pressure to pull the water up to the tap. This can result in excess pressure on pipes and
connecting joints. When the water finally flows, it may include excess air, causing it to flow
unevenly.
There are two types of booster pumps: single stage and multiple stages. A single stage pump is
attached to the end of the water supply pipe and can be repaired without affecting any other
water delivery pipes. The entire process to install a single stage pump takes between three to fi ve
days, depending on the location and overall condition of the water pipes .
With an eye on the growing market for various types of pumps for different Industrial applications,
has developed a wide range of Rugged, Reliable and Efficient Pumps for different applications. The
range is continuously growing with additions to the product portfolio at regular intervals.
Industrial Pumps from find applications not only in handling water but different types of fluids in
Paper, Process and Pulp industries, Paint, Dyes and Chemical Industries, Mining and Metal
Manufacturing Industries, Food & Beverage Industries, Textile industries, Power Industry, Machine
Tool Industry apart from General Water supply. All the products can be customized to suit specific
application and requirement and is backed by a dedicated State-of-the-Art Greenfield factory. All
pumps are tested in a highly sophisticated PLC-SCADA based Test Bed complying with international
standards.
15. WATER TREATMENT SOLUTIONS
14

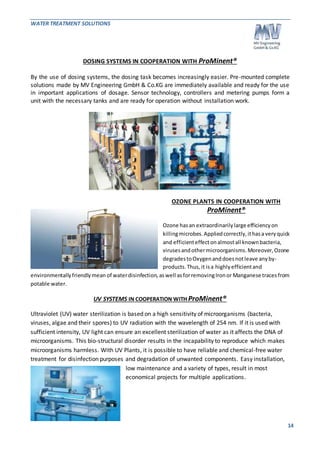

DOSING SYSTEMS IN COOPERATION WITH ProMinent®
By the use of dosing systems, the dosing task becomes increasingly easier. Pre-mounted complete
solutions made by MV Engineering GmbH & Co.KG are immediately available and ready for the use
in important applications of dosage. Sensor technology, controllers and metering pumps form a
unit with the necessary tanks and are ready for operation without installation work.
OZONE PLANTS IN COOPERATION WITH
ProMinent®
Ozone has an extraordinarily large efficiency on
killing microbes. Applied correctly, it has a very quick
and efficient effect on almost all known bacteria,
viruses and other microorganisms. Moreover, Ozone
degrades to Oxygen and does not leave any by-products.
Thus, it is a highly efficient and
environmentally friendly mean of water disinfection, as well as for removing Iron or Manganese traces from
potable water.
UV SYSTEMS IN COOPERATION WITH ProMinent®
Ultraviolet (UV) water sterilization is based on a high sensitivity of microorganisms (bacteria,
viruses, algae and their spores) to UV radiation with the wavelength of 254 nm. If it is used with
sufficient intensity, UV light can ensure an excellent sterilization of water as it affects the DNA of
microorganisms. This bio-structural disorder results in the incapability to reproduce which makes
microorganisms harmless. With UV Plants, it is possible to have reliable and chemical-free water
treatment for disinfection purposes and degradation of unwanted components. Easy installation,
low maintenance and a variety of types, result in most
economical projects for multiple applications.
16. WATER TREATMENT SOLUTIONS
15

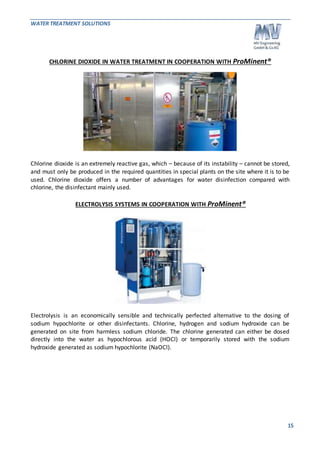

CHLORINE DIOXIDE IN WATER TREATMENT IN COOPERATION WITH ProMinent®
Chlorine dioxide is an extremely reactive gas, which – because of its instability – cannot be stored,
and must only be produced in the required quantities in special plants on the site where it is to be
used. Chlorine dioxide offers a number of advantages for water disinfection compared with
chlorine, the disinfectant mainly used.
ELECTROLYSIS SYSTEMS IN COOPERATION WITH ProMinent®
Electrolysis is an economically sensible and technically perfected alternative to the dosing of
sodium hypochlorite or other disinfectants. Chlorine, hydrogen and sodium hydroxide can be
generated on site from harmless sodium chloride. The chlorine generated can either be dosed
directly into the water as hypochlorous acid (HOCl) or temporarily stored with the sodium
hydroxide generated as sodium hypochlorite (NaOCl).
17. WATER TREATMENT SOLUTIONS
16

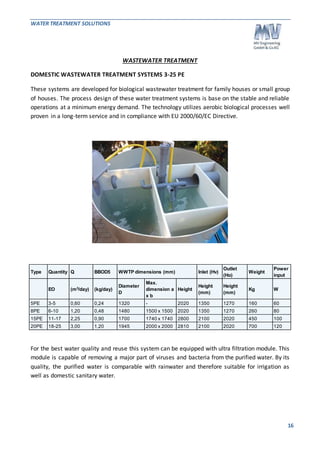

WASTEWATER TREATMENT
DOMESTIC WASTEWATER TREATMENT SYSTEMS 3-25 PE
These systems are developed for biological wastewater treatment for family houses or small group
of houses. The process design of these water treatment systems is base on the stable and reliable
operations at a minimum energy demand. The technology utilizes aerobic biological processes well
proven in a long-term service and in compliance with EU 2000/60/EC Directive.
Type Quantity Q BBOD5 WWTP dimensions (mm) Inlet (Hv)
Outlet
(Ho)
Weight
Power
input
EO (m3/day) (kg/day)
Diameter
D
Max.
dimension a
x b
Height
Height
(mm)
Height
(mm)
Kg W
5PE 3-5 0,60 0,24 1320 - 2020 1350 1270 160 60
8PE 6-10 1,20 0,48 1480 1500 x 1500 2020 1350 1270 260 80
15PE 11-17 2,25 0,90 1700 1740 x 1740 2800 2100 2020 450 100
20PE 18-25 3,00 1,20 1945 2000 x 2000 2810 2100 2020 700 120
For the best water quality and reuse this system can be equipped with ultra filtration module. This
module is capable of removing a major part of viruses and bacteria from the purified water. By its
quality, the purified water is comparable with rainwater and therefore suitable for irrigation as
well as domestic sanitary water.
18. WATER TREATMENT SOLUTIONS
17
BIOLOGICAL WASTEWATER TREATMENT PLANTS 30-300 PE
The WWTP is designed for the treatment of sewage from shops, hotels, businesses, and residential
units, as well as parts of municipalities. The advantages of the WWTP are its easy adaptability to
local conditions and the simple design of the technology.
Table of dimensional range of WWTP
Type Quantity Q BOD5
Length x Width x
Height
L x B x H
(mm)
Height (mm)
of inlet Hv / outlet Ho
Weight
(kg)
Installed power
input
(kW)
PE (m3/day) (kg/day) N N/PUMP N N/PUMP N N/PUMP
30PE 25-35 4,5 1,8
2000 x 2160 x
2830
2200/2050 min.1100/2050 1250 1320 0,55 1,2
40PE 36-45 6,0 2,4
3000 x 2160 x
2830
2200/2050 min.1100/2050 1400 1470 0,55 1,2
50PE 46-55 7,5 3,0
4000 x 2160 x
2830
2200/2050 min.1100/2050 1750 1820 0,75 1,4
60PE 56-70 9,0 3,6
4000 x 2160 x
2870
2700/2550 min.1100/2550 1900 1970 0,90 1,6
80PE 71-90 12,0 4,8
5000 x 2160 x
2870
2700/2550 min.1100/2550 2200 2270 0,90 1,6
100PE 91-110 15,0 6,0
6000 x 2160 x
2870
2700/2550 min.1100/2550 2450 2520 1,25 2,0
125PE 111-135 19,0 7,5
7000 x 2160 x
2870
2700/2550 min.1100/2550 2700 2770 1,25 2,0
150PE 136-155 22,5 9,0
8000 x 2160 x
2870
2700/2550 min.1100/2550 2950 3020 1,25 2,0
WWTPs of a larger size can be designed through combinations of the basic line (e.g., a WWTP for
200 PE consists of two WWTPs for 100 PE).
19. WATER TREATMENT SOLUTIONS

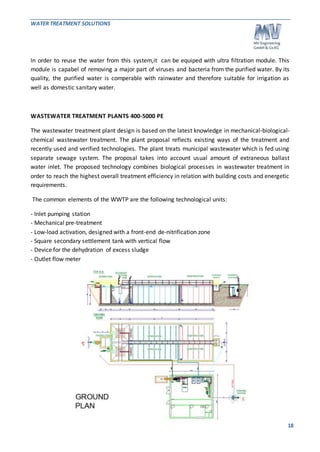

In order to reuse the water from this system,it can be equiped with ultra filtration module. This
module is capabel of removing a major part of viruses and bacteria from the purified water. By its
quality, the purified water is comperable with rainwater and therefore suitable for irrigation as
well as domestic sanitary water.
18
WASTEWATER TREATMENT PLANTS 400-5000 PE
The wastewater treatment plant design is based on the latest knowledge in mechanical-biological-chemical
wastewater treatment. The plant proposal reflects existing ways of the treatment and
recently used and verified technologies. The plant treats municipal wastewater which is fed using
separate sewage system. The proposal takes into account usual amount of extraneous ballast
water inlet. The proposed technology combines biological processes in wastewater treatment in
order to reach the highest overall treatment efficiency in relation with building costs and energetic
requirements.
The common elements of the WWTP are the following technological units:
- Inlet pumping station
- Mechanical pre-treatment
- Low-load activation, designed with a front-end de-nitrification zone
- Square secondary settlement tank with vertical flow
- Device for the dehydration of excess sludge
- Outlet flow meter
20. WATER TREATMENT SOLUTIONS
19

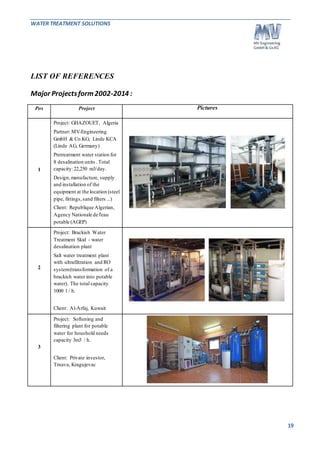

LIST OF REFERENCES
Major Projects form 2002-2014 :
Pos Project Pictures
1
Project: GHAZOUET, Algeria
Partner: MV-Engineering
GmbH & Co.KG; Linde KCA
(Linde AG, Germany)
Pretreatment water station for
8 desalination units . Total
capacity: 22,250 m3/day.
Design, manufacture, supply
and installation of the
equipment at the location (steel
pipe, fittings, sand filters ...)
Client: Republique Algerian,
Agency Nationale de l'eau
potable (AGEP)
2
Project: Brackish Water
Treatment Skid - water
desalination plant
Salt water treatment plant
with ultrafiltration and RO
system (transformation of a
brackish water into potable
water). The total capacity
1000 l / h.
Client: Al-Arfaj, Kuwait
3
Project: Softening and
filtering plant for potable
water for houshold needs
capacity 3m3 / h.
Client: Private investor,
Trnava, Kragujevac
21. WATER TREATMENT SOLUTIONS
20

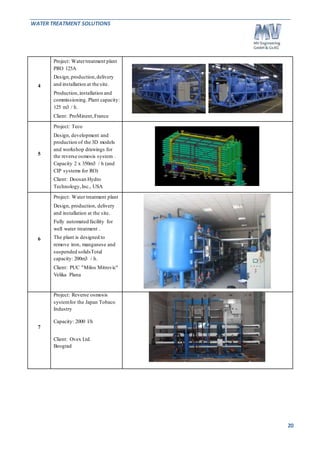

4
Project: Water treatment plant
PRO 125A
Design, production, delivery
and installation at the site.
Production, installation and
commissioning. Plant capacity:
125 m3 / h.
Client: ProMinent, France
5
Project: Teco
Design, development and
production of the 3D models
and workshop drawings for
the reverse osmosis system .
Capacity 2 x 350m3 / h (and
CIP systems for RO)
Client: Doosan Hydro
Technology, Inc., USA
6
Project: Water treatment plant
Design, production, delivery
and installation at the site.
Fully automated facility for
well water treatment .
The plant is designed to
remove iron, manganese and
suspended solidsTotal
capacity: 200m3 / h.
Client: PUC "Milos Mitrovic"
Velika Plana
7
Project: Reverse osmosis
system for the Japan Tobaco
Industry
Capacity: 2000 l/h
Client: Ovex Ltd.
Beograd
22. WATER TREATMENT SOLUTIONS
21

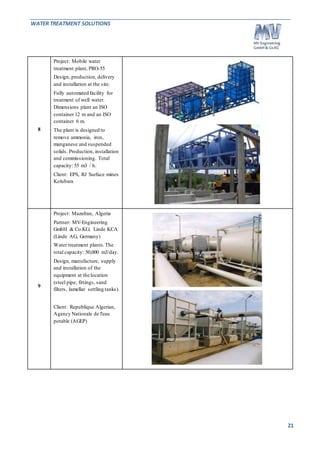

8
Project: Mobile water
treatment plant, PRO-55
Design, production, delivery
and installation at the site.
Fully automated facility for
treatment of well water.
Dimensions plant an ISO
container 12 m and an ISO
container 6 m.
The plant is designed to
remove ammonia, iron,
manganese and suspended
solids. Production, installation
and commissioning. Total
capacity: 55 m3 / h.
Client: EPS, RJ Surface mines
Kolubara
9
Project: Mazafran, Algeria
Partner: MV-Engineering
GmbH & Co.KG; Linde KCA
(Linde AG, Germany)
Water treatment plants. The
total capacity: 50,000 m3/day.
Design, manufacture, supply
and installation of the
equipment at the location
(steel pipe, fittings, sand
filters, lamellar settling tanks).
Client: Republique Algerian,
Agency Nationale de l'eau
potable (AGEP)
23. WATER TREATMENT SOLUTIONS
22

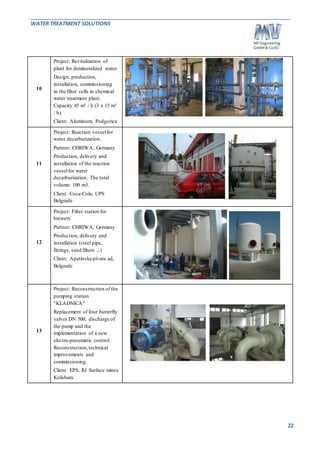

10
Project: Revitalization of
plant for demineralized water
Design, production,
installation, commissioning
in the filter cells in chemical
water treatment plant.
Capacity 45 m³ / h (3 x 15 m³
/ h).
Client: Aluminum, Podgorica
11
Project: Reaction vessel for
water decarburization.
Partner: CHRIWA, Germany
Production, delivery and
installation of the reaction
vessel for water
decarburization. The total
volume: 100 m3.
Client: Coca-Cola, UPS
Belgrade
12
Project: Filter station for
brewery
Partner: CHRIWA, Germany
Production, delivery and
installation (steel pipe,
fittings, sand filters ...)
Client: Apatinska pivara ad,
Belgrade
13
Project: Reconstruction of the
pumping station
"KLADNICA"
Replacement of four butterfly
valves DN 500, discharge of
the pump and the
implementation of a new
electro-pneumatic control.
Reconstruction, technical
improvements and
commissioning.
Client: EPS, RJ Surface mines
Kolubara
