Ms channel
We deal in a wide collection of MS channels made from high-quality mild steel. Mild steel channels are widely used for structural support in construction works. We source channels from reliable vendors and provide them to customers at competitive prices. The document then provides details on channel sizes and weights, tolerances, chemical composition, and mechanical properties.
More Related Content
More from Shree Ji Steel Corporation
Ms channel

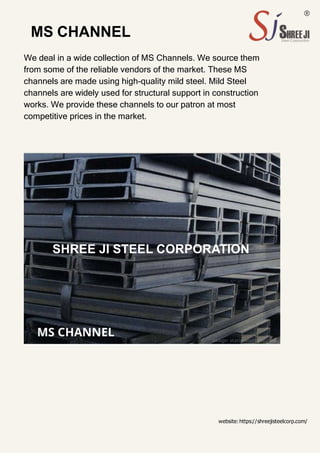

- 1. MS CHANNEL We dealin a wide collection of MS Channels. We source them from some of the reliable vendors of the market. These MS channels are made using high-quality mild steel. Mild Steel channels are widely used for structural support in construction works. We provide these channels to our patron at most competitive prices in the market. website:https://shreejisteelcorp.com/ SHREE JI STEEL CORPORATION

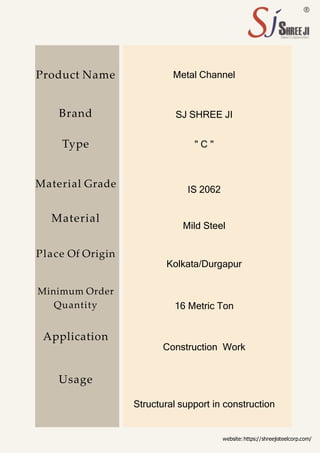

- 2. Product Name Brand Type Material Grade Material PlaceOf Origin Minimum Order Quantity Application Usage Metal Channel SJ SHREE JI " C " IS 2062 Mild Steel Kolkata/Durgapur 16 Metric Ton Construction Work Structural support in construction website:https://shreejisteelcorp.com/

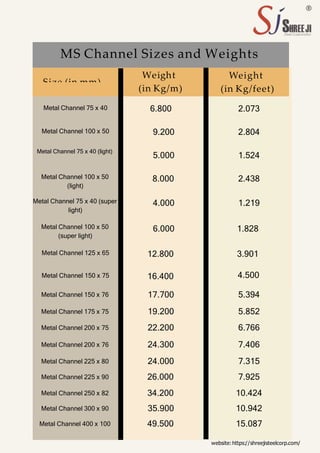

- 3. MS Channel Sizesand Weights Size (in mm) Weight Weight (in Kg/m) (in Kg/feet) Metal Channel 75 x 40 6.800 2.073 Metal Channel 100 x 50 9.200 2.804 Metal Channel 75 x 40 (light) 5.000 1.524 Metal Channel 100 x 50 (light) 8.000 2.438 Metal Channel 75 x 40 (super light) 4.000 1.219 Metal Channel 100 x 50 (super light) 6.000 1.828 Metal Channel 125 x 65 12.800 3.901 Metal Channel 150 x 75 16.400 4.500 Metal Channel 150 x 76 17.700 5.394 Metal Channel 175 x 75 19.200 5.852 Metal Channel 200 x 75 22.200 6.766 Metal Channel 200 x 76 24.300 7.406 Metal Channel 225 x 80 24.000 7.315 Metal Channel 225 x 90 26.000 7.925 Metal Channel 250 x 82 34.200 10.424 Metal Channel 300 x 90 35.900 10.942 Metal Channel 400 x 100 49.500 15.087 website:https://shreejisteelcorp.com/

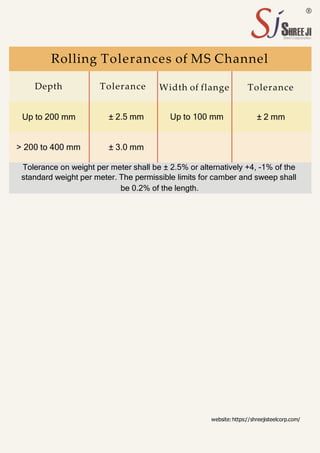

- 4. Rolling Tolerances ofMS Channel Depth Tolerance Width of flange Tolerance Up to 200 mm ± 2.5 mm Up to 100 mm ± 2 mm > 200 to 400 mm ± 3.0 mm Tolerance on weight per meter shall be ± 2.5% or alternatively +4, -1% of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2% of the length. website:https://shreejisteelcorp.com/

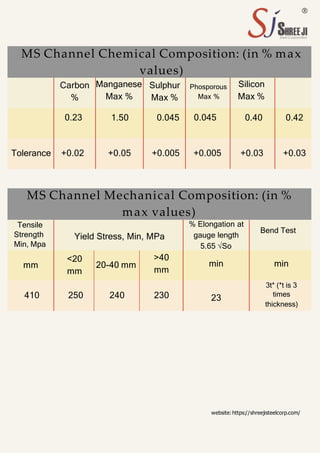

- 5. MS Channel ChemicalComposition: (in % max values) Carbon % Manganese Max % Sulphur Max % Phosporous Max % Silicon Max % 0.23 1.50 0.045 0.045 0.40 0.42 Tolerance +0.02 +0.05 +0.005 +0.005 +0.03 +0.03 MS Channel Mechanical Composition: (in % max values) Tensile Strength Min, Mpa Yield Stress, Min, MPa % Elongation at gauge length 5.65 √Ѕo Bend Test mm <20 mm 20-40 mm >40 mm min min 410 250 240 230 23 3t* (*t is 3 times thickness) website:https://shreejisteelcorp.com/
