Modular Design - Laws and Principles - in OOP and FP
- 1. Modular Design Laws andPrinciples in OOP and FP

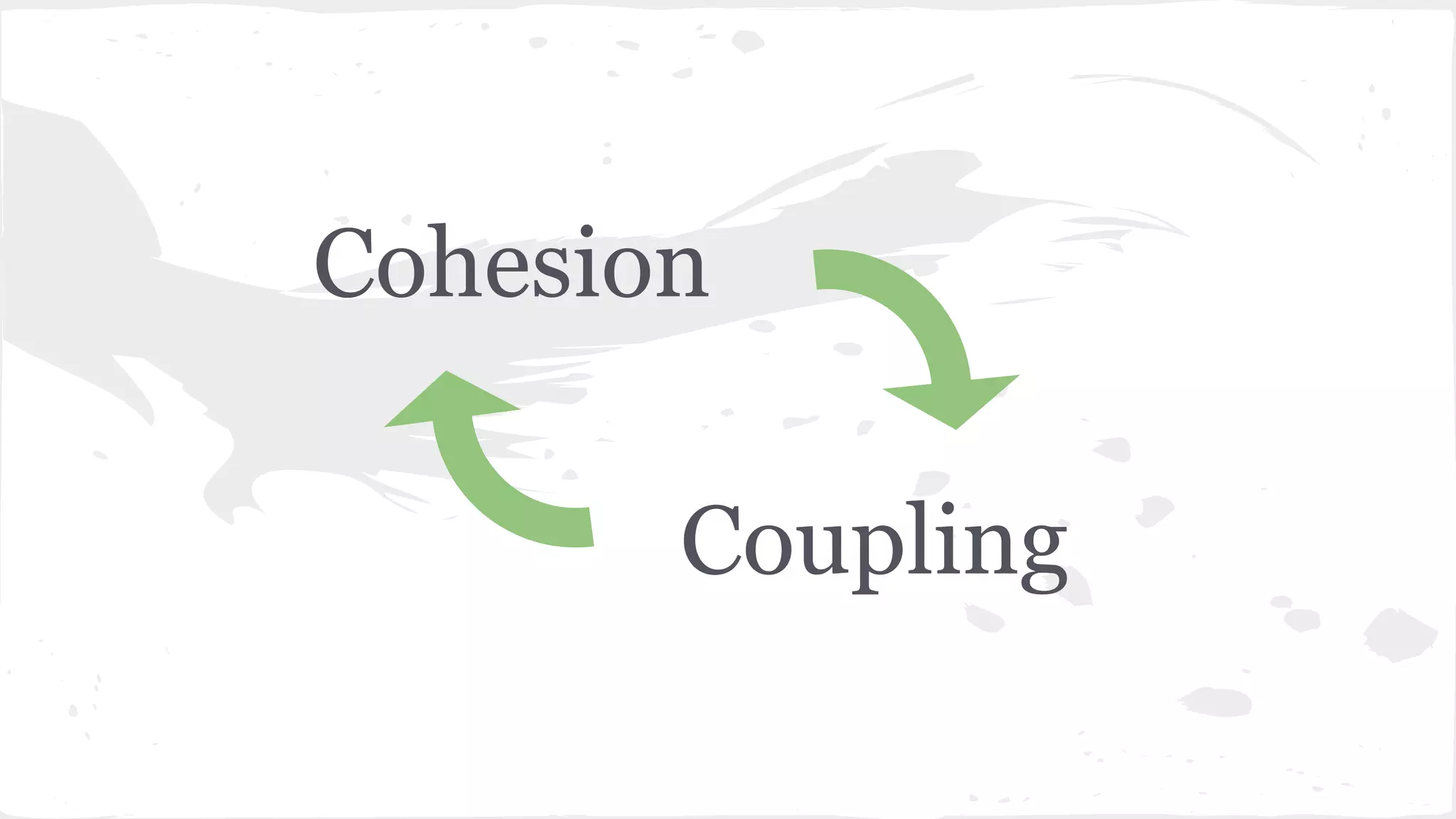

- 2.
- 3.
- 4. ● Coincidental Cohesion:unrelated elements ● Temporal Cohesion: operations performed at the same time, e.g. initialization ● Sequential Cohesion: operations form a pipeline - one's output is another's input ● Informational Cohesion: operations are performed on the same data structure ● Functional Cohesion: all elements realize a single, well-defined task, e.g. a function Cohesion levels
- 5. ● Content Coupling:a module uses/alters data in another module ● Global-data Coupling: two modules communicate via global data ● Data-structure Coupling: communicate via data structure passed as a parameter (more information than needed) ● Data Coupling: communicate via parameter passing (minimal information) ● No Coupling: independent modules Coupling levels
- 6. A modular unitof code... ● serves a clear purpose ● easy to use ● easy to extend ● easy to replace ● survives outside changes Single Responsibility Liskov Substitution Interface Segregation Open-Closed Principle Dependency Inversion

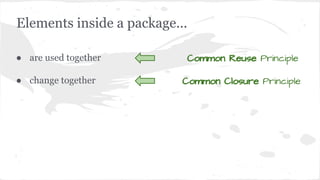

- 7. Elements inside apackage... ● are used together ● change together Common Reuse Principle Common Closure Principle

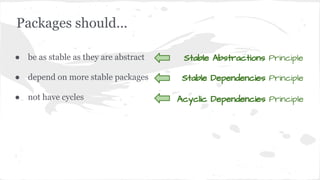

- 8. Packages should... ● beas stable as they are abstract ● depend on more stable packages ● not have cycles Stable Abstractions Principle Stable Dependencies Principle Acyclic Dependencies Principle
- 9. The Law ofDemeter "the principle of least knowledge" A B E G F D C B E
- 10.
- 11. Train Wreck client.getMortgage().paymentCollection().getNextPayment().applyPayment(300.0) (update-in client[:mortgage :payments] conj (payment 300.0)) wiki.c2.com/?TrainWreck
- 12.
- 13.
