This document summarizes a keynote presentation about developing mobile applications using domain-specific languages. It discusses current mobile platforms and their programming languages, challenges with cross-platform development and arbitrary app rejections. It then presents an approach using a high-level modeling language that compiles to HTML5/JavaScript to enable cross-platform mobile app development. Key elements of the language include data models, user interfaces, scripting, data binding, web services access, and compilation to optimized JavaScript code.

1. Slides from keynote at MOSE 2010, Malaga, June 29, 2010
Zef Hemel Eelco Visser
@mobllang @zef @eelcovisser

2. WebDSL
Domain-Specific
Language Engineering
SDF Spoofax Stratego

3. domain:
mobile applications

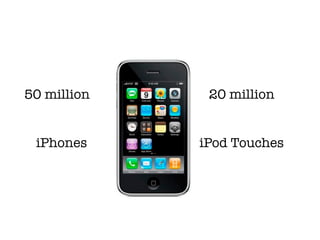

4. 50 million 20 million
iPhones iPod Touches

5. 1.5 million 1.2 million
G1 Droid
outsells iPhone in US

7. application
development

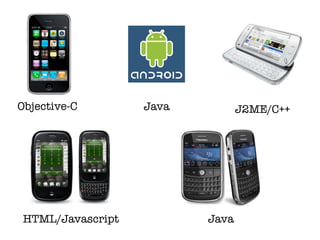

8. Objective-C Java J2ME/C++
HTML/Javascript Java

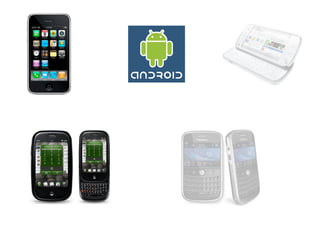

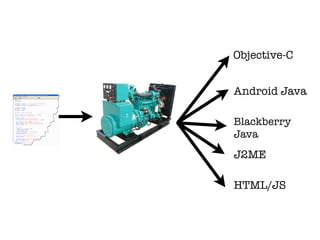

9. Objective-C
Android Java
Blackberry
Java
J2ME
HTML/JS

11. 3.3.1

12. 3.3.1 – Applications may only use Documented
APIs in the manner prescribed by Apple and
must not use or call any private APIs.
Applications must be originally written in
Objective-C, C, C++, or JavaScript as executed
by the iPhone OS WebKit engine, and only code
written in C, C++, and Objective-C may compile
and directly link against the Documented APIs
(e.g., Applications that link to Documented APIs
through an intermediary translation or
compatibility layer or tool are prohibited).

14. AppStore

16. cross-platform development
arbitrary rejections
we want high-level models

18. Webkit

19. HTML

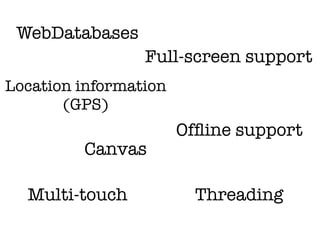

20. WebDatabases
Full-screen support
Location information
(GPS)
Offline support
Canvas
Multi-touch Threading

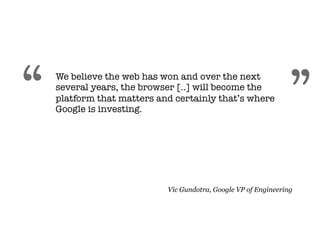

22. “ We believe the web has won and over the next
several years, the browser [..] will become the
platform that matters and certainly that’s where
Google is investing.
”
Vic Gundotra, Google VP of Engineering

25. syntax similar to

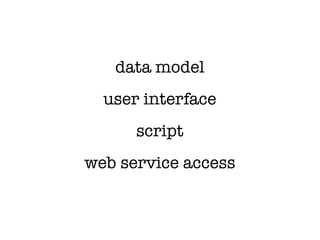

26. data model
user interface
script
web service access

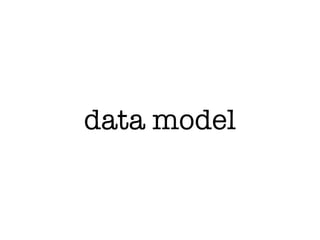

27. data model

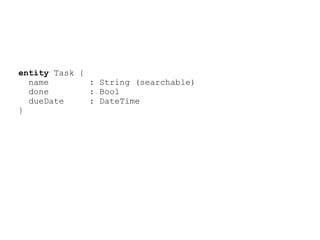

28. entity Task {
name : String (searchable)
done : Bool
dueDate : DateTime
}

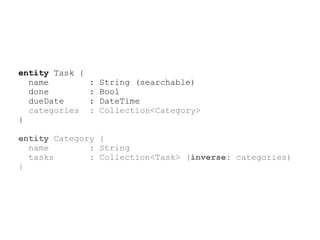

29. entity Task {
name : String (searchable)
done : Bool
dueDate : DateTime
categories : Collection<Category>
}
entity Category {
name : String
tasks : Collection<Task> (inverse: categories)
}

30. user interface

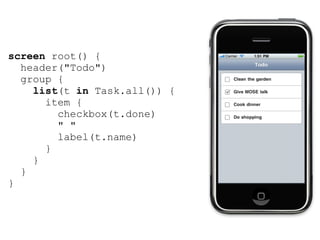

31. screen root() {
header("Todo")
group {
list(t in Task.all()) {
item {
checkbox(t.done)
" "
label(t.name)
}
}
}
}

32. screen root() {
header("Todo")
topButton("Add", onclick={
addTask();
})
group {
list(t in Task.all()) {
item {
checkbox(t.done)
" "
label(t.name)
}
}
}
}

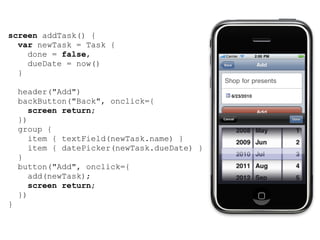

33. screen addTask() {
var newTask = Task {
done = false,
dueDate = now()
}
header("Add")
backButton("Back", onclick={
screen return;
})
group {
item { textField(newTask.name) }
item { datePicker(newTask.dueDate) }
}
button("Add", onclick={
add(newTask);
screen return;
})
}

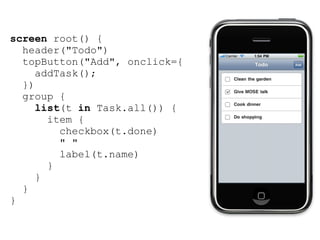

34. screen root() {
header("Todo")
topButton("Add", onclick={
addTask();
})
group {
list(t in Task.all()) {
item {
checkbox(t.done)
" "
label(t.name)
}
}
}
}

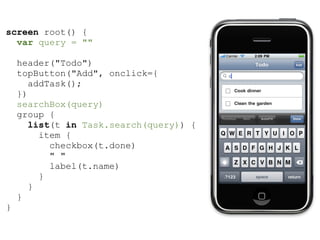

35. screen root() {
var query = ""
header("Todo")
topButton("Add", onclick={
addTask();
})
searchBox(query)
group {
list(t in Task.search(query)) {
item {
checkbox(t.done)
" "
label(t.name)
}
}
}
}

36. scripting

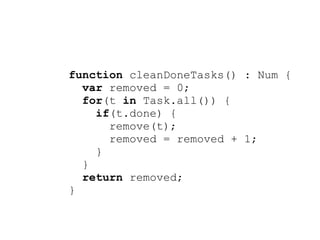

37. function cleanDoneTasks() : Num {
var removed = 0;
for(t in Task.all()) {
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
}

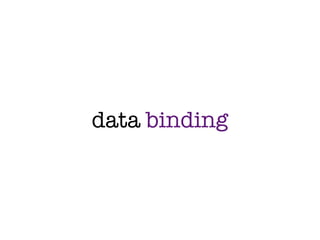

38. data binding

39. one-way
var n = 0
label(n)
button("Up", onclick={
n = n + 1;
})

40. two-way
var n = 0
inputNum(n)
label(n)

41. reactive/dataflow programming

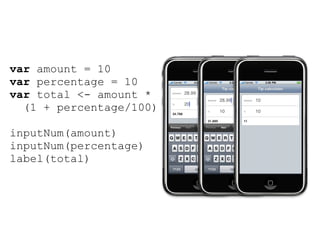

43. var amount = 10
var percentage = 10
var total <- amount *
(1 + percentage/100)
inputNum(amount)
inputNum(percentage)
label(total)

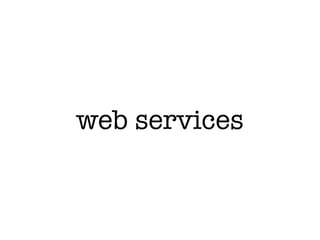

44. web services

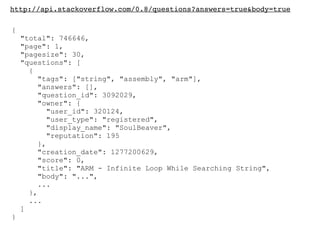

47. http://api.stackoverflow.com/0.8/questions?answers=true&body=true
{
"total": 746646,
"page": 1,
"pagesize": 30,
"questions": [
{
"tags": ["string", "assembly", "arm"],
"answers": [],
"question_id": 3092029,
"owner": {
"user_id": 320124,
"user_type": "registered",
"display_name": "SoulBeaver",
"reputation": 195
},
"creation_date": 1277200629,
"score": 0,
"title": "ARM - Infinite Loop While Searching String",
"body": "...",
...
},
...
]
}

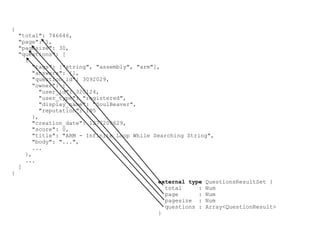

48. {
"total": 746646,
"page": 1,
"pagesize": 30,
"questions": [
{
"tags": ["string", "assembly", "arm"],
"answers": [],
"question_id": 3092029,
"owner": {
"user_id": 320124,
"user_type": "registered",
"display_name": "SoulBeaver",
"reputation": 195
},
"creation_date": 1277200629,
"score": 0,
"title": "ARM - Infinite Loop While Searching String",
"body": "...",
...
},
...
]
}
external type QuestionsResultSet {
total : Num
page : Num
pagesize : Num
questions : Array<QuestionResult>
}

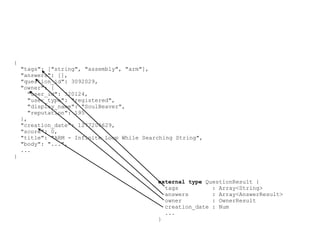

49. {
"tags": ["string", "assembly", "arm"],
"answers": [],
"question_id": 3092029,
"owner": {
"user_id": 320124,
"user_type": "registered",
"display_name": "SoulBeaver",
"reputation": 195
},
"creation_date": 1277200629,
"score": 0,
"title": "ARM - Infinite Loop While Searching String",
"body": "...",
...
}
external type QuestionResult {
tags : Array<String>
answers : Array<AnswerResult>
owner : OwnerResult
creation_date : Num
...
}

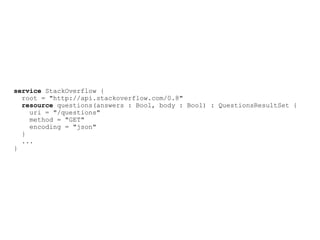

50. service StackOverflow {
root = "http://api.stackoverflow.com/0.8"
resource questions(answers : Bool, body : Bool) : QuestionsResultSet {
uri = "/questions"
method = "GET"
encoding = "json"
}
...
}

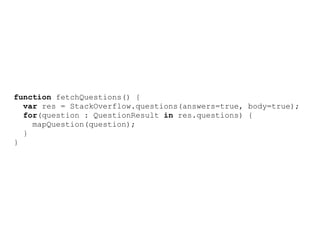

51. function fetchQuestions() {
var res = StackOverflow.questions(answers=true, body=true);
for(question : QuestionResult in res.questions) {
mapQuestion(question);
}
}

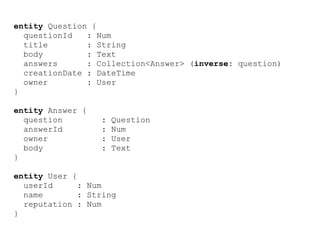

52. entity Question {
questionId : Num
title : String
body : Text
answers : Collection<Answer> (inverse: question)
creationDate : DateTime
owner : User
}
entity Answer {
question : Question
answerId : Num
owner : User
body : Text
}
entity User {
userId : Num
name : String
reputation : Num
}

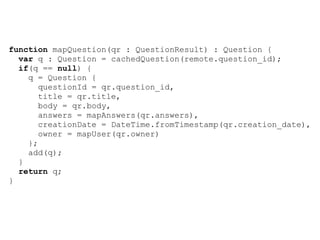

53. function mapQuestion(qr : QuestionResult) : Question {
var q : Question = cachedQuestion(remote.question_id);
if(q == null) {
q = Question {
questionId = qr.question_id,
title = qr.title,
body = qr.body,
answers = mapAnswers(qr.answers),
creationDate = DateTime.fromTimestamp(qr.creation_date),
owner = mapUser(qr.owner)
};
add(q);
}
return q;
}

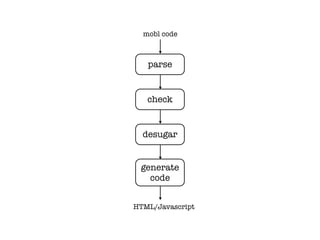

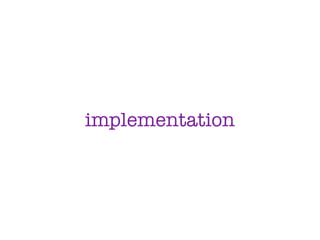

55. implementation

56. mobl code
parse
check
desugar
generate
code
HTML/Javascript

57. entity Task {
name : String (searchable)
done : Bool
dueDate : DateTime
}
Javascript using
persistence.js
HTML5 ORM
tasks.Task = persistence.define('tasks__Task', {
'name': 'TEXT',
'done': 'BOOL',
'dueDate': 'DATE'
});
tasks.Task.textIndex('name');

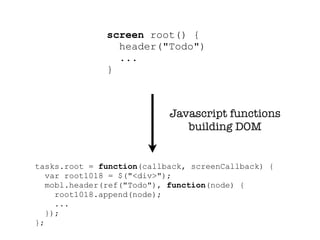

58. screen root() {
header("Todo")
...
}
Javascript functions
building DOM
tasks.root = function(callback, screenCallback) {
var root1018 = $("<div>");
mobl.header(ref("Todo"), function(node) {
root1018.append(node);
...
});
};

59. function cleanDoneTasks() : Num {
var removed = 0;
for(t in Task.all()) {
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
}
tasks.cleanDoneTasks = function() {
var removed = 0;
var results = Task.all();
for(var i = 0; i < results.length; i++) {
var t = results[i];
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
}

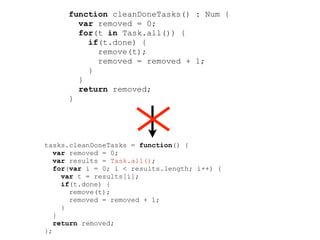

60. function cleanDoneTasks() : Num {
var removed = 0;
for(t in Task.all()) {
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
}
tasks.cleanDoneTasks = function() {
var removed = 0;
var results = Task.all();
for(var i = 0; i < results.length; i++) {
var t = results[i];
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
};

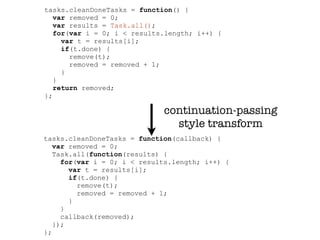

61. tasks.cleanDoneTasks = function() {
var removed = 0;
var results = Task.all();
for(var i = 0; i < results.length; i++) {
var t = results[i];
if(t.done) {
remove(t);
removed = removed + 1;
}
}
return removed;
};
continuation-passing
style transform
tasks.cleanDoneTasks = function(callback) {
var removed = 0;
Task.all(function(results) {
for(var i = 0; i < results.length; i++) {
var t = results[i];
if(t.done) {
remove(t);
removed = removed + 1;
}
}
callback(removed);
});
};

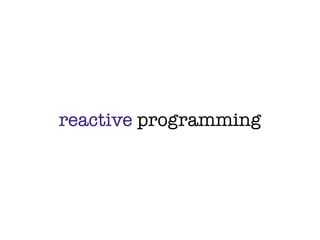

62. reactive programming

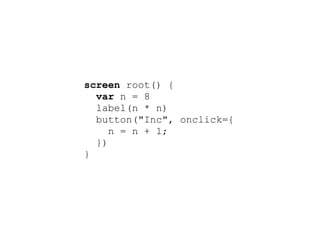

63. screen root() {
var n = 8
label(n * n)
button("Inc", onclick={
n = n + 1;
})
}

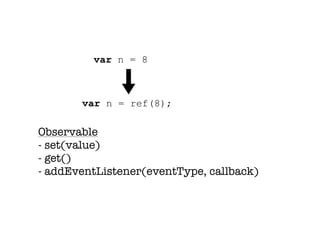

64. var n = 8
var n = ref(8);
Observable
- set(value)
- get()
- addEventListener(eventType, callback)

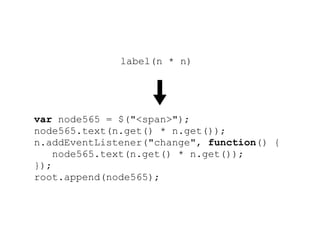

65. label(n * n)
var node565 = $("<span>");
node565.text(n.get() * n.get());
n.addEventListener("change", function() {
node565.text(n.get() * n.get());
});
root.append(node565);

66. button("Inc", onclick={
n = n + 1;
})
var nodes566 = $("<span class='button'>");
node566.text("Inc");
node566.click(function() {
n.set(n.get() + 1);
});
root.append(node566);

67. screen root() {
var n = 8
label(n * n)
button("Inc", onclick={
n = n + 1;
})
}

68. conclusion

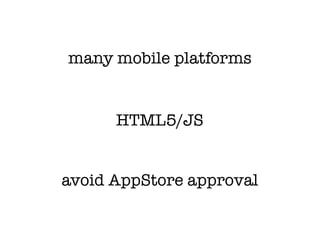

69. many mobile platforms
HTML5/JS
avoid AppStore approval

70. statically-typed WebDSL-like language
generates HTML/JS
CPS transform/reactive programming

71. get it?
http://mobl-lang.org
http://spoofax.org
