1. Beating Android Fragmentation
Juan Gomez

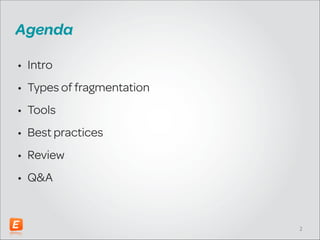

2. Agenda
• Intro
• Types of fragmentation
• Tools
• Best practices
• Review
• Q&A
!2

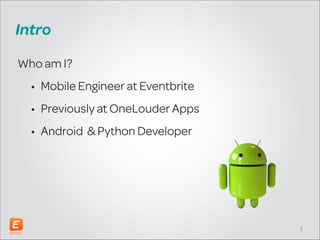

3. Intro
Who am I?
• Mobile Engineer at Eventbrite
• Previously at OneLouder Apps
• Android & Python Developer
!3

4. Eventbrite by the Numbers
Over 2 million events
150 million tickets sold
$2 billion in gross ticket sales
Events in 179 countries

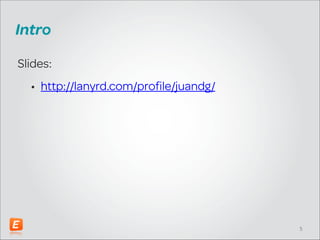

5. Intro
Slides:
• http://lanyrd.com/profile/juandg/
!5

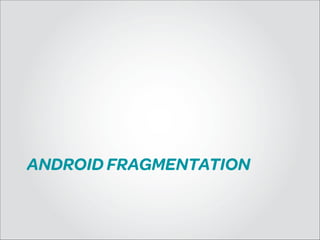

6. ANDROID FRAGMENTATION

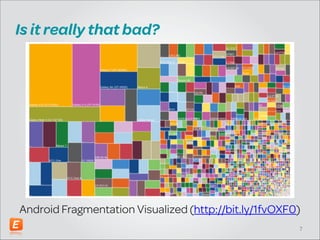

7. Is it really that bad?
!
!
!
!
!
!
Android Fragmentation Visualized (http://bit.ly/1fvOXF0)
!7

8. Types of fragmentation
• OS Fragmentation
• OEM Fragmentation
• Hardware Fragmentation
!8

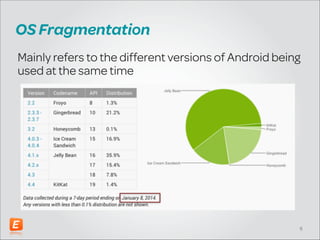

9. OS Fragmentation
Mainly refers to the different versions of Android being
used at the same time
!9

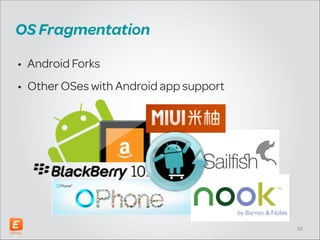

10. OS Fragmentation
• Android Forks
• Other OSes with Android app support
!10

11. OEM fragmentation
• Skins
• TouchWiz (Samsung)
• Sense (HTC)
• MotoBlur (Motorola)
• OEM OS modifications.
• Changes to AOSP even on certain API calls.
!11

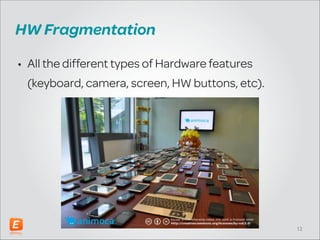

12. HW Fragmentation
• All the different types of Hardware features
(keyboard, camera, screen, HW buttons, etc).
!12

13. HW Fragmentation
• Android is designed to manage HW fragmentation
• The pain points in this area are on low level things like
different chipsets, GPUs, CPU cores, etc.
• Android x86 is the extreme example of this.
!13

14. TOOLS

15. The Basics
• Set minSdkVersion to the lowest API Level you want
to support.
• Set targetSdkVersion to the current highest API
Level.
• Use Android Lint to find code that is not supported
by your minimum API Level (and other possible
problems).
• Use fragments when possible.
!15

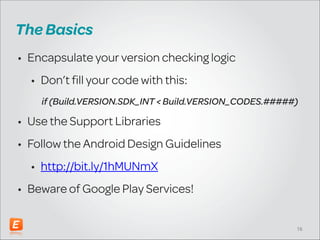

16. The Basics
• Encapsulate your version checking logic
• Don’t fill your code with this:
if (Build.VERSION.SDK_INT < Build.VERSION_CODES.#####)
• Use the Support Libraries
• Follow the Android Design Guidelines
• http://bit.ly/1hMUNmX
• Beware of Google Play Services!
!16

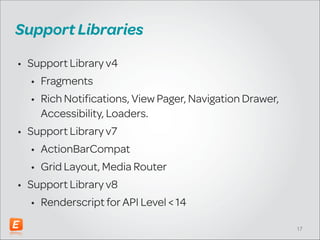

17. Support Libraries
• Support Library v4
• Fragments
• Rich Notifications, View Pager, Navigation Drawer,
Accessibility, Loaders.
• Support Library v7
• ActionBarCompat
• Grid Layout, Media Router
• Support Library v8
• Renderscript for API Level < 14
!17

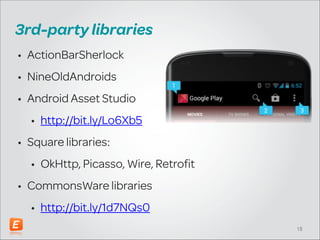

18. 3rd-party libraries
• ActionBarSherlock
• NineOldAndroids
• Android Asset Studio
• http://bit.ly/Lo6Xb5
• Square libraries:
• OkHttp, Picasso, Wire, Retrofit
• CommonsWare libraries
• http://bit.ly/1d7NQs0
!18

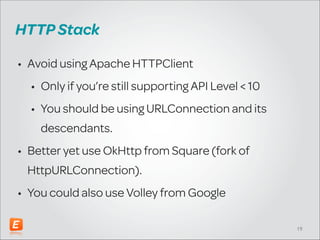

19. HTTP Stack
• Avoid using Apache HTTPClient
• Only use if you’re still supporting API Level < 10
• You should be using URLConnection and its
descendants.
• Better yet use OkHttp from Square (fork of
HttpURLConnection).
• You could also use Volley from Google
!19

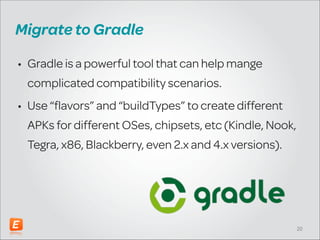

20. Migrate to Gradle
• Gradle is a powerful tool that can help manage
complicated compatibility scenarios.
• Use “flavors” and “buildTypes” to create different
APKs for different OSes, chipsets, etc (Kindle, Nook,
Tegra, x86, Blackberry, even 2.x and 4.x versions).
!20

21. BEST PRACTICES

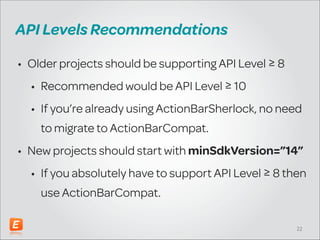

22. API Levels Recommendations
• Older projects should be supporting API Level ≥ 8
• Recommended would be API Level ≥ 10
• If you’re already using ActionBarSherlock, no need
to migrate to ActionBarCompat.
• New projects should start with minSdkVersion=”14”
• If you absolutely have to support API Level ≥ 8 then
use ActionBarCompat.
!22

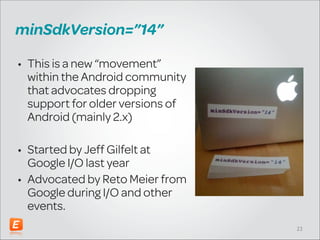

23. minSdkVersion=”14”
• This is a new “movement”
within the Android community
that advocates dropping
support for older versions of
Android (mainly 2.x)
!
• Started by Jeff Gilfelt at
Google I/O last year
• Advocated by Reto Meier from
Google during I/O and other
events.
!23

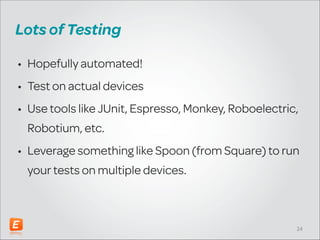

24. Lots of Testing
• Hopefully automated!
• Test on actual devices
• Use tools like JUnit, Espresso, Monkey, Roboelectric,
Robotium, etc.
• Leverage something like Spoon (from Square) to run
your tests on multiple devices.
!24

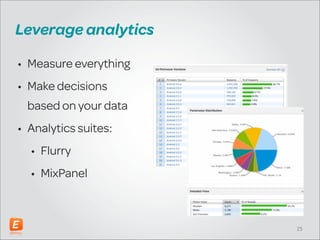

25. Leverage analytics
• Measure everything
• Make decisions
based on your data
• Analytics suites:
• Flurry
• MixPanel
!25

26. Crash reporting
• Get a tool to monitor crashes
• Lots of options, including:
• Crashlytics (Free)
• Crittercism
• HockeyApp
• Some analytics suites provide this as well (like Flurry)
• Worst case, use Google Play Dev Console
!26

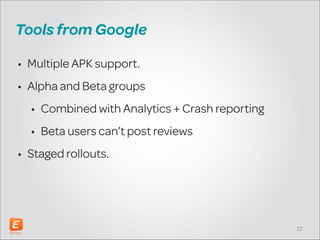

27. Tools from Google
• Multiple APK support.
• Alpha and Beta groups
• Combined with Analytics + Crash reporting
• Beta users can’t post reviews
• Staged rollouts.
!27

28. Summary
•
•
•
•
•
•
•
•
•
Android fragmentation is massively over hyped!
Be aware of the different types of fragmentation
Use libraries to homogenize feature support.
Start planning on dropping 2.x support (Old projects)
minSdkVersion=”14” on all new projects
Leverage Gradle to create multiple versions if needed.
Do lots of tests (Hopefully automated and on devices)
Use Analytics + Crash reporting
Create a Beta community and use staged rollouts.
• Rinse and repeat 😜
!28

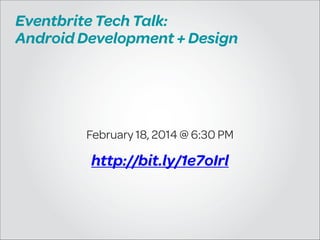

29. Eventbrite Tech Talk:
Android Development + Design
February 18, 2014 @ 6:30 PM
http://bit.ly/1e7oIrl

30. We’re hiring!
If you’re interested, let’s talk after the session
eventbrite.com/jobs

31. Questions?
Download our apps:
eventbrite.com/eventbriteapp

32. Thank You!
@_juandg
