The document describes the REST API endpoints available in Mule Management Console (MMC) for managing Mule ESB clusters. Some of the key capabilities include creating and deleting clusters, adding or removing nodes from clusters, managing applications and flows within clusters by starting, stopping, restarting them, and getting status and metrics from clusters, applications, and flows. All requests require basic authentication with a username and password and are made via HTTP to the MMC server hosting the API.

1. MMC Rest API - Clusters
BY KIRAN KUMAR

2. Introduction
 Continuous Deployment is always needed to make the things automate.
 Mule ESB cluster is a server which uses the active-active model to the
nodes.
 The advantage of active-active model is no one server acts as a primary
node. Both of the nodes will share the load.
 MMC provides Rest API’s to manage the cluster nodes, applications and
flows.

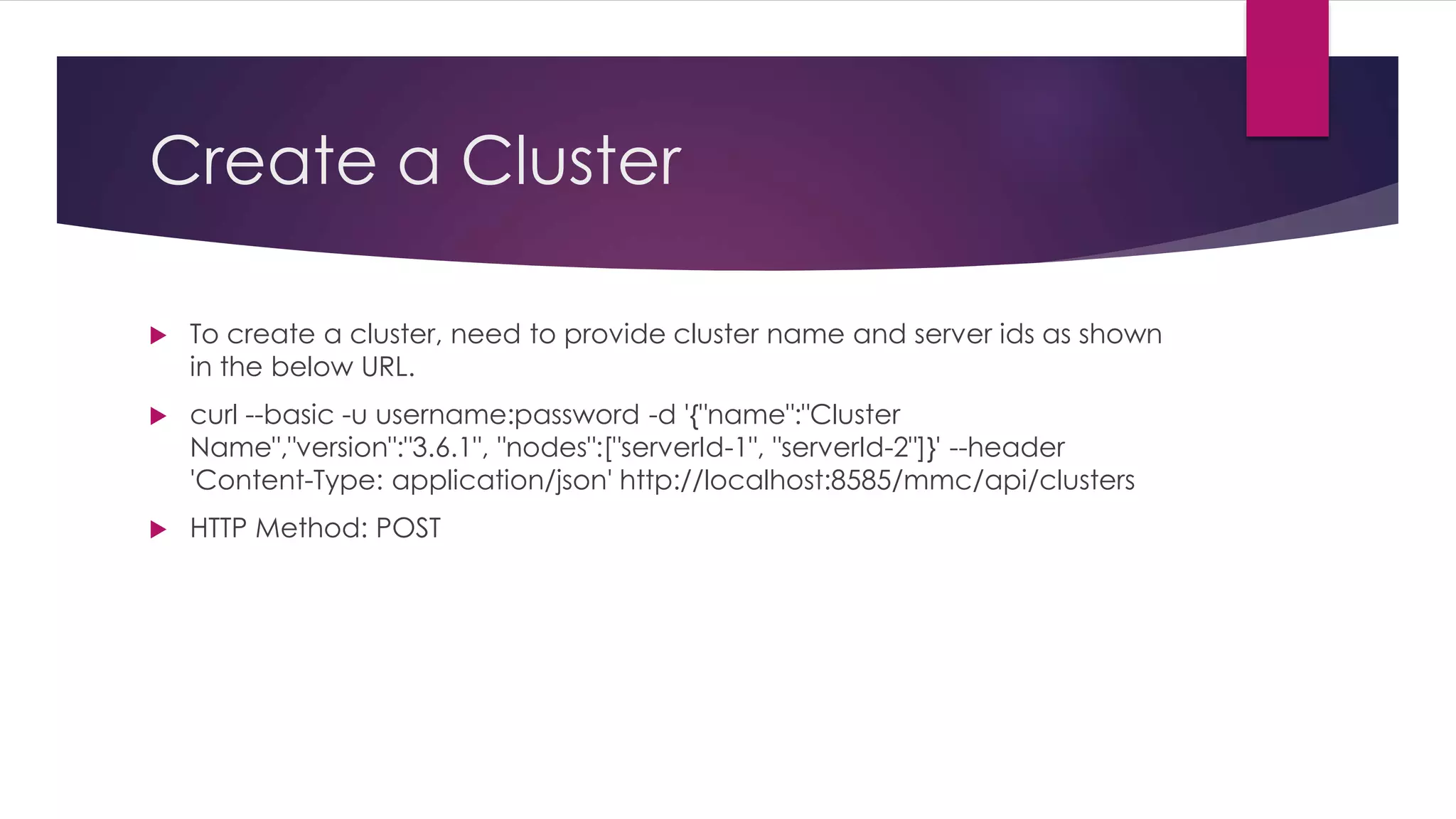

3. Create a Cluster
 To create a cluster, need to provide cluster name and server ids as shown
in the below URL.
 curl --basic -u username:password -d '{"name":"Cluster
Name","version":"3.6.1", "nodes":["serverId-1", "serverId-2"]}' --header
'Content-Type: application/json' http://localhost:8585/mmc/api/clusters
 HTTP Method: POST

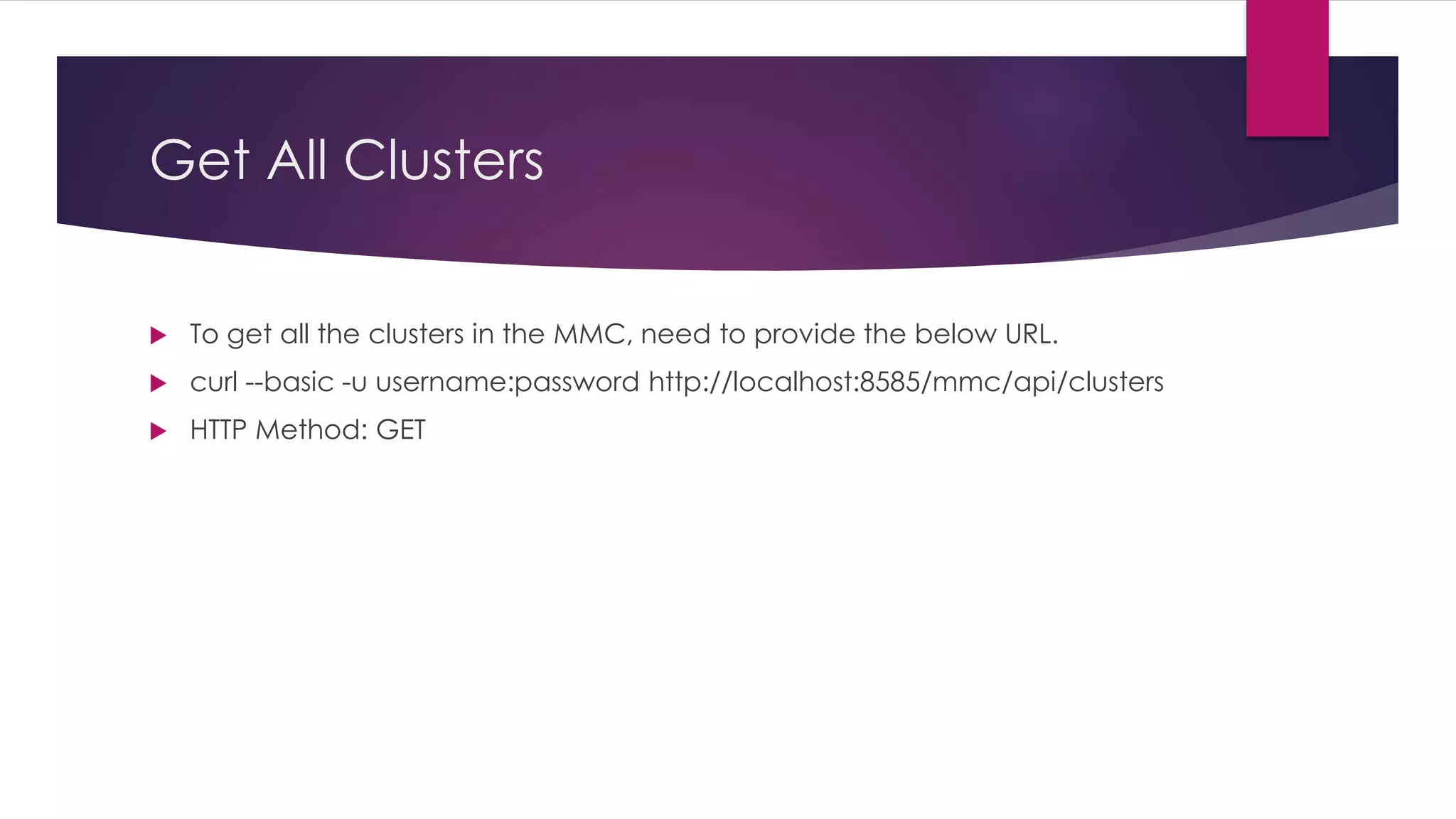

4. Get All Clusters
 To get all the clusters in the MMC, need to provide the below URL.
 curl --basic -u username:password http://localhost:8585/mmc/api/clusters
 HTTP Method: GET

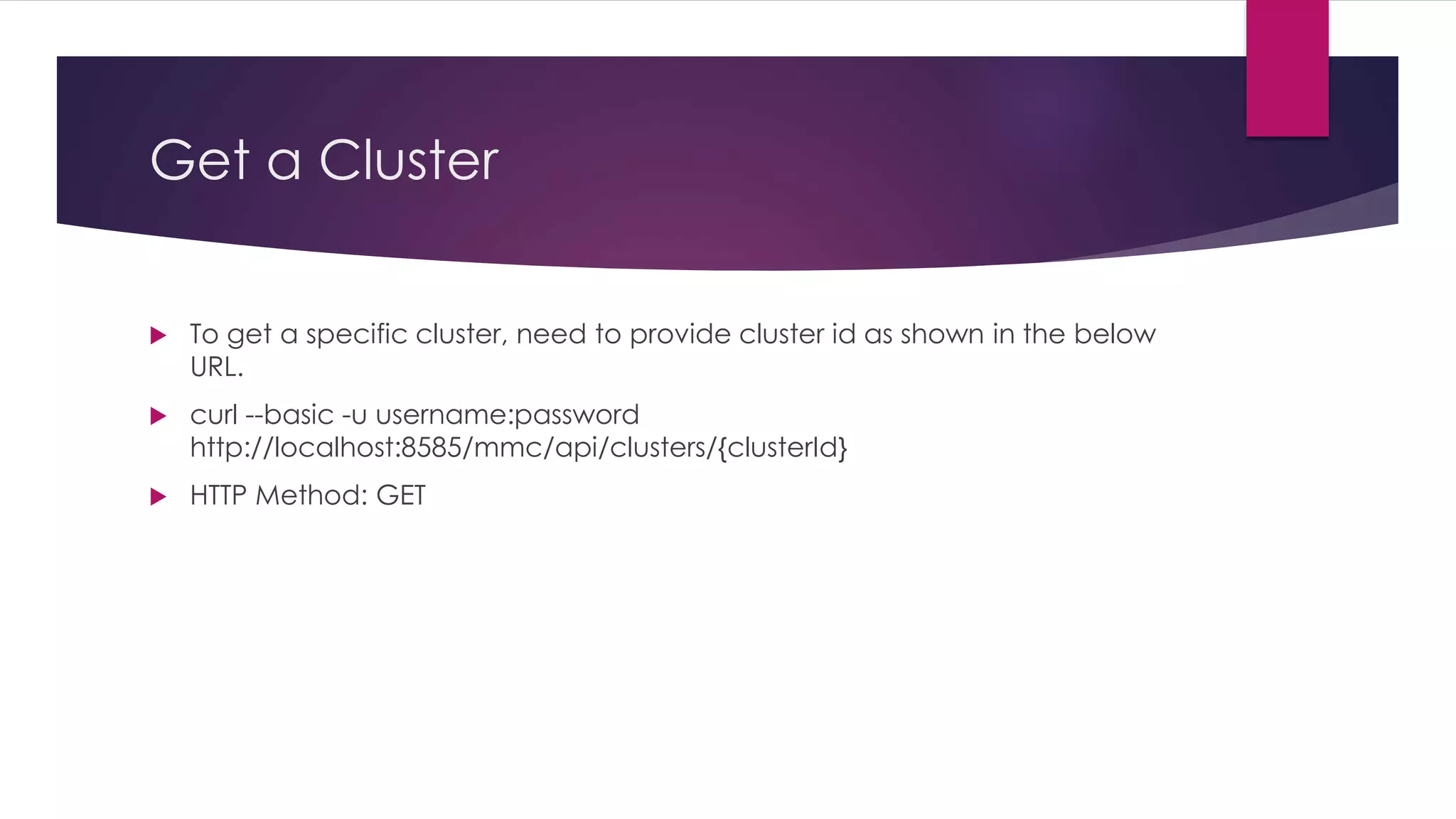

5. Get a Cluster
 To get a specific cluster, need to provide cluster id as shown in the below
URL.
 curl --basic -u username:password
http://localhost:8585/mmc/api/clusters/{clusterId}
 HTTP Method: GET

6. Cluster Status
 To get the status of a cluster, need to provide the cluster id as shown in the
below URL.
 curl --basic -u username:password
http://localhost:8585/mmc/api/clusters/{clusterId}/status
 HTTP Method: GET

7. Disband a Cluster
 To disband(delete) a cluster, need to provide the cluster Id as shown in the
below URL.
 curl --basic -u username:password -X DELETE
http://localhost:8585/mmc/api/clusters/{clusterId}
 HTTP Method: DELETE

8. Restart a Cluster
 To restart the Cluster, need to provide the cluster Id as shown in the below
URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/restart
 HTTP Method: POST

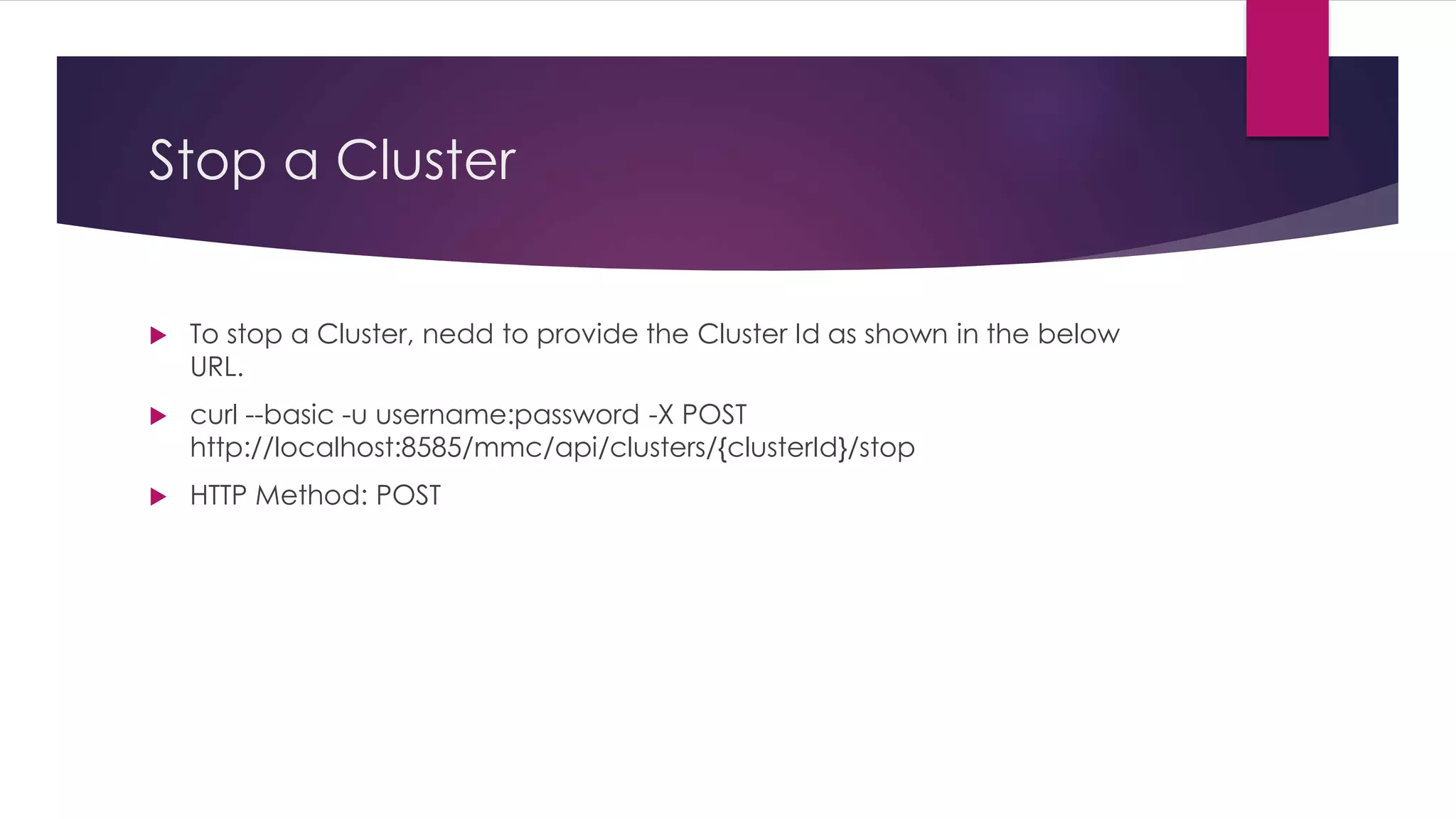

9. Stop a Cluster
 To stop a Cluster, nedd to provide the Cluster Id as shown in the below
URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/stop
 HTTP Method: POST

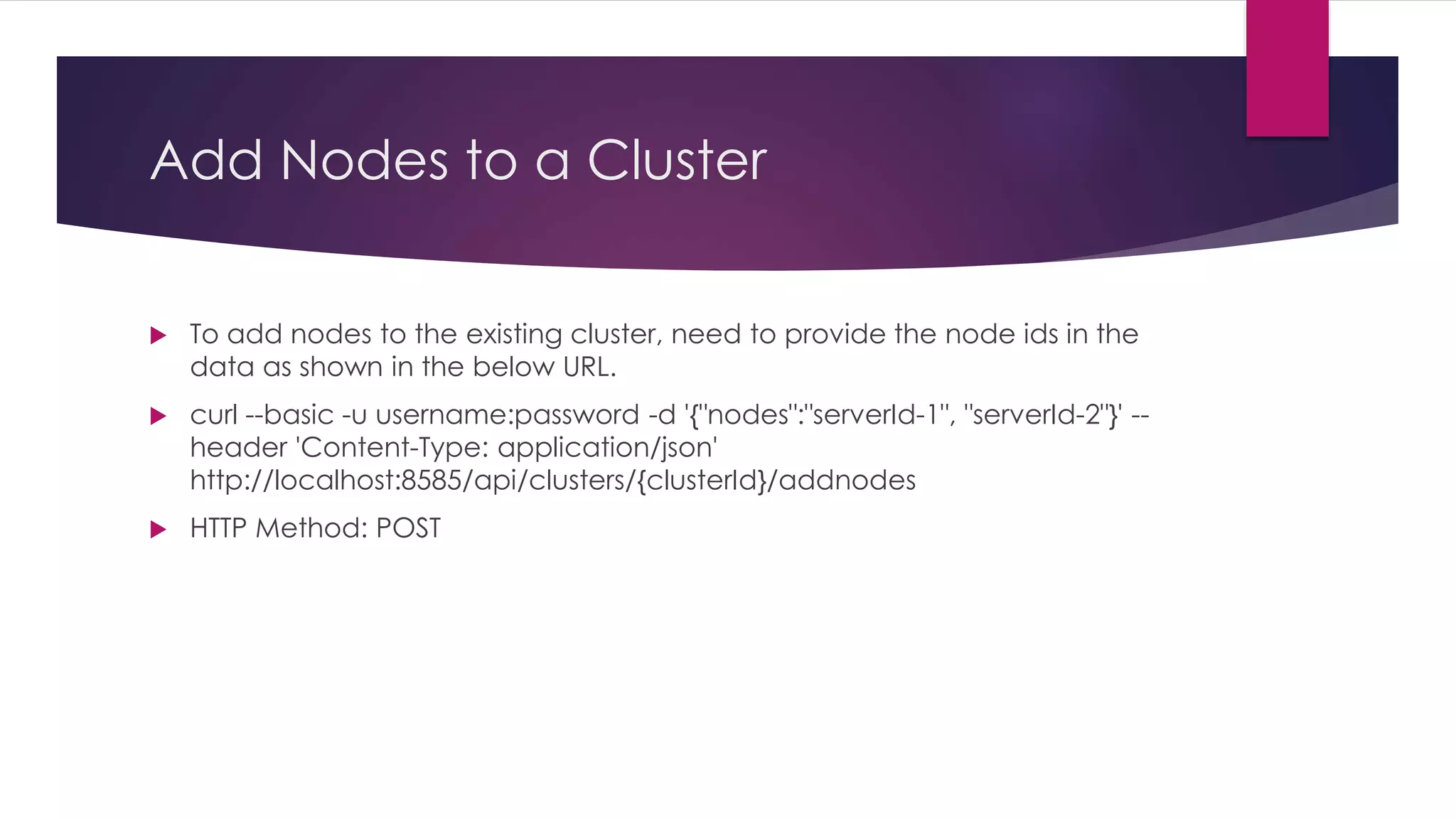

10. Add Nodes to a Cluster
 To add nodes to the existing cluster, need to provide the node ids in the
data as shown in the below URL.
 curl --basic -u username:password -d '{"nodes":"serverId-1", "serverId-2"}' --
header 'Content-Type: application/json'
http://localhost:8585/api/clusters/{clusterId}/addnodes
 HTTP Method: POST

11. Remove Nodes from a Cluster
 To remove nodes on a Cluster, need to provide the node ids of the cluster
as shown in the below URL.
 curl --basic -u username:password -d '{"nodes":"serverId-1", "serverId-2"}' --
header 'Content-Type: application/json'
http://localhost:8585/api/clusters/{clusterId}/removenodes
 HTTP Method: POST

12. Get All Applications on Cluster
 To get all applications on a cluster, need to provide the cluster id as shown
in the below URL.
 curl --basic -u username:password
http://localhost:8585/mmc/api/clusters/{clusterId}/applications
 HTTP Method: GET

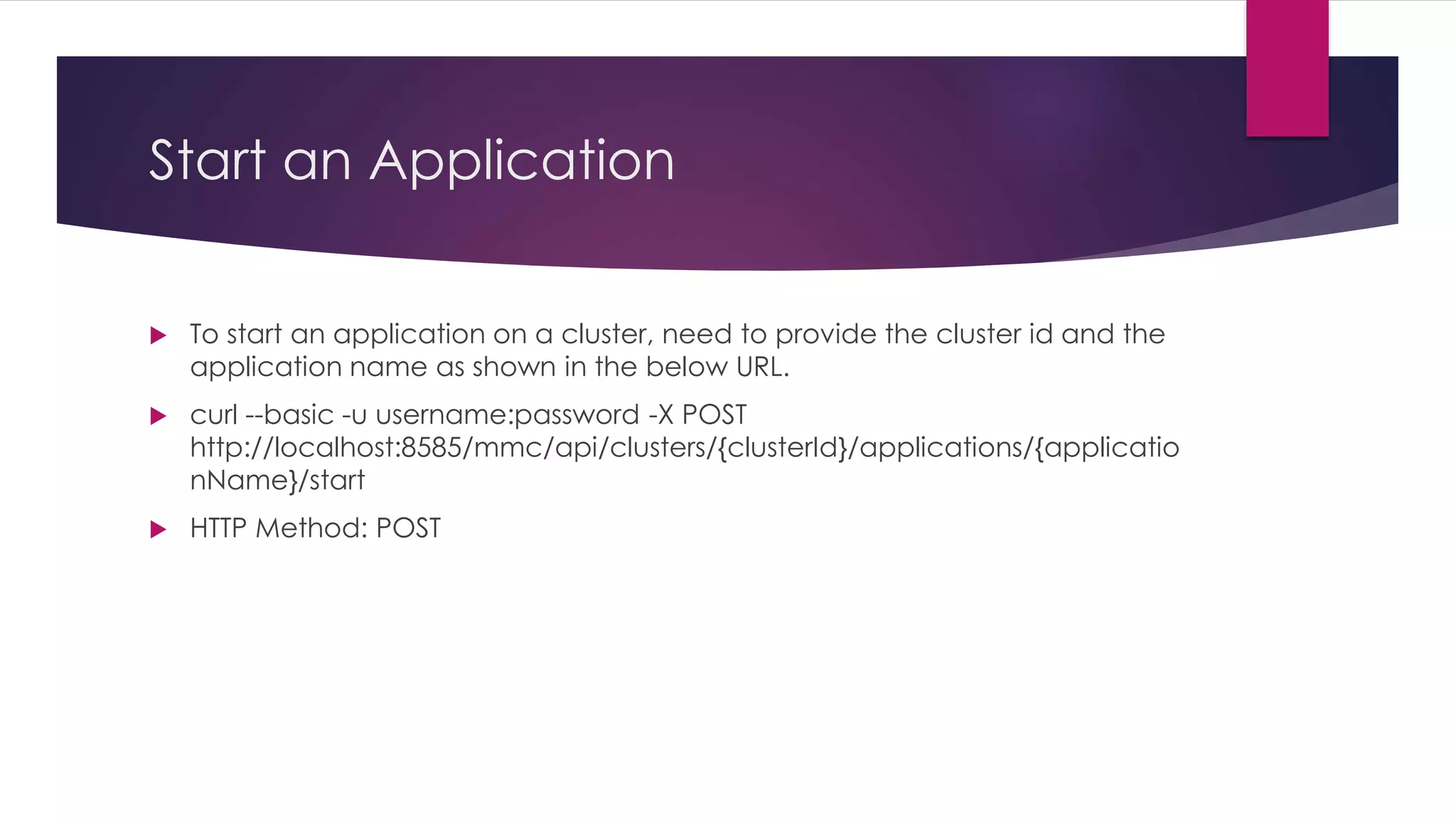

13. Start an Application
 To start an application on a cluster, need to provide the cluster id and the
application name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/applications/{applicatio
nName}/start
 HTTP Method: POST

14. Restart an Application
 To restart an application on a cluster, need to provide the cluster id and
application name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/applications/{applicatio
nName}/restart
 HTTP Method: POST

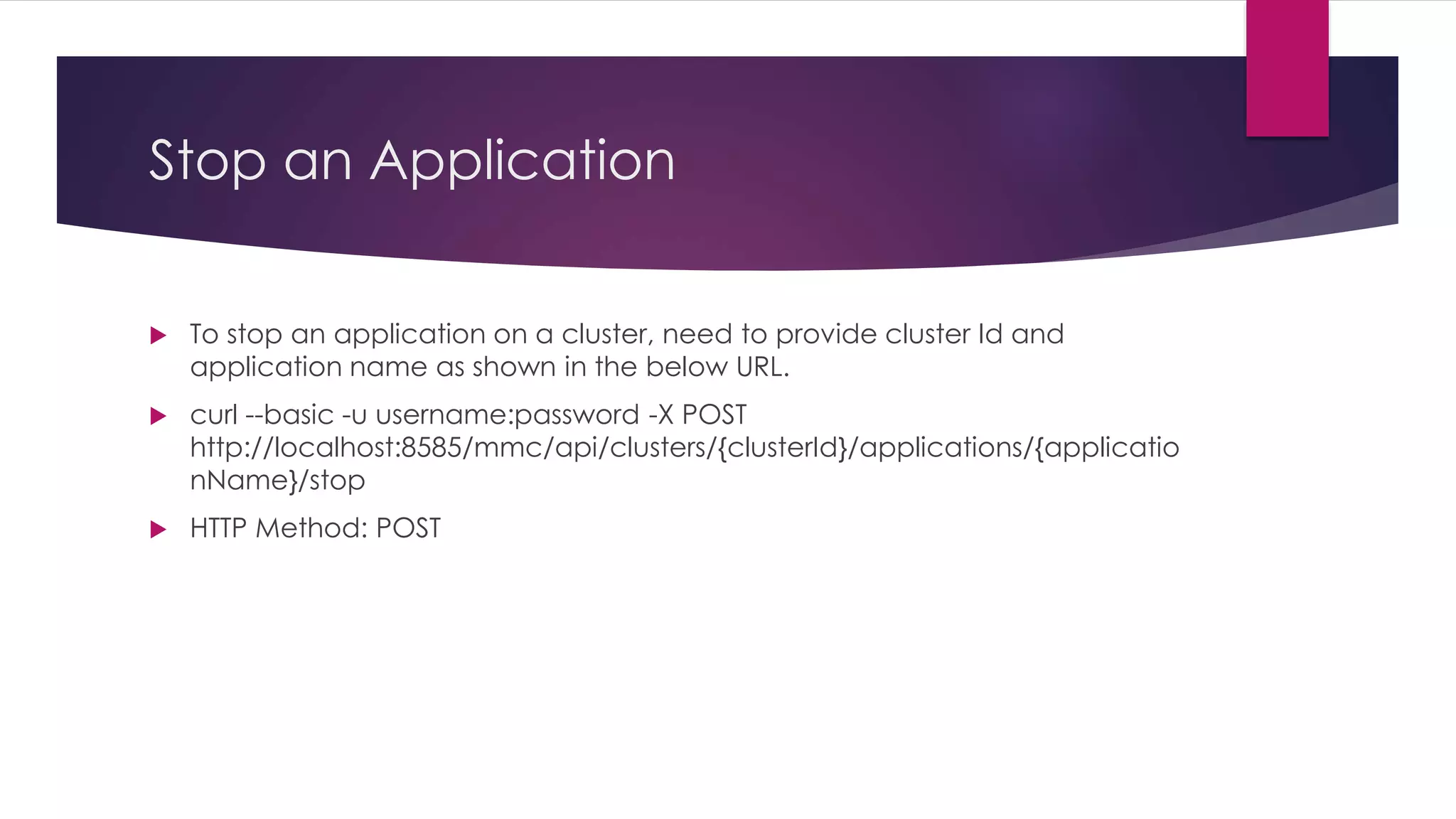

15. Stop an Application
 To stop an application on a cluster, need to provide cluster Id and
application name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/applications/{applicatio
nName}/stop
 HTTP Method: POST

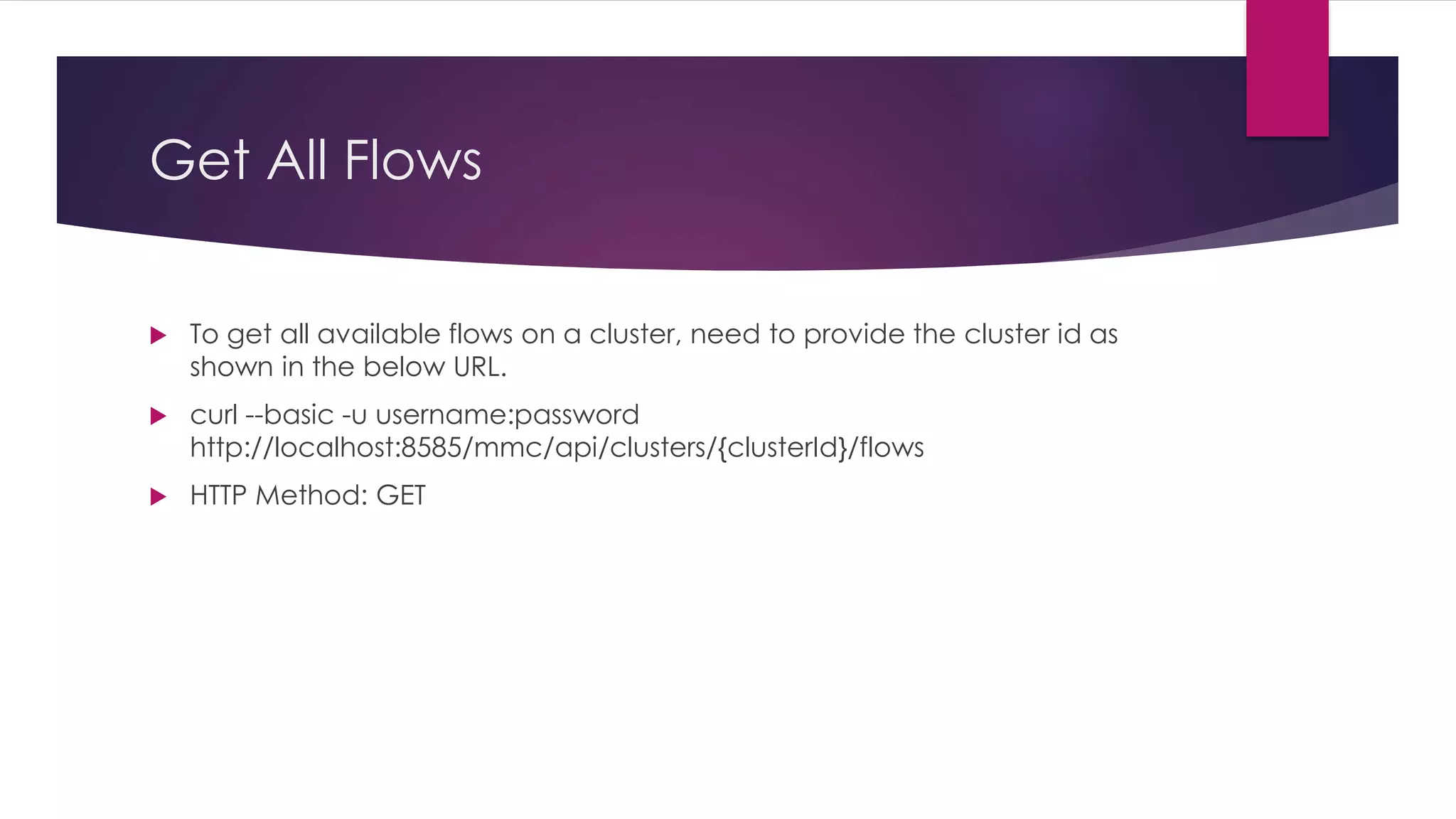

16. Get All Flows
 To get all available flows on a cluster, need to provide the cluster id as
shown in the below URL.
 curl --basic -u username:password
http://localhost:8585/mmc/api/clusters/{clusterId}/flows
 HTTP Method: GET

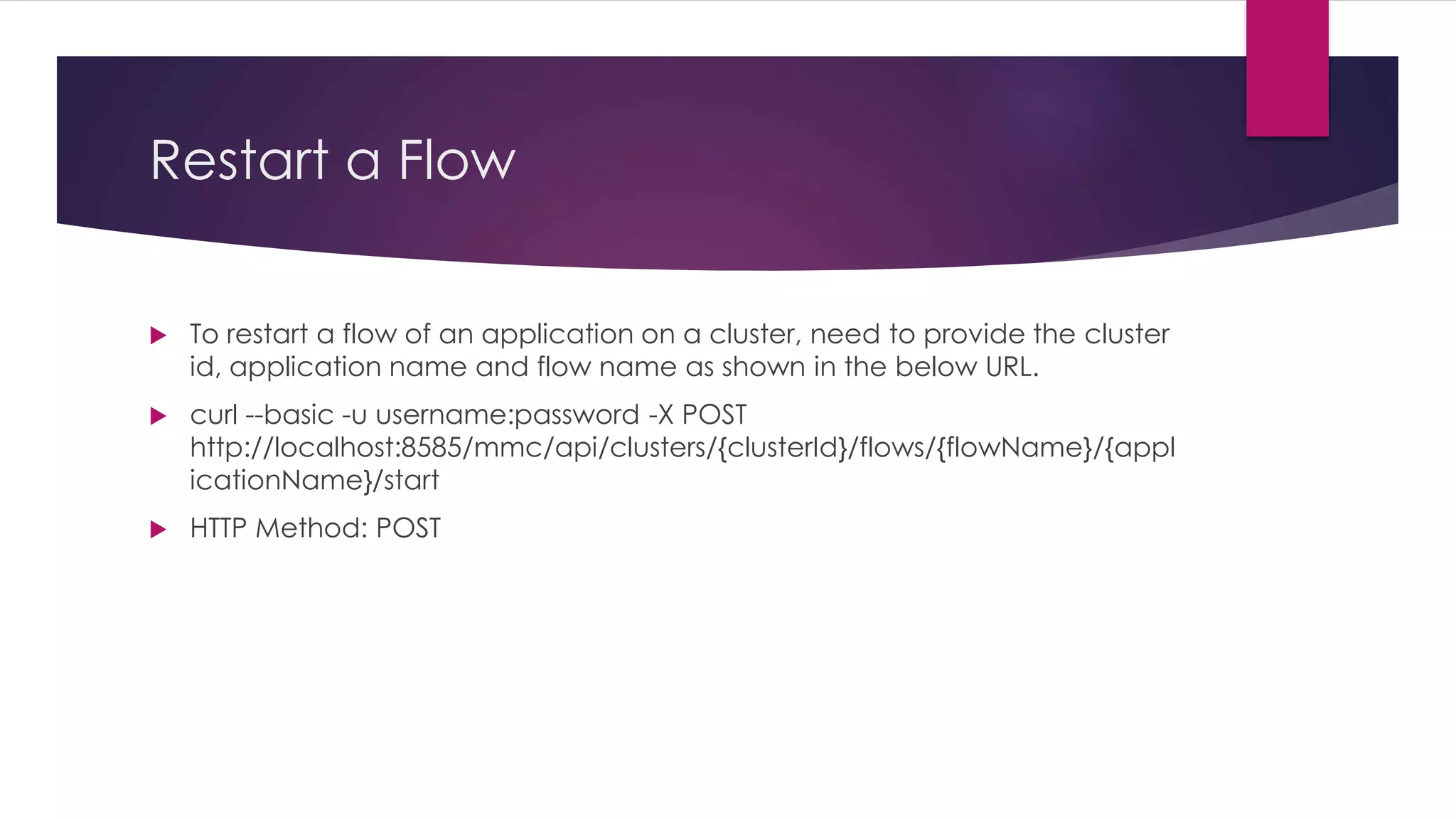

17. Restart a Flow
 To restart a flow of an application on a cluster, need to provide the cluster
id, application name and flow name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/start
 HTTP Method: POST

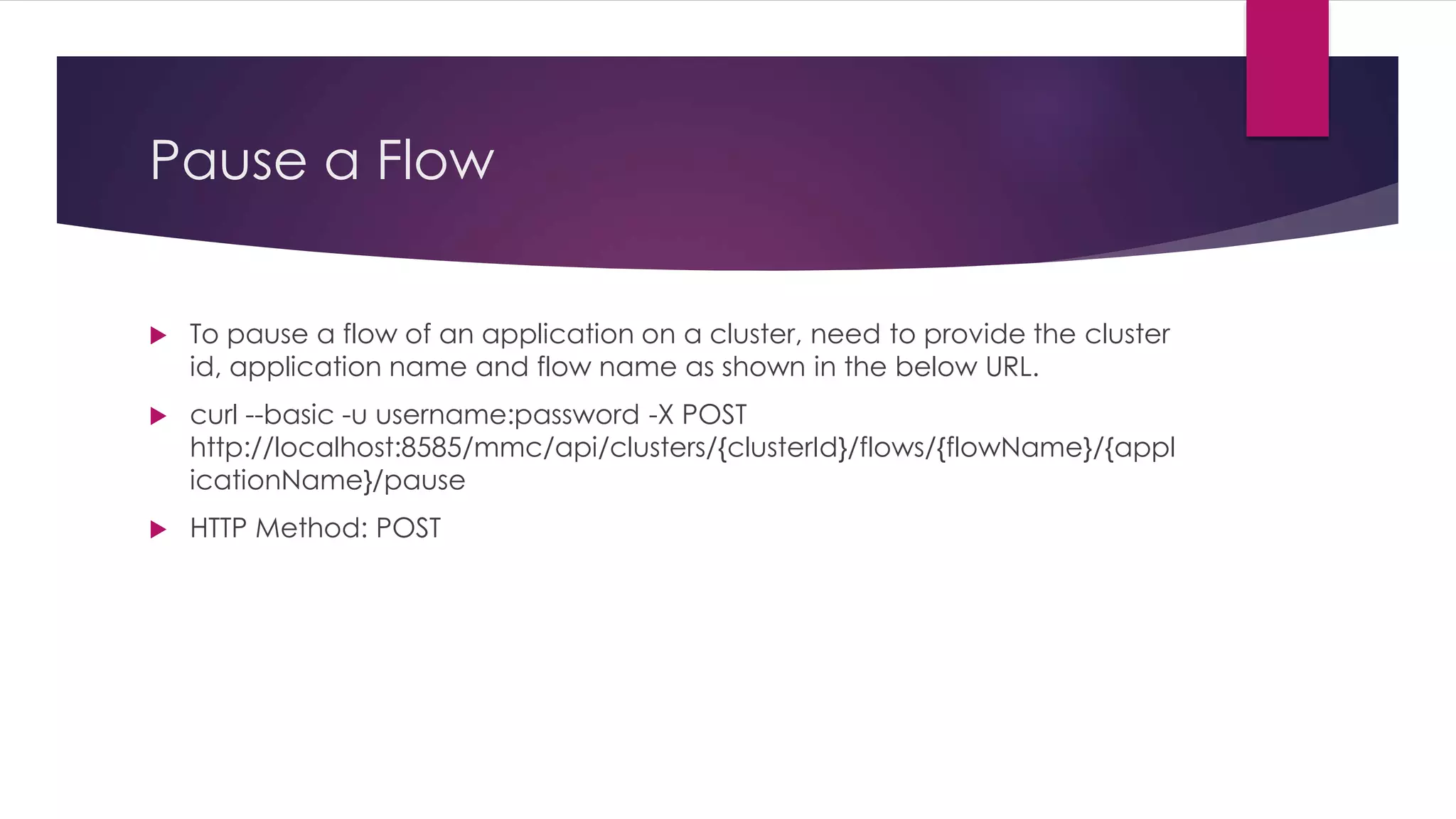

18. Pause a Flow
 To pause a flow of an application on a cluster, need to provide the cluster
id, application name and flow name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/pause
 HTTP Method: POST

19. Stop a Flow
 To stop a flow of an application on a cluster, need to provide the cluster
id, application name and flow name as shown in the below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/stop
 HTTP Method: POST

20. Get All Endpoints
 To get all flow endpoints from an application on a cluster, need to provide
the cluster id, application name and flow name as shown in the below
URL.
 curl --basic -u username:password
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/endpoints
 HTTP Method: GET

21. Start an Endpoint
 To start an flow endpoint in the application on cluster, need to provide the
cluster id, application name, flow name and endpoint id as shown in the
below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/endpoints/{endpointId}/start
 HTTP Method: POST

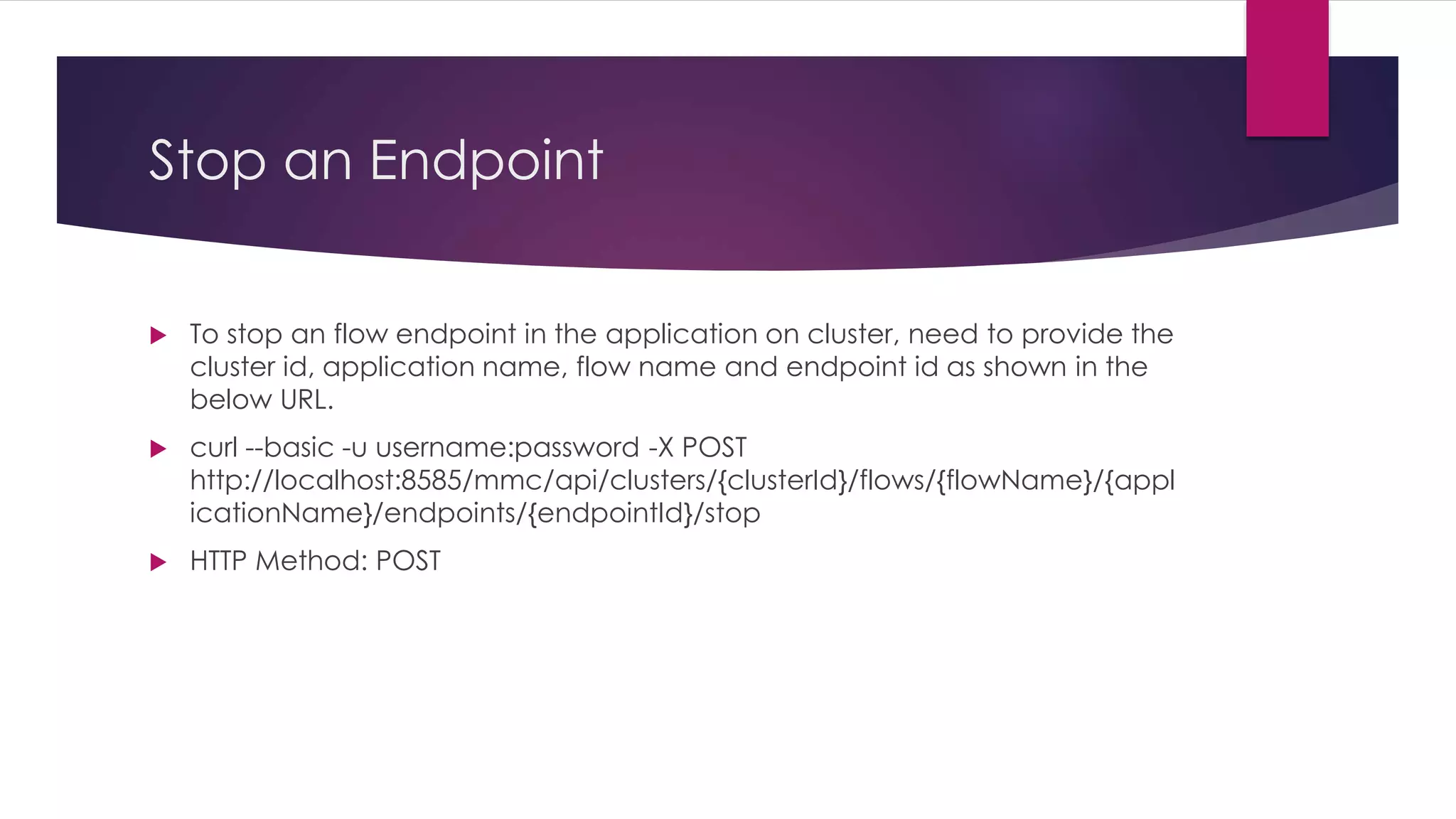

22. Stop an Endpoint
 To stop an flow endpoint in the application on cluster, need to provide the
cluster id, application name, flow name and endpoint id as shown in the
below URL.
 curl --basic -u username:password -X POST
http://localhost:8585/mmc/api/clusters/{clusterId}/flows/{flowName}/{appl
icationName}/endpoints/{endpointId}/stop
 HTTP Method: POST

23. References
 https://docs.mulesoft.com/mule-management-console/v/3.7/clusters
 https://docs.mulesoft.com/mule-management-console/v/3.4/managing-
mule-high-availability-ha-clusters
 https://docs.mulesoft.com/mule-management-console/v/3.4/creating-or-
disbanding-a-cluster
