- 1. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Compliance and Security Mitigation Techniques on AWS Ric Harvey, Technical Developer Evangelist @ric__harvey https://gitlab.com/ric_harvey
- 2. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Back to Basics
- 3. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Identity Access Management (IAM) Ensure only authorized and authenticated users are able to access resources: • Define users, groups, services and roles • Protect AWS credentials • Use fine grained authorization/access control

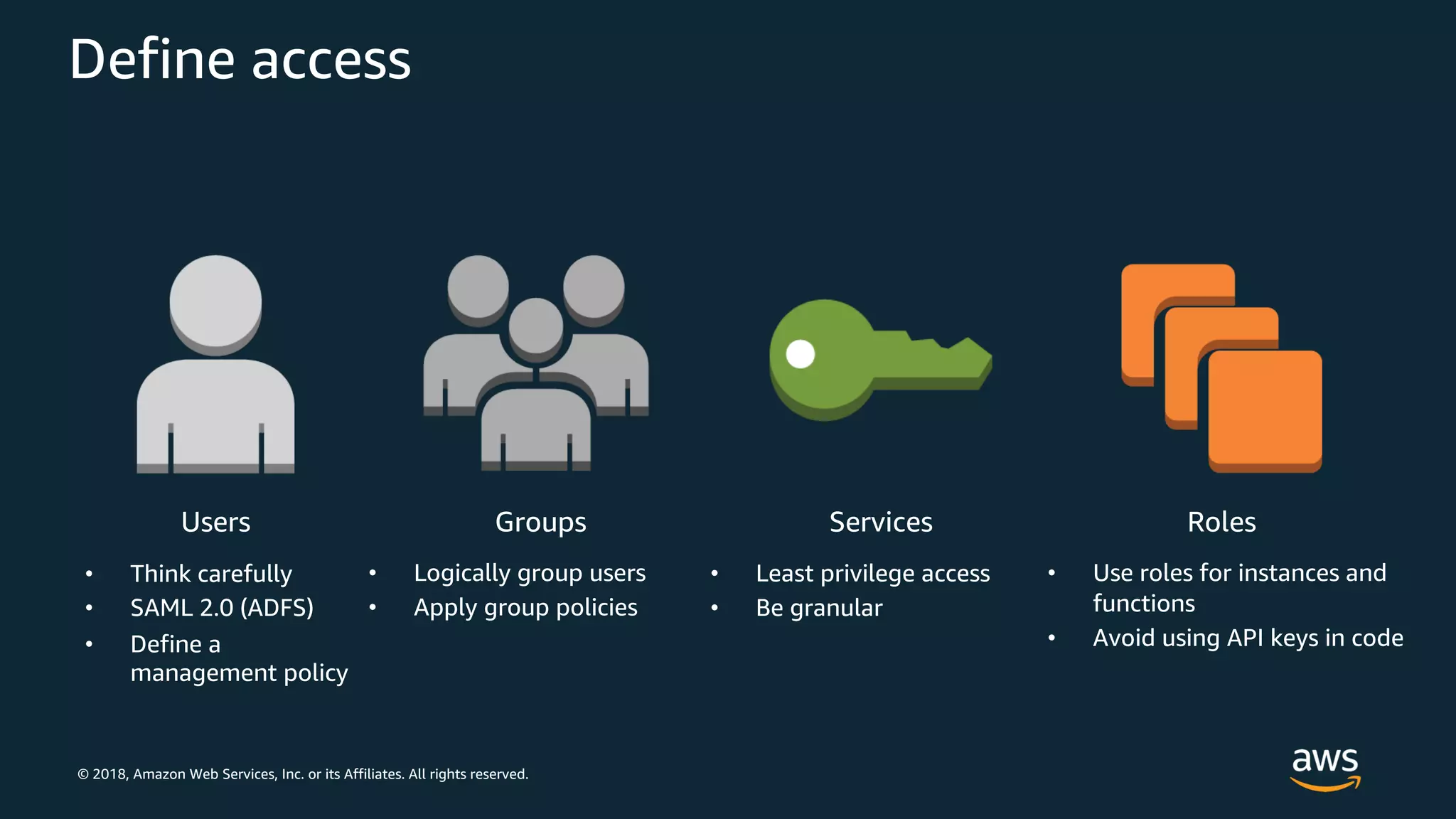

- 4. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Define access Users Groups Services Roles • Think carefully • SAML 2.0 (ADFS) • Define a management policy • Logically group users • Apply group policies • Least privilege access • Be granular • Use roles for instances and functions • Avoid using API keys in code

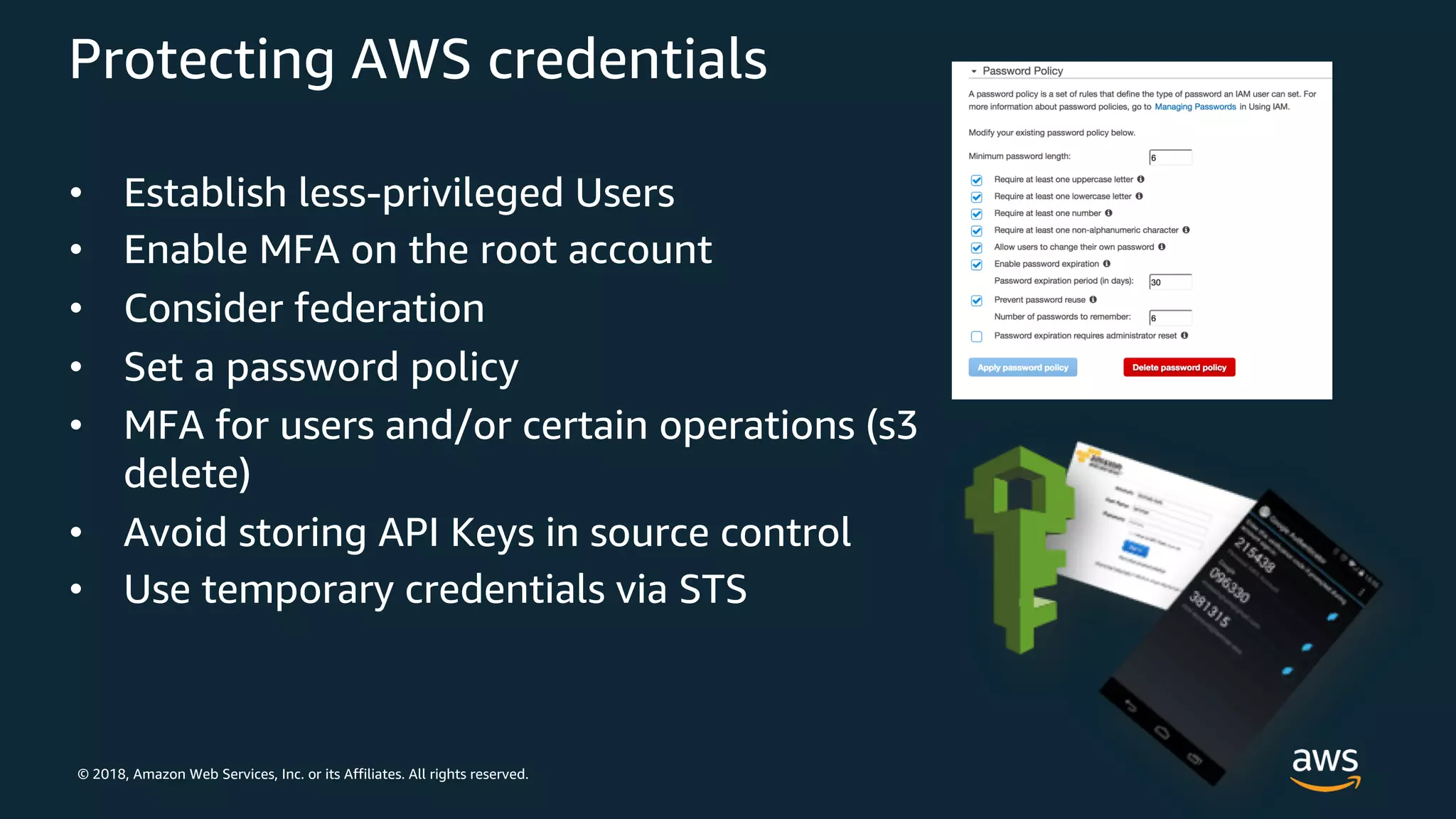

- 5. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Protecting AWS credentials • Establish less-privileged Users • Enable MFA on the root account • Consider federation • Set a password policy • MFA for users and/or certain operations (s3 delete) • Avoid storing API Keys in source control • Use temporary credentials via STS

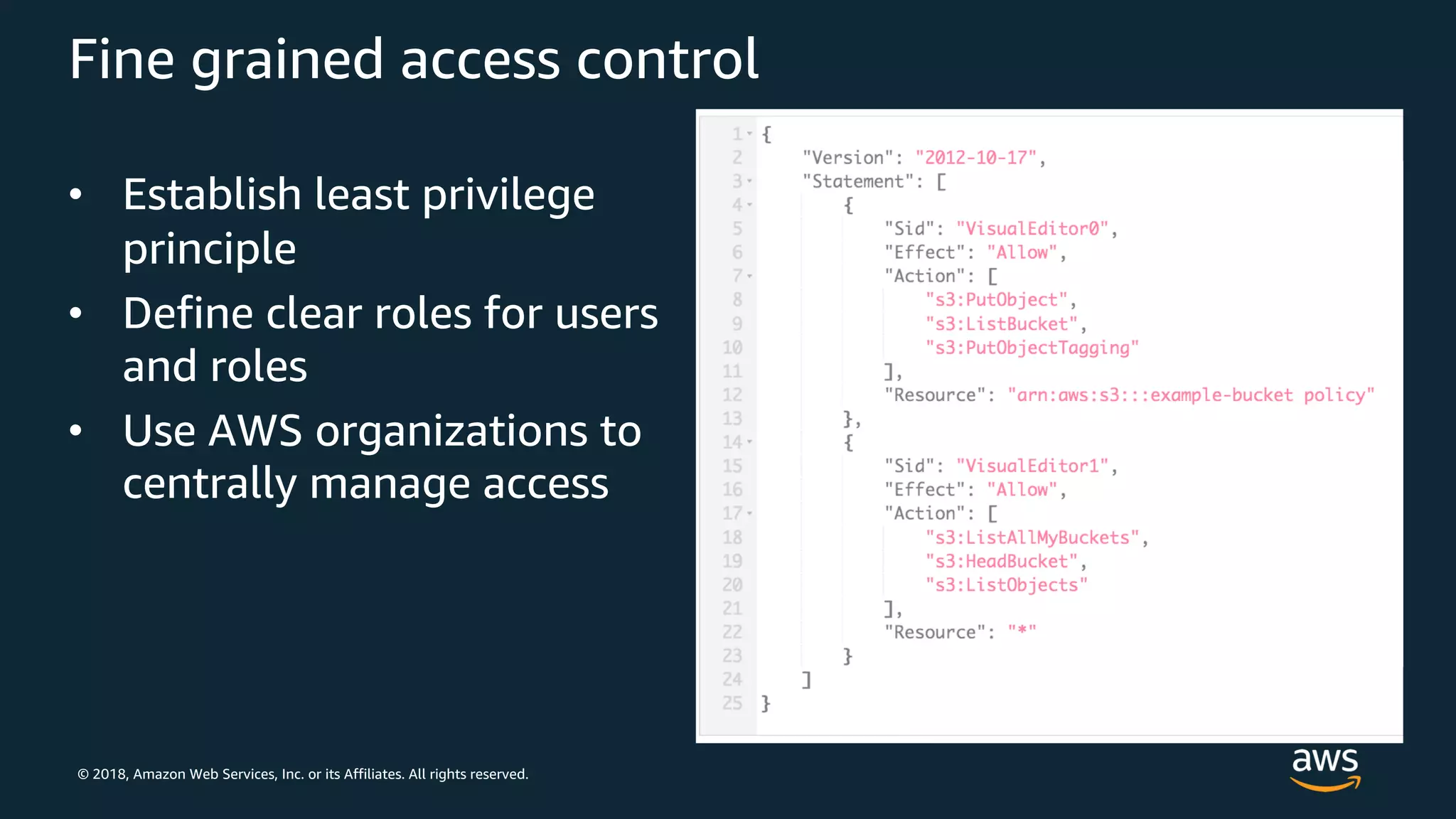

- 6. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Fine grained access control • Establish least privilege principle • Define clear roles for users and roles • Use AWS organizations to centrally manage access

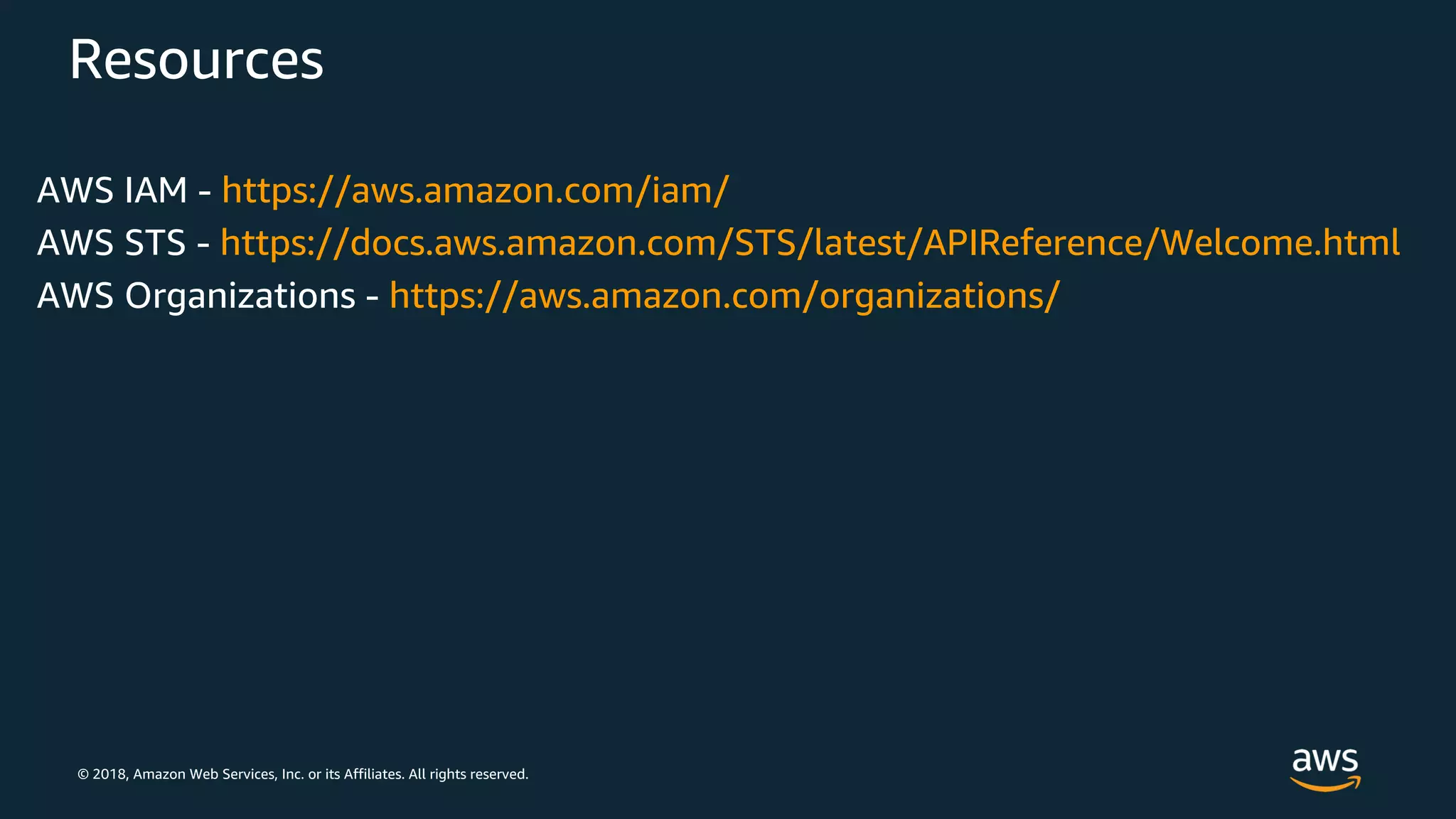

- 7. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Resources AWS IAM - https://aws.amazon.com/iam/ AWS STS - https://docs.aws.amazon.com/STS/latest/APIReference/Welcome.html AWS Organizations - https://aws.amazon.com/organizations/
- 8. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. VPC and Subnetting

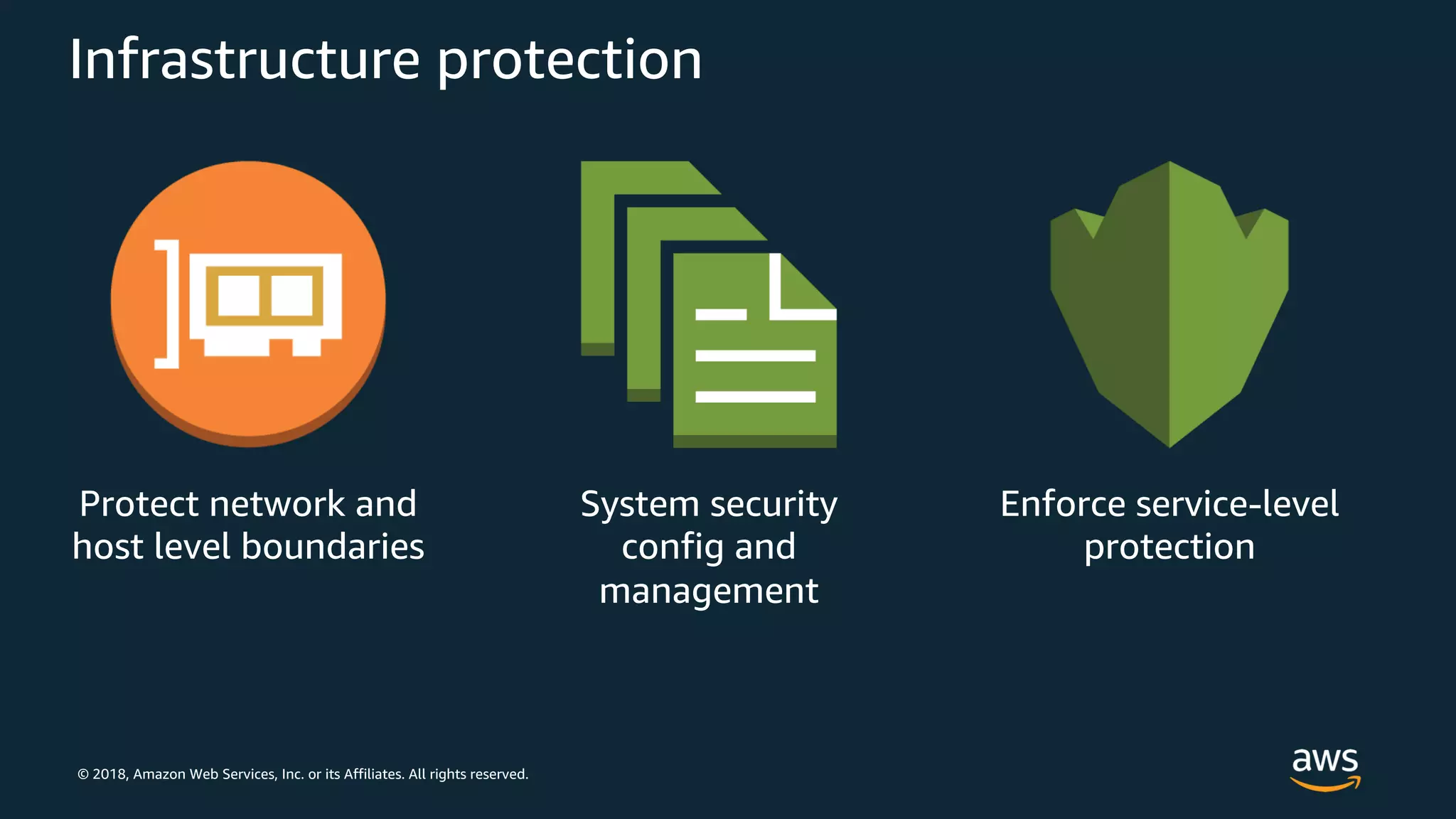

- 9. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Infrastructure protection Protect network and host level boundaries System security config and management Enforce service-level protection

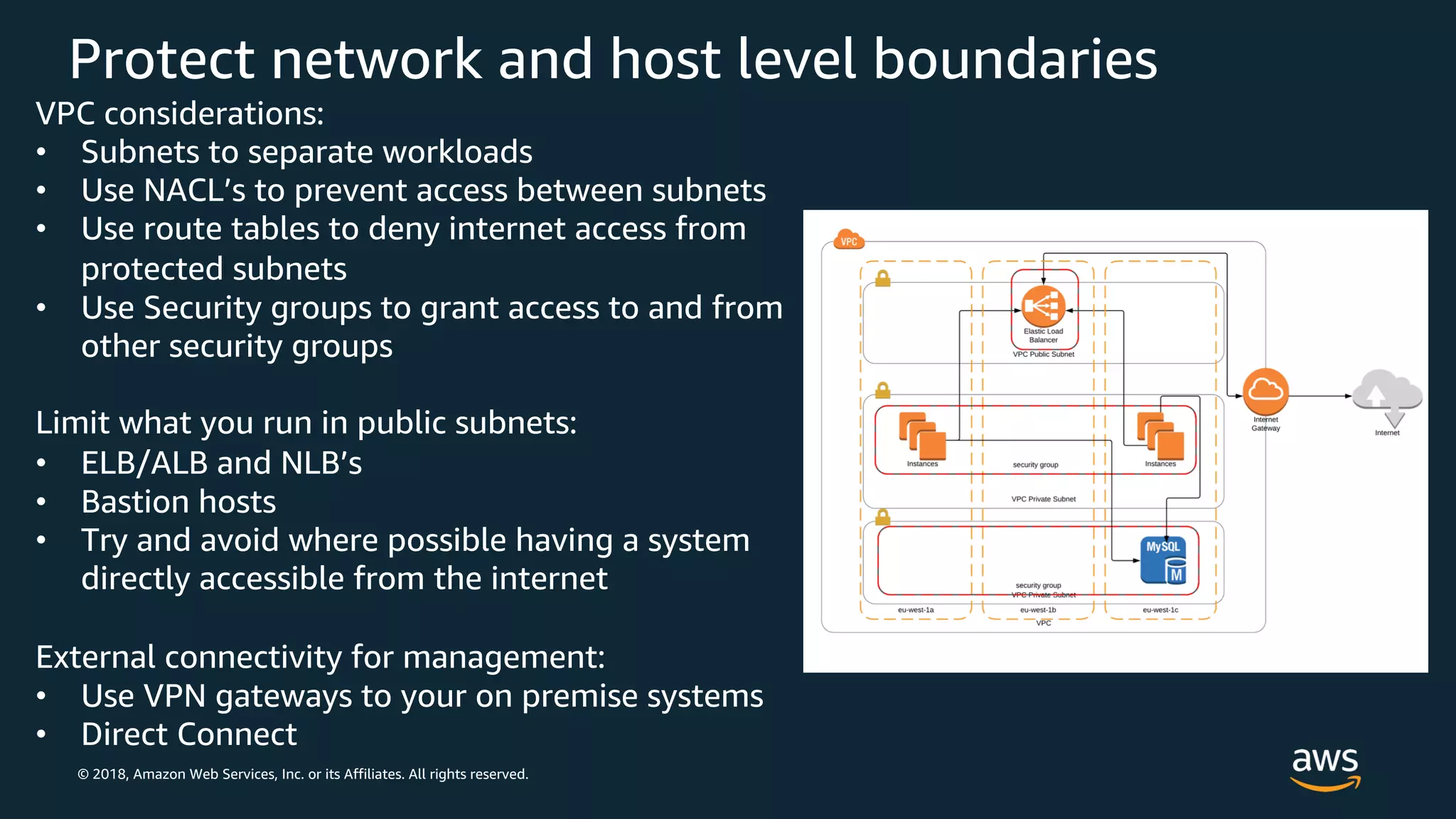

- 10. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Protect network and host level boundaries VPC considerations: • Subnets to separate workloads • Use NACL’s to prevent access between subnets • Use route tables to deny internet access from protected subnets • Use Security groups to grant access to and from other security groups Limit what you run in public subnets: • ELB/ALB and NLB’s • Bastion hosts • Try and avoid where possible having a system directly accessible from the internet External connectivity for management: • Use VPN gateways to your on premise systems • Direct Connect
- 11. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. CloudTrail

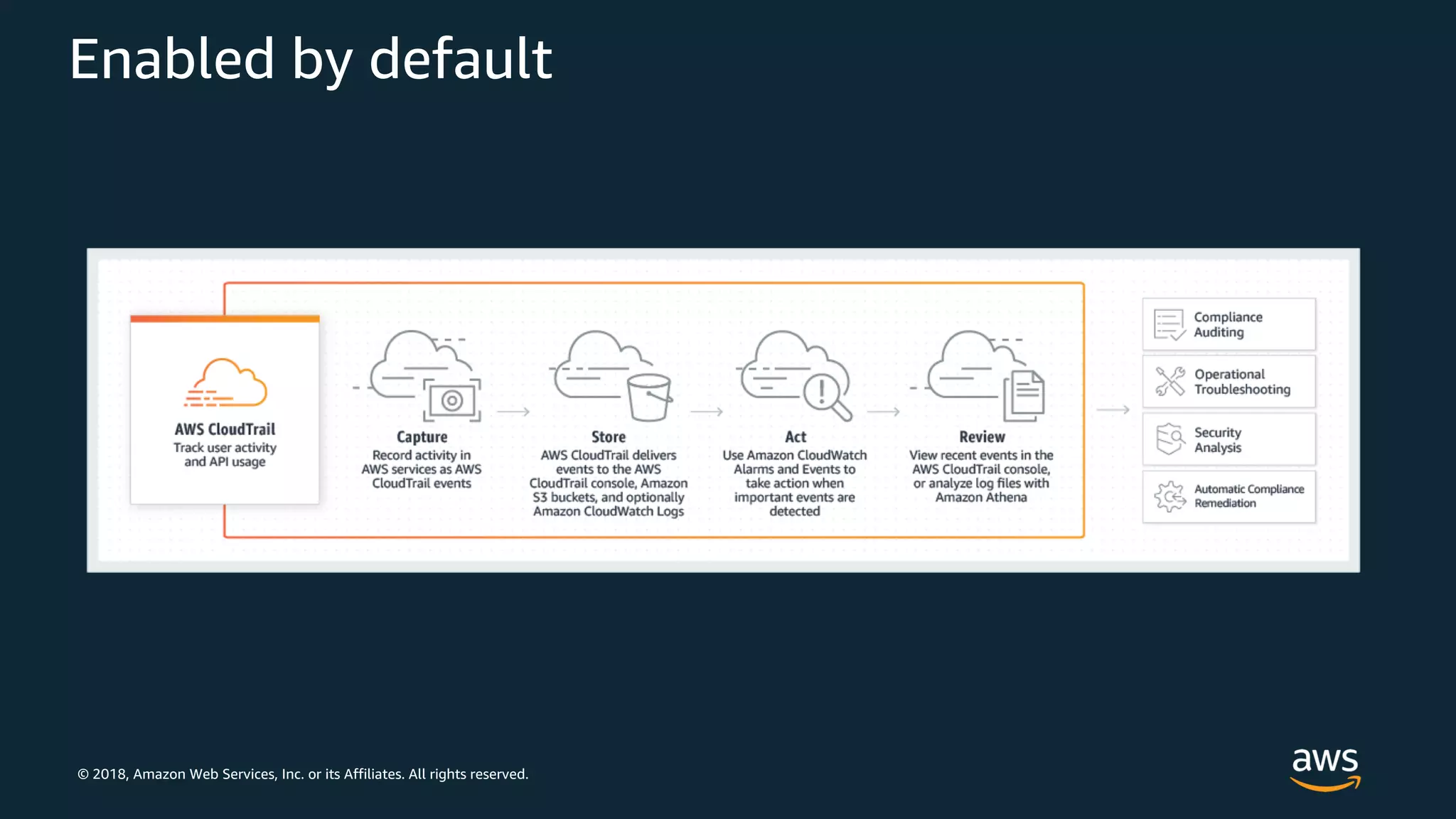

- 12. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Enabled by default
- 13. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. GuardDuty
- 14. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Genera lly a va ila ble toda y

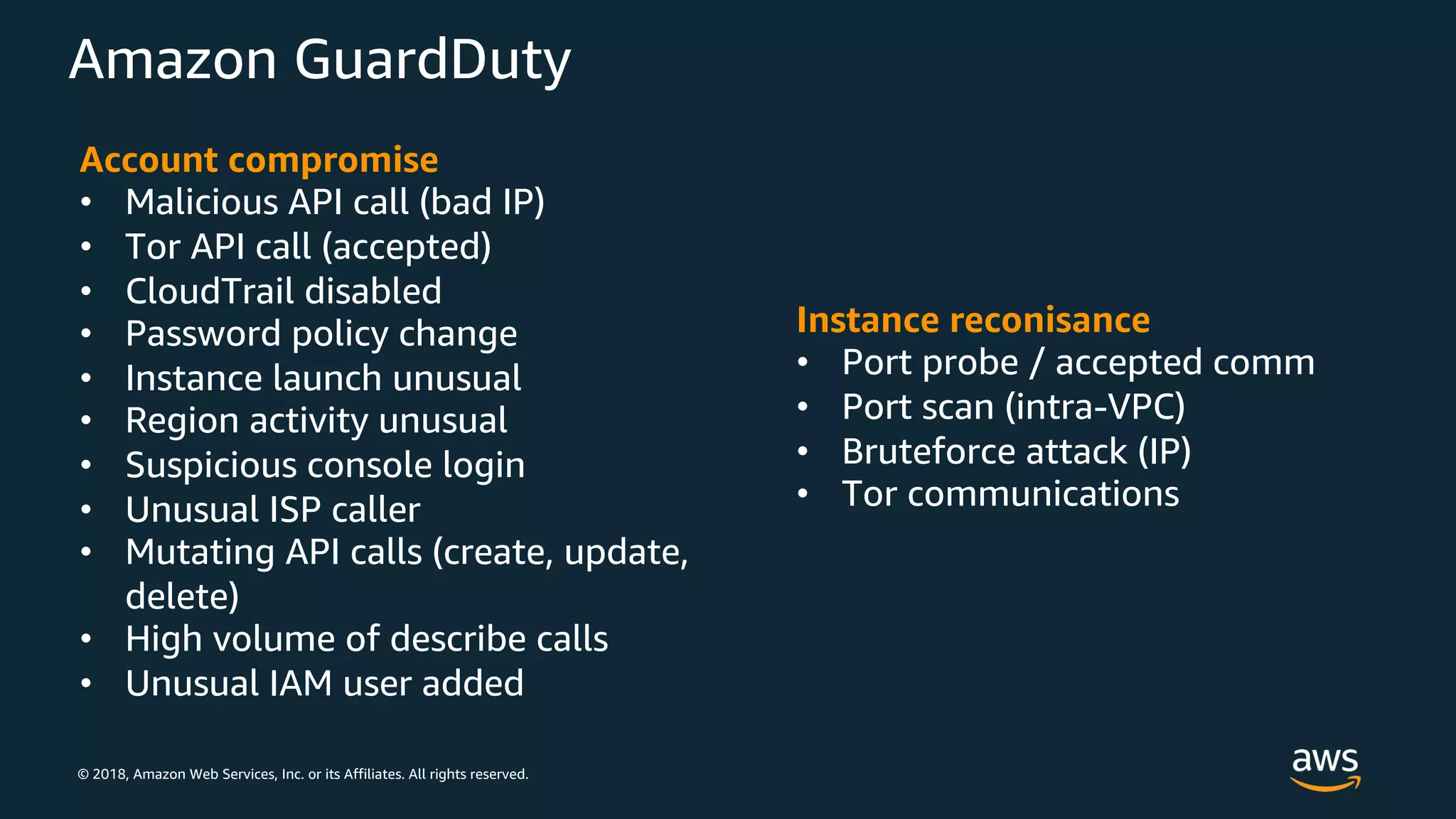

- 15. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Instance reconisance • Port probe / accepted comm • Port scan (intra-VPC) • Bruteforce attack (IP) • Tor communications Account compromise • Malicious API call (bad IP) • Tor API call (accepted) • CloudTrail disabled • Password policy change • Instance launch unusual • Region activity unusual • Suspicious console login • Unusual ISP caller • Mutating API calls (create, update, delete) • High volume of describe calls • Unusual IAM user added

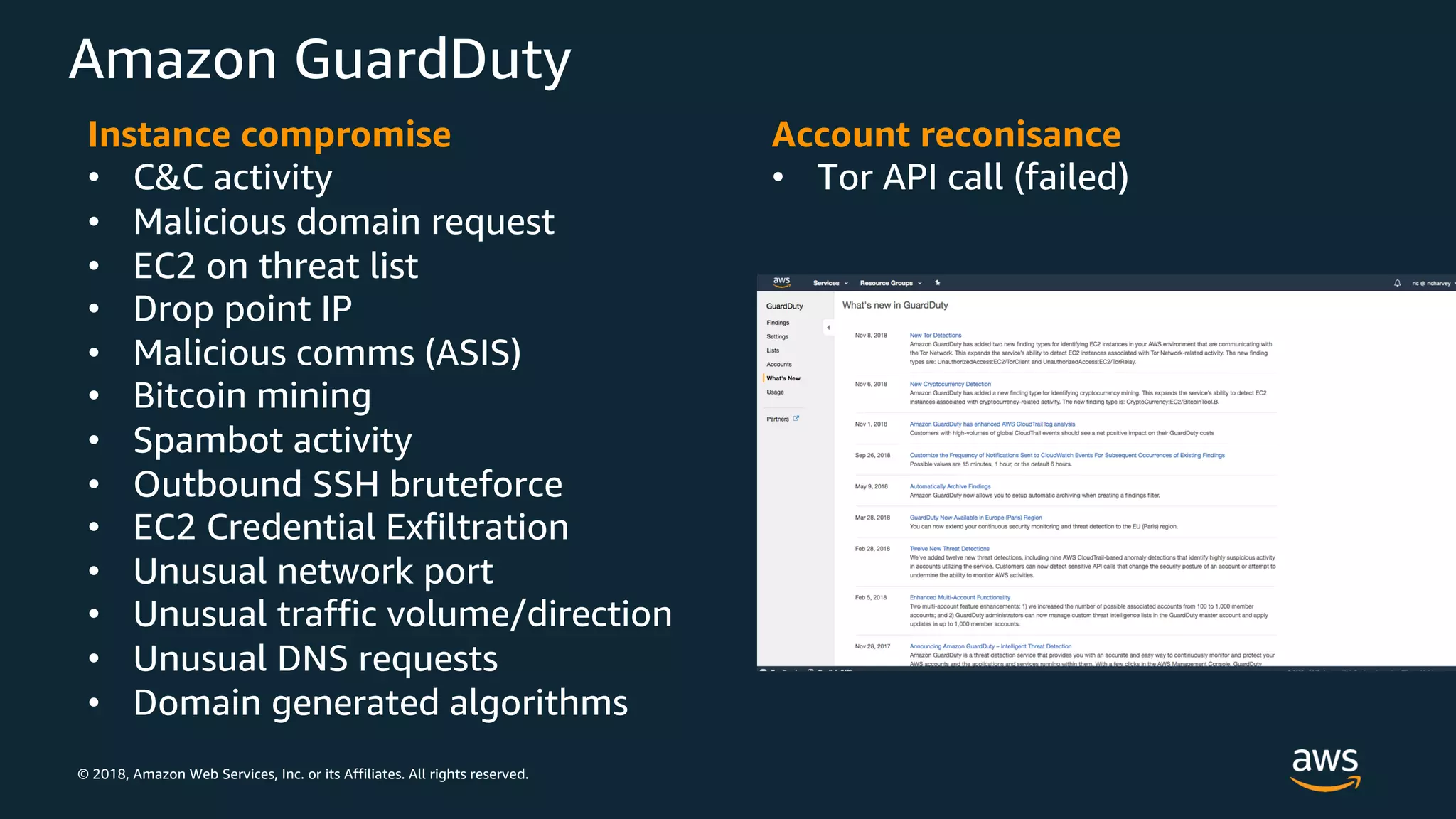

- 16. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Instance compromise • C&C activity • Malicious domain request • EC2 on threat list • Drop point IP • Malicious comms (ASIS) • Bitcoin mining • Spambot activity • Outbound SSH bruteforce • EC2 Credential Exfiltration • Unusual network port • Unusual traffic volume/direction • Unusual DNS requests • Domain generated algorithms Account reconisance • Tor API call (failed)

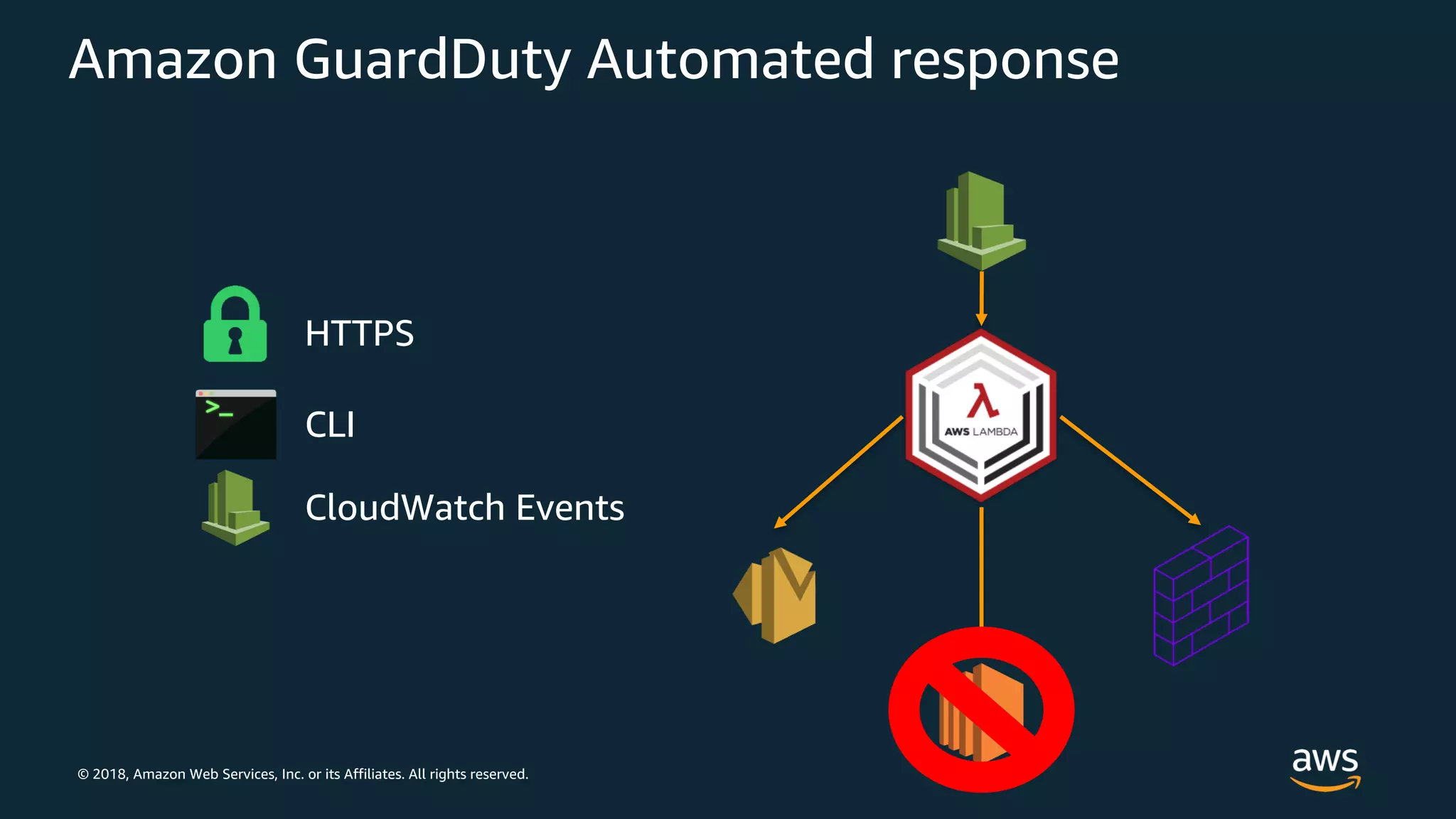

- 17. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Automated response HTTPS CLI CloudWatch Events

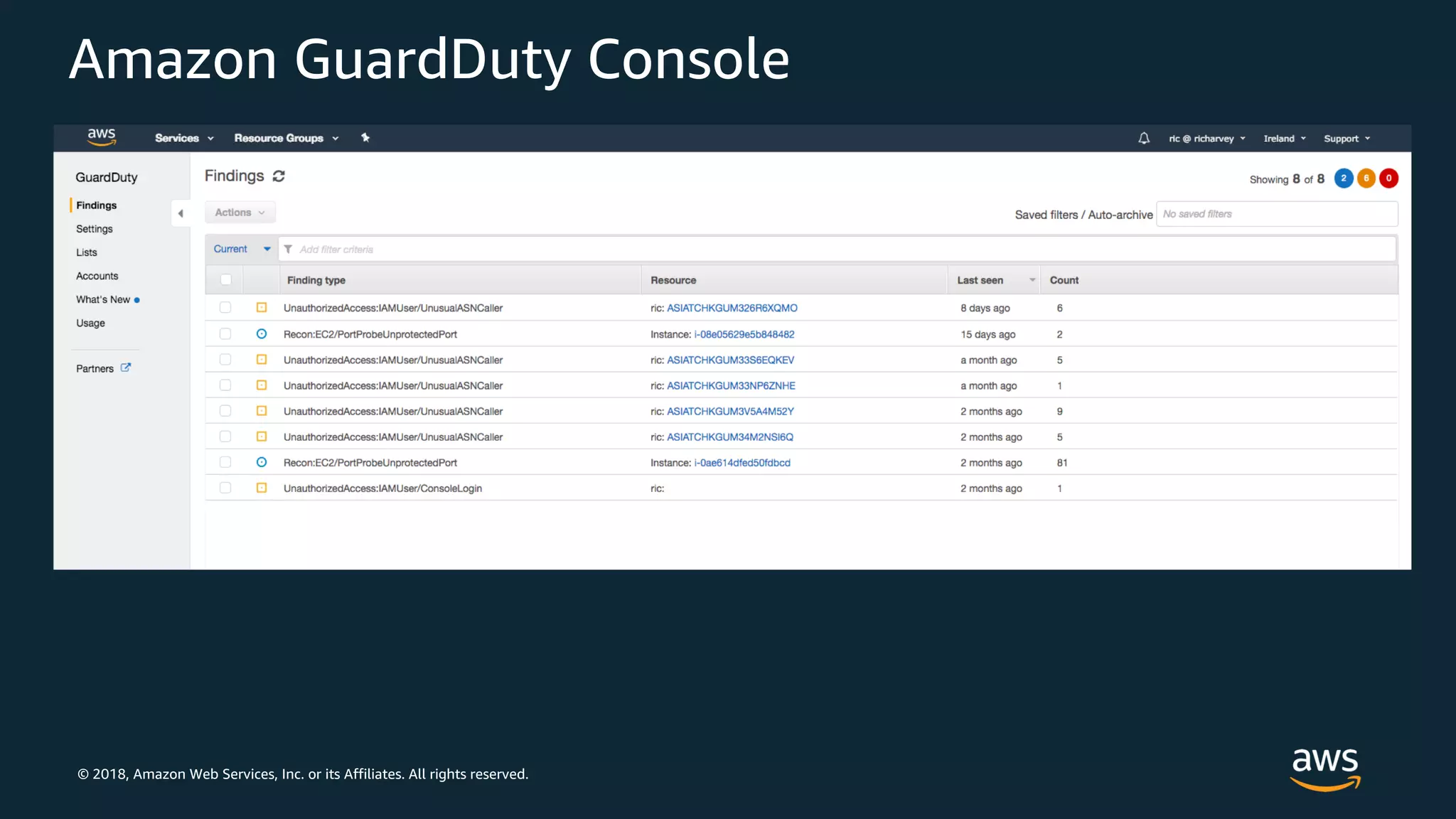

- 18. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Console

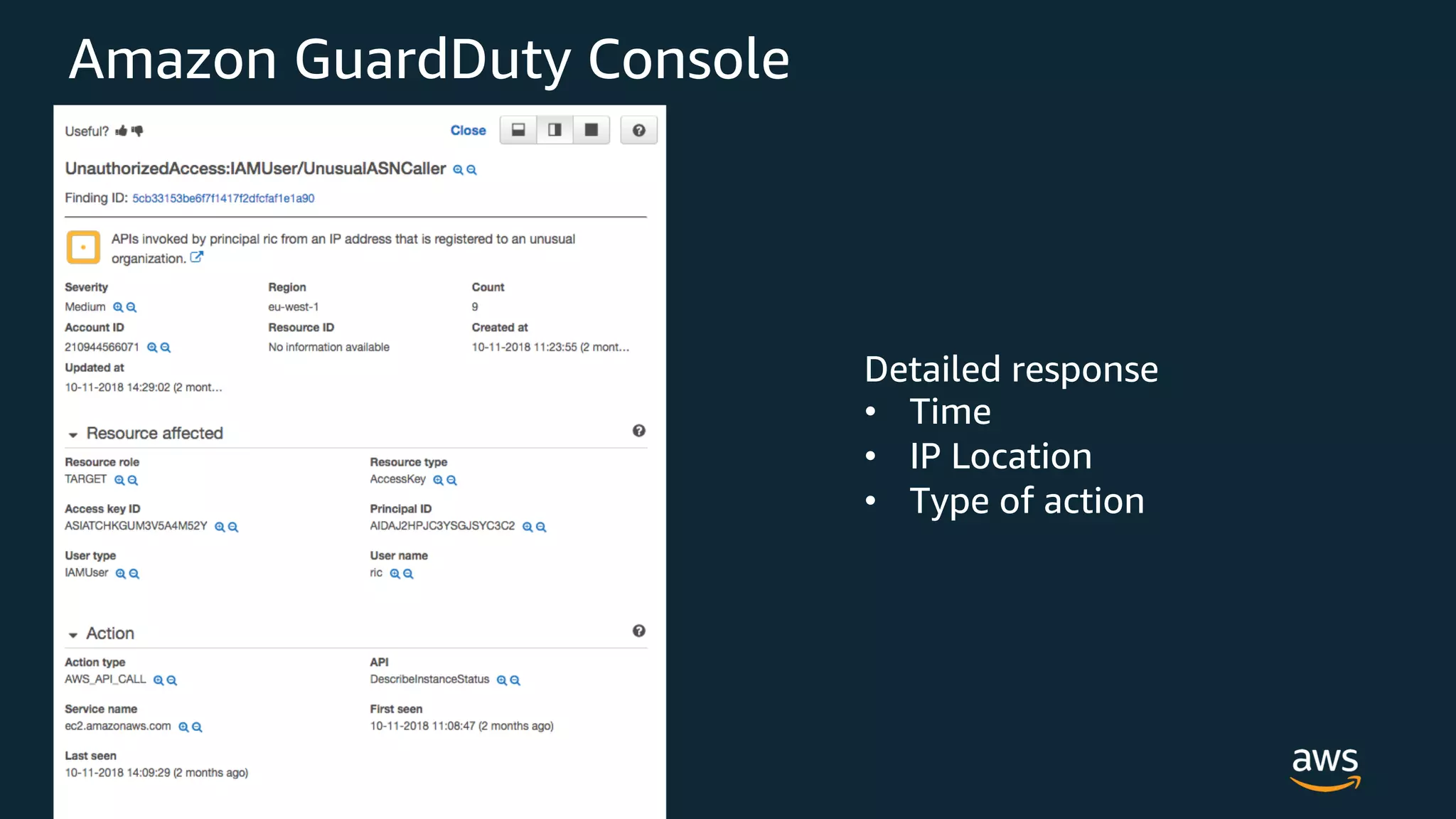

- 19. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Console Detailed response • Time • IP Location • Type of action

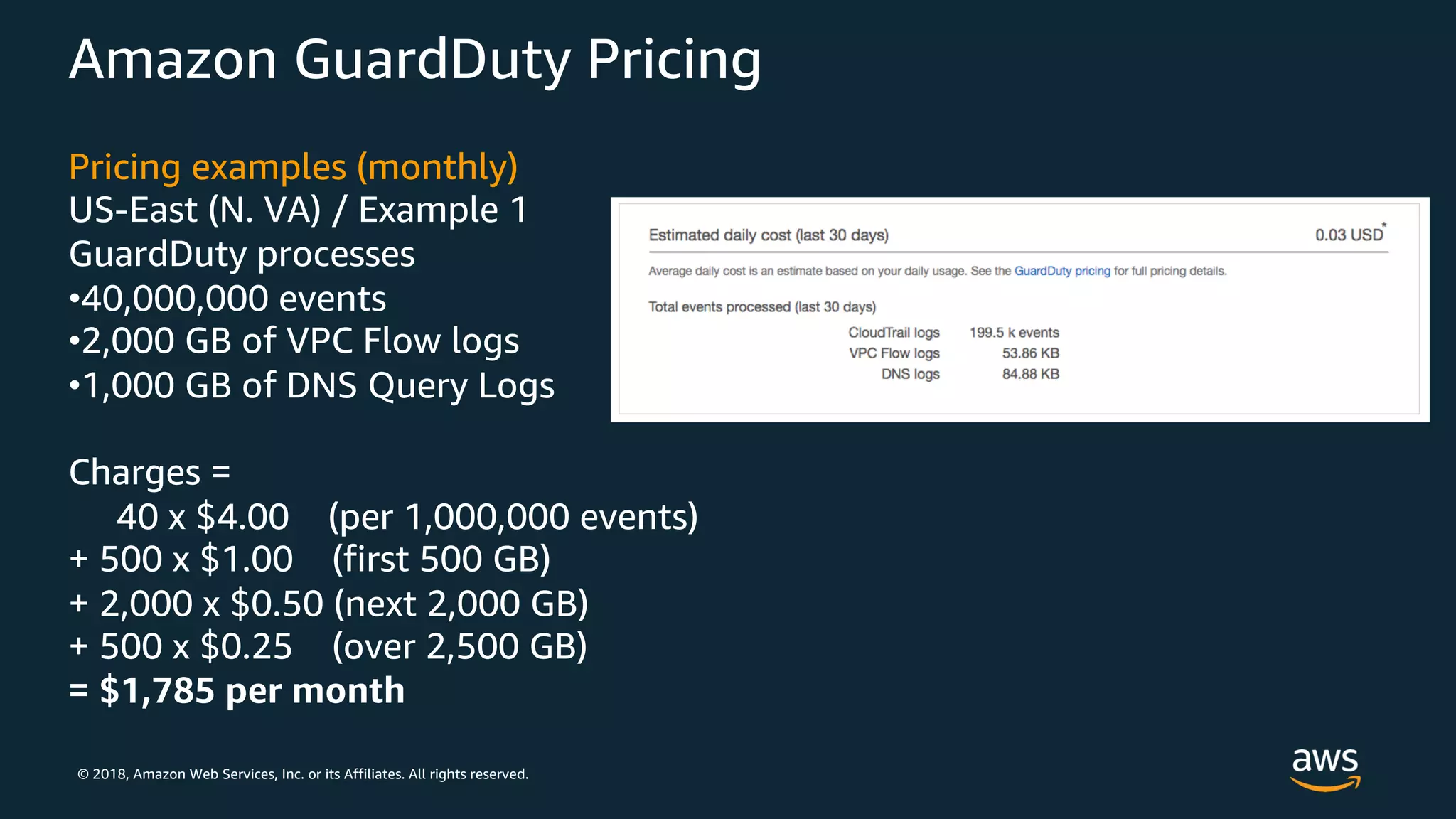

- 20. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Pricing Pricing examples (monthly) US-East (N. VA) / Example 1 GuardDuty processes •40,000,000 events •2,000 GB of VPC Flow logs •1,000 GB of DNS Query Logs Charges = 40 x $4.00 (per 1,000,000 events) + 500 x $1.00 (first 500 GB) + 2,000 x $0.50 (next 2,000 GB) + 500 x $0.25 (over 2,500 GB) = $1,785 per month

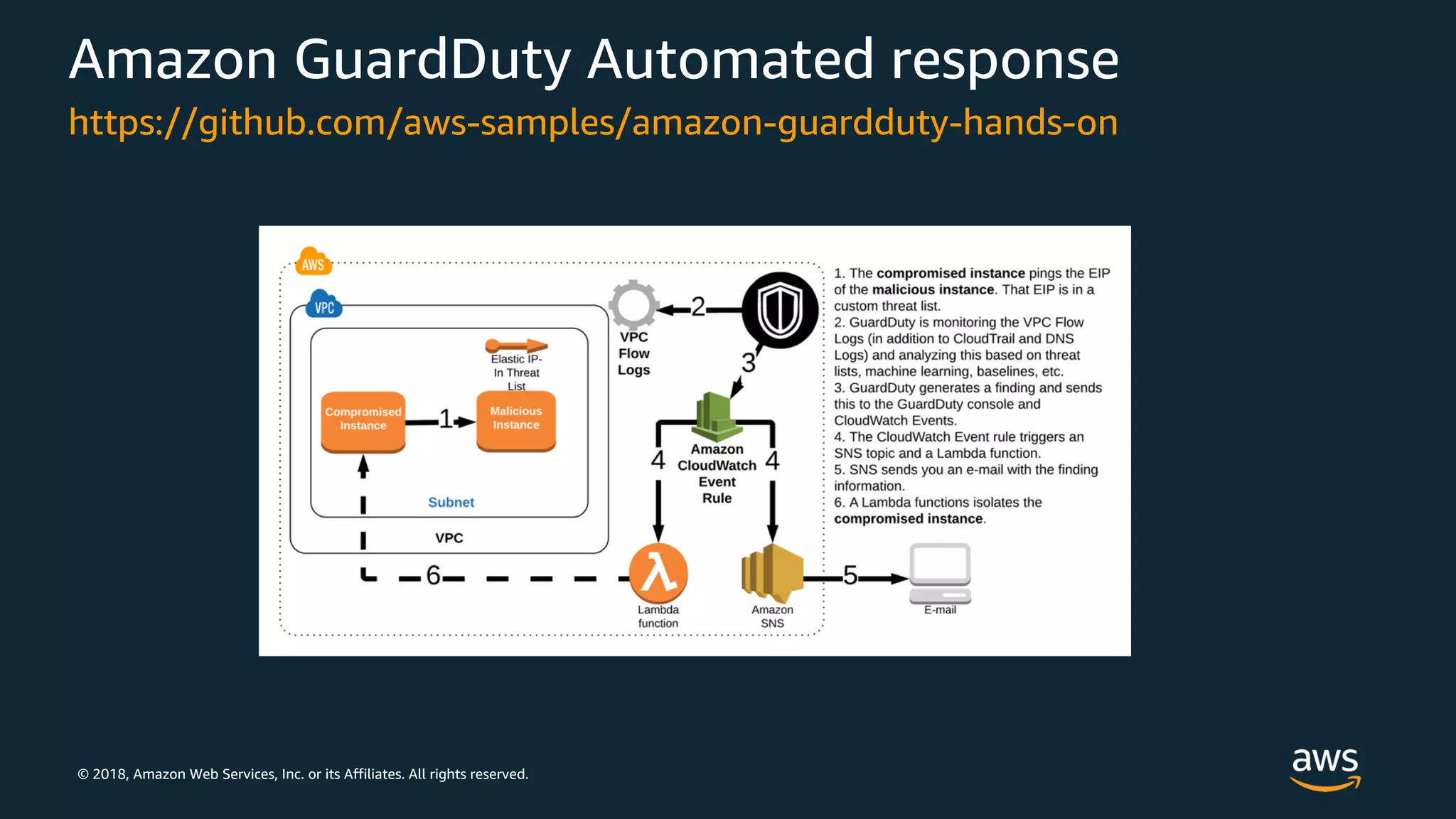

- 21. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon GuardDuty Automated response https://github.com/aws-samples/amazon-guardduty-hands-on
- 22. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS WAF

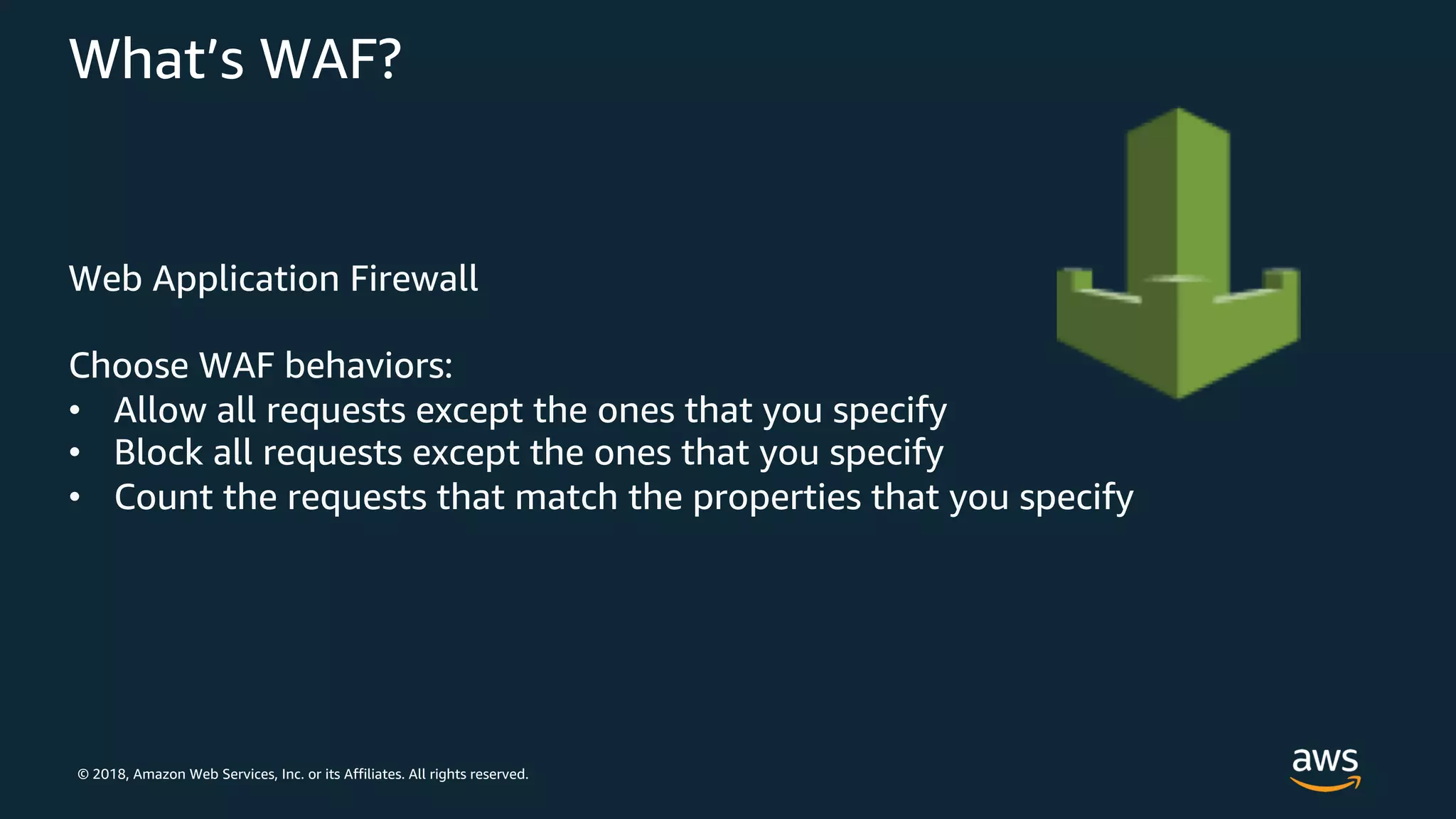

- 23. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. What’s WAF? Web Application Firewall Choose WAF behaviors: • Allow all requests except the ones that you specify • Block all requests except the ones that you specify • Count the requests that match the properties that you specify

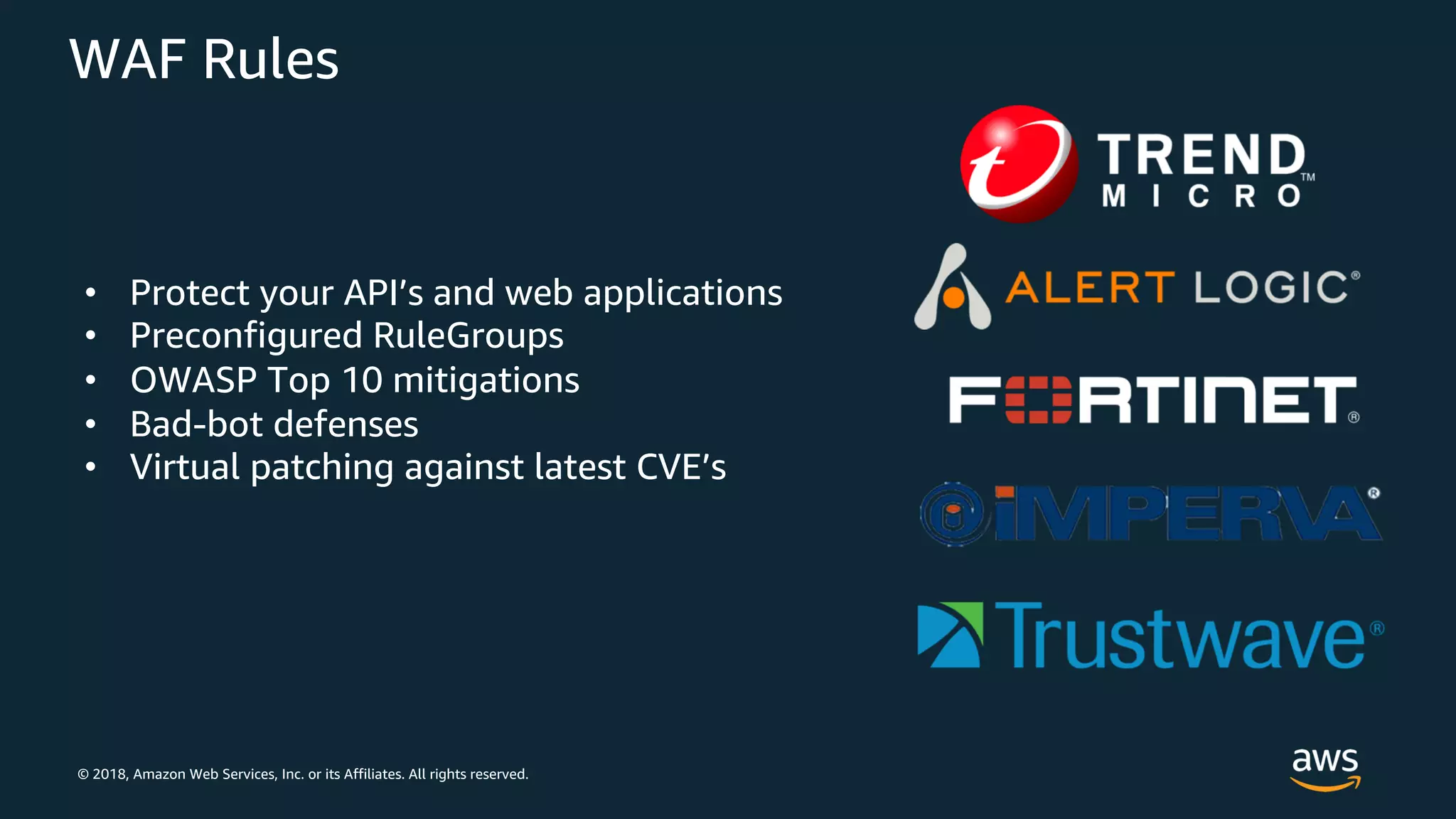

- 24. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. WAF Rules • Protect your API’s and web applications • Preconfigured RuleGroups • OWASP Top 10 mitigations • Bad-bot defenses • Virtual patching against latest CVE’s

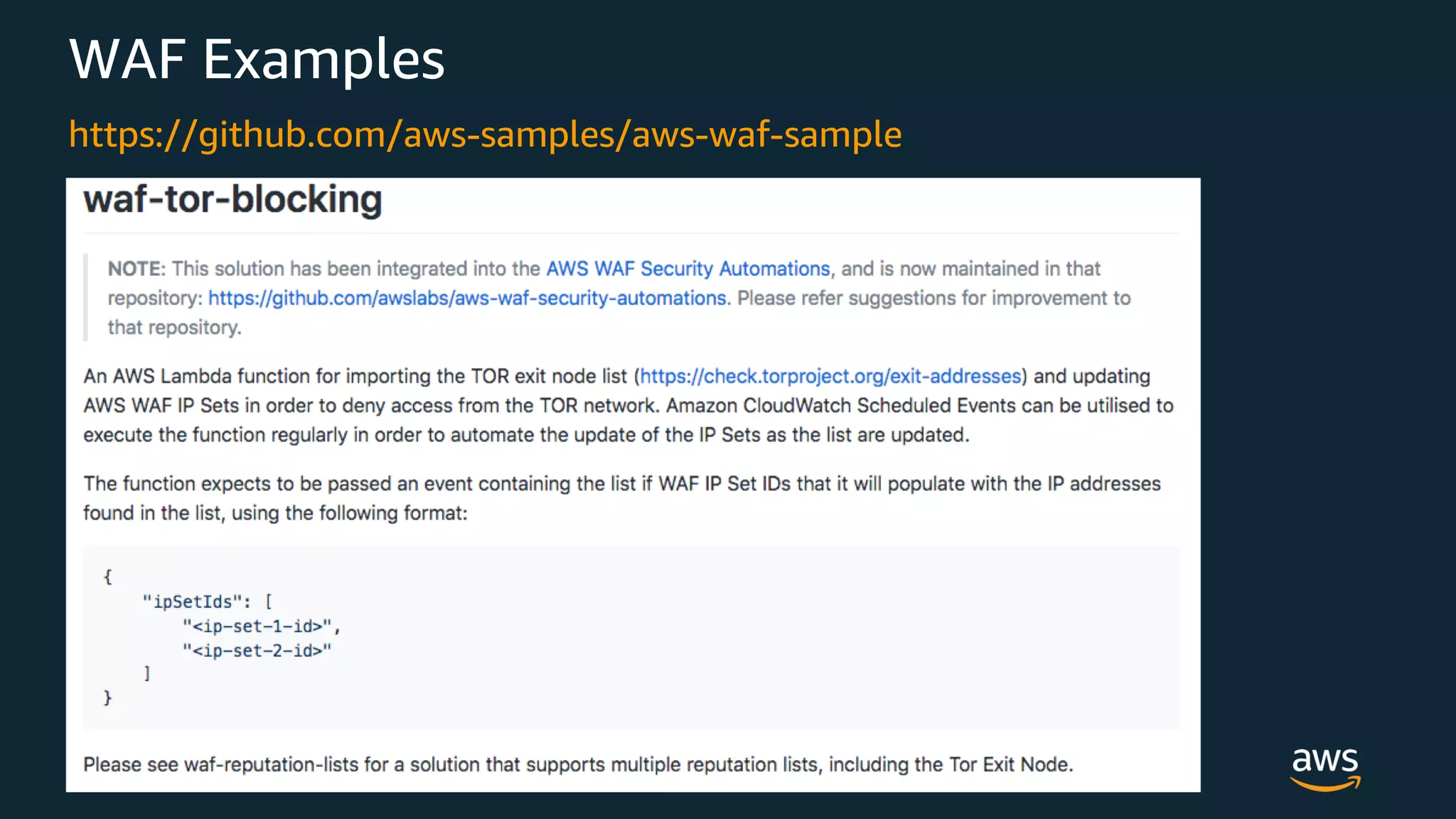

- 25. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. WAF Examples https://github.com/aws-samples/aws-waf-sample
- 26. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Shield

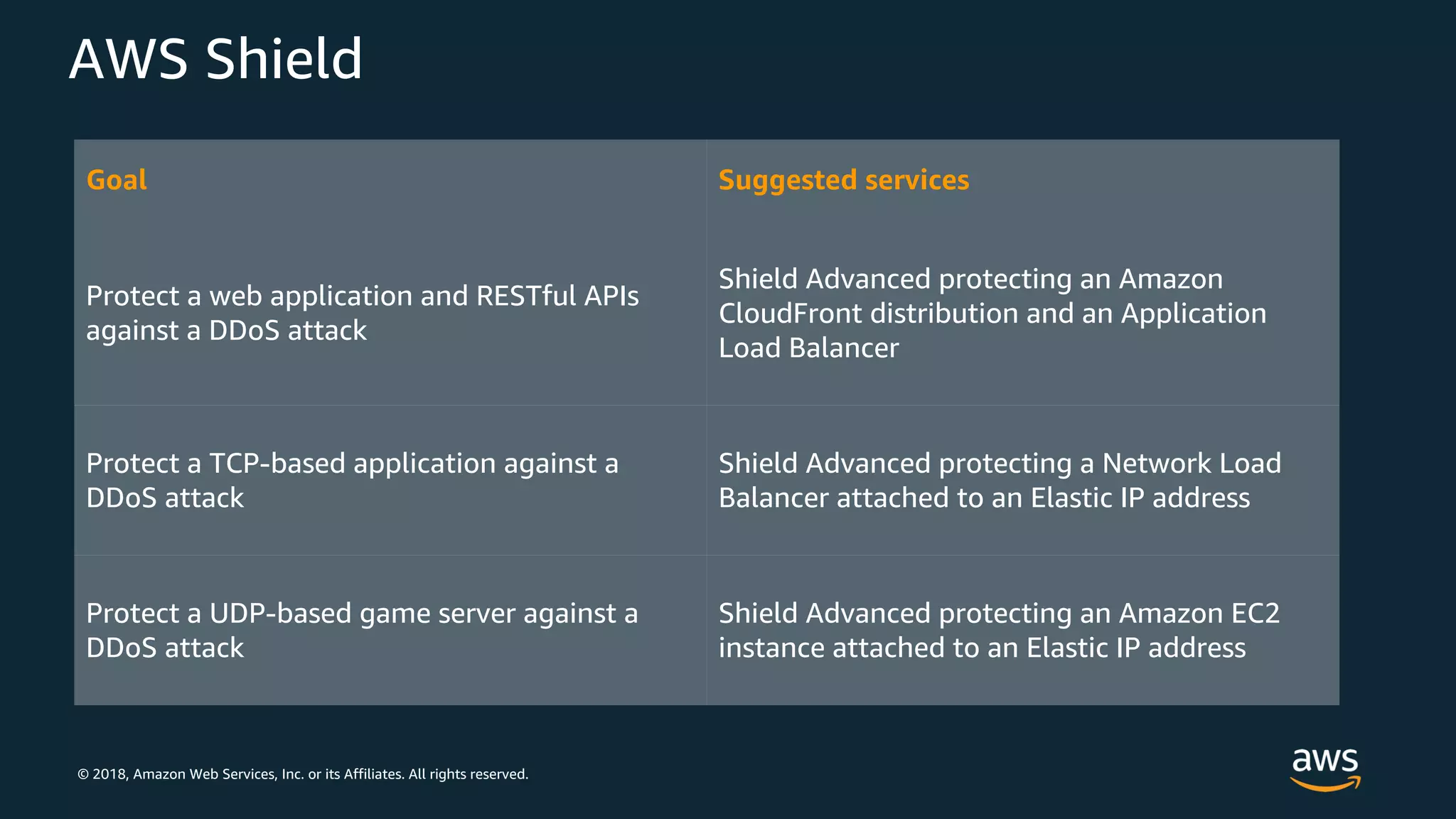

- 27. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Shield Goal Suggested services Protect a web application and RESTful APIs against a DDoS attack Shield Advanced protecting an Amazon CloudFront distribution and an Application Load Balancer Protect a TCP-based application against a DDoS attack Shield Advanced protecting a Network Load Balancer attached to an Elastic IP address Protect a UDP-based game server against a DDoS attack Shield Advanced protecting an Amazon EC2 instance attached to an Elastic IP address

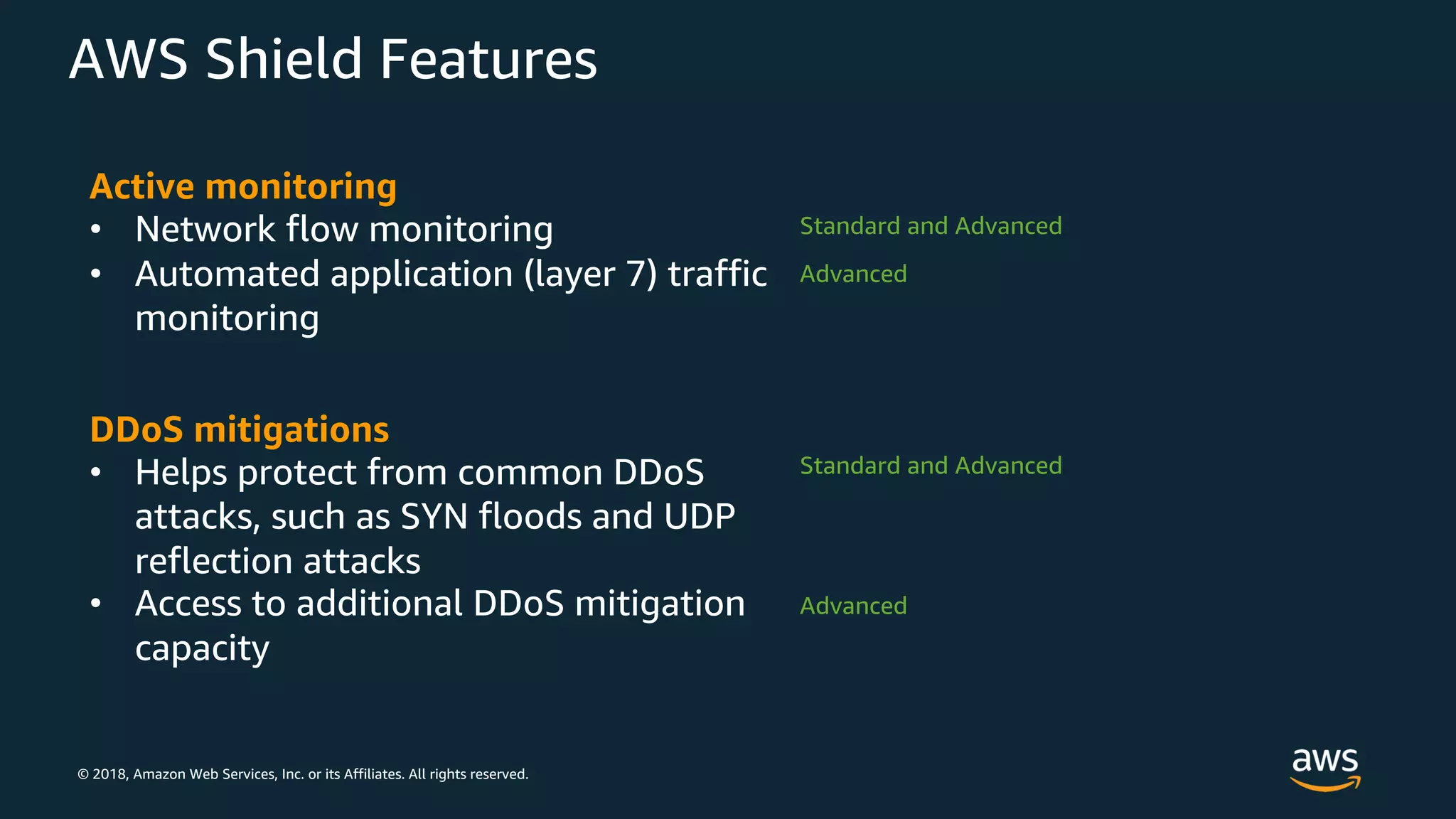

- 28. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Shield Features Active monitoring • Network flow monitoring • Automated application (layer 7) traffic monitoring DDoS mitigations • Helps protect from common DDoS attacks, such as SYN floods and UDP reflection attacks • Access to additional DDoS mitigation capacity Standard and Advanced Standard and Advanced Advanced Advanced

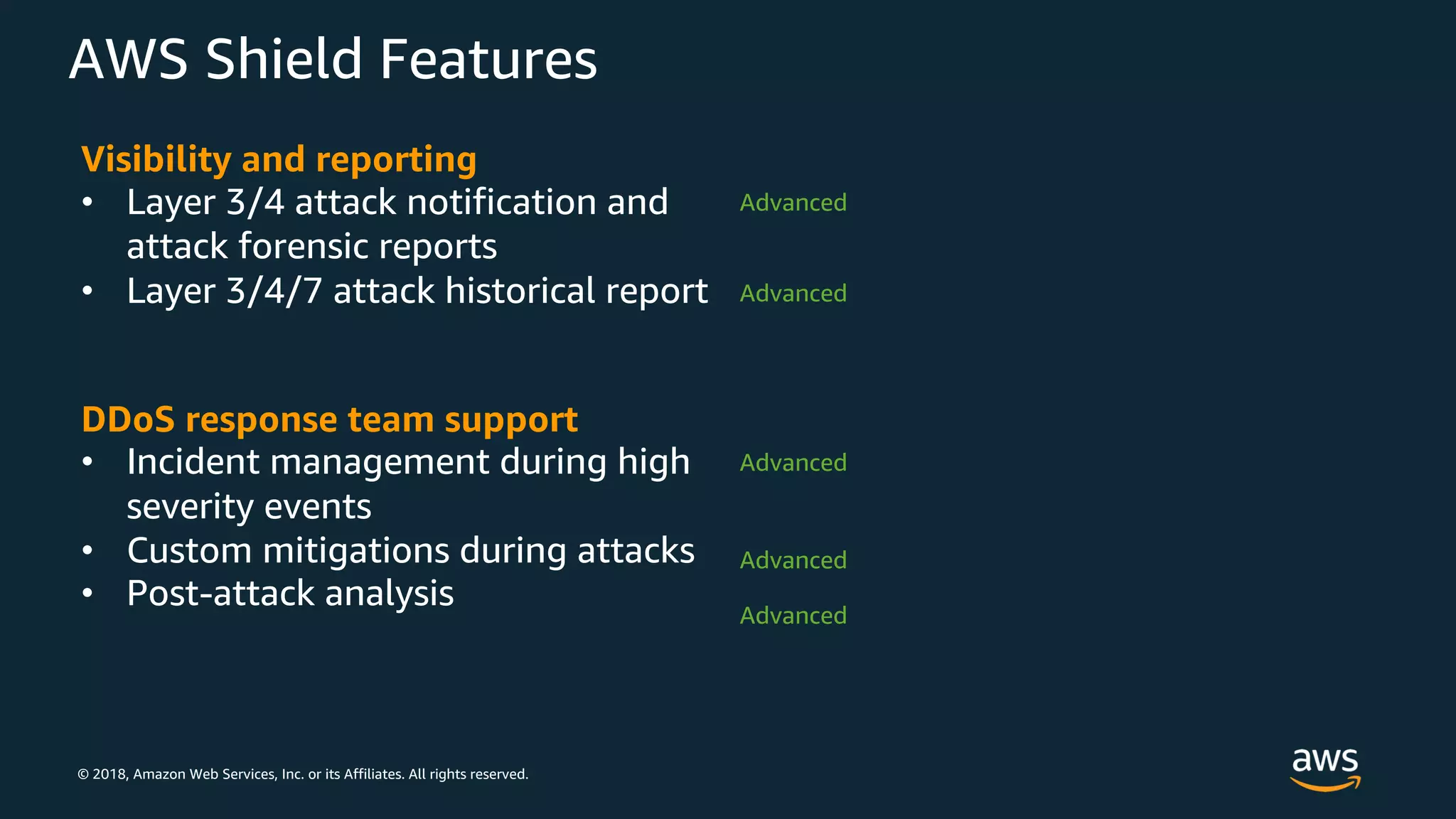

- 29. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Shield Features Visibility and reporting • Layer 3/4 attack notification and attack forensic reports • Layer 3/4/7 attack historical report DDoS response team support • Incident management during high severity events • Custom mitigations during attacks • Post-attack analysis Advanced Advanced Advanced Advanced Advanced

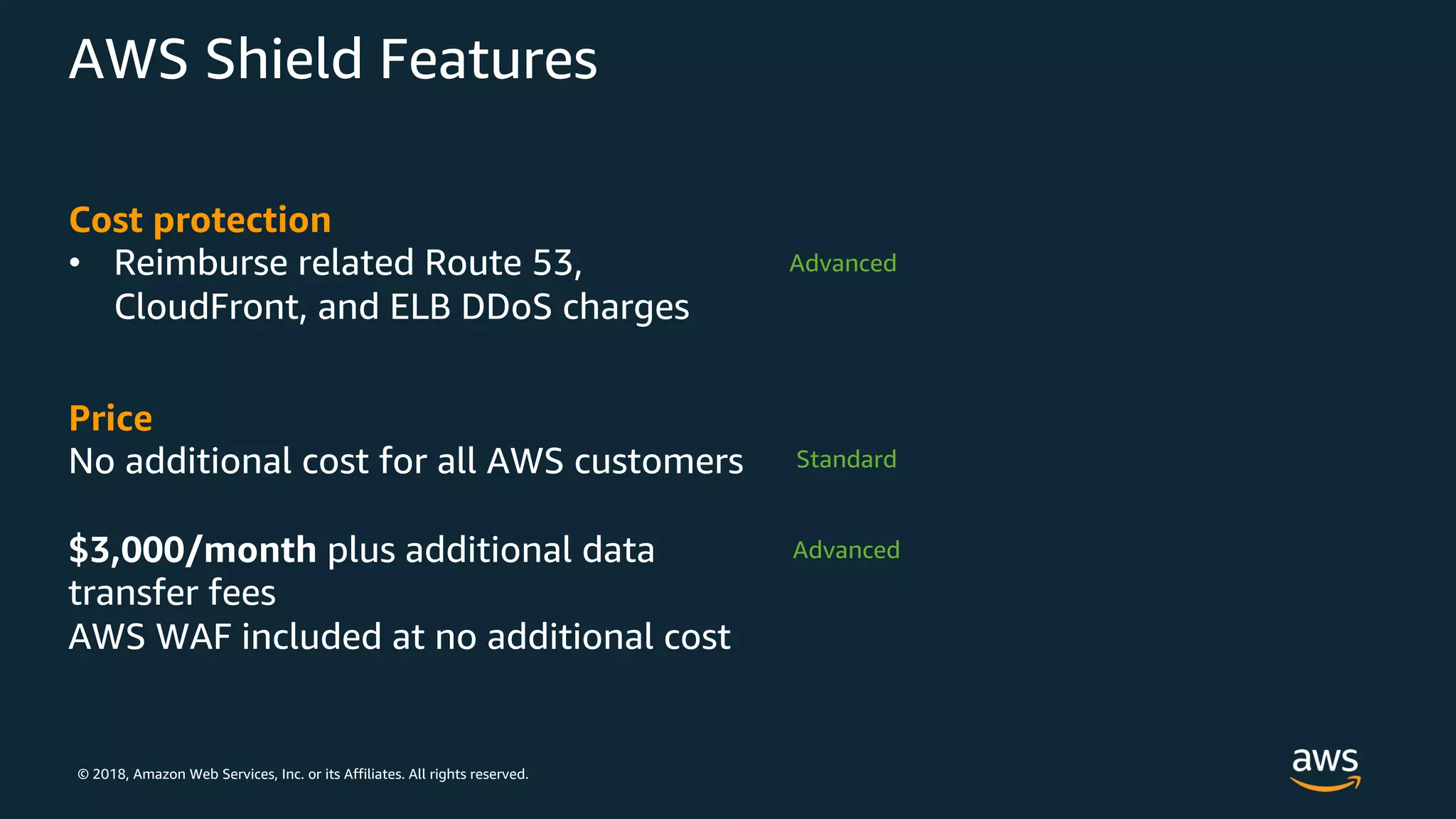

- 30. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Shield Features Cost protection • Reimburse related Route 53, CloudFront, and ELB DDoS charges Price No additional cost for all AWS customers $3,000/month plus additional data transfer fees AWS WAF included at no additional cost Standard Advanced Advanced
- 31. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Inspector

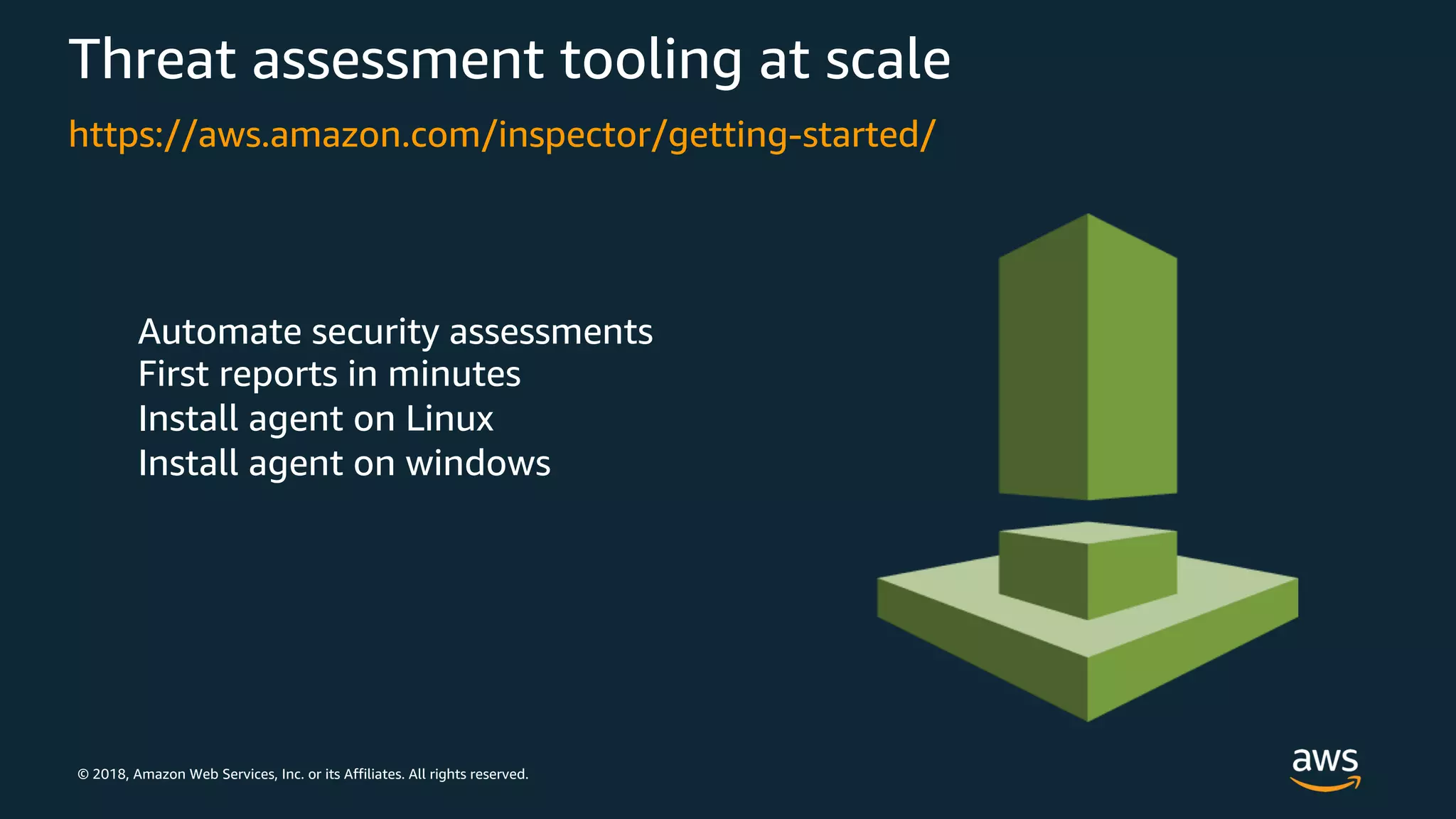

- 32. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Threat assessment tooling at scale Automate security assessments First reports in minutes Install agent on Linux Install agent on windows https://aws.amazon.com/inspector/getting-started/

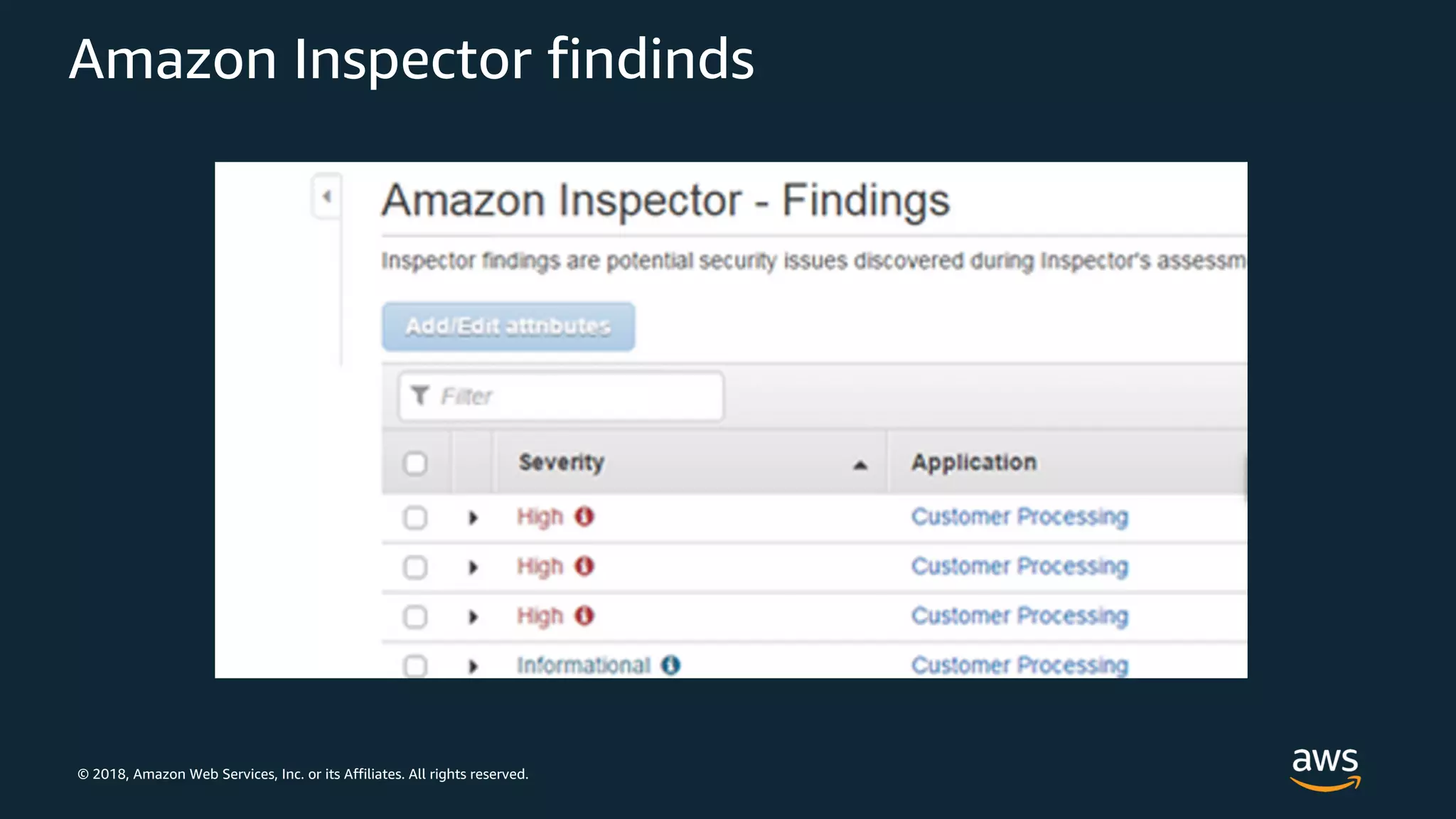

- 33. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Inspector findinds
- 34. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Secrets Manager

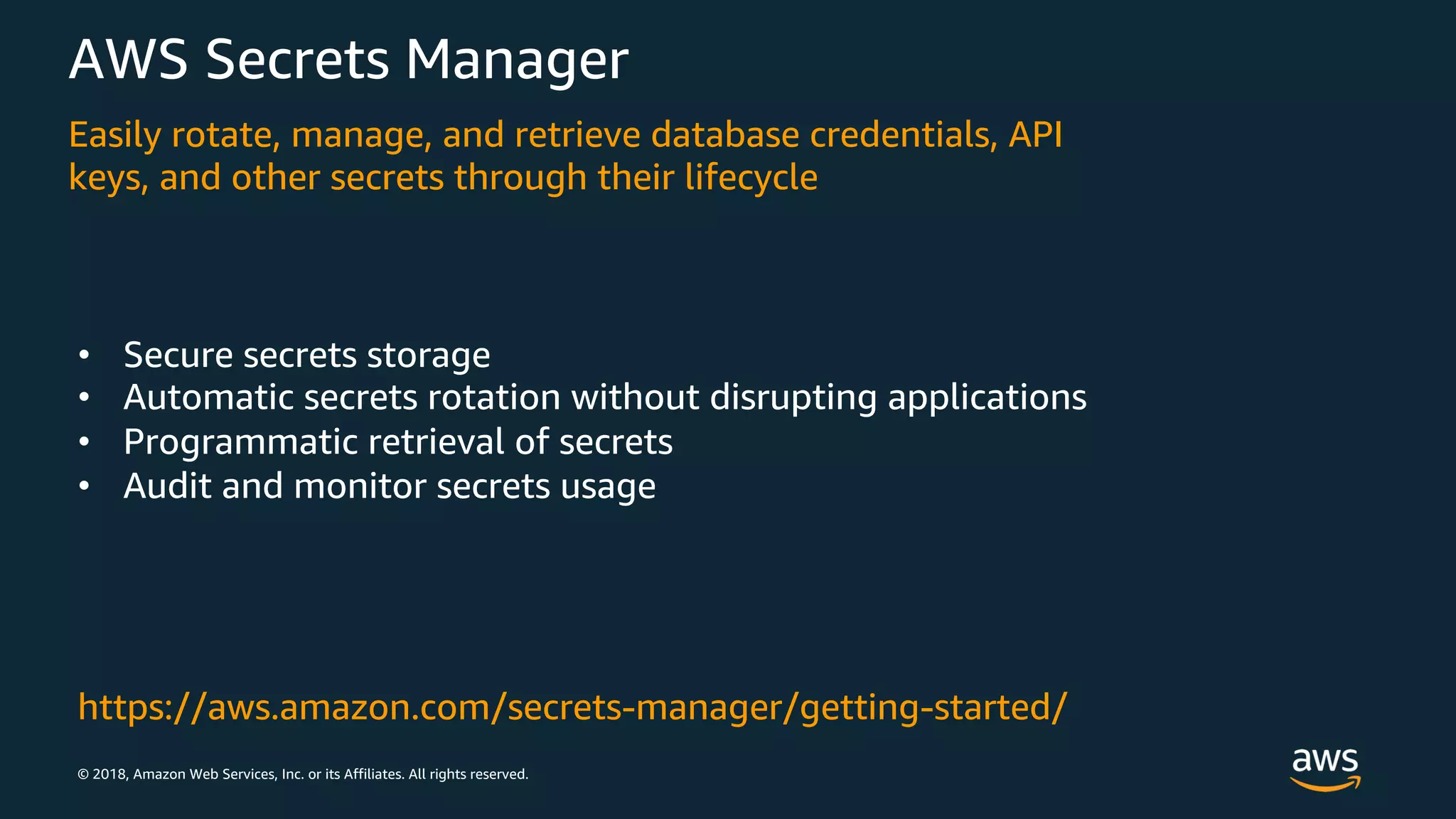

- 35. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Secrets Manager Easily rotate, manage, and retrieve database credentials, API keys, and other secrets through their lifecycle • Secure secrets storage • Automatic secrets rotation without disrupting applications • Programmatic retrieval of secrets • Audit and monitor secrets usage https://aws.amazon.com/secrets-manager/getting-started/

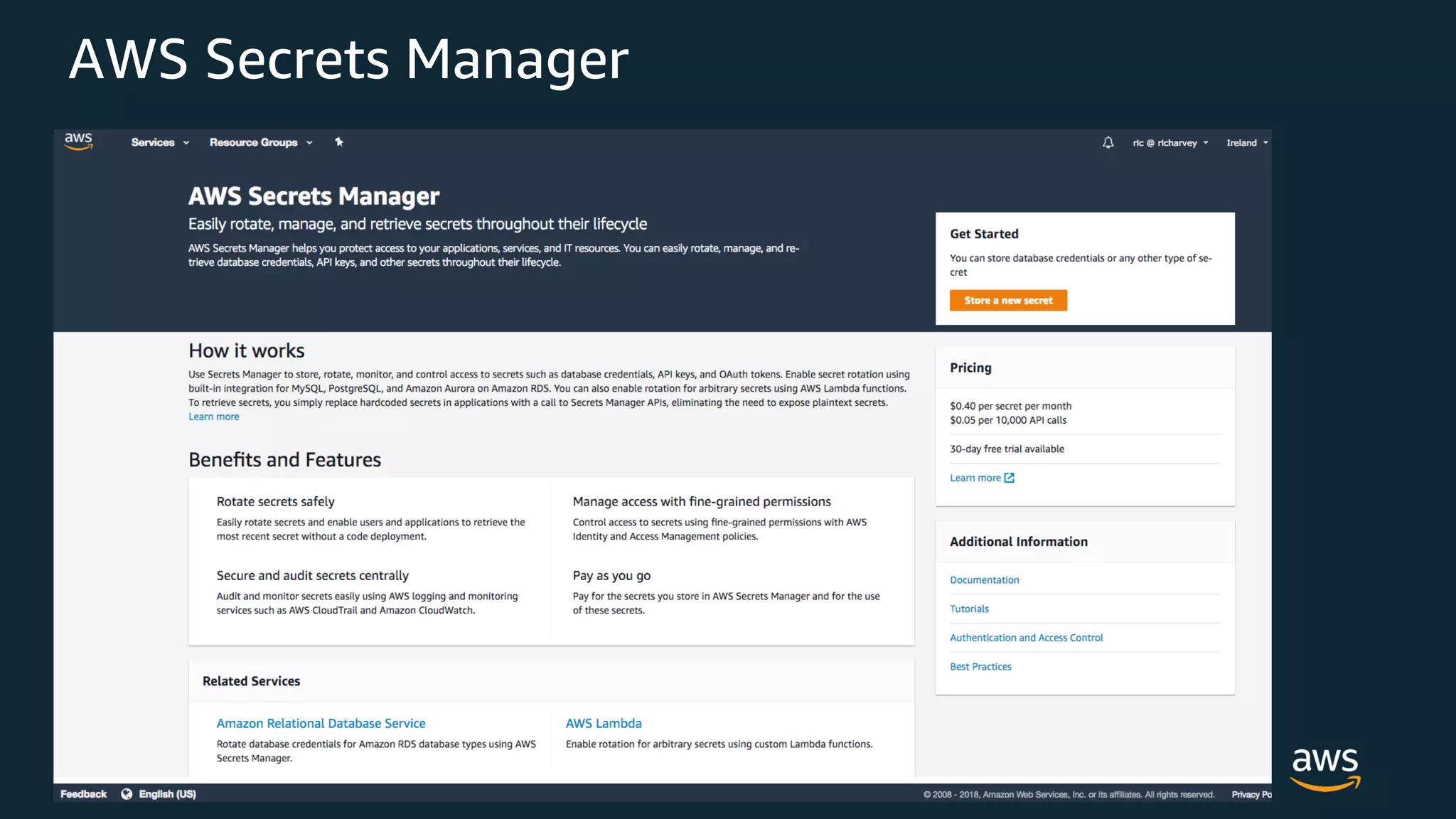

- 36. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Secrets Manager

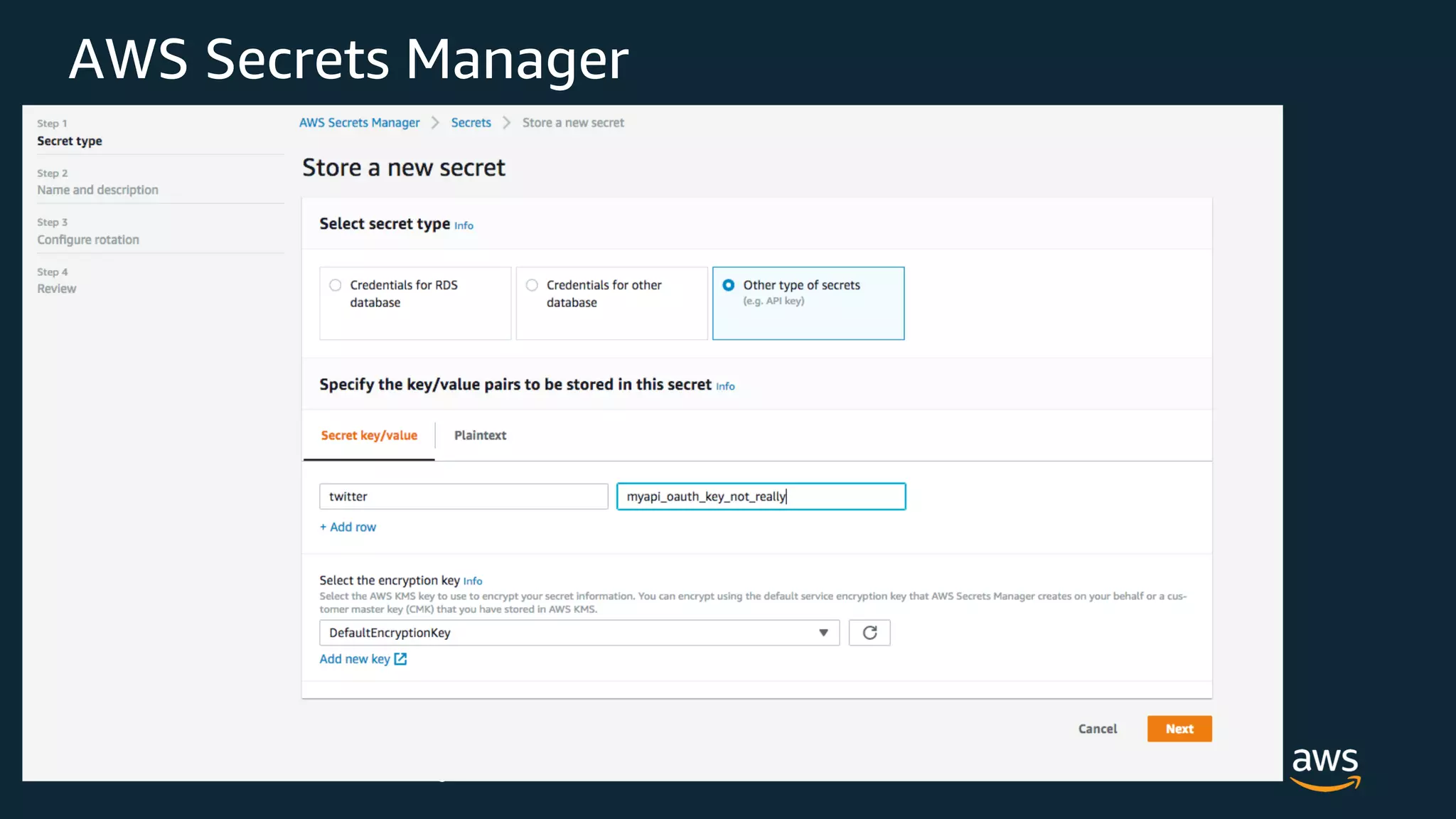

- 37. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Secrets Manager
- 38. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Questions? Ric Harvey, Technical Developer Evangelist @ric__harvey https://gitlab.com/ric_harvey
- 39. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Thank you! Ric Harvey, Technical Developer Evangelist @ric__harvey https://gitlab.com/ric_harvey
