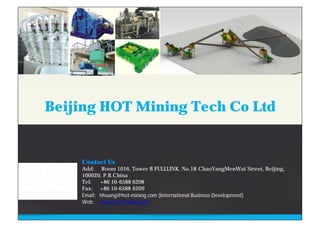

Mineral Processing Capability

Contact Us
Add: Room 1016, Tower B FULLLINK, No.18 ChaoYangMenWai Street, Beijing,
100020, P.R.China
Tel: +86 10-6588 6208
Fax: +86 10-6588 6209
Email: hhuang@hot-mining.com (International Business Development)
Web: www.hot-mining.com
Beijing HOT Mining Tech Co Ltd

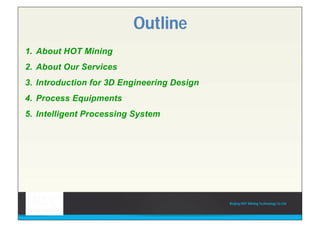

Outline
Beijing HOT Mining Technology Co Ltd
1. About HOT Mining
2. About Our Services
3. Introduction for 3D Engineering Design
4. Process Equipments
5. Intelligent Processing System

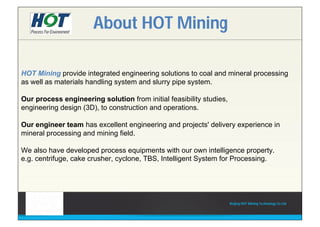

HOT Mining provide integrated engineering solutions to coal and mineral processing
as well as materials handling system and slurry pipe system.
Our process engineering solution from initial feasibility studies,
engineering design (3D), to construction and operations.
Our engineer team has excellent engineering and projects' delivery experience in
mineral processing and mining field.
We also have developed process equipments with our own intelligence property.
e.g. centrifuge, cake crusher, cyclone, TBS, Intelligent System for Processing.
About HOT Mining

ABOUT Our Services
1. Process Equipments: Cyclone, Centrifuge, Filter Press, Cone
Crusher, Jaw Crusher, Screen, Pump, etc;
2. Intelligent Processing System;
3. Feasibility Study, Concept & Engineering Design, EPC / EPCM for:
• Coal Preparation Plant (CPP), Mineral Process Plant (MPP);
• Screening & Crushing System;
• Sands Washing
• Overland Conveyor, Pipe Conveyor, Slurry Pipeline System;
• Express Load-out Station.
Beijing HOT Mining Technology Co LtdBeijing HOT Mining Technology Co Ltd

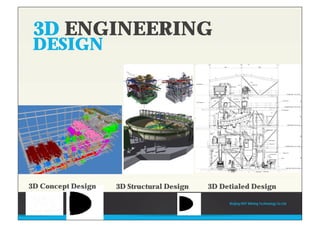

3D ENGINEERING
DESIGN
3D Concept Design 3D Structural Design 3D Detialed Design

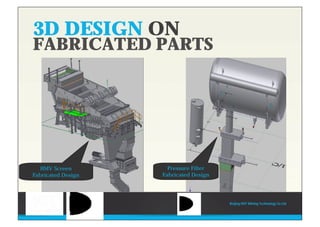

3D DESIGN ON
FABRICATED PARTS
HMV Screen
Fabricated Design
Pressure Filter
Fabricated Design

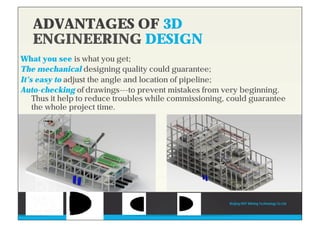

ADVANTAGES OF 3D
ENGINEERING DESIGN
What you see is what you get;
The mechanical designing quality could guarantee;
It’s easy to adjust the angle and location of pipeline;
Auto-checking of drawings---to prevent mistakes from very beginning.
Thus it help to reduce troubles while commissioning, could guarantee
the whole project time.

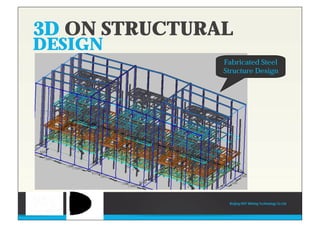

3D ON STRUCTURAL
DESIGN
Fabricated Steel
Structure Design

3D ON PIPELINE
DESIGN
H.M.V
Feeding Pipeline
Magnetic Separator
Feeding Pipeline

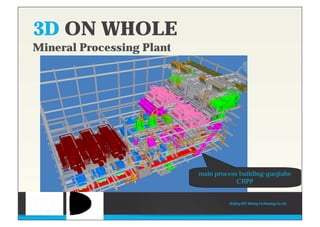

3D ON WHOLE
Mineral Processing Plant
main process building-guojiahe
CHPP

Module A
Module B
Module C
Thickener
Press Filter
Workshop
Air
Compressor
3D Coal Preparation Plant
ENGINEERING

3D Coal Preparation Plant
ENGINEERING

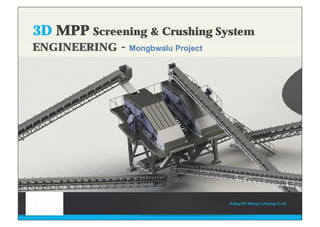

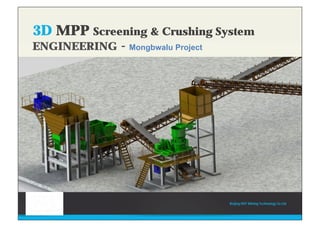

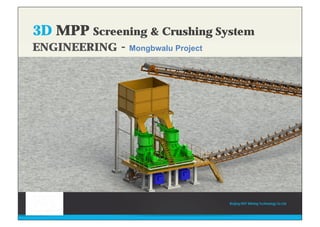

3D MPP Screening & Crushing System
ENGINEERING - Mongbwalu Project

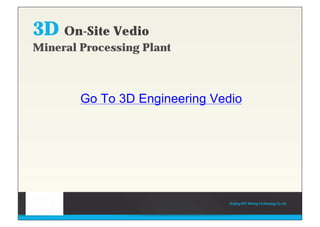

3D On-Site Vedio
Mineral Processing Plant
Go To 3D Engineering Vedio

KEY EQUIPMENT
CRUSHERS
CONE CRUSHER
CC serials –Cone Crusher
CC crusher setting regulator,
easy concave and mantle
assemble or remove, and
curved crushing chamber assure
CC serials to posses a higher
capacity ,lower operation cost,
less maintenance.

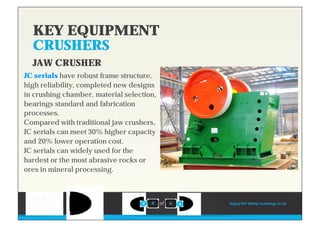

KEY EQUIPMENT
CRUSHERS
4 of 6
JC serials have robust frame structure,
high reliability, completed new designs
in crushing chamber, material selection,
bearings standard and fabrication
processes.
Compared with traditional jaw crushers,
JC serials can meet 30% higher capacity
and 20% lower operation cost.
JC serials can widely used for the
hardest or the most abrasive rocks or
ores in mineral processing.
JAW CRUSHER

KEY EQUIPMENT

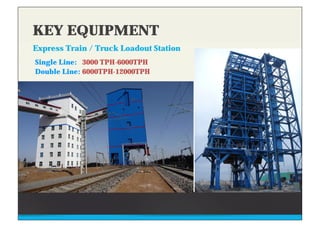

Express Train / Truck Loadout Station
Single Line: 3000 TPH-6000TPH
Double Line: 6000TPH-12000TPH

KEY EQUIPMENT

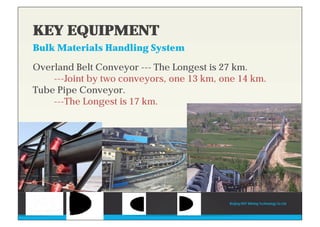

Bulk Materials Handling System
Overland Belt Conveyor --- The Longest is 27 km.
---Joint by two conveyors, one 13 km, one 14 km.
Tube Pipe Conveyor.
---The Longest is 17 km.
KEY EQUIPMENT
Bulk Materials Handling System

KEY EQUIPMENT

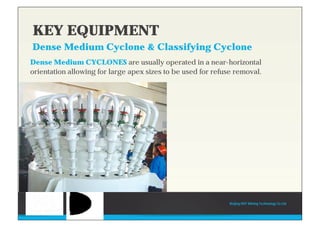

Dense Medium Cyclone & Classifying Cyclone
Dense Medium CYCLONES are usually operated in a near-horizontal
orientation allowing for large apex sizes to be used for refuse removal.

KEY EQUIPMENT

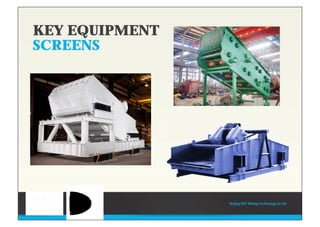

SCREENS

KEY EQUIPMENT

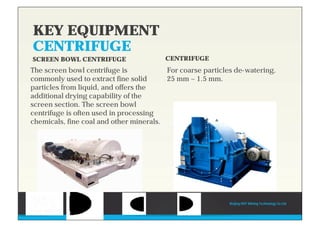

CENTRIFUGE
SCREEN BOWL CENTRIFUGE
The screen bowl centrifuge is
commonly used to extract fine solid
particles from liquid, and offers the
additional drying capability of the
screen section. The screen bowl
centrifuge is often used in processing
chemicals, fine coal and other minerals.
CENTRIFUGE
For coarse particles de-watering.
25 mm ~ 1.5 mm.

INTELLIGENT
SYSTEM

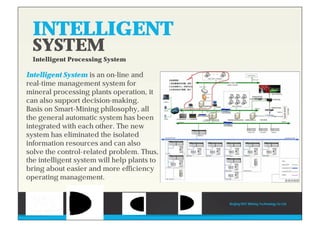

Intelligent Processing System
Intelligent System is an on-line and
real-time management system for
mineral processing plants operation, it
can also support decision-making.
Basis on Smart-Mining philosophy, all
the general automatic system has been
integrated with each other. The new
system has eliminated the isolated
information resources and can also
solve the control-related problem. Thus,
the intelligent system will help plants to
bring about easier and more efficiency
operating management.
INTELLIGENT

All our intelligent System Product includes as below
• Smart CHPP, Smart MPP (Mineral Process Plant);
• Smart Equipments and Spare Parts Management.
INTELLIGENT
Intelligent System Series
SYSTEM
INTELLIGENT
SYSTEM

INTELLIGENT
SYSTEM

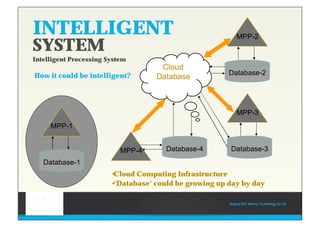

How it could be intelligent?
Cloud
Database
MPP-2
MPP-3
MPP-4
Database-2
Database-3Database-4
MPP-1
Database-1Database-1
MPP-1MPP-1MPP-1
•Cloud Computing Infrastructure
•‘Database’could be growing up day by day

INTELLIGENT
SYSTEM

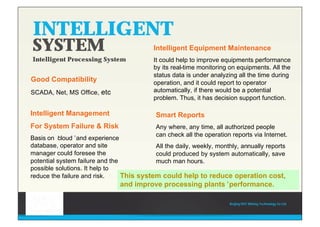

Good Compatibility
SCADA, Net, MS Office, etc
Intelligent Management
For System Failure & Risk
Basis on ‘cloud’and experience
database, operator and site
manager could foresee the
potential system failure and the
possible solutions. It help to
reduce the failure and risk.
Intelligent Equipment Maintenance
It could help to improve equipments performance
by its real-time monitoring on equipments. All the
status data is under analyzing all the time during
operation, and it could report to operator
automatically, if there would be a potential
problem. Thus, it has decision support function.
Smart Reports
Any where, any time, all authorized people
can check all the operation reports via Internet.
All the daily, weekly, monthly, annually reports
could produced by system automatically, save
much man hours.
This system could help to reduce operation cost,
and improve processing plants’performance.

INTELLIGENT
SYSTEM

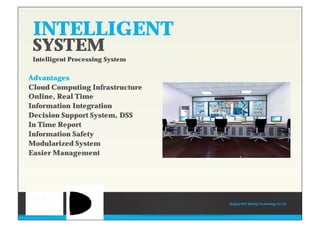

Advantages
Cloud Computing Infrastructure
Online, Real Time
Information Integration
Decision Support System, DSS
In Time Report
Information Safety
Modularized System
Easier Management

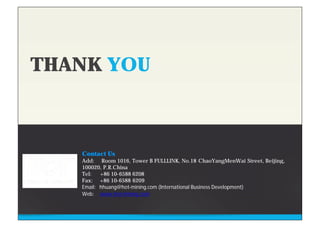

THANK YOU
