This document discusses the evolution of programming languages from machine languages (1GL) to natural languages (5GL). It begins by defining a programming language as a formal notation system that describes computation in a readable and machine-readable form. It then categorizes generations of programming languages based on their level of abstraction, from low-level machine codes (1GL) to high-level languages (3GL) to domain-specific languages (DSL). The document provides examples and characteristics of languages from each generation.

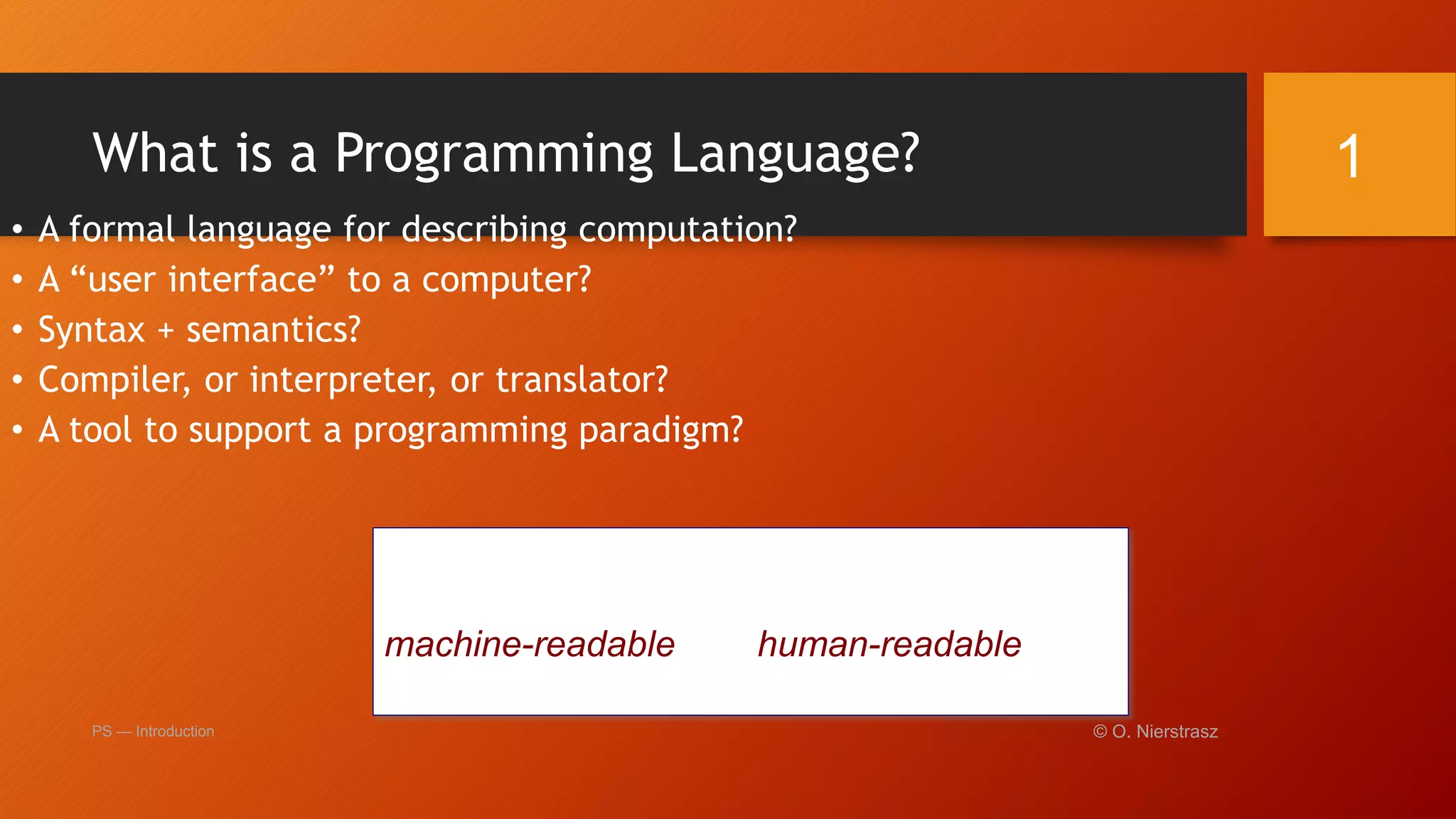

1. What is a Programming Language?
PS — Introduction © O. Nierstrasz
1
• A formal language for describing computation?
• A “user interface” to a computer?
• Syntax + semantics?
• Compiler, or interpreter, or translator?
• A tool to support a programming paradigm?
A programming language is a notational
system for describing computation in a
machine-readable and human-readable form.
— Louden

2. 2

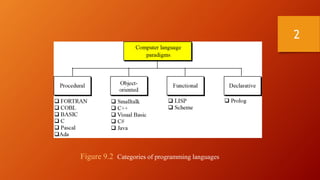

Figure 9.2 Categories of programming languages

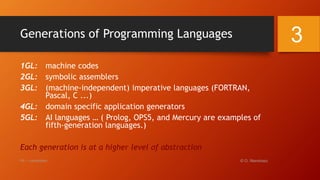

3. Generations of Programming Languages
1GL: machine codes
2GL: symbolic assemblers
3GL: (machine-independent) imperative languages (FORTRAN,
Pascal, C ...)
4GL: domain specific application generators
5GL: AI languages … ( Prolog, OPS5, and Mercury are examples of
fifth-generation languages.)
Each generation is at a higher level of abstraction
PS — Introduction © O. Nierstrasz
3

4. CSC141 Introduction to Computer Programming

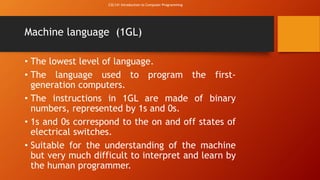

Machine language (1GL)
• The lowest level of language.
• The language used to program the first-generation
computers.
• The instructions in 1GL are made of binary
numbers, represented by 1s and 0s.
• 1s and 0s correspond to the on and off states of
electrical switches.
• Suitable for the understanding of the machine
but very much difficult to interpret and learn by
the human programmer.

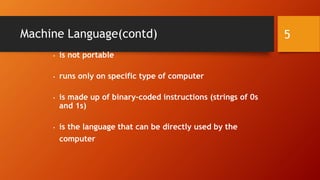

5. Machine Language(contd)
• is not portable
• runs only on specific type of computer
• is made up of binary-coded instructions (strings of 0s
and 1s)
• is the language that can be directly used by the
computer
5

6. CSC141 Introduction to Computer Programming

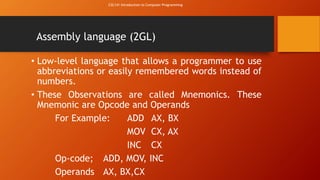

Assembly language (2GL)
• Low-level language that allows a programmer to use
abbreviations or easily remembered words instead of
numbers.
• These Observations are called Mnemonics. These
Mnemonic are Opcode and Operands
For Example: ADD AX, BX
MOV CX, AX
INC CX
Op-code; ADD, MOV, INC
Operands AX, BX,CX

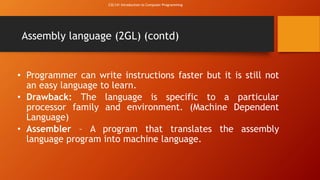

7. CSC141 Introduction to Computer Programming
Assembly language (2GL) (contd)
• Programmer can write instructions faster but it is still not
an easy language to learn.
• Drawback: The language is specific to a particular
processor family and environment. (Machine Dependent
Language)
• Assembler – A program that translates the assembly
language program into machine language.

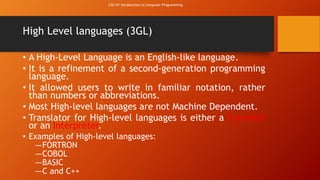

8. High Level languages (3GL)
• A High-Level Language is an English-like language.
• It is a refinement of a second-generation programming
language.
• It allowed users to write in familiar notation, rather
than numbers or abbreviations.
• Most High-level languages are not Machine Dependent.
• Translator for High-level languages is either a Compiler
or an Interpreter.
• Examples of High-level languages:
―FORTRON
―COBOL
―BASIC
―C and C++
CSC141 Introduction to Computer Programming

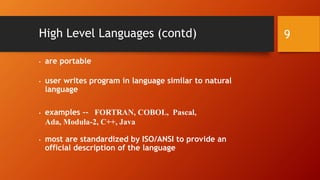

9. High Level Languages (contd)
• are portable
• user writes program in language similar to natural
language
• examples -- FORTRAN, COBOL, Pascal,
Ada, Modula-2, C++, Java
• most are standardized by ISO/ANSI to provide an
official description of the language
9

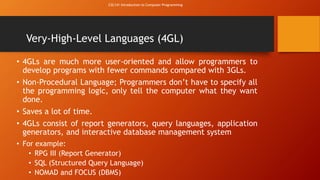

10. CSC141 Introduction to Computer Programming
Very-High-Level Languages (4GL)
• 4GLs are much more user-oriented and allow programmers to
develop programs with fewer commands compared with 3GLs.
• Non-Procedural Language; Programmers don’t have to specify all
the programming logic, only tell the computer what they want
done.
• Saves a lot of time.
• 4GLs consist of report generators, query languages, application
generators, and interactive database management system
• For example:
• RPG III (Report Generator)
• SQL (Structured Query Language)
• NOMAD and FOCUS (DBMS)

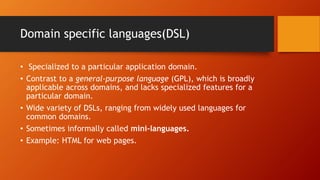

11. Domain specific languages(DSL)
• Specialized to a particular application domain.
• Contrast to a general-purpose language (GPL), which is broadly
applicable across domains, and lacks specialized features for a
particular domain.
• Wide variety of DSLs, ranging from widely used languages for
common domains.
• Sometimes informally called mini-languages.
• Example: HTML for web pages.

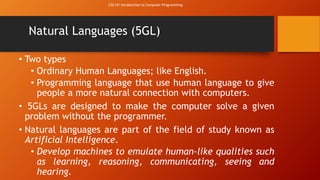

12. CSC141 Introduction to Computer Programming
Natural Languages (5GL)
• Two types
• Ordinary Human Languages; like English.
• Programming language that use human language to give
people a more natural connection with computers.
• 5GLs are designed to make the computer solve a given
problem without the programmer.
• Natural languages are part of the field of study known as
Artificial Intelligence.
• Develop machines to emulate human-like qualities such
as learning, reasoning, communicating, seeing and
hearing.

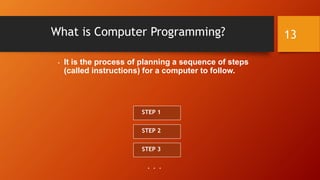

13. What is Computer Programming?
• It is the process of planning a sequence of steps
(called instructions) for a computer to follow.
13
STEP 1
STEP 2
STEP 3
. . .

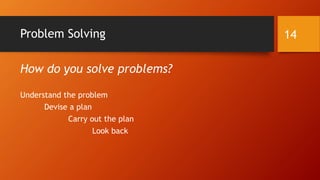

14. Problem Solving
How do you solve problems?
Understand the problem
Devise a plan
Carry out the plan
Look back
14

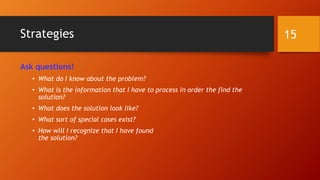

15. Strategies
Ask questions!
• What do I know about the problem?
• What is the information that I have to process in order the find the
solution?
• What does the solution look like?
• What sort of special cases exist?
• How will I recognize that I have found
the solution?
15

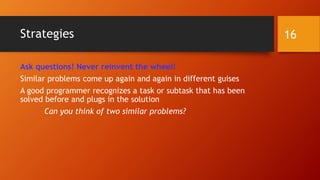

16. Strategies
Ask questions! Never reinvent the wheel!
Similar problems come up again and again in different guises
A good programmer recognizes a task or subtask that has been
solved before and plugs in the solution
Can you think of two similar problems?
16

17. Strategies
Divide and Conquer!
Break up a large problem into smaller units and solve each smaller
problem
• Applies the concept of abstraction
• The divide-and-conquer approach can be applied over and over again until
each subtask is manageable
17

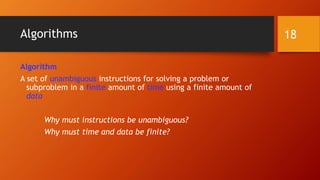

18. Algorithms
Algorithm
A set of unambiguous instructions for solving a problem or
subproblem in a finite amount of time using a finite amount of
data
Why must instructions be unambiguous?
Why must time and data be finite?
18

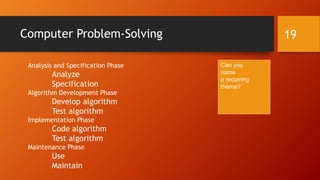

19. Computer Problem-Solving 19
Analysis and Specification Phase
Analyze
Specification
Algorithm Development Phase
Develop algorithm
Test algorithm
Implementation Phase
Code algorithm
Test algorithm
Maintenance Phase
Use
Maintain
Can you
name
a recurring
theme?

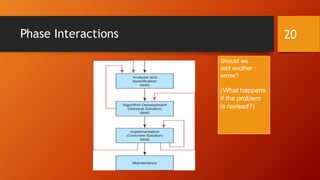

20. Phase Interactions 20
Should we
add another
arrow?
(What happens
if the problem
is revised?)

21. A Tempting Shortcut? 21
GOAL
THINKING
CODE
REVISE
REVISE
REVISE
DEBUG
DEBUG
DEBUG
TEST
CODE

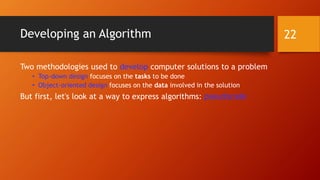

22. Developing an Algorithm
Two methodologies used to develop computer solutions to a problem
• Top-down design focuses on the tasks to be done
• Object-oriented design focuses on the data involved in the solution
But first, let's look at a way to express algorithms: pseudocode
22

23. An Algorithm is . . .
• a step-by-step procedure for solving a problem in
a finite amount of time.
23

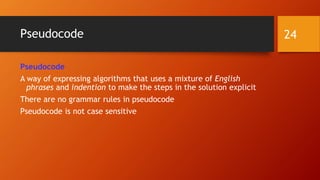

24. Pseudocode
Pseudocode
A way of expressing algorithms that uses a mixture of English
phrases and indention to make the steps in the solution explicit
There are no grammar rules in pseudocode
Pseudocode is not case sensitive
24

25. Example of algorithm
• In this example, we design an algorithm to find the perimeter and
area of a rectangle.
• To find the perimeter and area of a rectangle, you need to know
the rectangle’s length and width.
• The perimeter and area of the rectangle are then given by the
following formulas:
• perimeter = 2 * (length + width)
• area = length * width

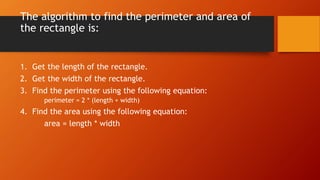

26. The algorithm to find the perimeter and area of
the rectangle is:
1. Get the length of the rectangle.
2. Get the width of the rectangle.
3. Find the perimeter using the following equation:
perimeter = 2 * (length + width)
4. Find the area using the following equation:
area = length * width

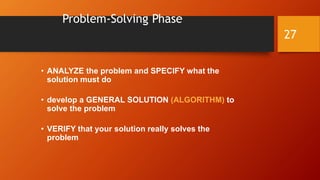

27. Problem-Solving Phase
• ANALYZE the problem and SPECIFY what the
solution must do
• develop a GENERAL SOLUTION (ALGORITHM) to
solve the problem
• VERIFY that your solution really solves the
problem
27

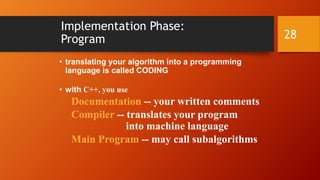

28. Implementation Phase:
Program
• translating your algorithm into a programming
language is called CODING
• with C++, you use
Documentation -- your written comments
Compiler -- translates your program
into machine language
Main Program -- may call subalgorithms
28

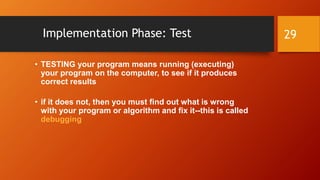

29. Implementation Phase: Test
• TESTING your program means running (executing)
your program on the computer, to see if it produces
correct results
• if it does not, then you must find out what is wrong
with your program or algorithm and fix it--this is called
debugging
29

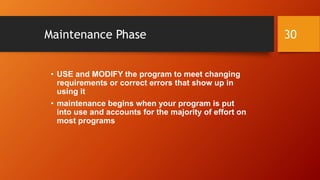

30. Maintenance Phase
• USE and MODIFY the program to meet changing
requirements or correct errors that show up in
using it
• maintenance begins when your program is put
into use and accounts for the majority of effort on
most programs
30

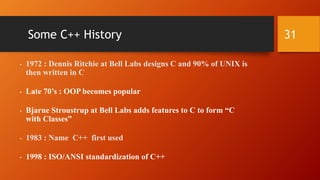

31. Some C++ History
• 1972 : Dennis Ritchie at Bell Labs designs C and 90% of UNIX is
then written in C
• Late 70’s : OOP becomes popular
• Bjarne Stroustrup at Bell Labs adds features to C to form “C
with Classes”
• 1983 : Name C++ first used
• 1998 : ISO/ANSI standardization of C++
31

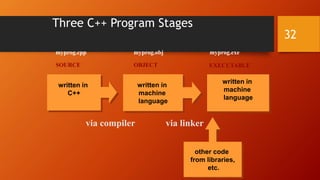

32. Three C++ Program Stages
32
myprog.cpp myprog.obj myprog.exe
SOURCE OBJECT EXECUTABLE
other code
from libraries,
etc.
written in
machine
language
written in
machine
language
written in
C++
via compiler via linker

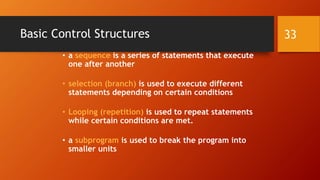

33. Basic Control Structures
• a sequence is a series of statements that execute
one after another
• selection (branch) is used to execute different
statements depending on certain conditions
• Looping (repetition) is used to repeat statements
while certain conditions are met.
• a subprogram is used to break the program into
smaller units
33

34. SEQUENCE 34
Statement Statement Statement . . .

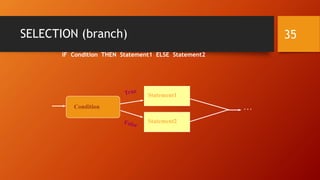

35. SELECTION (branch) 35
IF Condition THEN Statement1 ELSE Statement2
Statement1
Statement
Condition . . .
Statement2

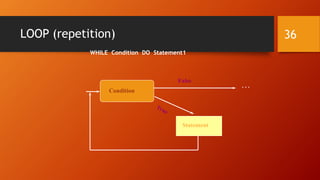

36. LOOP (repetition) 36
WHILE Condition DO Statement1
Statement
Condition
. . .
False

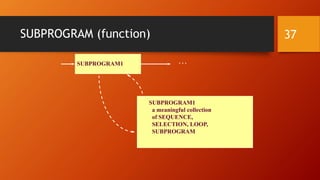

37. SUBPROGRAM (function) 37
SUBPROGRAM1 . . .
SUBPROGRAM1
a meaningful collection
of SEQUENCE,
SELECTION, LOOP,
SUBPROGRAM

38. Computer Components
Central Processing Unit ( CPU )
38
Control Unit
Arithmetic Logic Unit
Peripherals
Auxiliary
Storage
Device
Memory Unit ( RAM & Registers )
Input Device
Output Device

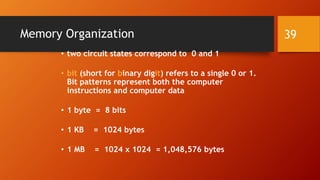

39. Memory Organization
• two circuit states correspond to 0 and 1
• bit (short for binary digit) refers to a single 0 or 1.
Bit patterns represent both the computer
instructions and computer data
• 1 byte = 8 bits
• 1 KB = 1024 bytes
• 1 MB = 1024 x 1024 = 1,048,576 bytes
39

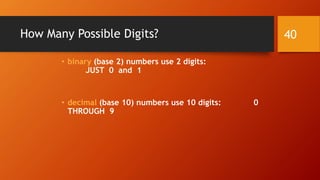

40. How Many Possible Digits?
• binary (base 2) numbers use 2 digits:
JUST 0 and 1
• decimal (base 10) numbers use 10 digits: 0
THROUGH 9
40
