The document discusses using Lua modules with Nginx. It provides an overview of Nginx and Lua, describing their key features and popular uses. It then covers how to integrate Lua into Nginx using the ngx_lua module, allowing Lua code to run at various phases of the Nginx request lifecycle. Specific techniques demonstrated include using Lua for shared memory caching, logging, issuing subrequests, and network communication via cosockets. Examples of practical applications like load balancing and analytics tagging are also presented.

1. Modulos Nginx usando Lua
Rachad Honein

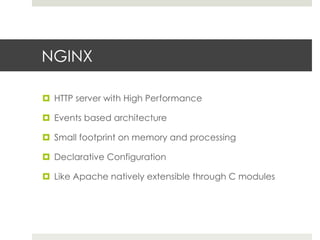

2. NGINX
¤ HTTP server with High Performance
¤ Events based architecture
¤ Small footprint on memory and processing
¤ Declarative Configuration
¤ Like Apache natively extensible through C modules

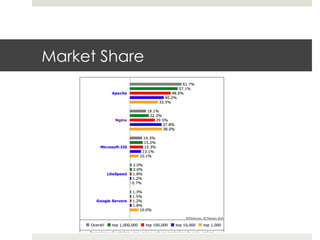

3. Market Share

4. Nginx Configuration Directives
1 location /hello {
2 set_unescape_uri $name $arg_name;
3 set_if_empty $name "Anonymous";
4 echo "Hello, $name!";
5 }

5. Lua

6. Lua

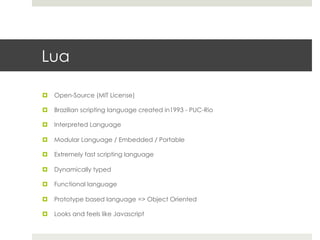

7. Lua
¤ Open-Source (MIT License)
¤ Brazilian scripting language created in1993 - PUC-Rio
¤ Interpreted Language
¤ Modular Language / Embedded / Portable
¤ Extremely fast scripting language
¤ Dynamically typed
¤ Functional language
¤ Prototype based language => Object Oriented
¤ Looks and feels like Javascript

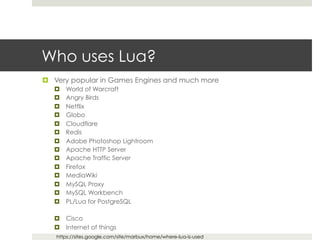

8. Who uses Lua?
¤ Very popular in Games Engines and much more
¤ World of Warcraft
¤ Angry Birds
¤ Netflix
¤ Globo
¤ Cloudflare
¤ Redis
¤ Adobe Photoshop Lightroom
¤ Apache HTTP Server
¤ Apache Traffic Server
¤ Firefox
¤ MediaWiki
¤ MySQL Proxy
¤ MySQL Workbench
¤ PL/Lua for PostgreSQL
¤ Cisco
¤ Internet of things
https://sites.google.com/site/marbux/home/where-lua-is-used

9. Lua
¤ Fast language:
Comparison with other scripting languages

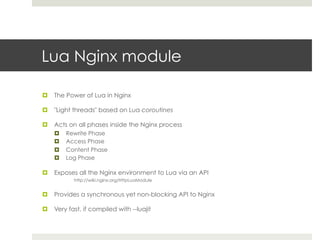

10. Lua Nginx module
¤ The Power of Lua in Nginx
¤ "Light threads" based on Lua coroutines
¤ Acts on all phases inside the Nginx process
¤ Rewrite Phase
¤ Access Phase
¤ Content Phase
¤ Log Phase
¤ Exposes all the Nginx environment to Lua via an API
http://wiki.nginx.org/HttpLuaModule
¤ Provides a synchronous yet non-blocking API to Nginx
¤ Very fast, if compiled with --luajit

11. Use cases of Nginx + Lua
¤ Smart Programmable Router
¤ Proxy
¤ Load Balancer
¤ A/B Testing
¤ Complex Caching
¤ Advanced logging
¤ API Aggregator
¤ Authentication Services
¤ And much more…

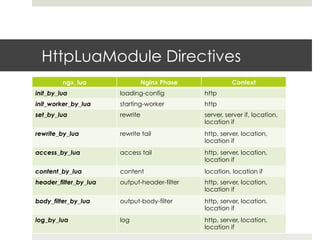

12. HttpLuaModule Directives
ngx_lua Nginx Phase Context
init_by_lua loading-config http
init_worker_by_lua starting-worker http
set_by_lua rewrite server, server if, location,
location if
rewrite_by_lua rewrite tail http, server, location,
location if
access_by_lua access tail http, server, location,
location if
content_by_lua content location, location if
header_filter_by_lua output-header-filter http, server, location,
location if
body_filter_by_lua output-body-filter http, server, location,
location if
log_by_lua log http, server, location,
location if

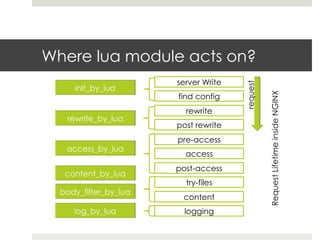

13. Where lua module acts on?
server Write
find config
rewrite
post rewrite
pre-access
access
post-access
try-files
content
logging
request
Request Lifetime inside NGINX

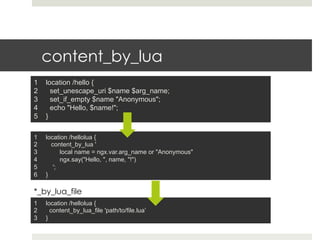

14. content_by_lua
1 location /hello {
2 set_unescape_uri $name $arg_name;
3 set_if_empty $name "Anonymous";
4 echo "Hello, $name!";
5 }
1 location /hellolua {
2 content_by_lua '
3 local name = ngx.var.arg_name or "Anonymous"
4 ngx.say("Hello, ", name, "!")
5 ';
6 }
*_by_lua_file
1 location /hellolua {
2 content_by_lua_file 'path/to/file.lua’
3 }

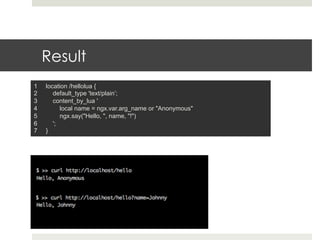

15. Result
1 location /hellolua {
2 default_type 'text/plain’;
3 content_by_lua '
4 local name = ngx.var.arg_name or "Anonymous"
5 ngx.say("Hello, ", name, "!")
6 ';
7 }

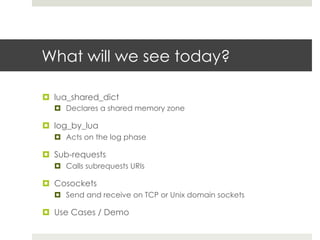

16. What will we see today?
¤ lua_shared_dict
¤ Declares a shared memory zone
¤ log_by_lua
¤ Acts on the log phase
¤ Sub-requests
¤ Calls subrequests URIs
¤ Cosockets
¤ Send and receive on TCP or Unix domain sockets
¤ Use Cases / Demo

17. Shared Data
1 http {
2 lua_shared_dict dogs 10m;
3 server {
4 location /set {
5 content_by_lua '
6 local dogs = ngx.shared.dogs
7 dogs:set("Jim", 8)
8 ngx.say("STORED")
9 ';
10 }
11 location /get {
12 content_by_lua '
13 local dogs = ngx.shared.dogs
14 ngx.say(dogs:get("Jim"))
15 ';
16 }
17 }
18 }

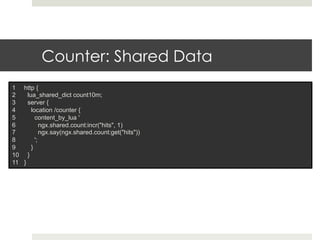

18. Counter: Shared Data
1 http {
2 lua_shared_dict count10m;
3 server {
4 location /counter {
5 content_by_lua '
6 ngx.shared.count:incr("hits", 1)
7 ngx.say(ngx.shared.count:get("hits"))
8 ';
9 }
10 }
11 }

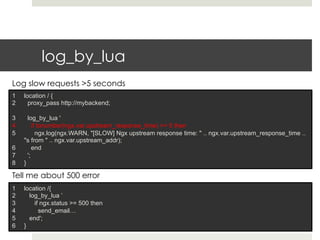

19. log_by_lua
Log slow requests >5 seconds
1 location / {
2 proxy_pass http://mybackend;
3 log_by_lua '
4 if tonumber(ngx.var.upstream_response_time) >= 5 then
5 ngx.log(ngx.WARN, "[SLOW] Ngx upstream response time: " .. ngx.var.upstream_response_time ..
"s from " .. ngx.var.upstream_addr);
6 end
7 ';
8 }
Tell me about 500 error
1 location /{
2 log_by_lua ’
3 if ngx.status >= 500 then
4 send_email…
5 end';
6 }

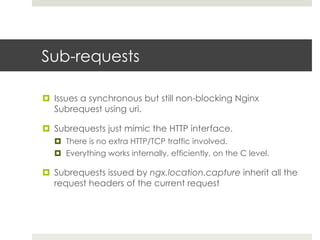

20. Sub-requests
¤ Issues a synchronous but still non-blocking Nginx
Subrequest using uri.
¤ Subrequests just mimic the HTTP interface.
¤ There is no extra HTTP/TCP traffic involved.
¤ Everything works internally, efficiently, on the C level.
¤ Subrequests issued by ngx.location.capture inherit all the
request headers of the current request

21. ngx.location.capture
¤ Subrequests
¤ Example: Deprecated Route
1 location /old_api {
2 content_by_lua '
3 local res = ngx.location.capture(”/new_api")
4 if res.status >= 500 then
5 ngx.exit(res.status)
6 end
7 ngx.status = res.status
8 ngx.say("This is coming from another request")
9 ngx.say(res.body)
10 ';
11 }

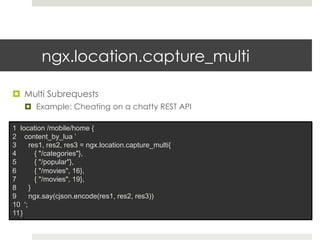

22. ngx.location.capture_multi
¤ Multi Subrequests
¤ Example: Cheating on a chatty REST API
1 location /mobile/home {
2 content_by_lua ’
3 res1, res2, res3 = ngx.location.capture_multi{
4 { "/categories"},
5 { "/popular"},
6 { "/movies", 16},
7 { "/movies", 19},
8 }
9 ngx.say(cjson.encode(res1, res2, res3))
10 ';
11 }

23. cosockets
¤ Send and receive on TCP or Unix domain sockets.
¤ API compatible with LuaSocket, yet non-blocking to
Nginx.
¤ Has a keepalive mechanism to avoid connect/close for
each request.

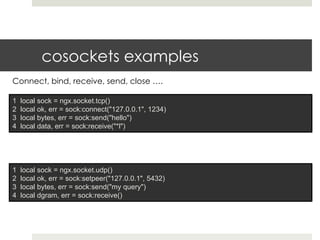

24. cosockets examples
Connect, bind, receive, send, close ….
1 local sock = ngx.socket.tcp()
2 local ok, err = sock:connect("127.0.0.1", 1234)
3 local bytes, err = sock:send("hello")
4 local data, err = sock:receive("*l")
1 local sock = ngx.socket.udp()
2 local ok, err = sock:setpeer("127.0.0.1", 5432)
3 local bytes, err = sock:send("my query")
4 local dgram, err = sock:receive()

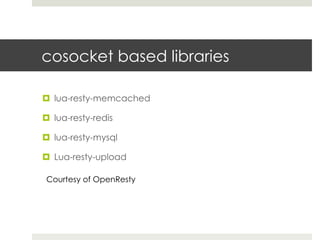

25. cosocket based libraries
¤ lua-resty-memcached
¤ lua-resty-redis
¤ lua-resty-mysql
¤ Lua-resty-upload
Courtesy of OpenResty

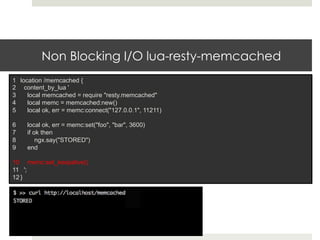

26. Non Blocking I/O lua-resty-memcached
1 location /memcached {
2 content_by_lua '
3 local memcached = require "resty.memcached"
4 local memc = memcached:new()
5 local ok, err = memc:connect("127.0.0.1", 11211)
6 local ok, err = memc:set("foo", "bar", 3600)
7 if ok then
8 ngx.say("STORED")
9 end
10 memc:set_keepalive()
11 ';
12 }

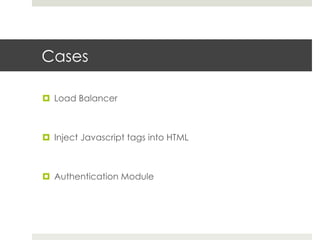

27. Cases
¤ Load Balancer
¤ Inject Javascript tags into HTML
¤ Authentication Module

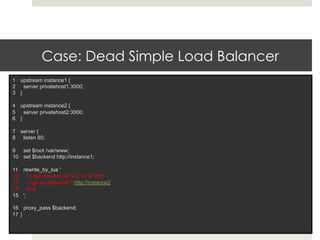

28. Case: Dead Simple Load Balancer
1 upstream instance1 {
2 server privatehost1:3000;
3 }
4 upstream instance2 {
5 server privatehost2:3000;
6 }
7 server {
8 listen 80;
9 set $root /var/www;
10 set $backend http://instance1;
11 rewrite_by_lua '
12 if (ngx.var.user_id % 2 == 0) then
13 ngx.var.backend = http://instance2
14 end
15 ';
16 proxy_pass $backend;
17 }

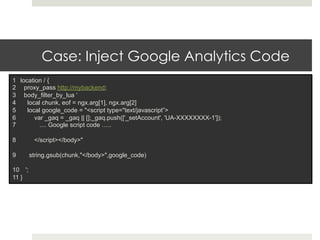

29. Case: Inject Google Analytics Code
1 location / {
2 proxy_pass http://mybackend;
3 body_filter_by_lua ‘
4 local chunk, eof = ngx.arg[1], ngx.arg[2]
5 local google_code = "<script type="text/javascript”>
6 var _gaq = _gaq || [];_gaq.push(['_setAccount', 'UA-XXXXXXXX-1']);
7 .... Google script code …..
8 </script></body>"
9 string.gsub(chunk,"</body>",google_code)
10 ';
11 }

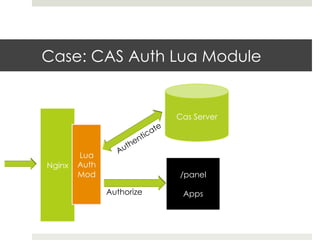

30. Case: CAS Auth Lua Module
Nginx
Lua
Auth
Mod
Authorize
/panel
Apps

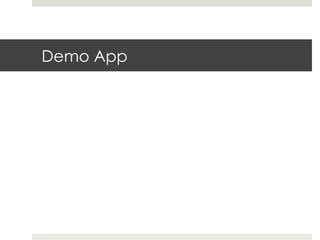

31. Demo App

32. Thank you!
