Lecture 2b lists
Linked lists are a dynamic data structure that store elements sequentially using pointers. Each element contains data and a pointer to the next element. This allows efficient insertion and removal of elements but inefficient random access. There are different types of linked lists including singly, doubly, and circularly linked lists. Linked lists offer more flexible memory allocation than arrays but have higher overhead and slower access times.
More Related Content
Similar to Lecture 2b lists
Lecture 2b lists
- 1. LECTURE 2b: THELIST DATALECTURE 2b: THE LIST DATA STRUCTURESTRUCTURE Linked lists ◦ Abstract data type (ADT) Basic operations of linked lists ◦ Insert, find, delete, etc. ◦ Types; Singly, Doubly & Circularly
- 2. DefinitionsDefinitions List: Is afinite sequence of elements with basic operators that vary from one application to another. Linked list: A linked list is a self- referential data type that contains a pointer or link to data of the same type.

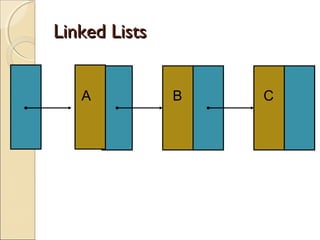

- 3.
- 4.

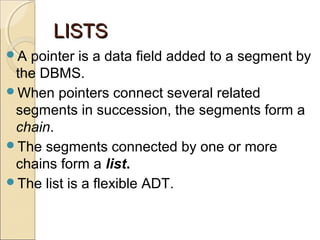

- 5. LISTSLISTS A pointer isa data field added to a segment by the DBMS. When pointers connect several related segments in succession, the segments form a chain. The segments connected by one or more chains form a list. The list is a flexible ADT.

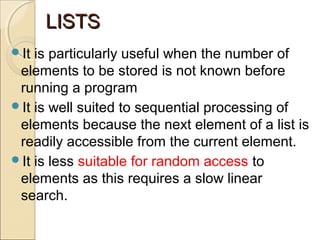

- 6. LISTSLISTS It is particularlyuseful when the number of elements to be stored is not known before running a program It is well suited to sequential processing of elements because the next element of a list is readily accessible from the current element. It is less suitable for random access to elements as this requires a slow linear search.

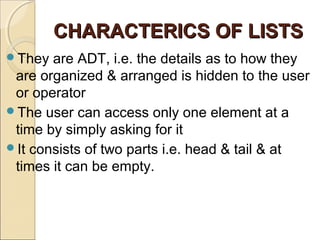

- 7. CHARACTERICS OF LISTSCHARACTERICSOF LISTS They are ADT, i.e. the details as to how they are organized & arranged is hidden to the user or operator The user can access only one element at a time by simply asking for it It consists of two parts i.e. head & tail & at times it can be empty.

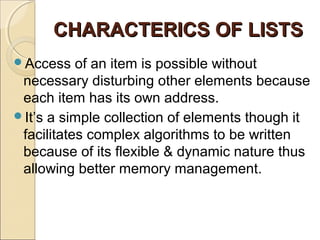

- 8. CHARACTERICS OF LISTSCHARACTERICSOF LISTS Access of an item is possible without necessary disturbing other elements because each item has its own address. It’s a simple collection of elements though it facilitates complex algorithms to be written because of its flexible & dynamic nature thus allowing better memory management.

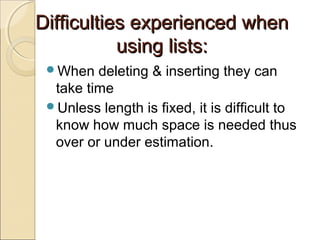

- 9. Difficulties experienced whenDifficultiesexperienced when using lists:using lists: When deleting & inserting they can take time Unless length is fixed, it is difficult to know how much space is needed thus over or under estimation.

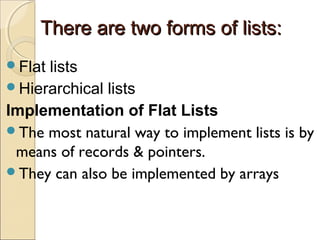

- 10. There are twoforms of lists:There are two forms of lists: Flat lists Hierarchical lists Implementation of Flat Lists The most natural way to implement lists is by means of records & pointers. They can also be implemented by arrays
- 11. APPLICATIONS OF LISTAPPLICATIONSOF LIST A dynamic list may allow items to be inserted, replaced, or deleted during the list's existence. As the name implies, lists can be used to store a list of records. The items in a list can be sorted for the purpose of fast search - Applicable in the sorting Used to allocate storage in the computer memory in a lexicographic order Used to keep track of multi-lists of example two- dimensional array Location of elements within a program
- 12. Linked ListLinked List Alinked list is a self-referential data type because it contains a pointer or link to another data of the same type Linked lists permit insertion and removal of nodes at any point in the list in constant time, but do not allow random access It consists of a sequence of nodes, each containing arbitrary data fields and one or two references ("links") pointing to the next and/or previous nodes.

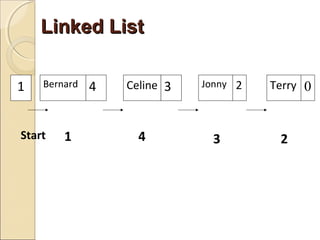

- 13. Linked ListLinked List 1Bernard 4 Celine 3 Jonny 2 Terry 0 3 2Start 1 4

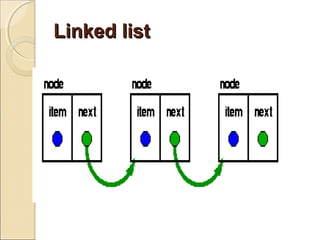

- 14.

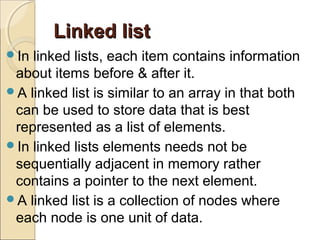

- 15. Linked listLinked list Inlinked lists, each item contains information about items before & after it. A linked list is similar to an array in that both can be used to store data that is best represented as a list of elements. In linked lists elements needs not be sequentially adjacent in memory rather contains a pointer to the next element. A linked list is a collection of nodes where each node is one unit of data.

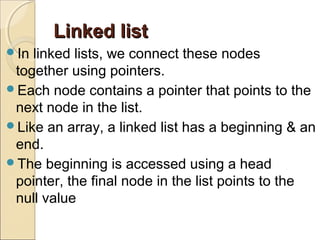

- 16. Linked listLinked list Inlinked lists, we connect these nodes together using pointers. Each node contains a pointer that points to the next node in the list. Like an array, a linked list has a beginning & an end. The beginning is accessed using a head pointer, the final node in the list points to the null value
- 17. Different types oflinked listDifferent types of linked list Linearly-linked List- Singly-linked list Doubly-linked lists, Circularly-linked lists.

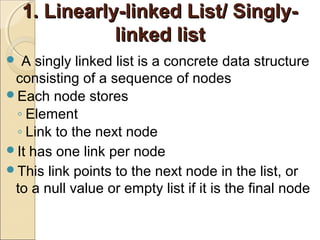

- 18. 1. Linearly-linked List/Singly-1. Linearly-linked List/ Singly- linked listlinked list A singly linked list is a concrete data structure consisting of a sequence of nodes Each node stores ◦ Element ◦ Link to the next node It has one link per node This link points to the next node in the list, or to a null value or empty list if it is the final node
- 19.

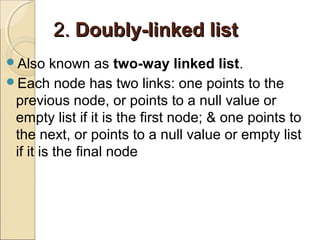

- 20. 2.2. Doubly-linked listDoubly-linkedlist Also known as two-way linked list. Each node has two links: one points to the previous node, or points to a null value or empty list if it is the first node; & one points to the next, or points to a null value or empty list if it is the final node

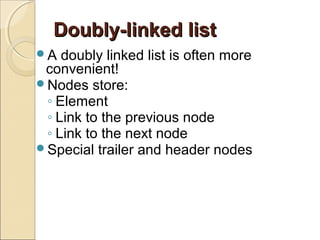

- 21. Doubly-linked listDoubly-linked list Adoubly linked list is often more convenient! Nodes store: ◦ Element ◦ Link to the previous node ◦ Link to the next node Special trailer and header nodes

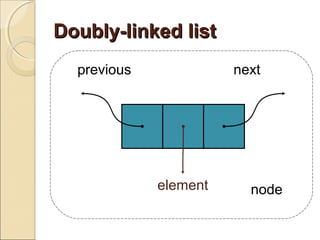

- 22. Doubly-linked listDoubly-linked list previousnext element node
- 23.

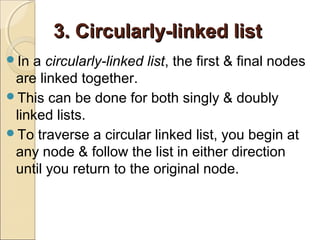

- 24. 3. Circularly-linked list3.Circularly-linked list In a circularly-linked list, the first & final nodes are linked together. This can be done for both singly & doubly linked lists. To traverse a circular linked list, you begin at any node & follow the list in either direction until you return to the original node.
- 25. 3. Circularly-linked list3.Circularly-linked list Circularly-linked lists can also be seen as having no beginning or end. This type of list is most useful for managing buffers for data ingest & in cases where you have one object in a list & wish to see all other objects in the list. The pointer pointing to the whole list is usually called the end pointer.
- 26. Applications of linkedlistsApplications of linked lists Linked lists are used as a building block for many other data structures, such as stacks, queues & their variations. Linked lists are used to implement associative arrays & are in this context called association lists.

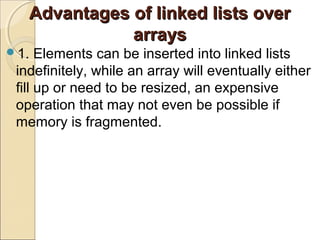

- 27. Advantages of linkedlists overAdvantages of linked lists over arraysarrays 1. Elements can be inserted into linked lists indefinitely, while an array will eventually either fill up or need to be resized, an expensive operation that may not even be possible if memory is fragmented.

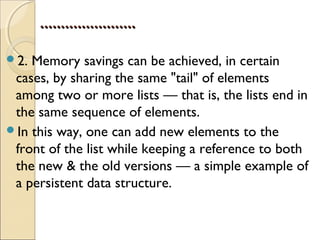

- 28. .............................................. 2. Memory savingscan be achieved, in certain cases, by sharing the same "tail" of elements among two or more lists — that is, the lists end in the same sequence of elements. In this way, one can add new elements to the front of the list while keeping a reference to both the new & the old versions — a simple example of a persistent data structure.

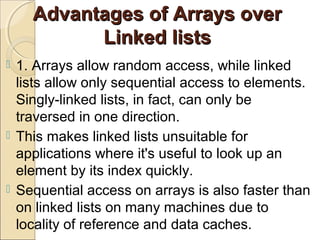

- 29. Advantages of ArraysoverAdvantages of Arrays over Linked listsLinked lists 1. Arrays allow random access, while linked lists allow only sequential access to elements. Singly-linked lists, in fact, can only be traversed in one direction. This makes linked lists unsuitable for applications where it's useful to look up an element by its index quickly. Sequential access on arrays is also faster than on linked lists on many machines due to locality of reference and data caches.

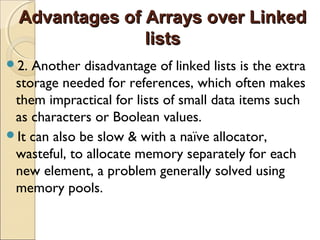

- 30. Advantages of Arraysover LinkedAdvantages of Arrays over Linked listslists 2. Another disadvantage of linked lists is the extra storage needed for references, which often makes them impractical for lists of small data items such as characters or Boolean values. It can also be slow & with a naïve allocator, wasteful, to allocate memory separately for each new element, a problem generally solved using memory pools.

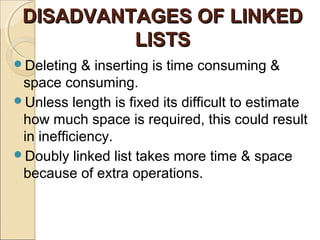

- 31. DISADVANTAGES OF LINKEDDISADVANTAGESOF LINKED LISTSLISTS Deleting & inserting is time consuming & space consuming. Unless length is fixed its difficult to estimate how much space is required, this could result in inefficiency. Doubly linked list takes more time & space because of extra operations.

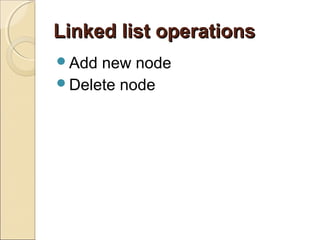

- 32. Linked list operationsLinkedlist operations Add new node Delete node

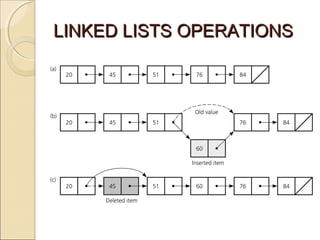

- 33. LINKED LISTS OPERATIONSLINKEDLISTS OPERATIONS

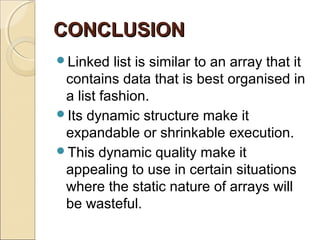

- 34. CONCLUSIONCONCLUSION Linked list issimilar to an array that it contains data that is best organised in a list fashion. Its dynamic structure make it expandable or shrinkable execution. This dynamic quality make it appealing to use in certain situations where the static nature of arrays will be wasteful.
- 35.
