1. 1
CS02407/CS428 Web Engineering
Lecture 01
Overview
(Introduction)

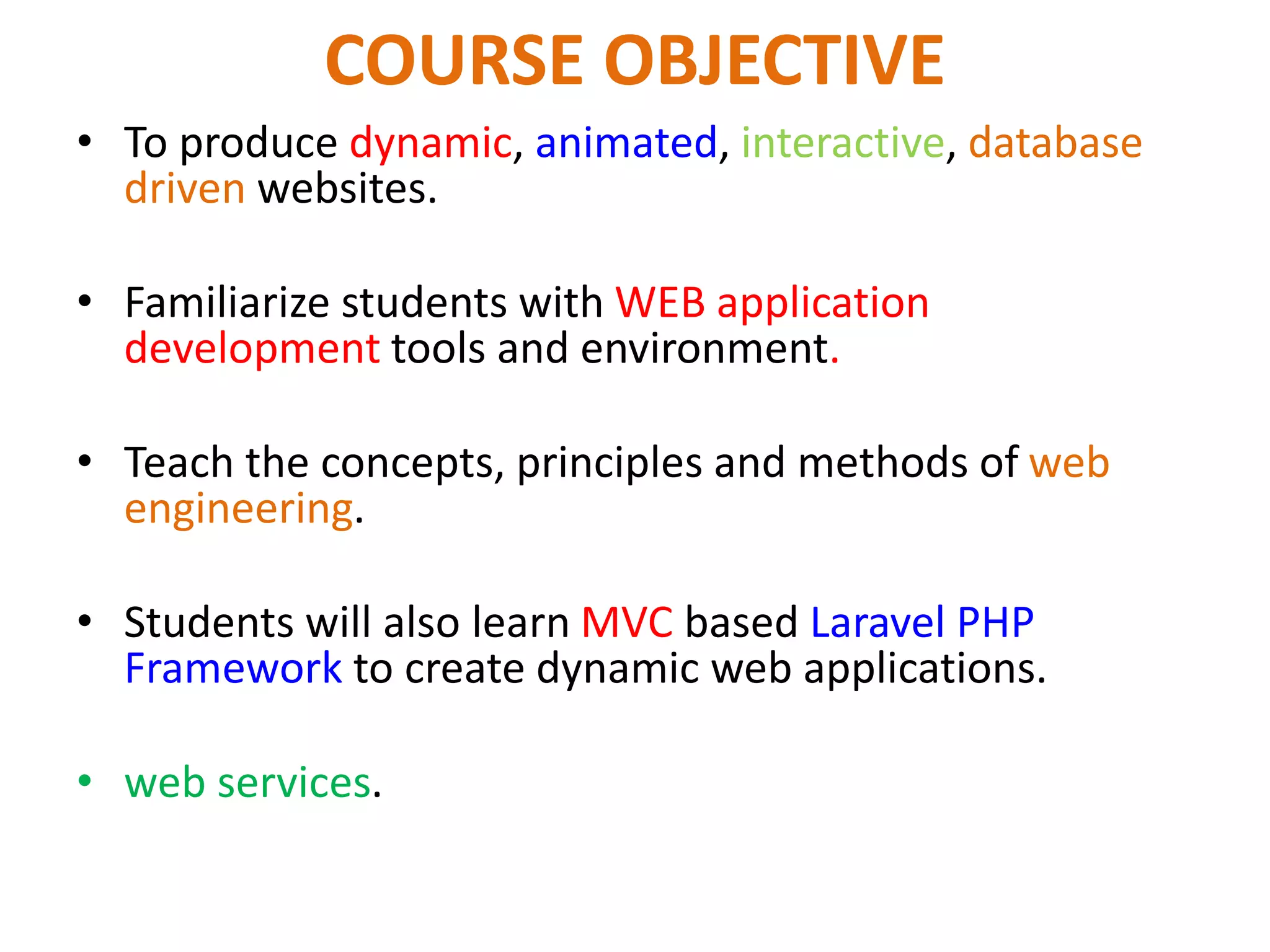

2. COURSE OBJECTIVE
• To produce dynamic, animated, interactive, database
driven websites.
• Familiarize students with WEB application
development tools and environment.
• Teach the concepts, principles and methods of web
engineering.
• Students will also learn MVC based Laravel PHP
Framework to create dynamic web applications.
• web services.

3. LEARNING OUTCOMES
• Identify candidate tools and technologies for
developing web applications.
• Develop responsive design interfaces for web
applications.
• To produce dynamic web applications using
Laravel PHP Framework.
• Develop web services.

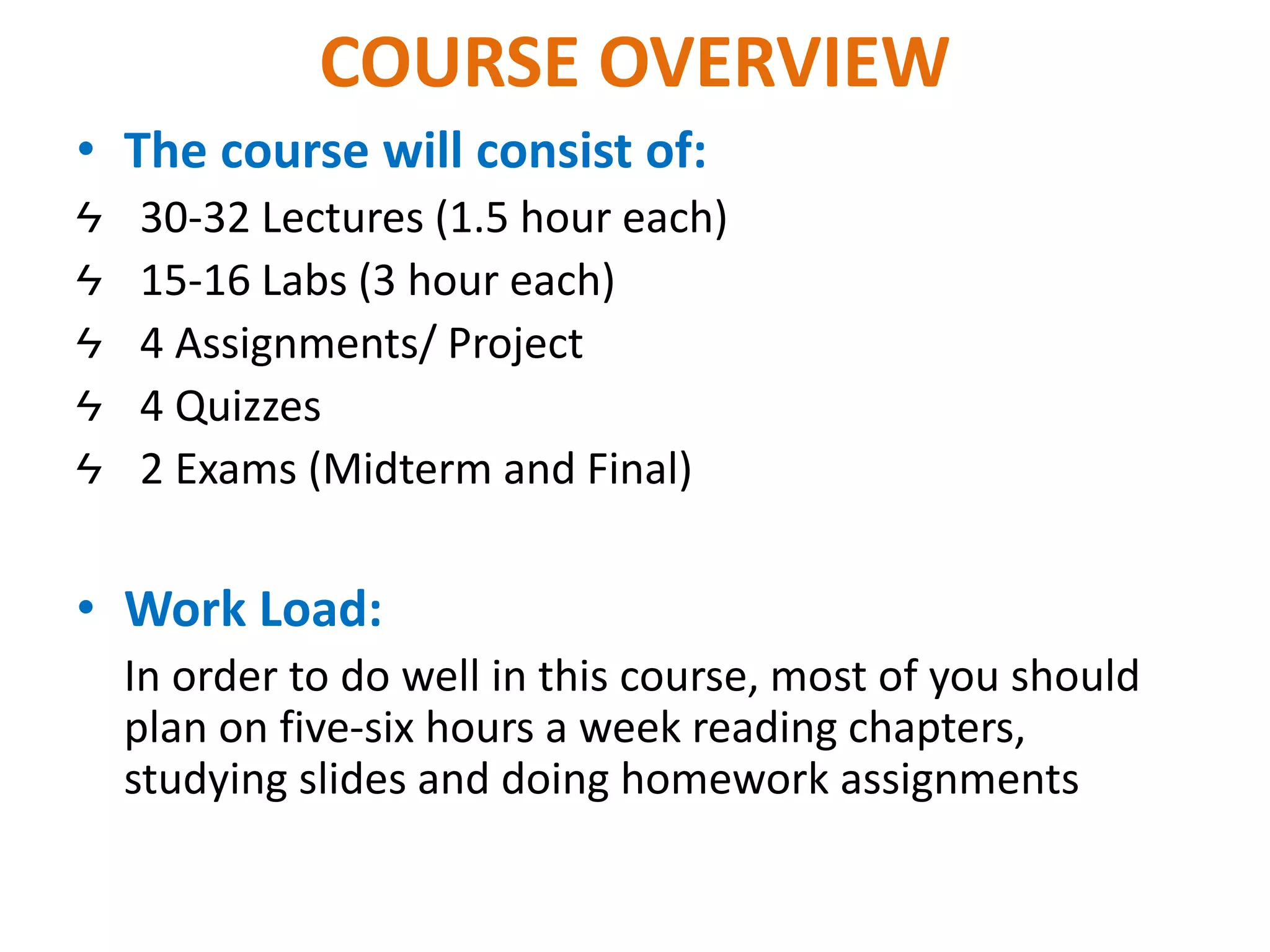

4. COURSE OVERVIEW
• The course will consist of:
Ϟ 30-32 Lectures (1.5 hour each)
Ϟ 15-16 Labs (3 hour each)
Ϟ 4 Assignments/ Project
Ϟ 4 Quizzes
Ϟ 2 Exams (Midterm and Final)
• Work Load:
In order to do well in this course, most of you should
plan on five-six hours a week reading chapters,
studying slides and doing homework assignments

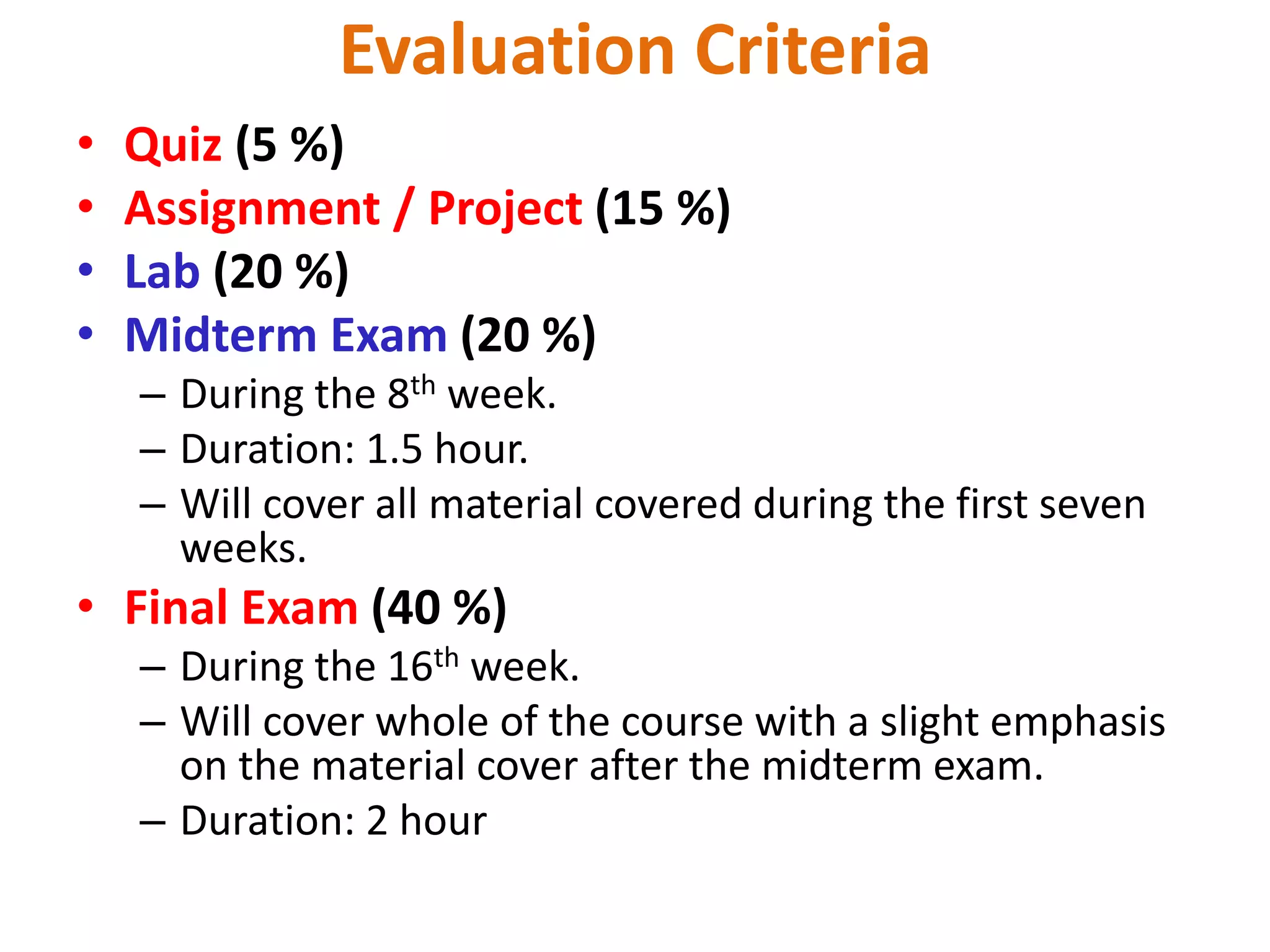

5. Evaluation Criteria
• Quiz (5 %)
• Assignment / Project (15 %)
• Lab (20 %)
• Midterm Exam (20 %)
– During the 8th week.
– Duration: 1.5 hour.
– Will cover all material covered during the first seven
weeks.
• Final Exam (40 %)
– During the 16th week.
– Will cover whole of the course with a slight emphasis
on the material cover after the midterm exam.
– Duration: 2 hour

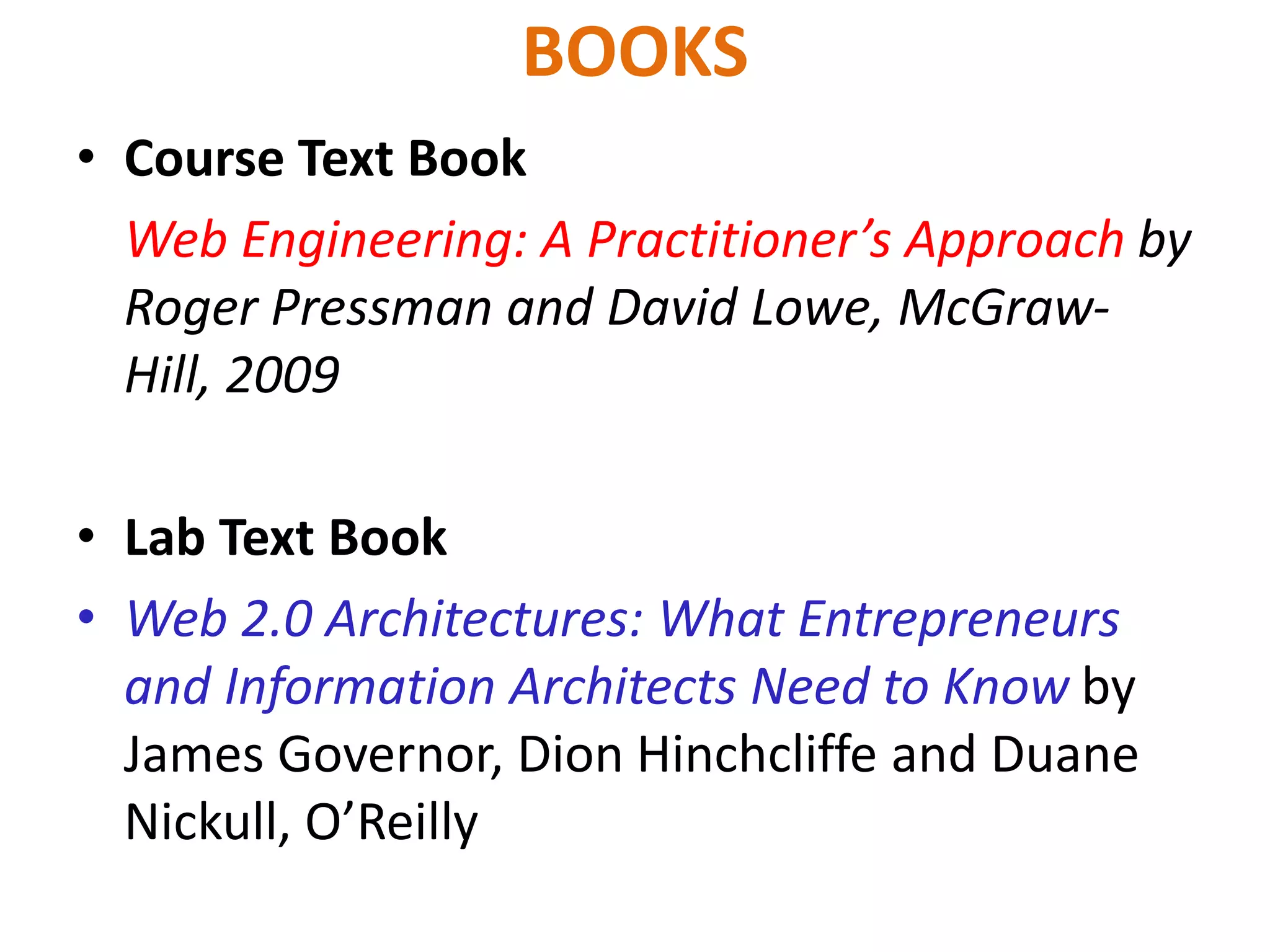

6. BOOKS
• Course Text Book
Web Engineering: A Practitioner’s Approach by
Roger Pressman and David Lowe, McGraw-
Hill, 2009
• Lab Text Book
• Web 2.0 Architectures: What Entrepreneurs
and Information Architects Need to Know by
James Governor, Dion Hinchcliffe and Duane
Nickull, O’Reilly

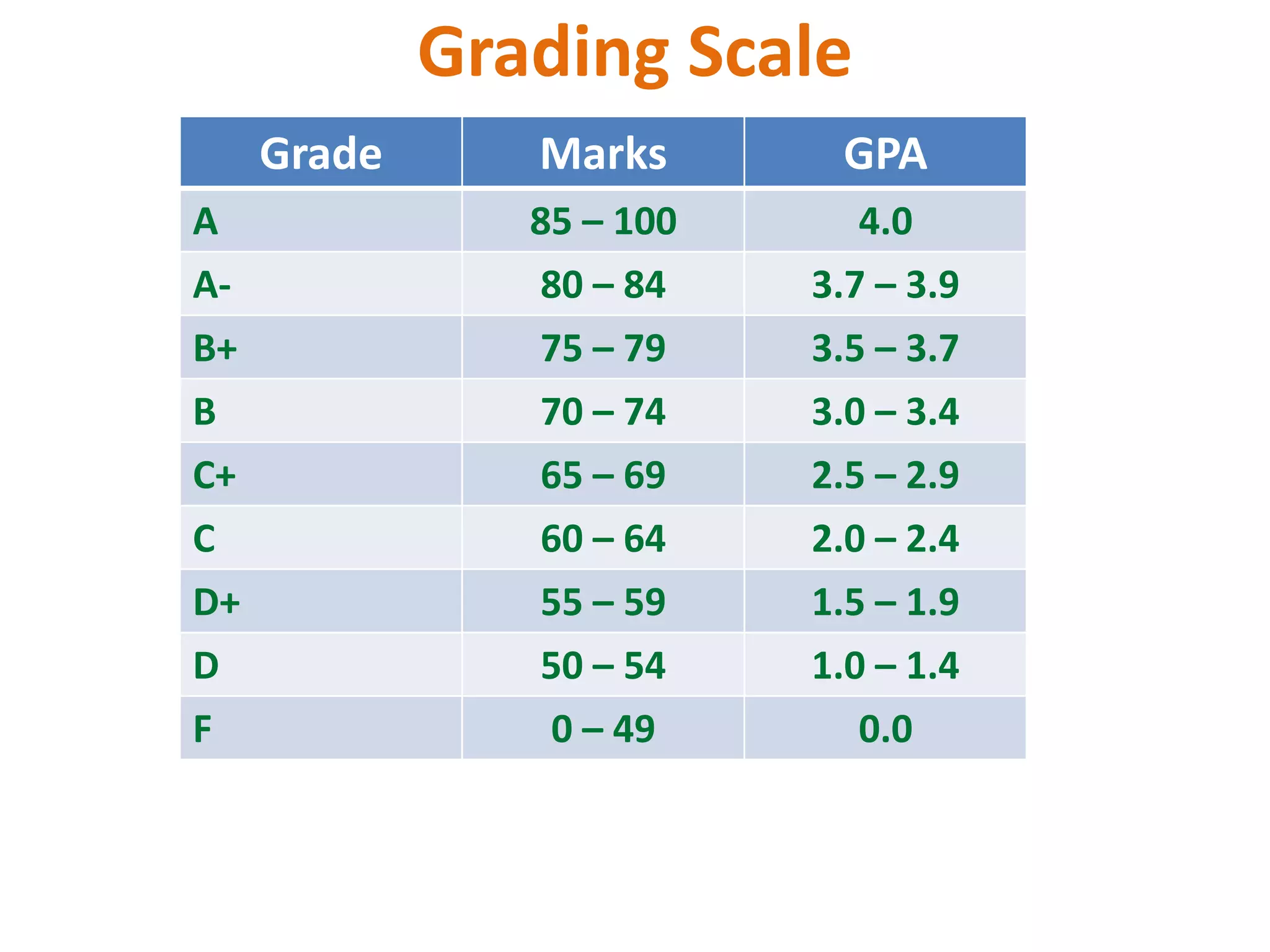

7. Grading Scale
Grade Marks GPA
A 85 – 100 4.0
A- 80 – 84 3.7 – 3.9
B+ 75 – 79 3.5 – 3.7
B 70 – 74 3.0 – 3.4
C+ 65 – 69 2.5 – 2.9
C 60 – 64 2.0 – 2.4
D+ 55 – 59 1.5 – 1.9
D 50 – 54 1.0 – 1.4
F 0 – 49 0.0

8. SOFTWARES
• Web Server (Apache)
• Database (MySQL)
• Framework (Laravel)
• Text Editor (Notepad ++, PhpStorm, Sublime,
Dreamweaver)
http://notepad-plus-plus.org/
• Web Browser (Google Chrome, Mozilla Firefox)

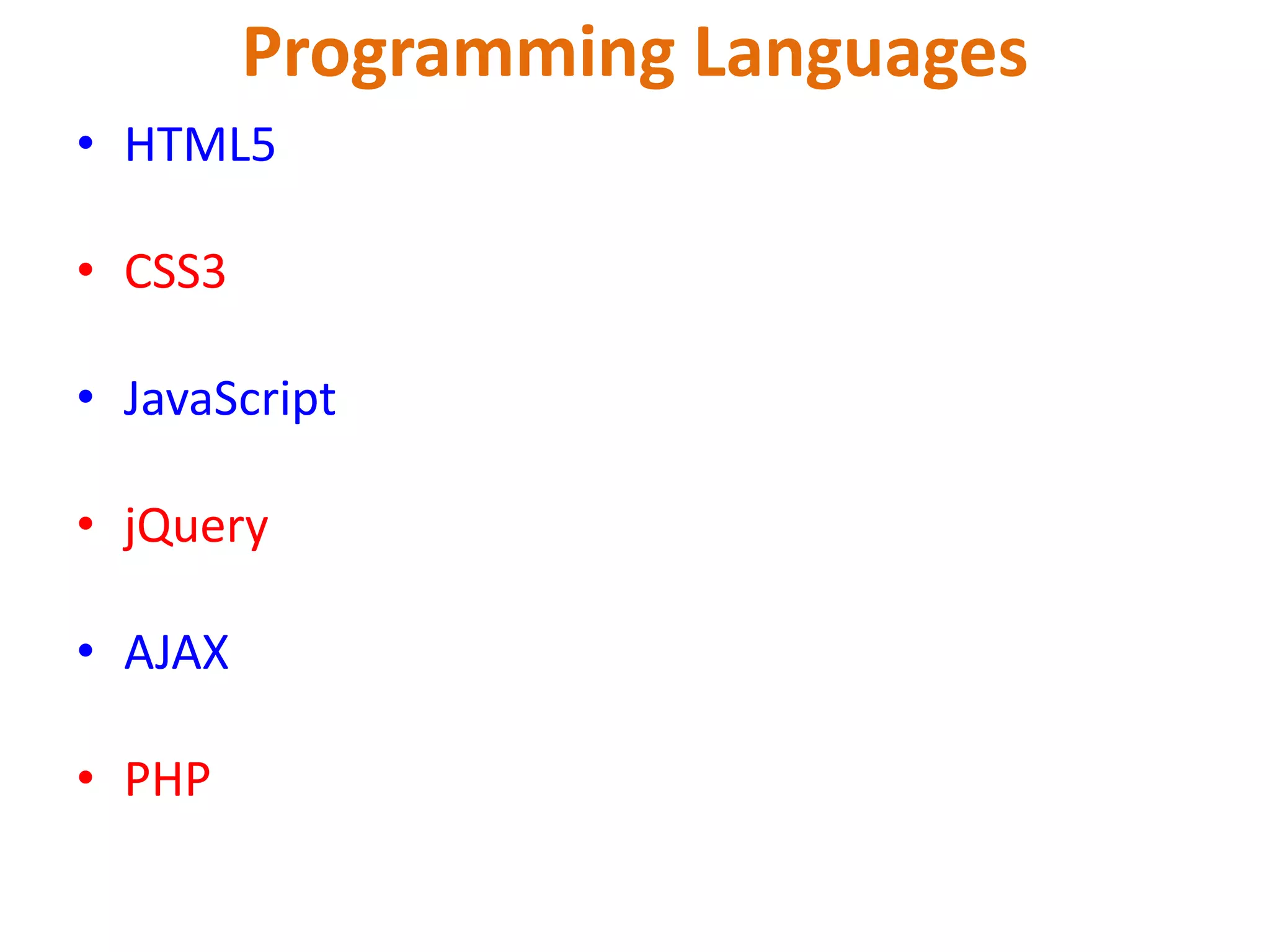

9. Programming Languages
• HTML5
• CSS3
• JavaScript
• jQuery
• AJAX
• PHP

10. Framework
• Bootstrap (CSS framework)
• Angular JS (Client side framework)
• Laravel (PHP framework)

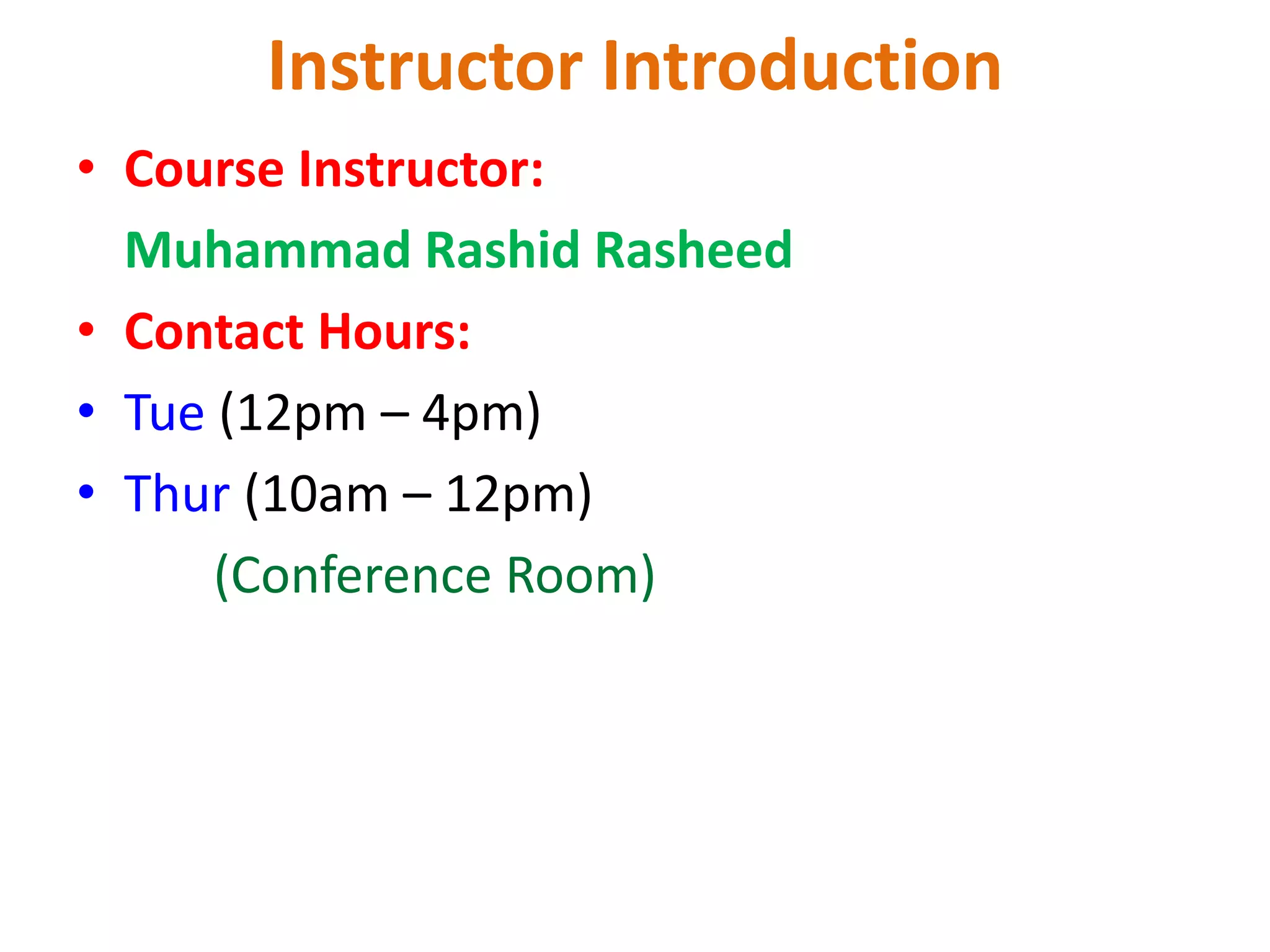

11. Instructor Introduction
• Course Instructor:
Muhammad Rashid Rasheed
• Contact Hours:
• Tue (12pm – 4pm)
• Thur (10am – 12pm)
(Conference Room)

12. Web Programming vs Web Engineering
• Web Programming:
 More focus on programming of HTML, CSS,
JavaScript and PHP only.
• Web Engineering
 It is advanced course.
 Web Programming is prerequisite of web
engineering.
 More concentration on currently available web
application development tools and framework.
– In depth study of PHP.
– In depth study of Laravel.

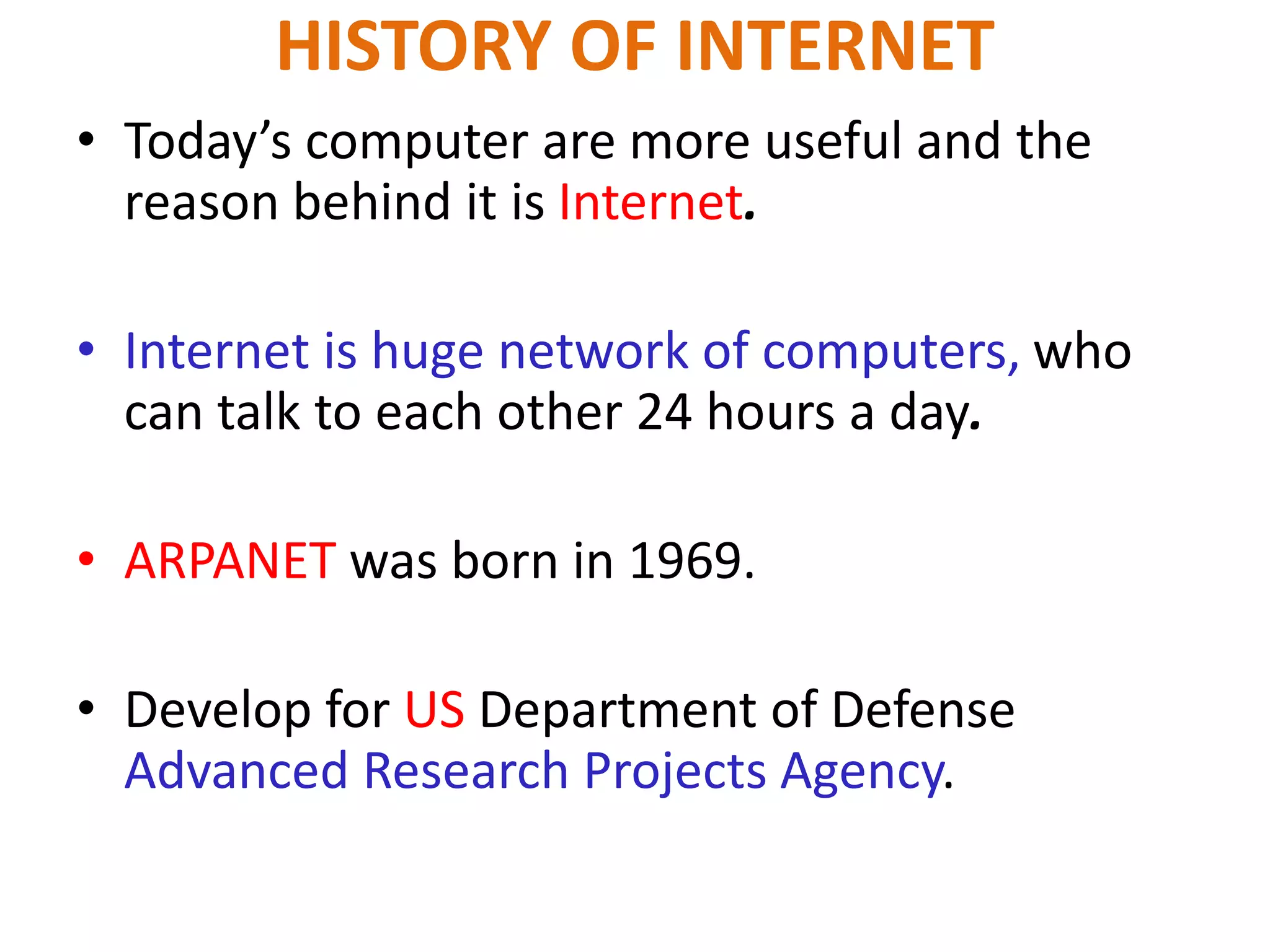

13. • Today’s computer are more useful and the
reason behind it is Internet.
• Internet is huge network of computers, who
can talk to each other 24 hours a day.
• ARPANET was born in 1969.
• Develop for US Department of Defense
Advanced Research Projects Agency.
HISTORY OF INTERNET

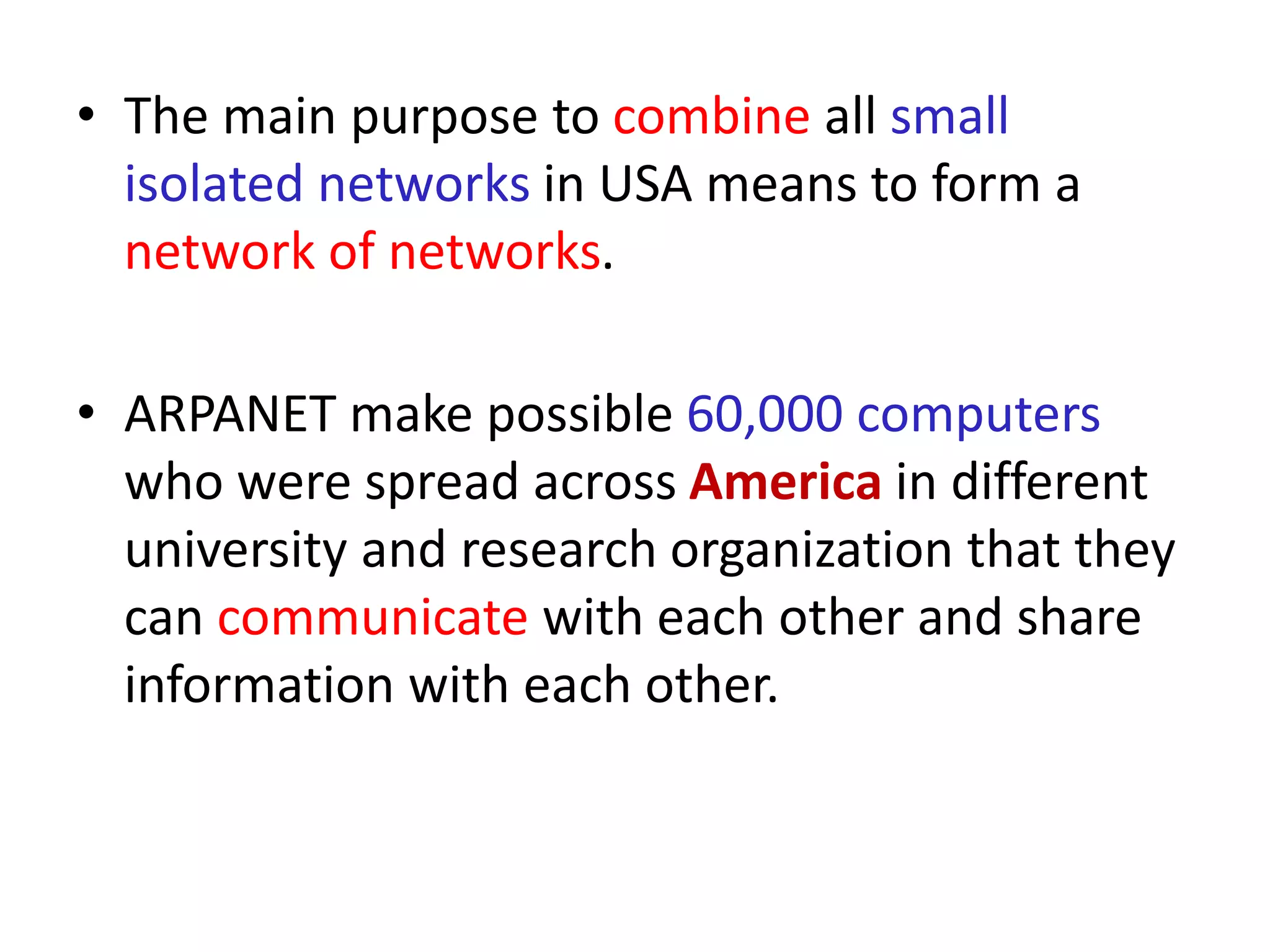

14. • The main purpose to combine all small
isolated networks in USA means to form a
network of networks.
• ARPANET make possible 60,000 computers
who were spread across America in different
university and research organization that they
can communicate with each other and share
information with each other.

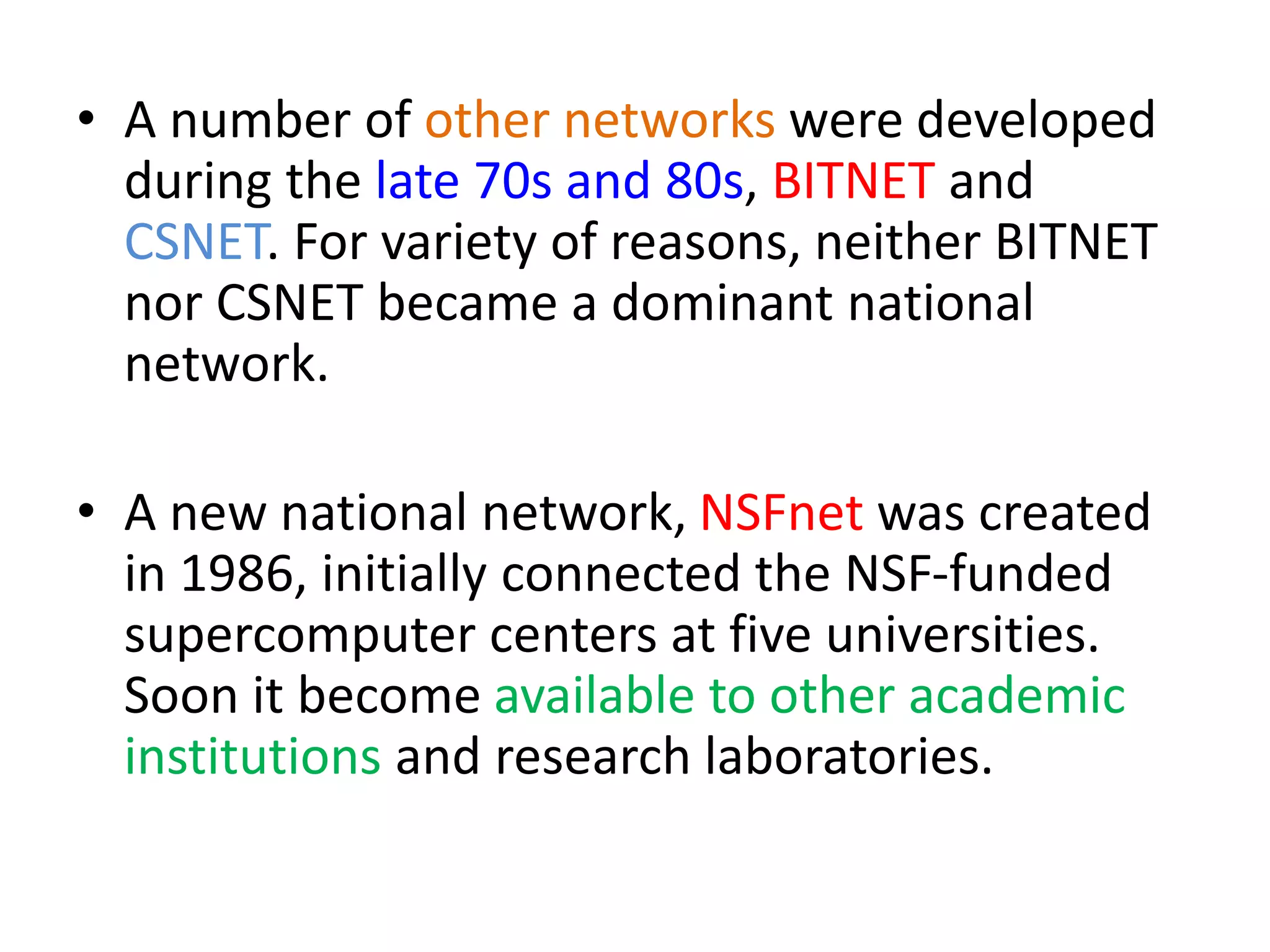

15. • A number of other networks were developed
during the late 70s and 80s, BITNET and
CSNET. For variety of reasons, neither BITNET
nor CSNET became a dominant national
network.
• A new national network, NSFnet was created
in 1986, initially connected the NSF-funded
supercomputer centers at five universities.
Soon it become available to other academic
institutions and research laboratories.

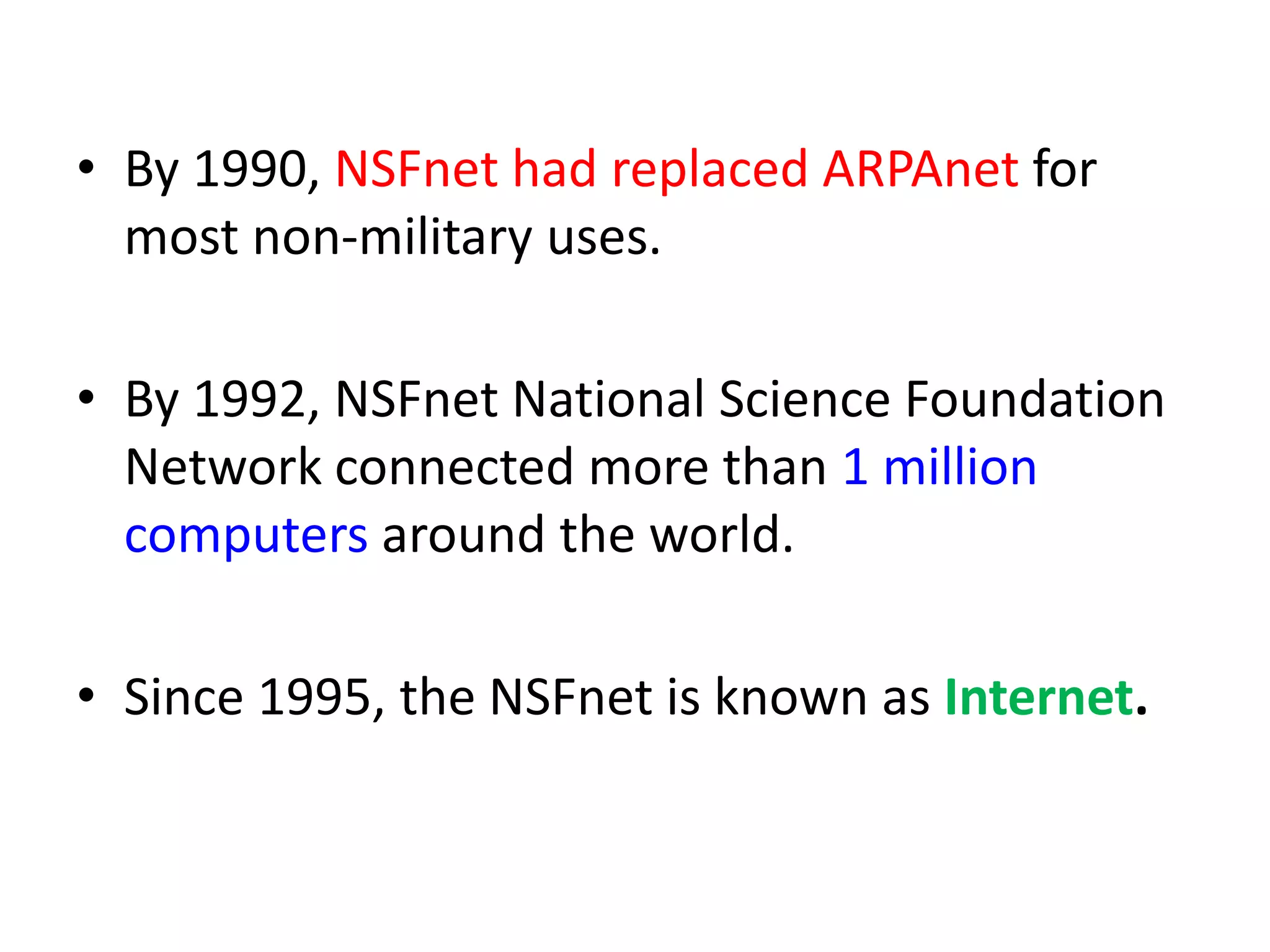

16. • By 1990, NSFnet had replaced ARPAnet for
most non-military uses.
• By 1992, NSFnet National Science Foundation
Network connected more than 1 million
computers around the world.
• Since 1995, the NSFnet is known as Internet.

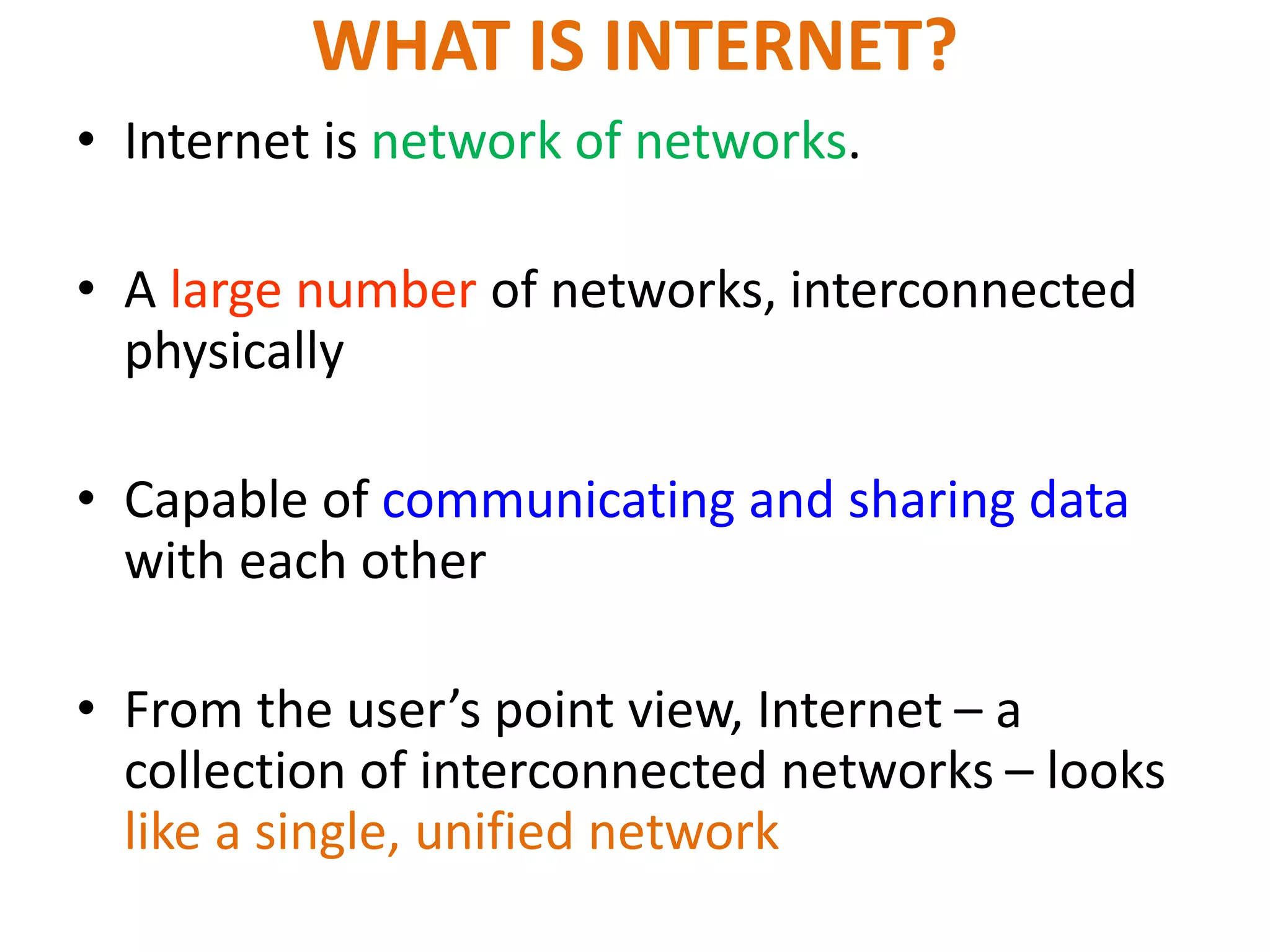

17. • Internet is network of networks.
• A large number of networks, interconnected
physically
• Capable of communicating and sharing data
with each other
• From the user’s point view, Internet – a
collection of interconnected networks – looks
like a single, unified network
WHAT IS INTERNET?

19. 19
Packet (1)
• The smallest unit of data transmitted over a
computer network
• A message to be transferred over the network is
broken up into small packets by the sending
computer
• Each packet contains the following info:
– Sender's address
– Destination address
– Data
– Error-recovery info

20. 20
Packet (2)
• All packets travel independently
• When all packets are received by the destination
computer, it reassembles them to form the
original message

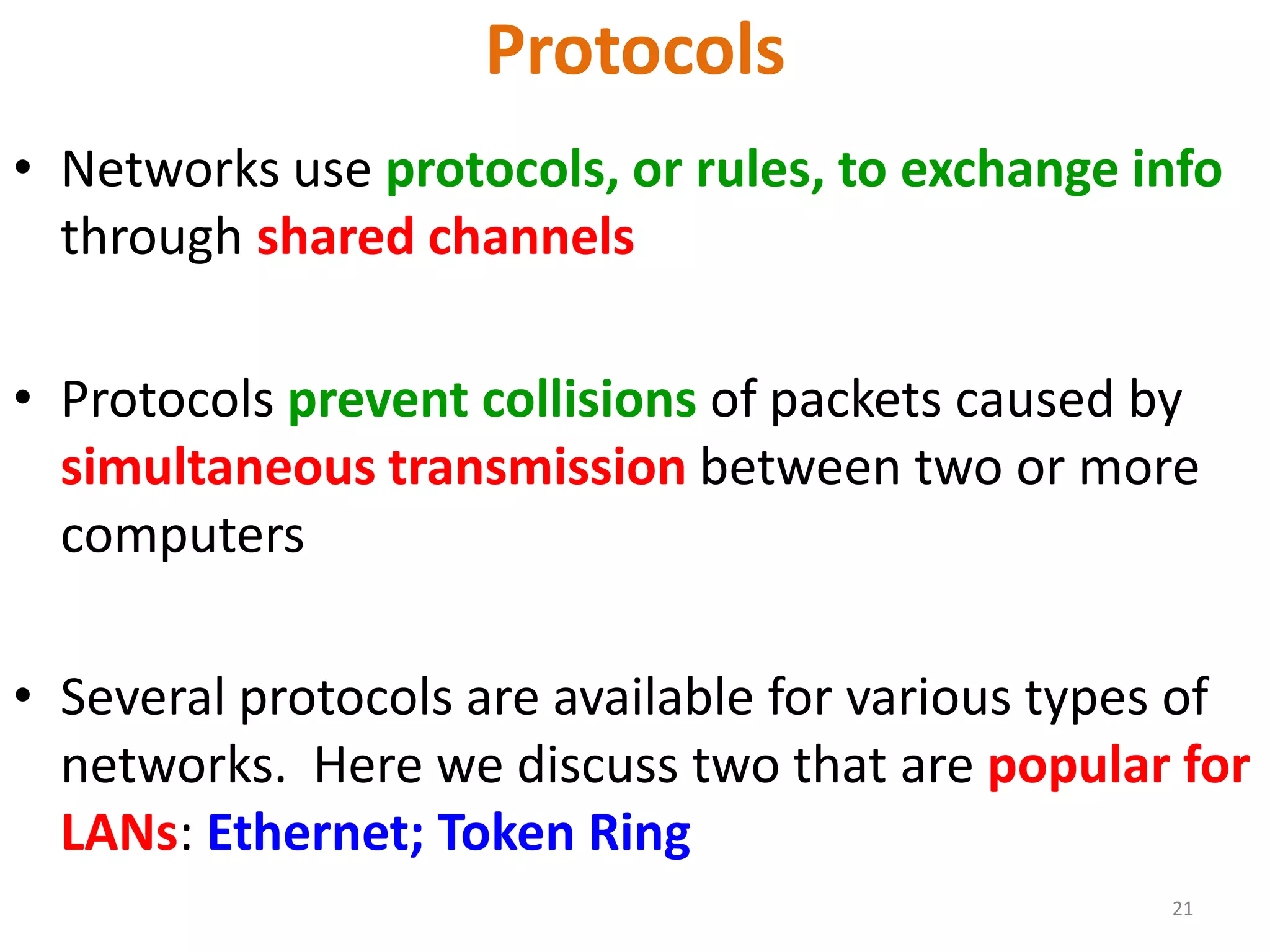

21. 21
Protocols
• Networks use protocols, or rules, to exchange info
through shared channels
• Protocols prevent collisions of packets caused by
simultaneous transmission between two or more
computers
• Several protocols are available for various types of
networks. Here we discuss two that are popular for
LANs: Ethernet; Token Ring

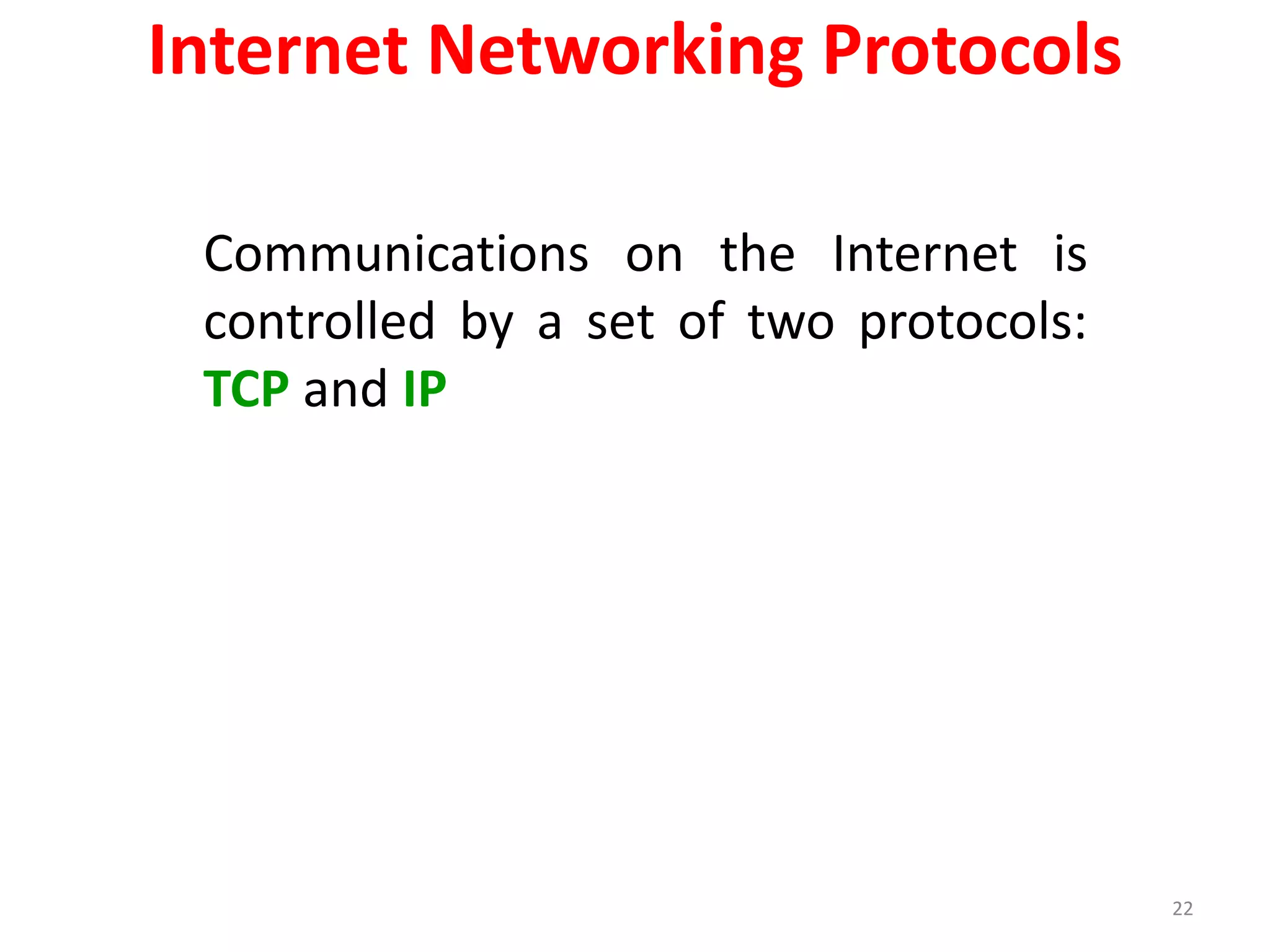

22. 22
Internet Networking Protocols
Communications on the Internet is
controlled by a set of two protocols:
TCP and IP

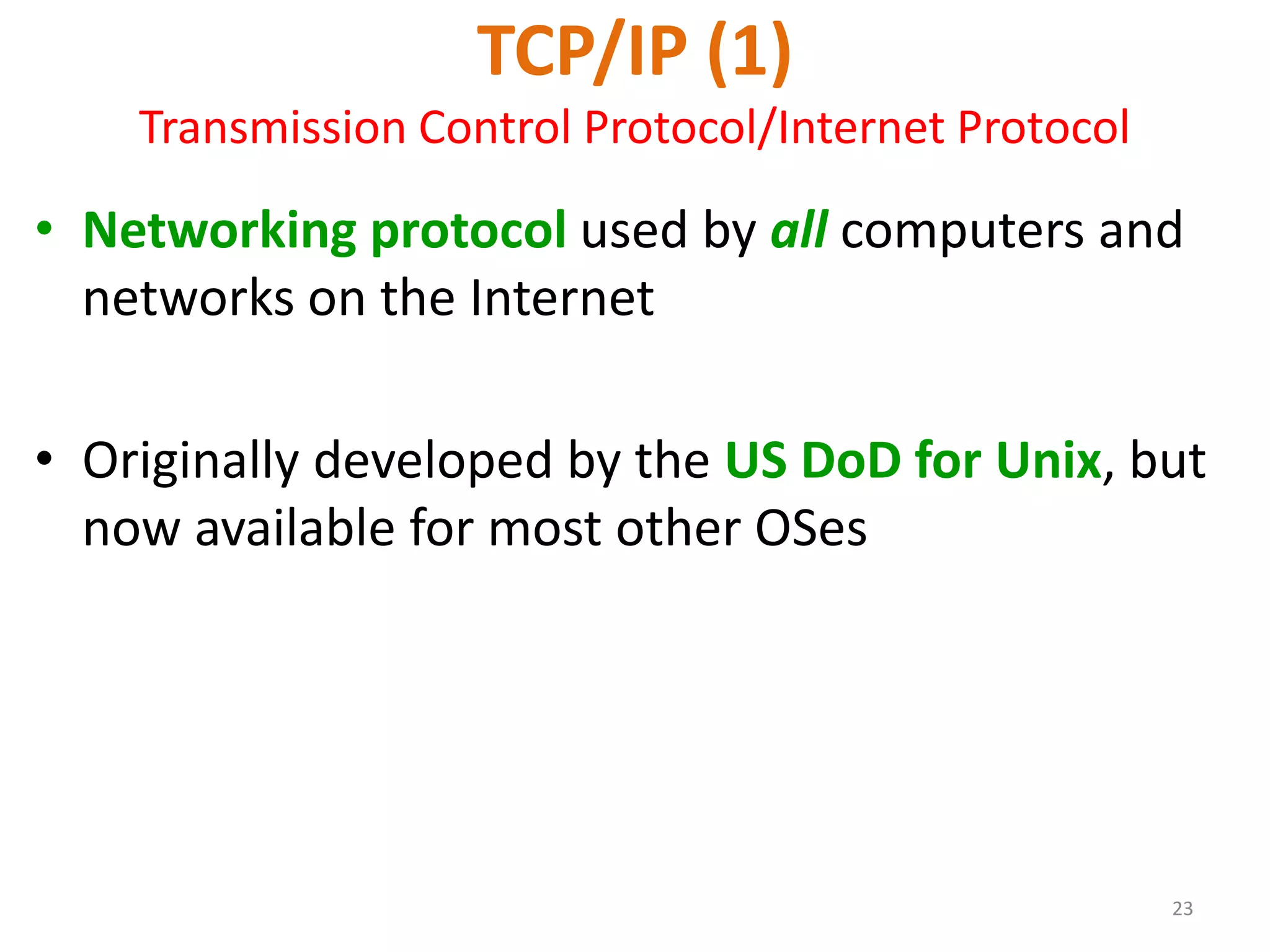

23. 23
TCP/IP (1)
Transmission Control Protocol/Internet Protocol
• Networking protocol used by all computers and
networks on the Internet
• Originally developed by the US DoD for Unix, but
now available for most other OSes

24. 24
TCP/IP (2)
Transmission Control Protocol/Internet Protocol
• TCP breaks down the message to be sent over the
Internet into packets
• IP routes these packets through the Internet to
get them to their destination
• When the packets reach the destination
computer, TCP reassembles them into the original
message

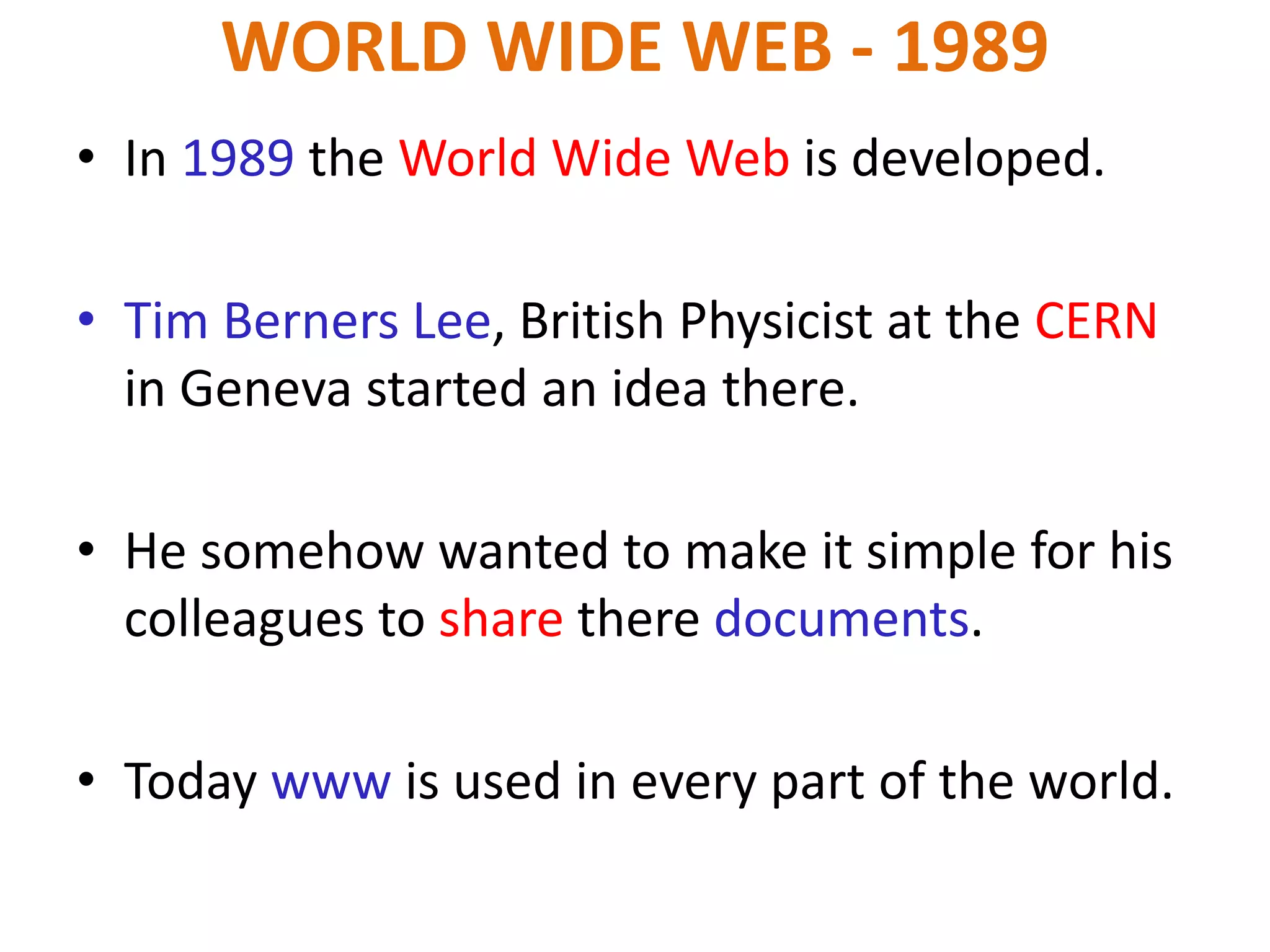

25. WORLD WIDE WEB - 1989
• In 1989 the World Wide Web is developed.
• Tim Berners Lee, British Physicist at the CERN
in Geneva started an idea there.
• He somehow wanted to make it simple for his
colleagues to share there documents.
• Today www is used in every part of the world.

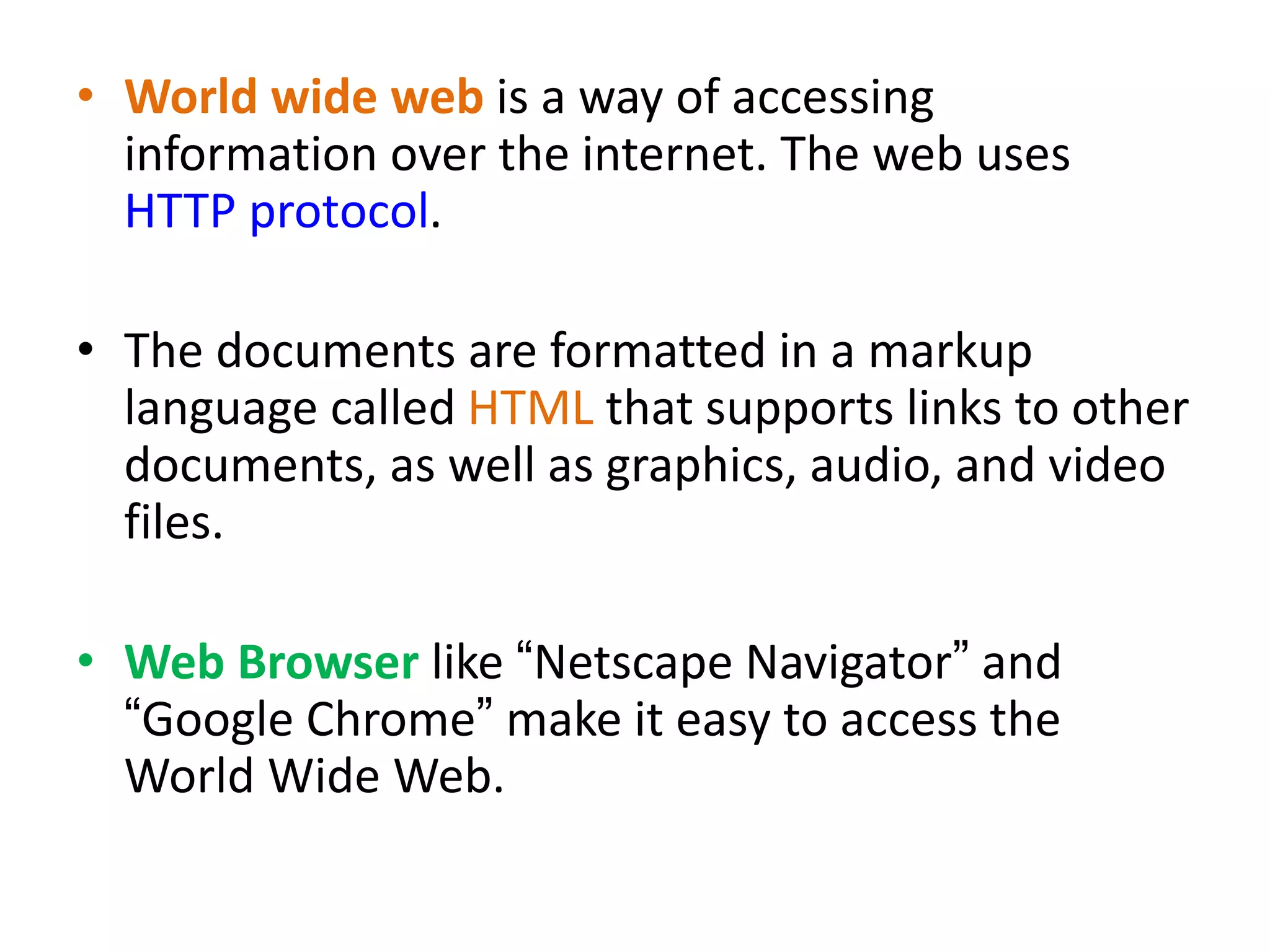

26. • World wide web is a way of accessing
information over the internet. The web uses
HTTP protocol.
• The documents are formatted in a markup
language called HTML that supports links to other
documents, as well as graphics, audio, and video
files.
• Web Browser like “Netscape Navigator” and
“Google Chrome” make it easy to access the
World Wide Web.

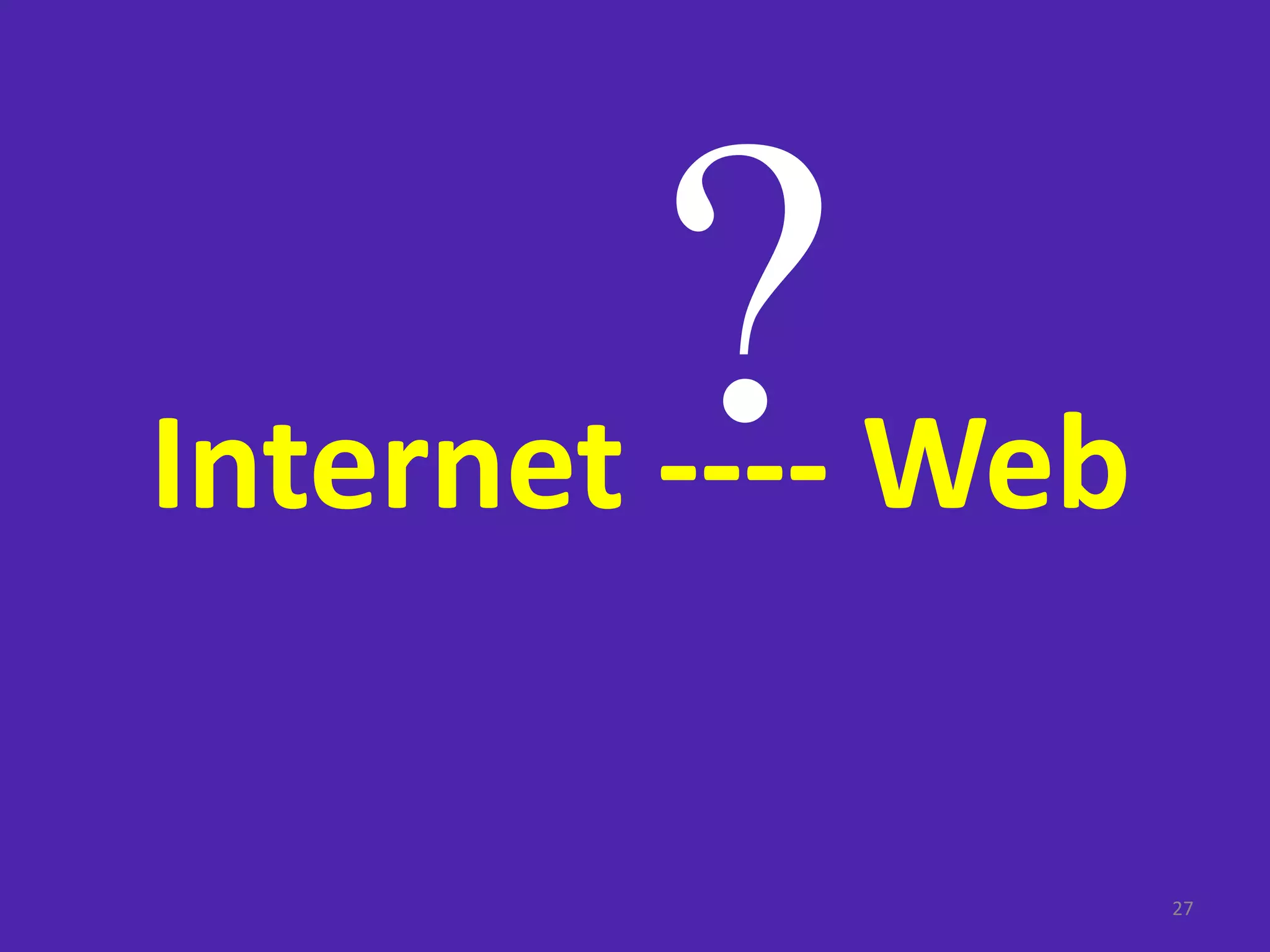

27. 27
Internet ---- Web

28. 28
Internet Services
There are many, but we will
look at only the following:
• FTP
• Telnet
• Web
• eMail
• Instant messaging
• VoIP

29. CLIENT AND SERVER ARCHITECTURE
• Internet is based on client server architecture.
• On internet we have two types of computers
some are called client and some are called
server.
• Server computer is those who serves or
entertain user requests.

30. • Client is user’s computer.
• Example: your personal desktop pc is client,
and the websites (www.yahoo.com) which is
resided on computer is server computer.
30

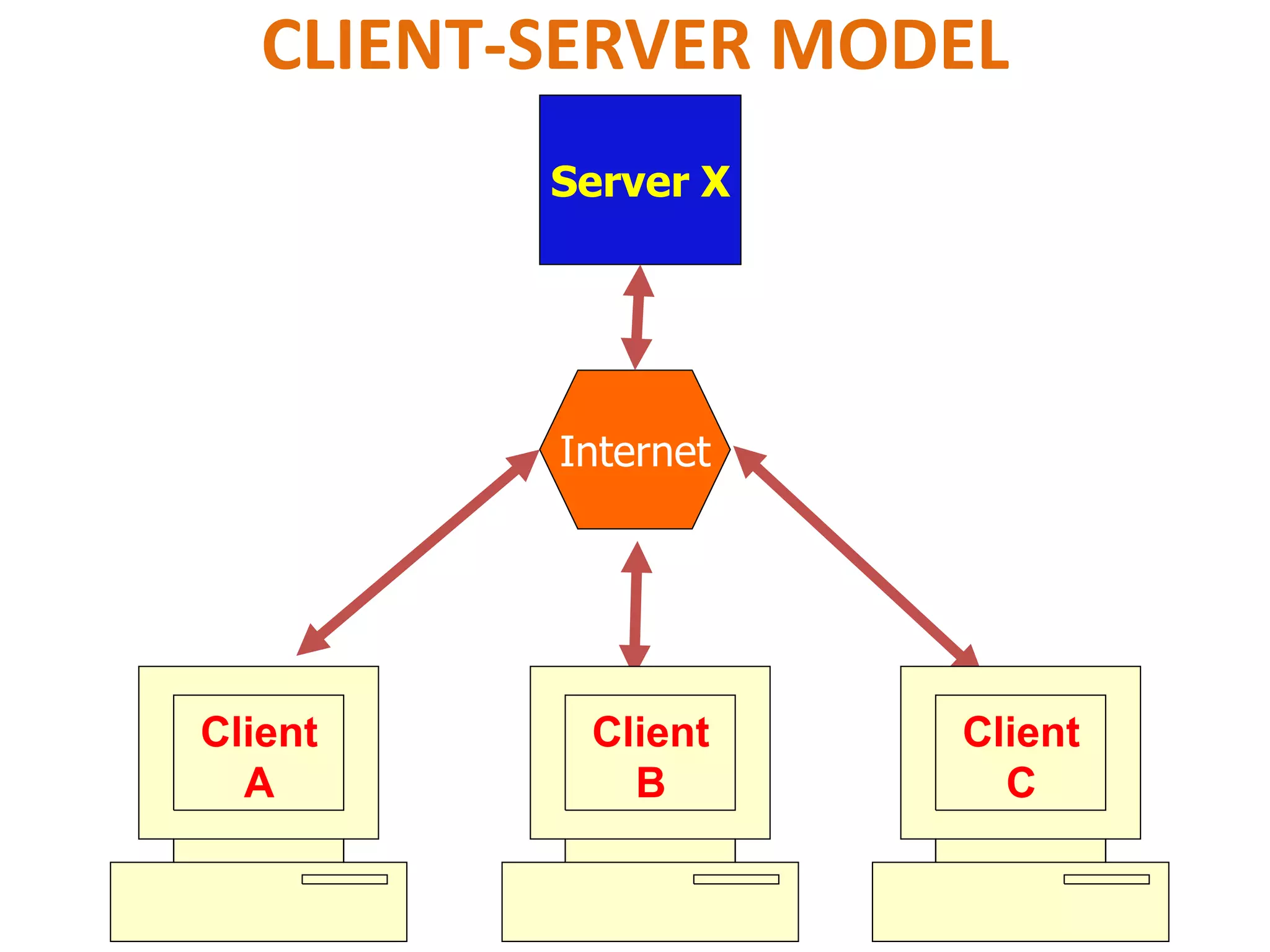

31. CLIENT-SERVER MODEL
Client
A
Internet
Server X
Client
C
Client
B

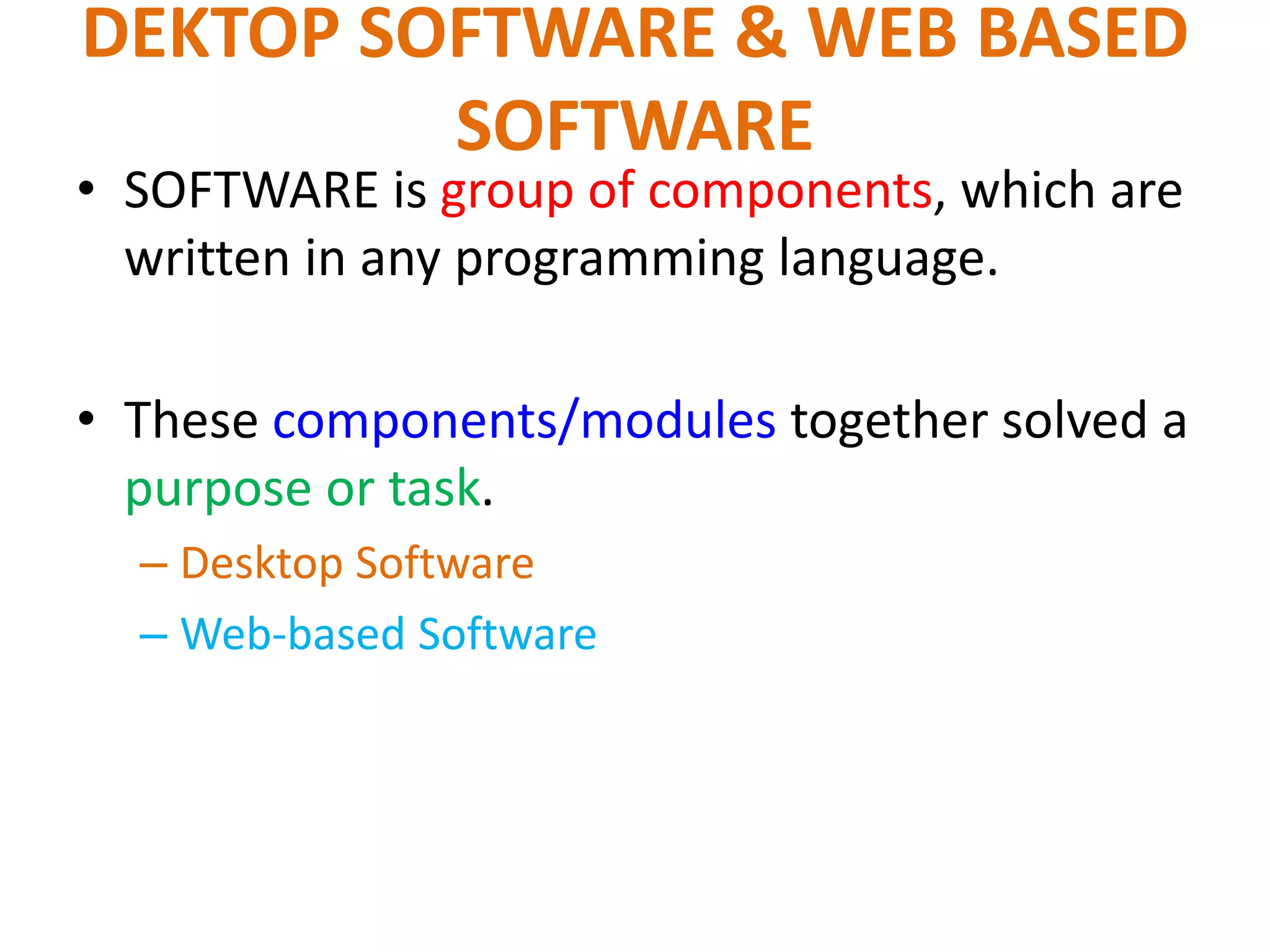

32. DEKTOP SOFTWARE & WEB BASED
SOFTWARE
• SOFTWARE is group of components, which are
written in any programming language.
• These components/modules together solved a
purpose or task.
– Desktop Software
– Web-based Software

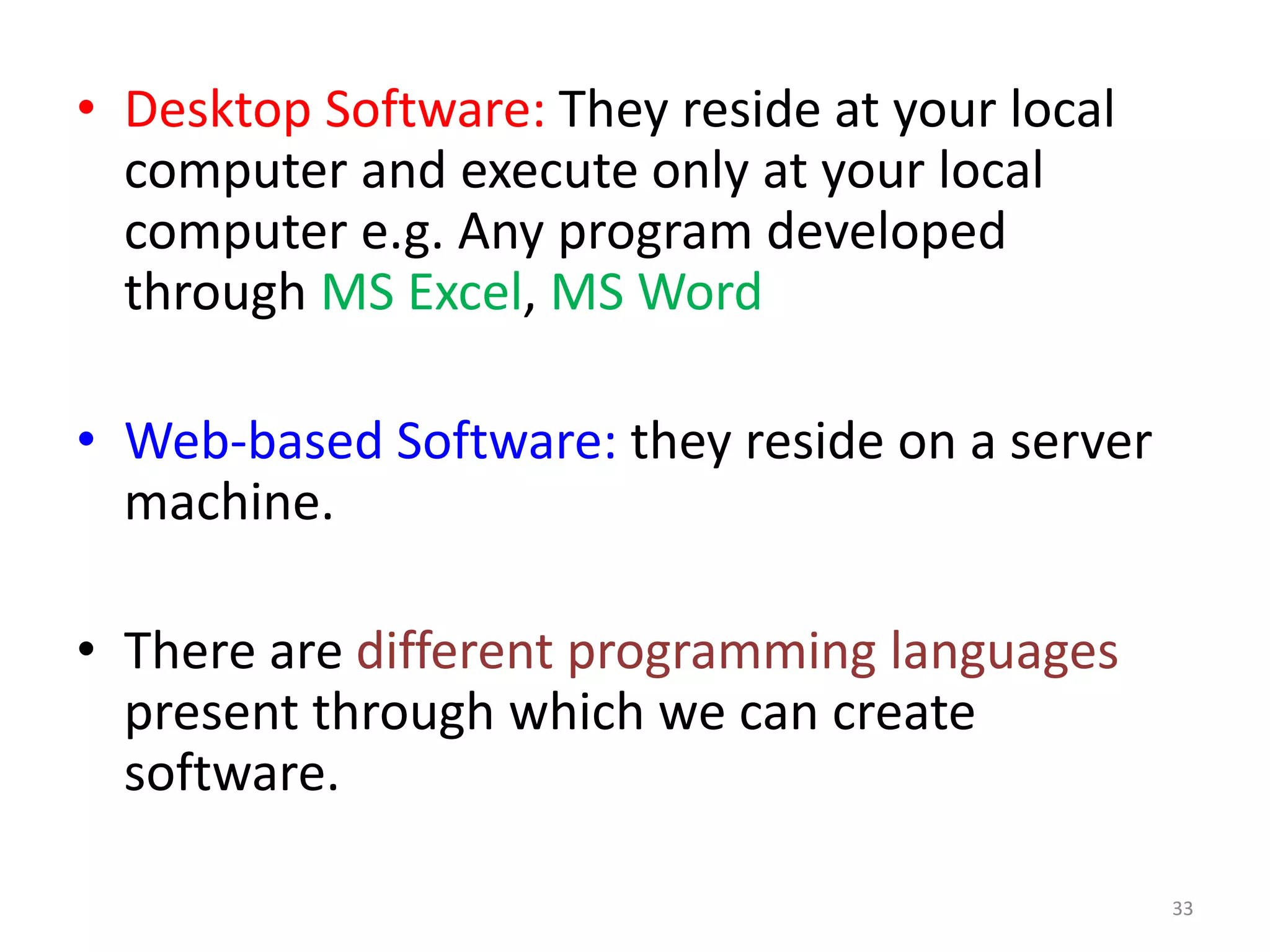

33. • Desktop Software: They reside at your local
computer and execute only at your local
computer e.g. Any program developed
through MS Excel, MS Word
• Web-based Software: they reside on a server
machine.
• There are different programming languages
present through which we can create
software.
33

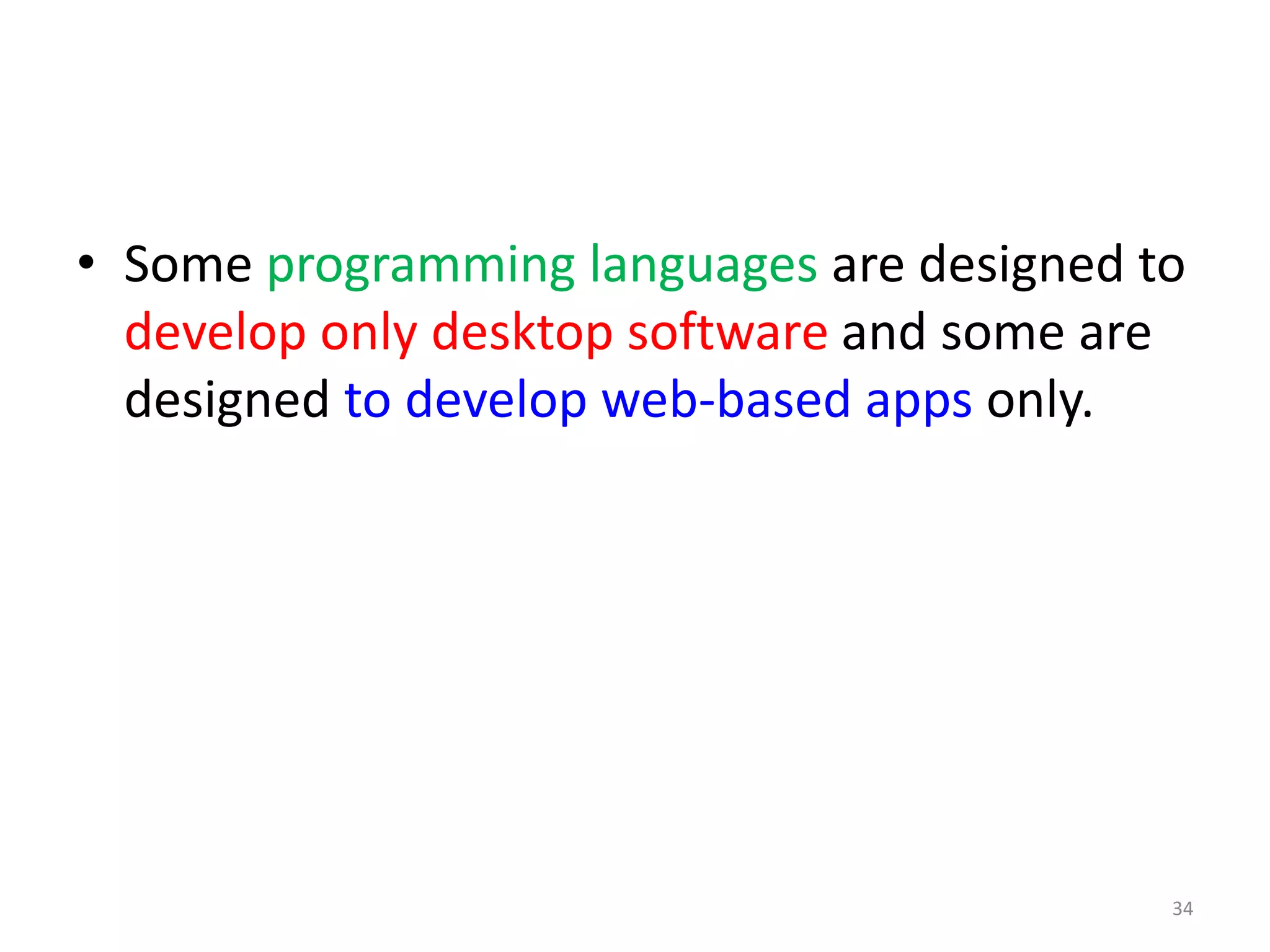

34. • Some programming languages are designed to
develop only desktop software and some are
designed to develop web-based apps only.
34

35. WHAT IS A WEBSITE?
• A collection of related documents/pages available on
the Web
• The first portion of the URLs in the Web pages of a
Web site is the same e.g.
– http://www.uol.edu.pk/
– http://www.uol.edu.pk/cs
– http://www.uol.edu.pk/cs1010
Are the URLs of three distinct Web pages on a single
Web site

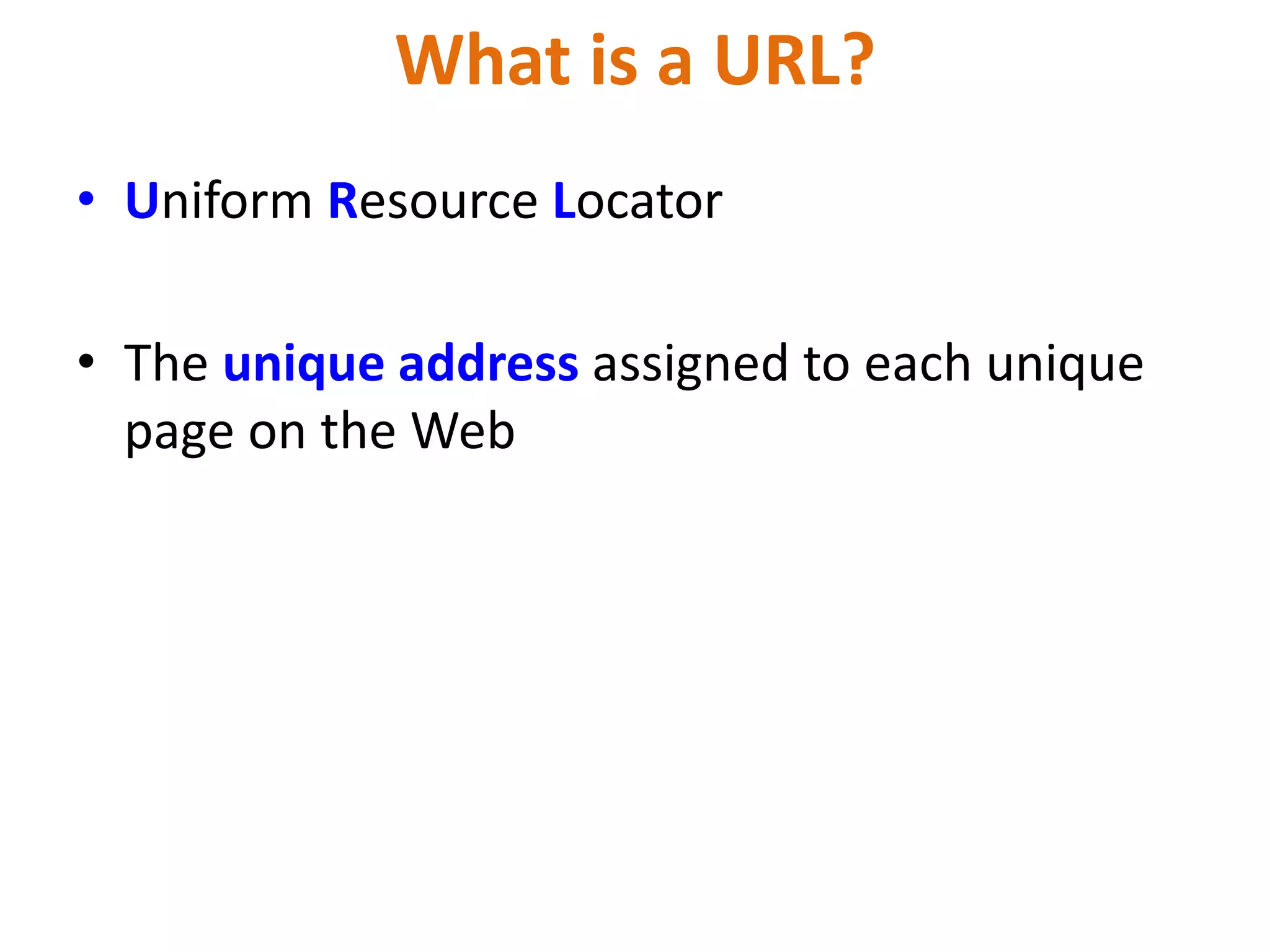

36. What is a URL?
• Uniform Resource Locator
• The unique address assigned to each unique
page on the Web

37. URL
• URL stands for Uniform Resource Locator.
• Is a way of specifying the location of resource
on internet.
• Resource can be a web page, image, file of
some kind.
• URL is simply just an address.

38. URL
• URL looks like this:
http://www.bw.org:80/object?query#location
• Scheme: specifies the protocol being used most
URL for web pages will be either http or https.
• Host: is the IP address of the host server.
Scheme Host Port Path Query
String
Fragment
Identifier

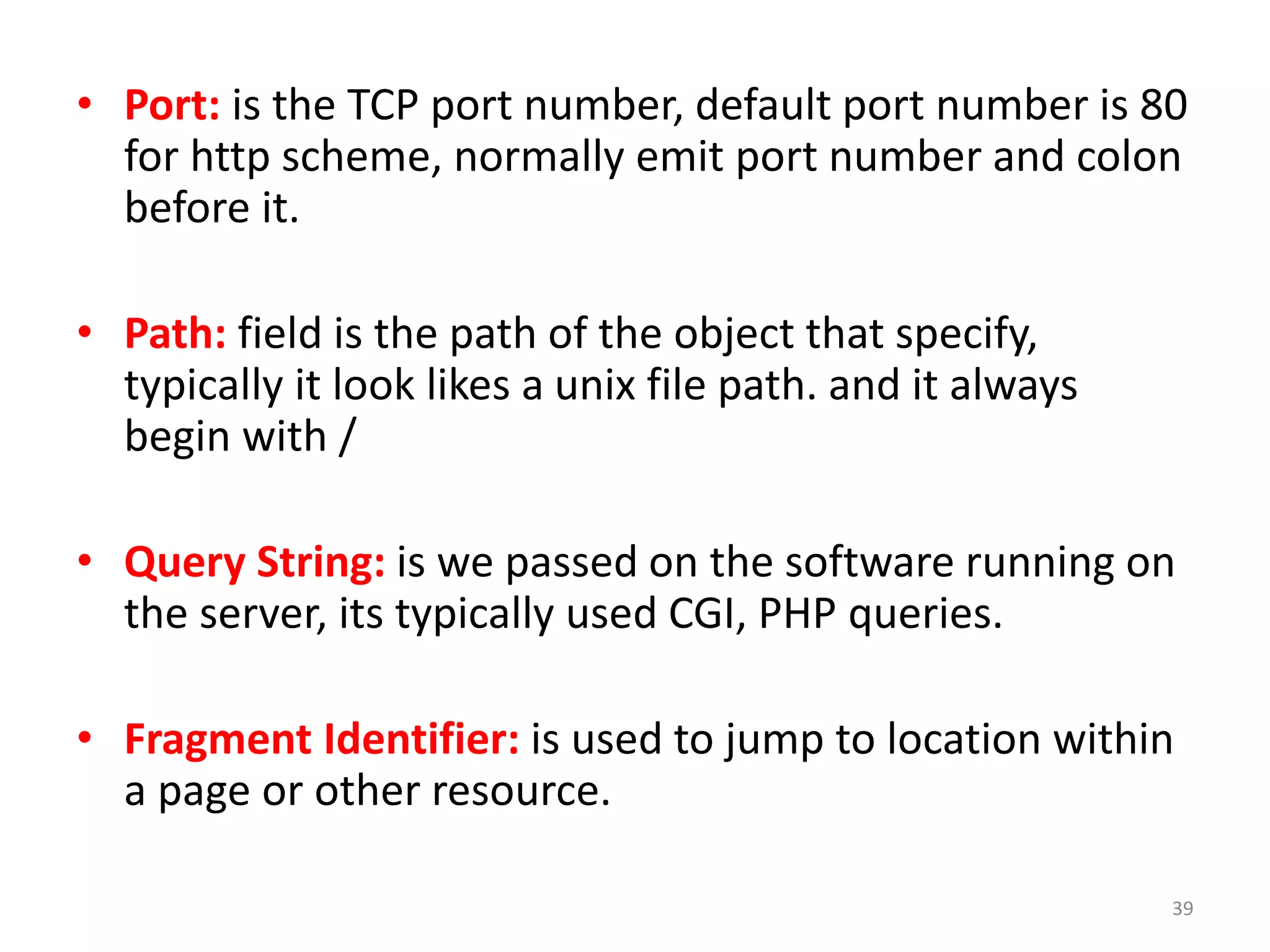

39. • Port: is the TCP port number, default port number is 80
for http scheme, normally emit port number and colon
before it.
• Path: field is the path of the object that specify,
typically it look likes a unix file path. and it always
begin with /
• Query String: is we passed on the software running on
the server, its typically used CGI, PHP queries.
• Fragment Identifier: is used to jump to location within
a page or other resource.
39

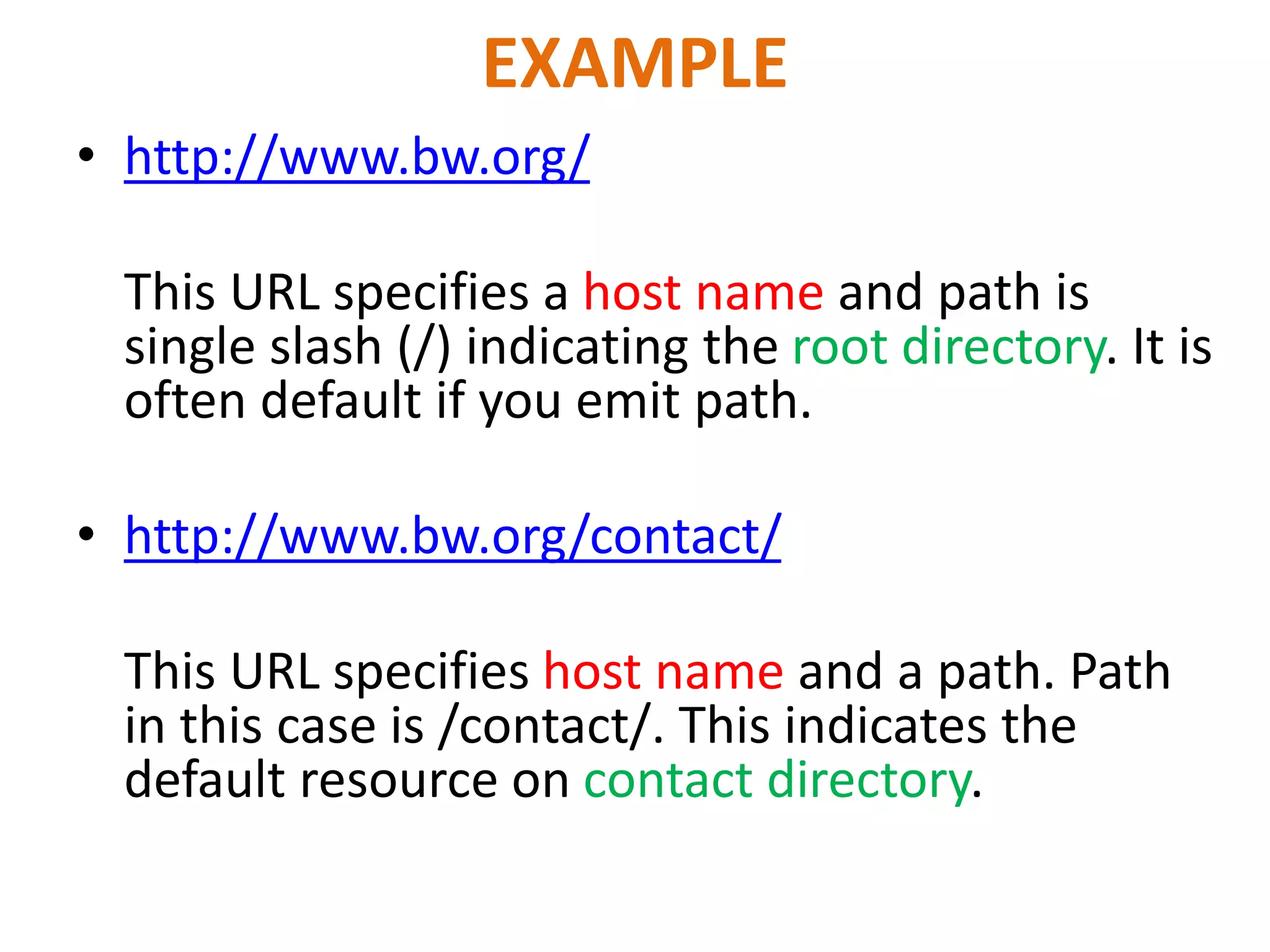

40. EXAMPLE
• http://www.bw.org/
This URL specifies a host name and path is
single slash (/) indicating the root directory. It is
often default if you emit path.
• http://www.bw.org/contact/
This URL specifies host name and a path. Path
in this case is /contact/. This indicates the
default resource on contact directory.

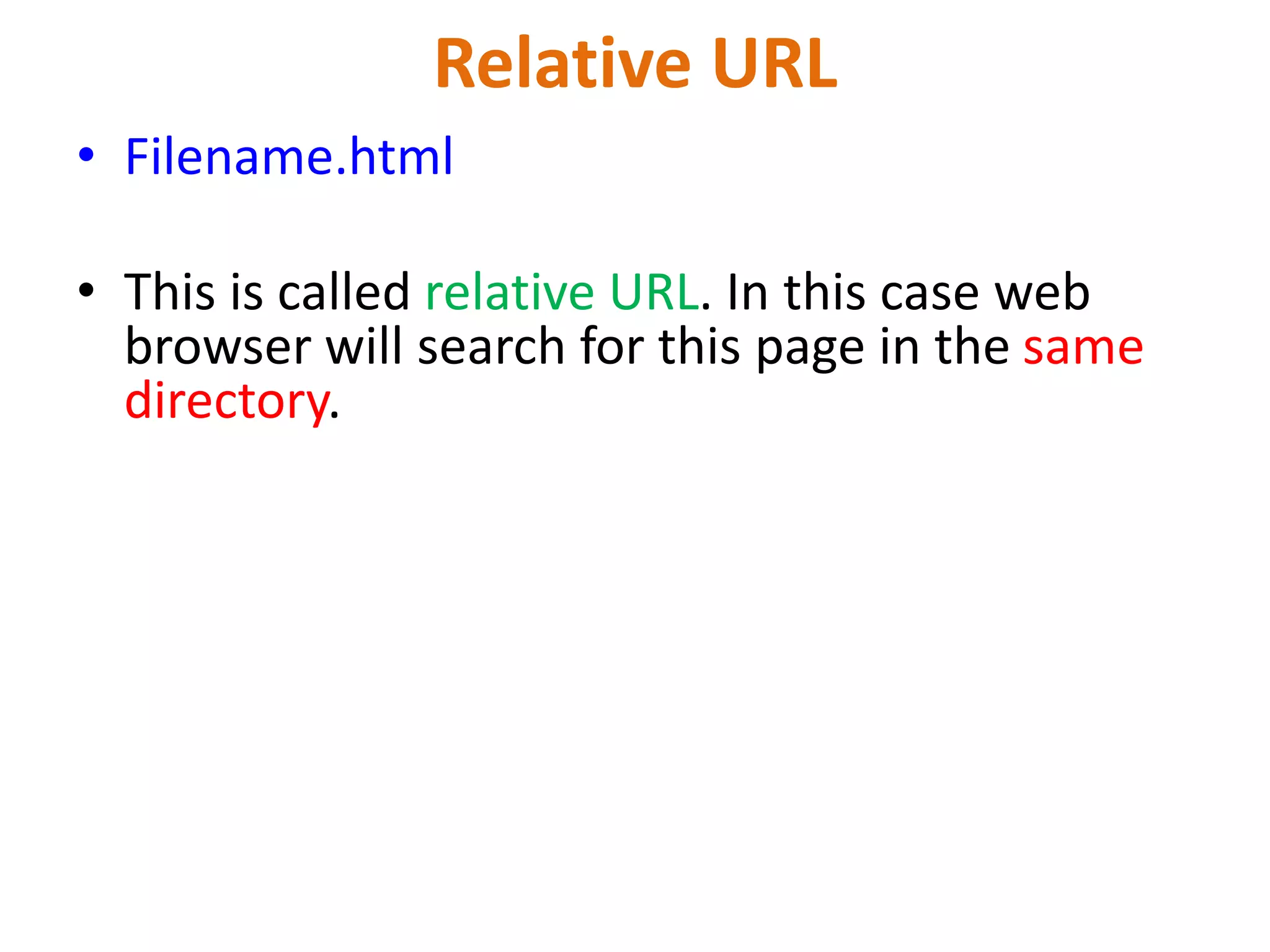

41. Relative URL
• Filename.html
• This is called relative URL. In this case web
browser will search for this page in the same
directory.

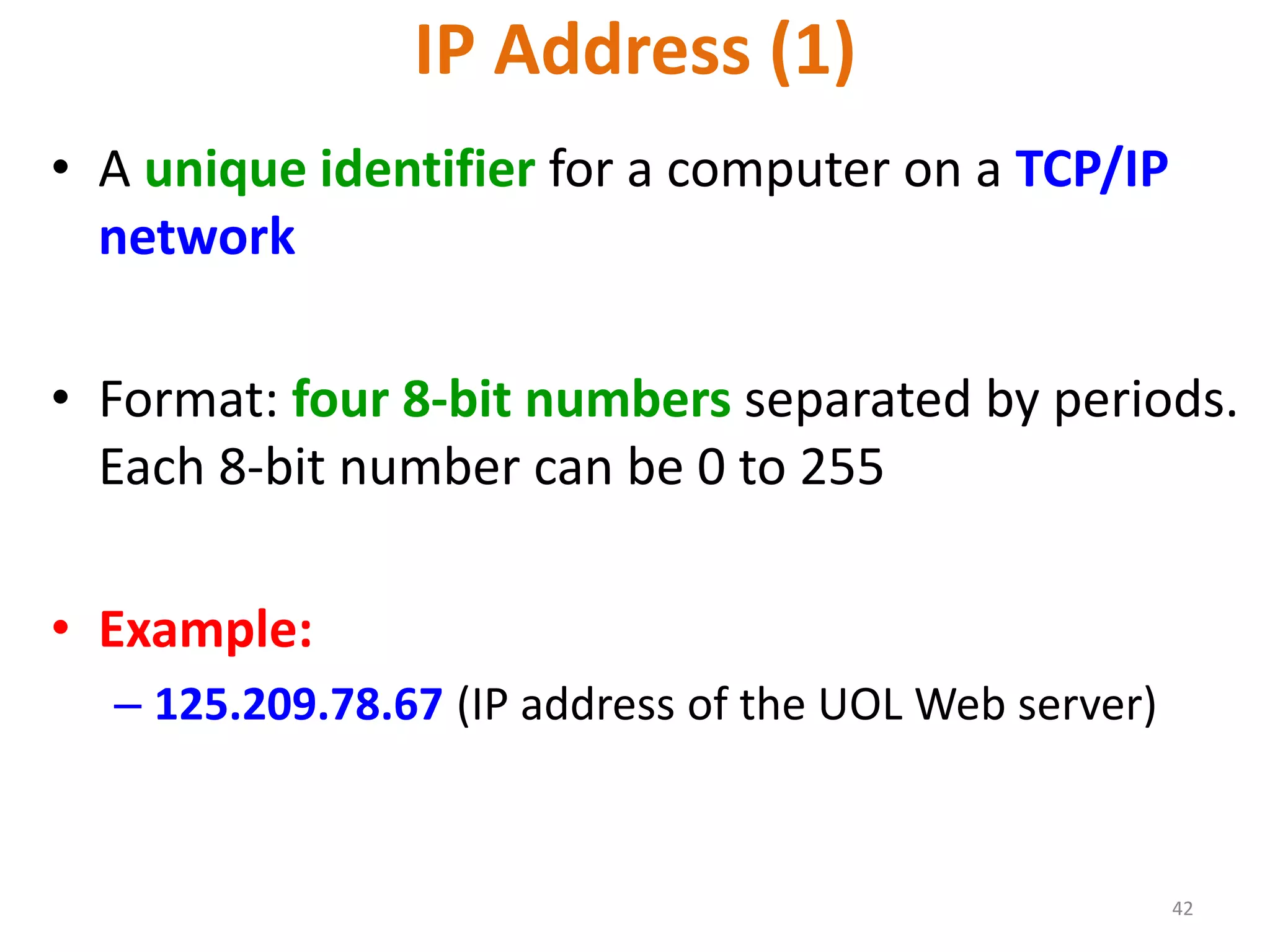

42. 42
IP Address (1)
• A unique identifier for a computer on a TCP/IP
network
• Format: four 8-bit numbers separated by periods.
Each 8-bit number can be 0 to 255
• Example:
– 125.209.78.67 (IP address of the UOL Web server)

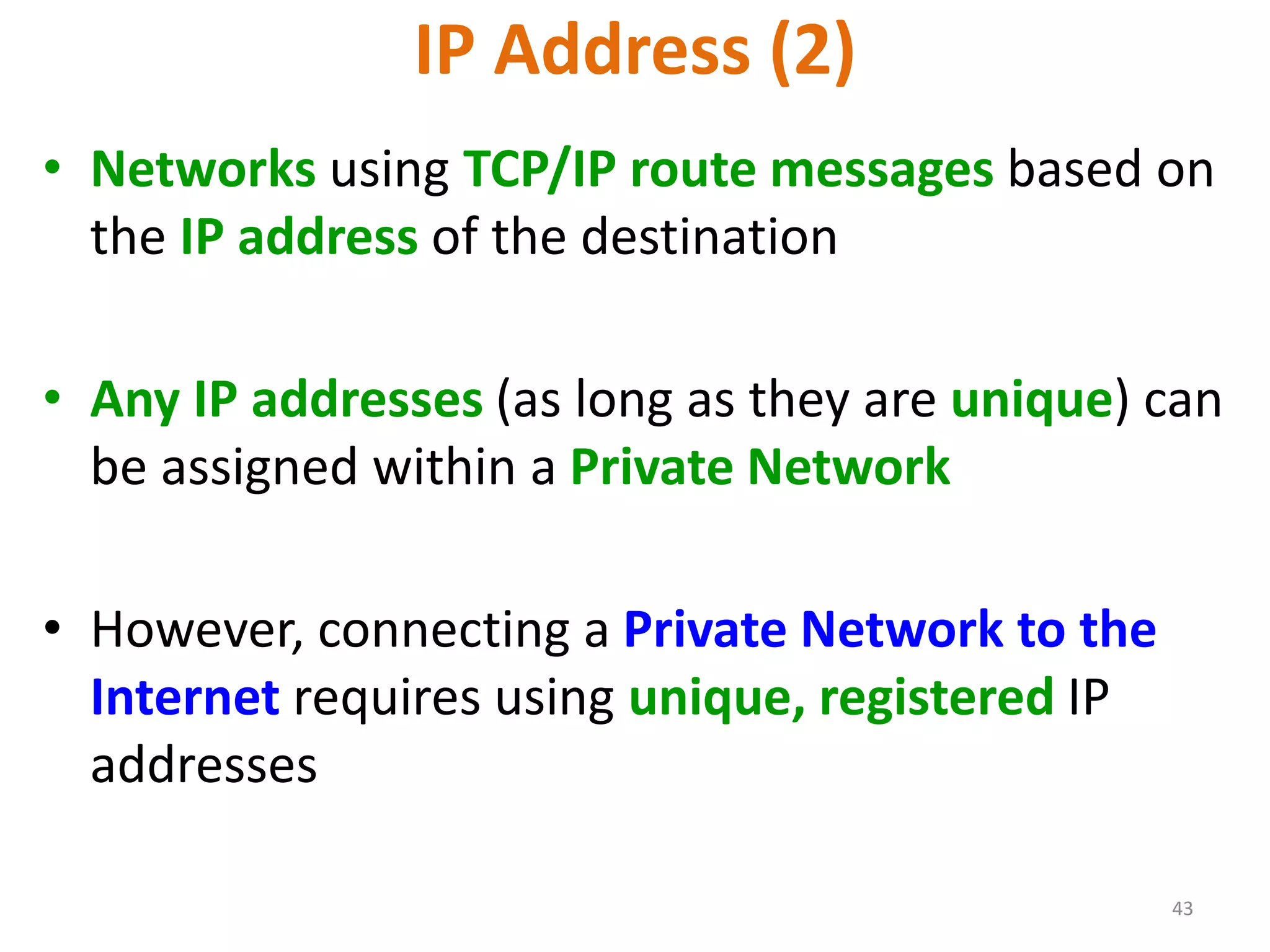

43. 43
IP Address (2)
• Networks using TCP/IP route messages based on
the IP address of the destination
• Any IP addresses (as long as they are unique) can
be assigned within a Private Network
• However, connecting a Private Network to the
Internet requires using unique, registered IP
addresses

45. 45
Domain Names
• IP addresses are fine for computers, but difficult
to recognize and remember for humans
• A domain name is a meaningful, easy-to-
remember ‘label’ for an IP address
• Examples:
180.150.151.104 www.uol.edu.pk
74.125.225.49 www.google.com

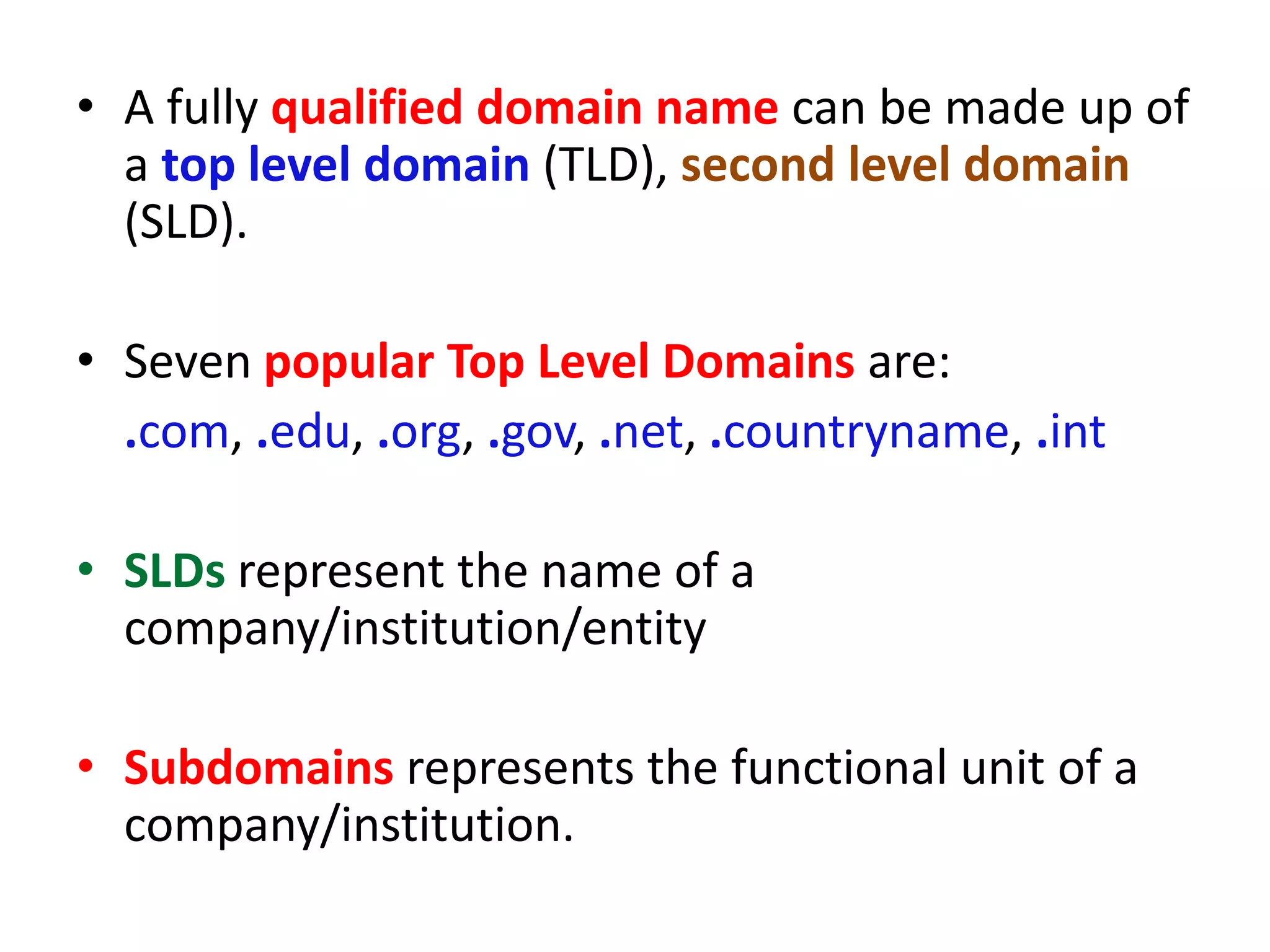

46. • A fully qualified domain name can be made up of
a top level domain (TLD), second level domain
(SLD).
• Seven popular Top Level Domains are:
.com, .edu, .org, .gov, .net, .countryname, .int
• SLDs represent the name of a
company/institution/entity
• Subdomains represents the functional unit of a
company/institution.

47. cs . uol . edu . pk
Sub
Domain
SLD TLD

48. COMPONENTS OF A WEBSITE
48
index.html page1.html page2.html page3.html
WEBSITE: www.google.com

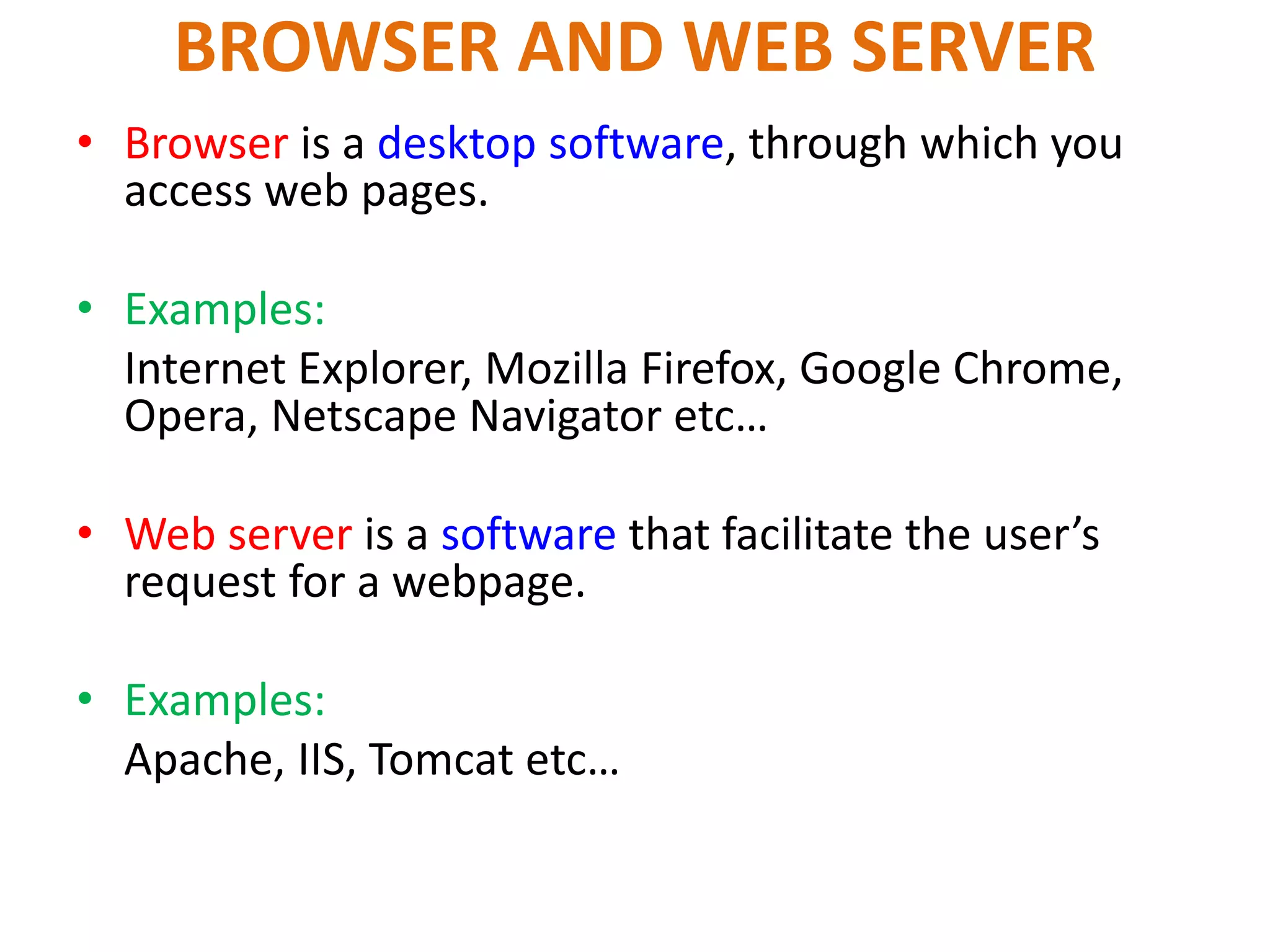

49. BROWSER AND WEB SERVER
• Browser is a desktop software, through which you
access web pages.
• Examples:
Internet Explorer, Mozilla Firefox, Google Chrome,
Opera, Netscape Navigator etc…
• Web server is a software that facilitate the user’s
request for a webpage.
• Examples:
Apache, IIS, Tomcat etc…

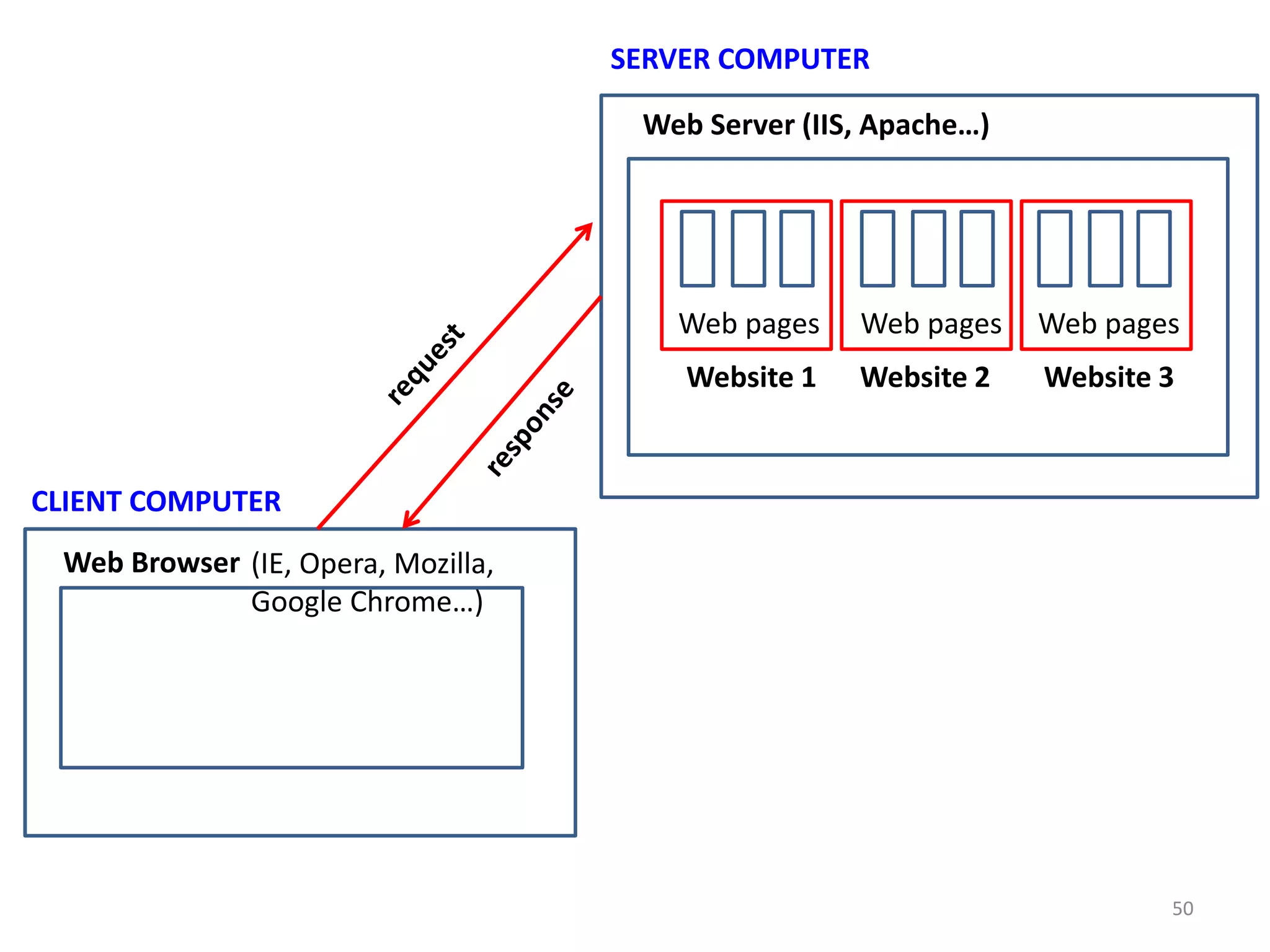

50. 50
CLIENT COMPUTER
Web Browser (IE, Opera, Mozilla,
Google Chrome…)
SERVER COMPUTER
Web Server (IIS, Apache…)
Website 1 Website 2 Website 3
Web pages Web pages Web pages

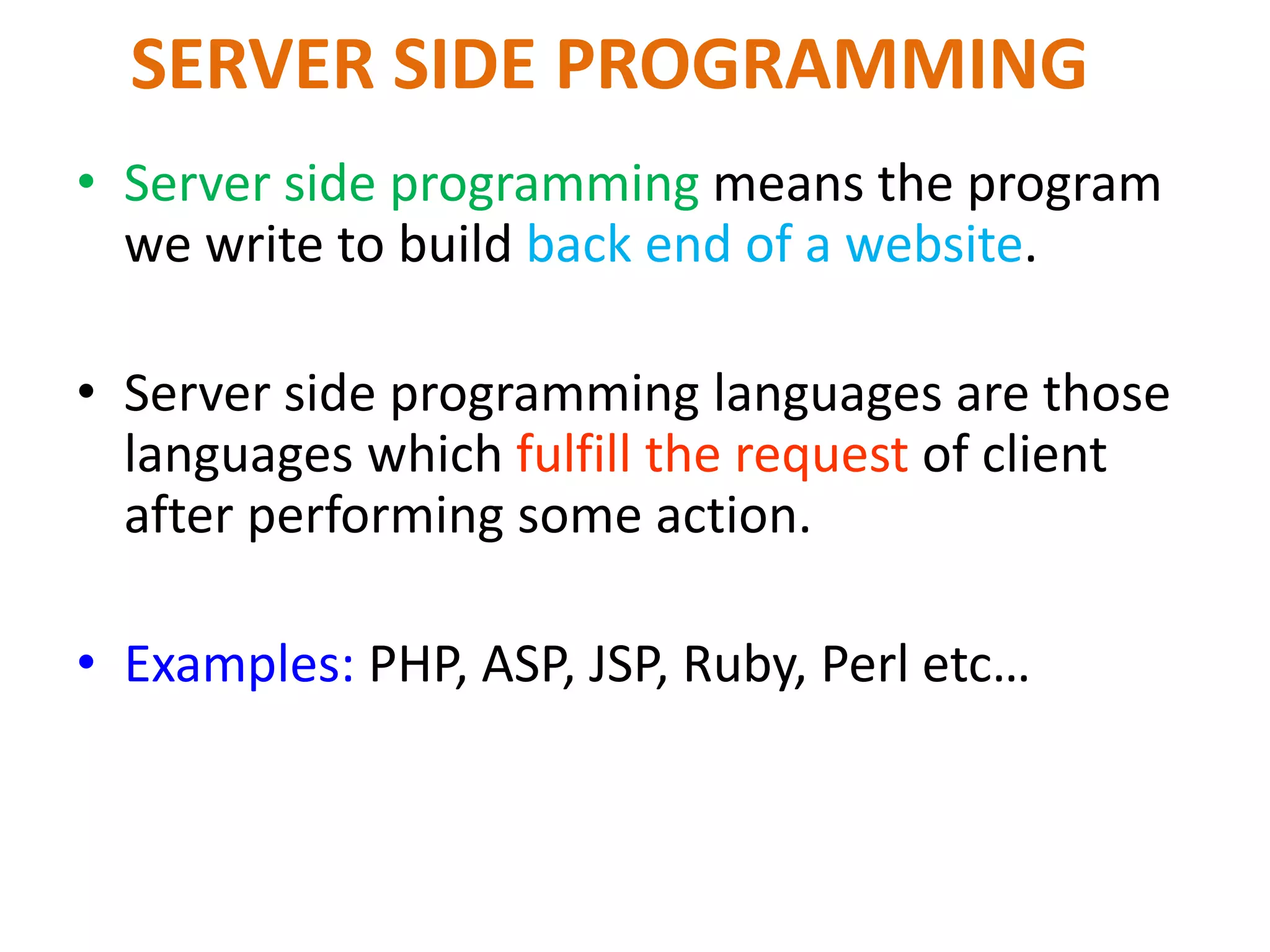

51. SERVER SIDE PROGRAMMING
• Server side programming means the program
we write to build back end of a website.
• Server side programming languages are those
languages which fulfill the request of client
after performing some action.
• Examples: PHP, ASP, JSP, Ruby, Perl etc…

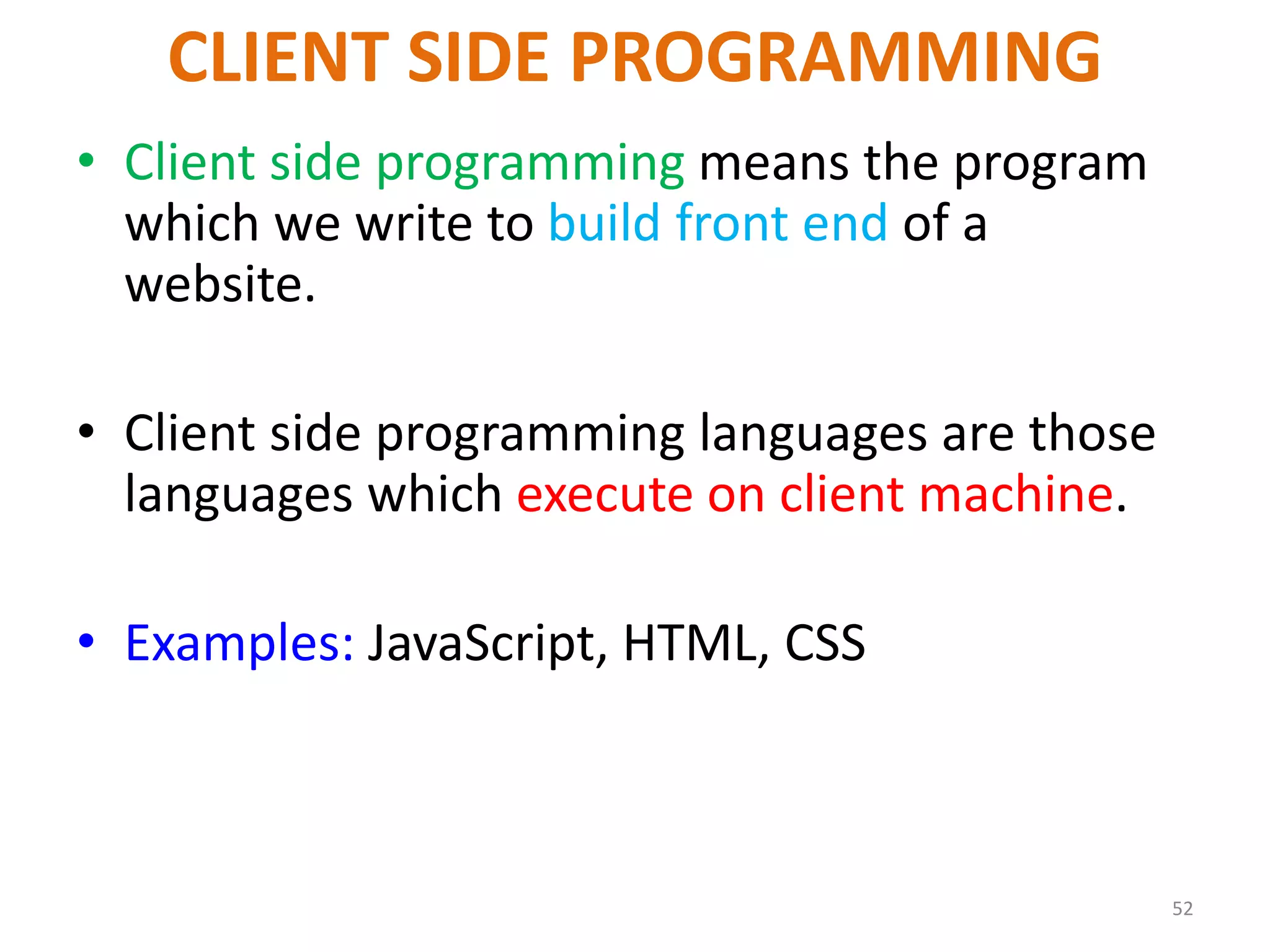

52. CLIENT SIDE PROGRAMMING
• Client side programming means the program
which we write to build front end of a
website.
• Client side programming languages are those
languages which execute on client machine.
• Examples: JavaScript, HTML, CSS
52

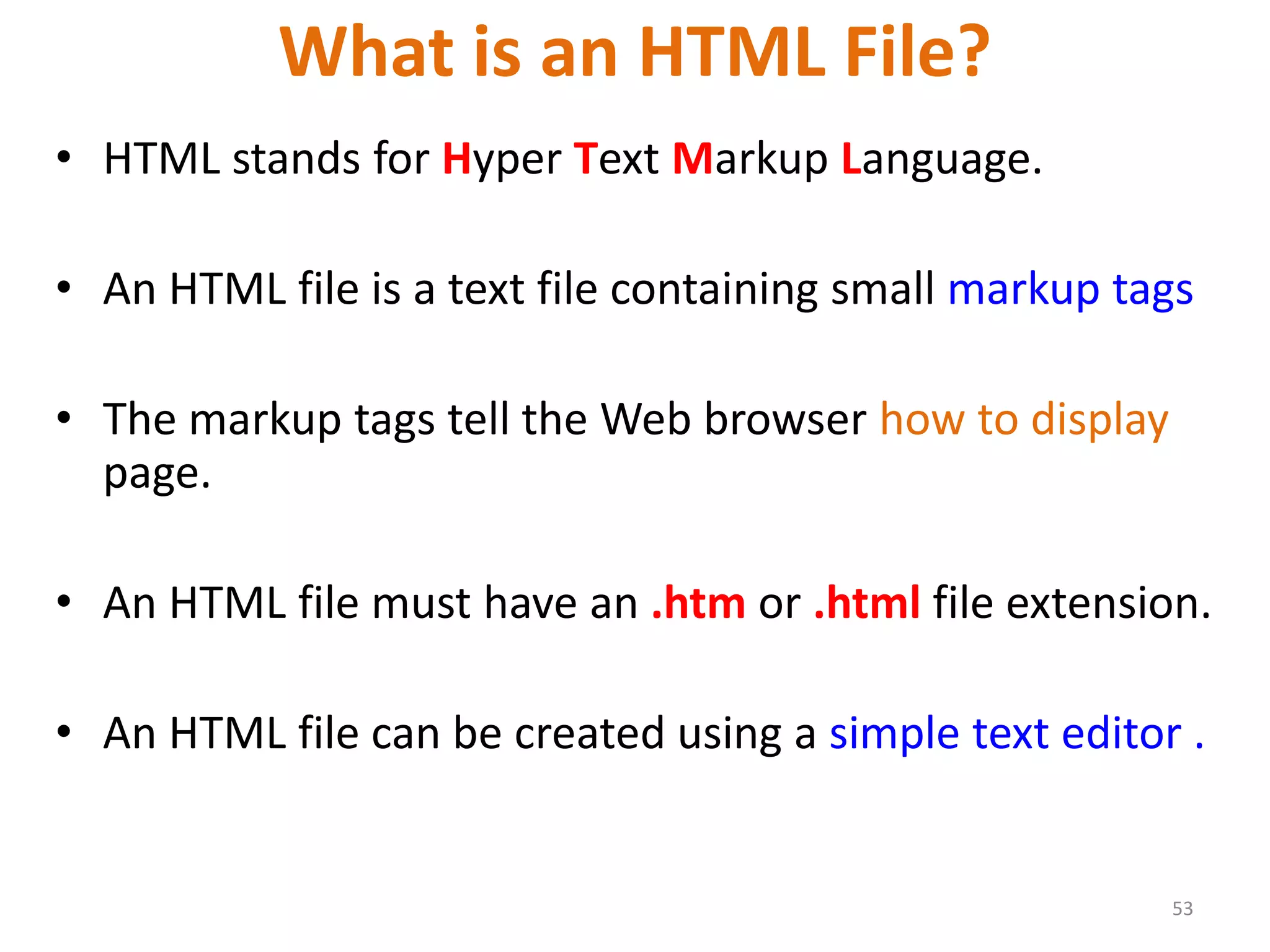

53. What is an HTML File?
• HTML stands for Hyper Text Markup Language.
• An HTML file is a text file containing small markup tags
• The markup tags tell the Web browser how to display
page.
• An HTML file must have an .htm or .html file extension.
• An HTML file can be created using a simple text editor .
53

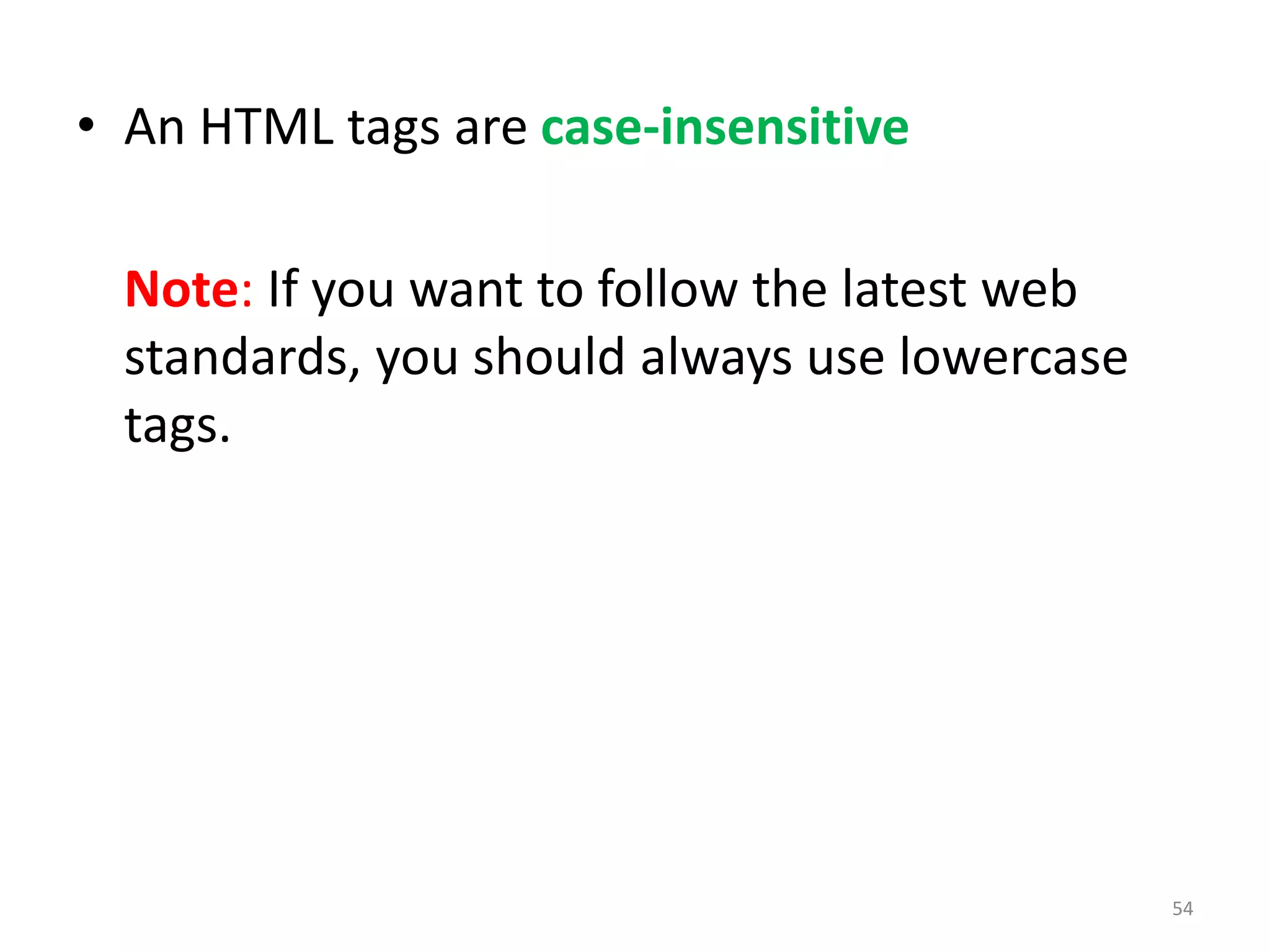

54. • An HTML tags are case-insensitive
Note: If you want to follow the latest web
standards, you should always use lowercase
tags.
54

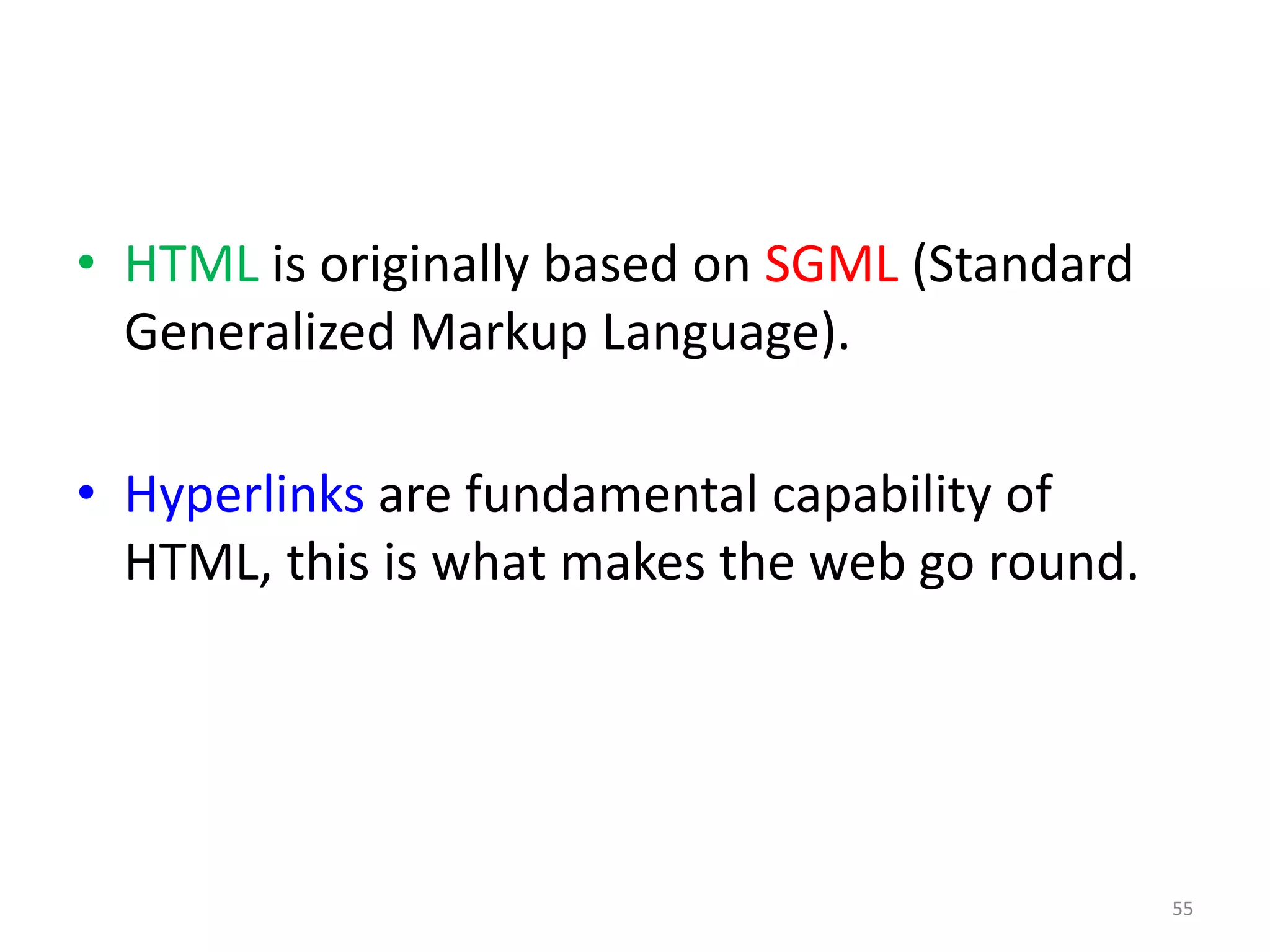

55. • HTML is originally based on SGML (Standard
Generalized Markup Language).
• Hyperlinks are fundamental capability of
HTML, this is what makes the web go round.
55

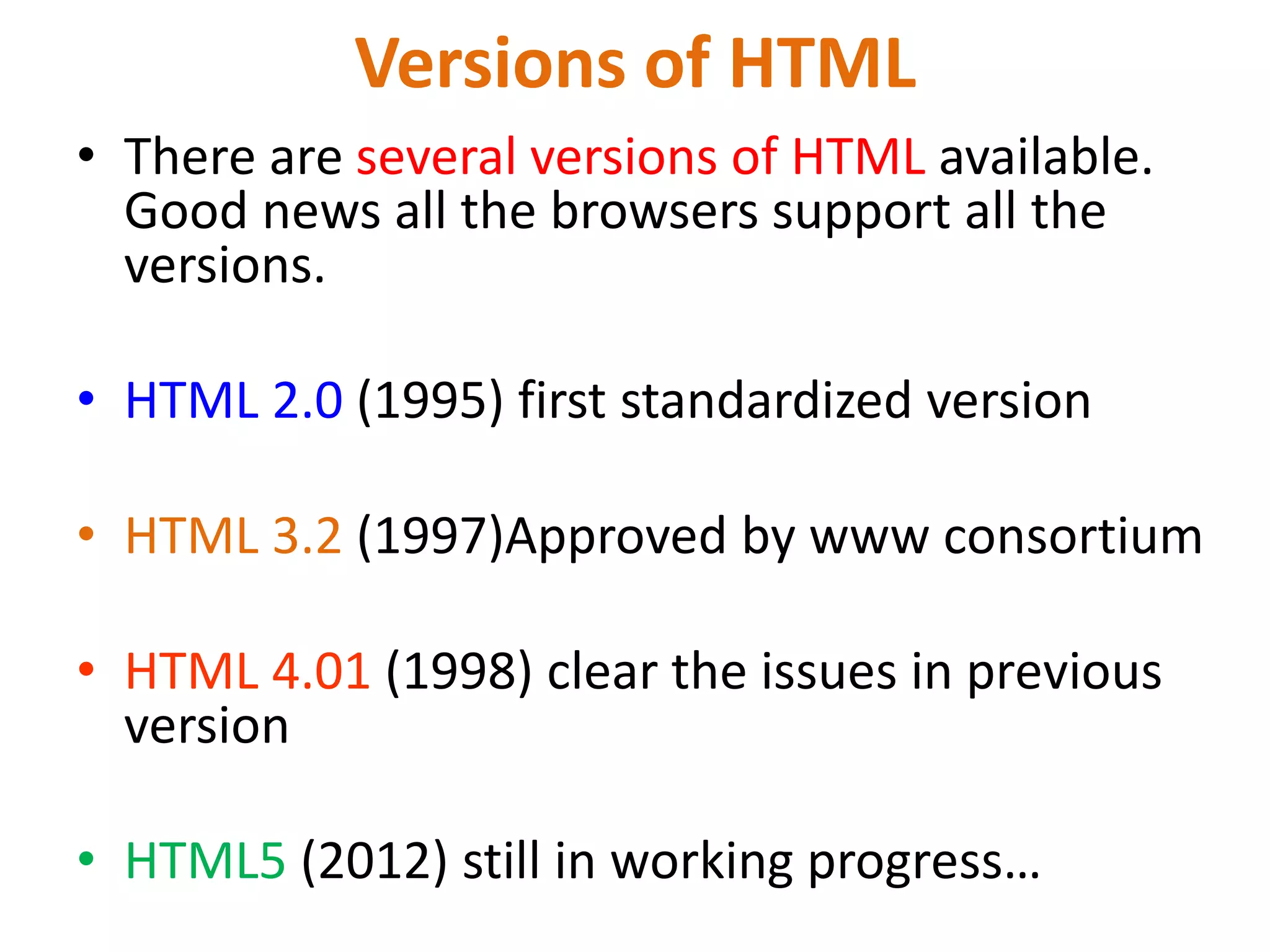

56. Versions of HTML
• There are several versions of HTML available.
Good news all the browsers support all the
versions.
• HTML 2.0 (1995) first standardized version
• HTML 3.2 (1997)Approved by www consortium
• HTML 4.01 (1998) clear the issues in previous
version
• HTML5 (2012) still in working progress…

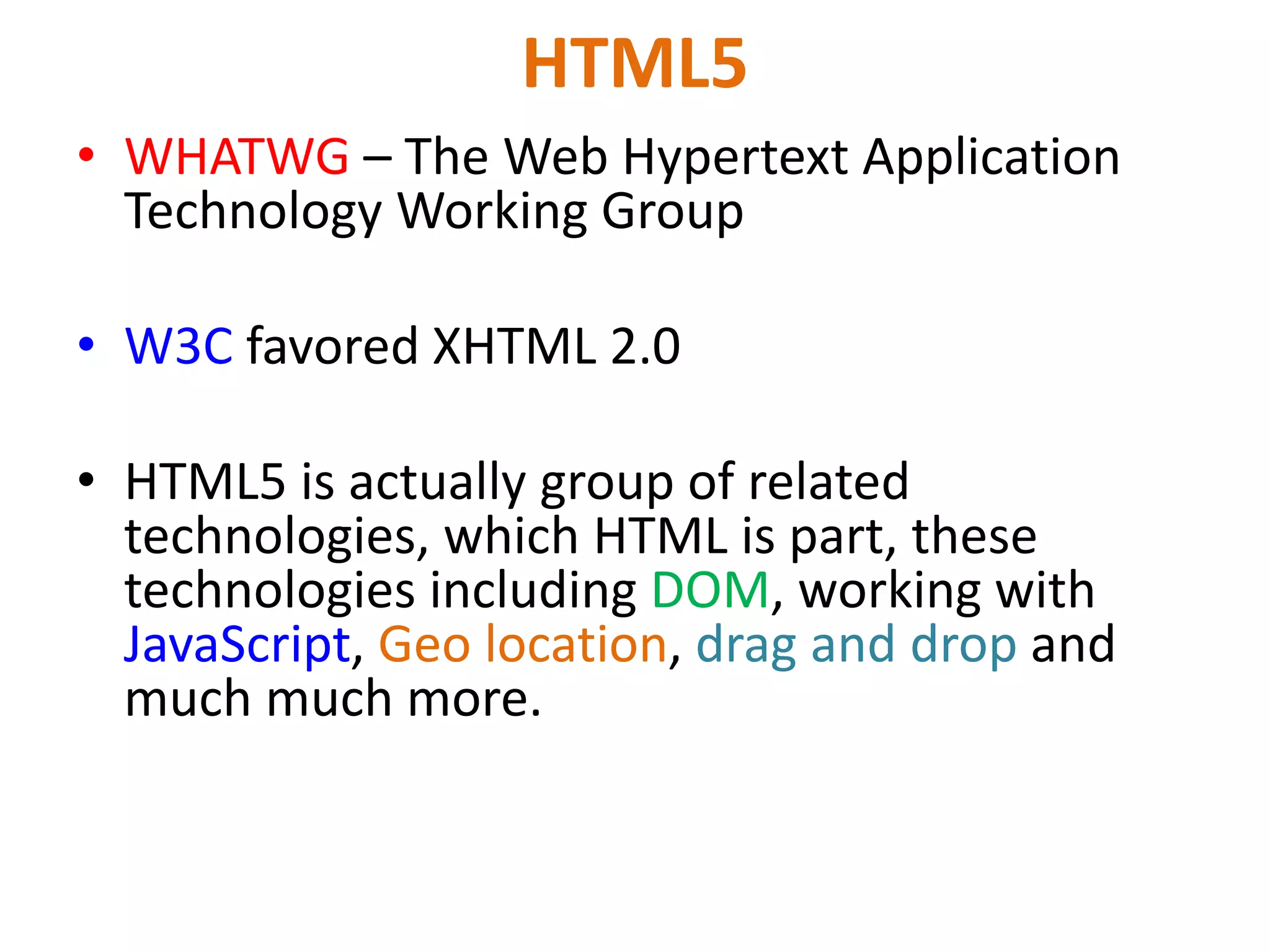

57. HTML5
• WHATWG – The Web Hypertext Application
Technology Working Group
• W3C favored XHTML 2.0
• HTML5 is actually group of related
technologies, which HTML is part, these
technologies including DOM, working with
JavaScript, Geo location, drag and drop and
much much more.
