LamiwoodTM Floors provides a range of wood flooring solutions including their Classic, Hybrid, and Hardwood series. Their Classic series features laminated wood floors that are 8mm thick with an embossed surface. Lamiwood emphasizes their commitment to quality through factory-finished systems, a wide variety of styles, and durability with easy installation and maintenance.

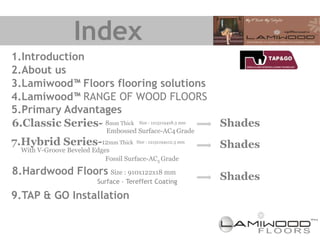

2. Index
1.Introduction
2.About us
3.Lamiwood™ Floors flooring solutions
4.Lamiwood™ RANGE OF WOOD FLOORS
5.Primary Advantages
6.Classic Series- 8mm Thick Size : 1215x194x8.3 mm Shades
Embossed Surface-AC4 Grade
7.Hybrid Series-12mm Thick Size : 1215x194x12.3 mm
Shades
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade

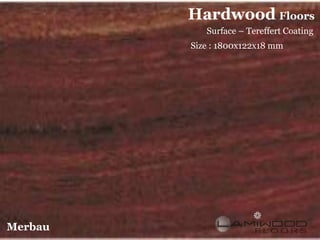

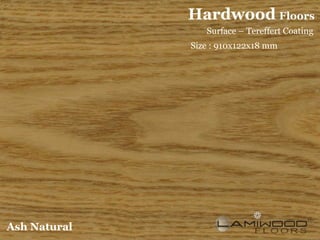

8.Hardwood Floors Size : 910x122x18 mm Shades
Surface – Tereffert Coating
9.TAP & GO Installation

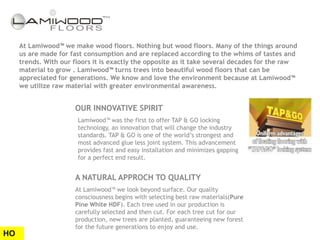

3. At Lamiwood™ we make wood floors. Nothing but wood floors. Many of the things around
us are made for fast consumption and are replaced according to the whims of tastes and
trends. With our floors it is exactly the opposite as it take several decades for the raw
material to grow . Lamiwood™ turns trees into beautiful wood floors that can be
appreciated for generations. We know and love the environment because at Lamiwood™
we utilize raw material with greater environmental awareness.
OUR INNOVATIVE SPIRIT
Lamiwood™ was the first to offer TAP & GO locking
technology, an innovation that will change the industry
standards. TAP & GO is one of the world’s strongest and
most advanced glue less joint system. This advancement
provides fast and easy installation and minimizes gapping
for a perfect end result.
A NATURAL APPROCH TO QUALITY
At Lamiwood™ we look beyond surface. Our quality
consciousness begins with selecting best raw materials(Pure
Pine White HDF). Each tree used in our production is
carefully selected and then cut. For each tree cut for our
production, new trees are planted, guaranteeing new forest
for the future generations to enjoy and use.
HO

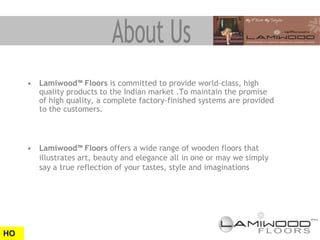

4. • Lamiwood™ Floors is committed to provide world-class, high
quality products to the Indian market .To maintain the promise
of high quality, a complete factory-finished systems are provided
to the customers.
• Lamiwood™ Floors offers a wide range of wooden floors that
illustrates art, beauty and elegance all in one or may we simply
say a true reflection of your tastes, style and imaginations
HO

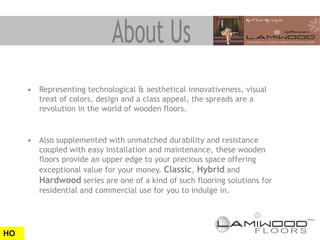

5. • Representing technological & aesthetical innovativeness, visual
treat of colors, design and a class appeal, the spreads are a
revolution in the world of wooden floors.
• Also supplemented with unmatched durability and resistance
coupled with easy installation and maintenance, these wooden
floors provide an upper edge to your precious space offering
exceptional value for your money. Classic, Hybrid and
Hardwood series are one of a kind of such flooring solutions for
residential and commercial use for you to indulge in.
HO

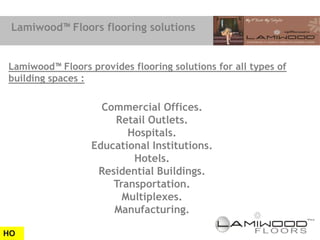

6. Lamiwood™ Floors flooring solutions
Lamiwood™ Floors provides flooring solutions for all types of
building spaces :
Commercial Offices.
Retail Outlets.
Hospitals.
Educational Institutions.
Hotels.
Residential Buildings.
Transportation.
Multiplexes.
Manufacturing.
HO

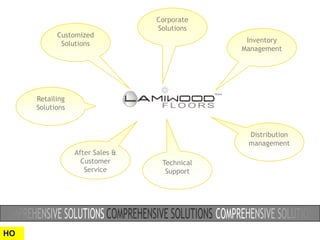

7. Corporate
Solutions
Customized
Solutions Inventory
Management
Retailing
Solutions
Distribution
management
After Sales &
Customer Technical
Service Support
HO

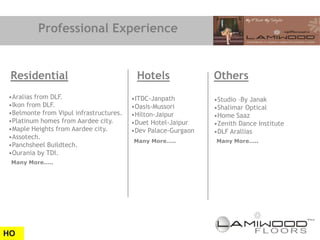

8. Professional Experience
Residential Hotels Others
•Aralias from DLF. •ITDC-Janpath •Studio –By Janak
•Ikon from DLF. •Oasis-Mussori •Shalimar Optical
•Belmonte from Vipul infrastructures. •Hilton-Jaipur •Home Saaz
•Platinum homes from Aardee city. •Duet Hotel-Jaipur •Zenith Dance Institute
•Maple Heights from Aardee city. •Dev Palace-Gurgaon •DLF Arallias
•Assotech.
Many More….. Many More…..
•Panchsheel Buildtech.
•Ourania by TDI.
Many More…..
HO

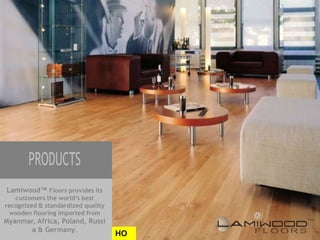

9. Lamiwood™ Floors provides its
customers the world’s best
recognized & standardized quality
wooden flooring imported from
Myanmar, Africa, Poland, Russi
a & Germany.
HO

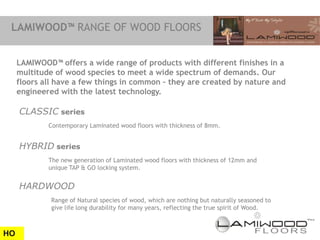

10. LAMIWOOD™ RANGE OF WOOD FLOORS
LAMIWOOD™ offers a wide range of products with different finishes in a
multitude of wood species to meet a wide spectrum of demands. Our
floors all have a few things in common – they are created by nature and
engineered with the latest technology.
CLASSIC series
Contemporary Laminated wood floors with thickness of 8mm.
HYBRID series
The new generation of Laminated wood floors with thickness of 12mm and
unique TAP & GO locking system.
HARDWOOD
Range of Natural species of wood, which are nothing but naturally seasoned to
give life long durability for many years, reflecting the true spirit of Wood.
HO

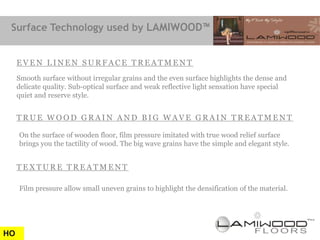

11. Surface Technology used by LAMIWOOD™
EVEN LINEN SURFACE TREATMENT
Smooth surface without irregular grains and the even surface highlights the dense and
delicate quality. Sub-optical surface and weak reflective light sensation have special
quiet and reserve style.
TRUE WOOD GRAIN AND BIG WAVE GRAIN TREATMENT
On the surface of wooden floor, film pressure imitated with true wood relief surface
brings you the tactility of wood. The big wave grains have the simple and elegant style.
TEXTURE TREATMENT
Film pressure allow small uneven grains to highlight the densification of the material.
HO

12. Primary Advantages
Environment-Protective and Healthy EO Backing
Lamiwood Floor's come from the natural wood and EO standard glue, which
can effectively guarantee the high quality of indoor air so that the whole family
can live healthily and comfortably.
Strong antibacterial feature to give safe protection
After experiencing the nanometer technology treatment, Lamiwood Floor can
keep the indoor environment clean for a long time as well as
sterilize, bacteriostasis and stop the spreading of any diseases.
Super strong and abrasion proof, solid and reliable
The exquisite abrasion treatment of Lamiwood Floor makes it more solid to
avoid being scratched and crushed. It is more solid and stable as well as lasting
and enduring. Arbitrarily spry the moving passion and life need not be too
careful.
HO

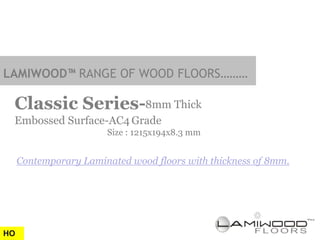

13. LAMIWOOD™ RANGE OF WOOD FLOORS………
Classic Series-8mm Thick
Embossed Surface-AC4 Grade
Size : 1215x194x8.3 mm
Contemporary Laminated wood floors with thickness of 8mm.
HO

14. A Wear layer: This easy-to-clean surface contains aluminum tri-
oxide which protects the floor from stains, fading and wear.
B Image design layer: A photographic image of wood, stone, or
virtually anything you can imagine.
C Inner core layer: The core provides the floor's structural
strength and stability. It is made from High Density Fiberboard (HDF).
The core is often impregnated with a plastic resin called melamine to
increase the floor's strength, stability and resistance to moisture.
Products that have high levels of melamine do not require acclimation
before installation.
D Backing layer: Found beneath the inner core, the backing is
made with resin saturated paper. It creates a moisture barrier that
protects the floor from warping.
HO

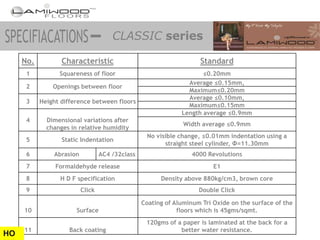

15. No. Characteristic Standard
1 Squareness of floor ≤0.20mm
Average ≤0.15mm,
2 Openings between floor
Maximum≤0.20mm
Average ≤0.10mm,
3 Height difference between floors
Maximum≤0.15mm
Length average ≤0.9mm
4 Dimensional variations after
Width average ≤0.9mm
changes in relative humidity
No visible change, ≤0.01mm indentation using a
5 Static Indentation
straight steel cylinder, Φ=11.30mm
6 Abrasion AC4 /32class 4000 Revolutions
7 Formaldehyde release E1
8 H D F specification Density above 880kg/cm3, brown core
9 Click Double Click
Coating of Aluminum Tri Oxide on the surface of the
10 Surface floors which is 45gms/sqmt.
120gms of a paper is laminated at the back for a
11 Back coating better water resistance.
HO

16. Classic Series shades………
HO

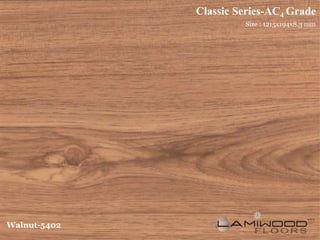

17. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Walnut-5402

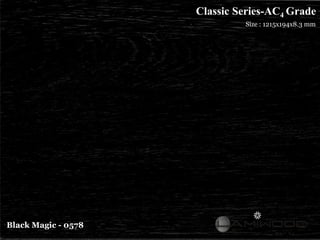

18. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Black Magic - 0578

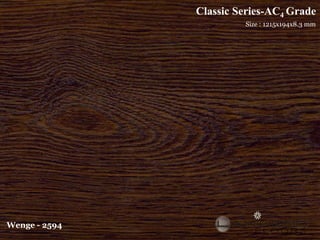

19. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Wenge - 2594

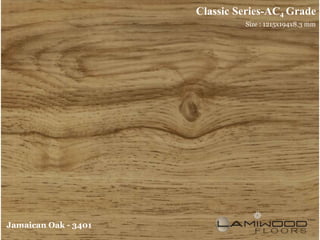

20. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Jamaican Oak - 3401

21. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Burl Walnut - 501

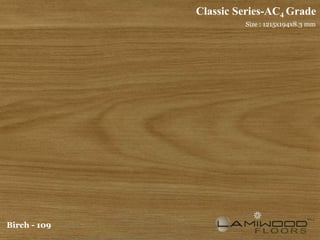

22. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Birch - 109

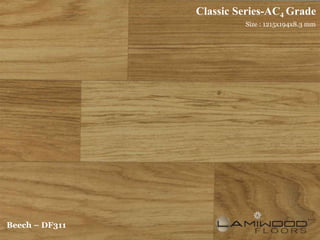

23. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Beech – DF311

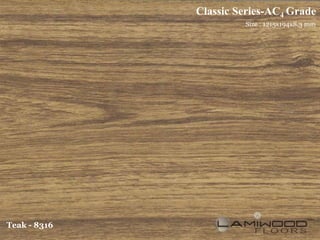

24. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Teak - 8316

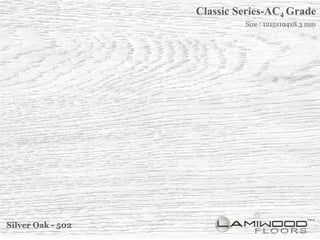

25. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Silver Oak - 502

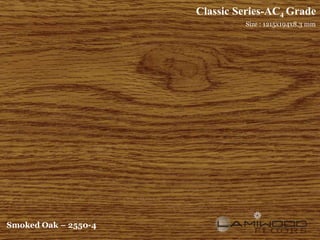

26. Classic Series-AC4 Grade
Size : 1215x194x8.3 mm
Smoked Oak – 2550-4

27. LAMIWOOD™ RANGE OF WOOD FLOORS………

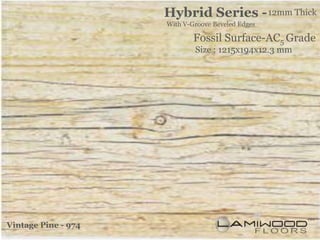

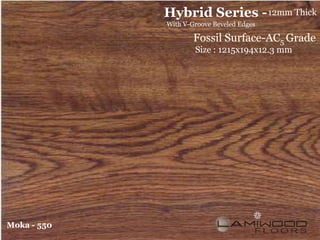

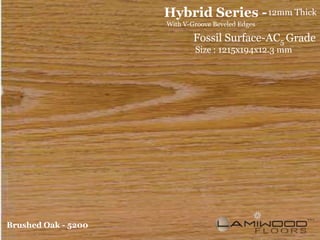

Hybrid Series- 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
The new generation of Laminated wood floors with
thickness of 12mm and unique TAP & GO locking system.
HO

28. HO

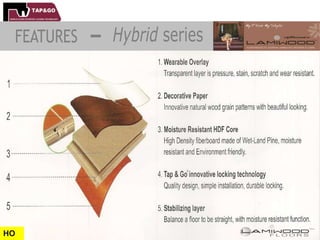

29. Uniform advantages of floating flooring with
“TAP & GO” Locking system ………
HO

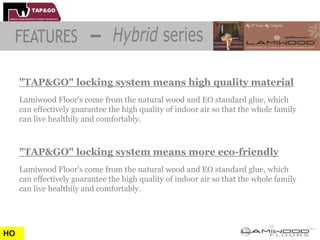

30. "TAP&GO" locking system means high quality material
Lamiwood Floor's come from the natural wood and EO standard glue, which
can effectively guarantee the high quality of indoor air so that the whole family
can live healthily and comfortably.
"TAP&GO" locking system means more eco-friendly
Lamiwood Floor's come from the natural wood and EO standard glue, which
can effectively guarantee the high quality of indoor air so that the whole family
can live healthily and comfortably.
HO

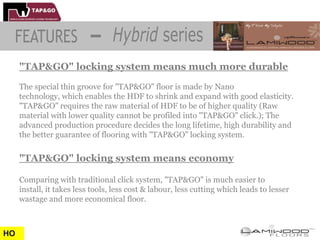

31. "TAP&GO" locking system means much more durable
The special thin groove for "TAP&GO" floor is made by Nano
technology, which enables the HDF to shrink and expand with good elasticity.
"TAP&GO" requires the raw material of HDF to be of higher quality (Raw
material with lower quality cannot be profiled into "TAP&GO" click.); The
advanced production procedure decides the long lifetime, high durability and
the better guarantee of flooring with "TAP&GO" locking system.
"TAP&GO" locking system means economy
Comparing with traditional click system, "TAP&GO" is much easier to
install, it takes less tools, less cost & labour, less cutting which leads to lesser
wastage and more economical floor.
HO

32. HO

33. The Tap&Go locking laminate flooring has considerable advantages over
other installation methods, because it is simply installed by vertically
tapping-in the edges of the planks instead of the instead of the typical
angle-to-angle-snap methods that are more ergonomically difficult.
This globally patented technology provides an innovative hook joint
structure which locks the long and the short edges of the planks
simultaneously, on all four sides
This result in a solid and durable installation that eliminates separation
problems with the installed planks, and ensures tighter fitting . Also, this
vertical tapping technique saves considerable installation time and labour
cost.
To ensure that the edges of the planks will not be damaged during
installation, the HDF core of the Tap&Go planks is exceptionally
strong, thus ensuring the quality and integrity of the floor.
HO

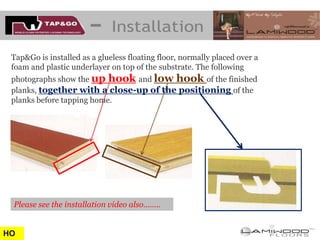

34. Tap&Go is installed as a glueless floating floor, normally placed over a
foam and plastic underlayer on top of the substrate. The following
photographs show the up hook and low hook of the finished
planks, together with a close-up of the positioning of the
planks before tapping home.
Please see the installation video also……..
HO

35. Regarding the installation, we think it is
very necessary to make a good preparation
1. Before installation, it is very important to keep the concrete floor in a level.
2. Before installation, put the underlayment's firstly, this is also important.
3.When you taping the flooring, it is rubber hammer, not plastic hammer.

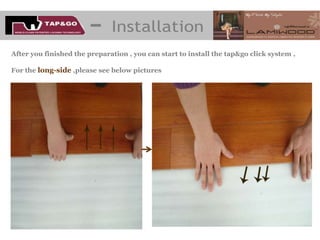

36. After you finished the preparation , you can start to install the tap&go click system ,
For the long-side ,please see below pictures

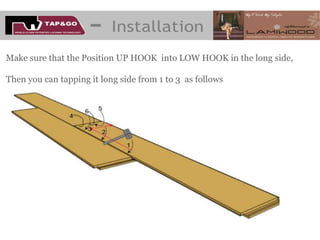

37. Make sure that the Position UP HOOK into LOW HOOK in the long side,
Then you can tapping it long side from 1 to 3 as follows

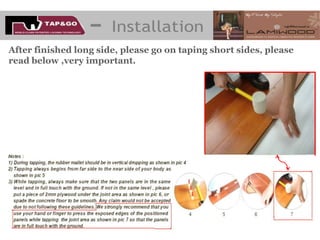

38. After finished long side, please go on taping short sides, please
read below ,very important.

39. Hybrid Series shades………
HO

40. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Brazilian Oak - 66

41. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Brushed Oak - 5200

42. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Moka - 550

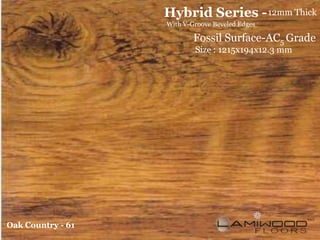

43. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Oak Country - 61

44. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Vintage Pine - 974

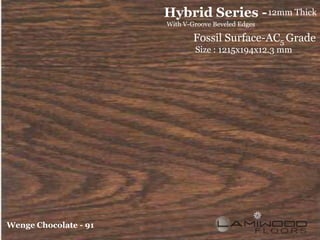

45. Hybrid Series - 12mm Thick
With V-Groove Beveled Edges
Fossil Surface-AC5 Grade
Size : 1215x194x12.3 mm
Wenge Chocolate - 91

46. LAMIWOOD™ RANGE OF WOOD FLOORS………
Hardwood Floors Surface – Tereffert Coating
Range of Natural species of wood, which are nothing but
naturally seasoned to give life long durability for many
years, reflecting the true spirit of Wood.
HO

47. Hardwood Floors shades……..
HO

48. Hardwood Floors
Surface – Tereffert Coating
Size : 910x122x18 mm
Ash Natural

49. Hardwood Floors
Surface – Tereffert Coating
Size : 910x122x18 mm
Oak Gunstock

50. Hardwood Floors
Surface – Tereffert Coating
Size : 910x122x18 mm
Oak Antique

51. Hardwood Floors
Surface – Tereffert Coating
Size : 1800x122x18 mm
Merbau

52. Hardwood Floors
Surface – Tereffert Coating
Size : 910x122x18 mm
Walnut

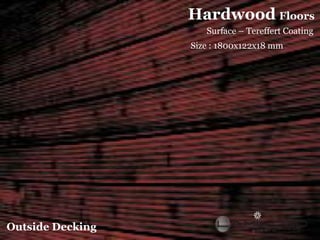

53. Hardwood Floors
Surface – Tereffert Coating
Size : 1800x122x18 mm
Outside Decking

54. For any queries mail us at “info@lamiwood.in”
OR
Visit our website : “http://lamiwood.in”
OR
sms “LAMIWOOD” TO “56070”
OR
Call on “+91 9310 3536 08”
HO
