1. HÖNNUN OG SMÍÐI HUGBÚNAÐAR 2015
L18 Object Relational Mapping

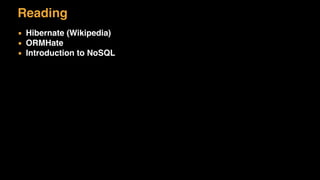

2. Reading
▪ Hibernate (Wikipedia)
▪ ORMHate
▪ Introduction to NoSQL

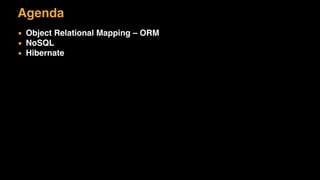

3. Agenda
▪ Object Relational Mapping – ORM
▪ NoSQL
▪ Hibernate

4. Object Relational Mapping – ORM

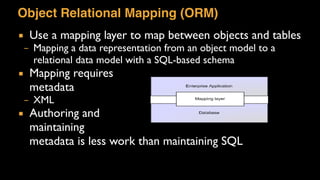

5. Object Relational Mapping (ORM)
▪ Use a mapping layer to map between objects and tables
– Mapping a data representation from an object model to a
relational data model with a SQL-based schema
▪ Mapping requires
metadata
– XML
▪ Authoring and
maintaining
metadata is less work than maintaining SQL

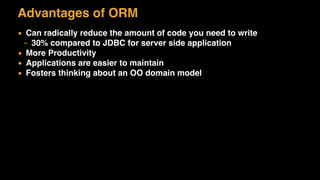

6. Advantages of ORM
▪ Can radically reduce the amount of code you need to write
– 30% compared to JDBC for server side application
▪ More Productivity
▪ Applications are easier to maintain
▪ Fosters thinking about an OO domain model

7. Disadvantages of ORM
▪ Some loss of control over the persistence process
▪ May be more difficult to tune queries
▪ Performance characteristics of the tool may affect your application’s
performance

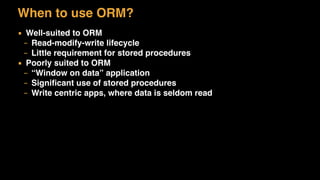

8. When to use ORM?
▪ Well-suited to ORM
– Read-modify-write lifecycle
– Little requirement for stored procedures
▪ Poorly suited to ORM
– “Window on data” application
– Significant use of stored procedures
– Write centric apps, where data is seldom read

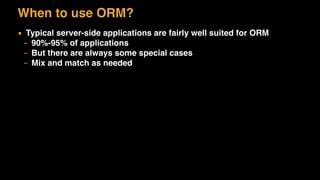

9. When to use ORM?
▪ Typical server-side applications are fairly well suited for ORM
– 90%-95% of applications
– But there are always some special cases
– Mix and match as needed

10. Hibernate

11. Hibernate
▪ Object/relational mapping tool
– A persistence service that stores Java objects in relational
databases
– Provides an object oriented view of existing relational data
▪ Uses reflection and XML mapping files to persist POJOs
– No changes to business domain objects
– The goal is to relieve the developer from a significant amount of
common data persistence-related programming tasks

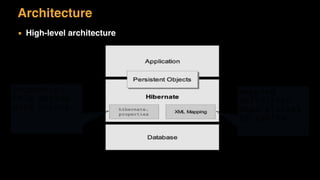

12. Architecture
▪ High-level architecture
Properties
file define
data access
Mapping
definition
maps classes
to tables

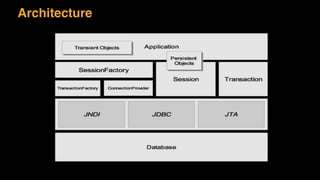

13. Architecture

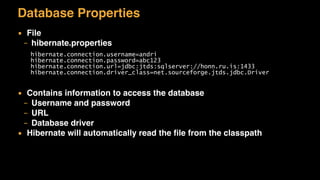

14. Database Properties
▪ File
– hibernate.properties
▪ Contains information to access the database
– Username and password
– URL
– Database driver
▪ Hibernate will automatically read the file from the classpath
hibernate.connection.username=andri
hibernate.connection.password=abc123
hibernate.connection.url=jdbc:jtds:sqlserver://honn.ru.is:1433
hibernate.connection.driver_class=net.sourceforge.jtds.jdbc.Driver

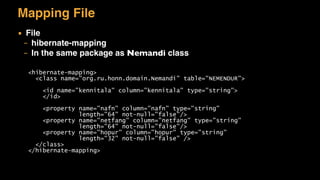

15. Mapping File
▪ File
– hibernate-mapping
– In the same package as Nemandi class
<hibernate-mapping>
<class name="org.ru.honn.domain.Nemandi" table="NEMENDUR">
<id name="kennitala" column="kennitala" type="string">
</id>
<property name="nafn" column="nafn" type="string"
length="64" not-null="false"/>
<property name="netfang" column="netfang" type="string"
length="64" not-null="false"/>
<property name="hopur" column="hopur" type="string"
length="32" not-null="false" />
</class>
</hibernate-mapping>

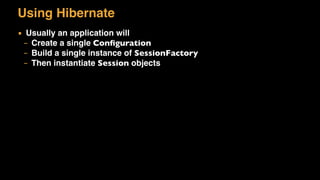

16. Using Hibernate
▪ Usually an application will
– Create a single Configuration
– Build a single instance of SessionFactory
– Then instantiate Session objects
Configuration cfg = new Configuration();
cfg.addClass(theClass);
SessionFactory factory = cfg.buildSessionFactory();
Session session = factory.openSession();

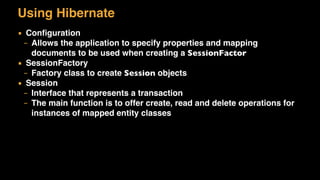

17. Using Hibernate
▪ Configuration
– Allows the application to specify properties and mapping
documents to be used when creating a SessionFactor
▪ SessionFactory
– Factory class to create Session objects
▪ Session
– Interface that represents a transaction
– The main function is to offer create, read and delete operations for
instances of mapped entity classes

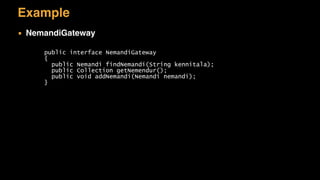

18. Example
▪ NemandiGateway
public interface NemandiGateway
{
public Nemandi findNemandi(String kennitala);
public Collection getNemendur();
public void addNemandi(Nemandi nemandi);
}

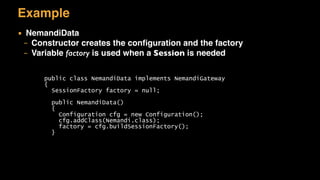

19. Example
▪ NemandiData
– Constructor creates the configuration and the factory
– Variable factory is used when a Session is needed
public class NemandiData implements NemandiGateway
{
SessionFactory factory = null;
public NemandiData()
{
Configuration cfg = new Configuration();
cfg.addClass(Nemandi.class);
factory = cfg.buildSessionFactory();
}

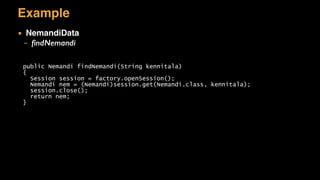

20. Example
▪ NemandiData
– findNemandi
public Nemandi findNemandi(String kennitala)
{
Session session = factory.openSession();
Nemandi nem = (Nemandi)session.get(Nemandi.class, kennitala);
session.close();
return nem;
}

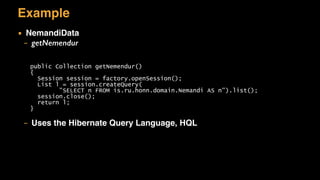

21. Example
▪ NemandiData
– getNemendur
– Uses the Hibernate Query Language, HQL
public Collection getNemendur()
{
Session session = factory.openSession();
List l = session.createQuery(
"SELECT n FROM is.ru.honn.domain.Nemandi AS n").list();
session.close();
return l;
}

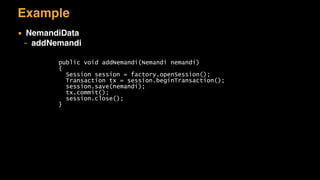

22. Example
▪ NemandiData
– addNemandi
public void addNemandi(Nemandi nemandi)
{
Session session = factory.openSession();
Transaction tx = session.beginTransaction();
session.save(nemandi);
tx.commit();
session.close();
}

23. NoSQL Databases

24. Matin Fowler on NoSQL

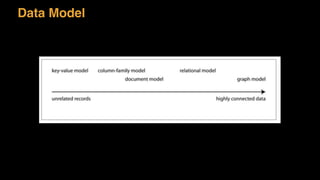

26. Data Model

27. Key-Value
▪ Basically Map<String, Object>
▪ They are also referred to as "schema on read" as one entry may be a
String, another a Date, a third PNG image
▪ Key-Value stores offer no indexes, and no querying capabilities
▪ Examples:
– Property files, Dynamo, Riak, Redis, Aerospike, Voldemort

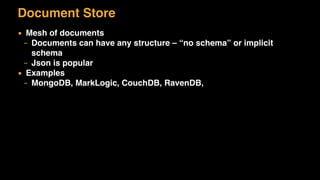

28. Document Store
▪ Mesh of documents
– Documents can have any structure – “no schema” or implicit
schema
– Json is popular
▪ Examples
– MongoDB, MarkLogic, CouchDB, RavenDB,

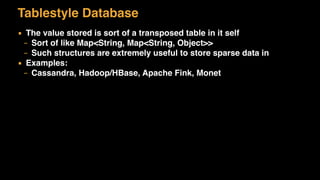

29. Tablestyle Database
▪ The value stored is sort of a transposed table in it self
– Sort of like Map<String, Map<String, Object>>
– Such structures are extremely useful to store sparse data in
▪ Examples:
– Cassandra, Hadoop/HBase, Apache Fink, Monet

30. Graph Databases
▪ Graph or network structure of data: Entities and facts about these in
the relations on them
– Graph Databases resembles Prolog in their use to infer new insights
based upon facts and rules
▪ Really good at relation magic, e.g. if you have a "friends" relation on
"user" entities
▪ Examples:
– Neo4J, GraphBase, Trinity

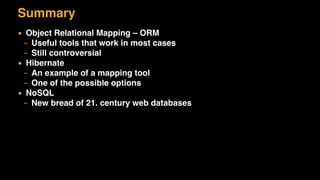

31. Summary
▪ Object Relational Mapping – ORM
– Useful tools that work in most cases
– Still controversial
▪ Hibernate
– An example of a mapping tool
– One of the possible options
▪ NoSQL
– New bread of 21. century web databases
