1. 1/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Trimming tool
- 12 mm / 12 mm
- 12 mm / 5 mm
- 5 mm / 5 mm
Spin welding parts, LLDPE
- plug D13
- plug D40
- plug D110
Tools for spin welding
- for plug D13
- for plug D40
- for plug D110
Safety pin, stainless steel
- large Ø 4
- medium Ø 3
- small Ø 2
Silicone component
Ø10 (L=55 mm) / Ø20 /L=55 mm)
= 110 mm

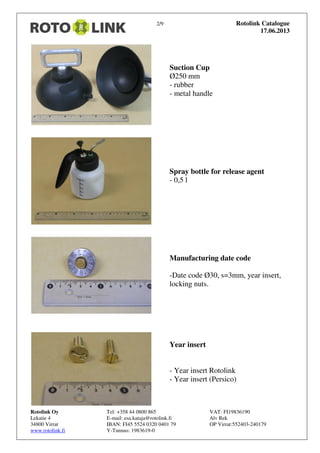

2. 2/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Suction Cup
Ø250 mm
- rubber
- metal handle
Spray bottle for release agent
- 0,5 l
Manufacturing date code
-Date code Ø30, s=3mm, year insert,
locking nuts.
Year insert
- Year insert Rotolink
- Year insert (Persico)

3. 3/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Recycling logo
-Arrow triangle+ PE, Ø30mm. Bolt
fixing on behind.
Clamp for fitting
- De-Sta-Co 602-MM
- De-Sta-Co 603-MM
- De-Sta-Co 604-MM
- De-Sta-Co 607-MM
- De-Sta-Co 624-MM
- De-Sta-Co 2007-UR
Flexible connection hose for air
supply
- L= 40 cm, R 3/8” studs on both ends
- L=50 cm
- L=100 cm
- L=125 cm
- L=150 cm
- L=200 cm
Air Mover
Assembly directly on Rotolink vent
pipe. Adjustable.
- TV25
- TV40
- TV60

4. 4/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Parts for hand grinder
- Cutter blade Ø 6,0 mm
- Tube guide Ø 35 mm
- Tube guide Ø 43 mm
- Compass guide Ø 43 mm
- Side guide Ø 43 mm
Teflon tube
- 10 x 8 mm
- 12 x 10 mm
- 18 x 15 mm
- 20,5 x 17,5 mm
Shading material
- S=1,2 mm
- 550°
- fixing with silicone glue
- L=1,50 m
Clamp with counterpart +
hole for safety pin

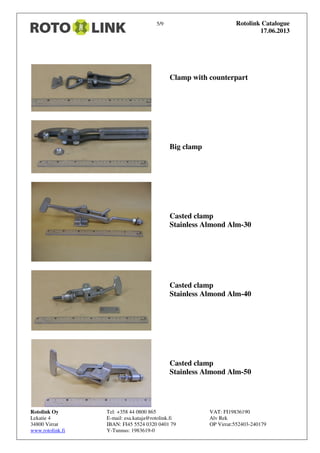

5. 5/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Clamp with counterpart
Big clamp
Casted clamp
Stainless Almond Alm-30
Casted clamp
Stainless Almond Alm-40
Casted clamp
Stainless Almond Alm-50

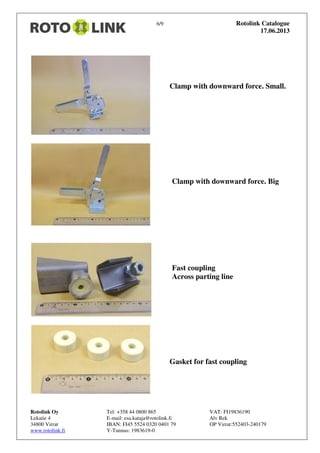

6. 6/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Clamp with downward force. Small.
Clamp with downward force. Big
Fast coupling
Across parting line
Gasket for fast coupling

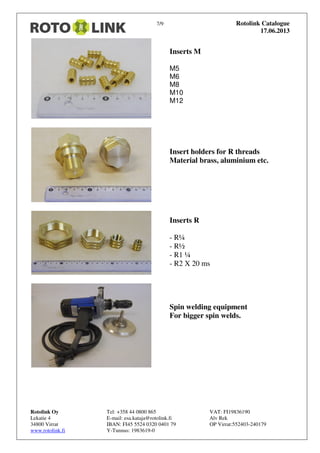

7. 7/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Inserts M
M5
M6
M8
M10
M12
Insert holders for R threads
Material brass, aluminium etc.
Inserts R
- R¼
- R½
- R1 ¼
- R2 X 20 ms
Spin welding equipment
For bigger spin welds.

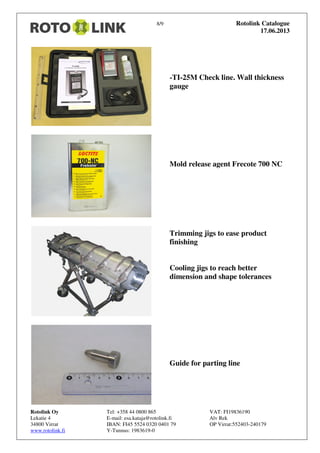

8. 8/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
-TI-25M Check line. Wall thickness
gauge
Mold release agent Frecote 700 NC
Trimming jigs to ease product
finishing
Cooling jigs to reach better
dimension and shape tolerances
Guide for parting line

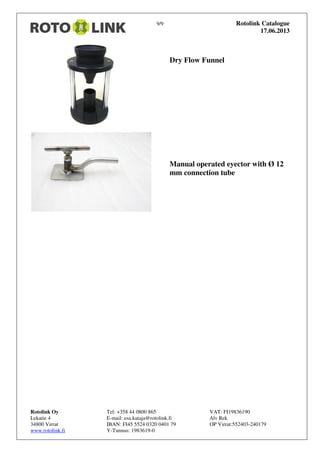

9. 9/9 Rotolink Catalogue
17.06.2013
Rotolink Oy Tel: +358 44 0800 865 VAT: FI19836190
Lekatie 4 E-mail: esa.kataja@rotolink.fi Alv Rek
34800 Virrat IBAN: FI45 5524 0320 0401 79 OP Virrat:552403-240179
www.rotolink.fi Y-Tunnus: 1983619-0
Dry Flow Funnel
Manual operated eyector with Ø 12
mm connection tube
