The Bhonga is a traditional cylindrical construction used in the Kutch district of Gujarat, India, which has high earthquake risk. A Bhonga consists of a single room with thick earthen walls and a thatched roof. Bhongas are constructed using locally available materials like mud, bamboo, and cow dung in a way that makes them earthquake resistant. The circular structure, thick walls, and lightweight materials help Bhongas withstand seismic activity common to the region.

1. • The Bhonga is a
traditional
construction type in
the Kutch district of
the Gujarat state in
India, which has a
very high earthquake
risk.
• A Bhonga consists
of a single
cylindrically shaped
room.
Architectural Style
1
elevation
Bhungha
locations
Bhunghas are located in the gulf of
Kutchh region. The circular highlighted
areas denote the locations of Bhungha
clusters.
Bhungha Huts
Plan
Fig. 1: A typical Bhungha ,
Elevation
Fig. 2: A circular Bhungha type (elevation), A rectangular Bhungha type
(elevation)
Fig. 2:
Interior view
of the
Bungha,
Otla in front
of the
Bhungha
Fig. 1: A typical Bhungha ,
Section

2. Vernacular Design interventions
The platforms are closely
placed and the residual
spaces between them act
as pathways for
movement . Thorny
bushes envelop the
settlement and act as
fence or protective shield
against the hot winds
and dust storms.
On arrival from the
highway one only finds
grass fence and the
projected conical
thatched roofs against
the sky.
Thatched roof contructed of straw and timber, he roofing
materials are generally very light weight, and develops
low inertia forces.
A typical Bhunga
cluster
Deep overhang of the
circular houses The platform acts as a
plinth
Architectural Characteristics
2
Architectural Style: Vernacular Kutchhi
Architecture
The circular mud house is an integration of exact geometry and property of materials for the climatic
conditions to evolve a perfect architectural form of the house . The materials used are locally
available and habitants themselves build the house. The circular plan efficiently compares the square
plan where the perimeter to enclosed area ratio is lower than the circular house. The skill, brilliance
and aesthetics in building the house is the cumulative traditional knowledge of successive
generations added up to result in intelligent built forms.
Due to circular shape of wall in plan, inertial forces
developed in wall are resisted through shell action providing
excellent resistance to lateral forces.
• In addition, the thick walls required for thermal insulation
have high in-plane stiffness which provides excellent
performance under lateral loads.
Fig. 1: Flow
of air acc.
to
Bernoulli’s
principle of
pressure
differences
(Plan)
Fig. 2: thick walls for thermal
insulation, high plane stiffness which
provides excellent performance under
lateral loads.
A diagram
showing
flow of wind
acc. to
Venturi
Effect along
the central
shaft of a
Modern
Bhunga

3. Architectural Elements
Cyllindrical walls and
thatched roofs
Mangalore tiles roof Shape of the plan
changes
Contemporary Bhunga
huts with thatched roofs
Modern Bhunga hutsAddition of the
gathering area
Evolution of the
elevation and plan
of
The Bhunga
1
Evolution of the
doors of the
Bhungas
2
The Jaali
acts both
as an
aesthetic
element
and shields
from the
direct
sunlight
3
Interior view of the
windows of Bhungas
Exterior view of the
windows of the
Bhungas
Windows and
openings
4
3

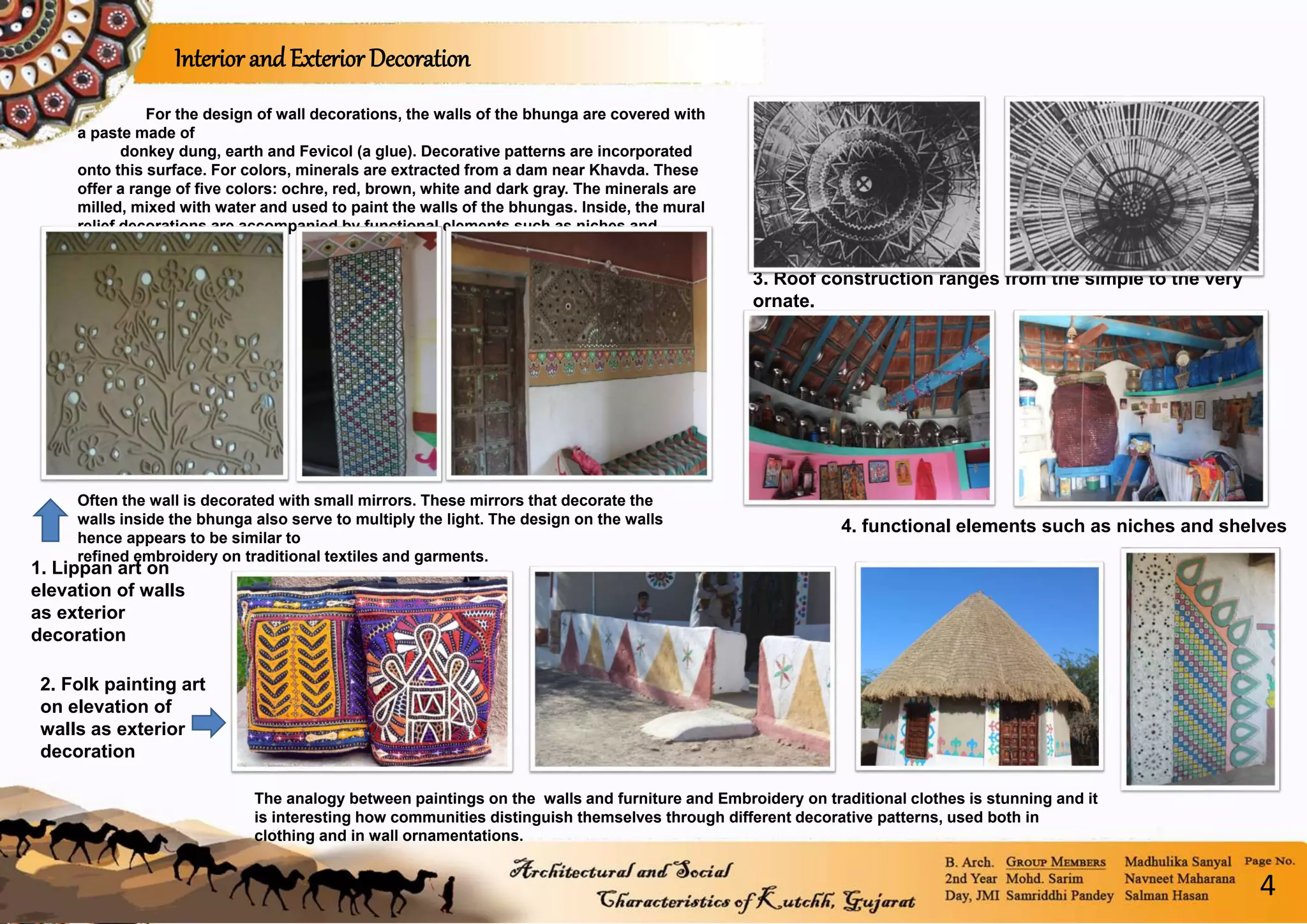

4. For the design of wall decorations, the walls of the bhunga are covered with
a paste made of
donkey dung, earth and Fevicol (a glue). Decorative patterns are incorporated
onto this surface. For colors, minerals are extracted from a dam near Khavda. These
offer a range of five colors: ochre, red, brown, white and dark gray. The minerals are
milled, mixed with water and used to paint the walls of the bhungas. Inside, the mural
relief decorations are accompanied by functional elements such as niches and
shelves.
3. Roof construction ranges from the simple to the very
ornate.
4. functional elements such as niches and shelves
Often the wall is decorated with small mirrors. These mirrors that decorate the
walls inside the bhunga also serve to multiply the light. The design on the walls
hence appears to be similar to
refined embroidery on traditional textiles and garments.
Interior and Exterior Decoration
2. Folk painting art
on elevation of
walls as exterior
decoration
The analogy between paintings on the walls and furniture and Embroidery on traditional clothes is stunning and it
is interesting how communities distinguish themselves through different decorative patterns, used both in
clothing and in wall ornamentations.
1. Lippan art on
elevation of walls
as exterior
decoration
4

5. 1.IN THE CONSTRUCTION OF BHUNGA, RAW
MATERIALS THAT ARE EASILY AVAILABLE IN KUTCH.
2.The materials are such that the bhungas are well
Earthquake resistant.
3.Modification to Building Recent Bhungas
constructions have used wide variety of construction
materials. These include the stone or burnt brick
masonry either in mud mortar or in cement mortar.
BHUNGA
OUT OF
CLAY AND
REED
Primary materials:
Sikki leaves bamboo
Manglore tiles
Thatched roof
OR
Secondary material:
THATCHED ROOF
TRADITIONAL BHUNGA
Secondary material:
Mud stones water
Conventional wall
cement
OR
TIMBER
DOORS, WINDOWS AND
STRUCTURAL MEMBERS
1. Traditional roof consists of light-weight conical roof,
while some recent constructions have used heavy
Mangalore tiles on roofs.
2. Though essentially unchanged, a few homes have
tiled
roofs instead of thatch. Platform drains off water
which
gathers because of the impervious soil, even
though the
rainfall is meager.
DOOR
Primary material:
Materials Used
Primary materials:
Mud bricks cow dung
5

6. Kutchh, BhungaConstruction
Foundation and Boundary walls
The components required for the
construction of walls and
foundations are:
a) Clayey soil and rice husk for
earth blocks.
b) Cement mortar used for
(foundations).
c) Earth sourced from BANNI, cow
dung and local earth for plaster.
Earth and rubble stones for filling the platform -otla -Production
stages of mud blocks are as follows:
1. A trench 30 cm deep and 45 cm wide is dug. The process of laying
the blocks is locally called chanter.
2. Walls are raised on foundations, using cow dung plus local mud
mortar, mixed with water to make the compound workable.
3. Lintels and doors and window frames are inserted where
necessary.
4. A platform-otla-is then built using rubble stone and earth, up to a
height of about 45 cm. (This is completed by a thin layer of mud,
called Lipan, which is applied also on the walls of the Bhunga to
protect them at the base. Building of Building of a sun dried earth
blocks wall.)
Wall Construction
The mixture for the plaster layer, locally called gobar Lipan, is made
with cow dung and local mud. Water is added to improve its
workability. A first layer is applied on the outer surface of the wall, and
smoothed using hands. It takes about a day to complete it, and then
another layer is applied on the inner surface. These inner and outer
layers are alternated, up to seven layers applied on both surfaces of
the wall. The last layer of Lipan is done using earth sourced from
Banni and cow
Reinforced wall
Mud brick wall
Trench filled with stone
Decorative walls
6

7. Roof Construction
Kutchh, Bhunga Construction
The components required for roof’s construction are:
•One horizontal beam (diameter 15 to 18 cm).
•A base for the vertical kingpost - patli - size 5x7x25
•A central kingpost (ranging from 180 to 270 cm, diameter 10
cm).
•A cone - MANN - at the top of the kingpost (diameter 40 cm, 45
cm high).
•Babool wood rafters forming the backbone of the roof – VALI –
(having a diameter between 6 365 cm long)
•Culms of split bamboo which constitute the secondary warping -
KHAPATIS – (diameter 2 .5 cm, length 365 cm).
•Rope - KATHI -, (1.25 cm thick. 30 kg of rope are required).
•Straw - KHEEP – (for roofing).
• Bhunga are never "designed" in the modern context. However, Bhunga
architecture is a very unique aspect of traditional desert architecture of
Kutch region in which the size, location and orientation of the Bhunga are
planned for very good structural and functional results.
• The entire construction process, which is carried out by the mason with
very few unskilled laborers, can be completed within 30 days.
• The construction of this type of housing takes place in a single phase.
• Typically, the building is originally designed for its final constructed size.
Advantages
Otla
Section of a bhunga
7

8. Kutchh, Socio Cultural Character
RELIGION
HINDUS
JAINISM
ISLAM
LANGUAGES
KUTCHI
SINDHI
GUJARATI
Circular houses on a platform around the central street acting as a space for community
interaction. Next to the Bhunga, but never set against it,
there is usually a small rectangular building, called chowki, which presents small variations:
the largest chowki are used as living spaces, and smaller as kitchens.
Smaller units, about one and a half meter high, not very well shaped and devoid of roof are
sometimes set against the Bhunga. These units are used as functional spaces for storage or
bathrooms.
plan
elevation
Communities of Kutchh
Kutch district is inhabited by various groups and communities. One can find various nomadic,
semi nomadic and artisan groups living in Kutch. Gujarati Ahirs comprise a comparatively
large group in Kutch.
Bhunga in clusters
8

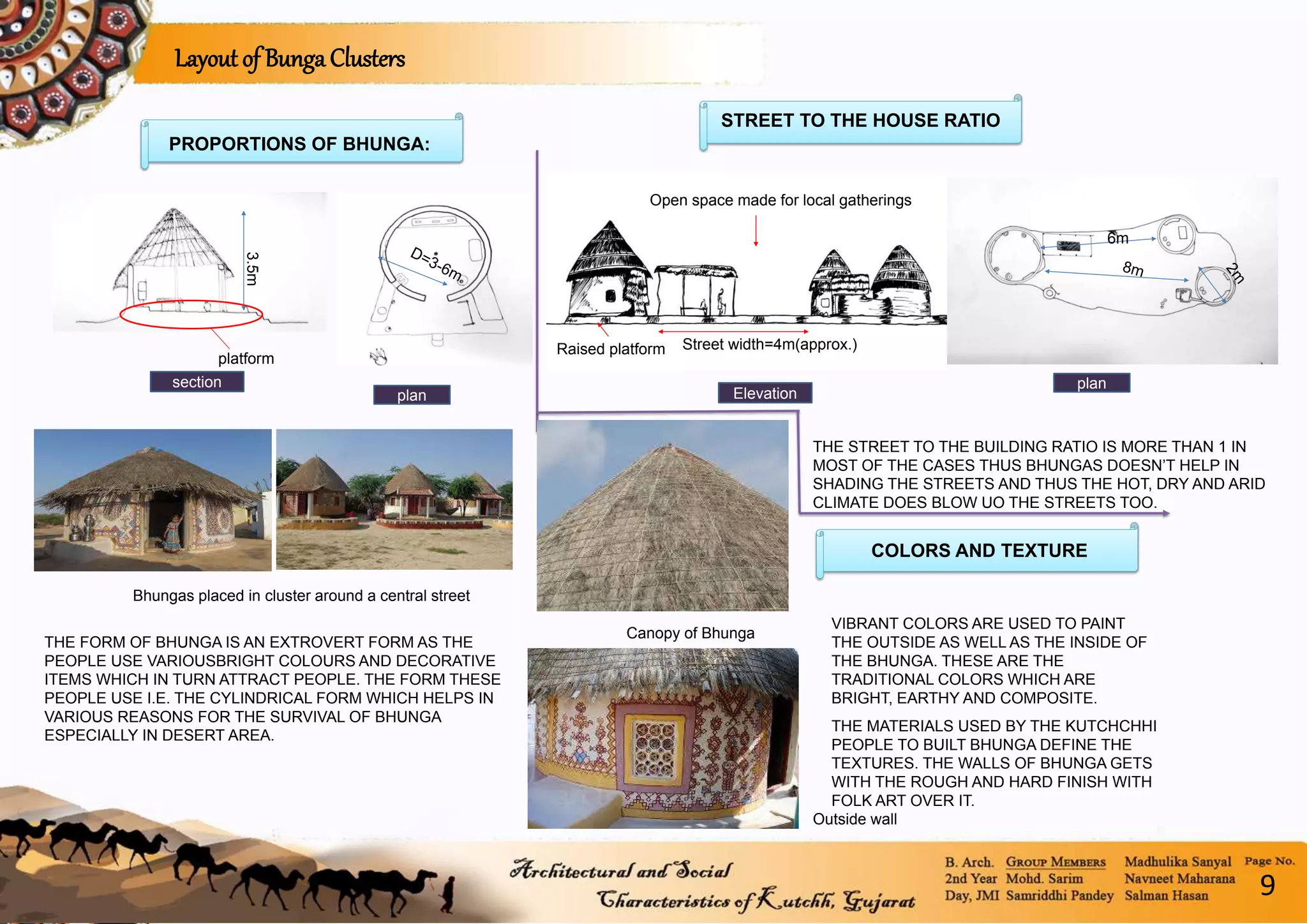

9. platform
3.5m
section
plan
Raised platform
Open space made for local gatherings
Street width=4m(approx.)
6m
Canopy of Bhunga
Outside wall
THE FORM OF BHUNGA IS AN EXTROVERT FORM AS THE
PEOPLE USE VARIOUSBRIGHT COLOURS AND DECORATIVE
ITEMS WHICH IN TURN ATTRACT PEOPLE. THE FORM THESE
PEOPLE USE I.E. THE CYLINDRICAL FORM WHICH HELPS IN
VARIOUS REASONS FOR THE SURVIVAL OF BHUNGA
ESPECIALLY IN DESERT AREA.
VIBRANT COLORS ARE USED TO PAINT
THE OUTSIDE AS WELL AS THE INSIDE OF
THE BHUNGA. THESE ARE THE
TRADITIONAL COLORS WHICH ARE
BRIGHT, EARTHY AND COMPOSITE.
THE MATERIALS USED BY THE KUTCHCHHI
PEOPLE TO BUILT BHUNGA DEFINE THE
TEXTURES. THE WALLS OF BHUNGA GETS
WITH THE ROUGH AND HARD FINISH WITH
FOLK ART OVER IT.
THE STREET TO THE BUILDING RATIO IS MORE THAN 1 IN
MOST OF THE CASES THUS BHUNGAS DOESN’T HELP IN
SHADING THE STREETS AND THUS THE HOT, DRY AND ARID
CLIMATE DOES BLOW UO THE STREETS TOO.
STREET TO THE HOUSE RATIO
Layout of Bunga Clusters
Bhungas placed in cluster around a central street
PROPORTIONS OF BHUNGA:
Elevation
plan
COLORS AND TEXTURE
9

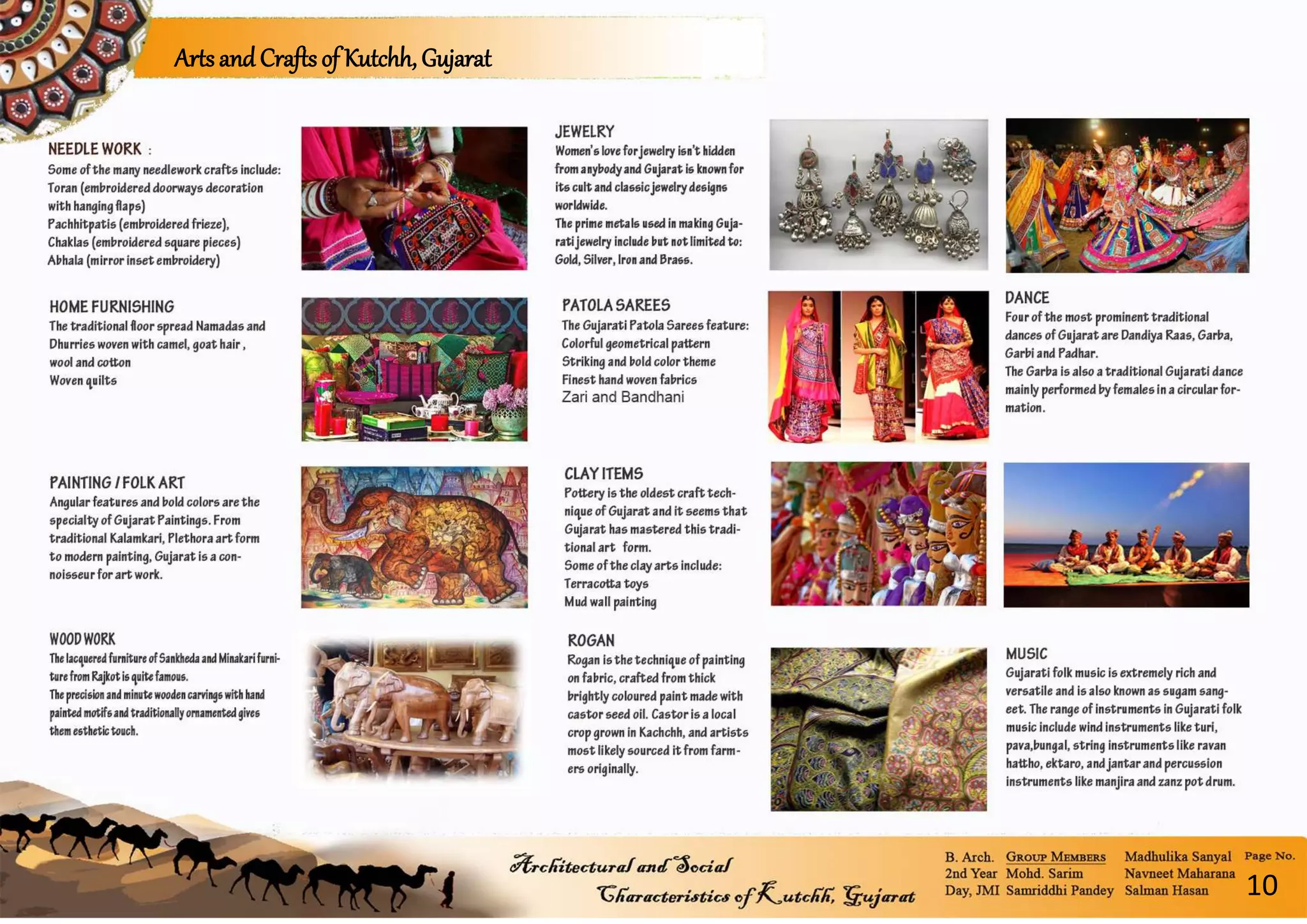

10. Arts and Crafts of Kutchh, Gujarat
10
