Kong API Gateway is a solution that proxies APIs to address problems like lack of visibility into API usage and inability to stop abusive consumers. It provides features like authentication, security controls, rate limiting, request transformation, and logging to various outputs. It is open source, uses trusted technologies, and has considerations around additional components, latency, and plugin customization. Improvements could include better monitoring and moving more to response rate limiting.

1. 1
Kong API Gateway
Chris Mague / Shokunin
04/12/2017

2. 2
Today's Talk

The Problems

The Solution

The Technical Solution

The Caveats

The Improvements

3. 3

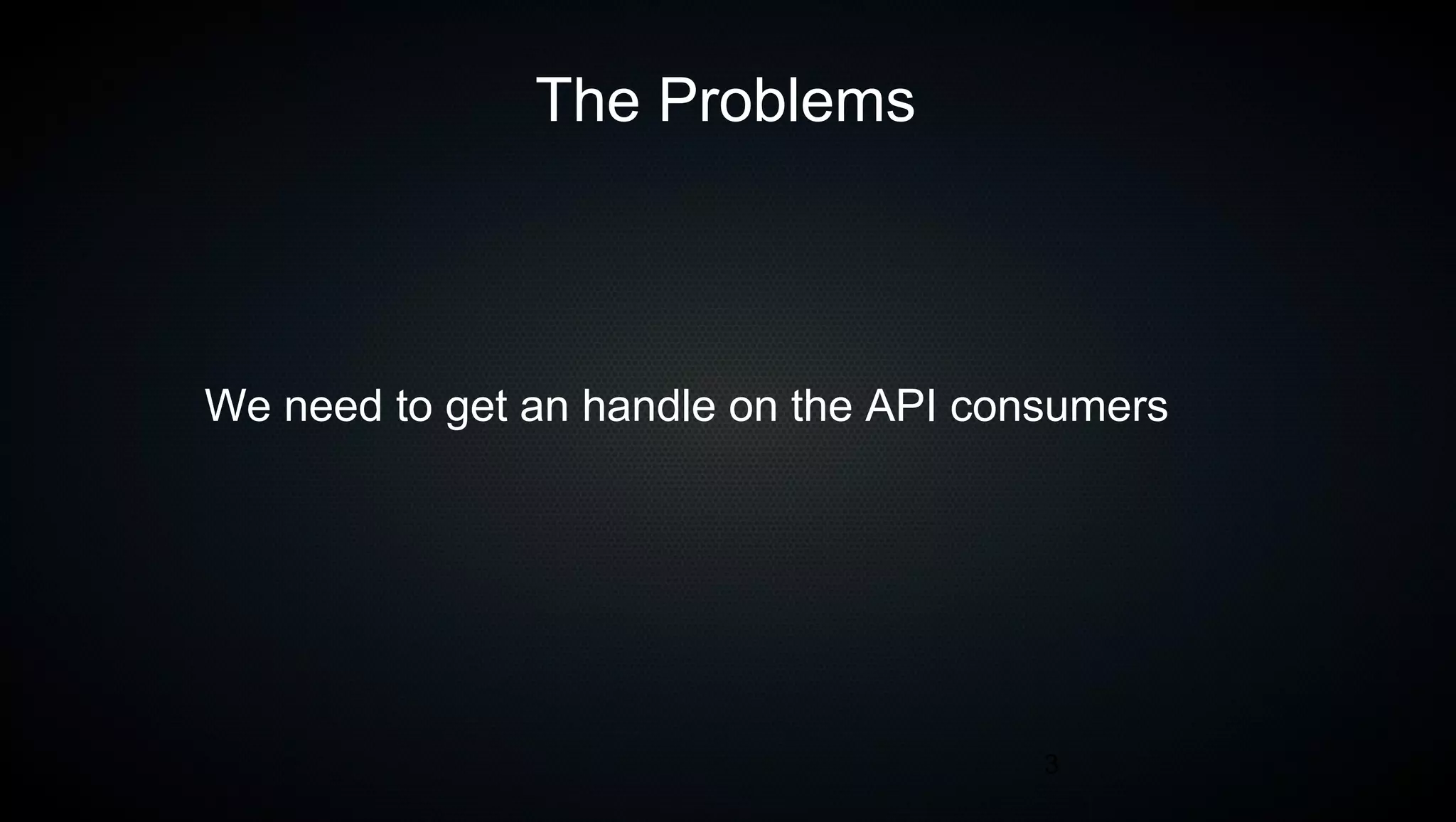

The Problems
We need to get an handle on the API consumers

4. 4

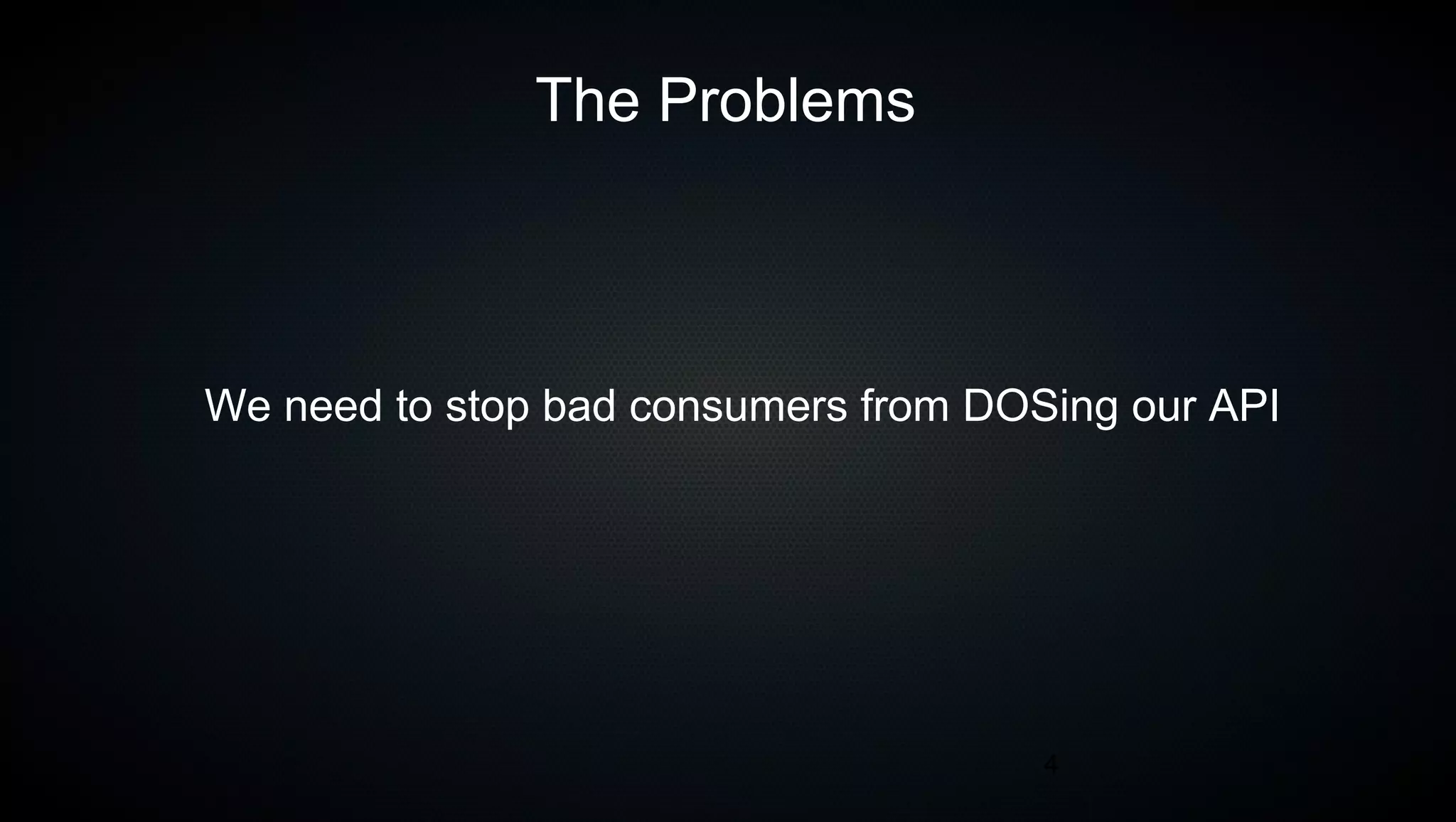

The Problems
We need to stop bad consumers from DOSing our API

5. 5

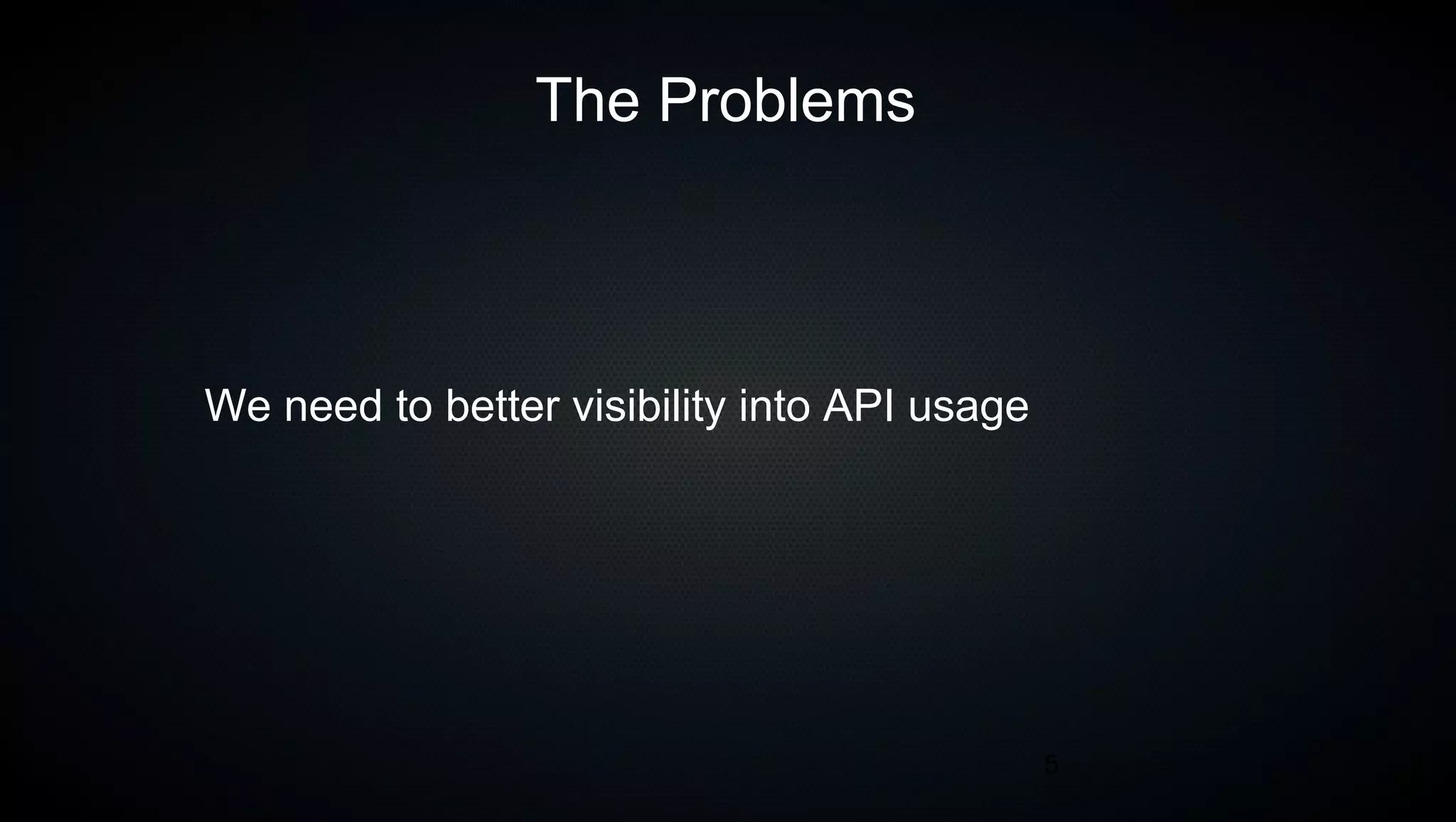

The Problems
We need to better visibility into API usage

6. 6

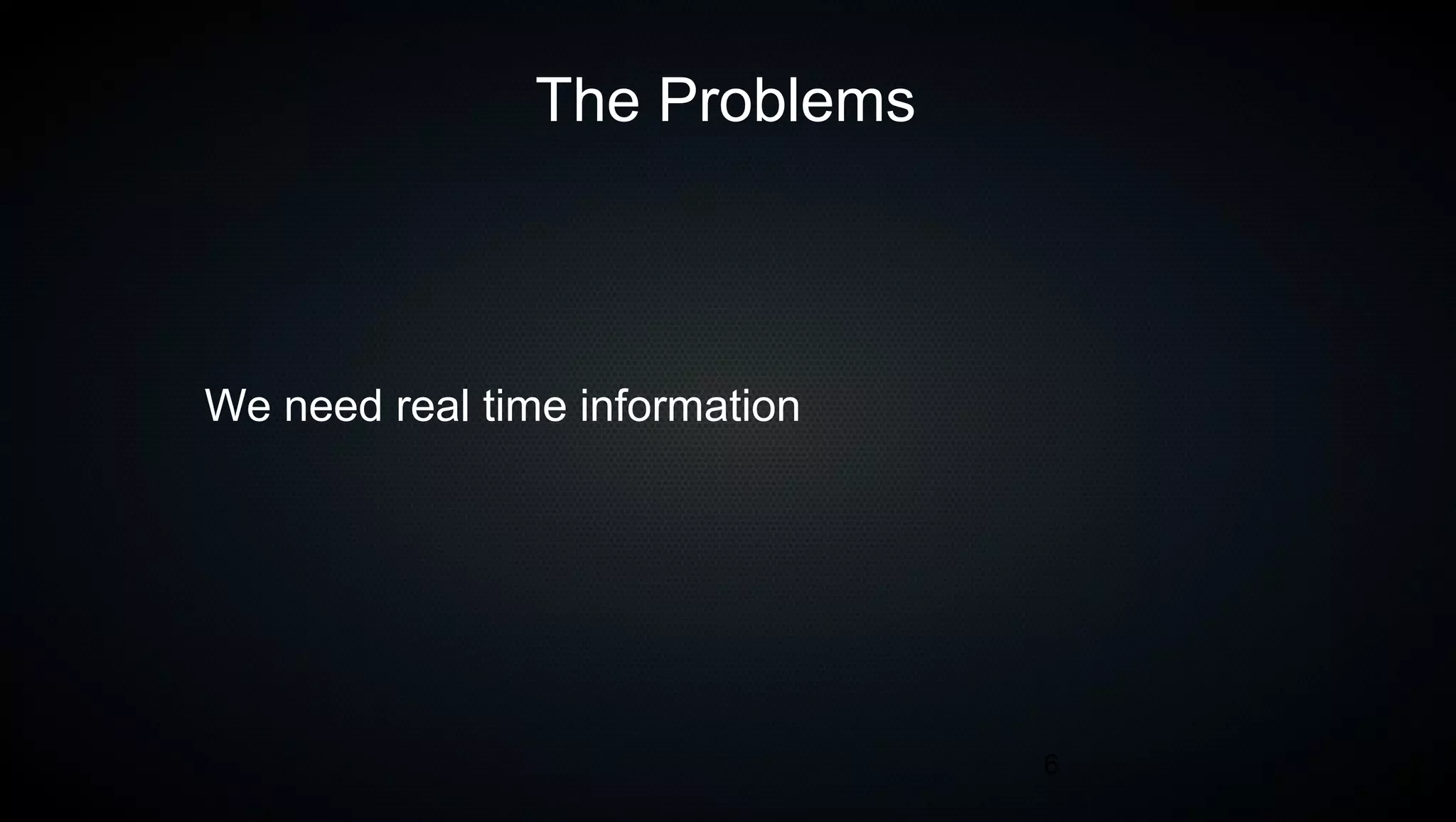

The Problems
We need real time information

7. 7

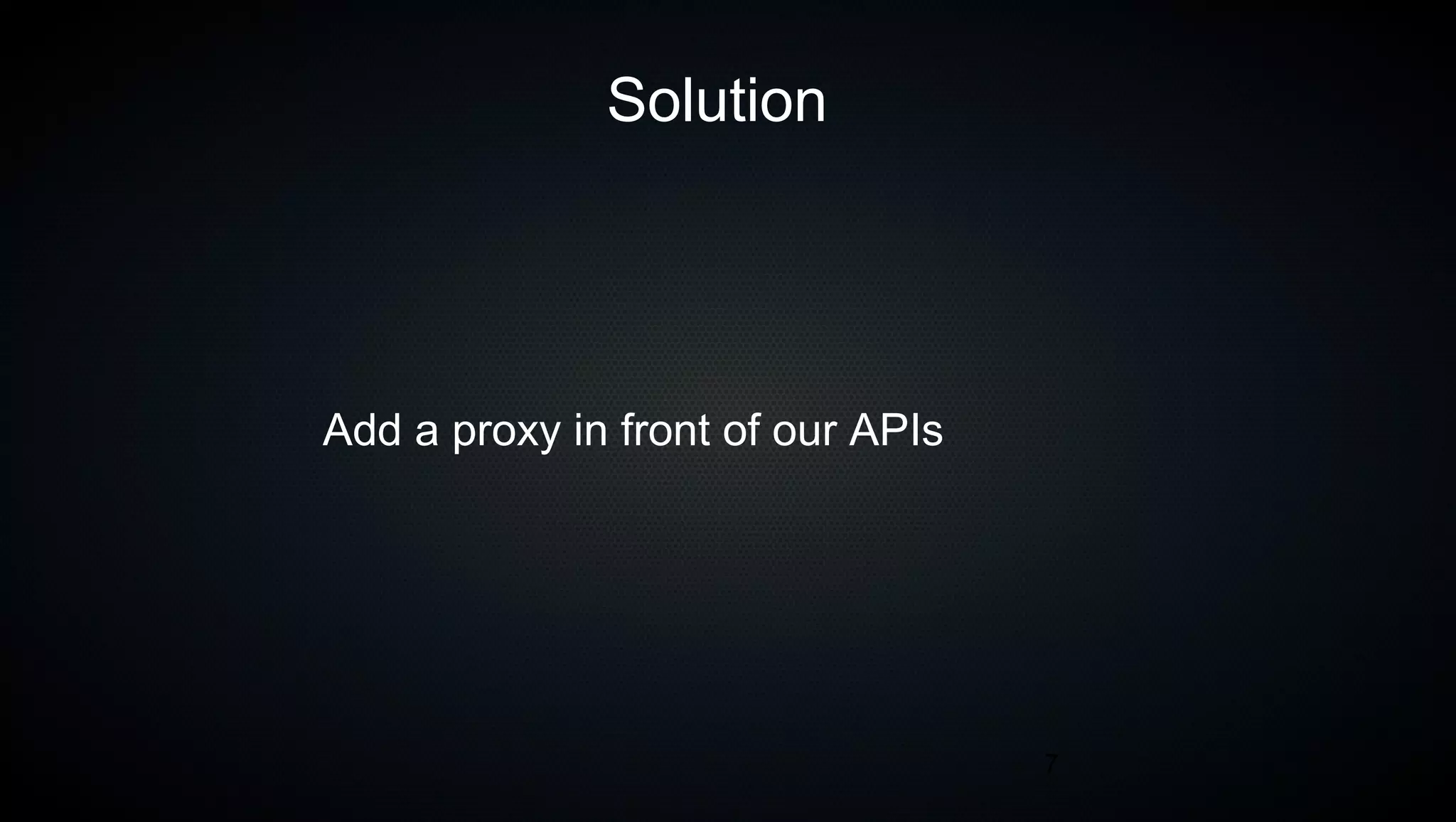

Solution
Add a proxy in front of our APIs

8. 8
Technical Solution

9. 9

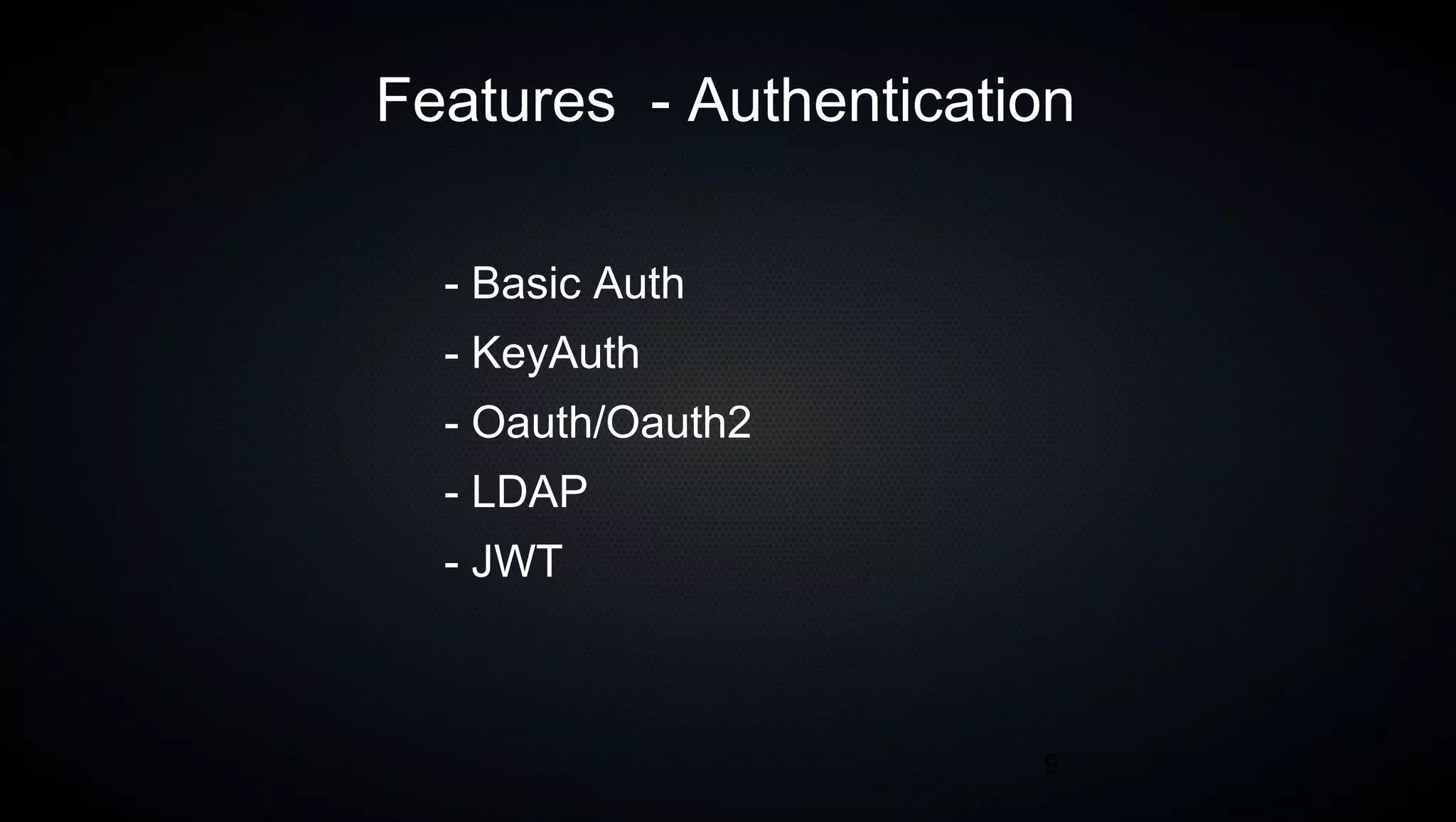

Features - Authentication
- Basic Auth
- KeyAuth
- Oauth/Oauth2
- LDAP
- JWT

10. 10

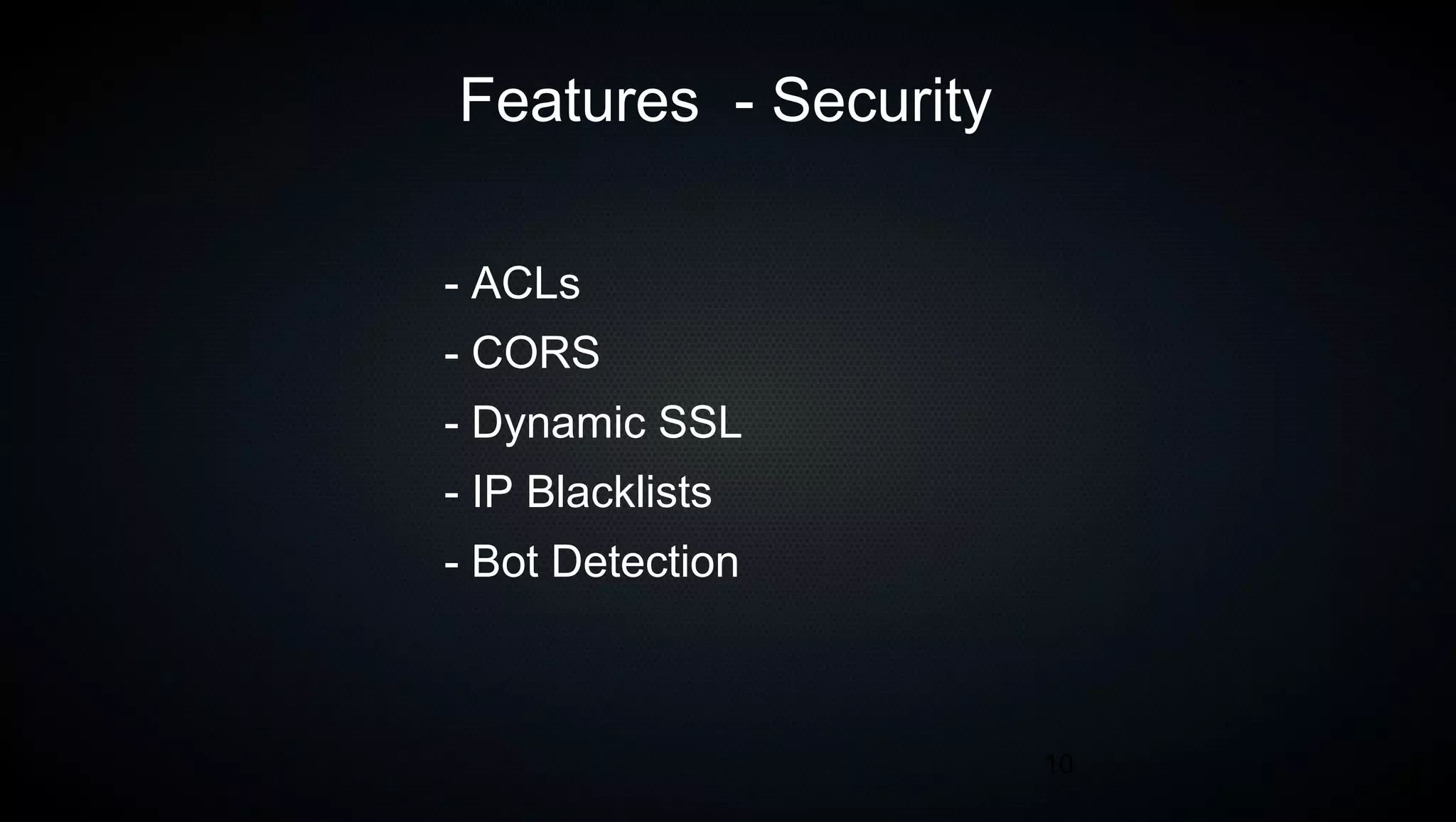

Features - Security
- ACLs
- CORS
- Dynamic SSL
- IP Blacklists
- Bot Detection

11. 11

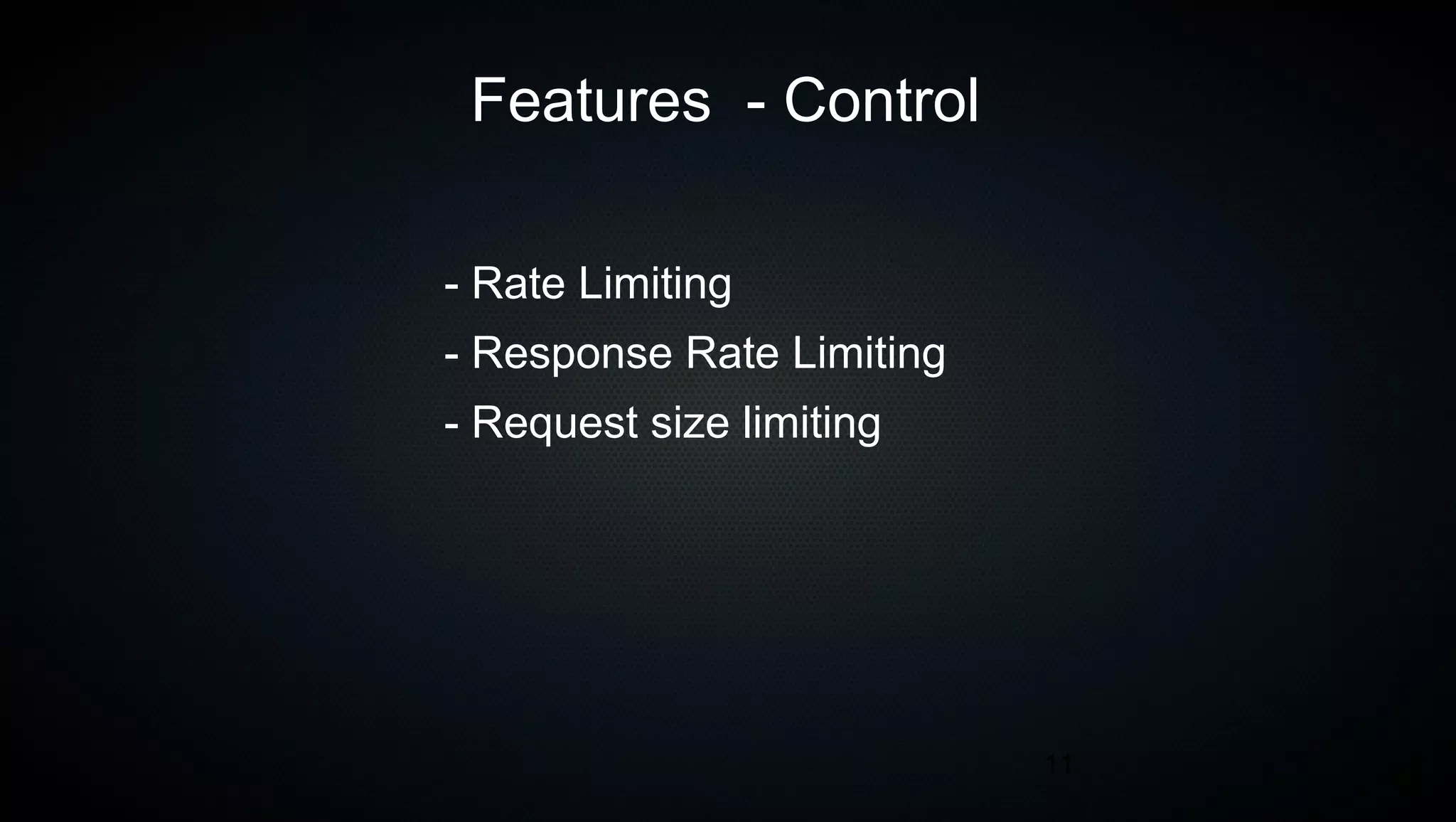

Features - Control
- Rate Limiting
- Response Rate Limiting
- Request size limiting

12. 12

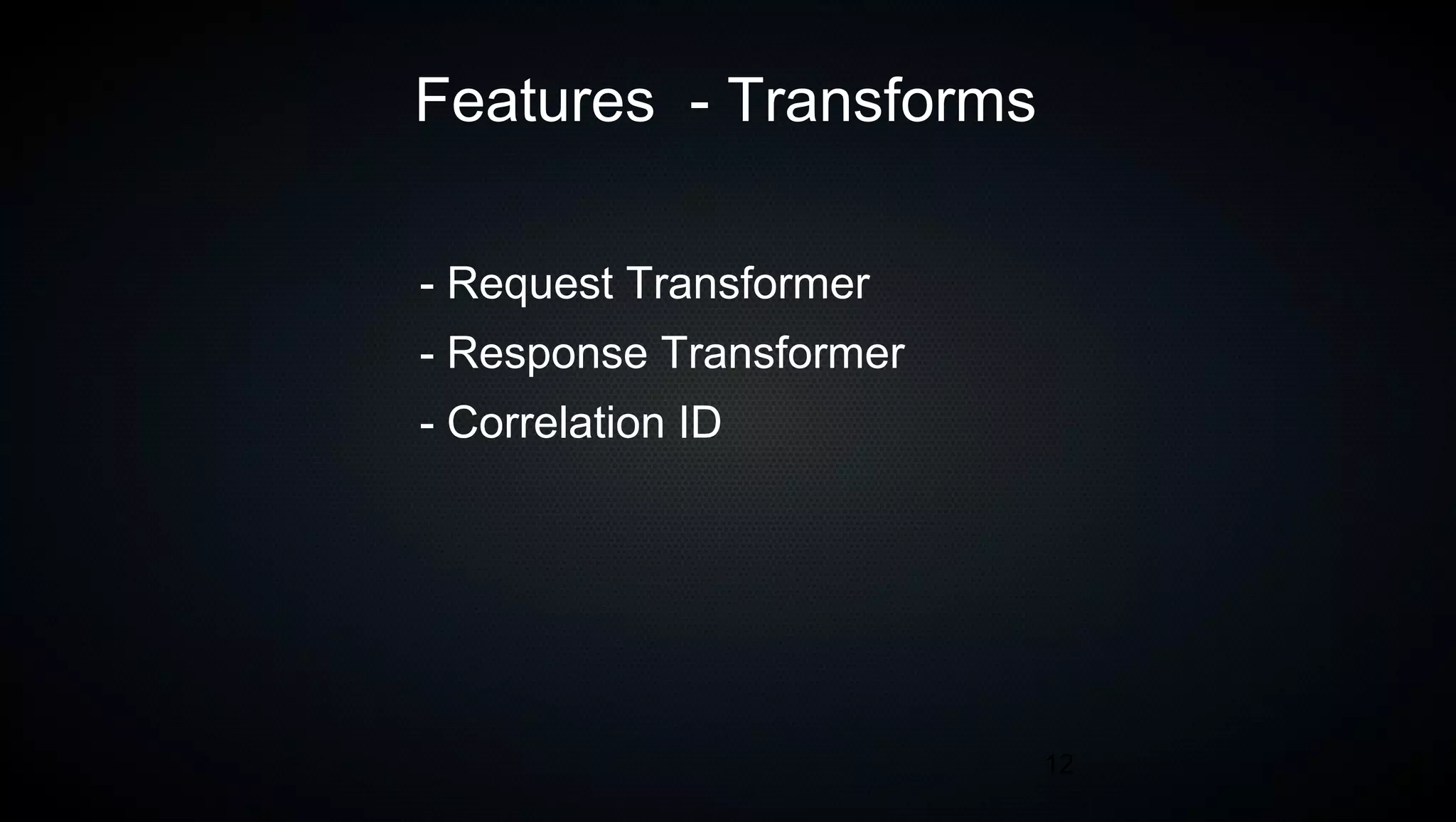

Features - Transforms
- Request Transformer
- Response Transformer
- Correlation ID

13. 13

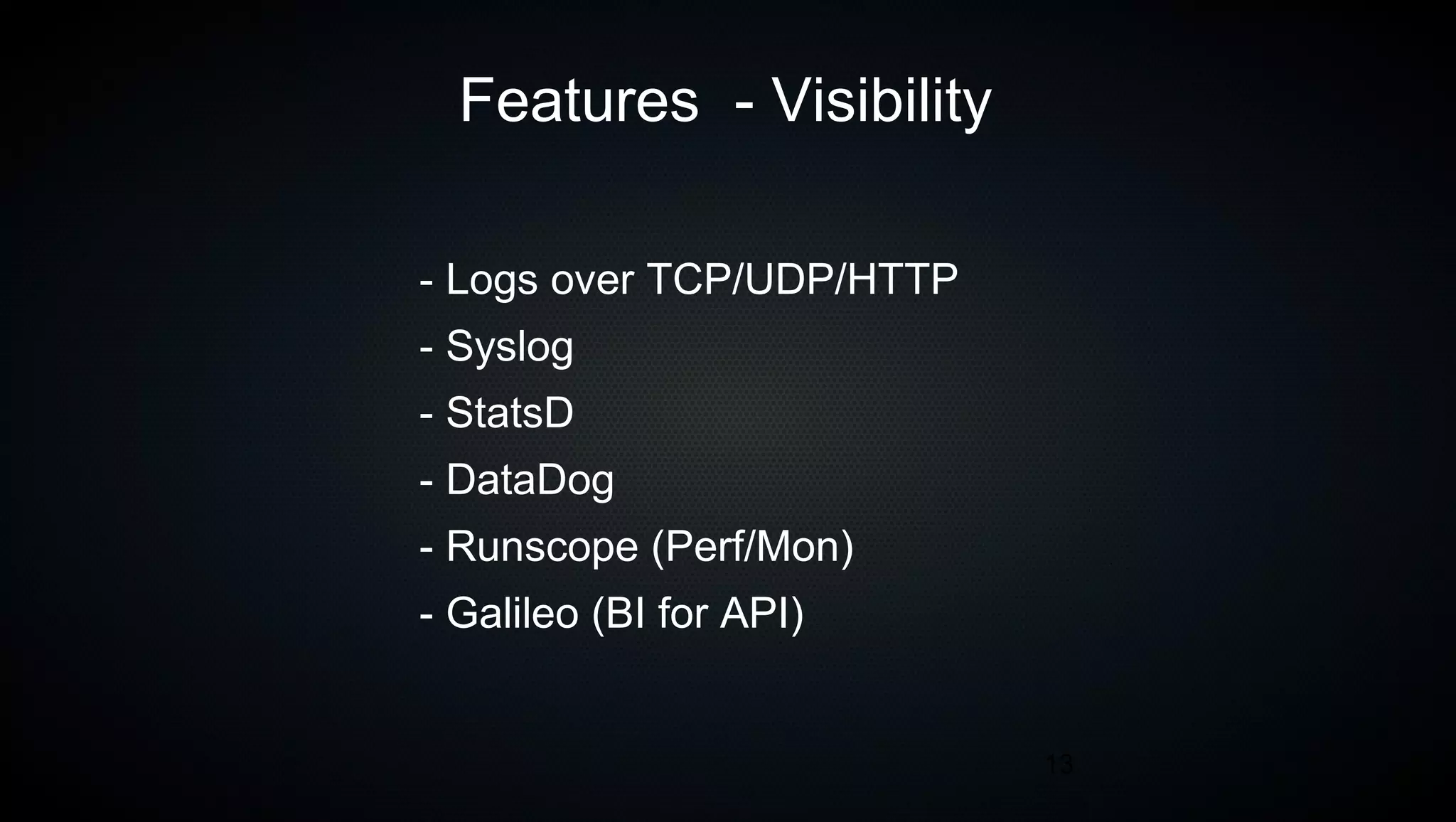

Features - Visibility
- Logs over TCP/UDP/HTTP
- Syslog
- StatsD
- DataDog
- Runscope (Perf/Mon)
- Galileo (BI for API)

14. 14

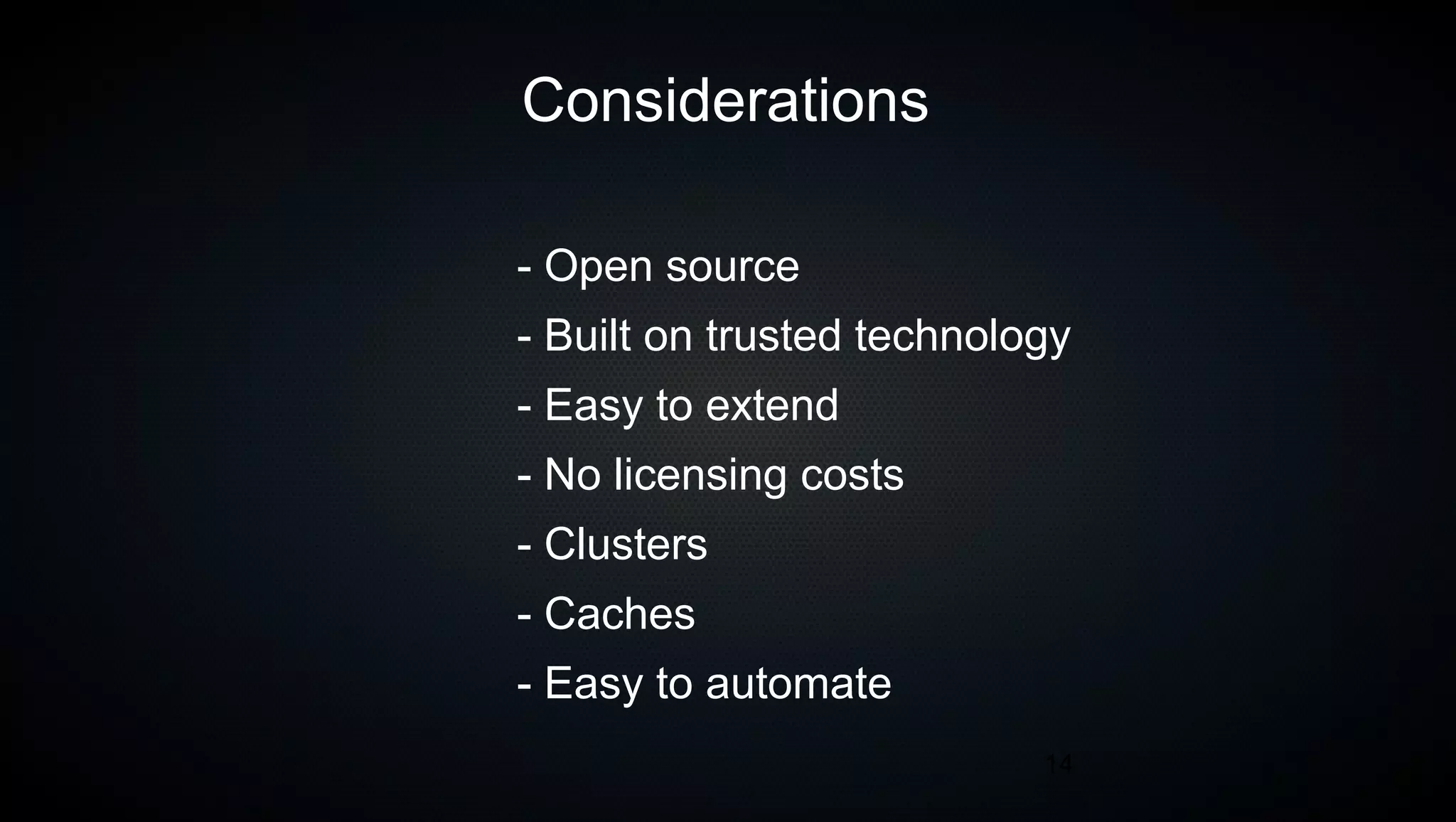

Considerations
- Open source
- Built on trusted technology
- Easy to extend
- No licensing costs
- Clusters
- Caches
- Easy to automate

15. 15

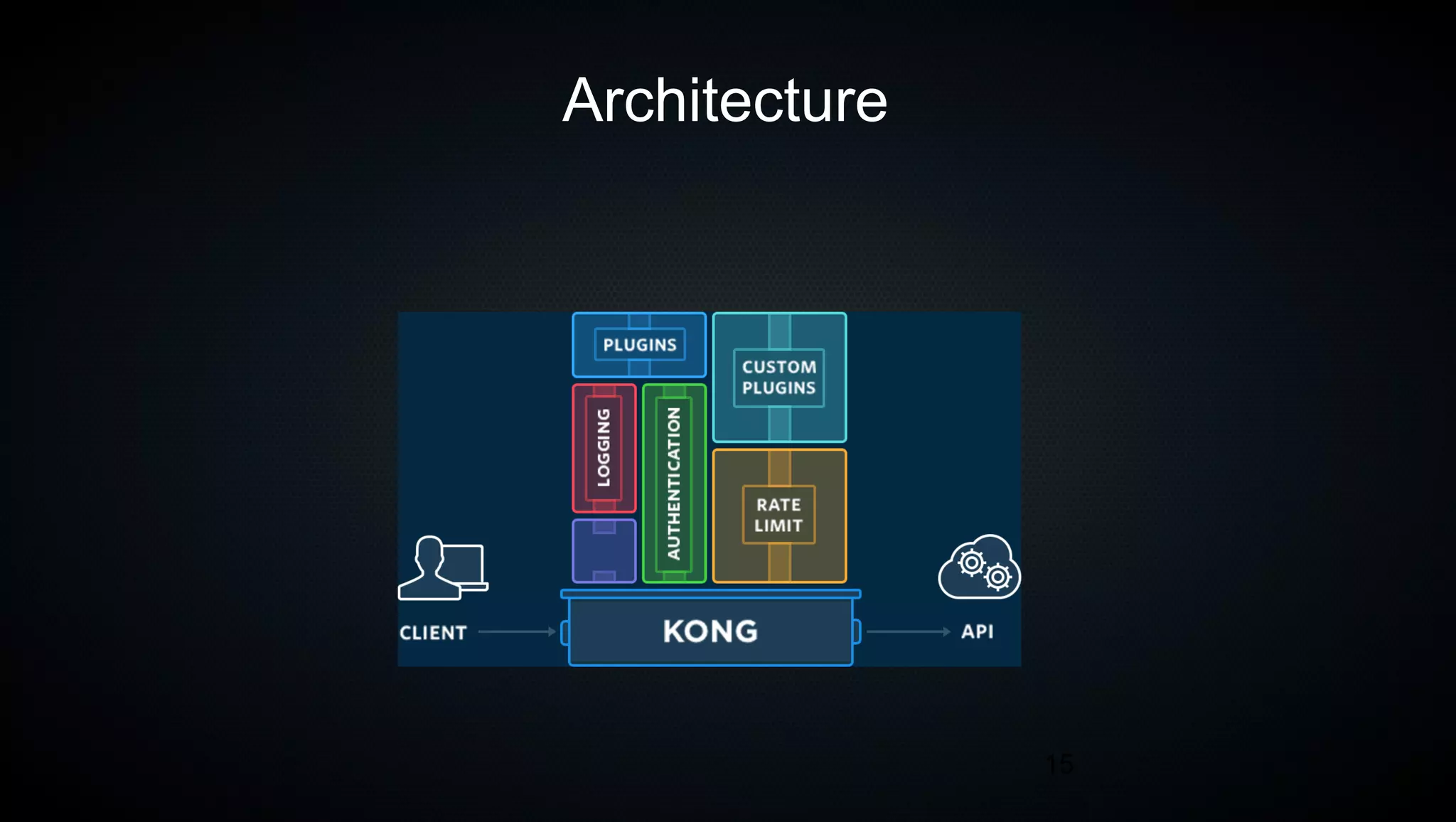

Architecture

16. 16

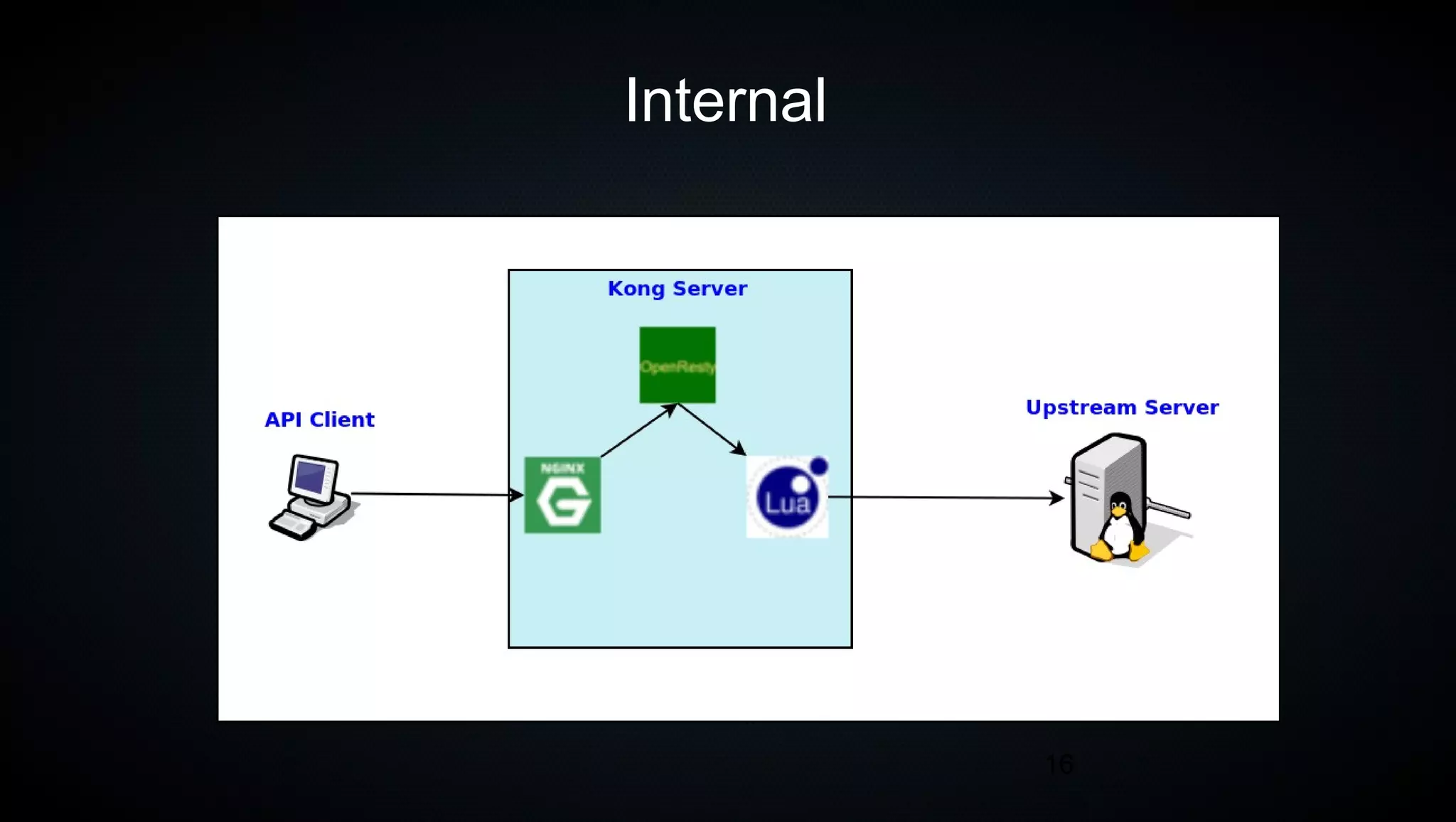

Internal

17. 17

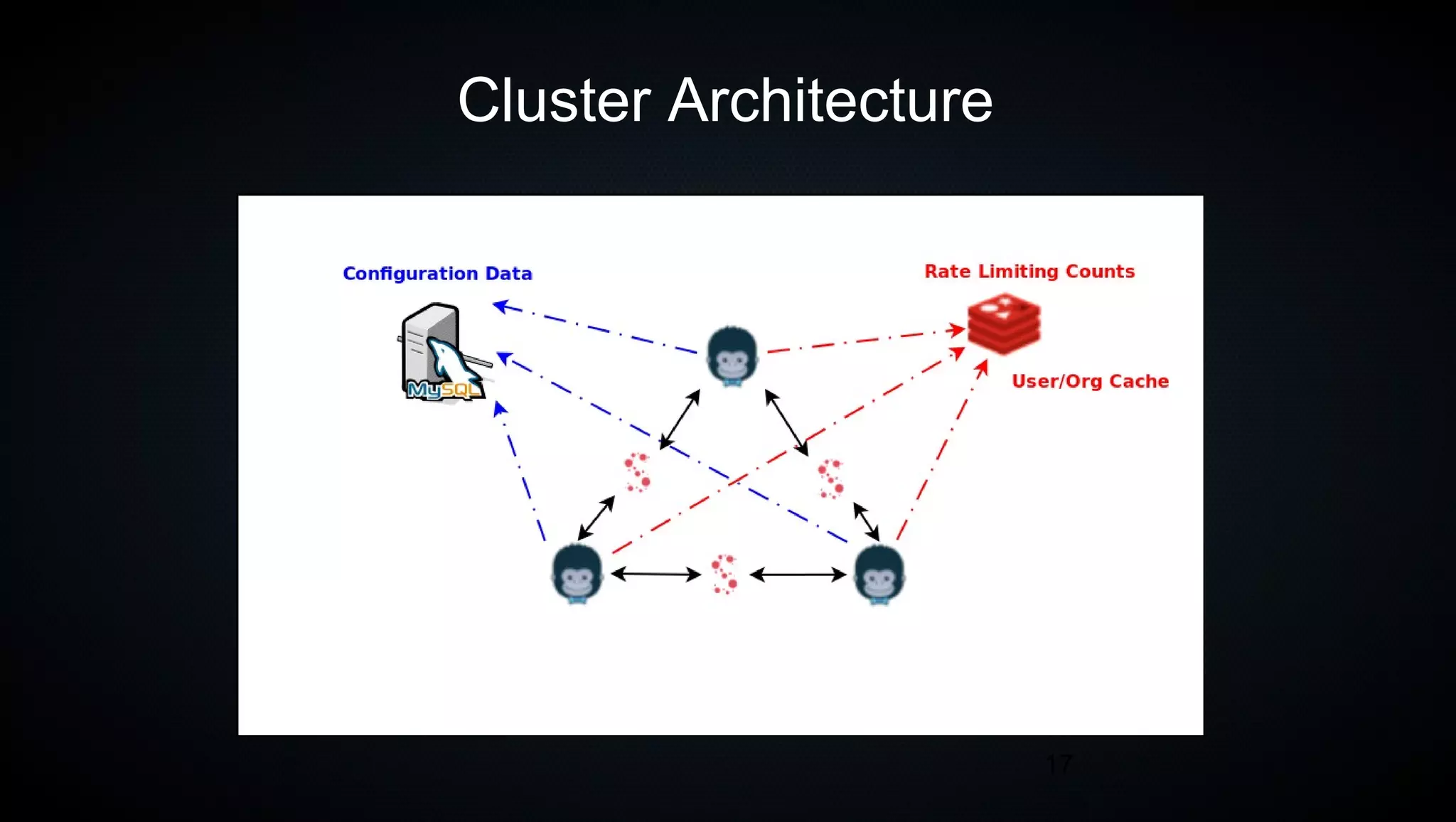

Cluster Architecture

18. 18
Let’s Get Started

19. 19

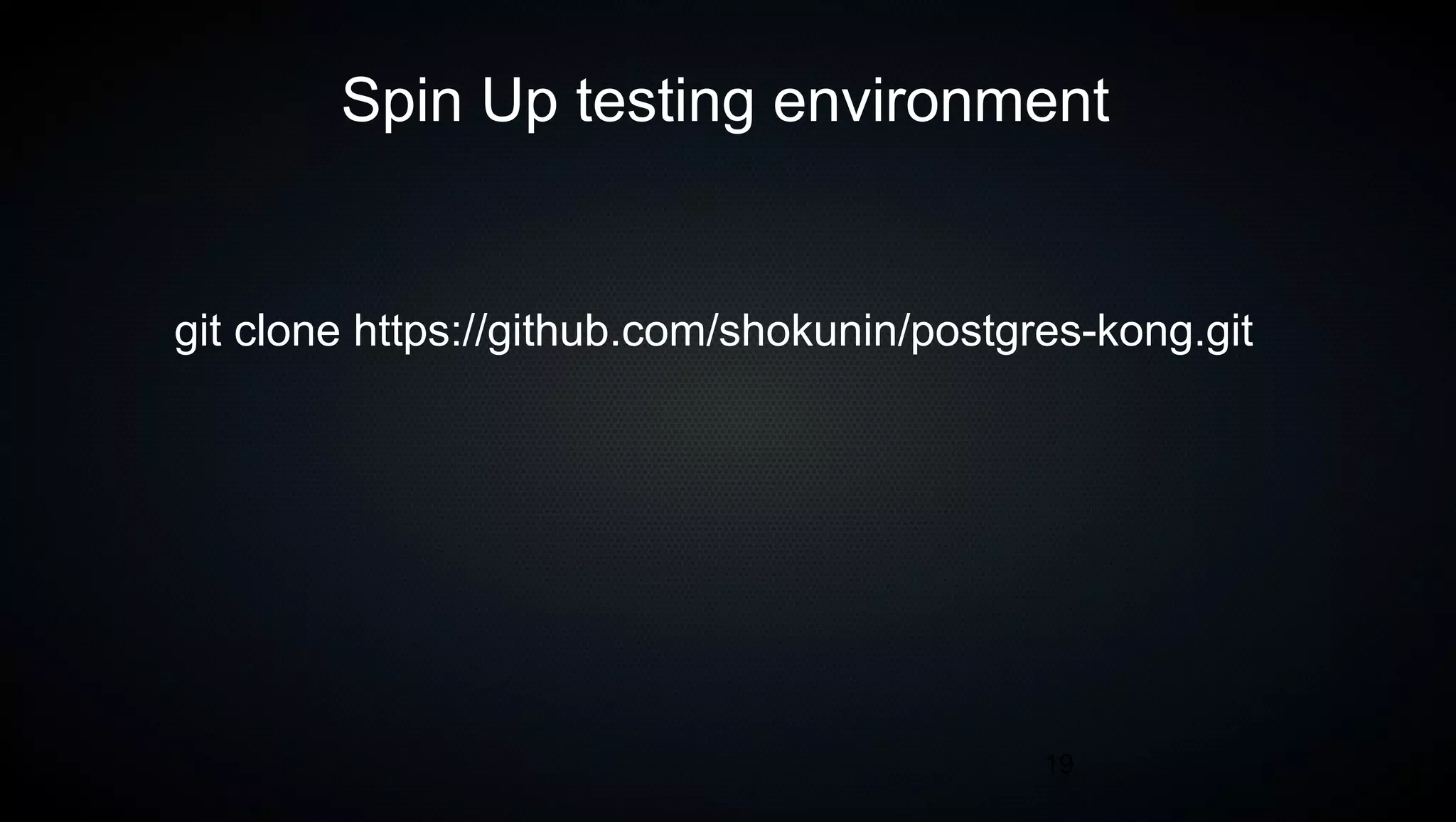

Spin Up testing environment
git clone https://github.com/shokunin/postgres-kong.git

20. 20

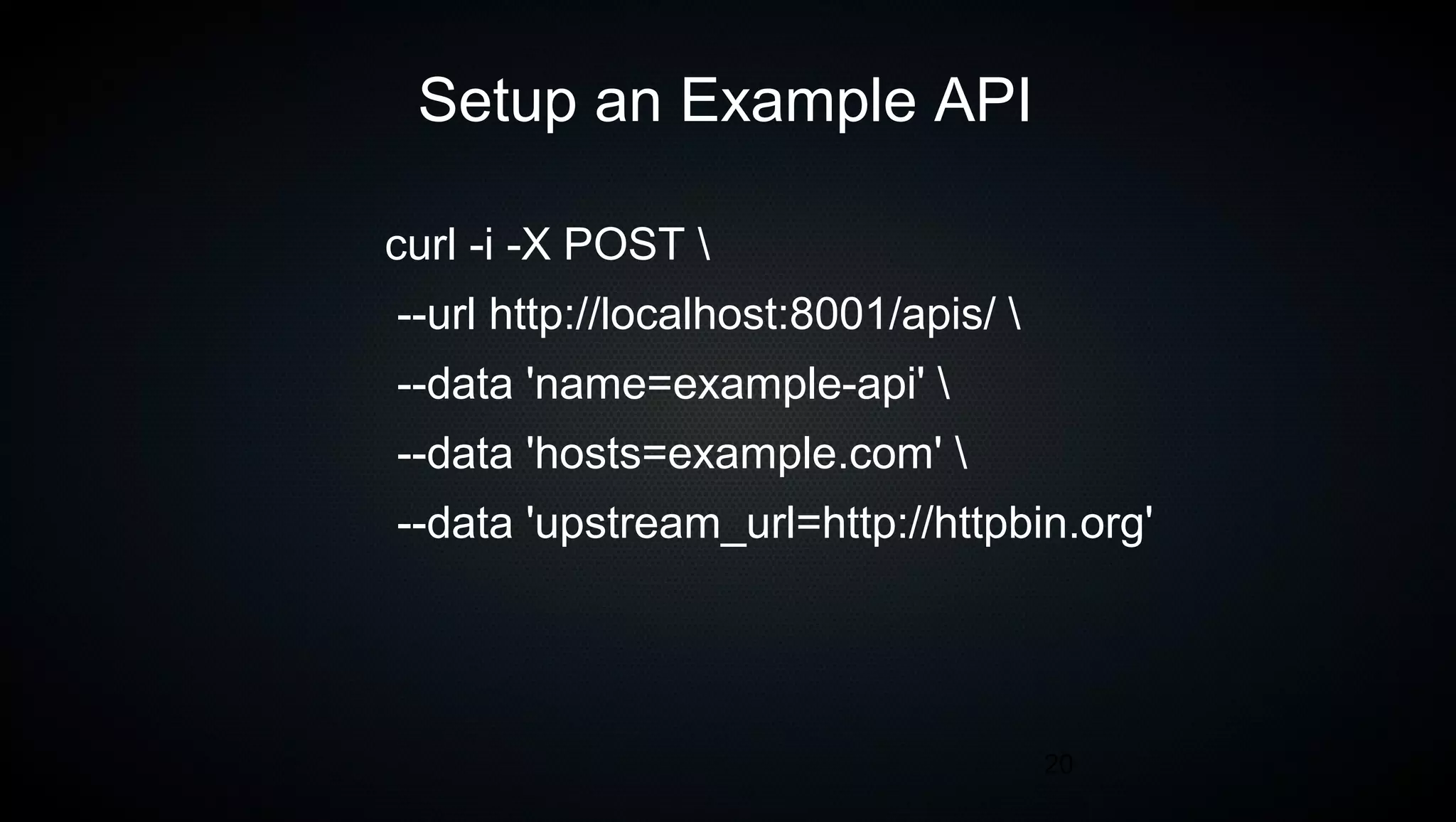

Setup an Example API
curl -i -X POST
--url http://localhost:8001/apis/
--data 'name=example-api'
--data 'hosts=example.com'
--data 'upstream_url=http://httpbin.org'

21. 21

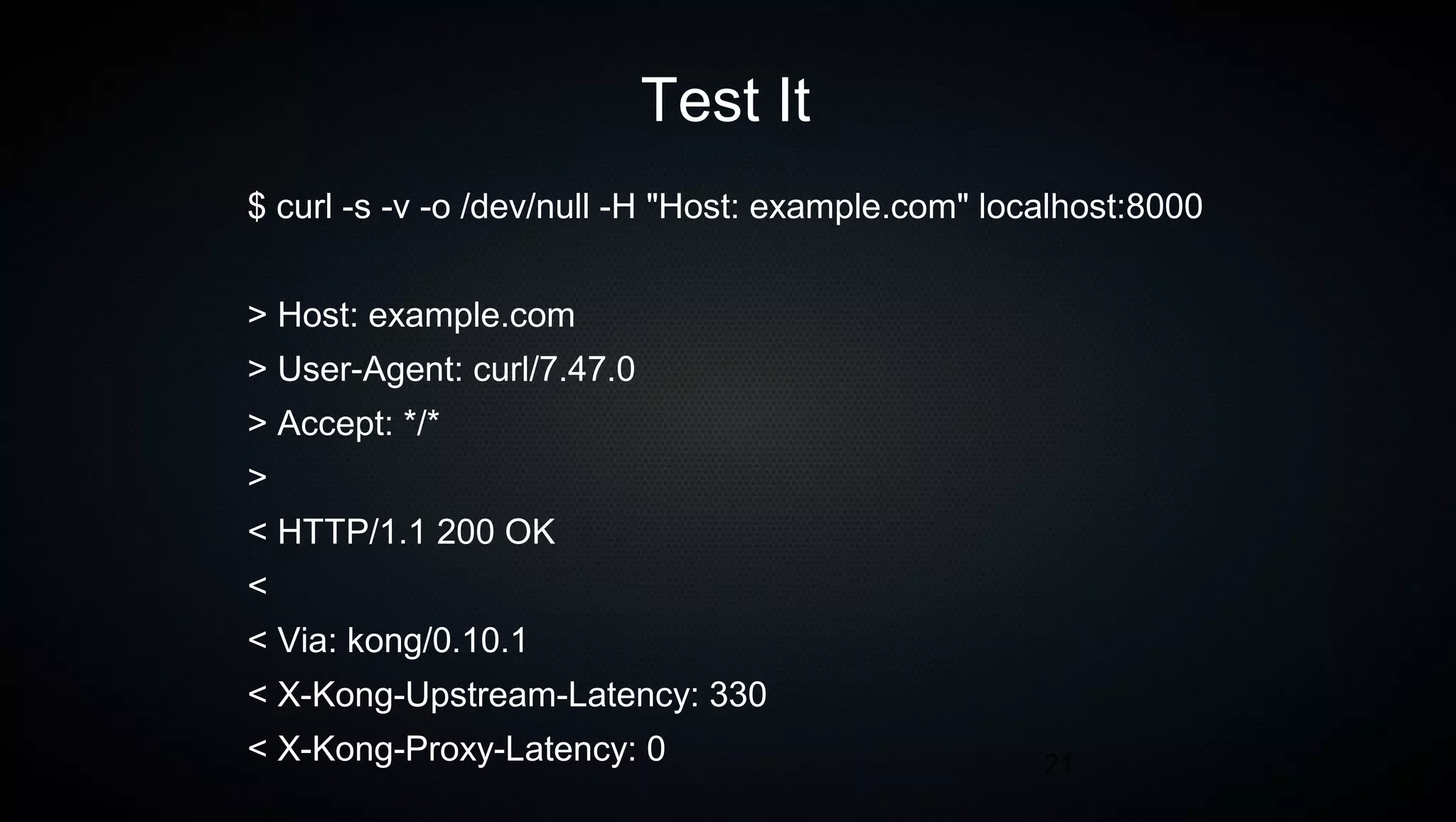

Test It
$ curl -s -v -o /dev/null -H "Host: example.com" localhost:8000
> Host: example.com
> User-Agent: curl/7.47.0
> Accept: */*
>
< HTTP/1.1 200 OK
<
< Via: kong/0.10.1
< X-Kong-Upstream-Latency: 330
< X-Kong-Proxy-Latency: 0

22. 22

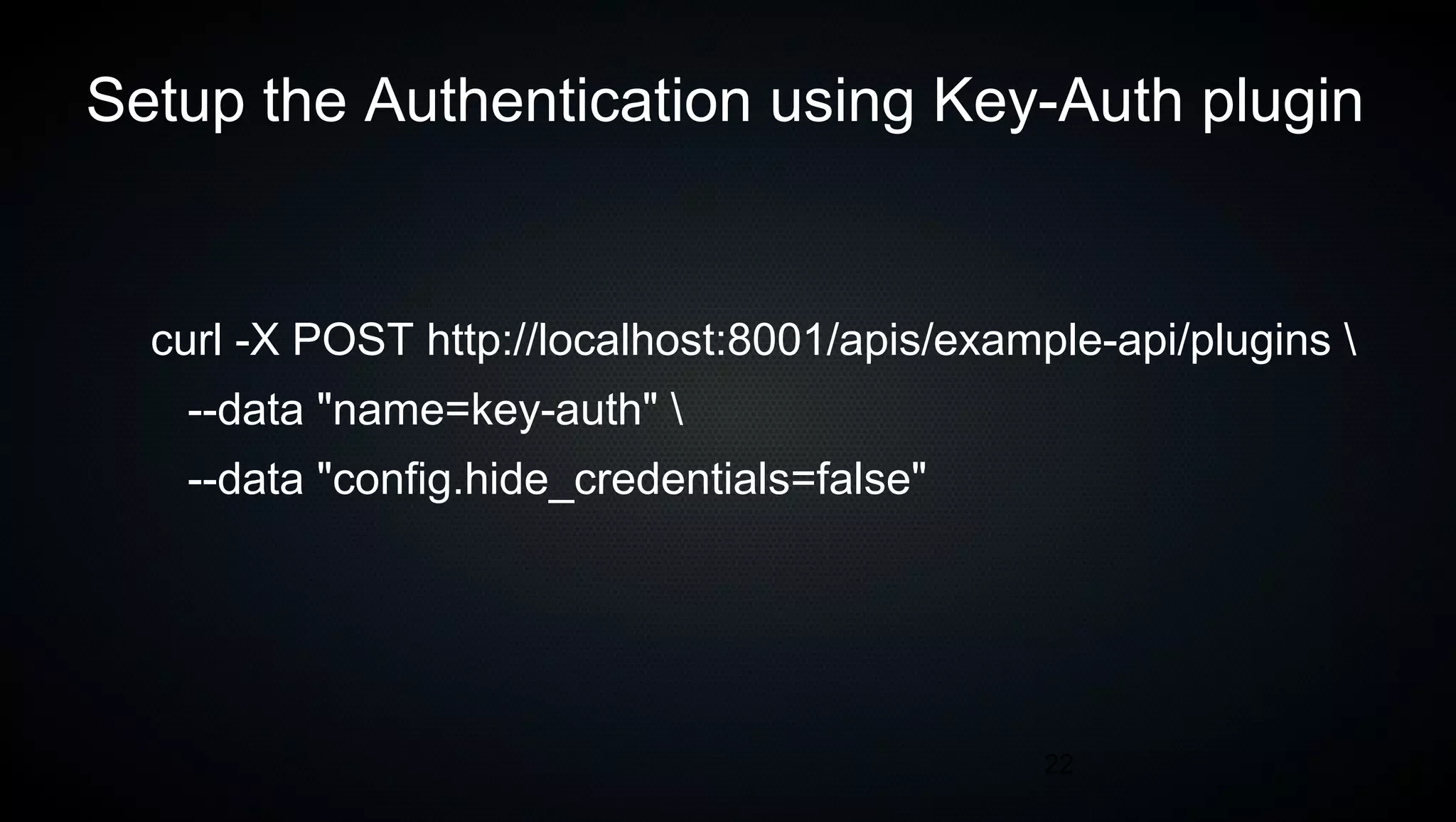

Setup the Authentication using Key-Auth plugin
curl -X POST http://localhost:8001/apis/example-api/plugins
--data "name=key-auth"
--data "config.hide_credentials=false"

23. 23

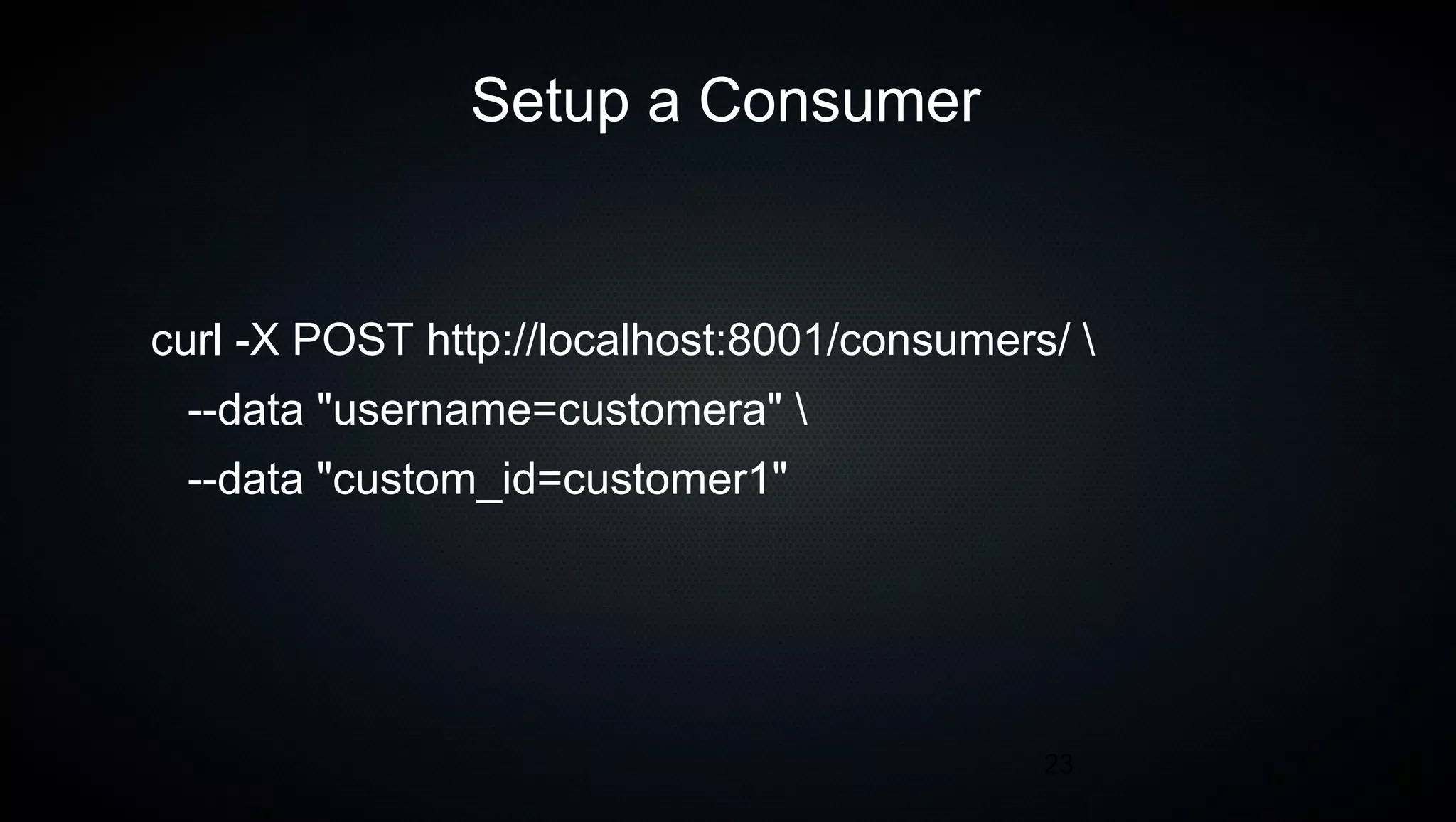

Setup a Consumer
curl -X POST http://localhost:8001/consumers/
--data "username=customera"
--data "custom_id=customer1"

24. 24

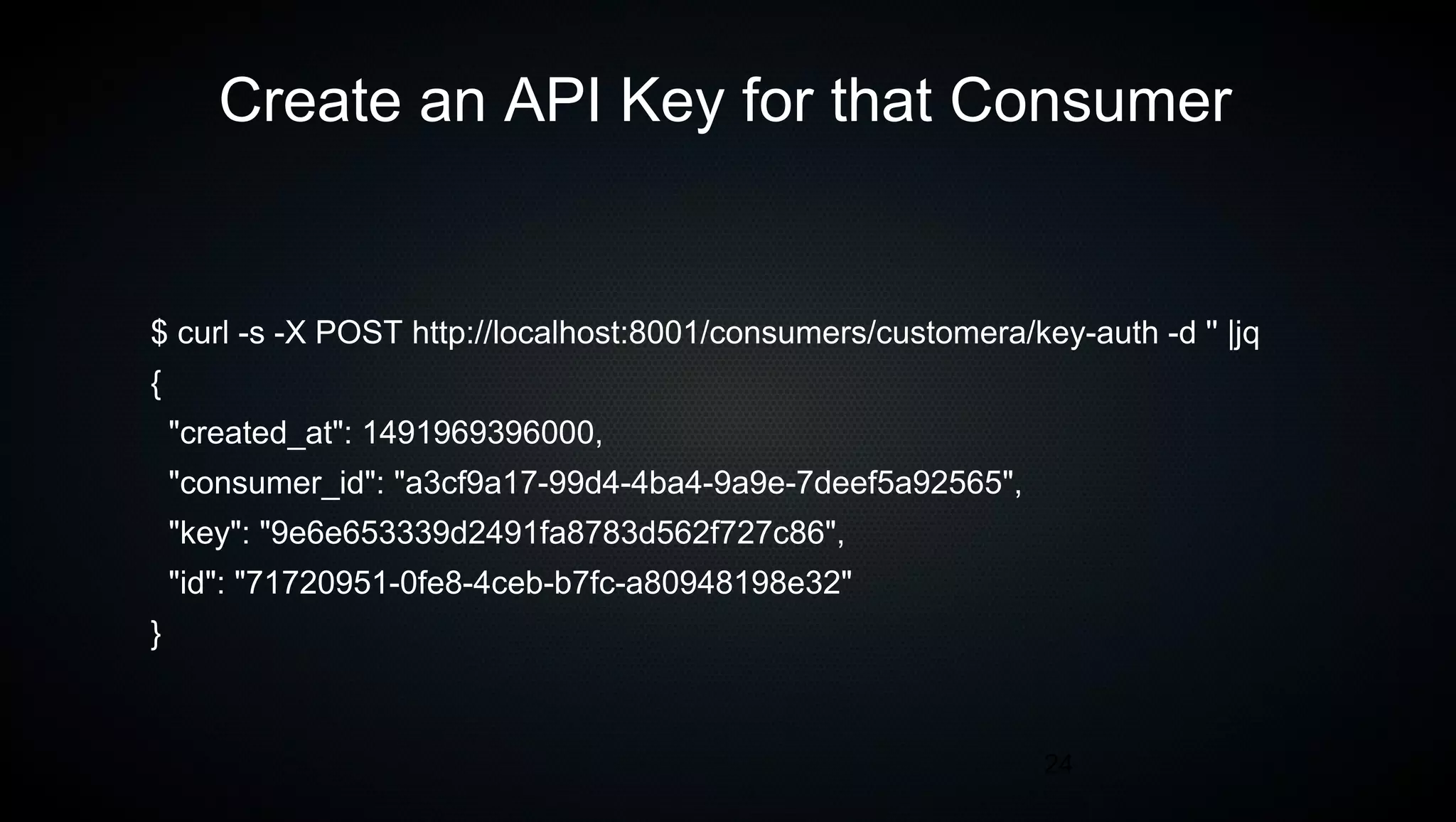

Create an API Key for that Consumer
$ curl -s -X POST http://localhost:8001/consumers/customera/key-auth -d '' |jq
{
"created_at": 1491969396000,
"consumer_id": "a3cf9a17-99d4-4ba4-9a9e-7deef5a92565",
"key": "9e6e653339d2491fa8783d562f727c86",
"id": "71720951-0fe8-4ceb-b7fc-a80948198e32"
}

25. 25

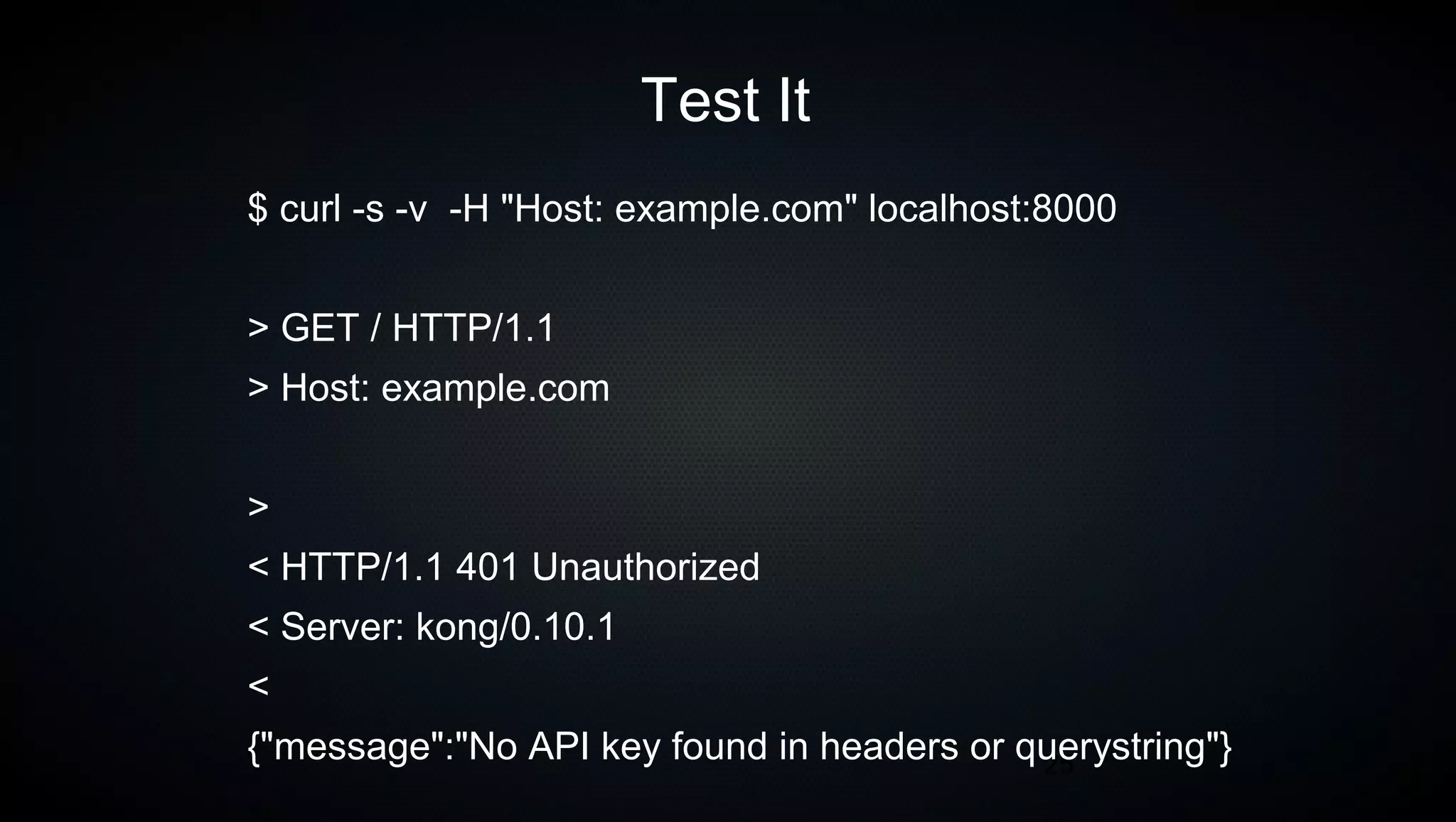

Test It
$ curl -s -v -H "Host: example.com" localhost:8000
> GET / HTTP/1.1
> Host: example.com
>
< HTTP/1.1 401 Unauthorized
< Server: kong/0.10.1
<
{"message":"No API key found in headers or querystring"}

26. 26
Our API now requires a key

27. 27

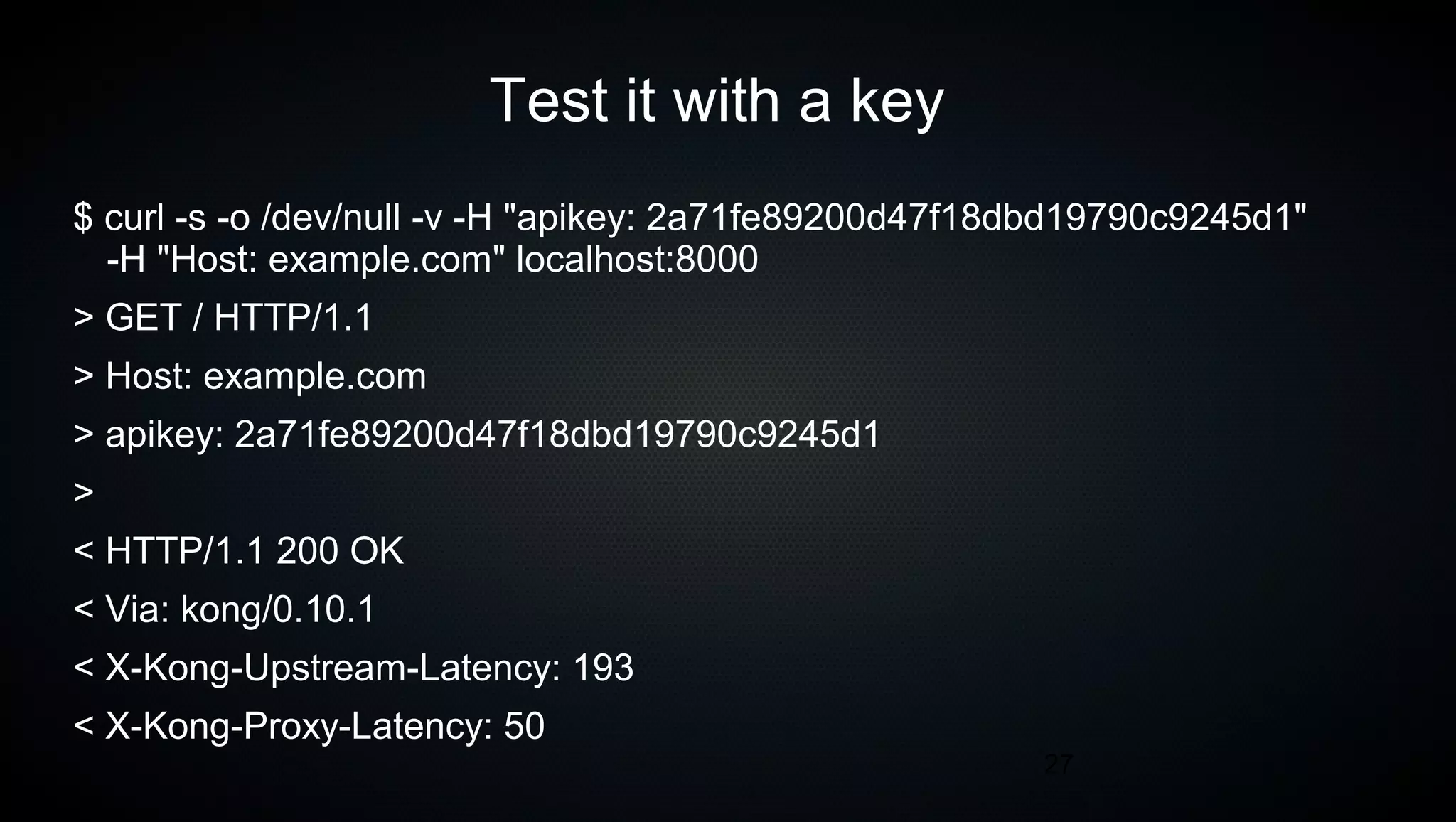

Test it with a key
$ curl -s -o /dev/null -v -H "apikey: 2a71fe89200d47f18dbd19790c9245d1"
-H "Host: example.com" localhost:8000
> GET / HTTP/1.1
> Host: example.com
> apikey: 2a71fe89200d47f18dbd19790c9245d1
>
< HTTP/1.1 200 OK
< Via: kong/0.10.1
< X-Kong-Upstream-Latency: 193
< X-Kong-Proxy-Latency: 50

28. 28

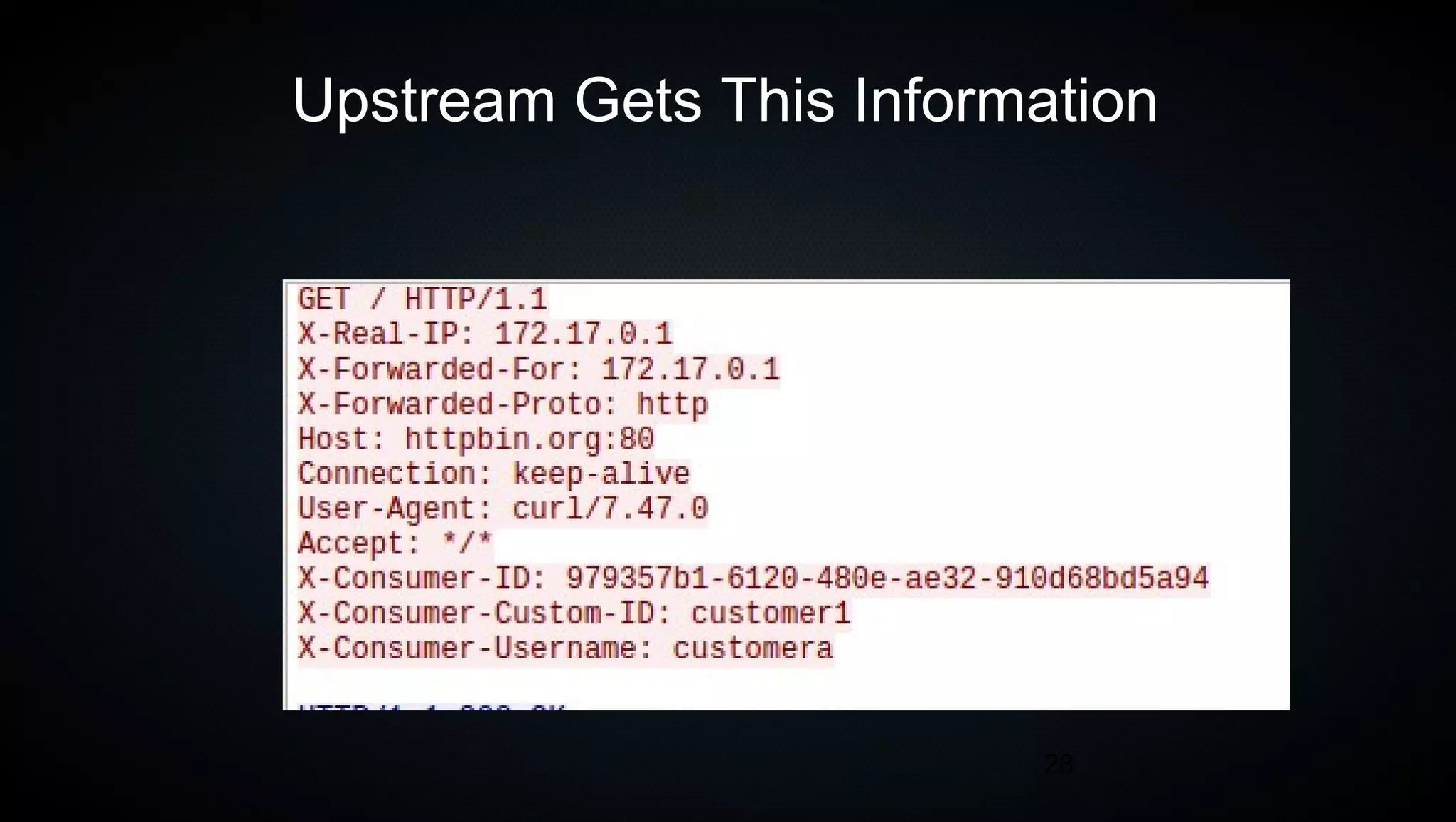

Upstream Gets This Information

29. 29

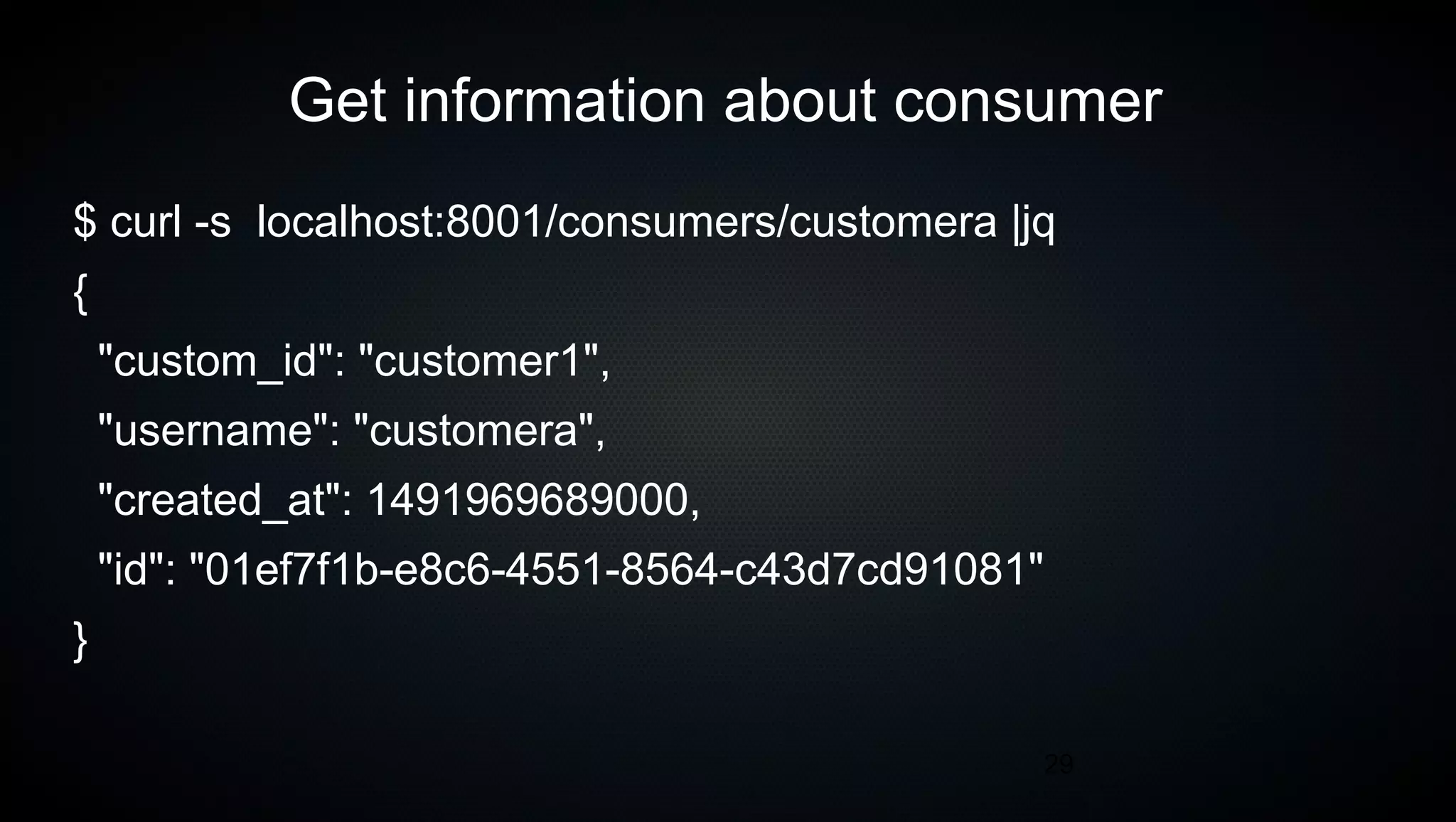

Get information about consumer
$ curl -s localhost:8001/consumers/customera |jq
{
"custom_id": "customer1",
"username": "customera",
"created_at": 1491969689000,
"id": "01ef7f1b-e8c6-4551-8564-c43d7cd91081"
}

30. 30

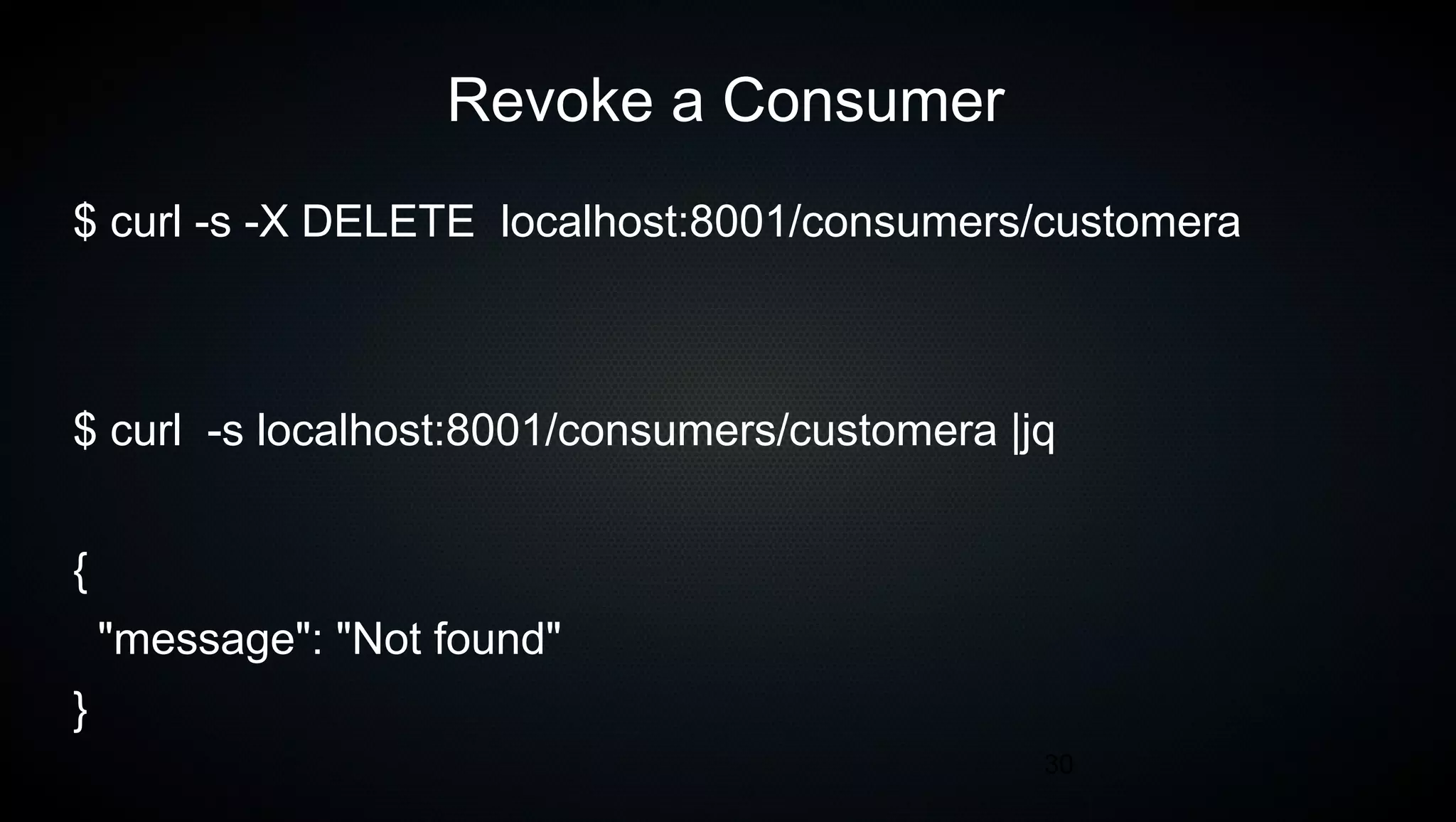

Revoke a Consumer
$ curl -s -X DELETE localhost:8001/consumers/customera
$ curl -s localhost:8001/consumers/customera |jq
{
"message": "Not found"
}

31. 31

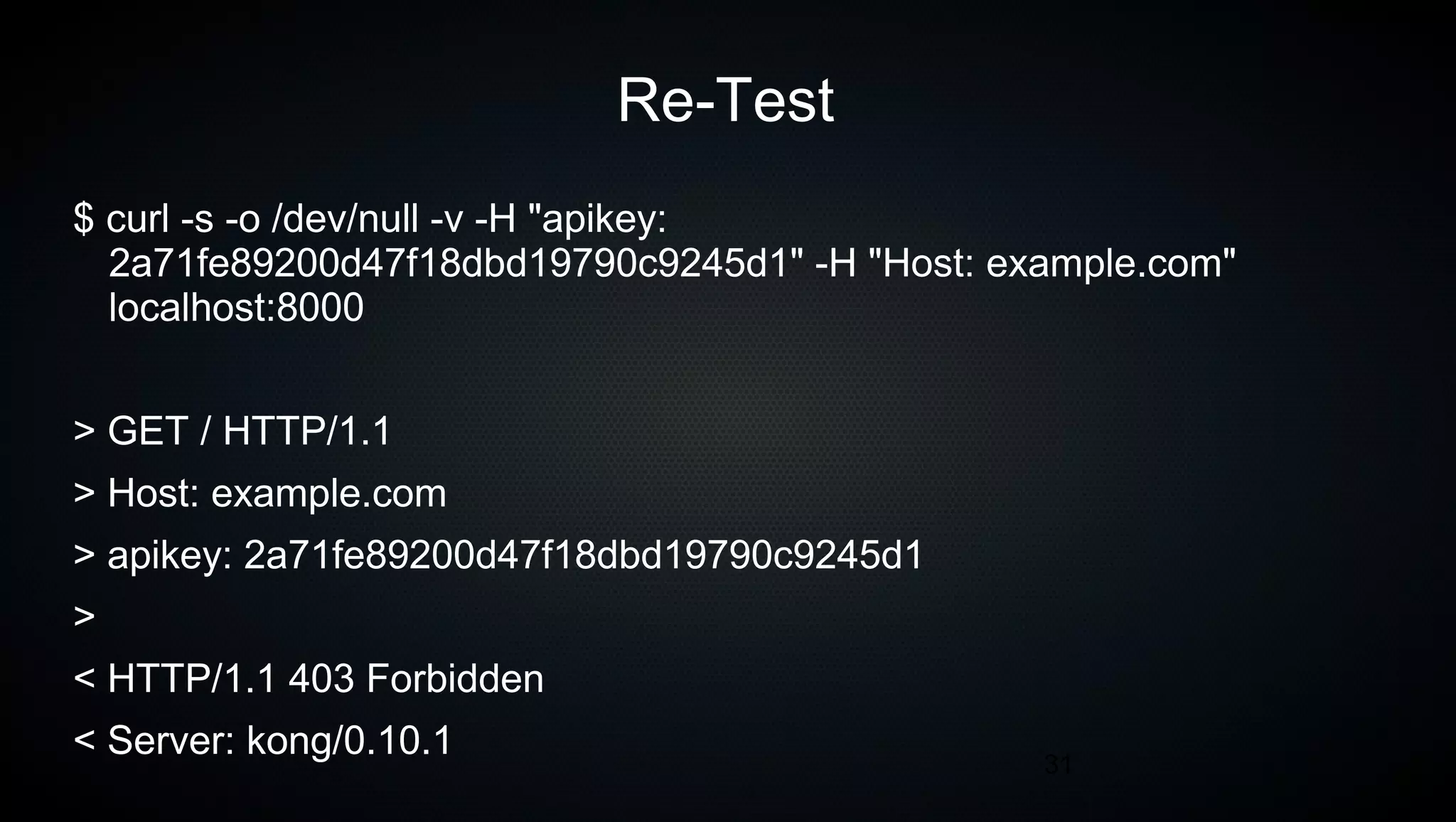

Re-Test
$ curl -s -o /dev/null -v -H "apikey:
2a71fe89200d47f18dbd19790c9245d1" -H "Host: example.com"
localhost:8000
> GET / HTTP/1.1
> Host: example.com
> apikey: 2a71fe89200d47f18dbd19790c9245d1
>
< HTTP/1.1 403 Forbidden
< Server: kong/0.10.1

32. 32

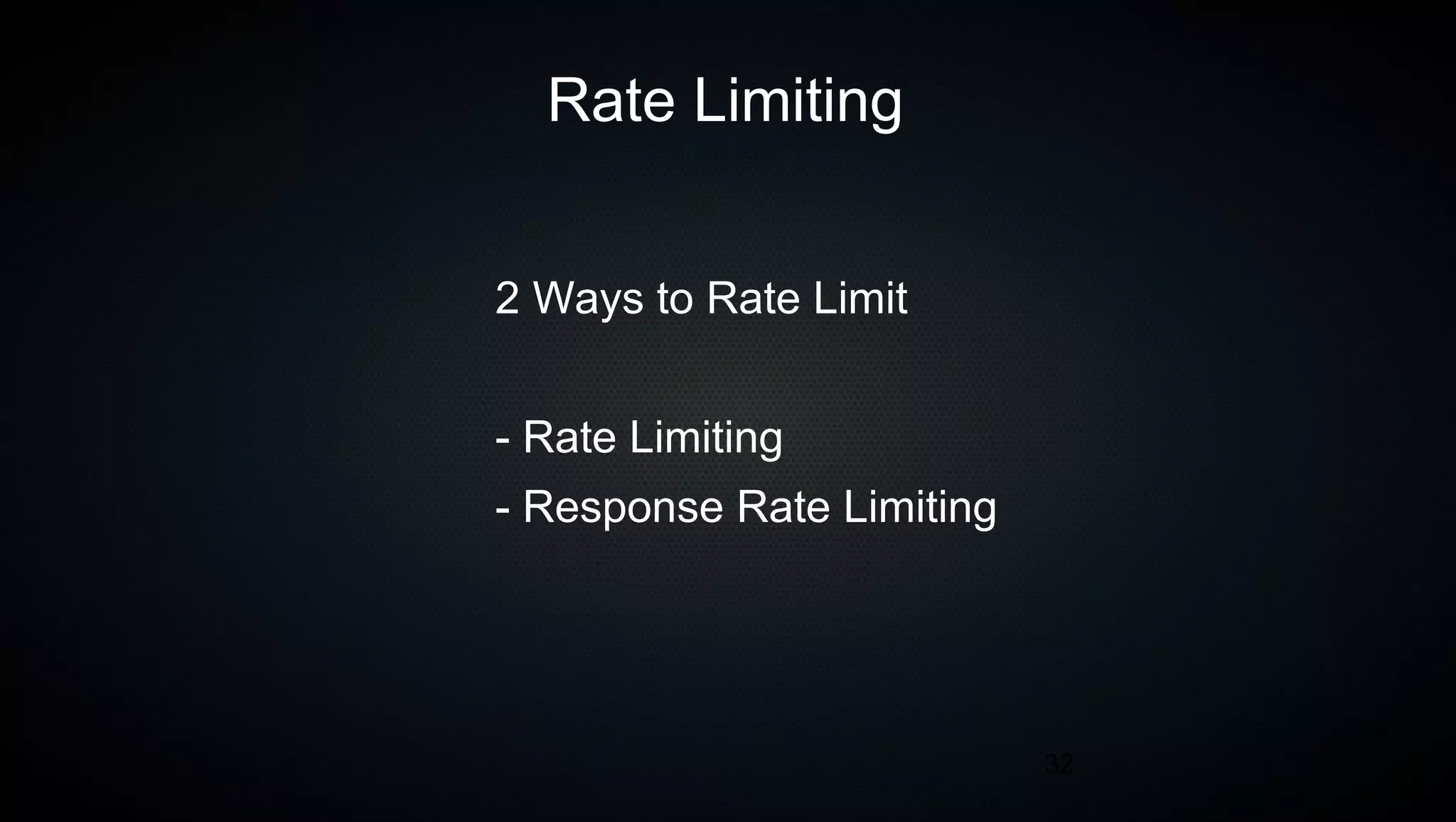

Rate Limiting
2 Ways to Rate Limit
- Rate Limiting
- Response Rate Limiting

33. 33

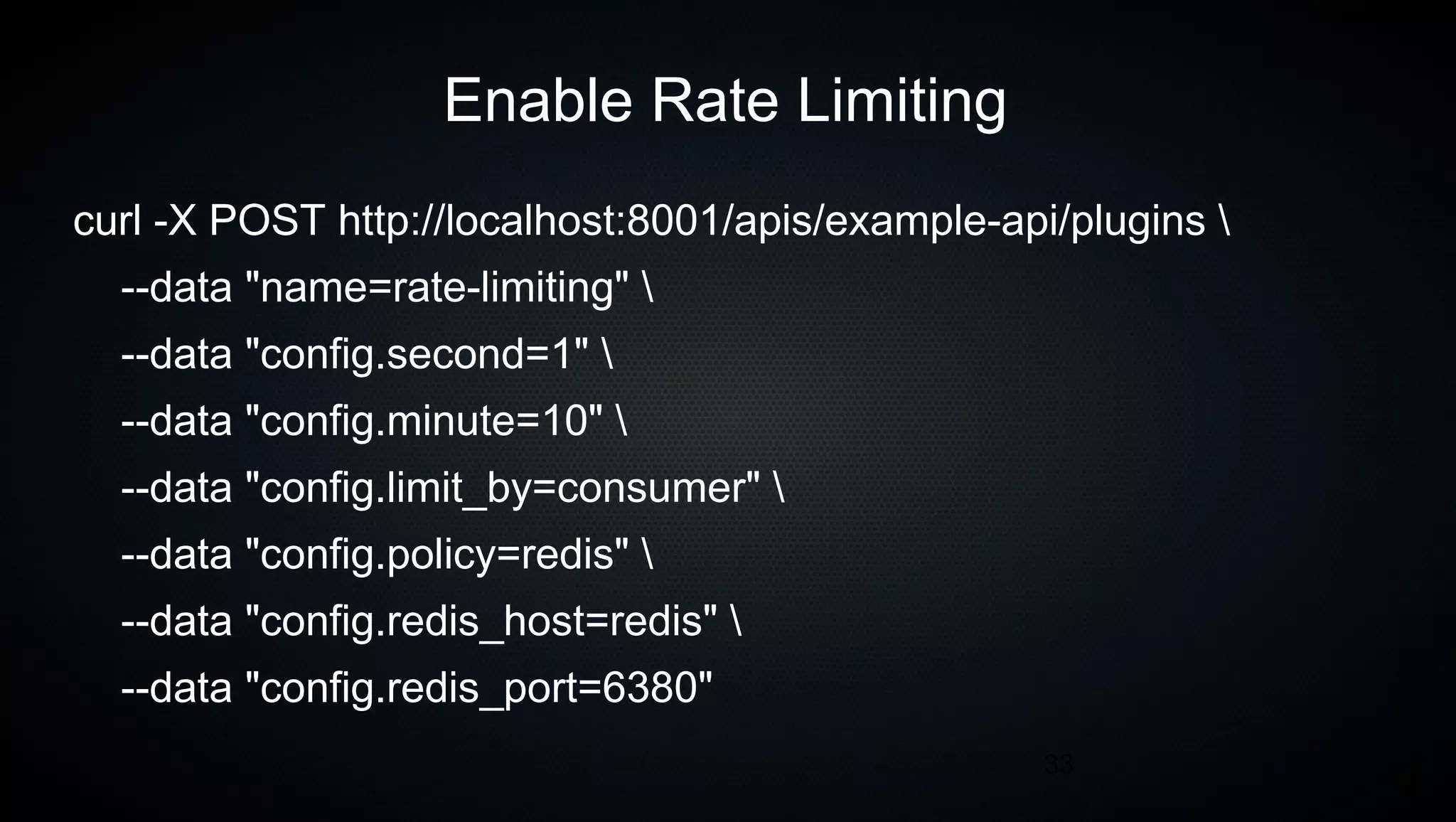

Enable Rate Limiting
curl -X POST http://localhost:8001/apis/example-api/plugins
--data "name=rate-limiting"
--data "config.second=1"
--data "config.minute=10"
--data "config.limit_by=consumer"
--data "config.policy=redis"
--data "config.redis_host=redis"
--data "config.redis_port=6380"

34. 34

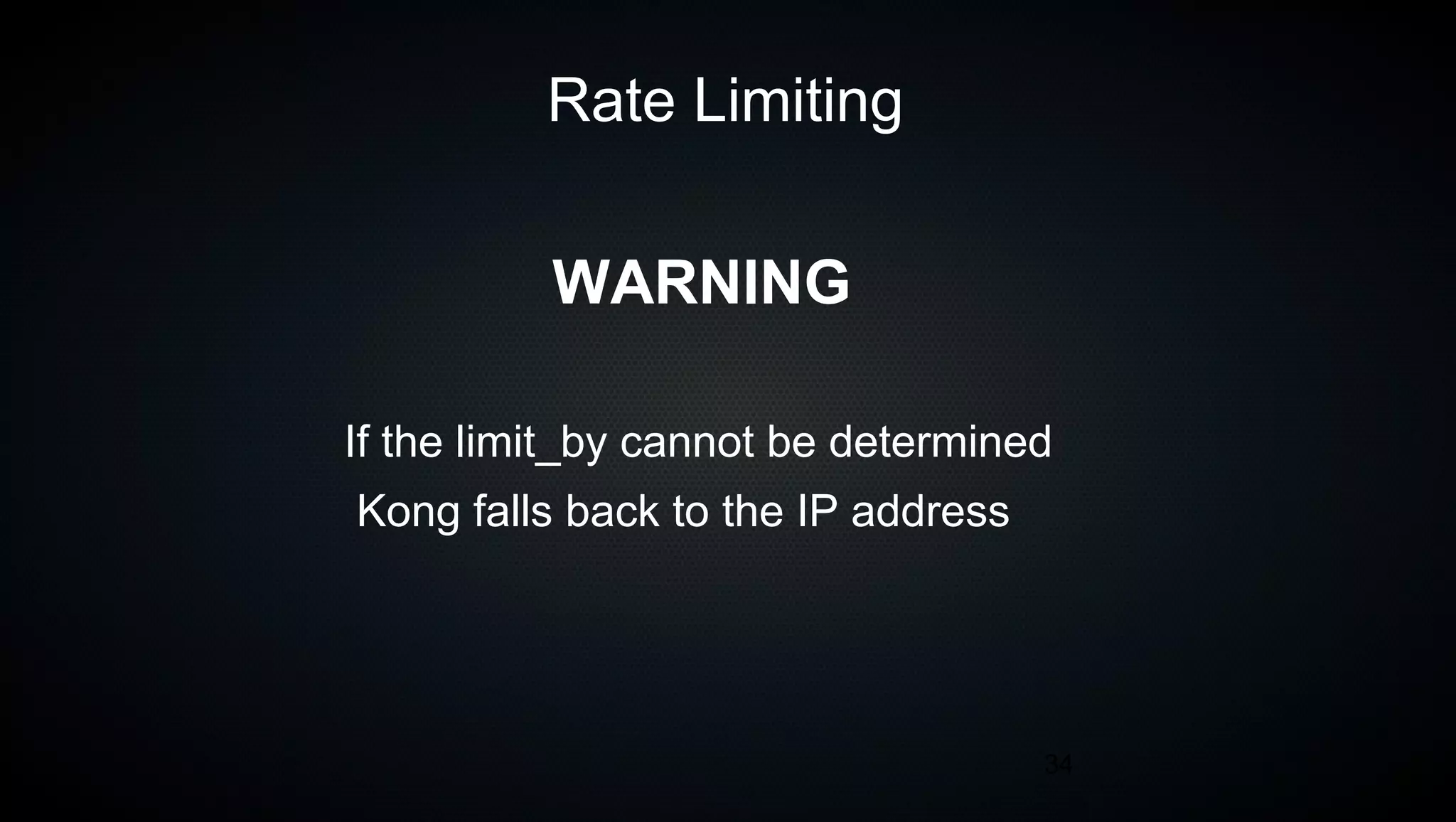

Rate Limiting
If the limit_by cannot be determined
Kong falls back to the IP address
WARNING

35. 35
Test it
$ curl -s -o /dev/null -v -H "apikey: `cat /tmp/key`" -H "Host: example.com"
localhost:8000
*
> GET / HTTP/1.1
> Host: example.com
> apikey: 7abe611da2a640bb9492571568e1066f
>
< HTTP/1.1 200 OK
< X-RateLimit-Limit-second: 1
< X-RateLimit-Remaining-second: 0
< X-RateLimit-Limit-minute: 10
< X-RateLimit-Remaining-minute: 9
< Via: kong/0.10.1
< X-Kong-Upstream-Latency: 215
< X-Kong-Proxy-Latency: 300

36. 36

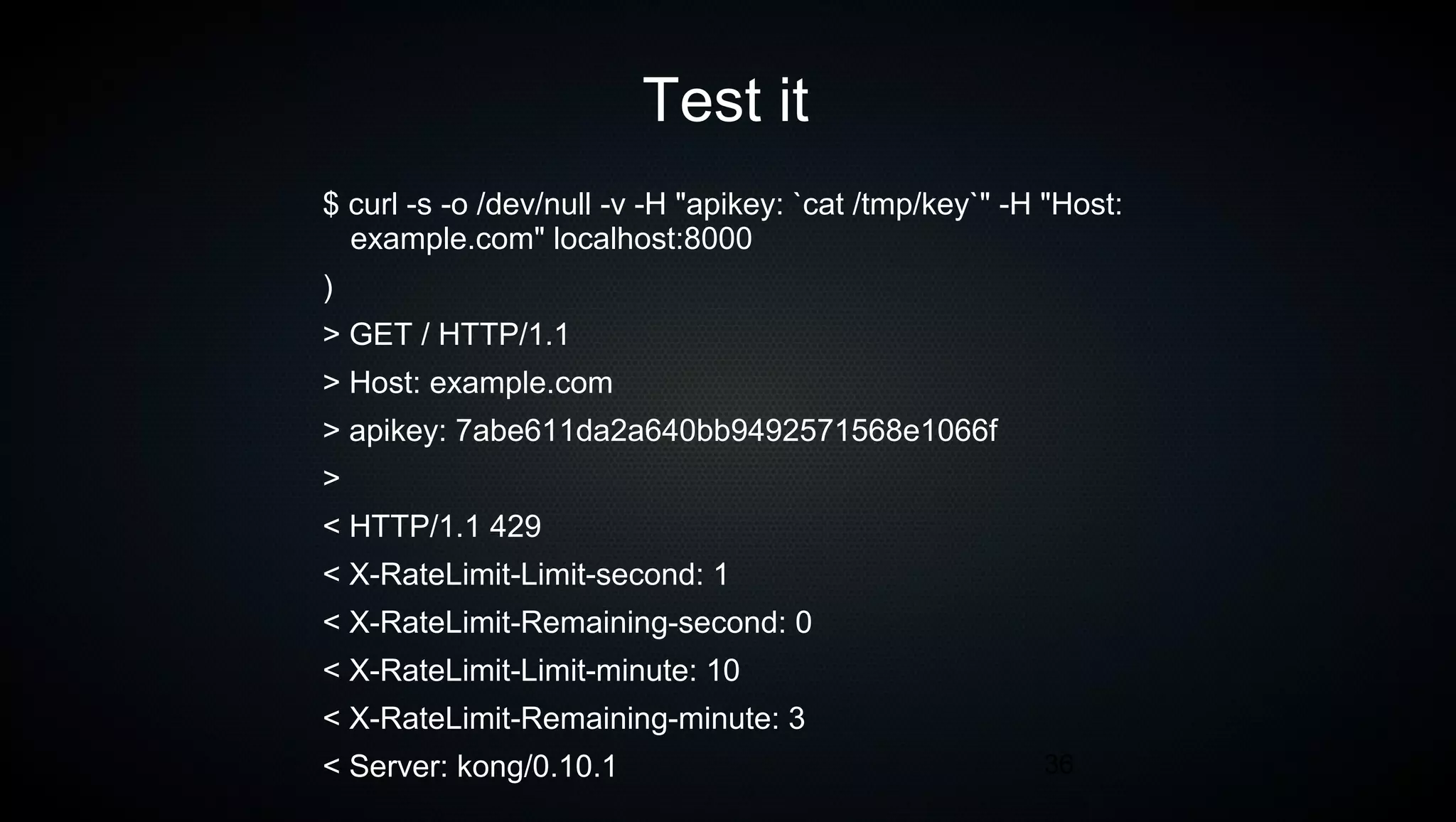

Test it
$ curl -s -o /dev/null -v -H "apikey: `cat /tmp/key`" -H "Host:
example.com" localhost:8000
)
> GET / HTTP/1.1
> Host: example.com
> apikey: 7abe611da2a640bb9492571568e1066f
>
< HTTP/1.1 429
< X-RateLimit-Limit-second: 1
< X-RateLimit-Remaining-second: 0
< X-RateLimit-Limit-minute: 10
< X-RateLimit-Remaining-minute: 3
< Server: kong/0.10.1

37. 37

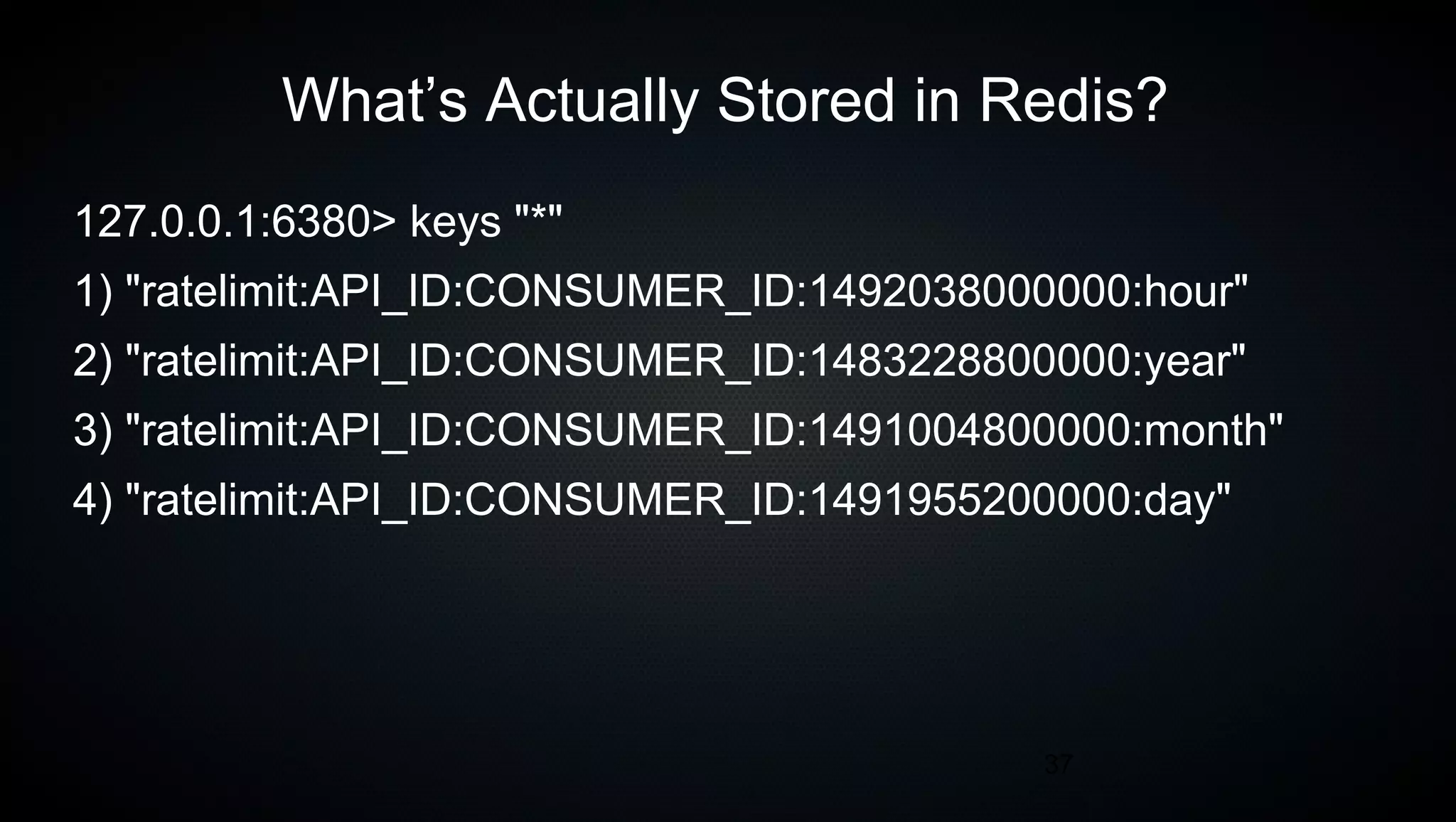

What’s Actually Stored in Redis?
127.0.0.1:6380> keys "*"
1) "ratelimit:API_ID:CONSUMER_ID:1492038000000:hour"
2) "ratelimit:API_ID:CONSUMER_ID:1483228800000:year"
3) "ratelimit:API_ID:CONSUMER_ID:1491004800000:month"
4) "ratelimit:API_ID:CONSUMER_ID:1491955200000:day"

38. 38

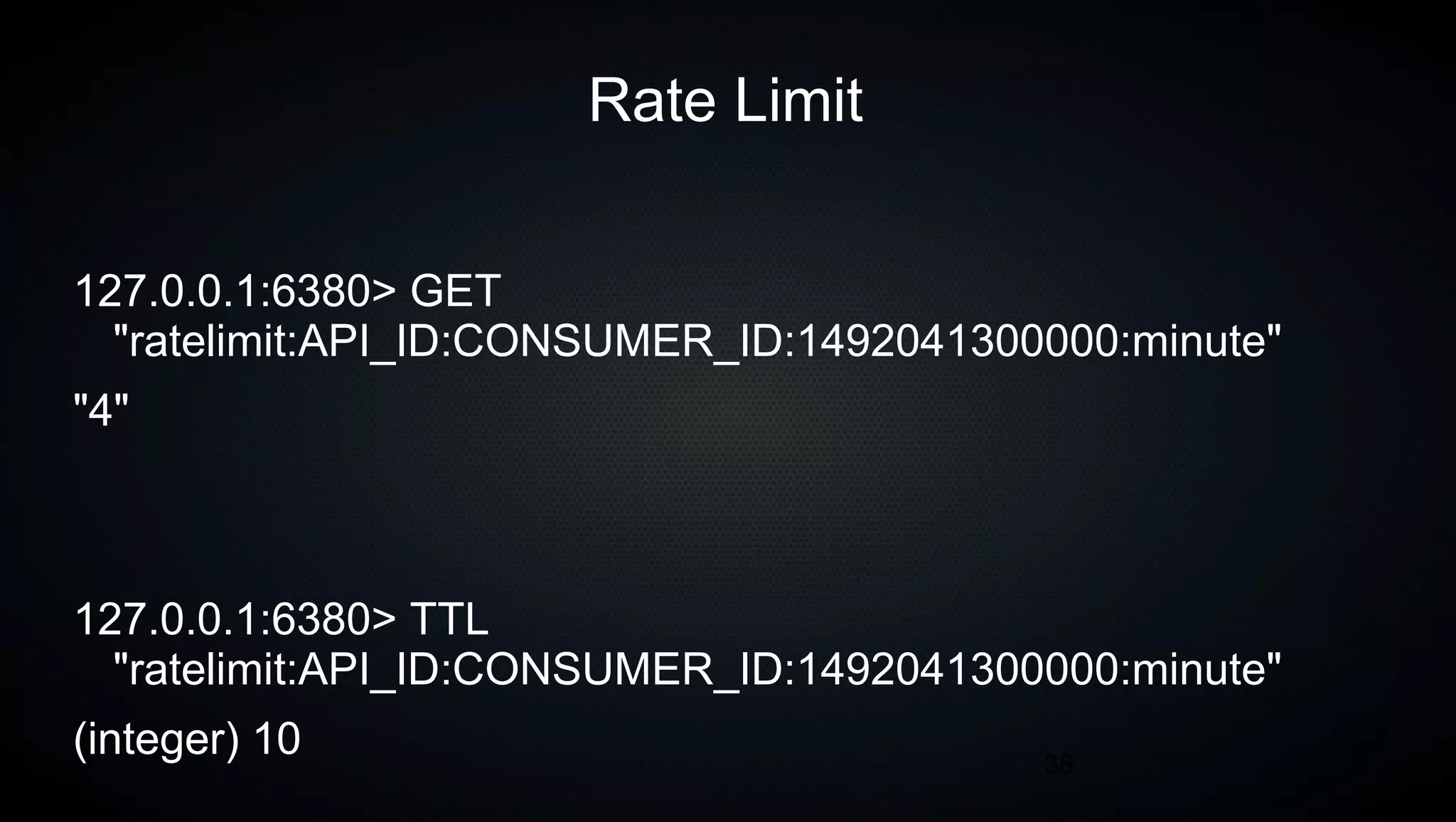

Rate Limit
127.0.0.1:6380> GET
"ratelimit:API_ID:CONSUMER_ID:1492041300000:minute"
"4"
127.0.0.1:6380> TTL
"ratelimit:API_ID:CONSUMER_ID:1492041300000:minute"
(integer) 10

39. 39

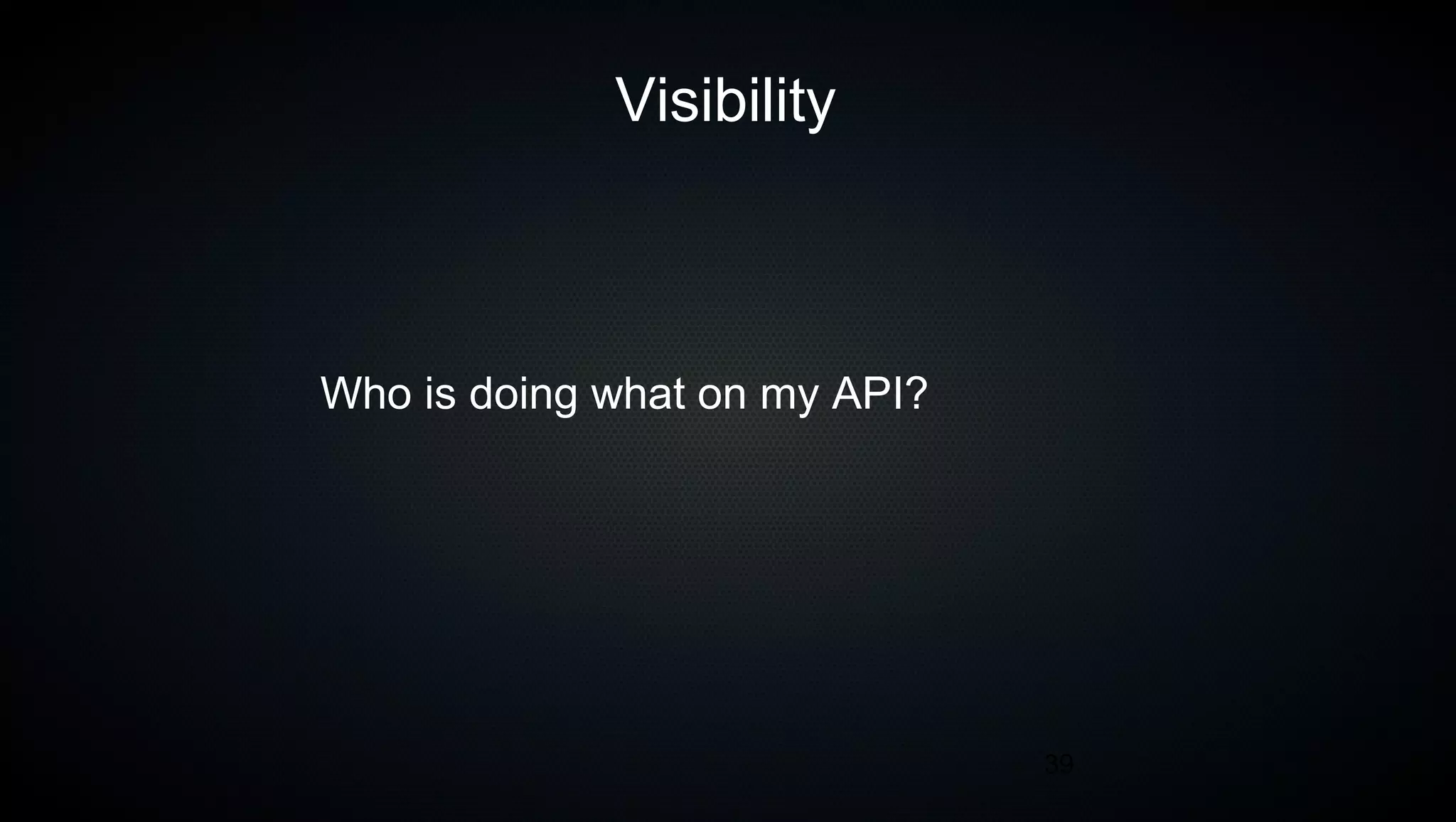

Visibility
Who is doing what on my API?

40. 40
Kong Feature – Custom NGINX config

41. 41

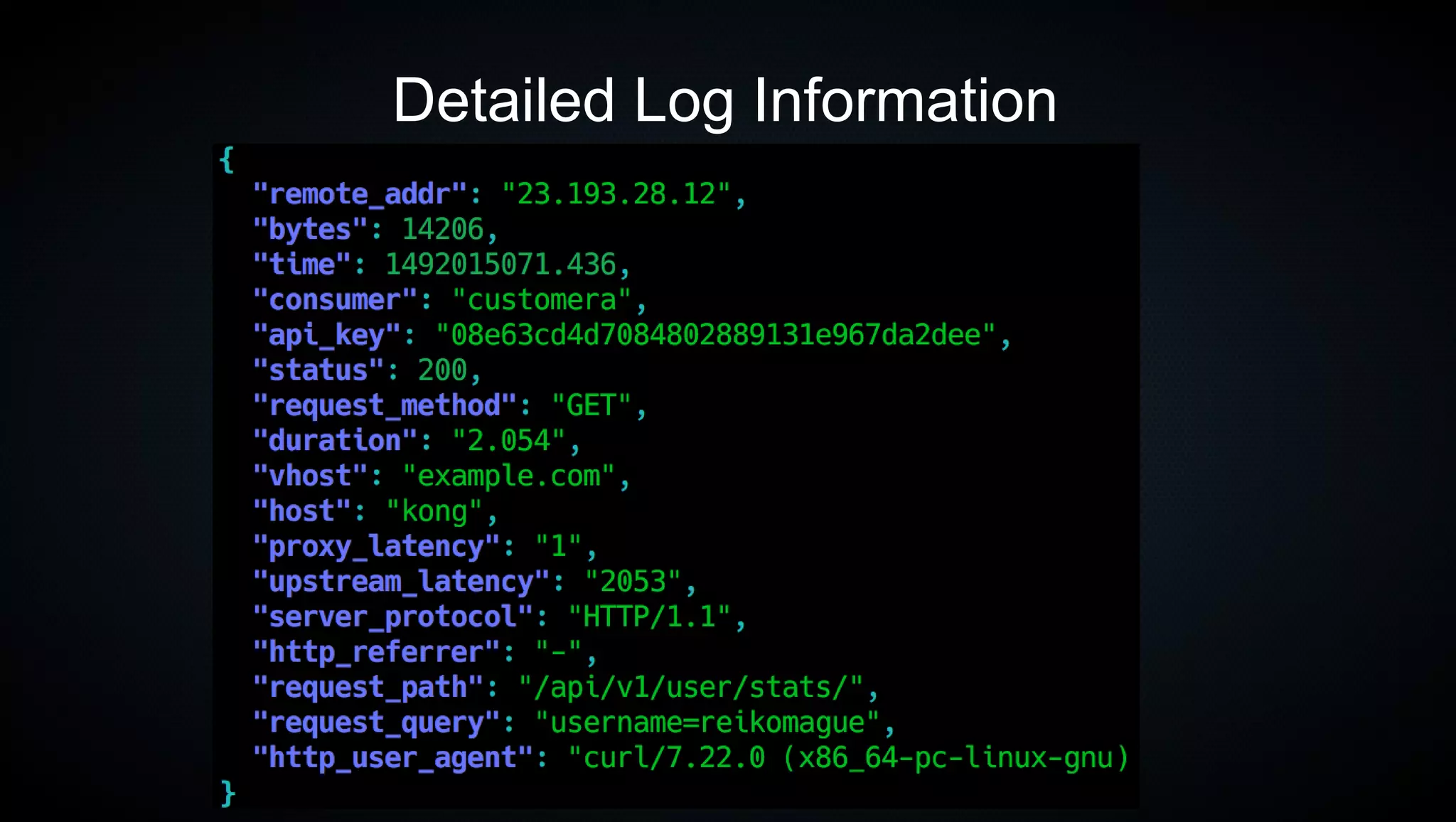

Detailed Log Information

42. 42

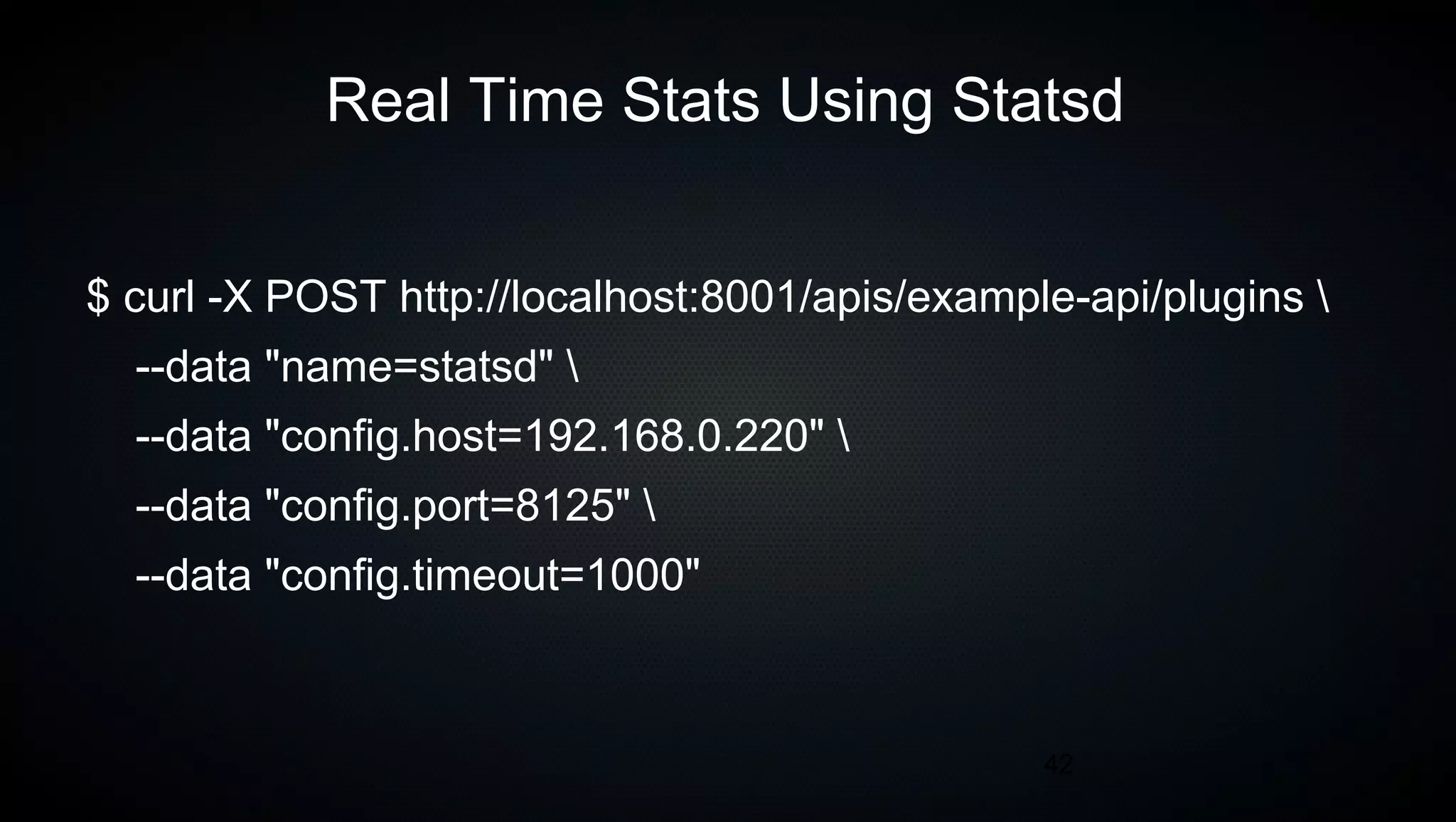

Real Time Stats Using Statsd
$ curl -X POST http://localhost:8001/apis/example-api/plugins
--data "name=statsd"
--data "config.host=192.168.0.220"
--data "config.port=8125"
--data "config.timeout=1000"

43. 43

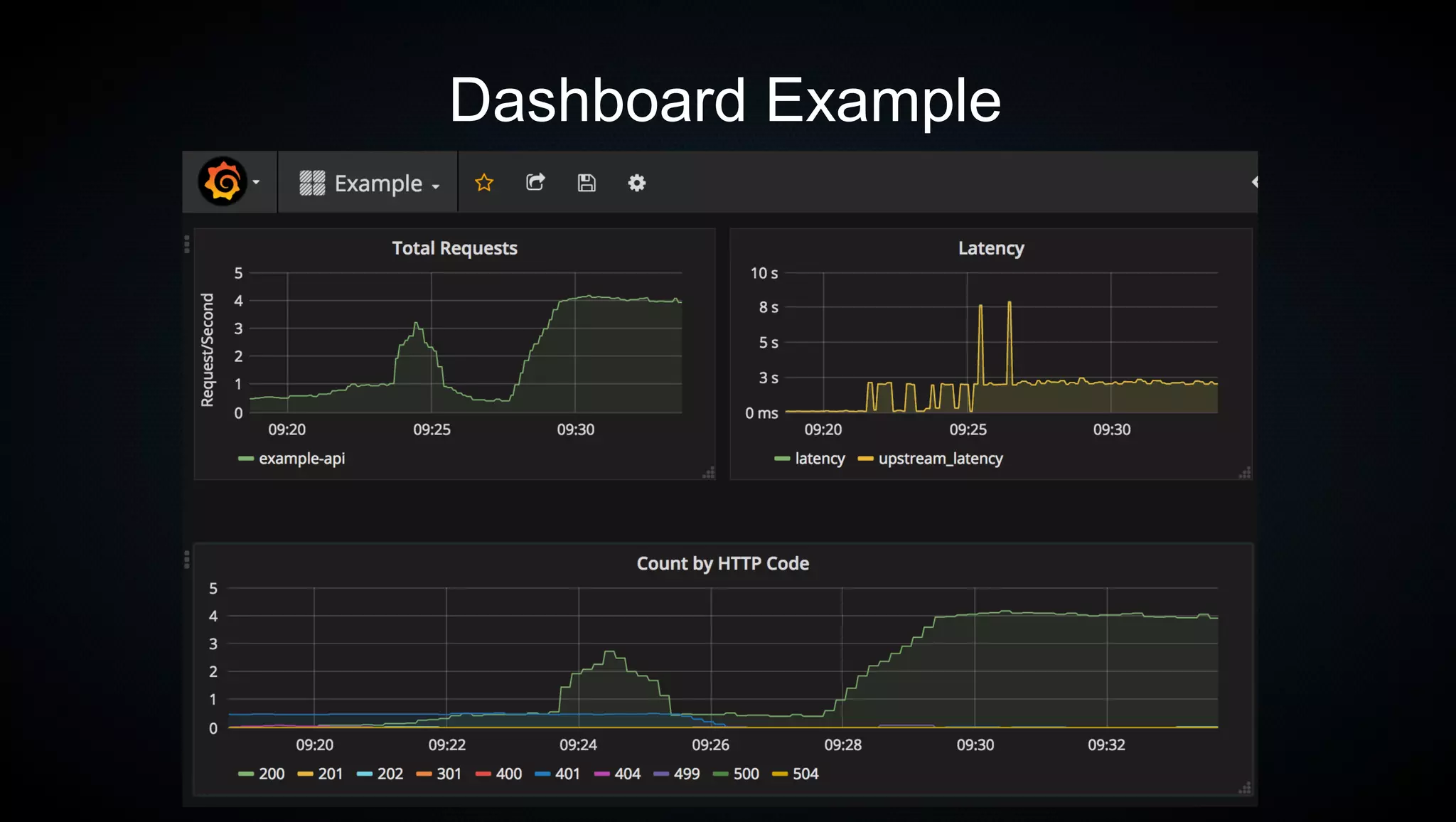

Dashboard Example

44. 44

45. 45
The Caveats
- Extra moving parts
- Learning Lua is a good idea
- Extra latency
- GUIs available but need work

46. 46

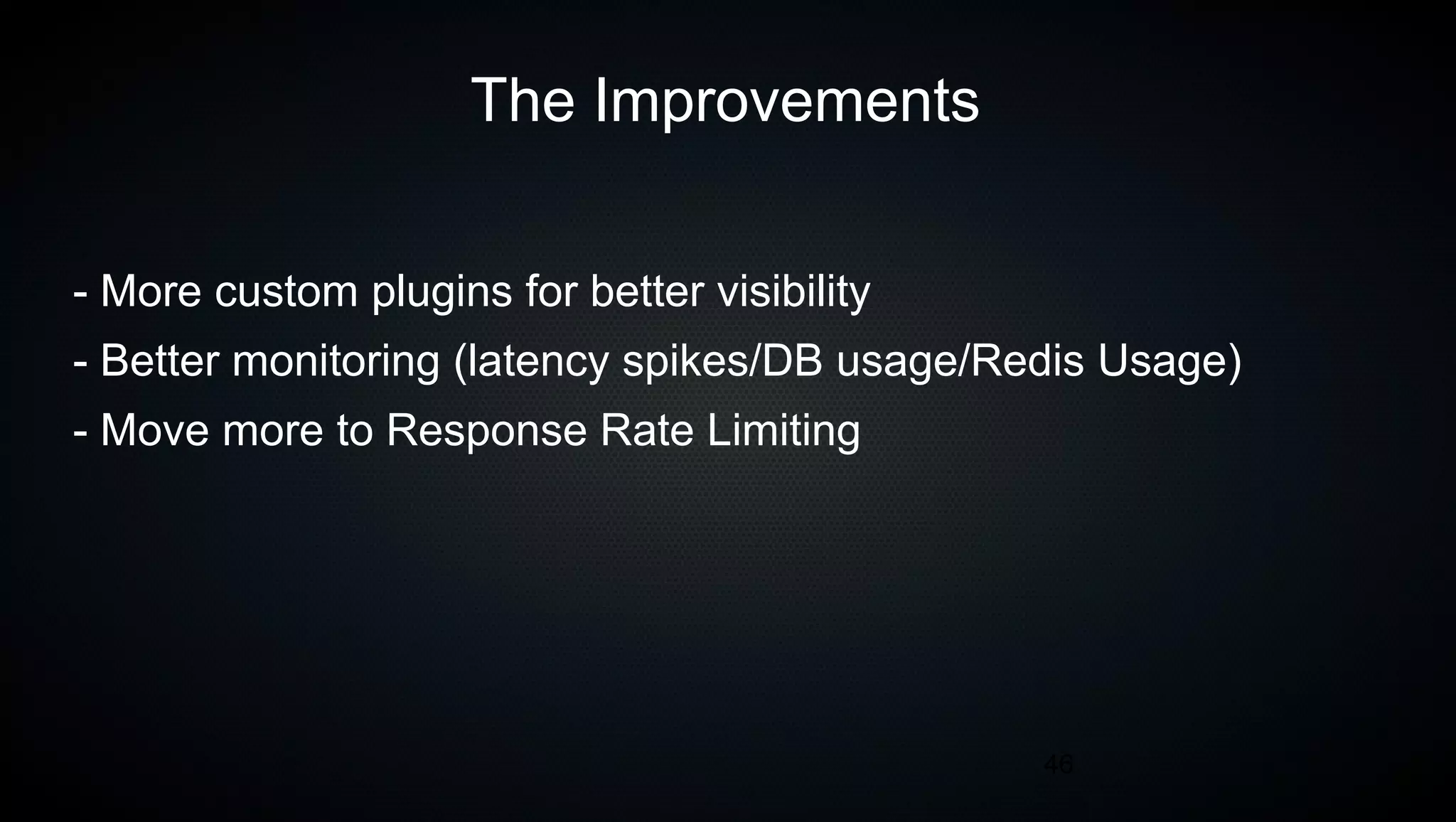

The Improvements
- More custom plugins for better visibility
- Better monitoring (latency spikes/DB usage/Redis Usage)
- Move more to Response Rate Limiting

47. 47

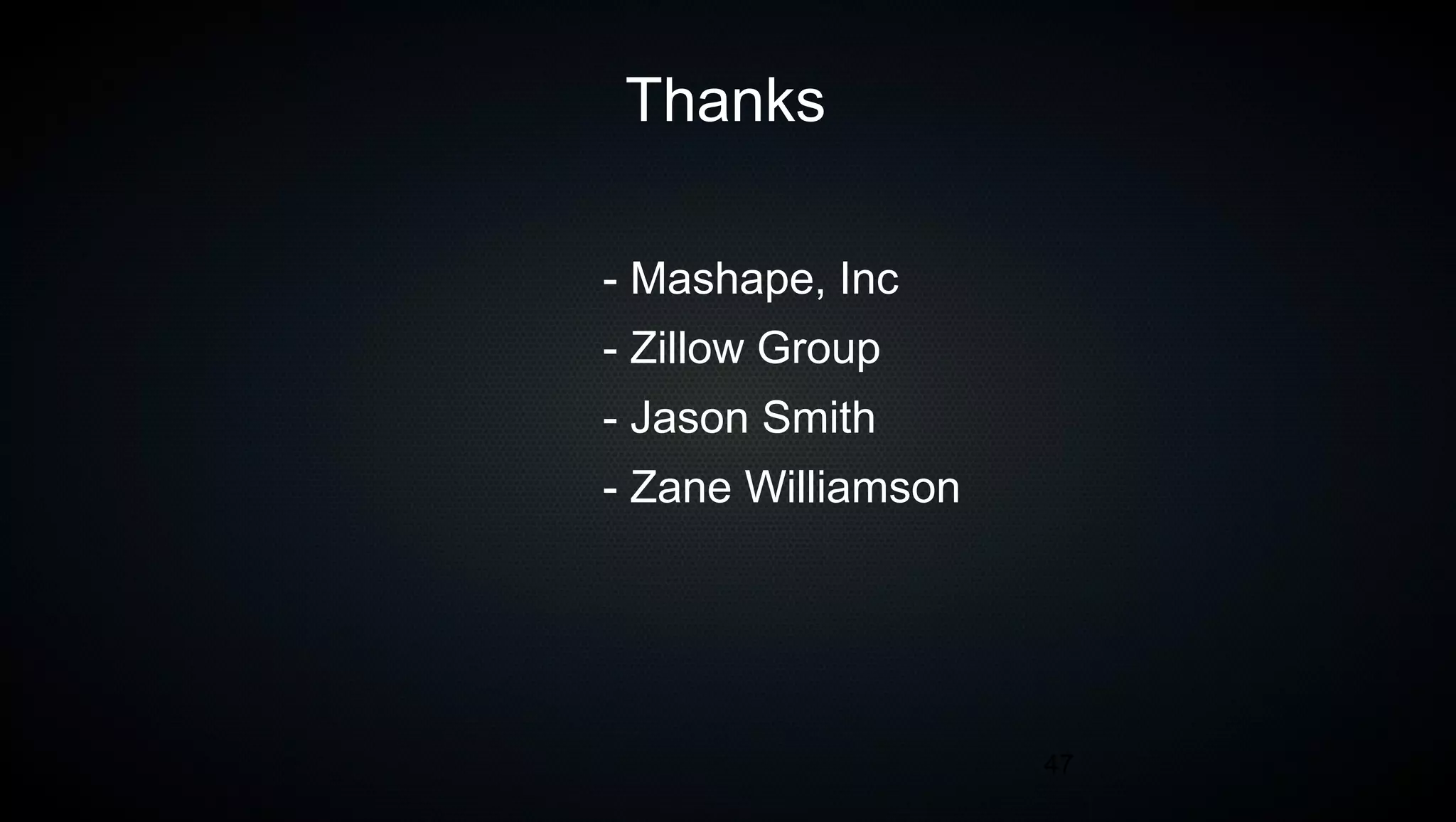

Thanks
- Mashape, Inc
- Zillow Group
- Jason Smith
- Zane Williamson
