KNX - Exercitii practice 2
- 1. Home and Building Management Systems
- 2. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 -Functiile implementate in exercitiul practic nr.1: -comutare -dimare -control jaluzele -Afisarea status-urilor cu LED-urile keypad-urilor -Control dimare in valoare absoluta -Central OFF Home and Building Management Systems

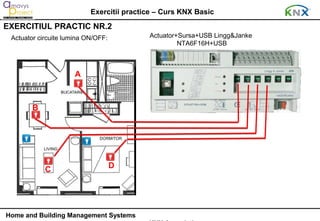

- 3. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Actuator circuite lumina ON/OFF: Actuator+Sursa+USB Lingg&Janke NTA6F16H+USB A B C D Home and Building Management Systems

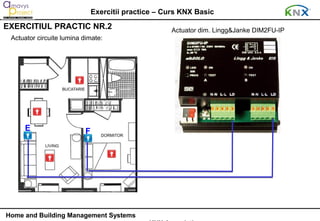

- 4. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Actuator dim. Lingg&Janke DIM2FU-IP Actuator circuite lumina dimate: E F Home and Building Management Systems

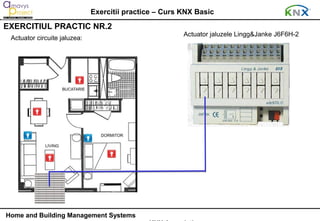

- 5. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Actuator jaluzele Lingg&Janke J6F6H-2 Actuator circuite jaluzea: Home and Building Management Systems

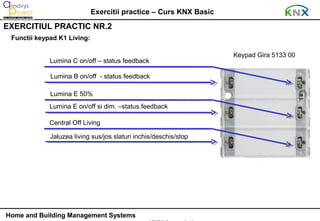

- 6. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Functii keypad K1 Living: Keypad Gira 5133 00 Lumina C on/off – status feedback Lumina B on/off - status feedback Lumina E 50% Lumina E on/off si dim. –status feedback Central Off Living Jaluzea living sus/jos slaturi inchis/deschis/stop Home and Building Management Systems

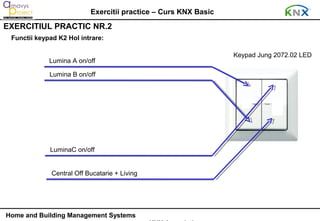

- 7. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Functii keypad K2 Hol intrare: Keypad Jung 2072.02 LED Lumina A on/off Lumina B on/off LuminaC on/off Central Off Bucatarie + Living Home and Building Management Systems

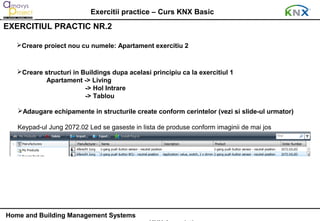

- 8. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Creare proiect nou cu numele: Apartament exercitiu 2 Creare structuri in Buildings dupa acelasi principiu ca la exercitiul 1 Apartament -> Living -> Hol Intrare -> Tablou Adaugare echipamente in structurile create conform cerintelor (vezi si slide-ul urmator) Keypad-ul Jung 2072.02 Led se gaseste in lista de produse conform imaginii de mai jos Home and Building Management Systems

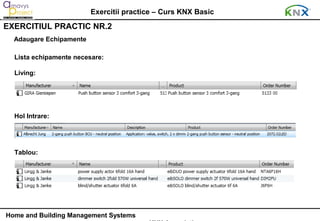

- 9. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Adaugare Echipamente Lista echipamente necesare: Living: Hol Intrare: Tablou: Home and Building Management Systems

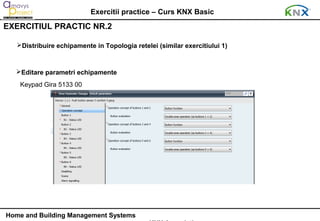

- 10. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Distribuire echipamente in Topologia retelei (similar exercitiului 1) Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems
- 11. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems

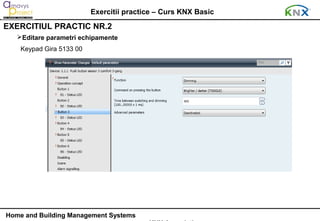

- 12. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems

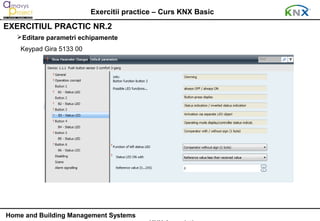

- 13. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems

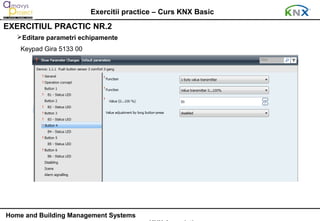

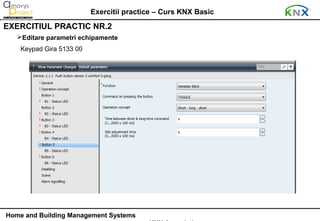

- 14. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems

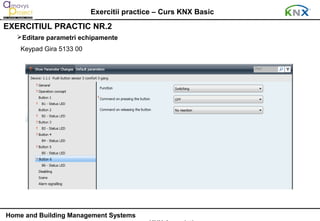

- 15. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems
- 16. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Gira 5133 00 Home and Building Management Systems

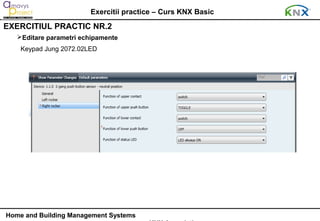

- 17. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Keypad Jung 2072.02LED Home and Building Management Systems

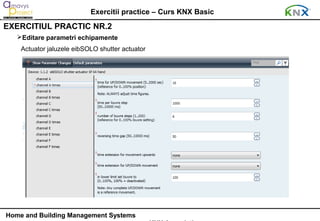

- 18. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Actuator jaluzele eibSOLO shutter actuator Home and Building Management Systems

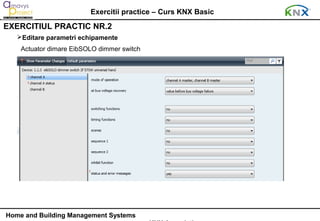

- 19. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Actuator dimare EibSOLO dimmer switch Home and Building Management Systems

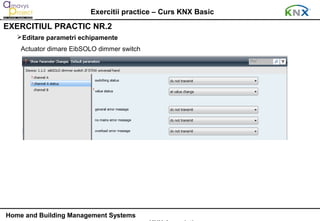

- 20. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Actuator dimare EibSOLO dimmer switch Home and Building Management Systems

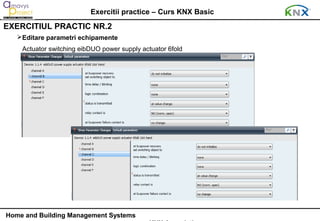

- 21. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Editare parametri echipamente Actuator switching eibDUO power supply actuator 6fold Home and Building Management Systems

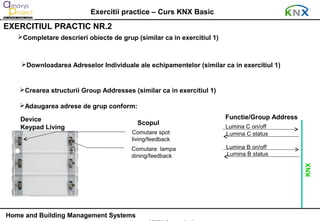

- 22. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Completare descrieri obiecte de grup (similar ca in exercitiul 1) Downloadarea Adreselor Individuale ale echipamentelor (similar ca in exercitiul 1) Crearea structurii Group Addresses (similar ca in exercitiul 1) Adaugarea adrese de grup conform: Device Functie/Group Address Scopul Keypad Living Lumina C on/off Comutare spot Lumina C status living/feedback Comutare lampa Lumina B on/off dining/feedback Lumina B status KNX Home and Building Management Systems

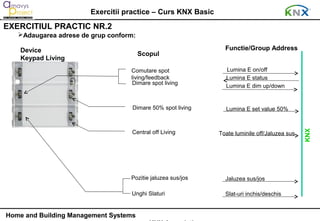

- 23. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Adaugarea adrese de grup conform: Device Functie/Group Address Scopul Keypad Living Comutare spot Lumina E on/off living/feedback Lumina E status Dimare spot living Lumina E dim up/down Dimare 50% spot living Lumina E set value 50% KNX Central off Living Toate luminile off/Jaluzea sus Pozitie jaluzea sus/jos Jaluzea sus/jos Unghi Slaturi Slat-uri inchis/deschis Home and Building Management Systems

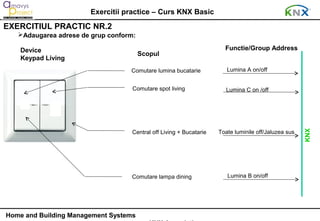

- 24. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Adaugarea adrese de grup conform: Device Functie/Group Address Scopul Keypad Living Comutare lumina bucatarie Lumina A on/off Comutare spot living Lumina C on /off KNX Central off Living + Bucatarie Toate luminile off/Jaluzea sus Comutare lampa dining Lumina B on/off Home and Building Management Systems

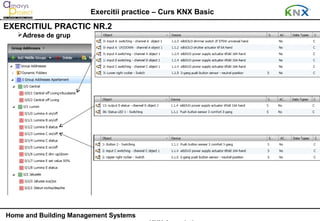

- 25. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Adrese de grup Home and Building Management Systems

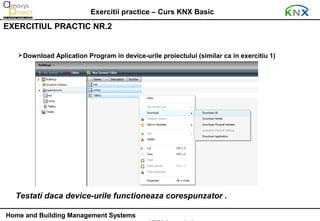

- 26. Exercitii practice – Curs KNX Basic EXERCITIUL PRACTIC NR.2 Download Aplication Program in device-urile proiectului (similar ca in exercitiu 1) Testati daca device-urile functioneaza corespunzator . Home and Building Management Systems
