Kerberos tripod barriers are access control barriers that can manage high volumes of pedestrian traffic, including up to 45 people per minute. They are suited for reception areas, offices, airports, and other locations with many visitors or employees passing through. The barriers come in different models with options like collapsible arms for emergency escape routes. They provide security and support staff in directing large crowds of people.

1. Kerberos tripod barriers

2. «Reception area of a head office – 850 members of staff and visitors a day. »
«Ministry of Economics, 8.00 am – 250 employees start work at the same time. »
«A busy international airport –2700 passengers pass through each boarding gate every day.»
Quick, reliable, user friendly

3. Kerberos tripod barriers take care of
access control in a wide variety of situa-
tions, supporting reception staff in their
work. Our proven control systems have
no problem managing pedestrian flows –
even at peak times.
Throughput rate = up to 45 persons
per minute
Security level = •
Staff supervision = yes
Versions with collapsible arms provide
free escape routes in both directions
in emergencies. Thanks to a patented
system the collapsed arm can be auto-
matically reset after the emergency
situation has passed. This is activated
by authorised staff.

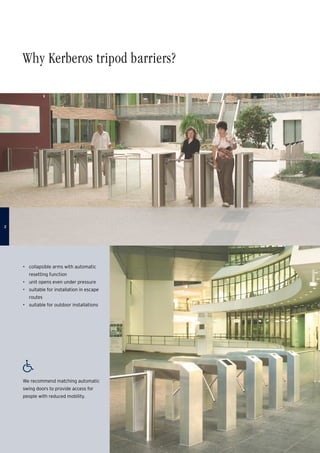

4. Why Kerberos tripod barriers?
• collapsible arms with automatic
resetting function
• unit opens even under pressure
• suitable for installation in escape
routes
• suitable for outdoor installations
We recommend matching automatic
swing doors to provide access for
people with reduced mobility.

5. Fields of application
• Office and administrative buildings
• Ministries, government buildings
• Industrial plants
• Airports
• Banks and financial institutions

6. In lobby area to support reception staff Unit on mobile stand for temporary use
A smart solution for any entrance
Integrated with card readers for boarding gates
Multiple units in large lobby area With matching swing door for people with
reduced mobility
Access to company site, outdoor installation

7. Kerberos tripod barriers
Five versions, multiple options
We have developed a special tripod
barrier line for access to public
facilities, such as sports stadiums,
swimming pools, spas, leisure parks,
museums or public toilets. Please
ask for our PSS-products.
Kerberos TPB-E02
Housing
Base columns
Arms
Collapsible arms
Power-assisted drive
Outdoor installation
The classic among Kaba’s tripod barriers, available with
stylish rounded or straight base columns
stainless steel
stainless steel, rounded optional: angular shape
stainless steel / aluminium
optional
optional
yes
Kerberos TPB-S01/S03
Housing
Base columns
Arms
Collapsible arms
Power-assisted drive
Outdoor installation
Compact, slim and light, featuring stainless steel tube base columns and
2 housing versions
coated aluminium
stainless steel
stainless steel
optional
standard
yes
Kerberos TPB-C01
Housing
Base columns
Arms
Collapsible arms
Power-assisted drive
Outdoor installation
Timelessly elegant with ergonomic oval shape and additional back plate
stainless steel
stainless steel
stainless steel
optional
standard
no
10200E8•2008
