1. Javascript Frameworks
for Well Architected, Immersive Web Apps
Daniel Nelson
Centresource Interactive Agency

2. A description of the problem
and what we are seeking in a solution

3. An example unpacked

4. Traditional MVC Web App

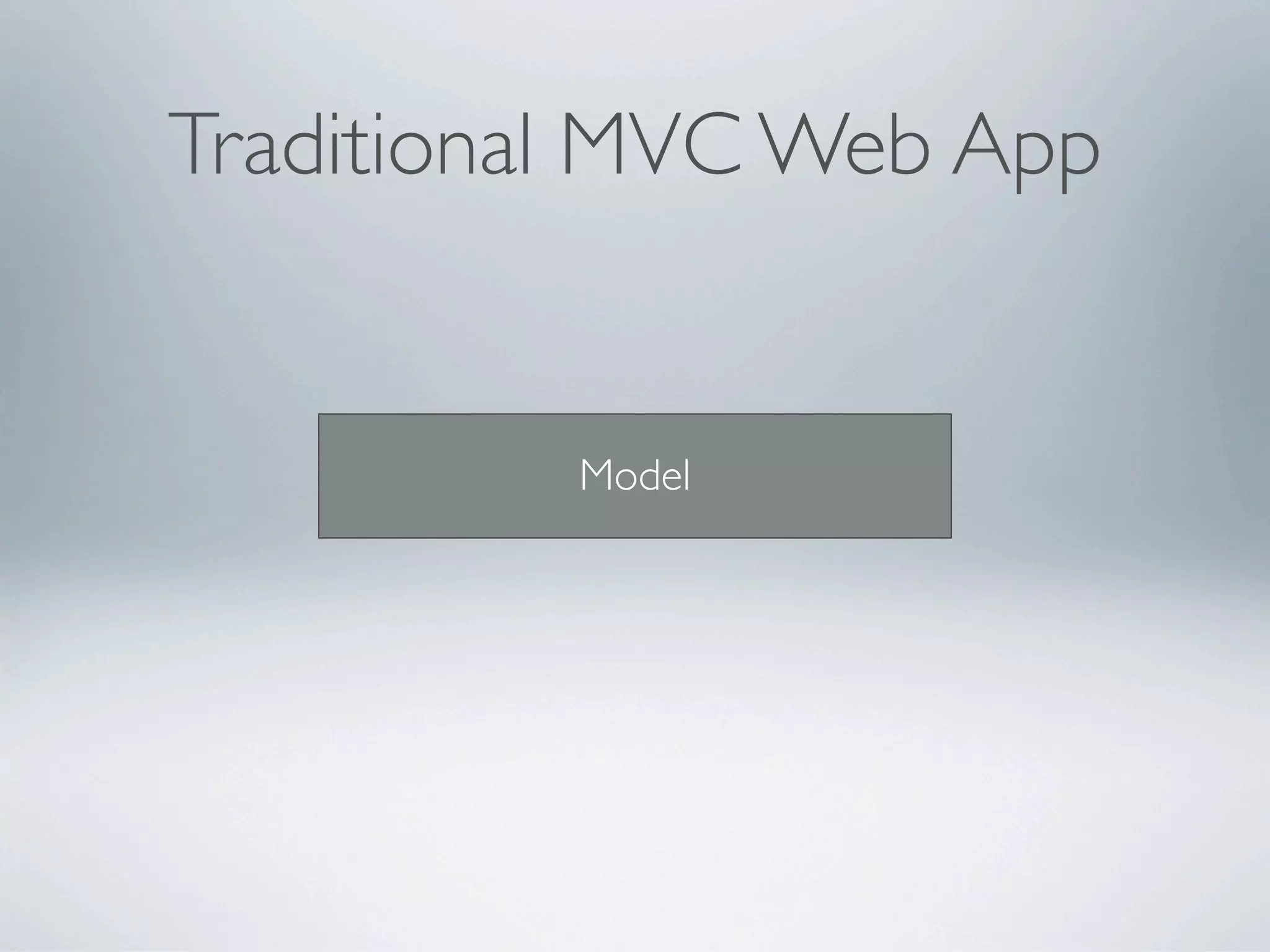

5. Traditional MVC Web App
Model

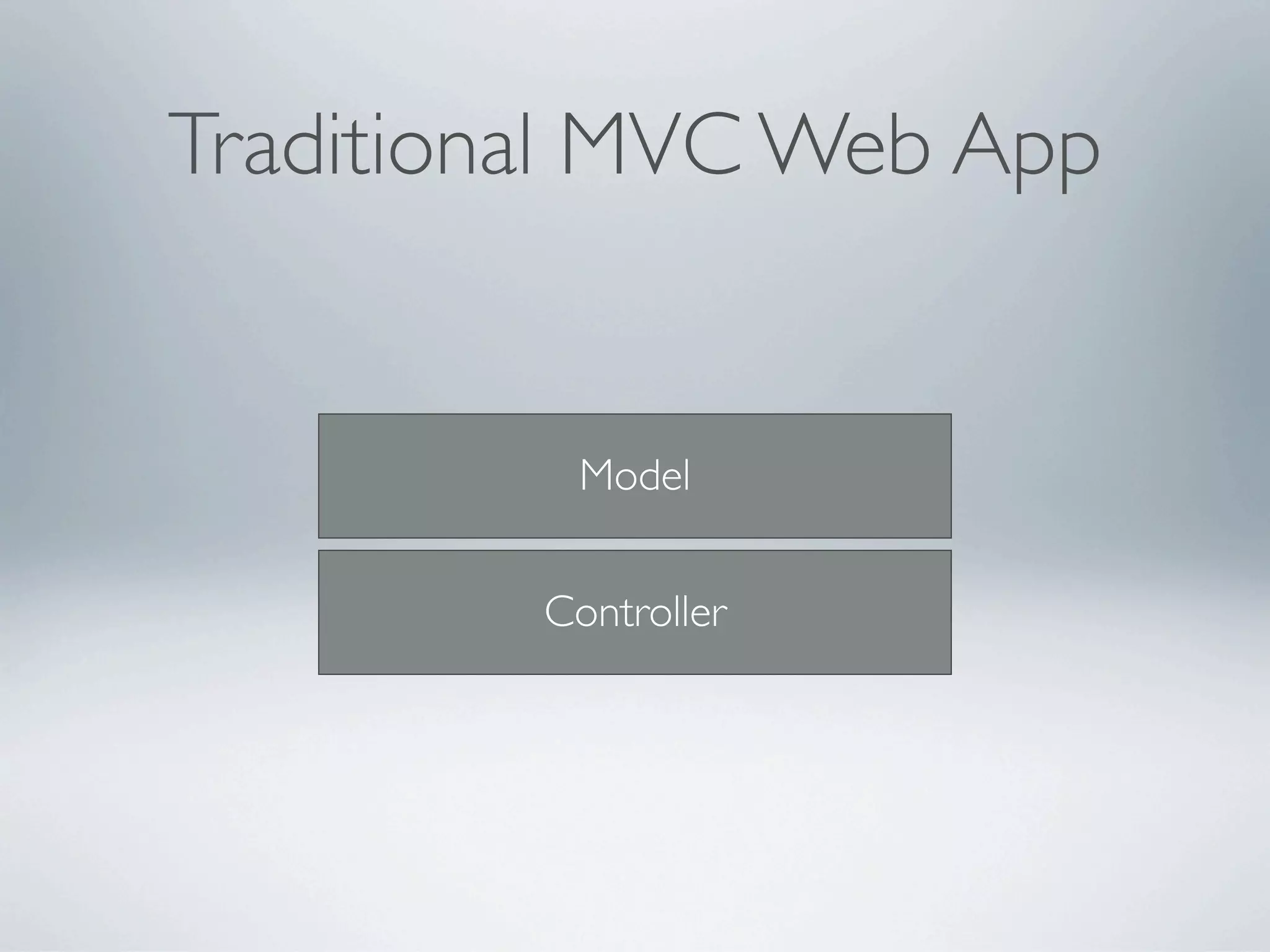

6. Traditional MVC Web App
Model
Controller

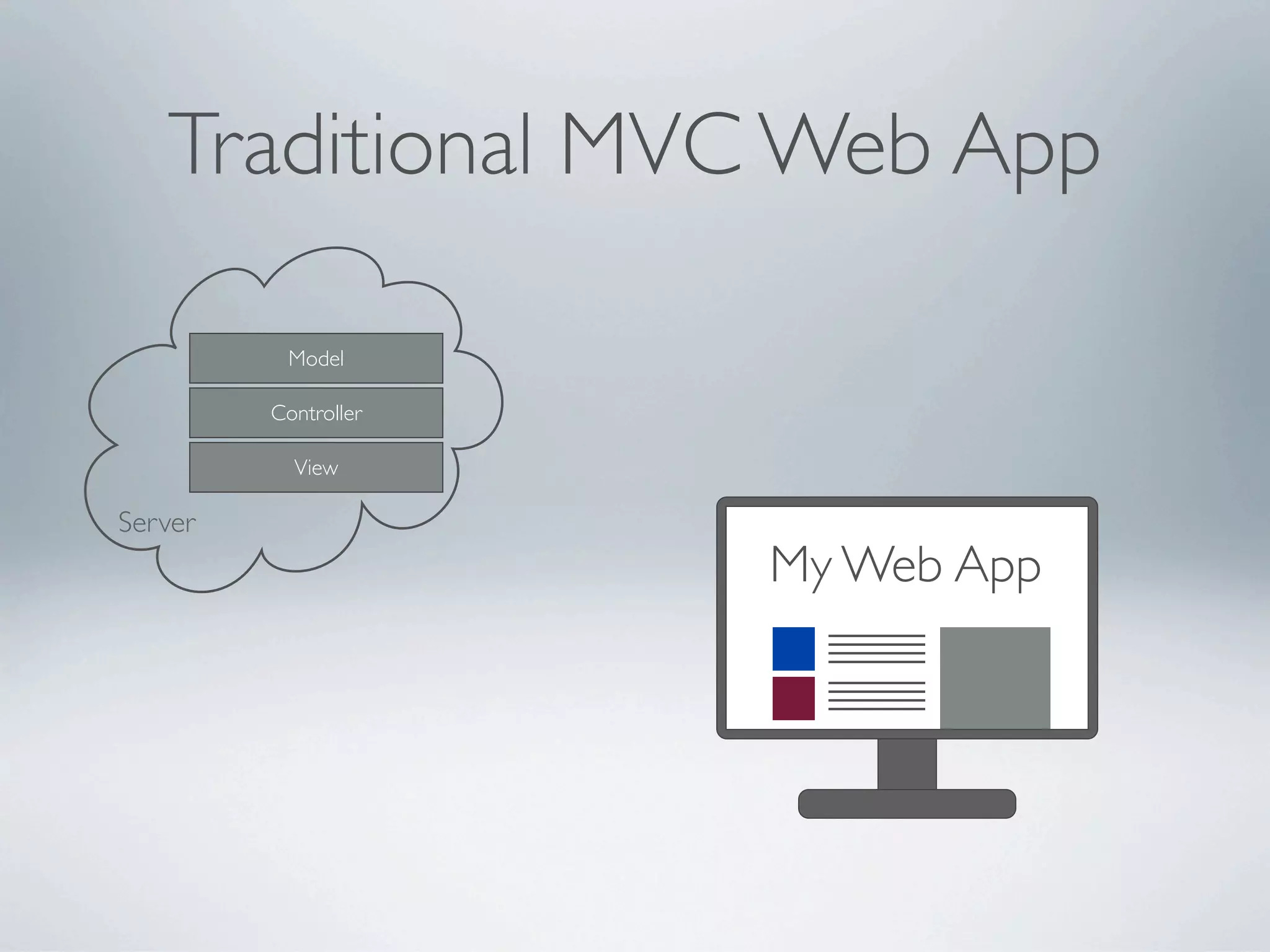

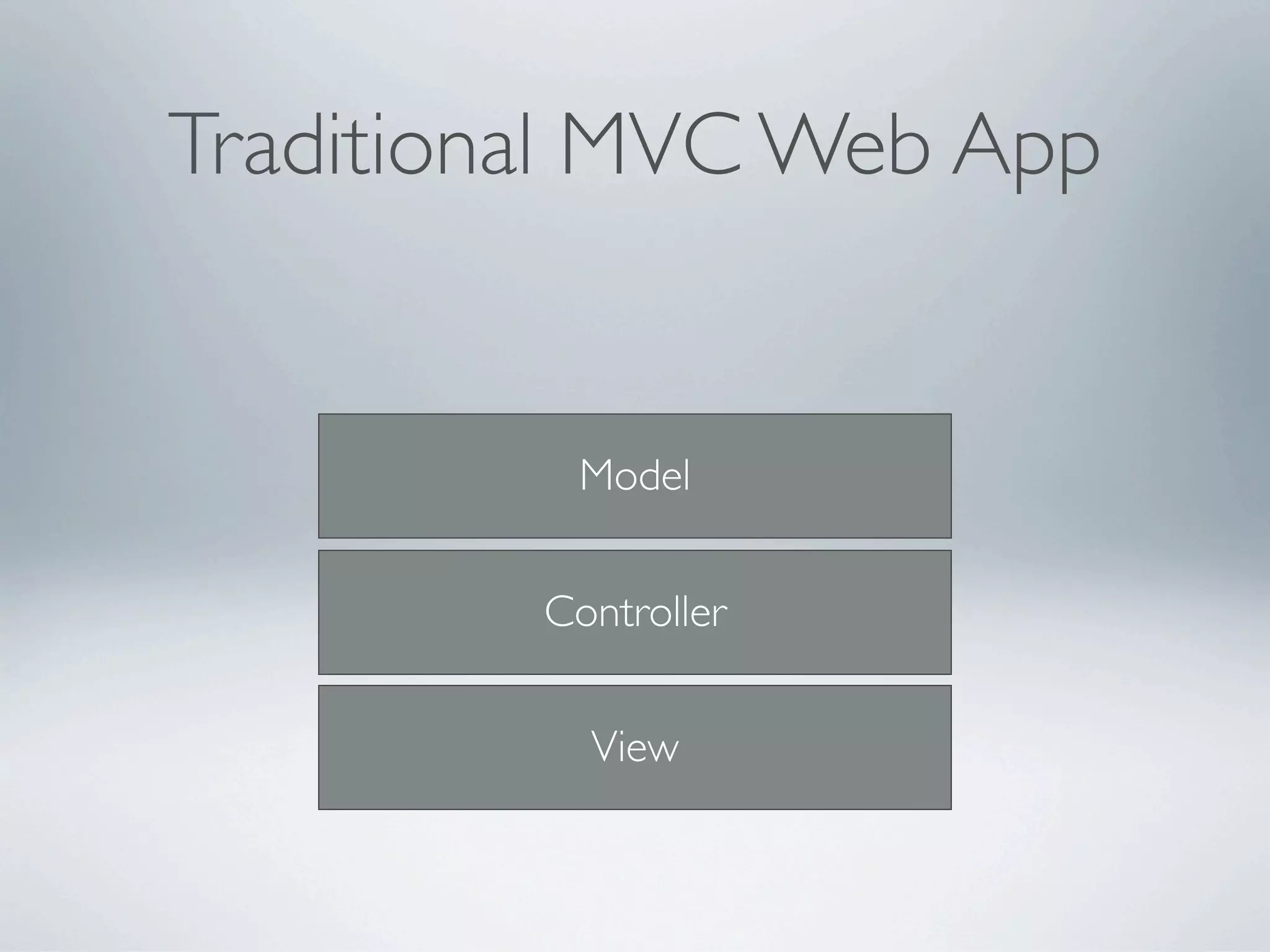

7. Traditional MVC Web App
Model
Controller
View

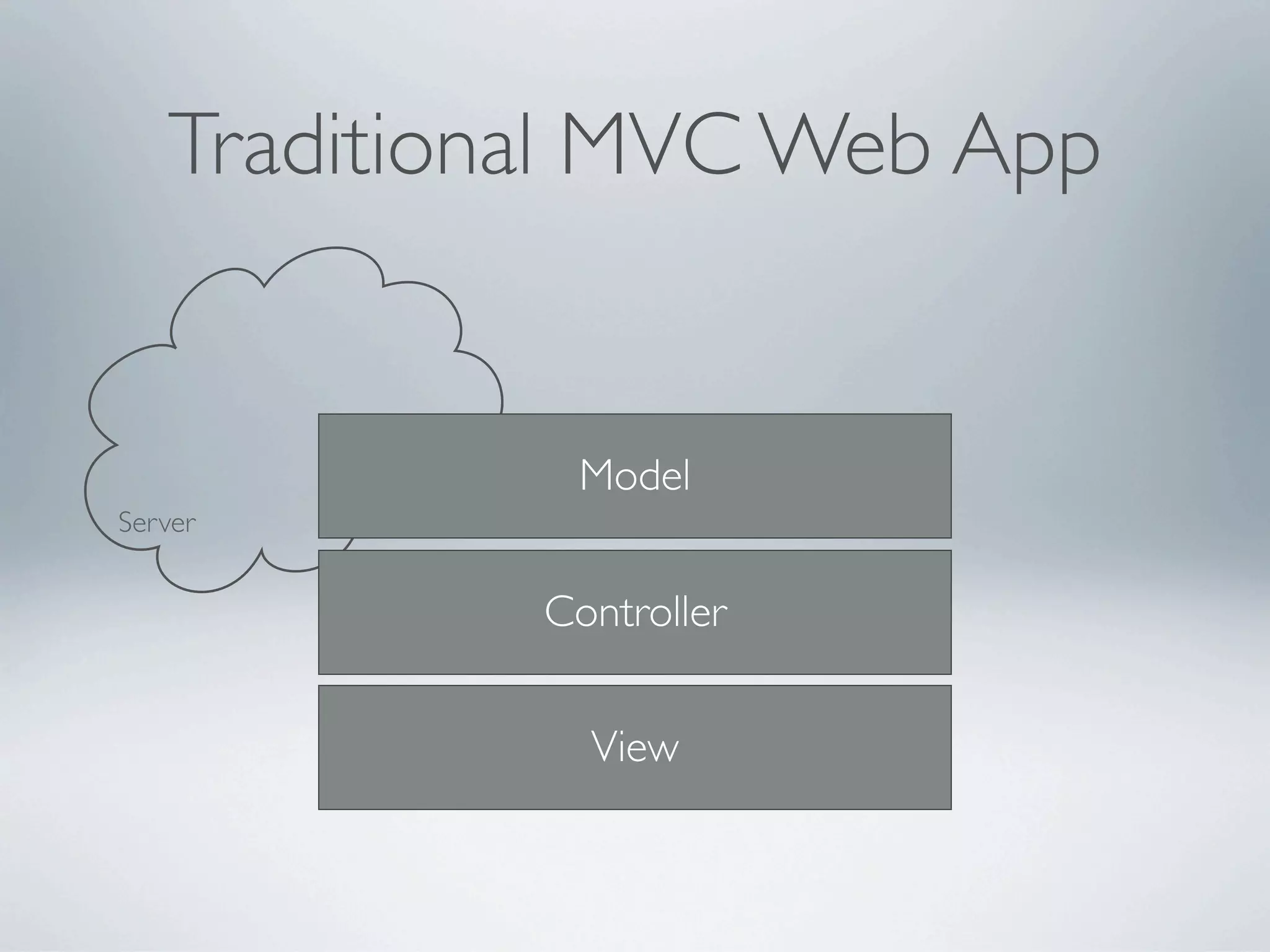

8. Traditional MVC Web App
Model
Server
Controller
View

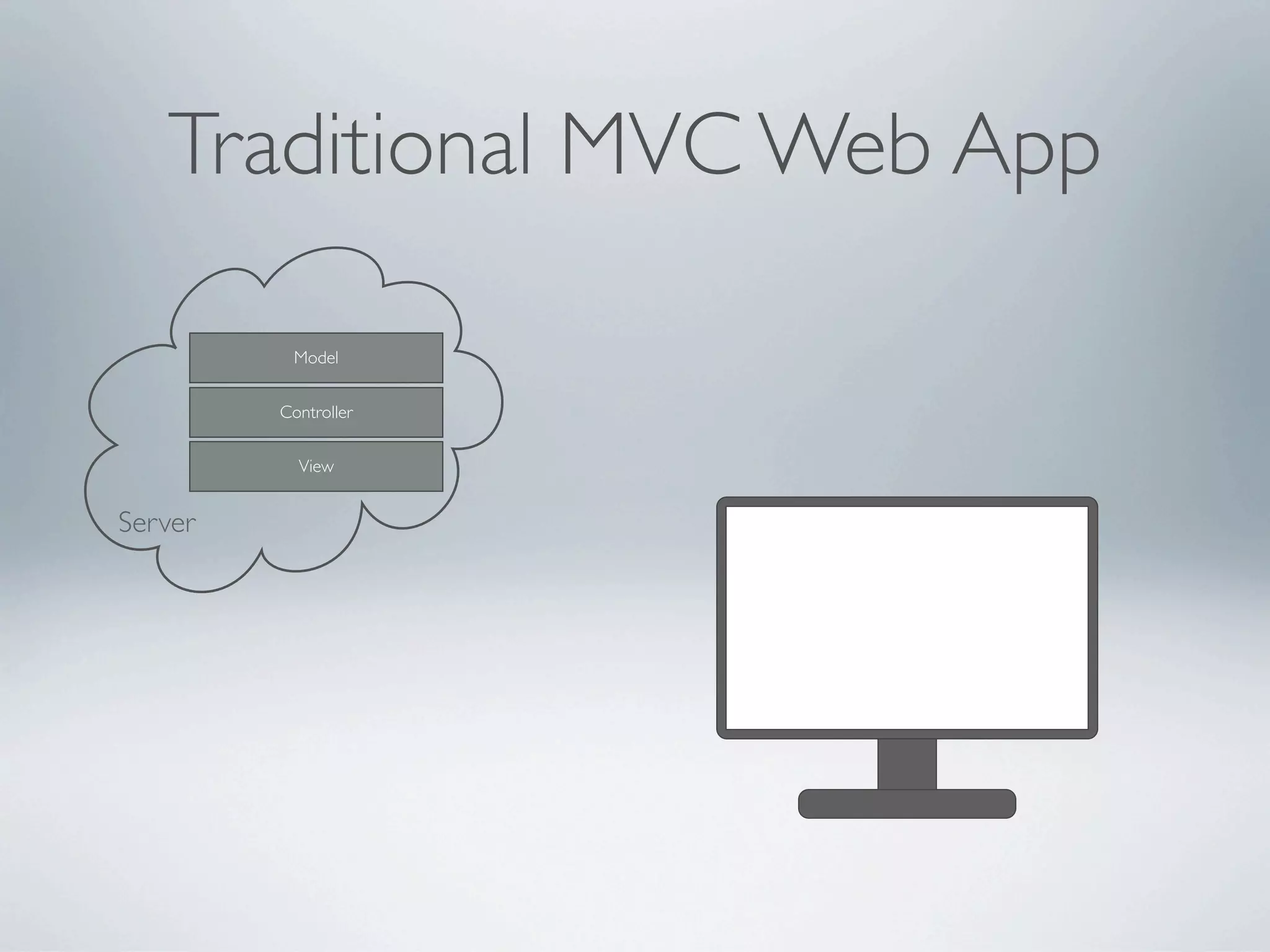

9. Traditional MVC Web App
Model
Controller
View
Server

10. Traditional MVC Web App
Model
Controller
View
Server

11. Traditional MVC Web App
Model
Controller
View
Server
My Web App
HTML

12. Traditional MVC Web App
Model
Controller
View
Server
My Web App
HTTP

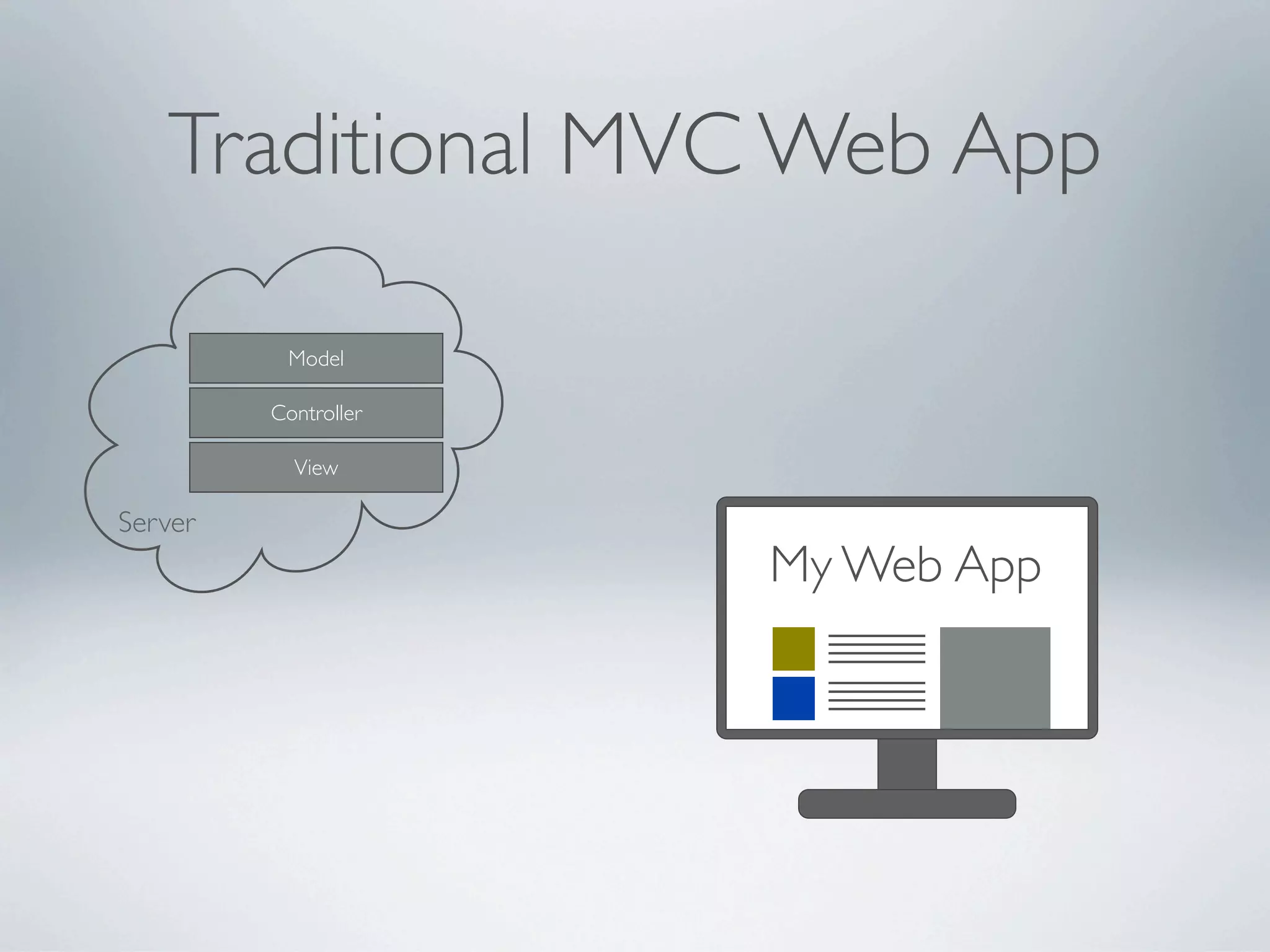

13. Traditional MVC Web App
Model
Controller
View
Server
My Web App
HTML

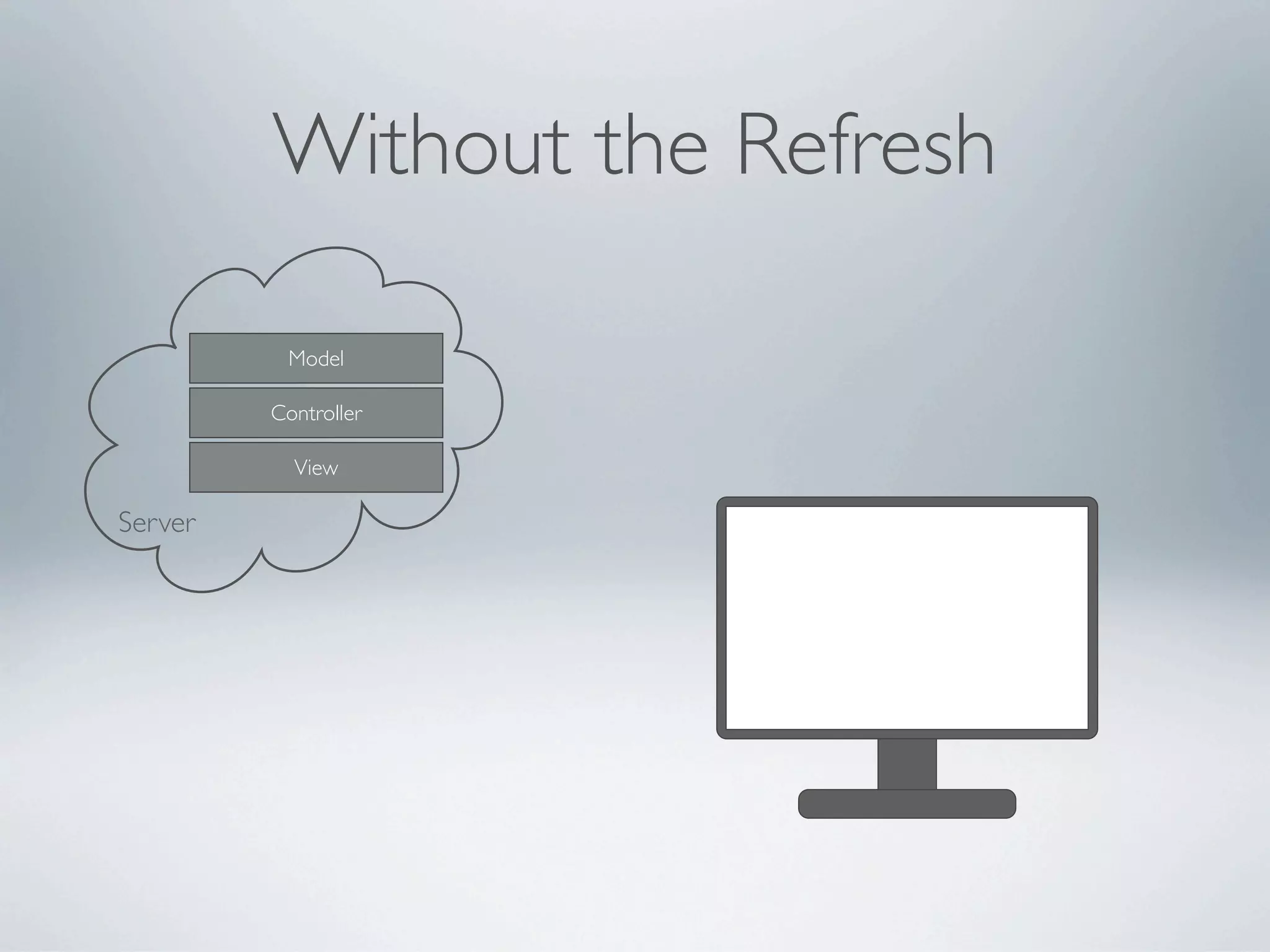

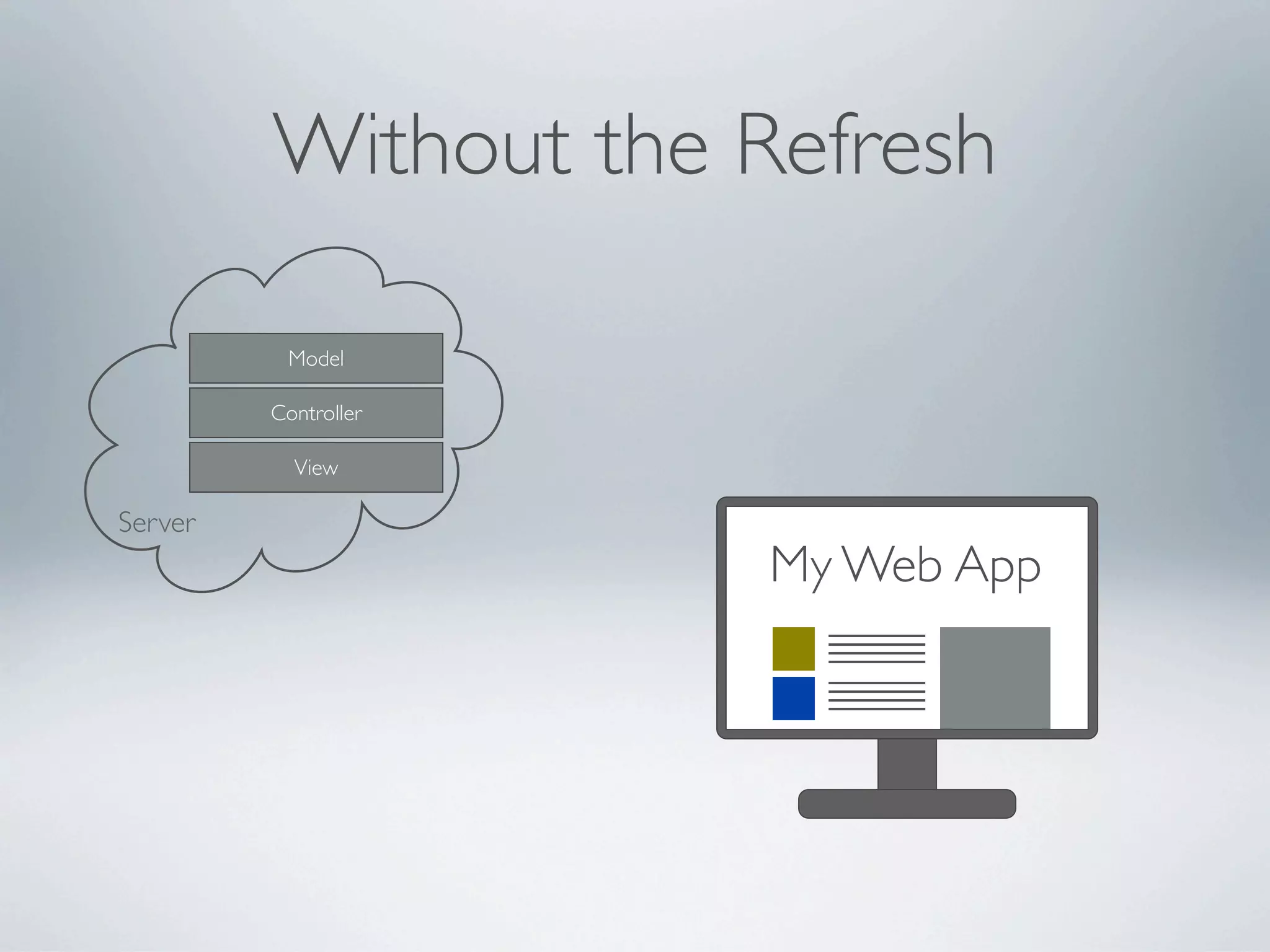

14. Without the Refresh
Model
Controller
View
Server

15. Without the Refresh
Model
Controller
View
Server
My Web App
HTML+JS

16. Without the Refresh
Model
Controller
View
Server
My Web App
XHR

17. Without the Refresh
Model
Controller
View
Server
My Web App
JSON

18. How do we render the response?

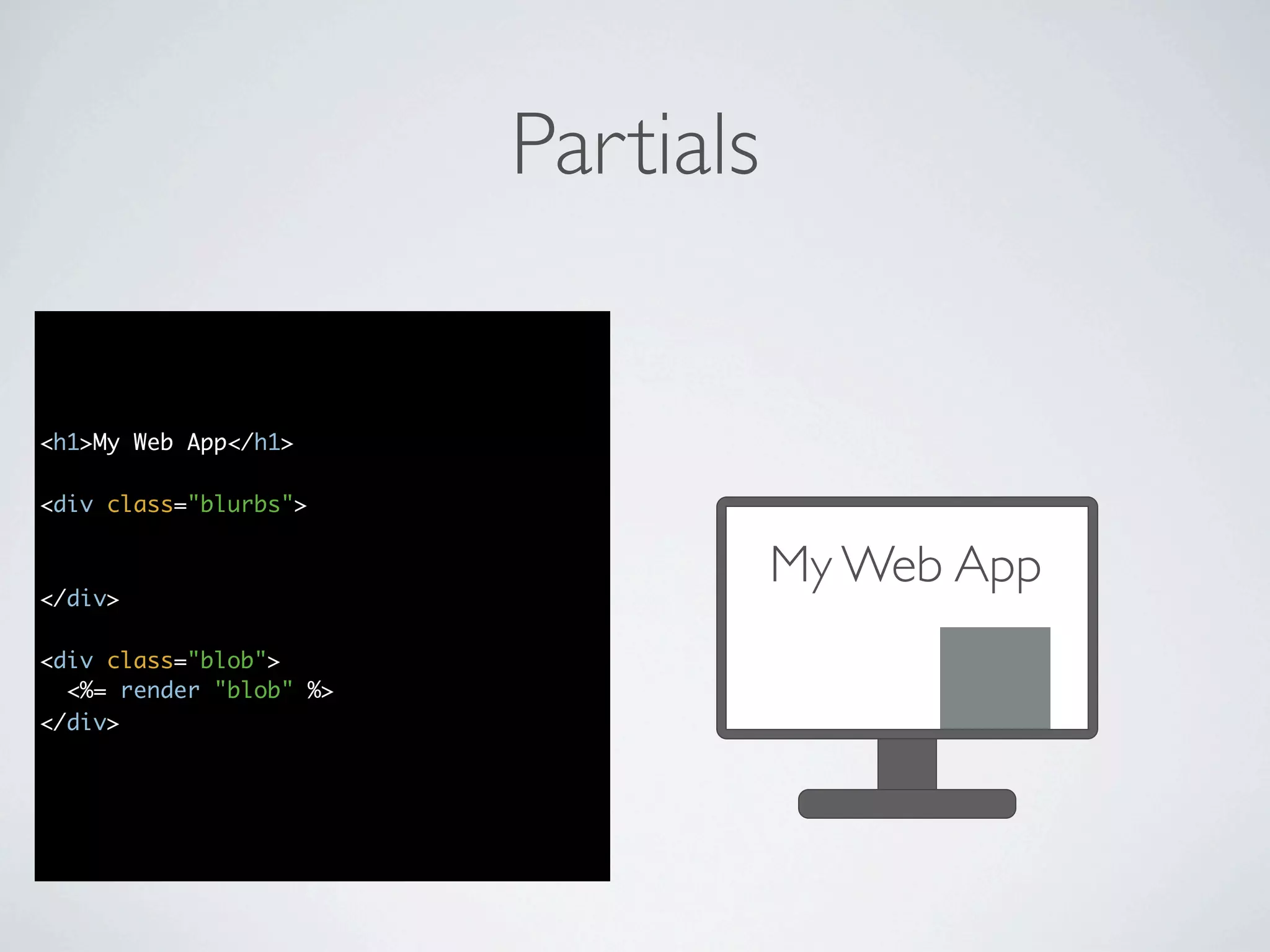

19. Partials
<h1>My Web App</h1>
<div class="blurbs">
<%= render :partial => "blurb",
</div>
:collection => @blurbs %> My Web App
<div class="blob">
<%= render "blob" %>
</div>

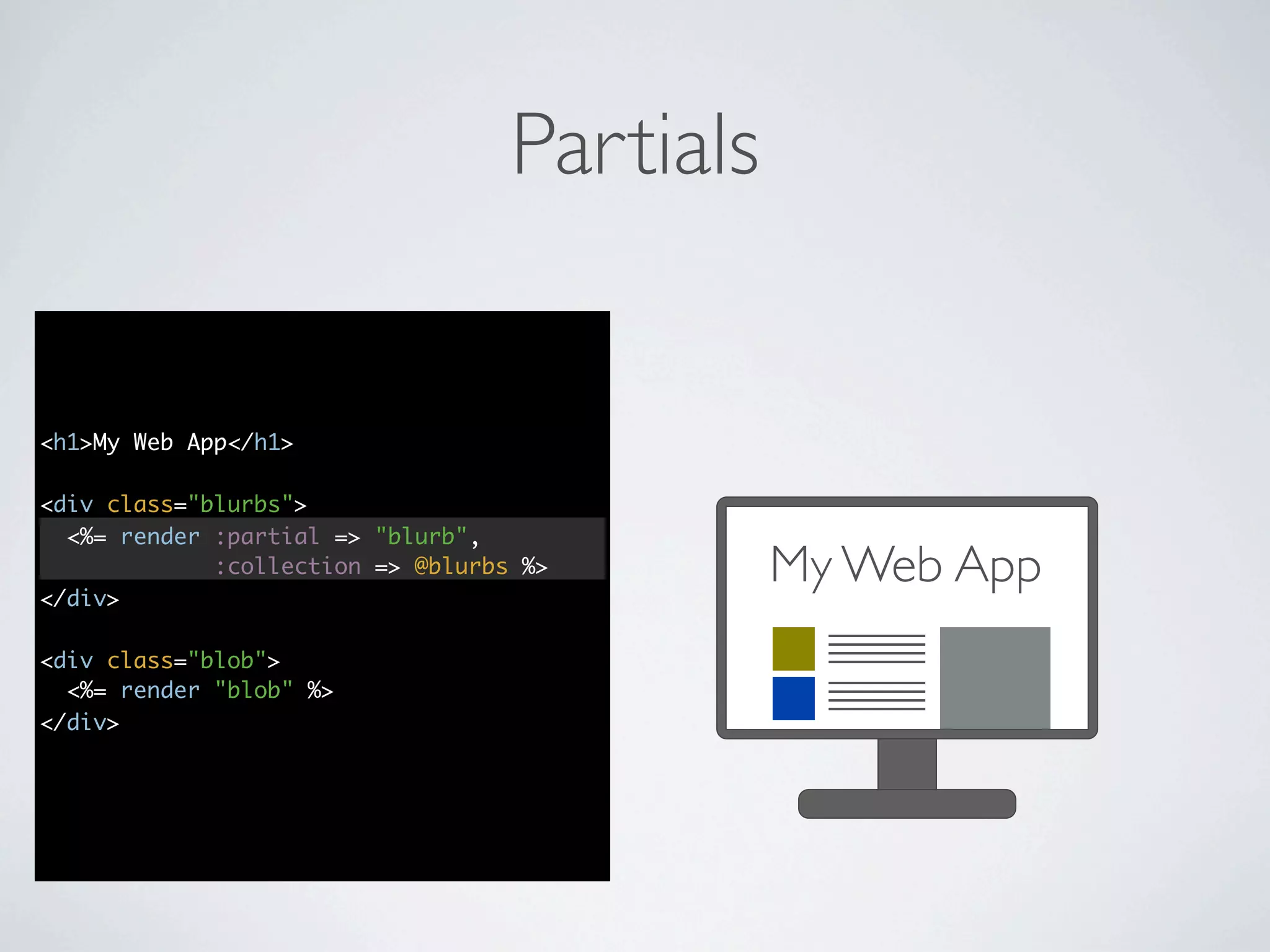

20. Partials
<h1>My Web App</h1>
<div class="blurbs">
<%= render :partial => "blurb",
</div>
:collection => @blurbs %> My Web App
<div class="blob">
<%= render "blob" %>
</div>

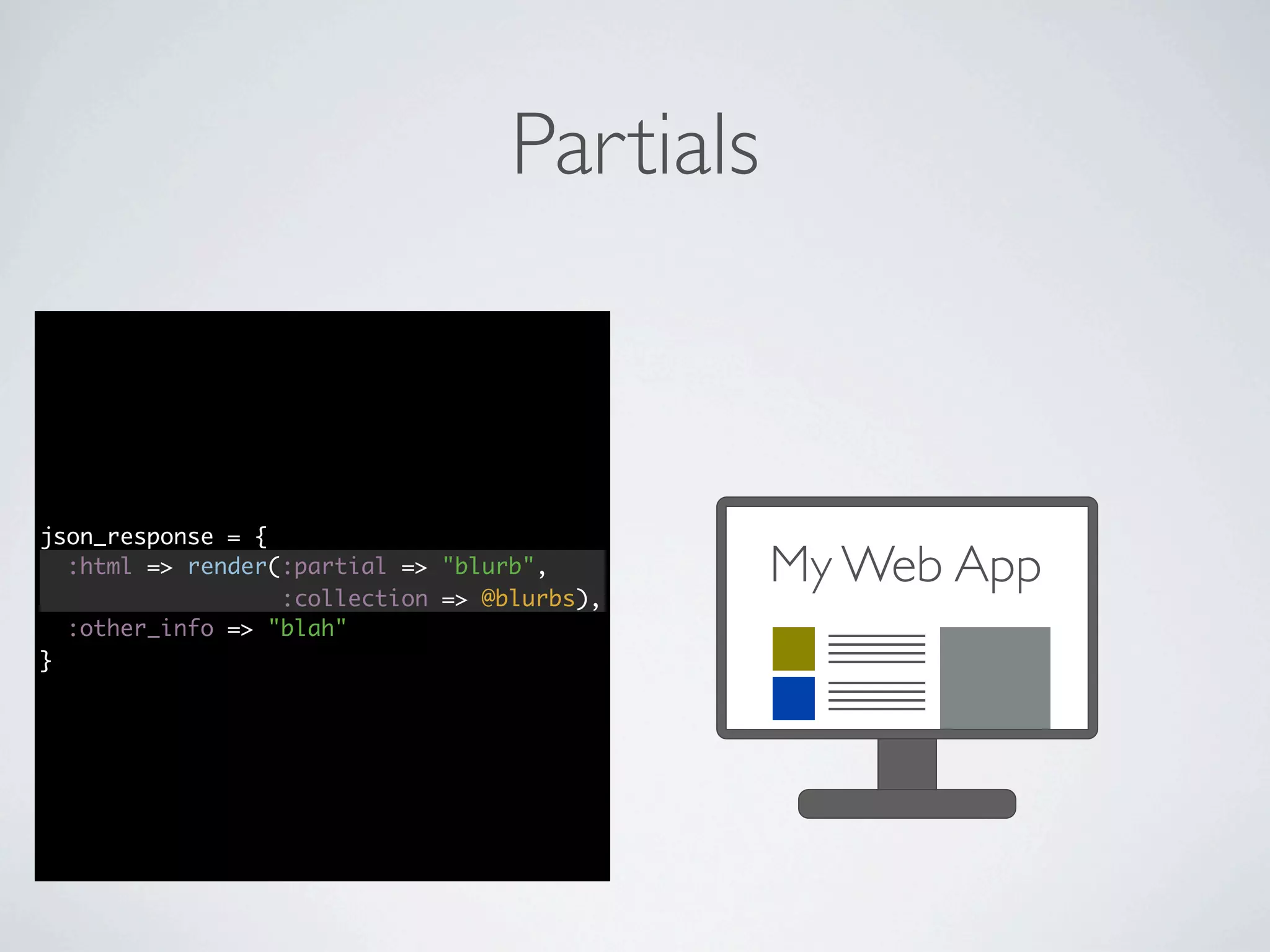

21. Partials
json_response = {
:html => render(:partial => "blurb",
:collection => @blurbs),
My Web App
:other_info => "blah"
}

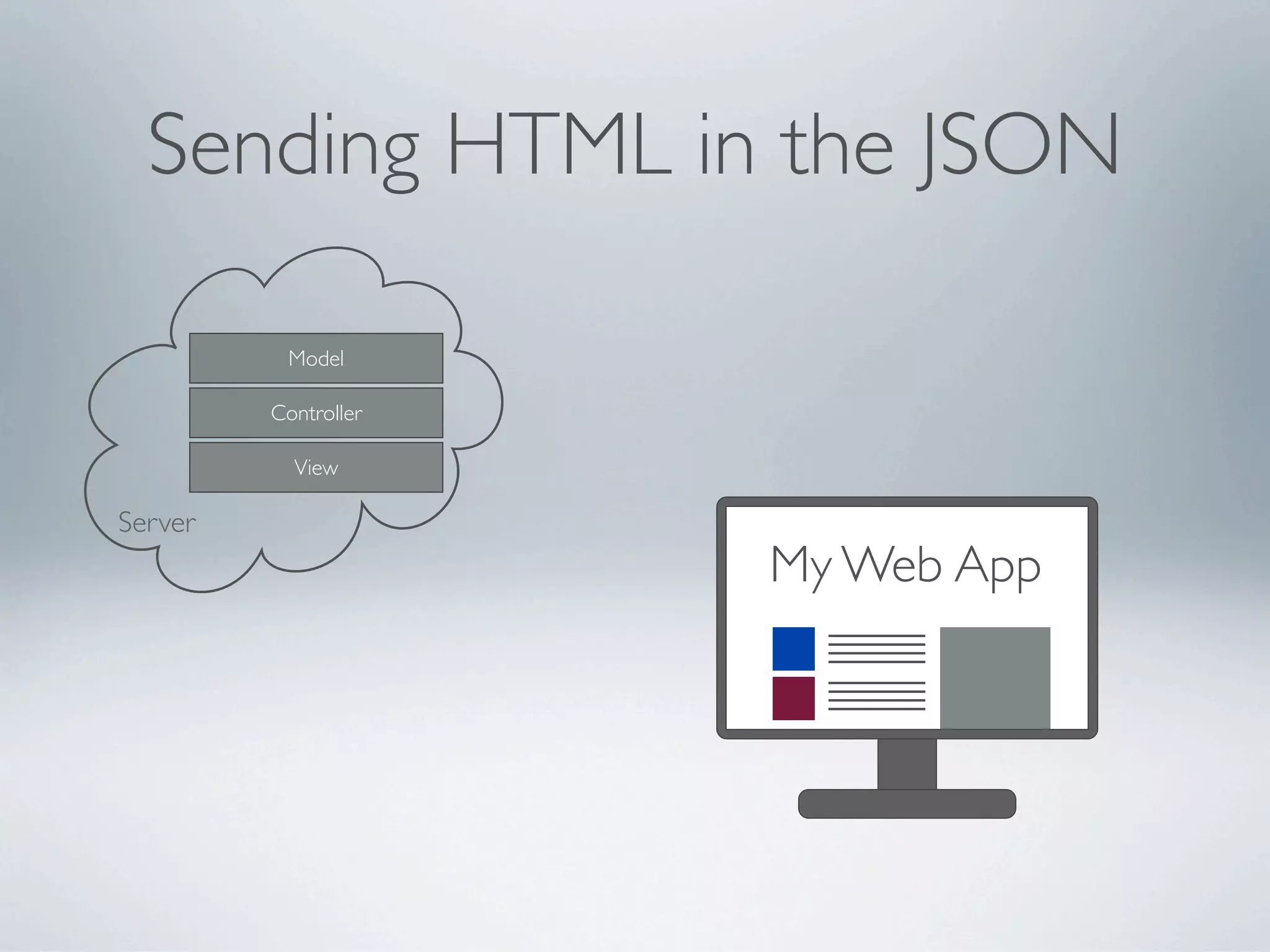

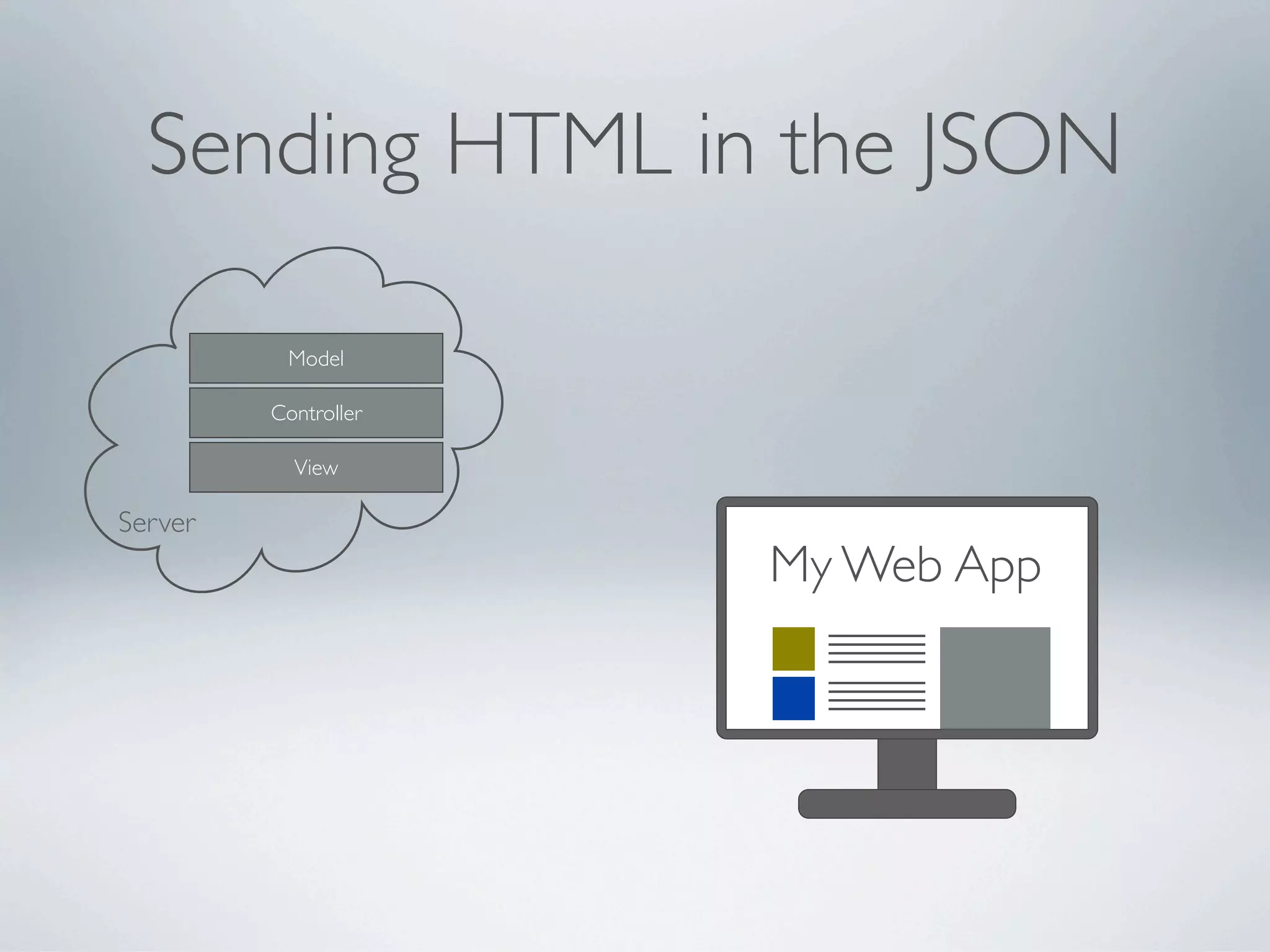

22. Sending HTML in the JSON
Model
Controller
View
Server
My Web App
XHR

23. Sending HTML in the JSON
Model
Controller
View
Server
JSON
My Web App
with
HTML

24. Is this a good solution?

25. Degrades gracefully

26. Easy to test

27. It works

28. It works
(up to a point)

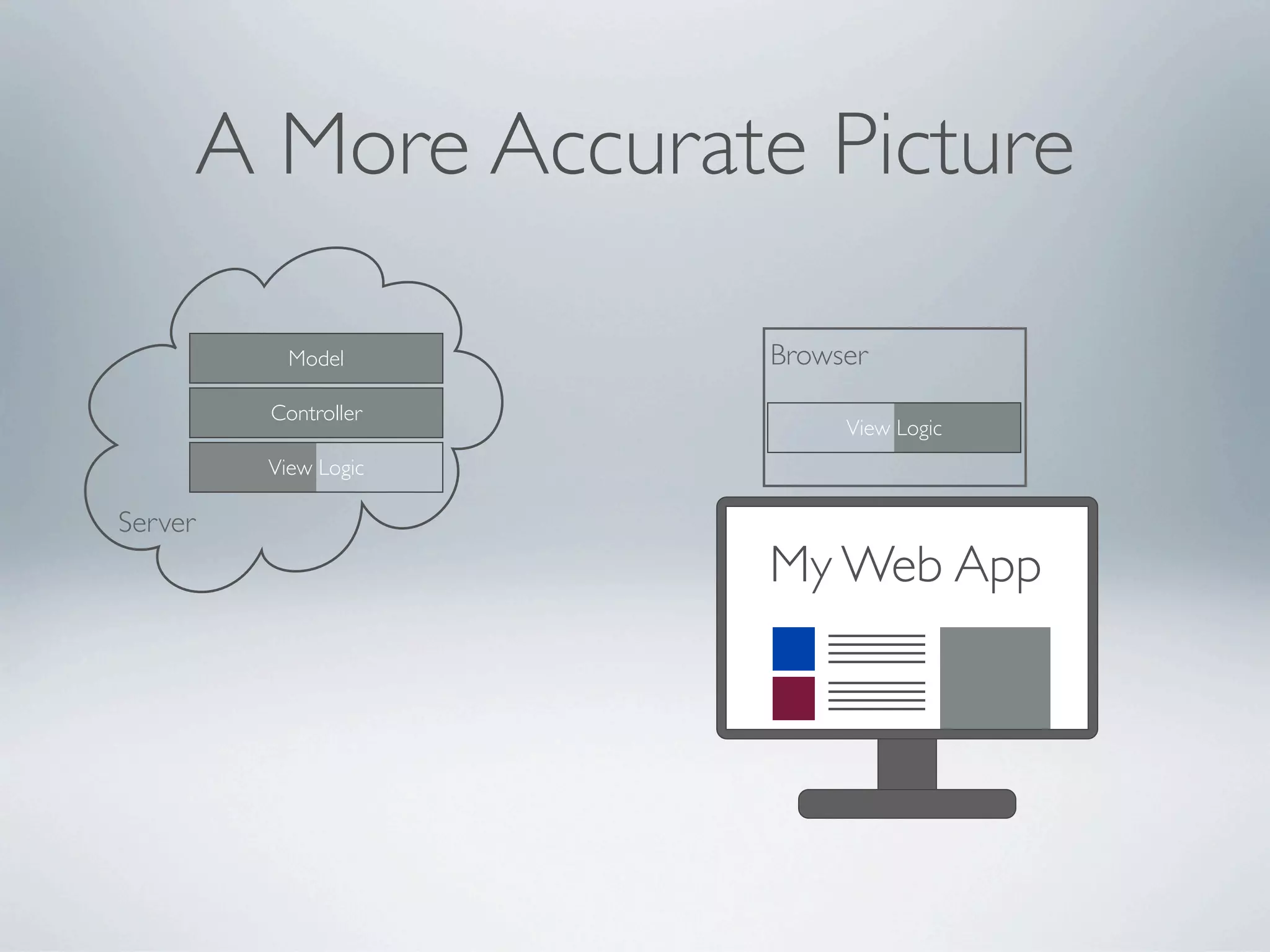

29. A More Accurate Picture
Model Browser
Controller
View Logic
View Logic
Server
My Web App
XHR

30. What happens when the front
end of the application becomes
as sophisticated as the back end?

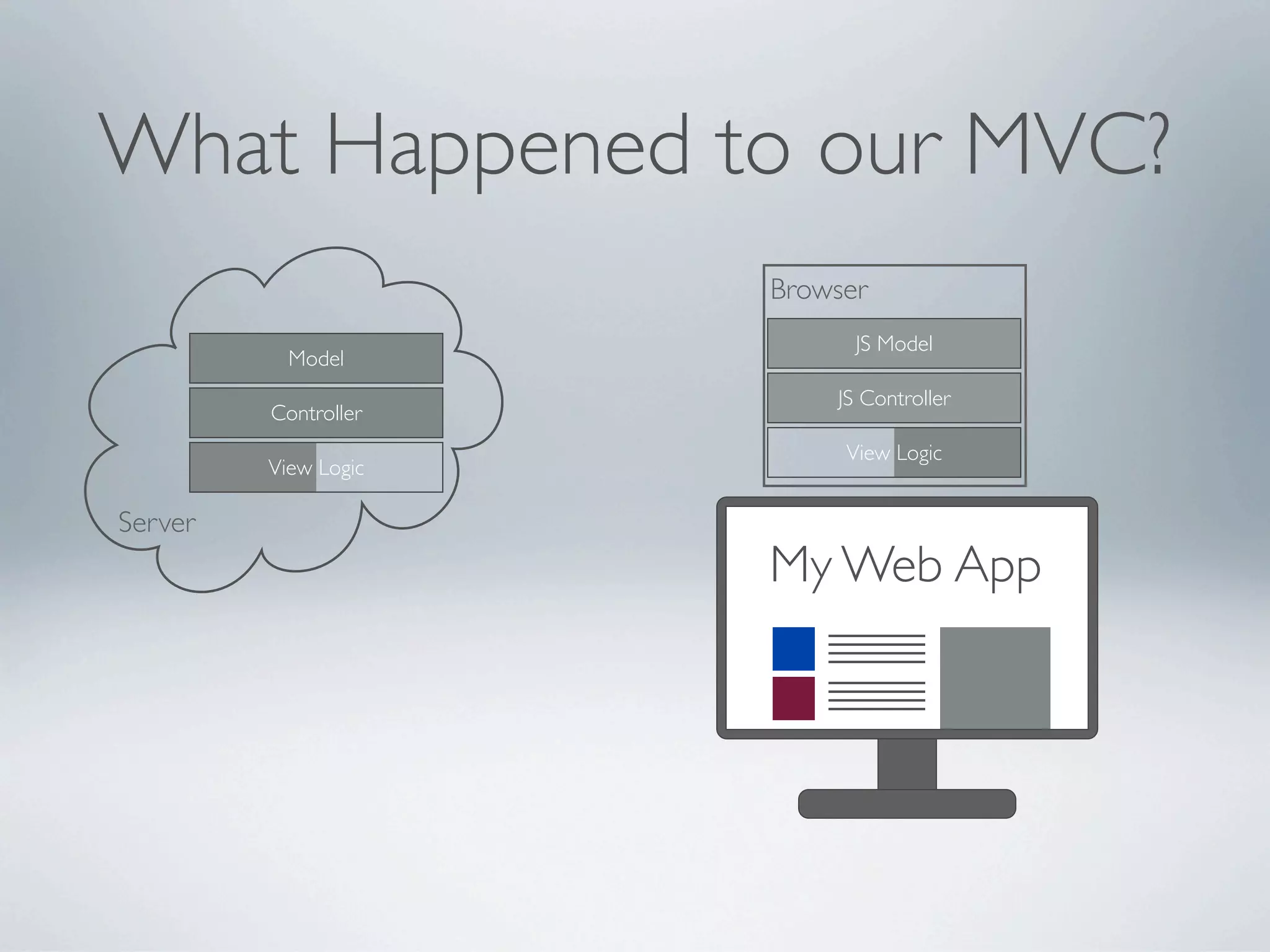

31. What Happened to our MVC?
Browser
JS Model
Model
JS Controller
Controller
View Logic
View Logic
Server
My Web App
XHR

32. A better way

33. Decouple

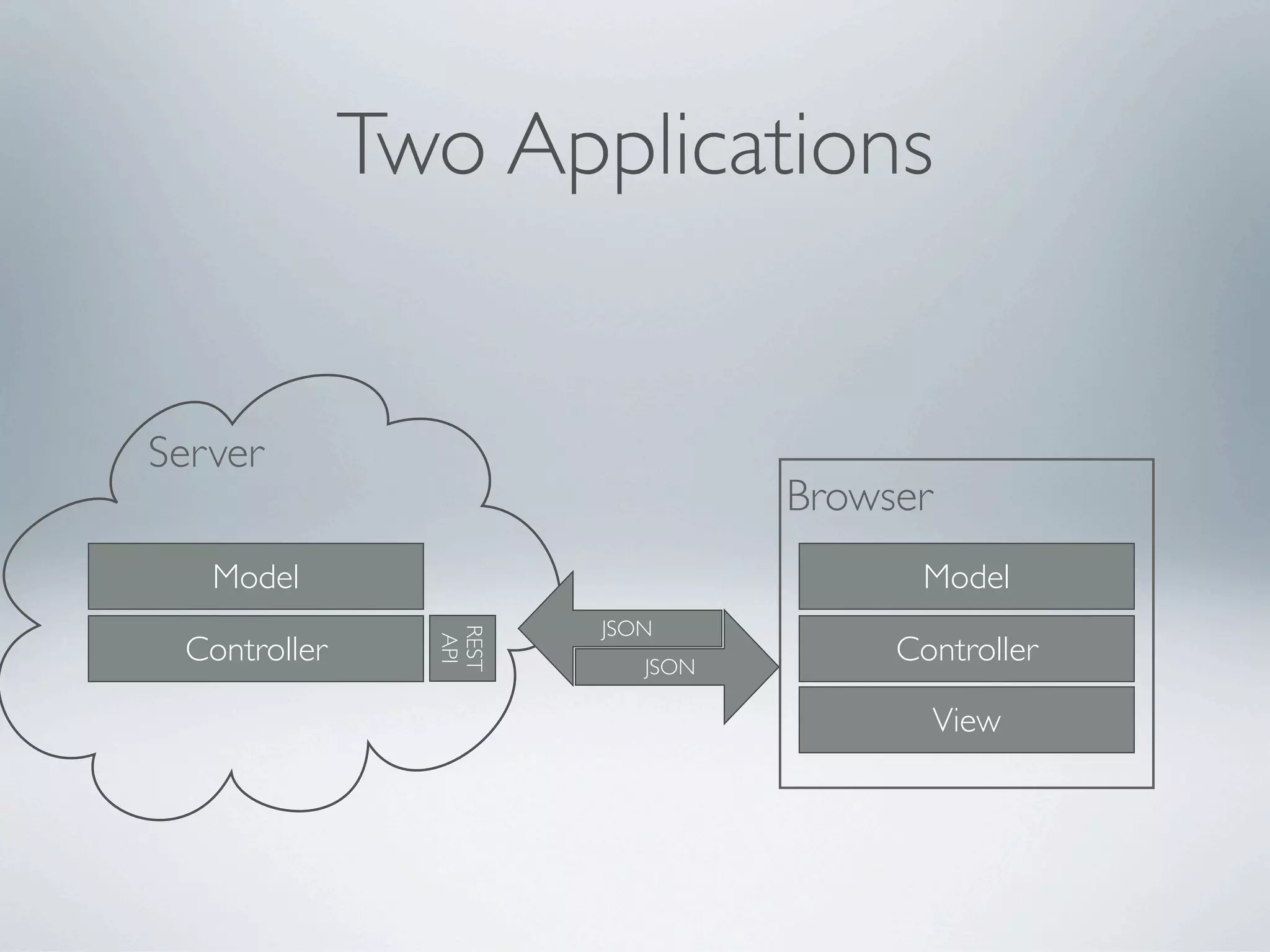

34. Two Applications
Server
Browser
Model Model
JSON
REST
Controller Controller
API
JSON
View

35. How do we achieve this?

36. Rails + Javascript Framework

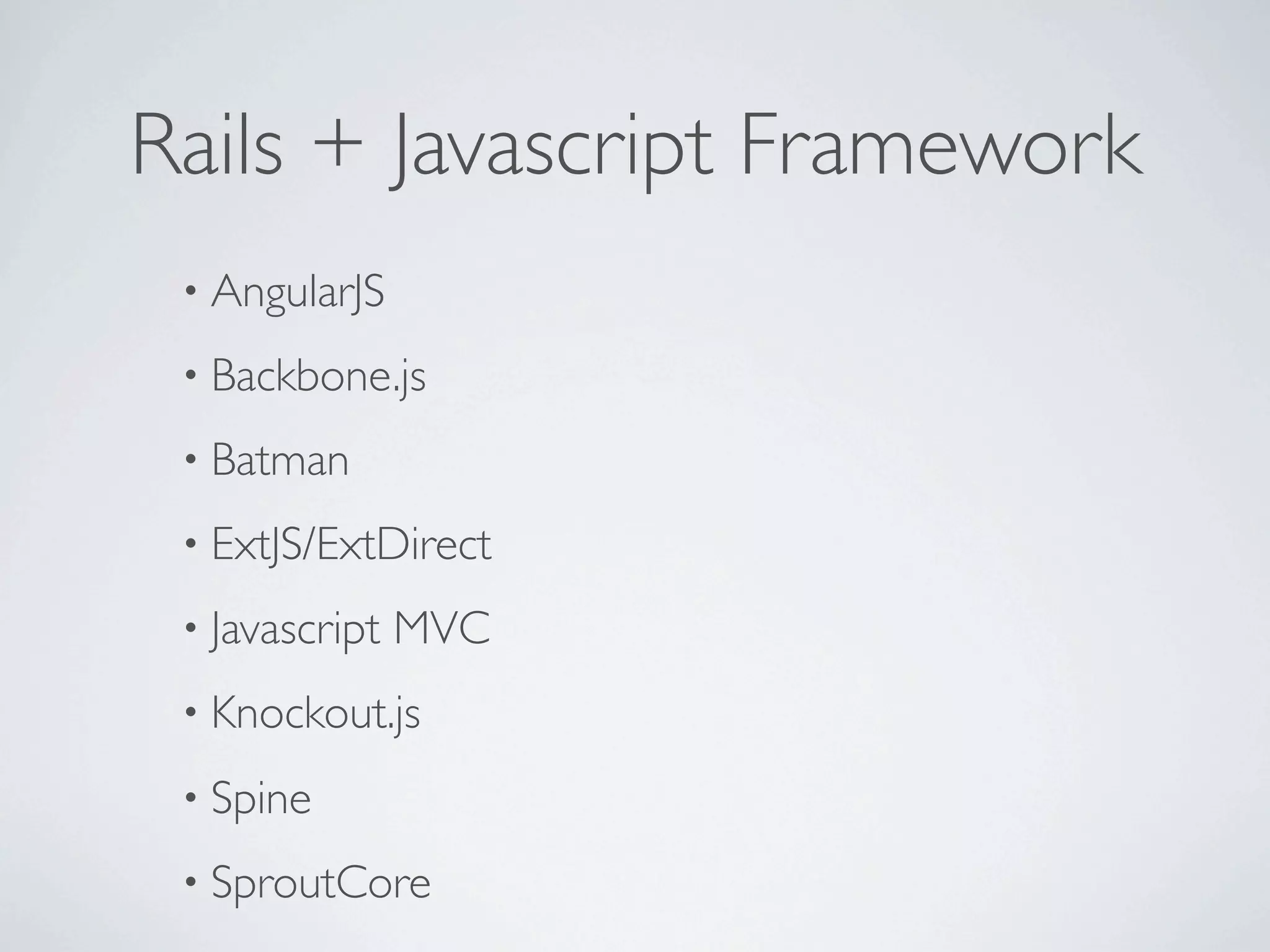

37. Rails + Javascript Framework
• AngularJS
• Backbone.js
• Batman
• ExtJS/ExtDirect
• Javascript MVC
• Knockout.js
• Spine
• SproutCore

38. What are we looking for?

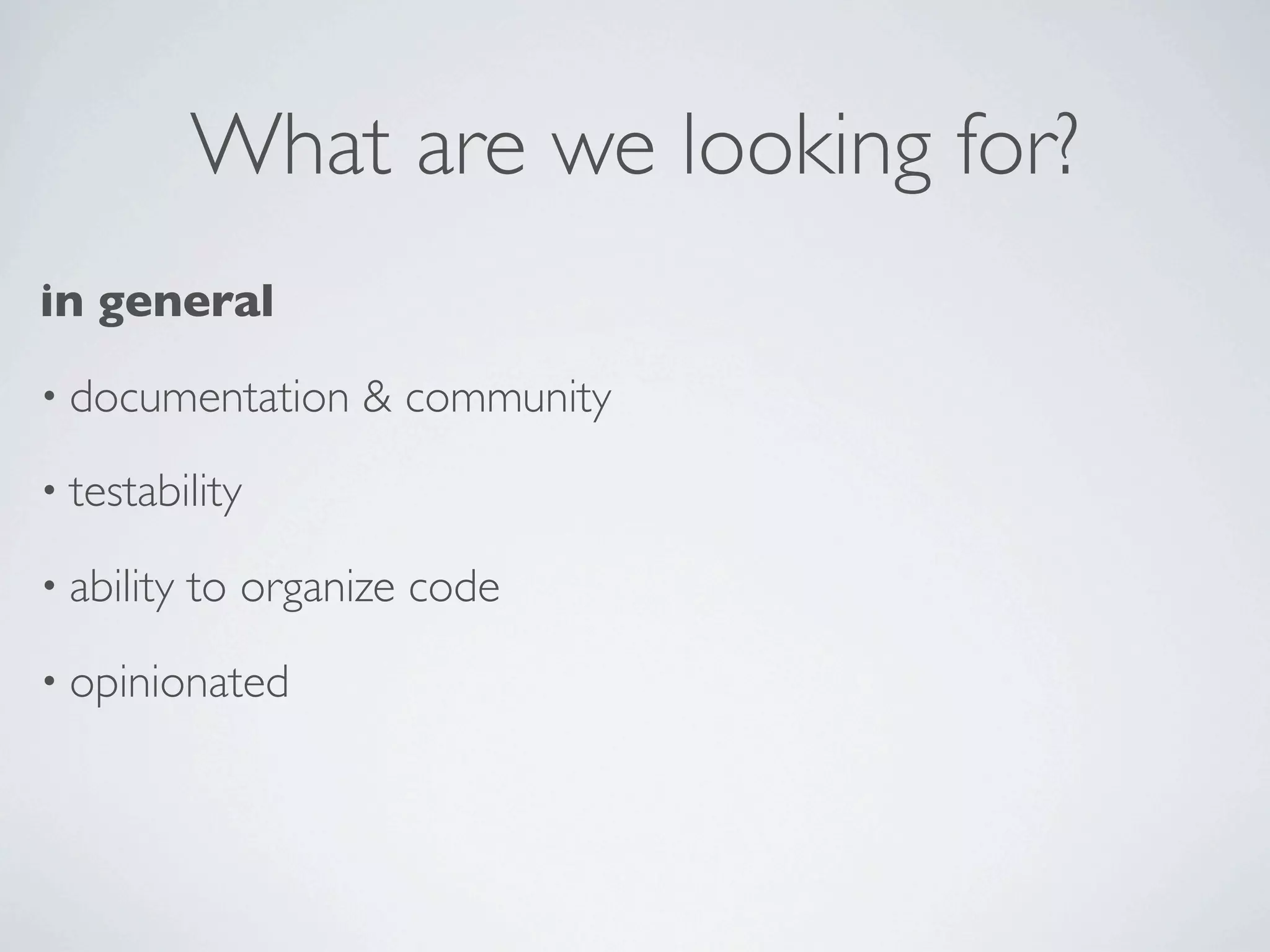

39. What are we looking for?
in general
• documentation & community
• testability
• ability to organize code
• opinionated

40. What are we looking for?
in general
• documentation & community
• testability
• ability to organize code
• opinionated

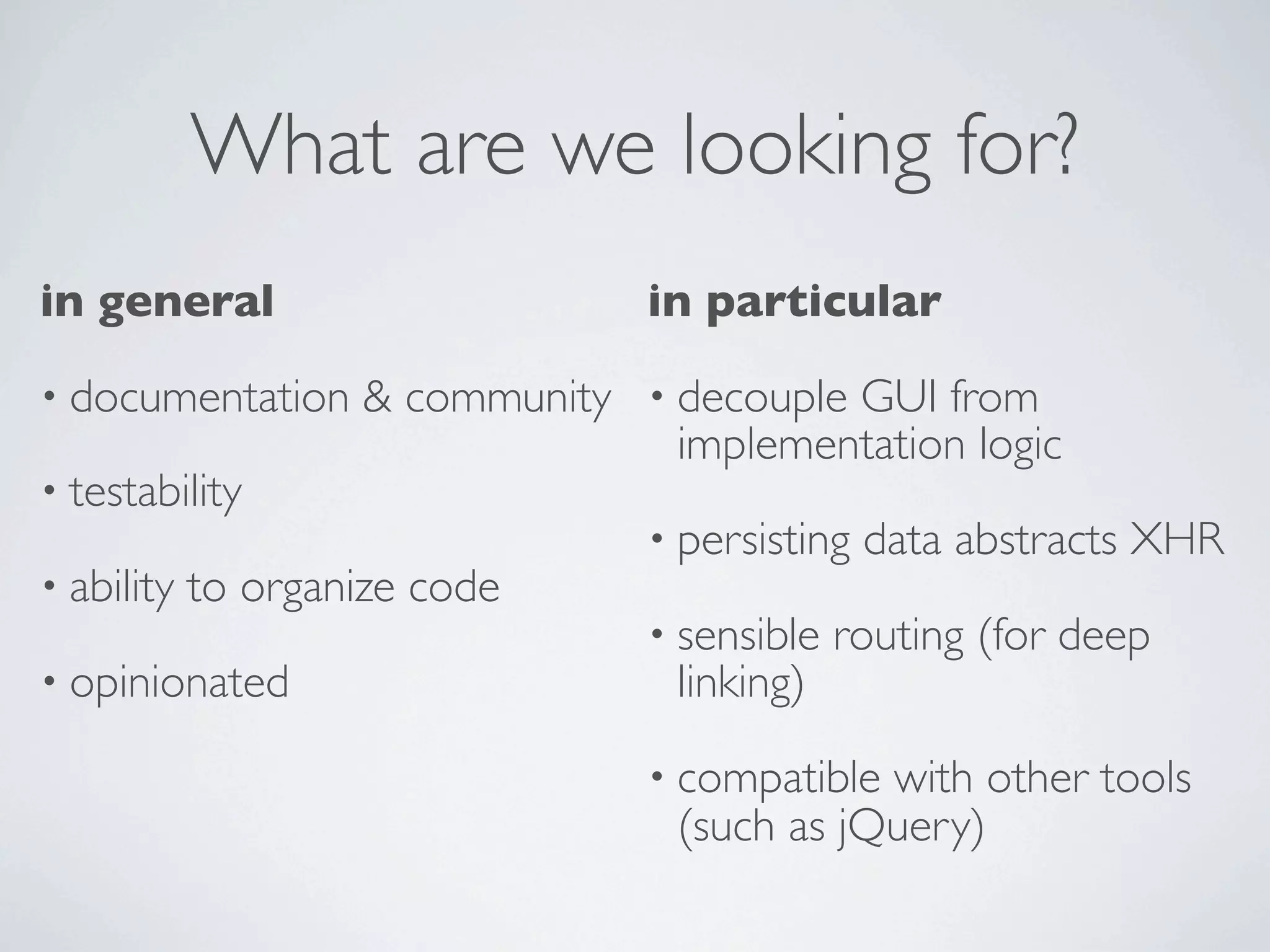

41. What are we looking for?
in general in particular
• documentation & community • decouple GUI from
implementation logic
• testability
• persisting data abstracts XHR
• ability to organize code
• sensible routing (for deep
• opinionated linking)
• compatible with other tools
(such as jQuery)

42. AngularJS

43. Documentation & community
http://angularjs.org

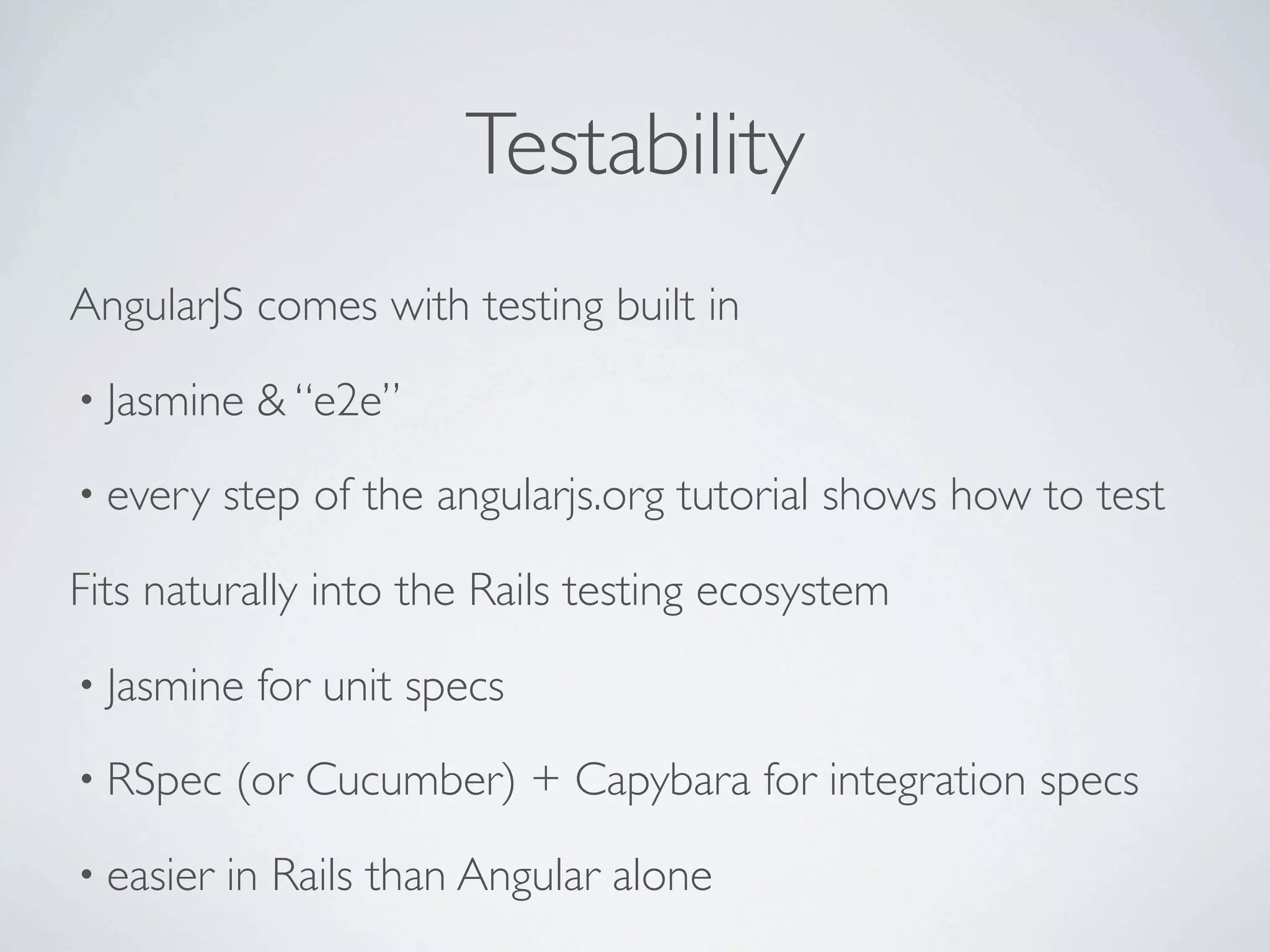

44. Testability
AngularJS comes with testing built in
• Jasmine & “e2e”
• every step of the angularjs.org tutorial shows how to test
Fits naturally into the Rails testing ecosystem
• Jasmine for unit specs
• RSpec (or Cucumber) + Capybara for integration specs
• easier in Rails than Angular alone

45. Organization & Opinionation
will become apparent as we explore the code

46. A demo app
Rails 3.1 + AngularJS
http://github.com/centresource/angularjs_rails_demo

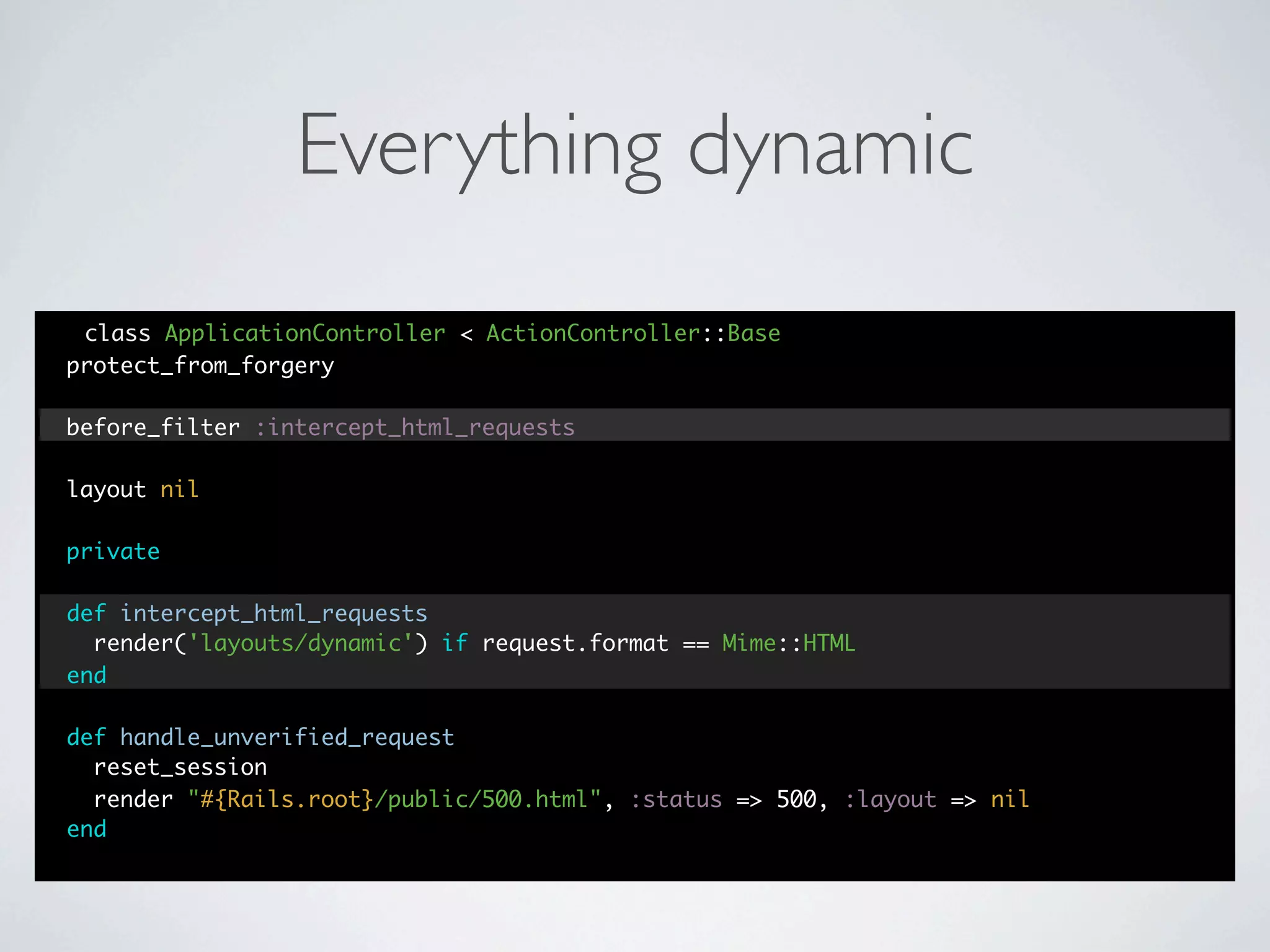

47. Everything dynamic
class ApplicationController < ActionController::Base
protect_from_forgery
before_filter :intercept_html_requests
layout nil
private
def intercept_html_requests
render('layouts/dynamic') if request.format == Mime::HTML
end
def handle_unverified_request
reset_session
render "#{Rails.root}/public/500.html", :status => 500, :layout => nil
end

48. views / layouts / dynamic.html.erb
<!doctype html>
<html xmlns:ng="http://angularjs.org/">
<head>
<meta charset="utf-8">
<title>Angular Rails Demo</title>
<%= stylesheet_link_tag "application" %>
<%= csrf_meta_tag %>
</head>
<body ng:controller="PhotoGalleryCtrl">
<ng:view></ng:view>
<script src="/assets/angular.min.js" ng:autobind></script>
<%= javascript_include_tag "application" -%>
</body>
</html>

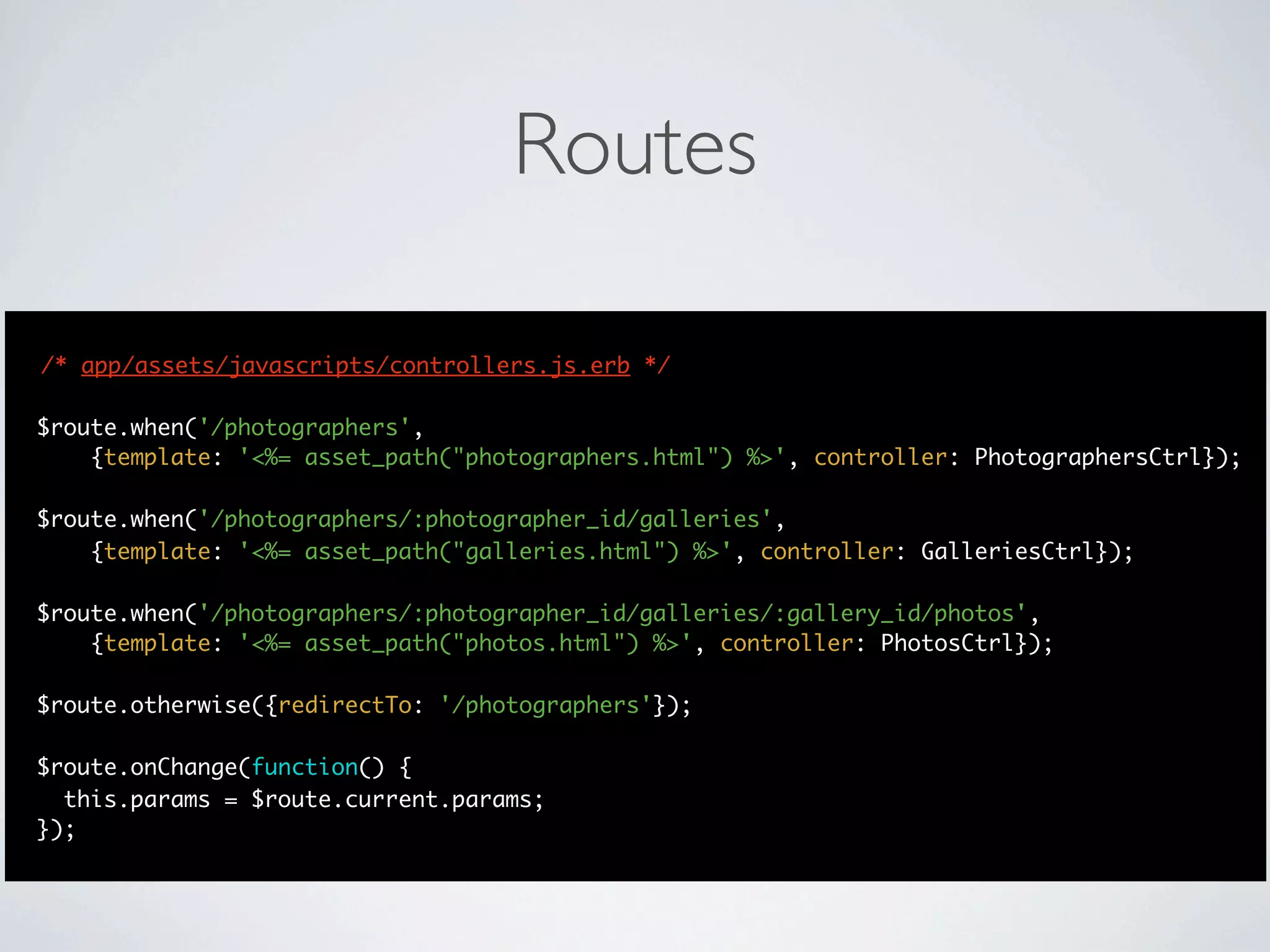

49. Routes
/* app/assets/javascripts/controllers.js.erb */
$route.when('/photographers',
{template: '<%= asset_path("photographers.html") %>', controller: PhotographersCtrl});
$route.when('/photographers/:photographer_id/galleries',
{template: '<%= asset_path("galleries.html") %>', controller: GalleriesCtrl});
$route.when('/photographers/:photographer_id/galleries/:gallery_id/photos',
{template: '<%= asset_path("photos.html") %>', controller: PhotosCtrl});
$route.otherwise({redirectTo: '/photographers'});
$route.onChange(function() {
this.params = $route.current.params;
});

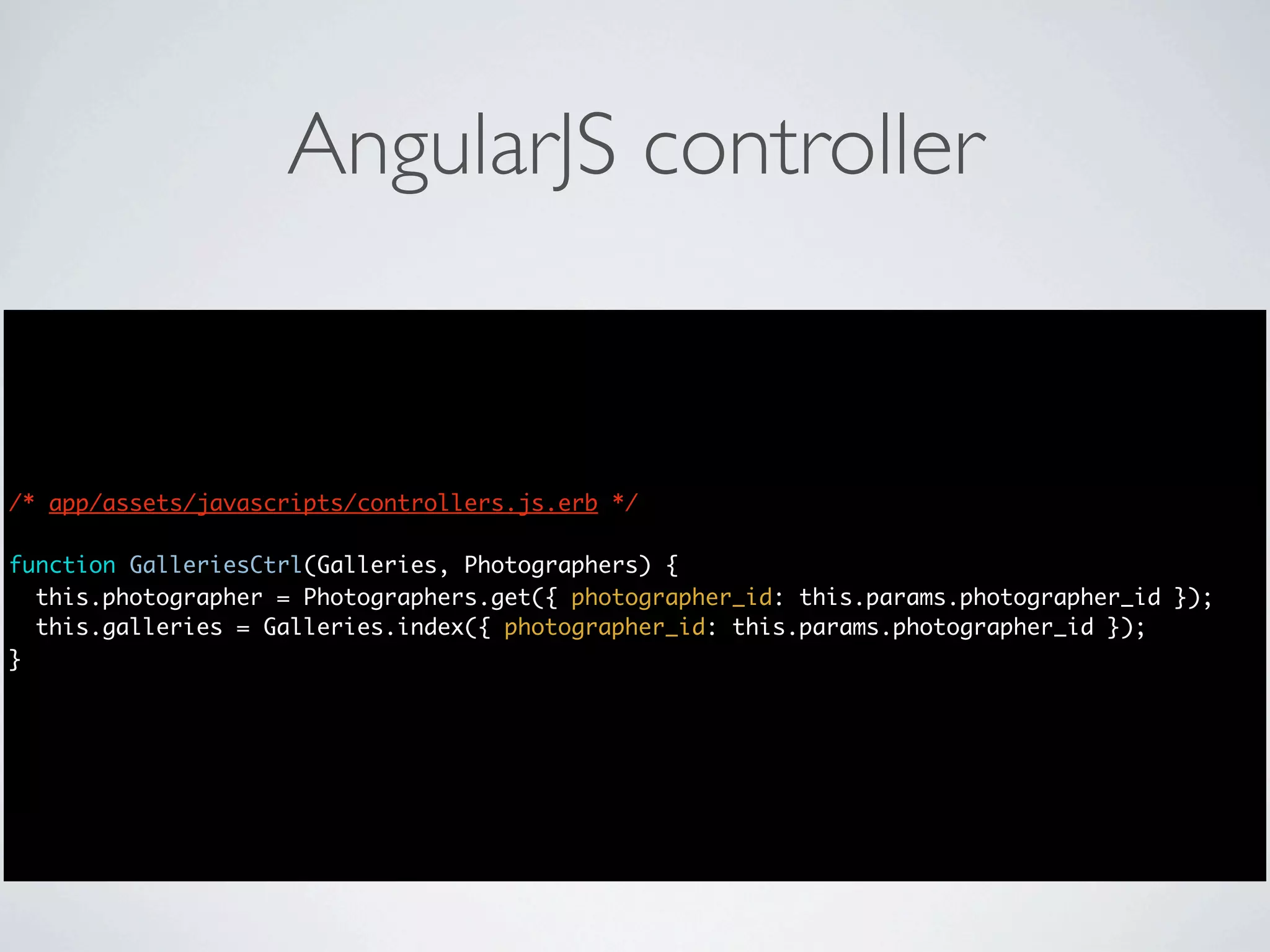

50. AngularJS controller
/* app/assets/javascripts/controllers.js.erb */
function GalleriesCtrl(Galleries, Photographers) {
this.photographer = Photographers.get({ photographer_id: this.params.photographer_id });
this.galleries = Galleries.index({ photographer_id: this.params.photographer_id });
}

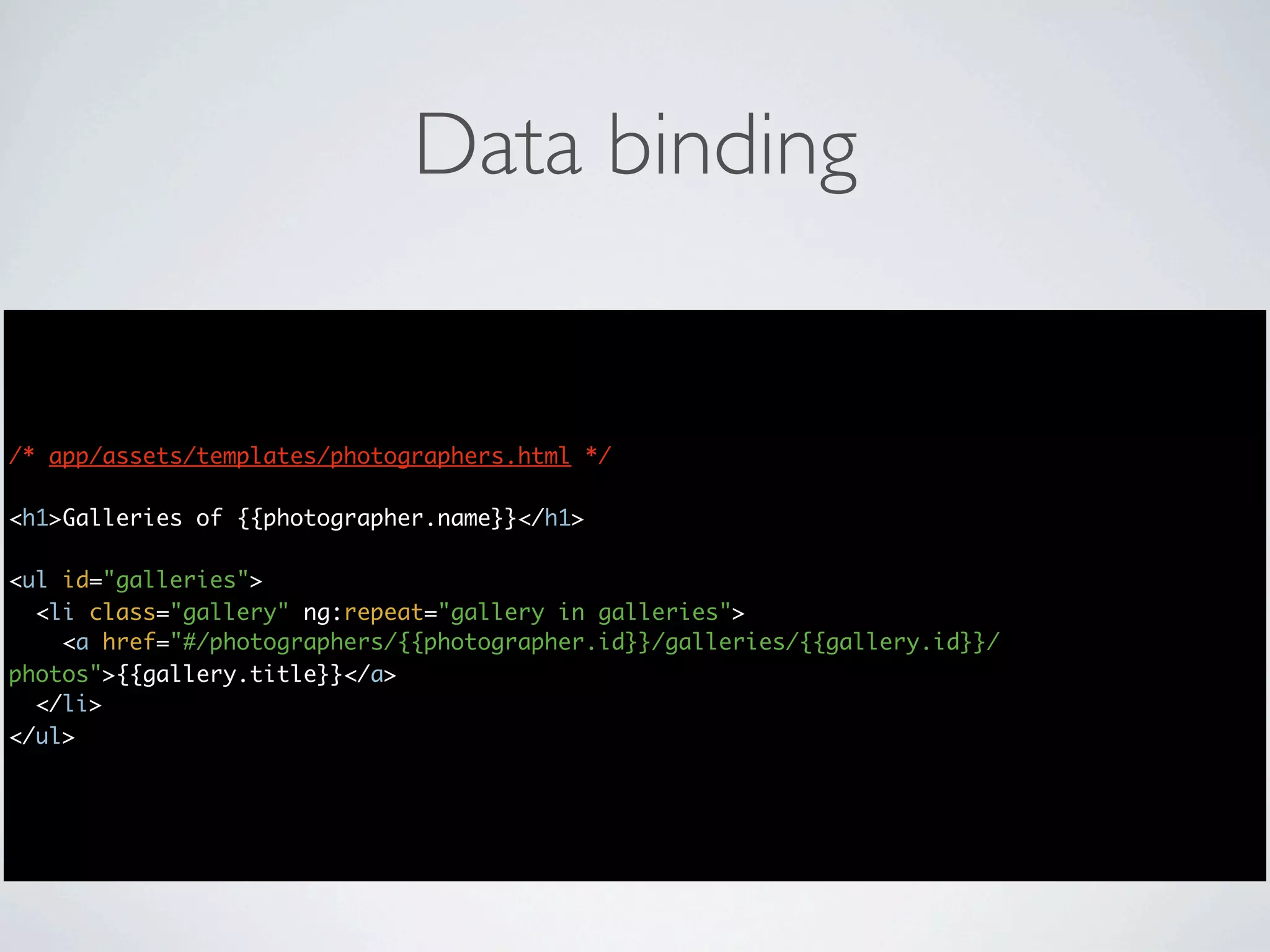

51. Data binding
/* app/assets/templates/photographers.html */
<h1>Galleries of {{photographer.name}}</h1>
<ul id="galleries">
<li class="gallery" ng:repeat="gallery in galleries">
<a href="#/photographers/{{photographer.id}}/galleries/{{gallery.id}}/
photos">{{gallery.title}}</a>
</li>
</ul>

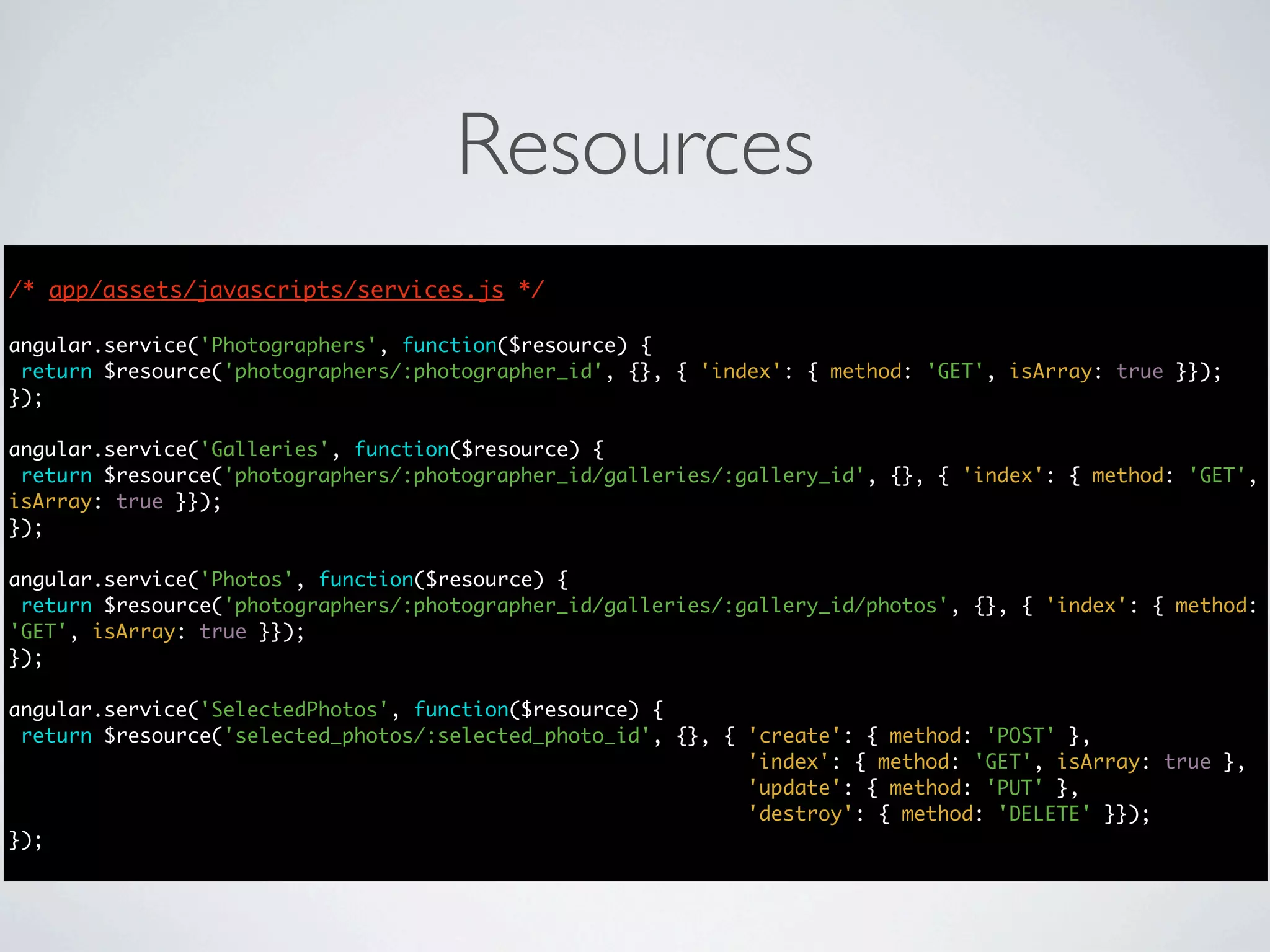

52. Resources
/* app/assets/javascripts/services.js */
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
});
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
isArray: true }});
});
angular.service('Photos', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

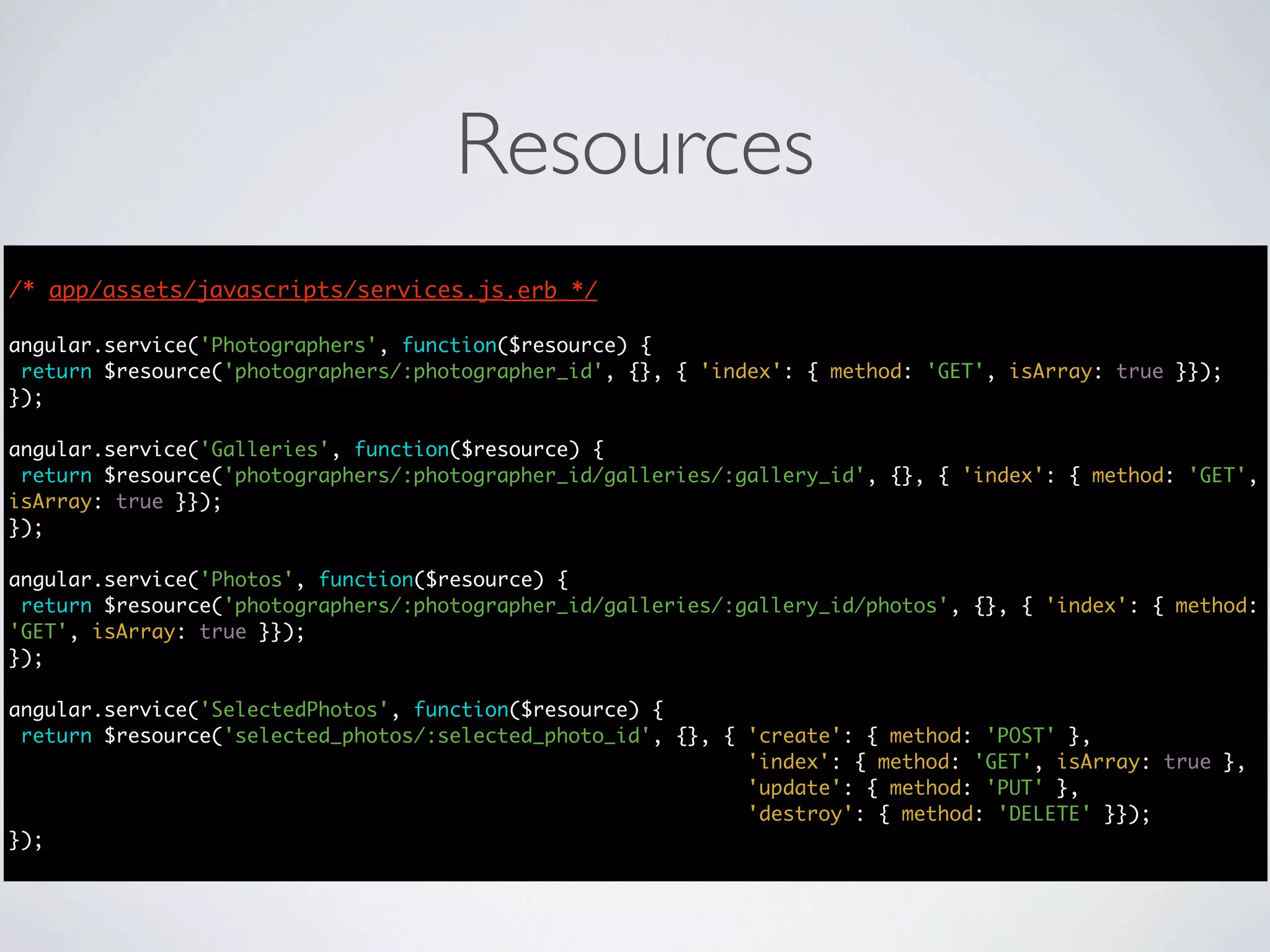

53. Resources
/* app/assets/javascripts/services.js.erb */
*/
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
});
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
isArray: true }});
});
angular.service('Photos', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

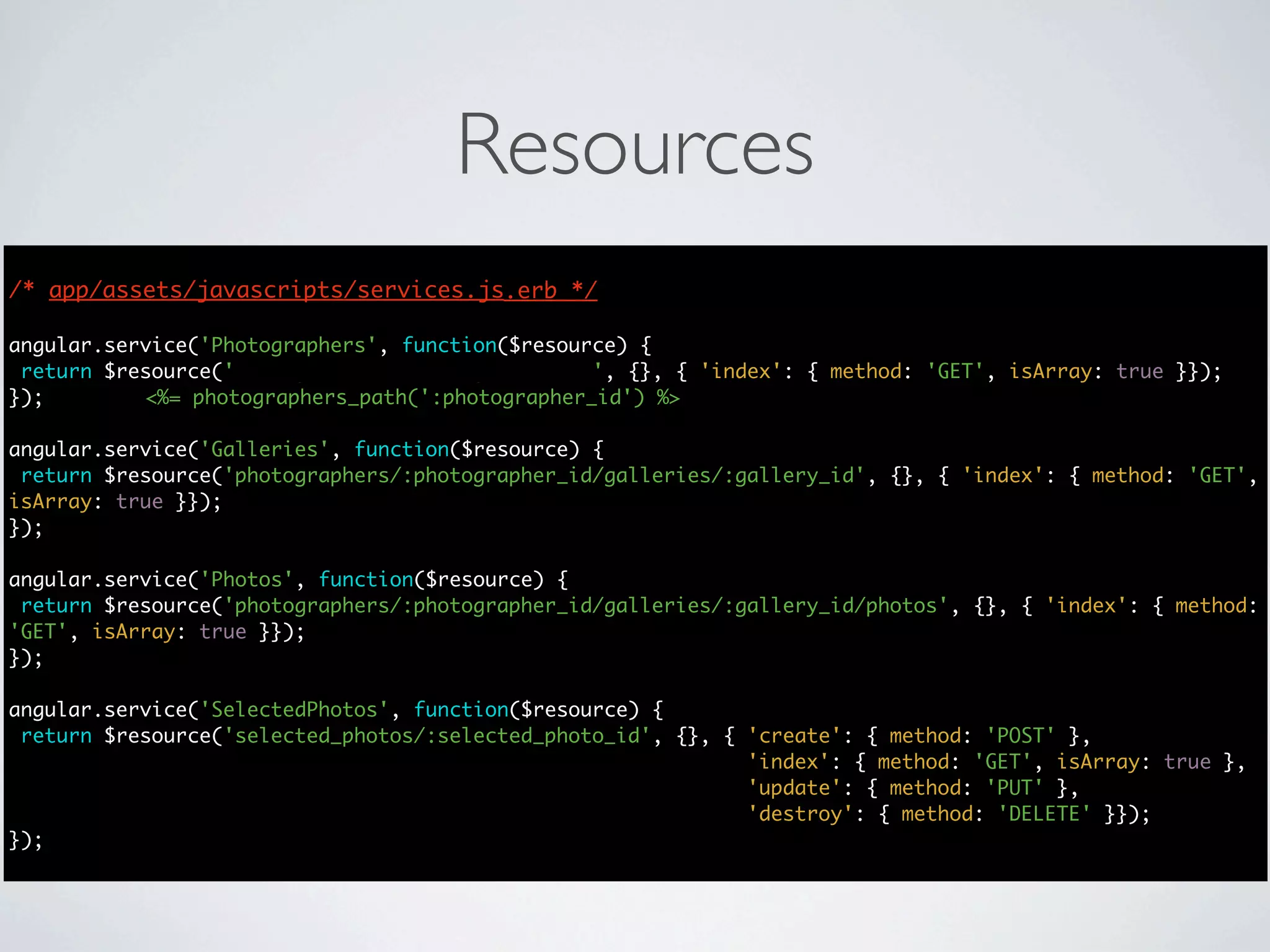

54. Resources
/* app/assets/javascripts/services.js.erb */
*/
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
}); <%= photographers_path(':photographer_id') %>
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
isArray: true }});
});
angular.service('Photos', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

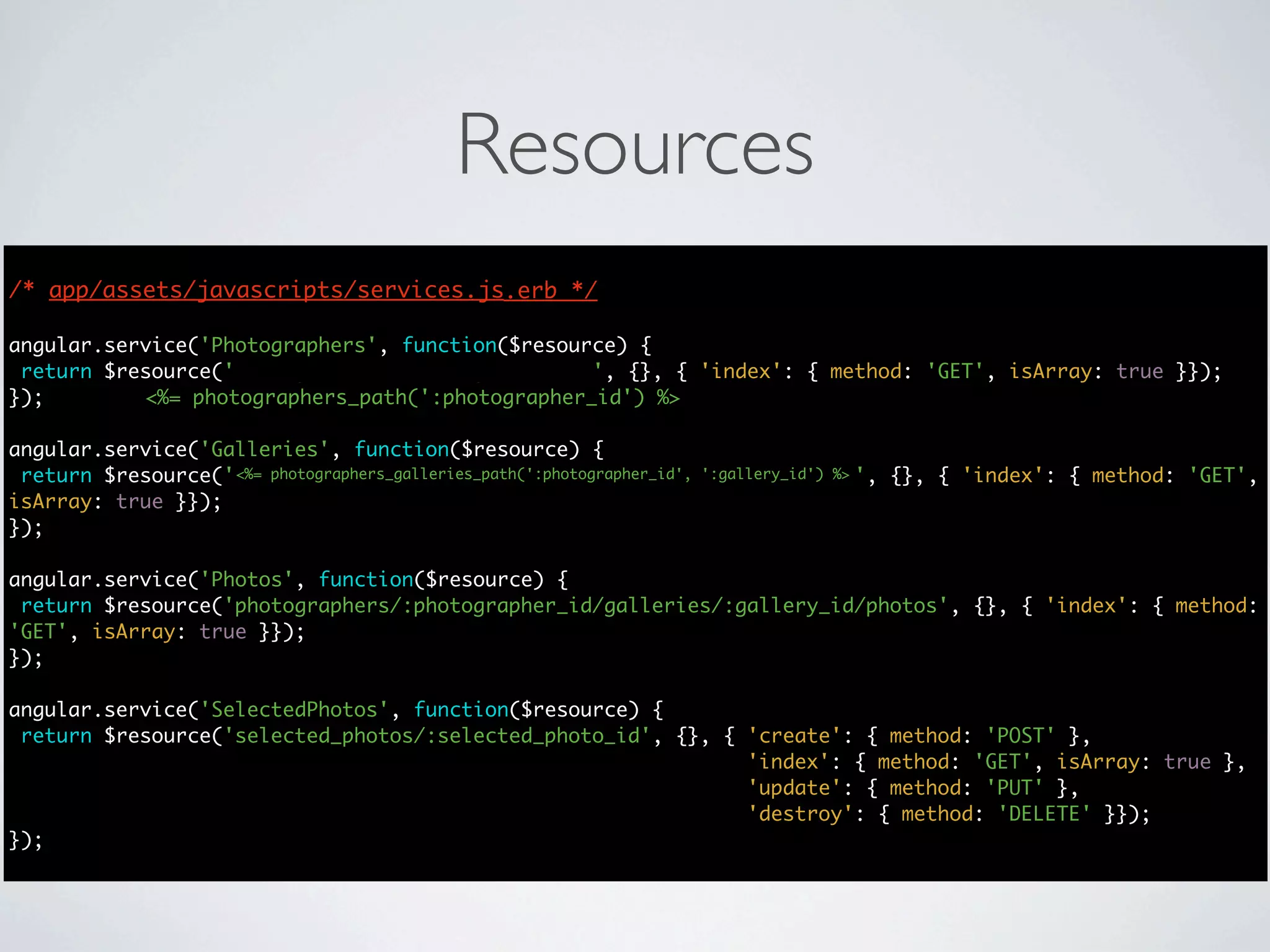

55. Resources
/* app/assets/javascripts/services.js.erb */
*/
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
}); <%= photographers_path(':photographer_id') %>
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
<%= photographers_galleries_path(':photographer_id', ':gallery_id') %>
isArray: true }});
});
angular.service('Photos', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

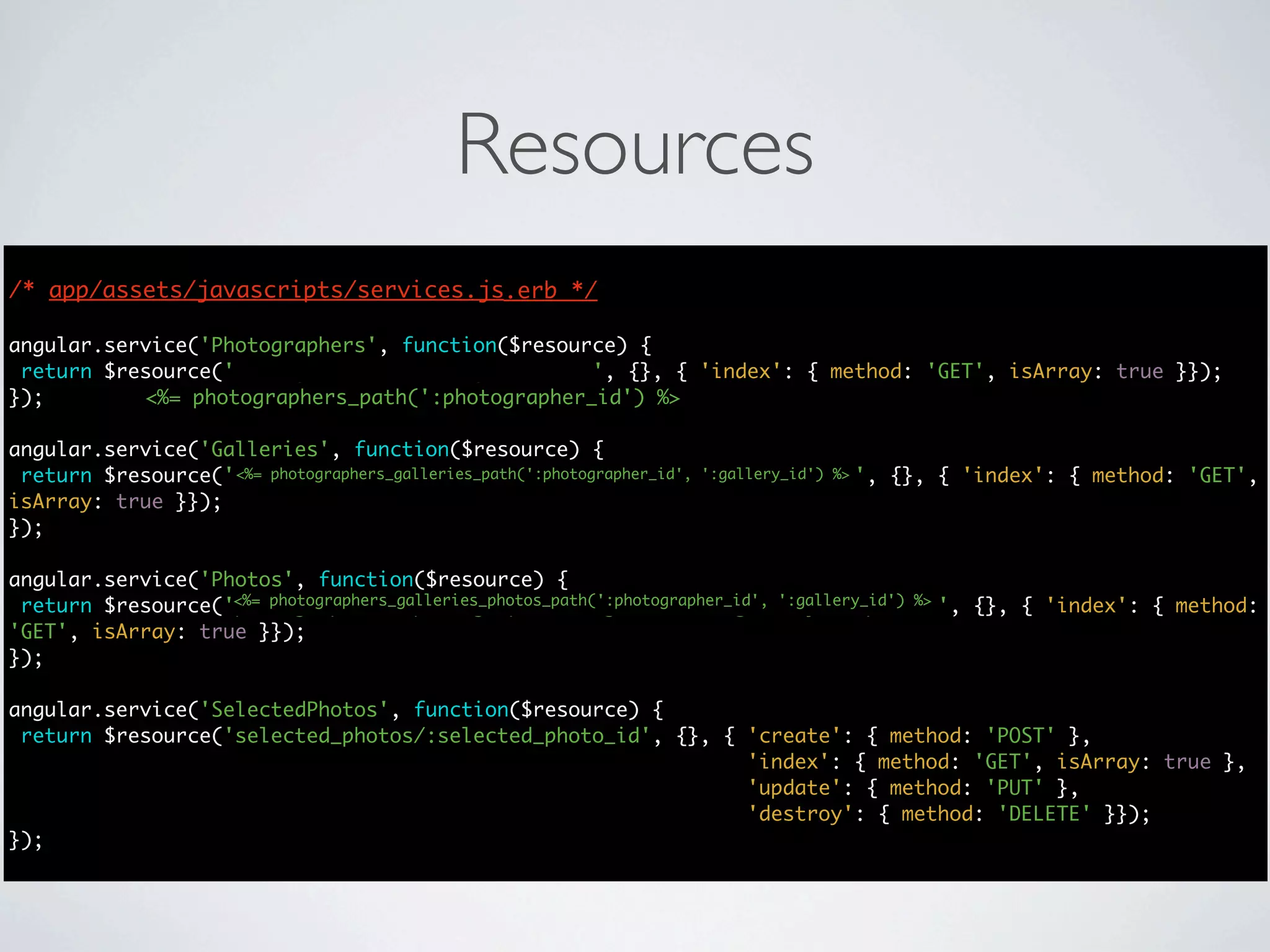

56. Resources
/* app/assets/javascripts/services.js.erb */
*/
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
}); <%= photographers_path(':photographer_id') %>
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
<%= photographers_galleries_path(':photographer_id', ':gallery_id') %>
isArray: true }});
});
angular.service('Photos', function($resource) {
<%= photographers_galleries_photos_path(':photographer_id', ':gallery_id') %>
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

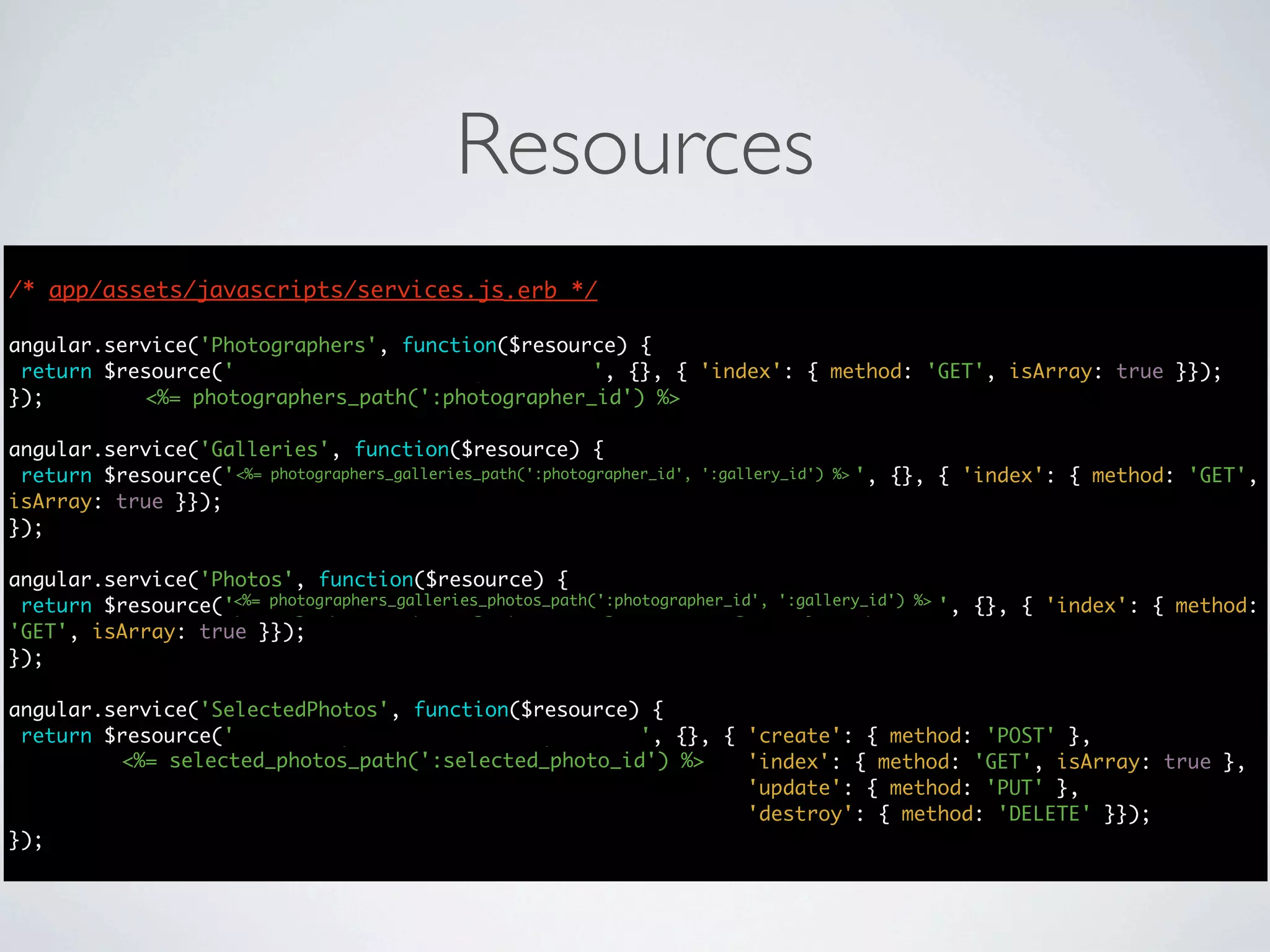

57. Resources
/* app/assets/javascripts/services.js.erb */
*/
angular.service('Photographers', function($resource) {
return $resource('photographers/:photographer_id', {}, { 'index': { method: 'GET', isArray: true }});
}); <%= photographers_path(':photographer_id') %>
angular.service('Galleries', function($resource) {
return $resource('photographers/:photographer_id/galleries/:gallery_id', {}, { 'index': { method: 'GET',
<%= photographers_galleries_path(':photographer_id', ':gallery_id') %>
isArray: true }});
});
angular.service('Photos', function($resource) {
<%= photographers_galleries_photos_path(':photographer_id', ':gallery_id') %>
return $resource('photographers/:photographer_id/galleries/:gallery_id/photos', {}, { 'index': { method:
'GET', isArray: true }});
});
angular.service('SelectedPhotos', function($resource) {
return $resource('selected_photos/:selected_photo_id', {}, { 'create': { method: 'POST' },
<%= selected_photos_path(':selected_photo_id') %> 'index': { method: 'GET', isArray: true },
'update': { method: 'PUT' },
'destroy': { method: 'DELETE' }});
});

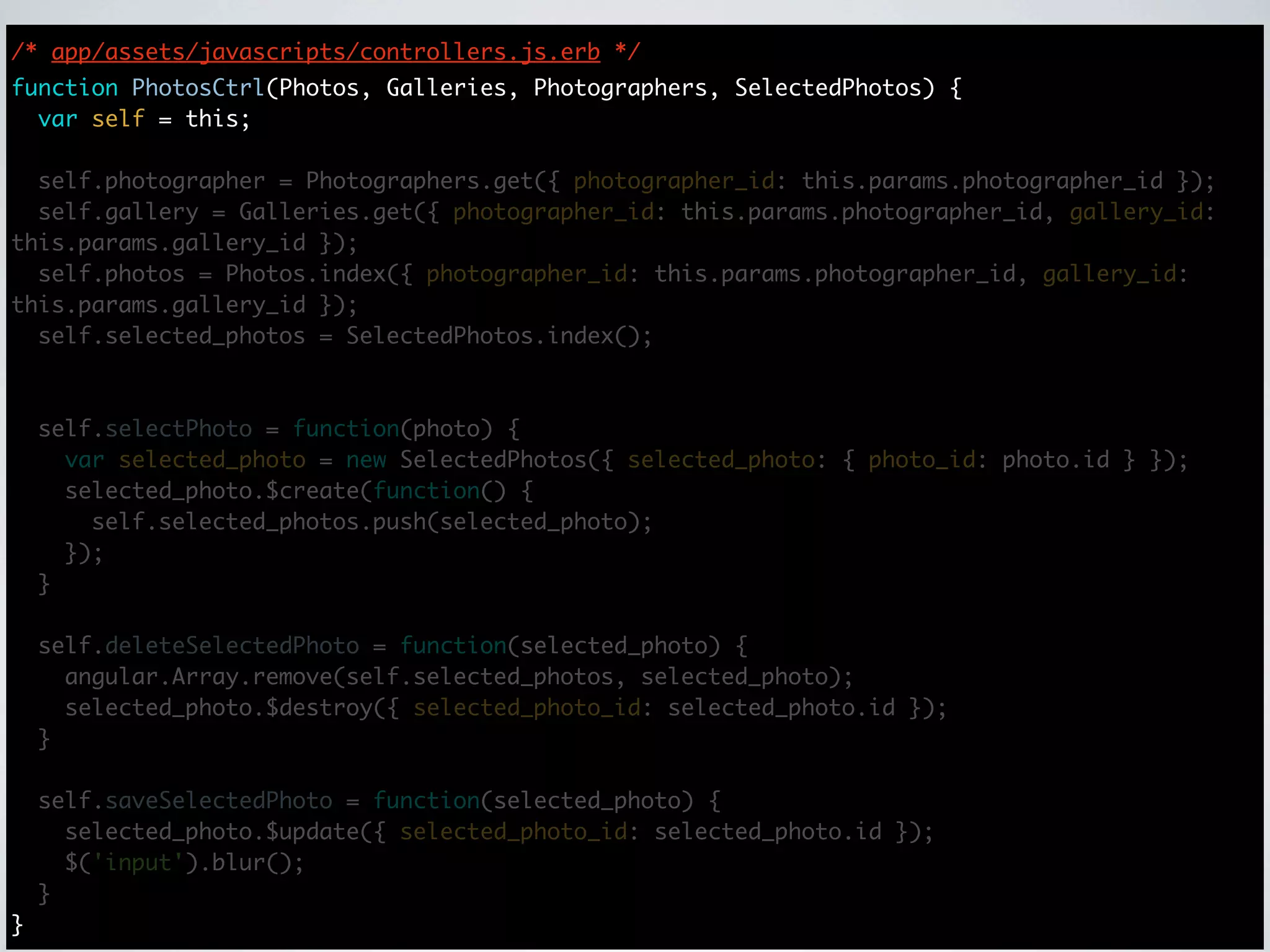

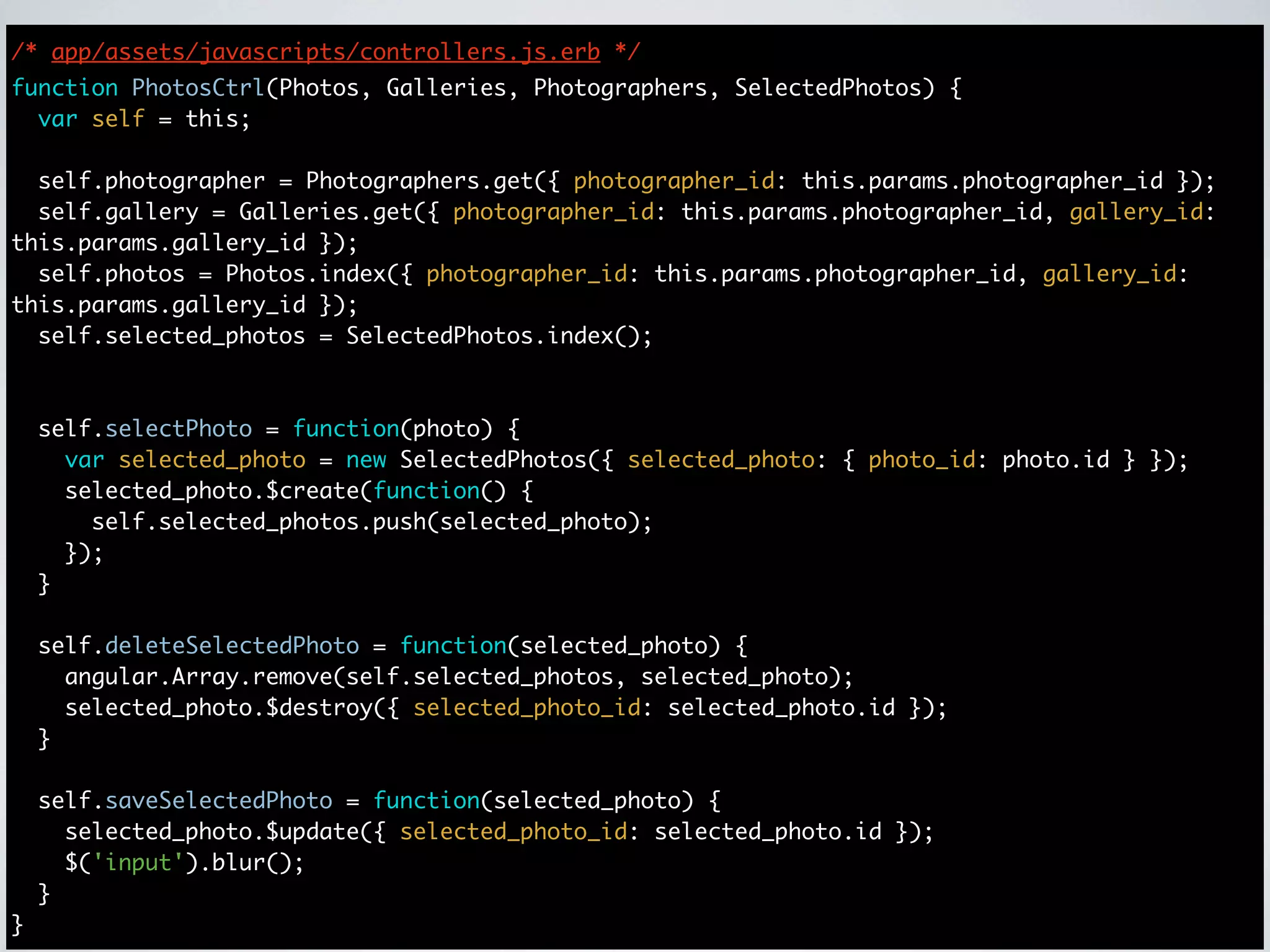

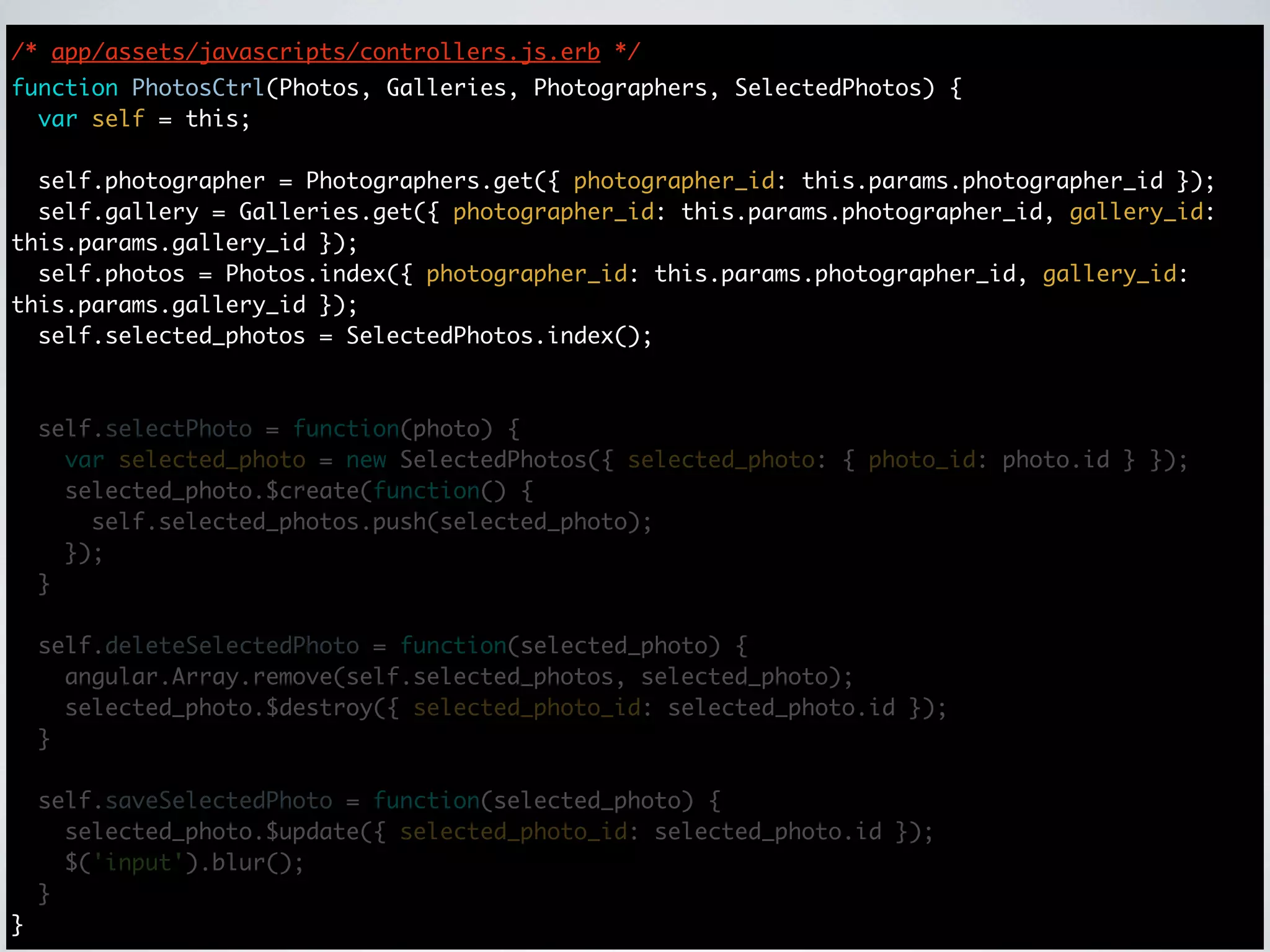

58. /* app/assets/javascripts/controllers.js.erb */
function PhotosCtrl(Photos, Galleries, Photographers, SelectedPhotos) {
var self = this;
self.photographer = Photographers.get({ photographer_id: this.params.photographer_id });
self.gallery = Galleries.get({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.photos = Photos.index({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.selected_photos = SelectedPhotos.index();
self.selectPhoto = function(photo) {
var selected_photo = new SelectedPhotos({ selected_photo: { photo_id: photo.id } });
selected_photo.$create(function() {
self.selected_photos.push(selected_photo);
});
}
self.deleteSelectedPhoto = function(selected_photo) {
angular.Array.remove(self.selected_photos, selected_photo);
selected_photo.$destroy({ selected_photo_id: selected_photo.id });
}
self.saveSelectedPhoto = function(selected_photo) {
selected_photo.$update({ selected_photo_id: selected_photo.id });
$('input').blur();
}
}

59. /* app/assets/javascripts/controllers.js.erb */
function PhotosCtrl(Photos, Galleries, Photographers, SelectedPhotos) {
var self = this;
self.photographer = Photographers.get({ photographer_id: this.params.photographer_id });
self.gallery = Galleries.get({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.photos = Photos.index({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.selected_photos = SelectedPhotos.index();
self.selectPhoto = function(photo) {
var selected_photo = new SelectedPhotos({ selected_photo: { photo_id: photo.id } });
selected_photo.$create(function() {
self.selected_photos.push(selected_photo);
});
}
self.deleteSelectedPhoto = function(selected_photo) {
angular.Array.remove(self.selected_photos, selected_photo);
selected_photo.$destroy({ selected_photo_id: selected_photo.id });
}
self.saveSelectedPhoto = function(selected_photo) {
selected_photo.$update({ selected_photo_id: selected_photo.id });
$('input').blur();
}
}

60. /* app/assets/javascripts/controllers.js.erb */
function PhotosCtrl(Photos, Galleries, Photographers, SelectedPhotos) {
var self = this;
self.photographer = Photographers.get({ photographer_id: this.params.photographer_id });
self.gallery = Galleries.get({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.photos = Photos.index({ photographer_id: this.params.photographer_id, gallery_id:
this.params.gallery_id });
self.selected_photos = SelectedPhotos.index();
self.selectPhoto = function(photo) {
var selected_photo = new SelectedPhotos({ selected_photo: { photo_id: photo.id } });
selected_photo.$create(function() {
self.selected_photos.push(selected_photo);
});
}
self.deleteSelectedPhoto = function(selected_photo) {
angular.Array.remove(self.selected_photos, selected_photo);
selected_photo.$destroy({ selected_photo_id: selected_photo.id });
}
self.saveSelectedPhoto = function(selected_photo) {
selected_photo.$update({ selected_photo_id: selected_photo.id });
$('input').blur();
}
}

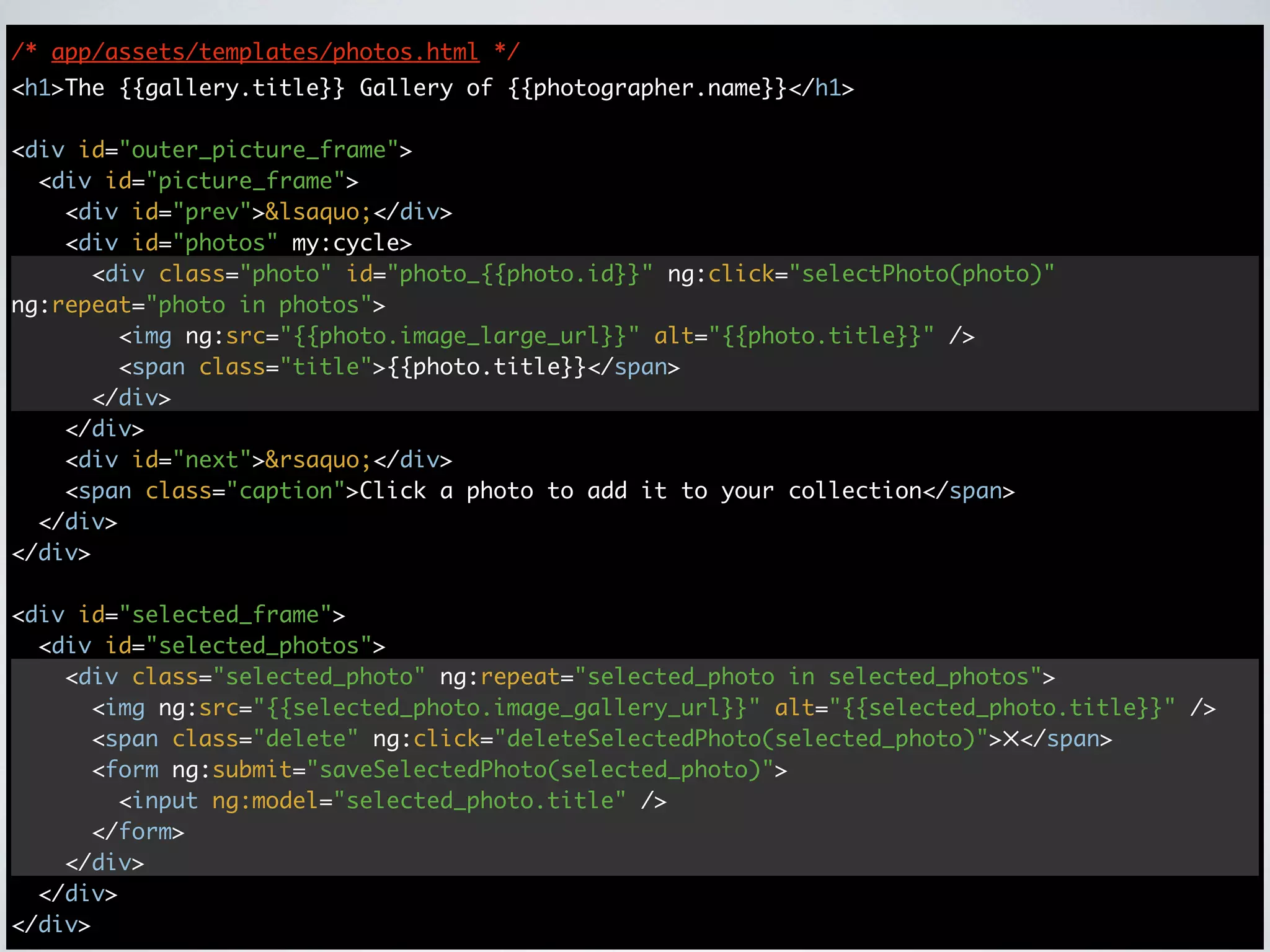

61. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

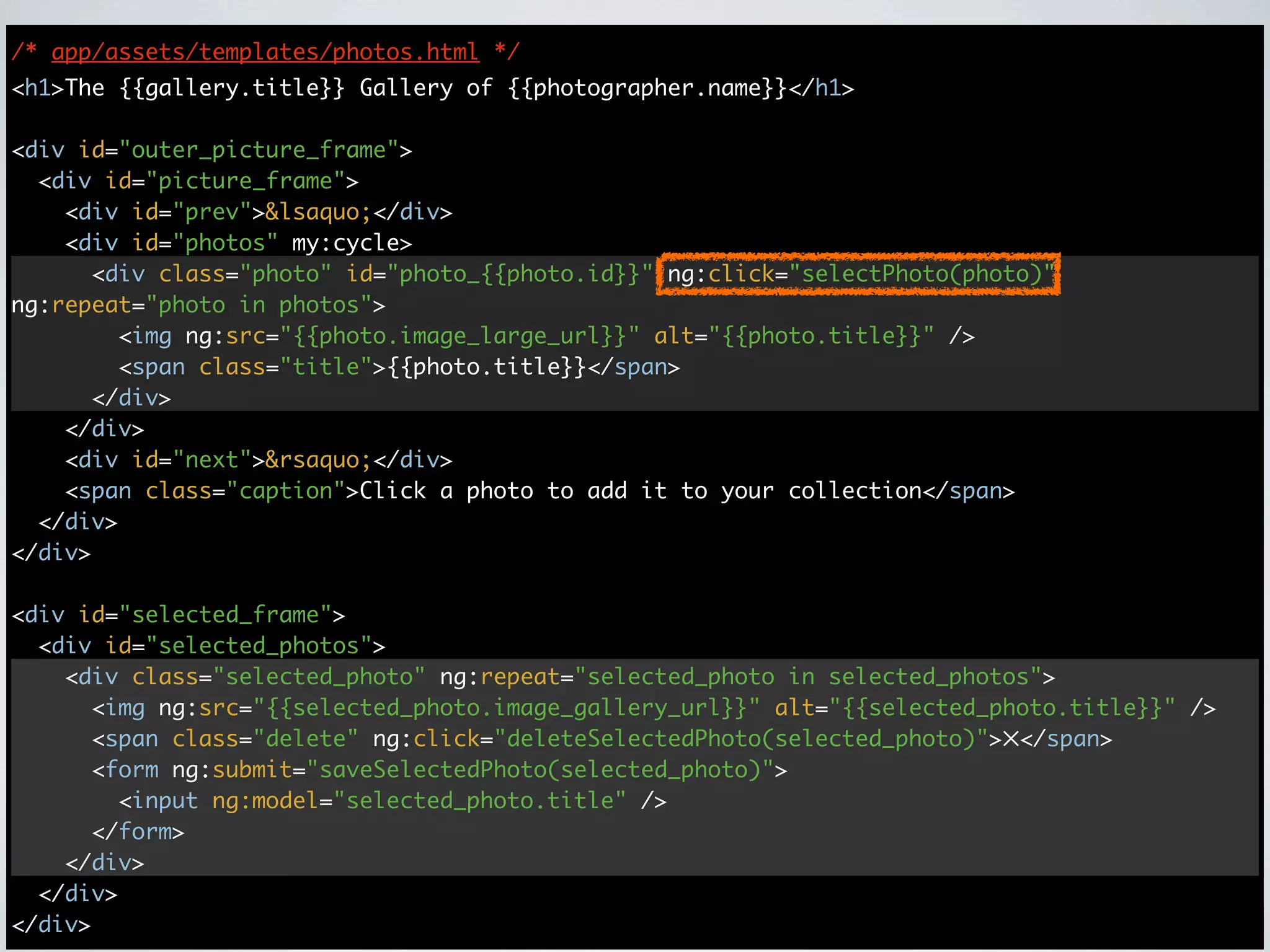

62. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

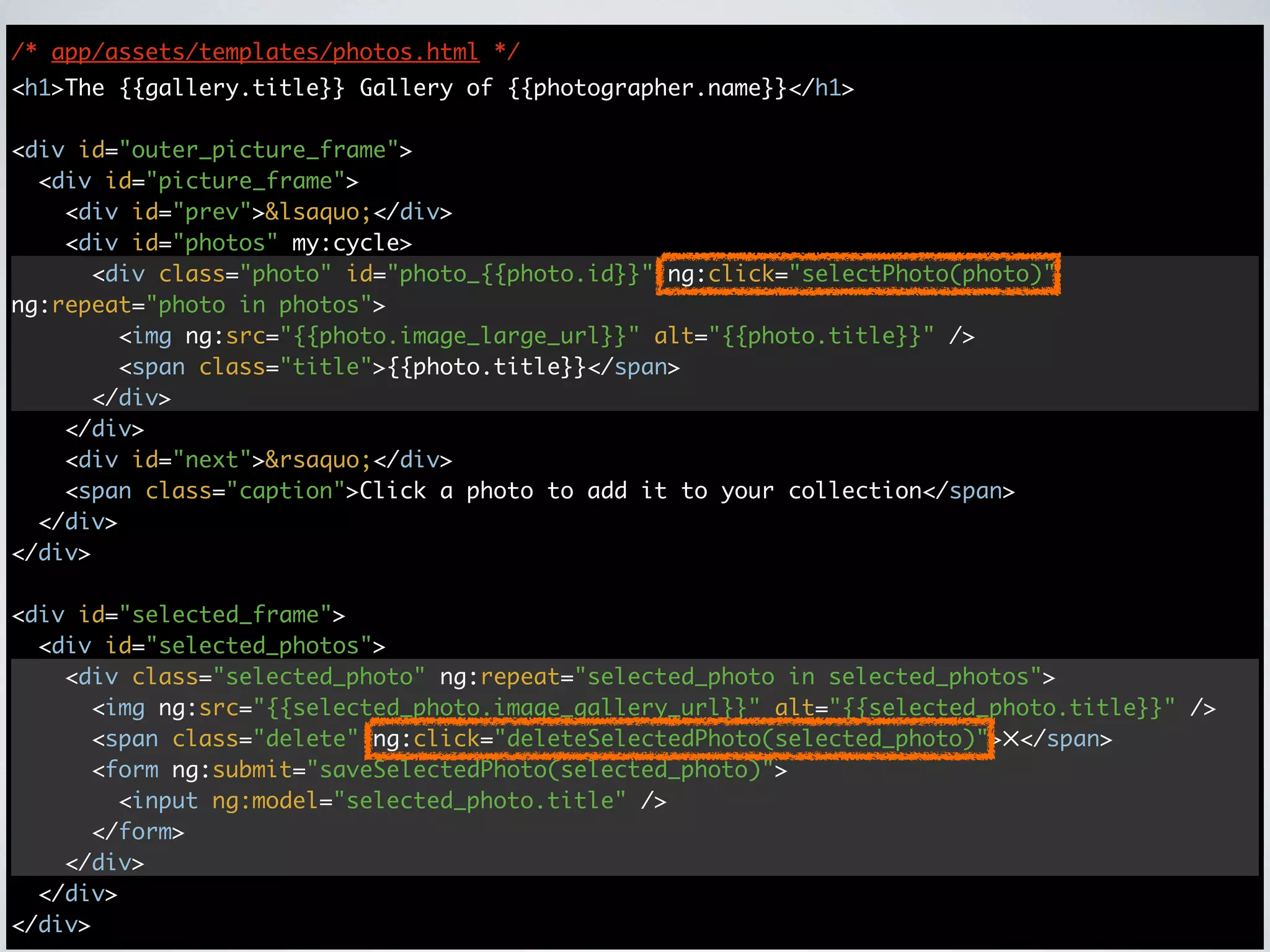

63. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

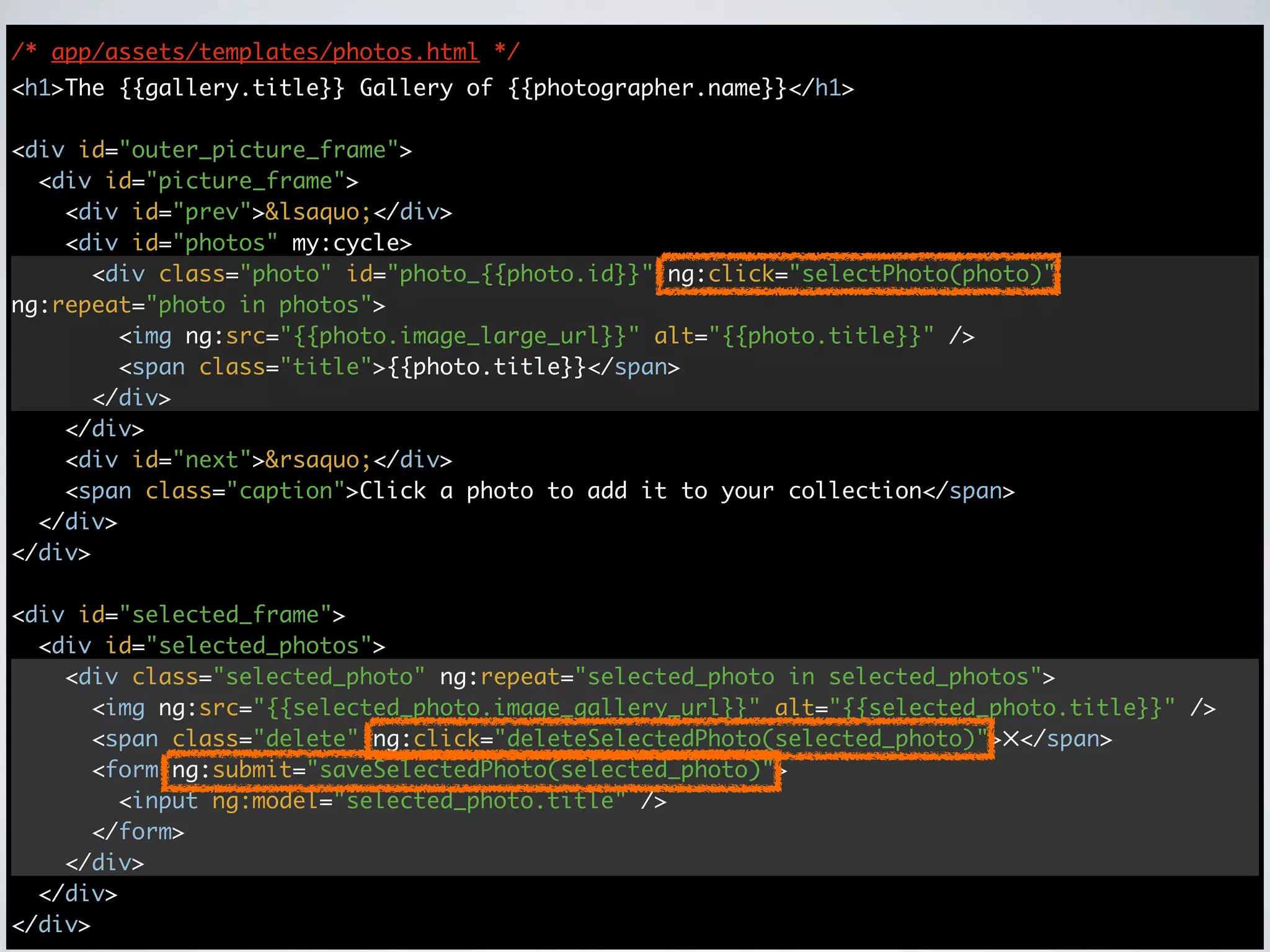

64. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

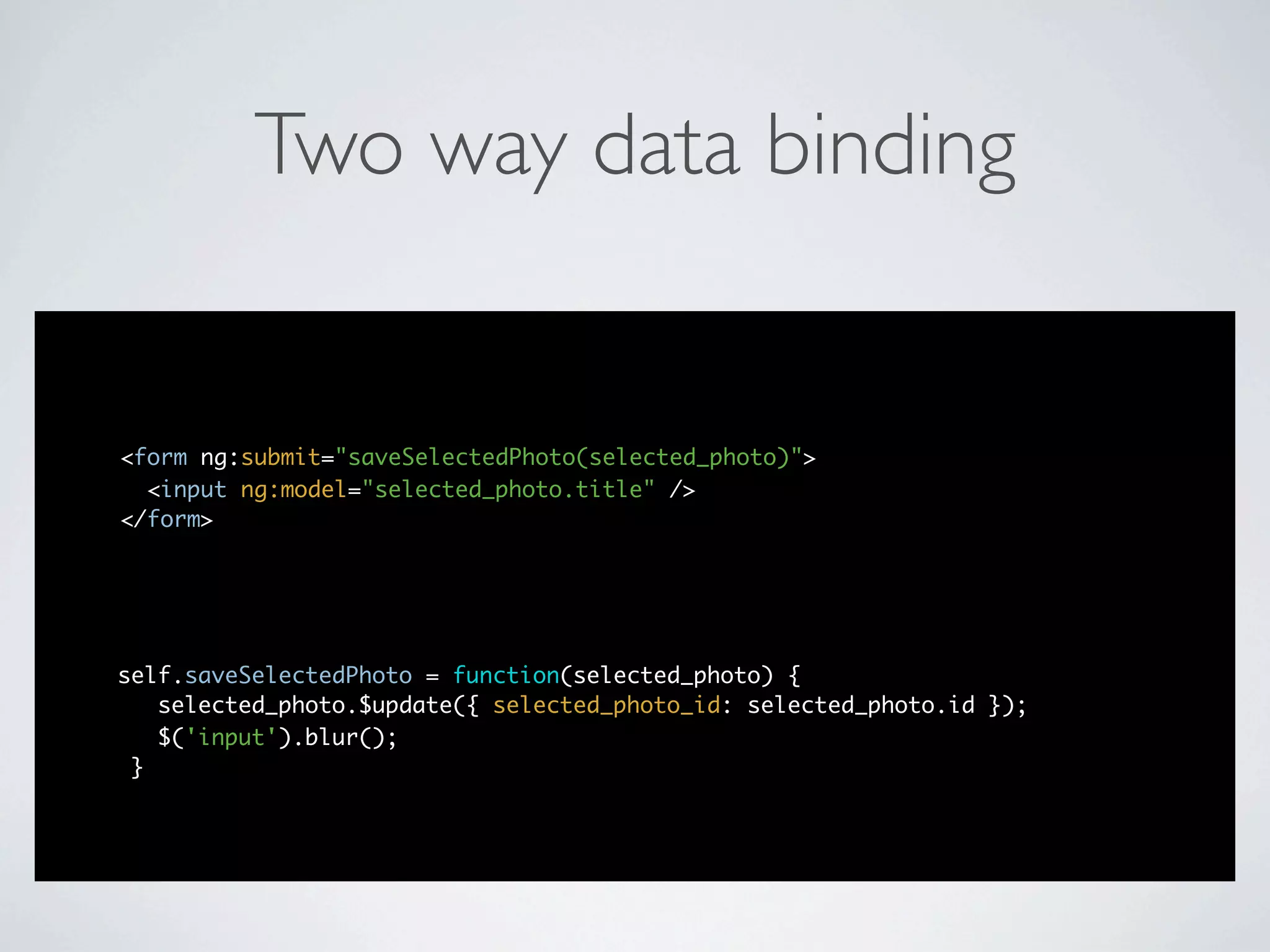

65. Two way data binding
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
self.saveSelectedPhoto = function(selected_photo) {
selected_photo.$update({ selected_photo_id: selected_photo.id });
$('input').blur();
}

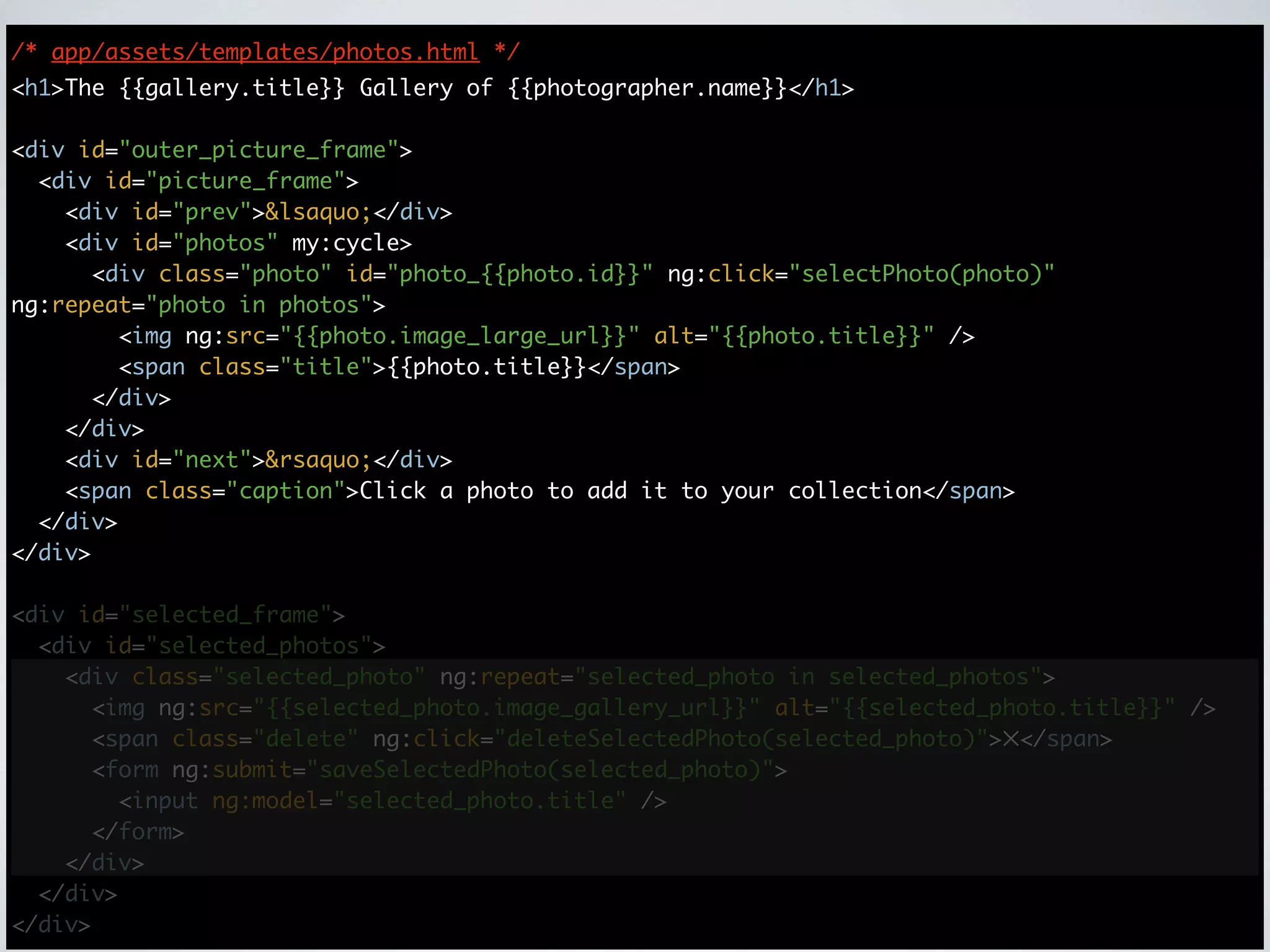

66. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

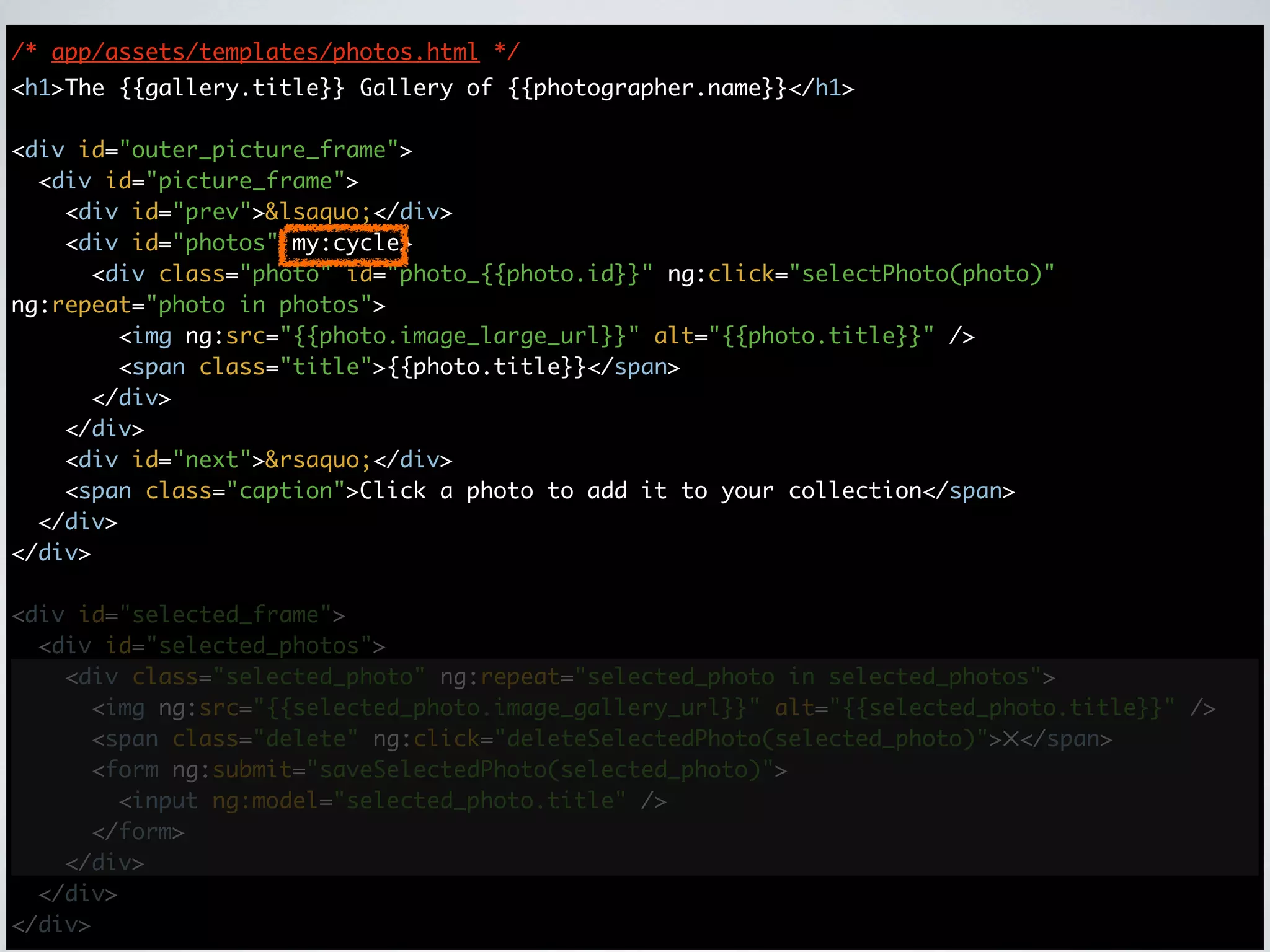

67. /* app/assets/templates/photos.html */
<h1>The {{gallery.title}} Gallery of {{photographer.name}}</h1>
<div id="outer_picture_frame">
<div id="picture_frame">
<div id="prev">&lsaquo;</div>
<div id="photos" my:cycle>
<div class="photo" id="photo_{{photo.id}}" ng:click="selectPhoto(photo)"
ng:repeat="photo in photos">
<img ng:src="{{photo.image_large_url}}" alt="{{photo.title}}" />
<span class="title">{{photo.title}}</span>
</div>
</div>
<div id="next">&rsaquo;</div>
<span class="caption">Click a photo to add it to your collection</span>
</div>
</div>
<div id="selected_frame">
<div id="selected_photos">
<div class="selected_photo" ng:repeat="selected_photo in selected_photos">
<img ng:src="{{selected_photo.image_gallery_url}}" alt="{{selected_photo.title}}" />
<span class="delete" ng:click="deleteSelectedPhoto(selected_photo)">✕</span>
<form ng:submit="saveSelectedPhoto(selected_photo)">
<input ng:model="selected_photo.title" />
</form>
</div>
</div>
</div>

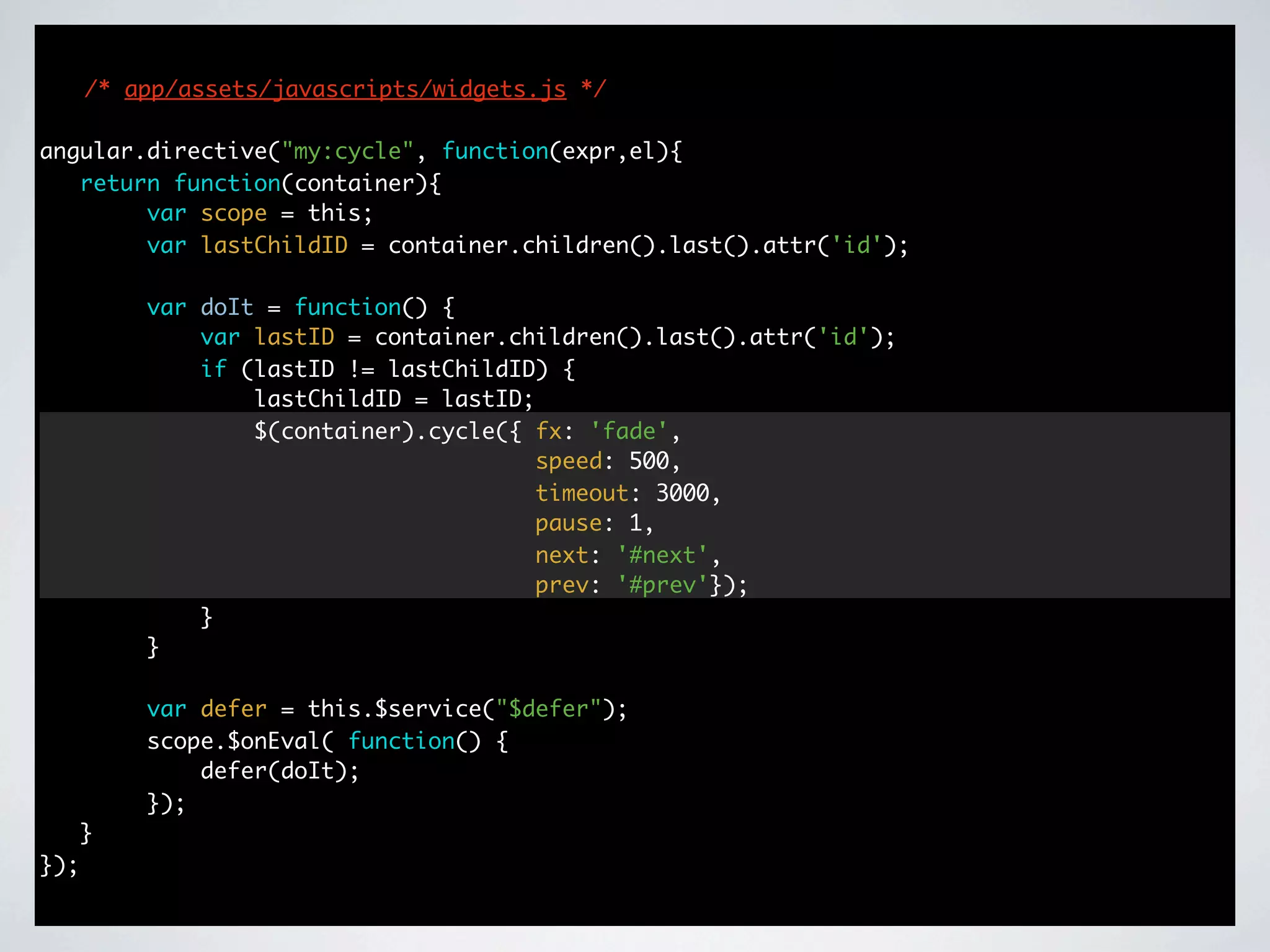

68. /* app/assets/javascripts/widgets.js */
angular.directive("my:cycle", function(expr,el){
return function(container){
var scope = this;
var lastChildID = container.children().last().attr('id');
var doIt = function() {
var lastID = container.children().last().attr('id');
if (lastID != lastChildID) {
lastChildID = lastID;
$(container).cycle({ fx: 'fade',
speed: 500,
timeout: 3000,
pause: 1,
next: '#next',
prev: '#prev'});
}
}
var defer = this.$service("$defer");
scope.$onEval( function() {
defer(doIt);
});
}
});

69. Thank You
http://github.com/centresource/angularjs_rails_demo
@bluejade
