The document provides an overview of Java Swing, a part of Java Foundation Classes (JFC), detailing its components, packages, and classes used for building graphical user interfaces (GUIs). It explains the differences between AWT and Swing, introduces key classes like JFrame, JPanel, and JLabel, and covers functionalities for creating interactive components. Additionally, it discusses accessibility features, the Java 2D API, and the concept of pluggable look and feel in Swing applications.

1. RCC INSTITUTE OF INFORMATION TECHNOLOGY
B.TECH 3rd YEAR
COMPUTER SCIENCE & ENGIEERING
OCTOBER ,2017
OBJECT ORIENTED PROGRAMMING (WITH JAVA LANGUAGE)
CS504D
JAVA SWING
by Arkadeep Dey

2. 1. WHAT IS Java Foundation Classes?
2. DIFFERENCE BETWEEN AWT AND SWING
3. SWING
4. SWING COMPONENTS
5. SWING PACKAGES
6. Description of Classes
7. Top-Level Containers
1. Useful JFrame Constructors and Methods
2. Examle:A SIMPLE SWING APPLICTON
8. Java Swing Components…
9. General-Purpose Containers
1. Using the JPanel Class
2. Useful JPanel Constructors and Methods
 CONTENTS
9. Using Labels
1. Useful JLabels Constructors and
Methods
10. Basic Controls
1. Creating Buttons
2. Useful JButtons Constructors and
Methods
3. Uneditable Information Displays
4. Editable Displays of Formatted
Information
11. Pluggable Look Feel Support
12. Accessibility API
13. Java 2D API
14. Conclusion
Arkadeep Dey,CSE2015/030

3. JFC stands for Java Foundation Classes,
and it includes a group of features to help
people build GUIs (Graphical User
Interfaces).
Features which help defined JFC are
•The Swing components
•Pluggable Look and Feel Support
•Accessibility API (Application Programmer
Interface)
•Java 2D API
•Drag and Drop Support
 What is JFC?
Arkadeep Dey,CSE2015/030

4. Swing is a package that lets you create applications
that use a flashy Graphical User Interface (or GUI)
instead of a dull console interface.
However, The Swing API provides many different
classes for creating various types of user interface
elements
Three classes: JFrame, JPanel, and JLabel. These
classes are part of a larger collection of classes that
are all related through inheritance.
 Swing
Arkadeep Dey,CSE2015/030

5.  DIFFERENCE BETWEEN AWT AND SWING
AWT SWING
Arkadeep Dey,CSE2015/030

6.  The Swing API has a rich and convenient set of packages that
makes it powerful and flexible..
Following are the list of Swing Packages in Java :
 Swing Packages
Arkadeep Dey,CSE2015/030

7.  Swing Components
 The Swing family tree splits at the Component class into one group of classes that are
derived from the JComponent class, and another branch that descends from the Window
class.
Arkadeep Dey,CSE2015/030

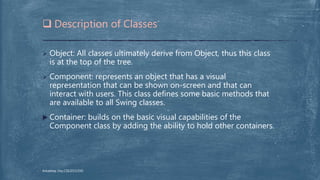

8.  Description of Classes
 Object: All classes ultimately derive from Object, thus this class
is at the top of the tree.
 Component: represents an object that has a visual
representation that can be shown on-screen and that can
interact with users. This class defines some basic methods that
are available to all Swing classes.
 Container: builds on the basic visual capabilities of the
Component class by adding the ability to hold other containers.
Arkadeep Dey,CSE2015/030

9.  Window: a specialized type of container object that has a border,
a title bar, buttons that minimize, maximize, and close the
window, and that can be repositioned and possibly even resized
by the user.
 Frame: a type of Window that serves as the basis for Java GUI
applications. Frame is an AWT class that has been improved upon
by the JFrame class.
 JFrame: the Swing version of the older Frame class. Most of the
Swing applications include at least one JFrame object.
 JComponent: is the basis for all other Swing components except
for frames.
 Description of Classes
Arkadeep Dey,CSE2015/030

10.  Description of Classes
JPanel: used to organize and control the layout of other
components such as labels, buttons, text fields, etc. In
most Swing applications, one or more panels are added to
a frame. Then, when the frame is displayed, the
components that were added to its panels are made
visible.
JLabel: creates a label that displays a simple text value.
Arkadeep Dey,CSE2015/030

11.  Top Level Containers
 General Purpose Containers
 Special Purpose Containers
 Basic Controls
 Uneditable Information Displays
 Interactive Displays of Highly Formatted Information
 Java Swing Components…
Arkadeep Dey,CSE2015/030

12.  Applet: An applet is a Java program that runs in a Web browser.
An applet can be a fully functional Java application because it has
the entire Java API at its disposal
 Dialog :A Dialog window is an independent subwindow meant to
carry temporary notice apart from the main Swing Application
Window. Most Dialogs present an error message or warning to a
user, but Dialogs can present images, directory trees, or just about
anything compatible with the main Swing Application that
manages them
 Frame : is a window that has decorations such as a
border, a title, and buttons for closing and
iconifying the window. Applications with a GUI
typically use at least one frame.
 Top-Level Containers
Arkadeep Dey,CSE2015/030

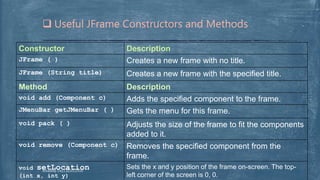

13. Constructor Description
JFrame ( ) Creates a new frame with no title.
JFrame (String title) Creates a new frame with the specified title.
Method Description
void add (Component c) Adds the specified component to the frame.
JMenuBar getJMenuBar ( ) Gets the menu for this frame.
void pack ( ) Adjusts the size of the frame to fit the components
added to it.
void remove (Component c) Removes the specified component from the
frame.
void setLocation
(int x, int y)
Sets the x and y position of the frame on-screen. The top-
left corner of the screen is 0, 0.
 Useful JFrame Constructors and Methods
Arkadeep Dey,CSE2015/030

14. import javax.swing.JFrame;
public class Simple extends JFrame {
public Simple() {
setSize(300, 200);
setTitle("Simple");
setDefaultCloseOperation(EXIT_ON_CLOSE);
}
public static void main(String[] args) {
Simple simple = new Simple();
simple.setVisible(true);
}
}
 Examle:A SIMPLE SWING APPLICTON
 OUTPUT -
Arkadeep Dey,CSE2015/030

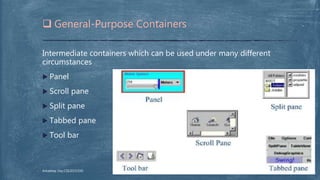

15. Intermediate containers which can be used under many different
circumstances
 Panel
 Scroll pane
 Split pane
 Tabbed pane
 Tool bar
 General-Purpose Containers
Arkadeep Dey,CSE2015/030

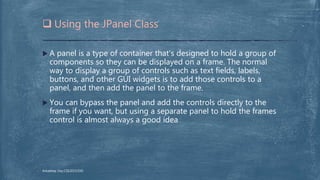

16.  A panel is a type of container that's designed to hold a group of
components so they can be displayed on a frame. The normal
way to display a group of controls such as text fields, labels,
buttons, and other GUI widgets is to add those controls to a
panel, and then add the panel to the frame.
 You can bypass the panel and add the controls directly to the
frame if you want, but using a separate panel to hold the frames
control is almost always a good idea
 Using the JPanel Class
Arkadeep Dey,CSE2015/030

17. Constructor Description
JPanel () Creates a new panel.
JPanel (boolean
isDoubleBuffered)
Creates a new panel. If the parameter is true, the
panel uses a technique called double-buffering.
JPanel (LayoutManager layout) Creates a new panel with the specified layout
manager. The default layout manager is FIowLayout.
Method Description
void add (Component c) Adds the specified component to the panel.
void remove (Component c) Removes the specified component from the panel.
void setLayout (LayoutManager
layout)
Sets the layout manager used to control how components are
arranged when the panel is displayed. The default is the FIowLayout
manager.
 Useful JPanel Constructors and Methods
Arkadeep Dey,CSE2015/030

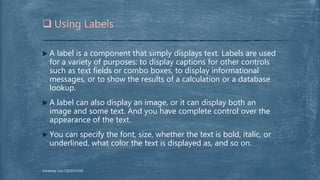

18.  A label is a component that simply displays text. Labels are used
for a variety of purposes: to display captions for other controls
such as text fields or combo boxes, to display informational
messages, or to show the results of a calculation or a database
lookup.
 A label can also display an image, or it can display both an
image and some text. And you have complete control over the
appearance of the text.
 You can specify the font, size, whether the text is bold, italic, or
underlined, what color the text is displayed as, and so on.
 Using Labels
Arkadeep Dey,CSE2015/030

19. Constructor Description
JLabel ( ) Creates a new label with no initial text.
Method Description
String getText ( ) Returns the text displayed by the label.
void setText (String text) Sets the text displayed by the label.
void setToolTipText
(String text)
Sets the tooltip text that's displayed if the
user rests the mouse over the label for a
few moments.
void setVisible (boolean
value)
Shows or hides the label.
 Useful JLabels Constructors and Methods
Arkadeep Dey,CSE2015/030

20.  Basic Controls are the atomic components that exist primarily to get input
from the user .
They also show simple state.
 Buttons : can be square or round
 Combo Box : It is a combination of a drop-down list and a single-line
editable textbox . can be uneditable and editable.
 List : Presents the user with a group of items, displayed in a column, to
choose from.
 Menu : provides a space-saving way to let the user choose one of several
options.
 Slider : lets user enter a numeric value bounded by a minimum and maximum
maximum value.
 Text Fields : basic text control that lets the user enter a small amount of text.
 Basic Controls
Arkadeep Dey,CSE2015/030

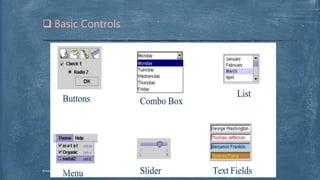

21.  Basic Controls
Arkadeep Dey,CSE2015/030

22. Next to labels, the Swing component used most is the
JButton component which creates a button . The user
can click it .
The constructors of the JButton class are similar to the
constructors for the JLabel class. You can either create
an empty button or a button with text.
 Creating Buttons
Arkadeep Dey,CSE2015/030

23. Constructor Description
JButton ( ) Creates a new button with no initial text.
JButton (String text) Creates a new button with the specified
text.
Method Description
doClick ( ) Triggers an action event for the button as if
the user clicked it.
String getText () Returns the text displayed by the button.
void setEnabled (boolean
value)
Enables or disables the button. The default setting
is true (enabled).
 Useful JButton Constructors and Methods
Arkadeep Dey,CSE2015/030

24. Atomic components that exist solely to give the user information.
 Label : able to display unselectable text and images.
 Progress Bar: displays the progress of a long-running task (also,
ProgressMonitor and ProgressMonitorInputStream)
 Tool tip :comes up when the user of the program pauses with
the cursor over any of the program's buttons
 Uneditable Information Displays
Arkadeep Dey,CSE2015/030

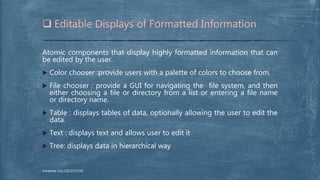

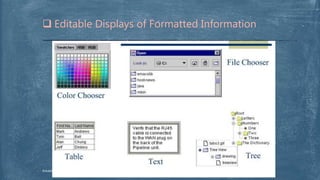

25. Atomic components that display highly formatted information that can
be edited by the user.
 Color chooser :provide users with a palette of colors to choose from.
 File chooser : provide a GUI for navigating the file system, and then
either choosing a file or directory from a list or entering a file name
or directory name.
 Table : displays tables of data, optionally allowing the user to edit the
data.
 Text : displays text and allows user to edit it
 Tree: displays data in hierarchical way
 Editable Displays of Formatted Information
Arkadeep Dey,CSE2015/030

26.  Editable Displays of Formatted Information
Arkadeep Dey,CSE2015/030

27.  Gives any program that uses Swing components a
choice of looks and feels. For example, the same
program can use either the Java look-and-feel or
the Windows look-and-feel.
 Many more look-and-feel packages will be
available in the future from various sources,
including some that use sound instead of a visual
look.
 Pluggable Look Feel Support
Arkadeep Dey,CSE2015/030

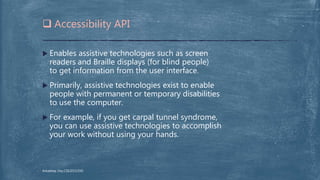

28.  Enables assistive technologies such as screen
readers and Braille displays (for blind people)
to get information from the user interface.
 Primarily, assistive technologies exist to enable
people with permanent or temporary disabilities
to use the computer.
 For example, if you get carpal tunnel syndrome,
you can use assistive technologies to accomplish
your work without using your hands.
 Accessibility API
Arkadeep Dey,CSE2015/030

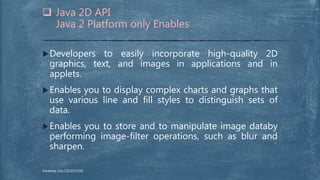

29. Developers to easily incorporate high-quality 2D
graphics, text, and images in applications and in
applets.
Enables you to display complex charts and graphs that
use various line and fill styles to distinguish sets of
data.
Enables you to store and to manipulate image databy
performing image-filter operations, such as blur and
sharpen.
 Java 2D API
Java 2 Platform only Enables
Arkadeep Dey,CSE2015/030

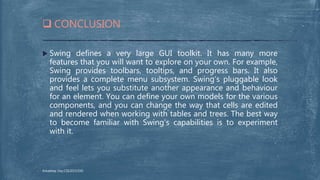

30.  Swing defines a very large GUI toolkit. It has many more
features that you will want to explore on your own. For example,
Swing provides toolbars, tooltips, and progress bars. It also
provides a complete menu subsystem. Swing’s pluggable look
and feel lets you substitute another appearance and behaviour
for an element. You can define your own models for the various
components, and you can change the way that cells are edited
and rendered when working with tables and trees. The best way
to become familiar with Swing’s capabilities is to experiment
with it.
 CONCLUSION
Arkadeep Dey,CSE2015/030

31. THANK YOU

Arkadeep Dey,CSE2015/030
