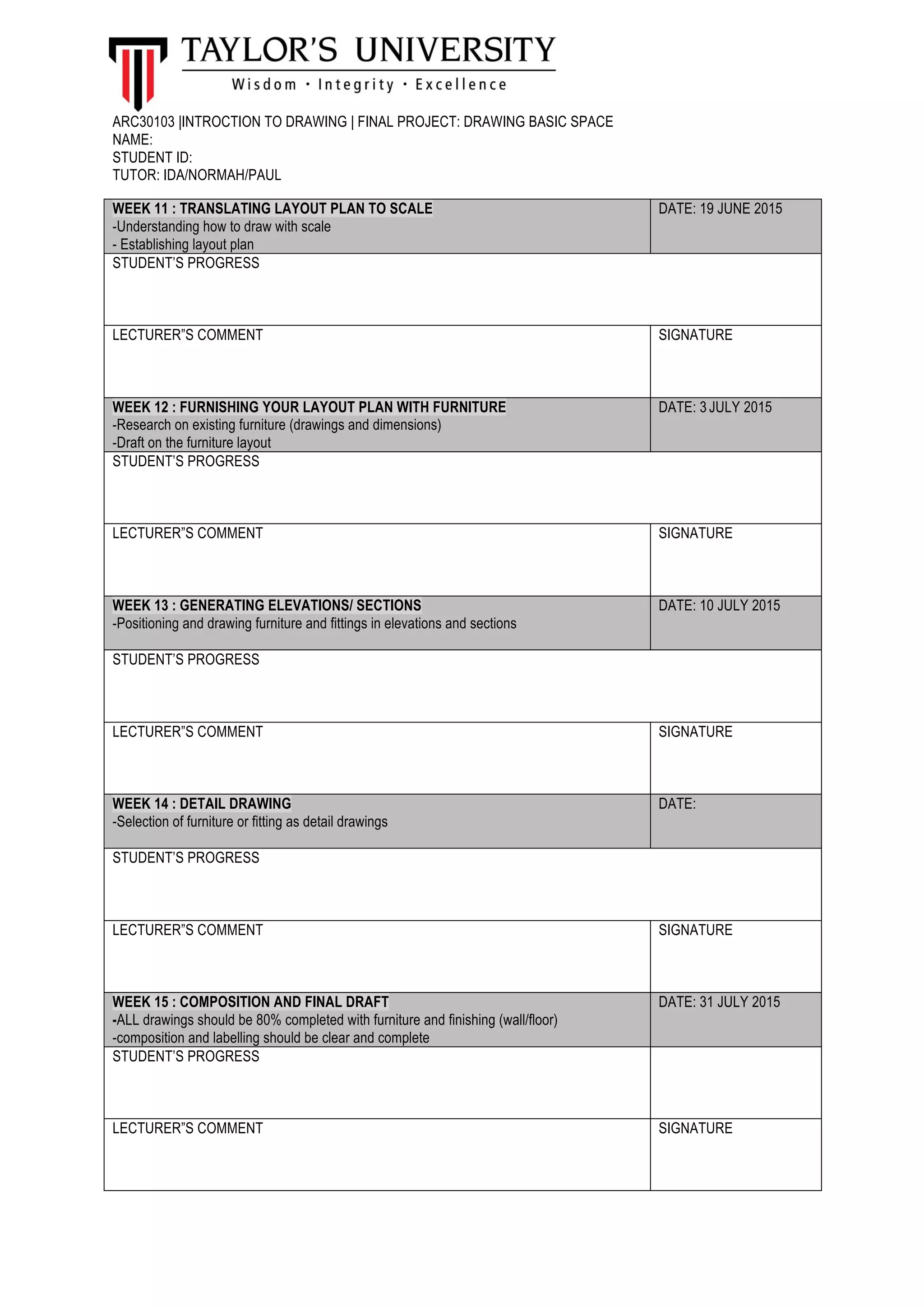

1.
ARC30103 |INTROCTION TO DRAWING | FINAL PROJECT: DRAWING BASIC SPACE
NAME:
STUDENT ID:
TUTOR: IDA/NORMAH/PAUL
WEEK 11 : TRANSLATING LAYOUT PLAN TO SCALE
-Understanding how to draw with scale
- Establishing layout plan
DATE: 19 JUNE 2015
STUDENT’S PROGRESS
LECTURER”S COMMENT SIGNATURE
WEEK 12 : FURNISHING YOUR LAYOUT PLAN WITH FURNITURE
-Research on existing furniture (drawings and dimensions)
-Draft on the furniture layout
DATE: 3 JULY 2015
STUDENT’S PROGRESS
LECTURER”S COMMENT SIGNATURE
WEEK 13 : GENERATING ELEVATIONS/ SECTIONS
-Positioning and drawing furniture and fittings in elevations and sections
DATE: 10 JULY 2015
STUDENT’S PROGRESS
LECTURER”S COMMENT SIGNATURE
WEEK 14 : DETAIL DRAWING
-Selection of furniture or fitting as detail drawings
DATE:
STUDENT’S PROGRESS
LECTURER”S COMMENT SIGNATURE
WEEK 15 : COMPOSITION AND FINAL DRAFT
-ALL drawings should be 80% completed with furniture and finishing (wall/floor)
-composition and labelling should be clear and complete
DATE: 31 JULY 2015
STUDENT’S PROGRESS
LECTURER”S COMMENT SIGNATURE

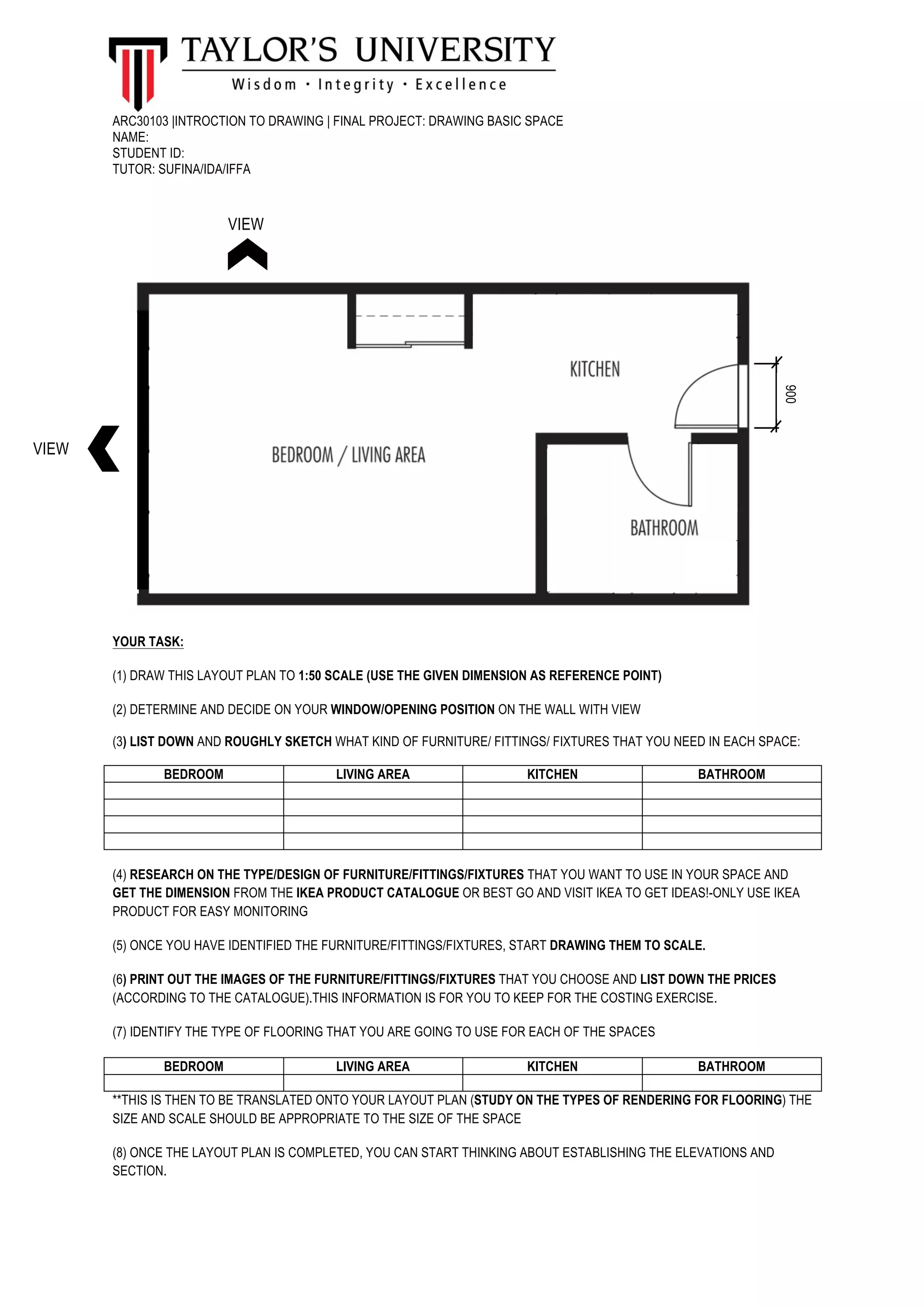

2.
ARC30103 |INTROCTION TO DRAWING | FINAL PROJECT: DRAWING BASIC SPACE
NAME:
STUDENT ID:
TUTOR: SUFINA/IDA/IFFA
YOUR TASK:
(1) DRAW THIS LAYOUT PLAN TO 1:50 SCALE (USE THE GIVEN DIMENSION AS REFERENCE POINT)
(2) DETERMINE AND DECIDE ON YOUR WINDOW/OPENING POSITION ON THE WALL WITH VIEW
(3) LIST DOWN AND ROUGHLY SKETCH WHAT KIND OF FURNITURE/ FITTINGS/ FIXTURES THAT YOU NEED IN EACH SPACE:
BEDROOM LIVING AREA KITCHEN BATHROOM
(4) RESEARCH ON THE TYPE/DESIGN OF FURNITURE/FITTINGS/FIXTURES THAT YOU WANT TO USE IN YOUR SPACE AND
GET THE DIMENSION FROM THE IKEA PRODUCT CATALOGUE OR BEST GO AND VISIT IKEA TO GET IDEAS!-ONLY USE IKEA
PRODUCT FOR EASY MONITORING
(5) ONCE YOU HAVE IDENTIFIED THE FURNITURE/FITTINGS/FIXTURES, START DRAWING THEM TO SCALE.
(6) PRINT OUT THE IMAGES OF THE FURNITURE/FITTINGS/FIXTURES THAT YOU CHOOSE AND LIST DOWN THE PRICES
(ACCORDING TO THE CATALOGUE).THIS INFORMATION IS FOR YOU TO KEEP FOR THE COSTING EXERCISE.
(7) IDENTIFY THE TYPE OF FLOORING THAT YOU ARE GOING TO USE FOR EACH OF THE SPACES
BEDROOM LIVING AREA KITCHEN BATHROOM
**THIS IS THEN TO BE TRANSLATED ONTO YOUR LAYOUT PLAN (STUDY ON THE TYPES OF RENDERING FOR FLOORING) THE
SIZE AND SCALE SHOULD BE APPROPRIATE TO THE SIZE OF THE SPACE
(8) ONCE THE LAYOUT PLAN IS COMPLETED, YOU CAN START THINKING ABOUT ESTABLISHING THE ELEVATIONS AND
SECTION.
VIEW
VIEW
900
