Presentation by Zaid Ali Kahn at Cisco Ecole Polytechnique Networking Innovation and Research Symposium

1. IPv6 Measurements
1
Zaid Ali Kahn
Director
Infrastructure Architecture

2. Agenda
1. Real user monitoring (RUM) IPv4/IPv6
2. Global IPv6 growth
3. IPv6 Heat maps
4. IPv6 Mobile performance
2

3. 3

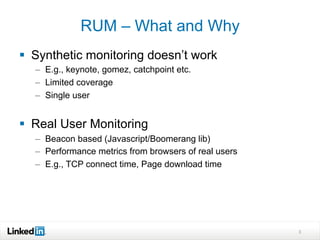

RUM – What and Why
§ Synthetic monitoring doesn’t work
– E.g., keynote, gomez, catchpoint etc.
– Limited coverage
– Single user
§ Real User Monitoring
– Beacon based (Javascript/Boomerang lib)
– Performance metrics from browsers of real users
– E.g., TCP connect time, Page download time

4. 4
RUM – How
§ Navigation timing API
– Most browsers support it
– Browsers record performance timers for each page load
§ JavaScript timers
– For everything else

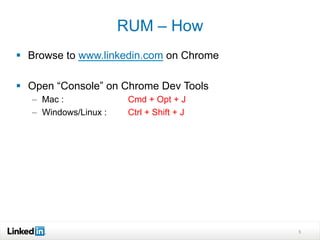

5. § Browse to www.linkedin.com on Chrome
§ Open “Console” on Chrome Dev Tools
– Mac : Cmd + Opt + J
– Windows/Linux : Ctrl + Shift + J
5
RUM – How

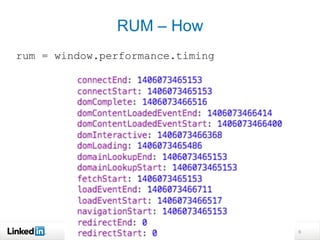

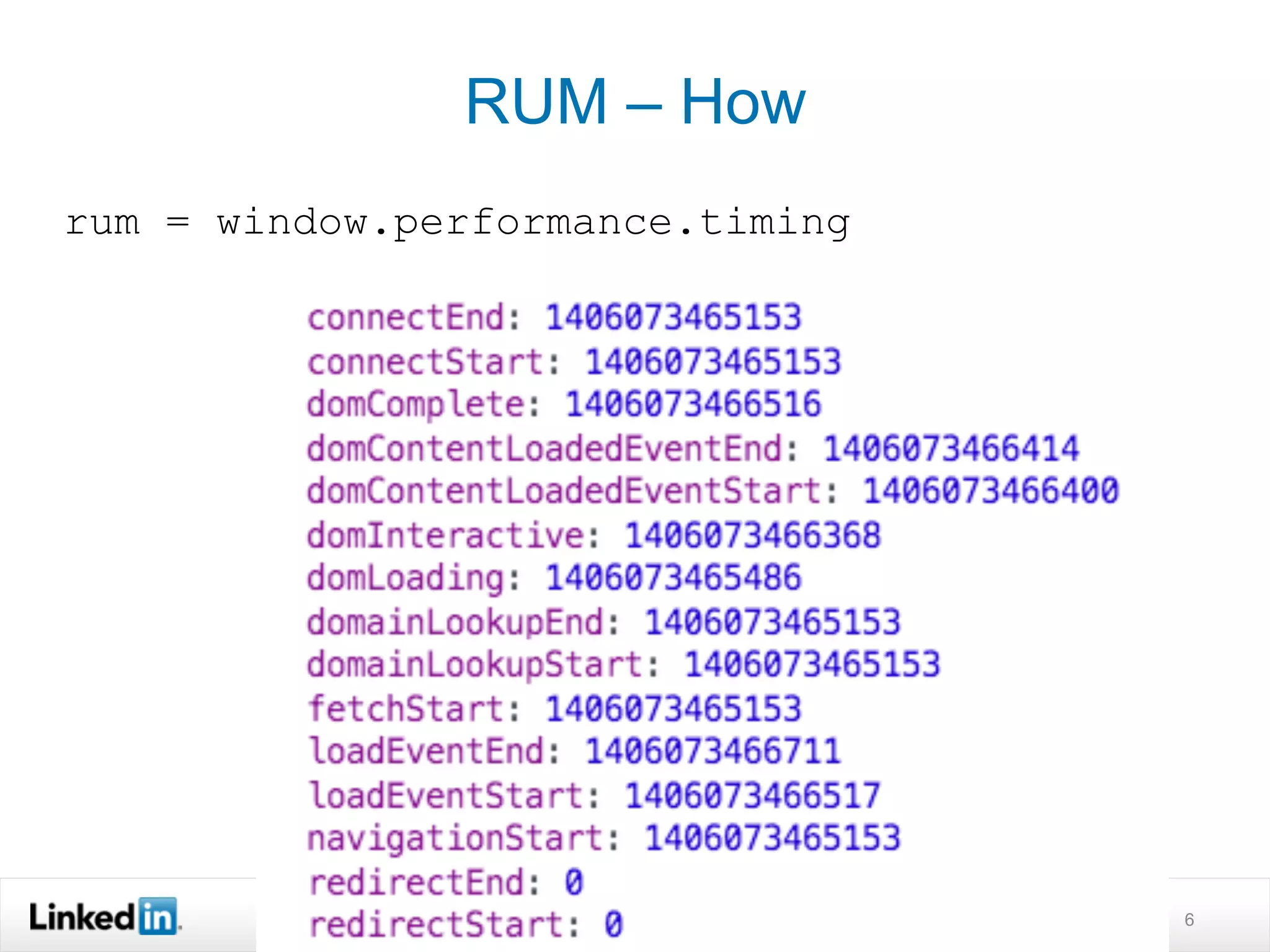

6. rum = window.performance.timing
6
RUM – How

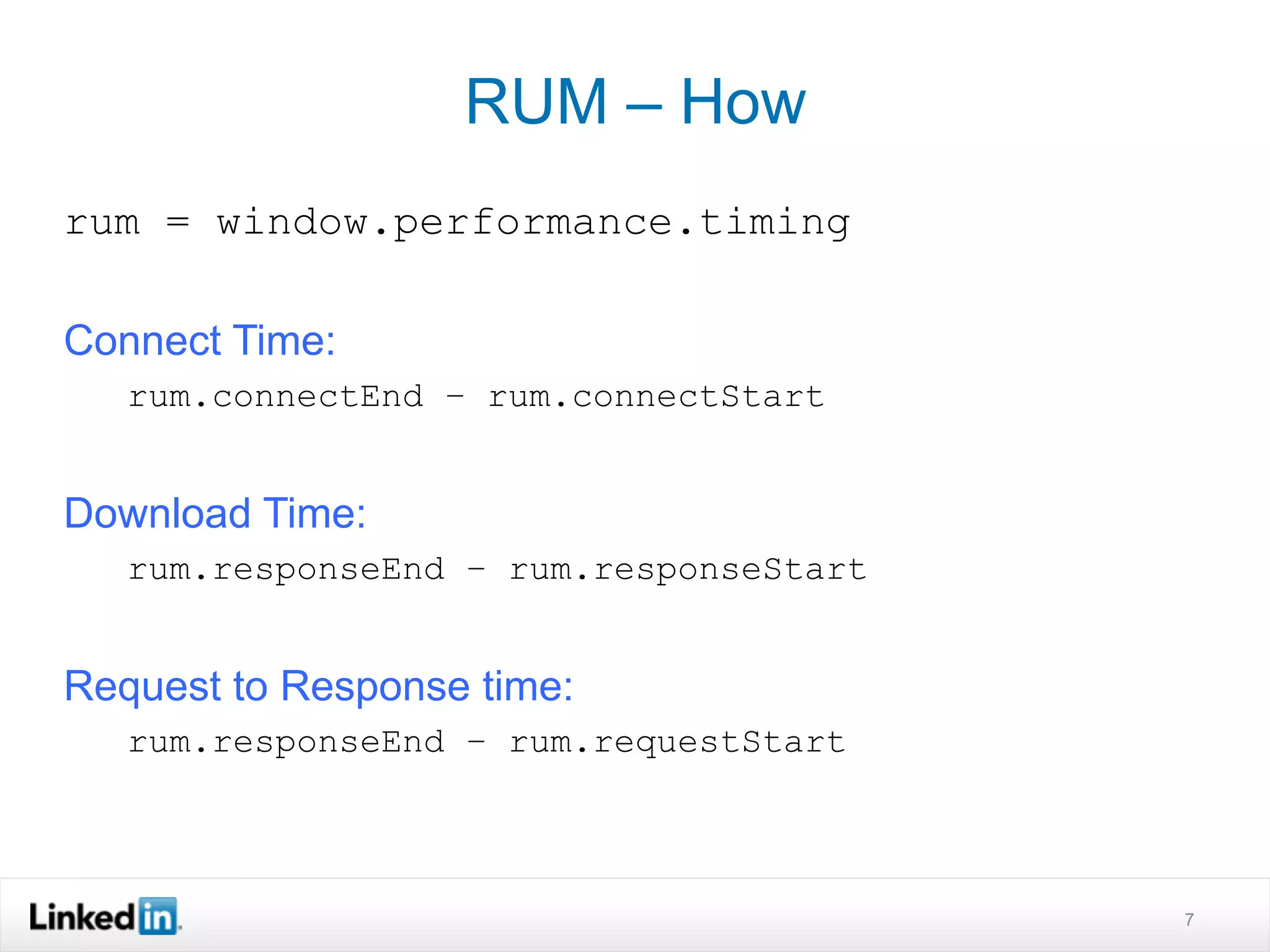

7. rum = window.performance.timing
Connect Time:
rum.connectEnd – rum.connectStart
Download Time:
rum.responseEnd – rum.responseStart
Request to Response time:
rum.responseEnd – rum.requestStart
7
RUM – How

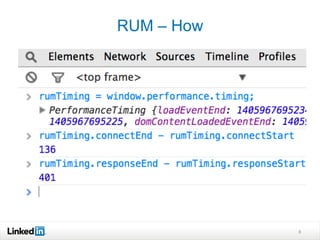

8. 8
RUM – How

9. 9

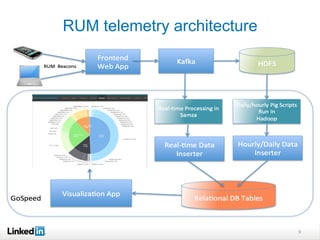

RUM telemetry architecture

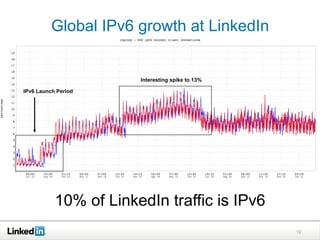

10. Global IPv6 growth at LinkedIn
10
10% of LinkedIn traffic is IPv6
IPv6 Launch Period
Interesting spike to 13%

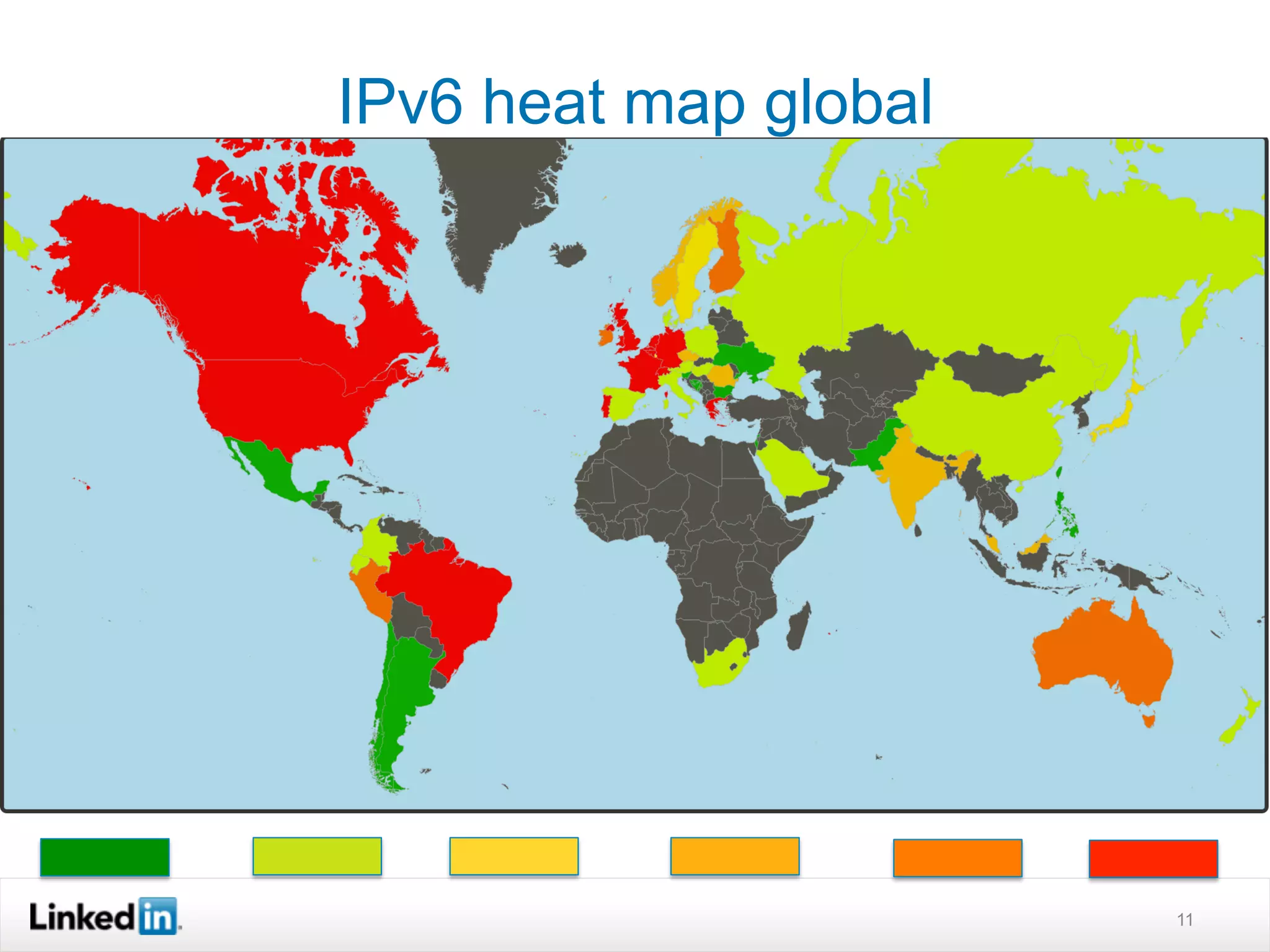

11. IPv6 heat map global
11

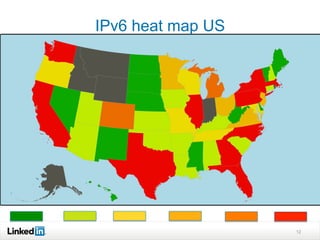

12. IPv6 heat map US
12

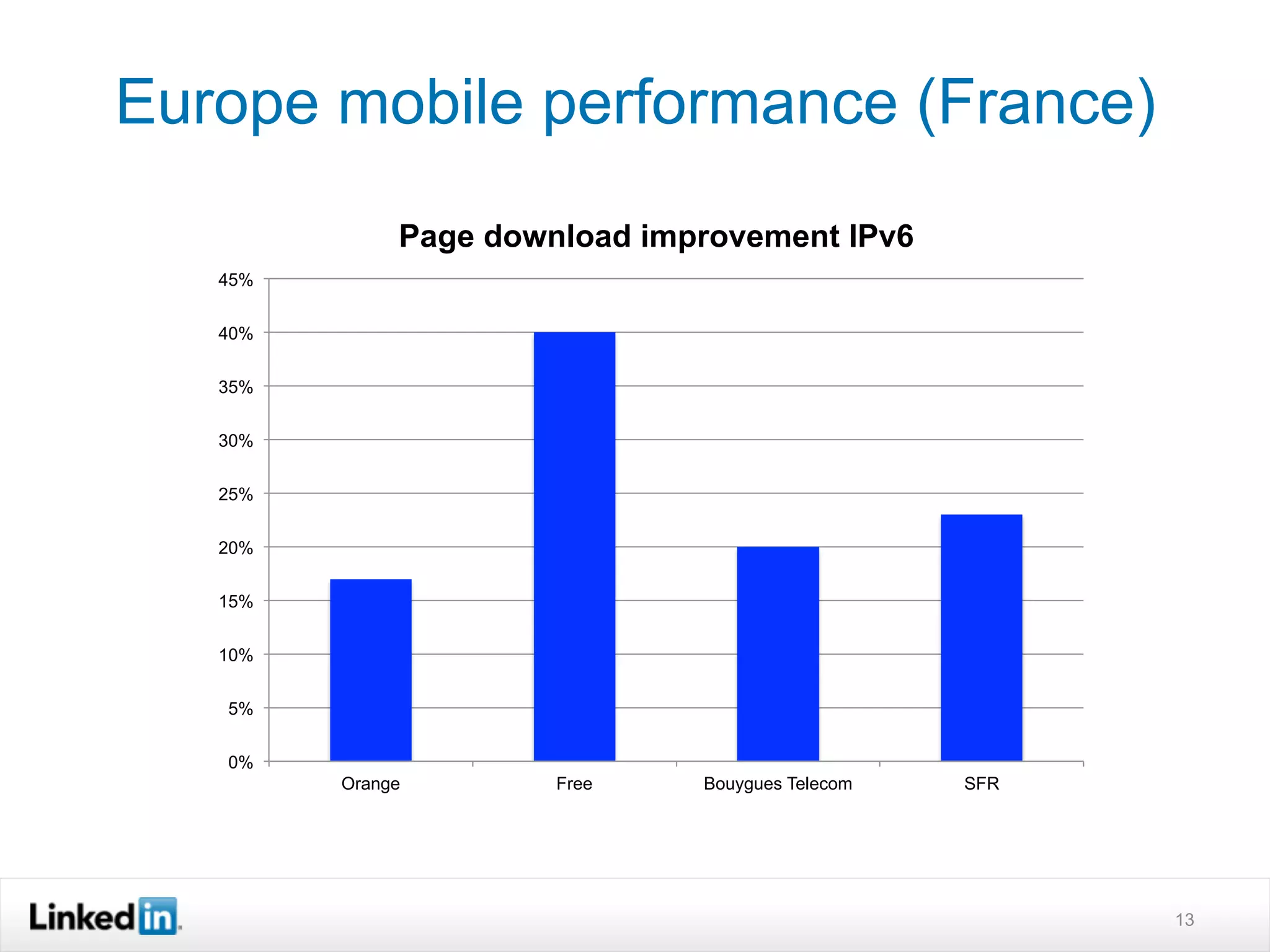

13. Europe mobile performance (France)
13
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
Orange Free Bouygues Telecom SFR
Page download improvement IPv6

14. Why? AS12322(Free) analysis
14
Higher Network request time means higher TCP timeouts yielding in higher page download load times.
1.6% timeout
4.6% timeoutIPv4 network request
IPv6 network request

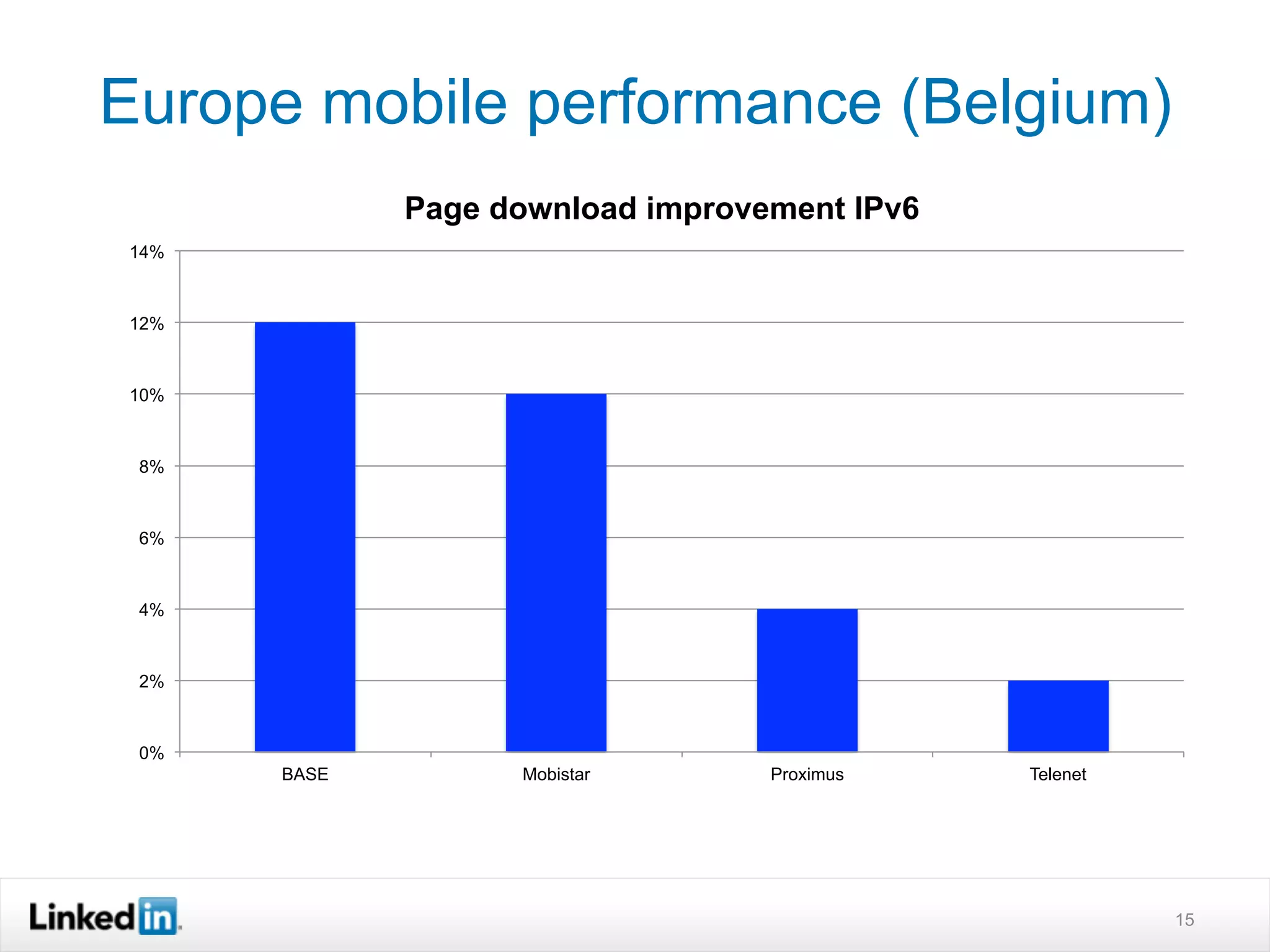

15. Europe mobile performance (Belgium)
15
0%
2%
4%
6%
8%
10%
12%
14%
BASE Mobistar Proximus Telenet
Page download improvement IPv6

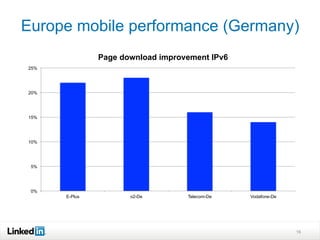

16. Europe mobile performance (Germany)
16
0%
5%
10%
15%
20%
25%
E-Plus o2-De Telecom-De Vodafone-De
Page download improvement IPv6

17. Europe mobile performance (UK)
17
0%
5%
10%
15%
20%
25%
EE O2 Three Vodafone UK
Page download improvement IPv6

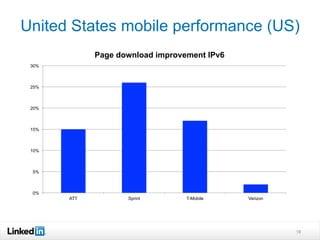

18. United States mobile performance (US)
18
0%
5%
10%
15%
20%
25%
30%
ATT Sprint T-Mobile Verizon
Page download improvement IPv6

19. Conclusion
19

20. Thank you!
20
Ritesh Maheshwari Bret Palson David He Ruixuan Hou
Sobir Bazarbayev Navneet Nagori Ajay Srivastava
