1. Bastian Feder, Papaya Software GmbH
Nils Langner, Gruner + Jahr
Sven Kiera, TWT Interactive GmbH
Advanced Eclipse Workshop
IPC spring edition 2010
30.06.2010

2. Who are we?
Bastian Feder Nils Langner
Application developer Qualitätsmanagement
PHP since 2001 PHP since 2002
Open Source addict Founder
www.phphatesme.com
Sven Kiera
Web developer
PHP and Java since 1998
Author of PHP Tool
Integration (PTI)

3. Who are you?

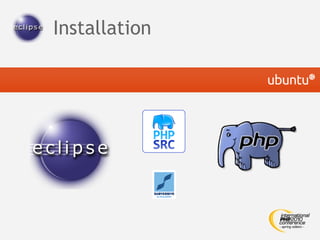

4. Installation

5. Start the engines
Set current language
System -> Systemverwaltung -> Sprachunterstützung
Open
Anwendungen -> Zubehör -> Terminal
#> cd IPC09_Workshop ¶
#> sudo chown -R ubuntu:ubuntu workspace ¶
#> ./bin/eclipse/eclipse ¶

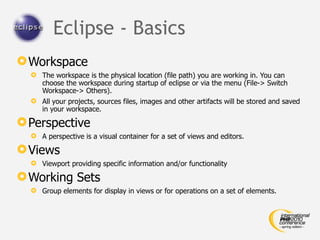

6. Eclipse - Basics
 Workspace
 The workspace is the physical location (file path) you are working in. You can
choose the workspace during startup of eclipse or via the menu (File-> Switch
Workspace-> Others).
 All your projects, sources files, images and other artifacts will be stored and saved
in your workspace.
 Perspective
 A perspective is a visual container for a set of views and editors.
 Views
 Viewport providing specific information and/or functionality
 Working Sets
 Group elements for display in views or for operations on a set of elements.

7. Your Choice …
 External Tools
 SVN and PDT
 Shortcuts
 Templates
 PTI (PHP Tool Integration)
 Validators
 Xdebug

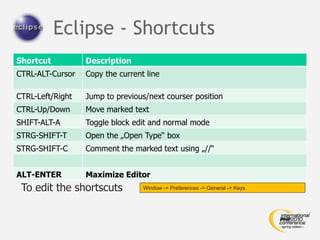

8. Eclipse - Shortcuts
Shortcut Description
CTRL-ALT-Cursor Copy the current line
CTRL-Left/Right Jump to previous/next courser position
CTRL-Up/Down Move marked text
SHIFT-ALT-A Toggle block edit and normal mode
STRG-SHIFT-T Open the „Open Type“ box
STRG-SHIFT-C Comment the marked text using „//“
ALT-ENTER Maximize Editor
To edit the shortscuts Window -> Preferences -> General -> Keys

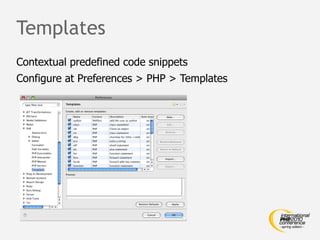

9. Templates
Contextual predefined code snippets
Configure at Preferences > PHP > Templates

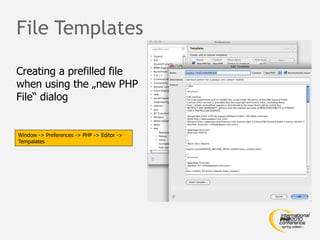

10. File Templates
Creating a prefilled file
when using the „new PHP
File“ dialog
Window -> Preferences -> PHP -> Editor ->
Tempalates

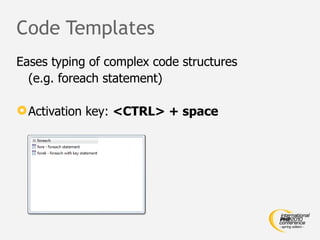

11. Code Templates
Eases typing of complex code structures
(e.g. foreach statement)
 Activation key: <CTRL> + space

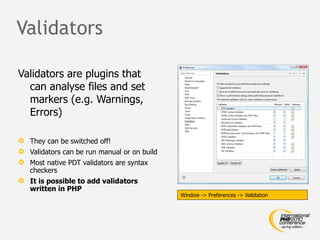

13. Validators
Validators are plugins that
can analyse files and set
markers (e.g. Warnings,
Errors)
 They can be switched off!
 Validators can be run manual or on build
 Most native PDT validators are syntax
checkers
 It is possible to add validators
written in PHP
Window -> Preferences -> Validation

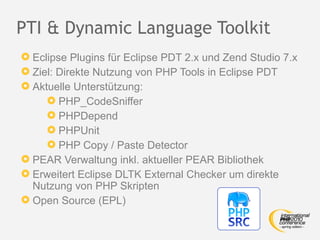

14. PTI & Dynamic Language Toolkit
 Eclipse Plugins für Eclipse PDT 2.x und Zend Studio 7.x
 Ziel: Direkte Nutzung von PHP Tools in Eclipse PDT
 Aktuelle Unterstützung:
 PHP_CodeSniffer
 PHPDepend
 PHPUnit
 PHP Copy / Paste Detector
 PEAR Verwaltung inkl. aktueller PEAR Bibliothek
 Erweitert Eclipse DLTK External Checker um direkte
Nutzung von PHP Skripten
 Open Source (EPL)

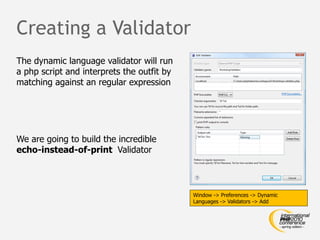

15. Creating a Validator
The dynamic language validator will run
a php script and interprets the outfit by
matching against an regular expression
We are going to build the incredible
echo-instead-of-print Validator
Window -> Preferences -> Dynamic
Languages -> Validators -> Add

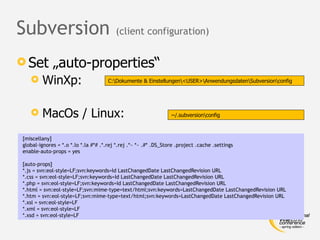

16. Subversion (client configuration)
 Set „auto-properties“
 WinXp: C:Dokumente & Einstellungen<USER>AnwendungsdatenSubversionconfig
 MacOs / Linux: ~/.subversionconfig
[miscellany]
global-ignores = *.o *.lo *.la #*# .*.rej *.rej .*~ *~ .#* .DS_Store .project .cache .settings
enable-auto-props = yes
[auto-props]
*.js = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.css = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.php = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.html = svn:eol-style=LF;svn:mime-type=text/html;svn:keywords=LastChangedDate LastChangedRevision URL
*.htm = svn:eol-style=LF;svn:mime-type=text/html;svn:keywords=LastChangedDate LastChangedRevision URL
*.xsl = svn:eol-style=LF
*.xml = svn:eol-style=LF
*.xsd = svn:eol-style=LF

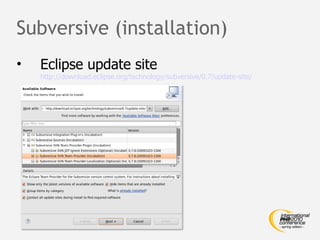

17. Subversive (installation)
• Eclipse update site
http://download.eclipse.org/technology/subversive/0.7/update-site/

18. Subversion (client configuration)
• SVN connector
• SVN properties for new files
• Customize label decorations

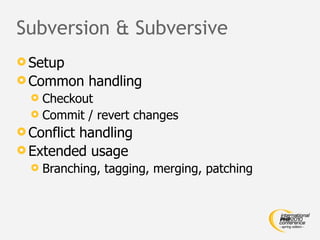

19. Subversion & Subversive
 Setup
 Common handling
 Checkout
 Commit / revert changes
 Conflict
handling
 Extended usage
 Branching, tagging, merging, patching

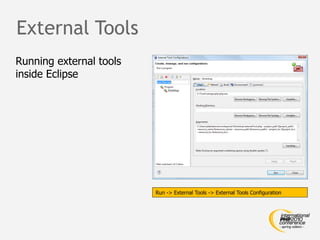

20. External Tools
Running external tools
inside Eclipse
Run -> External Tools -> External Tools Configuration

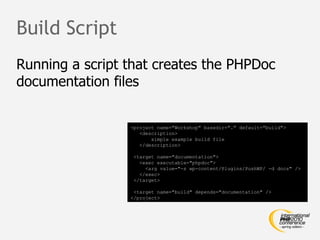

21. Build Script
Running a script that creates the PHPDoc
documentation files
<project name="Workshop" basedir="." default="build">
<description>
simple example build file
</description>
<target name="documentation">
<exec executable="phpdoc">
<arg value="-s wp-content/Plugins/PushWP/ -d docs" />
</exec>
</target>
<target name="build" depends="documentation" />
</project>

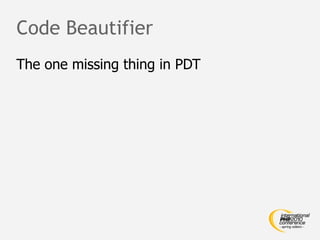

22. Code Beautifier
The one missing thing in PDT

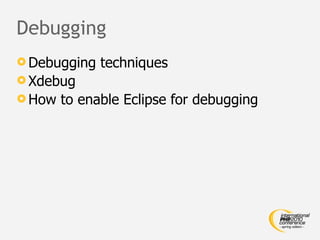

23. Debugging
 Debugging techniques
 Xdebug
 How to enable Eclipse for debugging

24. Debugging techniques
Local debugging

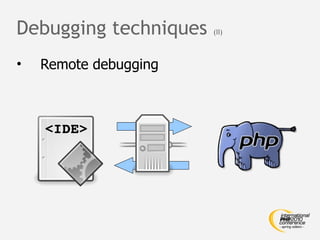

25. Debugging techniques (II)
• Remote debugging

26. Debugging techniques (III)
• Multi-User Debugging
– Only possible using Remote
Debugging
– DBGp Proxy necessary

27. Xdebug
 Debugging for PHP by Derick Rethans
(http://www.xdebug.org)
 Provides profiling, tracing, code coverage,
…
 Cross platform

28. Obtaining Xdebug
 PECL
 Download from xdebug.org
 Installation support at
http://xdebug.org/find-binary.php
 Package system of Linux distribution

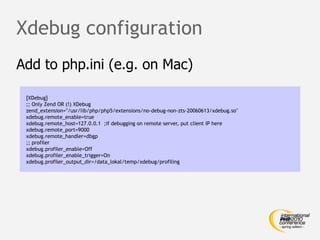

29. Xdebug configuration
Add to php.ini (e.g. on Mac)
[XDebug]
;; Only Zend OR (!) XDebug
zend_extension="/usr/lib/php/php5/extensions/no-debug-non-zts-20060613/xdebug.so"
xdebug.remote_enable=true
xdebug.remote_host=127.0.0.1 ;if debugging on remote server, put client IP here
xdebug.remote_port=9000
xdebug.remote_handler=dbgp
;; profiler
xdebug.profiler_enable=Off
xdebug.profiler_enable_trigger=On
xdebug.profiler_output_dir=/data_lokal/temp/xdebug/profiling

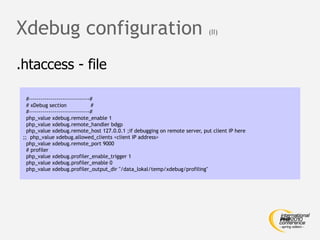

30. Xdebug configuration (II)
.htaccess - file
#-------------------------------#
# xDebug section #
#-------------------------------#
php_value xdebug.remote_enable 1
php_value xdebug.remote_handler bdgp
php_value xdebug.remote_host 127.0.0.1 ;if debugging on remote server, put client IP here
;; php_value xdebug.allowed_clients <client IP address>
php_value xdebug.remote_port 9000
# profiler
php_value xdebug.profiler_enable_trigger 1
php_value xdebug.profiler_enable 0
php_value xdebug.profiler_output_dir "/data_lokal/temp/xdebug/profiling"

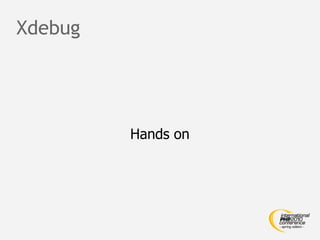

31. Xdebug
Hands on

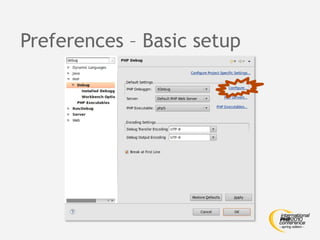

32. Preferences – Basic setup

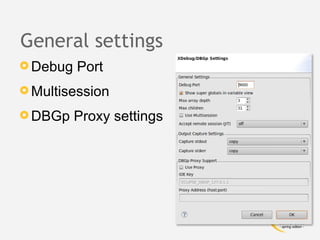

33. General settings
 Debug Port
 Multisession
 DBGp Proxy settings

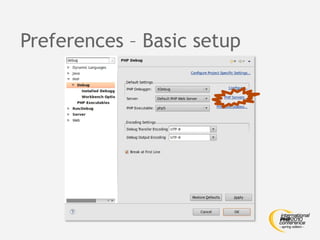

34. Preferences – Basic setup

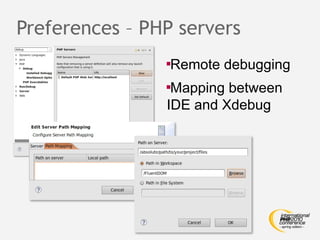

35. Preferences – PHP servers

Remote debugging

Mapping between
IDE and Xdebug

36. Configuration for remote
debugging

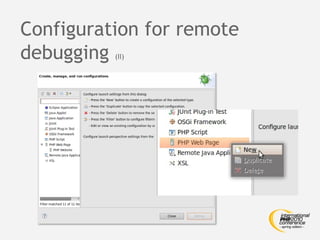

37. Configuration for remote
debugging (II)

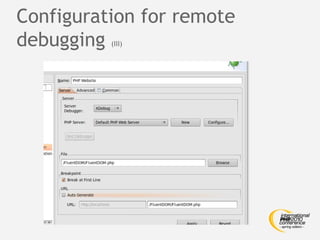

38. Configuration for remote
debugging (III)

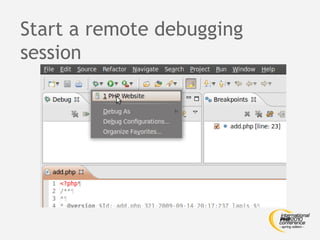

39. Start a remote debugging
session

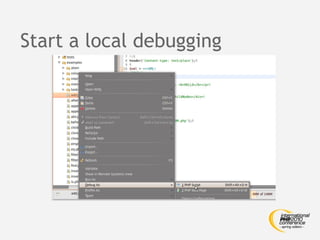

40. Start a local debugging

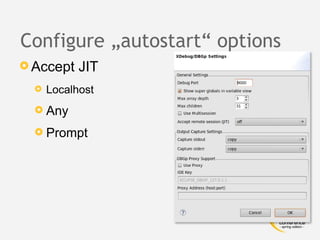

41. Configure „autostart“ options
 Accept JIT
 Localhost
 Any
 Prompt

42. Debug CLI scripts
#> export XDEBUG_CONFIG=“idekey=ECLIPSE_DBGP“↵
#> php myScript.php ↵
#> export XDEBUG_CONFIG=““ ↵
Preconditions
 JIT configured
 Breakpoint set or 'Break at first line' active
Debug cronjobs, PHPUnit tests, etc.

43. Debugging made easy!
Firefox Add-on
„Xdebug Helper“

44. Questions?
Further questions? Ask us at:
php@bastian-feder.de
nils@phphatesme.com
sven@kiera.de

45. Contact'n Rate
• Contact
– Websites:
• http://www.phphatesme.com
• http://blog.bastian-feder.de
• http://www.phpsrc.org
• Rate the workshop @
http://joind.in/talk/view/1749

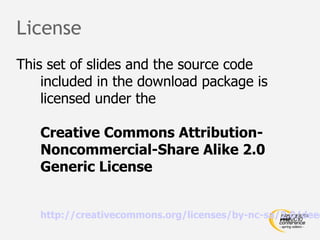

46. License
This set of slides and the source code
included in the download package is
licensed under the
Creative Commons Attribution-
Noncommercial-Share Alike 2.0
Generic License
http://creativecommons.org/licenses/by-nc-sa/2.0/deed
