![Fault Tolerance: Delivery Guarantees
Introduction to Stream Processing
• At most once (fire-and-forget) - means the message is sent, but the sender
doesn’t care if it’s received or lost. Imposes no additional overhead to ensure
message delivery, such as requiring acknowledgments from consumers. Hence, it
is the easiest and most performant behavior to support.
• At least once - means that retransmission of a message will occur until an
acknowledgment is received. Since a delayed acknowledgment from the receiver
could be in flight when the sender retransmits the message, the message may be
received one or more times.
• Exactly once - ensures that a message is received once and only once, and is
never lost and never repeated. The system must implement whatever
mechanisms are required to ensure that a message is received and processed
just once
[ 0 | 1 ]
[ 1+ ]
[ 1 ]](https://image.slidesharecdn.com/introduction-to-stream-processing-v1-180913135428/85/Introduction-to-Stream-Processing-23-320.jpg)
Uploaded byGuido Schmutz
Introduction to Stream Processing
The document is an introduction to stream processing, highlighting its motivation, capabilities, and implementation strategies. It discusses the differences between traditional data processing and stream processing, covering use cases, architecture, data integration, and key concepts like event streams and state management. Additionally, it examines tools like Apache Kafka and techniques for managing data flow in real-time applications.
More Related Content
Similar to Introduction to Stream Processing
![[WSO2Con EU 2018] The Rise of Streaming SQL](https://cdn.slidesharecdn.com/ss_thumbnails/1-181113084942-thumbnail.jpg?width=640&height=640&fit=bounds)
![[WSO2Con USA 2018] The Rise of Streaming SQL](https://cdn.slidesharecdn.com/ss_thumbnails/wso2conusa2018theriseofstreamingsql-180717041454-thumbnail.jpg?width=640&height=640&fit=bounds)
![[WSO2Con EU 2018] Streaming SQL in the Real World](https://cdn.slidesharecdn.com/ss_thumbnails/wso2coneu2018streamingsqlintherealworld-181113090808-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction to Stream Processing
- 1. BASEL BERN BRUGGDÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. GENF HAMBURG KOPENHAGEN LAUSANNE MÜNCHEN STUTTGART WIEN ZÜRICH Introduction to Stream Processing Guido Schmutz Java Zone 2018 – 13.9.2018 @gschmutz guidoschmutz.wordpress.com
- 2. Guido Schmutz Working atTrivadis for more than 21 years Oracle ACE Director for Fusion Middleware and SOA Consultant, Trainer Software Architect for Java, Oracle, SOA and Big Data / Fast Data Head of Trivadis Architecture Board Technology Manager @ Trivadis More than 30 years of software development experience Contact: guido.schmutz@trivadis.com Blog: http://guidoschmutz.wordpress.com Slideshare: http://www.slideshare.net/gschmutz Twitter: gschmutz Introduction to Stream Processing
- 3. Agenda Introduction to StreamProcessing 1. Motivation for Stream Processing? 2. Capabilities for Stream Processing 3. Implementing Stream Processing Solutions 4. Summary

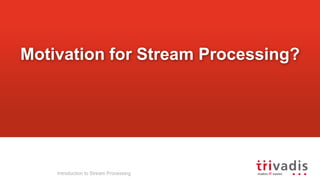

- 4. Motivation for StreamProcessing? Introduction to Stream Processing

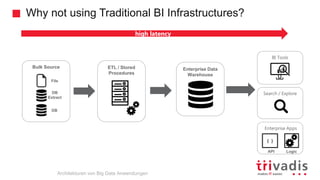

- 5. Why not usingTraditional BI Infrastructures? Enterprise Data Warehouse ETL / Stored Procedures Bulk Source DB Extract File DB Architekturen von Big Data Anwendungen BI Tools Search / Explore Enterprise Apps Logic { } API high latency

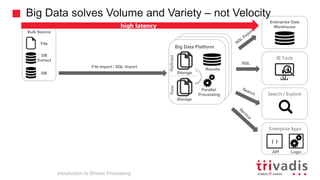

- 6. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing

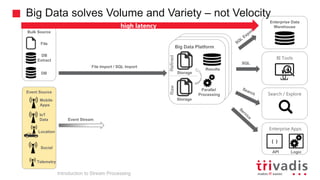

- 7. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Event Source Location Telemetry IoT Data Mobile Apps Social Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing Event Stream

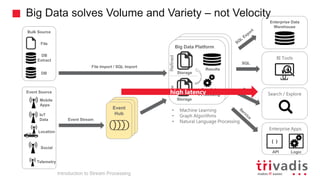

- 8. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore • Machine Learning • Graph Algorithms • Natural Language Processing Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Event Stream Event Source Location IoT Data Mobile Apps Social Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing Event Hub Event Hub Event Hub Telemetry

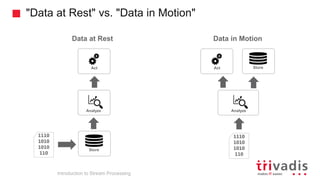

- 9. "Data at Rest"vs. "Data in Motion" Data at Rest Data in Motion Store Act Analyze StoreAct Analyze 1110 1010 1010 110 1110 1010 1010 110 Introduction to Stream Processing

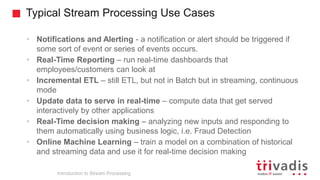

- 10. Typical Stream ProcessingUse Cases • Notifications and Alerting - a notification or alert should be triggered if some sort of event or series of events occurs. • Real-Time Reporting – run real-time dashboards that employees/customers can look at • Incremental ETL – still ETL, but not in Batch but in streaming, continuous mode • Update data to serve in real-time – compute data that get served interactively by other applications • Real-Time decision making – analyzing new inputs and responding to them automatically using business logic, i.e. Fraud Detection • Online Machine Learning – train a model on a combination of historical and streaming data and use it for real-time decision making Introduction to Stream Processing

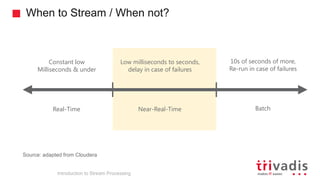

- 11. When to Stream/ When not? Introduction to Stream Processing Constant low Milliseconds & under Low milliseconds to seconds, delay in case of failures 10s of seconds of more, Re-run in case of failures Real-Time Near-Real-Time Batch Source: adapted from Cloudera

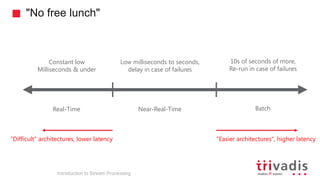

- 12. "No free lunch" Introductionto Stream Processing Constant low Milliseconds & under Low milliseconds to seconds, delay in case of failures 10s of seconds of more, Re-run in case of failures Real-Time Near-Real-Time Batch "Difficult" architectures, lower latency "Easier architectures", higher latency
- 13. Event Hub Event Hub Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Stream Processing Architecture solves Velocity BI Tools Enterprise Data Warehouse Event Hub Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Event Stream Event Stream Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Introduction to Stream Processing Low(est) latency, no history Telemetry

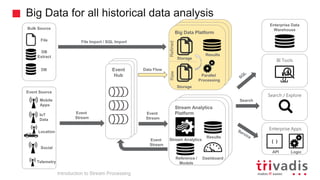

- 14. Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Big Data for all historical data analysis BI Tools Enterprise Data Warehouse Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Event Stream Event Stream Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results Data FlowEvent Hub Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social File Import / SQL Import Introduction to Stream Processing Telemetry

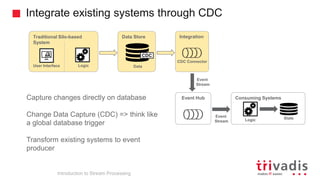

- 15. Data Store Integrate existingsystems through CDC Data Event Hub Integration Consuming Systems StateLogic CDC CDC Connector Traditional Silo-based System LogicUser Interface Capture changes directly on database Change Data Capture (CDC) => think like a global database trigger Transform existing systems to event producer Event Stream Event Stream Introduction to Stream Processing

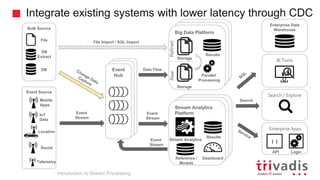

- 16. Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Integrate existing systems with lower latency through CDC BI Tools Enterprise Data Warehouse Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results File Import / SQL Import Event Stream Event Stream Data FlowEvent Hub Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Introduction to Stream Processing Telemetry
- 17. New systems participatein event-oriented fashion Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results Microservice Platform Microservice State { } API Stream Analytics Platform Stream Processor State { } API Event Stream SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API File Import / SQL Import Event Stream Data FlowEvent Hub Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Event Stream Event Stream Introduction to Stream Processing Telemetry

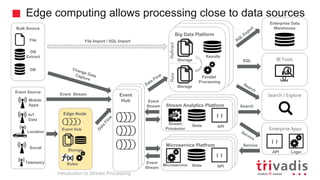

- 18. Edge computing allowsprocessing close to data sources Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results Microservice Platfrom Microservice State { } API Stream Analytics Platform Stream Processor State { } API SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Edge Node Rules Event Hub Storage File Import / SQL Import Event Hub Event Stream Event Stream Event Stream Introduction to Stream Processing Telemetry

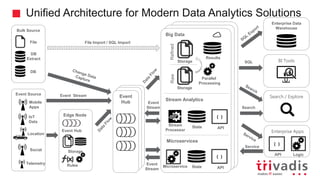

- 19. Hadoop Clusterd Hadoop Cluster BigData Unified Architecture for Modern Data Analytics Solutions SQL Search BI Tools Enterprise Data Warehouse Search / Explore File Import / SQL Import Event Hub Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API Event Stream Event Stream Service Stream Analytics Microservices Enterprise Apps Logic { } API Edge Node Rules Event Hub Storage Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Event Stream Telemetry

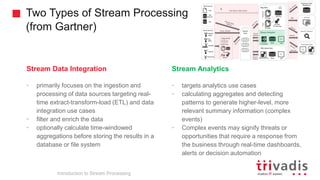

- 20. Two Types ofStream Processing (from Gartner) Introduction to Stream Processing Stream Data Integration • primarily focuses on the ingestion and processing of data sources targeting real- time extract-transform-load (ETL) and data integration use cases • filter and enrich the data • optionally calculate time-windowed aggregations before storing the results in a database or file system Stream Analytics • targets analytics use cases • calculating aggregates and detecting patterns to generate higher-level, more relevant summary information (complex events) • Complex events may signify threats or opportunities that require a response from the business through real-time dashboards, alerts or decision automation
- 21. Introduction to StreamProcessing Important Capabilities for Stream Processing

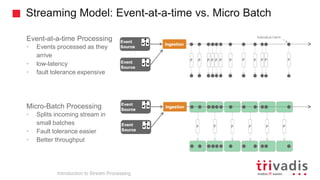

- 22. Streaming Model: Event-at-a-timevs. Micro Batch Introduction to Stream Processing Event-at-a-time Processing • Events processed as they arrive • low-latency • fault tolerance expensive Micro-Batch Processing • Splits incoming stream in small batches • Fault tolerance easier • Better throughput
- 23. Fault Tolerance: DeliveryGuarantees Introduction to Stream Processing • At most once (fire-and-forget) - means the message is sent, but the sender doesn’t care if it’s received or lost. Imposes no additional overhead to ensure message delivery, such as requiring acknowledgments from consumers. Hence, it is the easiest and most performant behavior to support. • At least once - means that retransmission of a message will occur until an acknowledgment is received. Since a delayed acknowledgment from the receiver could be in flight when the sender retransmits the message, the message may be received one or more times. • Exactly once - ensures that a message is received once and only once, and is never lost and never repeated. The system must implement whatever mechanisms are required to ensure that a message is received and processed just once [ 0 | 1 ] [ 1+ ] [ 1 ]

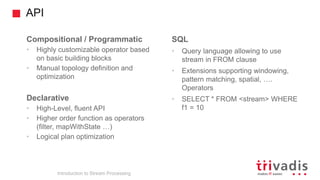

- 24. API Introduction to StreamProcessing Compositional / Programmatic • Highly customizable operator based on basic building blocks • Manual topology definition and optimization Declarative • High-Level, fluent API • Higher order function as operators (filter, mapWithState …) • Logical plan optimization SQL • Query language allowing to use stream in FROM clause • Extensions supporting windowing, pattern matching, spatial, …. Operators • SELECT * FROM <stream> WHERE f1 = 10

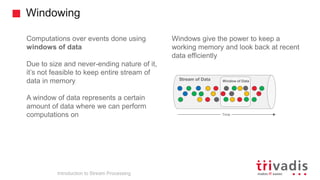

- 25. Windowing Introduction to StreamProcessing Computations over events done using windows of data Due to size and never-ending nature of it, it’s not feasible to keep entire stream of data in memory A window of data represents a certain amount of data where we can perform computations on Windows give the power to keep a working memory and look back at recent data efficiently Time Stream of Data Window of Data

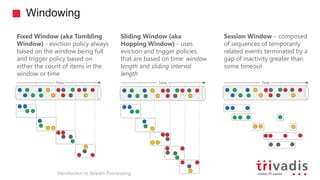

- 26. Sliding Window (aka HoppingWindow) - uses eviction and trigger policies that are based on time: window length and sliding interval length Fixed Window (aka Tumbling Window) - eviction policy always based on the window being full and trigger policy based on either the count of items in the window or time Session Window – composed of sequences of temporarily related events terminated by a gap of inactivity greater than some timeout Windowing Introduction to Stream Processing Time TimeTime

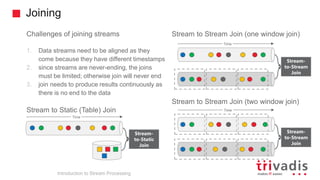

- 27. Joining Introduction to StreamProcessing Challenges of joining streams 1. Data streams need to be aligned as they come because they have different timestamps 2. since streams are never-ending, the joins must be limited; otherwise join will never end 3. join needs to produce results continuously as there is no end to the data Stream to Static (Table) Join Stream to Stream Join (one window join) Stream to Stream Join (two window join) Stream- to-Static Join Stream- to-Stream Join Stream- to-Stream Join Time Time Time
- 28. Pattern Detection Introduction toStream Processing • Streaming Data often contains interesting patterns that only emerge as new streaming data arrives, e.g. • Absence Pattern: event A not followed by event B within time window • Sequence Pattern: event A followed by event B followed by event C • Increasing Pattern: up trend of a value of a certain attribute • Decreasing Pattern: down trend of a value of a certain attribute • … • Pattern operators allow developers to define complex relationships between streaming events
- 29. State Management Introduction toStream Processing Necessary if stream processing use case is dependent on previously seen data or external data Windowing, Joining and Pattern Detection use State Management behind the scenes State Management services can be made available for custom state handling logic State needs to be managed as close to the stream processor as possible Options for State Management How does it handle failures? If a machine crashes and the/some state is lost? In-Memory Replicated, Distributed Store Local, Embedded Store Operational Complexity and Features Low high

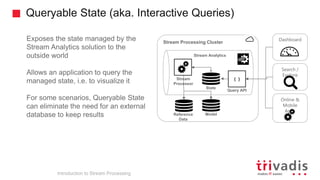

- 30. Queryable State (aka.Interactive Queries) Introduction to Stream Processing Exposes the state managed by the Stream Analytics solution to the outside world Allows an application to query the managed state, i.e. to visualize it For some scenarios, Queryable State can eliminate the need for an external database to keep results Stream Processing Cluster Reference Data Stream Analytics { } Query API State Stream Processor Search / Explore Online & Mobile Apps Model Dashboard
- 31. Event Time vs.Ingestion Time vs. Processing Time Introduction to Stream Processing Event time • the time at which events actually occurred Ingestion time / Processing Time • the time at which events are ingested / observed in the system Not all use cases care about event times but many do Examples • characterizing user behavior over time • most billing applications • anomaly detection
- 32. Capabilities: Stream DataIntegration vs. Stream Analytics Introduction to Stream Processing Stream Data Integration Stream Analytics Support for Various Data Sources Yes (yes) Streaming ETL (Transformation, Routing, Validation) yes (yes) Format Translation yes (yes) Micro-Batching yes (yes) Auto Scaling yes Backpressure Support yes - Processing Time vs. Event Time - yes Stream-to-Static Joins (Lookup/Enrichment) yes yes Stream-to-Stream Joins - yes Windowing - yes State Management - yes Queryable State (aka Interactive Queries) - yes Streaming SQL (yes) yes Event Pattern Matching / Detection - Yes
- 33. Implementing Stream Processing Solutions Introductionto Stream Processing

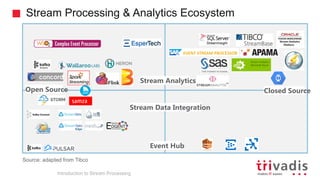

- 34. Stream Processing &Analytics Ecosystem Stream Analytics Event Hub Open Source Closed Source Stream Data Integration Source: adapted from Tibco Edge Introduction to Stream Processing
- 35. Implementing Stream Processing Solutions: "EventHub" Introduction to Stream Processing

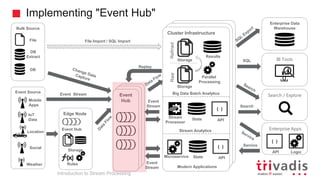

- 36. Implementing "Event Hub" HadoopClusterd Hadoop Cluster Cluster Infrastructure Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API Bulk Source Event Source Location DB Extract File Weather DB IoT Data Mobile Apps Social Edge Node Rules Event Hub Storage File Import / SQL Import Event Hub Event Stream Event Stream Event Stream Replay Big Data Batch Analytics Stream Analytics Modern Applications Introduction to Stream Processing

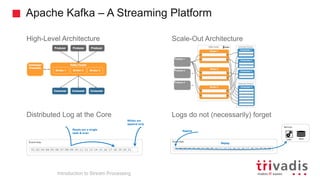

- 37. Apache Kafka –A Streaming Platform Introduction to Stream Processing High-Level Architecture Distributed Log at the Core Scale-Out Architecture Logs do not (necessarily) forget

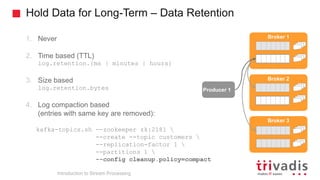

- 38. Hold Data forLong-Term – Data Retention Producer 1 Broker 1 Broker 2 Broker 3 1. Never 2. Time based (TTL) log.retention.{ms | minutes | hours} 3. Size based log.retention.bytes 4. Log compaction based (entries with same key are removed): kafka-topics.sh --zookeeper zk:2181 --create --topic customers --replication-factor 1 --partitions 1 --config cleanup.policy=compact Introduction to Stream Processing

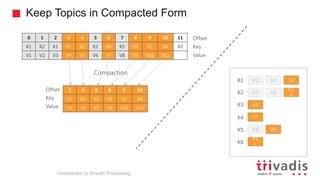

- 39. Keep Topics inCompacted Form 0 1 2 3 4 5 6 7 8 9 10 11 K1 K2 K1 K1 K3 K2 K4 K5 K5 K2 K6 K2 V1 V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 Offset Key Value 3 4 6 8 9 10 K1 K3 K4 K5 K2 K6 V4 V5 V7 V9 V10 V11 Offset Key Value Compaction Introduction to Stream Processing V1 V2 V3 V4 V5 V6 V7 V8 V9 V1 0 V1 1 K1 K3 K4 K5 K2 K6

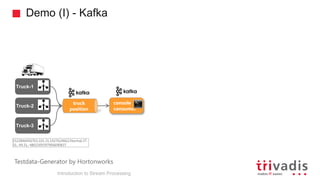

- 40. Demo (I) -Kafka Truck-2 truck position Truck-1 Truck-3 console consumer Testdata-Generator by Hortonworks Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837

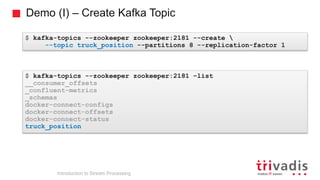

- 41. Demo (I) –Create Kafka Topic $ kafka-topics --zookeeper zookeeper:2181 --create --topic truck_position --partitions 8 --replication-factor 1 $ kafka-topics --zookeeper zookeeper:2181 –list __consumer_offsets _confluent-metrics _schemas docker-connect-configs docker-connect-offsets docker-connect-status truck_position Introduction to Stream Processing

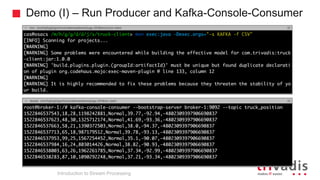

- 42. Demo (I) –Run Producer and Kafka-Console-Consumer Introduction to Stream Processing
- 43. Implementing Stream Processing Solutions: StreamingData Sources Introduction to Stream Processing

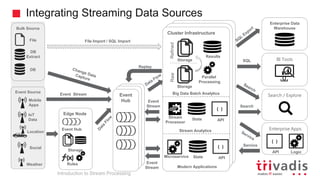

- 44. Integrating Streaming DataSources Hadoop Clusterd Hadoop Cluster Cluster Infrastructure Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API Bulk Source Event Source Location DB Extract File Weather DB IoT Data Mobile Apps Social Edge Node Rules Event Hub Storage File Import / SQL Import Event Hub Event Stream Event Stream Event Stream Replay Big Data Batch Analytics Stream Analytics Modern Applications Introduction to Stream Processing

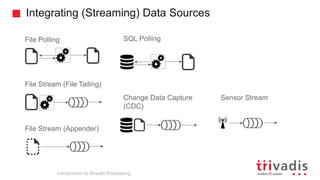

- 45. Integrating (Streaming) DataSources Introduction to Stream Processing SQL Polling Change Data Capture (CDC) File Polling File Stream (File Tailing) File Stream (Appender) Sensor Stream

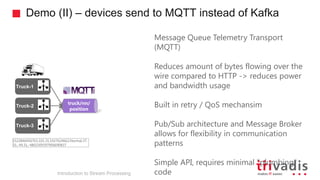

- 46. Demo (II) –devices send to MQTT instead of Kafka Truck-2 truck/nn/ position Truck-1 Truck-3 Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837 Message Queue Telemetry Transport (MQTT) Reduces amount of bytes flowing over the wire compared to HTTP -> reduces power and bandwidth usage Built in retry / QoS mechansim Pub/Sub architecture and Message Broker allows for flexibility in communication patterns Simple API, requires minimal "plumbing" code

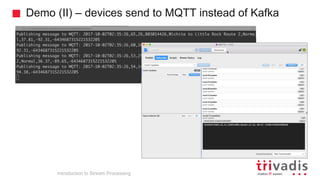

- 47. Demo (II) –devices send to MQTT instead of Kafka Introduction to Stream Processing

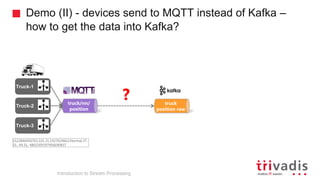

- 48. Demo (II) -devices send to MQTT instead of Kafka – how to get the data into Kafka? Truck-2 truck/nn/ position Truck-1 Truck-3 truck position raw ? Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837
- 49. Implementing Stream Processing Solutions: "StreamData Integration" Introduction to Stream Processing

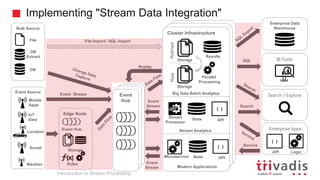

- 50. Implementing "Stream DataIntegration" Hadoop Clusterd Hadoop Cluster Cluster Infrastructure Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API Bulk Source Event Source Location DB Extract File Weather DB IoT Data Mobile Apps Social Edge Node Rules Event Hub Storage File Import / SQL Import Event Hub Event Stream Event Stream Event Stream Replay Big Data Batch Analytics Stream Analytics Modern Applications Introduction to Stream Processing

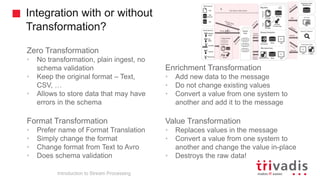

- 51. Integration with orwithout Transformation? Zero Transformation • No transformation, plain ingest, no schema validation • Keep the original format – Text, CSV, … • Allows to store data that may have errors in the schema Format Transformation • Prefer name of Format Translation • Simply change the format • Change format from Text to Avro • Does schema validation Enrichment Transformation • Add new data to the message • Do not change existing values • Convert a value from one system to another and add it to the message Value Transformation • Replaces values in the message • Convert a value from one system to another and change the value in-place • Destroys the raw data! Introduction to Stream Processing d

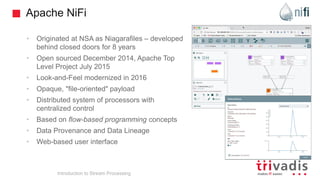

- 52. Apache NiFi • Originatedat NSA as Niagarafiles – developed behind closed doors for 8 years • Open sourced December 2014, Apache Top Level Project July 2015 • Look-and-Feel modernized in 2016 • Opaque, "file-oriented" payload • Distributed system of processors with centralized control • Based on flow-based programming concepts • Data Provenance and Data Lineage • Web-based user interface Introduction to Stream Processing

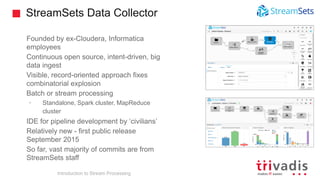

- 53. StreamSets Data Collector Foundedby ex-Cloudera, Informatica employees Continuous open source, intent-driven, big data ingest Visible, record-oriented approach fixes combinatorial explosion Batch or stream processing • Standalone, Spark cluster, MapReduce cluster IDE for pipeline development by ‘civilians’ Relatively new - first public release September 2015 So far, vast majority of commits are from StreamSets staff Introduction to Stream Processing

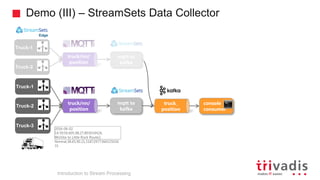

- 54. Demo (III) –StreamSets Data Collector Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position console consumer Introduction to Stream Processing 2016-06-02 14:39:56.605,98,27,803014426, Wichita to Little Rock Route2, Normal,38.65,90.21,51872977366525026 31 Truck-2 truck/nn/ position Truck-1 Edge mqtt to kafka

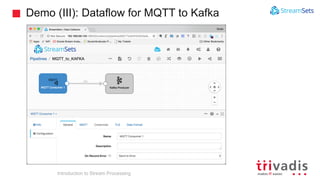

- 55. Demo (III): Dataflowfor MQTT to Kafka Introduction to Stream Processing

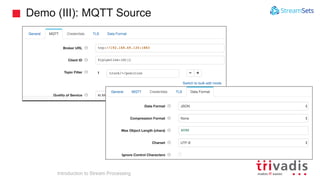

- 56. Demo (III): MQTTSource Introduction to Stream Processing
- 57. Demo (III): KafkaSink Introduction to Stream Processing
- 58. Demo (III): Dataflowfor MQTT to Kafka Introduction to Stream Processing

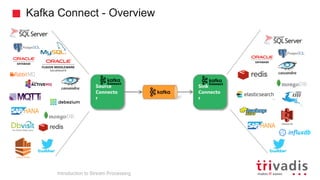

- 59. Kafka Connect -Overview Source Connecto r Sink Connecto r Introduction to Stream Processing

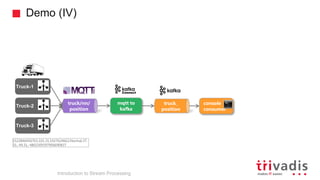

- 60. Demo (IV) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position console consumer Introductionto Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837

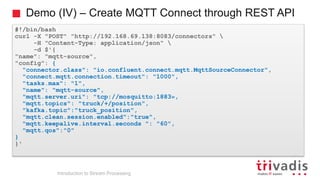

- 61. Demo (IV) –Create MQTT Connect through REST API #!/bin/bash curl -X "POST" "http://192.168.69.138:8083/connectors" -H "Content-Type: application/json" -d $'{ "name": "mqtt-source", "config": { "connector.class": "io.confluent.connect.mqtt.MqttSourceConnector", "connect.mqtt.connection.timeout": "1000", "tasks.max": "1", "name": "mqtt-source", "mqtt.server.uri": "tcp://mosquitto:1883», "mqtt.topics": "truck/+/position", "kafka.topic":"truck_position", "mqtt.clean.session.enabled":"true", "mqtt.keepalive.interval.seconds ": "60", "mqtt.qos":"0" } }' Introduction to Stream Processing

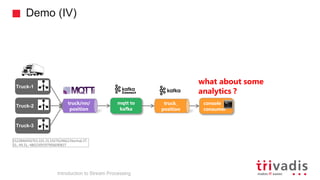

- 62. Demo (IV) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position console consumer whatabout some analytics ? Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837

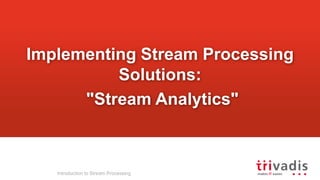

- 63. Implementing Stream Processing Solutions: "StreamAnalytics" Introduction to Stream Processing

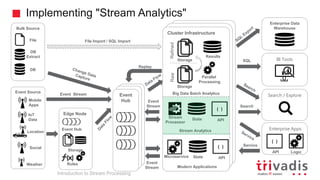

- 64. Implementing "Stream Analytics" HadoopClusterd Hadoop Cluster Cluster Infrastructure Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API SQL Search BI Tools Enterprise Data Warehouse Search / Explore Service Enterprise Apps Logic { } API Bulk Source Event Source Location DB Extract File Weather DB IoT Data Mobile Apps Social Edge Node Rules Event Hub Storage File Import / SQL Import Event Hub Event Stream Event Stream Event Stream Replay Big Data Batch Analytics Stream Analytics Modern Applications Introduction to Stream Processing

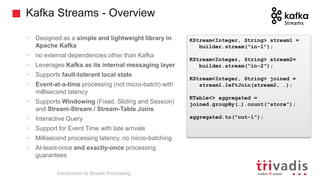

- 65. Kafka Streams -Overview • Designed as a simple and lightweight library in Apache Kafka • no external dependencies other than Kafka • Leverages Kafka as its internal messaging layer • Supports fault-tolerant local state • Event-at-a-time processing (not micro-batch) with millisecond latency • Supports Windowing (Fixed, Sliding and Session) and Stream-Stream / Stream-Table Joins • Interactive Query • Support for Event Time with late arrivals • Millisecond processing latency, no micro-batching • At-least-once and exactly-once processing guarantees Introduction to Stream Processing KStream<Integer, String> stream1 = builder.stream("in-1"); KStream<Integer, String> stream2= builder.stream("in-2"); KStream<Integer, String> joined = stream1.leftJoin(stream2, …); KTable<> aggregated = joined.groupBy(…).count("store"); aggregated.to("out-1");
- 66. Demo (V) –Kafka Streams Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position_s detect_dang erous_drivin g dangerous_ driving console consumer 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837 Introduction to Stream Processing
- 67. Demo (V) -Create Stream final KStreamBuilder builder = new KStreamBuilder(); KStream<String, String> source = builder.stream(stringSerde, stringSerde, "truck_position"); KStream<String, TruckPosition> positions = source.map((key,value) -> new KeyValue<>(key, TruckPosition.create(key,value))); KStream<String, TruckPosition> filtered = positions.filter(TruckPosition::filterNonNORMAL); filtered.map((key,value) -> new KeyValue<>(key,value.toCSV())) .to("dangerous_driving"); Introduction to Stream Processing

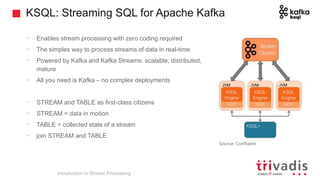

- 68. KSQL: Streaming SQLfor Apache Kafka • Enables stream processing with zero coding required • The simples way to process streams of data in real-time • Powered by Kafka and Kafka Streams: scalable, distributed, mature • All you need is Kafka – no complex deployments • STREAM and TABLE as first-class citizens • STREAM = data in motion • TABLE = collected state of a stream • join STREAM and TABLE Introduction to Stream Processing Source: Confluent

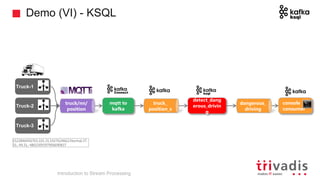

- 69. Demo (VI) -KSQL Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position_s detect_dang erous_drivin g dangerous_ driving console consumer Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837

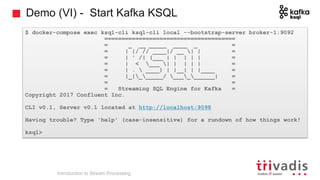

- 70. Demo (VI) -Start Kafka KSQL $ docker-compose exec ksql-cli ksql-cli local --bootstrap-server broker-1:9092 ====================================== = _ __ _____ ____ _ = = | |/ // ____|/ __ | | = = | ' /| (___ | | | | | = = | < ___ | | | | | = = | . ____) | |__| | |____ = = |_|______/ __________| = = = = Streaming SQL Engine for Kafka = Copyright 2017 Confluent Inc. CLI v0.1, Server v0.1 located at http://localhost:9098 Having trouble? Type 'help' (case-insensitive) for a rundown of how things work! ksql> Introduction to Stream Processing

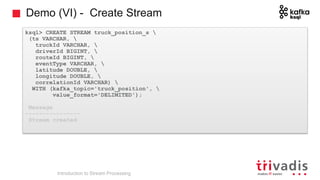

- 71. Demo (VI) -Create Stream ksql> CREATE STREAM truck_position_s (ts VARCHAR, truckId VARCHAR, driverId BIGINT, routeId BIGINT, eventType VARCHAR, latitude DOUBLE, longitude DOUBLE, correlationId VARCHAR) WITH (kafka_topic='truck_position', value_format='DELIMITED'); Message ---------------- Stream created Introduction to Stream Processing

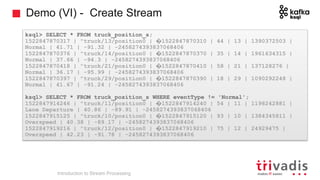

- 72. Demo (VI) -Create Stream ksql> SELECT * FROM truck_position_s; 1522847870317 | "truck/13/position0 | �1522847870310 | 44 | 13 | 1390372503 | Normal | 41.71 | -91.32 | -2458274393837068406 1522847870376 | "truck/14/position0 | �1522847870370 | 35 | 14 | 1961634315 | Normal | 37.66 | -94.3 | -2458274393837068406 1522847870418 | "truck/21/position0 | �1522847870410 | 58 | 21 | 137128276 | Normal | 36.17 | -95.99 | -2458274393837068406 1522847870397 | "truck/29/position0 | �1522847870390 | 18 | 29 | 1090292248 | Normal | 41.67 | -91.24 | -2458274393837068406 ksql> SELECT * FROM truck_position_s WHERE eventType != 'Normal'; 1522847914246 | "truck/11/position0 | �1522847914240 | 54 | 11 | 1198242881 | Lane Departure | 40.86 | -89.91 | -2458274393837068406 1522847915125 | "truck/10/position0 | �1522847915120 | 93 | 10 | 1384345811 | Overspeed | 40.38 | -89.17 | -2458274393837068406 1522847919216 | "truck/12/position0 | �1522847919210 | 75 | 12 | 24929475 | Overspeed | 42.23 | -91.78 | -2458274393837068406 Introduction to Stream Processing

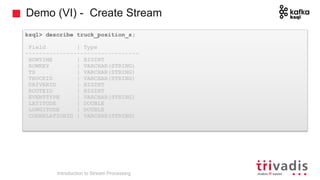

- 73. Demo (VI) -Create Stream ksql> describe truck_position_s; Field | Type --------------------------------- ROWTIME | BIGINT ROWKEY | VARCHAR(STRING) TS | VARCHAR(STRING) TRUCKID | VARCHAR(STRING) DRIVERID | BIGINT ROUTEID | BIGINT EVENTTYPE | VARCHAR(STRING) LATITUDE | DOUBLE LONGITUDE | DOUBLE CORRELATIONID | VARCHAR(STRING) Introduction to Stream Processing

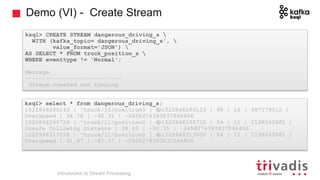

- 74. Demo (VI) -Create Stream ksql> CREATE STREAM dangerous_driving_s WITH (kafka_topic= dangerous_driving_s', value_format='JSON') AS SELECT * FROM truck_position_s WHERE eventtype != 'Normal'; Message ---------------------------- Stream created and running ksql> select * from dangerous_driving_s; 1522848286143 | "truck/15/position0 | �1522848286125 | 98 | 15 | 987179512 | Overspeed | 34.78 | -92.31 | -2458274393837068406 1522848295729 | "truck/11/position0 | �1522848295720 | 54 | 11 | 1198242881 | Unsafe following distance | 38.43 | -90.35 | -2458274393837068406 1522848313018 | "truck/11/position0 | �1522848313000 | 54 | 11 | 1198242881 | Overspeed | 41.87 | -87.67 | -2458274393837068406 Introduction to Stream Processing

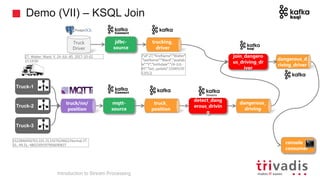

- 75. Demo (VII) –KSQL Join Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt- source truck_ position detect_dang erous_drivin g dangerous_ driving Truck Driver jdbc- source trucking_ driver join_dangero us_driving_dr iver dangerous_d riving_driver 27, Walter, Ward, Y, 24-JUL-85, 2017-10-02 15:19:00 console consumer {"id":27,"firstName":"Walter" ,"lastName":"Ward","availab le":"Y","birthdate":"24-JUL- 85","last_update":15069230 52012} Introduction to Stream Processing 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837

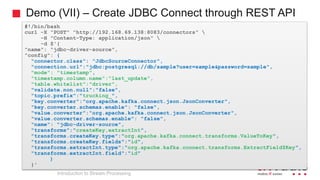

- 76. Demo (VII) –Create JDBC Connect through REST API #!/bin/bash curl -X "POST" "http://192.168.69.138:8083/connectors" -H "Content-Type: application/json" -d $'{ "name": "jdbc-driver-source", "config": { "connector.class": "JdbcSourceConnector", "connection.url":"jdbc:postgresql://db/sample?user=sample&password=sample", "mode": "timestamp", "timestamp.column.name":"last_update", "table.whitelist":"driver", "validate.non.null":"false", "topic.prefix":"trucking_", "key.converter":"org.apache.kafka.connect.json.JsonConverter", "key.converter.schemas.enable": "false", "value.converter":"org.apache.kafka.connect.json.JsonConverter", "value.converter.schemas.enable": "false", "name": "jdbc-driver-source", "transforms":"createKey,extractInt", "transforms.createKey.type":"org.apache.kafka.connect.transforms.ValueToKey", "transforms.createKey.fields":"id", "transforms.extractInt.type":"org.apache.kafka.connect.transforms.ExtractField$Key", "transforms.extractInt.field":"id" } }' Introduction to Stream Processing

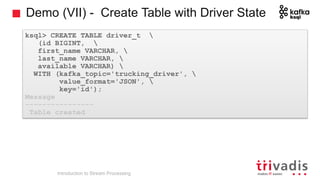

- 77. Demo (VII) -Create Table with Driver State Introduction to Stream Processing ksql> CREATE TABLE driver_t (id BIGINT, first_name VARCHAR, last_name VARCHAR, available VARCHAR) WITH (kafka_topic='trucking_driver', value_format='JSON', key='id'); Message ---------------- Table created

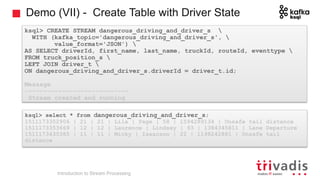

- 78. Demo (VII) -Create Table with Driver State ksql> CREATE STREAM dangerous_driving_and_driver_s WITH (kafka_topic='dangerous_driving_and_driver_s', value_format='JSON') AS SELECT driverId, first_name, last_name, truckId, routeId, eventtype FROM truck_position_s LEFT JOIN driver_t ON dangerous_driving_and_driver_s.driverId = driver_t.id; Message ---------------------------- Stream created and running ksql> select * from dangerous_driving_and_driver_s; 1511173352906 | 21 | 21 | Lila | Page | 58 | 1594289134 | Unsafe tail distance 1511173353669 | 12 | 12 | Laurence | Lindsey | 93 | 1384345811 | Lane Departure 1511173435385 | 11 | 11 | Micky | Isaacson | 22 | 1198242881 | Unsafe tail distance Introduction to Stream Processing

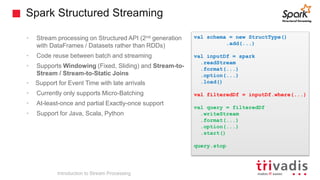

- 79. Spark Structured Streaming •Stream processing on Structured API (2nd generation with DataFrames / Datasets rather than RDDs) • Code reuse between batch and streaming • Supports Windowing (Fixed, Sliding) and Stream-to- Stream / Stream-to-Static Joins • Support for Event Time with late arrivals • Currently only supports Micro-Batching • At-least-once and partial Exactly-once support • Support for Java, Scala, Python Introduction to Stream Processing val schema = new StructType() .add(...) val inputDf = spark .readStream .format(...) .option(...) .load() val filteredDf = inputDf.where(...) val query = filteredDf .writeStream .format(...) .option(...) .start() query.stop

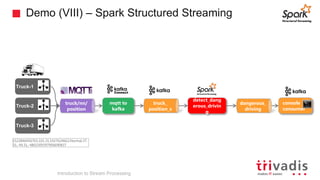

- 80. Demo (VIII) –Spark Structured Streaming Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position_s detect_dang erous_drivin g dangerous_ driving console consumer 1522846456703,101,31,1927624662,Normal,37. 31,-94.31,-4802309397906690837 Introduction to Stream Processing

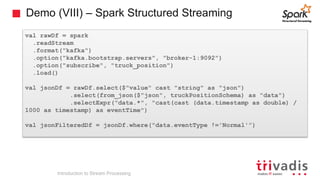

- 81. Demo (VIII) –Spark Structured Streaming val rawDf = spark .readStream .format("kafka") .option("kafka.bootstrap.servers", "broker-1:9092") .option("subscribe", "truck_position") .load() val jsonDf = rawDf.select($"value" cast "string" as "json") .select(from_json($"json", truckPositionSchema) as "data") .selectExpr("data.*", "cast(cast (data.timestamp as double) / 1000 as timestamp) as eventTime") val jsonFilteredDf = jsonDf.where("data.eventType !='Normal'”) Introduction to Stream Processing

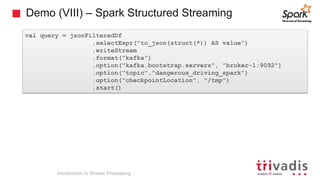

- 82. Demo (VIII) –Spark Structured Streaming val query = jsonFilteredDf .selectExpr("to_json(struct(*)) AS value") .writeStream .format("kafka") .option("kafka.bootstrap.servers", "broker-1:9092") .option("topic","dangerous_driving_spark") .option("checkpointLocation", "/tmp") .start() Introduction to Stream Processing
- 83. Summary Introduction to StreamProcessing

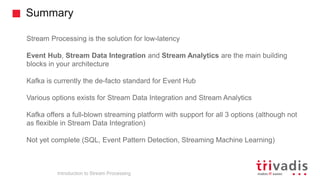

- 84. Summary Introduction to StreamProcessing Stream Processing is the solution for low-latency Event Hub, Stream Data Integration and Stream Analytics are the main building blocks in your architecture Kafka is currently the de-facto standard for Event Hub Various options exists for Stream Data Integration and Stream Analytics Kafka offers a full-blown streaming platform with support for all 3 options (although not as flexible in Stream Data Integration) Not yet complete (SQL, Event Pattern Detection, Streaming Machine Learning)
- 85. Introduction to StreamProcessing Technology on its own won't help you. You need to know how to use it properly.
