Introduction to git
This document provides an introduction to Git and its basic functions. It discusses what version control and Git are used for, including tracking history and facilitating collaboration. The key components of Git are explained, such as branches, the central repository, and the three trees. Common Git commands and workflows are outlined, like cloning, adding, committing, pushing changes, branching, merging, and pulling updates. Resources for learning more about Git commands and documentation are provided at the end.
More Related Content
Similar to Introduction to git
Introduction to git
- 1. Intro to Git By:Shilu Shrestha
- 2. • Version ControlSystem • Manage features with Branches: Linked list of save points • Central Repository and Collaboration
- 3. Why Version ControlSystem?

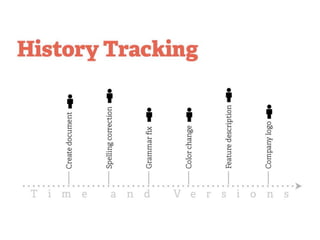

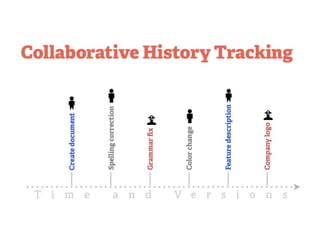

- 4. Version Control System •History Tracking • Collaborative History Tracking • Distributed Version Control Systems

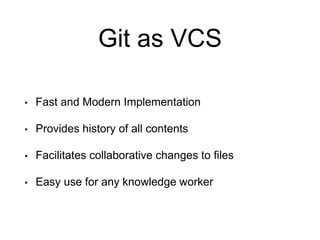

- 7. Git as VCS •Fast and Modern Implementation • Provides history of all contents • Facilitates collaborative changes to files • Easy use for any knowledge worker

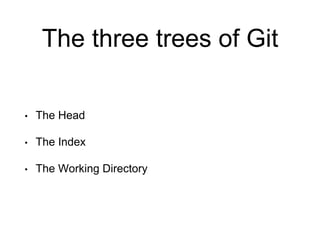

- 8. The three treesof Git • The Head • The Index • The Working Directory
- 9.
- 10.
- 11.

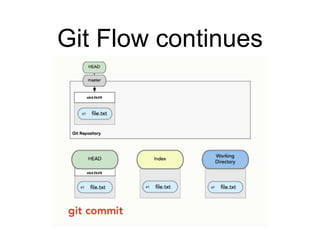

- 12.
- 13.

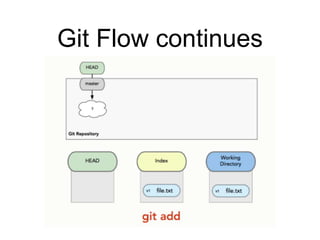

- 14.
- 15.

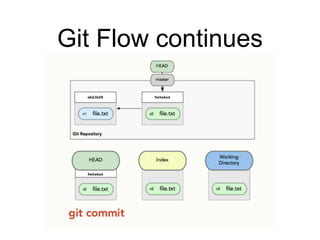

- 16.

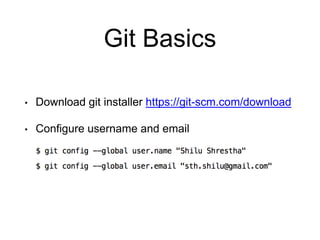

- 17. Git Basics • Downloadgit installer https://git-scm.com/download • Configure username and email

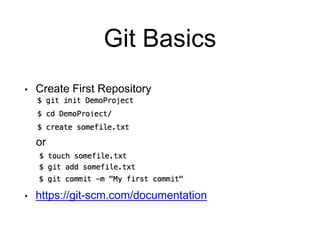

- 18. Git Basics • CreateFirst Repository or • https://git-scm.com/documentation

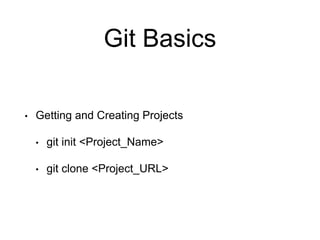

- 19. Git Basics • Gettingand Creating Projects • git init <Project_Name> • git clone <Project_URL>
- 20. Git Basics • Addand Commit • git add <File_Name> • git add . • git commit -m “<Commit_Message>”

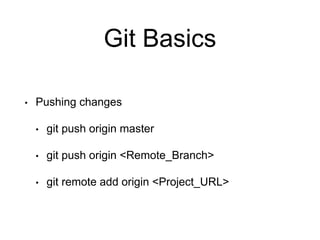

- 21. Git Basics • Pushingchanges • git push origin master • git push origin <Remote_Branch> • git remote add origin <Project_URL>
- 22. Git Branching • Gitstore data as a series of snapshots. • When you make a commit, Git stores a commit object that contains a pointer to the snapshot of the content you staged. • This object contains the author’s name and email, the message that you typed, and pointers to the commit or commits that directly came before this commit.

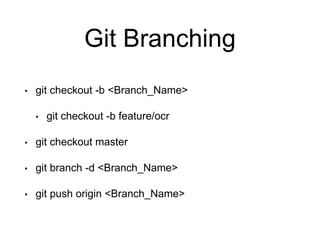

- 24. Git Branching • gitcheckout -b <Branch_Name> • git checkout -b feature/ocr • git checkout master • git branch -d <Branch_Name> • git push origin <Branch_Name>

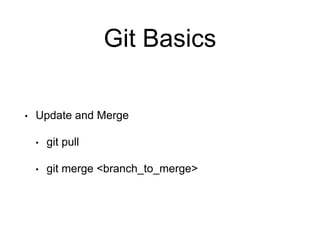

- 26. Git Basics • Updateand Merge • git pull • git merge <branch_to_merge>
- 28. • More on: •https://git-scm.com/docs • https://techtrendzy.wordpress.com/2015/09/01/git -commands/ • http://rogerdudler.github.io/git-guide/
Editor's Notes
- #2 Git is a free and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency. Originally developed in 2005 by Linus Torvalds, the famous creator of the Linux operating system kernel
- #3 VCS: Allows us to save snapshots of sw project that we are working on Create multiple save points in our project like s1, s2, s3 at different points during its development Branches: Can revert back to previous safe point Save points that are committed are saved on a branch(connects branches together) Central Repository: Push local projects/changes to a location that can be accessed by other developer therefore allows each developer involved in the project to have their own copy of the project in local comp
- #4 Every role have these tasks. eg. dev, Designer, documents etc Save: when you did it, why and the contents allowing for review in future
- #5 History: What you did, why you did, what the contents are etcs. For single relatively easy. Collaborate: Who changed it when they changed it why they changed it
- #8 many VCS require complicated server setup. git locally enabled easy to learn commands.

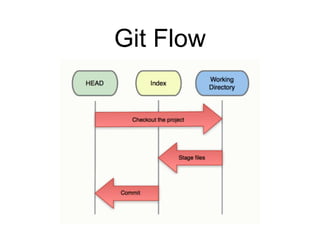

- #9 Tree Roles The HEAD last commit snapshot, next parent The Index proposed next commit snapshot The Working Directory sandbox

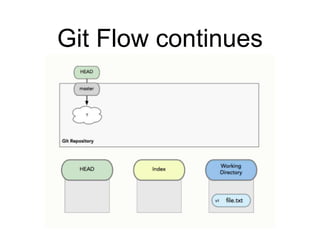

- #10 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #11 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #12 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #13 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #14 at this point all three tree have same changes and git status will show no difference now lets edit file.txt then do git status this will show above changes
- #15 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.

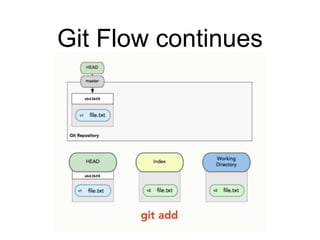

- #16 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #17 your local repository consists of three "trees" maintained by git. the first one is your Working Directory which holds the actual files. the second one is the Index which acts as a staging area and finally the HEAD which points to the last commit you've made.
- #18 name, email : local records to give you credit for work you’d be doing.
- #19 Now recorded a historical event in git VCS and repeat the same coding for new, existing or more than one files. Historical event that can be returned to later.
- #23 First we need to understand how git stores/saves data.
- #24 Branches are used to develop features isolated from each other. The master branch is the "default" branch when you create a repository. Use other branches for development and merge them back to the master branch upon completion.
- #25 switch back to master
- #26 Fast and modern implementation of VCS History of content changes Facilitates collaborative changes Any type of knowledge worker
- #27 pull: update repo to later merge: merge another branch into active branch
