- 1. Apache Camel The IntegrationLibrary Aarhus Denmark February 9th 2017
- 2. Claus Ibsen • SeniorPrincipal Software Engineer at Red Hat • Apache Camel 8 years full time • Author of Camel in Action books @davsclaus davsclaus davsclaus.com

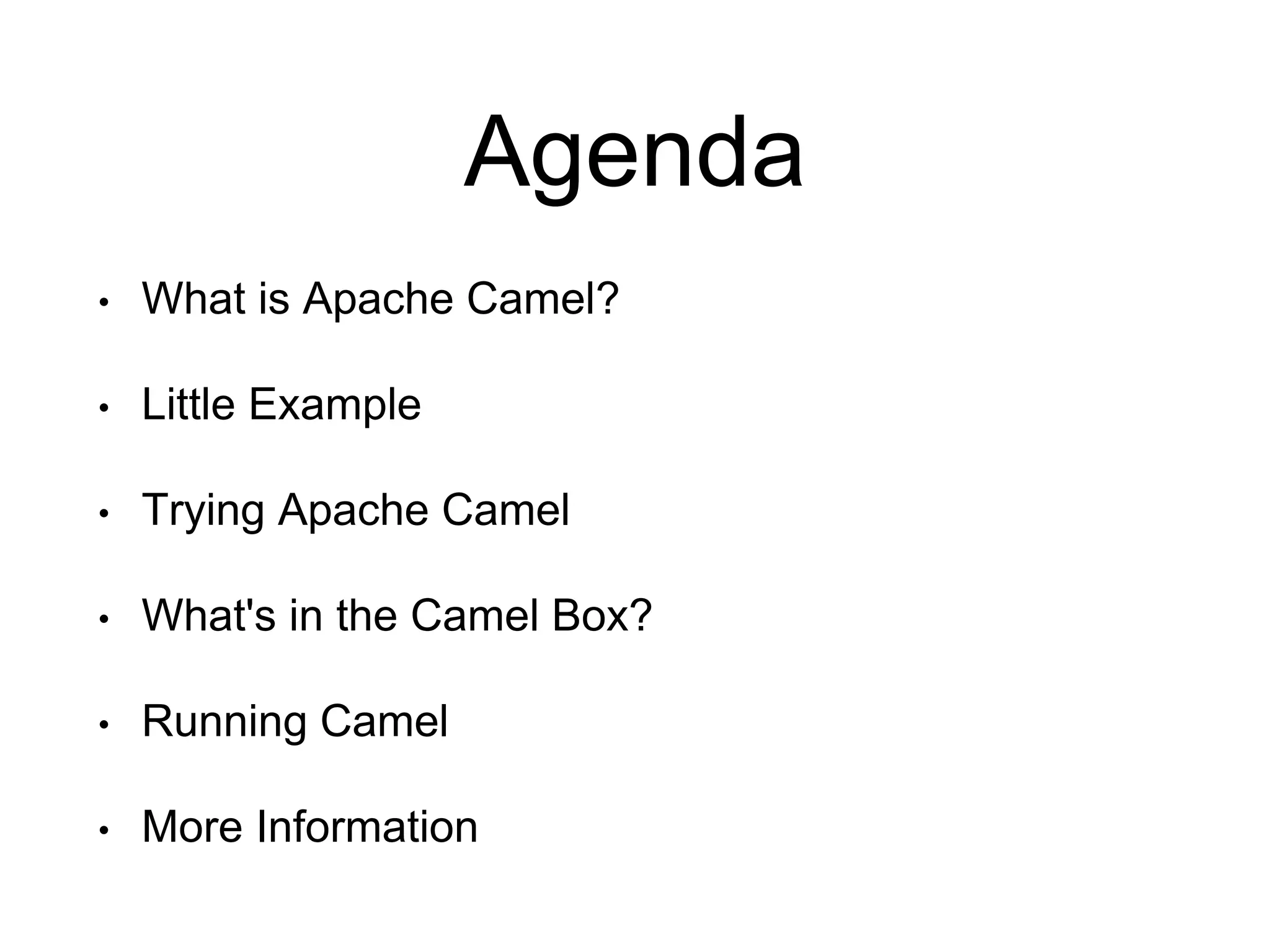

- 3. Agenda • What isApache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

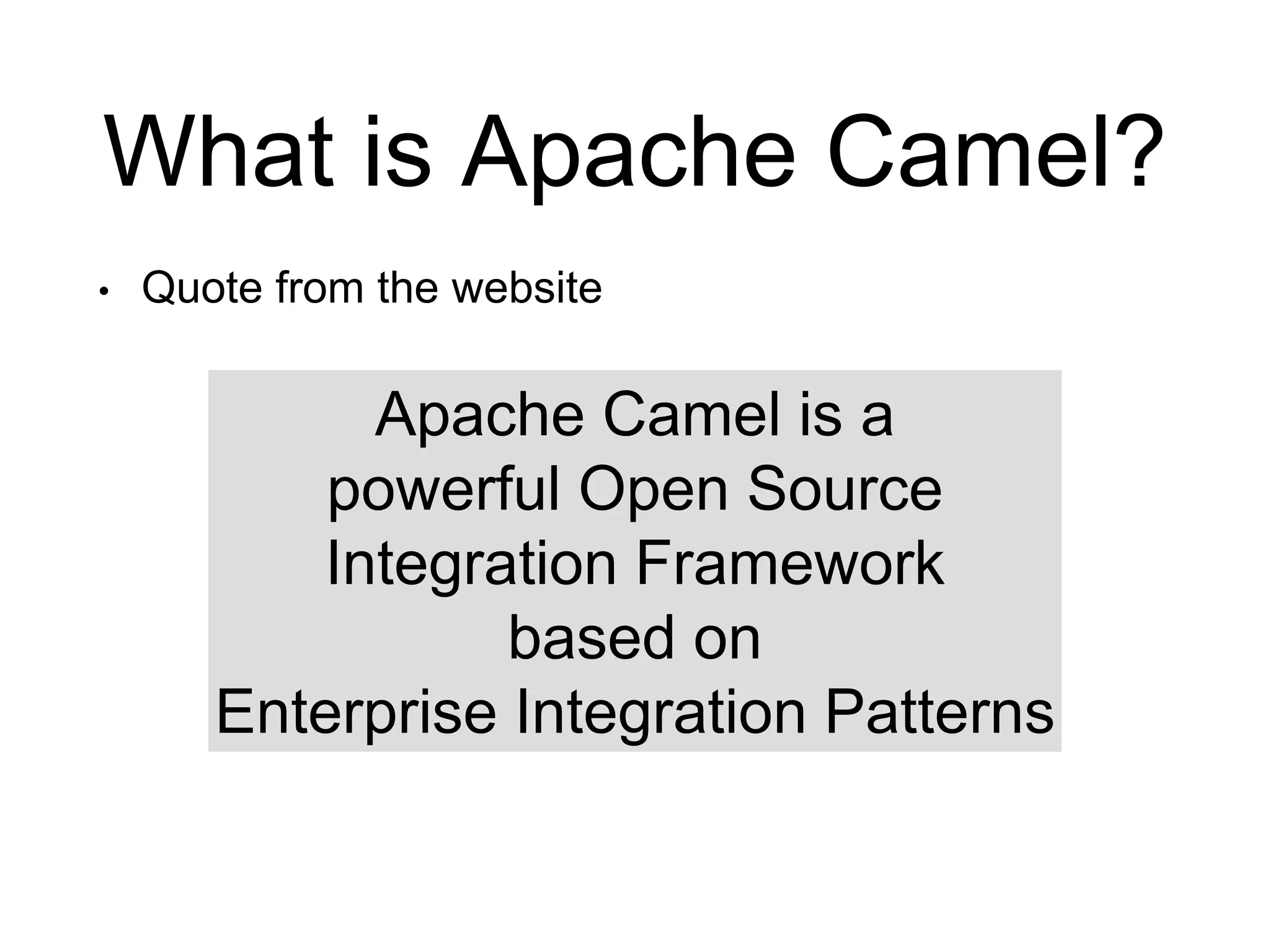

- 4. What is ApacheCamel? • Quote from the website Apache Camel is a powerful Open Source Integration Framework based on Enterprise Integration Patterns
- 5. What is ApacheCamel? • Quote from the website Apache Camel is a powerful Open Source Integration Framework based on Enterprise Integration Patterns
- 6.
- 7.
- 8.
- 9.

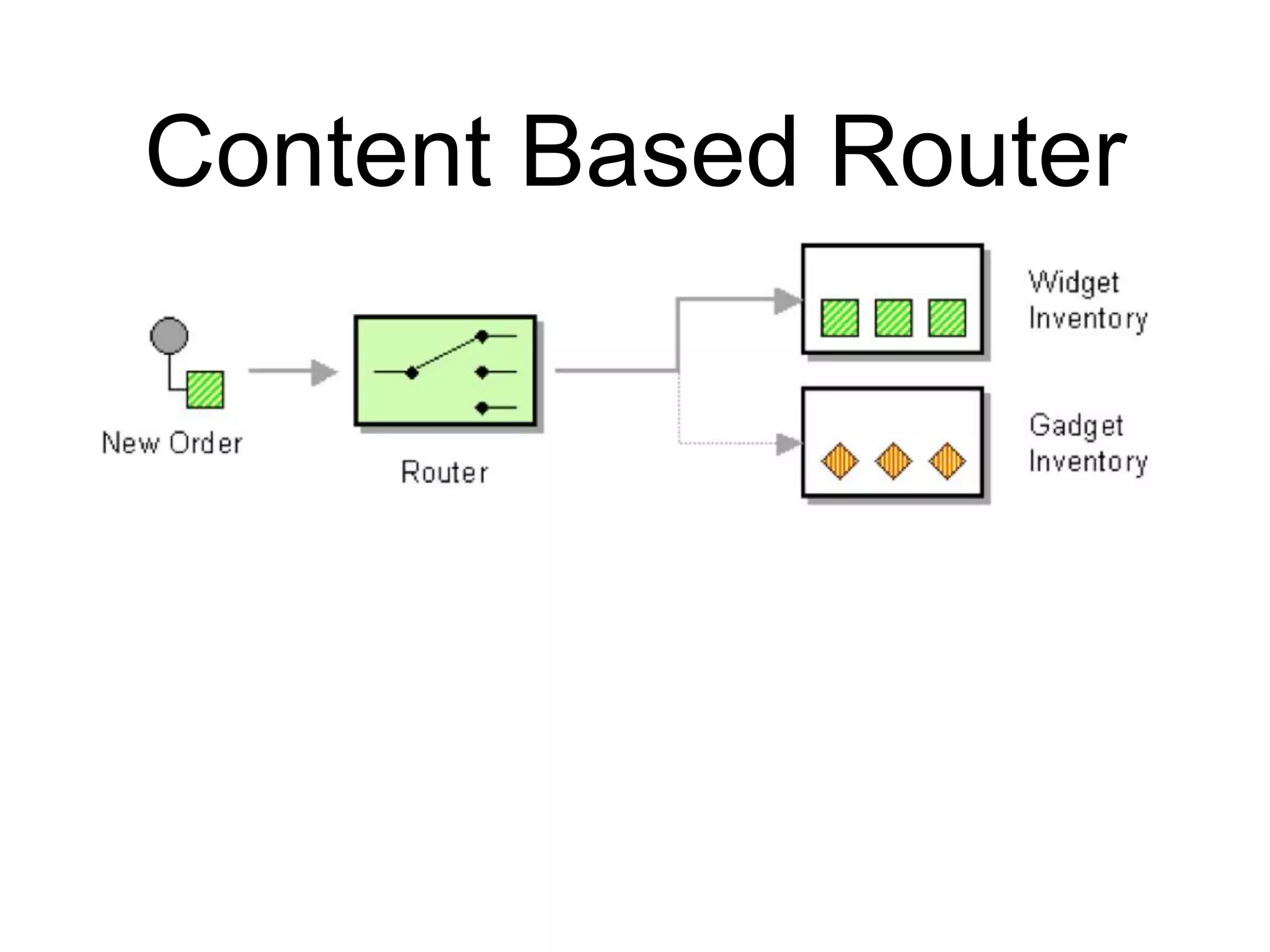

- 10. Content Based Router fromnewOrder
- 11. Content Based Router fromnewOrder choice

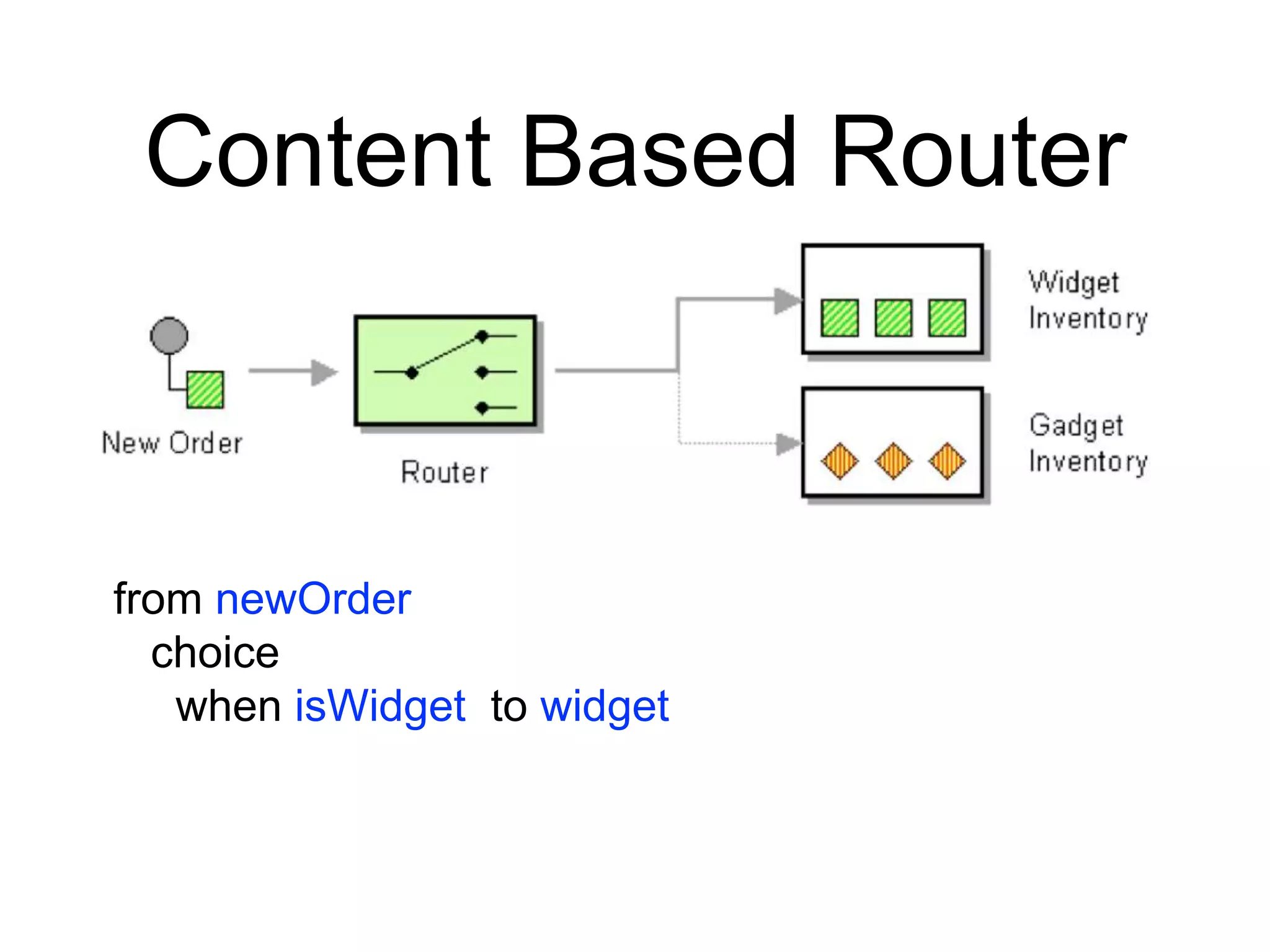

- 12. Content Based Router fromnewOrder choice when isWidget to widget
- 13. Content Based Router fromnewOrder choice when isWidget to widget otherwise to gadget

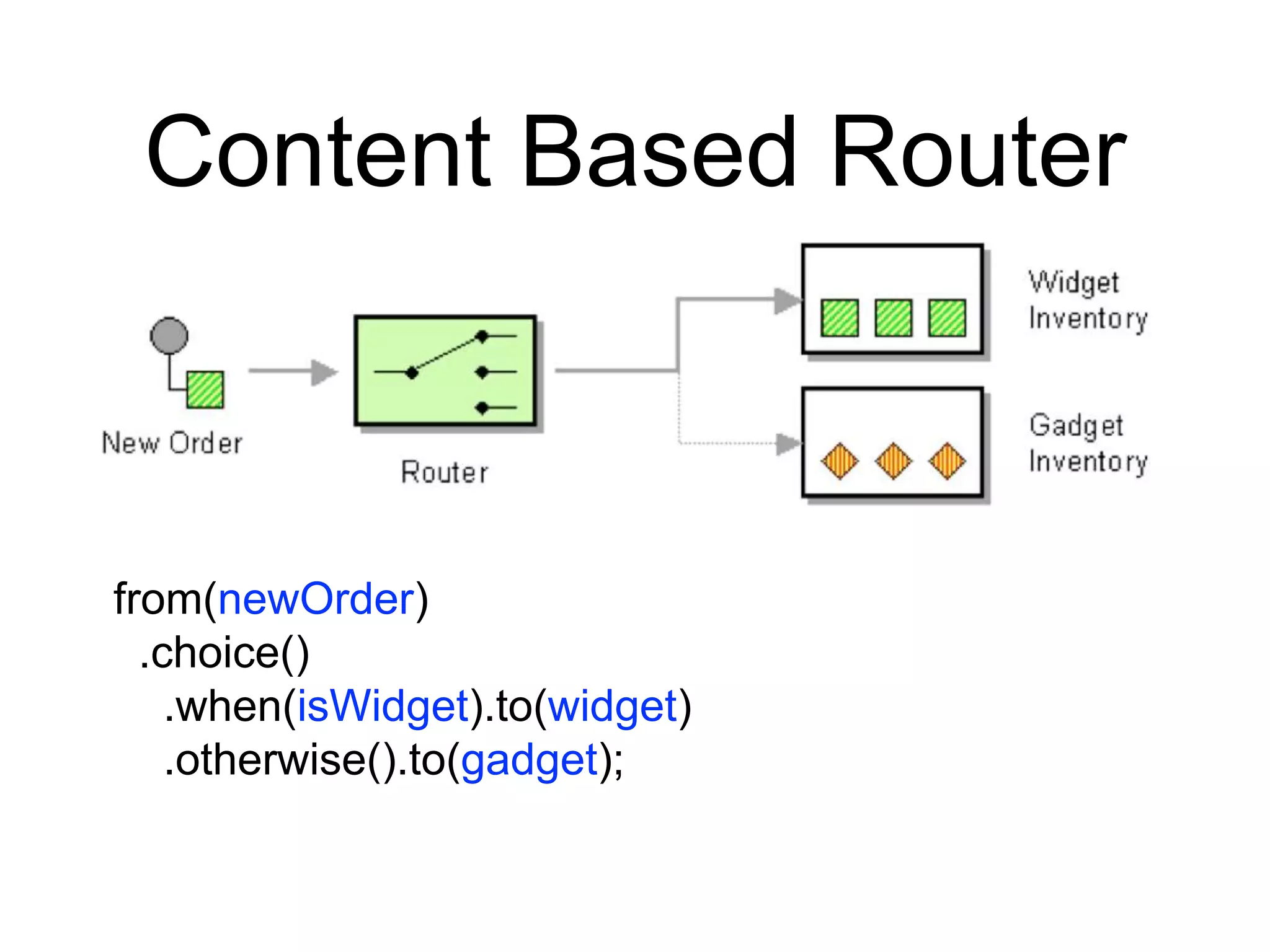

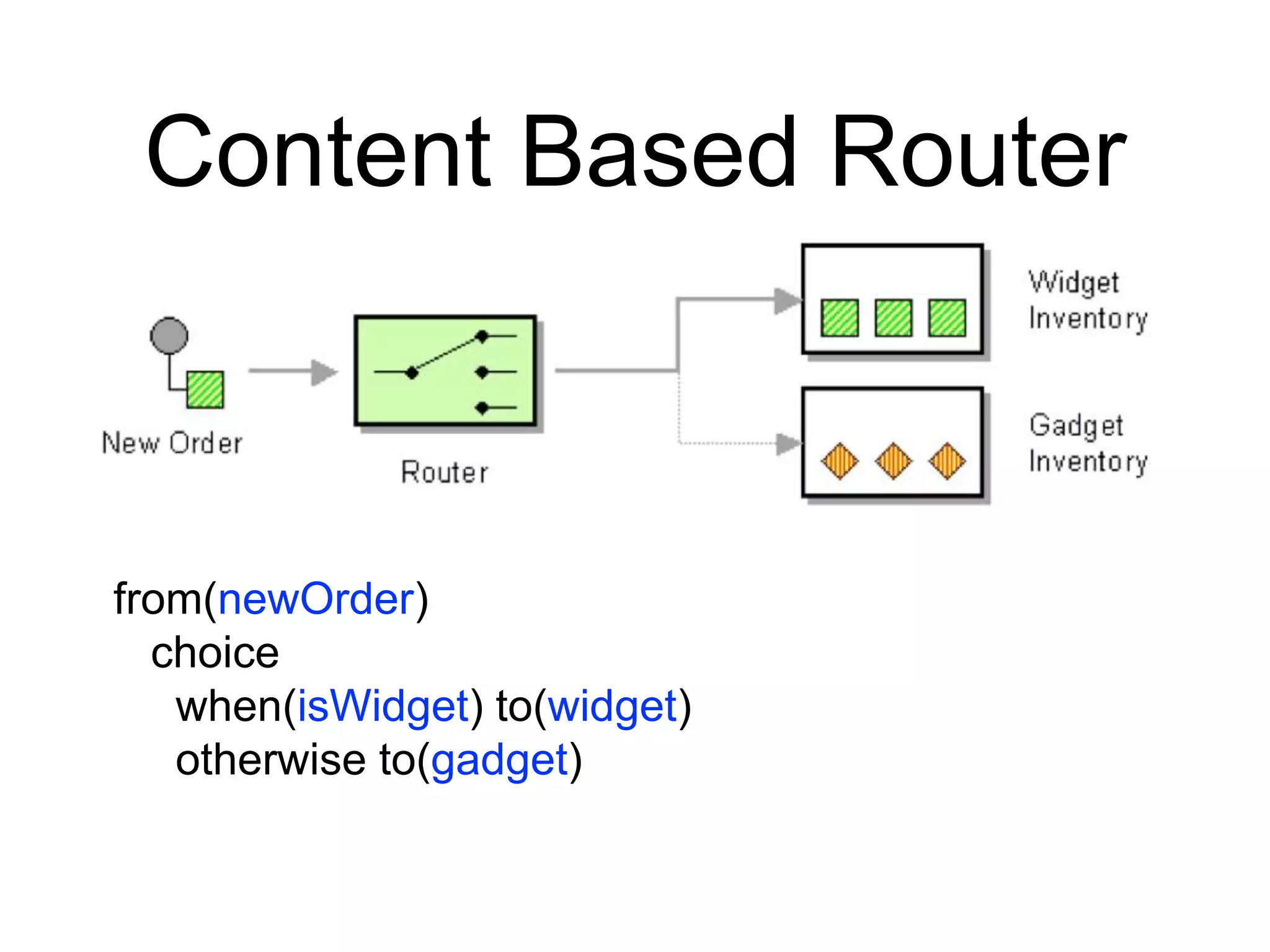

- 14. Content Based Router from(newOrder) choice when(isWidget)to(widget) otherwise to(gadget)
- 15.

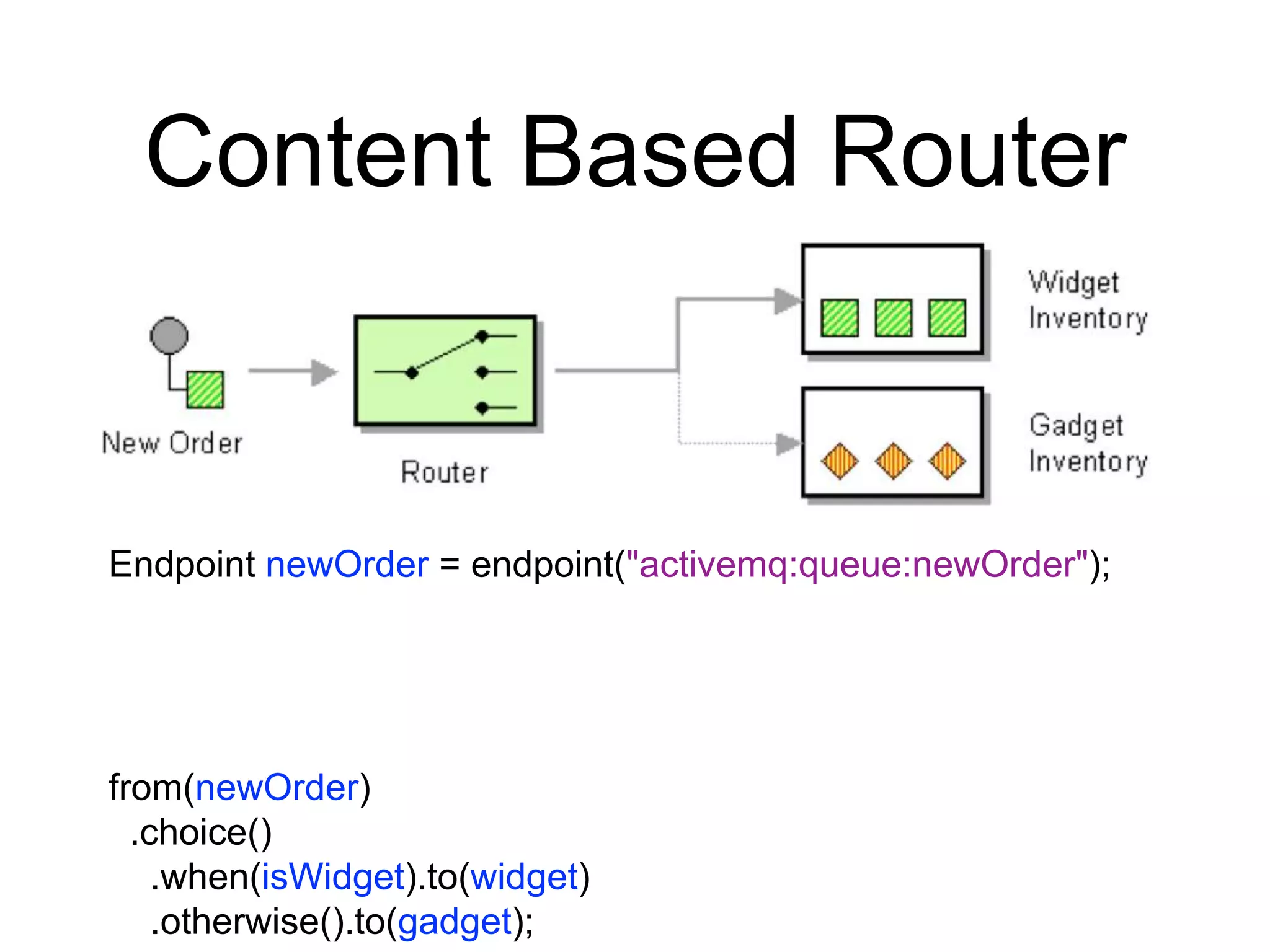

- 16. Content Based Router EndpointnewOrder = endpoint("activemq:queue:newOrder"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

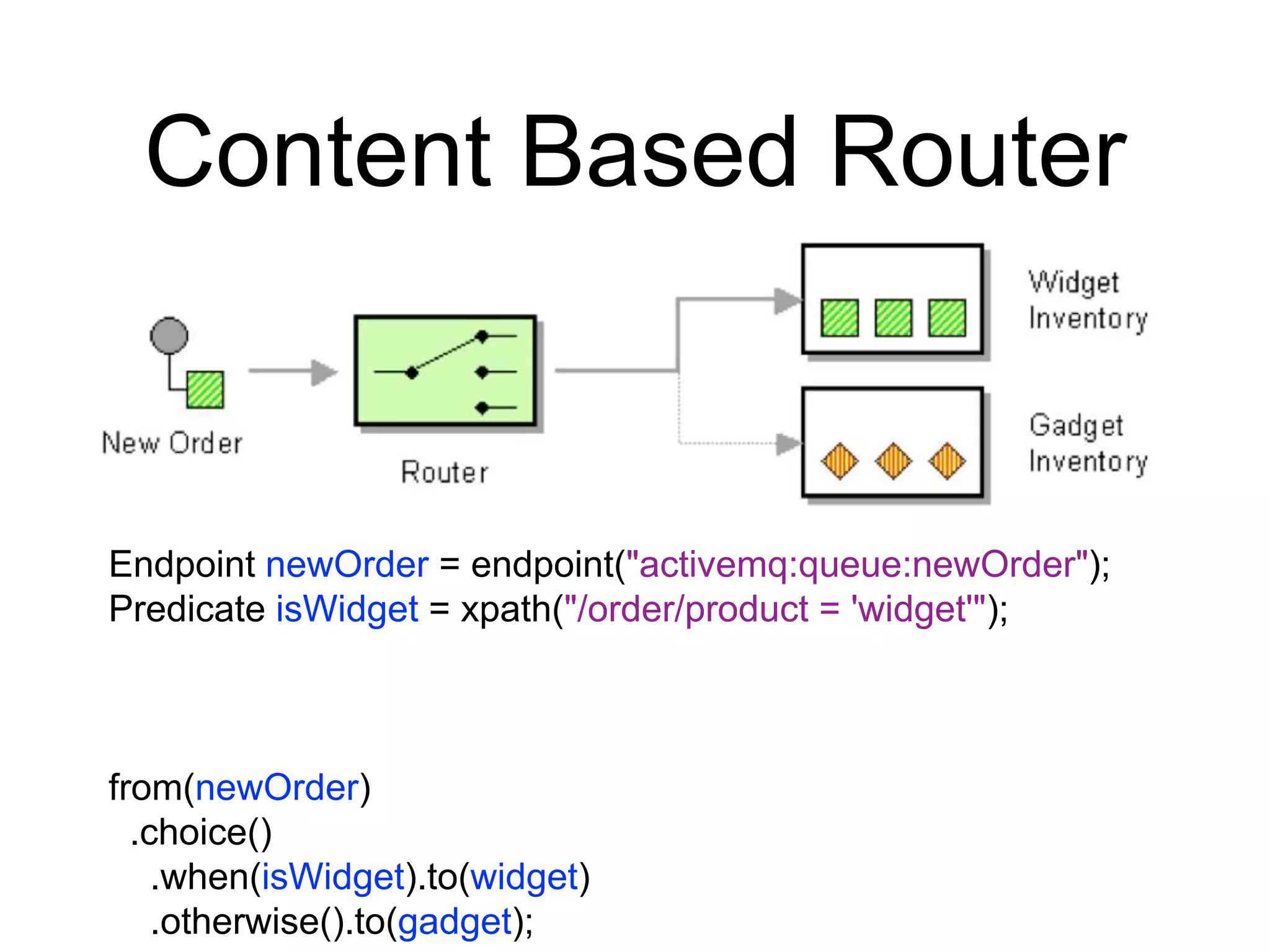

- 17. Content Based Router EndpointnewOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

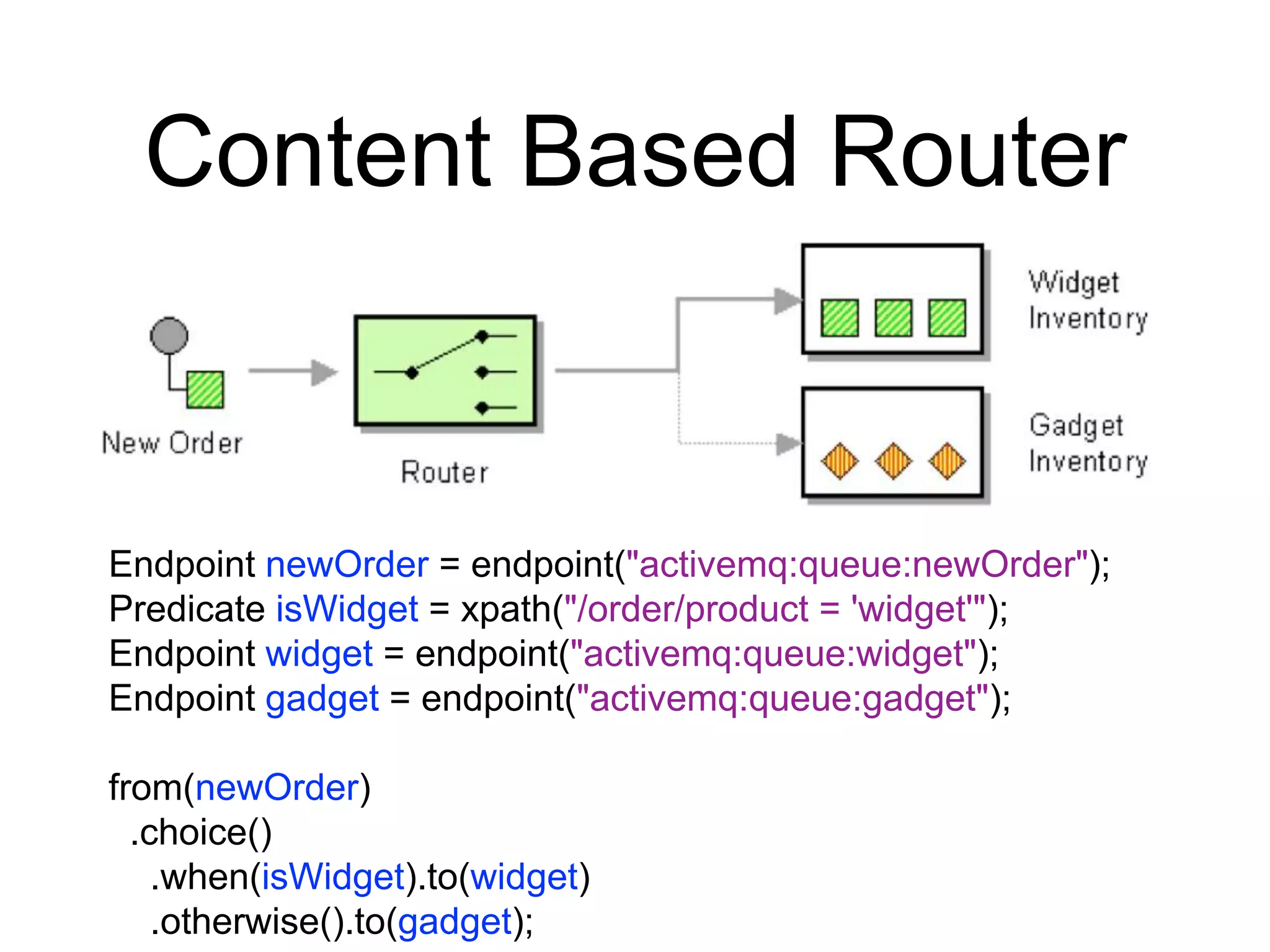

- 18. Content Based Router EndpointnewOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget);

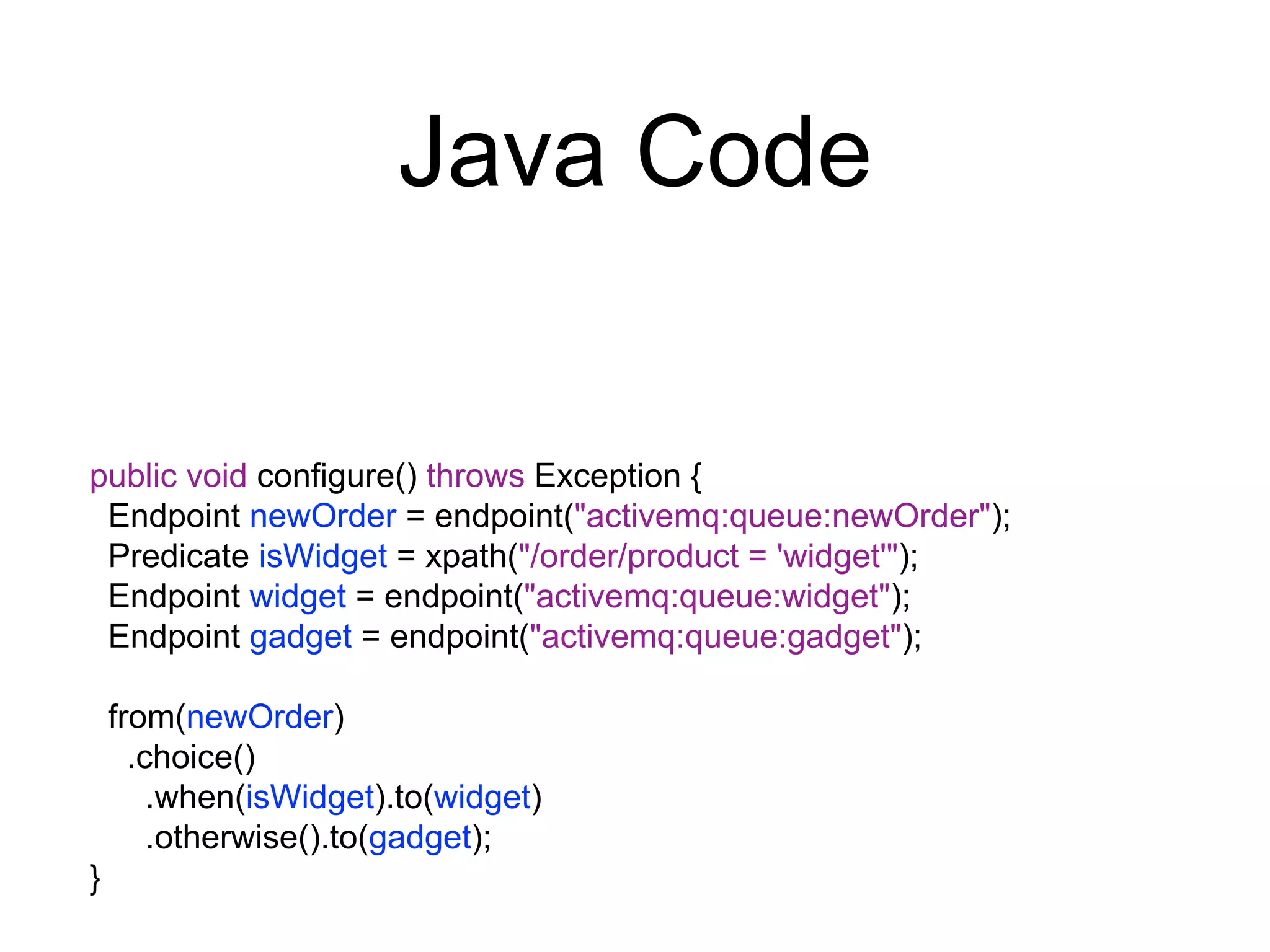

- 19. Java Code public voidconfigure() throws Exception { Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget); }
- 20. Java Code import org.apache.camel.Endpoint; importorg.apache.camel.Predicate; import org.apache.camel.builder.RouteBuilder; public class MyRoute extends RouteBuilder { public void configure() throws Exception { Endpoint newOrder = endpoint("activemq:queue:newOrder"); Predicate isWidget = xpath("/order/product = 'widget'"); Endpoint widget = endpoint("activemq:queue:widget"); Endpoint gadget = endpoint("activemq:queue:gadget"); from(newOrder) .choice() .when(isWidget).to(widget) .otherwise().to(gadget); } }

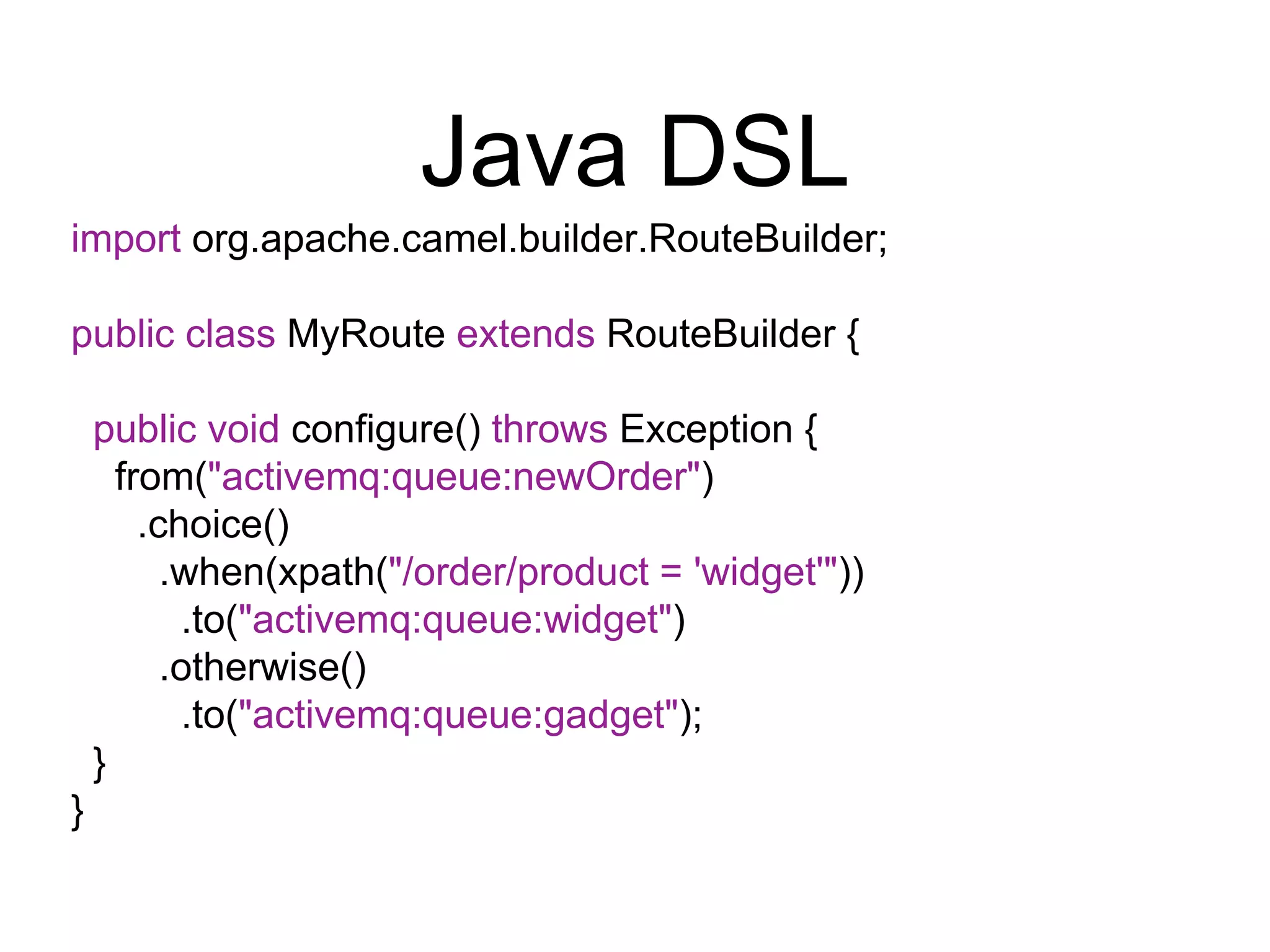

- 21. Java DSL import org.apache.camel.builder.RouteBuilder; publicclass MyRoute extends RouteBuilder { public void configure() throws Exception { from("activemq:queue:newOrder") .choice() .when(xpath("/order/product = 'widget'")) .to("activemq:queue:widget") .otherwise() .to("activemq:queue:gadget"); } }
- 22. XML DSL <route> <from uri="activemq:queue:newOrder"/> <choice> <when> <xpath>/order/product= 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route>

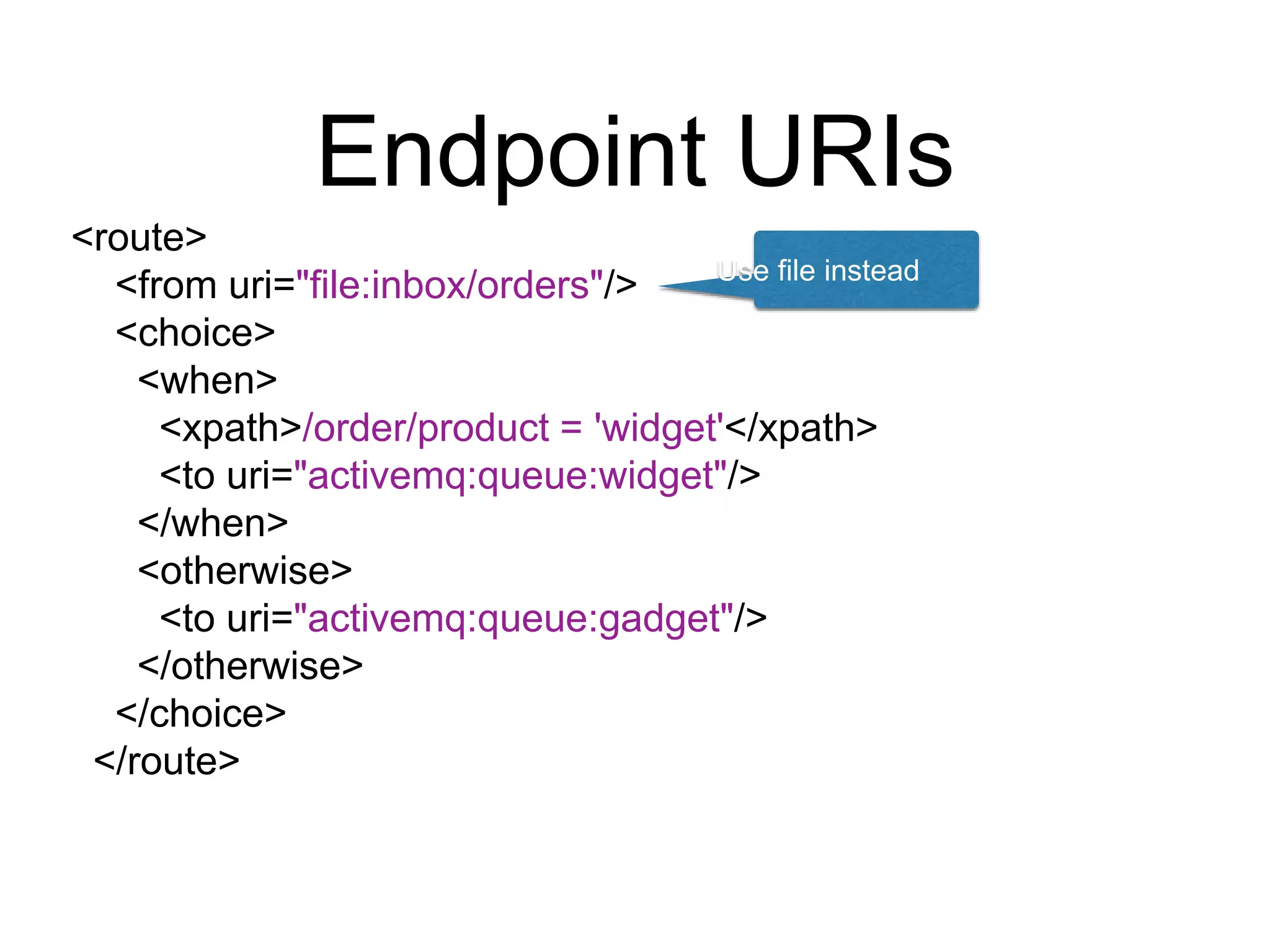

- 23. Endpoint URIs <route> <from uri="file:inbox/orders"/> <choice> <when> <xpath>/order/product= 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route> Use file instead

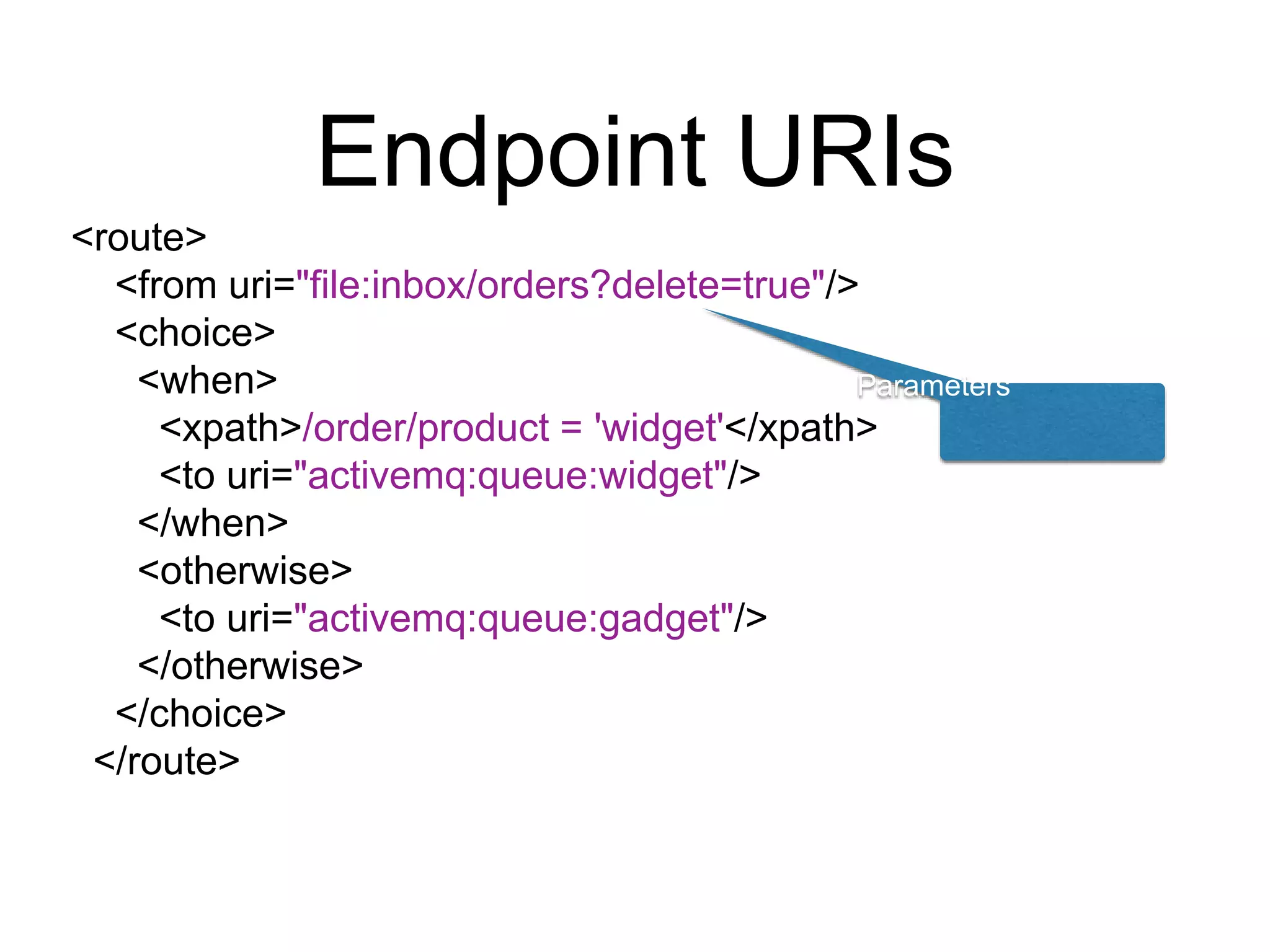

- 24. Endpoint URIs <route> <from uri="file:inbox/orders?delete=true"/> <choice> <when> <xpath>/order/product= 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route> Parameters
- 25.
- 26.
- 27.

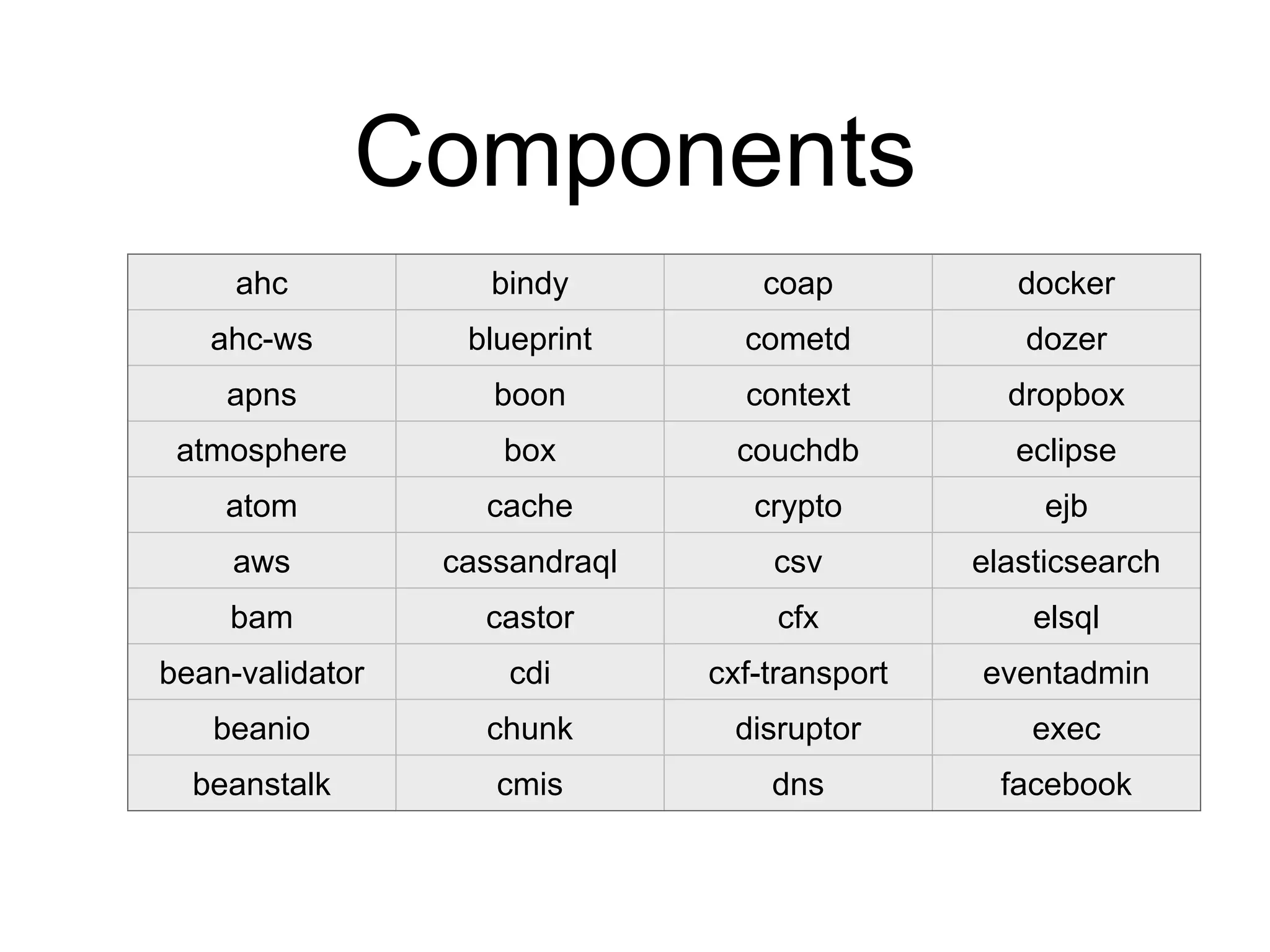

- 28. Components ahc bindy coapdocker ahc-ws blueprint cometd dozer apns boon context dropbox atmosphere box couchdb eclipse atom cache crypto ejb aws cassandraql csv elasticsearch bam castor cfx elsql bean-validator cdi cxf-transport eventadmin beanio chunk disruptor exec beanstalk cmis dns facebook
- 29. Components flatpack google-drive hbasejacksonxml fop google-mail hdfs jasypt freemarker gora hdfs2 javaspace ftp grape http jaxb gae groovy http4 jbpm ganglia gson ibatis jclouds geocoder guava-eventbus ical jcr git guice infinispan jdbc github hawtdb irc jetty8 google-calendar hazelcast jackson jetty9
- 30. Components jgroups jsonpath leveldbmustache jibx jt400 linkedin mvel jing juel lucene mybatis jira jxpath mail netty jms kafka metrics netty-http jmx kestrel mina netty4 jolt krati mina2 netty4-http josql kubernetes mongodb ognl jpa kura mqtt olingo2 jsch ldap msv openshift

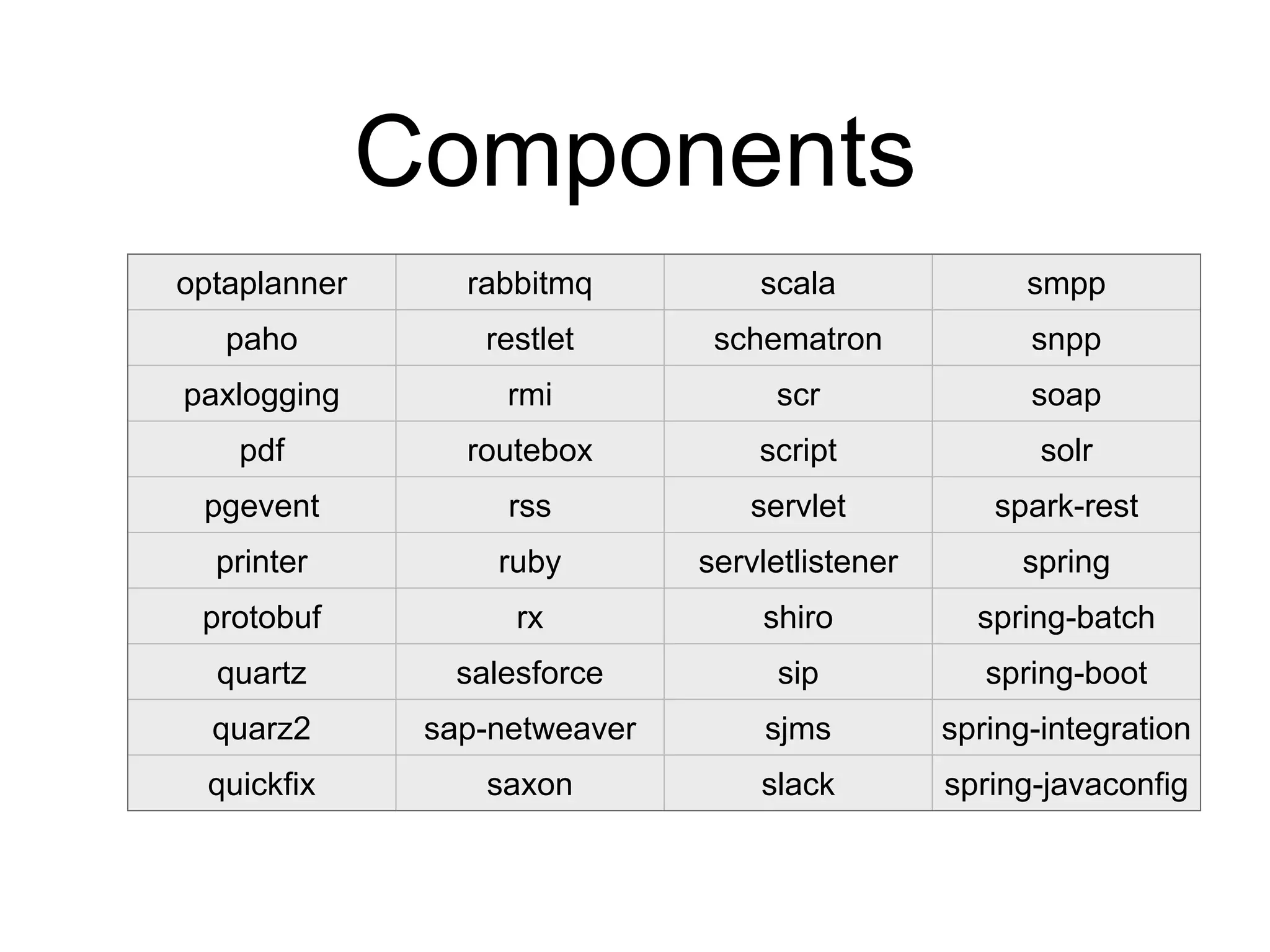

- 31. Components optaplanner rabbitmq scalasmpp paho restlet schematron snpp paxlogging rmi scr soap pdf routebox script solr pgevent rss servlet spark-rest printer ruby servletlistener spring protobuf rx shiro spring-batch quartz salesforce sip spring-boot quarz2 sap-netweaver sjms spring-integration quickfix saxon slack spring-javaconfig

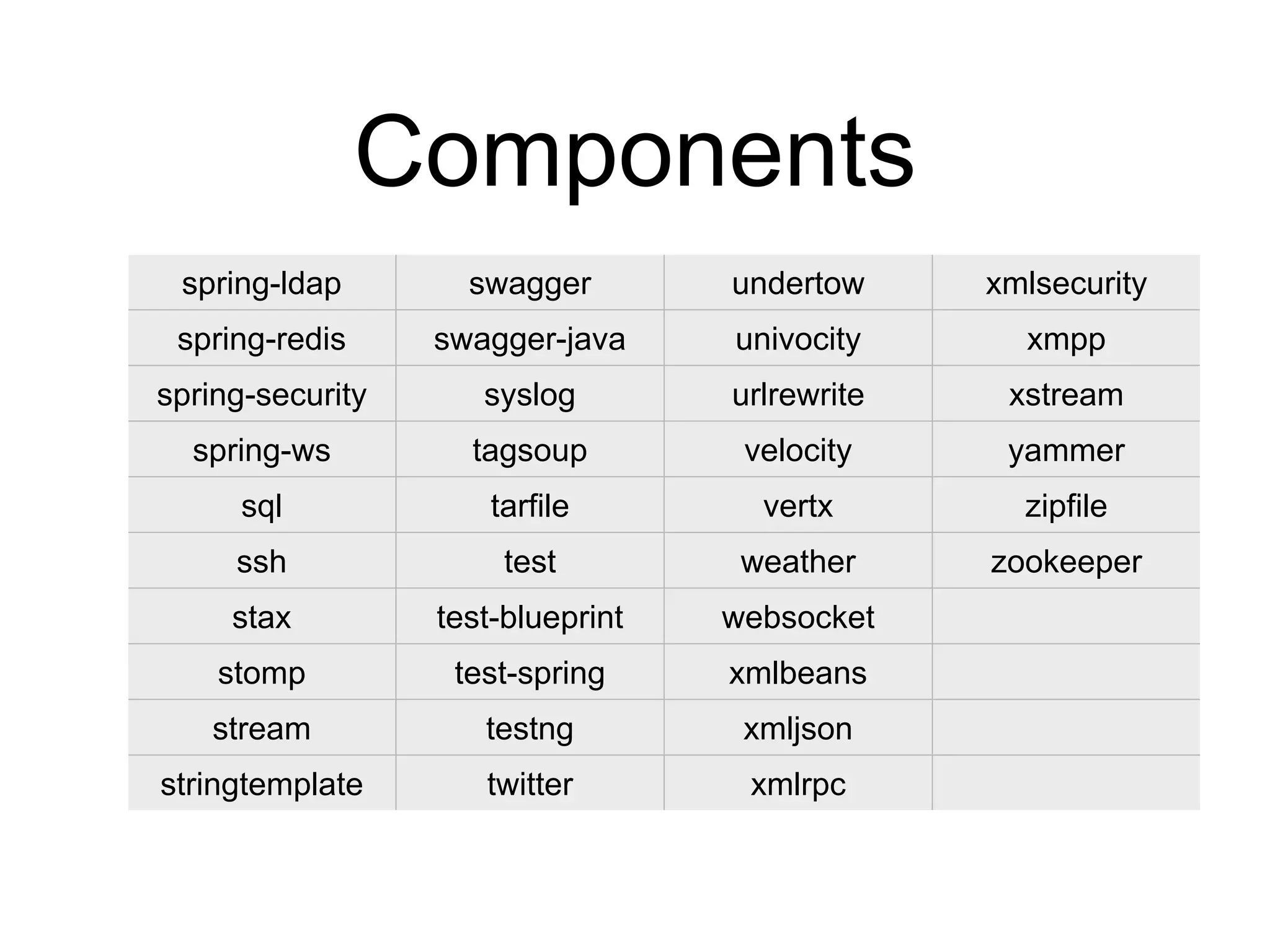

- 32. Components spring-ldap swagger undertowxmlsecurity spring-redis swagger-java univocity xmpp spring-security syslog urlrewrite xstream spring-ws tagsoup velocity yammer sql tarfile vertx zipfile ssh test weather zookeeper stax test-blueprint websocket stomp test-spring xmlbeans stream testng xmljson stringtemplate twitter xmlrpc
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40. Pop Quizz How longtime between the first and the latest release ?
- 41.
- 42. Agenda • What isApache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50. Agenda • What isApache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

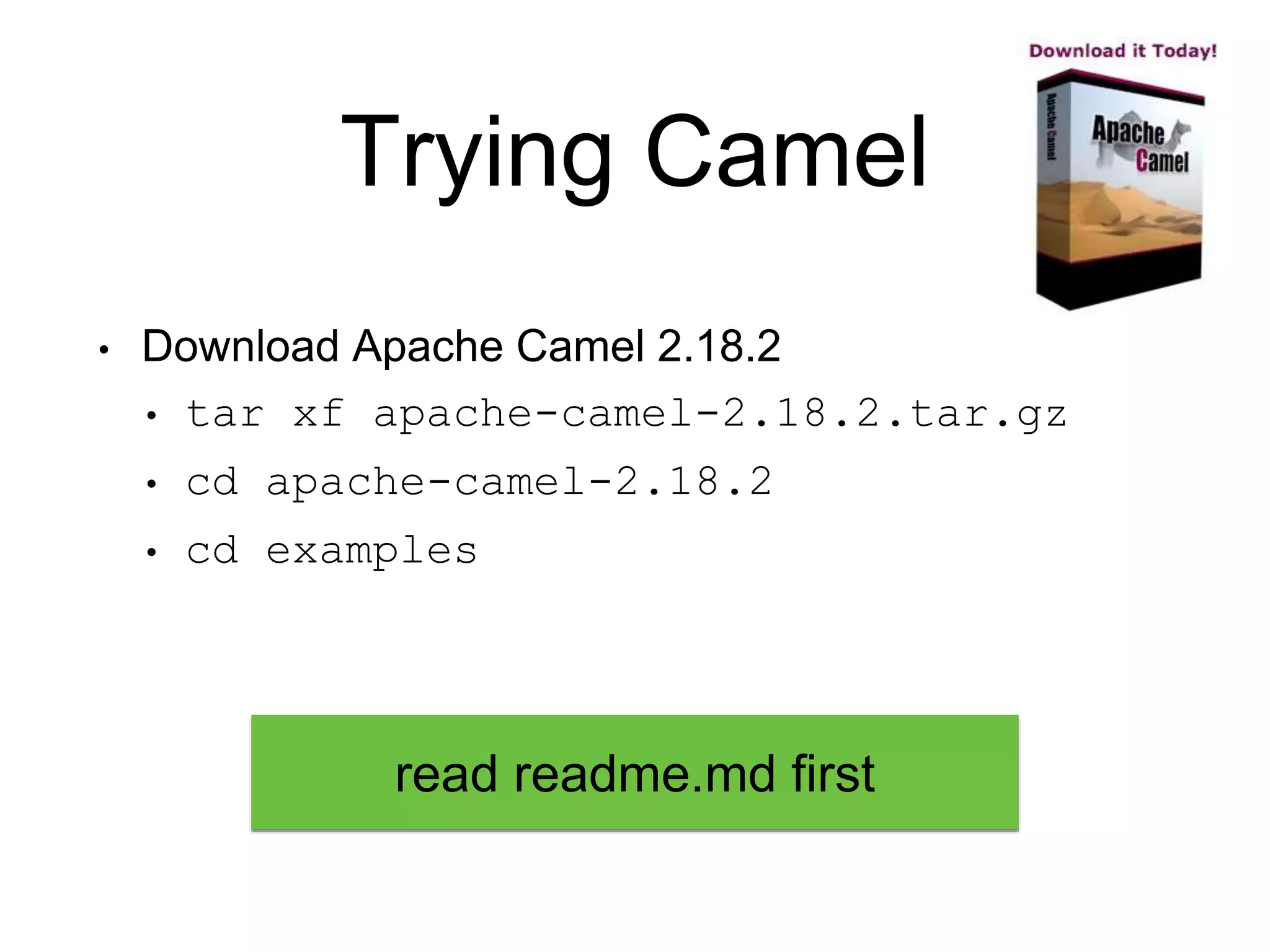

- 51. Trying Camel • DownloadApache Camel 2.18.2 • tar xf apache-camel-2.18.2.tar.gz • cd apache-camel-2.18.2 • cd examples read readme.md first
- 52.

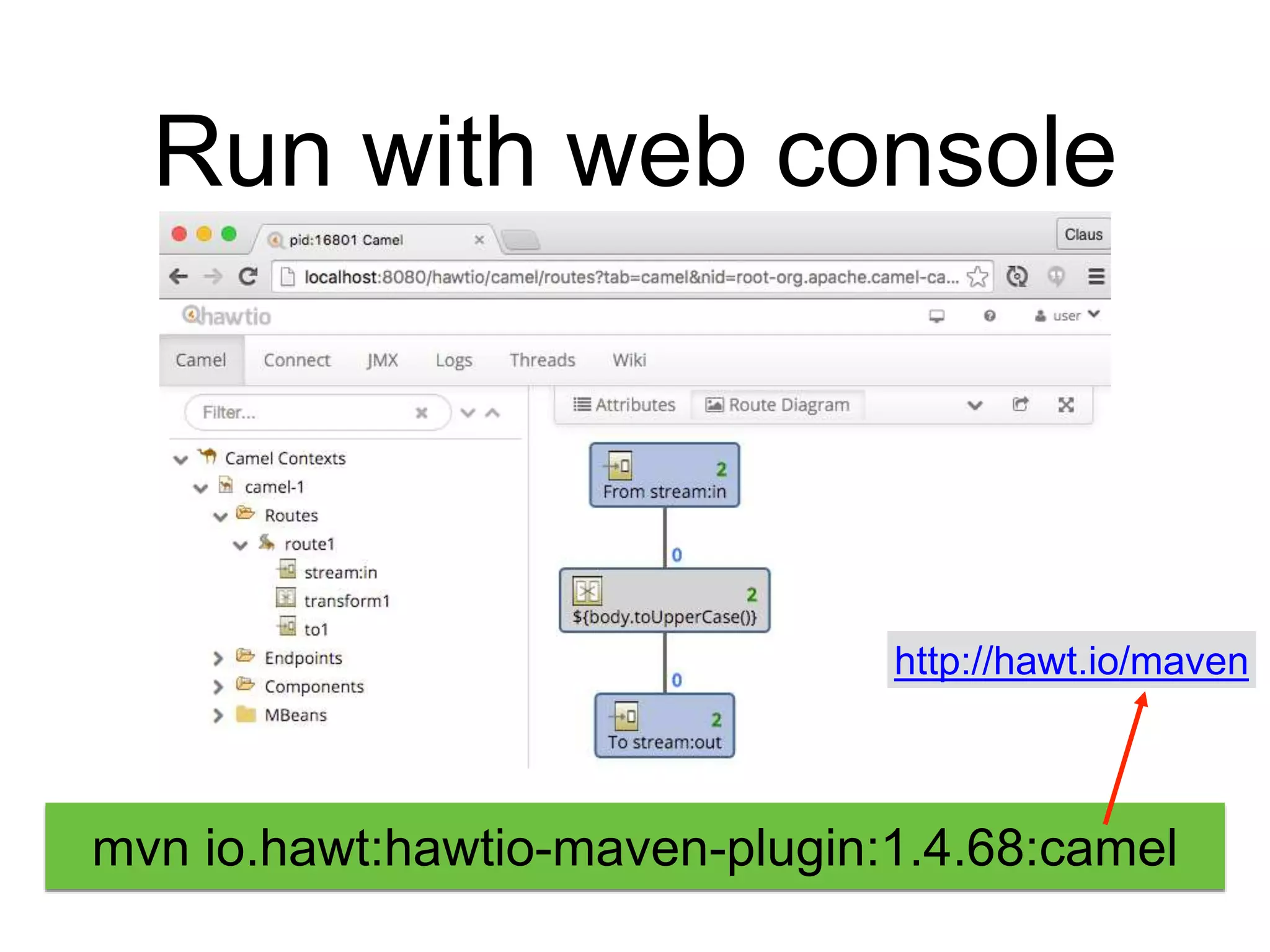

- 53. Run with webconsole mvn io.hawt:hawtio-maven-plugin:1.4.68:camel http://hawt.io/maven
- 54.
- 55.

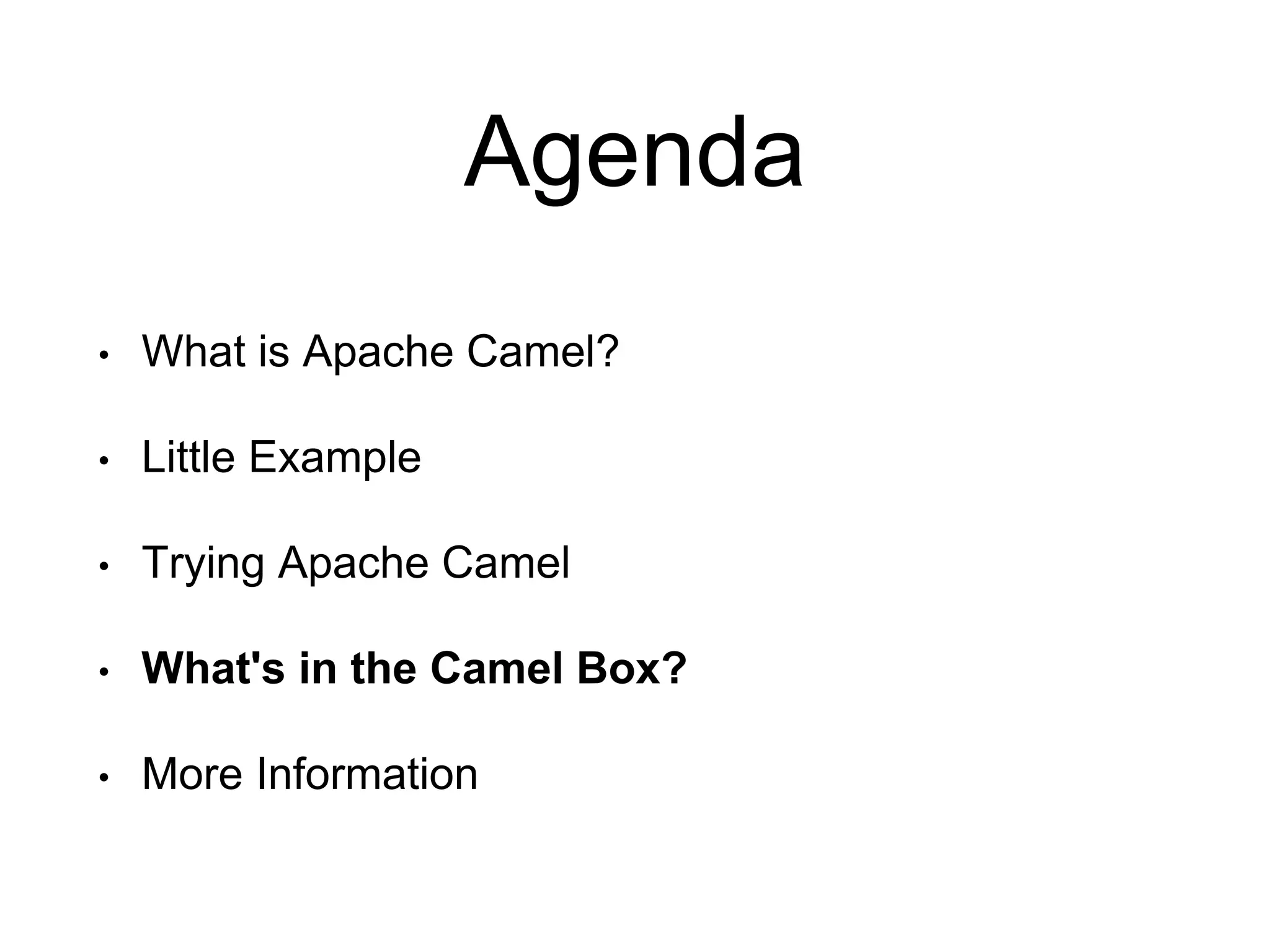

- 56. Agenda • What isApache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • More Information
- 57. What's in theCamel Box?
- 58.

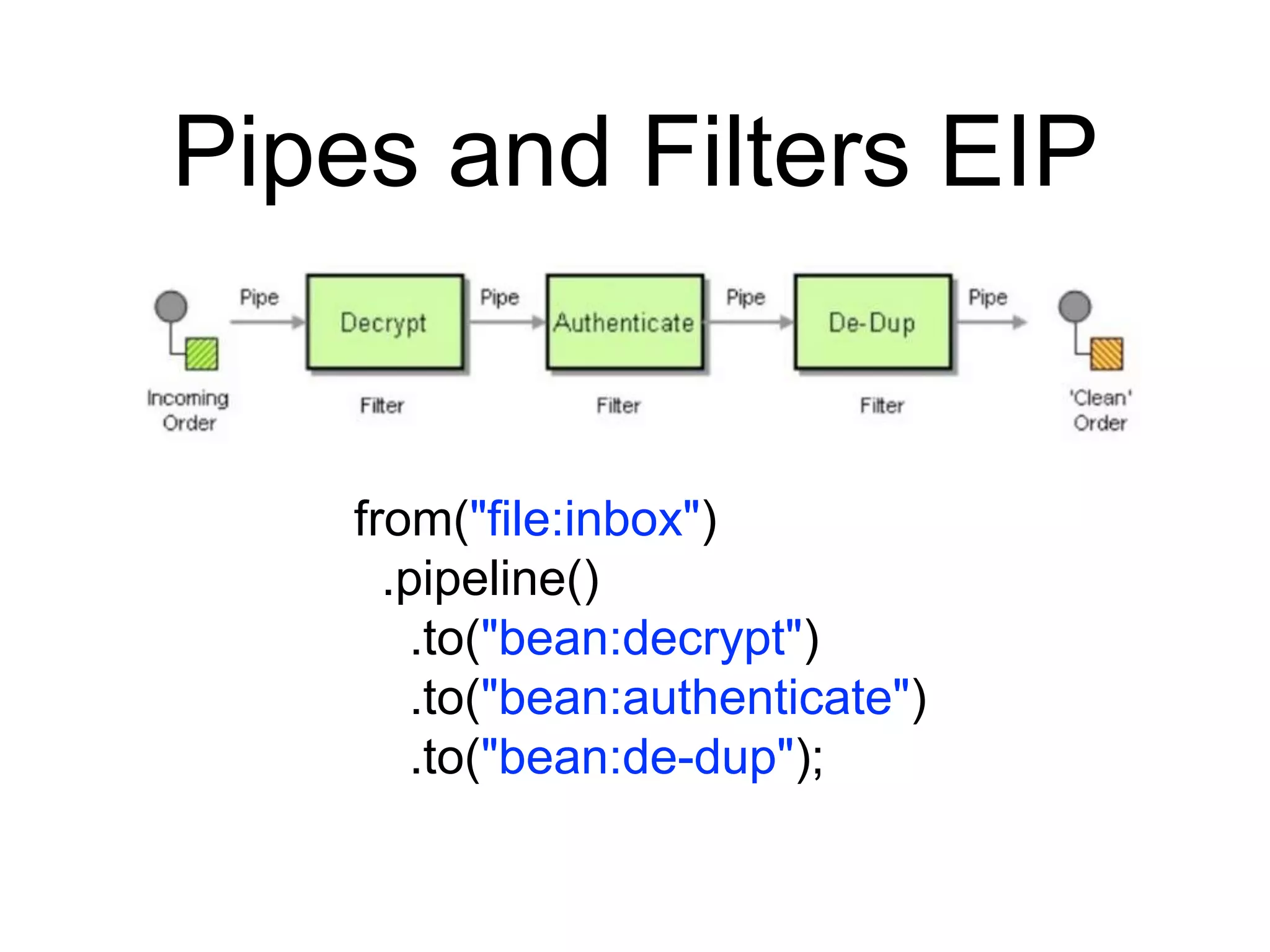

- 59. Pipes and FiltersEIP from("file:inbox") .pipeline() .to("bean:decrypt") .to("bean:authenticate") .to("bean:de-dup");

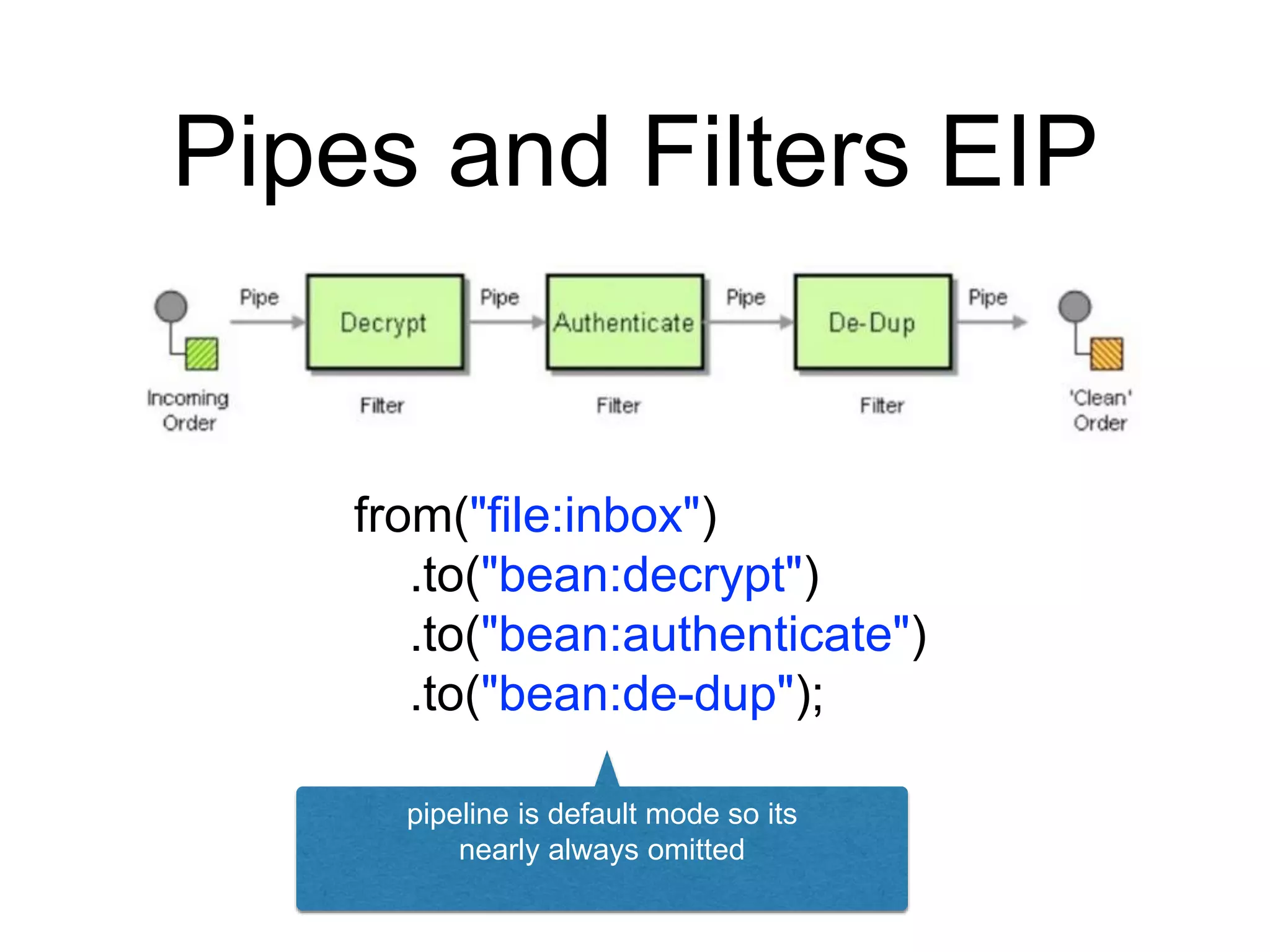

- 60. Pipes and FiltersEIP from("file:inbox") .to("bean:decrypt") .to("bean:authenticate") .to("bean:de-dup"); pipeline is default mode so its nearly always omitted

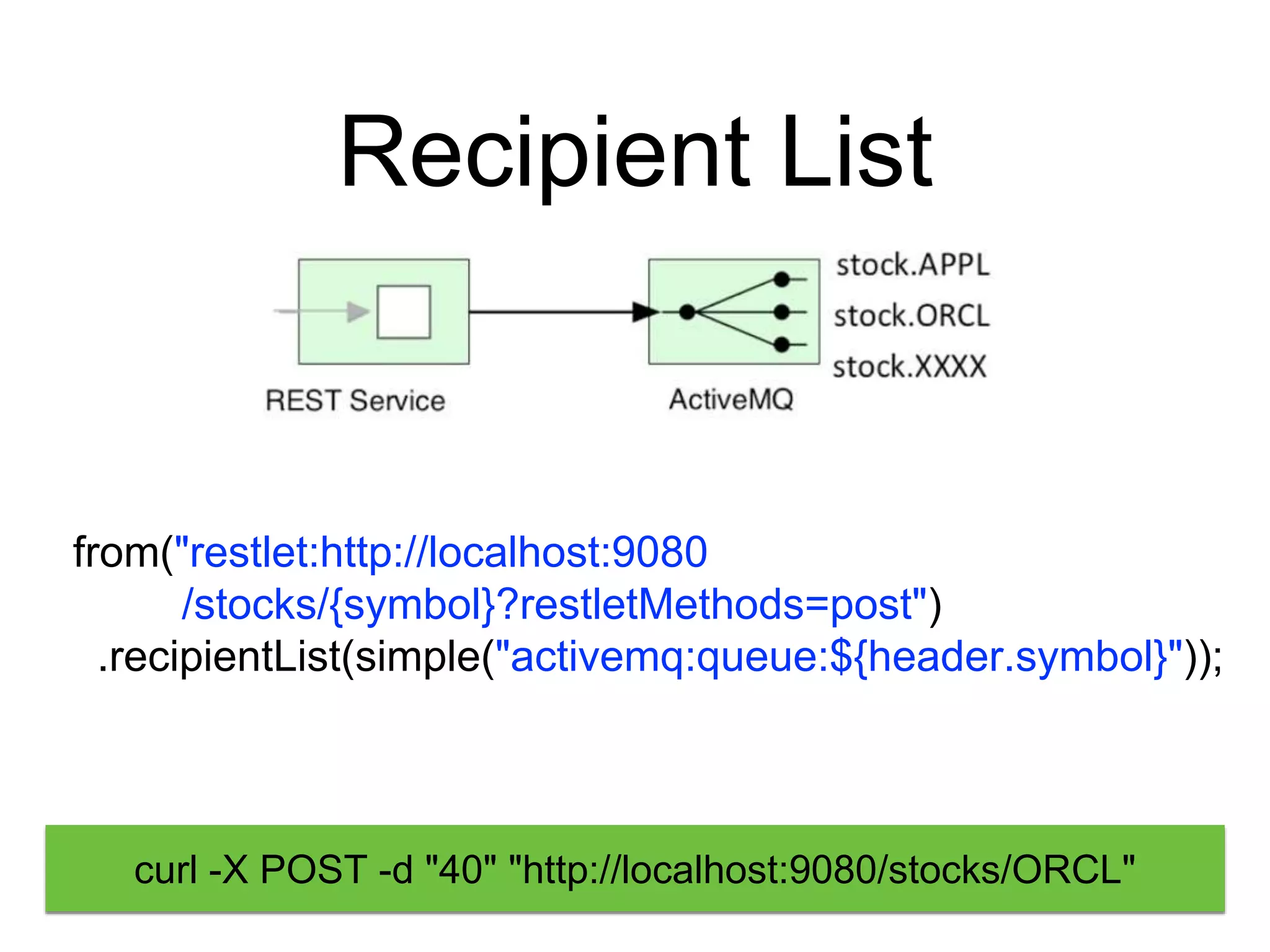

- 61. Recipient List from("restlet:http://localhost:9080 /stocks/{symbol}?restletMethods=post") .recipientList(simple("activemq:queue:${header.symbol}")); curl -XPOST -d "40" "http://localhost:9080/stocks/ORCL"

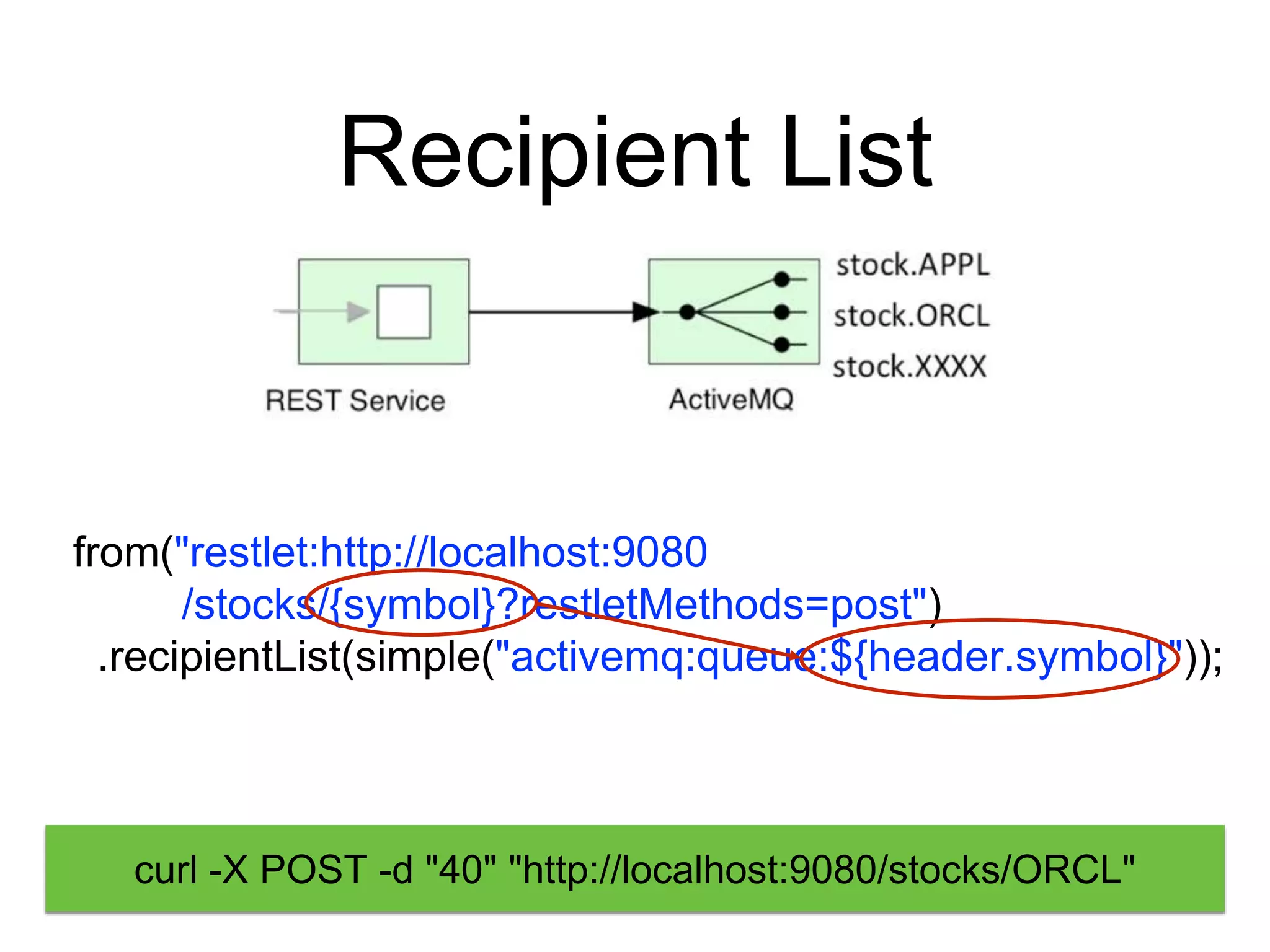

- 62. Recipient List from("restlet:http://localhost:9080 /stocks/{symbol}?restletMethods=post") .recipientList(simple("activemq:queue:${header.symbol}")); curl -XPOST -d "40" "http://localhost:9080/stocks/ORCL"

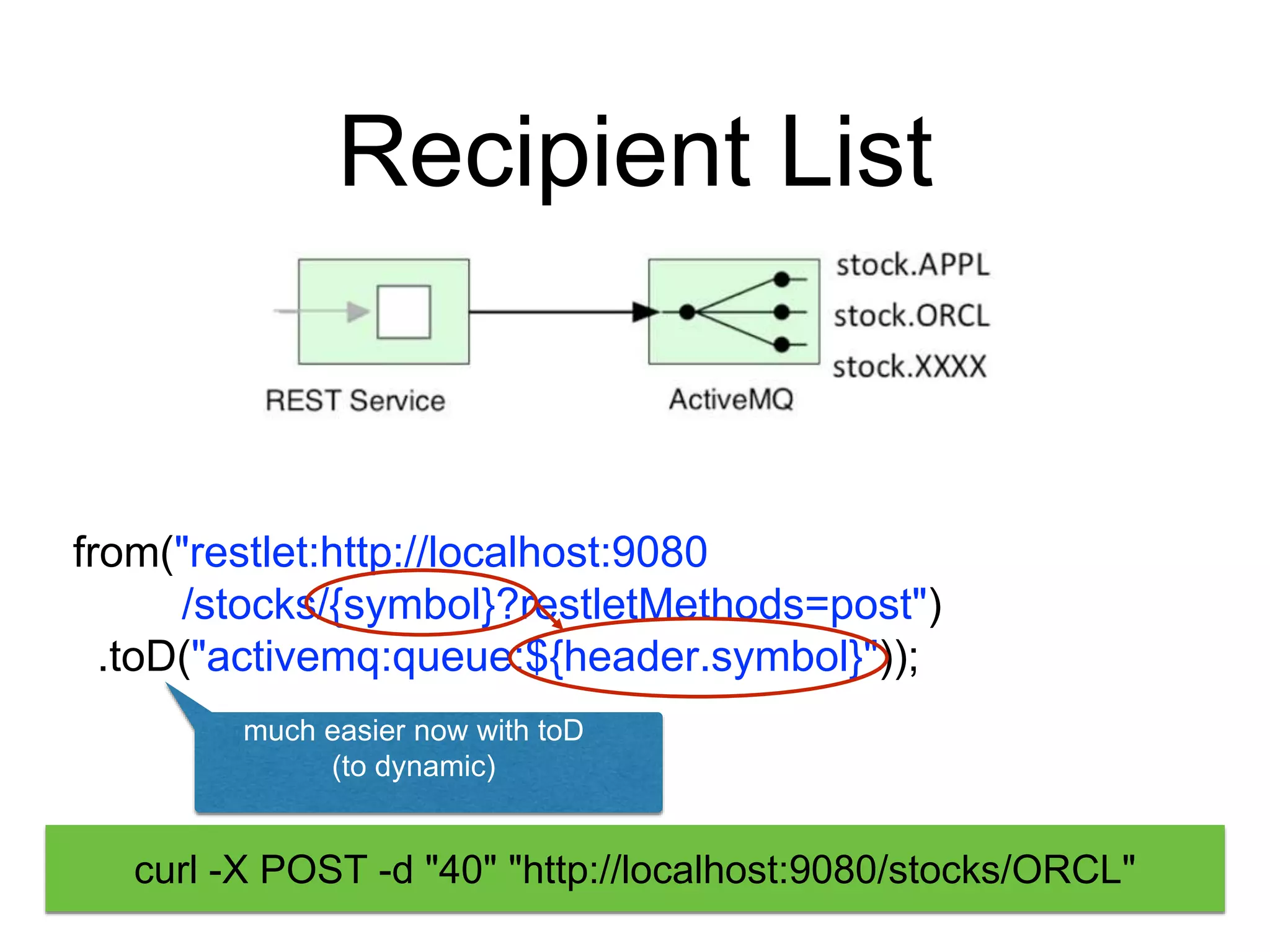

- 63. Recipient List from("restlet:http://localhost:9080 /stocks/{symbol}?restletMethods=post") .toD("activemq:queue:${header.symbol}")); much easiernow with toD (to dynamic) curl -X POST -d "40" "http://localhost:9080/stocks/ORCL"

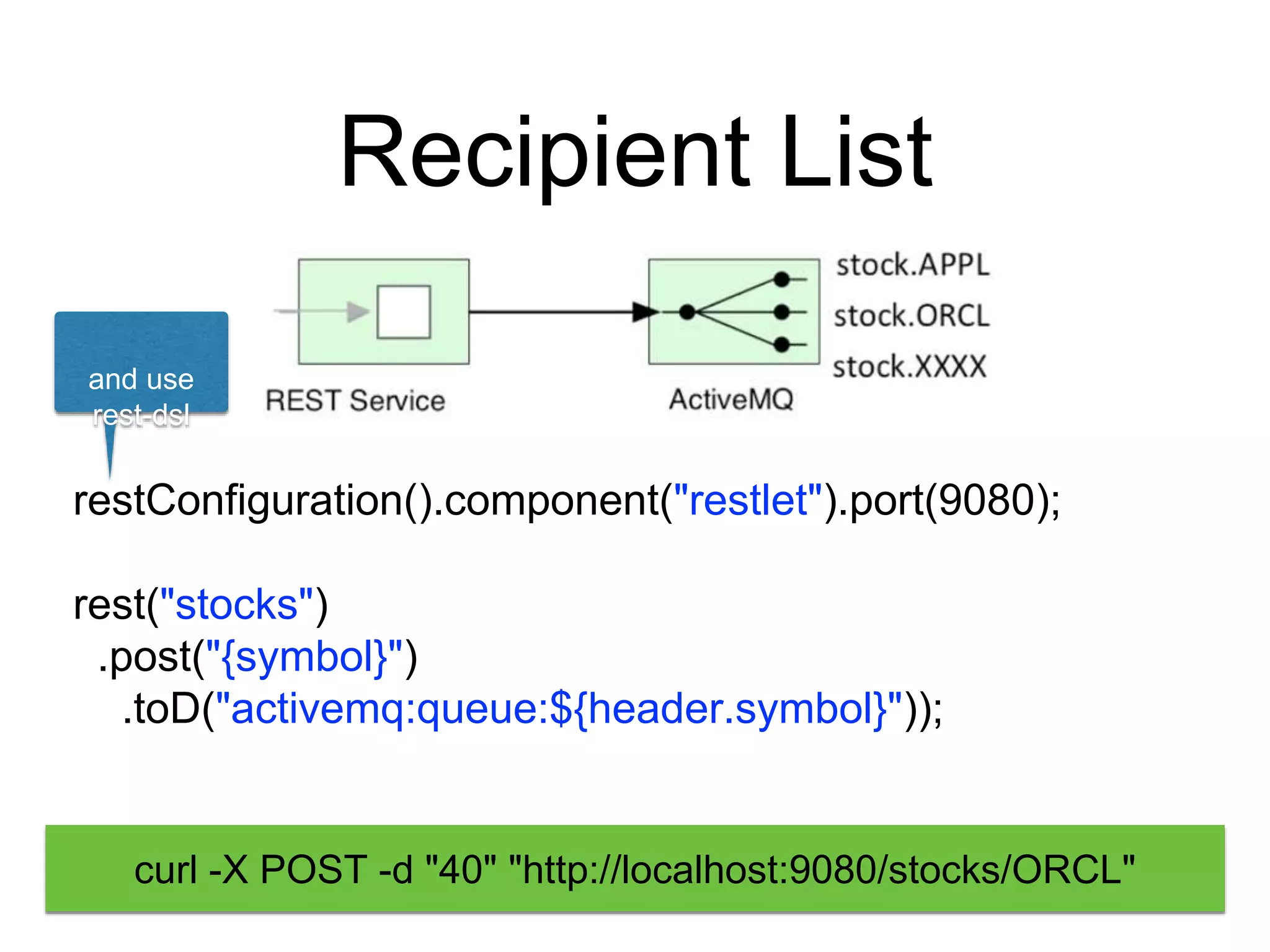

- 64. Recipient List restConfiguration().component("restlet").port(9080); rest("stocks") .post("{symbol}") .toD("activemq:queue:${header.symbol}")); and use rest-dsl curl-X POST -d "40" "http://localhost:9080/stocks/ORCL"
- 65.
- 66.
- 67.
- 68.
- 69.

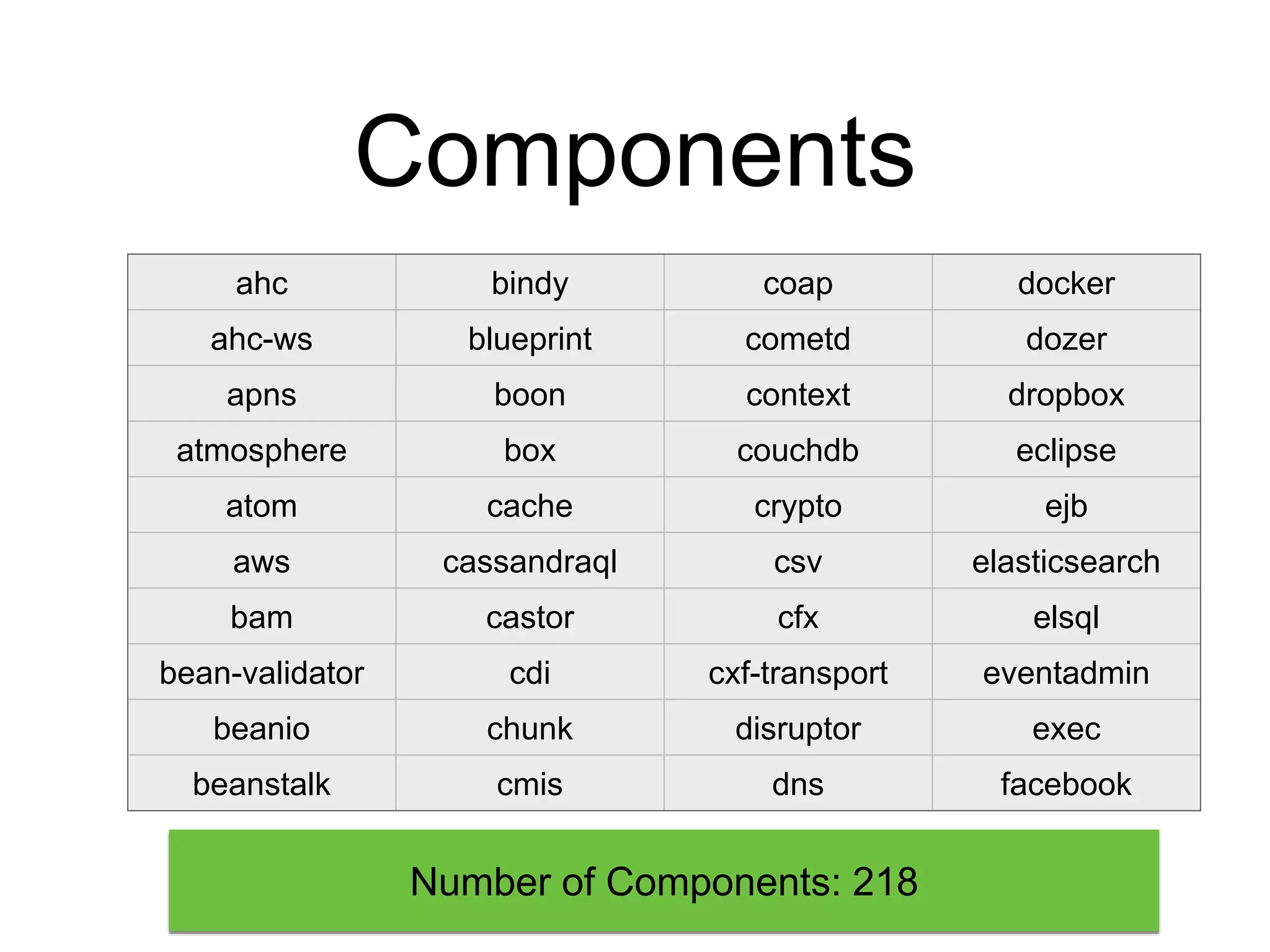

- 70. Components ahc bindy coapdocker ahc-ws blueprint cometd dozer apns boon context dropbox atmosphere box couchdb eclipse atom cache crypto ejb aws cassandraql csv elasticsearch bam castor cfx elsql bean-validator cdi cxf-transport eventadmin beanio chunk disruptor exec beanstalk cmis dns facebook Number of Components: 218

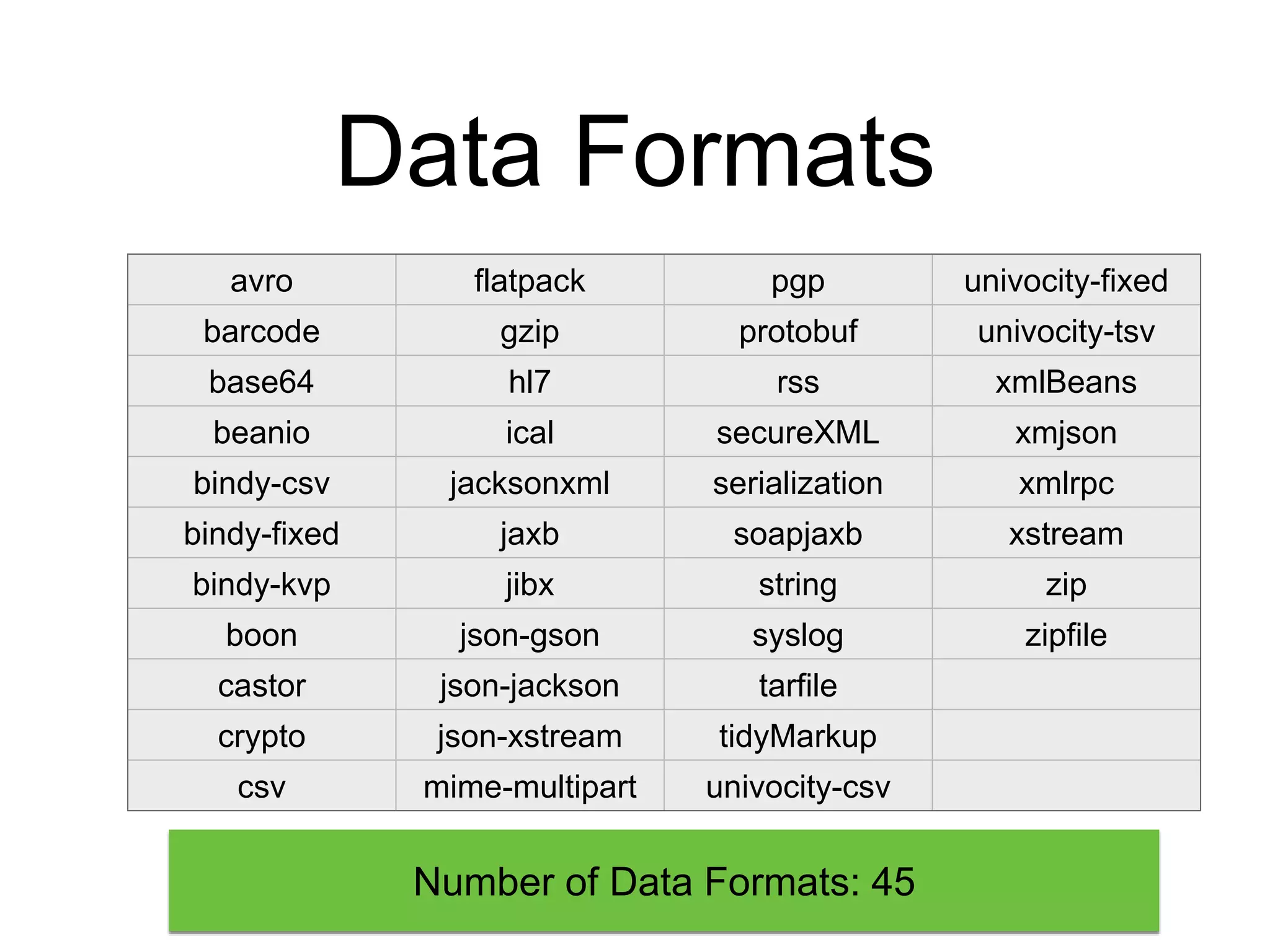

- 71. Data Formats avro flatpackpgp univocity-fixed barcode gzip protobuf univocity-tsv base64 hl7 rss xmlBeans beanio ical secureXML xmjson bindy-csv jacksonxml serialization xmlrpc bindy-fixed jaxb soapjaxb xstream bindy-kvp jibx string zip boon json-gson syslog zipfile castor json-jackson tarfile crypto json-xstream tidyMarkup csv mime-multipart univocity-csv Number of Data Formats: 45

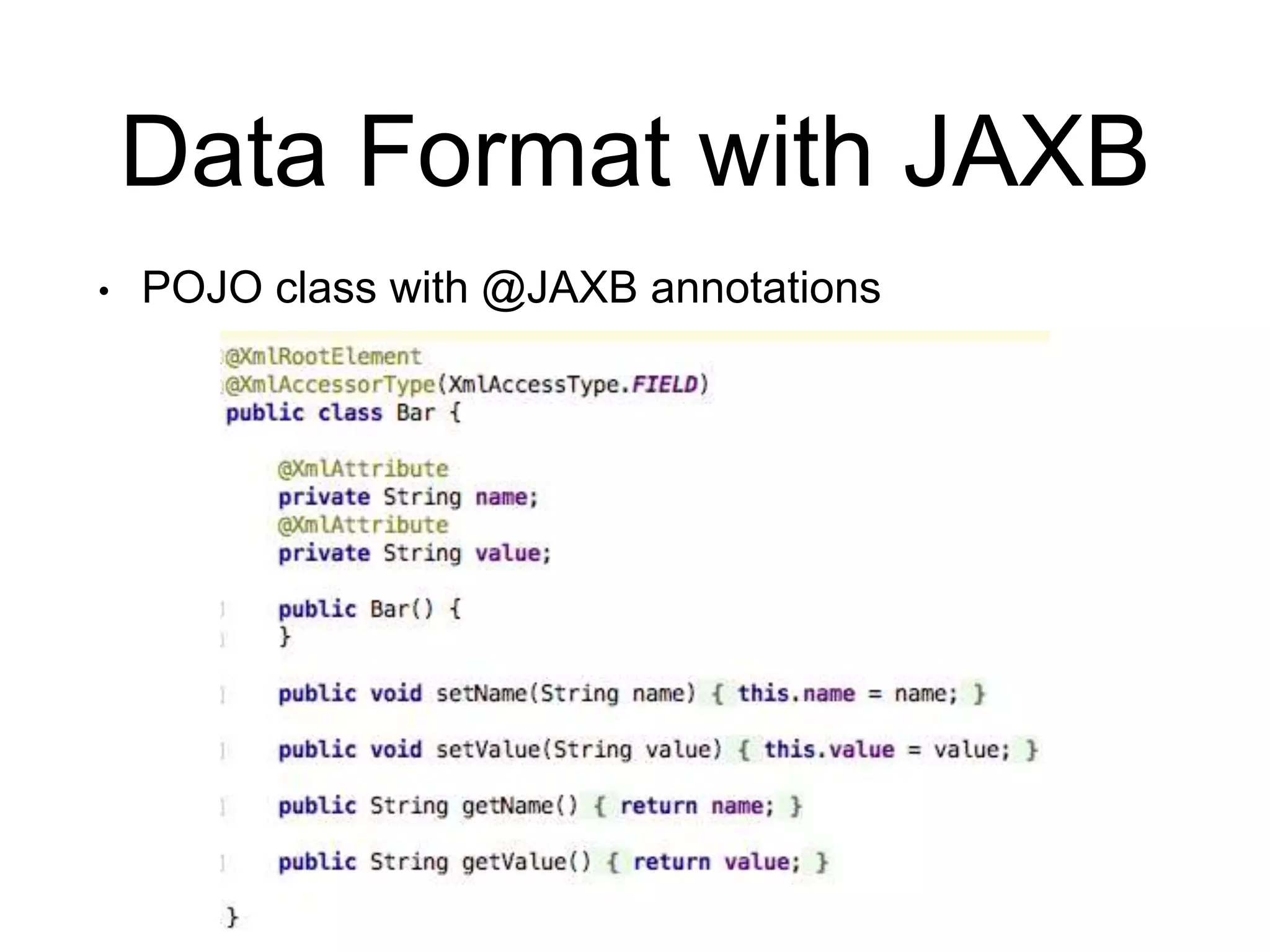

- 72. Data Format withJAXB • POJO class with @JAXB annotations

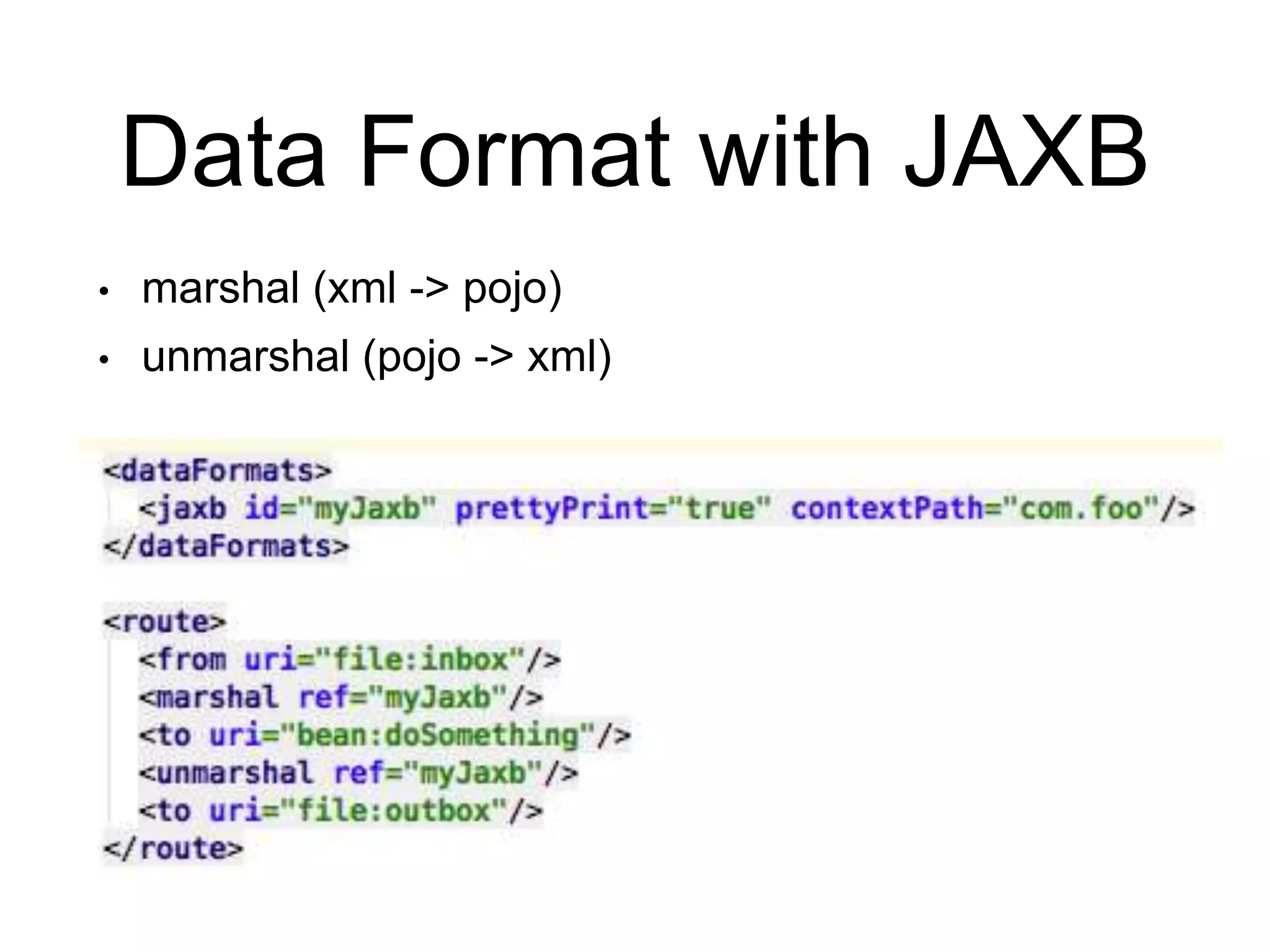

- 73. Data Format withJAXB • marshal (xml -> pojo) • unmarshal (pojo -> xml)
- 74. Languages bean header phpsql constant javaScript python terser el jsonpath ref tokenize exchange Proper ty jxpath ruby xpath file mvel simple xquery groovy ognl spel xtokenize Number of Languages: 24
- 75.

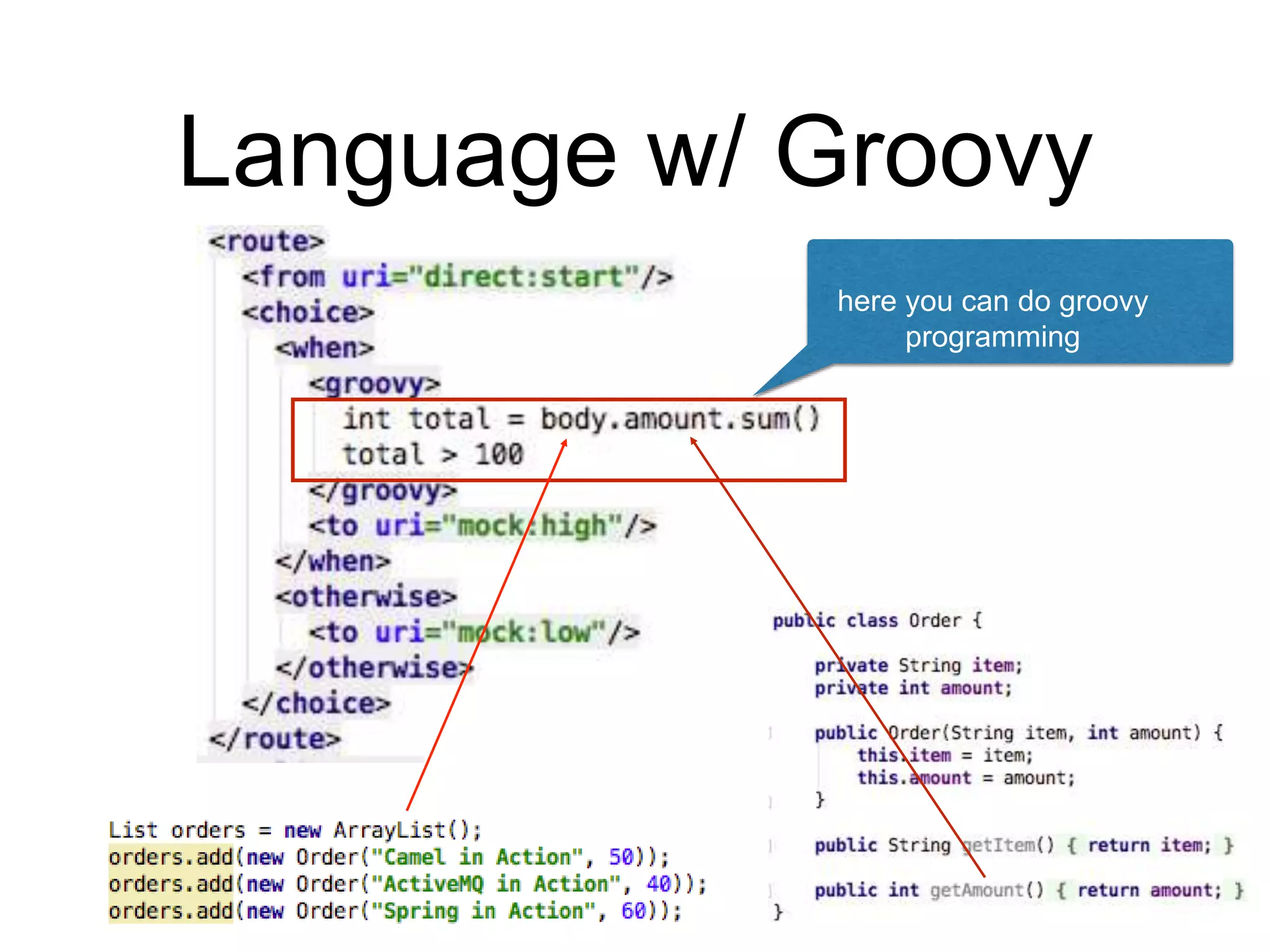

- 76. Language w/ Groovy hereyou can do groovy programming

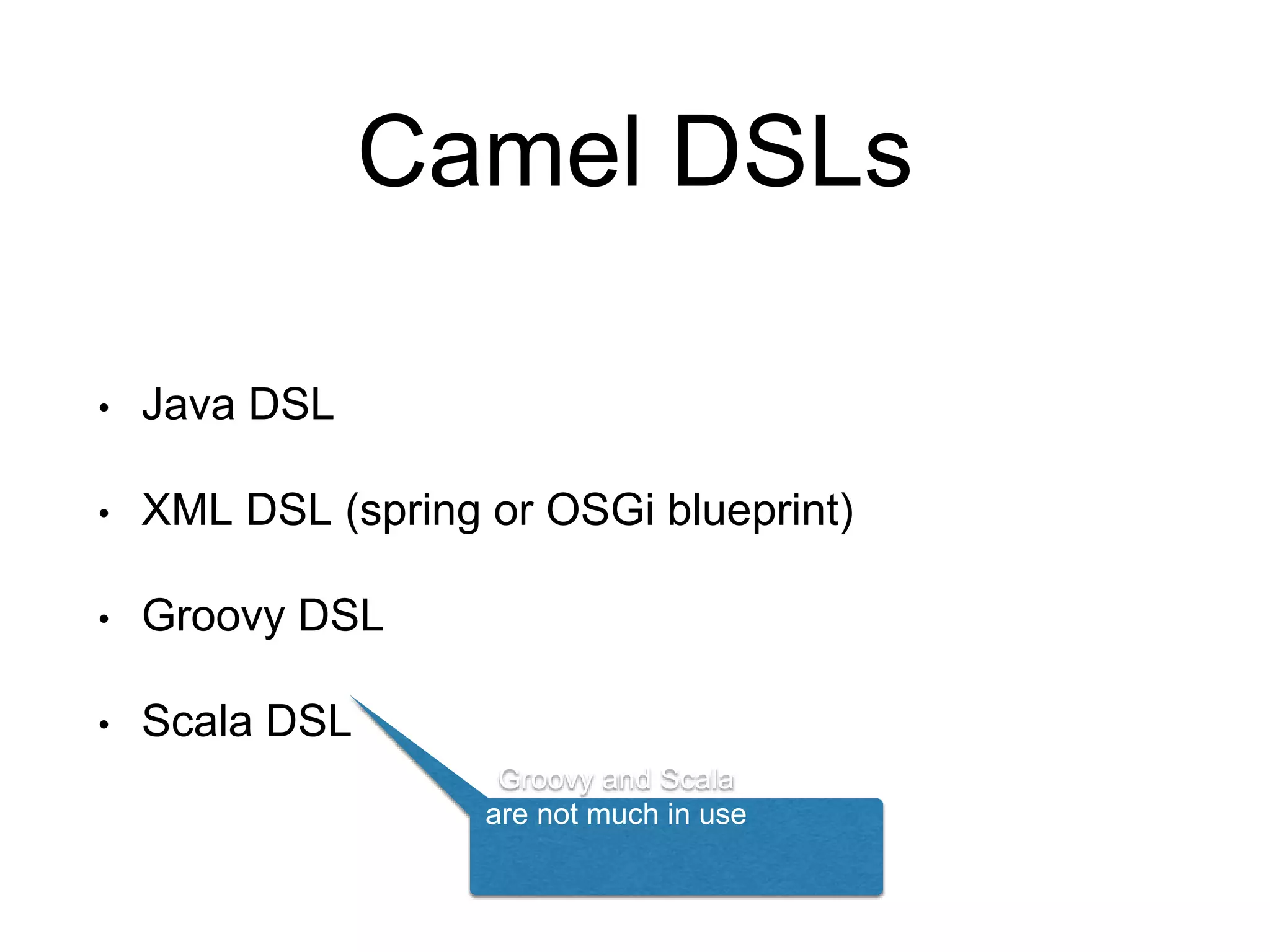

- 77. Camel DSLs • JavaDSL • XML DSL (spring or OSGi blueprint) • Groovy DSL • Scala DSL Groovy and Scala are not much in use

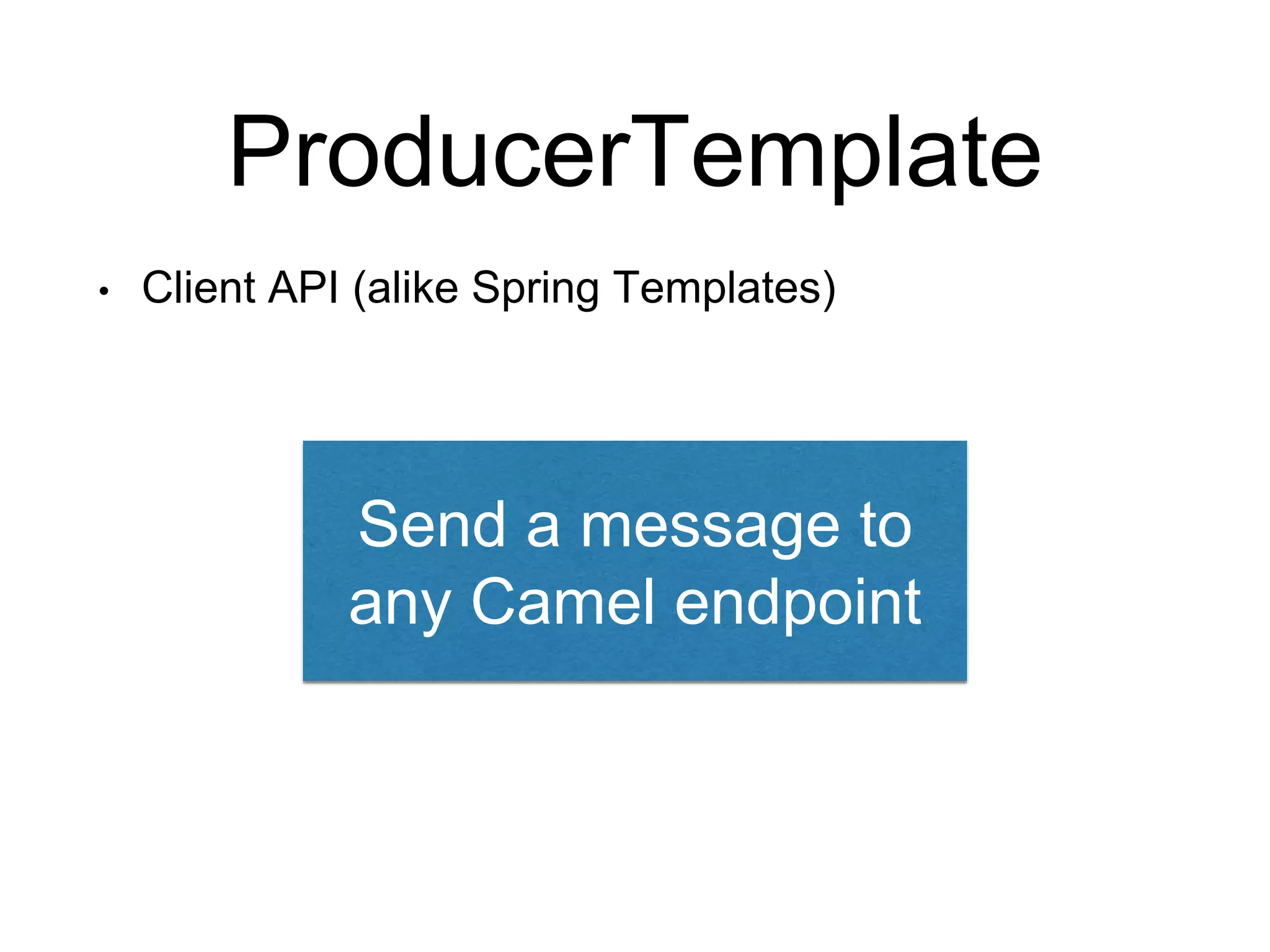

- 78. ProducerTemplate • Client API(alike Spring Templates) Send a message to any Camel endpoint

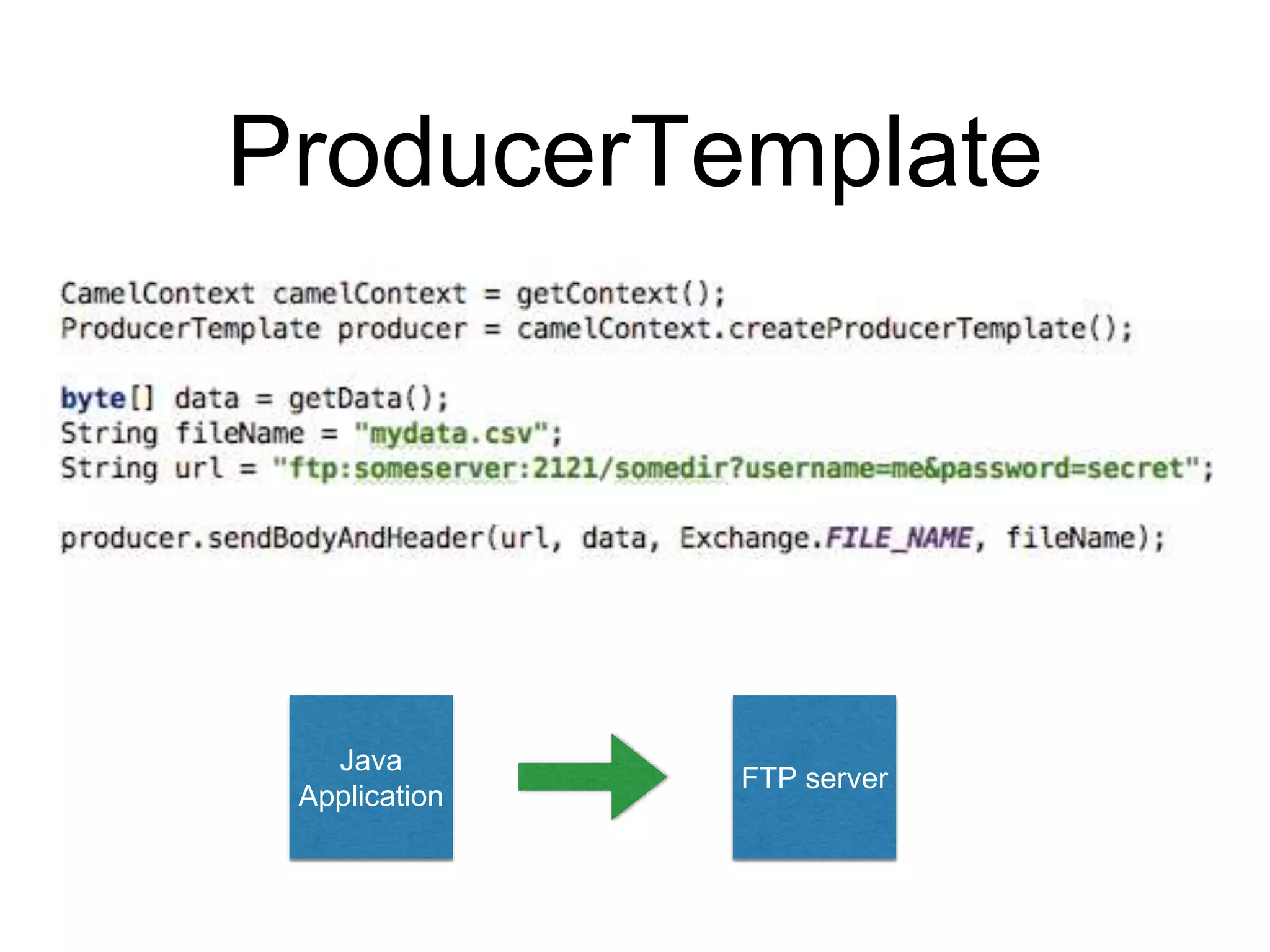

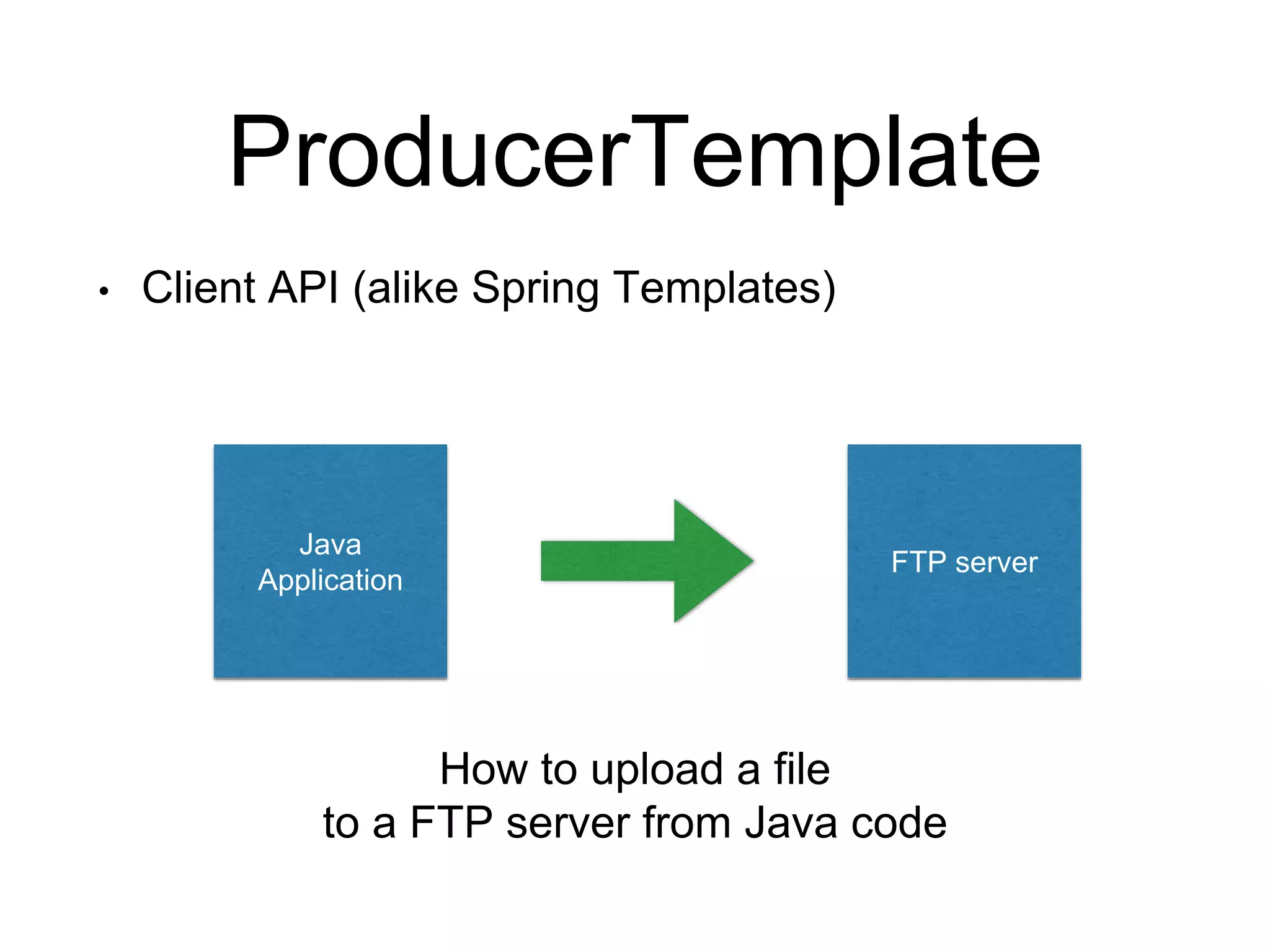

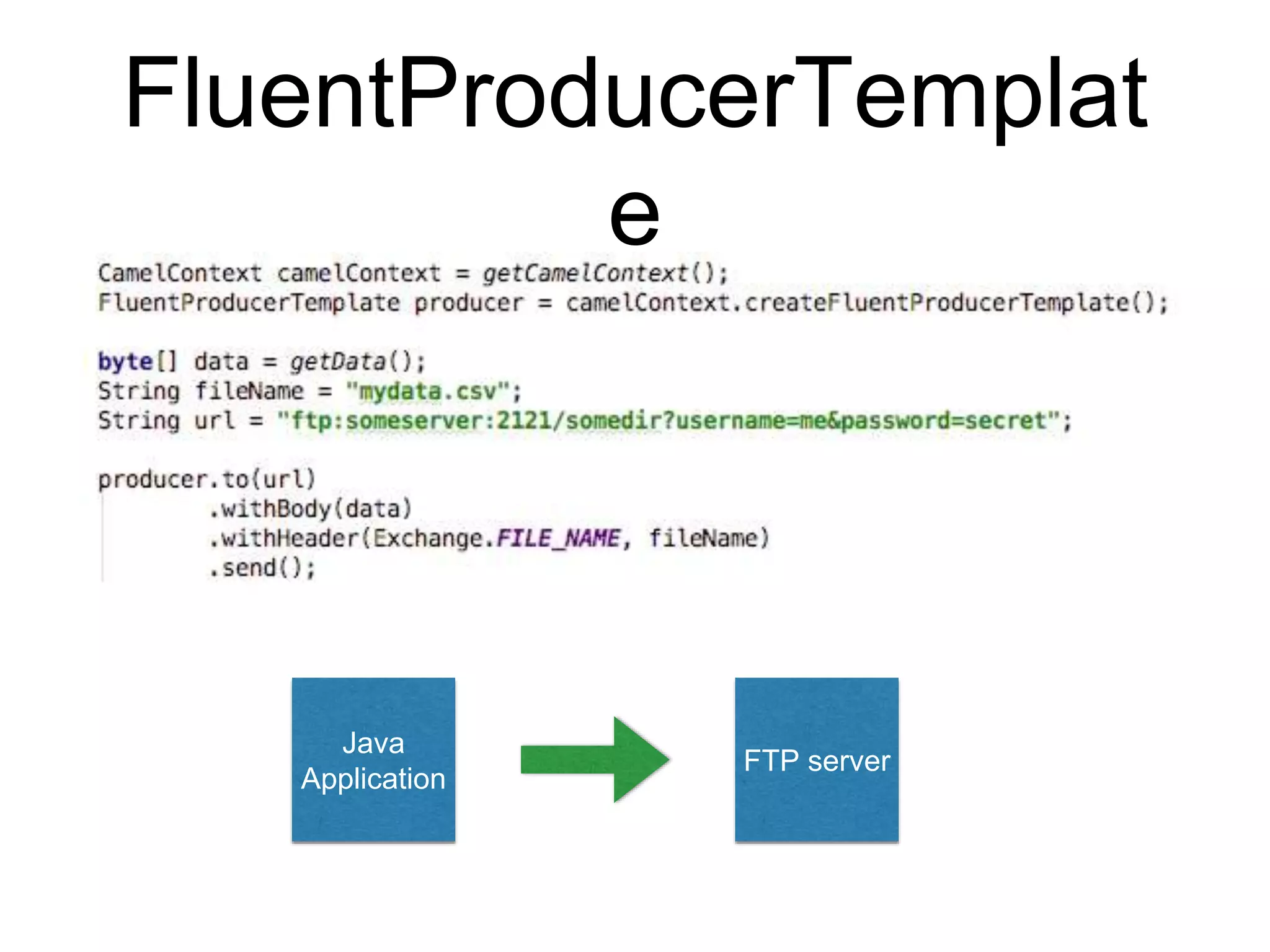

- 79. ProducerTemplate • Client API(alike Spring Templates) FTP server Java Application How to upload a file to a FTP server from Java code
- 80.
- 81.
- 82. Test Kit camel-test camel-test-blueprint camel-test-cdicamel-test-karaf camel-test-spring camel-testng
- 83.
- 84.
- 85.

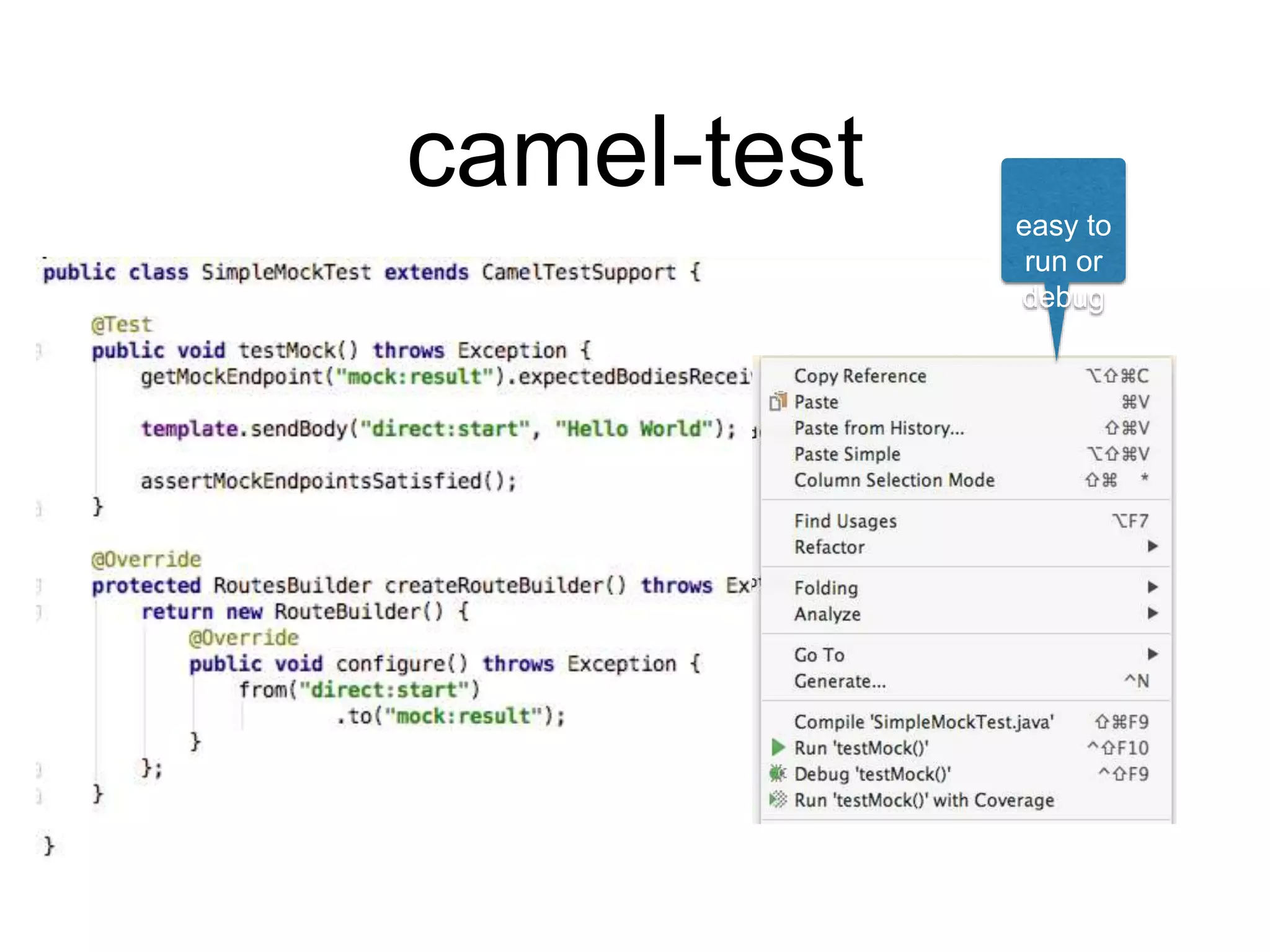

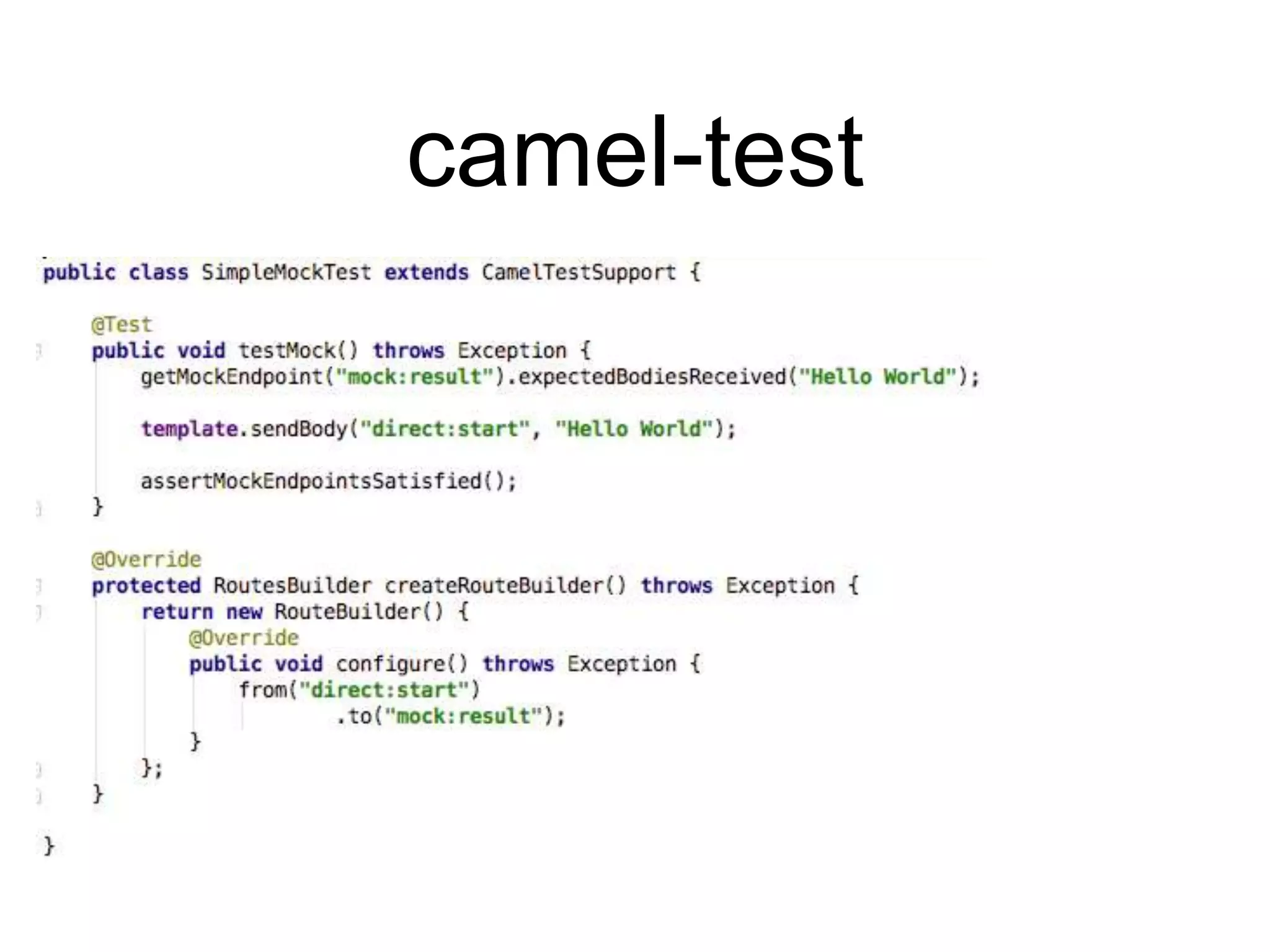

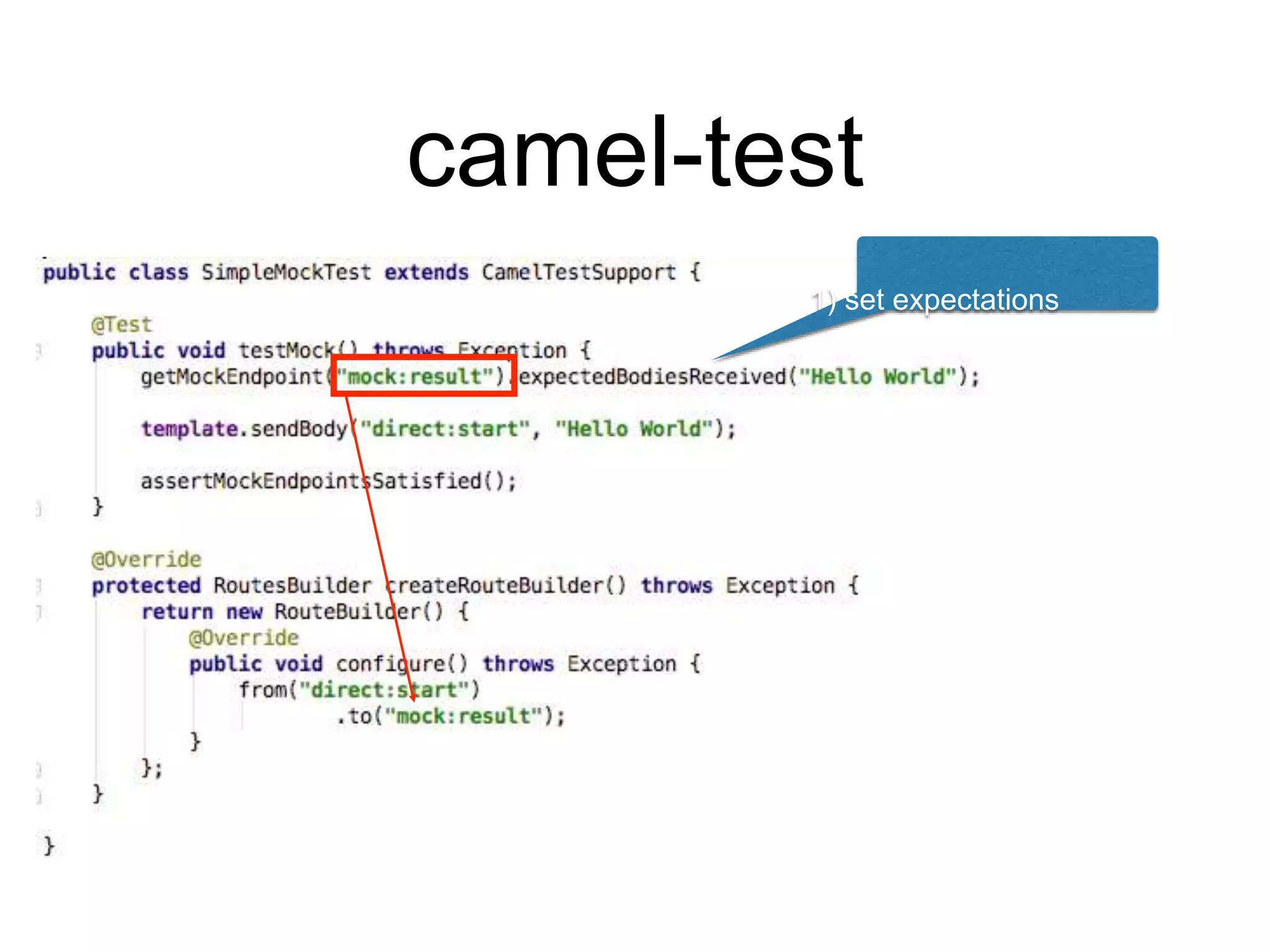

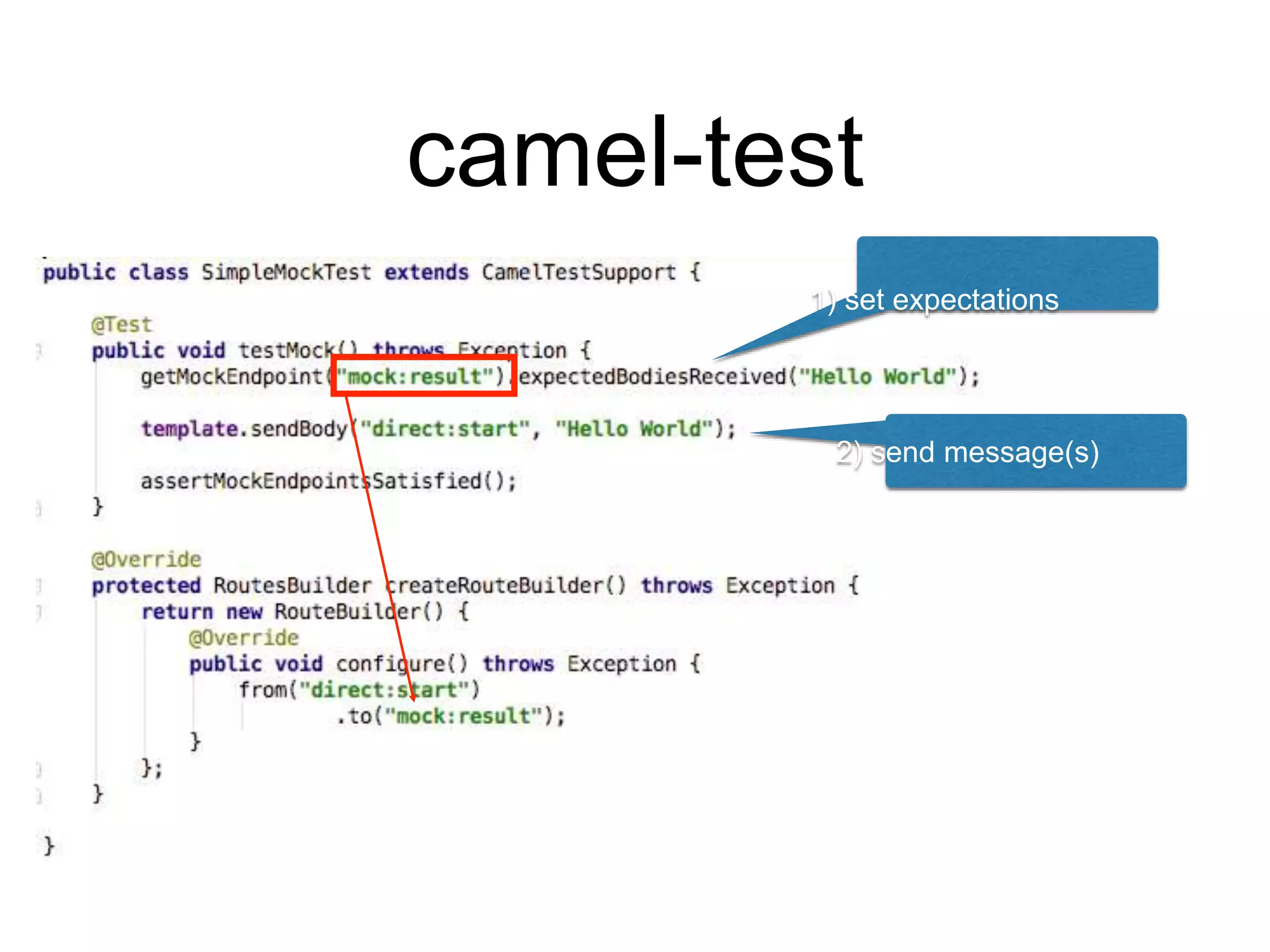

- 86. camel-test 1) set expectations 2)send message(s)

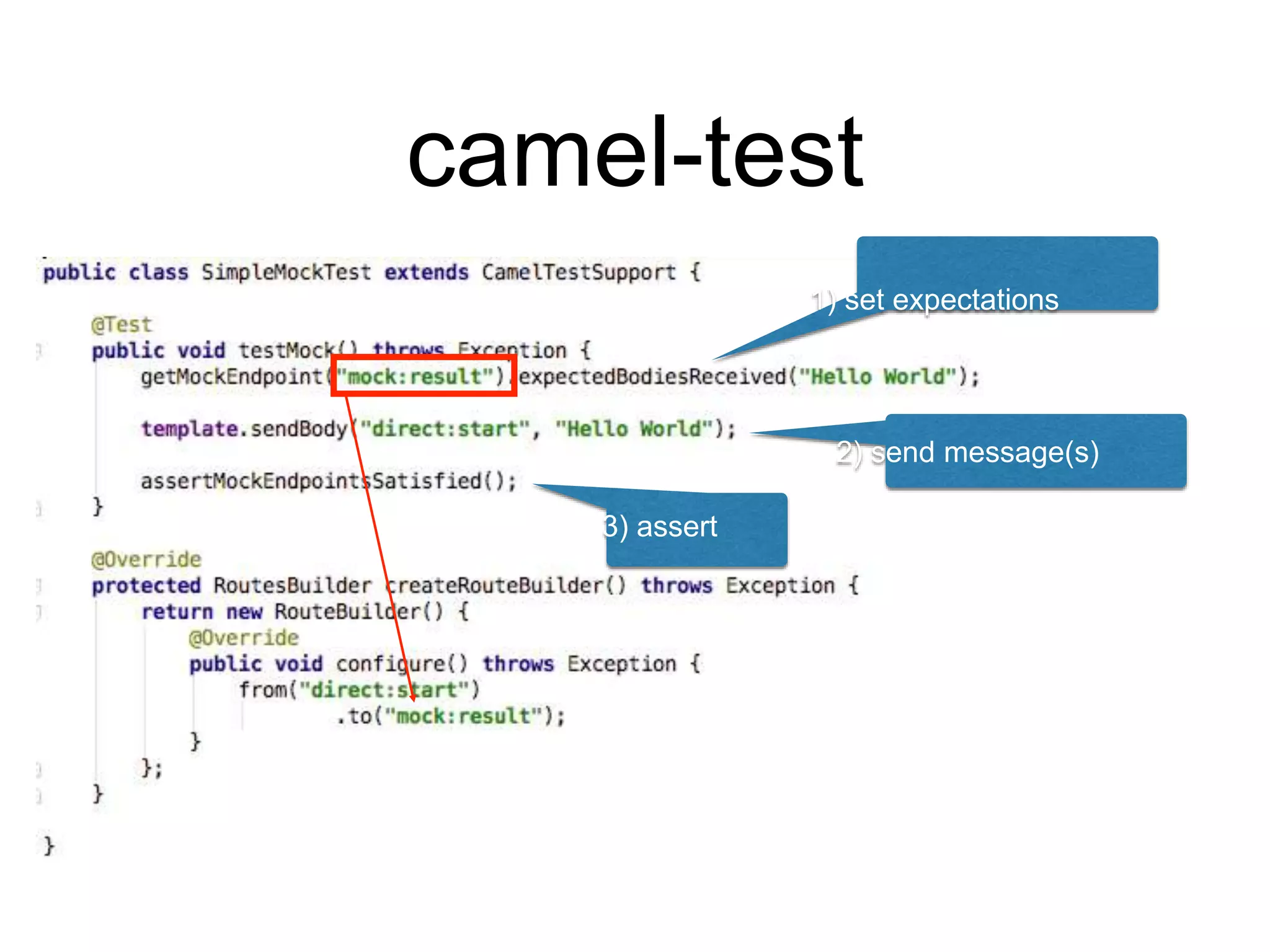

- 87. camel-test 1) set expectations 2)send message(s) 3) assert
- 88.

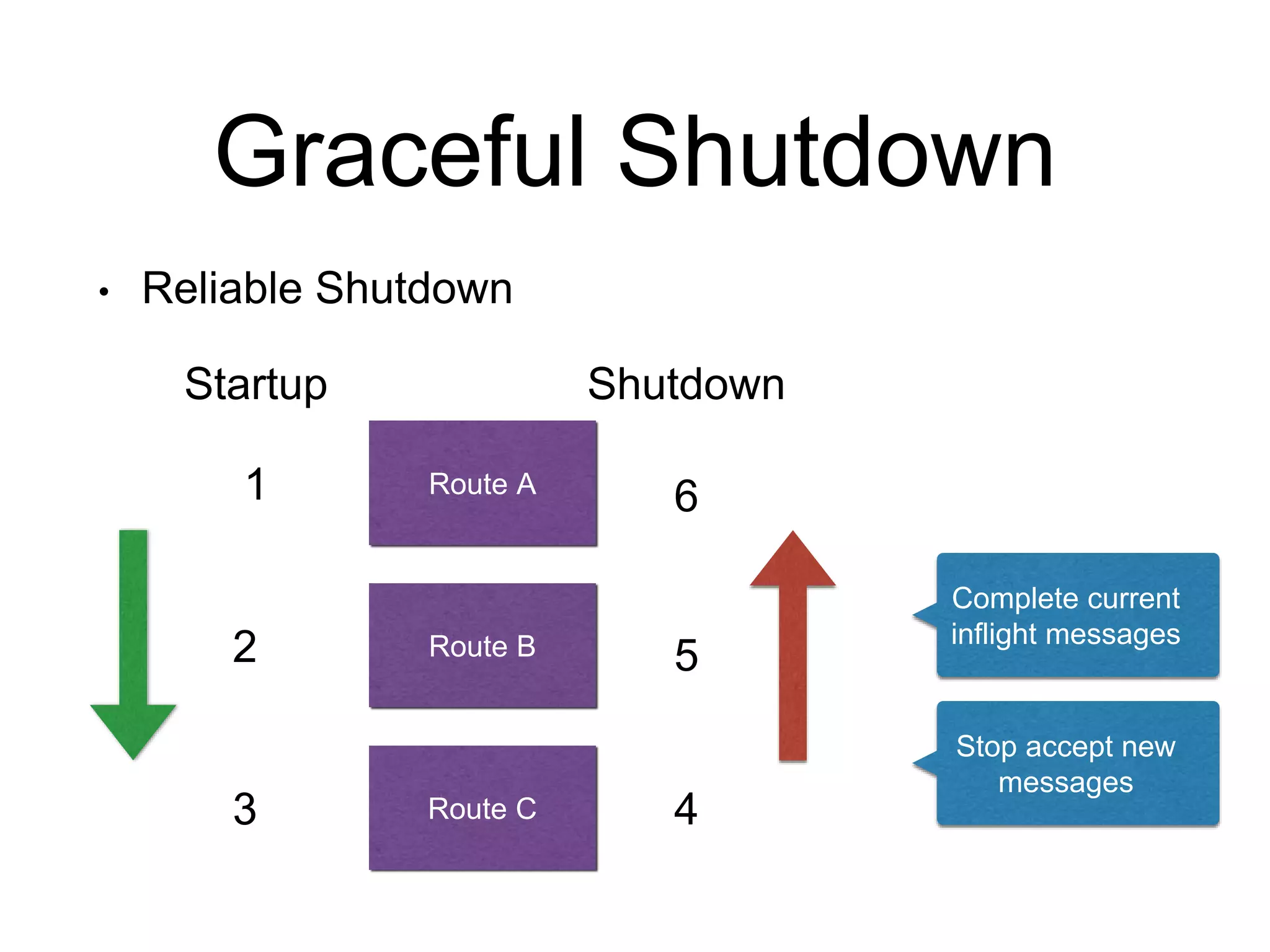

- 89. • Reliable Shutdown GracefulShutdown Route A Route B Route C 2 1 3 4 5 6 Startup Shutdown Stop accept new messages Complete current inflight messages

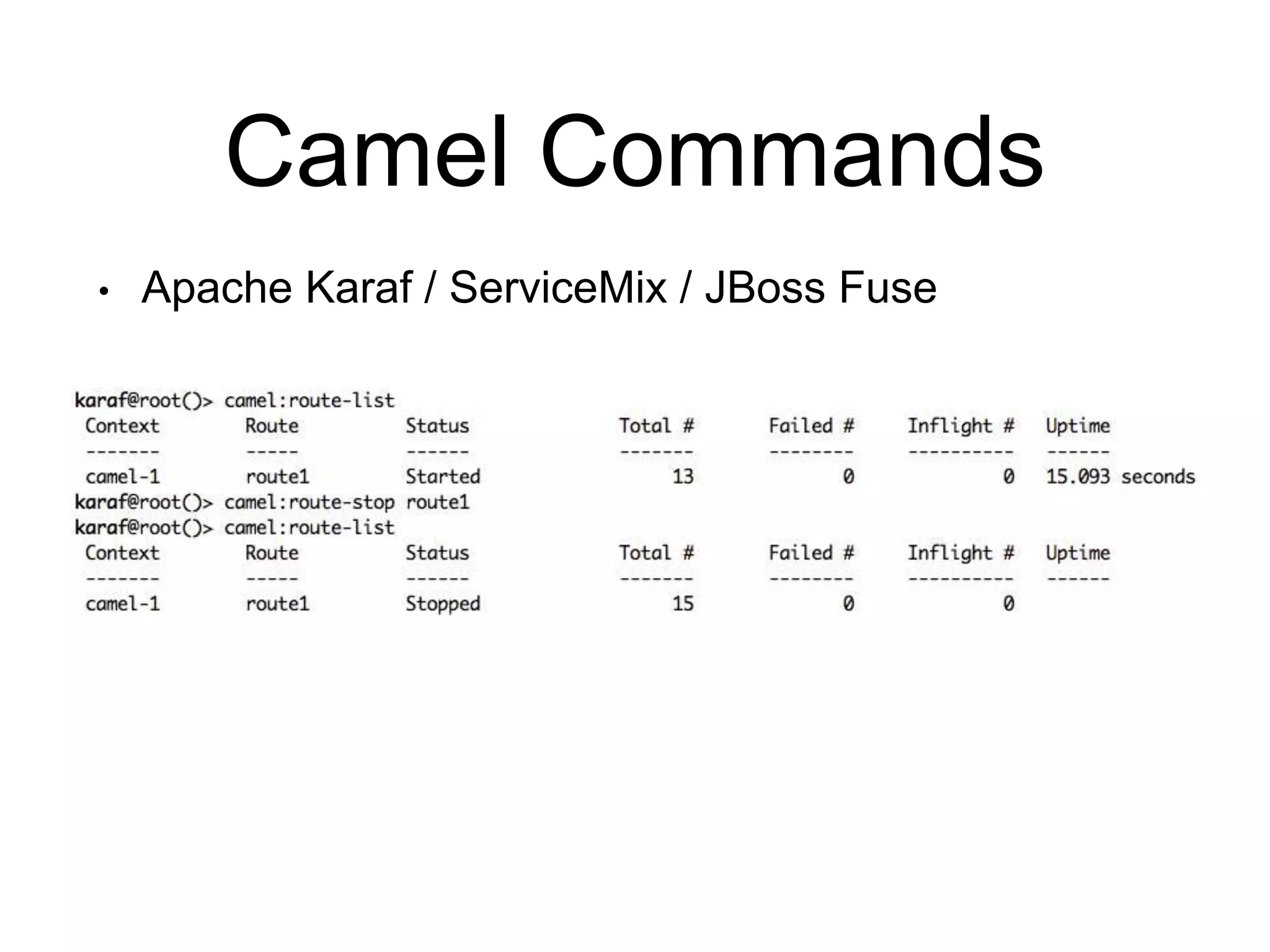

- 90. Camel Commands • ApacheKaraf / ServiceMix / JBoss Fuse

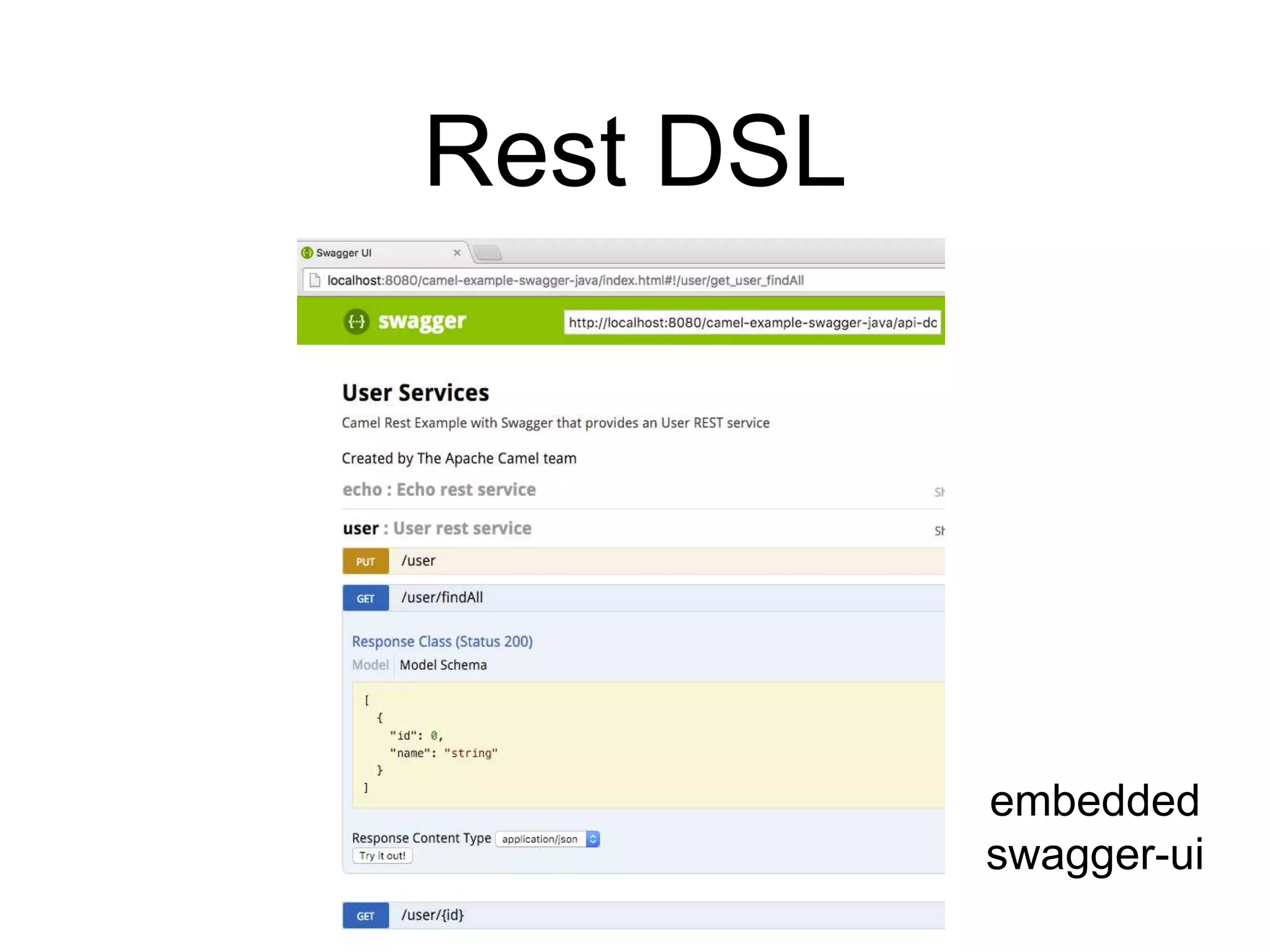

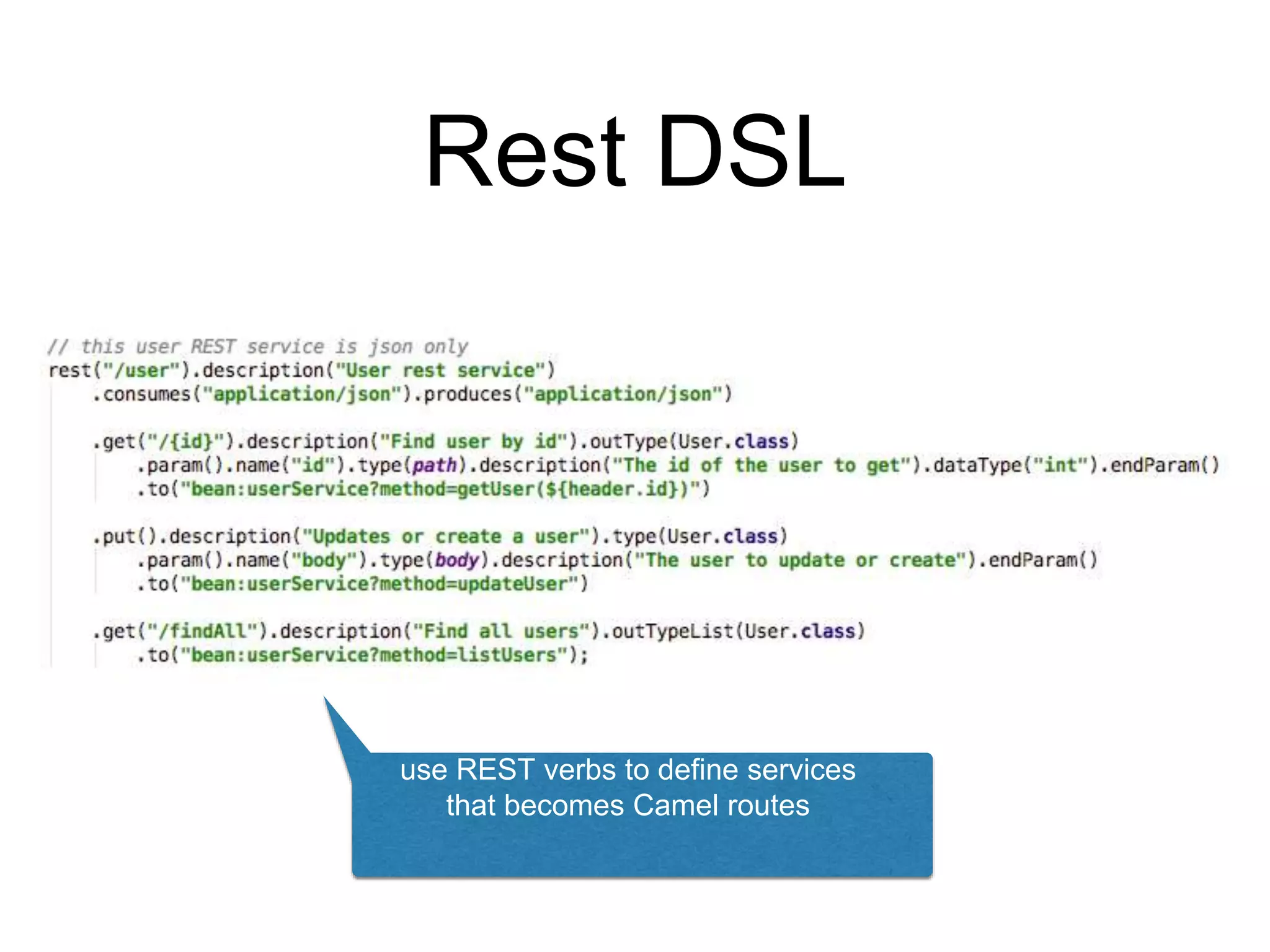

- 91. Rest DSL use RESTverbs to define services that becomes Camel routes

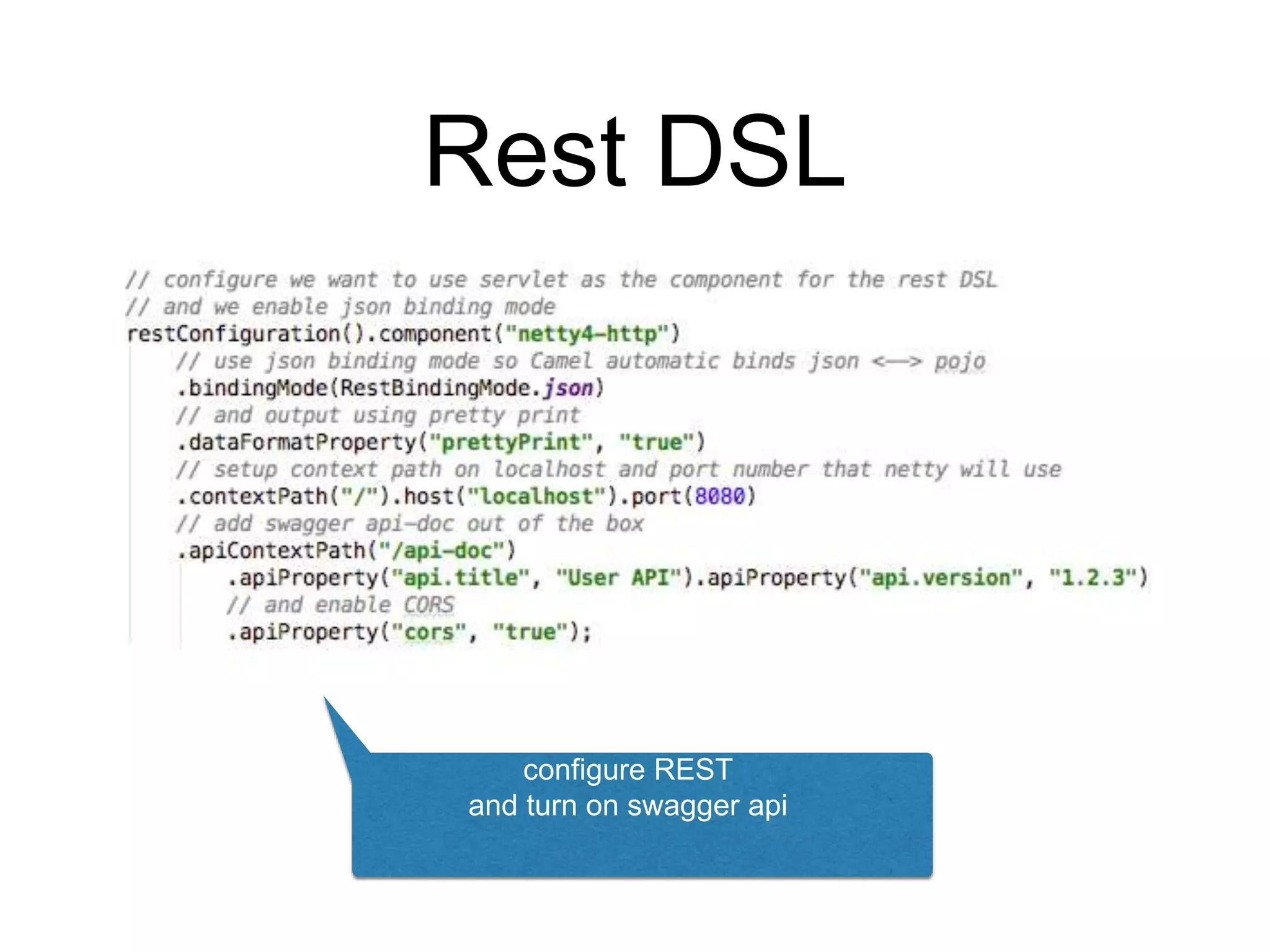

- 92. Rest DSL configure REST andturn on swagger api
- 93.

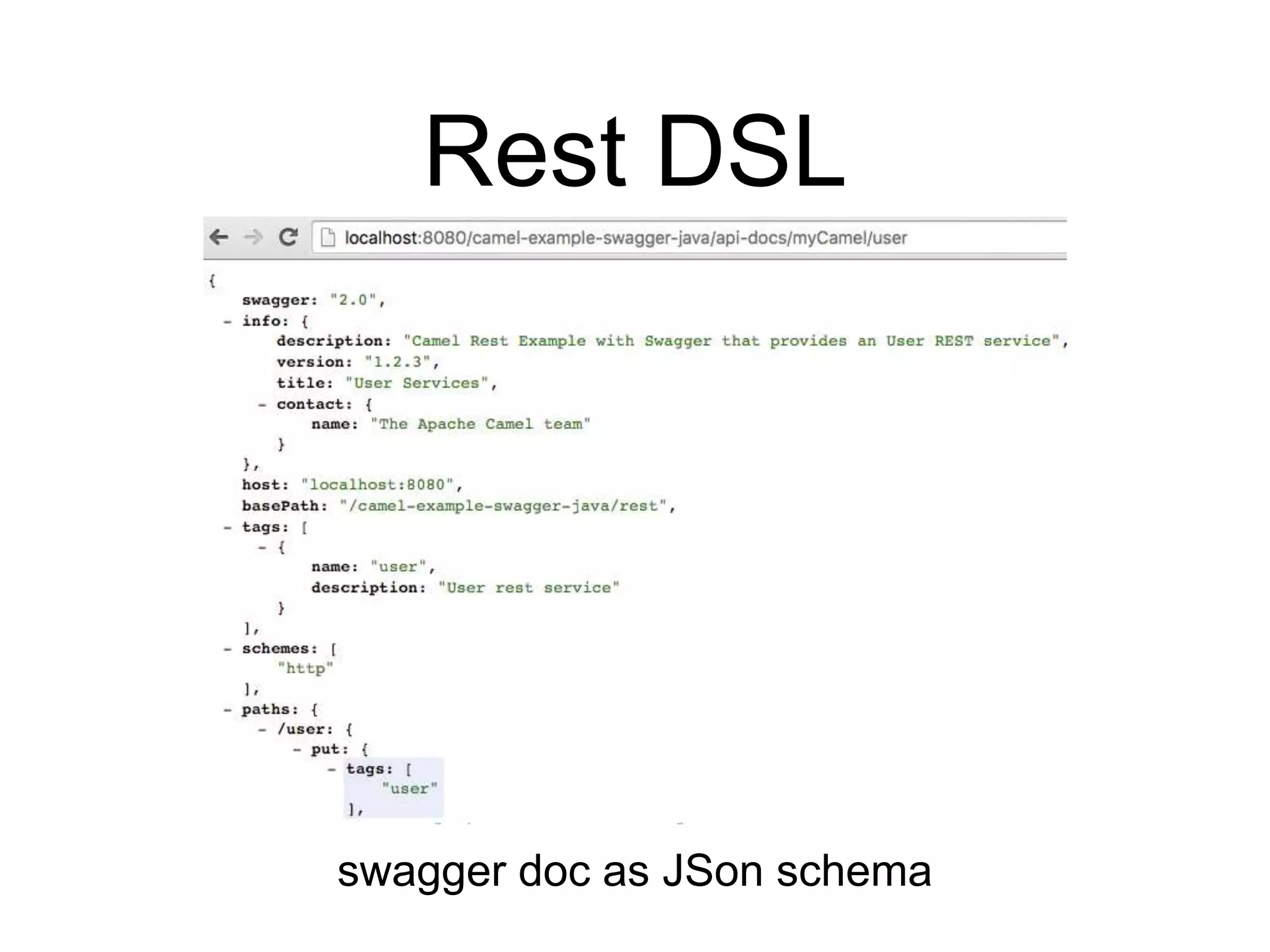

- 94. Rest DSL swagger docas JSon schema
- 95.
- 96.
- 97.
- 98.
- 99.
- 100. Circuit Breaker • NetflixHystrix New in Camel 2.18

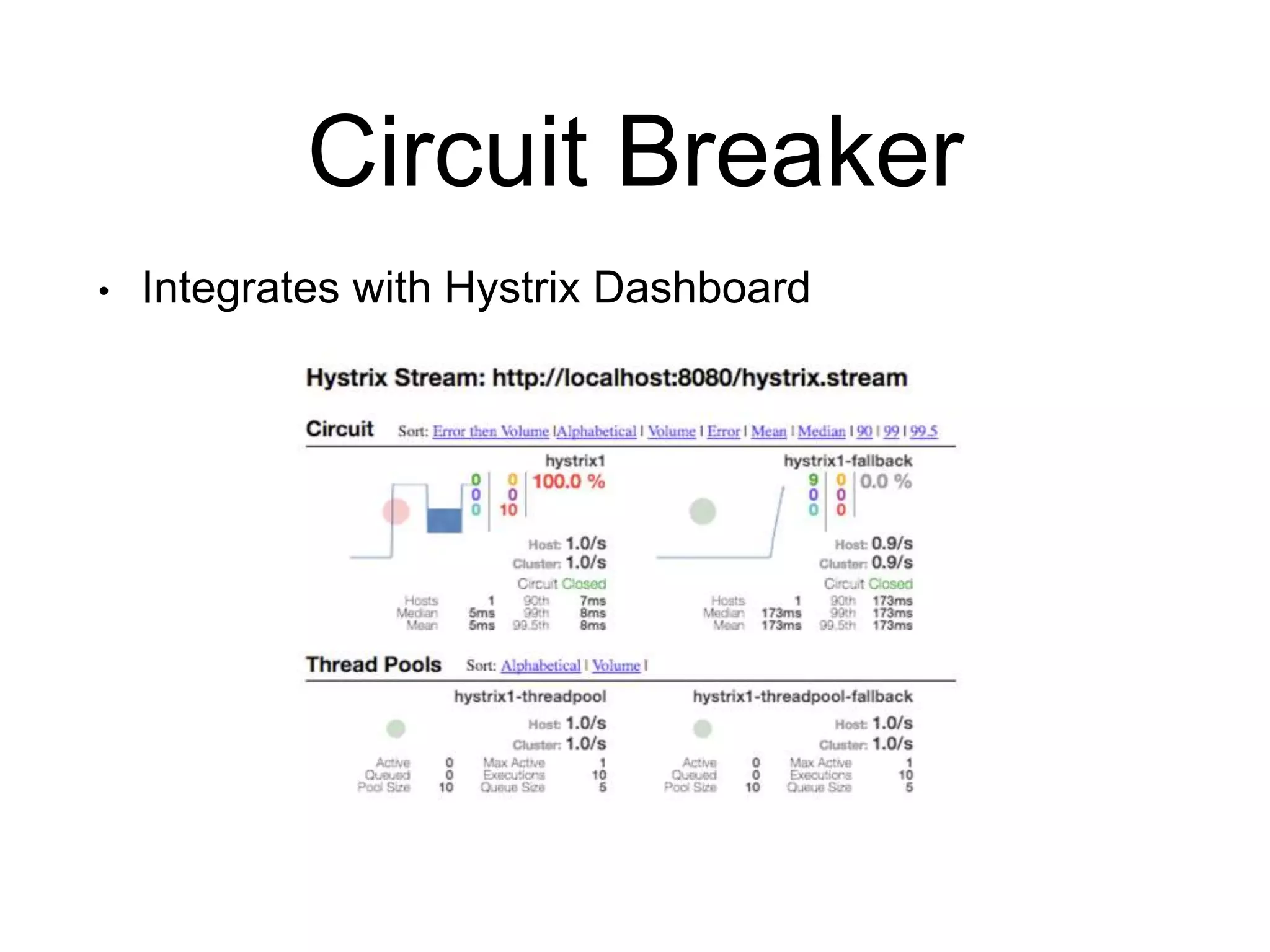

- 101. Circuit Breaker • Integrateswith Hystrix Dashboard

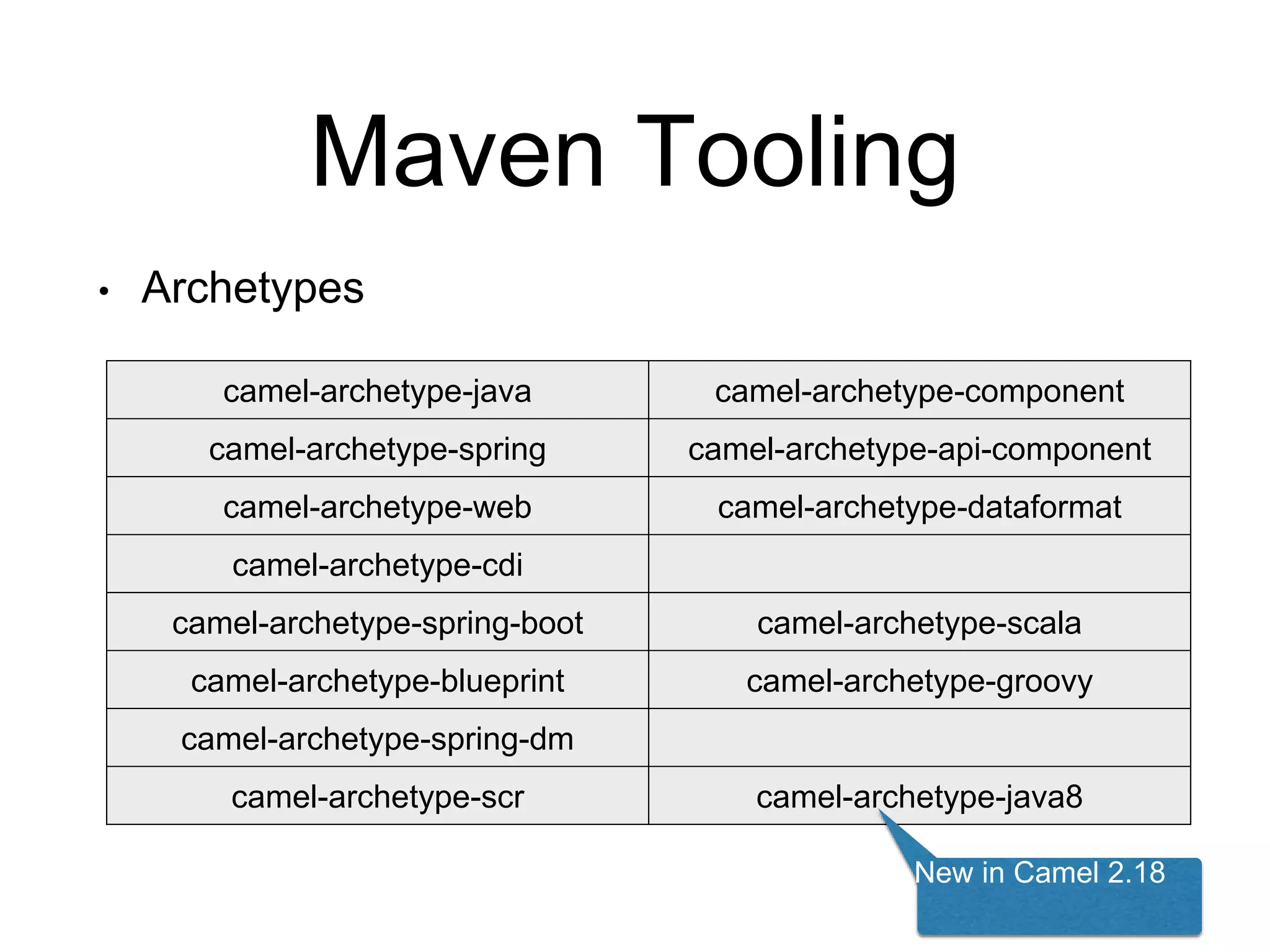

- 102. Maven Tooling • Archetypes camel-archetype-javacamel-archetype-component camel-archetype-spring camel-archetype-api-component camel-archetype-web camel-archetype-dataformat camel-archetype-cdi camel-archetype-spring-boot camel-archetype-scala camel-archetype-blueprint camel-archetype-groovy camel-archetype-spring-dm camel-archetype-scr camel-archetype-java8 New in Camel 2.18
- 103.

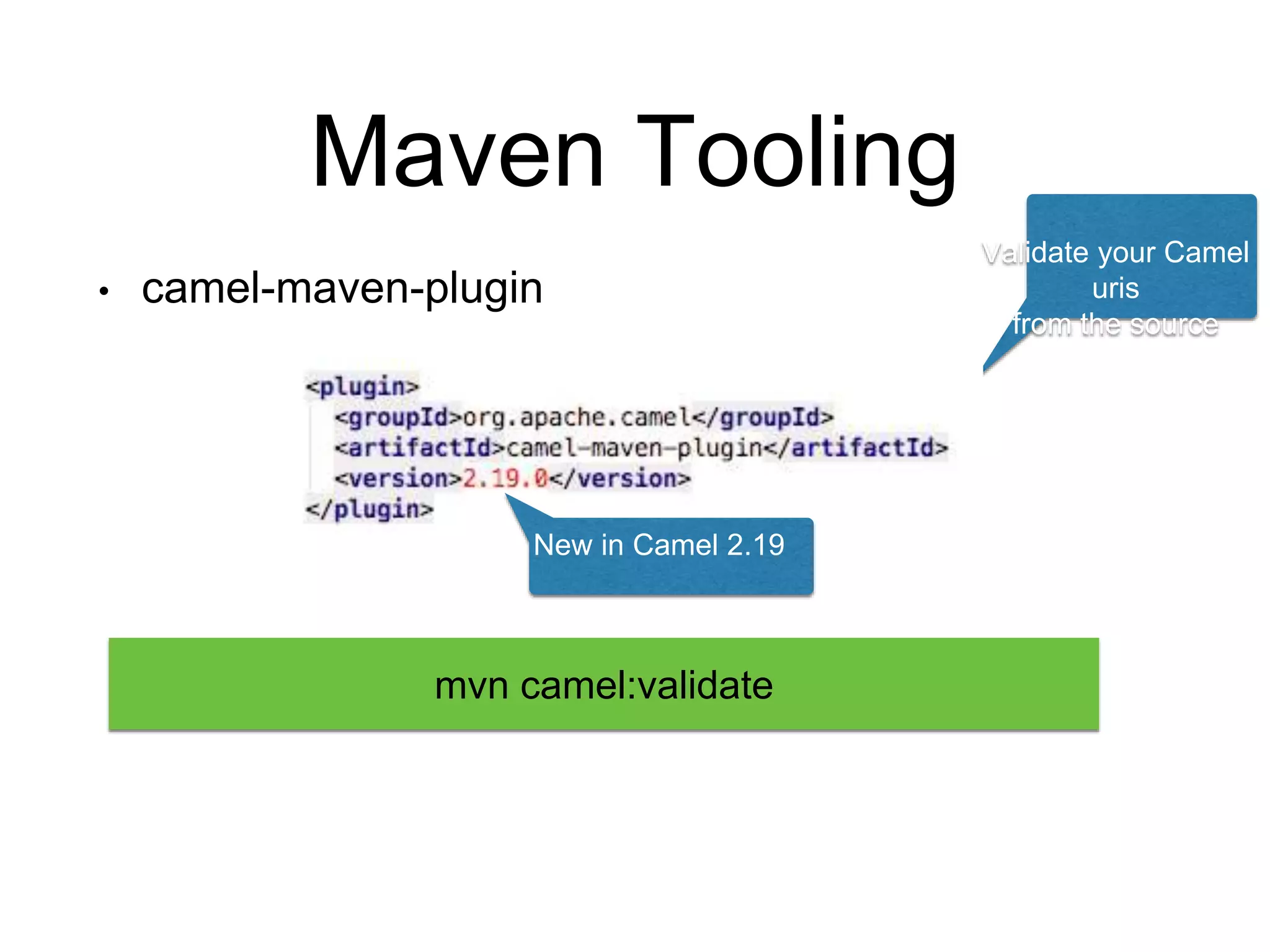

- 104. Maven Tooling • camel-maven-plugin mvncamel:validate Validate your Camel uris from the source New in Camel 2.19
- 105.
- 106.

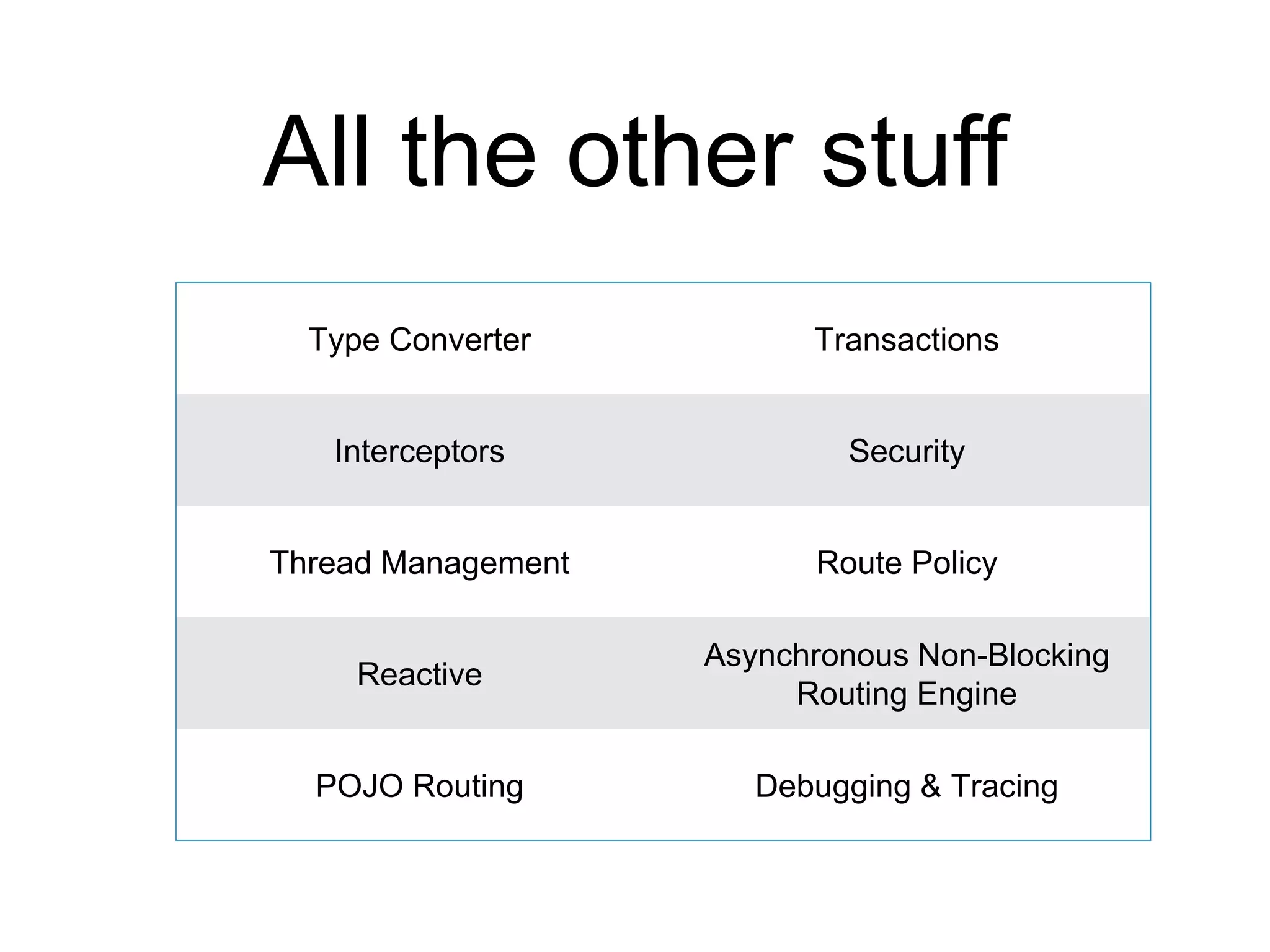

- 107. All the otherstuff Type Converter Transactions Interceptors Security Thread Management Route Policy Reactive Asynchronous Non-Blocking Routing Engine POJO Routing Debugging & Tracing

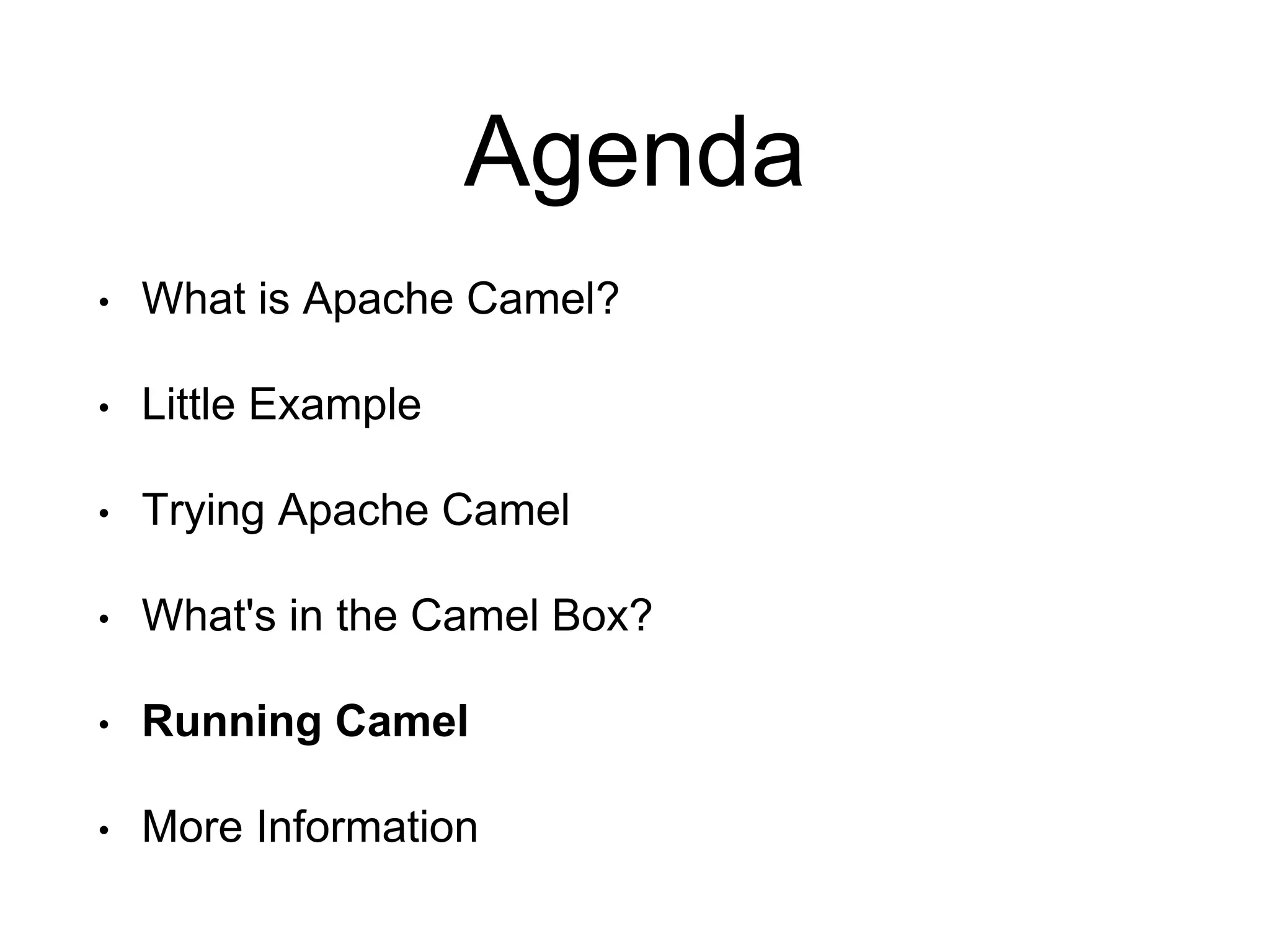

- 108. Agenda • What isApache Camel? • Little Example • Trying Apache Camel • What's in the Camel Box? • Running Camel • More Information

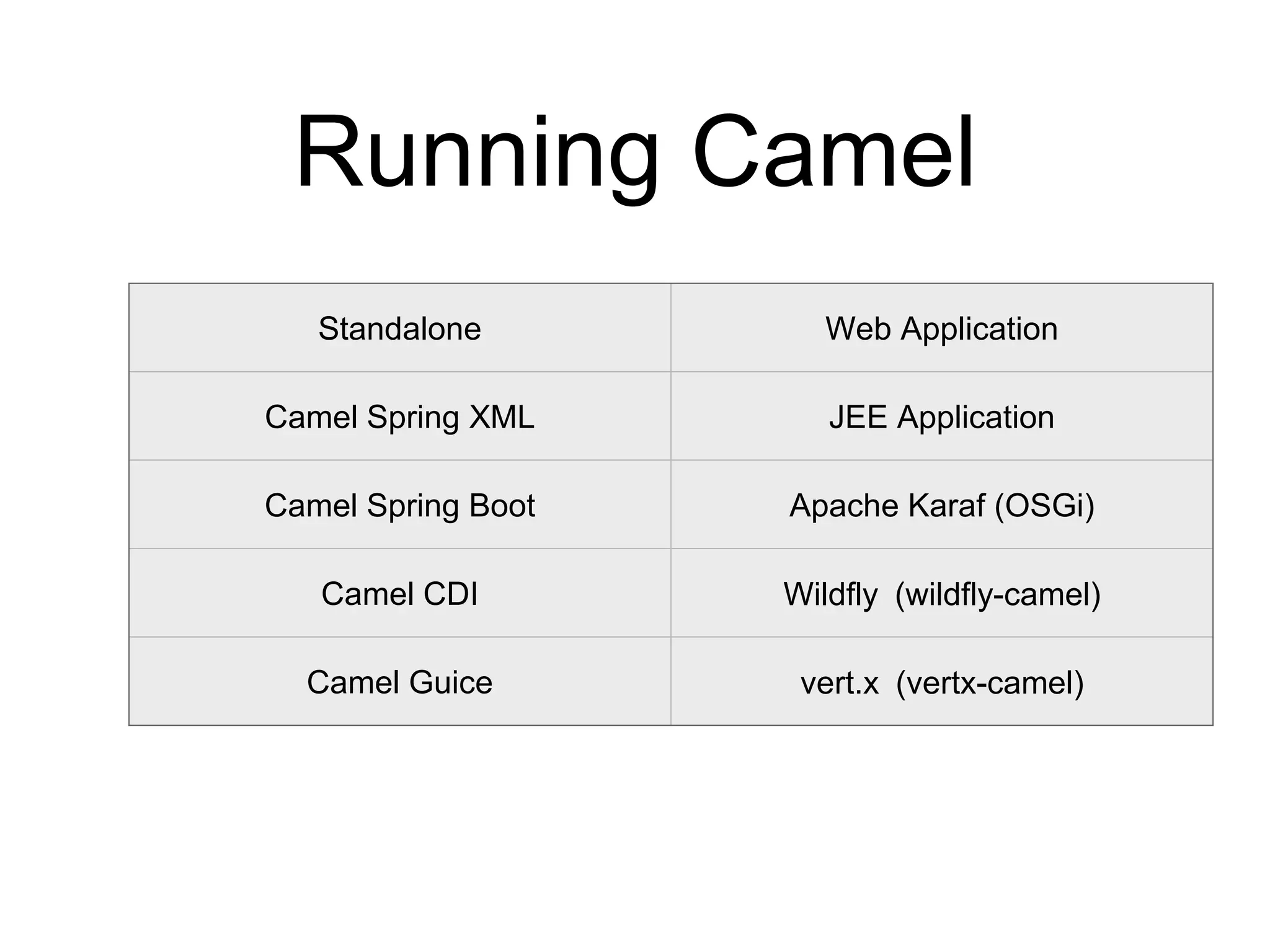

- 109. Running Camel Standalone WebApplication Camel Spring XML JEE Application Camel Spring Boot Apache Karaf (OSGi) Camel CDI Wildfly (wildfly-camel) Camel Guice vert.x (vertx-camel)

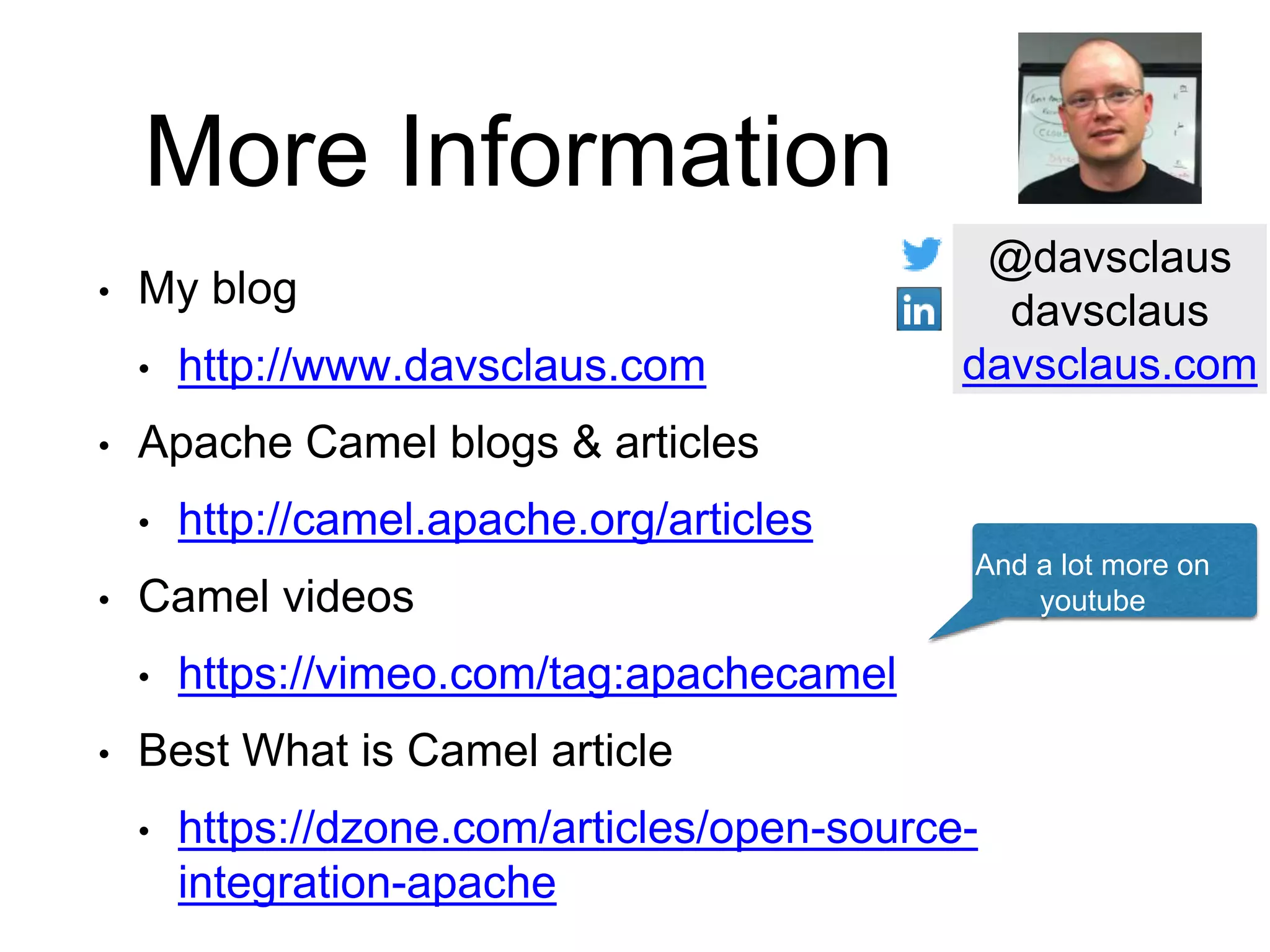

- 110. More Information • Myblog • http://www.davsclaus.com • Apache Camel blogs & articles • http://camel.apache.org/articles • Camel videos • https://vimeo.com/tag:apachecamel • Best What is Camel article • https://dzone.com/articles/open-source- integration-apache And a lot more on youtube @davsclaus davsclaus davsclaus.com
- 111. The Camel Bible couponcode: camel39
