Oracle GoldenGate provides real-time data integration and replication capabilities. It uses non-intrusive change data capture to replicate transactional changes in real-time across heterogeneous database environments with sub-second latency. GoldenGate has over 500 customers across various industries and supports workloads involving terabytes of data movement per day. It extends Oracle's data integration and high availability capabilities beyond Oracle databases to other platforms like SQL Server and MySQL.

1. Oracle GoldenGate Real-time Access to Real-time InformationGavin SoormaSenior Principal Consultant, OnCall DBA

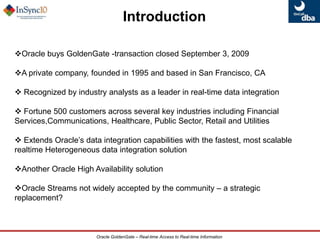

2. IntroductionOracle buys GoldenGate -transaction closed September 3, 2009

3. A private company, founded in 1995 and based in San Francisco, CA

4. Recognized by industry analysts as a leader in real-time data integration

5. Fortune 500 customers across several key industries including Financial Services,Communications, Healthcare, Public Sector, Retail and Utilities

6. Extends Oracle’s data integration capabilities with the fastest, most scalable realtime Heterogeneous data integration solution

7. Another Oracle High Availability solution

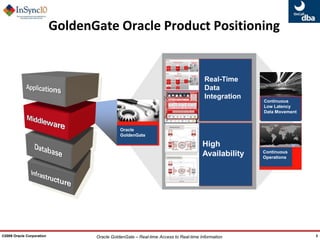

8. Oracle Streams not widely accepted by the community – a strategic replacement?Real-Time Data IntegrationHigh AvailabilityGoldenGate Oracle Product PositioningContinuous Low Latency Data MovementOracle GoldenGateContinuous Operations©2009 Oracle Corporation3

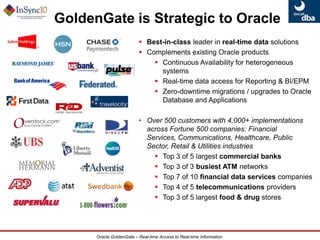

9. GoldenGate is Strategic to OracleBest-in-class leader in real-time data solutions

10. Complements existing Oracle products

11. Continuous Availability for heterogeneous systems

12. Real-time data access for Reporting & BI/EPM

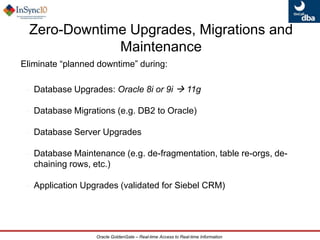

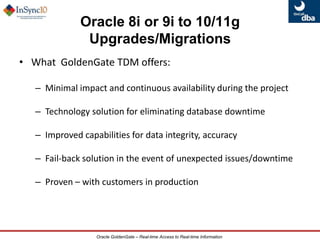

13. Zero-downtime migrations / upgrades to Oracle Database and Applications

14. Over 500 customers with 4,000+ implementations across Fortune 500 companies: Financial Services, Communications, Healthcare, Public Sector, Retail & Utilities industries

15. Top 3 of 5 largest commercial banks

16. Top 3 of 3 busiest ATM networks

17. Top 7 of 10 financial data services companies

18. Top 4 of 5 telecommunications providers

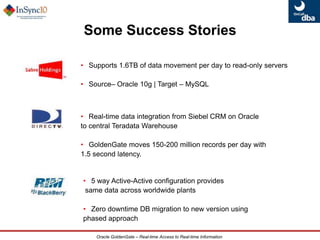

19. Top 3 of 5 largest food & drug storesSome Success StoriesSupports 1.6TB of data movement per day to read-only servers

20. Source– Oracle 10g | Target – MySQL

21. Real-time data integration from Siebel CRM on Oracle to central TeradataWarehouseGoldenGatemoves 150-200 million records per day with 1.5 second latency.5 way Active-Active configuration providessame data across worldwide plantsZero downtime DB migration to new version using phased approach

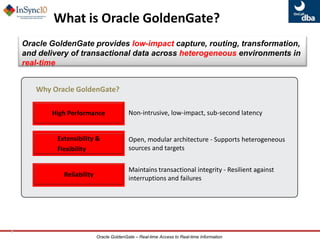

22. High PerformanceExtensibility &FlexibilityReliabilityWhat is Oracle GoldenGate?Oracle GoldenGate provides low-impact capture, routing, transformation, and delivery of transactional dataacross heterogeneous environments in real-timeWhy Oracle GoldenGate?Non-intrusive, low-impact, sub-second latencyOpen, modular architecture - Supports heterogeneous sources and targetsMaintains transactional integrity - Resilient against interruptions and failures6

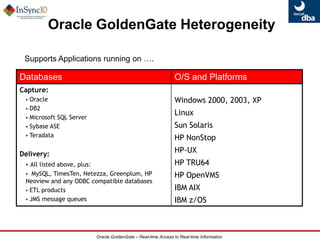

23. Oracle GoldenGate HeterogeneitySupports Applications running on ….

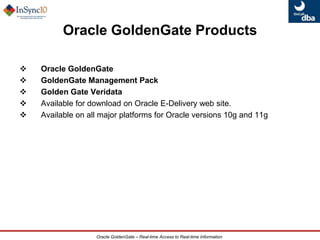

24. Oracle GoldenGate ProductsOracle GoldenGate

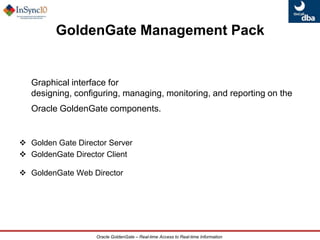

25. GoldenGate Management Pack

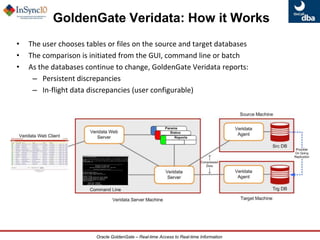

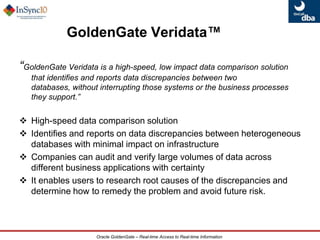

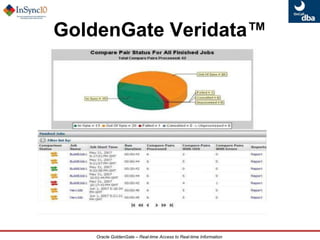

26. Golden Gate Veridata

27. Available for download on Oracle E-Delivery web site.

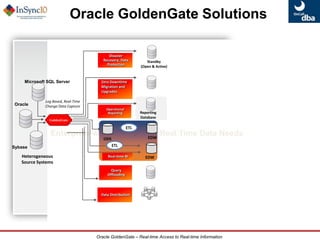

28. Available on all major platforms for Oracle versions 10g and 11g Oracle GoldenGate SolutionsEnterprise-wide Solution for Real Time Data NeedsDisaster Recovery, Data ProtectionStandby(Open & Active)Microsoft SQL ServerZero Downtime Migration and UpgradesLog Based, Real-Time Change Data CaptureOracleOperational ReportingReportingDatabaseGoldenGateETLEDWODSETLSybaseHeterogeneous Source SystemsReal-time BIEDWQuery OffloadingData Distribution

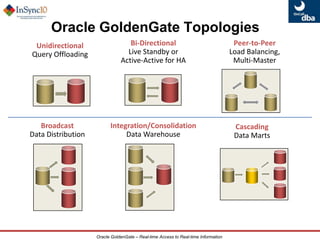

29. Oracle GoldenGate TopologiesBi-DirectionalLive Standby orActive-Active for HAPeer-to-PeerLoad Balancing, Multi-MasterUnidirectionalQuery OffloadingBroadcast Data DistributionIntegration/ConsolidationData WarehouseCascadingData Marts

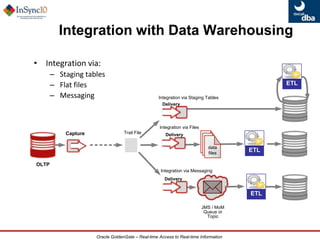

30. Integration with Data WarehousingIntegration via:Staging tablesFlat filesMessaging

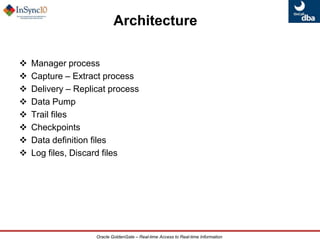

31. ArchitectureManager process

32. Capture – Extract process

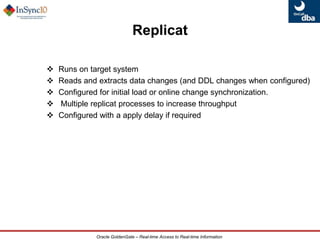

33. Delivery – Replicat process

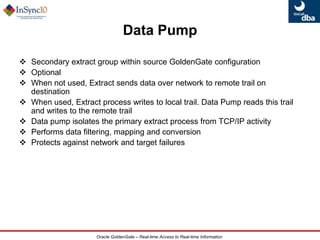

34. Data Pump

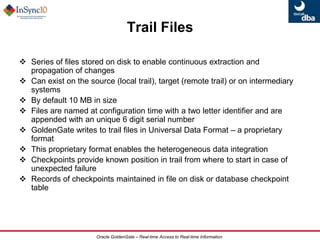

35. Trail files

36. Checkpoints

37. Data definition files

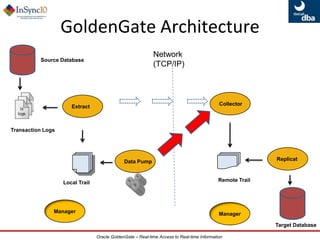

38. Log files, Discard filesGoldenGate ArchitectureNetwork (TCP/IP)Source DatabaseCollectorExtractTransaction LogsReplicatData PumpRemote TrailLocal TrailManagerManagerTarget Database

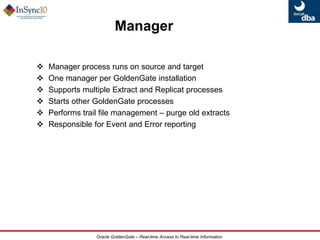

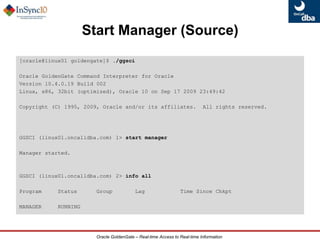

39. ManagerManager process runs on source and target

40. One manager per GoldenGate installation

41. Supports multiple Extract and Replicat processes

42. Starts other GoldenGate processes

43. Performs trail file management – purge old extracts

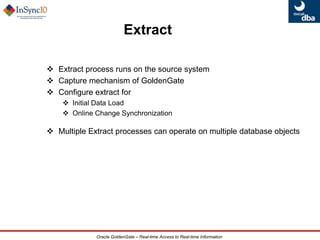

44. Responsible for Event and Error reporting ExtractExtract process runs on the source system

45. Capture mechanism of GoldenGate

46. Configure extract for

47. Initial Data Load
