Innoseal Systems, Inc. provides a tamper-evident bag closure system called the Innosealer, which uses tape and paper to seal bags while preserving product freshness and ensuring food safety. The system boasts significant labor savings, requiring half the time compared to traditional wire ties, and is favored by various markets including vegetable growers and supermarket bakeries. Additionally, the Innosealer offers self-contained, cost-effective solutions with traceability capabilities and reduced waste, making it an ergonomic choice for users.

1. Innoseal Systems, Inc.
Tamper Evident Packaging Solutions

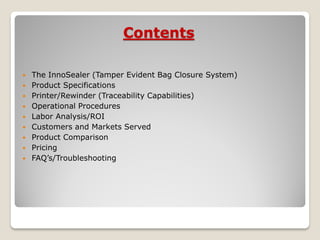

2. Contents
 The InnoSealer (Tamper Evident Bag Closure System)
 Product Specifications
 Printer/Rewinder (Traceability Capabilities)
 Operational Procedures
 Labor Analysis/ROI
 Customers and Markets Served
 Product Comparison
 Pricing
 FAQ’s/Troubleshooting

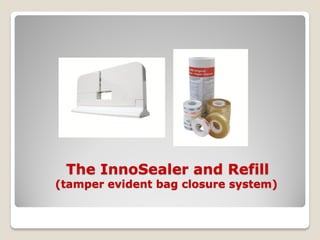

3. The InnoSealer and Refill
(tamper evident bag closure system)

4. InnoSealer
• Material ABS
• Standard Color White
• Packaging Inner Corrugated Box
• Contents Inner One Sealer
• 6 InnoSealers per Case
• Weight Packed – 1.39 lb
• Dimensions: 17.32” x 10.63” x 5.91”
• Weight Master Case: 10.03 lb
• Pallet Quantity: 72 Master Cases
• Each InnoSealer is preloaded with 1,000 tamper evident closures

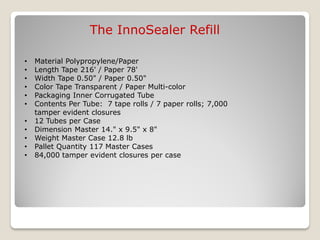

5. The InnoSealer Refill
• Material Polypropylene/Paper
• Length Tape 216' / Paper 78'
• Width Tape 0.50" / Paper 0.50"
• Color Tape Transparent / Paper Multi-color
• Packaging Inner Corrugated Tube
• Contents Per Tube: 7 tape rolls / 7 paper rolls; 7,000
tamper evident closures
• 12 Tubes per Case
• Dimension Master 14." x 9.5" x 8"
• Weight Master Case 12.8 lb
• Pallet Quantity 117 Master Cases
• 84,000 tamper evident closures per case

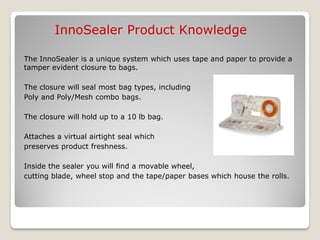

6. InnoSealer Product Knowledge
The InnoSealer is a unique system which uses tape and paper to provide a
tamper evident closure to bags.
The closure will seal most bag types, including
Poly and Poly/Mesh combo bags.
The closure will hold up to a 10 lb bag.
Attaches a virtual airtight seal which
preserves product freshness.
Inside the sealer you will find a movable wheel,
cutting blade, wheel stop and the tape/paper bases which house the rolls.

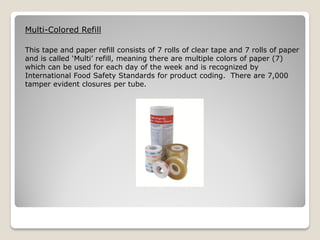

7. Multi-Colored Refill
This tape and paper refill consists of 7 rolls of clear tape and 7 rolls of paper
and is called ‘Multi’ refill, meaning there are multiple colors of paper (7)
which can be used for each day of the week and is recognized by
International Food Safety Standards for product coding. There are 7,000
tamper evident closures per tube.

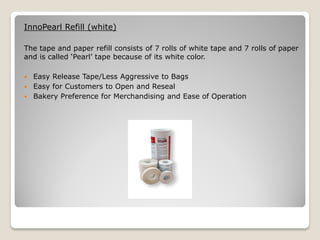

8. InnoPearl Refill (white)
The tape and paper refill consists of 7 rolls of white tape and 7 rolls of paper
and is called ‘Pearl’ tape because of its white color.
 Easy Release Tape/Less Aggressive to Bags
 Easy for Customers to Open and Reseal
 Bakery Preference for Merchandising and Ease of Operation

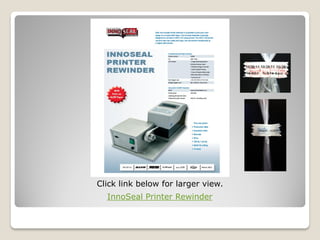

9. Click link below for larger view.
InnoSeal Printer Rewinder

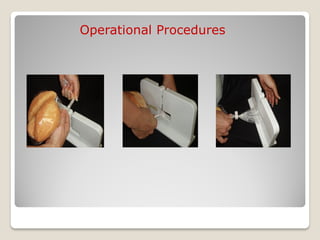

10. Operational Procedures

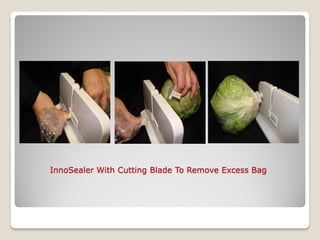

11. InnoSealer With Cutting Blade To Remove Excess Bag

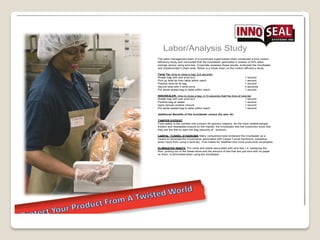

12. Labor/Analysis Study
The labor management team of a prominent supermarket chain conducted a time motion
efficiency study and concluded that the InnoSealer generated in excess of 50% labor
savings versus using wire ties. Corporate reviewed these results, endorsed the InnoSealer
and implemented it chain wide. Below is a break down on the motion efficiency study:
Twist Tie- time to close a bag: 8.6 seconds
Rotate bag with one wrist turn 1 second
Pick up twist tie from table within reach 1 second
Position twist tie at bag 1 second
Secure twist with 4 wrist turns 4 seconds
Put aside sealed bag to table within reach 1 second
INNOSEALER- time to close a bag: 4.15 seconds (half the time of wire tie)
Rotate bag with one wrist turn 1 second
Position bag at sealer 1 second
Apply tamper-evident closure 1 second
Put aside sealed bag to table within reach 1 second
Additional Benefits of the InnoSealer versus the wire tie:
TAMPER-EVIDENT
Food safety is the number one concern for grocery retailers. As the most reliable tamper
evident and resealable closure on the market, the InnoSealer lets the customers know that
they are the first to open the bag (security of product).
CARPAL TUNNEL SYNDROME Many companies have endorsed the InnoSealer as a
means to eliminate the movements associated with Carpal Tunnel Syndrome (repetitive
strain injury from using a twist tie). This makes for healthier and more productive employees.
ELIMINATES WASTE The mess and waste associated with wire ties, i.e. sweeping the
floor, picking out of the bread slicer and the amount of ties that are just wire with no paper
on them, is eliminated when using the InnoSealer.

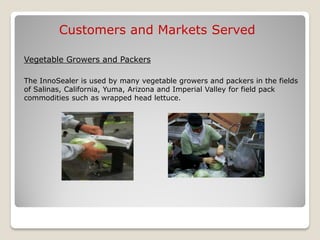

13. Customers and Markets Served
Vegetable Growers and Packers
The InnoSealer is used by many vegetable growers and packers in the fields
of Salinas, California, Yuma, Arizona and Imperial Valley for field pack
commodities such as wrapped head lettuce.

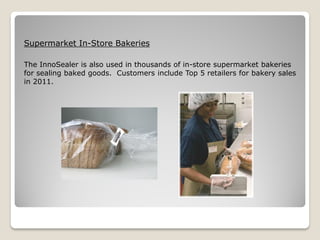

14. Supermarket In-Store Bakeries
The InnoSealer is also used in thousands of in-store supermarket bakeries
for sealing baked goods. Customers include Top 5 retailers for bakery sales
in 2011.

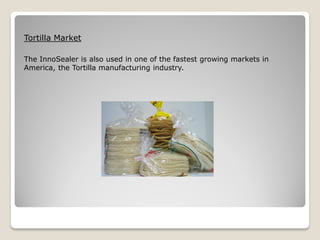

15. Tortilla Market
The InnoSealer is also used in one of the fastest growing markets in
America, the Tortilla manufacturing industry.

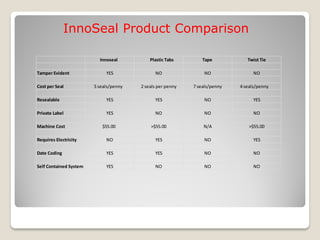

16. InnoSeal Product Comparison
Innoseal Plastic Tabs Tape Twist Tie
Tamper Evident YES NO NO NO
Cost per Seal 5 seals/penny 2 seals per penny 7 seals/penny 4 seals/penny
Resealable YES YES NO YES
Private Label YES NO NO NO
Machine Cost $55.00 >$55.00 N/A >$55.00
Requires Electricity NO YES NO YES
Date Coding YES YES NO NO
Self Contained System YES NO NO NO

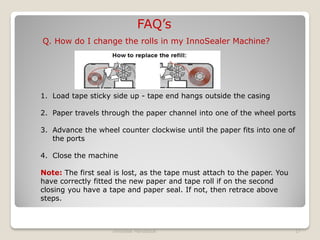

17. FAQ’s
Q. How do I change the rolls in my InnoSealer Machine?
1. Load tape sticky side up - tape end hangs outside the casing
2. Paper travels through the paper channel into one of the wheel ports
3. Advance the wheel counter clockwise until the paper fits into one of
the ports
4. Close the machine
Note: The first seal is lost, as the tape must attach to the paper. You
have correctly fitted the new paper and tape roll if on the second
closing you have a tape and paper seal. If not, then retrace above
steps.
InnoSeal Handbook 17

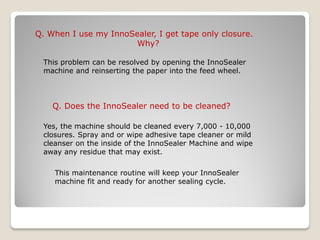

18. Q. When I use my InnoSealer, I get tape only closure.
Why?
This problem can be resolved by opening the InnoSealer
machine and reinserting the paper into the feed wheel.
Q. Does the InnoSealer need to be cleaned?
Yes, the machine should be cleaned every 7,000 - 10,000
closures. Spray and or wipe adhesive tape cleaner or mild
cleanser on the inside of the InnoSealer Machine and wipe
away any residue that may exist.
This maintenance routine will keep your InnoSealer
machine fit and ready for another sealing cycle.

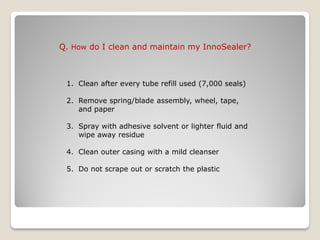

19. Q. How do I clean and maintain my InnoSealer?
1. Clean after every tube refill used (7,000 seals)
2. Remove spring/blade assembly, wheel, tape,
and paper
3. Spray with adhesive solvent or lighter fluid and
wipe away residue
4. Clean outer casing with a mild cleanser
5. Do not scrape out or scratch the plastic

20. Q. How do I mount or affix my InnoSealer?
1. Remove the two screws (one from each end of the Sealer) and put
aside. Holding onto the Sealer, pull or shake out the steel plate on
the bottom. Position this plate where it is to be fixed.
2. Using the 4 holes on this bottom plate as your guide, fasten this
steel plate in the position desired using the 4 screws supplied in
the plastic bag.
3. Place the InnoSealer back onto the plate and reinstall the two
screws (in your first step) back on to each side of the sealer.
Innoseal Systems, Inc. also offers
a stainless steal bracket which can
be affixed to a work station.
InnoSeal Handbook 20

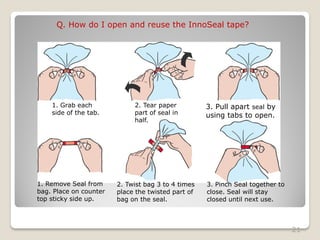

21. Q. How do I open and reuse the InnoSeal tape?
1. Grab each 2. Tear paper 3. Pull apart seal by
side of the tab. part of seal in using tabs to open.
half.
1. Remove Seal from 2. Twist bag 3 to 4 times 3. Pinch Seal together to
bag. Place on counter place the twisted part of close. Seal will stay
top sticky side up. bag on the seal. closed until next use.
21

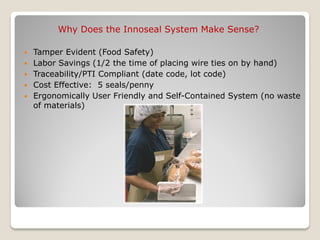

22. Why Does the Innoseal System Make Sense?
 Tamper Evident (Food Safety)
 Labor Savings (1/2 the time of placing wire ties on by hand)
 Traceability/PTI Compliant (date code, lot code)
 Cost Effective: 5 seals/penny
 Ergonomically User Friendly and Self-Contained System (no waste
of materials)
