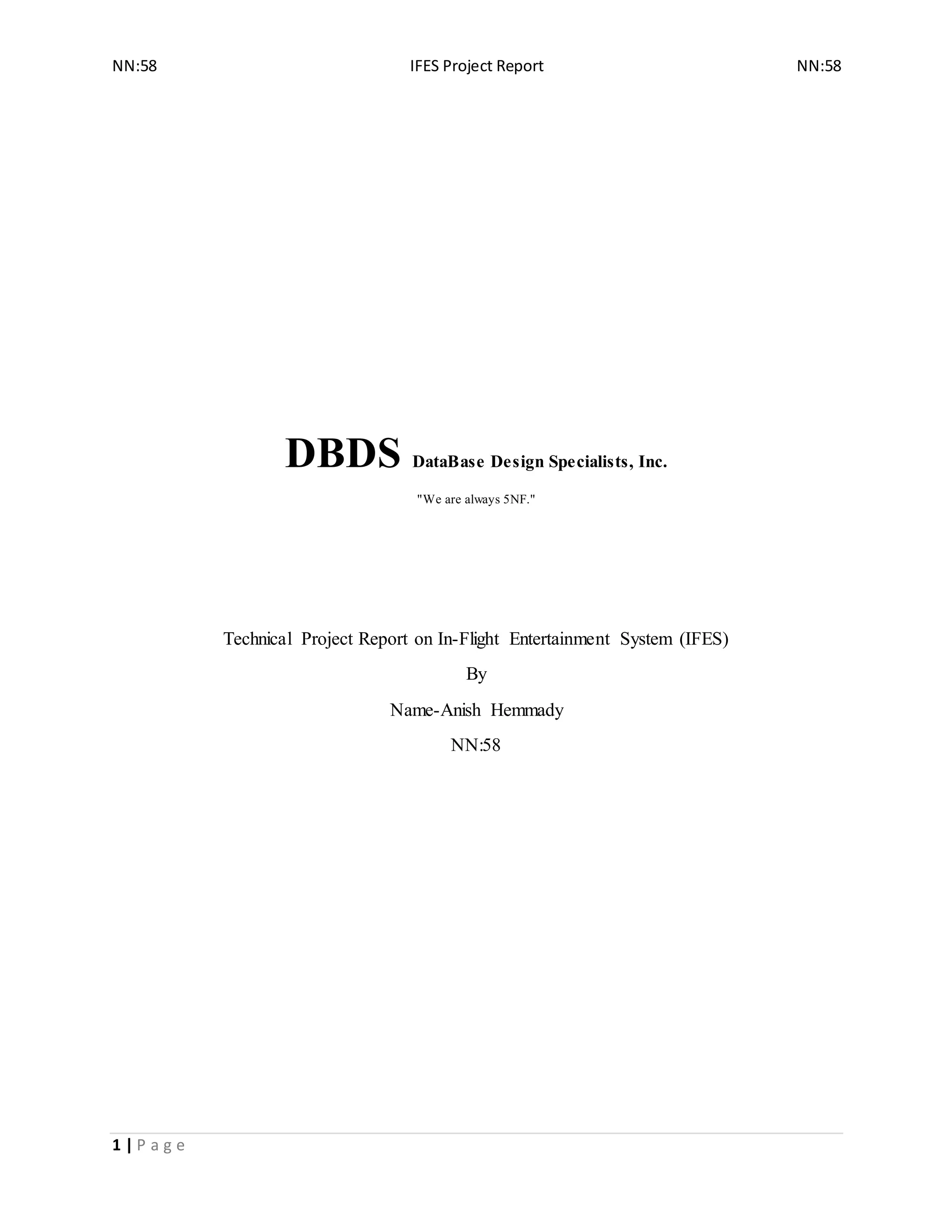

Technical Project Report on In-Flight Entertainment System (IFES)
By
Name-Anish Hemmady
NN:58

2 | P a g e

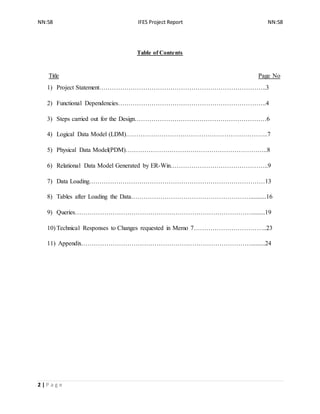

Table of Contents
Title Page No
1) Project Statement……………………………………………………………………..3
2) Functional Dependencies……………………………………………………………..4
3) Steps carried out for the Design………………………………………………………6
4) Logical Data Model (LDM)…………………………………………………………..7
5) Physical Data Model(PDM)…………………………………………………………..8
6) Relational Data Model Generated by ER-Win………………………………………..9
7) Data Loading…………………………………………………………………………13
8) Tables after Loading the Data…………………………………………………..........16
9) Queries………………………………………………………………………….........19
10) Technical Responses to Changes requested in Memo 7……………………………..23
11) Appendix……………………………………………………………………….........24

3 | P a g e

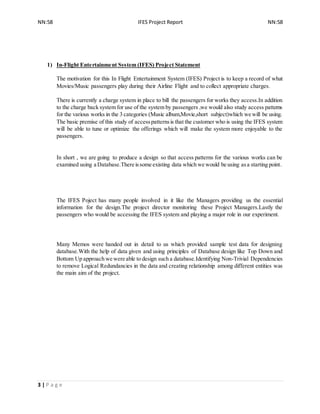

1) In-Flight Entertainment System (IFES) Project Statement
The motivation for this In Flight Entertainment System (IFES) Project is to keep a record of what
Movies/Music passengers play during their Airline Flight and to collect appropriate charges.
There is currently a charge system in place to bill the passengers for works they access.In addition
to the charge back system for use of the system by passengers ,we would also study access patterns
for the various works in the 3 categories (Music album,Movie,short subject)which we will be using.
The basic premise of this study of accesspatternsis that the customer who is using the IFES system
will be able to tune or optimize the offerings which will make the system more enjoyable to the
passengers.
In short , we are going to produce a design so that access patterns for the various works can be
examined using a Database.There issome existing data which we would be using asa starting point.
The IFES Poject has many people involved in it like the Managers providing us the essential
information for the design.The project director monitoring these Project Managers.Lastly the
passengers who would be accessing the IFES system and playing a major role in our experiment.
Many Memos were handed out in detail to us which provided sample test data for designing
database.With the help of data given and using principles of Database design like Top Down and
Bottom Up approach we were able to design such a database.Identifying Non-Trivial Dependencies
to remove Logical Redundancies in the data and creating relationship among different entities was
the main aim of the project.

4 | P a g e

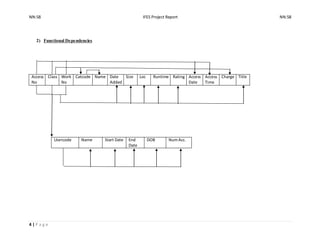

2) Functional Dependencies
Access
No
Class Work
No
Catcode Name Date
Added
Size Loc Runtime Rating Access
Date
Access
Time
Charge Title
Usercode Name Start Date End
Date
DOB NumAcc.

5 | P a g e

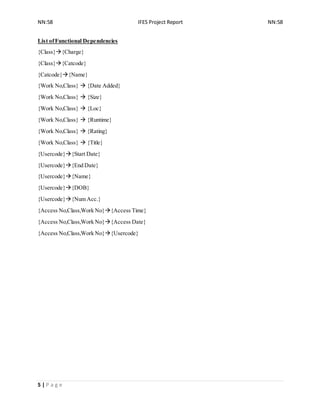

List ofFunctional Dependencies
{Class}{Charge}
{Class}{Catcode}
{Catcode}{Name}
{Work No,Class}  {Date Added}
{Work No,Class}  {Size}
{Work No,Class}  {Loc}
{Work No,Class}  {Runtime}
{Work No,Class}  {Rating}
{Work No,Class}  {Title}
{Usercode}{Start Date}
{Usercode}{End Date}
{Usercode}{Name}
{Usercode}{DOB}
{Usercode}{Num Acc.}
{Access No,Class,Work No}{Access Time}
{Access No,Class,Work No}{Access Date}
{Access No,Class,Work No}{Usercode}

6 | P a g e

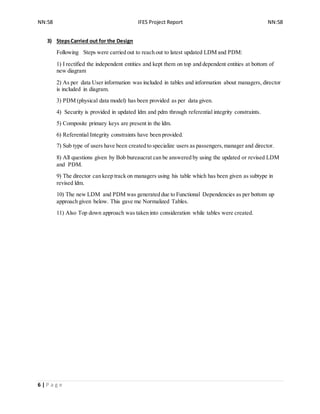

3) StepsCarried out for the Design
Following Steps were carried out to reach out to latest updated LDM and PDM:
1) I rectified the independent entities and kept them on top and dependent entities at bottom of
new diagram
2) As per data User information was included in tables and information about managers, director
is included in diagram.
3) PDM (physical data model) has been provided as per data given.
4) Security is provided in updated ldm and pdm through referential integrity constraints.
5) Composite primary keys are present in the ldm.
6) Referential Integrity constraints have been provided.
7) Sub type of users have been created to specialize users as passengers,manager and director.
8) All questions given by Bob bureaucrat can be answered by using the updated or revised LDM
and PDM.
9) The director can keep track on managers using his table which has been given as subtype in
revised ldm.
10) The new LDM and PDM was generated due to Functional Dependencies as per bottom up
approach given below. This gave me Normalized Tables.
11) Also Top down approach was taken into consideration while tables were created.

7 | P a g e

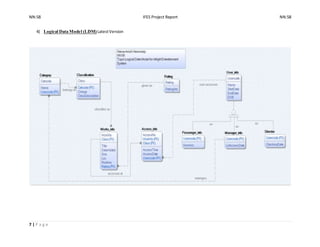

4) Logical Data Model (LDM) LatestVersion

8 | P a g e

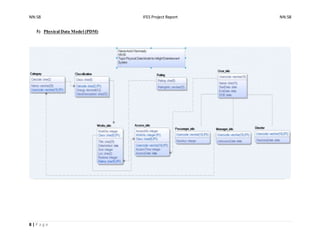

5) Physical Data Model (PDM)

9 | P a g e
6) Relational Data Model Generated By ER-Win
CREATE TABLE [User_info]
(
[Usercode] varchar(10) NOT NULL ,
[Name] char(15) NULL ,
[StartDate] date NULL ,
[EndDate] date NULL ,
[DOB] date NULL ,
PRIMARY KEY CLUSTERED([Usercode] ASC)
)
go
CREATE TABLE [Passenger_info]
(
[NumAcc] integer NULL ,
PRIMARY KEY CLUSTERED([Usercode] ASC),
FOREIGN KEY ([Usercode]) REFERENCES [User_info]([Usercode])
)
go

10 | P a g e

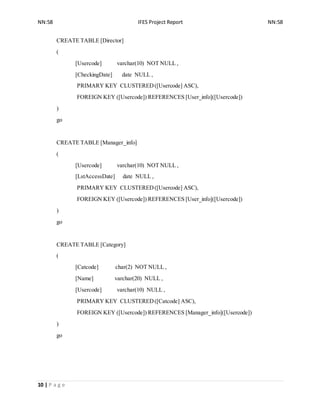

CREATE TABLE [Director]
(
[CheckingDate] date NULL ,
)
go
CREATE TABLE [Manager_info]
(
[LstAccessDate] date NULL ,
)
go
CREATE TABLE [Category]
(
[Catcode] char(2) NOT NULL ,
[Name] varchar(20) NULL ,
[Usercode] varchar(10) NULL ,
PRIMARY KEY CLUSTERED([Catcode] ASC),
FOREIGN KEY ([Usercode]) REFERENCES [Manager_info]([Usercode])
)
go

11 | P a g e

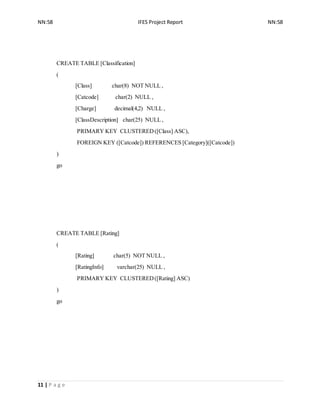

CREATE TABLE [Classification]
(
[Class] char(8) NOT NULL ,
[Catcode] char(2) NULL ,
[Charge] decimal(4,2) NULL ,
[ClassDescription] char(25) NULL ,
PRIMARY KEY CLUSTERED([Class] ASC),
FOREIGN KEY ([Catcode]) REFERENCES [Category]([Catcode])
)
go
CREATE TABLE [Rating]
(
[Rating] char(5) NOT NULL ,
[RatingInfo] varchar(25) NULL ,
PRIMARY KEY CLUSTERED([Rating] ASC)
)
go

12 | P a g e

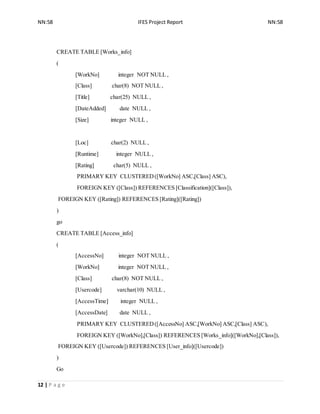

CREATE TABLE [Works_info]
(
[WorkNo] integer NOT NULL ,
[Title] char(25) NULL ,
[DateAdded] date NULL ,
[Size] integer NULL ,
[Loc] char(2) NULL ,
[Runtime] integer NULL ,
[Rating] char(5) NULL ,
PRIMARY KEY CLUSTERED([WorkNo] ASC,[Class] ASC),
FOREIGN KEY ([Class]) REFERENCES [Classification]([Class]),
FOREIGN KEY ([Rating]) REFERENCES [Rating]([Rating])
)
go
CREATE TABLE [Access_info]
(
[AccessNo] integer NOT NULL ,
[WorkNo] integer NOT NULL ,
[Usercode] varchar(10) NULL ,
[AccessTime] integer NULL ,
[AccessDate] date NULL ,
PRIMARY KEY CLUSTERED([AccessNo] ASC,[WorkNo] ASC,[Class] ASC),
FOREIGN KEY ([WorkNo],[Class]) REFERENCES [Works_info]([WorkNo],[Class]),
)
Go

13 | P a g e
7) Data Loading
---Insert Statement For User_info Table------
use IFES58;
INSERT INTO User_info VALUES('MC1014','John Doe','2008-12-11',null,'1988-01-11')
INSERT INTO User_info VALUES('MC1011','Mary Smith','2011-03-11',null,'1976-07-04');
INSERT INTO User_info VALUES('MC1009','Mike Smith','2011-01-23',null,'1975-02-02');
INSERT INTO User_info VALUES('MC1035','Ann Black','2011-03-12','2011-03-16','1972-06-17');
INSERT INTO User_info VALUES('MC0800','Ken White','1999-03-12','2011-03-30','1966-07-07');
INSERT INTO User_info VALUES('MC1039','Jane Dough','2011-03-14','2011-03-14','1990-12-25');
INSERT INTO User_info VALUES('MC1040','Karen Kline','2011-03-14','2011-03-16','1988-05-05');
INSERT INTO User_info VALUES('MC1045','Jack Jones','2001-01-22',null,'1980-07-23');
INSERT INTO User_info VALUES('MC1022','Bill Doe','2011-03-15',null,'2001-01-01');
INSERT INTO User_info VALUES('MC1023','Kelly Doe','2011-03-15',null,'2006-06-06');
INSERT INTO User_info VALUES('MC0900','James Mason','1999-05-22',null,'1980-02-23');
INSERT INTO User_info VALUES('MC1065','Joe Gray','2011-01-13',null,'1995-11-23');
INSERT INTO User_info VALUES('MC0000','Bob Bureaucrat',null,null,null);
INSERT INTO User_info VALUES('MC0101','Sam Supervisor',null,null,null);
INSERT INTO User_info VALUES('MC0102','Mary Manager',null,null,null);
INSERT INTO User_info VALUES('MC0103','Fred Foreman',null,null,null);
---INSERT STATEMENT FOR Passenger_info Table----
use IFES58;
INSERT INTO Passenger_info VALUES('MC1014',6);
---INSERT Statement For Manager_info Table-------
INSERT INTO Manager_info VALUES('MC0101',null);
---INSERT Statement For Director Table-----
INSERT INTO Director VALUES('MC0000',null);

14 | P a g e

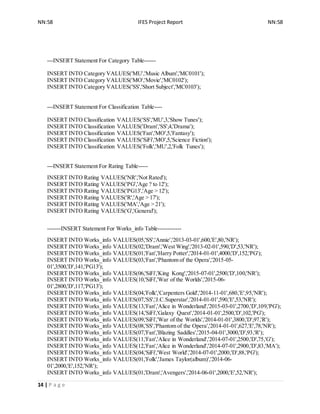

---INSERT Statement For Category Table------
INSERT INTO Category VALUES('MU','Music Album','MC0101');
INSERT INTO Category VALUES('MO','Movie','MC0102');
INSERT INTO Category VALUES('SS','Short Subject','MC0103');
---INSERT Statement For Classification Table----
INSERT INTO Classification VALUES('SS','MU',3,'Show Tunes');
INSERT INTO Classification VALUES('Dram','SS',4,'Drama');
INSERT INTO Classification VALUES('Fan','MO',5,'Fantasy');
INSERT INTO Classification VALUES('SiFi','MO',5,'Science Fiction');
INSERT INTO Classification VALUES('Folk','MU',2,'Folk Tunes');
---INSERT Statement For Rating Table-----
INSERT INTO Rating VALUES('NR','Not Rated');
INSERT INTO Rating VALUES('PG','Age ? to 12');
INSERT INTO Rating VALUES('PG13','Age > 12');
INSERT INTO Rating VALUES('R','Age > 17');
INSERT INTO Rating VALUES('MA','Age > 21');
INSERT INTO Rating VALUES('G','General');
-------INSERT Statement For Works_info Table------------
INSERT INTO Works_info VALUES(05,'SS','Annie','2013-03-01',600,'E',80,'NR');
INSERT INTO Works_info VALUES(02,'Dram','West Wing','2013-02-01',590,'D',53,'NR');
INSERT INTO Works_info VALUES(01,'Fan','Harry Potter','2014-01-01',4000,'D',152,'PG');
INSERT INTO Works_info VALUES(03,'Fan','Phantom of the Opera','2015-05-
01',3500,'D',141,'PG13');
INSERT INTO Works_info VALUES(06,'SiFi','King Kong','2015-07-01',2500,'D',100,'NR');
INSERT INTO Works_info VALUES(10,'SiFi','War of the Worlds','2015-06-
01',2800,'D',117,'PG13');
INSERT INTO Works_info VALUES(04,'Folk','Carpenters Gold','2014-11-01',680,'E',95,'NR');
INSERT INTO Works_info VALUES(07,'SS','J.C.Superstar','2014-01-01',590,'E',53,'NR');
INSERT INTO Works_info VALUES(13,'Fan','Alice in Wonderland','2015-03-01',2700,'D',109,'PG');
INSERT INTO Works_info VALUES(14,'SiFi','Galaxy Quest','2014-01-01',2500,'D',102,'PG');
INSERT INTO Works_info VALUES(09,'SiFi','War of the Worlds','2014-01-01',3800,'D',97,'R');
INSERT INTO Works_info VALUES(08,'SS','Phantom of the Opera','2014-01-01',627,'E',78,'NR');
INSERT INTO Works_info VALUES(07,'Fan','Blazing Saddles','2015-04-01',3000,'D',93,'R');
INSERT INTO Works_info VALUES(11,'Fan','Alice in Wonderland','2014-07-01',2500,'D',75,'G');
INSERT INTO Works_info VALUES(12,'Fan','Alice in Wonderland','2014-07-01',2900,'D',83,'MA');
INSERT INTO Works_info VALUES(04,'SiFi','West World','2014-07-01',2000,'D',88,'PG');
INSERT INTO Works_info VALUES(01,'Folk','James Taylor(album)','2014-06-
01',2000,'E',152,'NR');
INSERT INTO Works_info VALUES(01,'Dram','Avengers','2014-06-01',2000,'E',52,'NR');

15 | P a g e

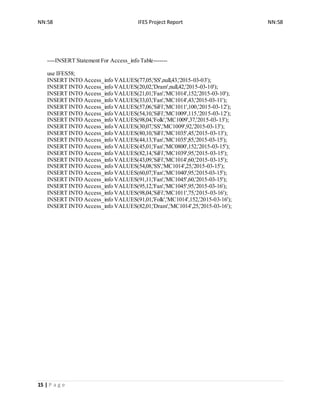

----INSERT Statement For Access_info Table-------
use IFES58;
INSERT INTO Access_info VALUES(77,05,'SS',null,43,'2015-03-03');
INSERT INTO Access_info VALUES(20,02,'Dram',null,42,'2015-03-10');
INSERT INTO Access_info VALUES(21,01,'Fan','MC1014',152,'2015-03-10');
INSERT INTO Access_info VALUES(57,06,'SiFi','MC1011',100,'2015-03-12');
INSERT INTO Access_info VALUES(98,04,'Folk','MC1009',37,'2015-03-13');
INSERT INTO Access_info VALUES(30,07,'SS','MC1009',92,'2015-03-13');
INSERT INTO Access_info VALUES(54,08,'SS','MC1014',25,'2015-03-15');
INSERT INTO Access_info VALUES(91,01,'Folk','MC1014',152,'2015-03-16');
INSERT INTO Access_info VALUES(82,01,'Dram','MC1014',25,'2015-03-16');

16 | P a g e

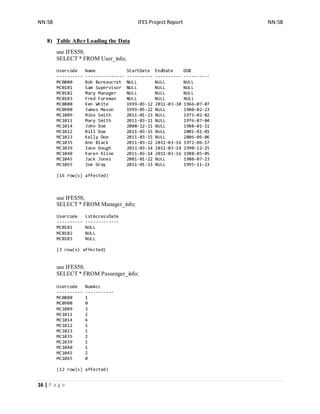

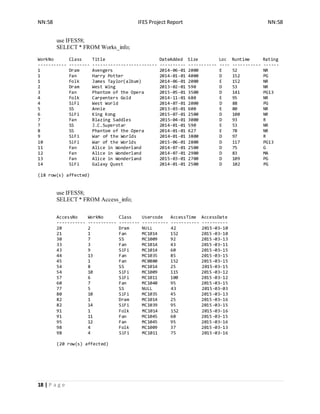

8) Table After Loading the Data
use IFES58;
SELECT * FROM User_info;
Usercode Name StartDate EndDate DOB
---------- --------------- ---------- ---------- ----------
MC0000 Bob Bureaucrat NULL NULL NULL
MC0101 Sam Supervisor NULL NULL NULL
MC0102 Mary Manager NULL NULL NULL
MC0103 Fred Foreman NULL NULL NULL
MC0800 Ken White 1999-03-12 2011-03-30 1966-07-07
MC0900 James Mason 1999-05-22 NULL 1980-02-23
MC1009 Mike Smith 2011-01-23 NULL 1975-02-02
MC1011 Mary Smith 2011-03-11 NULL 1976-07-04
MC1014 John Doe 2008-12-11 NULL 1988-01-11
MC1022 Bill Doe 2011-03-15 NULL 2001-01-01
MC1023 Kelly Doe 2011-03-15 NULL 2006-06-06
MC1035 Ann Black 2011-03-12 2011-03-16 1972-06-17
MC1039 Jane Dough 2011-03-14 2011-03-14 1990-12-25
MC1040 Karen Kline 2011-03-14 2011-03-16 1988-05-05
MC1045 Jack Jones 2001-01-22 NULL 1980-07-23
MC1065 Joe Gray 2011-01-13 NULL 1995-11-23
(16 row(s) affected)
use IFES58;
SELECT * FROM Manager_info;
Usercode LstAccessDate
---------- -------------
MC0101 NULL
MC0102 NULL
MC0103 NULL
(3 row(s) affected)
use IFES58;
SELECT * FROM Passenger_info;
Usercode NumAcc
---------- -----------
MC0800 1
MC0900 0
MC1009 3
MC1011 2
MC1014 6
MC1022 1
MC1023 1
MC1035 2
MC1039 1
MC1040 1
MC1045 2
MC1065 0

17 | P a g e
use IFES58;
SELECT * FROM Director;
Usercode CheckingDate
---------- ------------
MC0000 NULL
(1 row(s) affected)
use IFES58;
SELECT * FROM Category;
Catcode Name Usercode
------- -------------------- ----------
MO Movie MC0102
MU Music Album MC0101
SS Short Subject MC0103
(3 row(s) affected)
use IFES58;
SELECT * FROM Classification;
Class Catcode Charge ClassDescription
-------- ------- --------------------------------------- -------------------------
Dram SS 4.00 Drama
Fan MO 5.00 Fantasy
Folk MU 2.00 Folk Tunes
SiFi MO 5.00 Science Fiction
SS MU 3.00 Show Tunes
(5 row(s) affected)
use IFES58;
SELECT * FROM Rating;
Rating RatingInfo
------ -------------------------
G General
MA Age > 21
NR Not Rated
PG Age ? to 12
PG13 Age > 12
R Age > 17
(6 row(s) affected)

18 | P a g e
use IFES58;
SELECT * FROM Works_info;
WorkNo Class Title DateAdded Size Loc Runtime Rating
----------- -------- ------------------------- ---------- ----------- ---- ----------- ------
1 Dram Avengers 2014-06-01 2000 E 52 NR
1 Fan Harry Potter 2014-01-01 4000 D 152 PG
1 Folk James Taylor(album) 2014-06-01 2000 E 152 NR
2 Dram West Wing 2013-02-01 590 D 53 NR
3 Fan Phantom of the Opera 2015-05-01 3500 D 141 PG13
4 Folk Carpenters Gold 2014-11-01 680 E 95 NR
4 SiFi West World 2014-07-01 2000 D 88 PG
5 SS Annie 2013-03-01 600 E 80 NR
6 SiFi King Kong 2015-07-01 2500 D 100 NR
7 Fan Blazing Saddles 2015-04-01 3000 D 93 R
7 SS J.C.Superstar 2014-01-01 590 E 53 NR
8 SS Phantom of the Opera 2014-01-01 627 E 78 NR
9 SiFi War of the Worlds 2014-01-01 3800 D 97 R
10 SiFi War of the Worlds 2015-06-01 2800 D 117 PG13
11 Fan Alice in Wonderland 2014-07-01 2500 D 75 G
12 Fan Alice in Wonderland 2014-07-01 2900 D 83 MA
13 Fan Alice in Wonderland 2015-03-01 2700 D 109 PG
14 SiFi Galaxy Quest 2014-01-01 2500 D 102 PG
use IFES58;
SELECT * FROM Access_info;
AccessNo WorkNo Class Usercode AccessTime AccessDate
----------- ----------- -------- ---------- ----------- ----------
20 2 Dram NULL 42 2015-03-10
21 1 Fan MC1014 152 2015-03-10
30 7 SS MC1009 92 2015-03-13
33 3 Fan MC1014 43 2015-03-11
43 9 SiFi MC1014 60 2015-03-15
44 13 Fan MC1035 85 2015-03-15
45 1 Fan MC0800 152 2015-03-15
54 8 SS MC1014 25 2015-03-15
54 10 SiFi MC1009 115 2015-03-12
57 6 SiFi MC1011 100 2015-03-12
60 7 Fan MC1040 95 2015-03-15
77 5 SS NULL 43 2015-03-03
80 10 SiFi MC1035 45 2015-03-13
82 1 Dram MC1014 25 2015-03-16
82 14 SiFi MC1039 95 2015-03-15
91 1 Folk MC1014 152 2015-03-16
91 11 Fan MC1045 60 2015-03-15
95 12 Fan MC1045 95 2015-03-16
98 4 Folk MC1009 37 2015-03-13
98 4 SiFi MC1011 75 2015-03-16

19 | P a g e

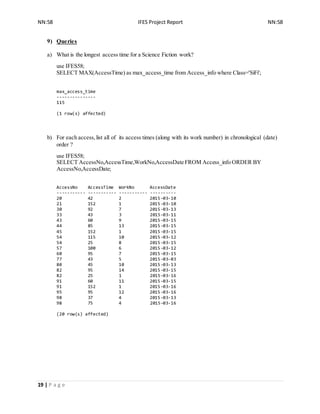

9) Queries
a) What is the longest access time for a Science Fiction work?
use IFES58;
SELECT MAX(AccessTime) as max_access_time from Access_info where Class='SiFi';
max_access_time
---------------
115
(1 row(s) affected)
b) For each access,list all of its access times (along with its work number) in chronological (date)
order ?
use IFES58;
SELECT AccessNo,AccessTime,WorkNo,AccessDate FROM Access_info ORDER BY
AccessNo,AccessDate;
AccessNo AccessTime WorkNo AccessDate
----------- ----------- ----------- ----------
20 42 2 2015-03-10
21 152 1 2015-03-10
30 92 7 2015-03-13
33 43 3 2015-03-11
43 60 9 2015-03-15
44 85 13 2015-03-15
45 152 1 2015-03-15
54 115 10 2015-03-12
54 25 8 2015-03-15
57 100 6 2015-03-12
60 95 7 2015-03-15
77 43 5 2015-03-03
80 45 10 2015-03-13
82 95 14 2015-03-15
82 25 1 2015-03-16
91 60 11 2015-03-15
91 152 1 2015-03-16
95 95 12 2015-03-16
98 37 4 2015-03-13
98 75 4 2015-03-16

20 | P a g e

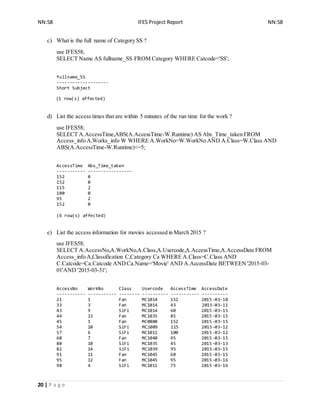

c) What is the full name of Category SS ?
use IFES58;
SELECT Name AS fullname_SS FROM Category WHERE Catcode='SS';
fullname_SS
--------------------
Short Subject
(1 row(s) affected)
d) List the access times that are within 5 minutes of the run time for the work ?
use IFES58;
SELECT A.AccessTime,ABS(A.AccessTime-W.Runtime) AS Abs_Time_taken FROM
Access_info A,Works_info W WHERE A.WorkNo=W.WorkNo AND A.Class=W.Class AND
ABS(A.AccessTime-W.Runtime)<=5;
AccessTime Abs_Time_taken
----------- -----------------
152 0
152 0
115 2
100 0
95 2
152 0
(6 row(s) affected)
e) List the access information for movies accessed in March 2015 ?
use IFES58;
SELECT A.AccessNo,A.WorkNo,A.Class,A.Usercode,A.AccessTime,A.AccessDate FROM
Access_info A,Classification C,Category Ca WHERE A.Class=C.Class AND
C.Catcode=Ca.Catcode ANDCa.Name='Movie' AND A.AccessDate BETWEEN'2015-03-
01'AND '2015-03-31';
----------- ----------- -------- ---------- ----------- ----------
21 1 Fan MC1014 152 2015-03-10
33 3 Fan MC1014 43 2015-03-11
43 9 SiFi MC1014 60 2015-03-15
44 13 Fan MC1035 85 2015-03-15
45 1 Fan MC0800 152 2015-03-15
54 10 SiFi MC1009 115 2015-03-12
57 6 SiFi MC1011 100 2015-03-12
60 7 Fan MC1040 95 2015-03-15
80 10 SiFi MC1035 45 2015-03-13
82 14 SiFi MC1039 95 2015-03-15
91 11 Fan MC1045 60 2015-03-15
95 12 Fan MC1045 95 2015-03-16
98 4 SiFi MC1011 75 2015-03-16

21 | P a g e

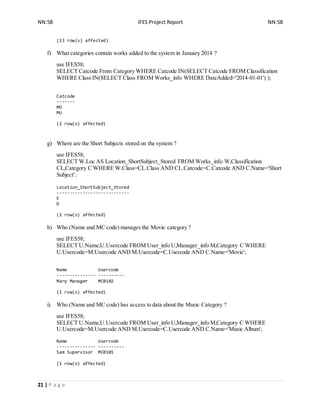

f) What categories contain works added to the system in January 2014 ?
use IFES58;
SELECT Catcode From Category WHERE Catcode IN(SELECT Catcode FROM Classification
WHERE Class IN(SELECT Class FROM Works_info WHERE DateAdded='2014-01-01') );
Catcode
-------
MO
MU
(2 row(s) affected)
g) Where are the Short Subjects stored on the system ?
use IFES58;
SELECT W.Loc AS Location_ShortSubject_Stored FROM Works_info W,Classification
CL,Category C WHERE W.Class=CL.Class AND CL.Catcode=C.Catcode AND C.Name='Short
Subject';
Location_ShortSubject_Stored
----------------------------
E
D
(2 row(s) affected)
h) Who (Name and MC code) manages the Movie category ?
use IFES58;
SELECT U.Name,U.Usercode FROM User_info U,Manager_info M,Category C WHERE
U.Usercode=M.Usercode AND M.Usercode=C.Usercode AND C.Name='Movie';
Name Usercode
--------------- ----------
Mary Manager MC0102
(1 row(s) affected)
i) Who (Name and MC code) has access to data about the Music Category ?
use IFES58;
SELECT U.Name,U.Usercode FROM User_info U,Manager_info M,Category C WHERE
U.Usercode=M.Usercode AND M.Usercode=C.Usercode AND C.Name='Music Album';
Name Usercode
--------------- ----------
Sam Supervisor MC0101
(1 row(s) affected)

22 | P a g e
j) How many accesses are charged to each passenger (Name and MC code) ?
use IFES58;
SELECT U.Usercode,U.Name,COUNT(U.Usercode) as Number_of_accesses FROM User_info
U, Access_info A WHERE U.Usercode=A.Usercode GROUP BY U.Usercode,U.Name;
Usercode Name Number_of_accesses
---------- --------------- ------------------
MC0800 Ken White 1
MC1009 Mike Smith 3
MC1011 Mary Smith 2
MC1014 John Doe 6
MC1035 Ann Black 2
MC1039 Jane Dough 1
MC1040 Karen Kline 1
MC1045 Jack Jones 2
(8 row(s) affected)
k) List the accesses made by MC1014 in date order ?
use IFES58;
SELECT AccessNo,WorkNo,Class,Usercode,AccessTime,AccessDate FROM Access_info
WHERE Usercode='MC1014'ORDER BY AccessDate;
----------- ----------- -------- ---------- ----------- ----------
21 1 Fan MC1014 152 2015-03-10
33 3 Fan MC1014 43 2015-03-11
43 9 SiFi MC1014 60 2015-03-15
54 8 SS MC1014 25 2015-03-15
82 1 Dram MC1014 25 2015-03-16
91 1 Folk MC1014 152 2015-03-16
(6 row(s) affected)

23 | P a g e

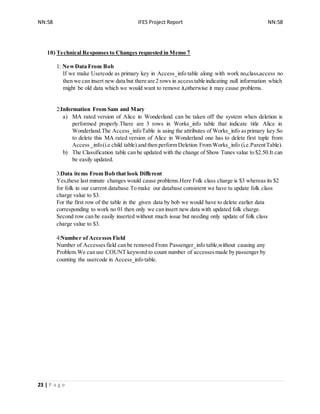

10) Technical Responses to Changes requested in Memo 7
1: NewData From Bob
If we make Usercode as primary key in Access_info table along with work no,class,access no
then we can insert new data but there are 2 rows in accesstable indicating null information which
might be old data which we would want to remove it,otherwise it may cause problems.
2:Information From Sam and Mary
a) MA rated version of Alice in Wonderland can be taken off the system when deletion is
performed properly.There are 3 rows in Works_info table that indicate title Alice in
Wonderland.The Access_infoTable is using the attributes of Works_info asprimary key.So
to delete this MA rated version of Alice in Wonderland one has to delete first tuple from
Access_info(i.e child table) and then perform Deletion From Works_info (i.e.ParentTable).
b) The Classification table can be updated with the change of Show Tunes value to $2.50.It can
be easily updated.
3:Data items From Bob that look Different
Yes,these last minute changes would cause problems.Here Folk class charge is $3 whereas its $2
for folk in our current database.To make our database consistent we have tu update folk class
charge value to $3.
For the first row of the table in the given data by bob we would have to delete earlier data
corresponding to work no 01 then only we can insert new data with updated folk charge.
Second row can be easily inserted without much issue but needing only update of folk class
charge value to $3.
4:Number of Accesses Field
Number of Accessesfield can be removed From Passenger_info table,without causing any
Problem.We can use COUNT keyword to count number of accessesmade by passenger by
counting the usercode in Access_info table.

24 | P a g e
11) Appendix
Previous Drafts of LDM and PDM and FD’s.
Version 1 of the LDM

25 | P a g e

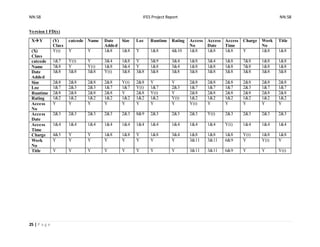

Version 1 FD(s)
XY (Y)
Class
catcode Name Date
Added
Size Loc Runtime Rating Access
No
Access
Date
Access
Time
Charge Work
No
Title
(X)
Class
Y(t) Y Y 1&8 1&8 Y 1&8 4&10 1&8 1&8 1&8 Y 1&8 1&8
catcode 1&7 Y(t) Y 3&4 1&8 Y 3&9 3&4 1&8 3&4 1&8 7&8 1&8 1&8
Name 7&8 Y Y(t) 1&8 3&4 Y 1&8 3&4 1&8 1&8 1&8 7&8 1&8 1&8
Date
Added
3&8 3&8 3&8 Y(t) 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8
Size 2&8 2&8 2&8 2&8 Y(t) 2&8 Y Y 2&8 2&8 2&8 2&8 2&8 2&8
Loc 1&7 2&3 2&3 1&7 1&7 Y(t) 1&7 2&3 1&7 1&7 1&7 2&3 1&7 1&7
Runtime 2&8 2&8 2&8 2&8 Y 2&8 Y(t) Y 2&8 2&8 2&8 2&8 2&8 2&8
Rating 1&2 1&2 1&2 1&2 1&2 1&2 1&2 Y(t) 1&2 1&2 1&2 1&2 1&2 1&2
Access
No
Y Y Y Y Y Y Y Y Y(t) Y Y Y Y Y
Access
Date
2&3 2&3 2&3 2&3 2&3 8&9 2&3 2&3 2&3 Y(t) 2&3 2&3 2&3 2&3
Access
Time
1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 Y(t) 1&4 1&4 1&4
Charge 4&5 Y Y 1&8 1&8 Y 1&8 3&4 1&8 1&8 1&8 Y(t) 1&8 1&8
Work
No
Y Y Y Y Y Y Y Y 3&11 3&11 6&9 Y Y(t) Y
Title Y Y Y Y Y Y Y Y 3&11 3&11 6&9 Y Y Y(t)

26 | P a g e

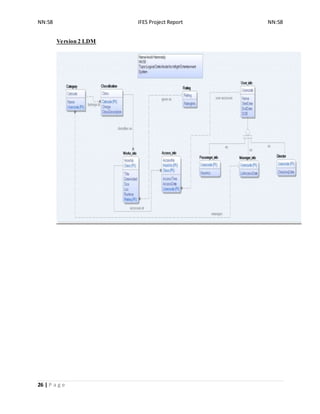

Version 2 LDM

27 | P a g e

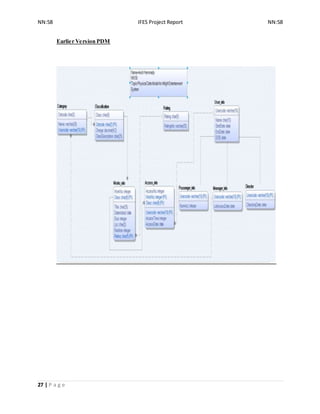

Earlier Version PDM

28 | P a g e

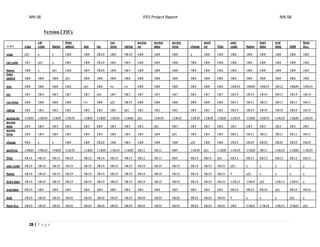

Version 2 FD’s
XY class
cat
code Name
Date
added size loc
run
time rating
access
no
access
date
access
time charge
work
no Title
user
code Name
start
date
end
date DOB
Num
Acc.
class y(t) y y 1&8 1&8 2&20 1&8 4&10 1&8 1&8 1&8 y 1&8 1&8 1&8 1&8 1&8 1&8 1&8 1&8
cat code 1&7 y(t) y 3&4 1&8 2&20 3&9 3&4 1&8 3&4 1&8 7&8 1&8 1&8 1&8 1&8 1&8 1&8 1&8 1&8
Name 7&8 y y(t) 1&8 3&4 2&20 1&8 3&4 1&8 1&8 1&8 7&8 1&8 1&8 1&8 1&8 1&8 1&8 1&8 1&8
Date
added 3&8 3&8 3&8 y(t) 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8 3&8
size 2&8 2&8 2&8 2&8 y(t) 2&8 no no 2&8 2&8 2&8 2&8 2&8 2&8 18&20 18&20 18&20 5&12 18&20 18&20
loc 1&7 2&3 2&3 1&7 1&7 y(t) 1&7 2&3 1&7 1&7 1&7 2&3 1&7 1&7 1&19 1&19 1&19 9&11 1&19 1&19
run time 2&8 2&8 2&8 2&8 no 2&8 y(t) 3&19 2&8 2&8 2&8 2&8 2&8 2&8 3&11 3&11 3&11 3&11 3&11 3&11
rating 1&2 1&2 1&2 1&2 1&2 1&2 1&2 y(t) 1&2 1&2 1&2 1&2 1&2 1&2 1&19 1&19 1&19 1&19 1&19 1&19
accessno 12&20 12&20 12&20 12&20 12&20 12&20 12&20 12&20 y(t) 12&20 12&20 12&20 12&20 12&20 12&20 12&20 12&20 12&20 12&20 12&20
access
date 2&3 2&3 2&3 2&3 2&3 8&9 2&3 2&3 2&3 y(t) 2&3 2&3 2&3 2&3 2&3 2&3 2&3 2&3 2&3 2&3
access
time 1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 1&4 y(t) 1&4 1&4 1&4 3&11 3&11 3&11 3&11 3&11 3&11
charge 4&5 y y 1&8 1&8 2&20 1&8 3&4 1&8 1&8 1&8 y(t) 1&8 1&8 2&20 2&20 2&20 2&20 2&20 2&20
work no 19&20 19&20 19&20 11&20 11&20 11&20 11&20 11&20 3&11 3&11 6&9 11&20 y(t) 11&20 11&20 11&20 3&11 11&20 11&20 11&20
Title 4&14 4&14 4&14 4&14 4&14 4&14 4&14 4&14 3&11 3&11 6&9 4&14 4&14 y(t) 6&13 6&13 6&13 6&13 6&13 6&13
user code 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 y(t) y y y y y
Name 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 Y y(t) y y y y
Start date 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 3&19 12&15 12&15 y(t) 12&15 12&15 y
end date 9&10 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 3&4 9&10 9&10 9&10 y(t) 9&10 9&10
Dob 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 Y y y y y(t) y
Num Acc 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&20 3&9 21&22 17&18 14&21 21&22 y(t)

IFESFinal58

More Related Content

Similar to IFESFinal58

IFESFinal58
