This document provides guidance on selecting an appropriate LED driver by considering several key factors: - Choose between a constant current or constant voltage driver based on the lighting requirements. Consider the output current or voltage and how it meets the light's needs. - Consider the maximum wattage requirement of the light and match it to the driver's output. Also match the driver's input voltage range to the location where the light will be used. - Determine if dimming is needed and if so, what type of dimming compatibility is required. - Check that the driver has the appropriate IP rating for protection against environmental factors like water and dust. FSP offers a wide range of LED drivers for various

1. How to Select
a suitable
LED Driver ?

2. Need a Constant Current or
Constant Voltage Driver?

3. If Constant Current Driver...
Consider output current first and
check output voltage calculated
requirement of your light
If Constant Voltage Driver...
Consider output voltage first and check
output current calculated requirement of
your light

4. Max Wattage?
Consider the wattage
requirement of your light

5. Input Voltage
Range?
Depends on the place you’re
using your light

6. Dimmable?
1-10V? PWM? Triac? DALI? Non-Dimmable?…

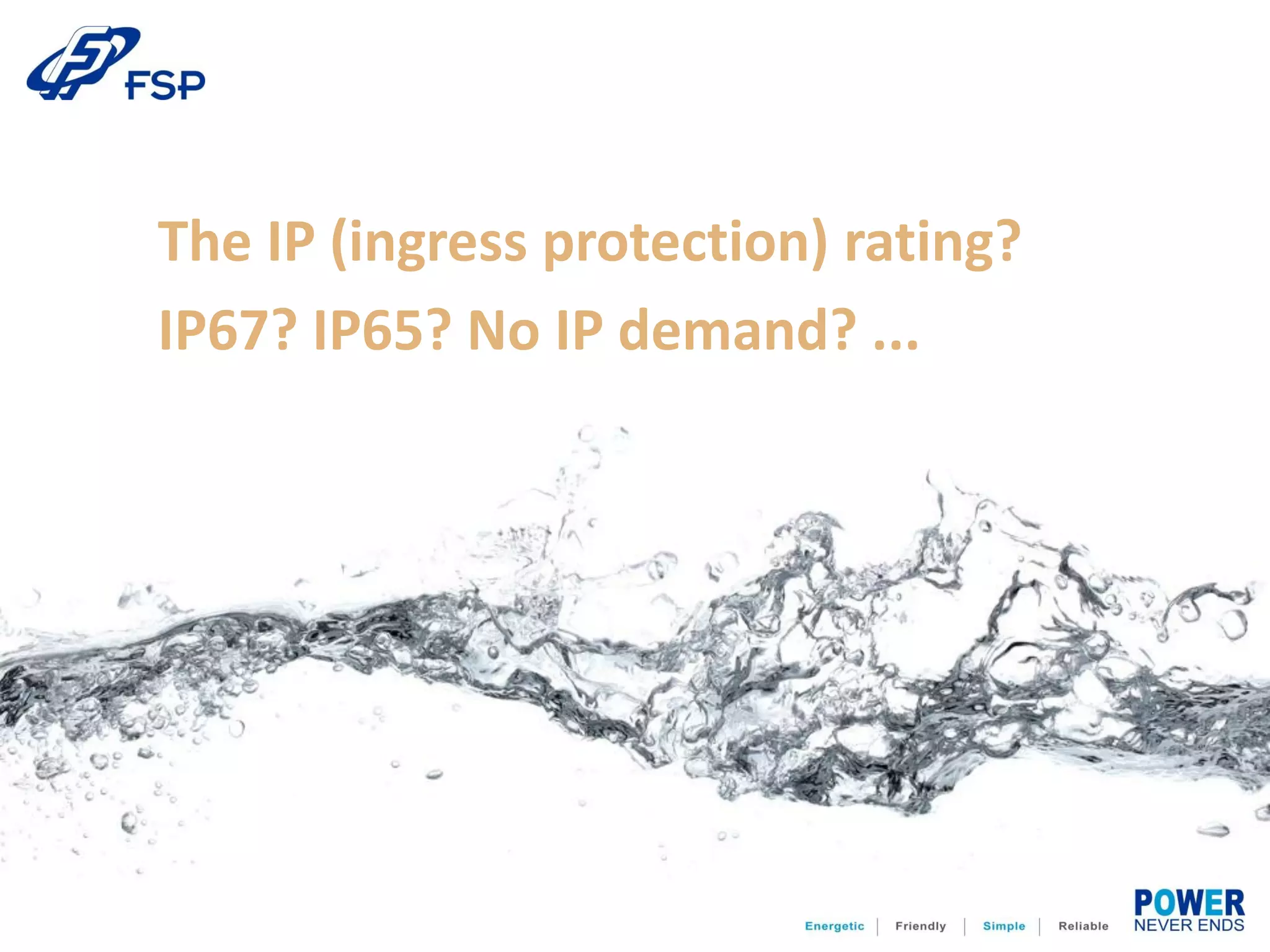

7. The IP (ingress protection) rating?
IP67? IP65? No IP demand? ...

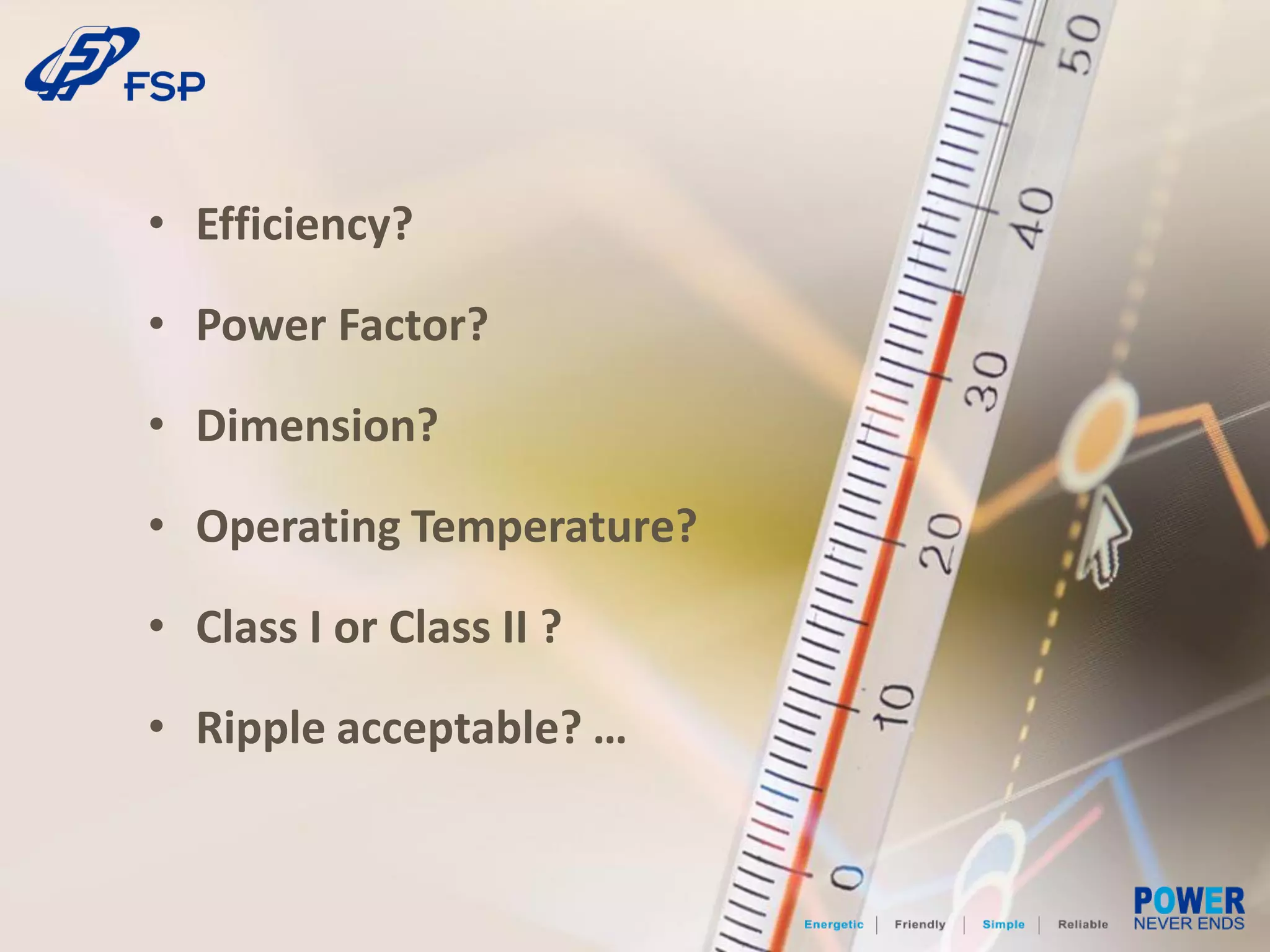

8. • Efficiency?
• Power Factor?
• Dimension?
• Operating Temperature?
• Class I or Class II ?
• Ripple acceptable? …

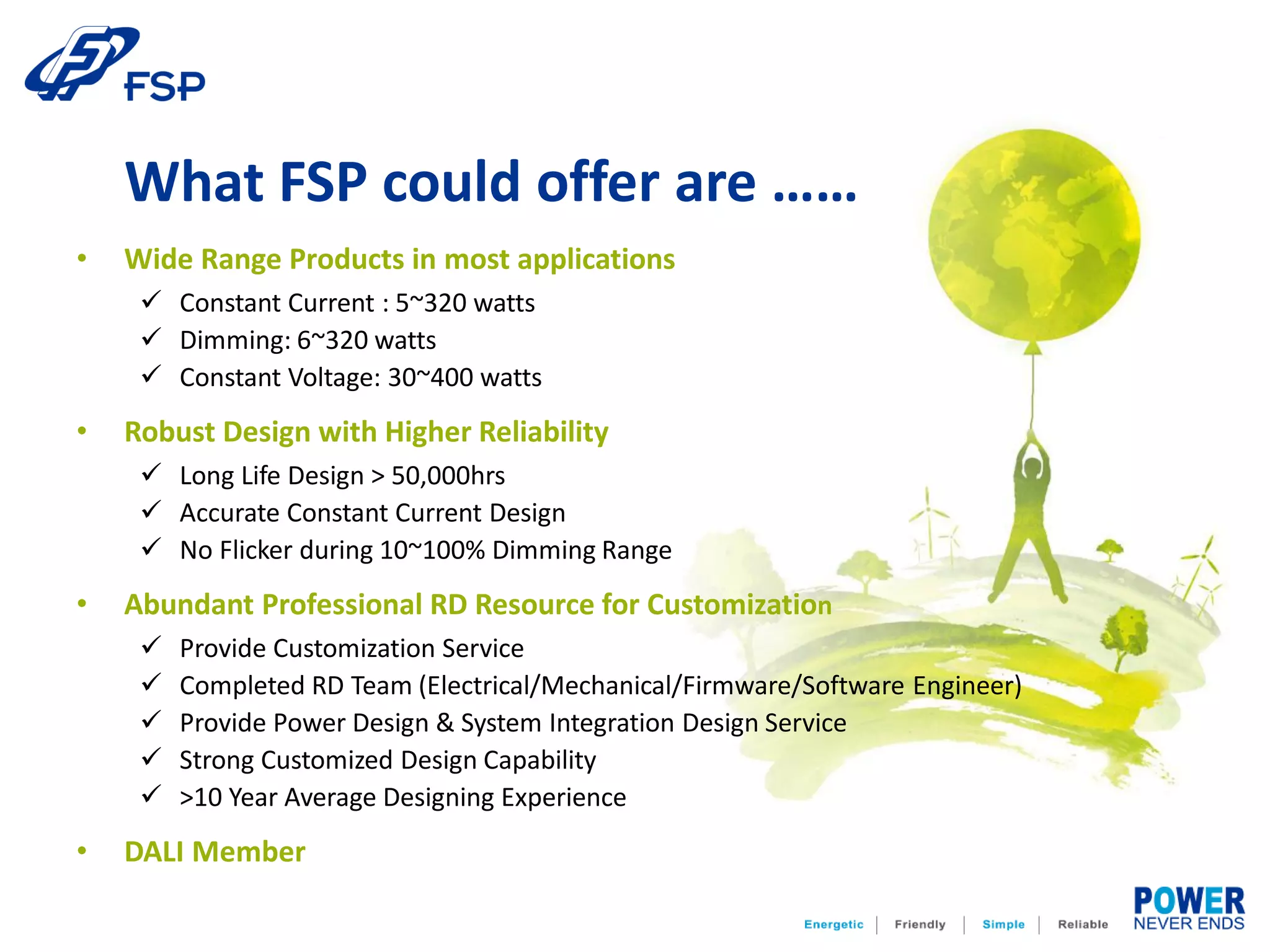

9. • Wide Range Products in most applications
 Constant Current : 5~320 watts
 Dimming: 6~320 watts
 Constant Voltage: 30~400 watts
• Robust Design with Higher Reliability
 Long Life Design > 50,000hrs
 Accurate Constant Current Design
 No Flicker during 10~100% Dimming Range
• Abundant Professional RD Resource for Customization
 Provide Customization Service
 Completed RD Team (Electrical/Mechanical/Firmware/Software Engineer)
 Provide Power Design & System Integration Design Service
 Strong Customized Design Capability
 >10 Year Average Designing Experience
• DALI Member
What FSP could offer are ……

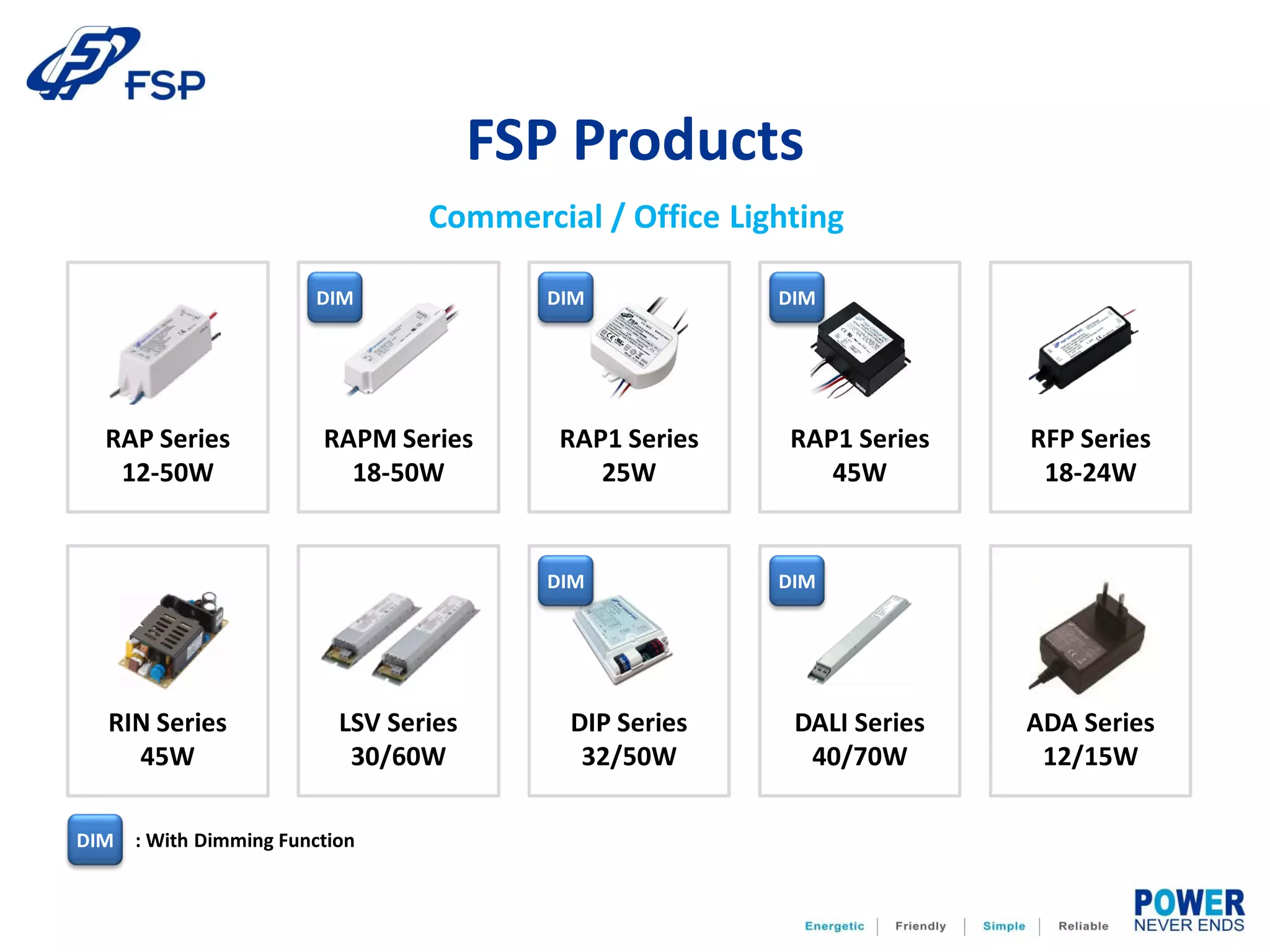

10. ADA Series
12/15W
DALI Series
40/70W
DIP Series
32/50W
RIN Series
45W
Commercial / Office Lighting
LSV Series
30/60W
FSP Products
RAP1 Series
45W
RAP1 Series
25W
RFP Series
18-24W
RAP Series
12-50W
RAPM Series
18-50W
DIM DIM DIM
DIM DIM
: With Dimming FunctionDIM

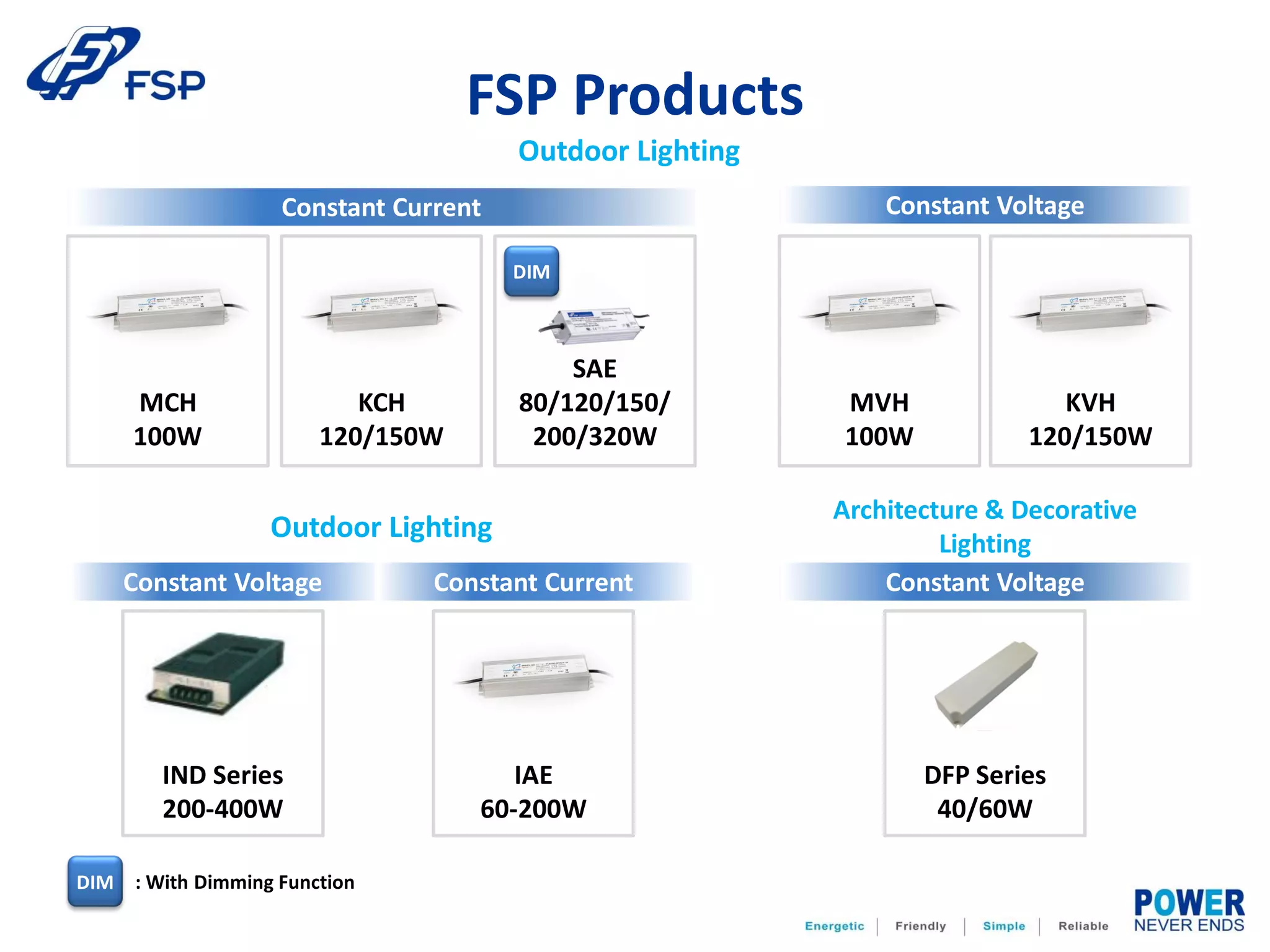

11. IND Series
200-400W
Constant Current
IAE
60-200W
DFP Series
40/60W
FSP Products
Outdoor Lighting
MVH
100W
KVH
120/150W
MCH
100W
KCH
120/150W
SAE
80/120/150/
200/320W
DIM
Constant Voltage
Outdoor Lighting
Architecture & Decorative
Lighting
Constant VoltageConstant Voltage Constant Current
: With Dimming FunctionDIM
